WO2015046540A1 - 透明プラスチック基材及びプラスチックレンズ - Google Patents
透明プラスチック基材及びプラスチックレンズ Download PDFInfo
- Publication number
- WO2015046540A1 WO2015046540A1 PCT/JP2014/075963 JP2014075963W WO2015046540A1 WO 2015046540 A1 WO2015046540 A1 WO 2015046540A1 JP 2014075963 W JP2014075963 W JP 2014075963W WO 2015046540 A1 WO2015046540 A1 WO 2015046540A1
- Authority
- WO
- WIPO (PCT)
- Prior art keywords
- transparent plastic
- group
- carbon atoms
- plastic substrate
- bis
- Prior art date
Links
Classifications
-
- C—CHEMISTRY; METALLURGY
- C08—ORGANIC MACROMOLECULAR COMPOUNDS; THEIR PREPARATION OR CHEMICAL WORKING-UP; COMPOSITIONS BASED THEREON
- C08K—Use of inorganic or non-macromolecular organic substances as compounding ingredients
- C08K5/00—Use of organic ingredients
- C08K5/16—Nitrogen-containing compounds
- C08K5/34—Heterocyclic compounds having nitrogen in the ring
- C08K5/3467—Heterocyclic compounds having nitrogen in the ring having more than two nitrogen atoms in the ring
- C08K5/3472—Five-membered rings
- C08K5/3475—Five-membered rings condensed with carbocyclic rings
-
- C—CHEMISTRY; METALLURGY
- C08—ORGANIC MACROMOLECULAR COMPOUNDS; THEIR PREPARATION OR CHEMICAL WORKING-UP; COMPOSITIONS BASED THEREON
- C08G—MACROMOLECULAR COMPOUNDS OBTAINED OTHERWISE THAN BY REACTIONS ONLY INVOLVING UNSATURATED CARBON-TO-CARBON BONDS
- C08G18/00—Polymeric products of isocyanates or isothiocyanates
- C08G18/06—Polymeric products of isocyanates or isothiocyanates with compounds having active hydrogen
- C08G18/83—Chemically modified polymers
- C08G18/834—Chemically modified polymers by compounds containing a thiol group
-
- C—CHEMISTRY; METALLURGY
- C08—ORGANIC MACROMOLECULAR COMPOUNDS; THEIR PREPARATION OR CHEMICAL WORKING-UP; COMPOSITIONS BASED THEREON
- C08J—WORKING-UP; GENERAL PROCESSES OF COMPOUNDING; AFTER-TREATMENT NOT COVERED BY SUBCLASSES C08B, C08C, C08F, C08G or C08H
- C08J7/00—Chemical treatment or coating of shaped articles made of macromolecular substances
- C08J7/04—Coating
-
- C—CHEMISTRY; METALLURGY
- C08—ORGANIC MACROMOLECULAR COMPOUNDS; THEIR PREPARATION OR CHEMICAL WORKING-UP; COMPOSITIONS BASED THEREON
- C08J—WORKING-UP; GENERAL PROCESSES OF COMPOUNDING; AFTER-TREATMENT NOT COVERED BY SUBCLASSES C08B, C08C, C08F, C08G or C08H
- C08J7/00—Chemical treatment or coating of shaped articles made of macromolecular substances
- C08J7/04—Coating
- C08J7/06—Coating with compositions not containing macromolecular substances
-
- C—CHEMISTRY; METALLURGY
- C08—ORGANIC MACROMOLECULAR COMPOUNDS; THEIR PREPARATION OR CHEMICAL WORKING-UP; COMPOSITIONS BASED THEREON
- C08L—COMPOSITIONS OF MACROMOLECULAR COMPOUNDS
- C08L101/00—Compositions of unspecified macromolecular compounds
-
- C—CHEMISTRY; METALLURGY
- C08—ORGANIC MACROMOLECULAR COMPOUNDS; THEIR PREPARATION OR CHEMICAL WORKING-UP; COMPOSITIONS BASED THEREON
- C08L—COMPOSITIONS OF MACROMOLECULAR COMPOUNDS
- C08L75/00—Compositions of polyureas or polyurethanes; Compositions of derivatives of such polymers
- C08L75/04—Polyurethanes
-
- C—CHEMISTRY; METALLURGY
- C08—ORGANIC MACROMOLECULAR COMPOUNDS; THEIR PREPARATION OR CHEMICAL WORKING-UP; COMPOSITIONS BASED THEREON
- C08L—COMPOSITIONS OF MACROMOLECULAR COMPOUNDS
- C08L81/00—Compositions of macromolecular compounds obtained by reactions forming in the main chain of the macromolecule a linkage containing sulfur with or without nitrogen, oxygen or carbon only; Compositions of polysulfones; Compositions of derivatives of such polymers
- C08L81/04—Polysulfides
-
- G—PHYSICS
- G02—OPTICS
- G02B—OPTICAL ELEMENTS, SYSTEMS OR APPARATUS
- G02B1/00—Optical elements characterised by the material of which they are made; Optical coatings for optical elements
- G02B1/04—Optical elements characterised by the material of which they are made; Optical coatings for optical elements made of organic materials, e.g. plastics
-
- G—PHYSICS
- G02—OPTICS
- G02B—OPTICAL ELEMENTS, SYSTEMS OR APPARATUS
- G02B1/00—Optical elements characterised by the material of which they are made; Optical coatings for optical elements
- G02B1/04—Optical elements characterised by the material of which they are made; Optical coatings for optical elements made of organic materials, e.g. plastics
- G02B1/041—Lenses
-
- G—PHYSICS
- G02—OPTICS
- G02B—OPTICAL ELEMENTS, SYSTEMS OR APPARATUS
- G02B5/00—Optical elements other than lenses
- G02B5/20—Filters
- G02B5/22—Absorbing filters
-
- G—PHYSICS
- G02—OPTICS
- G02B—OPTICAL ELEMENTS, SYSTEMS OR APPARATUS
- G02B5/00—Optical elements other than lenses
- G02B5/20—Filters
- G02B5/22—Absorbing filters
- G02B5/223—Absorbing filters containing organic substances, e.g. dyes, inks or pigments
-
- C—CHEMISTRY; METALLURGY
- C08—ORGANIC MACROMOLECULAR COMPOUNDS; THEIR PREPARATION OR CHEMICAL WORKING-UP; COMPOSITIONS BASED THEREON
- C08J—WORKING-UP; GENERAL PROCESSES OF COMPOUNDING; AFTER-TREATMENT NOT COVERED BY SUBCLASSES C08B, C08C, C08F, C08G or C08H
- C08J2375/00—Characterised by the use of polyureas or polyurethanes; Derivatives of such polymers
- C08J2375/04—Polyurethanes
-
- C—CHEMISTRY; METALLURGY
- C08—ORGANIC MACROMOLECULAR COMPOUNDS; THEIR PREPARATION OR CHEMICAL WORKING-UP; COMPOSITIONS BASED THEREON
- C08L—COMPOSITIONS OF MACROMOLECULAR COMPOUNDS
- C08L2201/00—Properties
- C08L2201/10—Transparent films; Clear coatings; Transparent materials
Definitions
- the present invention relates to a transparent plastic substrate, a plastic lens, and a transparent plastic member, and more particularly to a transparent plastic substrate and a plastic lens having a high blue light cut rate.
- blue region In a transparent plastic substrate and a plastic lens, by cutting light in the blue region (wavelength range of 380 to 500 nm), glare is reduced and visibility and contrast are improved.
- the light in the blue region (380 to 500 nm) is strong in terms of eye health and thus causes damage to the retina and the like. Damage caused by blue light is referred to as “blue light hazard”, and especially in the vicinity of 380 to 420 nm on the low wavelength side, it is said that it is desirable to cut light in this region.
- Patent Document 1 includes a multilayer film disposed on a convex surface of a plastic member, and the multilayer film has an average reflectance of 2 to 400 in a wavelength range of 400 to 500 nm.
- a lens that is 10% has been proposed.
- Patent Document 2 describes a polymerizable composition for a lens containing a benzotriazole-based ultraviolet absorber and having an increased light cut rate.
- An object of the present invention is to provide a transparent plastic base material having a high blue light cut rate, a plastic lens having the same, and a transparent plastic member.
- the present inventors have added the ultraviolet absorber composed of a benzotriazole compound having a specific structure including a group that imparts a resonance effect to a transparent plastic substrate.
- the inventors have found out to achieve the present invention. That is, the present invention provides the following [1] to [3].
- R 3 represents a hydrogen atom or a divalent hydrocarbon group having 1 to 8 carbon atoms
- n is a valence of R 3 , Yes, when m is 1, R 1 and R 2 may be the same or different.
- X represents a group imparting a resonance effect.
- the present invention it is possible to provide a transparent plastic substrate having a high blue light cut rate, a plastic lens having the same, and a transparent plastic member.
- the transparent plastic base material of this invention contains the benzotriazole compound shown by Formula (1) as a ultraviolet absorber.
- X represents a group imparting a resonance effect. It is presumed that the blue light cut rate is increased by the presence of a group imparting a resonance effect on the benzotriazole ring.
- the substitution position of X is preferably the 5-position of the triazole ring.
- Examples of X include chlorine atom, bromine atom, fluorine atom, iodine atom, sulfo group, carboxy group, nitrile group, alkoxy group, hydroxy group, amino group. Among these, chlorine atom, bromine atom, fluorine An atom is preferable and a chlorine atom is more preferable.
- R 2 represents an alkyl group having 1 to 12 carbon atoms or an alkoxy group having 1 to 12 carbon atoms, and each of the alkyl group and the alkoxy group preferably has 1 to 8 carbon atoms, and has 2 carbon atoms. To 8 is more preferable, and a carbon number of 4 to 8 is more preferable.
- the alkyl group and alkoxy group may be branched or linear. Of the alkyl group and alkoxy group, an alkyl group is preferred.
- alkyl groups include methyl, ethyl, n-propyl, iso-propyl, n-butyl, sec-butyl, tert-butyl, pentyl, hexyl, heptyl, n- Examples include octyl group, 1,1,3,3-tetramethylbutyl group, nonyl group, decyl group, undecyl group, dodecyl group and the like.
- n-propyl group, iso-propyl group, n-butyl group , Sec-butyl group, tert-butyl group, and 1,1,3,3-tetramethylbutyl group are preferable, n-butyl group, sec-butyl group, tert-butyl group, and 1 1,3,3-tetramethylbutyl group is more preferable, and tert-butyl group is more preferable.
- alkoxy groups include methoxy, ethoxy, propoxy, butoxy, pentyloxy, hexyloxy, heptyloxy, octyloxy, nonyloxy, decyloxy, undecyloxy, and dodecyloxy groups.
- a butoxy group or an ethoxy group is preferable.
- the substitution position of R 2 is preferably the 3-position, 4-position or 5-position based on the substitution position of the benzotriazolyl group.
- R 1 represents an alkyl group having 1 to 3 carbon atoms or an alkoxy group having 1 to 3 carbon atoms. Specific examples thereof include those having the carbon number of the examples given for R 2 above. To do. Among these, a methyl group or an ethyl group is preferable. When R 1 is such a group, it has an excellent blue light cut rate. In addition, when R 1 has 4 or more carbon atoms (for example, 2- (3,5-di-t-butyl-2-hydroxyphenyl) -5-chlorobenzotriazole), it is a hardly decomposable compound, so it However, the compound of the above formula (1) can be decomposed relatively easily, and it can be decomposed relatively easily. There is also an advantage that the influence is small. In the formula (1), m represents an integer of 0 or 1. In Formula (1), the substitution position of R 2 is preferably the 5-position based on the substitution position of the benzotriazolyl group.
- R 3 represents a hydrogen atom or a divalent hydrocarbon group having 1 to 8 carbon atoms. Among these, a hydrogen atom is preferable.
- the hydrocarbon group for R 3 include an aliphatic hydrocarbon group and an aromatic hydrocarbon group.
- the hydrocarbon group for R 3 preferably has 1 to 8 carbon atoms, and more preferably 1 to 3 carbon atoms.
- the divalent hydrocarbon group for R 3 include a methanediyl group, an ethanediyl group, a propanediyl group, a benzenediyl group, a toluenediyl group, and the like. Among these, a methanediyl group is preferable.
- n is the valence of R 3 and is 1 or 2.
- the substitution position of R 3 is preferably the 3-position based on the substitution position of the benzotriazolyl group.
- R 3 is preferably a hydrogen atom, and n is 1 in this case.
- the triazole compound is preferably a compound represented by the following formula (1-1).
- R 1 , R 2 and m are the same as those described above and preferred embodiments.
- benzotriazole compound represented by the formula (1) examples include methylenebis [3- (5-chloro-2-benzotriazolyl) -5- (1,1,3,3-tetramethylbutyl). -2-hydroxyphenyl], methylenebis [3- (5-chloro-2-benzotriazolyl) -5- (tert-butyl) -2-hydroxyphenyl], methylenebis [3- (5-chloro-2-benzo) Triazolyl) -5-tert-butyl-2-hydroxyphenyl], methylenebis [3- (5-chloro-2-benzotriazolyl) -5-tert-butyl-2-hydroxyphenyl], methylenebis [3- (5-chloro-2-benzotriazolyl) -5-ethoxy-2-hydroxyphenyl], phenylenebis [3- (5-chloro-2-benzotriazo Le) -5- (1,1,3,3-tetramethylbutyl) -2-hydroxyphenyl]
- benzotriazole compound represented by the formula (1-1) examples include 2- (3-tert-butyl-2-hydroxy-5-methylphenyl) -5-chloro-2H-benzotriazole, 2- (3-tert-butyl-2-hydroxy-5-ethylphenyl) -5-chloro-2H-benzotriazole, 5-chloro-2- (3,5-dimethyl-2-hydroxyphenyl) -2H-benzotriazole, 5-chloro-2- (3,5-diethyl-2-hydroxyphenyl) -2H-benzotriazole, 5-chloro-2- (2-hydroxy-4-methoxyphenyl) -2H-benzotriazole, 5-chloro- 2- (4-Ethoxy-2-hydroxyphenyl) -2H-benzotriazole, 2- (4-butoxy-2-hydroxyphenyl) 5-chloro-2H-benzotriazole, and 5-chloro-2- (2-hydroxy-4-octyloxy-phenyl)
- the benzotriazole compound is used in an amount of 0.05 to 3.00 parts by mass with respect to 100 parts by mass of the resin component (monomer and / or polymer) forming the transparent plastic substrate. It is preferably 0.05 to 2.50 parts by mass, more preferably 0.10 to 2.00 parts by mass, and still more preferably 0.30 to 2.00 parts by mass.
- the amount of the benzotriazole compound added varies depending on the type of resin component, desired ultraviolet absorption characteristics, and the like.
- the resin component forming the transparent plastic substrate is preferably at least one selected from the group consisting of (thio) urethane resin, episulfide resin, polycarbonate resin, polyamide resin, acrylic resin, vinyl resin and polyester resin,
- the transparent plastic substrate is a plastic lens, it is more preferably a (thio) urethane resin and / or an episulfide resin.
- (Thio) urethane resin means at least one selected from urethane resin and thiourethane resin.
- the monomer that forms the (thio) urethane resin is a raw material monomer for producing a polythiourethane lens or a polyurethane lens.
- a combination of a polyisocyanate compound and a polythiol compound, a polyisocyanate, The thing obtained from the combination of a narate compound and a polyol compound can be mentioned.
- the polyisocyanate compound is not particularly limited, and specific examples thereof include bis (isocyanatomethyl) cyclohexane, bis (isocyanatomethyl) bicyclo [2.2.1] heptane, hydrogenated 2,6-trimethyl.
- polythiol compound examples include methanedithiol, 1,2-ethanedithiol, 1,1-propanedithiol, 1,2-propanedithiol, 1,3-propanedithiol, 2,2-propanedithiol, 1,6-hexanedithiol.
- polyol compound examples include ethylene glycol, diethylene glycol, propylene glycol, dipropylene glycol, butylene glycol, neopentyl glycol, glycerin, trimethylolethane, trimethylolpropane, butanetriol, 1,2-methylglucoside, pentaerythritol.
- Aliphatic polyols such as spiro [3.4] octanediol, butylcyclohexanediol; dihydroxynaphthalene, trihydroxynaphthalene, tetrahydroxynaphthalene, dihydroxybenzene, benzenetriol, trihydroxyphenanthrene, bisphenol A, bisphenol F, xylylene Aromatic polyols such as glycol and tetrabromobisphenol A and addition reaction products of these with alkylene oxides such as ethylene oxide and propylene oxide; bis- [4- (hydroxyethoxy) phenyl] sulfide, bis- [4- (2 -Hydroxypropoxy) phenyl] sulfide, bis- [4- (2,3-dihydroxypropoxy) phenyl]
- the monomer that forms the (thio) urethane resin is conventionally known, and specific publications that disclose this monomer include, for example, Japanese Patent Application Laid-Open No. 58-127914.
- JP 07-118390 A JP 07-316250 A, JP 60-1 JP 9016, JP 60-217229, JP 62-236818, JP 62-255901, JP 62-267316, JP 63-130615, JP-A-63-130614, JP-A-63-046213, JP-A-63-245421, JP-A-63-265201, JP-A-01-090167, JP-A-01-090168 JP-A-01-090169, JP-A-01-090170, JP-A-01-096208, JP-A-01-152019, JP-A-01-045611, JP-A-01-213601, Japanese Unexamined Patent Publication Nos.
- polyisocyanate compounds, polyol compounds, and polythiol compounds disclosed in these publications correspond to the (thio) urethane-based monomer referred to in the present invention.
- other monomers such as disulfide allyl carbonate can be added to these monomers, for example, in addition to the monomer forming the episulfide resin described later. is there.
- the monomer that forms an episulfide resin is also referred to as a monomer that forms an epithio structure, and refers to a monomer having an episulfide group (epithio group) or a mixed monomer containing the monomer.
- specific examples of the monomer having an episulfide group include 1,3 and 1,4-bis ( ⁇ -epithiopropylthio) cyclohexane, 1,3 and 1,4-bis ( ⁇ -epithiopropylthiomethyl).
- Cyclohexane bis [4- ( ⁇ -epithiopropylthio) cyclohexyl] methane, 2,2-bis [4- ( ⁇ -epithiopropylthio) cyclohexyl] propane, bis [4- ( ⁇ -epithiopropylthio) ) Cyclohexyl] sulfide and other episulfide compounds having an alicyclic skeleton; 1,3 and 1,4-bis ( ⁇ -epithiopropylthio) benzene, 1,3 and 1,4-bis ( ⁇ -epithiopropylthio) Methyl) benzene, bis [4- ( ⁇ -epithiopropylthio) phenyl] methane, 2,2-bis [4- ( ⁇ -epithiopropylthio) pheny ] Propane, bis [4- ( ⁇ -epithiopropylthio) phenyl]
- Episulfide compounds having the following aromatic skeleton 2,5-bis ( ⁇ -epithiopropylthiomethyl) -1,4-dithiane, 2,5-bis ( ⁇ -epithiopropylthioethylthiomethyl) -1,4 Dithian rings such as dithiane, 2,5-bis ( ⁇ -epithiopropylthioethyl) -1,4-dithiane, 2,3,5-tri ( ⁇ -epithiopropylthioethyl) -1,4-dithiane Episulfide compounds having a skeleton; 2- (2- ⁇ -epithiopropylthioethylthio) -1,3-bis ( ⁇ -epithiopropylthio) propane, 1,2-bis [(2- ⁇ - Epithiopropylthioethyl) thio] -3- ( ⁇ -epithiopropylthio) propane, tetrakis (
- Monomers that form episulfide resins are conventionally known, and specific examples of the publications include JP-A 09-071580, JP-A 09-110979, JP-A 09-255781, and JP-A 03-081320. JP-A-11-140070, JP-A-11-183702, JP-A-11-189582, JP-A-11-180977, JP-A-01-810575, and the like. It goes without saying that the episulfide monomers disclosed in these publications correspond to the episulfide monomers in the present invention. Of course, in order to change the lens physical properties such as impact resistance and processability, it is possible to add other transparent plastic substrate monomers such as a monomer for forming the (thio) urethane resin described above.
- a diethylene glycol bisallyl carbonate monomer can be added to the monomer that forms the (thio) urethane resin and / or episulfide resin.
- the diethylene glycol bisallyl carbonate monomer include diethylene glycol bisallyl carbonate alone and a mixed monomer of a monomer copolymerizable with diethylene glycol bisallyl carbonate.
- the copolymerizable monomer examples include aromatic vinyl compounds such as styrene, ⁇ -methylstyrene, vinyltoluene, chlorostyrene, chloromethylstyrene, divinylbenzene; methyl (meth) acrylate, n-butyl (meta ) Acrylate, n-hexyl (meth) acrylate, cyclohexyl (meth) acrylate, 2-ethylhexyl (meth) acrylate, methoxydiethylene glycol (meth) acrylate, methoxypolyethylene glycol (meth) acrylate, 3-chloro-2-hydroxypropyl (meth) ) Acrylates, stearyl (meth) acrylates, lauryl (meth) acrylates, phenyl (meth) acrylates, glycidyl (meth) acrylates, mono (meth) acrylates such as benzyl methacrylate
- the transparent plastic substrate of the present invention when a monomer that forms a thiourethane structure is used as a main component, when the total mass of the raw material monomer is 1, the polyisocyanate compound and the polythiol compound that are the raw material monomers It is preferable to polymerize from raw materials having a total mass of 0.6 or more. Moreover, when using the monomer which forms an episulfide resin as a main component, when the mass of the whole raw material monomer is 1, the amount of the compound having an episulfide group as a raw material monomer is 0.6 or more. Preferably it is polymerized.
- one or more benzotriazole compounds selected from the above formula (1) are added and mixed with, for example, a monomer that forms a (thio) urethane resin and / or an episulfide resin. Thereafter, a method of polymerizing the monomer is mentioned.
- the polymerization method of the raw material monomer is not particularly limited, but usually cast polymerization is employed. That is, after mixing one or more benzotriazole compounds selected from the above formula (1) and the above-mentioned raw material monomer, this mixed solution is poured into a lens molding mold, and usually at ⁇ 20 ° C. to 150 ° C. A transparent plastic base material is obtained by heating between.
- a transparent plastic group is prepared by dissolving or dispersing one or more benzotriazole compounds selected from the formula (1) and an appropriate surfactant in water.
- a transparent plastic substrate can be obtained by immersing the material and allowing the benzotriazole compound to penetrate into the transparent plastic substrate.
- mixed liquids of the benzotriazole compound represented by the above formula (1) and the raw material monomer of the transparent plastic base material are disclosed in JP-A-07-063902, JP-A-07-104101, JP-A-09-09. Polymerization catalysts described in 208621, JP 09-255781, etc., internal mold release agents, antioxidants described in JP 01-163012, JP 03-281121, etc. Auxiliaries such as fluorescent brighteners and bluing agents can be added as necessary.
- the transparent plastic substrate obtained by this invention can perform a dyeing
- the transparent plastic member of this invention contains the benzotriazole compound represented by Formula (1), for example, has a functional layer, Preferably, it has a transparent plastic base material and a functional layer.
- the transparent plastic member of the present invention is preferably a plastic lens, more preferably a plastic lens for spectacles.
- the functional layer include at least one selected from a cured film, a primer layer, an antireflection film, and a water repellent film. That is, to improve scratch resistance, a cured film can be formed on a transparent plastic substrate using a coating liquid having a particulate inorganic material such as an organosilicon compound, tin oxide, silicon oxide, zirconium oxide, titanium oxide, or the like. it can.
- a primer layer mainly composed of polyurethane can be provided in order to improve impact resistance.
- an antireflection film can be applied using silicon oxide, titanium dioxide, zirconium oxide, tantalum oxide, or the like.
- a water repellent film can be formed on the antireflection film using an organosilicon compound having fluorine atoms.
- the part containing the benzotriazole compound represented by the formula (1) is not particularly limited, and the benzotriazole compound is included in either the functional layer or the transparent plastic substrate. It may be. More specifically, the benzotriazole compound may be contained in any of the transparent plastic substrate, the cured film, the primer layer, the antireflection film, and the water repellent film.
- the benzotriazole compound represented by the formula (1) is preferably contained in a transparent plastic substrate.
- a method for producing a transparent plastic member containing a benzotriazole compound in the functional layer one or more benzotriazole compounds selected from the above formula (1), the above resin component, and a solvent as required are mixed.
- a transparent plastic member can be obtained by preparing the composition, applying the composition to at least one surface of a plastic lens substrate, and curing the composition to form a functional layer.
- the transparent plastic member (or transparent plastic substrate) of the present invention preferably has a light cut rate of 380 to 500 nm in the blue region of 35% or more, more preferably 40% or more, and is not particularly limited. For example, 60% or less is preferable and 50% or less is preferable. Moreover, the cut rate of light having a wavelength of 410 nm is preferably 50% or more, and more preferably 60% or more. In the present invention, the term “transparent” means that it is transparent and the other side is visible.
- the light transmittance in the wavelength region of 400 to 700 nm of the transparent plastic substrate of the present invention is preferably 70% or more, more preferably 80% or more, and further preferably 90% or more.
- a plastic lens is exemplified as the transparent plastic member.
- the physical properties of the manufactured plastic lens were determined by the following method.
- Example 1 As a lens raw material monomer, bis (isocyanatomethyl) bicyclo [2.2.1] heptane (50.28 parts by mass), dimethyltin dichloride (0.06 parts by mass) as a catalyst, and acid phosphate ester JP-506H (as a release agent) 0.15 parts by mass of Johoku Chemical Co., Ltd., and 1.90 parts of 2- (3-tert-butyl-2-hydroxy-5-methylphenyl) -5-chloro-2H-benzotriazole as an ultraviolet absorber Then, 25.50 parts by mass of pentaerythritol tetrakis (3-mercaptopropionate), 1,2-bis (2-mercaptoethylthio) -3-mercaptopropane 24.22 A monomer composition for a lens was prepared by adding parts by mass and stirring and mixing for 30 minutes under a reduced pressure of 10 mmHg.
- this monomer composition for a lens was poured into a lens molding mold (0.00D, set to a wall thickness of 1.6 mm) consisting of a glass mold and a resin gasket prepared in advance, and was then heated in an electric furnace. Polymerization was carried out at a temperature of from 120 to 120 ° C. over 24 hours. After completion of the polymerization, the gasket and the mold were removed, and then heat treated at 120 ° C. for 2 hours to obtain a transparent plastic lens. Table 1 shows the results of measuring the cut rate at a wavelength of 410 nm and the cut rate of blue light for the obtained lens.
- Examples 2-7 and Comparative Examples 1-2 A transparent plastic lens was obtained in the same manner as in Example 1, except that the types and amounts of the lens raw material monomer and the ultraviolet absorber were changed as shown in Table 1. Table 1 shows the results of measuring the cut rate at a wavelength of 410 nm and the cut rate of blue light for the obtained lens.
- Example 8 As a lens raw material monomer, 93.00 parts by mass of bis- ( ⁇ -epithiopropyl) sulfide, 1.00 part by mass of 2-hydroxyethyl methacrylate, and 2- (3-tertbutyl-2-hydroxy-5--5) as an ultraviolet absorber. Methylphenyl) -5-chloro-2H-benzotriazole (0.40 parts by mass) was added and mixed by stirring. Then, 6.00 parts by mass of n-butylthioglycolate and tetra-n-butylphosphonium bromide as a catalyst were used.
- this monomer composition for a lens was poured into a lens molding mold (0.00D, set to a wall thickness of 1.6 mm) consisting of a glass mold and a resin gasket prepared in advance, and was then heated in an electric furnace. Polymerization was carried out from 20 ° C. to 100 ° C. over 20 hours. After completion of the polymerization, the gasket and the mold were removed and then heat treated at 110 ° C. for 1 hour to obtain a transparent plastic lens. Table 1 shows the results of measuring the cut rate at a wavelength of 410 nm and the cut rate of blue light for the obtained lens.
- Example 9 As a lens raw material monomer, 90.00 parts by mass of methyl methacrylate, 10.00 parts by mass of ethylene glycol dimethacrylate, and 2- (3-tertbutyl-2-hydroxy-5-methylphenyl) -5-chloro-2H as an ultraviolet absorber -1.00 parts by mass of benzotriazole and 0.10 parts by mass of azobisisobutylnitrile as a thermal polymerization initiator were mixed and stirred well at room temperature, then depressurized to 50 mmHg and deaerated for 10 minutes.
- this monomer composition for a lens was poured into a lens molding mold (0.00D, wall thickness set to 1.6 mm) consisting of a glass mold and a resin gasket prepared in advance, and the composition was set in an electric furnace. Polymerization was carried out at a temperature of from 0 to 85 ° C. over 24 hours. After the polymerization was completed, the gasket and the mold were removed, and then heat treated at 100 ° C. for 2 hours to obtain a transparent plastic lens. Table 1 shows the results of measuring the cut rate at a wavelength of 410 nm and the cut rate of blue light for the obtained lens.
- Example 10 100 parts by mass of a polycarbonate resin granule obtained by polymerizing bisphenol A and phosgene by an interfacial polymerization method according to a conventional method was added to 2- (3-tertbutyl-2-hydroxy-5-methylphenyl) -5 as an ultraviolet absorber. -1.00 part by mass of chloro-2H-benzotriazole was added and mixed well with a tumbler, and then pelletized with a 30 mm ⁇ vent type twin screw extruder at a temperature of 290 ° C and a vacuum of 4.7 kPa. Next, injection compression molding was performed using the obtained pellets to obtain a transparent plastic lens. Table 1 shows the results of measuring the cut rate at a wavelength of 410 nm and the cut rate of blue light for the obtained lens.
- Comparative Example 3 A transparent plastic lens was obtained in the same manner as in Example 8, except that 0.40 part by mass of 2- (2-hydroxy-4-octyloxyphenyl) -2H-benzotriazole was used as the ultraviolet absorber. Table 1 shows the results of measuring the cut rate at a wavelength of 410 nm and the cut rate of blue light for the obtained lens.
Abstract
Description
このような問題を解決するため、例えば、特許文献1には、プラスチック部材の凸面上に配設された多層膜を備え、その多層膜は、400~500nmの波長範囲における平均反射率が2~10%であるレンズが提案されている。しかしながら、このレンズでは、青色光のカット率を測定すると、30%前後であった。
また、特許文献2には、ベンゾトリアゾール系紫外線吸収剤を含有し、光線カット率を高めたレンズ用重合性組成物が記載されている。
すなわち、本発明は、下記[1]~[3]を提供するものである。

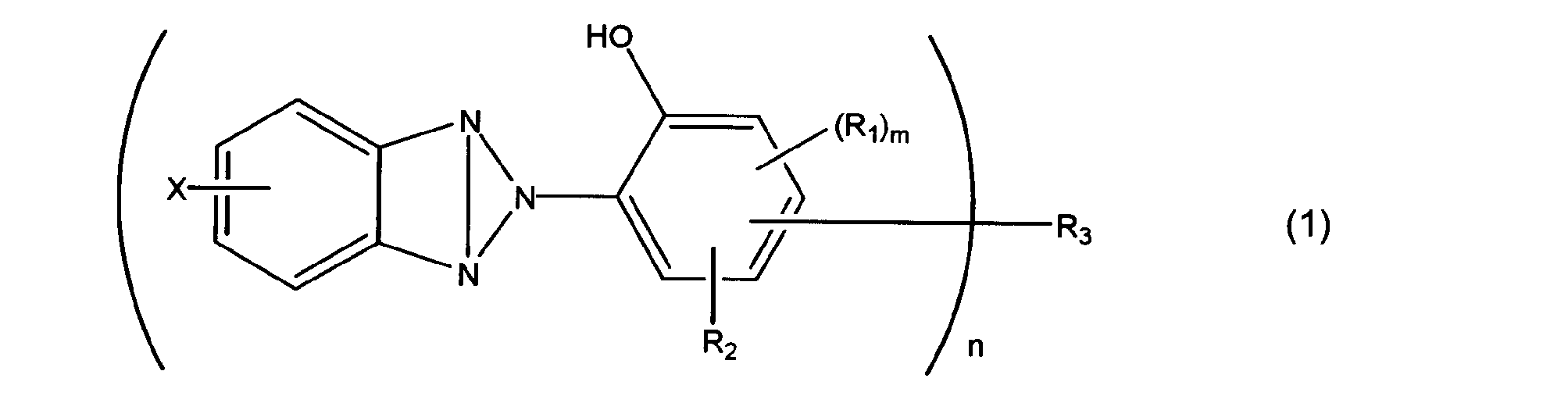

[1]下記式(1)で表されるベンゾトリアゾール化合物を含む透明プラスチック基材。
[2]上記[1]に記載の透明プラスチック基材を有するプラスチックレンズ。
[3]上記式(1)で表されるベンゾトリアゾール化合物を含む透明プラスチック部材。
Xの置換位置は、好ましくはトリアゾール環の5位である。
Xの例としては、塩素原子、臭素原子、フッ素原子、ヨウ素原子、スルホ基、カルボキシ基、ニトリル基、アルコキシ基、ヒドロキシ基、アミノ基が挙げられ、これらの中でも、塩素原子、臭素原子、フッ素原子が好ましく、塩素原子がより好ましい。
式(1)において、R2は、炭素数1~12のアルキル基又は炭素数1~12のアルコキシ基を表し、アルキル基及びアルコキシ基のそれぞれについて、炭素数1~8が好ましく、炭素数2~8がより好ましく、炭素数4~8がさらに好ましい。
アルキル基及びアルコキシ基は、分岐であっても直鎖であってもよい。アルキル基及びアルコキシ基の中でも、アルキル基が好ましい。
アルキル基の例としては、メチル基、エチル基、n-プロピル基、iso-プロピル基、n-ブチル基、sec-ブチル基、tert-ブチル基、ペンチル基、ヘキシル基、へプチル基、n-オクチル基、1,1,3,3-テトラメチルブチル基、ノニル基、デシル基、ウンデシル基、ドデシル基等が挙げられ、これらの中でも、n-プロピル基、iso-プロピル基、n-ブチル基、sec-ブチル基、tert-ブチル基、及び1,1,3,3-テトラメチルブチル基から選ばれる少なくとも1種が好ましく、n-ブチル基、sec-ブチル基、tert-ブチル基、及び1,1,3,3-テトラメチルブチル基がより好ましく、tert-ブチル基が更に好ましい。
アルコキシ基の例としては、メトキシ基、エトキシ基、プロポキシ基、ブトキシ基、ペンチルオキシ基、ヘキシルオキシ基、へプチルオキシ基、オクチルオキシ基、ノニルオキシ基、デシルオキシ基、ウンデシルオキシ基、ドデシルオキシ基が挙げられ、これらの中でもブトキシ基、又はエトキシ基が好ましい。
式(1)において、R2の置換位置は、ベンゾトリアゾリル基の置換位置を基準として、3位,4位又は5位が好ましい。
式(1)において、mは0又は1の整数を表す。
式(1)において、R2の置換位置は、ベンゾトリアゾリル基の置換位置を基準として、5位が好ましい。
R3の炭化水素基は、脂肪族炭化水素基、又は芳香族炭化水素基が挙げられる。
R3の炭化水素基は、炭素数1~8が好ましく、炭素数1~3がより好ましい。
R3の2価の炭化水素基の例は、メタンジイル基、エタンジイル基、プロパンジイル基、ベンゼンジイル基、トルエンジイル基等が挙げられ、これらの中でもメタンジイル基が好ましい。
nは該R3の価数であり、1又は2である。
式(1)において、R3の置換位置は、ベンゾトリアゾリル基の置換位置を基準として、3位が好ましい。

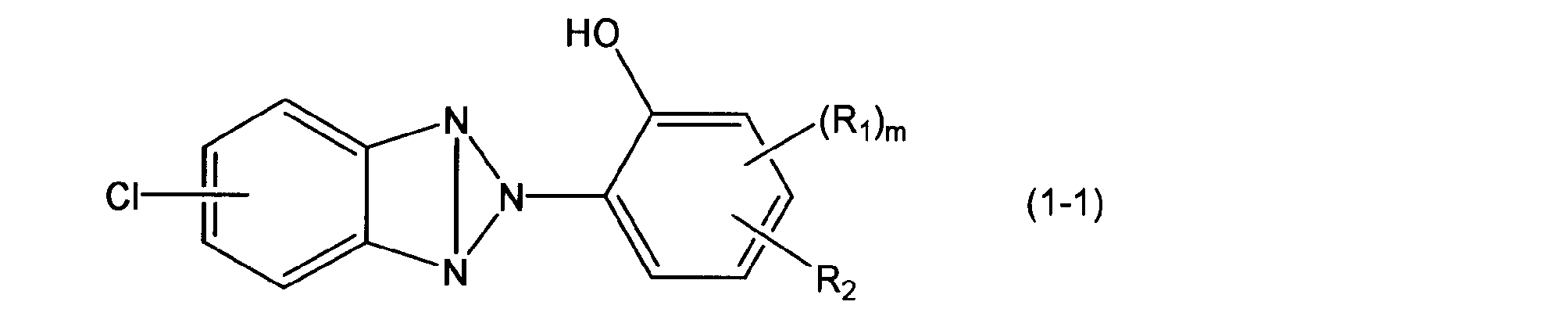

トリアゾール化合物は、好ましくは、下記式(1-1)で示される化合物である。
前記透明プラスチック基材を形成する樹脂成分は、(チオ)ウレタン樹脂、エピスルフィド樹脂、ポリカーボネート樹脂、ポリアミド樹脂、アクリル樹脂、ビニル樹脂及びポリエステル樹脂からなる群から選ばれる少なくとも一種であることが好ましく、前記透明プラスチック基材がプラスチックレンズである場合は(チオ)ウレタン樹脂及び/又はエピスルフィド樹脂であることがより好ましい。
(チオ)ウレタン樹脂とは、ウレタン樹脂及びチオウレタン樹脂から選ばれる少なくとも1種を意味する。
このジエチレングリコールビスアリルカーボネート系のモノマーとして、ジエチレングリコールビスアリルカーボネート単独、及びジエチレングリコールビスアリルカーボネートと共重合可能なモノマーとの混合モノマーが該当する。その共重合体可能なモノマーの具体例としては、スチレン、α-メチルスチレン、ビニルトルエン、クロルスチレン、クロルメチルスチレン、ジビニルベンゼン等の芳香族ビニル化合物;メチル(メタ)アクリレート、n-ブチル(メタ)アクリレート、n-ヘキシル(メタ)アクリレート、シクロヘキシル(メタ)アクリレート、2-エチルヘキシル(メタ)アクリレート、メトキシジエチレングリコール(メタ)アクリレート、メトキシポリエチレングリコール(メタ)アクリレート、3-クロロ-2-ヒドロキシプロピル(メタ)アクリレート、ステアリル(メタ)アクリレート、ラウリル(メタ)アクリレート、フェニル(メタ)アクリレート、グリシジル(メタ)アクリレート、ベンジルメタクリレート等のモノ(メタ)アクリレート類;2-ヒドロキシエチル(メタ)アクリレート、2-ヒドロキシプロピル(メタ)アクリレート、3-ヒドロキシプロピル(メタ)アクリレート、3-フェノキシ-2-ヒドロキシプロピル(メタ)アクリレート、4-ヒドロキシブチル(メタ)アクリレート等のヒドロキシ基を有するモノ(メタ)アクリレート類;エチレングリコールジ(メタ)アクリレート、ジエチレングリコールジ(メタ)アクリレート、トリエチレングリコールジ(メタ)アクリレート、ポリエチレングリコールジ(メタ)アクリレート、1,3-ブチレングリコールジ(メタ)アクリレート、1,6-ヘキサンジオールジ(メタ)アクリレート、ネオペンチルグリコールジ(メタ)アクリレート、ポリプロピレングリコールジ(メタ)アクリレート、2-ヒドロキシ-1,3-ジ(メタ)アクリロキシプロパン、2,2-ビス〔4-((メタ)アクリロキシエトキシ)フェニル〕プロパン、2,2-ビス〔4-((メタ)アクリロキシ・ジエトキシ)フェニル〕プロパン、2,2-ビス〔4-((メタ)アクリロキシ・ポリエトキシ)フェニル〕プロパン等のジ(メタ)アクリレート類;トリメチロールプロパントリメタクリレート、テトラメチロールメタントリメタクリレート等のトリ(メタ)アクリレート類;テトラメチロールメタンテトラ(メタ)アクリレート等のテトラ(メタ)アクリレート類〔ただし、本明細書中の(メタ)アクリレートは、メタクリレート又はアクリレートを意味する〕;ジアリルフタレート、ジアリルイソフタレート、ジアリルテレフタレートなどが挙げられる。
また、エピスルフィド樹脂を形成するモノマーを主成分として使用する場合には、原料モノマー全体の質量を1としたとき、原料モノマーとなるエピスルフィド基を有する化合物の量が、0.6以上である原料から重合されることが好ましい。
本発明の透明プラスチック部材は、好ましくはプラスチックレンズであり、より好ましくは眼鏡用プラスチックレンズである。
機能層としては、例えば、硬化被膜、プライマー層、反射防止膜及び撥水膜から選ばれる少なくとも1種が挙げられる。
すなわち、耐擦傷性向上のため、有機ケイ素化合物、酸化スズ、酸化ケイ素、酸化ジルコニウム、酸化チタン等の微粒子状無機物等を有するコーティング液を用いて硬化被膜を透明プラスチック基材上に形成することができる。また、耐衝撃性を向上させるためにポリウレタンを主成分とするプライマー層を設けることができる。さらに、反射防止の性能を付与するために、酸化ケイ素、二酸化チタン、酸化ジルコニウム、酸化タンタル等を用いて反射防止膜を施すこともできる。また、撥水性向上のため、フッ素原子を有する有機ケイ素化合物を用いて撥水膜を反射防止膜上に施すことができる。
式(1)で表されるベンゾトリアゾール化合物は、好ましくは透明プラスチック基材に含有される。
なお、機能層中にベンゾトリアゾール化合物が含有される透明プラスチック部材の製造方法としては、前記式(1)から選ばれる1種以上のベンゾトリアゾール化合物と上記樹脂成分、必要に応じて溶剤等を混合した組成物を調製し、この組成物をプラスチックレンズ基材の少なくとも一方の表面に塗布し、硬化させて機能層を形成することにより透明プラスチック部材を得ることができる。
また、波長410nmの光のカット率は、50%以上であると好ましく、60%以上であるとより好ましい。
本発明において透明とは、透き通っていて向こう側が視認できることをいう。
本発明の透明プラスチック基材の400~700nmの波長域における光線透過率は、好ましくは70%以上、より好ましくは80%以上、さらに好ましくは90%以上である。
波長380~500nmの透過率を分光光度計(U-4100,日立製作所(株) 製)を用いて測定し、10nm毎の透過率(T)から、下記式にて青色光カット率を計算した。
分光光度計を用いて410nmの波長における光線透過率を測定し、下記式により光線カット率を計算した。
光線カット率(%)=100-(410nm透過率)
レンズ原料モノマーとして、ビス(イソシアナートメチル)ビシクロ[2.2.1]ヘプタン 50.28質量部に、触媒としてジメチルチンジクロライド0.06質量部、離型剤として酸性リン酸エステルJP-506H(城北化学工業(株)製)を0.15質量部、紫外線吸収剤として2-(3-tert-ブチル-2-ヒドロキシ-5-メチルフェニル)-5-クロロ-2H-ベンゾトリアゾール1.90質量部を添加し撹拌混合した後、さらにレンズ原料としてペンタエリスリトールテトラキス(3-メルカプトプロピオネート)25.50質量部、1,2-ビス(2-メルカプトエチルチオ)-3-メルカプトプロパン 24.22質量部を添加し、10mmHgの減圧下で30分間攪拌混合してレンズ用モノマー組成物を調製した。ついで、このレンズ用モノマー組成物を、予め準備したガラス製モールドと樹脂製ガスケットからなるレンズ成型用鋳型(0.00D、肉厚1.6mmに設定)の中に注入し、電気炉中で20℃~120℃まで24時間かけて重合を行った。重合終了後、ガスケット及びモールドを取り外した後、120℃で2時間熱処理して透明プラスチックレンズを得た。
得られたレンズについて、波長410nmでのカット率及び青色光のカット率を測定した結果を表1に示す。
実施例1において、レンズ原料モノマー及び紫外線吸収剤の種類と量を表1に記載のように変えた以外は同様にして、透明プラスチックレンズを得た。
得られたレンズについて、波長410nmでのカット率及び青色光のカット率を測定した結果を表1に示す。
レンズ原料モノマーとして、ビス-(β-エピチオプロピル)スルフィド93.00質量部、2-ヒドロキシエチルメタクリレート1.00質量部、紫外線吸収剤として2-(3-tertブチル-2-ヒドロキシ-5-メチルフェニル)-5-クロロ-2H-ベンゾトリアゾール0.40質量部添加し、攪拌混合した後、さらにn-ブチルチオグリコレート6.00質量部と、触媒としてテトラ-n-ブチルホスホニュウムブロマイド0.05質量部を添加し、10mmHgの減圧下で3分間攪拌混合し、レンズ用モノマー組成物を調製した。ついで、このレンズ用モノマー組成物を、予め準備したガラス製モールドと樹脂製ガスケットからなるレンズ成型用鋳型(0.00D、肉厚1.6mmに設定)の中に注入し、電気炉中で20℃~100℃まで20時間かけて重合を行った。重合終了後、ガスケット及びモールドを取り外した後、110℃で1時間熱処理して透明プラスチックレンズを得た。
得られたレンズについて、波長410nmでのカット率及び青色光のカット率を測定した結果を表1に示す。
レンズ原料モノマーとして、メチルメタクリレート90.00質量部、エチレングリコールジメタクリレート10.00質量部、紫外線吸収剤として2-(3-tertブチル-2-ヒドロキシ-5-メチルフェニル)-5-クロロ-2H-ベンゾトリアゾール1.00質量部、熱重合開始剤としてアゾビスイソブチルニトリルを0.10質量部混合し、室温でよく攪拌した後、50mmHgに減圧して10分間脱気した。ついで、このレンズ用モノマー組成物を、予め準備したガラス製モールドと樹脂製ガスケットからなるレンズ成型用鋳型(0.00D、肉厚1.6mmに設定)の中に注入し、電気炉中で40℃~85℃まで24時間かけて重合を行った。重合終了後、ガスケット及びモールドを取り外した後、100℃で2時間熱処理して透明プラスチックレンズを得た。
得られたレンズについて、波長410nmでのカット率及び青色光のカット率を測定した結果を表1に示す。
常法によりビスフェノールAとホスゲンを界面重合法で重合して得たポリカーボネート樹脂粉粒体100質量部に、紫外線吸収剤として2-(3-tertブチル-2-ヒドロキシ-5-メチルフェニル)-5-クロロ-2H-ベンゾトリアゾール1.00質量部添加し、タンブラーにて充分混合した後に、30mmΦベント式二軸押出成形機により温度290℃、真空度4.7kPaでペレット化した。次いで、得られたペレットを用いて射出圧縮成形を行い、透明プラスチックレンズを得た。
得られたレンズについて、波長410nmでのカット率及び青色光のカット率を測定した結果を表1に示す。
実施例8において、紫外線吸収剤として、2-(2-ヒドロキシ-4-オクチルオキシフェニル)-2H-ベンゾトリアゾール0.40質量部用いた以外は同様にして透明プラスチックレンズを得た。
得られたレンズについて、波長410nmでのカット率及び青色光のカット率を測定した結果を表1に示す。
(モノマー又は樹脂)
M-1:ビス(イソシアナートメチル)ビシクロ[2.2.1]ヘプタン
M-2:ペンタエリスリトールテトラキス(3-メルカプトプロピオネート)
M-3:1,2-ビス(2-メルカプトエチルチオ)―3-メルカプトプロパン
M-4:ビス(イソシアナートメチル)ベンゼン
M-5:ビス(イソシアナートメチル)シクロヘキサン
M-6:ペンタエリスリトールテトラキスメルカプトアセテート
M-7:2,5-ビスメルカプトメチル-1,4-ジチアン
M-8:ビス(β-エピチオプロピル)スルフィド
M-9:2-ヒドロキシエチルメタクリレート
M-10:n-ブチルチオグリコレート
M-11:メチルメタクリレート
M-12:エチレングリコールジメタクリレート
M-13:ポリカーボネート樹脂
(紫外線吸収剤)
U-1:2-(3-tert-ブチル-2-ヒドロキシ-5-メチルフェニル)―5-クロロ―2H-ベンゾトリアゾール
U-2:2-(3-tert-ブチル-2-ヒドロキシ-5-エチルフェニル)―5-クロロ―2H-ベンゾトリアゾール
U-3:2-(4-エトキシ―2-ヒドロキシフェニル)―5-クロロ―2H-ベンゾトリアゾール
U-4:2-(4-ブトキシ―2-ヒドロキシフェニル)―5-クロロ―2H-ベンゾトリアゾール
U-5:2-(2-ヒドロキシ-4-オクチルオキシフェニル)―2H-ベンゾトリアゾール
Claims (13)
- 前記ベンゾトリアゾール化合物のXが、塩素原子、臭素原子、フッ素原子、ヨウ素原子、スルホ基、カルボキシ基、ニトリル基、アルコキシ基、ヒドロキシ基及びアミノ基からなる群から選ばれる少なくとも一種である、請求項1に記載の透明プラスチック基材。
- 透明プラスチック基材を形成する樹脂成分100質量部に対して、前記ベンゾトリアゾール化合物を0.05~3.00質量部添加してなる請求項1~3のいずれか一項に記載の透明プラスチック基材。
- 前記ベンゾトリアゾール化合物が、2-(3-tert-ブチル-2-ヒドロキシ-5-メチルフェニル)-5-クロロ-2H-ベンゾトリアゾール、2-(3-tert-ブチル-2-ヒドロキシ-5-エチルフェニル)-5-クロロ-2H-ベンゾトリアゾール、2-(4-エトキシ-2-ヒドロキシフェニル)-5-クロロ-2H-ベンゾトリアゾール、及び2-(4-ブトキシ-2-ヒドロキシフェニル)-5-クロロ-2H-ベンゾトリアゾールから選ばれる少なくとも一種である請求項1~4のいずれか一項に記載の透明プラスチック基材。
- 380~500nmの波長域の光線カット率が35%以上である請求項1~5のいずれか一項に記載の透明プラスチック基材。
- 波長410nmの光のカット率が50%以上である請求項1~6のいずれか一項に記載の透明プラスチック基材。
- 透明プラスチック基材を形成する樹脂成分が、(チオ)ウレタン樹脂、エピスルフィド樹脂、ポリカーボネート樹脂、ポリアミド樹脂、アクリル樹脂、ビニル樹脂及びポリエステル樹脂からなる群から選ばれる少なくとも一種である、請求項1~7のいずれか一項に記載の透明プラスチック基材。
- 請求項1~8のいずれか一項に記載の透明プラスチック基材を有するプラスチックレンズ。
- 請求項9に記載の透明プラスチック基材を有するプラスチックレンズであって、前記透明プラスチック基材を形成する樹脂成分が、(チオ)ウレタン樹脂及び/又はエピスルフィド樹脂であるプラスチックレンズ。
- 前記透明プラスチック基材を形成するモノマーが、脂肪族ポリイソシアナート化合物及び/又は脂環族ポリイソシアナート化合物と、ポリチオール化合物との組み合わせである、請求項10に記載のプラスチックレンズ。
- 透明プラスチック基材と、機能層とを有し、前記式(1)で表されるベンゾトリアゾール化合物が、前記透明プラスチック基材又は機能層のいずれかに含まれる、請求項12に記載の透明プラスチック部材。
Priority Applications (25)
Application Number | Priority Date | Filing Date | Title |
---|---|---|---|
JP2015539442A JP6791546B2 (ja) | 2013-09-30 | 2014-09-29 | 透明プラスチック基材及びプラスチックレンズ |
CN202210441202.4A CN114891337A (zh) | 2013-09-30 | 2014-09-29 | 透明塑料基材及塑料透镜 |
KR1020207026228A KR102358067B1 (ko) | 2013-09-30 | 2014-09-29 | 투명 플라스틱 기재 및 플라스틱 렌즈 |
EP14847241.8A EP3056545B1 (en) | 2013-09-30 | 2014-09-29 | Transparent plastic substrate and plastic lens |
CN202111651248.0A CN114525027A (zh) | 2013-09-30 | 2014-09-29 | 透明塑料基材及塑料透镜 |
EP21184222.4A EP3936904A1 (en) | 2013-09-30 | 2014-09-29 | Transparent plastic substrate and plastic lens |
CN202110108418.4A CN113045885B (zh) | 2013-09-30 | 2014-09-29 | 透明塑料基材及塑料透镜 |
AU2014324967A AU2014324967B2 (en) | 2013-09-30 | 2014-09-29 | Transparent plastic substrate and plastic lens |
KR1020217000201A KR102247123B1 (ko) | 2013-09-30 | 2014-09-29 | 투명 플라스틱 기재 및 플라스틱 렌즈 |
KR1020167008388A KR102187727B1 (ko) | 2013-09-30 | 2014-09-29 | 투명 플라스틱 기재 및 플라스틱 렌즈 |
EP18211291.2A EP3483220B1 (en) | 2013-09-30 | 2014-09-29 | Transparent plastic substrate and plastic lens |
EP21184223.2A EP3936905A1 (en) | 2013-09-30 | 2014-09-29 | Transparent plastic substrate and plastic lens |
CN202210441196.2A CN114891336A (zh) | 2013-09-30 | 2014-09-29 | 透明塑料基材及塑料透镜 |
KR1020217012494A KR102486077B1 (ko) | 2013-09-30 | 2014-09-29 | 투명 플라스틱 기재 및 플라스틱 렌즈 |
US15/025,440 US20160215121A1 (en) | 2013-09-30 | 2014-09-29 | Transparent plastic substrate and plastic lens |
CN201480053717.0A CN105612220A (zh) | 2013-09-30 | 2014-09-29 | 透明塑料基材及塑料透镜 |
BR112016006703A BR112016006703A2 (pt) | 2013-09-30 | 2014-09-29 | substrato de plástico transparente e lente de plástico |
EP18211290.4A EP3483219A1 (en) | 2013-09-30 | 2014-09-29 | Transparent plastic substrate and plastic lens |
AU2018200980A AU2018200980B2 (en) | 2013-09-30 | 2018-02-09 | Transparent plastic substrate and plastic lens |
AU2018200983A AU2018200983B2 (en) | 2013-09-30 | 2018-02-09 | Transparent plastic substrate and plastic lens |
AU2018200972A AU2018200972B2 (en) | 2013-09-30 | 2018-02-09 | Transparent plastic substrate and plastic lens |
AU2018200984A AU2018200984B2 (en) | 2013-09-30 | 2018-02-09 | Transparent plastic substrate and plastic lens |
US16/113,603 US11001699B2 (en) | 2013-09-30 | 2018-08-27 | Transparent plastic substrate and plastic lens |
US16/113,673 US10947365B2 (en) | 2013-09-30 | 2018-08-27 | Transparent plastic substrate and plastic lens |
US16/222,577 US10745539B2 (en) | 2013-09-30 | 2018-12-17 | Transparent plastic substrate and plastic lens |
Applications Claiming Priority (2)
Application Number | Priority Date | Filing Date | Title |
---|---|---|---|
JP2013205517 | 2013-09-30 | ||
JP2013-205517 | 2013-09-30 |
Related Child Applications (3)
Application Number | Title | Priority Date | Filing Date |
---|---|---|---|
US15/025,440 A-371-Of-International US20160215121A1 (en) | 2013-09-30 | 2014-09-29 | Transparent plastic substrate and plastic lens |
US16/113,603 Division US11001699B2 (en) | 2013-09-30 | 2018-08-27 | Transparent plastic substrate and plastic lens |
US16/113,673 Division US10947365B2 (en) | 2013-09-30 | 2018-08-27 | Transparent plastic substrate and plastic lens |
Publications (1)
Publication Number | Publication Date |
---|---|
WO2015046540A1 true WO2015046540A1 (ja) | 2015-04-02 |
Family
ID=52743661
Family Applications (1)
Application Number | Title | Priority Date | Filing Date |
---|---|---|---|
PCT/JP2014/075963 WO2015046540A1 (ja) | 2013-09-30 | 2014-09-29 | 透明プラスチック基材及びプラスチックレンズ |
Country Status (8)
Country | Link |
---|---|
US (4) | US20160215121A1 (ja) |
EP (5) | EP3936905A1 (ja) |
JP (9) | JP6791546B2 (ja) |
KR (5) | KR102247123B1 (ja) |
CN (10) | CN113045885B (ja) |
AU (5) | AU2014324967B2 (ja) |
BR (1) | BR112016006703A2 (ja) |
WO (1) | WO2015046540A1 (ja) |
Cited By (16)
Publication number | Priority date | Publication date | Assignee | Title |
---|---|---|---|---|
JP2016148877A (ja) * | 2013-09-30 | 2016-08-18 | ホヤ レンズ タイランド リミテッドHOYA Lens Thailand Ltd | 透明プラスチック基材及びプラスチックレンズ |
EP3203271A1 (en) | 2016-02-08 | 2017-08-09 | ESSILOR INTERNATIONAL (Compagnie Générale d'Optique) | Blue light cutting optical material comprising a benzotriazole uv absorber |
EP3236296A1 (en) | 2016-04-21 | 2017-10-25 | ESSILOR INTERNATIONAL (Compagnie Générale d'Optique) | Optical material comprising a red-shifted benzotriazole uv absorber |
WO2018008179A1 (ja) * | 2016-07-06 | 2018-01-11 | 伊藤光学工業株式会社 | 眼鏡素材 |
CN108474966A (zh) * | 2016-03-31 | 2018-08-31 | 豪雅镜片泰国有限公司 | 眼镜镜片及眼镜 |
WO2018181911A1 (ja) * | 2017-03-31 | 2018-10-04 | ホヤ レンズ タイランド リミテッド | 眼鏡レンズ |
CN109073802A (zh) * | 2016-03-04 | 2018-12-21 | 大日本印刷株式会社 | 光学层叠体、图像显示装置或触控面板传感器 |
WO2019022131A1 (ja) * | 2017-07-26 | 2019-01-31 | 三井化学株式会社 | 光学材料用重合性組成物、光学材料およびその用途 |
JP6473281B1 (ja) * | 2017-09-29 | 2019-02-20 | ホヤ レンズ タイランド リミテッドHOYA Lens Thailand Ltd | 眼鏡レンズおよび眼鏡 |
JP6473282B1 (ja) * | 2017-09-29 | 2019-02-20 | ホヤ レンズ タイランド リミテッドHOYA Lens Thailand Ltd | 眼鏡レンズおよび眼鏡 |
WO2019054502A1 (ja) * | 2017-09-15 | 2019-03-21 | 株式会社ニコン・エシロール | プラスチック基材、プラスチックレンズ |
WO2019065985A1 (ja) * | 2017-09-29 | 2019-04-04 | ホヤ レンズ タイランド リミテッド | 眼鏡レンズおよび眼鏡 |
WO2019065989A1 (ja) * | 2017-09-29 | 2019-04-04 | ホヤ レンズ タイランド リミテッド | 眼鏡レンズおよび眼鏡 |
WO2019065991A1 (ja) * | 2017-09-29 | 2019-04-04 | ホヤ レンズ タイランド リミテッド | 眼鏡レンズおよび眼鏡 |
WO2021111830A1 (ja) * | 2019-12-06 | 2021-06-10 | 株式会社ニコン・エシロール | プラスチック基材、プラスチックレンズ |
JPWO2020162592A1 (ja) * | 2019-02-08 | 2021-11-04 | 三井化学株式会社 | 光学材料用重合性組成物、光学材料およびその用途 |
Families Citing this family (15)
Publication number | Priority date | Publication date | Assignee | Title |
---|---|---|---|---|
KR20160083914A (ko) * | 2013-12-13 | 2016-07-12 | 미쓰이 가가쿠 가부시키가이샤 | 광학 재료용 중합성 조성물 |
EP3480635A4 (en) * | 2016-06-30 | 2020-04-29 | Hoya Lens Thailand Ltd. | PROCESS FOR MANUFACTURING GLASSES OF GLASSES |
US10890699B2 (en) * | 2016-09-07 | 2021-01-12 | Largan Precision Co., Ltd. | Optical image lens assembly, image capturing apparatus and electronic device |
JP6354888B2 (ja) * | 2016-12-28 | 2018-07-11 | 住友ベークライト株式会社 | 光学性層 |
KR20230162138A (ko) * | 2017-01-31 | 2023-11-28 | 다이니폰 인사츠 가부시키가이샤 | 광학 필름, 편광판, 및 화상 표시 장치 |
WO2018230513A1 (ja) | 2017-06-14 | 2018-12-20 | 株式会社トクヤマ | 光学物品用プライマー組成物および積層体 |
CN107446478A (zh) * | 2017-08-04 | 2017-12-08 | 江苏明月光电科技有限公司 | 一种抗高能量蓝光及高能量黄光树脂镜片的制造方法 |
CN107479123A (zh) * | 2017-08-04 | 2017-12-15 | 江苏明月光电科技有限公司 | 一种抗高能量蓝光树脂镜片及其制造工艺 |
CN107703565A (zh) * | 2017-08-04 | 2018-02-16 | 江苏明月光电科技有限公司 | 一种抗高能量黄光树脂镜片及其生产方法 |
JP7036502B2 (ja) * | 2017-09-29 | 2022-03-15 | ホヤ レンズ タイランド リミテッド | 光学部材用樹脂の製造方法、光学部材用樹脂、眼鏡レンズ及び眼鏡 |
CN111138617B (zh) * | 2018-11-02 | 2022-07-12 | 万华化学集团股份有限公司 | 一种聚氨酯光学材料树脂及其制备方法 |
US20220056170A1 (en) | 2018-12-17 | 2022-02-24 | Tokuyama Corporation | Optical material composition and optical material |
WO2021054459A1 (ja) | 2019-09-18 | 2021-03-25 | 三井化学株式会社 | ベンゾトリアゾール系化合物、光吸収剤及び樹脂組成物 |
CN111303612B (zh) * | 2019-11-18 | 2022-02-15 | 万华化学集团股份有限公司 | 一种防蓝光聚氨酯光学树脂材料 |
CN113956457A (zh) * | 2021-11-16 | 2022-01-21 | 丹阳市精通眼镜技术创新服务中心有限公司 | 一种pc基防蓝光树脂及其制备方法 |
Citations (106)
Publication number | Priority date | Publication date | Assignee | Title |
---|---|---|---|---|
JPS57136601A (en) | 1981-02-19 | 1982-08-23 | Toray Ind Inc | Urethan resin plastic lens |
JPS58127914A (ja) | 1982-01-18 | 1983-07-30 | ミネソタ・マイニング・アンド・マニユフアクチユアリング・コンパニ− | 有機重合体を含む眼科装置および前記装置に用いられる重合性組成物 |
JPS60199016A (ja) | 1984-03-23 | 1985-10-08 | Mitsui Toatsu Chem Inc | チオカルバミン酸s―アルキルエステル系レンズ用樹脂の製造方法 |
JPS60217229A (ja) | 1984-04-11 | 1985-10-30 | Mitsui Toatsu Chem Inc | 硫黄原子含有ポリウレタン系レンズ用樹脂の製造方法 |
JPS62236818A (ja) | 1986-04-07 | 1987-10-16 | Mitsui Toatsu Chem Inc | 含硫ウレタン樹脂の注型重合法 |
JPS62255901A (ja) | 1986-04-30 | 1987-11-07 | Mitsui Toatsu Chem Inc | 含硫ウレタン製レンズの染色法 |
JPS62267316A (ja) | 1986-05-16 | 1987-11-20 | Mitsui Toatsu Chem Inc | 高屈折率プラスチツクレンズ用樹脂 |
JPS6346213A (ja) | 1986-03-01 | 1988-02-27 | Mitsui Toatsu Chem Inc | 高屈折率プラスチックレンズ用樹脂の製造方法 |
JPS63130615A (ja) | 1986-11-21 | 1988-06-02 | Mitsui Toatsu Chem Inc | 高屈折率プラスチツクレンズ用樹脂 |
JPS63130614A (ja) | 1986-11-21 | 1988-06-02 | Mitsui Toatsu Chem Inc | 高屈折率プラスチックレンズ用樹脂の製造方法 |
JPS63245421A (ja) | 1987-04-01 | 1988-10-12 | Mitsui Toatsu Chem Inc | 低吸湿性含硫ウレタン樹脂 |
JPS63265201A (ja) | 1987-04-23 | 1988-11-01 | Mitsui Toatsu Chem Inc | 着色プラスチツクレンズの製造法 |
JPS6426622A (en) | 1987-04-01 | 1989-01-27 | Mitsui Toatsu Chemicals | Polymer for plastic lens having high refractive index and lens composed of said polymer |
JPS6445611A (en) | 1986-12-15 | 1989-02-20 | Mitsui Toatsu Chemicals | Method for cast-polymerizing sulfur-containing urethane resin lens |
JPS6454021A (en) | 1987-05-26 | 1989-03-01 | Mitsui Toatsu Chemicals | Resin for high refractive index plastic lens and lens comprising same |
JPS6490167A (en) | 1987-09-29 | 1989-04-06 | Mitsui Toatsu Chemicals | Polythiol |
JPS6490169A (en) | 1987-09-29 | 1989-04-06 | Mitsui Toatsu Chemicals | Polythiol |
JPS6490168A (en) | 1987-09-29 | 1989-04-06 | Mitsui Toatsu Chemicals | Polythiol |
JPS6490170A (en) | 1987-09-29 | 1989-04-06 | Mitsui Toatsu Chemicals | Polythiol |
JPH0196208A (ja) | 1987-10-09 | 1989-04-14 | Mitsui Toatsu Chem Inc | 熱硬化性組成物 |
JPH01152019A (ja) | 1987-11-16 | 1989-06-14 | Mitsui Toatsu Chem Inc | 含硫ウレタン樹脂の成型方法 |
JPH01163012A (ja) | 1987-09-22 | 1989-06-27 | Hoya Corp | ポリウレタンレンズの製造方法 |
JPH01213601A (ja) | 1988-02-22 | 1989-08-28 | Mitsui Toatsu Chem Inc | ウレタン樹脂系レンズ及びその製造方法 |
JPH01295202A (ja) | 1988-02-18 | 1989-11-28 | Mitsui Toatsu Chem Inc | チオカルバミン酸s頂アルキルエステル系樹脂製光学素子及びレンズの製造方法、該製造方法によって得られた光学素子並びにレンズ |
JPH01295201A (ja) | 1988-02-16 | 1989-11-28 | Mitsui Toatsu Chem Inc | ポリウレタン系レンズ及びその製造方法 |
JPH01302202A (ja) | 1988-02-17 | 1989-12-06 | Mitsui Toatsu Chem Inc | 高屈折率プラスチックレンズ及びその製造方法 |
JPH01311118A (ja) | 1988-06-09 | 1989-12-15 | Mitsui Toatsu Chem Inc | チオカルバミン酸s−アルキルエステル系レンズ用樹脂及びその樹脂からなるレンズ |
JPH02802A (ja) | 1988-02-22 | 1990-01-05 | Mitsui Toatsu Chem Inc | 高屈折率プラスチックレンズ及びその製造方法 |
JPH0236216A (ja) | 1987-09-19 | 1990-02-06 | Mitsui Toatsu Chem Inc | 高屈折率プラスチックレンズ |
JPH0258517A (ja) | 1989-05-24 | 1990-02-27 | Mitsui Toatsu Chem Inc | 高屈折率プラスチックレンズ用樹脂の製造方法 |
JPH02153302A (ja) | 1988-02-17 | 1990-06-13 | Mitsui Toatsu Chem Inc | 高屈折率光学素子及びプラスチックレンズの製造方法及び該方法により得られる光学素子並びにプラスチックレンズ |
JPH02167330A (ja) | 1988-07-14 | 1990-06-27 | Mitsui Toatsu Chem Inc | プラスチックレンズの製造方法 |
JPH02270859A (ja) | 1988-12-22 | 1990-11-05 | Mitsui Toatsu Chem Inc | メルカプト化合物及びその製造方法 |
JPH0381320A (ja) | 1989-08-24 | 1991-04-05 | Mitsui Toatsu Chem Inc | エポキシ樹脂製レンズ及びその製造方法 |
JPH0384031A (ja) | 1989-08-29 | 1991-04-09 | Mitsui Toatsu Chem Inc | ポリスルフィド系樹脂およびその樹脂よりなるレンズ |
JPH0384021A (ja) | 1989-08-29 | 1991-04-09 | Mitsui Toatsu Chem Inc | チオカルバミン酸s―アルキルエステル系レンズおよびその製造方法 |
JPH03124722A (ja) | 1989-10-09 | 1991-05-28 | Mitsui Toatsu Chem Inc | ウレタン系レンズ用樹脂の製造方法 |
JPH03236386A (ja) | 1989-12-28 | 1991-10-22 | Hoya Corp | ポリチオール化合物を用いて得られた光学材料及び光学製品 |
JPH03281312A (ja) | 1990-03-30 | 1991-12-12 | Hoya Corp | ポリウレタンレンズの製造方法 |
JPH0478801A (ja) | 1990-07-23 | 1992-03-12 | Mitsui Toatsu Chem Inc | レンズの製造方法 |
JPH04117353A (ja) | 1990-09-06 | 1992-04-17 | Mitsui Toatsu Chem Inc | イソシアナート化合物及びそれを用いた含硫ウレタン系樹脂及びレンズ |
JPH04117354A (ja) | 1990-09-06 | 1992-04-17 | Mitsui Toatsu Chem Inc | イソシアナート化合物及びそれを用いた含硫ウレタン系樹脂及びレンズ |
JPH04159275A (ja) | 1990-10-19 | 1992-06-02 | Hoya Corp | ポリイソシアネート化合物、それを用いて得られた光学材料及び光学製品 |
JPH04256558A (ja) | 1991-02-06 | 1992-09-11 | Mitsui Toatsu Chem Inc | 含硫黄レンズの加工方法 |
JPH0578441A (ja) | 1991-03-25 | 1993-03-30 | Mitsui Toatsu Chem Inc | 光学用ウレタン樹脂およびその樹脂からなるプラスチツ クレンズ |
JPH0580201A (ja) | 1984-04-11 | 1993-04-02 | Mitsui Toatsu Chem Inc | 硫黄原子含有ポリウレタン系プラスチツクレンズ |
JPH05105772A (ja) * | 1991-10-16 | 1993-04-27 | Toray Ind Inc | 高耐光性プラスチツクレンズ及びその製造方法 |
JPH05148340A (ja) | 1991-09-03 | 1993-06-15 | Hoya Corp | 光学材料用重合体及びその製造方法 |
JPH05208950A (ja) | 1991-08-08 | 1993-08-20 | Mitsui Toatsu Chem Inc | メルカプト化合物、その製造方法、及びそれを用いた含硫ウレタン系樹脂及びレンズ |
JPH05273401A (ja) | 1992-03-25 | 1993-10-22 | Mitsui Toatsu Chem Inc | 含硫黄プラスチックレンズおよびその製造方法 |
JPH05297201A (ja) | 1992-04-17 | 1993-11-12 | Mitsui Toatsu Chem Inc | 含硫黄プラスチックレンズおよびその製造方法 |
JPH05320301A (ja) | 1992-05-22 | 1993-12-03 | Mitsui Toatsu Chem Inc | 含硫ウレタン系樹脂及びレンズとその製造方法 |
JPH0665193A (ja) | 1992-08-11 | 1994-03-08 | Hoya Corp | ポリイソシアネート化合物、それを用いて得られた光学材料及び光学製品 |
JPH0672989A (ja) | 1992-08-26 | 1994-03-15 | Mitsui Toatsu Chem Inc | ペンタエリスリチオールの製造法 |
JPH06122748A (ja) | 1992-08-26 | 1994-05-06 | Mitsui Toatsu Chem Inc | 高屈折率プラスチックレンズ用組成物およびレンズ |
JPH06256459A (ja) | 1993-03-02 | 1994-09-13 | Hoya Corp | 光学材料用重合体及びその製造方法 |
JPH06256342A (ja) | 1993-03-05 | 1994-09-13 | Mitsui Toatsu Chem Inc | ポリチオール化合物およびそれを用いた樹脂ならびに レンズ |
JPH06313801A (ja) | 1993-04-27 | 1994-11-08 | Hoya Corp | プラスチックレンズの染色方法及び染色レンズ |
JPH0763902A (ja) | 1993-08-31 | 1995-03-10 | Hoya Corp | プラスチックレンズ用組成物及びプラスチックレンズの製造方法 |
JPH07104101A (ja) | 1993-09-29 | 1995-04-21 | Hoya Corp | ポリウレタンレンズの製造方法 |
JPH07118357A (ja) | 1993-09-03 | 1995-05-09 | Mitsui Toatsu Chem Inc | プラスチックレンズ用組成物およびレンズ、並びにそれらの製造方法 |
JPH07118263A (ja) | 1993-10-19 | 1995-05-09 | Hoya Corp | 反応性オリゴマー |
JPH07118390A (ja) | 1993-10-19 | 1995-05-09 | Hoya Corp | 光学材料及びその製造方法 |
JPH07165859A (ja) | 1993-12-17 | 1995-06-27 | Mitsui Toatsu Chem Inc | 高屈折率プラスチックレンズ用組成物およびレンズ |
JPH07228659A (ja) | 1993-12-20 | 1995-08-29 | Mitsui Toatsu Chem Inc | 高速重合性樹脂組成物およびレンズ |
JPH07242722A (ja) | 1994-03-04 | 1995-09-19 | Mitsui Toatsu Chem Inc | 高屈折率プラスチックレンズ用組成物およびレンズ |
JPH07247335A (ja) | 1994-03-11 | 1995-09-26 | Mitsui Toatsu Chem Inc | プラスチックレンズ用組成物およびレンズ、並びにそれらの製造方法 |
JPH07252207A (ja) | 1994-01-26 | 1995-10-03 | Mitsui Toatsu Chem Inc | 新規なポリチオール及びそれを用いた含硫ウレタン系プラスチックレンズ |
JPH07252341A (ja) | 1994-03-16 | 1995-10-03 | Mitsui Toatsu Chem Inc | プラスチックレンズ用組成物およびレンズ、並びにそれらの製造方法 |
JPH07316250A (ja) | 1994-05-30 | 1995-12-05 | Hoya Corp | 眼鏡用プラスチックレンズ |
JPH07324118A (ja) | 1994-04-06 | 1995-12-12 | Mitsui Toatsu Chem Inc | 低比重ウレタン系プラスチックレンズ用組成物、それから得られるレンズ、レンズ用樹脂、及びそれらの製造方法 |
JPH083267A (ja) | 1994-12-28 | 1996-01-09 | Mitsui Toatsu Chem Inc | ウレタン系レンズ |
JPH0829741A (ja) * | 1994-07-15 | 1996-02-02 | Hoya Corp | ハードコンタクトレンズ材料およびハードコンタクトレンズ |
JPH0873732A (ja) | 1994-09-08 | 1996-03-19 | Mitsui Toatsu Chem Inc | 近赤外線吸収ウレタン樹脂の製造方法 |
JPH0892345A (ja) | 1994-09-26 | 1996-04-09 | Mitsui Toatsu Chem Inc | 熱硬化性ポリウレタン樹脂系成型体の製造方法 |
JPH0971580A (ja) | 1995-09-08 | 1997-03-18 | Mitsubishi Gas Chem Co Inc | 新規な分岐アルキルスルフィド型エピスルフィド化合物 |
JPH09110979A (ja) | 1995-08-16 | 1997-04-28 | Mitsubishi Gas Chem Co Inc | 新規な直鎖アルキルスルフィド型エピスルフィド化合物 |
JPH09208621A (ja) | 1996-01-31 | 1997-08-12 | Nippon Zeon Co Ltd | ジエン系ゴム |
JPH09208651A (ja) | 1996-01-30 | 1997-08-12 | Mitsui Toatsu Chem Inc | ウレタン系プラスチックレンズの製造方法及び該方法にて得られるウレタン系プラスチックレンズ |
JPH09255781A (ja) | 1996-01-17 | 1997-09-30 | Mitsubishi Gas Chem Co Inc | 新規なエピスルフィド化合物 |
JPH10186291A (ja) * | 1996-12-26 | 1998-07-14 | Toray Ind Inc | プラスチックレンズ |
JPH11140070A (ja) | 1997-09-03 | 1999-05-25 | Mitsui Chem Inc | 新規な(チオ)エポキシ化合物 |
JPH11180977A (ja) | 1997-10-16 | 1999-07-06 | Mitsubishi Gas Chem Co Inc | 新規なエピスルフィド化合物 |
JPH11183702A (ja) | 1997-12-18 | 1999-07-09 | Mitsui Chem Inc | 新規な(チオ)エポキシ樹脂 |
JPH11189592A (ja) | 1997-12-25 | 1999-07-13 | Mitsui Chem Inc | 含硫エポキシ化合物及びその用途 |
JPH11295502A (ja) * | 1998-02-10 | 1999-10-29 | Asahi Optical Co Ltd | プラスチックレンズ |
JP2001089653A (ja) * | 1999-09-22 | 2001-04-03 | Teijin Chem Ltd | 芳香族ポリカーボネート樹脂組成物 |
JP2001243915A (ja) * | 1999-12-28 | 2001-09-07 | Sumitomo Dow Ltd | 蛍光ランプ用光線カットカバー |
JP2003107202A (ja) * | 2001-09-28 | 2003-04-09 | Nof Corp | レンズ用コーティング組成物 |
JP2003253140A (ja) * | 2001-12-27 | 2003-09-10 | Tokuyama Corp | 樹脂組成物 |
JP2004051851A (ja) * | 2002-07-22 | 2004-02-19 | Nof Corp | 光学材料用単量体組成物及びその硬化物 |
JP2004325511A (ja) * | 2003-04-21 | 2004-11-18 | Sumitomo Dow Ltd | 眼鏡レンズ |
JP2005292240A (ja) * | 2004-03-31 | 2005-10-20 | Hoya Corp | 紫外線吸収剤、それを用いたプラスチック眼鏡レンズ及びその製造方法 |
WO2006087880A1 (ja) * | 2005-02-17 | 2006-08-24 | Idemitsu Kosan Co., Ltd. | 420nmの波長光に対して吸収能を持つ熱可塑性樹脂組成物およびその成形体 |
JP2007254734A (ja) * | 2006-01-27 | 2007-10-04 | Ems-Chemie Ag | ホトクロミック成形組成物及びそれから製造される物品 |
JP2008056854A (ja) | 2006-09-01 | 2008-03-13 | Mitsui Chemicals Inc | ポリチオール化合物とポリイソ(チオ)シアナート化合物からなる重合性組成物 |
WO2008029994A1 (en) * | 2006-09-06 | 2008-03-13 | Shin Dae Specialties Co., Ltd. | Optical resin composition having excellent impact resistance and method for fabricating optical lens using the same |
JP2008088195A (ja) * | 2006-09-29 | 2008-04-17 | Asahi Kasei Electronics Co Ltd | 有機無機感光性樹脂組成物 |
JP2008105225A (ja) * | 2006-10-24 | 2008-05-08 | Mgc Filsheet Co Ltd | 防眩性積層体、塗膜防眩性積層体、防眩性材料、及び該防眩性材料の製造方法 |
WO2008072580A1 (ja) * | 2006-12-08 | 2008-06-19 | Hoya Corporation | 眼鏡用プラスチックレンズ及びその製造方法並びにその方法に用いるコーティング液塗布具 |
CN101712742A (zh) * | 2009-11-10 | 2010-05-26 | 江阴市茂盛光学材料有限公司 | 一种含巯基封端的聚硫氨酯类预聚物的溶液及其制备方法 |
CN101712743A (zh) * | 2009-11-10 | 2010-05-26 | 江阴市茂盛光学材料有限公司 | 一种含异氰酸基封端的聚硫氨酯类预聚物的溶液及其制备方法 |
JP2012093689A (ja) | 2010-09-29 | 2012-05-17 | Nikon-Essilor Co Ltd | 光学部品およびその製造方法 |
JP2012173704A (ja) * | 2011-02-24 | 2012-09-10 | Ito Kogaku Kogyo Kk | 防眩光学要素 |
WO2013160227A1 (de) * | 2012-04-23 | 2013-10-31 | Bayer Materialscience Ag | Lichtechte polyurethanzusammensetzungen |
WO2014133111A1 (ja) * | 2013-02-27 | 2014-09-04 | 三井化学株式会社 | 光学材料、光学材料用組成物およびその用途 |
Family Cites Families (55)
Publication number | Priority date | Publication date | Assignee | Title |
---|---|---|---|---|
SE8503522D0 (sv) | 1985-07-19 | 1985-07-19 | Pharmacia Ab | Uv-absorberande linsmaterial |
JPH01180575A (ja) | 1988-01-12 | 1989-07-18 | Konica Corp | 画像形成装置 |
EP0676428B1 (en) * | 1994-04-06 | 1999-02-03 | Mitsui Chemicals, Inc. | Composition for low-specific gravity urethane-base plastic lens |
JP3220614B2 (ja) * | 1994-04-08 | 2001-10-22 | 三井化学株式会社 | ウレタン系プラスチックレンズ用組成物、それよりなるプラスチックレンズおよびその製造方法 |
KR970009667B1 (ko) * | 1994-06-11 | 1997-06-17 | 현대전자산업 주식회사 | 위성방송 수신기의 수신주파수 변환방법 |
JP3465528B2 (ja) | 1997-04-22 | 2003-11-10 | 三菱瓦斯化学株式会社 | 新規な光学材料用樹脂 |
US6187844B1 (en) * | 1998-02-10 | 2001-02-13 | Asahi Kogaku Kogyo Kabushiki Kaisha | Plastic lens |
JP3538310B2 (ja) | 1998-02-10 | 2004-06-14 | ペンタックス株式会社 | プラスチックレンズ |
JP4334633B2 (ja) | 1998-03-18 | 2009-09-30 | セイコーエプソン株式会社 | プラスチックレンズ用重合組成物 |
US6201061B1 (en) | 1998-03-26 | 2001-03-13 | Mitsubishi Gas Chemical Company, Inc. | Process for producing a novel resin for optical materials having excellent color tone and transparency |
US6245915B1 (en) | 1999-05-03 | 2001-06-12 | Ciba Specialty Chemicals Corporation | Asymmetrical bisbenzotriazoles substituted by a perfluoroalkyl moiety |
US6268415B1 (en) | 1999-05-03 | 2001-07-31 | Ciba Specialty Chemicals Corporation | Stabilized adhesive compositions containing highly soluble, photostable benzotriazole UV absorbers and laminated articles derived therefrom |
EP1175467B1 (en) * | 1999-05-03 | 2006-06-14 | Ciba SC Holding AG | Stabilized adhesive compositions containing highly soluble, red-shifted, photostable benzotriazole uv absorbers and laminated articles derived therefrom |
US6187845B1 (en) | 1999-05-03 | 2001-02-13 | Ciba Specialty Chemicals Corporation | Stabilized adhesive compositions containing highly soluble, red-shifted, photostable benzotriazole UV absorbers and laminated articles derived therefrom |
JP3868683B2 (ja) * | 1999-11-05 | 2007-01-17 | 株式会社アサヒオプティカル | プラスチック基材 |
JP2001164110A (ja) | 1999-12-10 | 2001-06-19 | Mitsui Chemicals Inc | 重合性組成物 |
JP2003231804A (ja) * | 2002-02-12 | 2003-08-19 | Mitsubishi Engineering Plastics Corp | ポリカーボネート樹脂組成物及びその組成物からなる成形品 |
CN100343299C (zh) * | 2002-04-19 | 2007-10-17 | 三井化学株式会社 | 硫代氨基甲酸乙酯系光学材料 |
JP2004061879A (ja) | 2002-07-29 | 2004-02-26 | Ito Kogaku Kogyo Kk | 表面保護膜を備えた光学要素 |
JP2004131652A (ja) | 2002-10-11 | 2004-04-30 | Mitsubishi Engineering Plastics Corp | 芳香族ポリカーボネート樹脂組成物及びその組成物を用いた成形品 |
JP4609694B2 (ja) * | 2003-06-11 | 2011-01-12 | セイコーエプソン株式会社 | 光学材料用樹脂の製造方法、光学材料用樹脂及びプラスチックレンズ |
CA2563763C (en) * | 2004-04-19 | 2014-10-14 | Sunlux Co., Ltd. | Polarizing plastic optical device and process for producing the same |
CN1997708A (zh) * | 2004-06-25 | 2007-07-11 | 三菱工程塑胶株式会社 | 芳香族聚碳酸酯树脂组合物、以及使用该树脂组合物的光学信息记录介质用基板、透明光学部件、照明设备外壳和车辆用透明构件 |
JP4804135B2 (ja) | 2005-01-25 | 2011-11-02 | 東海光学株式会社 | 生産性良く製造できる眼鏡用プラスチックレンズの製造方法 |
JP5016211B2 (ja) | 2005-09-27 | 2012-09-05 | Hoya株式会社 | プラスチックレンズの製造方法 |
TW200726797A (en) * | 2005-09-27 | 2007-07-16 | Nippon Catalytic Chem Ind | Resin composition for forming UV-absorbing layer and UV-absorbing-layer-containing multilayer body |
US9377569B2 (en) | 2006-03-20 | 2016-06-28 | High Performance Optics, Inc. | Photochromic ophthalmic systems that selectively filter specific blue light wavelengths |
EP2058346B1 (en) | 2006-09-19 | 2012-03-07 | Mitsubishi Gas Chemical Company, Inc. | Resin composition for optical material and optical material using the same |
EP2078765B1 (en) | 2006-09-29 | 2011-05-11 | Hoya Corporation | Vapor deposition material, process for producing optical member or plastic lens for spectacle with use thereof, and plastic lens for spectacle |
CN102516487B (zh) * | 2006-10-16 | 2015-07-08 | 三井化学株式会社 | 光学材料用树脂的制造方法 |
KR100704314B1 (ko) | 2006-12-11 | 2007-04-09 | 주식회사 신대특수재료 | 내열성이 우수한 초 고굴절 광학수지 조성물 및 이를이용한 광학렌즈의 제조방법 |
TWI482814B (zh) * | 2007-03-16 | 2015-05-01 | Mitsubishi Gas Chemical Co | 光學材料用樹脂組成物及由該組成物得到之光學材料 |
KR100912274B1 (ko) | 2007-08-01 | 2009-08-17 | 주식회사 신대특수재료 | 광학렌즈용 경량성 고굴절 수지 및 이를 이용한 광학렌즈 |
JP5336059B2 (ja) | 2007-09-11 | 2013-11-06 | Hoya株式会社 | 眼鏡レンズのプライマー形成用組成物、この組成物を用いたプライマー層を有する眼鏡用プラスチックレンズ、およびその製造方法 |
JP2008090327A (ja) | 2007-12-11 | 2008-04-17 | Seiko Epson Corp | 紫外線吸収性プラスチックレンズの製造方法 |
US8481148B2 (en) | 2008-04-30 | 2013-07-09 | Hoya Corporation | Optical device and antireflection film |
EP2128657A1 (en) | 2008-05-30 | 2009-12-02 | Hoya Corporation | Plastic lens, manufacturing method thereof, and manufacturing method of hard coat liquid |
KR101074450B1 (ko) | 2008-12-29 | 2011-10-17 | 주식회사 케이오씨솔루션 | 신규 티올 화합물을 이용한 광학렌즈용 경량성 고굴절 수지조성물 및 이를 이용한 광학렌즈 |
KR101142266B1 (ko) | 2009-02-17 | 2012-05-07 | 주식회사 케이오씨솔루션 | 내충격성이 우수한 고굴절 광학렌즈용 수지 조성물, 이를 이용한 고굴절 광학렌즈 및 그 제조 방법 |
WO2010128770A2 (ko) * | 2009-05-04 | 2010-11-11 | 주식회사 케이오씨솔루션 | 내열성 및 반응성이 우수한 우레탄계 광학 렌즈용 수지조성물 |
KR101594407B1 (ko) * | 2009-08-26 | 2016-02-17 | 주식회사 케이오씨솔루션 | 맑고 투명한 폴리티올 화합물의 제조방법과 이를 이용한 광학렌즈용 조성물 및 광학렌즈의 제조방법 |
KR101745469B1 (ko) * | 2010-08-23 | 2017-06-09 | 주식회사 케이오씨솔루션 | 초고굴절 우레탄계 광학렌즈용 수지 조성물 및 이를 이용한 광학렌즈의 제조방법 |
KR20120060254A (ko) * | 2010-09-07 | 2012-06-12 | 주식회사 케이오씨솔루션 | 열안정성이 뛰어난 초고굴절 우레탄계 광학렌즈용 수지 조성물 및 이를 이용한 광학렌즈의 제조방법 |
JP5655613B2 (ja) * | 2011-02-15 | 2015-01-21 | 三菱瓦斯化学株式会社 | 光学材料用組成物 |
KR101918294B1 (ko) * | 2011-02-21 | 2019-01-29 | 주식회사 케이오씨솔루션 | 광학특성을 향상시킨 광학재료용 수지 조성물 및 이를 이용한 광학재료의 제조방법 |
JP5626081B2 (ja) * | 2011-04-07 | 2014-11-19 | 三菱エンジニアリングプラスチックス株式会社 | 眼鏡レンズ用熱可塑性樹脂組成物及び眼鏡レンズ |
JP5985167B2 (ja) | 2011-06-02 | 2016-09-06 | 伊藤光学工業株式会社 | 防眩光学要素 |
CN113045885B (zh) * | 2013-09-30 | 2023-03-21 | 豪雅镜片泰国有限公司 | 透明塑料基材及塑料透镜 |
JP5817083B1 (ja) * | 2014-09-17 | 2015-11-18 | 学校法人神奈川大学 | 制汗剤又はデオドラント剤 |
JP6580907B2 (ja) * | 2014-11-20 | 2019-09-25 | 花王株式会社 | 皮膚化粧料 |
JP2016104711A (ja) * | 2014-11-21 | 2016-06-09 | 国立大学法人 東京大学 | 造血幹細胞移植を補助することに用いるための医薬組成物およびその製造方法 |
JP2016104708A (ja) * | 2014-12-01 | 2016-06-09 | 参天製薬株式会社 | アスコルビン酸誘導体を含有する非水性注射剤及びデポ形成方法 |
JP2016104710A (ja) * | 2014-12-01 | 2016-06-09 | キユーピー株式会社 | 錠剤またはカプセル成形物 |
JP2016104709A (ja) * | 2014-12-01 | 2016-06-09 | 参天製薬株式会社 | シスチン誘導体を含有する非水性注射剤及びデポ形成方法 |
KR101612940B1 (ko) * | 2015-09-15 | 2016-04-15 | (주)케미그라스 | 자외선 및 청색광 차단 기능성 안경렌즈 |
-
2014
- 2014-09-29 CN CN202110108418.4A patent/CN113045885B/zh active Active
- 2014-09-29 CN CN201611051968.2A patent/CN106977902A/zh active Pending
- 2014-09-29 CN CN202210441196.2A patent/CN114891336A/zh active Pending
- 2014-09-29 KR KR1020217000201A patent/KR102247123B1/ko active IP Right Grant
- 2014-09-29 EP EP21184223.2A patent/EP3936905A1/en active Pending
- 2014-09-29 EP EP18211290.4A patent/EP3483219A1/en active Pending
- 2014-09-29 EP EP14847241.8A patent/EP3056545B1/en active Active
- 2014-09-29 CN CN202111651248.0A patent/CN114525027A/zh active Pending
- 2014-09-29 CN CN202010533659.9A patent/CN111732831A/zh active Pending
- 2014-09-29 JP JP2015539442A patent/JP6791546B2/ja active Active
- 2014-09-29 US US15/025,440 patent/US20160215121A1/en not_active Abandoned
- 2014-09-29 CN CN201611051967.8A patent/CN106977901A/zh active Pending
- 2014-09-29 CN CN202210441202.4A patent/CN114891337A/zh active Pending
- 2014-09-29 EP EP18211291.2A patent/EP3483220B1/en active Active
- 2014-09-29 CN CN201611050894.0A patent/CN106977900A/zh active Pending
- 2014-09-29 EP EP21184222.4A patent/EP3936904A1/en active Pending
- 2014-09-29 KR KR1020207026228A patent/KR102358067B1/ko active IP Right Grant
- 2014-09-29 CN CN201480053717.0A patent/CN105612220A/zh active Pending
- 2014-09-29 AU AU2014324967A patent/AU2014324967B2/en active Active
- 2014-09-29 KR KR1020207026230A patent/KR102201833B1/ko active IP Right Review Request
- 2014-09-29 KR KR1020217012494A patent/KR102486077B1/ko active IP Right Grant
- 2014-09-29 CN CN201611050668.2A patent/CN106916436A/zh active Pending
- 2014-09-29 WO PCT/JP2014/075963 patent/WO2015046540A1/ja active Application Filing
- 2014-09-29 KR KR1020167008388A patent/KR102187727B1/ko active IP Right Grant
- 2014-09-29 BR BR112016006703A patent/BR112016006703A2/pt not_active Application Discontinuation
-
2016
- 2016-05-25 JP JP2016104711A patent/JP6294386B2/ja active Active
- 2016-05-25 JP JP2016104710A patent/JP2016186083A/ja active Pending
- 2016-05-25 JP JP2016104713A patent/JP2016166375A/ja active Pending
- 2016-05-25 JP JP2016104709A patent/JP6383755B2/ja active Active
- 2016-05-25 JP JP2016104708A patent/JP6383754B2/ja active Active
- 2016-05-25 JP JP2016104712A patent/JP6294387B2/ja active Active
-
2018
- 2018-02-09 AU AU2018200983A patent/AU2018200983B2/en active Active
- 2018-02-09 AU AU2018200980A patent/AU2018200980B2/en active Active
- 2018-02-09 AU AU2018200972A patent/AU2018200972B2/en active Active
- 2018-02-09 AU AU2018200984A patent/AU2018200984B2/en active Active
- 2018-08-27 US US16/113,603 patent/US11001699B2/en active Active
- 2018-08-27 US US16/113,673 patent/US10947365B2/en active Active
- 2018-11-29 JP JP2018223060A patent/JP7004273B2/ja active Active
- 2018-11-29 JP JP2018223058A patent/JP7004272B2/ja active Active
- 2018-12-17 US US16/222,577 patent/US10745539B2/en active Active
Patent Citations (108)
Publication number | Priority date | Publication date | Assignee | Title |
---|---|---|---|---|
JPS57136601A (en) | 1981-02-19 | 1982-08-23 | Toray Ind Inc | Urethan resin plastic lens |
JPS58127914A (ja) | 1982-01-18 | 1983-07-30 | ミネソタ・マイニング・アンド・マニユフアクチユアリング・コンパニ− | 有機重合体を含む眼科装置および前記装置に用いられる重合性組成物 |
JPS60199016A (ja) | 1984-03-23 | 1985-10-08 | Mitsui Toatsu Chem Inc | チオカルバミン酸s―アルキルエステル系レンズ用樹脂の製造方法 |
JPH0593801A (ja) | 1984-03-23 | 1993-04-16 | Mitsui Toatsu Chem Inc | チオカルバミン酸s−アルキルエステル系プラスチツクレンズ |
JPH0580201A (ja) | 1984-04-11 | 1993-04-02 | Mitsui Toatsu Chem Inc | 硫黄原子含有ポリウレタン系プラスチツクレンズ |
JPS60217229A (ja) | 1984-04-11 | 1985-10-30 | Mitsui Toatsu Chem Inc | 硫黄原子含有ポリウレタン系レンズ用樹脂の製造方法 |
JPS6346213A (ja) | 1986-03-01 | 1988-02-27 | Mitsui Toatsu Chem Inc | 高屈折率プラスチックレンズ用樹脂の製造方法 |
JPS62236818A (ja) | 1986-04-07 | 1987-10-16 | Mitsui Toatsu Chem Inc | 含硫ウレタン樹脂の注型重合法 |
JPS62255901A (ja) | 1986-04-30 | 1987-11-07 | Mitsui Toatsu Chem Inc | 含硫ウレタン製レンズの染色法 |
JPS62267316A (ja) | 1986-05-16 | 1987-11-20 | Mitsui Toatsu Chem Inc | 高屈折率プラスチツクレンズ用樹脂 |
JPS63130615A (ja) | 1986-11-21 | 1988-06-02 | Mitsui Toatsu Chem Inc | 高屈折率プラスチツクレンズ用樹脂 |
JPS63130614A (ja) | 1986-11-21 | 1988-06-02 | Mitsui Toatsu Chem Inc | 高屈折率プラスチックレンズ用樹脂の製造方法 |
JPS6445611A (en) | 1986-12-15 | 1989-02-20 | Mitsui Toatsu Chemicals | Method for cast-polymerizing sulfur-containing urethane resin lens |
JPS6426622A (en) | 1987-04-01 | 1989-01-27 | Mitsui Toatsu Chemicals | Polymer for plastic lens having high refractive index and lens composed of said polymer |
JPS63245421A (ja) | 1987-04-01 | 1988-10-12 | Mitsui Toatsu Chem Inc | 低吸湿性含硫ウレタン樹脂 |
JPS63265201A (ja) | 1987-04-23 | 1988-11-01 | Mitsui Toatsu Chem Inc | 着色プラスチツクレンズの製造法 |
JPS6454021A (en) | 1987-05-26 | 1989-03-01 | Mitsui Toatsu Chemicals | Resin for high refractive index plastic lens and lens comprising same |
JPH0236216A (ja) | 1987-09-19 | 1990-02-06 | Mitsui Toatsu Chem Inc | 高屈折率プラスチックレンズ |
JPH01163012A (ja) | 1987-09-22 | 1989-06-27 | Hoya Corp | ポリウレタンレンズの製造方法 |
JPS6490168A (en) | 1987-09-29 | 1989-04-06 | Mitsui Toatsu Chemicals | Polythiol |
JPS6490170A (en) | 1987-09-29 | 1989-04-06 | Mitsui Toatsu Chemicals | Polythiol |
JPS6490169A (en) | 1987-09-29 | 1989-04-06 | Mitsui Toatsu Chemicals | Polythiol |
JPS6490167A (en) | 1987-09-29 | 1989-04-06 | Mitsui Toatsu Chemicals | Polythiol |
JPH0196208A (ja) | 1987-10-09 | 1989-04-14 | Mitsui Toatsu Chem Inc | 熱硬化性組成物 |
JPH01152019A (ja) | 1987-11-16 | 1989-06-14 | Mitsui Toatsu Chem Inc | 含硫ウレタン樹脂の成型方法 |
JPH01295201A (ja) | 1988-02-16 | 1989-11-28 | Mitsui Toatsu Chem Inc | ポリウレタン系レンズ及びその製造方法 |
JPH01302202A (ja) | 1988-02-17 | 1989-12-06 | Mitsui Toatsu Chem Inc | 高屈折率プラスチックレンズ及びその製造方法 |
JPH02153302A (ja) | 1988-02-17 | 1990-06-13 | Mitsui Toatsu Chem Inc | 高屈折率光学素子及びプラスチックレンズの製造方法及び該方法により得られる光学素子並びにプラスチックレンズ |
JPH01295202A (ja) | 1988-02-18 | 1989-11-28 | Mitsui Toatsu Chem Inc | チオカルバミン酸s頂アルキルエステル系樹脂製光学素子及びレンズの製造方法、該製造方法によって得られた光学素子並びにレンズ |
JPH02802A (ja) | 1988-02-22 | 1990-01-05 | Mitsui Toatsu Chem Inc | 高屈折率プラスチックレンズ及びその製造方法 |
JPH01213601A (ja) | 1988-02-22 | 1989-08-28 | Mitsui Toatsu Chem Inc | ウレタン樹脂系レンズ及びその製造方法 |
JPH01311118A (ja) | 1988-06-09 | 1989-12-15 | Mitsui Toatsu Chem Inc | チオカルバミン酸s−アルキルエステル系レンズ用樹脂及びその樹脂からなるレンズ |
JPH02167330A (ja) | 1988-07-14 | 1990-06-27 | Mitsui Toatsu Chem Inc | プラスチックレンズの製造方法 |
JPH02270859A (ja) | 1988-12-22 | 1990-11-05 | Mitsui Toatsu Chem Inc | メルカプト化合物及びその製造方法 |
JPH0258517A (ja) | 1989-05-24 | 1990-02-27 | Mitsui Toatsu Chem Inc | 高屈折率プラスチックレンズ用樹脂の製造方法 |
JPH0381320A (ja) | 1989-08-24 | 1991-04-05 | Mitsui Toatsu Chem Inc | エポキシ樹脂製レンズ及びその製造方法 |
JPH0384031A (ja) | 1989-08-29 | 1991-04-09 | Mitsui Toatsu Chem Inc | ポリスルフィド系樹脂およびその樹脂よりなるレンズ |
JPH0384021A (ja) | 1989-08-29 | 1991-04-09 | Mitsui Toatsu Chem Inc | チオカルバミン酸s―アルキルエステル系レンズおよびその製造方法 |
JPH03124722A (ja) | 1989-10-09 | 1991-05-28 | Mitsui Toatsu Chem Inc | ウレタン系レンズ用樹脂の製造方法 |
JPH03236386A (ja) | 1989-12-28 | 1991-10-22 | Hoya Corp | ポリチオール化合物を用いて得られた光学材料及び光学製品 |
JPH06192250A (ja) | 1989-12-28 | 1994-07-12 | Hoya Corp | ポリチオール化合物 |
JPH03281312A (ja) | 1990-03-30 | 1991-12-12 | Hoya Corp | ポリウレタンレンズの製造方法 |
JPH0478801A (ja) | 1990-07-23 | 1992-03-12 | Mitsui Toatsu Chem Inc | レンズの製造方法 |
JPH04117353A (ja) | 1990-09-06 | 1992-04-17 | Mitsui Toatsu Chem Inc | イソシアナート化合物及びそれを用いた含硫ウレタン系樹脂及びレンズ |
JPH04117354A (ja) | 1990-09-06 | 1992-04-17 | Mitsui Toatsu Chem Inc | イソシアナート化合物及びそれを用いた含硫ウレタン系樹脂及びレンズ |
JPH04159275A (ja) | 1990-10-19 | 1992-06-02 | Hoya Corp | ポリイソシアネート化合物、それを用いて得られた光学材料及び光学製品 |
JPH04256558A (ja) | 1991-02-06 | 1992-09-11 | Mitsui Toatsu Chem Inc | 含硫黄レンズの加工方法 |
JPH0578441A (ja) | 1991-03-25 | 1993-03-30 | Mitsui Toatsu Chem Inc | 光学用ウレタン樹脂およびその樹脂からなるプラスチツ クレンズ |
JPH05208950A (ja) | 1991-08-08 | 1993-08-20 | Mitsui Toatsu Chem Inc | メルカプト化合物、その製造方法、及びそれを用いた含硫ウレタン系樹脂及びレンズ |
JPH05148340A (ja) | 1991-09-03 | 1993-06-15 | Hoya Corp | 光学材料用重合体及びその製造方法 |
JPH05105772A (ja) * | 1991-10-16 | 1993-04-27 | Toray Ind Inc | 高耐光性プラスチツクレンズ及びその製造方法 |
JPH05273401A (ja) | 1992-03-25 | 1993-10-22 | Mitsui Toatsu Chem Inc | 含硫黄プラスチックレンズおよびその製造方法 |
JPH05297201A (ja) | 1992-04-17 | 1993-11-12 | Mitsui Toatsu Chem Inc | 含硫黄プラスチックレンズおよびその製造方法 |
JPH05320301A (ja) | 1992-05-22 | 1993-12-03 | Mitsui Toatsu Chem Inc | 含硫ウレタン系樹脂及びレンズとその製造方法 |
JPH0665193A (ja) | 1992-08-11 | 1994-03-08 | Hoya Corp | ポリイソシアネート化合物、それを用いて得られた光学材料及び光学製品 |
JPH0672989A (ja) | 1992-08-26 | 1994-03-15 | Mitsui Toatsu Chem Inc | ペンタエリスリチオールの製造法 |
JPH06122748A (ja) | 1992-08-26 | 1994-05-06 | Mitsui Toatsu Chem Inc | 高屈折率プラスチックレンズ用組成物およびレンズ |
JPH06256459A (ja) | 1993-03-02 | 1994-09-13 | Hoya Corp | 光学材料用重合体及びその製造方法 |
JPH06256342A (ja) | 1993-03-05 | 1994-09-13 | Mitsui Toatsu Chem Inc | ポリチオール化合物およびそれを用いた樹脂ならびに レンズ |
JPH06313801A (ja) | 1993-04-27 | 1994-11-08 | Hoya Corp | プラスチックレンズの染色方法及び染色レンズ |
JPH0763902A (ja) | 1993-08-31 | 1995-03-10 | Hoya Corp | プラスチックレンズ用組成物及びプラスチックレンズの製造方法 |
JPH07118357A (ja) | 1993-09-03 | 1995-05-09 | Mitsui Toatsu Chem Inc | プラスチックレンズ用組成物およびレンズ、並びにそれらの製造方法 |
JPH07104101A (ja) | 1993-09-29 | 1995-04-21 | Hoya Corp | ポリウレタンレンズの製造方法 |
JPH07118263A (ja) | 1993-10-19 | 1995-05-09 | Hoya Corp | 反応性オリゴマー |
JPH07118390A (ja) | 1993-10-19 | 1995-05-09 | Hoya Corp | 光学材料及びその製造方法 |
JPH07165859A (ja) | 1993-12-17 | 1995-06-27 | Mitsui Toatsu Chem Inc | 高屈折率プラスチックレンズ用組成物およびレンズ |
JPH07228659A (ja) | 1993-12-20 | 1995-08-29 | Mitsui Toatsu Chem Inc | 高速重合性樹脂組成物およびレンズ |
JPH07252207A (ja) | 1994-01-26 | 1995-10-03 | Mitsui Toatsu Chem Inc | 新規なポリチオール及びそれを用いた含硫ウレタン系プラスチックレンズ |
JPH07242722A (ja) | 1994-03-04 | 1995-09-19 | Mitsui Toatsu Chem Inc | 高屈折率プラスチックレンズ用組成物およびレンズ |
JPH07247335A (ja) | 1994-03-11 | 1995-09-26 | Mitsui Toatsu Chem Inc | プラスチックレンズ用組成物およびレンズ、並びにそれらの製造方法 |
JPH07252341A (ja) | 1994-03-16 | 1995-10-03 | Mitsui Toatsu Chem Inc | プラスチックレンズ用組成物およびレンズ、並びにそれらの製造方法 |
JPH07324118A (ja) | 1994-04-06 | 1995-12-12 | Mitsui Toatsu Chem Inc | 低比重ウレタン系プラスチックレンズ用組成物、それから得られるレンズ、レンズ用樹脂、及びそれらの製造方法 |
JPH07316250A (ja) | 1994-05-30 | 1995-12-05 | Hoya Corp | 眼鏡用プラスチックレンズ |
JPH0829741A (ja) * | 1994-07-15 | 1996-02-02 | Hoya Corp | ハードコンタクトレンズ材料およびハードコンタクトレンズ |
JPH0873732A (ja) | 1994-09-08 | 1996-03-19 | Mitsui Toatsu Chem Inc | 近赤外線吸収ウレタン樹脂の製造方法 |
JPH0892345A (ja) | 1994-09-26 | 1996-04-09 | Mitsui Toatsu Chem Inc | 熱硬化性ポリウレタン樹脂系成型体の製造方法 |
JPH083267A (ja) | 1994-12-28 | 1996-01-09 | Mitsui Toatsu Chem Inc | ウレタン系レンズ |
JPH09110979A (ja) | 1995-08-16 | 1997-04-28 | Mitsubishi Gas Chem Co Inc | 新規な直鎖アルキルスルフィド型エピスルフィド化合物 |
JPH0971580A (ja) | 1995-09-08 | 1997-03-18 | Mitsubishi Gas Chem Co Inc | 新規な分岐アルキルスルフィド型エピスルフィド化合物 |
JPH09255781A (ja) | 1996-01-17 | 1997-09-30 | Mitsubishi Gas Chem Co Inc | 新規なエピスルフィド化合物 |
JPH09208651A (ja) | 1996-01-30 | 1997-08-12 | Mitsui Toatsu Chem Inc | ウレタン系プラスチックレンズの製造方法及び該方法にて得られるウレタン系プラスチックレンズ |
JPH09208621A (ja) | 1996-01-31 | 1997-08-12 | Nippon Zeon Co Ltd | ジエン系ゴム |
JPH10186291A (ja) * | 1996-12-26 | 1998-07-14 | Toray Ind Inc | プラスチックレンズ |
JPH11140070A (ja) | 1997-09-03 | 1999-05-25 | Mitsui Chem Inc | 新規な(チオ)エポキシ化合物 |
JPH11180977A (ja) | 1997-10-16 | 1999-07-06 | Mitsubishi Gas Chem Co Inc | 新規なエピスルフィド化合物 |
JPH11183702A (ja) | 1997-12-18 | 1999-07-09 | Mitsui Chem Inc | 新規な(チオ)エポキシ樹脂 |
JPH11189592A (ja) | 1997-12-25 | 1999-07-13 | Mitsui Chem Inc | 含硫エポキシ化合物及びその用途 |
JPH11295502A (ja) * | 1998-02-10 | 1999-10-29 | Asahi Optical Co Ltd | プラスチックレンズ |
JP2001089653A (ja) * | 1999-09-22 | 2001-04-03 | Teijin Chem Ltd | 芳香族ポリカーボネート樹脂組成物 |
JP2001243915A (ja) * | 1999-12-28 | 2001-09-07 | Sumitomo Dow Ltd | 蛍光ランプ用光線カットカバー |
JP2003107202A (ja) * | 2001-09-28 | 2003-04-09 | Nof Corp | レンズ用コーティング組成物 |
JP2003253140A (ja) * | 2001-12-27 | 2003-09-10 | Tokuyama Corp | 樹脂組成物 |
JP2004051851A (ja) * | 2002-07-22 | 2004-02-19 | Nof Corp | 光学材料用単量体組成物及びその硬化物 |
JP2004325511A (ja) * | 2003-04-21 | 2004-11-18 | Sumitomo Dow Ltd | 眼鏡レンズ |
JP2005292240A (ja) * | 2004-03-31 | 2005-10-20 | Hoya Corp | 紫外線吸収剤、それを用いたプラスチック眼鏡レンズ及びその製造方法 |
WO2006087880A1 (ja) * | 2005-02-17 | 2006-08-24 | Idemitsu Kosan Co., Ltd. | 420nmの波長光に対して吸収能を持つ熱可塑性樹脂組成物およびその成形体 |
JP2007254734A (ja) * | 2006-01-27 | 2007-10-04 | Ems-Chemie Ag | ホトクロミック成形組成物及びそれから製造される物品 |
JP2008056854A (ja) | 2006-09-01 | 2008-03-13 | Mitsui Chemicals Inc | ポリチオール化合物とポリイソ(チオ)シアナート化合物からなる重合性組成物 |
WO2008029994A1 (en) * | 2006-09-06 | 2008-03-13 | Shin Dae Specialties Co., Ltd. | Optical resin composition having excellent impact resistance and method for fabricating optical lens using the same |
JP2008088195A (ja) * | 2006-09-29 | 2008-04-17 | Asahi Kasei Electronics Co Ltd | 有機無機感光性樹脂組成物 |
JP2008105225A (ja) * | 2006-10-24 | 2008-05-08 | Mgc Filsheet Co Ltd | 防眩性積層体、塗膜防眩性積層体、防眩性材料、及び該防眩性材料の製造方法 |
WO2008072580A1 (ja) * | 2006-12-08 | 2008-06-19 | Hoya Corporation | 眼鏡用プラスチックレンズ及びその製造方法並びにその方法に用いるコーティング液塗布具 |
CN101712742A (zh) * | 2009-11-10 | 2010-05-26 | 江阴市茂盛光学材料有限公司 | 一种含巯基封端的聚硫氨酯类预聚物的溶液及其制备方法 |
CN101712743A (zh) * | 2009-11-10 | 2010-05-26 | 江阴市茂盛光学材料有限公司 | 一种含异氰酸基封端的聚硫氨酯类预聚物的溶液及其制备方法 |
JP2012093689A (ja) | 2010-09-29 | 2012-05-17 | Nikon-Essilor Co Ltd | 光学部品およびその製造方法 |
JP2012173704A (ja) * | 2011-02-24 | 2012-09-10 | Ito Kogaku Kogyo Kk | 防眩光学要素 |
WO2013160227A1 (de) * | 2012-04-23 | 2013-10-31 | Bayer Materialscience Ag | Lichtechte polyurethanzusammensetzungen |
WO2014133111A1 (ja) * | 2013-02-27 | 2014-09-04 | 三井化学株式会社 | 光学材料、光学材料用組成物およびその用途 |
Non-Patent Citations (1)
Title |
---|
See also references of EP3056545A1 |
Cited By (53)
Publication number | Priority date | Publication date | Assignee | Title |
---|---|---|---|---|
US10947365B2 (en) | 2013-09-30 | 2021-03-16 | Hoya Lens Thailand Ltd. | Transparent plastic substrate and plastic lens |
JP2016148877A (ja) * | 2013-09-30 | 2016-08-18 | ホヤ レンズ タイランド リミテッドHOYA Lens Thailand Ltd | 透明プラスチック基材及びプラスチックレンズ |
JP2016166375A (ja) * | 2013-09-30 | 2016-09-15 | ホヤ レンズ タイランド リミテッドHOYA Lens Thailand Ltd | 透明プラスチック基材及びプラスチックレンズ |
JP2016184172A (ja) * | 2013-09-30 | 2016-10-20 | ホヤ レンズ タイランド リミテッドHOYA Lens Thailand Ltd | 透明プラスチック基材及びプラスチックレンズ |
JP2016183345A (ja) * | 2013-09-30 | 2016-10-20 | ホヤ レンズ タイランド リミテッドHOYA Lens Thailand Ltd | 透明プラスチック基材及びプラスチックレンズ |
JP2016186083A (ja) * | 2013-09-30 | 2016-10-27 | ホヤ レンズ タイランド リミテッドHOYA Lens Thailand Ltd | 透明プラスチック基材及びプラスチックレンズ |
JP2016157146A (ja) * | 2013-09-30 | 2016-09-01 | ホヤ レンズ タイランド リミテッドHOYA Lens Thailand Ltd | 透明プラスチック基材及びプラスチックレンズ |
US10745539B2 (en) | 2013-09-30 | 2020-08-18 | Hoya Lens Thailand Ltd. | Transparent plastic substrate and plastic lens |
JP2019061262A (ja) * | 2013-09-30 | 2019-04-18 | ホヤ レンズ タイランド リミテッドHOYA Lens Thailand Ltd | 透明プラスチック基材及びプラスチックレンズ |
US11001699B2 (en) | 2013-09-30 | 2021-05-11 | Hoya Lens Thailand Ltd. | Transparent plastic substrate and plastic lens |
JP2019061263A (ja) * | 2013-09-30 | 2019-04-18 | ホヤ レンズ タイランド リミテッドHOYA Lens Thailand Ltd | 透明プラスチック基材及びプラスチックレンズ |
EP3203271A1 (en) | 2016-02-08 | 2017-08-09 | ESSILOR INTERNATIONAL (Compagnie Générale d'Optique) | Blue light cutting optical material comprising a benzotriazole uv absorber |
WO2017137372A1 (en) | 2016-02-08 | 2017-08-17 | Essilor International (Compagnie Générale d'Optique) | Blue light cutting optical material comprising a benzotriazole uv absorber |
CN109073802A (zh) * | 2016-03-04 | 2018-12-21 | 大日本印刷株式会社 | 光学层叠体、图像显示装置或触控面板传感器 |
CN109073802B (zh) * | 2016-03-04 | 2021-05-11 | 大日本印刷株式会社 | 光学层叠体、图像显示装置或触控面板传感器 |
US10908336B2 (en) | 2016-03-04 | 2021-02-02 | Dai Nippon Printing Co., Ltd. | Optical laminate, image display device, or touch panel sensor |
US11002991B2 (en) | 2016-03-31 | 2021-05-11 | Hoya Lens Thailand Ltd. | Spectacle lens and spectacles |
CN108474966A (zh) * | 2016-03-31 | 2018-08-31 | 豪雅镜片泰国有限公司 | 眼镜镜片及眼镜 |
JP7030715B2 (ja) | 2016-04-21 | 2022-03-07 | エシロール アテルナジオナール | 赤方偏移ベンゾトリアゾールuv吸収剤を含む光学材料 |
JP2019515337A (ja) * | 2016-04-21 | 2019-06-06 | エシロール アテルナジオナール | 赤方偏移ベンゾトリアゾールuv吸収剤を含む光学材料 |
WO2017182639A1 (en) | 2016-04-21 | 2017-10-26 | Essilor International (Compagnie Générale d'Optique) | Optical material comprising a red-shifted benzotriazole uv absorber |
EP3236296A1 (en) | 2016-04-21 | 2017-10-25 | ESSILOR INTERNATIONAL (Compagnie Générale d'Optique) | Optical material comprising a red-shifted benzotriazole uv absorber |
JPWO2018008179A1 (ja) * | 2016-07-06 | 2019-04-18 | 伊藤光学工業株式会社 | 眼鏡素材 |
WO2018008179A1 (ja) * | 2016-07-06 | 2018-01-11 | 伊藤光学工業株式会社 | 眼鏡素材 |
WO2018181911A1 (ja) * | 2017-03-31 | 2018-10-04 | ホヤ レンズ タイランド リミテッド | 眼鏡レンズ |
JPWO2018181911A1 (ja) * | 2017-03-31 | 2019-04-04 | ホヤ レンズ タイランド リミテッドHOYA Lens Thailand Ltd | 眼鏡レンズ |
US11472943B2 (en) | 2017-07-26 | 2022-10-18 | Mitsui Chemicals, Inc. | Polymerizable composition for optical material, optical material, and application thereof |
WO2019022131A1 (ja) * | 2017-07-26 | 2019-01-31 | 三井化学株式会社 | 光学材料用重合性組成物、光学材料およびその用途 |
JPWO2019022131A1 (ja) * | 2017-07-26 | 2020-01-09 | 三井化学株式会社 | 光学材料用重合性組成物、光学材料およびその用途 |
JPWO2019054502A1 (ja) * | 2017-09-15 | 2020-10-01 | 株式会社ニコン・エシロール | プラスチック基材、プラスチックレンズ |
JP7083350B2 (ja) | 2017-09-15 | 2022-06-10 | 株式会社ニコン・エシロール | プラスチック基材、プラスチックレンズ |
WO2019054502A1 (ja) * | 2017-09-15 | 2019-03-21 | 株式会社ニコン・エシロール | プラスチック基材、プラスチックレンズ |
KR20200042528A (ko) * | 2017-09-29 | 2020-04-23 | 호야 렌즈 타일랜드 리미티드 | 안경 렌즈 및 안경 |
US11137623B2 (en) | 2017-09-29 | 2021-10-05 | Hoya Lens Thailand Ltd. | Spectacle lens and spectacles |
KR20190040052A (ko) * | 2017-09-29 | 2019-04-16 | 호야 렌즈 타일랜드 리미티드 | 안경 렌즈 및 안경 |
KR102189656B1 (ko) | 2017-09-29 | 2020-12-14 | 호야 렌즈 타일랜드 리미티드 | 안경 렌즈 및 안경 |
KR102189655B1 (ko) | 2017-09-29 | 2020-12-14 | 호야 렌즈 타일랜드 리미티드 | 안경 렌즈 및 안경 |
WO2019065985A1 (ja) * | 2017-09-29 | 2019-04-04 | ホヤ レンズ タイランド リミテッド | 眼鏡レンズおよび眼鏡 |
WO2019065991A1 (ja) * | 2017-09-29 | 2019-04-04 | ホヤ レンズ タイランド リミテッド | 眼鏡レンズおよび眼鏡 |
JP2019082718A (ja) * | 2017-09-29 | 2019-05-30 | ホヤ レンズ タイランド リミテッドHOYA Lens Thailand Ltd | 眼鏡レンズおよび眼鏡 |
JP6473282B1 (ja) * | 2017-09-29 | 2019-02-20 | ホヤ レンズ タイランド リミテッドHOYA Lens Thailand Ltd | 眼鏡レンズおよび眼鏡 |
JP6473281B1 (ja) * | 2017-09-29 | 2019-02-20 | ホヤ レンズ タイランド リミテッドHOYA Lens Thailand Ltd | 眼鏡レンズおよび眼鏡 |
JP7274874B2 (ja) | 2017-09-29 | 2023-05-17 | ホヤ レンズ タイランド リミテッド | 眼鏡レンズおよび眼鏡 |
WO2019065989A1 (ja) * | 2017-09-29 | 2019-04-04 | ホヤ レンズ タイランド リミテッド | 眼鏡レンズおよび眼鏡 |
JP7274875B2 (ja) | 2017-09-29 | 2023-05-17 | ホヤ レンズ タイランド リミテッド | 眼鏡レンズおよび眼鏡 |
KR102362349B1 (ko) * | 2017-09-29 | 2022-02-14 | 호야 렌즈 타일랜드 리미티드 | 안경 렌즈 및 안경 |
US11262601B2 (en) | 2017-09-29 | 2022-03-01 | Hoya Lens Thailand Ltd. | Spectacle lens and spectacles |
JP2019082717A (ja) * | 2017-09-29 | 2019-05-30 | ホヤ レンズ タイランド リミテッドHOYA Lens Thailand Ltd | 眼鏡レンズおよび眼鏡 |
JP2019066651A (ja) * | 2017-09-29 | 2019-04-25 | ホヤ レンズ タイランド リミテッドHOYA Lens Thailand Ltd | 眼鏡レンズおよび眼鏡 |
KR20190042646A (ko) * | 2017-09-29 | 2019-04-24 | 호야 렌즈 타일랜드 리미티드 | 안경 렌즈 및 안경 |
US11513258B2 (en) | 2017-09-29 | 2022-11-29 | Hoya Lens Thailand Ltd. | Spectacle lens and spectacles |
JPWO2020162592A1 (ja) * | 2019-02-08 | 2021-11-04 | 三井化学株式会社 | 光学材料用重合性組成物、光学材料およびその用途 |
WO2021111830A1 (ja) * | 2019-12-06 | 2021-06-10 | 株式会社ニコン・エシロール | プラスチック基材、プラスチックレンズ |
Also Published As
Similar Documents
Publication | Publication Date | Title |
---|---|---|
JP7004273B2 (ja) | 透明プラスチック基材及びプラスチックレンズ | |
JP4681820B2 (ja) | プラスチック眼鏡レンズ及びその製造方法 |
Legal Events
Date | Code | Title | Description |
---|---|---|---|
121 | Ep: the epo has been informed by wipo that ep was designated in this application |
Ref document number: 14847241 Country of ref document: EP Kind code of ref document: A1 |
|
ENP | Entry into the national phase |
Ref document number: 2015539442 Country of ref document: JP Kind code of ref document: A |
|
WWE | Wipo information: entry into national phase |
Ref document number: 15025440 Country of ref document: US |
|
ENP | Entry into the national phase |
Ref document number: 20167008388 Country of ref document: KR Kind code of ref document: A |
|
NENP | Non-entry into the national phase |
Ref country code: DE |
|
REEP | Request for entry into the european phase |
Ref document number: 2014847241 Country of ref document: EP |
|
WWE | Wipo information: entry into national phase |
Ref document number: 2014847241 Country of ref document: EP |
|
REG | Reference to national code |
Ref country code: BR Ref legal event code: B01A Ref document number: 112016006703 Country of ref document: BR |
|
ENP | Entry into the national phase |
Ref document number: 2014324967 Country of ref document: AU Date of ref document: 20140929 Kind code of ref document: A |
|
ENP | Entry into the national phase |
Ref document number: 112016006703 Country of ref document: BR Kind code of ref document: A2 Effective date: 20160328 |
