  • the present invention relates to a digital speaker driving device, a digital speaker device, an actuator, a flat display device, and a portable electronic device. More specifically, the present invention relates to a digital sound system using a digital speaker device that directly converts a digital signal into analog sound and its application.
  • WO2007 / 135828A1 two digital audio signals X (L) and Y (R) are input, and a circuit that outputs a plurality of digital signals by a ⁇ modulator and a mismatch shaping filter circuit, and the plurality of digital signals A method of directly converting analog sound by a plurality of speakers or a plurality of driving elements to be driven is shown.
  • Digital speaker devices that use digital speaker technology that directly converts digital signals to analog audio are characterized by low power consumption compared to analog speaker devices that are driven by analog electrical signals. Because it uses multiple speaker elements or multiple drive elements (coils, etc.), it produces a large sound pressure with a low drive voltage compared to conventional speakers using a single speaker element or a single drive element. Is possible.
  • the conventional speaker device is premised on inputting an analog signal
  • the digital speaker device in order to incorporate the digital speaker device into a conventional digital sound system, the input analog signal is converted into a digital signal. Therefore, there was a big problem in realizing a digital sound system using a digital speaker device.
  • FIG. 1a shows a first embodiment of a digital sound system using a digital signal source and an analog speaker device.

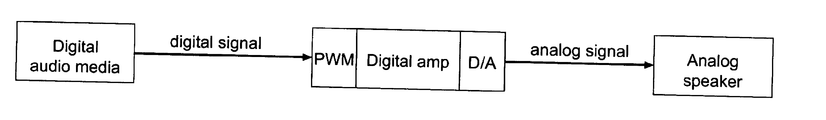

  • a signal from a digital signal source is converted into an analog signal by a D / A converter, and after being amplified by an analog amplifier, is input to an analog speaker device.
  • Matching with a conventional analog amplifier and a sound system using a speaker is the best embodiment.
  • FIG. 1b shows a second embodiment of a digital sound system using a digital signal source and an analog speaker device.
  • a signal from a digital signal source is converted into an analog signal by a D / A converter and input to an amplifier.
  • an input analog signal is converted into a digital signal by an A / D converter, and after PWM modulation, digital amplitude amplification (D class amplification) is performed, and then a D / A converter (usually (LC filter) is converted into an analog signal and input to an analog speaker device.
  • D class amplification digital amplitude amplification
  • LC filter usually (LC filter
  • FIG. 1c shows a third embodiment of a digital sound system using a digital signal source and an analog speaker device.
  • the signal from the digital signal source is input directly to the amplifier as a digital signal.
  • the input digital signal is PWM-modulated and then subjected to digital amplitude amplification (D class amplification), then converted to an analog signal by a D / A converter (usually an LC filter), and input to the analog speaker device.
  • D class amplification digital amplitude amplification
  • a D / A converter usually an LC filter
  • FIG. 1b and FIG. 1c after digital amplitude amplification (D-class amplification), it is converted into an analog signal by a D / A converter (usually an LC filter) and input to an analog speaker device, but a large sound pressure is produced.
  • a D / A converter usually an LC filter
  • the digital amplitude amplification must be driven at a high voltage, and a semiconductor element for digital amplitude amplification using a special semiconductor technology for high voltage is necessary, and there is a problem that it is difficult to reduce the cost.
  • EMI electromagnetic radiation
  • the present invention is most suitable for a circuit that outputs a plurality of digital signals by a ⁇ modulator and a mismatch shaping filter circuit, and a digital speaker device that directly converts analog sound by one or a plurality of speakers driven by the plurality of digital signals. Disclose digital sound systems and the like.
  • a digital speaker driving apparatus that drives a digital speaker having s number of digital signal terminals, a ⁇ modulator that modulates a digital input signal and outputs an n-bit digital signal, and a ⁇ modulator A post-filter for outputting an m-bit digital signal obtained by mismatch-shaping an n-bit digital signal, and s number of drive circuits each receiving a part of the m-bit digital signal and outputting a digital signal
  • the digital speaker driving device is disclosed in which s driving circuits correspond to s digital signal terminals.
  • the power supply circuit provided in the digital speaker driving device adjusts the amplitude of the output of the digital signal of the s drive circuits by supplying a variable voltage to the s drive elements. Furthermore, it is desirable to have a digital attenuator that adjusts the volume of the digital speaker by performing predetermined arithmetic processing on the digital input signal and inputting it to the ⁇ modulator. Further, it is desirable to control the power supply circuit in response to the digital input signal.
  • a digital speaker driving apparatus connected to a digital signal terminal of a digital speaker, a first output circuit connected to a first input terminal of the digital signal terminal of the digital speaker, and the digital speaker Inverted signals are supplied to the second output circuit connected to the second input terminal paired with the first input terminal of the digital signal terminal, and the first output circuit and the second output circuit.
  • a digital speaker driving apparatus is disclosed.
  • both the first output circuit and the second output circuit output a signal composed of the first, second, and third voltages, the first output circuit outputs the first voltage, and the second output.
  • the circuit outputs the third voltage
  • the first digital signal output state is assumed
  • the first output circuit outputs the third voltage
  • the second output circuit outputs the first voltage. Therefore, it is desirable to take the second digital signal output state and to take the third digital signal output state by both the first output circuit and the second output circuit outputting the second voltage. .
  • the ⁇ modulator, the post filter, and the s driving circuits are formed on a single semiconductor or enclosed in a single package.
  • a digital speaker having a plurality of input terminals, and a digital speaker driving device that is connected to a digital input signal and a power source and drives the digital speaker, the digital speaker driving device is a digital speaker.
  • a digital speaker device is provided, which is arranged immediately after the coil group.
  • a ⁇ modulator that modulates a digital input signal and outputs an n-bit digital signal, and an m-bit digital signal that is connected to the ⁇ modulator and is mismatch-shaped from the n-bit digital signal.
  • a digital speaker device characterized in that each has r diaphragms driven by a part of s drive elements, and s and r are both 2 or more.
  • the digital speaker in a digital speaker device including a ⁇ modulator and a digital speaker, includes a plurality of coils that are driven by different digital signals and vibrate a common diaphragm.
  • a featured digital speaker device is disclosed.
  • ⁇ It is desirable that a plurality of coils are wound in a twisted manner.
  • a digital actuator in one embodiment, includes a magnetostrictive element and a plurality of coils that are driven by different digital signals and apply a magnetic field to the magnetostrictive element.
  • a ⁇ modulator that modulates a digital input signal and outputs an n-bit digital signal, and an m-bit digital signal that is connected to the ⁇ modulator and is mismatch-shaped from the n-bit digital signal.
  • a post-filter to output, s drive circuits each receiving part of an m-bit digital signal and outputting a digital signal, and s electrostatics each driven by a corresponding s drive circuit There is disclosed a digital speaker device comprising a mold element.
  • the ⁇ modulator, the post filter, s drive circuits, and s electrostatic elements are formed on the same substrate.
  • a digital speaker driving apparatus that drives a digital speaker having s number of digital signal terminals, a ⁇ modulator that modulates a digital input signal and outputs an n-bit digital signal, and a ⁇ modulator A post filter that outputs an m-bit digital signal obtained by mismatch shaping an n-bit digital signal, and a digital delay control that outputs a delayed m-bit digital signal by delay-controlling the m-bit digital signal A circuit and s number of drive circuits that receive a part of each delayed m-bit digital signal and output a digital signal, and the delay time of the digital delay control circuit depends on the control signal for each output.
  • a digital speaker driving device is disclosed that is controlled.
  • a flat display In one embodiment of the present invention, a flat display, a plurality of digital speakers arranged side by side on at least one side of the flat display, and a delay time of a drive signal supplied to the plurality of digital speakers according to a control signal And a delay control circuit for controlling the flat display device.
  • a battery comprising a port connected to a portable digital sound source reproducing device, a circuit for processing a digital signal input from the port as it is, and a digital speaker driven by this circuit, a battery
  • a digital speaker device is disclosed that is driven by
  • a portable electronic device comprising a digital speaker and a driving device that drives the digital speaker without converting the digital signal into an analog signal and is driven by a battery is disclosed. Is done.
  • the present invention is composed of a port connected to a portable digital sound source playback device, a drive device that processes a digital signal input from the port as it is, and a digital speaker driven by this drive device.
  • a portable electronic device that is driven by a battery is disclosed.
  • a digital speaker In one embodiment of the present invention, a digital speaker, a digital speaker driving device that drives the digital speaker without converting the digital signal into an analog signal, and a microphone are configured.
  • the digital speaker driving device is a signal from the microphone.
  • a digital speaker device is disclosed that is controlled to cancel ambient noise based on the above.
  • a wireless receiver that receives a digital signal
  • a digital speaker driving device that generates a plurality of driving signals without converting the output of the wireless receiver into an analog signal
  • a plurality of driving signals A portable electronic device comprising a digital speaker to be driven is disclosed.
  • a digital speaker system for driving a digital speaker having s sets of digital signal terminals each including a set of a first input terminal and a second input terminal, wherein the digital input signal is modulated.
  • a ⁇ modulator that outputs an n-bit digital signal
  • a post-filter that is connected to the ⁇ modulator and outputs an m-bit digital signal that is subjected to a match-shaping of the output n-bit digital signal
  • s sets Corresponding to the digital signal terminal, and having s drive circuits each of which is inputted with a part of the output m-bit digital signal and outputs the digital signal, and each of the s drive circuits corresponds to each A first output circuit connected to the first input terminal of the digital signal terminal to be connected, and a second input terminal paired with the first input terminal.
  • a second output circuit, and the drive circuit is a combination of the first digital signal input to the first output circuit and the second digital signal input to the second output circuit.
  • the digital speaker driving apparatus drives a plurality of digital speakers each having s digital signal terminals, and modulates a digital input signal and outputs an n-bit digital signal.
  • a delta-sigma modulator, a post filter connected to the delta-sigma modulator and outputting an m-bit digital signal obtained by mismatch-shaping an n-bit digital signal, and the output m-bit digital signal is delayed by delay control.
  • a digital delay control circuit that outputs an m-bit digital signal, s drive circuits that each receive a part of the delayed m-bit digital signal and output a digital signal, and a person or an object that is present in the vicinity
  • a control having a sensor for sensing information and generated based on the information sensed by the sensor
  • the delay time of the digital delay control circuit is controlled according to the signal, and the directivity of the sound reproduced by a plurality of digital speakers is controlled to the direction or position of the person or object detected by the sensor.
  • a digital speaker driving apparatus is disclosed.
  • a digital speaker driving apparatus for driving a digital speaker having s digital signal terminals, a ⁇ modulator that modulates a digital input signal and outputs an n-bit digital signal;
  • a post filter connected to the ⁇ modulator and outputting an m-bit digital signal obtained by mismatch-shaping an n-bit digital signal, and an m-bit delayed by controlling the delay of the output m-bit digital signal.
  • a digital delay control circuit for outputting a digital signal, s drive circuits for inputting a part of the delayed m-bit digital signal and outputting a digital signal, and a microphone for detecting ambient sound, Audio that is out of phase with the sound detected by the microphone is generated by the digital speaker.
  • Digital speaker driving apparatus is disclosed, wherein.
  • another digital speaker since another digital speaker is provided, it has a plurality of digital speakers, and the digital delay control circuit controls the delay time of the output m-bit digital signal system for each digital speaker. Then, an m-bit digital signal delayed may be output.
  • FIG. 1d shows one embodiment of the digital acoustic system of the present invention using a digital signal source and a digital speaker device.
  • the signal from the digital signal source is input to the digital speaker device as a digital signal.
  • the digital speaker device is a digital speaker device that directly converts an input digital signal into analog sound without converting it into an analog signal.
  • a digital sound system can be constructed with a simple combination of devices compared to a conventional analog sound system without impairing the low power consumption characteristic, which is the original characteristic of a digital speaker.
  • the cost of the system can be reduced. Since the digital speaker device can produce a large sound pressure with a low driving voltage, it is not necessary to use a special semiconductor technology for handling high voltages when the digital signal processing circuit is integrally formed on a semiconductor. The cost of the necessary digital speaker driving device can be reduced. Since driving is performed with a low driving voltage, electromagnetic radiation (EMI) is small, and the cost for suppressing electromagnetic radiation can be reduced. Since there is no A / D (D / A) converter between the digital signal source and the digital speaker device, it is possible to avoid deterioration of sound quality.
  • EMI electromagnetic radiation
  • Example of configuration of digital sound system Example of configuration of digital sound system
  • Example of configuration of digital sound system Example of configuration of digital sound system
  • Example of configuration of digital sound system 1 is a configuration diagram of a digital sound system according to an embodiment of the present invention.
  • 1 is a configuration diagram of a digital sound system according to an embodiment of the present invention.
  • 1 is a configuration diagram of a power supply circuit of a digital acoustic system according to a first embodiment of the present invention.
  • the block diagram of the power supply circuit of the digital acoustic system which concerns on 2nd Example of this invention
  • the block diagram of the power supply circuit of the digital sound system which concerns on 3rd Example of this invention
  • the block diagram of the speaker drive circuit of the digital sound system which concerns on one Example of this invention
  • the block diagram of the speaker drive circuit of the digital sound system which concerns on another Example of this invention.
  • the block diagram of the digital sound system which concerns on 4th Example of this invention The block diagram of the digital sound system which concerns on 4th Example of this invention
  • the block diagram of the digital sound system which concerns on 5th Example of this invention The block diagram of the digital acoustic system which concerns on the 6th Example of this invention
  • the block diagram of the digital acoustic system which concerns on the 7th Example of this invention The block diagram of the digital sound system which concerns on the 8th Example of this invention.
  • the block diagram of the digital sound system which concerns on the 8th Example of this invention The block diagram of the digital sound system which concerns on the 8th Example of this invention.
  • the block diagram of the digital sound system which concerns on the 8th Example of this invention The block diagram of the digital sound system which concerns on the 8th Example of this invention.
  • the block diagram of the digital acoustic system which concerns on the 9th Example of this invention The block diagram of the digital acoustic system which concerns on the 9th Example of this invention
  • the block diagram of the digital sound system which concerns on the 10th Example of this invention The block diagram of the digital acoustic system based on the 11th Example of this invention
  • the block diagram of the digital acoustic system based on the 12th Example of this invention The block diagram of the digital acoustic system based on the 13th Example of this invention
  • the block diagram of the digital acoustic system based on the 14th Example of this invention Configuration diagram of a digital sound system according to a fifteenth embodiment of the present invention.
  • Configuration diagram of a digital sound system according to a fifteenth embodiment of the present invention.
  • the block diagram of the digital acoustic system based on the 16th Example of this invention The block diagram of the digital acoustic system based on the 17th Example of this invention
  • the block diagram of the speaker drive circuit which consists of a ternary switching amplifier based on one Embodiment of this invention
  • the block diagram of the digital acoustic system based on the 19th Example of this invention The block diagram of the digital acoustic system based on the 20th Example of this invention.
  • Configuration diagram of a digital sound system according to a twenty-first embodiment of the present invention. 1 is a configuration diagram of a centralized control device (2105) according to an embodiment of the present invention and an in-vehicle LAN that transmits digital signals.
  • FIG. 1e shows a first embodiment of a system form of a digital speaker device comprising a circuit for outputting a plurality of digital signals by a ⁇ modulator and a post filter circuit and a plurality of speaker driving elements.
  • the 1-bit digital input signal (210) is input to the ⁇ modulator (201) and converted into a plurality of n-bit digital signals (211) by the ⁇ modulator (201).
  • the n-bit digital signals are converted into m digital signals (212) that have been mismatch-shaped by the post filter (202).
  • the m digital signals are directly converted by the diaphragm (213) by driving the s drive elements (2041 to 204s) by the speaker drive circuits (2031 to 203s).
  • the ⁇ modulator (201), post filter (202), speaker drive circuits (2031 to 203s), and a power supply circuit (205) for supplying power to these circuits are components of the digital speaker device (200).
  • each of the digital signals input to the s speaker driving circuits (2031 to 203s) may show the same value at a certain moment. However, it is possible to prevent changes in digital signals input to the s speaker driving circuits (2031 to 203s) during a sufficiently long time from being the same. In this way, wasteful power consumption by the drive elements (2041 to 204s) can be suppressed. For example, when the same digital signal is input to n of s speaker drive circuits (2031 to 203s), n times as much power as wasted by each drive element is wasted. Is prevented. This can also be said for other embodiments.
  • FIG. 2a shows the internal configuration of the power supply circuit (205) in the first embodiment.
  • An external power source or a power source (251) from a battery or the like has a plurality of regulator circuits (2521 to 252n), which are respectively supplied to a ⁇ modulator (201), a post filter (202), and a speaker driving circuit (2031 to 203s). Supplied via lines (2531 to 253n).
  • the regulator circuit (252a) for supplying power to the speaker drive circuits (2031 to 203s) can have means (254) for varying the supply voltage. This makes it possible to adjust the amplitude of the digital signal that drives the digital speaker, and to adjust the volume of the digital speaker.
  • FIG. 2b shows a second embodiment of a system form of a digital speaker device comprising a circuit for outputting a plurality of digital signals by a ⁇ modulator and a post filter circuit and a plurality of speaker driving elements.
  • the regulator circuit (252a) for supplying power to the speaker drive circuits (2031 to 203s) does not have means (254) for changing the supply voltage.
  • Digital adjustment is performed from a 1-bit digital input signal (210) input to the digital speaker device.
  • FIG. 2c shows a third embodiment of a system form of a digital speaker device comprising a circuit for outputting a plurality of digital signals by a ⁇ modulator and a post filter circuit and a plurality of speaker driving elements.
  • the digital speaker device in order to adjust the volume of the digital speaker, is provided with means (254) for varying the supply voltage of the regulator circuit (252a) that supplies power to the speaker drive circuits (2031 to 203s). Digital adjustment is performed based on information of the input 1-bit digital input signal (210).
  • FIG. 3a shows an embodiment of a speaker driving circuit (300a) having a binary driving state.
  • Two types of switch circuits composed of a PMOS element (301) and an NMOS element (302) are connected to the speaker drive element (204) via output terminals, respectively.
  • An input signal A which is a binary digital signal, is connected to the input of one switch circuit via an inverting circuit (303).
  • the speaker drive circuit (300a) has a binary (-1, 1) state.
  • FIG. 3b shows an embodiment of a speaker driving circuit (300b) having a ternary driving state. Two types of switch circuits composed of a PMOS element (301) and an NMOS element (302) are connected to the speaker drive element (204) via output terminals, respectively.
  • An input signal A which is a binary digital signal is connected to the input of each switch circuit via a buffer circuit (304b) with an enable terminal and an inverting circuit (303a).
  • the speaker driving circuit (300b) has a ternary state (-1, 0, 1).
  • Such a circuit is generally called an H-bridge circuit.
  • the digital speaker device including the ⁇ modulator, the post filter circuit, the plurality of speaker driving circuits, and the driving elements as shown in FIGS. 2a to 2c
  • a plurality of transmission signals after the ⁇ modulator are required. Therefore, in order to reduce the number of necessary wirings, it is desirable that the ⁇ modulator, the post filter circuit, and the plurality of speaker drive circuits are integrally configured.
  • a digital signal processing circuit consisting of a delta-sigma modulator, a post-filter circuit, a plurality of speaker drive circuits, and drive elements is formed on a semiconductor as a single unit or enclosed in the same package. It is possible to reduce the number of lines.
  • FIG. 4a (back view) and FIG. 4b (side view) show a fourth embodiment of a digital speaker device comprising a ⁇ modulator, a post filter circuit, a plurality of speaker drive circuits and drive elements.
  • a system of a digital speaker device (400) comprising a digital speaker driving device (402) and a plurality of speaker driving elements, in which a circuit for outputting a plurality of digital signals by a prefilter circuit is integrally formed on a semiconductor, or enclosed in the same package Shown as an embodiment.
  • a 1-bit digital input signal (403) is input to a digital speaker driving device (402) including a ⁇ modulator, a post-filter circuit, and a plurality of digital signals in a driving circuit, and the plurality of digital speaker driving signals (401) are input. Is output.
  • the power supply line (404) supplies power to the digital speaker drive circuit (402).
  • the digital speaker driving circuit (402) is arranged in the vicinity of the speaker driving element so that the distance between the plurality of digital speaker driving signals (401) and the speaker driving element is shortened. As shown in FIGS. 4a and 4b, it is possible to minimize the wiring distance by arranging the speaker directly behind the speaker.
  • the digital input signal input to the digital speaker device is never converted into an analog signal in the digital speaker device. Since the plurality of digital signals drive the plurality of speaker driving elements, the digital signals can be directly converted into analog sound. Since it is not converted into an analog signal on the way, an A / D conversion circuit required for analog conversion becomes unnecessary, power consumption and a required semiconductor area can be reduced, and a low-cost digital speaker device can be provided. . Since the digital speaker device can produce a large sound pressure with a low driving voltage, it is not necessary to use a special semiconductor technology for handling high voltages when the digital signal processing circuit is integrally formed on a semiconductor. An integrated digital speaker driving device necessary for the digital speaker device can be provided by using the technology.
  • FIG. 5 shows a fifth embodiment of a system form of a digital speaker device comprising a circuit for outputting a plurality of digital signals by a ⁇ modulator and a post filter circuit and a plurality of speaker driving elements.
  • the 1-bit digital input signal (510) is input to the ⁇ modulator (501), and is converted into a plurality of n-bit digital signals (511) by the ⁇ modulator (501).
  • the plurality of n-bit digital signals are converted into m digital signals (512) that have been mismatch-shaped by the post filter (502).
  • the m digital signals are directly converted by the diaphragm (513) by driving the s drive elements (5041 to 504s) by the speaker drive circuits (5031 to 503s).
  • the ⁇ modulator (501), post filter (502), speaker drive circuits (5031 to 503s), and a power supply circuit (505) for supplying power to these circuits are components of the digital speaker device (500).
  • a plurality of (two) speaker diaphragms (513a, 513b) are driven by a combination of s drive elements. If a circuit that outputs a plurality of digital signals by a delta-sigma modulator and a post filter circuit drives a plurality of speaker elements to directly convert analog sound, the number of drive elements (s) and speaker vibration Any combination between the number of films (r) is possible. In general, r ⁇ 1 and s> 1 are sufficient.
  • FIG. 6 shows a sixth embodiment of a system form of a digital speaker device comprising a circuit for outputting a plurality of digital signals by a ⁇ modulator and a post filter circuit and a plurality of speaker driving elements.
  • the 1-bit digital input signal (610) is input to the ⁇ modulator (601), and is converted into a plurality of n-bit digital signals (611) by the ⁇ modulator (601).
  • the plurality of n-bit digital signals are converted into m digital signals (612) that have been mismatch-shaped by the post filter (602).
  • the m digital signals are directly converted by the vibrating membrane (613) by driving the s drive elements (6041 to 604s) by the speaker drive circuits (6031 to 603s).
  • the ⁇ modulator (601), the post filter (602), the speaker drive circuits (6031 to 603s), and the power supply circuit (605) for supplying power to these circuits are components of the digital speaker device (600).
  • a plurality of coils are bundled and wound in order to drive the vibration membrane (613) of the speaker by combining a plurality of s drive elements.
  • the plurality of coil wires may be twisted (604a) or wound side by side (604b). Further, only some of the coils may be made independent.
  • the plurality of driving elements necessary for the digital speaker device can be arbitrarily arranged.
  • FIG. 7 shows a seventh embodiment of a system form of a digital speaker device comprising a circuit for outputting a plurality of digital signals by a ⁇ modulator and a post filter circuit and a plurality of speaker driving elements.
  • the 1-bit digital input signal (710) is input to the ⁇ modulator (701), and is converted into a plurality of n-bit digital signals (711) by the ⁇ modulator (701).
  • the plurality of n-bit digital signals are converted into m digital signals (712) that have been mismatch-shaped by the post filter (702).
  • the m digital signals are supplied to a drive circuit (7031-7 03 s) to drive s drive coils (7041 to 704 s) to apply a magnetic field to the magnetostrictive element (713).
  • An audio signal is directly converted by a drive unit (714) mechanically connected to the magnetostrictive element (713).
  • the ⁇ modulator (701), the post filter (702), the drive circuits (7031 to 603s), and the power supply circuit (705) for supplying power to these circuits are components of the digital speaker device (700).
  • a plurality of coils are wound to drive a drive unit (714) mechanically connected to the magnetostrictive element (713) by combining a plurality of s drive elements.
  • the magnetostrictive element (713) has an element size that changes at a speed of nsec to ⁇ sec according to an external magnetic field such as a coil or a magnet. If a magnetostrictive element (713) is used in place of a normal voice coil, a digital speaker device (700) for bone conduction can be realized.
  • an analog value is controlled by using a magnetostrictive element, an injection valve, a pump, a positioner, an actuator such as a linear actuator, a torque sensor, etc. It can also be applied to digital control of sensors.
  • FIGS. 8a to 8c show an eighth embodiment of a system form of a digital speaker device comprising a circuit for outputting a plurality of digital signals by a ⁇ modulator and a post filter circuit and a plurality of electrostatic speaker driving elements.
  • the 1-bit digital input signal (810) is input to the ⁇ modulator (801) and converted into a plurality of n-bit digital signals (811) by the ⁇ modulator (801).
  • the plurality of n-bit digital signals are converted into m digital signals (812) subjected to mismatch shaping by a post filter (802).
  • the m digital signals are obtained as audio signals by driving the s electrostatic elements (8041 to 804s) by the drive circuit (8031 to 803s).
  • the ⁇ modulator (801), the post filter (802), the drive circuits (8031 to 803s), and a power supply circuit (805) for supplying power to these circuits are components of the digital speaker device (800).
  • a ⁇ modulator (801), a post filter (802), a drive circuit (8031 to 8034), and four electrostatic elements (8041 to 8044) are integrally formed on the same substrate (820).
  • Such an integrated digital speaker device (820) can be realized, for example, by making a digital circuit and an electrostatic speaker element on the same silicon substrate by using silicon process technology. Incorporation into the used headphone device (830) is easy.
  • FIG. 9a shows a ninth embodiment of a system configuration of a digital speaker device comprising a circuit for outputting a plurality of digital signals by a ⁇ modulator and a post filter circuit, a plurality of speaker driving elements and a plurality of speakers.
  • the 1-bit digital input signal (910) is input to the ⁇ modulator (901), and converted into a plurality of n-bit digital signals (911) by the ⁇ modulator (901).
  • the plurality of n-bit digital signals are converted into m digital signals (912) that have been mismatch-shaped by the post filter (902).
  • the m digital signals are individually controlled in delay by a digital delay control circuit (905) controlled by the digital signal (920), and then s speakers (9041 to 904s) by a drive circuit (9031 to 903s). To obtain an audio signal.
  • the ⁇ modulator (901), the post filter (902), the drive circuit (9031 to 903s), the digital delay control circuit (905), and the power supply circuit (906) for supplying power to these circuits are connected to the digital speaker device (900). ).
  • the ⁇ modulator (901), the post filter (902), the drive circuit (9031 to 903s), the digital delay control circuit (905), and a power supply circuit (906) for supplying power to these circuits are provided.
  • the delay time of the digital signal to the plurality of speakers of the digital speaker device (900) is controlled by the signal from the home game machine (940), the sound is distributed up and down, left and right according to the content of the game. By doing so, it becomes possible to increase the presence of the game.
  • the center of the screen is set according to the contents of the program being viewed. It is possible to give the directivity of the reproduced sound so as to concentrate on the part, or to make the reproduced sound omnidirectional so that it can be heard anywhere in the room.
  • a digital signal source signal is applied to a digital speaker device including a circuit that outputs a plurality of digital signals by a ⁇ modulator and a post-filter circuit, a plurality of speaker driving elements, and a plurality of speakers as in the first to ninth embodiments.
  • a digital speaker device including a circuit that outputs a plurality of digital signals by a ⁇ modulator and a post-filter circuit, a plurality of speaker driving elements, and a plurality of speakers as in the first to ninth embodiments.
  • FIG. 10 shows a digital speaker device (1002) composed of a circuit for outputting a plurality of digital signals by a ⁇ modulator and a post filter circuit, a plurality of speaker driving elements and a plurality of speakers, and a portable digital as a digital signal source (1003).
  • a battery (1004) is used as a power source for supplying power to the digital speaker device. However, it is also possible to supply power from another power source.
  • a mobile phone as a digital signal source (1103) is added to a digital speaker device (1102) comprising a circuit for outputting a plurality of digital signals by a ⁇ modulator and a post filter circuit, a plurality of speaker driving elements and a plurality of speakers.
  • a digital sound system using a digital speaker device that connects (1101) a digital signal from the device and directly converts the input digital signal into an analog sound without converting it into an analog signal is shown.
  • a headphone type digital speaker device is used as the digital speaker device, but any digital speaker device other than the headphone type can be used.
  • FIG. 12 shows a personal computer as a digital signal source (1203) in a digital speaker device (1202) comprising a circuit for outputting a plurality of digital signals by a ⁇ modulator and a post filter circuit, a plurality of speaker driving elements and a plurality of speakers.
  • a digital sound system using a digital speaker device that connects a digital signal from a device and directly converts the input digital signal into analog sound without converting it into an analog signal will be described.
  • a digital speaker device having a plurality of coils arranged on one vibrating membrane is used, it is also possible to use a digital speaker device having a plurality of speakers arranged.
  • FIG. 13 shows an active mute as a digital signal source (1303) in a digital speaker device (1302) including a circuit for outputting a plurality of digital signals by a ⁇ modulator and a post filter circuit, a plurality of speaker driving elements and a plurality of speakers.
  • a thirteenth embodiment of a digital sound system using a digital speaker device that connects a digital signal from a digital audio processing device for digital use and directly converts the input digital signal into analog audio without converting it into an analog signal is shown.
  • a digital sound system for active silencing with low power consumption can be constructed by calculating a signal for canceling ambient noise from the sound collecting microphone (1304) by a digital sound processing device and inputting the signal to the digital speaker device (1302). is there.
  • This embodiment can also be applied to a digital acoustic system for echo cancellation for videophones and remote conferences.
  • This embodiment can also be applied to a digital sound system for delay control of a large-scale loudspeaker such as a concert or a stadium.
  • FIG. 14 shows a mobile phone as a digital signal source (1403) in a digital speaker device (1402) composed of a circuit for outputting a plurality of digital signals by a ⁇ modulator and a post filter circuit, a plurality of speaker driving elements and a plurality of speakers.
  • a headphone type digital speaker device is used as the digital speaker device, but any digital speaker device other than the headphone type can be used.
  • a digital signal is transmitted from a digital signal source to a digital speaker device (1402) by wireless communication technology. It can be applied to any digital sound system to be connected.
  • FIG. 15a shows a fifteenth embodiment of a system form of a digital speaker device comprising a circuit for outputting a plurality of digital signals by a ⁇ modulator and a post filter circuit and a plurality of speaker driving elements.
  • the 1-bit digital input signal (1510) is input to the ⁇ modulator (1501), and is converted into a plurality of n-bit digital signals (1511) by the ⁇ modulator (1501).
  • a plurality of n-bit digital signals are converted into m digital signals (1512a) by the formatter (1502a) and converted into m digital signals (1512b) subjected to mismatch shaping by the filter (1502b).
  • the m digital signals are directly converted by the vibration membrane (1513) by driving the s drive elements (15041 to 1504s) by the speaker drive circuit (15031 to 1503s).
  • the ⁇ modulator (1501), formatter (1502a), filter (1502b), speaker driving circuit (15031 to 1503s), and a power supply circuit (1505) for supplying power to these circuits are components of the digital speaker device (1500). It is.
  • FIG. 15b shows the components of the filter circuit (1502b) used in this embodiment.
  • the m digital signals (1512a) input to the selection circuit (1505) are output from the m digital signals of the selection circuit (1506a) configured by a delay element and an adder.
  • the integration circuit (1506b) calculates the frequency of use of the m digital signals of the selection circuit and selects them in ascending order of usage frequency.
  • FIG. 16 shows a sixteenth embodiment of a system configuration of a digital speaker device comprising a circuit for outputting a plurality of digital signals by a ⁇ modulator and a post filter circuit and a plurality of speaker driving elements.
  • the components of the filter circuit (1602b) used in this embodiment are shown.
  • the m number of digital signals (1612a) input to the selection circuit (1605) is an n-stage integration circuit composed of a delay element and an adder that outputs the m number of digital signals of the selection circuit.
  • (16061 to 1606n) calculates the frequency of use of the m digital signals of the selection circuit, and works so as to select them in ascending order of usage frequency.
  • the filter circuit can be composed of an integration circuit having an arbitrary number of stages of one or more.
  • FIG. 17A shows a seventeenth embodiment of a system form of a digital speaker apparatus comprising a circuit for outputting a plurality of digital signals by a ⁇ modulator and a post-filter circuit and a plurality of speaker driving elements comprising a ternary switching amplifier.
  • the 1-bit digital input signal (1710) is input to the ⁇ modulator (1701).
  • the ⁇ modulator (1701) converts the digital input signal into a plurality of n-bit digital signals (1711).
  • a plurality of n-bit digital signals are converted into m digital signals (1712a) by a formatter (1702a).
  • the m digital signals (1712a) are input to the filter (1702b), mismatch shaped, and converted into m digital signals (1712b).
  • the speaker driving circuits (17031 to 1703s) directly drive the s driving elements (17041 to 1704s) to which a part of m digital signals are input, and directly generate analog sound by the vibrating membrane (1713). .
  • the driving elements (17041 to 1704s) are composed of s ternary switching amplifiers.
  • the ⁇ modulator (1701), formatter (1702a), filter (1702b), speaker driving circuit (17031 to 1703s) composed of a ternary switching amplifier, and a power supply circuit (1705) for supplying power to these circuits are digital speakers. It is a component of the device (1700).
  • a digital speaker device is configured with a speaker drive circuit composed of eight ternary switching amplifiers.
  • FIG. 17b shows an embodiment of a speaker drive circuit composed of a ternary switching amplifier.
  • a circuit of the speaker drive circuit 1703s is shown as an example of the reference numerals 17031 to 1703s.
  • the speaker drive circuit 1703 s includes first and second source transistors 301 and first and second sink transistors.
  • the first source transistor and the first sink transistor are connected in series, and the input signal A is input to each gate.
  • the second source transistor and the second sink transistor are connected in series, and the input signal / A is input to each gate.
  • a connection point between the first source transistor and the first sink transistor and a connection point between the second source transistor and the second sink transistor are connected to digital signal terminals forming a pair of digital speakers, respectively.
  • Such a circuit is generally called an H-bridge circuit in the field of motor control.
  • the speaker drive circuit (1703s) has a ternary state (-1, 0, 1) according to the states of the input signals / A and A.
  • / A represents inversion of A, but in this embodiment, / A and A may be the same value.
  • the speaker driving circuit (1700b) can be configured to be driven so as to increase the state of 0, so that unnecessary switching operation can be avoided and low power consumption digital A speaker device can be realized. At the same time, there is an effect of reducing noise and electromagnetic radiation caused by the switching operation.
  • FIG. 18 shows an eighteenth embodiment of the system form of the digital speaker apparatus comprising a circuit for outputting a plurality of digital signals by a ⁇ modulator and a post filter circuit and a plurality of speaker driving elements comprising a ternary switching amplifier.
  • the 1-bit digital input signal (1810) is input to the ⁇ modulator (1801), and converted into a plurality of n-bit digital signals (1811) by the ⁇ modulator (1801).
  • the plurality of n-bit digital signals are converted into m digital signals (1812a) by the formatter (1802a).
  • the m-child digital signal (1812a) is input to the filter (1802b), mismatch shaped, and converted into m digital signals (1812b).
  • the speaker drive circuits (18031 to 1803s) drive s drive elements (18041 to 1804s), each of which receives a part of m digital signals, and directly generate analog sound by the diaphragm (1813).
  • the driving elements (18041 to 1804s) are composed of s ternary switching amplifiers.
  • the 1-bit digital input signal (1810) is also input to the peak detector (1806), and a control signal (1816) corresponding to the amplitude value of the digital input signal is output.
  • the peak sensor (1806) calculates the amplitude value of the voice represented by the digital input signal, and the control signal (1816) is output according to the result of this calculation. For example, the amplitude value is calculated as a loudness level between predetermined lengths.
  • the control signal (1816) is input to the formatter (1802a).
  • the formatter (1802a) performs control to change the number of bits of the digital signal (1812a) input to the filter (1802b) to a maximum of m bits according to the amplitude value.
  • a digital signal (1812a) having 0 bits or a small number of bits close to 0 is output by the formatter. If the amplitude value is large, a digital signal (1812a) having a large number of bits close to m is output. ) Is output by the formatter. For example, the number of bits of the digital signal (1812a) is calculated by excluding signals having the same value for a predetermined time.
  • a speaker drive circuit (18031 to 1803s), a peak detector (1806), and a power supply for supplying power to these circuits, the ⁇ modulator (1801), formatter (1802a), filter (1802b), ternary switching amplifier A circuit (1805) is a component of the digital speaker device (1800).
  • a digital speaker device constituted by a plurality of speaker driving elements comprising a circuit for outputting a plurality of digital signals by a ⁇ modulator and a post filter circuit and a ternary switching amplifier.
  • a system has been described in which the number of bits of a digital signal input to the filter is dynamically controlled according to the amplitude of the input digital signal by adding a peak sensor to the filter.
  • the amplitude of the input digital signal is small, the number of units that operate when performing mismatch shaping with a filter is reduced, so that the range of unit characteristic variation is reduced.
  • noise can be effectively suppressed, and a digital speaker device capable of high-quality sound reproduction can be realized.
  • FIG. 19 shows a nineteenth embodiment of the system form of a digital speaker apparatus comprising a circuit for outputting a plurality of digital signals by a ⁇ modulator and a post-filter circuit and a plurality of speaker driving elements comprising a ternary switching amplifier.
  • 1-bit digital input signal (19 10) is converted into a p-bit digital audio signal (1911a) by the serial / parallel converter (1901a) which is input to the serial / parallel converter (1901a).
  • a 1-bit digital input signal (1910) is obtained by reproducing audio data recorded on a compact disc (CD), it is preferably converted into a 16-bit digital audio signal.
  • CD compact disc
  • the p-bit digital audio signal (1911a) is input to the interpolation filter (1901b) to remove unnecessary high-frequency aliasing frequency components when it is oversampled by the ⁇ modulator (1901c).
  • a signal (1911b) is output.
  • the q bit digital audio signal (1911b) is oversampled by the ⁇ modulator (1901c) and converted into a plurality of n bit digital signals (1911c) by the ⁇ modulator (1901).
  • the relationship of n ⁇ p, q and n> 2 is established.
  • a plurality of n-bit digital signals are converted into m digital signals (1912a) by a formatter (1902a).
  • the m digital signals (1912a) are input to the filter (1902b) and converted to m digital signals (1912b) subjected to mismatch shaping.
  • the speaker drive circuits (19031 to 1903s) drive s drive elements (19041 to 1904s), each of which receives part of m digital signals, and directly convert analog sound by the diaphragm (1913). .
  • the drive elements (19041 to 1904s) are composed of s ternary switching amplifiers.
  • the ⁇ modulator (1901c), formatter (1902a), filter (1902b), speaker drive circuit (19031 to 1903s) composed of a ternary switching amplifier, and a power supply circuit (1905) for supplying power to these circuits are digital speakers. It is a component of the device (1900).
  • an input 1-bit digital signal is converted into a serial / parallel converter (1901a).
  • a serial / parallel converter (1901a) To p bit digital audio signal (1911a).
  • an interpolation filter (1901b) may be inserted to remove unnecessary high-frequency aliasing frequency components when oversampling. These components are not essential as the components of the present application.
  • a 1-bit digital signal is input to the ⁇ modulator.
  • a digital audio signal having an arbitrary number of bits can be expressed by a 1-bit digital signal. For example, in the case of a CD, it is 16 bits, and in the Digital Versatile Disc (DVD) standard, standards such as 24 bits are defined in addition to 16 bits.
  • DVD Digital Versatile Disc
  • a digital signal representing a digital audio signal having an arbitrary number of bits can be input to the ⁇ modulator as a constituent element of the present application.
  • the number of bits of the digital signal output from the ⁇ modulator is smaller than the number of bits of the digital audio signal input to the ⁇ modulator.
  • the audio signal can be decoded by a smaller number of speaker driving circuits than the amplitude gradation of the audio expressed by the number of bits of the digital audio signal.
  • the audio signal can be decoded by directly driving the number of speaker driving circuits smaller than the amplitude gradation of the audio with the digital audio signal, the cost required for the digital audio demodulation is reduced. It can be greatly reduced. Simultaneous application of acoustic effects such as directivity is facilitated by using a plurality of speaker drive circuits.
  • FIG. 20 shows a combination of a circuit for outputting a plurality of digital signals by a ⁇ modulator and a post filter circuit, a digital speaker device (2001) composed of a plurality of speaker driving elements and a plurality of speakers, and a digital advertisement display device (2002).
  • a digital sound system using a digital speaker device in which a signal from the device (2003) is connected to a control device (2004) for controlling the directivity of the digital speaker device (2001) will be described.
  • a plurality of speakers are used as in the ninth to fourteenth embodiments, and the delay of a signal for driving each speaker is controlled by a digital delay circuit as in the ninth embodiment. Thereby, the directivity of the reproduced sound is changed toward the direction or position where the person or the object detected by the sensor device exists.
  • Sensor device (2003) senses some surrounding information.
  • the sensor device (2003) is an imaging device, and takes an image around the sensor device (2003). By analyzing the captured image, it is detected whether a person or an object exists around the sensor device (2003).
  • the direction and position where a person or an object exists can also be calculated. In this case, the direction and position can be calculated more accurately by using information sensed by the plurality of sensor devices (2003).
  • the sensor device (2003) may be an infrared sensor. In this case, infrared rays or the like generated by the body temperature of a person or animal are detected, and the presence, direction, or position of the person or animal is calculated based on the detection result.
  • ultrasonic waves reflected from a person or an object may be detected by generating ultrasonic waves from a digital speaker device (2001) or the like.
  • a switch or the like is provided on the road surface or the floor surface, and the position of a person or animal can be detected by ON / OFF of the switch or the like.
  • the result of detection by the sensor device (2003) is analyzed by a control device (2004) such as a microcomputer and used to control the digital speaker device (2001) and / or the digital advertisement display device (2002).
  • a control device (2004) such as a microcomputer and used to control the digital speaker device (2001) and / or the digital advertisement display device (2002).
  • the phase shift of the signal to each driving device is controlled by digitally delaying the signals from the ⁇ modulator and the formatter using a delay circuit according to the calculated direction and position.
  • the directivity of the acoustic signal radiated in the space can be changed.
  • the speaker device 2001
  • the distance between the speakers is d
  • the phase of SP2 with respect to SP3 is (2 ⁇ d
  • the directivity of the sound reproduced by the digital speaker can be dynamically controlled. That is, when an object for transmitting a voice such as a person exists within a predetermined range, control is performed so that the voice is emitted toward the position of the presence.
  • control is performed so that the voice is emitted toward the position of the presence.
  • the digital advertisement display device of the present application in addition to being able to effectively convey necessary audio information only to an object interested in the advertising medium, it is not necessary to reproduce the audio information at an unnecessarily high volume Therefore, it can cope with noise problems.
  • this embodiment provides display explanation devices for museums, science museums, on-site advertising devices for stations, airports, hotels, etc., advertising devices for public institutions such as buses, trains, cars, etc., hospitals, government offices It can also be applied to premises guidance devices in public institutions such as.
  • FIG. 21a shows a digital speaker device (21 including a circuit for outputting a plurality of digital signals by a ⁇ modulator and a post filter circuit, a plurality of speaker driving elements, and a plurality of speakers. 03) and a display device (2102), and a twenty-first embodiment of an in-vehicle digital acoustic system using a digital speaker device capable of controlling the directivity of the digital speaker device (2103) will be described.
  • in-vehicle use as in the present embodiment particularly when the display device is used as a rear projector, mainly as an entertainment device (DVD or TV viewing device) for passengers sitting in the rear seat, to ensure safety. Therefore, it is necessary for the driver to make the volume as low as possible depending on the situation. Since the directivity of the sound reproduced by the digital speaker of the present application can be dynamically controlled, it can be widely applied to such in-vehicle use.
  • the above-mentioned situation is judged based on detection of vibration or acceleration applied to the vehicle body by a vibration sensor or an acceleration sensor. For example, it is determined whether there is a change that continuously exceeds the magnitude of acceleration due to a continuous sharp curve.
  • the sound outside the vehicle is detected by a microphone, and the presence or absence of the sound of an emergency car siren or a crossing alarm is determined. If it is determined that a sharp curve continues or if sirens are detected, the driver is controlled so that the voice of the entertainment device is as low as possible in order to concentrate the driver on driving. .
  • it uses the GPS (Global Positioning System) to detect the current position, determine whether or not you are traveling in a dangerous place such as a mountain road, and entertain the driver to focus on driving Control is performed so that the sound of the apparatus becomes as small as possible.
  • GPS Global Positioning System
  • an external monitor camera (2104) is arranged, and as shown in FIG. 21b, the central control device (2105) and Connect using the in-vehicle LAN (2106) that transmits (light) digital signals.
  • Information detected by the vehicle monitor camera (2104) or the like is analyzed by the central control device (2105), and the digital speaker is controlled based on the result of the analysis.
  • the digital speaker of the present application can control not only the volume but also acoustic characteristics such as directivity by a digital signal. Also, since digital signals are used, such in-vehicle LAN (2 106) can be easily connected. Therefore, by connecting the digital speaker of the present application to the in-vehicle LAN (2106), it is possible to provide a comfortable and safe vehicle for the driver and passengers.
  • This embodiment is not limited to entertainment, and the digital speaker of the present application can also be used as an active noise canceling device for reducing road noise and the like.
  • road noise or the like is detected by a microphone (not shown), and sound having the opposite phase is generated.
  • by controlling the directivity at that time it is possible to reduce, for example, only road noise heard by the driver or only road noise heard by passengers in the passenger seat and the rear seat.
  • This embodiment can be applied to vehicles such as airplanes, motorbikes, buses, and trains in addition to the onboard digital sound system. It can also be applied to digital sound systems and noise cancellation applications in capsule hotels and other beds, audio-visual rooms, concert halls, and the like.
  • a digital speaker driving apparatus that drives a digital speaker having s number of digital signal terminals, a ⁇ modulator that modulates a digital input signal and outputs an n-bit digital signal; A post filter connected to the ⁇ modulator and outputs an m-bit digital signal obtained by mismatch-shaping an n-bit digital signal, and s number of digital signals that are respectively inputted with a part of the m-bit digital signal.
  • a driving circuit; and a power supply circuit that supplies power to the ⁇ modulator, the post filter, and the s driving elements, and the s driving circuits correspond to the s digital signal terminals.
  • a first digital speaker driving device is provided.
  • the power supply circuit adjusts the amplitude of the output of the digital signal of the s drive circuits by supplying a variable voltage to the s drive elements.
  • a second digital speaker driver is provided.
  • the first digital speaker driving device further includes a digital attenuator that adjusts the volume of the digital speaker by performing predetermined arithmetic processing on the digital input signal and inputting the digital input signal to the ⁇ modulator.
  • a third digital speaker driving apparatus is provided.
  • a fourth digital speaker driving device characterized in that the power supply circuit is controlled in response to the digital input signal.
  • the digital speaker driving device connected to the digital signal terminal of the digital speaker, the first output circuit connected to the first input terminal of the digital signal terminal of the digital speaker, and the digital signal terminal of the digital speaker, A second output circuit connected to a second input terminal paired with the first input terminal, and an inverted signal is supplied to the first output circuit and the second output circuit.
  • a fifth digital speaker driving device is provided.
  • the first output circuit and the second output circuit both output signals composed of first, second and third voltages, and the first output circuit. Outputs the first voltage, and the second output circuit outputs the third voltage, thereby taking the first digital signal output state, and the first output circuit is configured to output the third voltage. And the second output circuit outputs the first voltage to take the second digital signal output state, and both the first output circuit and the second output circuit are the first output circuit.
  • a sixth digital speaker driving device is provided which takes the state of the third digital signal output by outputting the voltage of 2.
  • the ⁇ modulator, the post-filter, and the s driving circuits are formed on a single semiconductor or enclosed in a single package.
  • a seventh digital speaker driving apparatus is provided.
  • a digital speaker having a plurality of input terminals and a digital speaker driving device that is connected to a digital input signal and a power source to drive the digital speaker, and the digital speaker driving device is disposed immediately after a coil group of the digital speaker.
  • An eighth digital speaker device is provided.
  • a delta-sigma modulator that modulates a digital input signal and outputs an n-bit digital signal; a post-filter that is connected to the delta-sigma modulator and outputs an m-bit digital signal that is mismatch-shaped from the n-bit digital signal; S drive circuits that receive a part of the m-bit digital signal and output a digital signal, and s drive elements that are driven by the corresponding s drive circuits, respectively,
  • a ninth digital speaker device having r diaphragms driven by a part of the s drive elements, wherein s and r are both 2 or more.
  • the digital speaker includes a plurality of coils which are driven by different digital signals and vibrate a common diaphragm.
  • an eleventh digital speaker device wherein the plurality of coils are twisted and wound.
  • a digital actuator comprising a magnetostrictive element and a plurality of coils each driven by a different digital signal and applying a magnetic field to the magnetostrictive element.
  • a delta-sigma modulator that modulates a digital input signal and outputs an n-bit digital signal; a post-filter that is connected to the delta-sigma modulator and outputs an m-bit digital signal that is mismatch-shaped from the n-bit digital signal; S drive circuits that receive a part of the m-bit digital signal and output the digital signal, and s electrostatic elements that are driven by the corresponding s drive circuits.
  • a twelfth digital speaker device is provided.
  • the ⁇ modulator, the post filter, the s drive circuits, and the s electrostatic elements are formed on the same substrate.
  • a digital speaker device is provided.
  • a digital speaker driving apparatus for driving a digital speaker having s digital signal terminals, a ⁇ modulator that modulates a digital input signal and outputs an n-bit digital signal, and an n-bit digital signal connected to the ⁇ modulator.
  • a post filter for outputting an m-bit digital signal obtained by mismatch shaping the signal, a digital delay control circuit for outputting a delayed m-bit digital signal by delay-controlling the m-bit digital signal, and S number of drive circuits that receive a part of the m-bit digital signal and output the digital signal, and that the delay time of the digital delay control circuit is controlled for each output according to the control signal.
  • a fourteenth digital speaker driving device is provided.
  • a flat display ; a plurality of digital speakers arranged side by side on at least one side of the flat display; and a delay control circuit for controlling a delay time of a drive signal supplied to the plurality of digital speakers according to a control signal.
  • a flat display device is provided.
  • a fifteenth digital speaker device is provided.
  • a first portable electronic device comprising a digital speaker and a driving device that drives the digital speaker without converting the digital signal into an analog signal, and is driven by a battery.
  • a featured second portable electronic device is provided.
  • a digital speaker device characterized in that control is performed so as to cancel.
  • a wireless receiver that receives a digital signal, a digital speaker driving device that generates a plurality of drive signals without converting the output of the wireless receiver into an analog signal, and a digital speaker that is driven by the plurality of drive signals
  • a third portable electronic device configured is provided.
  • a digital speaker system for driving a digital speaker having s sets of digital signal terminals wherein the digital speaker system modulates a digital input signal and outputs an n-bit digital signal, and is connected to the ⁇ modulator and is n bits
  • a post filter that outputs an m-bit digital signal obtained by mismatch-shaping the digital signal and a part of the m-bit digital signal that corresponds to the s sets of digital signal terminals and outputs a digital signal.
  • Each of the s drive circuits, and each of the s drive circuits includes a first output circuit connected to a first input terminal of a corresponding digital signal terminal, and the first of the digital signal terminals.
  • a second output circuit connected to a second input terminal paired with the first input terminal, and the drive circuit includes the first output circuit.
  • a sixteenth digital speaker driving device is provided which takes at least three digital signal output states in accordance with a combination of a first digital signal input to the second output signal and a second digital signal input to the second output circuit. Is done.
  • the digital signal input to the ⁇ modulator is a serial / parallel conversion of a 1-bit input signal to p bits, and the bit number is larger than both n and p.
  • a seventeenth digital speaker driving device obtained by sampling is provided.
  • the driving circuit includes the first input terminal and the second input terminal when the first digital signal and the second digital signal are the same digital signal.
  • the digital signal output state becomes the same potential.
  • the first output circuit and the second output circuit may include a first source transistor and a first sink transistor connected in series to which the first digital signal is input.
  • a nineteenth digital speaker driving device constituting an H-bridge circuit in which a connection point between the second source transistor and the second sink transistor is connected to a corresponding digital signal terminal.
  • the digital sensor has a peak sensor for calculating an amplitude value of a sound represented by the digital input signal, and the post filter calculates the number of bits of the output digital signal by the peak sensor.
  • a twentieth digital speaker driving device is provided which performs control according to the amplitude value.
  • the twenty-first digital speaker driving device is provided in which the post filter outputs a digital signal having a smaller number of bits as the amplitude value calculated by the peak detector is smaller.
  • a digital speaker driving apparatus that drives a plurality of digital speakers each having s digital signal terminals, a ⁇ modulator that modulates a digital input signal and outputs an n-bit digital signal, and is connected to the ⁇ modulator, a post-filter that outputs an m-bit digital signal obtained by mismatch-shaping an n-bit digital signal; a digital delay control circuit that outputs a delayed m-bit digital signal by delay-controlling the m-bit digital signal; Each of the delayed m-bit digital signals is inputted with a part of the s number of driving circuits for outputting the digital signals, and a sensor for sensing information about a person or an object existing in the surroundings, and is sensed by the sensors.
  • the digital delay control circuit In response to a control signal generated based on the received information, the digital delay control circuit A twenty-second digital speaker driving device characterized in that an extension time is controlled and directivity of sound reproduced by the plurality of digital speakers is controlled to the direction or position of the person or object detected by the sensor. Is provided.
  • the senor is provided with a twenty-third digital speaker driving device which is an imaging device or an infrared sensor for photographing surrounding images.
  • the senor is provided as the twenty-fourth digital speaker driving apparatus, which is an ultrasonic sensor.
  • a twenty-fifth digital speaker driving device in which all or some of the plurality of digital speakers generate ultrasonic waves sensed by the sensor.
  • a digital speaker driving apparatus for driving a digital speaker having s digital signal terminals, a ⁇ modulator that modulates a digital input signal and outputs an n-bit digital signal, and an n-bit digital signal connected to the ⁇ modulator.
  • a post filter for outputting an m-bit digital signal obtained by mismatch shaping the signal, a digital delay control circuit for outputting a delayed m-bit digital signal by delay-controlling the m-bit digital signal, and
  • s number of drive circuits for inputting a part of the m-bit digital signal and outputting the digital signal, and a microphone for detecting ambient sound, the sound having a phase opposite to the sound detected by the microphone is A twenty-sixth digital speaker produced by the digital speaker Dynamic device is provided.
  • the twenty-sixth digital speaker drive device further comprises another digital speaker, and has a plurality of digital speakers, wherein the digital delay control circuit controls the delay time of the m-bit digital signal system for each digital speaker.
  • a digital speaker driving apparatus according to the twenty-seventh aspect that outputs a delayed m-bit digital signal is provided.

Landscapes

  • Engineering & Computer Science (AREA)
  • Physics & Mathematics (AREA)
  • Acoustics & Sound (AREA)
  • Signal Processing (AREA)
  • Power Engineering (AREA)
  • Health & Medical Sciences (AREA)
  • General Health & Medical Sciences (AREA)
  • Otolaryngology (AREA)
  • Circuit For Audible Band Transducer (AREA)
  • Details Of Audible-Bandwidth Transducers (AREA)
  • Obtaining Desirable Characteristics In Audible-Bandwidth Transducers (AREA)
  • Electrostatic, Electromagnetic, Magneto- Strictive, And Variable-Resistance Transducers (AREA)
  • Audible-Bandwidth Dynamoelectric Transducers Other Than Pickups (AREA)
  • Soundproofing, Sound Blocking, And Sound Damping (AREA)
  • Headphones And Earphones (AREA)
  • Compression, Expansion, Code Conversion, And Decoders (AREA)
PCT/JP2009/059867 2008-06-16 2009-05-29 デジタルスピーカー駆動装置 Ceased WO2009154067A1 (ja)

Priority Applications (5)

Application Number Priority Date Filing Date Title
EP09766515.2A EP2187657A4 (en) 2008-06-16 2009-05-29 DRIVE DEVICE FOR DIGITAL SPEAKERS
CN200980100413.4A CN101803401B (zh) 2008-06-16 2009-05-29 数字扬声器驱动装置、数字扬声器装置、数字致动器、平面显示器装置和便携式电子设备
US12/659,813 US8306244B2 (en) 2008-06-16 2010-03-22 Digital speaker driving apparatus
US13/665,320 US9226053B2 (en) 2008-06-16 2012-10-31 Digital speaker driving apparatus
US14/919,349 US9693136B2 (en) 2008-06-16 2015-10-21 Digital speaker driving apparatus

Applications Claiming Priority (8)

Application Number Priority Date Filing Date Title
JP2008-156284 2008-06-16
JP2008156284 2008-06-16
JP2008314905A JP5396588B2 (ja) 2008-06-16 2008-12-10 デジタルスピーカー駆動装置，デジタルスピーカー装置，アクチュエータ，平面ディスプレイ装置及び携帯電子機器
JP2008-314929 2008-12-10
JP2008-314905 2008-12-10
JP2008314929A JP5552620B2 (ja) 2008-06-16 2008-12-10 デジタルスピーカー駆動装置と集中制御装置とを搭載した自動車
JP2008-314438 2008-12-10
JP2008314438A JP5552614B2 (ja) 2008-06-16 2008-12-10 デジタルスピーカー駆動装置，デジタルスピーカー装置，アクチュエータ，平面ディスプレイ装置及び携帯電子機器

Related Child Applications (1)

Application Number Title Priority Date Filing Date
US12/659,813 Continuation US8306244B2 (en) 2008-06-16 2010-03-22 Digital speaker driving apparatus

Publications (1)

Publication Number Publication Date
WO2009154067A1 true WO2009154067A1 (ja) 2009-12-23

Family

ID=41734122

Family Applications (1)

Application Number Title Priority Date Filing Date
PCT/JP2009/059867 Ceased WO2009154067A1 (ja) 2008-06-16 2009-05-29 デジタルスピーカー駆動装置

Country Status (6)

Country Link
US (3) US8306244B2 (https=)
EP (1) EP2187657A4 (https=)
JP (5) JP5552620B2 (https=)
KR (1) KR20110030414A (https=)
CN (3) CN107277707B (https=)
WO (1) WO2009154067A1 (https=)

Cited By (4)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
WO2013024789A1 (ja) * 2011-08-12 2013-02-21 株式会社 Ｔｒｉｇｅｎｃｅ Ｓｅｍｉｃｏｎｄｕｃｔｏｒ 駆動回路
JP2013543715A (ja) * 2010-10-22 2013-12-05 スージョウ ソナヴォックス エレクトロニクス シーオー．，エルティーディー． オールデジタルスピーカー装置
WO2014083981A1 (ja) * 2012-11-28 2014-06-05 クラリオン株式会社 デジタルスピーカーシステム、及び、デジタルスピーカーシステムの結線方法
EP2667637A3 (en) * 2012-05-23 2014-07-09 Hosiden Corporation Multi-coil unit, voice coil, and electro-acoustic transducer using the same

Families Citing this family (70)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
WO2007135928A1 (ja) 2006-05-21 2007-11-29 Trigence Semiconductor, Inc. デジタルアナログ変換装置
JP5552620B2 (ja) 2008-06-16 2014-07-16 株式会社 Ｔｒｉｇｅｎｃｅ Ｓｅｍｉｃｏｎｄｕｃｔｏｒ デジタルスピーカー駆動装置と集中制御装置とを搭載した自動車
WO2010104112A1 (ja) * 2009-03-11 2010-09-16 三菱鉛筆株式会社 スピーカユニット
JP5568752B2 (ja) 2009-12-09 2014-08-13 株式会社 Ｔｒｉｇｅｎｃｅ Ｓｅｍｉｃｏｎｄｕｃｔｏｒ 選択装置
CN103096217B (zh) 2009-12-16 2016-09-28 株式会社特瑞君思半导体 音响系统
JP5842140B2 (ja) * 2010-03-18 2016-01-13 パナソニックＩｐマネジメント株式会社 車載用ラジオ受信装置およびノイズキャンセル方法
JP5461285B2 (ja) * 2010-04-09 2014-04-02 クラリオン株式会社 ボイスコイルスピーカー
JP5557582B2 (ja) 2010-04-09 2014-07-23 クラリオン株式会社 ボイスコイルスピーカー
JP5461284B2 (ja) * 2010-04-09 2014-04-02 クラリオン株式会社 ボイスコイルスピーカー
KR101831013B1 (ko) * 2010-11-26 2018-02-21 오디오 픽셀즈 리미티드 액츄에이터 어레이에서의 개별 어드레싱 및 잡음 감소를 위한 장치 및 방법
US9148712B2 (en) 2010-12-10 2015-09-29 Infineon Technologies Ag Micromechanical digital loudspeaker
CN103534922B (zh) 2011-03-31 2016-09-21 株式会社特瑞君思半导体 电动机驱动用逆变器
JP2012227589A (ja) * 2011-04-15 2012-11-15 Clarion Co Ltd デジタルスピーカーシステム
JP5910846B2 (ja) 2011-07-26 2016-04-27 ソニー株式会社 制御装置、制御方法、及び、プログラム
EP2782361A4 (en) * 2011-10-25 2015-07-08 Trigence Semiconductor Inc DIGITAL ACOUSTIC SYSTEM
CN102404672B (zh) * 2011-10-27 2013-12-18 苏州上声电子有限公司 数字化扬声器阵列系统的通道均衡与波束控制方法和装置
JP2013102370A (ja) * 2011-11-09 2013-05-23 Sony Corp ヘッドホン装置、端末装置、情報送信方法、プログラム、ヘッドホンシステム
CN103167380B (zh) * 2011-12-13 2015-09-09 中国科学院声学研究所 一种数字化超指向性扬声器系统
EP2854422B1 (en) 2012-05-21 2019-08-14 Clarion Co., Ltd. Voice coil speaker
WO2014002680A1 (ja) 2012-06-26 2014-01-03 クラリオン株式会社 ボイスコイルスピーカー
JP6132492B2 (ja) 2012-08-29 2017-05-24 クラリオン株式会社 ボイスコイルスピーカー
JP6054697B2 (ja) * 2012-09-28 2016-12-27 本田技研工業株式会社 車両用音声処理装置
US9349304B2 (en) 2013-02-04 2016-05-24 Bose Corporation Demonstrating an active vibration isolation system
WO2014153170A1 (en) * 2013-03-14 2014-09-25 Soundwall Llc Decorative flat panel sound system
US10531190B2 (en) 2013-03-15 2020-01-07 Elwha Llc Portable electronic device directed audio system and method
US20140269207A1 (en) * 2013-03-15 2014-09-18 Elwha Llc Portable Electronic Device Directed Audio Targeted User System and Method
US10181314B2 (en) 2013-03-15 2019-01-15 Elwha Llc Portable electronic device directed audio targeted multiple user system and method
US20140269196A1 (en) * 2013-03-15 2014-09-18 Elwha Llc Portable Electronic Device Directed Audio Emitter Arrangement System and Method
US9886941B2 (en) 2013-03-15 2018-02-06 Elwha Llc Portable electronic device directed audio targeted user system and method
US10291983B2 (en) 2013-03-15 2019-05-14 Elwha Llc Portable electronic device directed audio system and method
US10575093B2 (en) * 2013-03-15 2020-02-25 Elwha Llc Portable electronic device directed audio emitter arrangement system and method
CN103491485A (zh) * 2013-09-04 2014-01-01 国光电器股份有限公司 双音圈喇叭d类数字功放系统及其信号处理方法
JP6196860B2 (ja) * 2013-09-20 2017-09-13 日立マクセル株式会社 スピーカーシステム
CN103701465B (zh) * 2013-12-02 2016-09-21 苏州上声电子有限公司 一种基于多比特△—σ调制的数字扬声器系统实现方法和装置
JP6400902B2 (ja) * 2013-12-27 2018-10-03 クラリオン株式会社 スピーカ
JP5841639B2 (ja) * 2014-06-02 2016-01-13 クラリオン株式会社 ボイスコイルスピーカー
US20160117962A1 (en) * 2014-10-22 2016-04-28 Samsung Electronics Co., Ltd. Display apparatus and display method thereof
US9628928B2 (en) * 2014-10-30 2017-04-18 Trigence Semiconductor, Inc. Speaker control device
JP6458276B2 (ja) * 2014-11-18 2019-01-30 株式会社オーディオテクニカ ボイスコイル、電気音響変換器、ヘッドホンおよび振動板
KR102369124B1 (ko) 2014-12-26 2022-03-03 삼성디스플레이 주식회사 영상 표시 장치
CN104581589B (zh) * 2014-12-31 2018-01-02 苏州上声电子有限公司 基于三态编码的通道状态选取方法和装置
US9973859B2 (en) * 2015-02-17 2018-05-15 Frank Joseph Pompei Amplifiers for parametric loudspeakers
EP3284266B1 (en) * 2015-04-15 2021-02-17 Audio Pixels Ltd. Methods and systems for detecting at least the position of an object in space
WO2017179219A1 (ja) 2016-04-12 2017-10-19 株式会社 Ｔｒｉｇｅｎｃｅ Ｓｅｍｉｃｏｎｄｕｃｔｏｒ スピーカ駆動装置、スピーカ装置およびプログラム
WO2017179616A1 (ja) * 2016-04-15 2017-10-19 第一精工株式会社 スピーカシステム
US9936304B2 (en) * 2016-08-23 2018-04-03 Infineon Technologies Ag Digital silicon microphone with configurable sensitivity, frequency response and noise transfer function
US10462567B2 (en) 2016-10-11 2019-10-29 Ford Global Technologies, Llc Responding to HVAC-induced vehicle microphone buffeting
JP6296669B1 (ja) * 2016-10-18 2018-03-20 株式会社オーディオテクニカ デジタル駆動型ヘッドホン
KR101758708B1 (ko) 2017-04-03 2017-07-18 포항공과대학교 산학협력단 3-레벨의 디지털 신호를 사용하는 액티브 노이즈 감소 이어폰
KR102300544B1 (ko) 2017-04-07 2021-09-09 (주)드림어스컴퍼니 모듈형 신호 변환 장치 및 방법
WO2018186530A1 (ko) * 2017-04-07 2018-10-11 주식회사 아이리버 전원 노이즈 제거 장치 및 오디오 신호 변환 장치
CA3052769C (en) 2017-05-24 2021-08-17 Halliburton Energy Services, Inc. Acoustic noise reduction and energy generation barrier
US10525921B2 (en) 2017-08-10 2020-01-07 Ford Global Technologies, Llc Monitoring windshield vibrations for vehicle collision detection
US10562449B2 (en) * 2017-09-25 2020-02-18 Ford Global Technologies, Llc Accelerometer-based external sound monitoring during low speed maneuvers
WO2019069466A1 (ja) 2017-10-06 2019-04-11 株式会社 Ｔｒｉｇｅｎｃｅ Ｓｅｍｉｃｏｎｄｕｃｔｏｒ スピーカ駆動装置、スピーカ装置およびプログラム
JP2019092129A (ja) * 2017-11-17 2019-06-13 株式会社オーディオテクニカ デジタル式電気音響変換装置
KR20200101968A (ko) 2018-01-04 2020-08-28 트라이젠스 세미컨덕터 가부시키가이샤 스피커 구동 장치, 스피커 장치 및 프로그램
US11153690B2 (en) * 2018-08-22 2021-10-19 Dsp Group Ltd. Electrostatic speaker and a method for generating acoustic signals
JP6802954B2 (ja) * 2019-06-05 2020-12-23 株式会社オーディオテクニカ デジタル駆動型電気音響変換器の結線構造およびデジタル駆動型ヘッドホン
KR102845258B1 (ko) * 2019-10-17 2025-08-11 현대모비스 주식회사 노면영상을 활용한 능동 소음저감 방법 및 장치
US11272293B2 (en) 2020-01-30 2022-03-08 Cirrus Logic, Inc. Loudspeaker driver systems
US10945069B1 (en) * 2020-01-30 2021-03-09 Cirrus Logic, Inc. Loudspeaker driver systems
WO2022208812A1 (ja) * 2021-03-31 2022-10-06 パイオニア株式会社 音声制御装置、音声制御システム、音声制御方法、音声制御プログラム及び記憶媒体
CN114598969A (zh) * 2022-03-09 2022-06-07 地球山(苏州)微电子科技有限公司 一种数字扬声器音量控制方法、装置、设备及介质
CN114745632B (zh) * 2022-03-09 2025-10-28 地球山(苏州)微电子科技有限公司 一种数字发声的音量控制方法、装置、设备及介质
CN116055950B (zh) * 2022-05-11 2023-10-17 荣耀终端有限公司 扬声器驱动电路及电子设备
US12413883B2 (en) * 2023-07-10 2025-09-09 Harman Becker Automotive Systems Gmbh Speaker with batched cones
TW202508236A (zh) * 2023-08-11 2025-02-16 連訊通信股份有限公司 音頻訊號傳輸裝置與方法、音頻訊號接收裝置與方法以及音響系統
CN117395357A (zh) * 2023-12-12 2024-01-12 地球山(苏州)微电子科技有限公司 一种基于数字扬声器的电视及其发声方法
WO2025177941A1 (ja) * 2024-02-20 2025-08-28 株式会社エルム 限定領域音声広報システム

Citations (11)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
JPH05176387A (ja) * 1991-08-02 1993-07-13 Sharp Corp スピーカ駆動回路
JPH1013986A (ja) * 1996-06-18 1998-01-16 Sony Corp スピーカ装置
JP2000341794A (ja) * 1999-05-28 2000-12-08 Nec Viewtechnology Ltd 密閉箱型直接放射平面スピーカ
JP2001016675A (ja) * 1999-05-28 2001-01-19 Texas Instr Inc <Ti> スピーカ
JP2004135066A (ja) * 2002-10-10 2004-04-30 Sharp Corp デジタル音声出力装置
JP2004172786A (ja) * 2002-11-19 2004-06-17 Sony Corp オーディオ信号の再生方法および再生装置
JP2004221651A (ja) * 2003-01-09 2004-08-05 Pioneer Electronic Corp ボイスコイル及びこれを用いたスピーカ
JP2005064746A (ja) * 2003-08-08 2005-03-10 Yamaha Corp オーディオ再生装置、ラインアレイスピーカユニットおよびオーディオ再生方法
JP2006303618A (ja) * 2005-04-15 2006-11-02 Hosiden Corp スピーカ駆動システム
WO2007013528A1 (ja) 2005-07-26 2007-02-01 Tohoku Pioneer Corporation 表示装置、表示装置の検査方法、および表示装置の製造方法
WO2007135928A1 (ja) 2006-05-21 2007-11-29 Trigence Semiconductor, Inc. デジタルアナログ変換装置

Family Cites Families (133)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
US2005118A (en) 1930-02-14 1935-06-18 Standard Oil Co Conversion process
JPS5648698A (en) 1979-09-28 1981-05-01 Hitachi Ltd Sound generation circuit
JPS573498A (en) 1980-06-06 1982-01-08 Mitsubishi Electric Corp Multiway speaker device
JPS57138293A (en) 1981-02-20 1982-08-26 Pioneer Electronic Corp Dynamic speaker system
JPS58127795A (ja) 1982-01-25 1983-07-29 Yushiro Do Brazil Ind Chem Ltd 水性作動流体原液
NL8303186A (nl) * 1983-09-15 1985-04-01 Philips Nv Luidsprekersysteem en een luidspreker te gebruiken in een luidspreker voor het omzetten van een in n bits gedigitaliseerd electrisch signaal in een akoestisch signaal.
NL8303185A (nl) * 1983-09-15 1985-04-01 Philips Nv Hybried luidsprekersysteem eventueel met een of meer korrektieketens.
JPS6413986A (en) * 1987-07-08 1989-01-18 Mitsuiwa Eng Kk Microcapsule for cultivating cell and production thereof
JPH02121497A (ja) 1988-10-31 1990-05-09 Victor Co Of Japan Ltd デジタルスピーカユニツト及びその駆動装置
JPH0748914B2 (ja) 1989-08-05 1995-05-24 松下電器産業株式会社 デジタルプリアンプ
JPH03216025A (ja) 1990-01-22 1991-09-24 Nec Corp 並列直列変換器
JPH0435599A (ja) 1990-05-31 1992-02-06 Casio Comput Co Ltd 制御装置
JPH05199575A (ja) 1990-12-25 1993-08-06 Sakai Shoji Kk スピーカ装置
JPH04355599A (ja) 1991-05-31 1992-12-09 Matsushita Electric Ind Co Ltd ディジタルスピーカ
JP2683310B2 (ja) 1991-11-20 1997-11-26 シャープ株式会社 スピーカ駆動回路
US5347587A (en) * 1991-11-20 1994-09-13 Sharp Kabushiki Kaisha Speaker driving device
JP3123286B2 (ja) 1993-02-18 2001-01-09 ソニー株式会社 ディジタル信号処理装置又は方法、及び記録媒体
JP2880372B2 (ja) * 1993-05-18 1999-04-05 シャープ株式会社 スピーカ駆動装置
US5404142A (en) 1993-08-05 1995-04-04 Analog Devices, Incorporated Data-directed scrambler for multi-bit noise shaping D/A converters
JP2945570B2 (ja) 1993-10-29 1999-09-06 シャープ株式会社 信号処理装置
JP3469326B2 (ja) 1994-08-16 2003-11-25 バー−ブラウン・コーポレーション デジタル−アナログ変換器
JPH0865791A (ja) 1994-08-25 1996-03-08 Fujitsu Ten Ltd スピーカのボイスコイル
JP3367800B2 (ja) 1994-09-30 2003-01-20 株式会社東芝 選択装置およびこれを用いたａ／ｄ変換器並びにｄ／ａ変換器
JP3338268B2 (ja) 1995-12-28 2002-10-28 株式会社東芝 選択装置
US5872532A (en) * 1994-09-30 1999-02-16 Kabushiki Kaisha Toshiba Selection apparatus
GB9506725D0 (en) 1995-03-31 1995-05-24 Hooley Anthony Improvements in or relating to loudspeakers
JP3185963B2 (ja) * 1995-07-28 2001-07-11 日本電信電話株式会社 スピーカ駆動回路
JPH1051888A (ja) 1996-05-28 1998-02-20 Sony Corp スピーカ装置および音声再生システム
US6216052B1 (en) 1996-10-23 2001-04-10 Advanced Micro Devices, Inc. Noise elimination in a USB codec
JPH10145887A (ja) * 1996-11-07 1998-05-29 Sony Corp スピーカ装置
JPH10276093A (ja) 1997-03-28 1998-10-13 Sony Corp Ｄ／ａ変換器
JPH10276490A (ja) 1997-03-31 1998-10-13 Sony Corp 音響変換器
TW405328B (en) * 1997-04-11 2000-09-11 Matsushita Electric Industrial Co Ltd Audio decoding apparatus, signal processing device, sound image localization device, sound image control method, audio signal processing device, and audio signal high-rate reproduction method used for audio visual equipment
CA2286978A1 (en) 1997-04-18 1998-10-29 Jesper Steensgaard-Madsen Oversampled digital-to-analog converter based on nonlinear separation and linear recombination
US6243472B1 (en) * 1997-09-17 2001-06-05 Frank Albert Bilan Fully integrated amplified loudspeaker
JP3369448B2 (ja) 1997-09-29 2003-01-20 シャープ株式会社 ディジタルスイッチングアンプ
JPH11122110A (ja) 1997-10-15 1999-04-30 Matsushita Electric Ind Co Ltd Ｄ／ａ変換装置
JP4221792B2 (ja) * 1998-01-09 2009-02-12 ソニー株式会社 スピーカ装置及びオーディオ信号送信装置
US6492761B1 (en) 1998-01-20 2002-12-10 Ericsson Inc. Digital piezoelectric transducers and methods
JP3369503B2 (ja) 1998-03-10 2003-01-20 シャープ株式会社 ディジタルスイッチングアンプ
JP2000078015A (ja) 1998-09-02 2000-03-14 Asahi Kasei Microsystems Kk マルチビット型ｄ／ａ変換器及びデルタシグマ型ａ／ｄ変換器
JP3232457B2 (ja) 1999-02-05 2001-11-26 日本プレシジョン・サーキッツ株式会社 デルタシグマ方式ｄ／ａ変換器
JP3516878B2 (ja) 1999-03-16 2004-04-05 シャープ株式会社 Δς変調を用いるスイッチング増幅器
GB2349756B (en) 1999-05-06 2003-05-14 Sony Uk Ltd Signal processors
JP3789685B2 (ja) * 1999-07-02 2006-06-28 富士通株式会社 マイクロホンアレイ装置
JP3340404B2 (ja) 1999-07-23 2002-11-05 株式会社 デジアン・テクノロジー Ｄ／ａ変換器
CN100358393C (zh) 1999-09-29 2007-12-26 1...有限公司 定向声音的方法和设备
JP4583689B2 (ja) 1999-10-27 2010-11-17 エヌエックスピー ビー ヴィ デジタル−アナログ・コンバータ
US20040223622A1 (en) 1999-12-01 2004-11-11 Lindemann Eric Lee Digital wireless loudspeaker system
WO2002023733A2 (en) * 2000-09-11 2002-03-21 Broadcom Corporation Sigma-delta digital-to-analog converter
DE60119476T2 (de) 2000-10-26 2006-11-23 Fujitsu Ltd., Kawasaki Segmentierte Schaltungsanordnung
JP2002216026A (ja) 2000-11-17 2002-08-02 Sony Corp 情報通信システム、エージェント端末、情報配信システム、エージェントプログラムが記憶された記憶媒体、エージェントアクセスプログラムが記憶された記憶媒体、専用処理プログラムが記憶された記憶媒体、エージェントプログラム、エージェントアクセスプログラム、及び、専用処理プログラム
US7058463B1 (en) * 2000-12-29 2006-06-06 Nokia Corporation Method and apparatus for implementing a class D driver and speaker system
JP2002374170A (ja) 2001-06-12 2002-12-26 Nippon Precision Circuits Inc １ビットｄ／ａ変換器
AU2002331624A1 (en) 2001-08-17 2003-03-03 Carnegie Mellon University Method and apparatus for reconstruction of soundwaves from digital signals
US6697004B1 (en) 2001-10-01 2004-02-24 Silicon Wave, Inc. Partial mismatch-shaping digital-to-analog converter
WO2003047309A1 (en) * 2001-11-30 2003-06-05 Sonion A/S A high efficiency driver for miniature loudspeakers
US6983052B2 (en) * 2001-12-29 2006-01-03 Alpine Electronics, Inc Vehicle power amplifier and voltage supply thereof
US6606044B2 (en) 2002-01-02 2003-08-12 Motorola, Inc. Method and apparatus for generating a pulse width modulated signal
JP2003216163A (ja) * 2002-01-21 2003-07-30 Denso Corp 騒音制御装置
JP2005518051A (ja) 2002-01-23 2005-06-16 コーニンクレッカ　フィリップス　エレクトロニクス　エヌ　ヴィ オーバーサンプリングされたデジタルオーディオ信号をミキシングするためのミキシングシステム
GB0203895D0 (en) 2002-02-19 2002-04-03 1 Ltd Compact surround-sound system
GB2386280B (en) * 2002-03-07 2005-09-14 Zarlink Semiconductor Inc Digital microphone
US7483540B2 (en) 2002-03-25 2009-01-27 Bose Corporation Automatic audio system equalizing
US6563448B1 (en) 2002-04-29 2003-05-13 Texas Instruments Incorporated Flexible sample rate converter for multimedia digital-to-analog conversion in a wireless telephone
KR20030086896A (ko) 2002-05-03 2003-11-12 톰슨 라이센싱 소시에떼 아노님 온도계 코드 디지털-오디오 변환기
US7643894B2 (en) 2002-05-09 2010-01-05 Netstreams Llc Audio network distribution system
CN1388729A (zh) * 2002-07-01 2003-01-01 斯贝克电子（嘉善）有限公司 双对称磁路双音圈双定心支片扬声器
US6738003B2 (en) 2002-07-08 2004-05-18 Cirrus Logic, Inc. Delta-sigma modulation circuits and methods utilizing multiple noise attenuation bands and data converters using the same
US6940343B2 (en) * 2002-08-14 2005-09-06 Ami Semiconductor, Inc. Amplifier
US6738004B2 (en) * 2002-08-15 2004-05-18 Cirrus Logic, Inc. Method and system of integrating a mismatch noise shaper into the main loop of a delta-sigma modulator
AU2003275626A1 (en) 2002-10-29 2004-05-25 Sharp Kabushiki Kaisha Digital signal processing device and audio signal reproduction device
JP3737471B2 (ja) * 2002-11-18 2006-01-18 株式会社リコー 画像処理方法および画像処理システム
US6853325B2 (en) * 2002-12-27 2005-02-08 Renesas Technology Corp. Pulse width modulation digital amplifier
JP4326933B2 (ja) 2002-12-27 2009-09-09 株式会社ルネサステクノロジ デジタルアンプ
US20050031151A1 (en) * 2003-04-30 2005-02-10 Louis Melillo Speaker with adjustable voice coil impedance
US7053700B2 (en) 2003-06-02 2006-05-30 Nortel Networks Limited High-efficiency amplifier and method
US7058464B2 (en) 2003-07-17 2006-06-06 Ess Technology, Inc. Device and method for signal processing
US6885330B2 (en) 2003-09-05 2005-04-26 Cirrus Logic, Inc. Data converters with ternary pulse width modulation output stages and methods and systems using the same
US6940436B2 (en) 2003-10-31 2005-09-06 Texas Instruments Incorporated Analog-to-digital conversion system with second order noise shaping and a single amplifier
JP2007512793A (ja) * 2003-12-01 2007-05-17 オーディオアシクス エー／エス 電圧ポンプを有するマイクロホン
US7193548B2 (en) 2004-01-30 2007-03-20 Hrl Laboratories, Llc Switching arrangement and DAC mismatch shaper using the same
EP1596625A1 (en) 2004-05-11 2005-11-16 AKG Acoustics GmbH Circuit for the control of a loudspeaker
US7792311B1 (en) 2004-05-15 2010-09-07 Sonos, Inc., Method and apparatus for automatically enabling subwoofer channel audio based on detection of subwoofer device
KR20050112363A (ko) 2004-05-25 2005-11-30 삼성전자주식회사 표시 장치
US6930625B1 (en) 2004-06-04 2005-08-16 Realtek Semiconductor Corp Multi-thread parallel processing sigma-delta ADC
US7378903B2 (en) 2004-06-07 2008-05-27 Sonos, Inc. System and method for minimizing DC offset in outputs of audio power amplifiers
JP3970266B2 (ja) 2004-06-23 2007-09-05 株式会社半導体理工学研究センター 複素バンドパスδσａｄ変調器、ａｄ変換回路及びディジタル無線受信機
JP3819010B2 (ja) 2004-06-30 2006-09-06 日本テキサス・インスツルメンツ株式会社 デジタルエンコーダ、および、それに用いたデジタルアナログ変換器
JP2006067008A (ja) 2004-08-24 2006-03-09 Yamaha Corp スピーカ
JP4568572B2 (ja) * 2004-10-07 2010-10-27 ローム株式会社 音声信号出力回路、および音声出力を発生する電子機器
TWI253055B (en) 2004-10-11 2006-04-11 Sunplus Technology Co Ltd Sound playing device using sigma-delta pulse width modulation
CN1797942A (zh) * 2004-12-29 2006-07-05 上海乐金广电电子有限公司 数字音频系统的模拟输出装置
US7825986B2 (en) 2004-12-30 2010-11-02 Mondo Systems, Inc. Integrated multimedia signal processing system using centralized processing of signals and other peripheral device
US8880205B2 (en) 2004-12-30 2014-11-04 Mondo Systems, Inc. Integrated multimedia signal processing system using centralized processing of signals
US7653447B2 (en) * 2004-12-30 2010-01-26 Mondo Systems, Inc. Integrated audio video signal processing system using centralized processing of signals
EP1691487B1 (en) 2005-02-10 2009-12-02 STMicroelectronics S.r.l. Enhancement of the dynamic range of a multibit digital-to-analog converter
TWI278186B (en) 2005-02-17 2007-04-01 Via Tech Inc Method and related apparatus for digital/analogue conversion
JP2006319535A (ja) * 2005-05-11 2006-11-24 Yamaha Corp 音響再生装置
JP2006339852A (ja) 2005-05-31 2006-12-14 Toshiba Corp 情報処理装置およびモジュール選択方法
JP4483707B2 (ja) 2005-06-01 2010-06-16 船井電機株式会社 ディスクローダ内蔵型テレビ、ディスク有無表示装置
US7317413B2 (en) * 2005-06-23 2008-01-08 Ying Lau Lee Multi-channel digital to analog (D/A) conversion
US20070032895A1 (en) 2005-07-29 2007-02-08 Fawad Nackvi Loudspeaker with demonstration mode
JP4859925B2 (ja) 2005-08-30 2012-01-25 エルジー エレクトロニクス インコーポレイティド オーディオ信号デコーディング方法及びその装置
US8577048B2 (en) 2005-09-02 2013-11-05 Harman International Industries, Incorporated Self-calibrating loudspeaker system
KR100622078B1 (ko) 2005-11-21 2006-09-13 주식회사 솔리토닉스 초지향성 스피커 시스템 및 신호처리 방법
US8036402B2 (en) * 2005-12-15 2011-10-11 Harman International Industries, Incorporated Distortion compensation
US8385561B2 (en) 2006-03-13 2013-02-26 F. Davis Merrey Digital power link audio distribution system and components thereof
US8275144B2 (en) 2006-03-28 2012-09-25 Stmicroelectronics, Inc. Intelligent audio speakers
JP4887875B2 (ja) 2006-04-06 2012-02-29 日本テキサス・インスツルメンツ株式会社 ダイナミック・エレメント・マッチング方法及び装置
GB2437772B8 (en) * 2006-04-12 2008-09-17 Wolfson Microelectronics Plc Digital circuit arrangements for ambient noise-reduction.
SG171693A1 (en) 2006-05-22 2011-06-29 Audio Pixels Ltd Volume and tone control in direct digital speakers
US7492297B2 (en) 2006-08-11 2009-02-17 Realtek Semiconductor Corp. Digital-to-analog converter and method thereof
JP4844306B2 (ja) 2006-09-07 2011-12-28 ヤマハ株式会社 アレイスピーカ装置
EP2117117B1 (en) 2006-12-27 2016-08-10 Sharp Kabushiki Kaisha Modulation digital-analog converter, digital signal processing method, and av device
JP4805177B2 (ja) 2007-01-31 2011-11-02 シャープ株式会社 ディジタルアンプ、および、ディジタルアンプの制御方法
JP4882773B2 (ja) 2007-02-05 2012-02-22 ソニー株式会社 信号処理装置、信号処理方法
JP5439707B2 (ja) 2007-03-02 2014-03-12 ソニー株式会社 信号処理装置、信号処理方法
US20110051954A1 (en) 2008-01-29 2011-03-03 Audioasics A/S Signal conditioner with suppression of interfering signals
US7656337B2 (en) 2008-03-31 2010-02-02 Linear Technology Corporation Method and system for bit polarization coding
US7710300B2 (en) 2008-04-03 2010-05-04 Broadcom Corporation Segmented data shuffler apparatus for a digital to analog converter (DAC)
WO2009127086A1 (en) * 2008-04-18 2009-10-22 Zoran Corporation Audio signal amplifier for karaoke player
JP5552620B2 (ja) 2008-06-16 2014-07-16 株式会社 Ｔｒｉｇｅｎｃｅ Ｓｅｍｉｃｏｎｄｕｃｔｏｒ デジタルスピーカー駆動装置と集中制御装置とを搭載した自動車
JP5324308B2 (ja) 2009-04-30 2013-10-23 三菱鉛筆株式会社 スピーカユニット
WO2010104112A1 (ja) 2009-03-11 2010-09-16 三菱鉛筆株式会社 スピーカユニット
EP2237424B1 (en) 2009-03-30 2013-02-27 Dialog Semiconductor GmbH Tri-level dynamic element matcher allowing reduced reference loading and DAC element reduction
US8098718B2 (en) 2009-07-01 2012-01-17 Qualcomm Incorporated Apparatus and methods for digital-to-analog conversion with vector quantization
JP5568752B2 (ja) 2009-12-09 2014-08-13 株式会社 Ｔｒｉｇｅｎｃｅ Ｓｅｍｉｃｏｎｄｕｃｔｏｒ 選択装置
CN103096217B (zh) 2009-12-16 2016-09-28 株式会社特瑞君思半导体 音响系统
CN101986721B (zh) 2010-10-22 2014-07-09 苏州上声电子有限公司 全数字式扬声器装置
JP2012227589A (ja) 2011-04-15 2012-11-15 Clarion Co Ltd デジタルスピーカーシステム
CN103167380B (zh) 2011-12-13 2015-09-09 中国科学院声学研究所 一种数字化超指向性扬声器系统
JP2013157972A (ja) 2012-02-01 2013-08-15 Onkyo Corp デジタルスピーカー装置

Patent Citations (11)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
JPH05176387A (ja) * 1991-08-02 1993-07-13 Sharp Corp スピーカ駆動回路
JPH1013986A (ja) * 1996-06-18 1998-01-16 Sony Corp スピーカ装置
JP2000341794A (ja) * 1999-05-28 2000-12-08 Nec Viewtechnology Ltd 密閉箱型直接放射平面スピーカ
JP2001016675A (ja) * 1999-05-28 2001-01-19 Texas Instr Inc <Ti> スピーカ
JP2004135066A (ja) * 2002-10-10 2004-04-30 Sharp Corp デジタル音声出力装置
JP2004172786A (ja) * 2002-11-19 2004-06-17 Sony Corp オーディオ信号の再生方法および再生装置
JP2004221651A (ja) * 2003-01-09 2004-08-05 Pioneer Electronic Corp ボイスコイル及びこれを用いたスピーカ
JP2005064746A (ja) * 2003-08-08 2005-03-10 Yamaha Corp オーディオ再生装置、ラインアレイスピーカユニットおよびオーディオ再生方法
JP2006303618A (ja) * 2005-04-15 2006-11-02 Hosiden Corp スピーカ駆動システム
WO2007013528A1 (ja) 2005-07-26 2007-02-01 Tohoku Pioneer Corporation 表示装置、表示装置の検査方法、および表示装置の製造方法
WO2007135928A1 (ja) 2006-05-21 2007-11-29 Trigence Semiconductor, Inc. デジタルアナログ変換装置

Cited By (7)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
JP2013543715A (ja) * 2010-10-22 2013-12-05 スージョウ ソナヴォックス エレクトロニクス シーオー．，エルティーディー． オールデジタルスピーカー装置
WO2013024789A1 (ja) * 2011-08-12 2013-02-21 株式会社 Ｔｒｉｇｅｎｃｅ Ｓｅｍｉｃｏｎｄｕｃｔｏｒ 駆動回路
JPWO2013024789A1 (ja) * 2011-08-12 2015-03-05 株式会社 Ｔｒｉｇｅｎｃｅ Ｓｅｍｉｃｏｎｄｕｃｔｏｒ 駆動回路
KR101851041B1 (ko) * 2011-08-12 2018-04-20 트라이젠스 세미컨덕터 가부시키가이샤 구동 회로
EP2667637A3 (en) * 2012-05-23 2014-07-09 Hosiden Corporation Multi-coil unit, voice coil, and electro-acoustic transducer using the same
US9253577B2 (en) 2012-05-23 2016-02-02 Hosiden Corporation Multi-coil unit, voice coil, and electro-acoustic transducer using the same
WO2014083981A1 (ja) * 2012-11-28 2014-06-05 クラリオン株式会社 デジタルスピーカーシステム、及び、デジタルスピーカーシステムの結線方法

Also Published As

Publication number Publication date
JP2015065661A (ja) 2015-04-09
EP2187657A1 (en) 2010-05-19
US20160044402A1 (en) 2016-02-11
US8306244B2 (en) 2012-11-06
EP2187657A4 (en) 2014-12-03
JP2010028784A (ja) 2010-02-04
CN103401559B (zh) 2017-05-24
US20130058497A1 (en) 2013-03-07
JP5552620B2 (ja) 2014-07-16
JP5764691B2 (ja) 2015-08-19
JP5396588B2 (ja) 2014-01-22
JP2010028785A (ja) 2010-02-04
CN107277707B (zh) 2019-07-05
JP5552614B2 (ja) 2014-07-16
JP2014158276A (ja) 2014-08-28
KR20110030414A (ko) 2011-03-23
CN101803401A (zh) 2010-08-11
US9693136B2 (en) 2017-06-27
CN101803401B (zh) 2014-02-26
CN103401559A (zh) 2013-11-20
US9226053B2 (en) 2015-12-29
CN107277707A (zh) 2017-10-20
JP2010028783A (ja) 2010-02-04
JP6087332B2 (ja) 2017-03-01
US20100239101A1 (en) 2010-09-23

Similar Documents

Publication Publication Date Title
JP6087332B2 (ja) パーソナルコンピュータ
JP4792156B2 (ja) マイクロホンアレイを有するボイス制御システム
US9413321B2 (en) System and method for digital signal processing
CN103098495B (zh) 音响再生装置
CN103179483B (zh) 具有多动态驱动单元的入耳式耳机
US20080013778A1 (en) Necklace Type Detachable Three Dimensional Sound Reproduction Apparatus
CN101056289B (zh) 可变功率适应性发射器
US20210257983A1 (en) System and method for digital signal processing
US20240236560A1 (en) Audio system and method and device for controlling thereof
US20170310280A1 (en) Single signal-variant power supply for a plurality of amplifiers
US20130163780A1 (en) Method and apparatus for information exchange between multimedia components for the purpose of improving audio transducer performance
JP2004328513A (ja) 音声データ処理装置、音声データ処理方法、そのプログラム、および、そのプログラムを記録した記録媒体
CN1953526B (zh) 显示装置以及应用该显示装置的影音播放系统
KR20180025408A (ko) 차량 음향 경보 시스템
JP2010116066A (ja) 自動車用オーディオシステム
CN101384106A (zh) 电子装置
KR200323427Y1 (ko) 다출력 무선마이크
TWI240590B (en) Handheld Dolby decoding earphone apparatus
WO2007063772A1 (ja) 信号伝送装置、その方法、および、音響装置
CN1395445A (zh) 具有多个扬声器的耳机
Aarts Hardware for ambient sound reproduction
JPH0548492U (ja) 臨場感あるヘッドホン装置

Legal Events

Date Code Title Description
WWE Wipo information: entry into national phase

Ref document number: 200980100413.4

Country of ref document: CN

121 Ep: the epo has been informed by wipo that ep was designated in this application

Ref document number: 09766515

Country of ref document: EP

Kind code of ref document: A1

ENP Entry into the national phase

Ref document number: 20107005223

Country of ref document: KR

Kind code of ref document: A

WWE Wipo information: entry into national phase

Ref document number: 1629/CHENP/2010

Country of ref document: IN

WWE Wipo information: entry into national phase

Ref document number: 2009766515

Country of ref document: EP

NENP Non-entry into the national phase

Ref country code: DE
