WO2020111238A1 - ペプチド化合物、またはアミド化合物の脱保護法および固相反応における脱樹脂方法、並びにペプチド化合物の製造方法 - Google Patents
ペプチド化合物、またはアミド化合物の脱保護法および固相反応における脱樹脂方法、並びにペプチド化合物の製造方法 Download PDFInfo
- Publication number
- WO2020111238A1 WO2020111238A1 PCT/JP2019/046805 JP2019046805W WO2020111238A1 WO 2020111238 A1 WO2020111238 A1 WO 2020111238A1 JP 2019046805 W JP2019046805 W JP 2019046805W WO 2020111238 A1 WO2020111238 A1 WO 2020111238A1
- Authority
- WO
- WIPO (PCT)
- Prior art keywords
- alkyl
- methyl
- amino
- optionally substituted
- group
- Prior art date
Links
- 0 *C(*)(*)N(*)I Chemical compound *C(*)(*)N(*)I 0.000 description 18
- RTHZBSQTVSJOMA-UHFFFAOYSA-N CC(C)(C)OC(N(C)CC(OCC=C)=O)=O Chemical compound CC(C)(C)OC(N(C)CC(OCC=C)=O)=O RTHZBSQTVSJOMA-UHFFFAOYSA-N 0.000 description 1
- ISZJODSUCSTOSW-NSHDSACASA-N CC(C)C[C@@H](C(O)=O)N(C)C(OCC[Si](C)(C)C)=O Chemical compound CC(C)C[C@@H](C(O)=O)N(C)C(OCC[Si](C)(C)C)=O ISZJODSUCSTOSW-NSHDSACASA-N 0.000 description 1
- LHEDVFJRPCODKM-NSHDSACASA-N CC(C)C[C@@H](C(Oc(c(F)c(c(F)c1F)F)c1F)=O)N(C)C(OCC[Si](C)(C)C)=O Chemical compound CC(C)C[C@@H](C(Oc(c(F)c(c(F)c1F)F)c1F)=O)N(C)C(OCC[Si](C)(C)C)=O LHEDVFJRPCODKM-NSHDSACASA-N 0.000 description 1
- CLLPNAOCIYHPBX-CVMIBEPCSA-N CC([C@@H](C(N(C)CC(OCC=C)=O)=O)NC(OC(C)(C)C)=O)OCc1ccccc1 Chemical compound CC([C@@H](C(N(C)CC(OCC=C)=O)=O)NC(OC(C)(C)C)=O)OCc1ccccc1 CLLPNAOCIYHPBX-CVMIBEPCSA-N 0.000 description 1
- YVNVFYUGAWFBPE-GEAOLTLWSA-N CCC(C)[C@@H](C(N[C@H](C(N(C)C(Cc1ccccc1)C(N(C)[C@@H](C(C)C)C(NC(CC(N(C)C(C)C(O)=O)=O)C(N1CCCCC1)=O)=O)=O)=O)N)=O)NC Chemical compound CCC(C)[C@@H](C(N[C@H](C(N(C)C(Cc1ccccc1)C(N(C)[C@@H](C(C)C)C(NC(CC(N(C)C(C)C(O)=O)=O)C(N1CCCCC1)=O)=O)=O)=O)N)=O)NC YVNVFYUGAWFBPE-GEAOLTLWSA-N 0.000 description 1
Classifications
-
- C—CHEMISTRY; METALLURGY
- C07—ORGANIC CHEMISTRY
- C07K—PEPTIDES
- C07K1/00—General methods for the preparation of peptides, i.e. processes for the organic chemical preparation of peptides or proteins of any length
- C07K1/04—General methods for the preparation of peptides, i.e. processes for the organic chemical preparation of peptides or proteins of any length on carriers
-
- C—CHEMISTRY; METALLURGY
- C07—ORGANIC CHEMISTRY
- C07K—PEPTIDES
- C07K1/00—General methods for the preparation of peptides, i.e. processes for the organic chemical preparation of peptides or proteins of any length
- C07K1/06—General methods for the preparation of peptides, i.e. processes for the organic chemical preparation of peptides or proteins of any length using protecting groups or activating agents
- C07K1/061—General methods for the preparation of peptides, i.e. processes for the organic chemical preparation of peptides or proteins of any length using protecting groups or activating agents using protecting groups
-
- C—CHEMISTRY; METALLURGY
- C07—ORGANIC CHEMISTRY
- C07K—PEPTIDES
- C07K1/00—General methods for the preparation of peptides, i.e. processes for the organic chemical preparation of peptides or proteins of any length
- C07K1/06—General methods for the preparation of peptides, i.e. processes for the organic chemical preparation of peptides or proteins of any length using protecting groups or activating agents
-
- C—CHEMISTRY; METALLURGY
- C07—ORGANIC CHEMISTRY
- C07K—PEPTIDES
- C07K1/00—General methods for the preparation of peptides, i.e. processes for the organic chemical preparation of peptides or proteins of any length
- C07K1/02—General methods for the preparation of peptides, i.e. processes for the organic chemical preparation of peptides or proteins of any length in solution
-
- C—CHEMISTRY; METALLURGY
- C07—ORGANIC CHEMISTRY
- C07K—PEPTIDES
- C07K1/00—General methods for the preparation of peptides, i.e. processes for the organic chemical preparation of peptides or proteins of any length
- C07K1/04—General methods for the preparation of peptides, i.e. processes for the organic chemical preparation of peptides or proteins of any length on carriers
- C07K1/042—General methods for the preparation of peptides, i.e. processes for the organic chemical preparation of peptides or proteins of any length on carriers characterised by the nature of the carrier
-
- C—CHEMISTRY; METALLURGY
- C07—ORGANIC CHEMISTRY
- C07K—PEPTIDES
- C07K5/00—Peptides containing up to four amino acids in a fully defined sequence; Derivatives thereof
- C07K5/04—Peptides containing up to four amino acids in a fully defined sequence; Derivatives thereof containing only normal peptide links
- C07K5/08—Tripeptides
-
- C—CHEMISTRY; METALLURGY
- C07—ORGANIC CHEMISTRY
- C07K—PEPTIDES
- C07K5/00—Peptides containing up to four amino acids in a fully defined sequence; Derivatives thereof
- C07K5/04—Peptides containing up to four amino acids in a fully defined sequence; Derivatives thereof containing only normal peptide links
- C07K5/10—Tetrapeptides
-
- C—CHEMISTRY; METALLURGY
- C07—ORGANIC CHEMISTRY
- C07K—PEPTIDES
- C07K7/00—Peptides having 5 to 20 amino acids in a fully defined sequence; Derivatives thereof
- C07K7/04—Linear peptides containing only normal peptide links
- C07K7/06—Linear peptides containing only normal peptide links having 5 to 11 amino acids
-
- Y—GENERAL TAGGING OF NEW TECHNOLOGICAL DEVELOPMENTS; GENERAL TAGGING OF CROSS-SECTIONAL TECHNOLOGIES SPANNING OVER SEVERAL SECTIONS OF THE IPC; TECHNICAL SUBJECTS COVERED BY FORMER USPC CROSS-REFERENCE ART COLLECTIONS [XRACs] AND DIGESTS
- Y02—TECHNOLOGIES OR APPLICATIONS FOR MITIGATION OR ADAPTATION AGAINST CLIMATE CHANGE
- Y02P—CLIMATE CHANGE MITIGATION TECHNOLOGIES IN THE PRODUCTION OR PROCESSING OF GOODS
- Y02P20/00—Technologies relating to chemical industry
- Y02P20/50—Improvements relating to the production of bulk chemicals
- Y02P20/55—Design of synthesis routes, e.g. reducing the use of auxiliary or protecting groups
Definitions
- the present invention relates to a method for deprotecting a peptide compound or an amide compound, a method for removing resin from a resin in a solid phase reaction, and a method for producing a peptide compound.
- Peptides are molecules in which a large number of amino acids are linked, and in addition to research on peptide synthesis produced by living organisms, research on peptides having a desired function by artificially designing the structure of peptides has been actively carried out (non-patent literature). Reference 1).
- an active ester obtained by activating the carboxyl group of a C-terminal unprotected amino acid having a protecting group at the N-terminal with a condensing agent or the like is applied to (ii) the N-terminal unprotected peptide.
- a resin for solid phase synthesis such as CTC resin, Wang resin, SASRIN resin or the like containing a chlorotrityl group or a benzyl group is used for amino acid or its derivative (protected amino acid), or peptide or its derivative. It is carried out by a coupling reaction in which the amino group of the amino acid or peptide carrying the C-terminus is the nucleophilic point and the carbonyl group of the peptide or amino acid with the protected N-terminus is the electrophilic point.
- the liquid phase method it is carried out by a coupling reaction in which the carbonyl group of an amino acid or peptide whose N-terminal is protected is the electrophilic point and the amino group of the amino acid or peptide is the nucleophilic point.
- a coupling reaction in which the carbonyl group of an amino acid or peptide whose N-terminal is protected is the electrophilic point and the amino group of the amino acid or peptide is the nucleophilic point.
- the side chain of the amino acid or peptide undergoes undesired conversion of the functional group due to these coupling reactions, it is necessary to introduce a protecting group into these side chains.
- the protecting group protecting the C-terminal of the amino acid or peptide, the protecting group protecting the N-terminal of the amino acid or peptide, and the protecting group protecting the side chain of the amino acid or peptide include a Boc group, a t-Bu group, or a trityl group.
- a protecting group that is removable under acidic conditions such as is widely used.
- a resin for solid phase synthesis such as CTC resin, Wang resin, SASRIN resin that can be removed under acidic conditions is widely used. (Non-patent document 4).
- the protecting group that is deprotected under acidic conditions includes a 3,5-dimethoxyphenylisopropoxycarbonyl (Ddz) group, a benzyloxycarbonyl (Cbz) group, a benzyl (Bn) group, or a cyclohexyl (cHx) group. And the like (Non-Patent Documents 4 and 5). Under the reaction conditions of these deprotection reactions or deresin reactions, side reactions such as cleavage of the amide bond of the peptide and unintended functional group conversion of the amino acid side chain may occur, and peptides with unintended sequences may May be a byproduct. Therefore, it is required that the target peptide can be obtained without causing the main chain damage reaction exemplified by the amide bond cleavage reaction and the main chain transfer reaction of the peptide.
- Ddz 3,5-dimethoxyphenylisopropoxycarbonyl
- Cbz benzyloxycarbony
- Non-patent Documents 2, 3, 4 The protecting groups that can be removed under the acidic conditions described above are often removed by treatment with hydrochloric acid, sulfuric acid, methanesulfonic acid, or TFA (Non-patent Documents 2, 3, 4). Further, TFA is usually used for the resin removal reaction in solid phase synthesis (Non-Patent Document 6). However, it is described that the amide bond may be cleaved even under the acidic condition of TFA, which is a mild acid among these (Non-Patent Document 7).
- Non-Patent Document 8 Patent Document 1
- a method of removing a protective group of a protected amino acid by using TFE having weaker acidity has been reported (Non-patent document 5, Patent document 1). Since the reaction conversion rate is low in these documents, it is necessary to carry out the reaction under more severe reaction conditions such as addition of an acid in order to advance the reaction or increase of the reaction temperature. However, when a reaction condition in which an acid is added or a reaction temperature is increased is applied to the peptide, there is concern that the main chain of the peptide may be damaged.

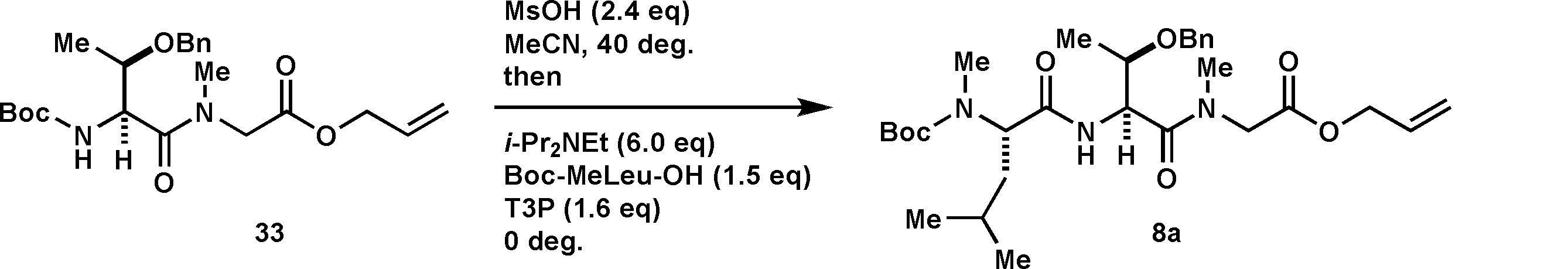

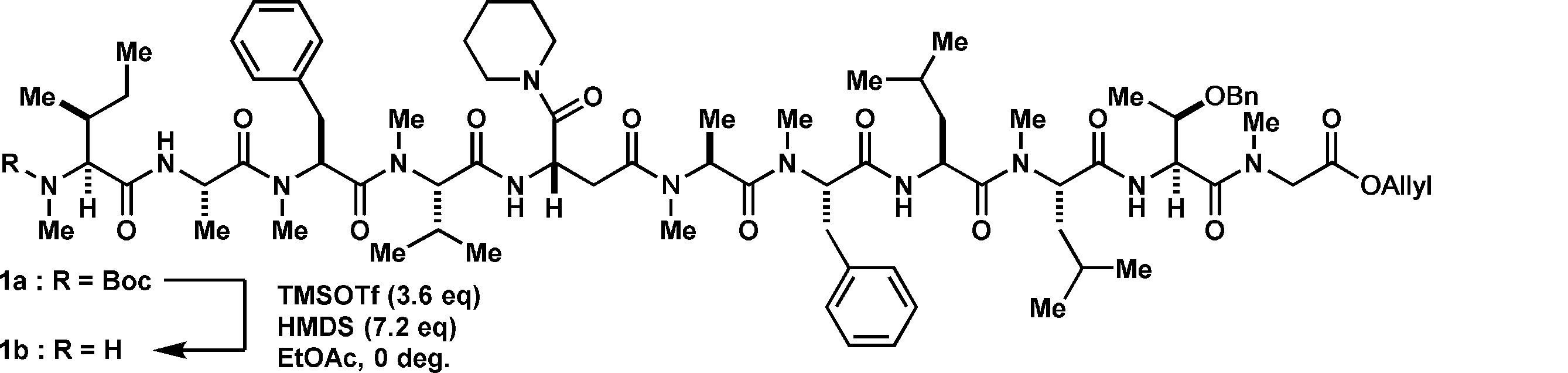

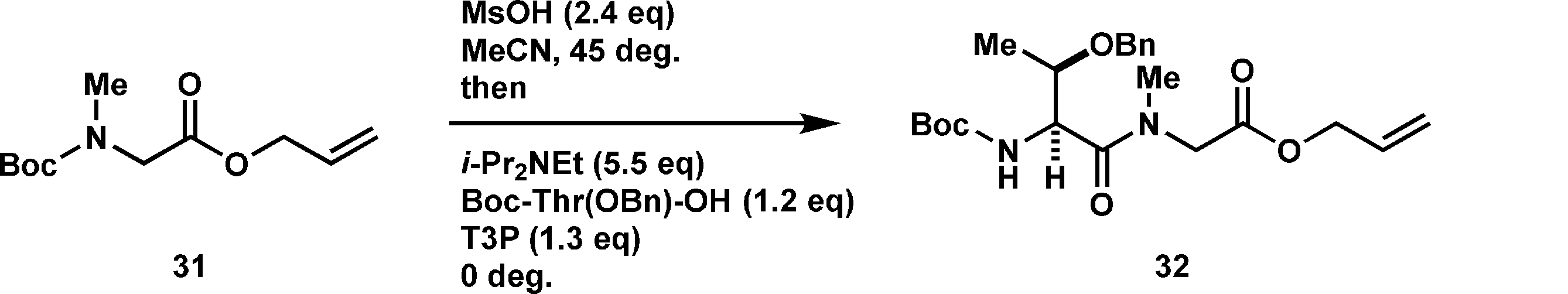

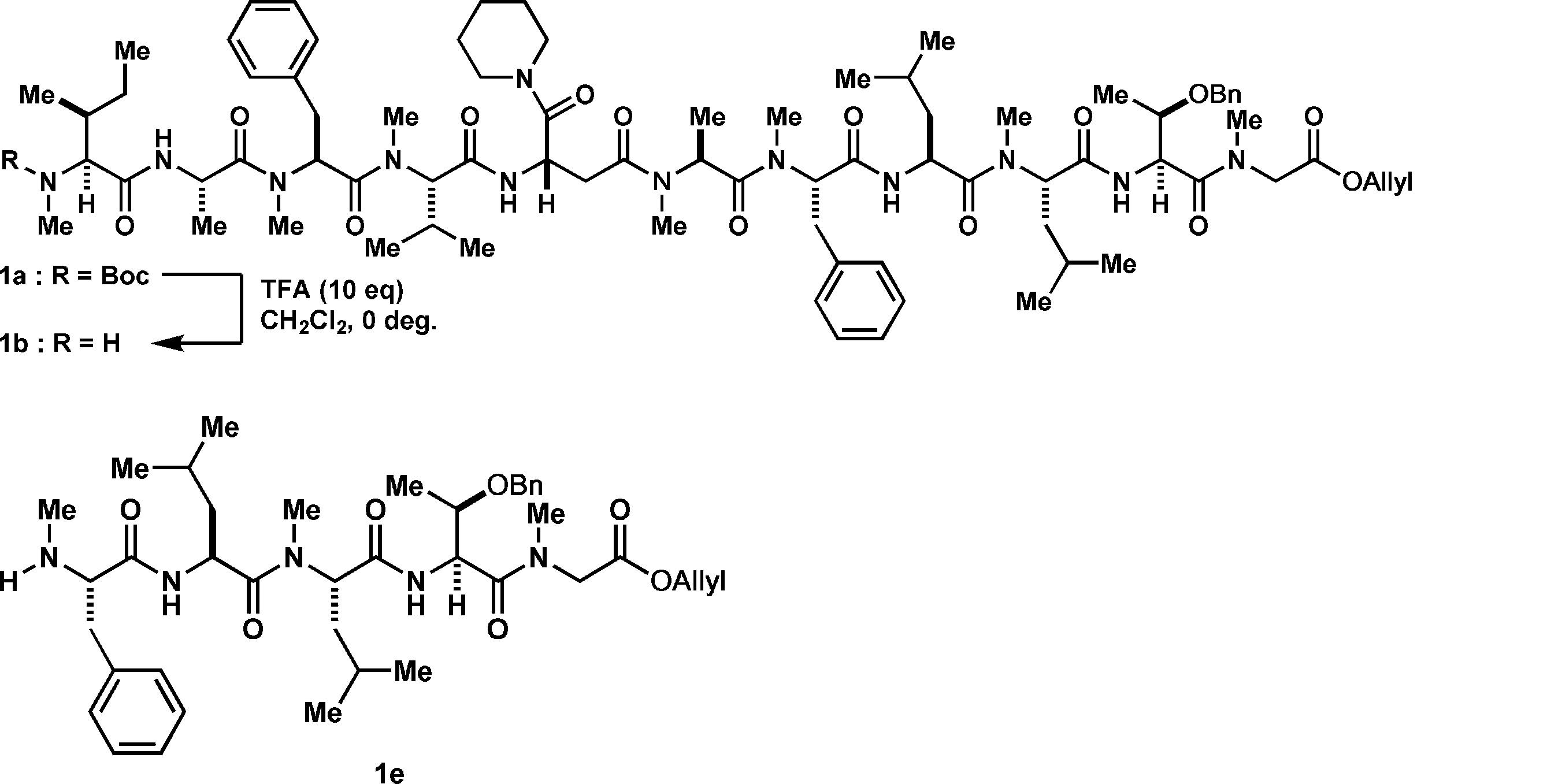

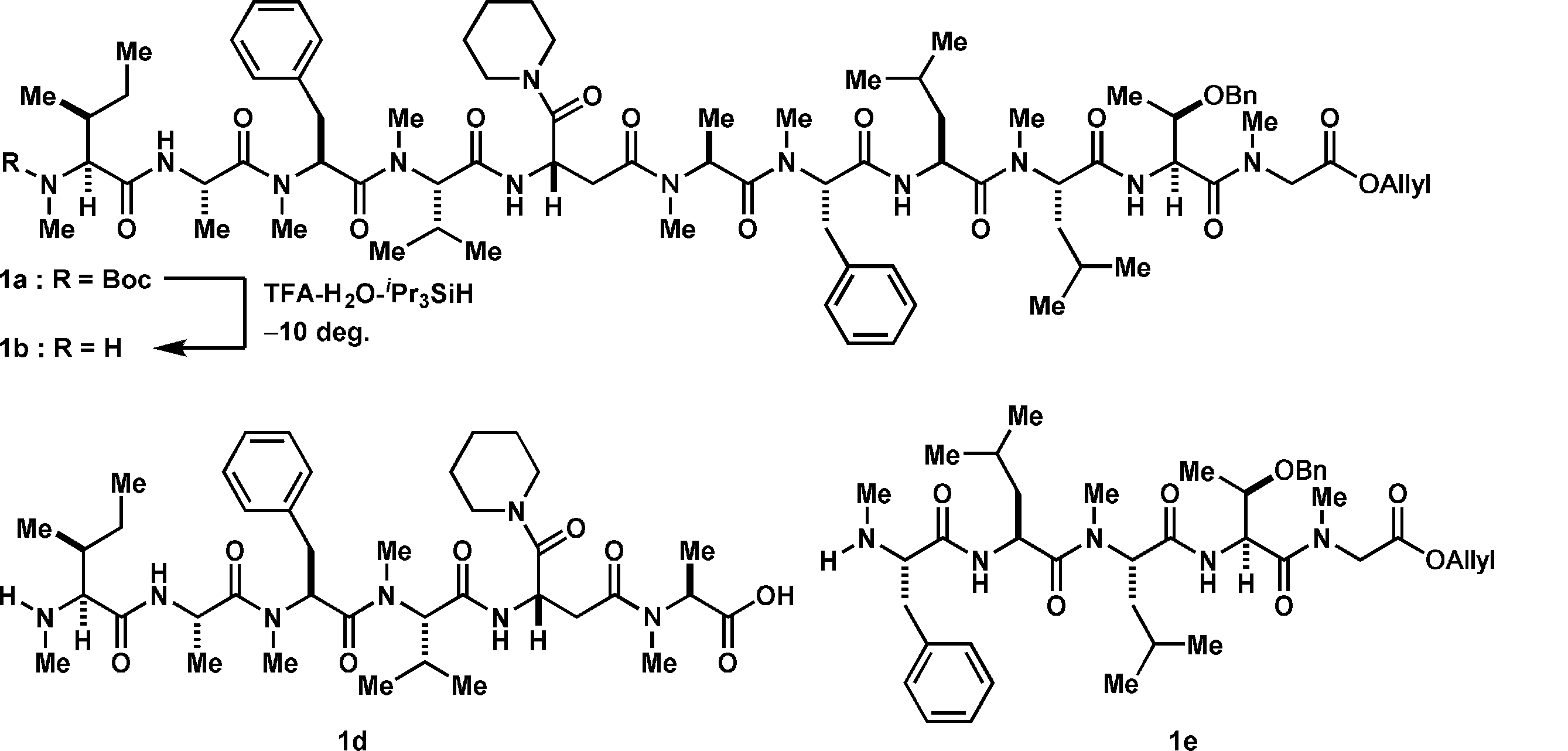

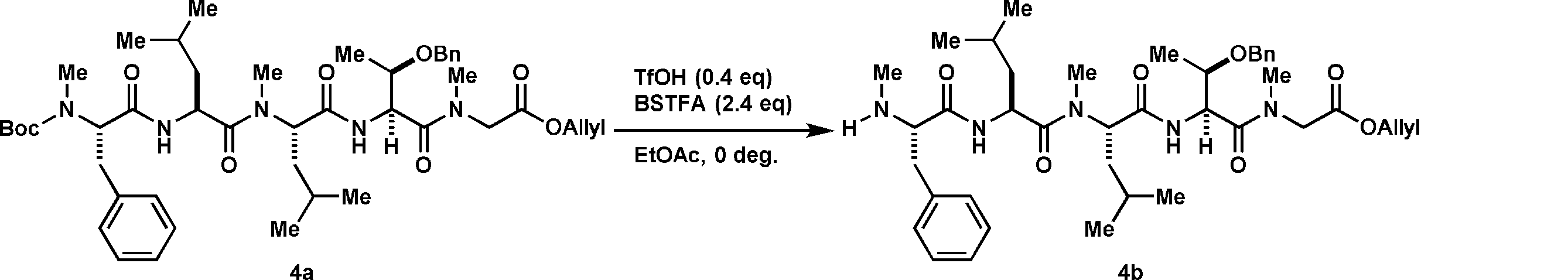

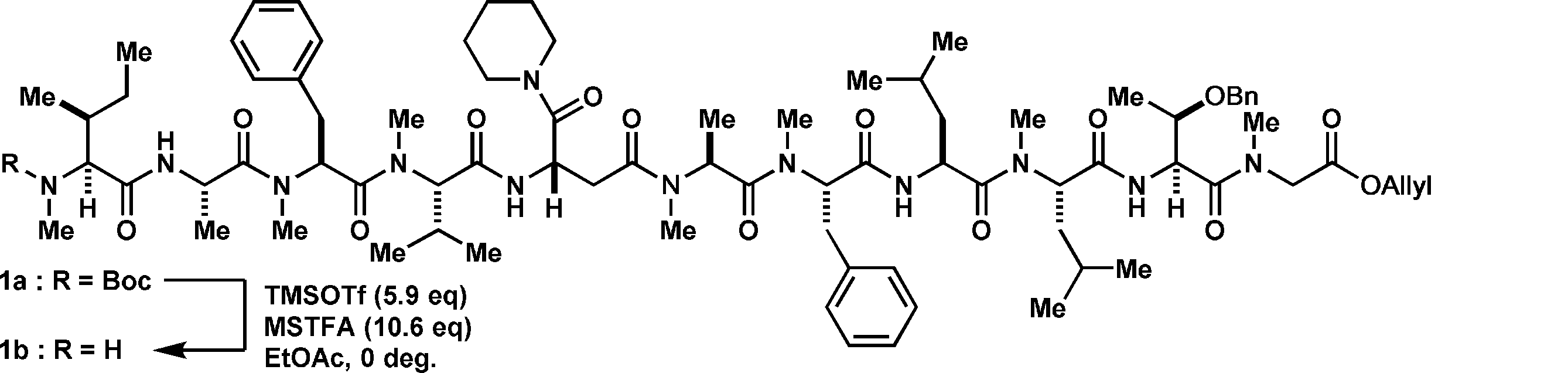

- Boc-Leu-MeLeu-Thr(OBn)-MeGly-OAllyl was reacted with hydrogen chloride in TFE to attempt de-Boc reaction, but the main chain was confirmed to be cut before the termination of de-Boc reaction. Was done.
- Non-Patent Document 9 there is a report that amide bond cleavage can be suppressed by carrying out the reaction under low temperature conditions and stopping the reaction before side reactions occur.
- this method requires strict control of the reaction time, and it is easily estimated that the control becomes difficult in mass production in which it is difficult to stop the reaction in a short time.
- Non-Patent Document 10 As a deprotection method under acidic conditions, a cation scavenger is added in order to prevent side reactions of a coexisting t-Bu cation with a side chain during deprotection of a Boc group or a t-Bu group. It has been attempted (Non-Patent Document 10).
- Non-Patent Document 7 In this case, in order to capture the t-Bu cation derived from the t-Bu group, a method of adding a sulfur-containing additive such as dimethyl sulfide or thioanisole and performing deprotection under acidic conditions has been attempted. At that time, it has been reported that a side reaction in which the amide bond is cleaved occurs, resulting in a decrease in yield and purity (Non-Patent Document 7).
- a sulfur-containing additive such as dimethyl sulfide or thioanisole
- Non-Patent Document 12 a method of reacting thioanisole and TfOH in a TFA solution or thioanisole and trimethylsilyl bromide or trimethylsilyl triflate in a TFA solution has been reported (Non-Patent Document 12).
- Non-patent Document 11 it has been reported that the peptide chain cleavage increased even when water was used as a cation trap.
- TFA:iPr 3 SiH triisopropylsilane
- iPr 3 SiH triisopropylsilane
- the intramolecular hydrogen bonding mode and stable peptide alignment can be determined. Affect the seat. Then, depending on these changes in conformation, the basicity of carbonyl oxygen may be increased, and it may be susceptible to protonation (Non-patent Documents 18 and 19). In some cases, it is known that oxazolone is formed to damage the amide bond (Non-Patent Document 17).
- Non-Patent Documents 11, 17, 20 a peptide containing an N-Me amino acid in which the nitrogen atom of an amino acid is methylated may undergo cleavage of an amide bond under acidic conditions.
- Non-Patent Documents 11, 17, 20 a peptide having a N-Me amino acid at the C-terminus
- a peptide in which the amide bond between the first residue and the second residue of the peptide is cleaved by subjecting it to TFA acidic conditions, and the C-terminal residue is deleted It is known that by-product may occur (Non-Patent Document 21). That is, it is known that the amide bond containing the N-Me group of the N-Me amino acid is easily cleaved.
- Non- Patent Document 11 it is known that peptides having a sequence of two or more residues of N-Me amino acids are often unstable to acid, and amide bond cleavage occurs during the deresin reaction in solid phase synthesis. That is, it is known that the amide bond containing the N-Me group of the N-Me amino acid and/or the amide bond containing the carbonyl group of the N-Me amino acid is easily cleaved.
- Non-patent Documents 22 and 23 peptides containing Asp and Gln are acid-labile depending on the sequence.
- an Asp-containing peptide sequence is treated with an acid such as hydrogen fluoride or methanesulfonic acid, nucleophilic attack of the nitrogen atom of the main chain amide with respect to the side chain carbonyl group will progress, and aspartimide (Aspartimide) will form as a by-product.
- an acid such as hydrogen fluoride or methanesulfonic acid
- Non-patent Documents 25 and 26 when a peptide derivative containing Asp-Pro in the sequence is subjected to acidic conditions such as trifluoroacetic acid, hydrofluoric acid, formic acid, and acetic acid, the Asp side chain reacts with the nitrogen atom of Pro as in the above-mentioned side reaction. It is also known that the amide bond is cleaved (Non-patent Documents 25 and 26).
- the aspartic acid side should be prevented so that the nucleophilic attack of the nitrogen atom of the main chain amide does not proceed under the desired deprotection conditions of the protecting group.
- a carboxyl group-protecting group of a chain with a cyclohexyl group there is known an example of protecting a carboxyl group-protecting group of a chain with a cyclohexyl group, and it has been reported that aspartimide formation is significantly suppressed as compared with the case where a benzyl protecting group is used as a side chain protecting group (non- Patent document 27).
- subsequent removal of the cyclohexyl group requires highly corrosive and highly acidic conditions such as hydrofluoric acid, and it is easily assumed that neither the reaction nor post-treatment is simple.
- Non-patent Document 28 Also known is a method of treating with 1M trimethylsilyl bromide/TFA in the presence of thioanisole (Non-patent Document 28).
- this condition is problematic in that it requires the use of a solvent amount of TFA and, as described above, uses thioanisole, which is not suitable for mass production.
- the use of trimethylsilyl triflate instead of trimethylsilyl bromide significantly increased the by-product aspartimide, suggesting that trimethylsilyl bromide is superior to trimethylsilyl bromide.
- a method is known in which the peptide de-Boc reaction and the ester de-t-Bu reaction are performed in the presence of a tertiary amine and in the presence of trimethylsilyl triflate or TBDMSOTf.
- TMSOTf/2 trimethylsilyl triflate
- de-N-Boc conversion is performed in the presence of other functional groups to selectively deprotect Boc.
- Non-Patent Documents 20, 22, 37 when a peptide containing an unnatural amino acid represented by N-Me amino acid is treated by a conventional method to perform a resin removal reaction or a deprotection reaction, the main chain cleavage or Despite the fact that the transition (backbone damage) progresses and that large amounts of reagents are required, these solutions are not known (Non-Patent Documents 20, 22, 37). ..
- the present inventors have used a TFA that is commonly used in a deprotection step for removing a protecting group of an amino acid or a peptide that is commonly used in conventional peptide synthesis, or a resin removal step for cleaving a peptide from a resin in a solid-phase reaction.
- a TFA that is commonly used in a deprotection step for removing a protecting group of an amino acid or a peptide that is commonly used in conventional peptide synthesis
- a resin removal step for cleaving a peptide from a resin in a solid-phase reaction.
- the amide bond of the portion containing the amino acid or the amide bond of the portion containing aspartic acid of the peptide compound containing the amino acid in which the nitrogen atom is N-substituted is not acidic under acidic conditions.
- the backbone is a bond that is susceptible to damage.
- the present inventor has also found more amino acid sequences that cause backbone damage under conventional acidic conditions.
- the present invention is a method of suppressing a side reaction such as cleavage or transfer of an amide bond contained in a peptide compound to remove a protecting group that can be removed under acidic conditions, and a method of removing a resin in a solid phase reaction. It is an object of the present invention to provide a method for obtaining a deprotected and/or deresinated peptide compound by a simple operation in high yield and high purity.
- the present inventors suppress a side reaction such as cleavage or transfer of an amide bond in a peptide compound containing an amino acid that is mainly N-substituted (eg, N-alkylated), and thus can be removed under acidic conditions.
- Energetic research was conducted on the reaction of removing groups or the resin removal reaction in solid-phase reaction.
- a close examination of the method of acting a silyl compound in the presence of an electrophilic species-capturing agent revealed that a peptide compound having an acid-labile amide bond was treated with a silyl compound or an acid in combination with an electrophilic-species capturing agent.

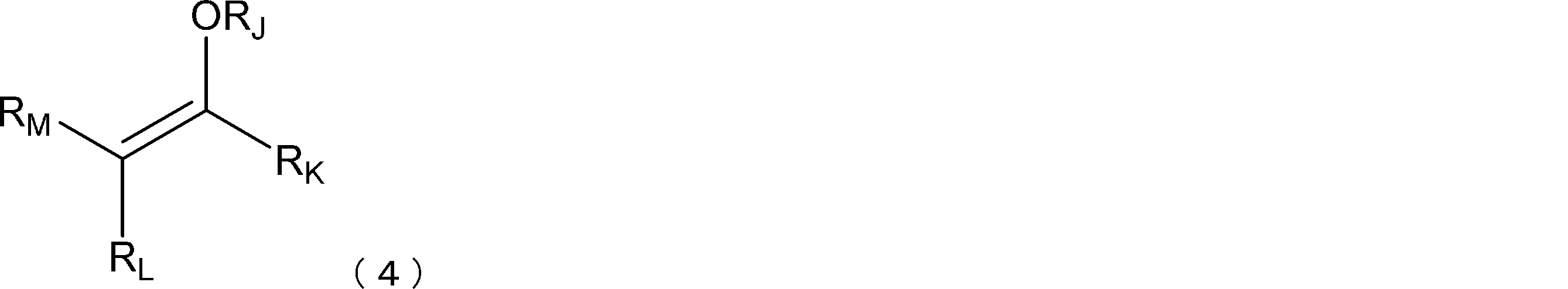

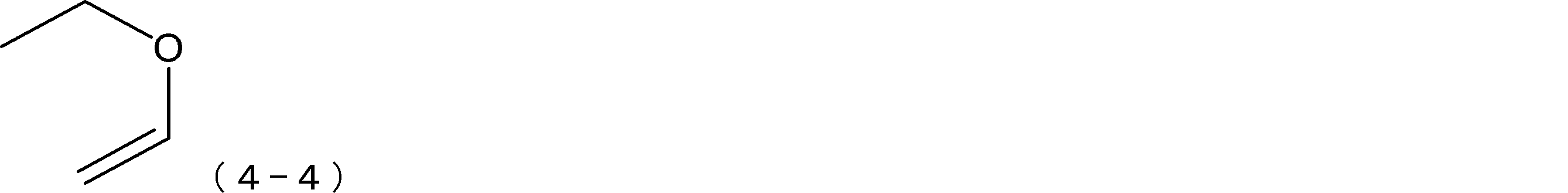

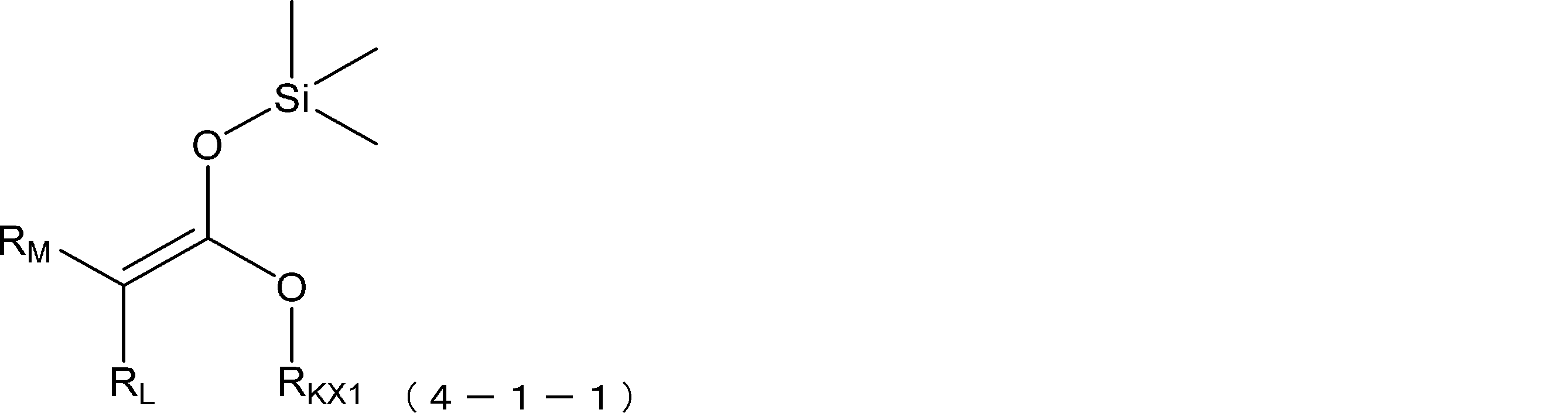

- Ketenealkoxyhemiaminal (formula 4), enol ether (formula 4), enol ester (formula 4), imine (formula 5), amine (formula 6), diamine (formula 7), dialkylcarbodiimide (formula 8), It has been found that compounds exemplified by urea (formula 9), urethane (formula 10) and the like can be used in combination as an electrophilic species scavenger. By using the present invention, the target peptide compound can be obtained more efficiently and in a higher yield and a higher purity than conventional methods without causing amide bond cleavage.
- a starting peptide compound containing a natural amino acid residue and/or an amino acid analog residue and a silylating agent are brought into contact with each other in a solvent to form a protecting group that can be deprotected by the silylating agent.
- a method for producing a peptide compound in which the protecting group is deprotected comprising the step of deprotecting from the compound,
- the silylating agent is produced by mixing a silyl compound or acid with an electrophilic species scavenger,
- the starting peptide compound comprises at least one deprotectable protecting group, and The method wherein the starting peptide compound comprises at least one N-substituted amino acid residue.
- a resin for solid phase synthesis which is deresinable by a silylating agent by contacting a starting peptide compound containing a natural amino acid residue and/or an amino acid analog residue with a silylating agent in a solvent.

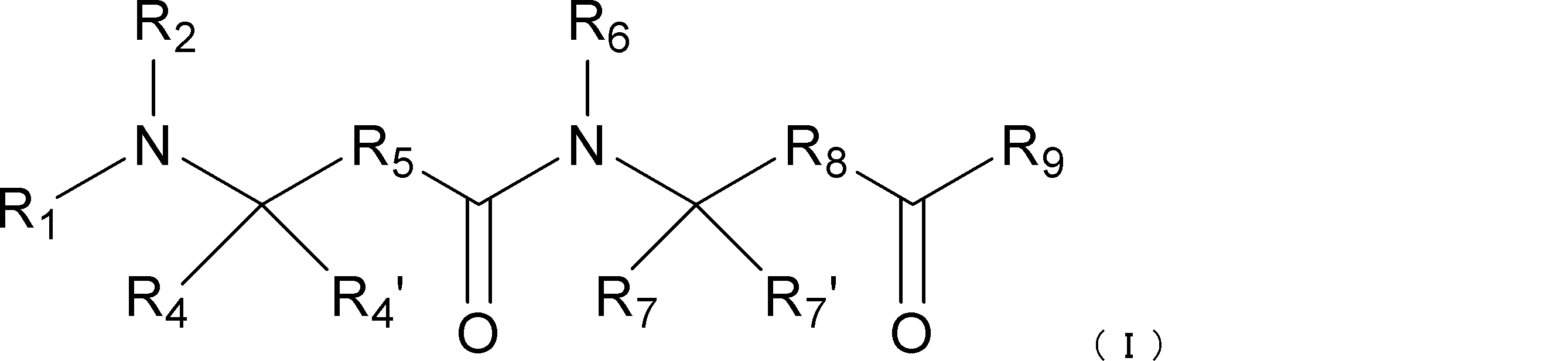

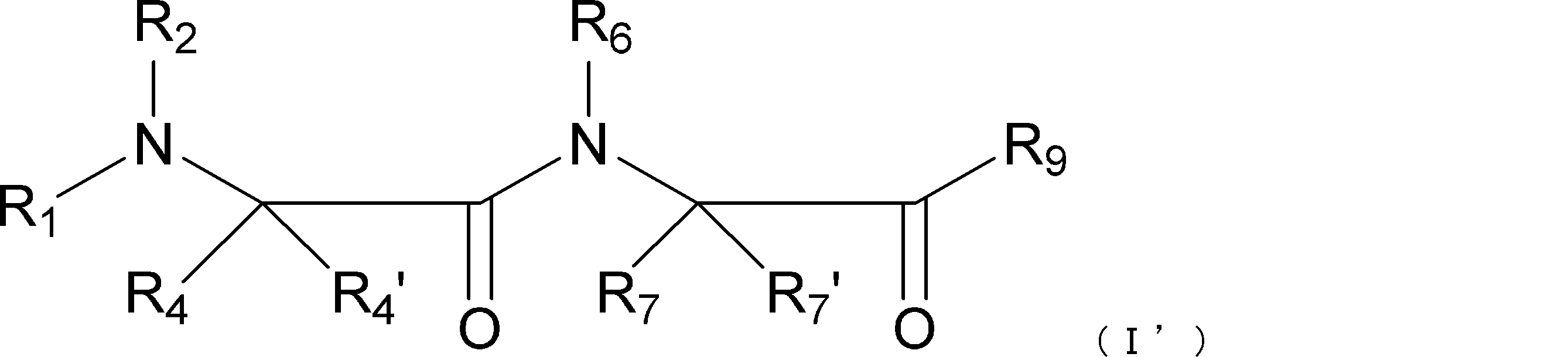

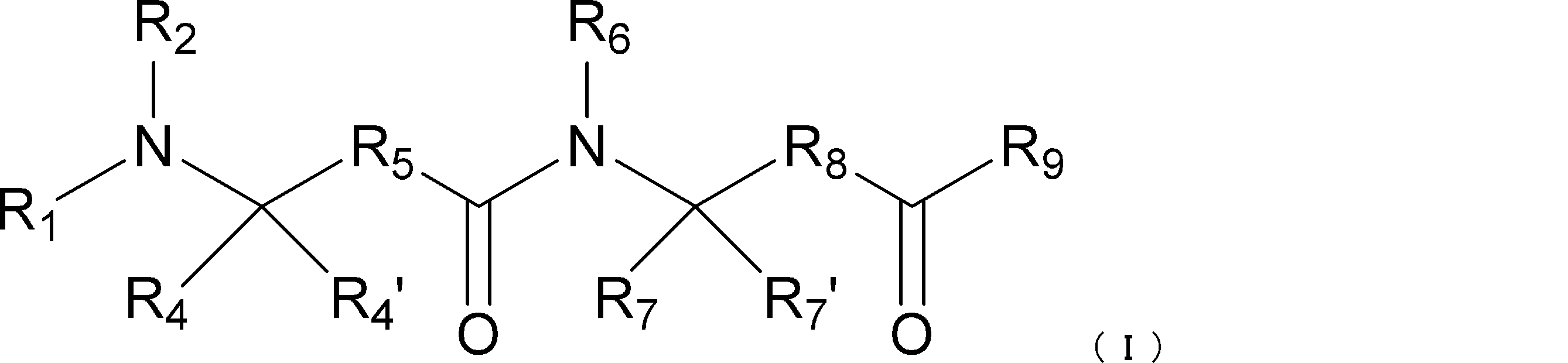

- the starting peptide compound has the following general formula (I): [In the formula, R 1 Is hydrogen, PG 1 , A natural amino acid residue, or an amino acid analog residue, R Two Is hydrogen, and C 1 -C 6 Selected from the group consisting of alkyl, or R Two And R Four Or R Two And R 4' Together with the nitrogen and carbon atoms to which they are attached, hydroxy or C 1 -C Four Form a 3 to 7 membered heterocycle optionally substituted by alkoxy, wherein R Two And R Four R together when forming a heterocycle, R 4' Is hydrogen and R Two And R 4' R together when forming a heterocycle, R Four Is hydrogen, R Four And R 4' Is R Two And R Four Or R Two And R 4' Except when forms a heterocycle together (A) R 4' Is hydrogen and R Four Is hydrogen or optionally substituted C 1 -C 6 Alkyl, C Three -C 6 Cycloalkyl, C Three -C 6 Cycloalkyl,

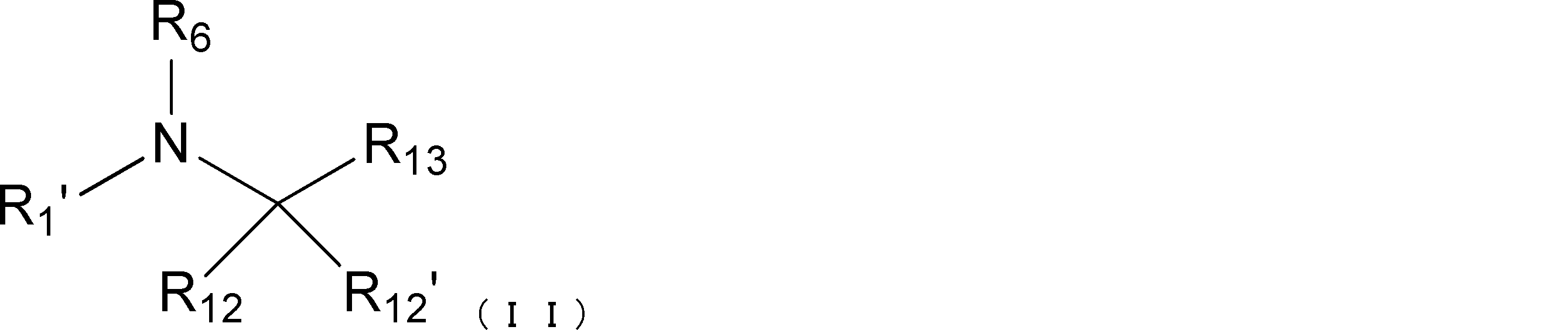

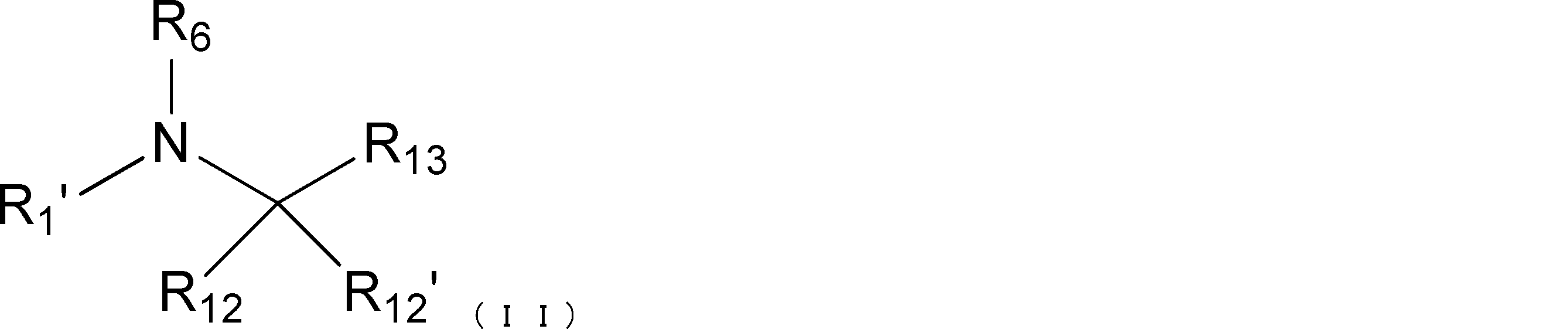

- the starting peptide compound has the following general formula (II) at its C-terminal: [In the formula, R 1' Is a group represented by the formula (III), * Means connecting point, R 1 Is hydrogen, PG 1 , A natural amino acid residue, or an amino acid analog residue, R Two Is hydrogen, and C 1 -C 6 Selected from the group consisting of alkyl, or R Two And R 10 Or R Two And R 10' Together with the nitrogen and carbon atoms to which they are attached, hydroxy or C 1 -C Four Form a 3 to 7 membered heterocycle optionally substituted by alkoxy, wherein R Two And R 10 R together when forming a heterocycle, R 10' Is hydrogen and R Two And R 10' R together when forming a heterocycle, R 10 Is hydrogen, R 10 And R 10' Is R Two And R 10 Or R Two And R 10' Except
- a method for producing a protected amide compound comprising: The silylating agent is produced by mixing a silyl compound or acid with an electrophilic species scavenger,
- the starting amide compound has the following general formula (II): [In the formula, R 1' Is a hydrogen atom or PG 7 And R 12 And R 12' Independently, hydrogen, PG 10 -O-methyl, -(CH Two ) n COO-PG 10 ,-(CH Two ) n COO-RES, and -(CH Two ) n Selected from the group consisting of CONH-RES, RES is a resin for solid phase synthesis, n is 0, 1, or 2, R 6 Is hydrogen, and C 1 -C 6 Selected from the group consisting of alkyl, R Thirteen Is C 1 -C Four Alkyl, or
- the resin for solid phase synthesis is deresined, including the step of deresinating the starting amide compound from the resin for solid phase synthesis by contacting the starting amide compound with a silylating agent in a solvent.
- a method for producing an amide compound comprising: The silylating agent is produced by mixing a silyl compound or acid with an electrophilic species scavenger,
- the starting amide compound has the following general formula (II): [In the formula, R 1' Is a hydrogen atom or PG 7 And R 12 And R 12' Independently, hydrogen, PG 10 -O-methyl, -(CH Two ) n COO-PG 10 ,-(CH Two ) n COO-RES, and -(CH Two ) n Selected from the group consisting of CONH-RES, RES is a resin for solid phase synthesis, where R 12 And R 12' At least one of -(CH Two ) n COO-RES, or -(CH Two )
- the protecting group capable of being deprotected is t-Bu, triphenylmethyl, 2-(trimethylsilyl)-ethyl, Boc, Teoc, Cbz, methoxycarbonyl, tetrahydropyranyl, 1-ethoxyethyl, methoxytrityl, and cumyl.

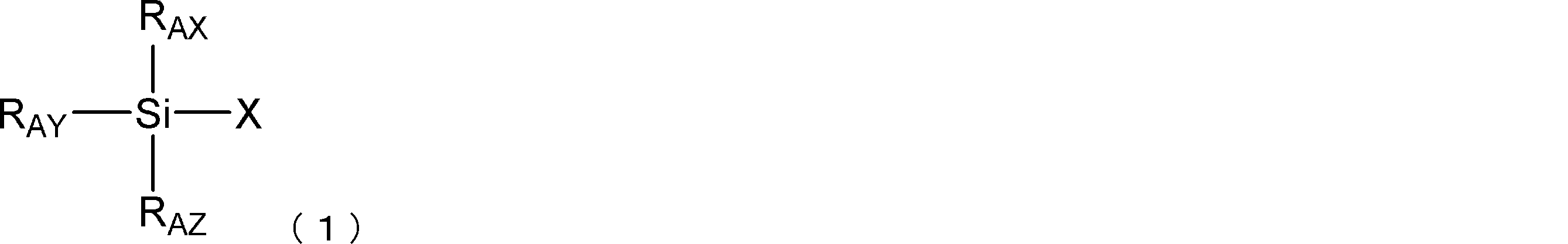

- the silyl compound is represented by the following formula 1: [In the formula, R AX , R AY , And R AZ Independently, C 1 -C Four Alkyl or phenyl, X is —OTf, —OClO Three , Cl, Br, and I]

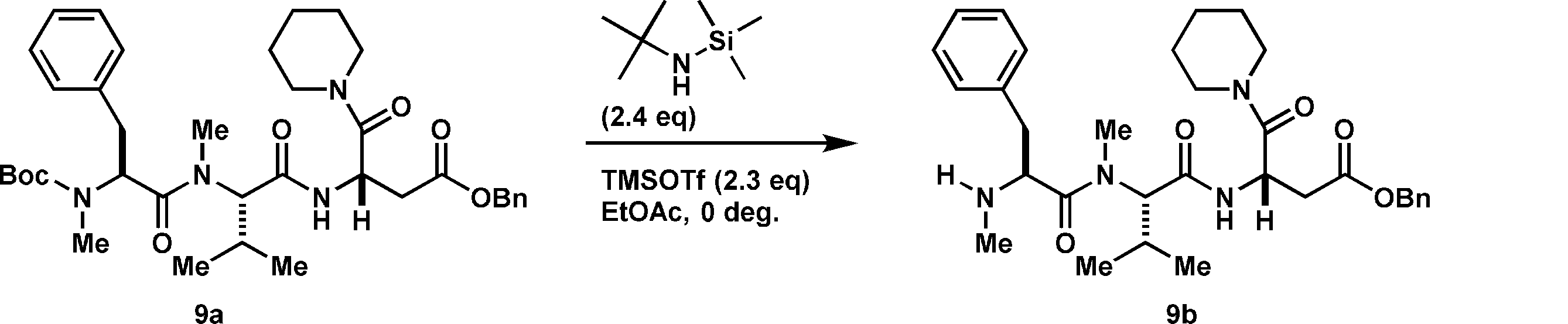

- the silyl compound is TMSOTf, TESOTf, TBSOTf, TIPSOTf, TBDPSOTf, TTMSOTf, TMSCl, TMSBr, TMSOClO.

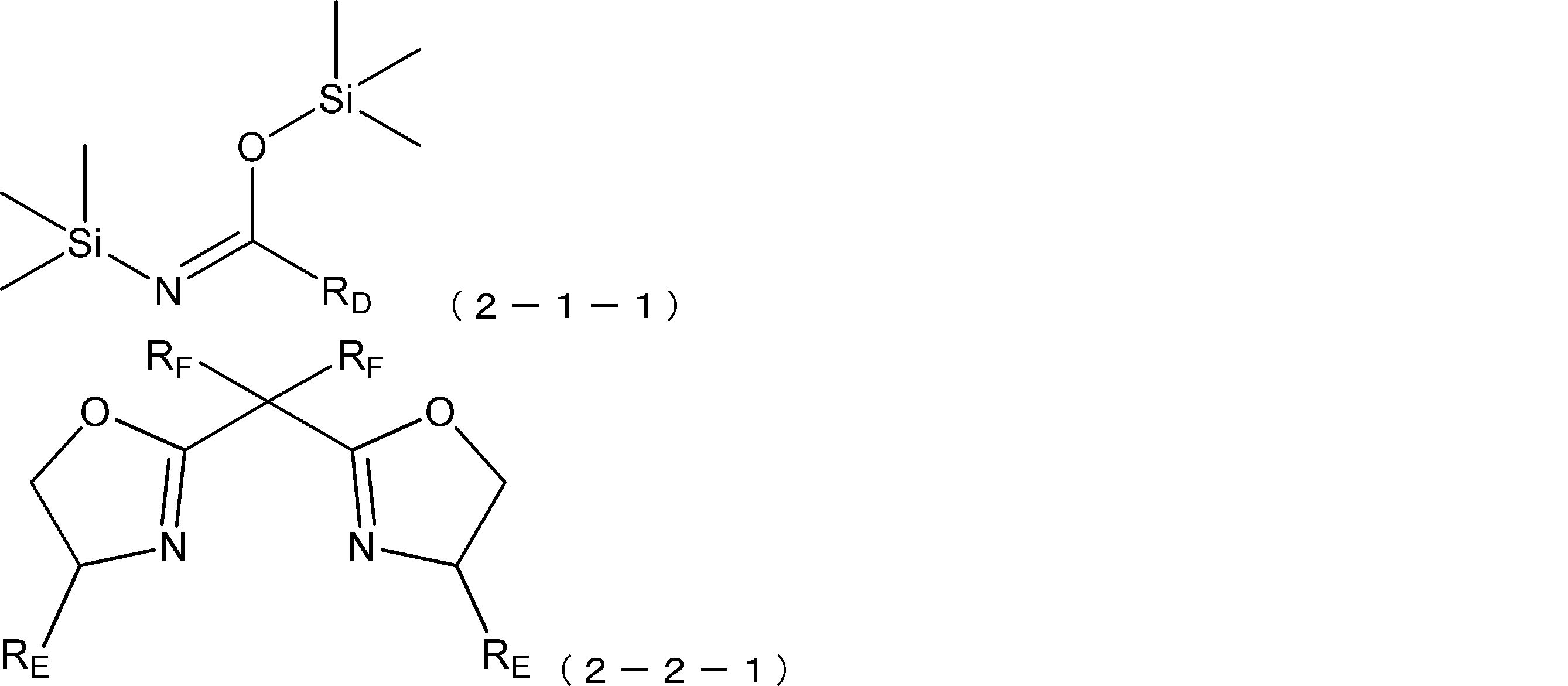

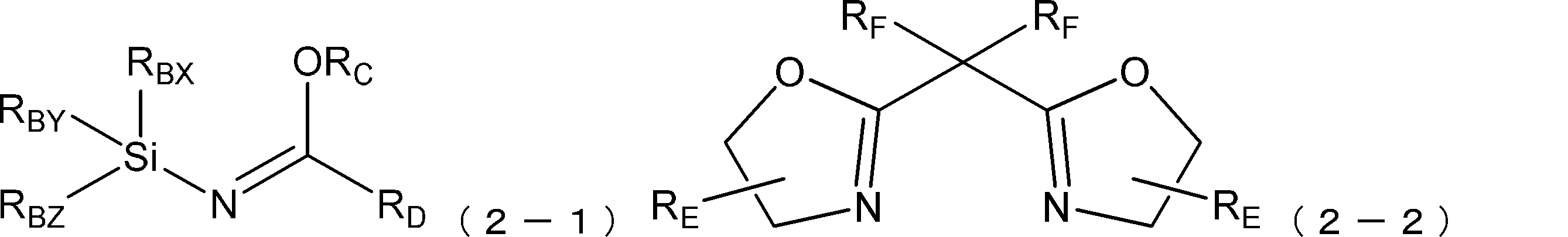

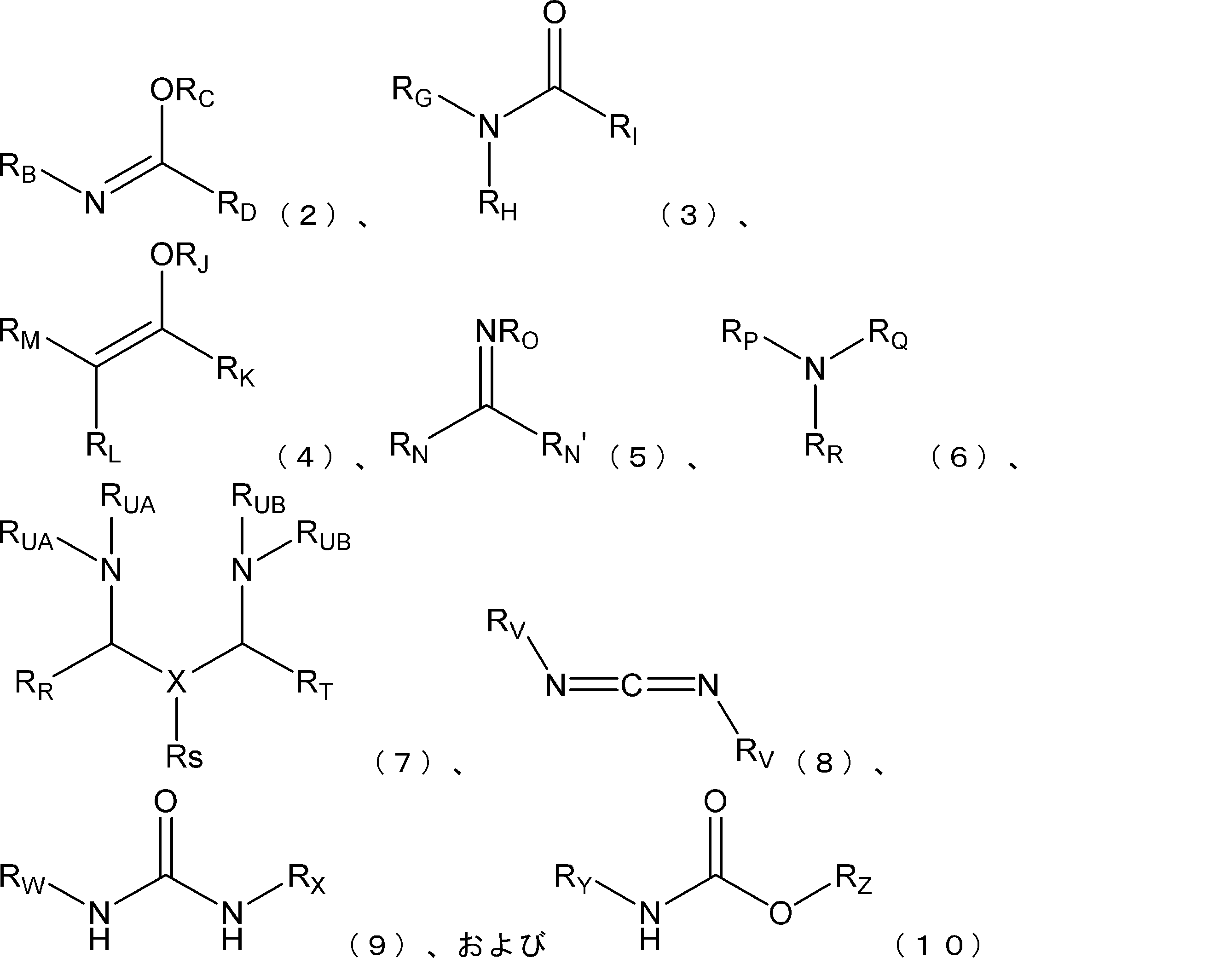

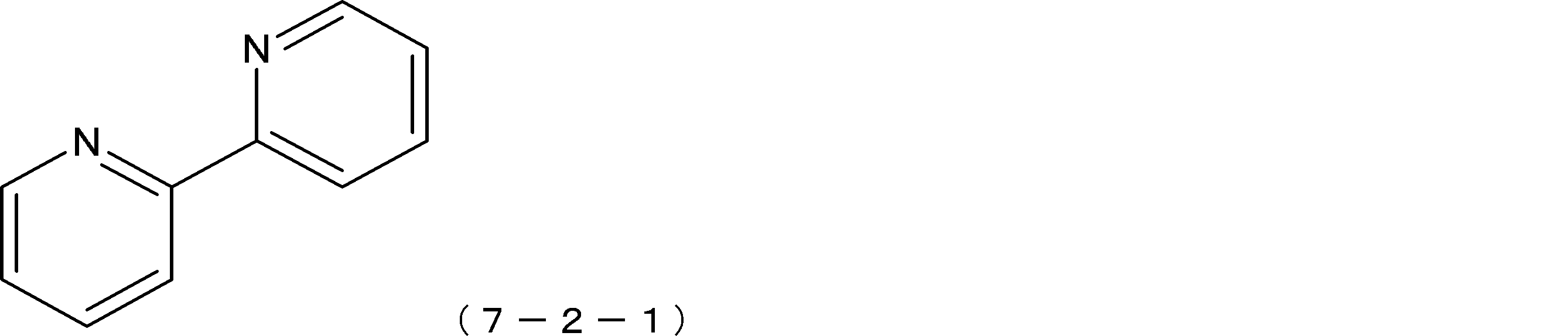

- the electrophilic species scavenger has the following formulas (2) to (10): [In Formula 2, R B Is a substituted silyl group, and R C Is a substituted silyl group, or R B And R C Together with the nitrogen and carbon atoms to which they are attached form a 5-7 membered ring, R D Is C optionally substituted with one or more fluorine atoms 1 -C Four Alkyl or optionally substituted methylene, wherein R is D Where is an optionally substituted methylene, Formula 2 is dimerized into the following formula: To form a compound represented by In formula 3, R G Is one or more C 1 -C Four A silyl group substituted with alkyl, R H Is hydrogen or C 1 -C Four Alkyl, R I Is hydrogen, or C optionally substituted with one or more fluorine atoms 1 -C Four Alkyl, In formula 4, (A-1) R J Is a substituted silyl group, R K Is C
- the electrophilic species scavenger is N,O-bis(trimethylsilyl)acetamide, N,O-bis(trimethylsilyl)trifluoroacetamide, N-methyl-N-trimethylsilylacetamide, N-methyl-N-trimethylsilyltrifluoro Acetamide, dimethylketenemethyltrimethylsilyl acetal, isopropenyloxytrimethylsilane, 2,2,4,4-tetramethylpentanone imine, 1,1,1,3,3,3-hexamethyldisilazane (HMDS), N-
- the method according to [11] which is selected from the group consisting of trimethylsilylmorpholine, N-trimethylsilyldiethylamine, and N-tert-butyltrimethylsilylamine.
- the method according to any one of The electrophilic species scavenger is N,O-bis(trimethylsilyl)acetamide, N,O-bis(trimethylsilyl)trifluoroacetamide, N-methyl-N-trimethylsilylacetamide, N-methyl-N-trimethylsilyltrifluoroacetamide, dimethyl Selected from the group consisting of ketene methyltrimethylsilyl acetal, and isopropenyloxytrimethylsilane,
- the silyl compounds are TMSOTf, TESOTf, TBSOTf, TIPSOTf, TBDPSOTf, TTMSOTf, TMSCl, TMSBr, and TMSOClO.
- HX Three Selected from the group consisting of The acid is HX (in the formula, X is —OTf, —OClO) Three , Cl, Br, and I)).
- X is —OTf, —OClO
- the starting peptide compound contains 1 to 30 amino acid residues and is linear or cyclic.
- the resin for solid phase synthesis is a CTC resin, a Wang resin, or a SASRIN resin.

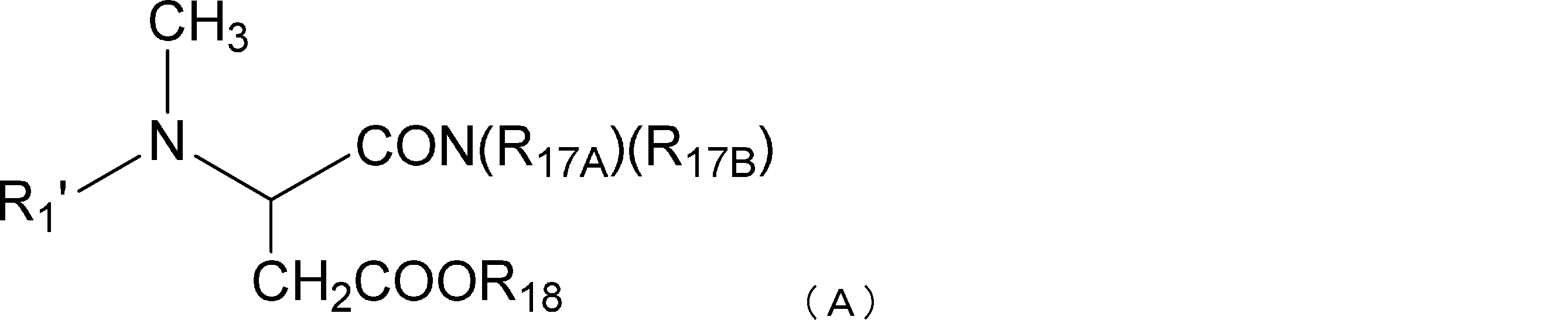

- R 1' Is selected from the group consisting of hydrogen, Fmoc, Boc, Alloc, Cbz, Teoc, and trifluoroacetyl
- R 17A And R 17B Are both methyl or R 17A And R 17B Together with the nitrogen atom to which they are attached form piperidine or morpholine
- R 18 Is hydrogen or PG 10 And here PG 10 Is t-Bu, trityl, cumyl, benzyl, methyl, ethyl, allyl, optionally substituted aryl, optionally substituted aryl C 1 -C Four Alkyl, optionally substituted heteroaryl C 1 -C Four Selected from the group consisting of alkyl, and 2-(trimethylsilyl)ethyl.
- a starting peptide compound containing a natural amino acid residue and/or an amino acid analog residue is brought into contact with a silylating agent in a solvent to form a protecting group that can be deprotected by the silylating agent.
- a method for producing a peptide compound in which the protecting group is deprotected comprising the step of deprotecting from the compound,
- the silylating agent is produced by mixing a silyl compound or acid with an electrophilic species scavenger,
- the starting peptide compound has the following general formula (I): [In the formula, R 1 Is hydrogen, PG 1 , A natural amino acid residue, or an amino acid analog residue, R Two Is hydrogen, and C 1 -C 6 Selected from the group consisting of alkyl, or R Two And R Four Or R Two And R 4' Together with the nitrogen and carbon atoms to which they are attached, hydroxy or C 1 -C Four Forming a 3- to 7-membered heterocycle optionally substituted by alkoxy
- the starting peptide compound optionally comprises additional natural amino acid residues and/or amino acid analog residues, and The method wherein the starting peptide compound comprises at least one deprotectable protecting group.
- De-resinating the starting peptide compound from the resin for solid phase synthesis by contacting a starting peptide compound containing a natural amino acid residue and/or amino acid analog residue with a silylating agent in a solvent A method for producing a peptide compound in which the resin for solid phase synthesis is deresined, comprising: The silylating agent is produced by mixing a silyl compound or acid with an electrophilic species scavenger,
- the starting peptide compound has the following general formula (I): [In the formula, R 1 Is hydrogen, PG 1 , A natural amino acid residue, or an amino acid analog residue, R Two Is hydrogen, and C 1 -C 6 Selected from the group consisting of alkyl, or R Two And R Four Or R
- the starting peptide compound optionally comprises additional natural amino acid residues and/or amino acid analog residues, and The method wherein the starting peptide compound comprises at least one amino acid residue bound to a resin for solid phase synthesis.
- a protecting group which can be deprotected by a silylating agent by bringing the starting peptide compound or starting amide compound containing a natural amino acid residue and/or amino acid analog residue into contact with the silylating agent in a solvent. Deprotecting the starting peptide compound or starting amide compound from the starting peptide compound or amide compound, wherein the protecting group is deprotected.
- the silylating agent is produced by mixing a silyl compound or acid with an electrophilic species scavenger,
- the starting peptide compound or starting amide compound has the following general formula (II) at the C-terminal of the starting peptide compound or starting amide compound: [In the formula, R 1' Is a hydrogen atom, PG 7 Or a group represented by the formula (III): * Means connecting point, R 1 Is hydrogen, PG 1 , A natural amino acid residue, or an amino acid analog residue, R Two Is hydrogen, and C 1 -C 6 Selected from the group consisting of alkyl, or R Two And R 10 Or R Two And R 10' Together with the nitrogen and carbon atoms to which they are attached, hydroxy or C 1 -C Four Forming a 3- to 7-membered heterocycle optionally substituted by alkoxy, R 10 And R 10' Is R Two Unless it forms a heterocycle with (A) R 10' Is hydrogen and R 10 Is hydrogen or optionally substitute
- a starting peptide compound or a starting amide compound containing a natural amino acid residue and/or an amino acid analog residue is brought into contact with a silylating agent in a solvent to solidify the starting peptide compound or the starting amide compound.
- the silylating agent is produced by mixing a silyl compound or acid with an electrophilic species scavenger,
- the starting peptide compound or starting amide compound has the following general formula (II) at the C-terminal of the starting peptide compound or starting amide compound: [In the formula, R 1' Is a hydrogen atom, PG 7 Or a group represented by the formula (III): * Means connecting point, R 1 Is hydrogen, PG 1 , A natural amino acid residue, or an amino acid analog residue, R Two Is hydrogen, and C 1 -C 6 Selected from the group consisting of alkyl, or R Two And R 10 Or R Two And R 10' Together with the nitrogen and carbon atoms to which they are attached, hydroxy or C 1 -C Four Forming a 3- to 7-membered hetero
- a deprotecting agent for use in deprotecting a protecting group which comprises a silyl compound or an acid, and an electrophilic species scavenger.
- a resin-removing agent for use in cleaving a peptide compound from a resin in a solid-phase reaction which comprises a silyl compound or an acid and an electrophilic species scavenger.
- 2,6-lutidine has a high boiling point (144° C.) and is difficult to be distilled off. Further, since 2,6-lutidine is a basic compound, it can be removed with an acid, but when the target compound is a peptide compound, since the product is a compound having a basic amino group, The method of removing excess 2,6-lutidine under acidic conditions is inefficient.
- the condensing agent reacts with the remaining 2,6-lutidine.
- the presence of a base during the condensation reaction leaves the problem that the condensation reaction cannot be performed under desired conditions.
- treatment with water after the reaction hydrolyzes the silylamines and converts them into highly water-soluble compounds that can be easily removed. By doing so, the reagent derived from the silylamines can be easily removed, and it does not affect the peptide extension in the next step, so that it is superior to the case where the conventional 2,6-lutidine is used.

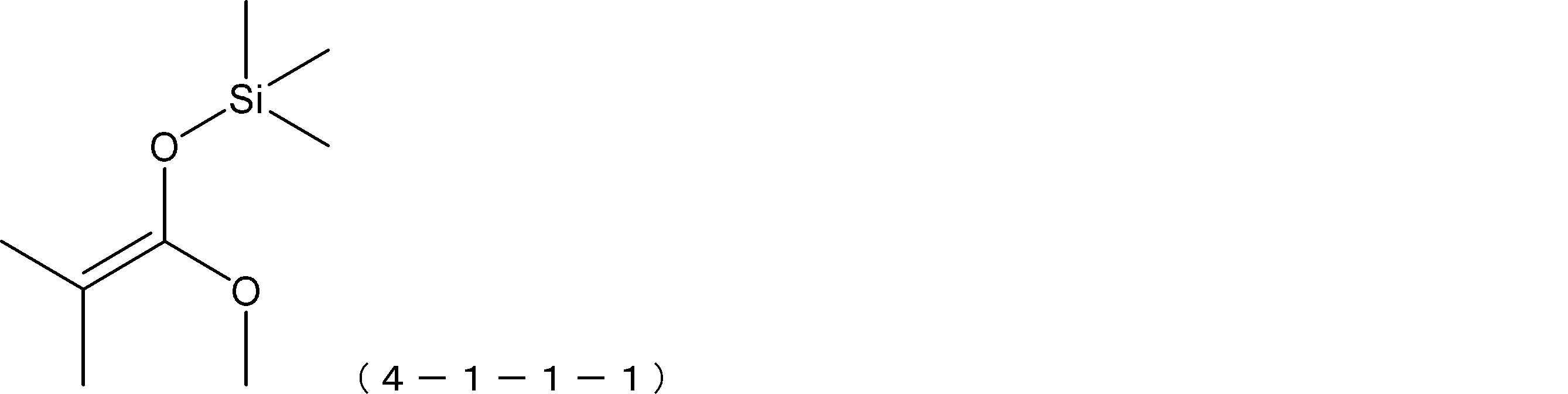

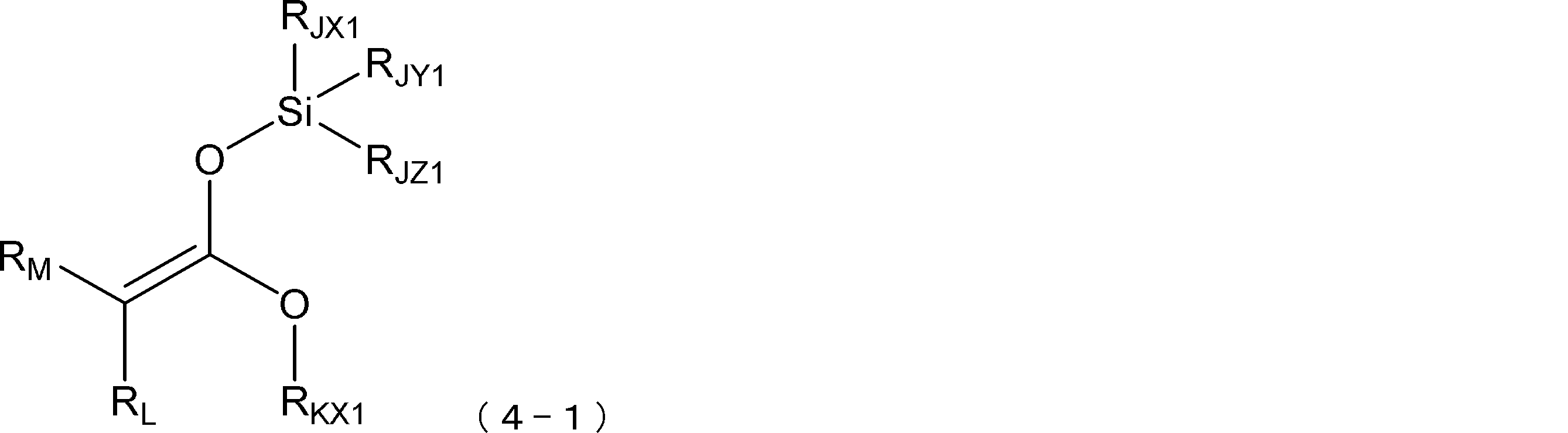

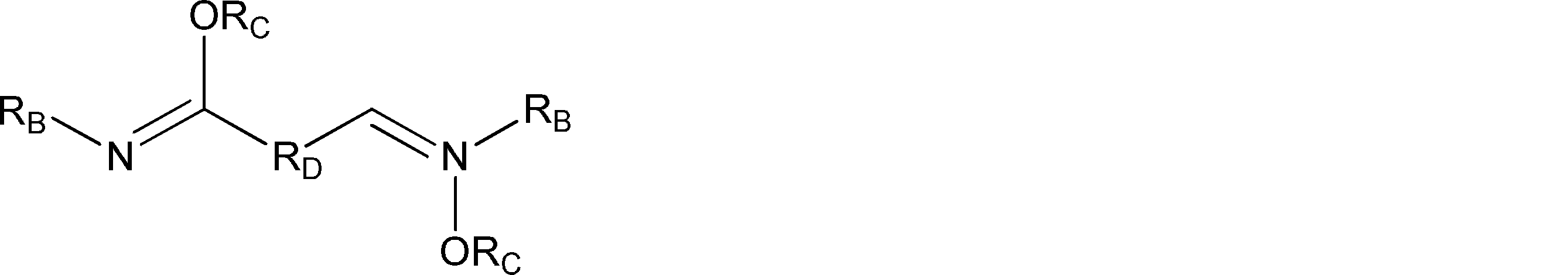

- imidate (formula 2), amide (formula 3), ketene acetal (formula 4), ketene alkoxy hemiaminal (formula 4), enol ether (formula 4), enol ester (formula 4), imine (formula 5).

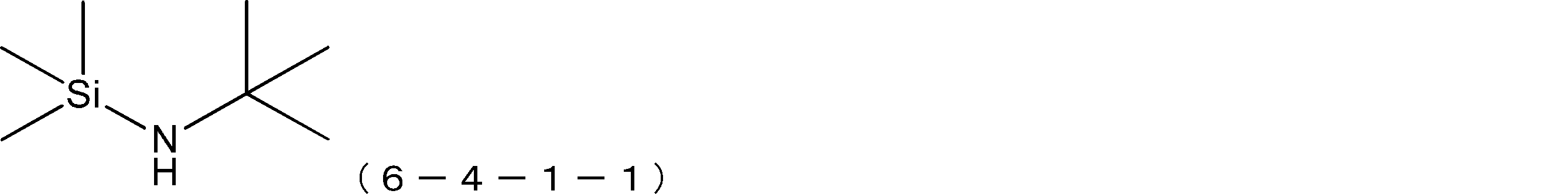

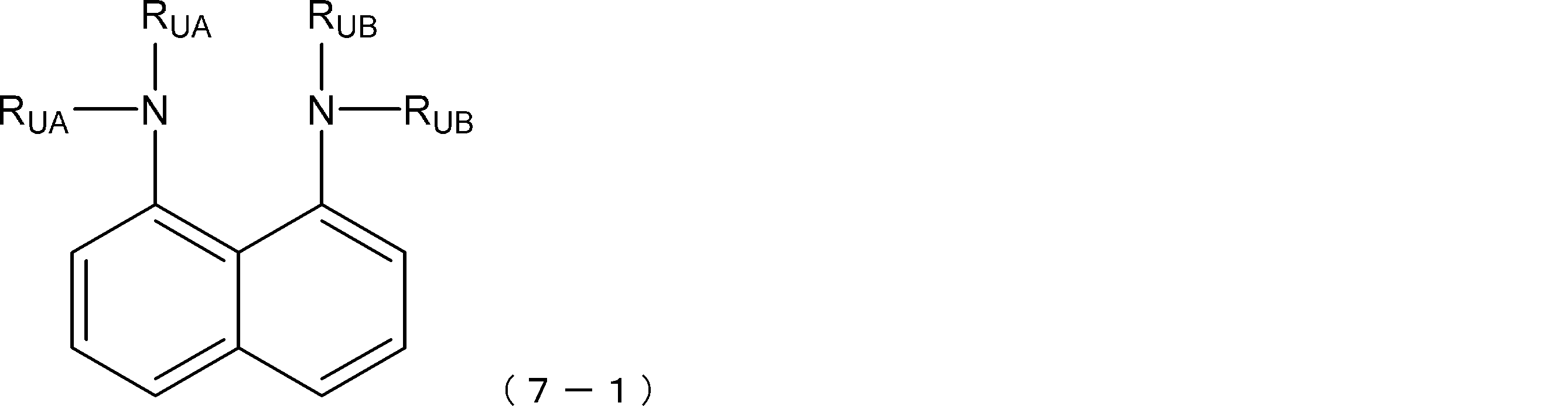

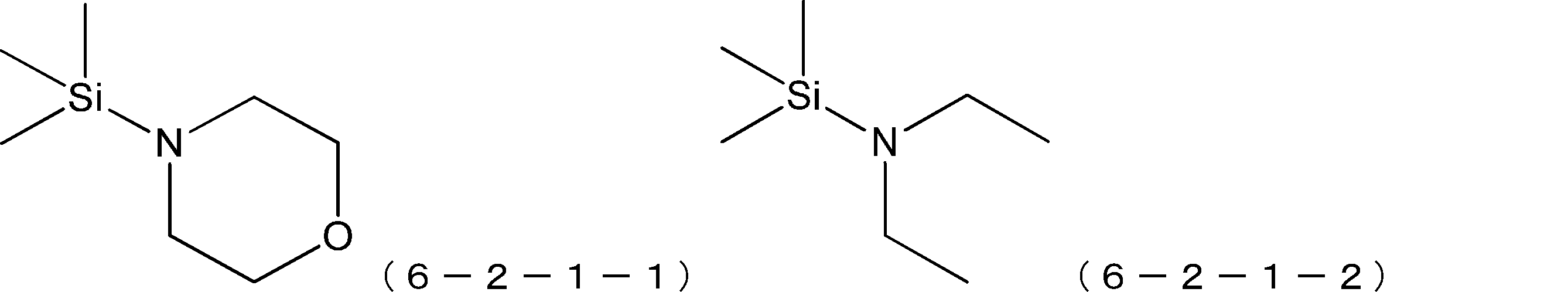

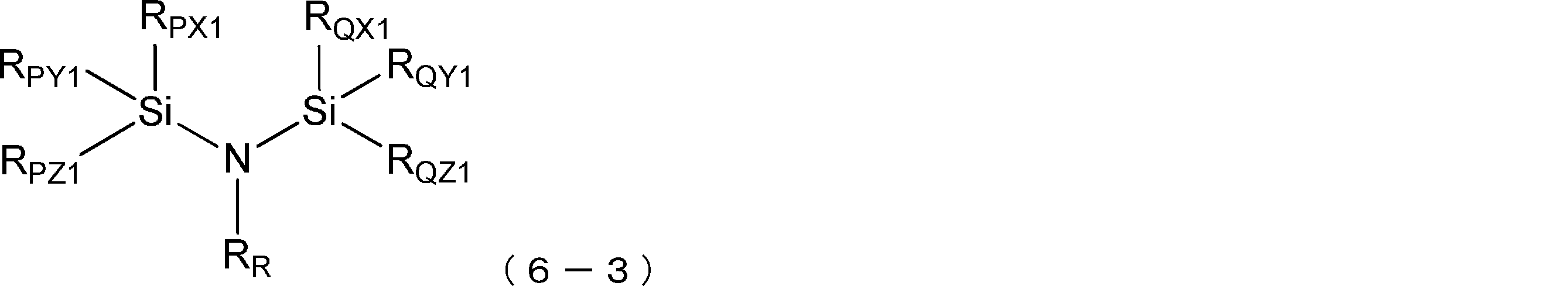

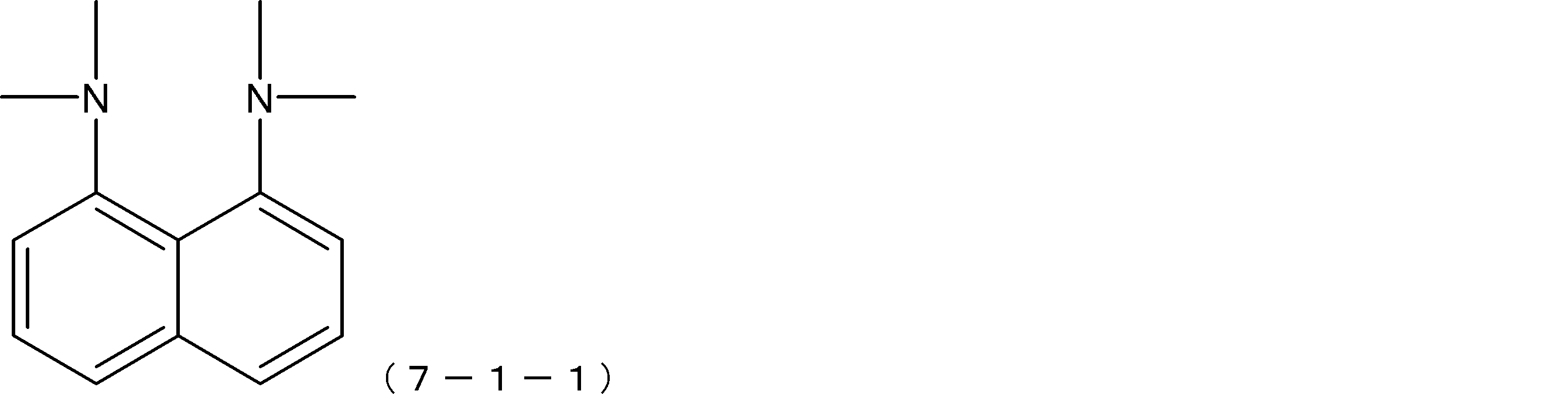

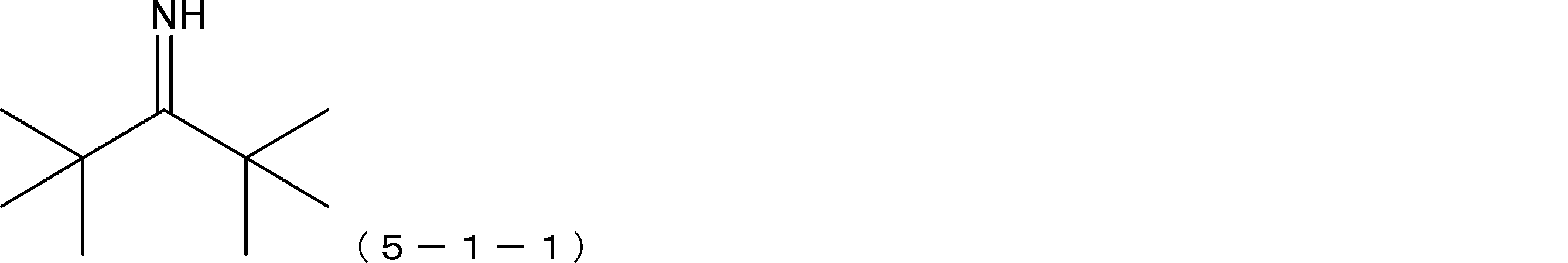

- electrophilic species scavengers exemplified by, for example, amine (formula 6), diamine (formula 7), dialkylcarbodiimide (formula 8), urea (formula 9), and urethane (formula 10).
- the amines as the electrophilic species scavenger are characterized in that a secondary amine can be used instead of the well-known tertiary amine, and deprotection can be performed by suppressing damage to the amide bond. it can.
- de-N-Boc of a peptide compound can be performed while suppressing damage to the main chain of the peptide compound.
- the present invention relates to det-Bulation of t-Bu ester, C-terminal and side chain t-Bu ester of a peptide compound, debenzylation of benzyl ester, and detritylation of trityl ester to the backbone of a peptide compound. Can be performed while suppressing the damage.
- the resinification reaction of the peptide compound from the resin bound to the C-terminal or the side chain of the main chain of the peptide compound can be performed while suppressing damage to the main chain of the peptide compound.
- T3P propylphosphonic anhydride
- TBDPS tert-butyldiphenylsilyl
- TBS tert-butyldimethylsilyl t-Bu: tert-butyl
- TEA triethylamine
- Teoc 2-(trimethylsilyl)ethoxycarbonyl
- TES triethylsilyl
- TFA trifluoroacetic acid
- TFE 2,2,2-trifluoroethanol
- TfOH trifluoromethanesulfonic acid
- Tf trifluoromethanesulfonyl
- THF tetrahydrofuran
- 2-MeTHF 2-methyltetrahydrofuran
- TIPS triisopropylsilyl
- TMSOTf trimethylsilyl trifluoromethanesulfonate
- TMS trimethylsilyl Tr: trityl TTMS: tris(trimethylsilyl)silyl vol.
- alkyl is a monovalent group derived from an aliphatic hydrocarbon by removing one arbitrary hydrogen atom, and refers to a hetero atom (an atom other than carbon and hydrogen atoms) in the skeleton. ) Or unsaturated carbon-carbon bonds and has a subset of hydrocarbyl or hydrocarbon radical structures containing hydrogen and carbon atoms.
- the alkyl includes a straight chain or a branched chain.
- Alkyl is alkyl having 1 to 20 carbon atoms (C 1 -C 20 , hereinafter "C p -C q "means having p to q carbon atoms), and C 1 Examples thereof include -C 6 alkyl, C 1 -C 4 alkyl and the like. Specific examples of alkyl include methyl, ethyl, propyl, butyl, pentyl, hexyl, isopropyl, tert-butyl, sec-butyl and the like.
- cycloalkyl means a saturated or partially saturated cyclic monovalent aliphatic hydrocarbon group and includes a monocycle, a bicyclo ring and a spiro ring. Cycloalkyl may be partially unsaturated. Cycloalkyl preferably includes C 3 -C 6 cycloalkyl, and includes, for example, cyclopropyl, cyclobutyl, cyclopentyl, cyclohexyl and the like.
- cycloalkylalkyl means a group in which any hydrogen atom in the above-mentioned “alkyl” is substituted with the above-mentioned “cycloalkyl”.
- cycloalkylalkyl include C 3-6 cycloalkyl C 1-6 alkyl, C 3-6 cycloalkyl C 1-4 alkyl and the like. Specific examples include cyclopropylmethyl, cyclopropylethyl, cyclobutylmethyl, cyclopentylmethyl, cyclohexylmethyl and the like.
- alkoxy means an oxy group to which the above-defined “alkyl” is bonded, and preferably includes C 1-4 alkoxy, C 1-3 alkoxy and the like. Specific examples of alkoxy include methoxy, ethoxy, 1-propoxy, 2-propoxy, n-butoxy, i-butoxy, sec-butoxy, tert-butoxy and the like.
- Alicyclic ring in the present specification means a monovalent non-aromatic hydrocarbon ring.
- the alicyclic ring may have an unsaturated bond in the ring and may be a polycyclic group having two or more rings. Further, carbon atoms constituting the ring may be oxidized to form carbonyl.
- the number of atoms constituting the alicyclic ring is preferably 3 to 7 (3 to 7-membered alicyclic ring).
- Specific examples of the alicyclic ring include a cycloalkyl ring, a cycloalkenyl ring and a cycloalkynyl ring.
- heterocycle means a non-aromatic monovalent or divalent heterocycle containing preferably 1 to 5 heteroatoms in the ring-constituting atoms.
- the heterocycle may have double and/or triple bonds in the ring, carbon atoms in the ring may be oxidized to form carbonyl, and may be a monocycle, a condensed ring or a spiro ring.
- the number of atoms constituting the ring is preferably 3 to 12 (3 to 12 membered heterocycle), more preferably 4 to 7 (4 to 7 membered heterocycle), and further preferably 5 to 6 ( 5-6 membered heterocycle).
- heterocycle examples include azetidine, piperazine, pyrrolidine, piperidine, morpholine, homomorpholine, (R)-hexahydropyrrolo[1,2-a]pyrazine, and (S)-hexahydropyrrolo[1,2].
- the “aromatic heterocycle” means an aromatic monovalent or divalent heterocycle containing preferably 1 to 5 heteroatoms in the atoms constituting the ring.
- the aromatic heterocycle may be partially saturated and may be a monocyclic ring or a condensed ring (for example, a bicyclic aromatic heterocycle in which a monocyclic aromatic heterocycle is condensed with a benzene ring or a monocyclic aromatic heterocycle). ) And a spiro ring may be used.
- the number of atoms constituting the ring is preferably 4-10 (4-10 membered aromatic heterocycle).
- aromatic heterocycle examples include, for example, furan, thiophene, pyrrole, imidazole, pyrazole, thiazole, isothiazole, oxazole, isoxazole, oxadiazole, thiadiazole, triazole, tetrazole, pyridine, pyrimidine, pyridazine, pyrazine, Examples include triazine, benzofuran, benzothiophene, benzothiadiazole, benzothiazole, benzoxazole, benzooxadiazole, benzimidazole, indole, isoindole, indazole, quinoline, isoquinoline, cinnoline, quinazoline, quinoxaline, indolizine, imidazopyridine. ..
- aryl means a monovalent aromatic hydrocarbon ring, and preferably C 6-10 aryl and the like can be mentioned. Specific examples of aryl include phenyl and naphthyl (eg, 1-naphthyl, 2-naphthyl) and the like.
- Heteroaryl in the present specification means an aromatic monovalent heterocyclic group containing preferably 1 to 5 heteroatoms in the ring-constituting atoms. Heteroaryl may be partially saturated and may be monocyclic or fused ring (eg, bicyclic heteroaryl fused with a benzene ring or a monocyclic heteroaryl ring). The number of atoms constituting the ring is preferably 5 to 10 (5 to 10 membered heteroaryl).
- heteroaryl examples include furyl, thienyl, pyrrolyl, imidazolyl, pyrazolyl, thiazolyl, isothiazolyl, oxazolyl, isoxazolyl, oxadiazolyl, thiadiazolyl, triazolyl, tetrazolyl, pyridyl, pyrimidyl, pyridazinyl, pyrazinyl, triazinyl, benzofuranyl, benzoyl.
- Heterocyclyl in the present specification means a non-aromatic monovalent heterocyclic group containing preferably 1 to 5 heteroatoms in the ring-constituting atoms. Heterocyclyl may have a double or triple bond in the ring, a carbon atom may be oxidized to form a carbonyl, and may be a single ring or a condensed ring. The number of atoms constituting the ring is preferably 3 to 10 (3 to 10 membered heterocyclyl).
- heterocyclyl examples include, for example, oxetanyl, dihydrofuryl, tetrahydrofuryl, dihydropyranyl, tetrahydropyranyl, tetrahydropyridyl, morpholinyl, thiomorpholinyl, pyrrolidinyl, piperidinyl, piperazinyl, pyrazolidinyl, imidazolinyl, imidazolidinyl, isoxazolidinyl, and oxazolidinyl.
- Examples thereof include zinyl, thiazolidinyl, isothiazolidinyl, thiadiazolidinyl, azetidinyl, oxazolidone, benzodioxanyl, benzoxazolyl, dioxolanyl and dioxanyl.
- arylalkyl means a group in which any hydrogen atom in the above-mentioned “alkyl” is substituted with the above-mentioned “aryl”.
- the arylalkyl preferably includes C 6-10 arylC 1-4 alkyl, C 6-10 arylC 1-3 alkyl and the like. Specific examples include benzyl, phenylmethyl, phenethyl (phenylethyl), and naphthylmethyl.
- heteroarylalkyl means a group in which any hydrogen atom in the above-mentioned “alkyl” is substituted with the above-mentioned “heteroaryl”.
- Heteroarylalkyl preferably includes 5- to 10-membered heteroarylC 1-3 alkyl and the like, and specific examples thereof include pyrrolylmethyl, imidazolylmethyl, thienylmethyl, pyridylmethyl, pyrimidylmethyl, quinolylmethyl, pyridylethyl and the like. Can be mentioned.
- substituted silyl means a silyl group substituted with 1 to 3 substituents.
- the substituents may be the same or different.
- Preferred as substituents are C 1 -C 6 alkyl, aryl, tri C 1 -C 6 alkylsilyl. Specific examples include trimethylsilyl, triethylsilyl, triisopropylsilyl, t-butyldimethylsilyl, t-butyldiphenylsilyl, tris(trimethylsilyl)silyl and the like.
- the substituent is, for example, alkyl, alkoxy, alkenyl, alkenyloxy, alkynyl, alkynyloxy, cycloalkyl, aryl, Heteroaryl, heterocyclyl, arylalkyl, heteroarylalkyl, substituted silyl, halogen atom, nitro, amino, monoalkylamino, dialkylamino, cyano, carboxyl, alkoxycarbonyl, formyl and the like can be mentioned.
- deprotection refers to removal of a protecting group to restore the original functional group before protection.
- de-resin means to cut out a peptide compound from a peptide compound bound to a resin for solid phase synthesis.
- the solid phase synthesis resin is preferably bound to the C-terminal amino acid residue of the starting peptide compound.
- the present invention provides a protection that can be deprotected by a silylating agent by contacting a starting peptide compound containing a naturally occurring amino acid residue and/or amino acid analog residue with a silylating agent in a solvent. It relates to a method for producing a peptide compound in which the protecting group is deprotected, which comprises the step of deprotecting a group from the starting peptide compound.
- the present invention provides a method for contacting a starting peptide compound containing a natural amino acid residue and/or an amino acid analog residue with a silylating agent in a solvent to obtain a resin for solid phase synthesis.
- the "starting peptide compound” means the “peptide compound” of the starting material which is the target of the deprotection reaction and/or the deresin reaction of the present invention.
- the starting peptide compound preferably comprises at least one N-substituted amino acid residue.
- the “peptide compound” in the present invention includes a linear or cyclic peptide compound containing a natural amino acid residue and/or an amino acid analog residue.
- the cyclic peptide compound has the same meaning as the "peptide compound having a cyclic portion".
- linear peptide compound in the present invention is a peptide compound formed by forming an amide bond or an ester bond of a natural amino acid or an amino acid analog, and is particularly preferably a compound having no cyclic portion. Not limited.
- the total number of natural amino acids or amino acid analogs constituting a linear peptide compound is 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 20 , 25, 30 and the preferable range of the number of amino acids constituting the linear peptide compound is 1 to 30, 6 to 20, 7 to 19, 7 to 18, 7 to 17 The numbers are 7 to 16, 7 to 15, 8 to 14, and 9 to 13.
- peptide compound having a cyclic portion refers to a peptide compound formed by forming an amide bond or an ester bond of a natural amino acid or an amino acid analog, and as long as it is a compound having a cyclic portion, Not limited.
- the cyclic portion is preferably formed via a covalent bond such as an amide bond, a carbon-carbon bond forming reaction, an S—S bond, a thioether bond, and a triazole bond (WO2013/100132, WO2012/026566, WO2012/033154, WO2012/074130, WO2015/030014, Comb ChemHighThroughputScreen. 2010;13:75-87, NatureChem. Bio.
- the peptide compound having a cyclic portion of the present invention may further have a linear portion.
- the number of amide bonds or ester bonds is not particularly limited, but in the case of having a linear portion, the total length of the cyclic portion and the linear portion is preferably within 30 residues.
- the total number of amino acids is more preferably 9 or more.
- the number of natural amino acids and amino acid analogs constituting the cyclic portion is more preferably 5 to 12, 6 to 12, and 7 to 12, and 7 to 11 and 8 to 11 are more preferable. More preferably, 9 to 11 (10 or 11) is particularly preferable.
- the number of amino acids and amino acid analogs in the straight chain portion is preferably 0 to 8, 0 to 7, 0 to 6, 0 to 5, and 0 to 4, and preferably 0 to 3. More preferable.
- the total number of natural amino acids and amino acid analogs is preferably 1 to 30, 6 to 20, 7 to 19, 7 to 18, 7 to 17, 7 to 16, 7 to 15, 8 to There are 14 and 9 to 13.
- the type of natural amino acid residue or amino acid analog residue forming the cyclic portion of the peptide compound having a cyclic portion of the present invention is not particularly limited, but the cyclized portion has a natural amino acid residue having a functional group excellent in metabolic stability. It is preferably composed of a group or an amino acid analog residue.
- the cyclization method of the peptide compound having a cyclic portion of the present invention is not particularly limited as long as it can form such a cyclic portion. Examples thereof include an amide bond formed from a carboxylic acid and an amine, and a carbon-carbon bond reaction catalyzed by a transition metal such as Suzuki reaction, Heck reaction (Heck reaction), and Sonogashira reaction.
- the peptide compounds of the present invention contain at least one set of functional groups capable of these conjugation reactions prior to cyclization.
- a functional group capable of forming an amide bond by a coupling reaction it is preferable to include a functional group capable of forming an amide bond by a coupling reaction.
- the formation of the cyclic portion preferably includes, for example, a bond containing a heteroatom that may be easily oxidized, and does not include a bond that hinders metabolic stability.
- the bond formed by cyclization includes, for example, an amide bond formed by a bond between an active ester and an amine, a bond formed by a Heck reaction product formed by a carbon-carbon double bond and an aryl halide, and the like.
- N-substituted amino acid in addition to the above conditions for the total number of natural amino acids and amino acid analogs, or alone, at least one N-substituted amino acid (preferably 2, 3, 4, 5, 6, 7,8,9,10,11,12,13,14,15,20,25,30, particularly preferably 5,6 or 7) and at least one N-unsubstituted amino acid. It can be a chain or cyclic peptide.
- the preferred range of the number of N-substituted amino acids is 1 to 30, 6 to 20, 7 to 19, 7 to 18, 7 to 17, 7 to 16, 7 to 15, 8 to 14, It is 9 to 13.
- the starting peptide compound comprises 1 to 30 amino acid residues and is linear or cyclic.
- the amino acids contained in the starting peptide compound may be "natural amino acids” or "amino acid analogs".
- amino acid amino acid
- natural amino acid amino acid
- amino acid analog amino acid residue
- amino acid analog residue amino acid residue
- amino acid analog residue amino acid residue
- amino acid analog residue amino acid residue residue
- Natural amino acid refers to Gly, Ala, Ser, Thr, Val, Leu, Ile, Phe, Tyr, Trp, His, Glu, Asp, Gln, Asn, Cys, Met, Lys, Arg, Pro.
- amino acid analog is not particularly limited, but ⁇ -amino acids, ⁇ -amino acids, D-type amino acids, N-substituted amino acids, ⁇ , ⁇ -disubstituted amino acids, hydroxycarboxylic acids, unnatural amino acids Different amino acids; eg non-natural ⁇ -amino acids, ⁇ -amino acids, ⁇ -amino acids).
- ⁇ -amino acid it may be a D-type amino acid or an ⁇ , ⁇ -dialkyl amino acid.
- ⁇ -amino acids and ⁇ -amino acids as well like ⁇ -amino acids, arbitrary configurations are allowed.
- N-substituted amino acids include amino acids of amino acids substituted with arbitrary substituents, and the substituents are not particularly limited, and examples thereof include an alkyl group, an aryl group, and an aralkyl group.
- N-substituted amino acids include N-alkyl amino acids, N-aryl amino acids, and N-methyl amino acids.
- the selection of the amino acid side chain is not particularly limited, but in addition to the hydrogen atom, it is freely selected from, for example, an alkyl group, an alkenyl group, an alkynyl group, an aryl group, a heteroaryl group, an aralkyl group, and a cycloalkyl group.
- One or two non-adjacent methylene groups in the group may be substituted with an oxygen atom, a carbonyl group (—CO—), or a sulfonyl group (—SO 2 —).
- Each may be provided with one or two or more substituents, and the substituents include, for example, any halogen atom, N atom, O atom, S atom, B atom, Si atom and P atom. It is freely selected from functional groups (that is, optionally substituted alkyl group, alkenyl group, alkynyl group, aryl group, heteroaryl group, aralkyl group, cycloalkyl group, etc.).
- the "natural amino acid” and "amino acid analog” constituting the peptide compound include all isotopes corresponding to each.
- Isotopes of "natural amino acids” and “amino acid analogs” are those in which at least one atom has been replaced by an atom with the same atomic number (proton number) and different mass numbers (sum of protons and neutrons). Is.
- Examples of the isotopes included in the "natural amino acid” and “amino acid analog” constituting the peptide compound of the present invention include hydrogen atom, carbon atom, nitrogen atom, oxygen atom, phosphorus atom, sulfur atom, fluorine atom, chlorine atom. Etc., and 2 H, 3 H, 13 C, 14 C, 15 N, 17 O, 18 O, 32 P, 35 S, 18 F, 36 Cl and the like are included, respectively.
- substituent containing a halogen atom in the present specification examples include alkyl, cycloalkyl, alkenyl, alkynyl, aryl, heteroaryl and aralkyl having a halogen as a substituent, and more specifically, fluoroalkyl, difluoroalkyl. , Trifluoroalkyl, etc. are exemplified.
- Examples of oxy (-OR) include alkoxy, cycloalkoxy, alkenyloxy, alkynyloxy, aryloxy, heteroaryloxy, aralkyloxy and the like.
- alkoxy C 1 -C 4 alkoxy and C 1 -C 2 alkoxy are preferable, and among them, methoxy or ethoxy is preferable.
- carbonyl examples include formyl (—C ⁇ O—H), alkylcarbonyl, cycloalkylcarbonyl, alkenylcarbonyl, alkynylcarbonyl, arylcarbonyl, heteroarylcarbonyl, aralkylcarbonyl and the like. ..
- Examples of oxycarbonyl include alkyloxycarbonyl, cycloalkyloxycarbonyl, alkenyloxycarbonyl, alkynyloxycarbonyl, aryloxycarbonyl, heteroaryloxycarbonyl, aralkyloxycarbonyl and the like.
- Examples of carbonyloxy include alkylcarbonyloxy, cycloalkylcarbonyloxy, alkenylcarbonyloxy, alkynylcarbonyloxy, arylcarbonyloxy, heteroarylcarbonyloxy, aralkylcarbonyloxy and the like. ..
- thiocarbonyl examples include alkylthiocarbonyl, cycloalkylthiocarbonyl, alkenylthiocarbonyl, alkynylthiocarbonyl, arylthiocarbonyl, heteroarylthiocarbonyl, aralkylthiocarbonyl and the like.
- carbonylthio examples include alkylcarbonylthio, cycloalkylcarbonylthio, alkenylcarbonylthio, alkynylcarbonylthio, arylcarbonylthio, heteroarylcarbonylthio, aralkylcarbonylthio and the like. ..
- aminocarbonyl examples include alkylaminocarbonyl (eg, C 1 -C 6 or C 1 -C 4 alkylaminocarbonyl, among them ethylaminocarbonyl, methylaminocarbonyl, etc.). .), cycloalkylaminocarbonyl, alkenylaminocarbonyl, alkynylaminocarbonyl, arylaminocarbonyl, heteroarylaminocarbonyl, aralkylaminocarbonyl and the like.
- alkylaminocarbonyl eg, C 1 -C 6 or C 1 -C 4 alkylaminocarbonyl, among them ethylaminocarbonyl, methylaminocarbonyl, etc.
- cycloalkylaminocarbonyl alkenylaminocarbonyl, alkynylaminocarbonyl, arylaminocarbonyl, heteroarylaminocarbonyl, aralkylaminocarbony
- Examples of carbonylamino include alkylcarbonylamino, cycloalkylcarbonylamino, alkenylcarbonylamino, alkynylcarbonylamino, arylcarbonylamino, heteroarylcarbonylamino, aralkylcarbonylamino and the like. ..
- compounds in which the H atom bonded to the N atom in —NH—C ⁇ O—R is further substituted with alkyl, cycloalkyl, alkenyl, alkynyl, aryl, heteroaryl, or aralkyl are included.
- Examples of oxycarbonylamino include alkoxycarbonylamino, cycloalkoxycarbonylamino, alkenyloxycarbonylamino, alkynyloxycarbonylamino, aryloxycarbonylamino, heteroaryloxycarbonylamino, aralkyloxy. Carbonylamino and the like can be mentioned. In addition to these, compounds in which the H atom bonded to the N atom in —NH—C ⁇ O—OR is further substituted with alkyl, cycloalkyl, alkenyl, alkynyl, aryl, heteroaryl, or aralkyl are included.
- Examples of sulfonylamino include alkylsulfonylamino, cycloalkylsulfonylamino, alkenylsulfonylamino, alkynylsulfonylamino, arylsulfonylamino, heteroarylsulfonylamino, aralkylsulfonylamino and the like.
- compounds in which the H atom bonded to the N atom in —NH—SO 2 —R is further substituted with alkyl, cycloalkyl, alkenyl, alkynyl, aryl, heteroaryl, or aralkyl are included.
- aminosulfonyl examples include alkylaminosulfonyl, cycloalkylaminosulfonyl, alkenylaminosulfonyl, alkynylaminosulfonyl, arylaminosulfonyl, heteroarylaminosulfonyl, aralkylaminosulfonyl and the like.
- compounds in which the H atom bonded to the N atom in —SO 2 —NHR is further substituted with alkyl, cycloalkyl, alkenyl, alkynyl, aryl, heteroaryl, or aralkyl are included.
- sulfamoylamino examples include alkylsulfamoylamino, cycloalkylsulfamoylamino, alkenylsulfamoylamino, alkynylsulfamoylamino, arylsulfamoylamino, hetero Arylsulfamoylamino, aralkylsulfamoylamino and the like can be mentioned.
- the two H atoms bonded to the N atom in —NH—SO 2 —NHR are substituents independently selected from the group consisting of alkyl, cycloalkyl, alkenyl, alkynyl, aryl, heteroaryl, and aralkyl. It may be substituted, and these two substituents may form a ring.
- thio are selected from alkylthio, cycloalkylthio, alkenylthio, alkynylthio, arylthio, heteroarylthio, aralkylthio and the like.
- sulfonyl examples include alkylsulfonyl, cycloalkylsulfonyl, alkenylsulfonyl, alkynylsulfonyl, arylsulfonyl, heteroarylsulfonyl, aralkylsulfonyl and the like.
- secondary amino examples include alkylamino, cycloalkylamino, alkenylamino, alkynylamino, arylamino, heteroarylamino, aralkylamino and the like.
- tertiary amino examples include, for example, alkyl(aralkyl)amino and the like, each independently selected from alkyl, cycloalkyl, alkenyl, alkynyl, aryl, heteroaryl, aralkyl and the like. And an amino group having two optional substituents selected from them, and these two optional substituents may form a ring.
- Specific examples thereof include dialkylamino, especially C 1 -C 6 dialkylamino, C 1 -C 4 dialkylamino, dimethylamino, diethylamino and the like.
- C p -C q dialkylamino group means a group in which two C p -C q alkyl groups are substituted on an amino group, and both C p -C q alkyl groups are the same. May also be different.
- Examples of substituted amidino include three substituents R, R', and R" on the N atom are alkyl, cycloalkyl, alkenyl, alkynyl, aryl, hetero. Examples include groups independently selected from aryl and aralkyl, such as alkyl(aralkyl)(aryl)amidino.
- R, R', R", and R"' are alkyl, cycloalkyl, alkenyl, alkynyl, aryl. , A heteroaryl, an aralkyl, a group independently selected from the above, a group in which these form a ring, and the like.
- aminocarbonylamino examples include R, R′, and R′′ selected from hydrogen atom, alkyl, cycloalkyl, alkenyl, alkynyl, aryl, heteroaryl, and aralkyl. Examples include groups independently selected from each other, or groups forming a ring.
- the starting peptide compound to be deprotected and/or deresined comprises at least one N-substituted amino acid residue.
- the number of N-substituted amino acid residues contained in the starting peptide compound is 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 20, 25, 30
- the preferred range of the number of N-substituted amino acid residues is 6 to 20, 7 to 19, 7 to 18, 7 to 17, 7 to 16, 7 to 15, 8 to 14, 9 It is up to 13. Two or more N-substituted amino acid residues may be linked in the starting peptide compound.
- half or more of the amino acids constituting the peptide compound of the present invention are N-substituted amino acids.
- N-substituted in an N-substituted amino acid includes, but is not limited to, substitution of a hydrogen atom bonded to an N atom with a methyl group, an ethyl group, a propyl group, a butyl group or a hexyl group.
- Examples of the N-substituted amino acid include amino acids in which an amino group contained in a natural amino acid is N-methylated, N-ethylated, N-propylated, N-butylated, or N-pentylated.
- the conventional deprotection/de-resinization method involves amide bond cleavage or peptide Susceptible to backbone damage such as backbone transfer.
- the desired protecting group can be efficiently deprotected in high yield and high purity without damage to the main chain, and
- the peptide compound can be efficiently cleaved from the resin in a solid phase reaction with high yield and high purity.
- the starting peptide compound of the present invention may not include an N-substituted amino acid residue or a partial structure in which the N-substituted amino acid residue is linked to an adjacent amino acid residue.
- the starting peptide compound to be deprotected and/or deresined includes at least one partial structure in which at least two amino acid residues represented by the following general formula (I) are linked.
- R 1 is hydrogen, PG 1 , a natural amino acid residue, or an amino acid analog residue.
- R 1 is preferably hydrogen or PG 1 .
- R 1 is preferably a natural amino acid residue or an amino acid analog residue.
- R 2 is selected from the group consisting of hydrogen and C 1 -C 6 alkyl, or R 2 and R 4 or R 2 and R 4′ are the nitrogen atom to which they are bonded and Together with the carbon atom form a 3 to 7 membered heterocycle optionally substituted by hydroxy or C 1 -C 4 alkoxy.
- the C 1 -C 6 alkyl is preferably methyl, ethyl, propyl, butyl, pentyl.
- R 2 and R 4 or R 2 and R 4′ together with the nitrogen and carbon atoms to which they are attached are 3 to optionally substituted by hydroxy or C 1 -C 4 alkoxy.
- the 3- to 7-membered heterocycle formed is preferably an azetidine ring, a pyrrolidine ring or a piperidine ring.
- R 4′ is hydrogen
- R 4 is hydrogen. ..
- R 4 and R 4′ are the same as R 4 and R 4′ , except when R 2 and R 4 or R 2 and R 4′ together form a heterocycle.
- R 4′ is hydrogen, and R 4 is hydrogen, optionally substituted C 1 -C 6 alkyl, C 3 -C 6 cycloalkyl, C 3 -C 6 cycloalkyl C 1 -C 4- alkyl, optionally substituted phenyl, optionally substituted phenylmethyl, optionally substituted phenylethyl, 2-(methylthio)ethyl, -CH 2 SPG 2 , N-PG 3 -indole-3 -Ylmethyl, 4-(PG 2 O)benzyl, PG 2 -O-methyl (ie, -CH 2 -O-PG 2 ), 1-(PG 2 O)ethyl, 2-(PG 2 O)ethyl, PG 2- OCO(CH 2 )-, PG 2 -OCO(CH 2 )
- R 4 and R 4′ examples include hydrogen atom and hydrogen atom, methyl and hydrogen atom, ethyl and hydrogen atom, isopropyl and hydrogen atom, isobutyl and hydrogen atom, cyclopropyl and hydrogen atom, cyclopropylmethyl and hydrogen atom, Cyclopentyl and hydrogen atom, cyclohexyl and hydrogen atom, optionally substituted phenyl and hydrogen atom, optionally substituted phenylmethyl and hydrogen atom, optionally substituted phenylethyl and hydrogen atom, 2-(methylthio) Ethyl and hydrogen atom, -CH 2 SPG 2 and hydrogen atom, N-PG 3 -indol-3-ylmethyl and hydrogen atom, 4-(PG 2 O)benzyl and hydrogen atom, PG 2 -O-methyl and hydrogen atom, 1-(PG 2 O)ethyl and hydrogen atom, 2-(PG 2 O)ethyl and hydrogen atom, PG 2 —
- the alicyclic ring may be a cyclopropyl ring, a cyclobutyl ring, a cyclopentyl ring.
- a cyclohexyl ring is preferred.
- R 5 is a single bond or —C(R 5A )(R 5B )—
- R 5A and R 5B are independently hydrogen, C 1 -C 6 alkyl, optionally substituted aryl, optionally substituted heteroaryl, optionally substituted aryl C 1 -C 4 alkyl.
- optionally substituted heteroaryl C 1 -C 4 alkyl optionally substituted heteroaryl C 1 -C 4 alkyl.
- R 5 is a single bond or a combination of R 5A and R 5B is a hydrogen atom and a hydrogen atom, a methyl and a hydrogen atom, an ethyl and a hydrogen atom, an isopropyl and a hydrogen atom, an isobutyl and a hydrogen atom, and a cyclopropyl.
- R 6 is selected from the group consisting of hydrogen and C 1 -C 6 alkyl, or R 6 and R 7 or R 6 and R 7′ are the nitrogen atom to which they are bonded and Together with the carbon atom form a 3-7 membered heterocyclic ring optionally substituted by hydroxy or C 1 -C 4 alkoxy.
- R 6 when R 6 is C 1 -C 6 alkyl, it is preferred that the C 1 -C 6 alkyl is methyl, ethyl, propyl, butyl, pentyl.
- R 6 and R 7 or R 6 and R 7′ together with the nitrogen and carbon atoms to which they are attached are 3 to optionally substituted by hydroxy or C 1 -C 4 alkoxy.
- the formed 3- to 7-membered heterocycle is preferably an azetidine ring, a pyrrolidine ring or a piperidine ring.
- R 7′ is hydrogen
- R 6 and R 7′ together form a heterocycle R 7 is hydrogen. .
- both R 2 and R 6 or one of them is preferably other than hydrogen, both R 2 and R 6 or one of, is C 1 -C 6 alkyl Is more preferable.
- R 7 and R 7′ are, unless R 6 and R 7 or R 6 and R 7′ together form a heterocycle.
- R 7′ is hydrogen, and R 7 is hydrogen, optionally substituted C 1 -C 6 alkyl, C 3 -C 6 cycloalkyl, C 3 -C 6 cycloalkyl C 1 -C 4 Alkyl, optionally substituted phenyl, optionally substituted phenylmethyl, optionally substituted phenylethyl, 2-(methylthio)ethyl, -CH 2 SPG 4 , N-PG 5 -indole-3- Ilmethyl, 4-(PG 4 O)benzyl, PG 4 —O-methyl (ie, —CH 2 —O—PG 4 ), 1-(PG 4 O)ethyl, 2-(PG 4 O)ethyl, PG 4 --OCO(CH 2 )--, PG 4 --OCO(CH 2 ) 2 --, PG 5 Nn-
- R 7 and R 7′ include hydrogen atom and hydrogen atom, methyl and hydrogen atom, ethyl and hydrogen atom, isopropyl and hydrogen atom, isobutyl and hydrogen atom, cyclopropyl and hydrogen atom, cyclopropylmethyl and hydrogen atom, Cyclopentyl and hydrogen atom, cyclohexyl and hydrogen atom, optionally substituted phenyl and hydrogen atom, optionally substituted phenylmethyl and hydrogen atom, optionally substituted phenylethyl and hydrogen atom, 2-(methylthio) Ethyl and hydrogen atom, -CH 2 SPG 4 and hydrogen atom, N-PG 5 -indol-3-ylmethyl and hydrogen atom, 4-(PG 4 O)benzyl and hydrogen atom, PG 4 -O-methyl and hydrogen atom, 1-(PG 4 O)ethyl and hydrogen atom, 2-
- R 7 and R 7′ together with the carbon atom to which they are bonded form a 3 to 7-membered alicyclic ring
- alicyclic ring a cyclopropyl ring, a cyclobutyl ring, a cyclopentyl ring
- the cyclohexyl ring is preferred.
- R 8 is a single bond or —C(R 8A )(R 8B )—, R 8A and R 8B are independently hydrogen, C 1 -C 6 alkyl, optionally substituted aryl, optionally substituted heteroaryl, optionally substituted aryl C 1 -C 4 alkyl. , And optionally substituted heteroaryl C 1 -C 4 alkyl.
- R 8 is a single bond or a combination of R 8A and R 8B is a hydrogen atom and a hydrogen atom, a methyl and a hydrogen atom, an ethyl and a hydrogen atom, an isopropyl and a hydrogen atom, an isobutyl and a hydrogen atom, a cyclopropyl and Hydrogen atom, cyclopropylmethyl and hydrogen atom, optionally substituted phenyl and hydrogen atom, optionally substituted phenylmethyl and hydrogen atom, optionally substituted phenylethyl and hydrogen atom, methyl and methyl, methyl And -C(R 8A )(R 8B )-, which is ethyl.
- R 9 is hydroxy, —O-PG 6 , a natural amino acid residue, an amino acid analog residue, —O-RES, or —NH-RES, where RES is for solid phase synthesis. It is a resin.
- R 9 may be hydroxy, —O-PG 6 , —O-RES, or —NH-RES. preferable.
- R 9 is preferably a natural amino acid residue or an amino acid analog residue.
- R 14A and R 14B are independently hydrogen, C 1 -C 4 alkyl, or R 14A and R 14B together with the nitrogen atom to which they are attached, Form a 4- to 8-membered ring that may contain one or more additional heteroatoms.
- R 14A and/or R 14B is C 1 -C 4 alkyl
- the C 1 -C 4 alkyl is preferably methyl, ethyl or propyl.
- R 14A and R 14B are taken together with the nitrogen atom to which they are attached to form a 4-8 membered ring which may contain one or more additional heteroatoms, said 4-8 membered ring
- azetidine ring As the ring, an azetidine ring, a pyrrolidine ring, a piperidine ring, a piperazine ring and a morpholine ring are preferable.
- R 15A and R 15B are independently hydrogen, C 1 -C 4 alkyl, or R 15A and R 15B together with the nitrogen atom to which they are attached, Form a 4- to 8-membered ring that may contain one or more additional heteroatoms.
- R 15A and/or R 15B is C 1 -C 4 alkyl
- the C 1 -C 4 alkyl is preferably methyl, ethyl or propyl.
- R 15A and R 15B are taken together with the nitrogen atom to which they are attached to form a 4-8 membered ring which may contain one or more additional heteroatoms, said 4-8 membered ring
- azetidine ring As the ring, an azetidine ring, a pyrrolidine ring, a piperidine ring, a piperazine ring and a morpholine ring are preferable.
- PG 1 is selected from the group consisting of Fmoc, Boc, Alloc, Cbz, Teoc, and trifluoroacetyl. As PG 1 , Fmoc, Boc and Cbz are preferable.
- PG 2 and PG 4 are independently hydrogen, t-Bu, trityl, methoxytrityl, cumyl, benzyl, THP, 1-ethoxyethyl, methyl, ethyl, allyl, substituted or not.
- aryl, optionally substituted aryl C 1 -C 4 alkyl is selected from the group consisting of optionally substituted heteroaryl C 1 -C also be 4 alkyl, and 2- (trimethylsilyl) ethyl.
- PG 2 and PG 4 methyl, allyl, t-Bu, trityl, methoxytrityl, cumyl, THP, optionally substituted aryl, optionally substituted aryl C 1 -C 4 alkyl, substituted Preferred is heteroaryl C 1 -C 4 alkyl.
- PG 3 and PG 5 are independently selected from the group consisting of hydrogen, Fmoc, Boc, Alloc, Cbz, Teoc, methoxycarbonyl, t-Bu, trityl, cumyl, and benzyl.
- Fmoc, Boc, Cbz, t-Bu and trityl are preferable.
- PG 6 is selected from the group consisting of t-Bu, trityl, cumyl, benzyl, methyl, ethyl, allyl, and 2-(trimethylsilyl)ethyl.
- t-Bu, trityl, cumyl, benzyl, methyl and allyl are preferable.
- the structure in which at least two amino acid residues represented by the general formula (I) are linked to each other includes many that are susceptible to cleavage or damage when known deprotection or deresinification conditions are used. ..
- reaction conditions of the present invention only the desired protecting group and resin for solid phase synthesis can be selectively and efficiently deprotected and/or deresined without such cleavage or damage.
- a structure in which at least two amino acid residues represented by the general formula (I) are linked includes a structure in which one N-substituted amino acid and one N-unsubstituted amino acid are linked, or two N-substituted amino acids are linked.
- Examples include linked amino acids.
- Specific examples of such an amino acid residue include two amino acid residues represented by the following general formula (I′) in which R 5 and R 8 in the general formula (I) are single bonds. Examples include linked structures.
- Each group in the formula (I′) can be the same as each group in the above formula (I).
- R 1 is preferably hydrogen, PG 1 , a natural amino acid residue, or an amino acid analog residue.
- R 2 and R 6 can independently be C 1 -C 6 alkyl, of which methyl, ethyl, propyl, butyl, pentyl are preferred. ..
- R 2 and R 4 or R 2 and R 4′, R 6 and R 7 or R 6 and R 7′ are each independently a nitrogen atom and a carbon to which they are bonded. Together with the atoms, they may form a 3-7 membered heterocycle optionally substituted by hydroxy or C 1 -C 4 alkoxy.
- R 4′ is hydrogen
- R 2 and R 4′ together form a heterocycle R 4′ is hydrogen
- R 6 and R 7′ is hydrogen
- R 6 and R 7′ together form a heterocycle R 7 is hydrogen. .
- R 9 is hydroxy, —O-PG 6 , a natural amino acid residue, an amino acid analog residue, —O-RES, or —NH-RES, wherein RES Is a resin for solid phase synthesis.
- R 4 and R 4′ , or R 7 and R 7′ are both C 1 -C 6 alkyl, or R 4 and R 4′ , or R 7 and R 7′ may be taken together with the carbon atom to which they are attached to form a 3-7 membered alicyclic ring.
- R 4′ is hydrogen, and R 4 is hydrogen, optionally substituted C 1 -C 6 alkyl, C 3 -C 6 cycloalkyl, C 3 — C 6 cycloalkyl C 1 -C 4 alkyl, optionally substituted phenyl, optionally substituted phenylmethyl, optionally substituted phenylethyl, 2-(methylthio)ethyl, —CH 2 SPG 2 , N-PG 3 -indol-3-ylmethyl, 4-(PG 2 O)benzyl, PG 2 -O-methyl, 1-(PG 2 O)ethyl, 2-(PG 2 O)ethyl, PG 2 -OCO( CH 2 )-, PG 2 -OCO(CH 2 ) 2- , PG 3 Nn-butyl, -CON(R 14A )(R 14B ), -CH 2 -CON(R 14A )(R 14B ), and It
- R 7′ is hydrogen, and R 7 is hydrogen, optionally substituted C 1 -C 6 alkyl, C 3 -C 6 cycloalkyl, C 3 — C 6 cycloalkyl C 1 -C 4 alkyl, optionally substituted phenyl, optionally substituted phenylmethyl, optionally substituted phenylethyl, 2-(methylthio)ethyl, —CH 2 SPG 4 , N-PG 5 -indol-3-ylmethyl, 4-(PG 4 O)benzyl, PG 4 -O-methyl, 1-(PG 4 O)ethyl, 2-(PG 4 O)ethyl, PG 4 -OCO( CH 2 )-, PG 4 -OCO(CH 2 ) 2- , PG 5 Nn-butyl, -CON(R 15A )(R 15B ), -CH 2 -CON(R 15A )(R 15B ), and It
- R 1 in the formula is hydrogen, PG 1 , a natural amino acid residue, or an amino acid analog residue
- R 2 and R 6 are methyl or ethyl
- R 2 and R 4 or R 2 and R 4′, R 6 and R 7 or R 6 and R 7′ are each independently, Together with the nitrogen and carbon atoms to which it is attached, it forms a 4- to 6-membered heterocycle optionally substituted by hydroxy or C 1 -C 4 alkoxy.
- R 6 and R 7 together form a heterocycle
- R 7′ is hydrogen
- R 6 and R 7′ together form a heterocycle
- R 7 is hydrogen.
- R 9 can also be —O-PG 6 , a natural amino acid residue, an amino acid analog residue, or —O-RES, where RES is CTC resin for solid phase synthesis, Wang resin, or SASRIN. It can be a resin.
- R 4 and R 4 ', or R 7 and R 7' are each independently methyl or can is ethyl and R 4 and R 4 they are attached is ', or R 7 and R 7', And a nitrogen atom and a carbon atom that form a 5- or 6-membered alicyclic ring.
- R 4 and R 7 are each independently hydrogen or an alkyl selected from the group consisting of methyl, ethyl, isopropyl, isobutyl, and sec-butyl.
- Phenylmethyl which may be present or may be substituted, phenylethyl which may be substituted, benzyloxymethyl, 1-benzyloxyethyl, 2-benzyloxyethyl, tert-butoxycarbonylmethyl, methoxycarbonylmethyl, tert- Butoxycarbonylethyl, methoxycarbonylethyl, tert-butoxycarbamoylbutyl, N,N-dimethylaminocarbonyl, piperidylcarbonyl, pyrrolidylcarbonyl, N,N-dimethylaminocarbonylmethyl, piperidylcarbonylmethyl, pyrrolidylcarbonylmethyl, N,N It can be dimethylaminocarbon
- the starting peptide compound comprises, in addition to one or more structures of general formula (I), one or more additional natural amino acid residues and/or amino acid analog residues. You may stay.
- the starting peptide compound comprises at least one protecting group deprotectable by the methods of the invention.
- a protecting group may be contained in the structure represented by the general formula (I) or may be contained in an amino acid residue other than the structure represented by the general formula (I).
- the starting peptide compound comprises at least one resin for solid phase synthesis that is deresinable by the method of the present invention.
- a resin may be contained in the structure represented by the general formula (I) or may be contained in an amino acid residue other than the structure represented by the general formula (I).
- the resin for solid phase synthesis is bound to the carboxyl group contained in the C-terminal amino acid residue of the starting peptide compound.
- the starting peptide compound to be deprotected and/or deresined has a structure in which at least two amino acid residues represented by the following general formula (II) are linked to the C-terminus thereof.

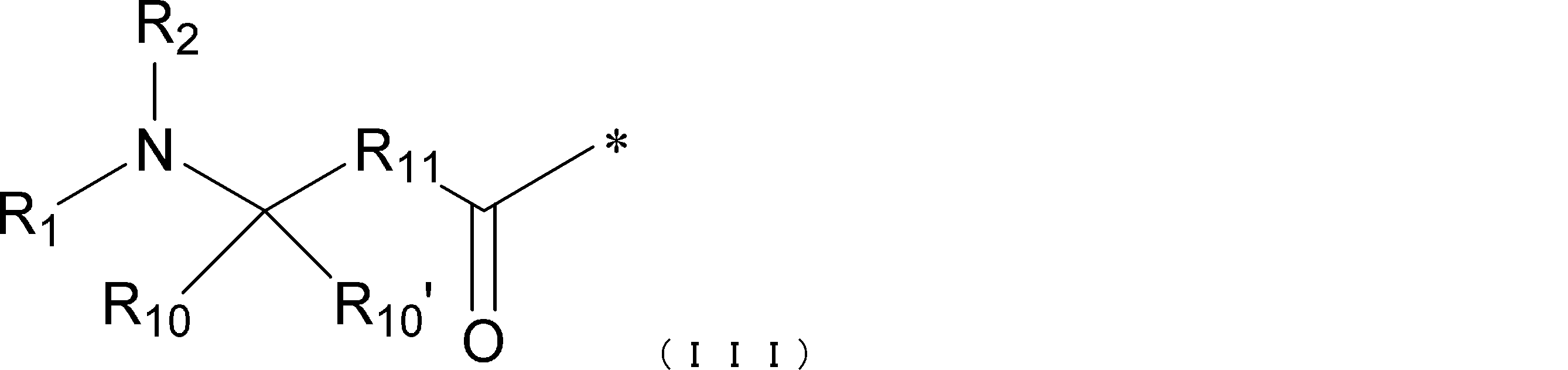

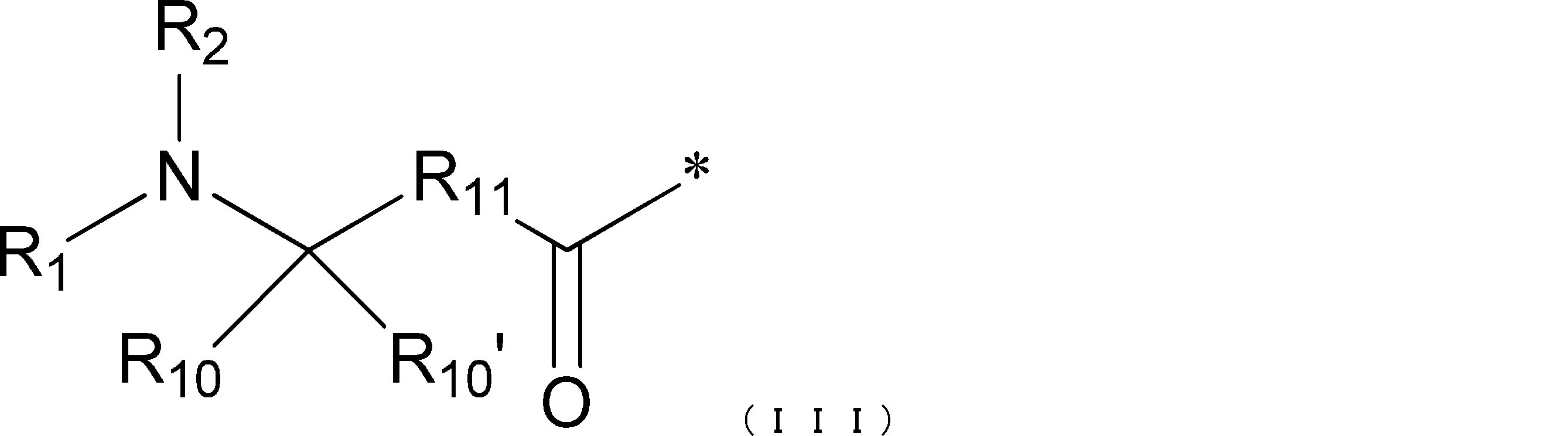

- R 1′ is a group represented by the formula (III). * In the formula means the point of attachment.
- R 1 is hydrogen, PG 1 , a natural amino acid residue, or an amino acid analog residue.
- R 2 is selected from the group consisting of hydrogen and C 1 -C 6 alkyl, or R 2 and R 10 or R 2 and R 10′ are the nitrogen atom to which they are bonded and Together with the carbon atom form a 3 to 7 membered heterocycle optionally substituted by hydroxy or C 1 -C 4 alkoxy.
- R 10′ is hydrogen
- R 10′ is hydrogen
- R 10 is hydrogen.
- the C 1 -C 6 alkyl is preferably methyl, ethyl, propyl, butyl, pentyl.
- R 2 and R 10 or R 2 and R 10′ together with the nitrogen and carbon atoms to which they are attached are optionally substituted by hydroxy or C 1 -C 4 alkoxy 3 to 3
- the 3- to 7-membered heterocycle formed is preferably an azetidine ring, a pyrrolidine ring or a piperidine ring.
- R 10 and R 10′ are, except for the case where R 2 and R 10 or R 2 and R 10′ together form a heterocycle.
- R 10′ is hydrogen, and R 10 is hydrogen, optionally substituted C 1 -C 6 alkyl, C 3 -C 6 cycloalkyl, C 3 -C 6 cycloalkyl C 1 -C 4- alkyl, optionally substituted phenyl, optionally substituted phenylmethyl, optionally substituted phenylethyl, 2-(methylthio)ethyl, -CH 2 SPG 8 , N-PG 9 -indole-3 -Ylmethyl, 4-(PG 8 O)benzyl, PG 8 -O-methyl (ie, -CH 2 -O-PG 8 ), 1-(PG 8 O)ethyl, 2-(PG 8 O)ethyl, PG 8- OCO(CH 2 )-, PG 8 -OCO(CH 2 ) 2 -,
- R 10 and R 10′ hydrogen atom and hydrogen atom, methyl and hydrogen atom, ethyl and hydrogen atom, isopropyl and hydrogen atom, isobutyl and hydrogen atom, cyclopropyl and hydrogen atom, cyclopropylmethyl and hydrogen atom, Optionally substituted phenyl and hydrogen atom, optionally substituted phenylmethyl and hydrogen atom, optionally substituted phenylethyl and hydrogen atom, 2-(methylthio)ethyl and hydrogen atom, —CH 2 SPG 8 And hydrogen atom, N-PG 9 -indol-3-ylmethyl and hydrogen atom, 4-(PG 8 O)benzyl and hydrogen atom, PG 8 -O-methyl and hydrogen atom, 1-(PG 8 O)ethyl and hydrogen Atom, 2-(PG 8 O)ethyl and hydrogen atom, PG 8 —OCO(CH 2 )— and hydrogen atom, PG 8 —OCO(CH 2 )— and hydrogen
- R 10 and R 10′ together with the carbon atom to which they are bonded form a 3 to 7-membered alicyclic ring
- alicyclic ring a cyclopropyl ring, a cyclobutyl ring, a cyclopentyl ring
- the cyclohexyl ring is preferred.
- R 11 is a single bond or —C(R 11A )(R 11B )—
- R 11A and R 11B are independently hydrogen, C 1 -C 6 alkyl, optionally substituted aryl, optionally substituted heteroaryl, optionally substituted aryl C 1 -C 4 alkyl.
- R 11A and R 11B are independently hydrogen, C 1 -C 6 alkyl, optionally substituted aryl, optionally substituted heteroaryl, optionally substituted aryl C 1 -C 4 alkyl.
- heteroaryl C 1 -C 4 alkyl optionally substituted heteroaryl C 1 -C 4 alkyl.
- R 11 is a single bond or a combination of R 11A and R 11B is a hydrogen atom and a hydrogen atom, a methyl and a hydrogen atom, an ethyl and a hydrogen atom, an isopropyl and a hydrogen atom, an isobutyl and a hydrogen atom, and a cyclopropyl.
- R 12 and R 12′ are independently hydrogen, PG 10 —O-methyl (ie, —CH 2 —O—PG 10 ), —(CH 2 ) n COO-PG 10 , It is selected from the group consisting of —(CH 2 ) n COO-RES, and —(CH 2 ) n CONH-RES.
- RES is a resin for solid phase synthesis, and n is 0, 1, or 2.
- one of R 12 and R 12′ is selected from —(CH 2 ) n COO-RES, and —(CH 2 ) n CONH-RES. It is preferable.
- R 6 is selected from the group consisting of hydrogen and C 1 -C 6 alkyl. In one aspect, when R 6 is C 1 -C 6 alkyl, it is preferred that the C 1 -C 6 alkyl is methyl, ethyl, propyl, butyl, pentyl.
- R 13 is C 1 -C 4 alkyl, or —(CH 2 ) m CON(R 17A )(R 17B ), wherein m is 0, 1, or 2, R 17A and R 17B are independently hydrogen, C 1 -C 4 alkyl, or R 17A and R 17B are taken together with the nitrogen atom to which they are attached, one or more additions. To form a 4- to 8-membered ring which may contain a heteroatom.
- R 13 when R 13 is C 1 -C 4 alkyl, it is preferred that the C 1 -C 4 alkyl is methyl, ethyl.
- R 17A and R 17B are taken together with the nitrogen atom to which they are attached to form a 4-8 membered ring which may contain one or more additional heteroatoms.
- the ring is preferably an azetidine ring, a pyrrolidine ring, a piperidine ring, a piperazine ring or a morpholine ring.
- R 16A and R 16B are independently hydrogen, or C 1 -C 4 alkyl, or R 16A and R 16B are taken together with the nitrogen atom to which they are attached. Form a 4- to 8-membered ring that may contain one or more additional heteroatoms.
- R 16A and R 16B are C 1 -C 4 alkyl, methyl, ethyl and propyl are preferable as the C 1 -C 4 alkyl.
- R 16A and R 16B are taken together with the nitrogen atom to which they are attached to form a 4-8 membered ring which may contain one or more additional heteroatoms, said 4-8 membered ring
- azetidine ring As the ring, an azetidine ring, a pyrrolidine ring, a piperidine ring, a piperazine ring and a morpholine ring are preferable.
- PG 1 is selected from the group consisting of Fmoc, Boc, Alloc, Cbz, Teoc, and trifluoroacetyl. As PG 1 , Fmoc, Boc and Cbz are preferable.
- PG 8 is hydrogen, t-Bu, trityl, methoxytrityl, cumyl, benzyl, THP, 1-ethoxyethyl, methyl, ethyl, allyl, optionally substituted aryl, or substituted.
- aryl C 1 -C 4 alkyl is selected from the group consisting of optionally substituted heteroaryl C 1 -C also be 4 alkyl, and 2- (trimethylsilyl) ethyl.
- PG 8 is methyl, allyl, t-Bu, trityl, methoxytrityl, cumyl, THP, optionally substituted aryl, optionally substituted aryl C 1 -C 4 alkyl, optionally substituted hetero.
- Aryl C 1 -C 4 alkyl is preferred.
- PG 9 is selected from the group consisting of hydrogen, Fmoc, Boc, Alloc, Cbz, Teoc, methoxycarbonyl, t-Bu, trityl, cumyl, and benzyl.
- Fmoc, Boc, Cbz, t-Bu and trityl are preferable.
- PG 10 is t-Bu, trityl, cumyl, benzyl, methyl, ethyl, allyl, optionally substituted aryl, optionally substituted aryl C 1 -C 4 alkyl, substituted Optionally selected heteroaryl C 1 -C 4 alkyl, and (2-(trimethylsilyl)ethyl).
- PG 10 t-Bu, trityl, cumyl, benzyl, methyl and allyl are preferred.
- PG 1 to PG 10 which can be included in general formulas (I) to (III), can each independently be a protecting group that can be removed by the deprotection method of the invention, such that Such protecting groups include t-Bu, triphenylmethyl, 2-(trimethylsilyl)-ethyl, Boc, Teoc, Cbz, methoxycarbonyl, tetrahydropyranyl, 1-ethoxyethyl and the like.
- PG 1 to PG 10 can each independently be a protecting group that is not removed by the deprotection methods of the invention.
- protecting groups include Fmoc, Alloc and the like.
- PG 1 to PG 10 can also each independently be a group that does not act as a protecting group, such as a group that is not removed or a group that can be structurally converted.
- protecting groups include those described in “Greene's, “Protective Groups in Organic Synthesis” (5th edition, John Wiley & Sons 2014).
- the structure in which at least two amino acid residues represented by the general formula (II) are linked to each other includes a large number of those that are susceptible to cleavage or transfer when known deprotection or deresinification conditions are used. .. These cuts and metastases are sometimes called damages.
- the reaction conditions of the present invention only the desired protecting group or resin for solid phase synthesis can be selectively and efficiently deprotected without suffering such damage.
- a structure in which two amino acid residues represented by general formula (II) are linked includes a structure in which one N-substituted amino acid and one N-unsubstituted amino acid are linked, or two N-substituted amino acids.
- R 1 ′ of the general formula (II) is represented by the general formula (III)
- R 11 in the formula (III) is —C(R 11A )(R 11B )- (formula IV) and the structure (formula V) in which R 11 in formula (III) is a single bond.
- Each group in formula (IV) and formula (V) may be the same as each group in formula (II) and formula (III).
- R 1 is hydrogen, PG 1 , a natural amino acid residue, or an amino acid analog residue.
- R 1 is hydrogen, PG 1 , a natural amino acid residue, or an amino acid analog residue
- R 2 and R 10 are methyl, ethyl, propyl. , Butyl and pentyl are preferred.
- R 1 is hydrogen, PG 1 , a natural amino acid residue, or an amino acid analog residue, and R 2 and R 10 or R 2 and R 10′. It is preferred that each independently, together with the nitrogen and carbon atoms to which they are attached, form a 3- to 7-membered heterocycle optionally substituted by hydroxy or C 1 -C 4 alkoxy.
- R 10′ is hydrogen
- R 10′ is hydrogen
- 10 is hydrogen.
- R 10′ is hydrogen, and R 10 is hydrogen, optionally substituted C 1 -C 6 alkyl, C 3 -C 6 cycloalkyl , C 3 -C 6 cycloalkyl C 1 -C 4 alkyl, optionally substituted phenyl, optionally substituted phenylmethyl, optionally substituted phenylethyl, 2-(methylthio)ethyl, -CH 2 SPG 8 , N-PG 9 -indol-3-ylmethyl, 4-(PG 8 O)benzyl, PG 8 -O-methyl, 1-(PG 8 O)ethyl, 2-(PG 8 O)ethyl, PG 8- OCO(CH 2 )-, PG 8 -OCO(CH 2 ) 2 -, PG 9 Nn-butyl, -CON(R 16A )(R 16B ), -CH 2 -CON(R 16A )(R 16B ), -CH 2 -CON(R 16A
- R 6 can be C 1 -C 6 alkyl, of which methyl, ethyl, propyl, butyl, pentyl are preferred.
- R 13 can be C 1 -C 4 alkyl, of which methyl, ethyl, propyl, or butyl is preferred, and methyl or ethyl Is more preferable.
- R 13 in formula (IV) and formula (V), can be —(CH 2 ) m CON(R 17A )(R 17B ), where m is 0, 1, or 2. is there.
- R 17A and / or R 17B are independently be a C 1 -C 4 alkyl, as the C 1 -C 4 alkyl, preferably methyl, ethyl.
- R 17A and R 17B can also be combined with the nitrogen atom to which they are attached to form a 4-8 membered ring which may include one or more additional heteroatoms, said 4
- the -8-membered ring is preferably an azetidine ring, a pyrrolidine ring, a piperidine ring, a piperazine ring or a morpholine ring.
- R 12 and R 12′ are independently hydrogen, PG 10 —O-methyl, —(CH 2 ) n COO-PG 10 , —( CH 2 ) n COO-RES, and -(CH 2 ) n CONH-RES.
- R 12 and R 12′ are PG 10 —O-methyl, —(CH 2 ) n COO-PG 10 , —(CH 2 ) n COO-RES, or —(CH 2 ) n CONH-RES.
- N is 0, 1 or 2
- PG 10 is preferably t-Bu, trityl, cumyl, benzyl, methyl or allyl.
- RES is a resin for solid phase synthesis, preferably CTC resin or Wang resin.
- one of R 12 and R 12′ is selected from —(CH 2 ) n COO-RES, and —(CH 2 ) n CONH-RES. It is preferable.
- R 1 in the formula is hydrogen, PG 1 , a natural amino acid residue, or an amino acid analog residue
- R 2 is methyl, ethyl, and/or R 2 and R 10 , together with the nitrogen and carbon atoms to which they are attached, may be substituted by hydroxy or C 1 -C 4 alkoxy.
- R 10 and R 10′ are each independently selected from methyl and ethyl, or R 10 and R 10′ may be taken together to form a 5- or 6-membered alicyclic ring. .
- R 10′ is hydrogen
- R 10 is hydrogen or alkyl selected from methyl, ethyl, isopropyl, isobutyl, sec-butyl, or optionally substituted phenylmethyl, substituted
- R 13 is —(CH 2 ) m CON(R 17A )(R 17B ), R 17A and R 17B , together with the nitrogen atom to which they are attached, form a piperidine ring.
- R 12 and R 12′ are independently hydrogen, PG 10 —O-methyl, —(CH 2 ) n COO-PG 10 , —(CH 2 ) n COO-RES, and —(CH 2 ) n. It is selected from the group consisting of CONH-RES.
- the starting peptide compound may include one or more additional natural amino acid residues and/or amino acid analog residues in addition to the structure represented by the general formula (II).
- the starting peptide compound comprises one or more structures of general formula (I), a structure of general formula (II) at the C-terminus, and optionally one or more additional natural compounds. It can also include amino acid residues and/or amino acid analog residues.
- the peptide compound may be formed of a secondary amide, a tertiary amide, or a mixture of a secondary amide and a tertiary amide.
- the starting peptide compound comprises at least one protecting group deprotectable by the methods of the invention.
- a protecting group may be contained in the structure represented by the general formula (II) or may be contained in an amino acid residue other than the structure represented by the general formula (II).
- the starting peptide compound comprises at least one resin for solid phase synthesis that is deresinable by the method of the present invention.
- a resin is included in the structure represented by the general formula (II) when the starting peptide compound contains the structure represented by the general formula (II).
- the invention comprises the step of deprotecting a protecting group deprotectable by the silylating agent from the starting amide compound by contacting the starting amide compound with a silylating agent in a solvent.
- the present invention relates to a method for producing an amide compound in which the protecting group is deprotected.
- the present invention comprises a step of deresinating a starting amide compound from a resin for solid phase synthesis by contacting the starting amide compound with a silylating agent in a solvent.
- the present invention relates to a method for producing an amide compound which is deresined.
- the starting amide compound to be deprotected/deresined is represented by the general formula (II).
- R 1′ is a hydrogen atom or PG 7 , and the other groups have the same meanings as described above.
- R 6 is preferably C 1 -C 6 alkyl.
- PG 7 is selected from the group consisting of Fmoc, Boc, Alloc, Cbz, Teoc, and trifluoroacetyl, with Fmoc, Boc, Cbz being preferred.
- the starting amide compound represented by the general formula (II), particularly the N-substituted compound, is susceptible to damage such as transfer when using known deprotection and deresinification conditions.
- damage such as transfer when using known deprotection and deresinification conditions.
- the “silylating agent” is not particularly limited as long as it can be subjected to the deprotection or the resin removal reaction of the present invention, and a deprotecting agent or a deprotecting reagent, and/or a resin removing agent. Alternatively, it means a substance capable of acting as a deresinating reagent, and in the present specification, the “silylating agent” may be referred to as a deprotecting agent or deprotecting reagent, and/or a deresinating agent or deresinating reagent.
- the silylating agent can be produced, for example, by mixing the silyl compound and an electrophilic species scavenger in a solvent, or by mixing an acid and an electrophilic species scavenger having a silyl group. Mixing of these silyl compounds with an electrophilic species scavenger, or with an acid and an electrophilic species scavenger having a silyl group, may be carried out either in advance or in a solvent. You may mix in presence or absence.
- examples of the “silyl compound” include a silyl compound represented by the following formula 1 and having a leaving group (X).
- R AX , R AY , and R AZ are independently C 1 -C 4 alkyl or phenyl, and X is from the group consisting of —OTf, —OClO 3 , Cl, Br, and I. Selected.
- R AX , R AY , and R AZ can independently be preferably selected from methyl, ethyl, i-propyl, t-butyl, phenyl.
- silyl compounds include TMSOTf, TESOTf, TBSOTf, TIPSOTf, TBDPSOTf, TTMSOTf, TMSCl, TMSBr, TMSOClO 3 , and TMSI.
- the “acid” that can be used to generate the silylating agent is not particularly limited as long as it can generate the silyl compound, and examples thereof include HX (wherein X is the same as X in formula (1)).
- the “electrophilic species scavenger” is a compound capable of forming an adduct or a salt with a proton, or a compound which reacts with a cationic species and is less susceptible to silylation.
- an electrophilic species scavenger imidate (formula 2), amide (formula 3), ketene acetal (formula 4), ketene alkoxyhemiaminal (formula 4), enol ether (formula 4), enol ester (formula 4) 4), imine (formula 5), amine (formula 6), diamine (formula 7), dialkylcarbodiimide (formula 8), urea (formula 9) or urethane (formula 10).
- the substituted silyl group is specifically TMS (trimethylsilyl), TES (triethylsilyl), TBS (trimethylbutylsilyl), TIPS (triisopropylsilyl). , TBDPS (t-butyl-dimethylsilyl).
- the imidate is represented by Formula 2.
- R B is a substituted silyl group
- R C is a substituted silyl group, or R B and R C together with the nitrogen and carbon atoms to which they are attached form a 5-7 membered ring.
- R D is C 1 -C 4 alkyl optionally substituted with one or more fluorine atoms or optionally substituted methylene, wherein R D is optionally substituted methylene. If so, Equation 2 is dimerized into the following equation: To form a compound represented by
- the imidate include N-silylimidate represented by the formula 2-1 and bisoxazolines represented by the formula 2-2 below.
- R BX , R BY , and R BZ are independently C 1 -C 4 alkyl or phenyl, R C and R D are as defined above, R E and R F are independently C 1 -C 4 alkyl
- R BX , R BY , and R BZ can be independently selected from methyl, ethyl, i-propyl, t-butyl, and phenyl.
- the N-silylimidate is preferably N,O-bis(trimethylsilyl)acetamide represented by formula 2-1-1, and the bisoxazoline is preferably represented by formula 2-2-1. -Substituted bisoxazolines.
- the N-silylimidate is more preferably N,O-bis(trimethylsilyl)acetamide represented by the formula 2-1-1-1, and N,O-bis(formulae represented by the formula 2-1-1-2.
- Trimethylsilyl)trifluoroacetamide, and more preferred bisoxazolines are N,O-bis(trimethylsilyl)trifluoroacetamide 2,2′-isopropylidenebis[(represented by formula 2-2-1-1. 4S)-4-tert-butyl-2-oxazoline].
- the amide is represented by Formula 3.
- R G is a silyl group substituted with one or more C 1 -C 4 alkyl
- R H is hydrogen, C 1 -C 4 alkyl
- R I is hydrogen, C 1 -C 4 alkyl optionally substituted with one or more fluorine atoms.

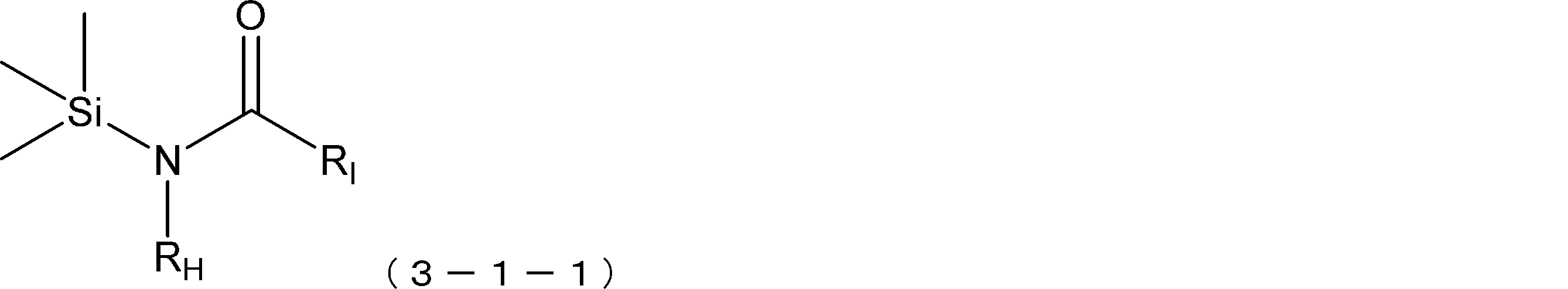

- Preferred amides include N-silylamides represented by formula 3-1.
- R GX , R GY and R GZ are independently C 1 -C 4 alkyl or phenyl, R H and R I are as defined above] Further, R GX , R GY and R GZ can be independently selected from methyl, ethyl, i-propyl, t-butyl and phenyl.
- N-silylamide examples include N-trimethylsilylacetamide represented by formula 3-1-1. [Wherein, R H and R I have the same meaning as above]
- the N-trimethylsilylacetamides are N-methyl-N-trimethylsilylacetamide represented by the formula 3-1-1-1, and N-methyl-N-represented by the formula 3-1-1-2. Trimethylsilyl trifluoroacetamide may be mentioned.
- ketene acetal, ketene alkoxy hemiaminal, enol ether, and enol ester are all represented by Formula 4.
- R J is a substituted silyl group
- R K is C 1 -C 4 alkoxy
- R M and R L are independently hydrogen or C 1 -C 4 alkyl
- R J is a substituted silyl group
- R M is hydrogen, or C 1 -C 4 alkyl
- R K and R L are taken together with the carbon atom to which they are attached.
- R J is a substituted silyl group
- R K is C 1 -C 4 alkyl
- R M and R L are independently hydrogen or C 1 -C 4 alkyl
- R J is a substituted silyl group
- R M is hydrogen, or C 1 -C 4 alkyl
- R K and R L together with the carbon atom to which they are attached are 5
- an 8-membered ring (C-1) R J and R M are taken together with the carbon atom to which they are bound to form a 5-7 membered ring containing an oxygen atom
- R K is hydrogen or C 1 -C 4 alkyl
- R L is C 1 -C 4 alkyl
- R J and R M are taken together with the carbon atom to which they are bonded to form a 5- to 7-membered ring containing an oxygen atom, and R K and R L are bonded to each other
- R J is C 1 -C 4 alkyl
- R M , R K , and R L are independently hydrogen, or C 1 -C 4 alkyl
- D-2 R J is C 1 -C 4 alkyl
- R M is hydrogen, or C 1 -C 4 alkyl
- R K and R L are the same as the carbon atom to which they are attached.
- R J is C 1 -C 3 alkylcarbonyl
- R M , R K , and R L are independently hydrogen, or C 1 -C 4 alkyl
- (E-2) R J is C 1 -C 3 alkylcarbonyl
- R M is hydrogen, or C 1 -C 4 alkyl
- R K and R L are the carbon atom to which they are attached.
- R J is a substituted silyl group or C 1 -C 4 alkyl
- R K is an optionally substituted di-C 1 -C 4 alkylamino
- R M and R L are Independently hydrogen, or C 1 -C 4 alkyl
- (F-2) or R J is a substituted silyl group or C 1 -C 4 alkyl
- R M is hydrogen or C 1 -C 4 alkyl
- R K and R L are Together with the carbon atoms present, form a 5- to 8-membered ring containing a nitrogen atom, which 5- to 8-membered ring may be substituted by C 1 -C 4 alkyl]
- preferable C 1 -C 4 alkyl includes methyl, ethyl, n-propyl, isopropyl, n-butyl, i-butyl and t-butyl.
- preferable C 1 -C 3 alkyl includes methyl, ethyl, n
- the ketene acetal is preferably a silyl ketene acetal represented by the formula 4-1.
- R JX1 , R JY1 and R JZ1 are independently C 1 -C 4 alkyl or phenyl
- R KX1 is C 1 -C 4 alkyl
- R L and R M are as defined above.
- preferable C 1 -C 4 alkyl includes methyl, ethyl, n-propyl, isopropyl, n-butyl, i-butyl and t-butyl.
- R JX1 , R JY1 and R JZ1 can be independently selected from methyl, ethyl, i-propyl, t-butyl and phenyl.
- ketene silyl acetal preferably ketene trimethyl silyl acetal represented by the formula 4-1-1 is mentioned.
- R KX1 , R L , and R M are as defined above
- preferable examples of R KX1 , R L and R M include methyl, ethyl, n-propyl, isopropyl, n-butyl, i-butyl and t-butyl.
- the ketene trimethylsilyl acetal is preferably dimethyl ketene methyl trimethylsilyl acetal represented by the formula 4-1-1-1.
- enol ether examples include silyl enol ether represented by the formula 4-2.
- R JX2 , R JY2 and R JZ2 are independently C 1 -C 4 alkyl or phenyl
- R KX2 is hydrogen, or C 1 -C 4 alkyl
- R L and R M are as defined above.
- the C 1 -C 4 alkyl of R KX1 , R L and R M is preferably methyl, ethyl, n-propyl, isopropyl, n-butyl, i-butyl or t-butyl.
- R JX2 , R JY2 and R JZ2 are independently selected from the group consisting of methyl, ethyl, i-propyl, t-butyl and phenyl.
- the silyl enol ether is preferably trimethylsilyl enol ether represented by the formula 4-2-1. [In the formula, R KX2 , R L , and R M are as defined above]
- the trimethylsilyl enol ether is preferably isopropenyloxytrimethylsilane represented by the formula 4-2-1-1.
- the enol ether preferably includes a cyclic enol ether represented by formula 4-3.
- R KX3 , and R L1 are independently hydrogen, or C 1 -C 4 alkyl
- the cyclic enol ether is preferably dihydropyran represented by the formula 4-3-1.
- the enol ether is preferably an in-chain enol ether, and the in-chain enol ether is preferably an ethyl vinyl ether represented by the formula 4-4.

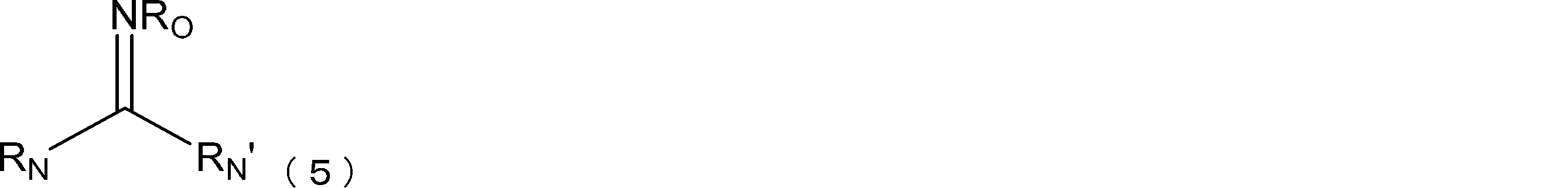

- the imine is represented by Formula 5.
- R N , R N′ , and R O are independently hydrogen or C 1 -C 4 alkyl.
- the C 1 -C 4 alkyl of R N , R N′ and R O is preferably methyl, ethyl, n-propyl, isopropyl, n-butyl, i-butyl or t-butyl.
- the imine is preferably a ketimine represented by the formula 5-1.
- R N has the same meaning as above
- Preferred R N and R N′ include methyl, ethyl, n-propyl, isopropyl, n-butyl, i-butyl and t-butyl.
- 2,2,4,4-tetramethylpentanone imine represented by the formula 5-1-1 is preferable.
- the amine is represented by Formula 6.
- R P is a substituted silyl group
- R Q is a substituted silyl group or C 1 -C 4 alkyl
- R R is hydrogen, a substituted silyl group or C 1 -C 4 alkyl, or R Q and R R are 5 to 8 membered heterocyclic ring containing oxygen atom together with the existing nitrogen atom.

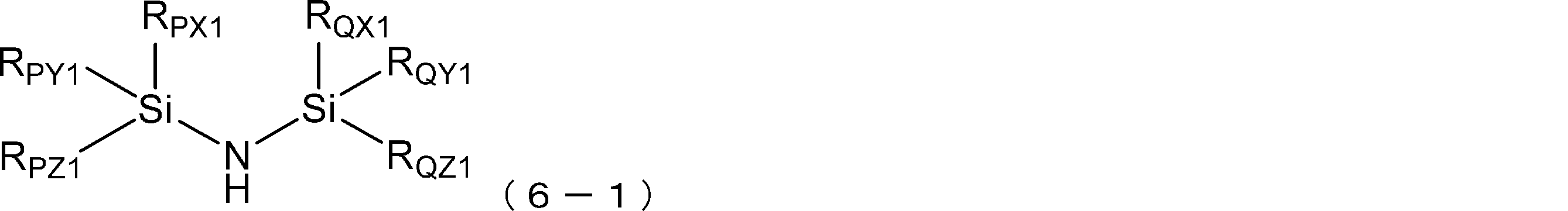

- Preferred amines include disilylamines represented by formula 6-1.
- R PX1, R PY1, R PZ1 , R QX1, R QY1 and R QZ1 are independently C 1 -C 4 alkyl or phenyl
- R PX1, R PY1, R PZ1, R QX1, R QY1 and R QZ1 are independently methyl, ethyl, i- propyl, t- butyl, and is preferably selected from the group consisting of phenyl.
- the disilylamine is preferably 1,1,1,3,3,3-hexamethyldisilazane (HMDS) represented by the formula 6-1-1.
- HMDS 1,1,1,3,3,3-hexamethyldisilazane

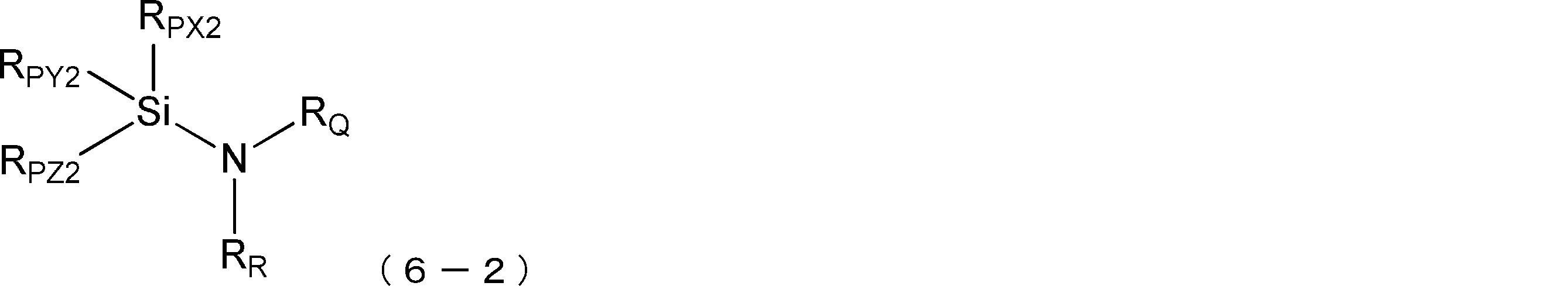

- the amine preferably includes an N-dialkyl-N-silylamine represented by the formula 6-2.
- R PX2 , R PY2 and R PZ2 are independently C 1 -C 4 alkyl or phenyl, R Q and R R are as defined above]
- the C 1 -C 4 alkyl of R PX2 , R PY2 and R PZ2 is preferably methyl, ethyl, n-propyl, isopropyl, n-butyl, i-butyl or t-butyl. It is also preferred that R PX2 , R PY2 and R PZ2 are independently selected from the group consisting of methyl, ethyl, i-propyl, t-butyl, phenyl.
- the N-dialkyl-N-silylamine is preferably N-dialkyl-N-trimethylsilylamine represented by the formula 6-2-1. [In the formula, R Q and R R are as defined above]
- N-dialkyl-N-trimethylsilylamine examples include N-trimethylsilylmorpholine represented by formula 6-2-1-1 and N-trimethylsilyldiethylamine represented by formula 6-2-1-2.
- the amine preferably includes N-alkyl-N-disilylamines represented by formula 6-3.
- R QX3, R QY3, R QZ3 , R RX1, R RY1 and R RZ1 are independently C 1 -C 4 alkyl or phenyl, R R is C 1 -C 4 alkyl
- R QX3, R QY3, R QZ3, R RX1, R RY1 and R RZ1 are independently methyl, ethyl, i- propyl, t- butyl, may be selected from phenyl.
- preferable C 1 -C 4 alkyl for R R includes methyl, ethyl, n-propyl, isopropyl, n-butyl, i-butyl and t-butyl.
- N-alkyl-N-disilylamines include N-alkyl-N-bistrimethylsilylamines represented by the formula 6-3-1.
- R R is C 1 -C 4 alkyl
- Examples of preferable C 1 -C 4 alkyl for RR include methyl, ethyl, n-propyl, isopropyl, n-butyl, i-butyl and t-butyl.

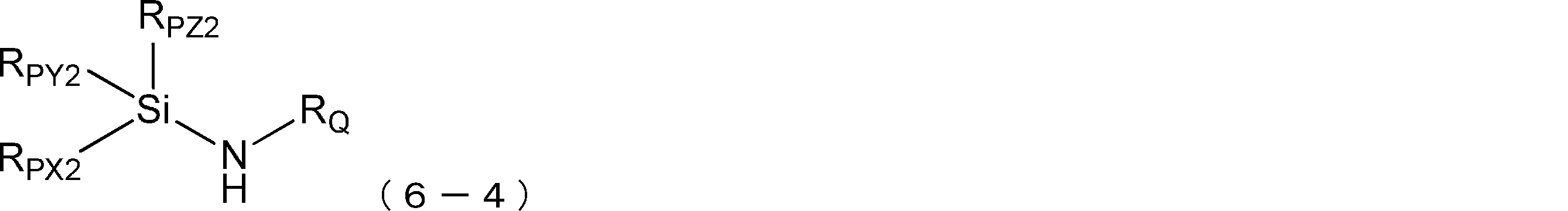

- the amine preferably includes an N-alkyl-N-silylamine represented by Formula 6-4.
- R PX2 , R PY2 , and R PZ2 are independently C 1 -C 4 alkyl or phenyl
- R Q is C 1 -C 4 alkyl
- R PX2 , R PY2 , and R PZ2 are independently selected from the group consisting of methyl, ethyl, i-propyl, t-butyl, and phenyl.
- the C 1 -C 4 alkyl of R Q is preferably methyl, ethyl, n-propyl, isopropyl, n-butyl, i-butyl or t-butyl.
- the N-alkyl-N-silylamine is preferably N-alkyl-N-trimethylsilylamine represented by the formula 6-4-1.
- R Q is C 1 -C 4 alkyl
- the C 1 -C 4 alkyl of R Q is preferably methyl, ethyl, n-propyl, isopropyl, n-butyl, i-butyl or t-butyl.
- N-alkyl-N-trimethylsilylamine examples include N-tert-butyltrimethylsilylamine represented by the formula 6-4-1-1.
- the diamine is represented by Formula 7.
- X is a single bond or a carbon atom
- R S is absent and R UA and R R are a 6-membered aromatic optionally substituted together with the carbon and nitrogen atoms to which they are bonded.
- Form a group heterocycle and R UB and R T together with the carbon and nitrogen atoms to which they are attached form an optionally substituted 6-membered aromatic heterocycle
- R UA and R UB are independently C 1 -C 4 alkyl
- R R and R S and R T are together with the carbon atom to which they are attached: Structure of: To form.
- the diamine preferably includes the tetraalkylnaphthalenediamine represented by the formula 7-1.
- R UA and R UB are independently C 1 -C 4 alkyl.

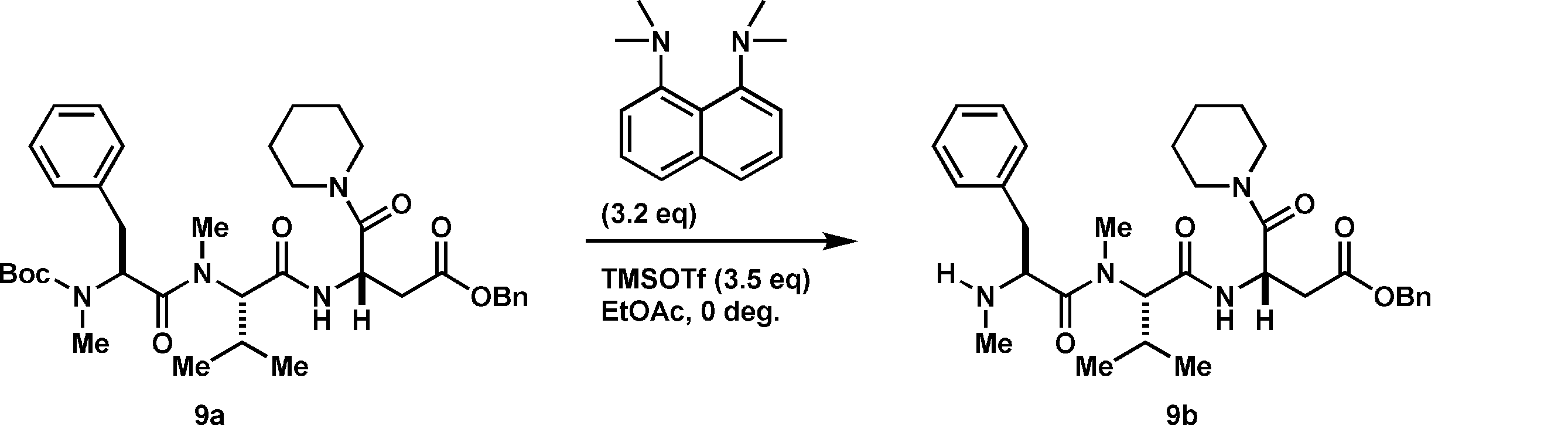

- tetraalkylnaphthalenediamine examples include N,N,N′,N′-tetramethyl-1,8-naphthalenediamine represented by the formula 7-1-1.
- the diamine when X in formula 7 is a single bond, the diamine preferably includes 2,2′-bipyridine represented by formula 7-2-1.
- the dialkylcarbodiimide is represented by Formula 8. [Wherein R V is C 1 -C 4 alkyl or C 3 -C 6 cycloalkyl. ] Preferable examples of C 1 -C 4 alkyl of R V include methyl, ethyl, n-propyl, isopropyl, n-butyl, i-butyl, t-butyl and cyclohexyl.
- the dialkylcarbodiimide is preferably diisopropylcarbodiimide represented by the formula 8-1.
- the urea is represented by Formula 9. [Wherein R W and R X are independently C 1 -C 4 alkyl, or a substituted silyl group]
- the urea is preferably N,N′-bis(trimethylsilyl)urea represented by the formula 9-1.
- the urethane is represented by Formula 10. [Wherein R Y and R Z are independently a C 1 -C 4 alkyl, or a substituted silyl group. ]

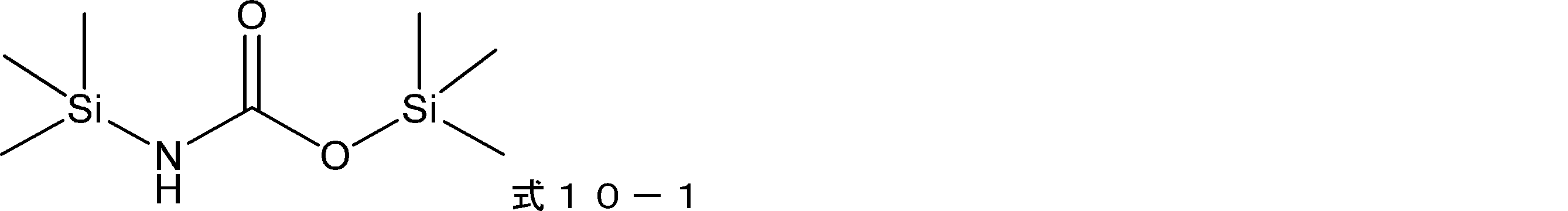

- Preferable urethane is N,O-bis(trimethylsilyl)urea represented by the formula 10-1.
- the silylating agent can be produced by mixing the peptide compound, the solvent, the electrophilic species scavenger, and the silyl compound or acid in any order. It is preferred to mix the peptide compound with the solvent, then the electrophilic species scavenger, and then the silyl compound or acid.
- the solvent may be an aprotic solvent, and examples thereof include esters, ethers, alkylnitriles, halogenated hydrocarbons and hydrocarbons.
- esters, ethers, alkylnitriles, halogenated hydrocarbons and hydrocarbons include esters, ethers, alkylnitriles, halogenated hydrocarbons and hydrocarbons.
- ethyl acetate, isopropyl acetate, 2-methyltetrahydrofuran, tetrahydrofuran, diethyl ether, methyl tert-butyl ether, dichloromethane, 1,2-dichloroethane, toluene, or acetonitrile are preferable, and ethyl acetate, isopropyl acetate, 2-methyl are preferable.
- Tetrahydrofuran, tetrahydrofuran, or 1,2-dichloroethane is more preferable, and ethyl
- a stoichiometric or more stoichiometric amount of a silyl compound and an electrophilic species scavenger for deprotecting and/or deresining a protecting group and/or resin from a peptide compound in the present invention by generating a silylating agent can be used.
- An equivalent amount, preferably 1 to 8 equivalents of the electrophilic species scavenger can be used.
- a catalytic amount for example, 0.1 to 0.5 equivalents, preferably 0.3 to 0.4 equivalents, of silyl compound with respect to 1 equivalent of a protecting group to be removed or 1 equivalent of a resin to be removed.
- a silylating agent can be produced by combining with an electrophilic species scavenger.
- the silylating agent is preferably TMSOTf, TESOTf, TBSOTf, TIPSOTf, TBDPSOTf, TTMSOTf, TMSCl, TMSBr, or TMSOClO 3
- the electrophilic species scavenger is N,O-bis(trimethylsilyl)acetamide, N , O-bis(trimethylsilyl)trifluoroacetamide, N-methyl-N-trimethylsilylacetamide, N-methyl-N-trimethylsilyltrifluoroacetamide, dimethylketenemethyltrimethylsilylacetal, or isopropenyloxytrimethylsilane is preferably used.
- 1 to 10 equivalents, preferably 1 to 8 equivalents of the electrophilic species scavenger can be used with respect to 1 equivalent of the protective group to be removed or 1 equivalent of the resin to be removed.
- 0.1 to 0.5 equivalents, preferably 0.3 to 0.4 equivalents of acid, relative to a catalytic amount, such as 1 equivalent of protecting groups to be removed or 1 equivalent of resin to be removed can be combined with an electrophilic species scavenger to produce a silylating agent.
- a catalytic amount such as 1 equivalent of protecting groups to be removed or 1 equivalent of resin to be removed
- an electrophilic species scavenger to produce a silylating agent.
- the acid TfOH, HOClO 3 , HCl, HBr, and HI are preferably used, and TfOH is more preferably used.
- N-silylimidate (formula 2-1), N-silylamide (formula 3-1), ketene silyl acetal (formula 4-1) and silyl enol ether (formula 4-2) are preferable as the electrophilic species scavenger.
- N,O-bis(trimethylsilyl)acetamide (formula 2-1-1-1), N,O-bis(trimethylsilyl)trifluoroacetamide (formula 2-1-1-2), N-methyl-N -Trimethylsilylacetamide (formula 3-1-1-1), N-methyl-N-trimethylsilyltrifluoroacetamide (formula 3-1-2), dimethylketene methyltrimethylsilyl acetal (formula 4-1-1-1) , Or isopropenyloxytrimethylsilane (formula 4-2-1-1) is more preferably used.
- N,O-bis(trimethylsilyl)trifluoroacetamide and N-methyl-N-trimethylsilyltrifluoroacetamide are particularly preferable.
- 1 to 10 equivalents, preferably 1 to 8 equivalents of the electrophilic species scavenger can be used with respect to 1 equivalent of the protective group to be removed or 1 equivalent of the resin to be removed.
- the “protecting group that can be deprotected by a silylating agent” is not particularly limited as long as it is a protecting group that can be deprotected by the silylating agent.
- a protecting group include carboxyl-protecting groups such as t-Bu, benzyl, triphenylmethyl, cumyl and 2-(trimethylsilyl)-ethyl, Boc, Teoc, Cbz, methoxycarbonyl and cumyl.
- Examples of the chemical synthesis method of the starting peptide compound in the present specification include a liquid phase synthesis method, a solid phase synthesis method using Fmoc synthesis or Boc synthesis, and a combination thereof.
- Fmoc synthesis the main chain amino group is protected by the Fmoc group, the side chain functional group is protected by a basic non-cleavable protecting group such as piperidine as necessary, and an amino acid that does not protect the main chain carboxylic acid is used as a basic unit.
- the basic unit is not particularly limited as long as it is a combination having an Fmoc-protected amino group and a carboxylic acid group.
- a dipeptide may be used as a basic unit.
- the basic unit placed at the N-terminus may be other than the Fmoc amino acid.
- it may be a Boc amino acid or a carboxylic acid analog having no amino group.
- the main chain carboxylic acid group is supported on the solid phase by a chemical reaction with the functional group of the solid phase carrier. Subsequently, the Fmoc group is deprotected with a base such as piperidine or DBU, and the newly generated amino group is subjected to a condensation reaction with a protected amino acid having a basic unit of carboxylic acid to be added subsequently to form an amide bond. .
- the desired peptide sequence can be generated by repeating the Fmoc-eliminating group and the subsequent amide bond formation reaction. After the desired sequence is obtained, the resin is removed from the solid phase and, if necessary, the protecting group for the side chain functional group is deprotected.
- the deprotection method and the resin removal method of the present invention can be provided for deresinating from the solid phase and deprotecting the protective group of the side chain functional group.
- a step such as cyclization can be carried out between the solid phase and the resin removal step or the deprotection step or at the end.
- a side chain carboxylic acid can be condensed with an amino group of the N-terminal main chain, or a side chain amino group can be condensed with a carboxylic acid of a C-terminal main chain.
- reaction orthogonality is required between the carboxylic acid on the C-terminal side and the side-chain carboxylic acid to be cyclized, or between the main chain amino group or hydroxy group on the N-terminal side and the side-chain amino group to be cyclized.
- the protecting group is selected in consideration of the orthogonality of the protecting group.
- the reaction product thus obtained can be purified by a reverse phase column, a molecular sieve column or the like.
- the “solid phase synthesis resin” is not particularly limited as long as it can be used for the synthesis of the peptide compound by the solid phase method and can be removed by the silylating agent of the present invention.
- Specific examples of such a resin for solid phase synthesis include CTC resin, Wang resin, SASRIN resin, trityl chloride resin (Trt resin), 4-methyltrityl chloride resin (Mtt resin), and 4-methoxytrityl chloride. Examples thereof include those that can be removed under acidic conditions such as resin (Mmt).
- the resin can be appropriately selected according to the functional group on the amino acid side to be used.
- a carboxylic acid main chain carboxylic acid or a side chain carboxylic acid represented by Asp or Glu
- a hydroxy group on an aromatic ring phenol group represented by Tyr
- Trt resin trityl chloride resin
- CTC resin 2-chlorotrityl chloride resin
- the resin is trityl chloride resin (Trt resin), 2-chlorotrityl chloride resin (CTC resin).
- the type of polymer that constitutes the resin is not particularly limited. In the case of a resin composed of polystyrene, either 100-200 mesh or 200-400 mesh may be used. Further, the crosslinking rate is not particularly limited, but 1% DVB (divinylbenzene) crosslinking is preferable. Further, examples of the type of polymer that constitutes the resin include Tentagel or Chemmatrix.
- the deprotection reaction and/or the resin removal reaction of the present invention can be carried out at a reaction temperature of ⁇ 50 to 100° C., preferably ⁇ 20 to 50° C., more preferably 0 to 30° C.
- the deprotection reaction and/or the resin removal reaction of the present invention can be carried out for a reaction time of 10 minutes to 1 week, preferably 10 minutes to 6 hours, and more preferably 1 to 3 hours.
- alcohol or water is added to the reaction solution to stop the reaction, and the desired product is precipitated to obtain the organic layer, or the organic layer is mixed with water or a saline solution.
- the target substance can be obtained by concentrating the organic layer under reduced pressure.
- the alcohol is not particularly limited, but those which are water-soluble and have a low boiling point are preferable, and methanol is particularly preferable.
- the water used for stopping the reaction is not particularly limited, but alkaline water is preferable, and multi-layer water or dipotassium hydrogen phosphate is particularly preferable.
- the concentration of saline is not particularly limited, but saturated saline and 5% saline are preferable.
- the deprotection reaction and the deresin reaction can be performed simultaneously.
- the present invention includes a step of contacting a starting peptide compound containing a natural amino acid residue and/or an amino acid analog residue with a silylating agent in a solvent, the protecting group deprotectable by the silylating agent. Is also deprotected from the starting peptide compound, and a resin for solid phase synthesis that can be deresined with the silylating agent is deresined from the starting peptide compound.
- the invention provides the following formula (A):
- the present invention relates to an amide compound or a salt thereof.
- R 1 ′ is selected from the group consisting of hydrogen, Fmoc, Boc, Alloc, Cbz, Teoc, and trifluoroacetyl.
- R 1′ is preferably hydrogen, Fmoc, Boc, or Cbz.
- R 17A and R 17B are both methyl, or R 17A and R 17B together with the nitrogen atom to which they are attached form piperidine or morpholine.
- R 18 is hydrogen or PG 10 .
- PG 10 is t-Bu, trityl, cumyl, benzyl, methyl, ethyl, allyl, optionally substituted aryl, optionally substituted aryl C 1 -C 4 alkyl, optionally substituted heteroaryl Selected from the group consisting of C 1 -C 4 alkyl, and 2-(trimethylsilyl)ethyl.
- R 18 is preferably a hydrogen atom, t-Bu, benzyl or allyl.
- R 1′ and R 18 in the formula (A) are Fmoc and hydrogen atom, Fmoc and allyl, Fmoc and t-Bu, Fmoc and benzyl, Boc and hydrogen atom, Boc and allyl, Boc and t-Bu. , Boc and benzyl, Cbz and hydrogen atom, Cbz and allyl, Cbz and t-Bu, Cbz and benzyl, Alloc and hydrogen atom, Alloc and allyl, Alloc and t-Bu, Alloc and benzyl, Teoc and hydrogen atom, Teoc and Teoc. Examples thereof include allyl, Teoc and t-Bu, Teoc and benzyl, hydrogen atom and hydrogen atom, hydrogen atom and allyl, hydrogen atom and t-Bu, hydrogen atom and benzyl, and the like.
- amide compound represented by the formula (A) include the following compounds: (1-1) 3-((((9H-fluoren-9-yl)methoxy)carbonyl)(methyl)amino)-4-oxo-4-(piperidin-1-yl)butanoic acid, (1-2) 3-((((9H-fluoren-9-yl)methoxy)carbonyl)(methyl)amino)-4-oxo-4-(piperidin-1-yl)butanoyl allyl, (1-3) 3-((((9H-fluoren-9-yl)methoxy)carbonyl)(methyl)amino)-4-oxo-4-(piperidin-1-yl)butanoic acid tert-butyl, (1-4) 3-((((9H-fluoren-9-yl)methoxy)carbonyl)(methyl)amino)-4-oxo-4-(piperidin-1-yl)butanoic acid benzy
- the amide compound represented by the formula (A) of the present invention can be synthesized, for example, according to the following scheme.

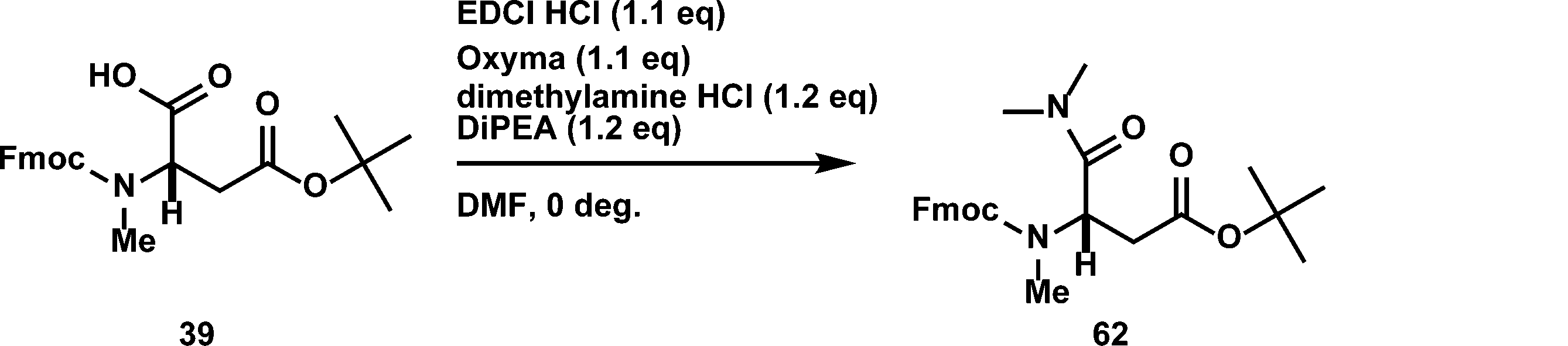

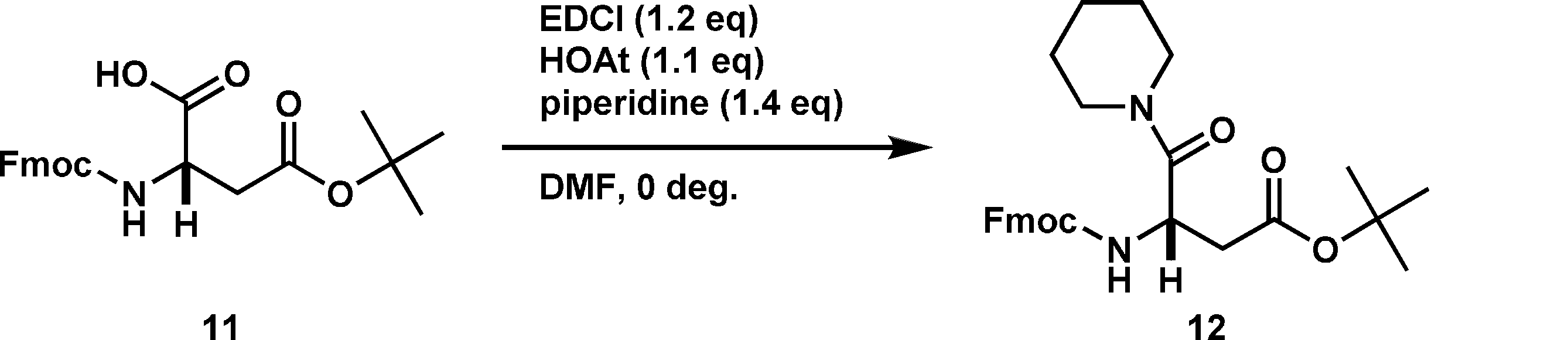

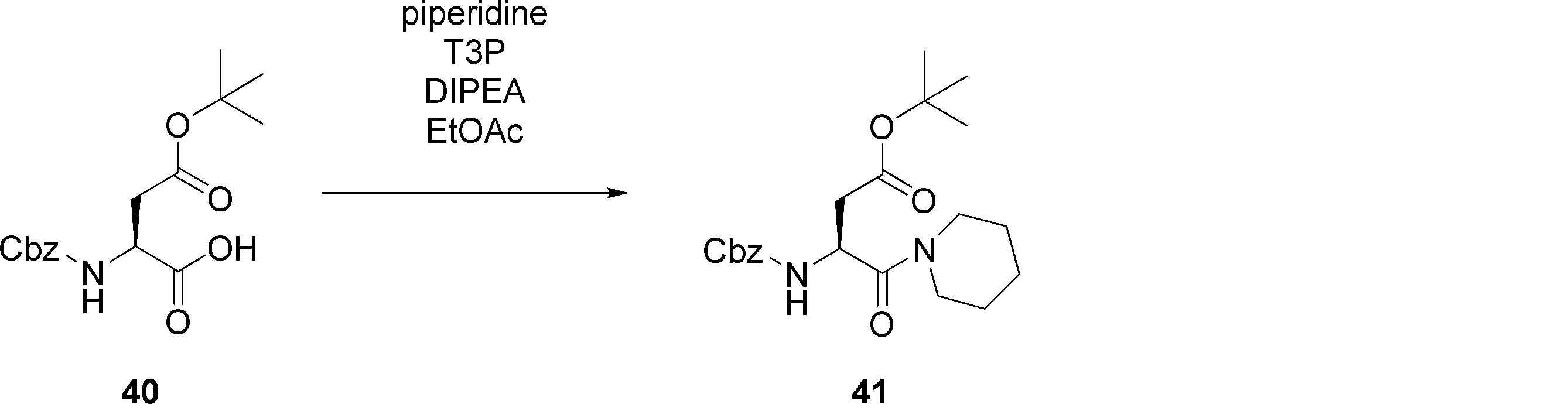

- the amidation step in the above scheme is carried out, for example, by the solid phase synthesis handbook (publisher: Merck Ltd., issue date: May 1, 2002) or the method of Albert et al. (Synthesis, 1987, 7, 635-637).
- An arbitrary amine ((R 17A )(R 17B )NH) and a carboxyl group can be condensed with a dehydration condensing agent such as a carbodiimide compound.
- the deprotection step in the above scheme is performed, for example, by using the method described in “Greene's, “Protective Groups in Organic Synthesis” (5th edition, John Wiley & Sons 2014)” or the deprotection method described in this specification. Can be done using.
- the compound according to the present invention may be in a free form or a salt thereof, and both are included in the present invention.
- a “salt” include inorganic acid salts, organic acid salts, inorganic basic salts, organic basic salts, acidic or basic amino acid salts, and the like.
- Examples of the inorganic acid salt include hydrochloride, hydrobromide, sulfate, nitrate, phosphate and the like, and examples of the organic acid salt include acetate, succinate, fumarate, maleate. , Tartrate, citrate, lactate, stearate, benzoate, methanesulfonate, benzenesulfonate, p-toluenesulfonate and the like.
- Examples of the inorganic base salt include alkali metal salts such as sodium salt and potassium salt, alkaline earth metal salts such as calcium salt and magnesium salt, aluminum salt and ammonium salt, and examples of the organic base salt include diethylamine salt. , Diethanolamine salt, meglumine salt, N,N-dibenzylethylenediamine salt and the like.
- Examples of the acidic amino acid salt include aspartate and glutamate, and examples of the basic amino acid salt include arginine salt, lysine salt and ornithine salt.
- the compound of the present invention may absorb water by being left in the air to become a hydrate, and such a hydrate is also included in the present invention.
- the compound of the present invention may absorb a certain other solvent to form a solvate, and such a solvate is also included in the present invention.
- the structural formulas of the compounds of the present invention may represent certain isomers for convenience, but all isomers that occur in the structure of the compound, such as geometric isomers, optical isomers and tautomers, and Isomeric mixtures are included in the present invention and are not limited to the description of formulas for convenience.
- the compound has an asymmetric carbon atom in the molecule and exists in an optically active form and a racemate, both are included in the present invention.
- the solvents exemplified in methylene chloride, ethyl acetate, 2-MeTHF, dichloroethane, DMF and the like used in the practice of the present invention were commercial suppliers and were used without purification.
- a dehydrated solvent, a super dehydrated solvent, an anhydrous solvent, or the like was used as a commercial supplier without purification.
- Reagents used in the practice of the present invention such as silyl compounds exemplified by TMSOTf used in the practice of the present invention, or electrophilic species scavengers exemplified in BSA and BSTFA, are commercially available except those specifically described. The commercial supplier was used without purification.
- the starting peptide compound and starting amide compound used in the practice of the present invention were used without purification from commercial suppliers, except as specifically described. Further, if necessary, it was produced by a known method and used.

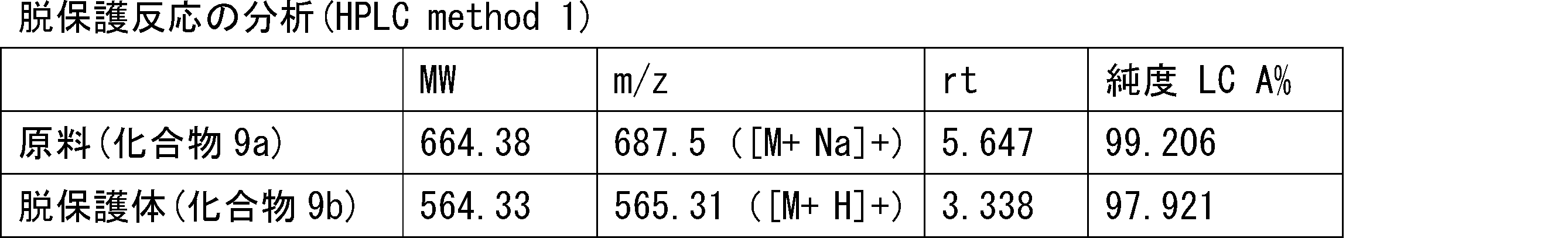

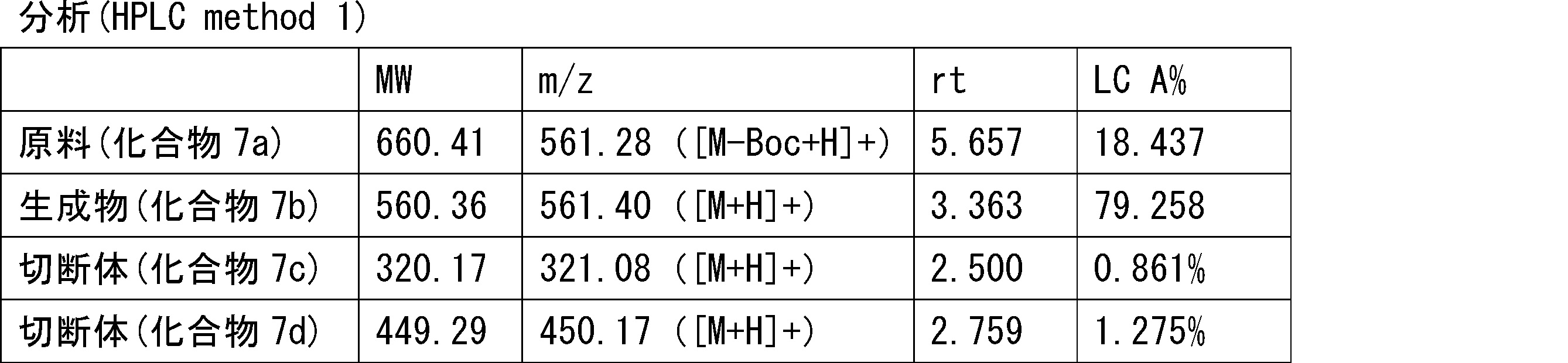

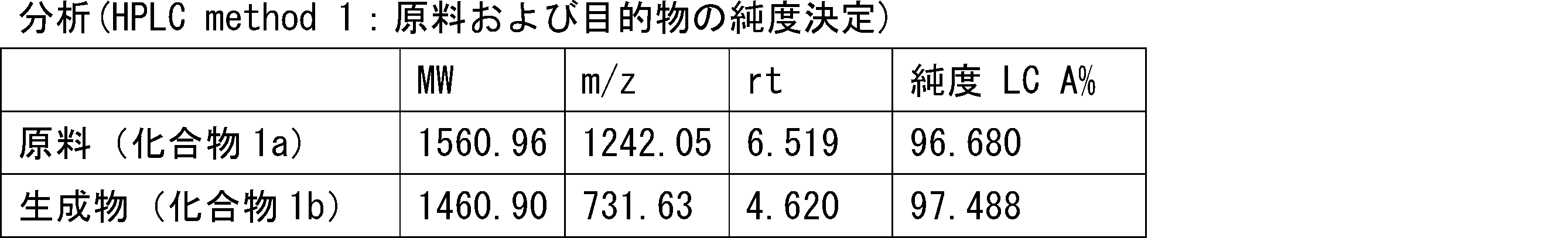

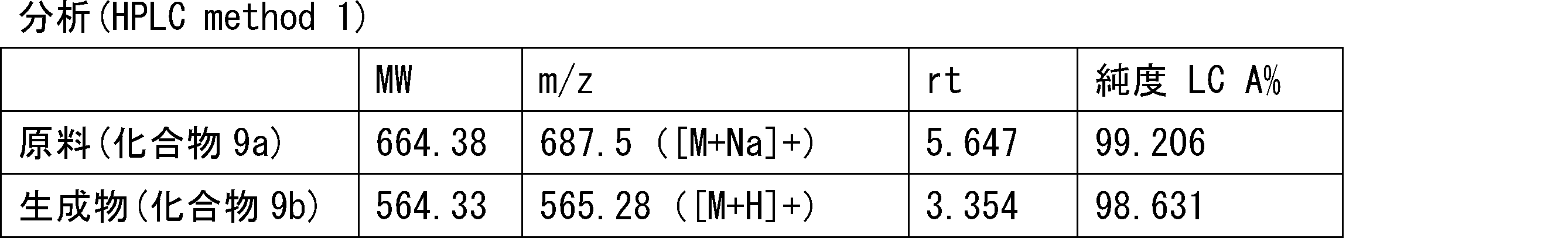

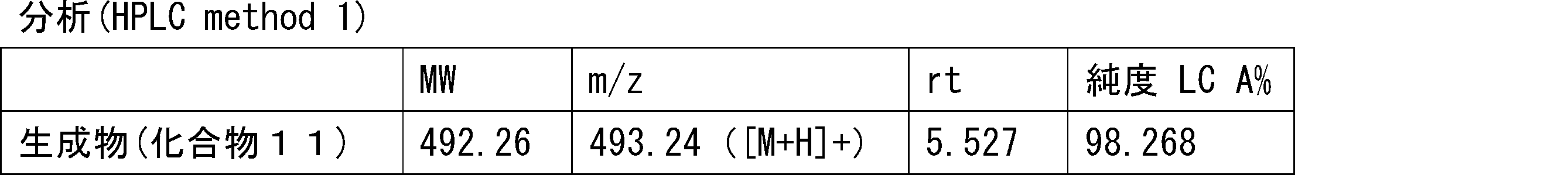

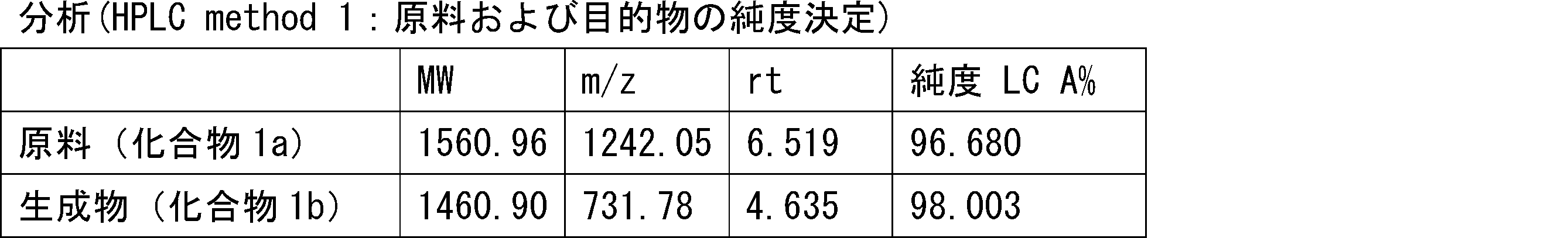

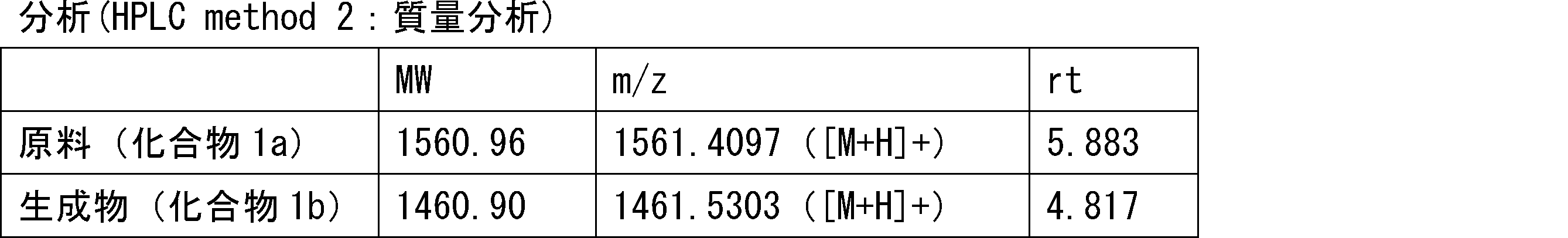

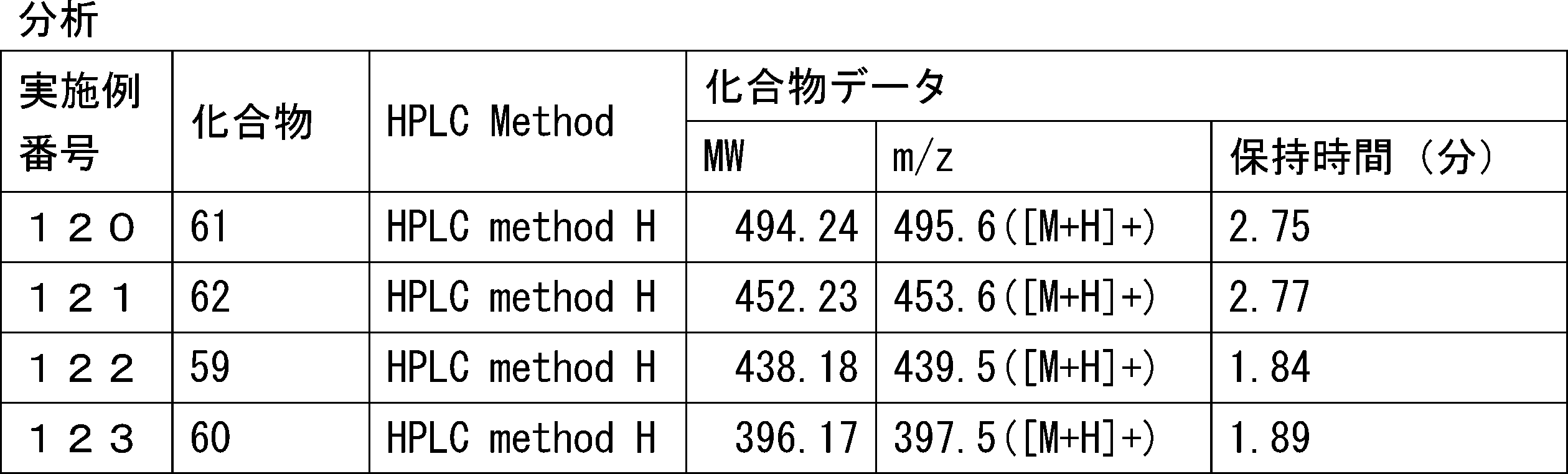

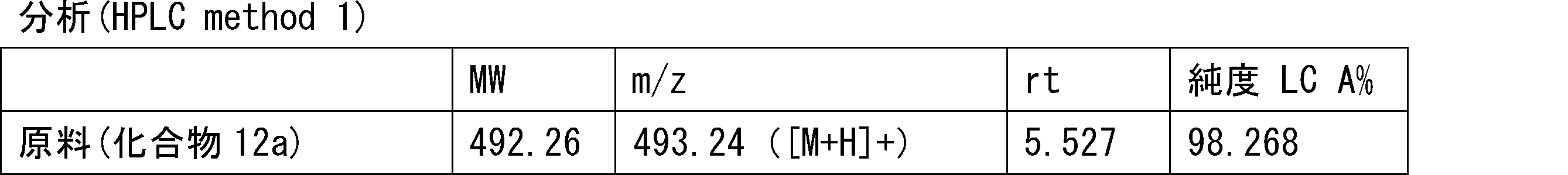

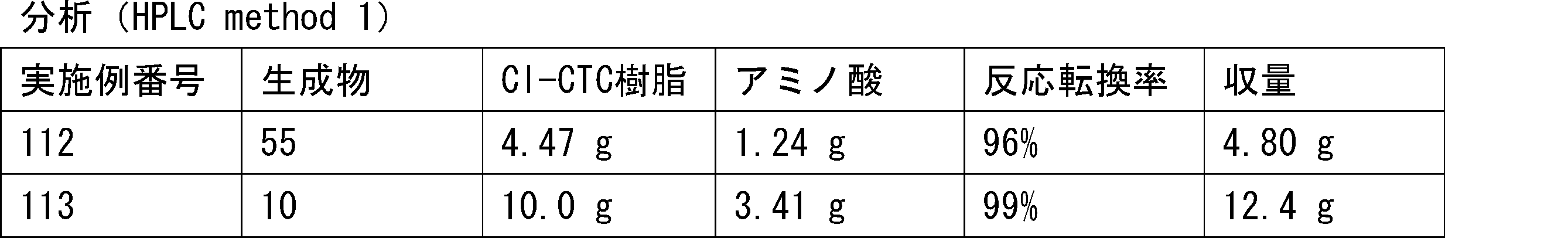

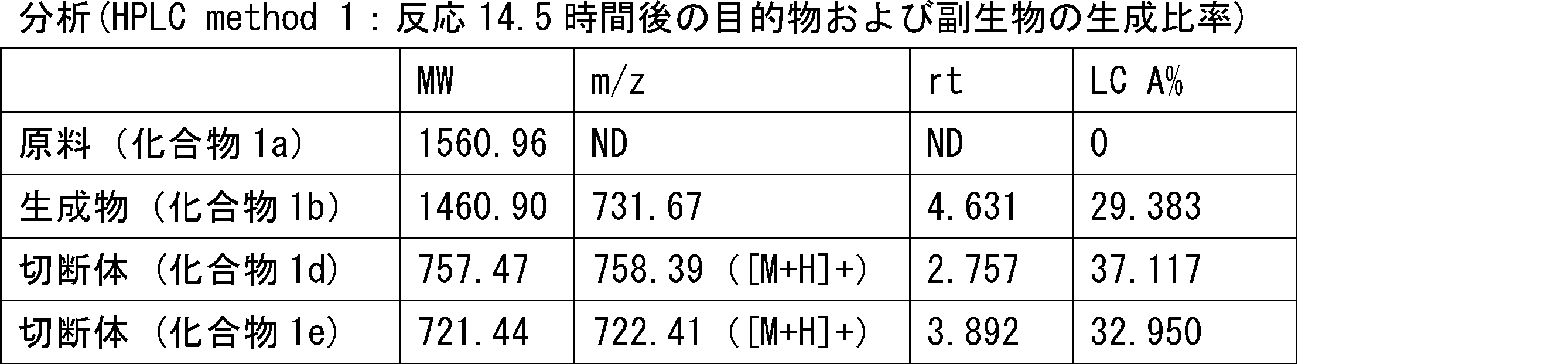

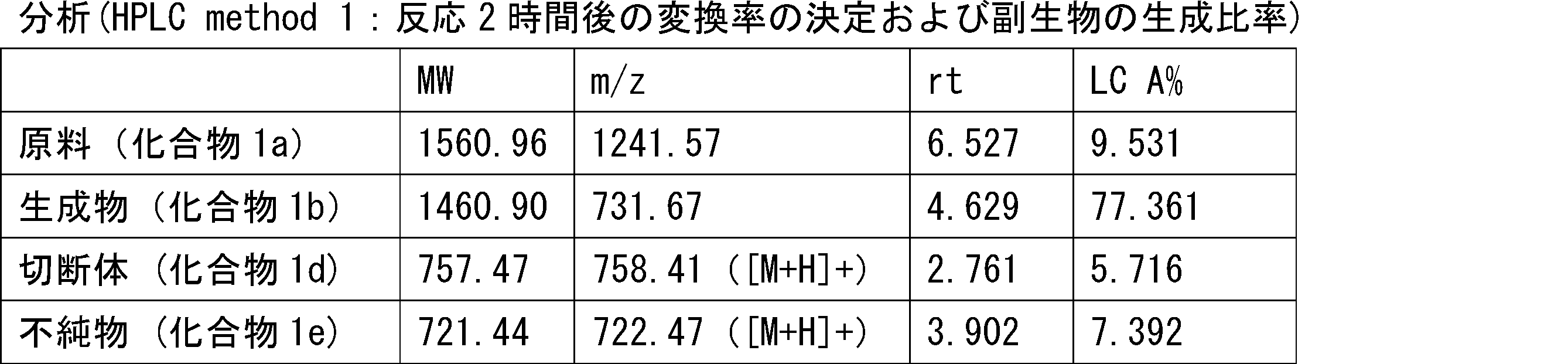

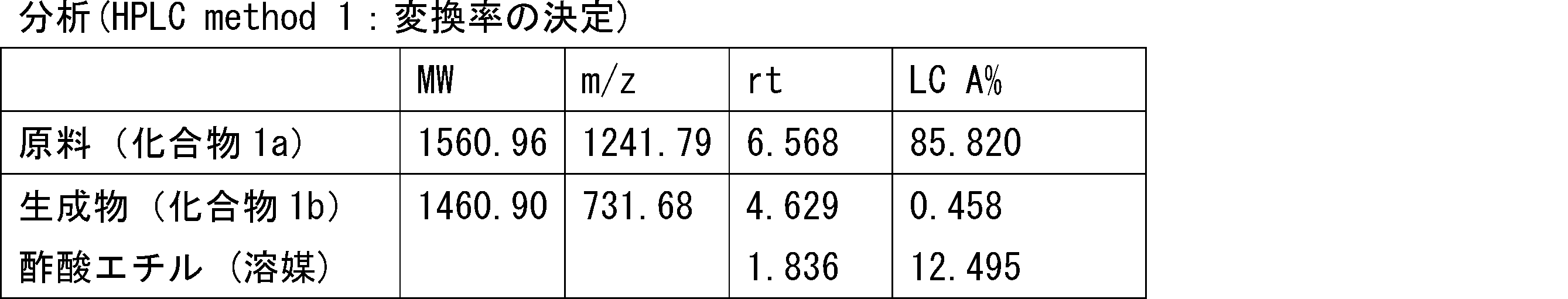

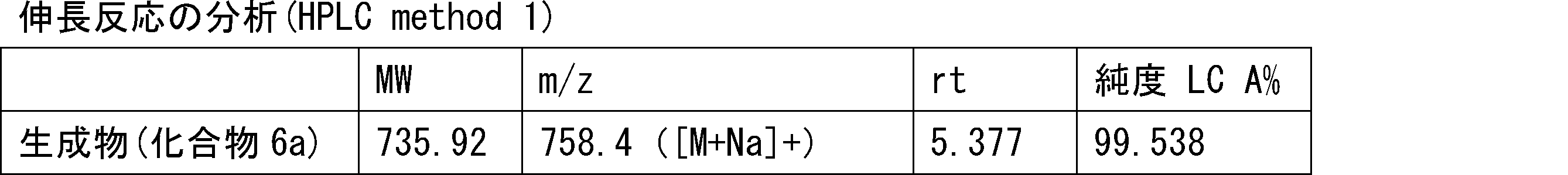

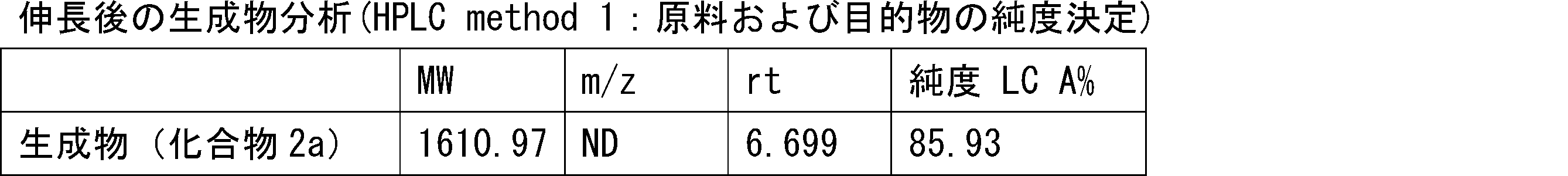

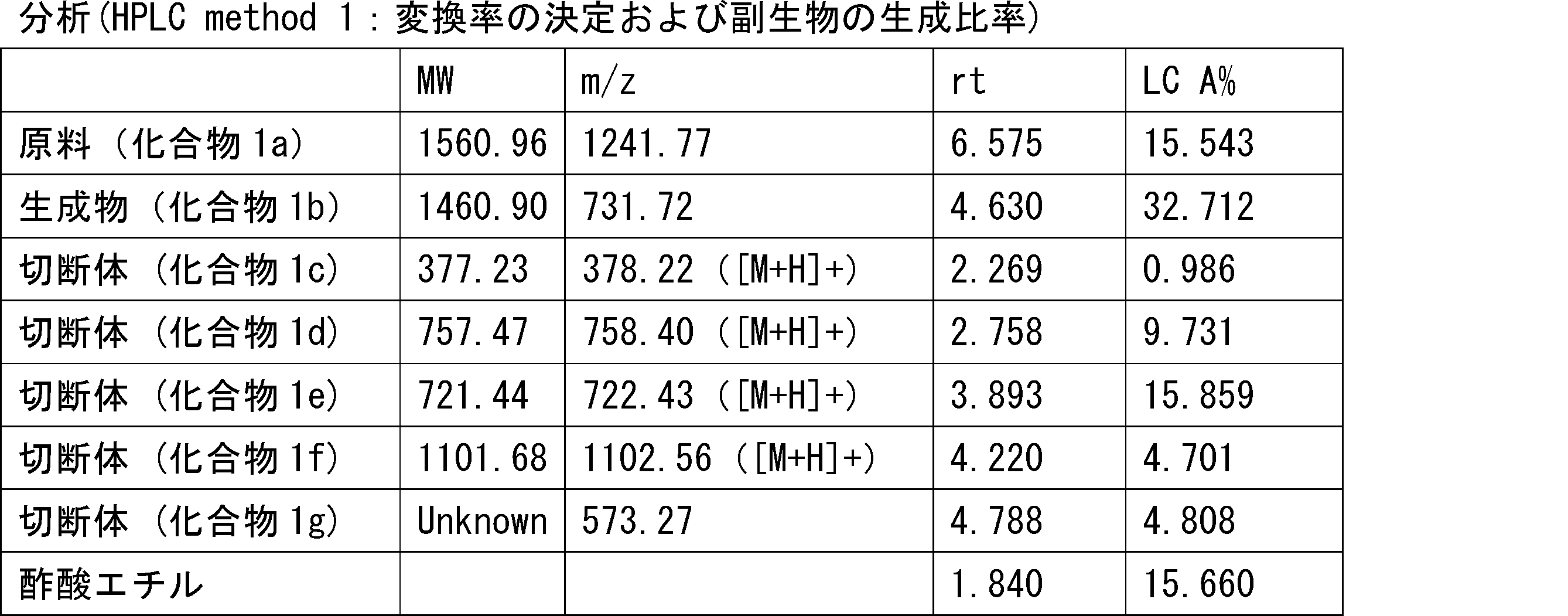

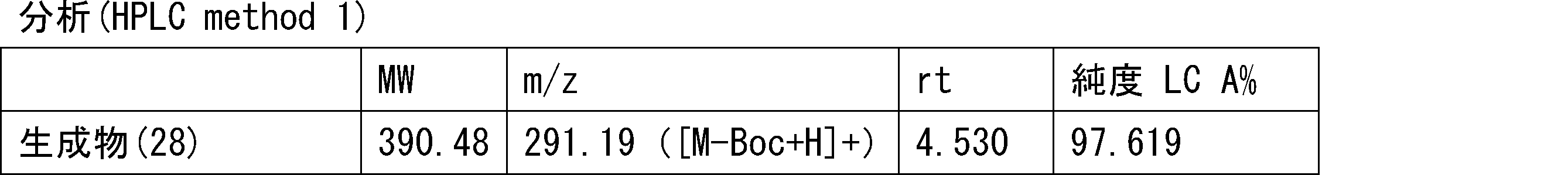

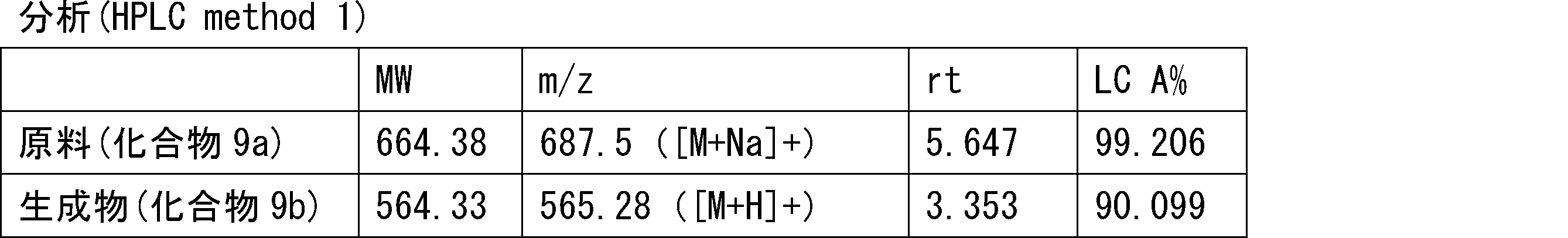

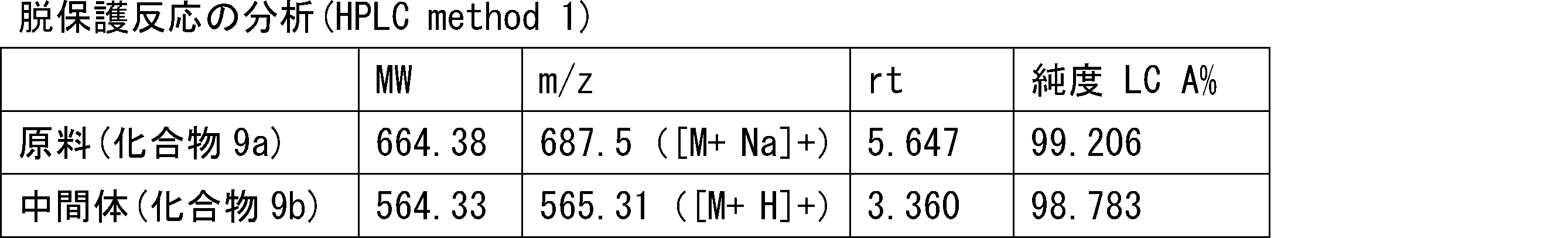

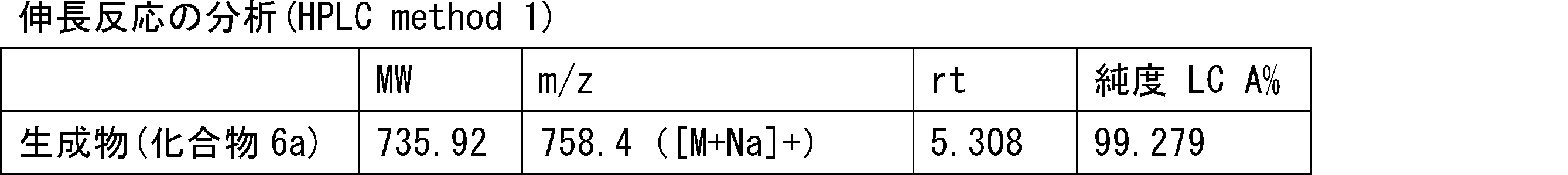

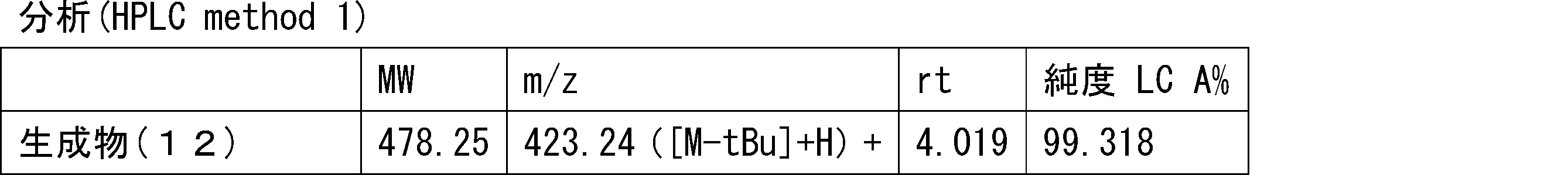

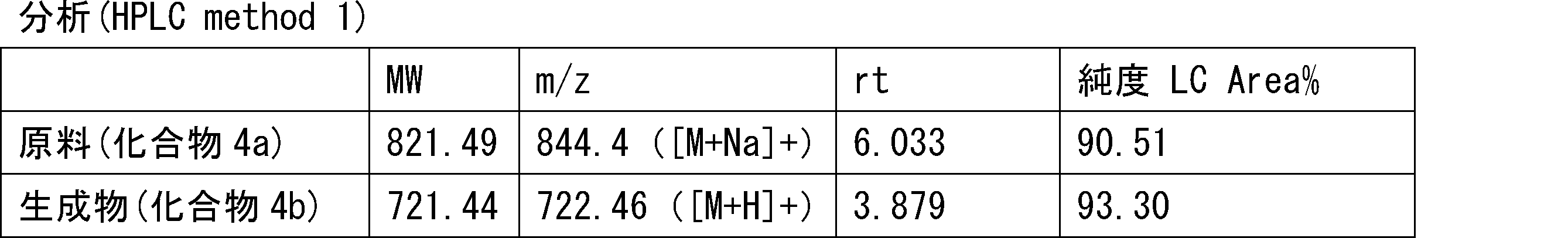

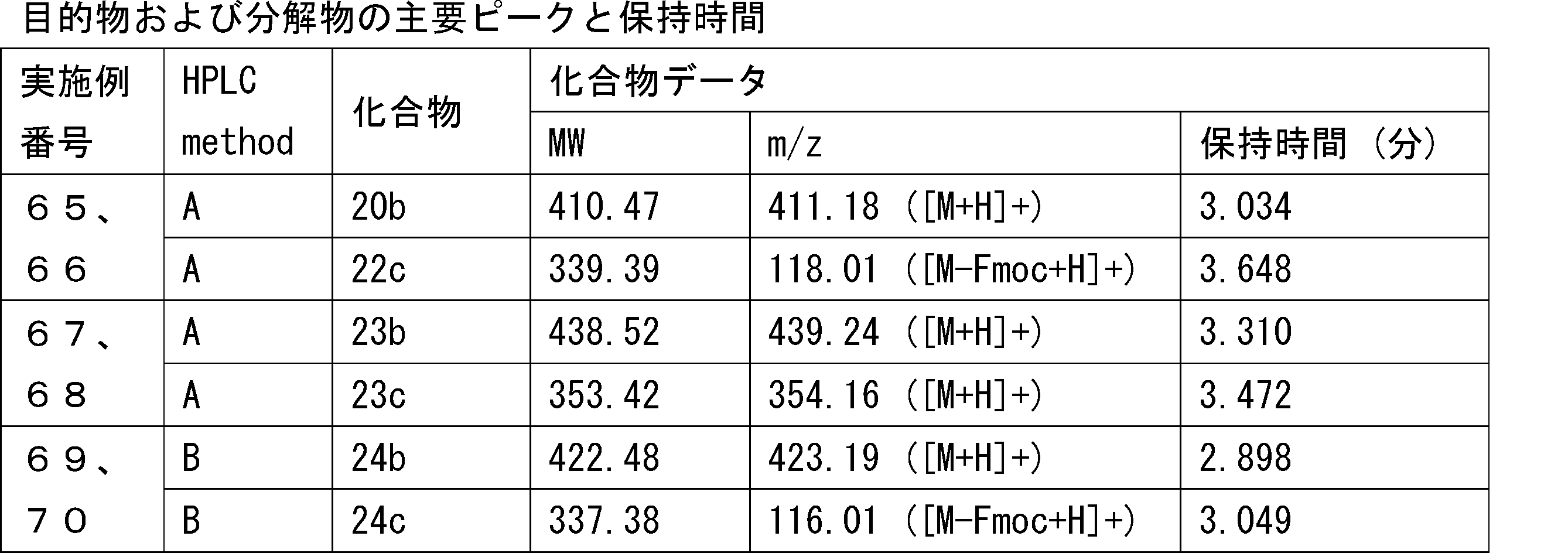

- HPLC reaction conversion rate, purity

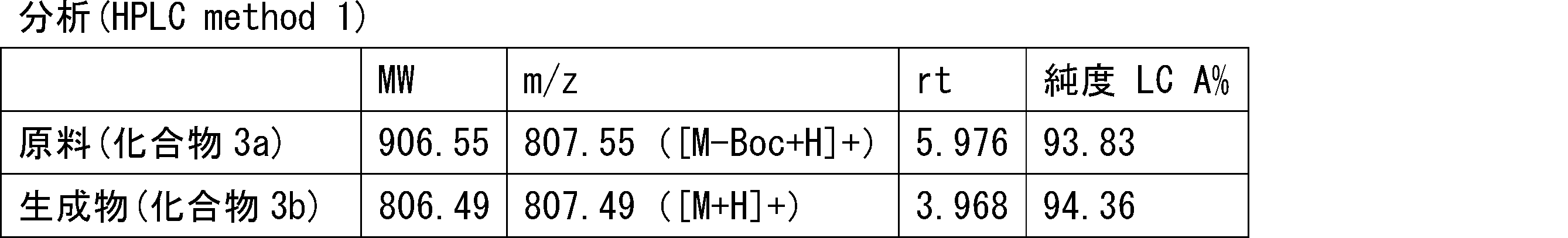

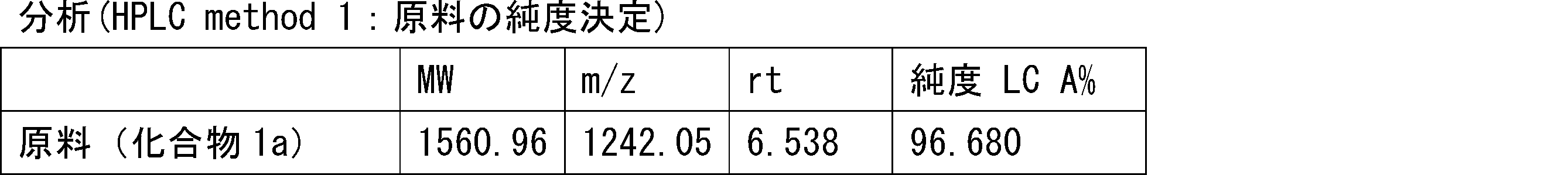

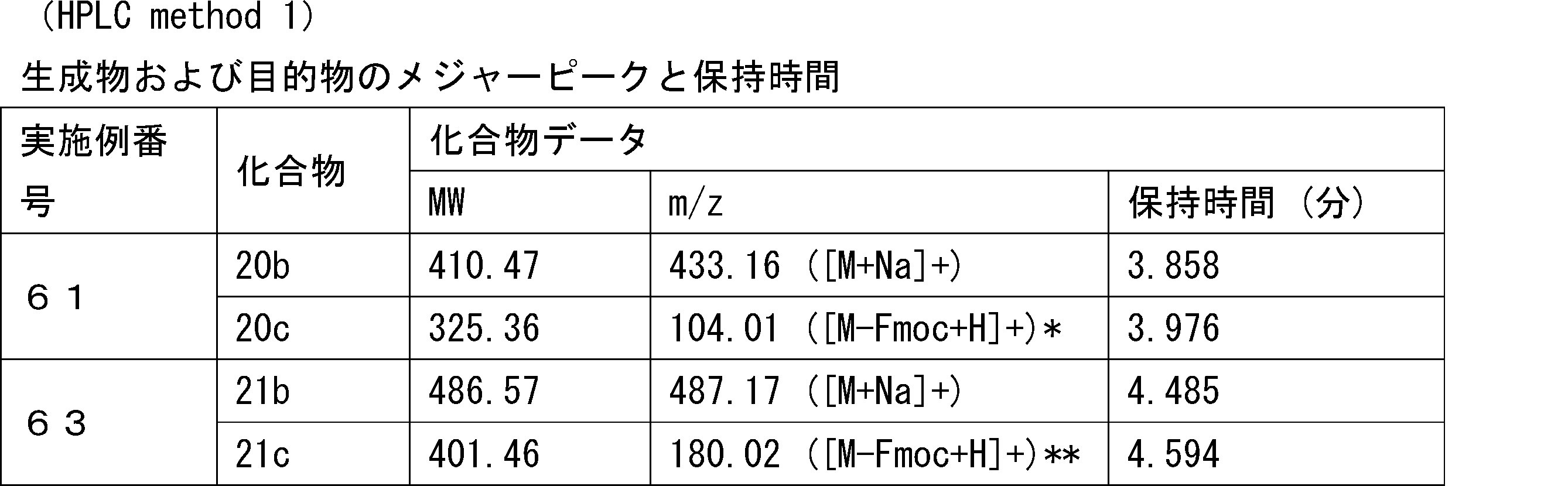

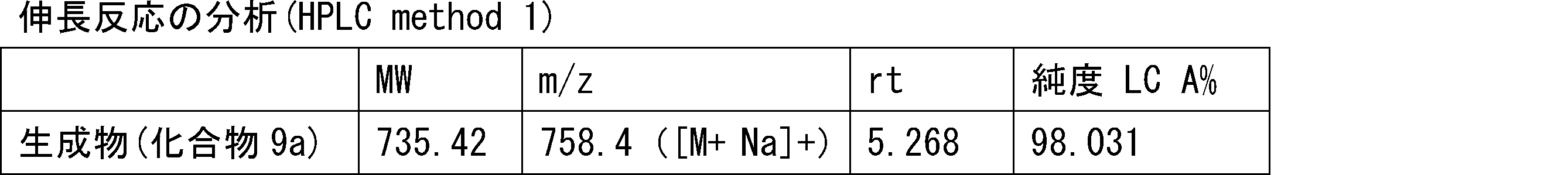

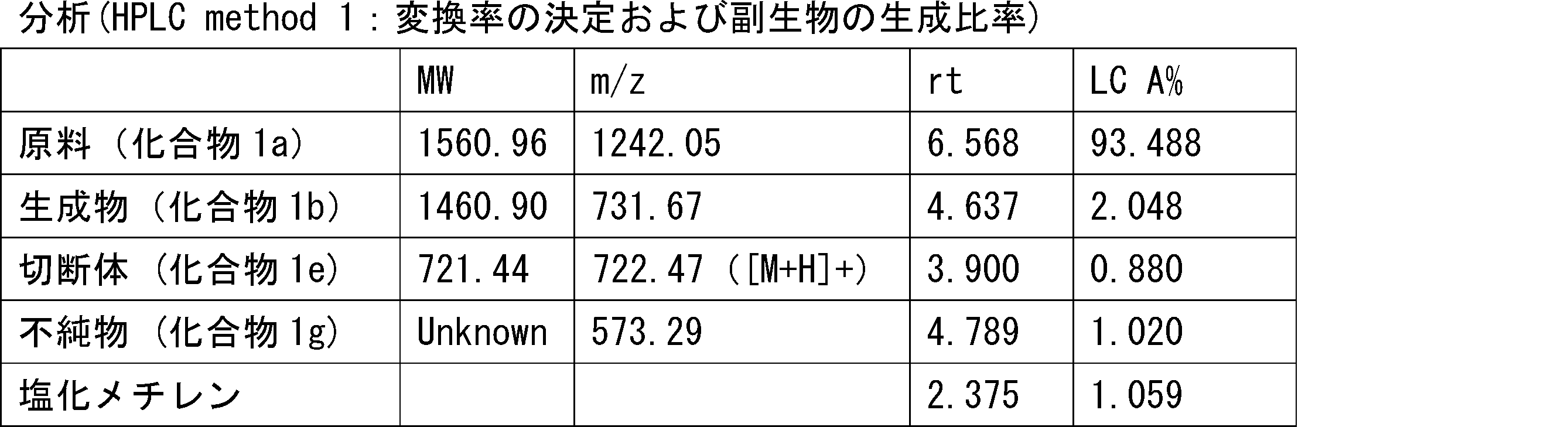

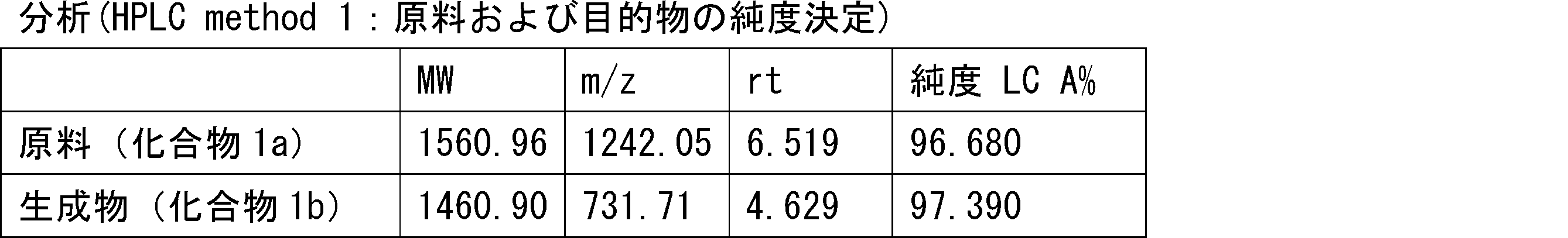

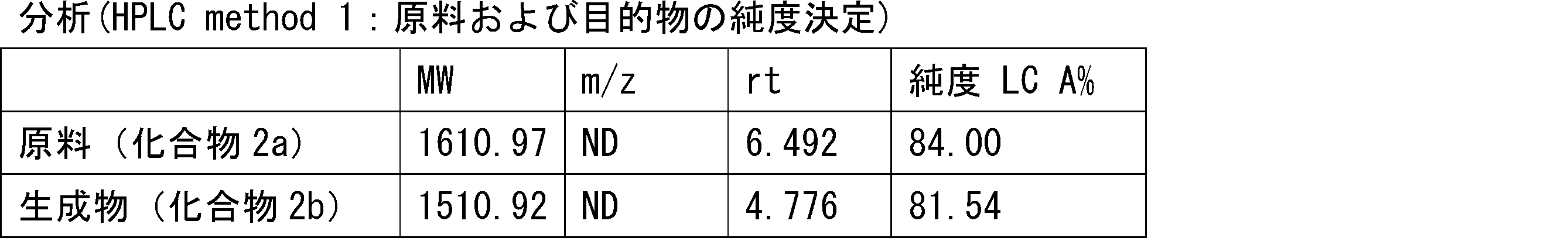

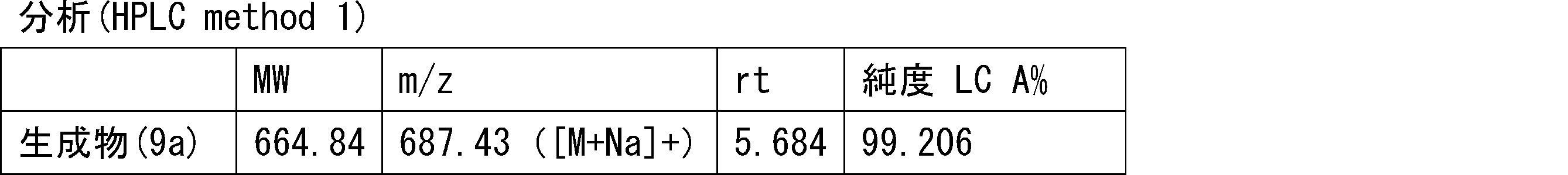

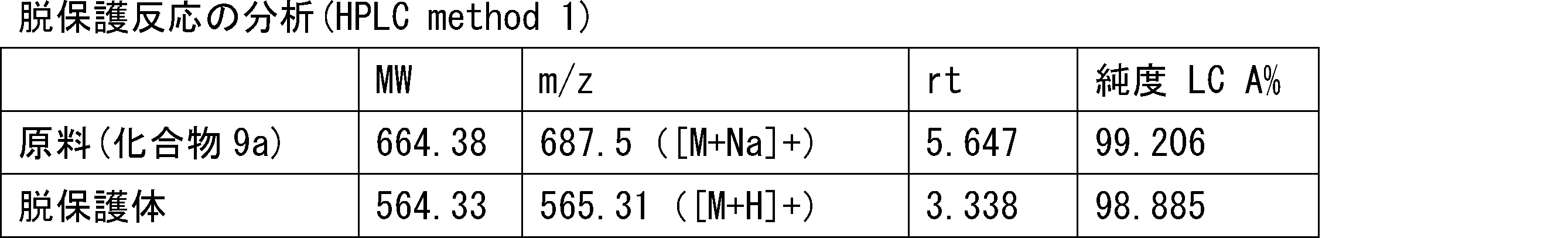

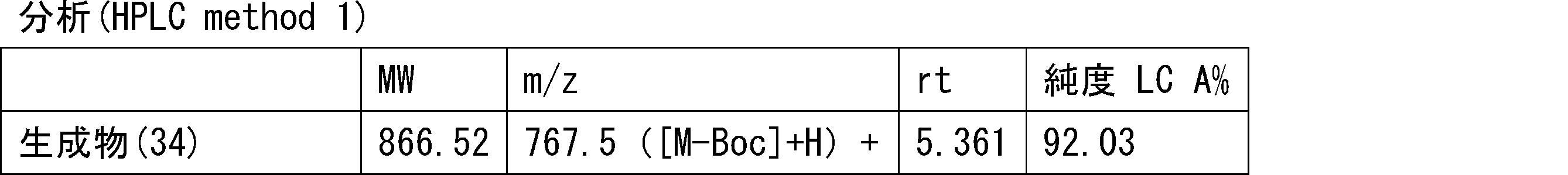

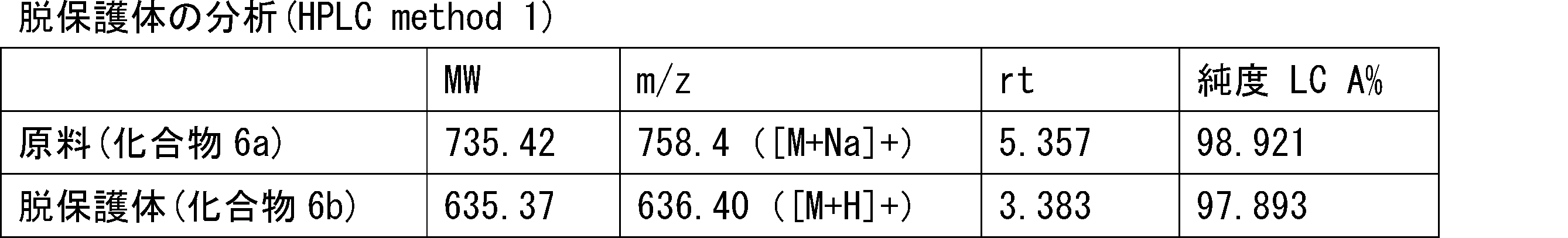

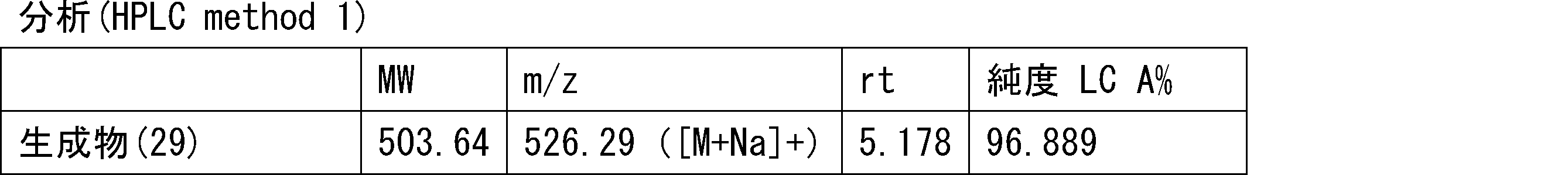

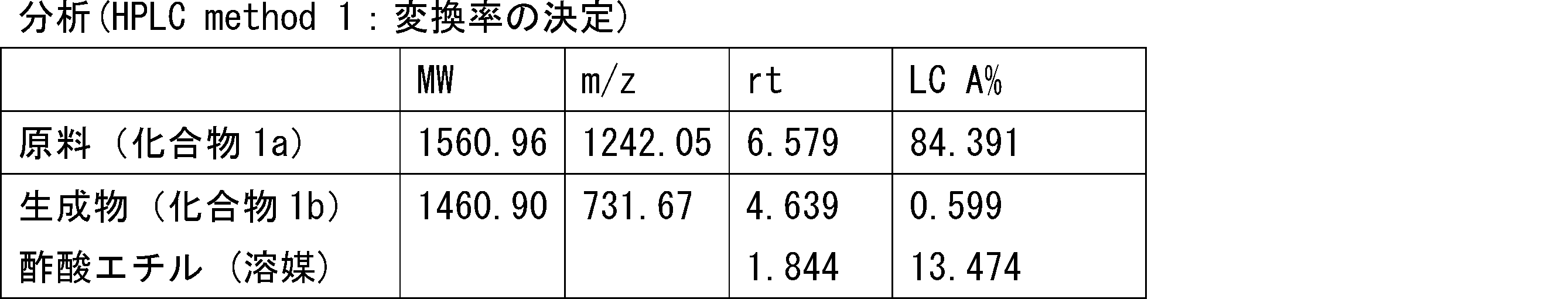

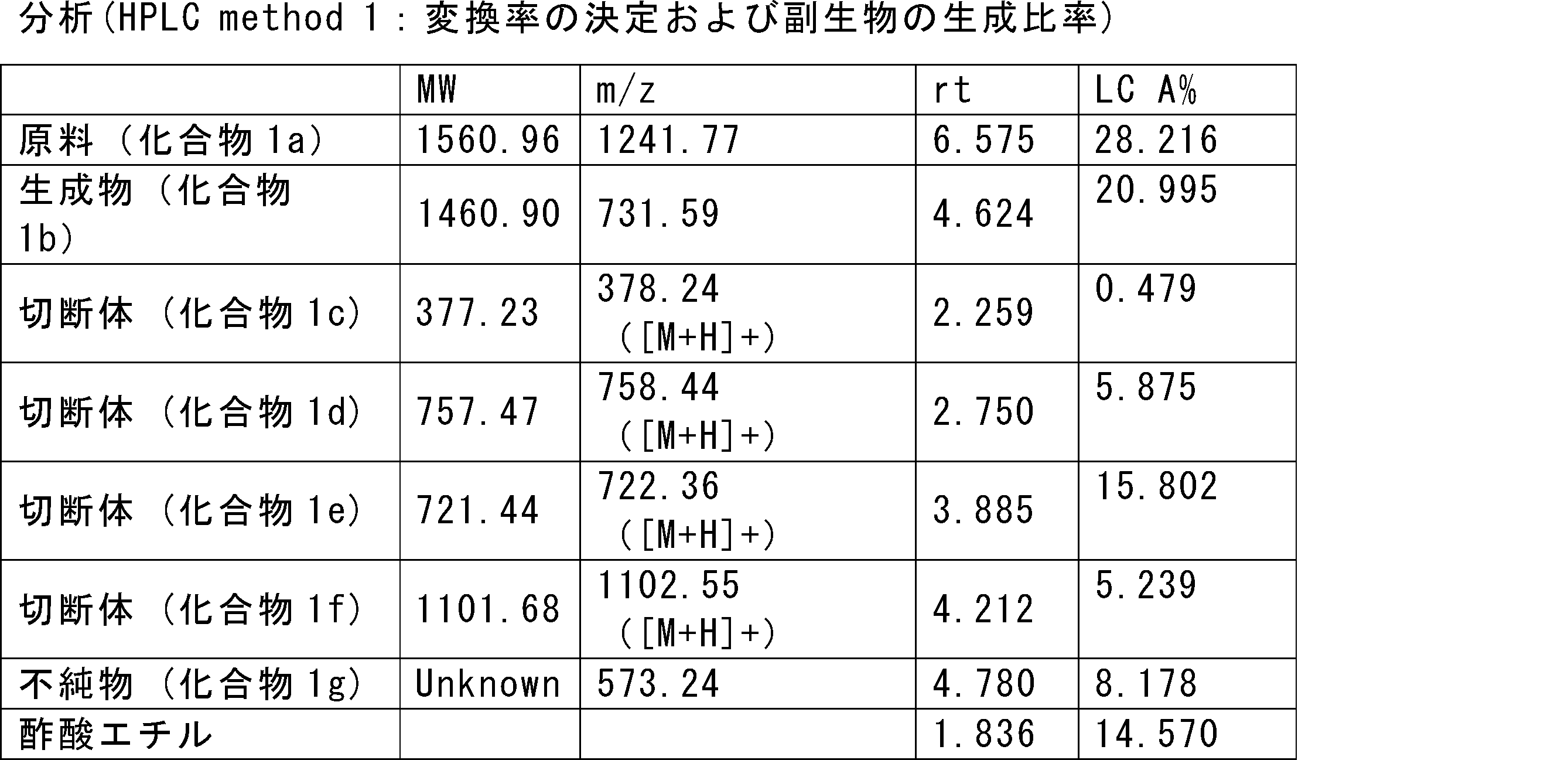

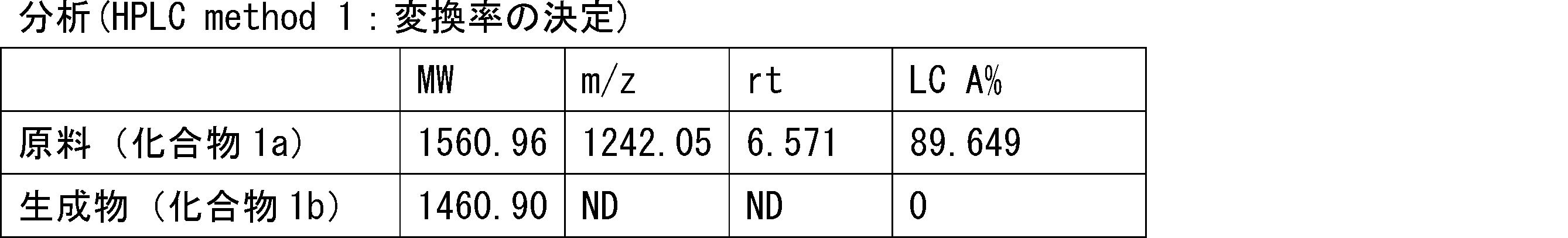

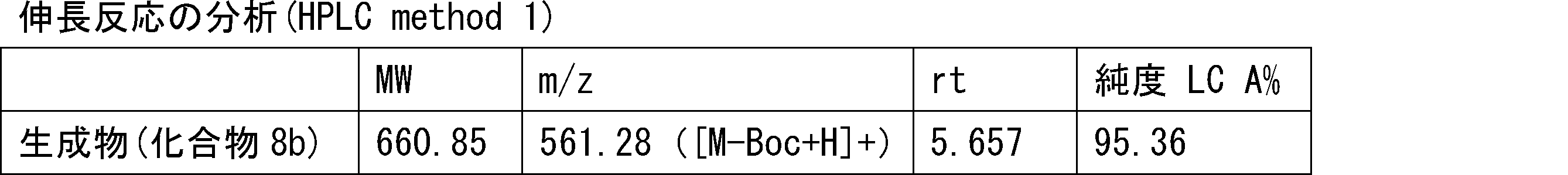

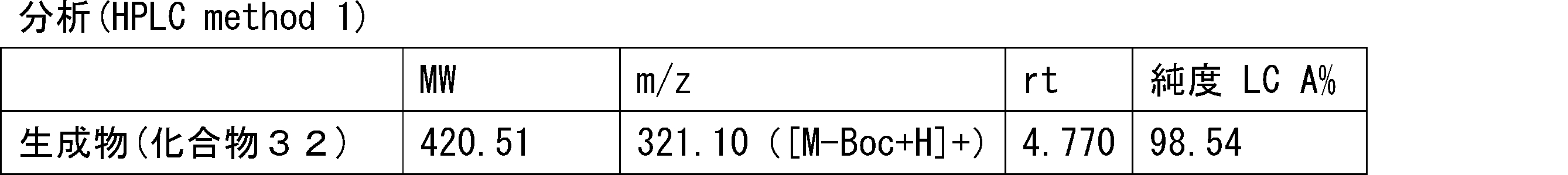

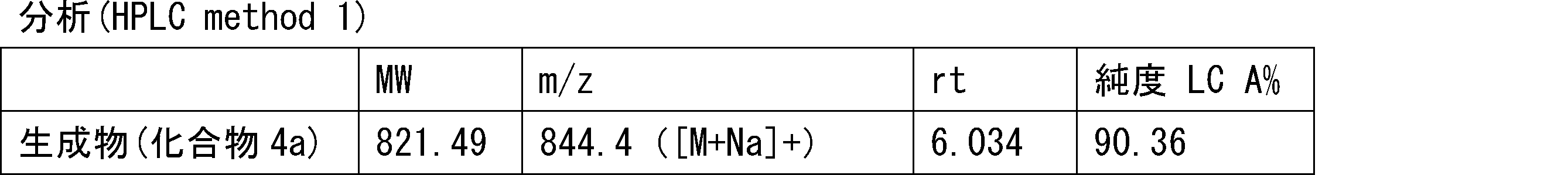

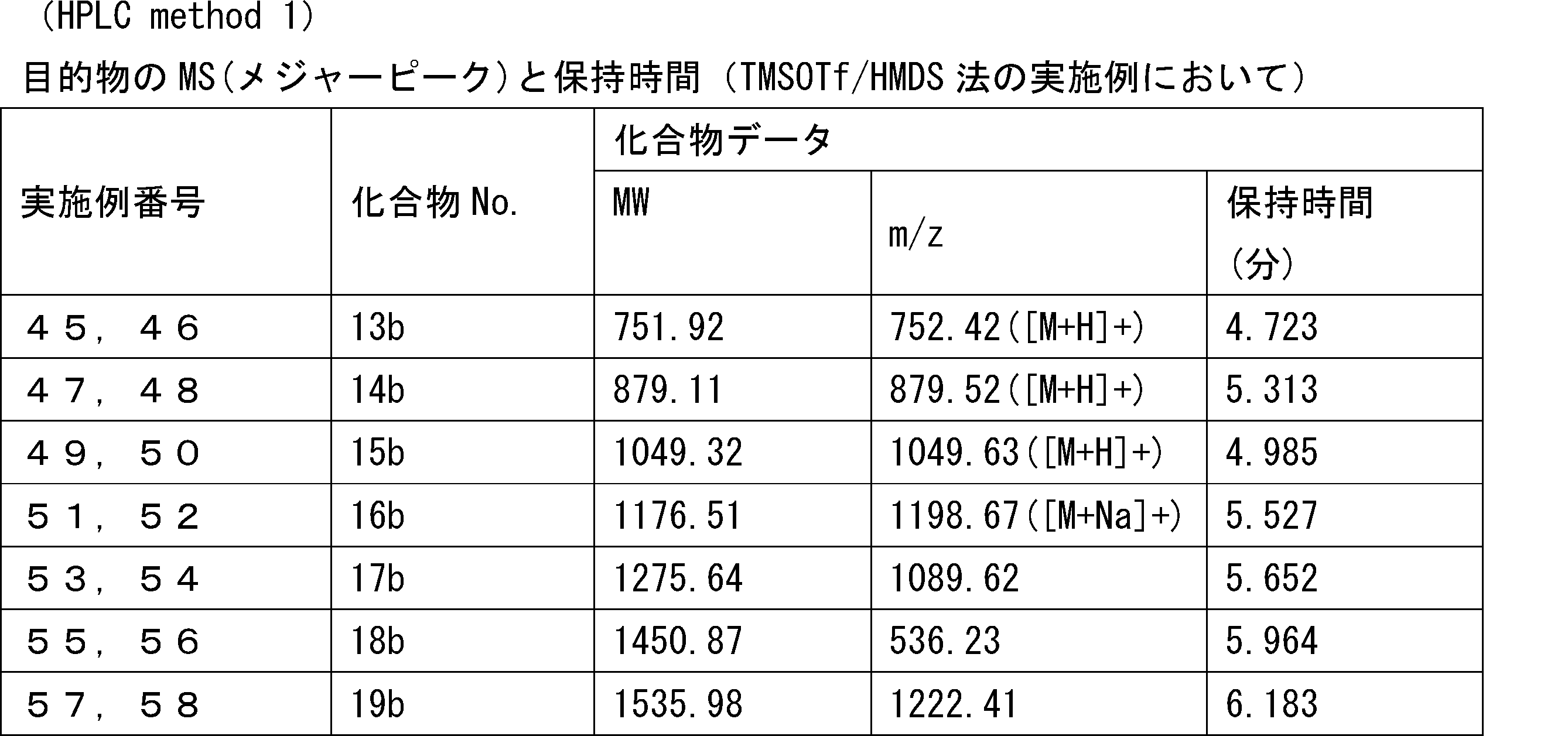

- HPLC method 1 Instrument: Waters ACQUITY UPLC H-Class Column: Ascentis Express C18 (2.7 ⁇ m, 4.6 mm x 50 mm), Supelco Eluent: A) 0.05% TFA/water, B) 0.05% TFA/CH 3 CN Gradient (B): 5% (0 min.) ⁇ 100% (6 min.) ⁇ 5% (7 min.) ⁇ 5% (9 min.) Flow rate: 1.0 mL/min. Detection: 210nm Injection vol.: 5 ⁇ L Sample prep.: 5 ⁇ L/1.00 mL

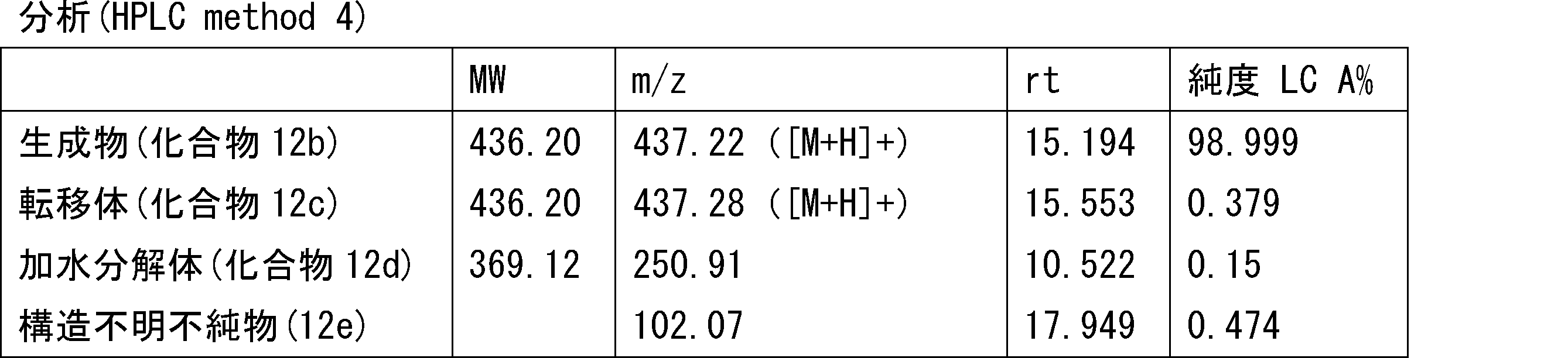

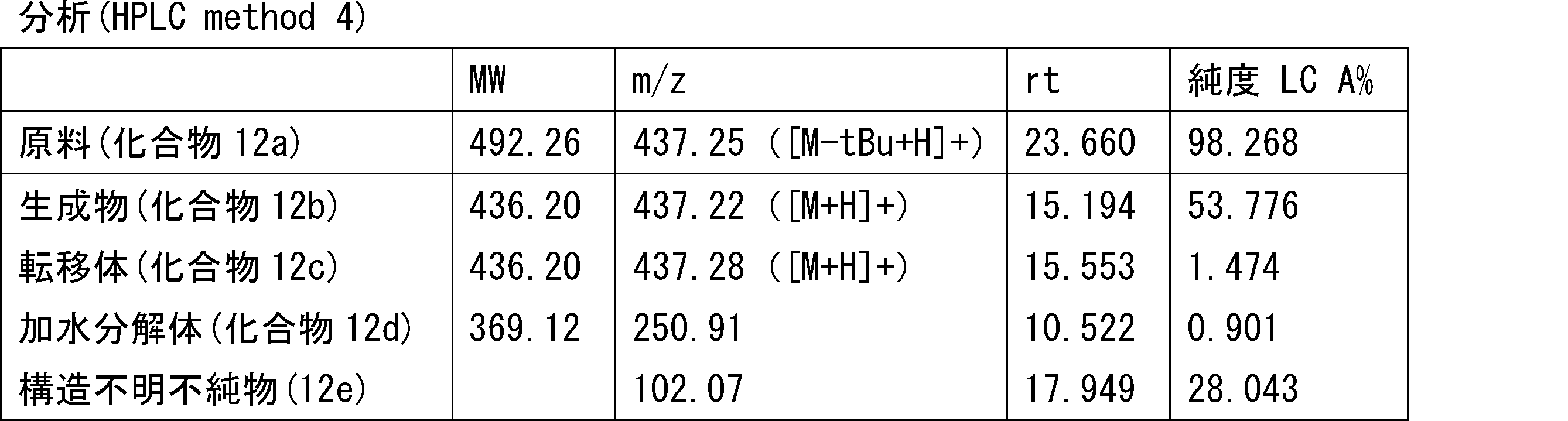

- HPLC method 4 Instrument Waters ACQUITY UPLC H-Class Column: CAPCELL CORE ADME, (2.7 ⁇ m, 3.0 mm x 150 mm) Column temp.: 30 deg. Solvents: A) 0.05% TFA/water, B) 0.05% TFA/CH 3 CN Gradient (A): 70%(0 min) ⁇ 30%(20.0 min) ⁇ 0%(20.1 min) ⁇ 0%(22.0 min) ⁇ 70%(22.1 min) ⁇ 70%(24 min) Flow rate: 0.3 mL/min Detection: PDA 254 nm (200-400 nm PDA total) Injection vol.: 0.3 ⁇ L Sample prep.: amorphous 10.0 mg in CH 3 CN 10 ml; this solution 0.3 mL/0.7 mL CH 3 CN
- the reaction was analyzed by LCMS to confirm the disappearance of the raw materials.
- the reaction was quenched with saturated multistory water.
- the organic layer was washed with saturated multistory water and 5% saline.
- the obtained organic layer was concentrated under reduced pressure to quantitatively obtain 77.3 mg of deprotected form. No cleavage of the amide bond was confirmed.
- the reaction was analyzed by LCMS to confirm that the raw material disappeared. The cleavage of the amide bond was not confirmed. After confirming the completion of the raw materials, the reaction solution was stirred for another hour, and the reaction was analyzed by LCMS. At this time as well, cleavage of the amide bond was not confirmed.
- the reaction vessel was added to 1 ml of saturated saline to stop the reaction. Subsequently, 5 ml of ethyl acetate was added, and the two layers were separated. The organic layer was washed with a mixed solution of 1 ml of saturated multistory water and 1 ml of saturated saline. The obtained organic layer was concentrated to obtain 68.0 mg of a deprotected product in a yield of 90% as a transparent film.
- Example 6 De-Boc of Boc-MeLeu-Thr(OBn)-MeGly-OAllyl (Compound 8a) and extension reaction to Boc-Leu-MeLeu-Thr(OBn)-MeGly-OAllyl (3 mer: TfOH-BSTFA method) 73.3 mg of a starting material was weighed in a reaction vessel and dissolved in 5 v/w of isopropyl acetate. After cooling the reaction vessel with ice, 0.085 ml of BSTFA and 0.0047 ml of TfOH were added, and the mixture was stirred for 2 hours.
- the organic layer was separated by a liquid separation treatment, washed once with a 1 N sodium hydroxide aqueous solution, twice with a 5% potassium hydrogen sulfate aqueous solution, and once with a 5% sodium chloride aqueous solution, and then concentrated under reduced pressure.
- the crude product was obtained as an oily liquid in an amount of 82.0 mg (93% yield).
- Example 6a De-Teoc of Teoc-MeLeu-Thr(OBn)-MeGly-OAllyl (Compound 80b) and extension reaction to Boc-Leu-MeLeu-Thr(OBn)-MeGly-OAllyl (7a) (3 mer: TfOH-BSTFA method) ) After the Teoc group is removed by the same operation as in Example 6, compound 7a can be obtained by reacting with Boc-Leu-OH without breaking the main chain.
- Example 7 Boc-MeIle-Ala-MePhe-MeVal-Asp(OBn)-pip (Compound 5a) de-Boc reaction (5 mer: TfOH-BSTFA method) The deprotection reaction and extension reaction were carried out in one pot according to the experimental method described in Example 6.
- Example 9 De-Boc reaction of Boc-Leu-MeLeu-Thr(OBn)-MeGly-OAllyl (Compound 7a) (4 mer: TfOH-BSTFA method) The deprotection reaction and extension reaction were carried out in one pot according to the experimental method described in Example 6.
- Example 11 Deprotection of Boc-MePhe-MeVal-Asp(OBn)-pip (Compound 9a) and extension reaction to Boc-Ala-MePhe-MeVal-Asp(OBn)-pip (3 mer: TMSOTf-BSTFA method) The deprotection reaction and extension reaction were carried out in one pot according to the experimental method described in Example 6.
- Example 12 Deprotection of Boc-MePhe-MeVal-Asp(OBn)-pip (Compound 9a) (3 mer: TMSOTf-MSTFA method) The deprotection reaction and extension reaction were carried out in one pot according to the experimental method described in Example 6.
- the obtained organic layer was concentrated. Subsequently, the obtained oily liquid was dissolved in 1 ml of ethyl acetate, and 251.0 mg of dipotassium hydrogen phosphate was added. After adding 0.89 ml of water, the reaction vessel was cooled with ice. Boc-Ala-OH (36.8 mg) and DMT-MM (79.5 mg) were added, and the mixture was stirred overnight while being kept in an ice bath. After 15.5 hours, the disappearance of the raw materials was confirmed by LCMS, and then liquid separation treatment was performed. The obtained organic layer was washed twice with 5% potassium carbonate, once with water, twice with 5% potassium hydrogen sulfate, once with saturated saline, and concentrated. The crude product was obtained as a white solid in 0.1075 g (yield 90%).
- N-((trimethylsilyl)diethylamine 0.070 ml (2.4 eq) and TMSOTf 0.032 ml (1.2 eq) were sequentially added, and the reaction solution was stirred.
- the reaction was analyzed by LCMS. Since the conversion rate was 30%, 0.029 ml (1.1 eq) of TMOSTf was added.
- the reaction was analyzed by LCMS to confirm the disappearance of the raw materials, but the cleavage of the amide bond was not confirmed.
- the reaction solution was stirred overnight, and after 20 hours from the start of the reaction, the reaction was analyzed again by LCMS, and cleavage of the amide bond was not confirmed. 21 hours after the start of the reaction, 0.2032 g of dipotassium hydrogen phosphate and 0.50 mL of water were added to the reaction solution, and the mixture was stirred for 30 minutes.
- the reaction solution was diluted with 4 ml of ethyl acetate, and then the two layers were separated to obtain an organic layer.
- the obtained organic layer was washed twice with a mixed solvent of saturated saline solution 0.5 ml and saturated multilayer water 0.5 ml. Then, it was washed with 0.5 ml of saturated saline and the organic layer was concentrated.
- Example 16 Deprotection of Boc-MePhe-MeVal-Asp(OBn)-pip (Compound 9a) (Base: N-(trimethylsilyl)morpholine) The experiment was performed according to the method described in Example 15.
- Example 17 Deprotection of Boc-MePhe-MeVal-Asp(OBn)-pip (Compound 9a) (Base: N-tert-butyltrimethylsilylamine) The experiment was performed according to the method described in Example 15.
- Example 18 Deprotection of Boc-MePhe-MeVal-Asp(OBn)-pip (Compound 9a) (Base: 2,2,4,4-tetramethylpentanone imine) The experiment was performed according to the method described in Example 15.
- Example 20 Deprotection of Boc-MePhe-MeVal-Asp(OBn)-pip (Compound 9a) (Base: dimethyl ketene methyl trimethylsilyl acetal) The experiment was performed according to the method described in Example 15.
- Example 21 Deprotection of Boc-MePhe-MeVal-Asp(OBn)-pip (Compound 9a) (Base: 3,4-dihydro-2H-pyran) The experiment was performed according to the method described in Example 15.
- the LCA% of the product is the value excluding the residual base after the post-treatment.
- the LCA% of the product is the value excluding the residual base after the post-treatment.
- Example 24 Deprotection of Boc-MePhe-MeVal-Asp(OBn)-pip (Compound 9a) (Base: diisopropylcarbodiimide) The experiment was performed according to the method described in Example 15.
- the LCA% of the product is the value excluding the residual base after the post-treatment.
- Example 32 Boc-MeIle-Ala-MePhe-MeVal-Asp(pip)-MeAla-MePhe-Leu-MeLeu-Thr(OBn)-MeGly-OAllyl (Compound 1a) de-Boc reaction (11 mer: TMSOTf-ketene silyl acetal method) ) The experiment was carried out according to Example 2.
- the LCA% of the product is the value excluding the residual base after the post-treatment.
- Compound 1g has unknown structure
- Compound 1g has unknown structure
- the reaction was re-analyzed 10 minutes after reagent addition, but the conversion was 0%, so 0.0094 ml (5.4 eq) of trifluoroacetic acid was added.
- Ten minutes after the addition of the reagent the temperature was raised to room temperature, and the stirring of the reaction solution was continued. After the temperature was raised to room temperature, the reaction was analyzed after 4 hours, and it was confirmed that the amide bond cleaved product 1e was produced at a conversion rate of 2%.
- Compound 1g has unknown structure
- Example 46 Det-Bu reaction of compound 13a (TMSOTf-HMDS method) 30.0 mg of the substrate 13a was weighed in a reaction vessel and dissolved in 10 v/w of ethyl acetate. HMDS (3.0 eq.) and TMSOTf (2.0 eq) were sequentially added to this solution at 0°C. Two hours after the addition of the reagent, the temperature was raised to room temperature. 2.5 hours after heating, HMDS (3 eq.) and TMSOTf (2 eq.) were added. Thirty minutes after the addition of the reagent, the reaction was analyzed by LCMS, and it was confirmed that the conversion rate was 99% or more. At this time, amide bond cleavage was not confirmed.
- Example 47 Det-Bu reaction of compound 14a (TFA method) 29.7 mg of the substrate 14a was weighed in a reaction vessel and dissolved in 10 v/w of dichloromethane. TFA (20 eq.) was added to this solution at room temperature. After 7 hours from the addition of the reagent, the reaction was analyzed by LCMS. As a result, the reaction conversion rate was 92%, and the purity was decreased by 46%, and by-products due to amide bond cleavage were observed by 24%.
- Example 48 Det-Bu reaction of compound 14a (TMSOTf-HMDS method) 30.0 mg of the substrate 14a was weighed in a reaction vessel and dissolved in 10 v/w of ethyl acetate. HMDS (3.0 eq.) and TMSOTf (2.0 eq) were sequentially added to this solution at 0°C. Six hours after the addition of the reagent, the reaction was analyzed by LCMS to confirm the disappearance of the raw materials. At this time, amide bond cleavage was not confirmed. After checking the completion of the reaction, potassium hydrogenphosphate (44.5 mg, 8.0 eq) and water (0.30 mL) were added to the reaction solution, and the mixture was stirred under ice cooling for 30 minutes.
- HMDS 3.0 eq.
- TMSOTf 2.0 eq
- Example 49 Det-Bu reaction of compound 15a (TFA method) 29.9 mg of the substrate 15a was weighed in a reaction vessel and dissolved in 10 v/w of dichloromethane. TFA (20 eq.) was added to this solution at room temperature. 5.5 hours after the addition of the reagent, the reaction was analyzed by LCMS. As a result, the reaction conversion rate was 50%, and 28% of a by-product due to amide bond cleavage was observed.
- Example 50 Det-Bu reaction of compound 15a (TMSOTf-HMDS method) 30.0 mg of the substrate 15a was weighed in a reaction container and dissolved in 10 v/w of ethyl acetate. HMDS (3.6 eq) and TMSOTf (2.4 eq) were sequentially added to this solution at room temperature. Five hours after the addition of the reagent, HMDS (1.8 eq.) and TMSOTf (1.2 eq.) were added. One hour after the addition of the reagent, the reaction was analyzed by LCMS to confirm the disappearance of the raw materials. At this time, amide bond cleavage was not confirmed.
- Example 51 Det-Bu reaction of compound 16a (TFA method) 30.2 mg of substrate 16a was weighed in a reaction vessel and dissolved in 10 v/w of dichloromethane. TFA (20 eq.) was added to this solution at room temperature. 4.5 hours after reagent addition, TFA (10 eq.) was added. When the reaction was analyzed by LCMS one hour after the addition of the reagent, the reaction conversion rate was 65% and 7.0% by-products due to amide bond cleavage were observed.
- Example 52 Det-Bu reaction of compound 16a (TMSOTf-HMDS method) 29.9 mg of Substrate 16a was weighed in a reaction vessel and dissolved in 10 v/w of ethyl acetate. HMDS (3.6 eq) and TMSOTf (2.4 eq) were sequentially added to this solution at room temperature. Four hours after the addition of the reagent, the reaction was analyzed by LCMS to confirm the disappearance of the raw materials. At this time, amide bond cleavage was not confirmed.
- Example 53 Det-Bu reaction of compound 17a (TFA method) 50.0 mg of the substrate 17a was weighed in a reaction vessel and dissolved in 10 v/w of dichloromethane. TFA (5 eq.) was added to this solution at 0°C. Two hours after reagent addition, TFA (5 eq.) was added. After a further 15.5 hours, the temperature was raised to room temperature. After 3 hours from heating, TFA (10 eq.) was added. After a further 1.5 hours TFA (20 eq.) was added. When the reaction was further analyzed by LCMS 1.5 hours after the addition of the reagent, the reaction conversion rate was 54%, and 26% by-products due to amide bond cleavage were observed.
- Example 54 Det-Bu reaction of compound 17a (TMSOTf-HMDS method) 30.0 mg of the substrate 17a was weighed in a reaction vessel and dissolved in 10 v/w of ethyl acetate. HMDS (5.4 eq.) and TMSOTf (3.6 eq) were sequentially added to this solution at 0°C. Four hours after the addition of the reagent, the temperature was raised to room temperature. After 3 hours from the temperature rise, the reaction was analyzed by LCMS to confirm the disappearance of the raw materials. At this time, amide bond cleavage was not confirmed.
- Example 55 Det-Bu reaction of compound 18a (TFA method) 29.9 mg of the substrate 18a was weighed in a reaction container and dissolved in 10 v/w of dichloromethane. TFA (20 eq.) was added to this solution at 0°C. 4.5 hours after the addition of the reagent, TFA (10 eq.) was added, and the temperature was raised to room temperature. When the reaction was analyzed by LCMS two hours after the addition of the reagent, the reaction conversion rate was 82%, and by-products due to amide bond cleavage were observed at 34%.
- Example 56 Det-Bu reaction of compound 18a (TMSOTf-HMDS method) 29.8 mg of the substrate 18a was weighed in a reaction vessel and dissolved in 10 v/w of ethyl acetate. HMDS (7.2 eq.) and TMSOTf (4.8 eq) were sequentially added to this solution at 0°C. After 3 hours from the addition of the reagent, the temperature was raised to room temperature. After 3.5 hours from the temperature rise, the reaction was analyzed by LCMS to confirm the disappearance of the raw materials. At this time, amide bond cleavage was not confirmed.
- Example 57 Det-Bu reaction of compound 19a (TFA method) 50.0 mg of the substrate 19a was weighed in a reaction container and dissolved in 10 v/w of dichloromethane. TFA (5 eq.) was added to this solution at 0°C. Two hours after reagent addition, TFA (5 eq.) was added. After a further 15.5 hours, the temperature was raised to room temperature. After 3 hours from heating, TFA (10 eq.) was added. After a further 1.5 hours TFA (20 eq.) was added. When the reaction was analyzed by LCMS for another 1.5 hours after the addition of the reagent, the reaction conversion rate was 82%, and 14% of a by-product due to amide bond cleavage was observed.
- Example 58 Det-Bu reaction of compound 19a (TMSOTf-HMDS method) 30.0 mg of the substrate 19a was weighed in a reaction vessel and dissolved in 10 v/w of ethyl acetate. HMDS (3.6 eq.) and TMSOTf (2.4 eq) were sequentially added to this solution at 0°C. After 3.5 hours from the addition of the reagent, the temperature was raised to room temperature, and HMDS (3.6 eq.) and TMSOTf (2.4 eq.) were added. One hour after the addition of the reagent, the reaction was analyzed by LCMS to confirm the disappearance of the raw materials. At this time, amide bond cleavage was not confirmed.
- Example 60 De-t-Bu reaction of Fmoc-MeAsp(OtBu)-pip (Compound 12a) (1 mer: TMSOTf-HMDS method) The experiment was carried out according to Example 2.
- Example 62 Det-Bu reaction of compound 20a (TMSOTf-HMDS method) 27.6 mg of the substrate 20a was weighed in a reaction vessel and dissolved in 10 v/w of ethyl acetate. HMDS (2.4 eq) and TMSOTf (2.4 eq) were sequentially added to this solution at room temperature. Two hours after the addition of the reagent, the reaction was analyzed by LCMS to confirm the disappearance of the raw materials. At this time, amide bond cleavage was not confirmed. The same reaction was performed for the substrate 21a. (Table 122)
- Example 66 De-resin reaction of resin 22a (TMSOTf-HMDS method) 23.0 mg of substrate 22a was weighed in a reaction vessel, and 10 v/w of 1,2-dichloroethane was added to swell the resin. After removing 1,2-dichloroethane from the reaction solution, a solution of HMDS (3.6 eq.) and TMSOTf (2.4 eq.) dissolved in 10 v/w of 1,2-dichloroethane was added to the reaction vessel. After shaking at 25°C for 4 hours, the reaction was analyzed by LCMS, and no amide bond cleavage was confirmed. A similar reaction was carried out for Resins 23a-24a. (Table 124)
- HPLC method F Instrument Waters Acquity UPLC/SQD2 Column: Ascentis Express C18 (2.7 ⁇ m, 2.1 mm x 50 mm), Supelco Eluent: A) 0.1% FA/water, B) 0.1% FA/CH 3 CN Gradient (B): 5% (0 min.) ⁇ 100% (1 min.) ⁇ 100% (1.4 min.) Flow rate: 1.0 mL/min. Detection: 210nm-400 nm Injection vol.: 1 ⁇ L
- Example 72 De-CTC resin and de-tBu reaction of resin 25a (TMSOTf-HMDS method) 23.0 mg of substrate 25a was weighed in a reaction vessel, and 10 v/w of 1,2-dichloroethane was added to swell the resin. After removing 1,2-dichloroethane from the reaction solution, a solution of HMDS (10.7 eq.) and TMSOTf (7.1 eq.) dissolved in 10 v/w of 1,2-dichloroethane was added to the reaction vessel. After shaking at 25° C. for 4 hours, the reaction was analyzed by LCMS to confirm the disappearance of t-Bu ester. The same reaction was carried out for the resin 26a. (Table 126)
- Example 76 2-mer synthesis (Boc-MeVal-Asp(OBn)-pip) 5.714 g of the raw material was weighed in a reaction vessel, and 29 ml of MeCN was added. After adding 2.3 ml of methanesulfonic acid, the oil bath was set to 45° C. to heat the reaction vessel. After 70 minutes, the reaction container was returned to room temperature and then immersed in an ice bath. After adding 14 ml of diisopropylethylamine to the reaction solution, 4.046 g of Boc-MeVal-OH and 5.284 g of DMT-MM were successively added. One hour after the addition of the reagent, the reaction solution was concentrated.
- Example 78 Synthesis of Boc-MeGly-O Allyl
- the raw material was weighed in a reaction container in an amount of 9.286 g, and DMF (46 ml) was added. After cooling the reaction vessel with ice, 10.20 g of potassium carbonate and 4.15 ml of allyl bromide were added. After 15 minutes, the reaction vessel was returned to room temperature and then stirred overnight.
- MTBE was added to the reaction vessel and the reaction was stopped with water. After liquid separation, the organic layer was washed once with saturated saline. The organic layer was dried over magnesium sulfate, filtered, and concentrated under reduced pressure.
- the obtained crude product was purified by silica gel column chromatography to obtain 10.083 g (yield 90%) of the target product 31 as a transparent oily liquid.
- Example 79 Synthesis of Boc-Thr(OBn)-MeGly-OAllyl Deprotection and condensation reaction were carried out according to Example 76.
- Example 80a Synthesis of Teoc-MeLeu-OPfp by esterification of Teoc-MeLeu-OH with pentafluorophenol (Pfp-OH)
- Pfp-OH pentafluorophenol
- 926 mg of raw material and 736 mg of pentafluorophenol (Pfp-OH) were weighed, and 7.8 mL of isopropyl acetate was added.
- 767 mg of EDCI hydrochloride was added, and the mixture was stirred at room temperature for 2 hours.
- the organic layer was washed twice with 8 mL of 0.5 N hydrochloric acid and twice with 8 mL of 5% aqueous potassium carbonate solution, and 2 g of sodium sulfate was added to the organic layer.
- the solid was removed by filtration, and the organic layer was concentrated under reduced pressure to obtain the target product as a transparent oily liquid. The obtained compound is used for the next reaction without purification.
- Example 80b Synthesis of Teoc-MeLeu-Thr(OBn)-MeGly-OAllyl After deprotecting the terminal protecting group of compound 33, a pentafluorophenyl ester compound (compound 80a) is allowed to act to form an amide bond (Meneses et al., J. Org. Chem., 2010, 75, 564-569).
- Compound 80b can be synthesized by a condensation reaction using
- Example 85 Loading Fmoc-Asp(OH)-pip on CTC resin
- the loading step was performed as in the method described in Example 112.
- the analysis of the product was performed after a 5-mer extension and a resin removal step.
- Example 86 Solid phase synthesis (2 mer extension) The reaction was carried out on a column for solid phase synthesis.
- Example 87 Solid-phase synthesis (sequential extension from 2 mer to 5 mer and de-resin reaction) The deprotection and extension steps were repeated according to the method described in Example 86 to obtain Boc-MeIle-Ala-MePhe-MeVal-Asp(OCTC)-pip. To the obtained resin, 147 ml of a mixed solvent of diisopropylethylamine, trifluoroethanol and methylene chloride (diisopropylethylamine 2%, solvent volume ratio 1:1) was added and shaken at 30° C. for 2 hours and a half. The drained des resinized peptide solution was collected.
- the resin was washed twice with 25 ml of a mixed solvent of trifluoroethanol and methylene chloride (volume ratio 1:1), and these solutions were concentrated.
- the concentrate was dissolved in 130 ml of ethyl acetate, washed twice with an aqueous solution of potassium carbonate, twice with an aqueous solution of potassium hydrogen sulfate, and once with an aqueous solution of sodium chloride, and then the organic layer was concentrated under reduced pressure. After drying, 4.9821 g (69% yield) of white solid was obtained.
- the temperature of the mixed solution was raised to 40°C, and then the mixture was stirred for 90 minutes at 40°C. After cooling to room temperature and removing the aqueous layer, the obtained organic layer was washed with 15 mL of 5% aqueous potassium carbonate solution. The obtained organic layer was concentrated and further dried under reduced pressure to quantitatively obtain 17 g of 43.
- reaction method The obtained mixed liquid was concentrated and further dried under reduced pressure to obtain 15.9 g of 51 at a yield of 98%.
- a 2 mer to 11 mer peptide was synthesized by a similar method. Except for the reaction time and the mass of the starting materials used, the points different from the above reaction conditions are also shown in the column of "reaction method".
- reaction solution was transferred to a separatory funnel using 4 mL of water and 6 mL of 2-MeTHF, and then the aqueous layer was removed.
- the obtained organic layers were washed with saturated saline (3 mL), 15% sodium hydrogensulfate aqueous solution (3 mL) and 5% sodium carbonate aqueous solution (3 mL), respectively, and then concentrated under reduced pressure to remove the solvent.
- the obtained organic layers were washed with 5% aqueous sodium carbonate solution (3 mL), 5% aqueous potassium hydrogen sulfate solution (3 mL), and 5% aqueous sodium carbonate solution (3 mL), respectively.
- the organic layer was dehydrated with sodium sulfate for 30 minutes, filtered and concentrated under reduced pressure to remove the solvent.
- the fraction containing the target substance was concentrated and further dried under reduced pressure to obtain 227.6 mg of 21a in a yield of 96% and a purity of 99.5%. ..
- the resin thus obtained was dried under reduced pressure to obtain 994 mg of 25a and 1.00 g of 26a.
- the obtained compound was identified by the resin removal reaction of Examples 71 and 73.
- About 20 mg of each of the obtained two kinds of resins was weighed into each of two reaction vessels, 20% DMF solution of piperidine (100 mL) was added to each, and the mixture was stirred at room temperature for 2 hours.
- the supporting rate of each dipeptide was calculated by quantifying dibenzofulvene from the absorbance of the solution. (Table 156)
- reaction solution was stirred at 0°C for 30 minutes, a dimethylamine-THF solution (2N, 65.6 ml) was added dropwise to the reaction solution over 2 minutes, and the mixture was stirred at 0°C for 30 minutes.
- the reaction mixture was diluted with ethyl acetate (488 ml), and the organic layer was mixed with 1 N hydrochloric acid (twice with 391 ml), water (488 ml), 5% aqueous sodium hydrogen carbonate solution (twice with 488 ml), and 18%. After washing with an aqueous sodium chloride solution (488 ml), the organic layer was dried over sodium sulfate. After the desiccant was filtered off, the filtrate was concentrated under reduced pressure to obtain the desired product as a colorless oily substance (51.2 g, yield 98%).
- the aqueous layer was acidified with an 85% aqueous phosphoric acid solution (12 ml) to a pH of around 3, and the aqueous layer was extracted with MTBE (228 ml).
- the organic layer was washed with an 18% aqueous sodium chloride solution (twice with 228 ml), and the organic layer was dried over sodium sulfate. After removing the desiccant by filtration, the filtrate was concentrated under reduced pressure to obtain 20.3 g (yield 97%) of the desired product as colorless amorphous crystals.
- the aqueous layer was acidified with an 85% aqueous phosphoric acid solution (30.1 ml) to a pH of around 2, and the aqueous layer was extracted with MTBE (320 ml).
- the organic layer was washed with an 18% aqueous sodium chloride solution (twice with 320 ml), and the organic layer was dried over sodium sulfate. After the desiccant was filtered off, the filtrate was concentrated under reduced pressure to obtain 25.1 g (yield 86%) of the desired product as light brown amorphous crystals.
- a 5% aqueous sodium carbonate solution (9.2 mL) was added, and the aqueous layer was separated.
- MTBE (9.2 mL) and 2N hydrochloric acid (5.0 mL) were added to the aqueous layer to separate the organic layer.
- the organic layer was washed with a 5% potassium dihydrogen phosphate aqueous solution (9.2 mL) and then with a 10% sodium chloride aqueous solution (9.2 mL).
- the organic layer was concentrated under reduced pressure to obtain 1.31 g (97%) of the desired product as a yellow amorphous crystal.
- a 5% aqueous sodium carbonate solution (7.9 mL) was added, and the aqueous layer was separated.
- MTBE (7.9 mL) and 2N hydrochloric acid (5.0 mL) were added to the aqueous layer to separate the organic layer.
- the organic layer was washed with a 5% aqueous solution of potassium dihydrogen phosphate (7.9 mL) and then with a 10% aqueous solution of sodium chloride (7.9 mL).
- the organic layer was concentrated under reduced pressure to obtain 1.31 g (95%) of the desired product as a colorless oily substance.
- the present invention provides a novel deprotection method using a silylating agent and/or a method for producing a peptide compound by a resin removal method.
- INDUSTRIAL APPLICABILITY The present invention can provide an industrially applicable method for efficient peptide synthesis.
Landscapes
- Chemical & Material Sciences (AREA)
- Organic Chemistry (AREA)
- General Health & Medical Sciences (AREA)
- Life Sciences & Earth Sciences (AREA)
- Biochemistry (AREA)
- Biophysics (AREA)
- Health & Medical Sciences (AREA)
- Genetics & Genomics (AREA)
- Medicinal Chemistry (AREA)
- Molecular Biology (AREA)
- Proteomics, Peptides & Aminoacids (AREA)
- Analytical Chemistry (AREA)
- Organic Low-Molecular-Weight Compounds And Preparation Thereof (AREA)
- Peptides Or Proteins (AREA)
- Medicines That Contain Protein Lipid Enzymes And Other Medicines (AREA)
Abstract
Description
例えば、アミド結合は、アミド結合が歪むことに起因して、アミド結合の酸不安定性が増大することが知られている(非特許文献15、16)。
〔1〕天然アミノ酸残基および/またはアミノ酸類縁体残基を含む出発ペプチド化合物と、シリル化剤とを溶媒中で接触させることにより、該シリル化剤によって脱保護可能な保護基を該出発ペプチド化合物から脱保護する段階を含む、該保護基が脱保護されたペプチド化合物を製造する方法であって、
該シリル化剤は、シリル化合物または酸と、求電子種捕捉剤とを混合することによって生成され、
該出発ペプチド化合物は、該脱保護可能な保護基を少なくとも1つ含み、かつ、
該出発ペプチド化合物は、少なくとも1つのN置換アミノ酸残基を含む、方法。
〔2〕天然アミノ酸残基および/またはアミノ酸類縁体残基を含む出発ペプチド化合物と、シリル化剤とを溶媒中で接触させることにより、該シリル化剤によって脱樹脂可能な固相合成用樹脂を該出発ペプチド化合物から脱樹脂する段階を含む、該固相合成用樹脂が脱樹脂されたペプチド化合物を製造する方法であって、
該シリル化剤は、シリル化合物または酸と、求電子種捕捉剤とを混合することによって生成され、
該出発ペプチド化合物は、該脱樹脂可能な固相合成用樹脂に連結されており、かつ、
該出発ペプチド化合物は、少なくとも1つのN置換アミノ酸残基を含む、方法。
〔3〕出発ペプチド化合物が、下記一般式(I):
[式中、
R1は、水素、PG1、天然アミノ酸残基、またはアミノ酸類縁体残基であり、
R2は、水素、およびC1-C6アルキルからなる群より選択されるか、あるいはR2とR4もしくはR2とR4’は、それらが結合する窒素原子および炭素原子と一緒になって、ヒドロキシまたはC1-C4アルコキシによって置換されていてもよい3~7員の複素環を形成し、ここで、R2とR4が一緒になって複素環を形成する場合、R4’は水素であり、R2とR4’が一緒になって複素環を形成する場合、R4は水素であり、
R4およびR4’は、R2とR4またはR2とR4’が一緒になって複素環を形成する場合を除き、
(a)R4’が水素であり、かつR4が、水素、置換されていてもよいC1-C6アルキル、C3-C6シクロアルキル、C3-C6シクロアルキルC1-C4アルキル、置換されていてもよいフェニル、置換されていてもよいフェニルメチル、置換されていてもよいフェニルエチル、2-(メチルチオ)エチル、-CH2SPG2、N-PG3-インドール-3-イルメチル、4-(PG2O)ベンジル、PG2-O-メチル、1-(PG2O)エチル、2-(PG2O)エチル、PG2-OCO(CH2)-、PG2-OCO(CH2)2-、PG3N-n-ブチル、-CON(R14A)(R14B)、-CH2-CON(R14A)(R14B)、および-(CH2)2CON(R14A)(R14B)からなる群より選択されるか、
(b)R4およびR4’は、独立して、置換されていてもよいC1-C6アルキルであるか、もしくは
(c)R4およびR4’は、それらが結合する炭素原子と一緒になって3~7員の脂環式環を形成し、
R5は、単結合、または-C(R5A)(R5B)-であり、
R5AおよびR5Bは、独立して、水素、C1-C6アルキル、置換されていてもよいアリール、置換されていてもよいヘテロアリール、置換されていてもよいアリールC1-C4アルキル、および置換されていてもよいヘテロアリールC1-C4アルキルからなる群より選択され、
R6は、水素、およびC1-C6アルキルからなる群より選択されるか、あるいはR6とR7もしくはR6とR7’は、それらが結合する窒素原子および炭素原子と一緒になって、ヒドロキシまたはC1-C4アルコキシによって置換されていてもよい3~7員の複素環を形成し、ここで、R6とR7が一緒になって複素環を形成する場合、R7’は水素であり、R6とR7’が一緒になって複素環を形成する場合、R7は水素であり、
R7およびR7’は、R6とR7またはR6とR7’が一緒になって複素環を形成する場合を除き、
(a)R7’が水素であり、かつR7が水素、置換されていてもよいC1-C6アルキル、C3-C6シクロアルキル、C3-C6シクロアルキルC1-C4アルキル、置換されていてもよいフェニル、置換されていてもよいフェニルメチル、置換されていてもよいフェニルエチル、2-(メチルチオ)エチル、-CH2SPG4、N-PG5-インドール-3-イルメチル、4-(PG4O)ベンジル、PG4-O-メチル、1-(PG4O)エチル、2-(PG4O)エチル、PG4-OCO(CH2)-、PG4-OCO(CH2)2-、PG5N-n-ブチル、-CON(R15A)(R15B)、-CH2-CON(R15A)(R15B)、および-(CH2)2CON(R15A)(R15B)からなる群より選択されるか、
(b)R7およびR7’は、独立して、置換されていてもよいC1-C6アルキルであるか、もしくは
(c)R7およびR7’は、それらが結合する炭素原子と一緒になって3~7員の脂環式環を形成し、
R8は、単結合、または-C(R8A)(R8B)-であり、
R8AおよびR8Bは、独立して、水素、C1-C6アルキル、置換されていてもよいアリール、置換されていてもよいヘテロアリール、置換されていてもよいアリールC1-C4アルキル、および置換されていてもよいヘテロアリールC1-C4アルキルからなる群より選択され、
R9は、ヒドロキシ、-O-PG6、天然アミノ酸残基、アミノ酸類縁体残基、-O-RES、または-NH-RESであり、
RESは固相合成用樹脂であり、
R14AおよびR14Bは、独立して、水素、C1-C4アルキルであるか、あるいはR14AおよびR14Bはそれらが結合している窒素原子と一緒になって、1つまたは複数の追加のヘテロ原子を含んでいてもよい4~8員環を形成し、
R15AおよびR15Bは、独立して、水素、C1-C4アルキルであるか、あるいはR15AおよびR15Bはそれらが結合している窒素原子と一緒になって、1つまたは複数の追加のヘテロ原子を含んでいてもよい4~8員環を形成し、
PG1は、Fmoc、Boc、Alloc、Cbz、Teoc、およびトリフルオロアセチルからなる群より選択され、
PG2およびPG4は、独立して、水素、t-Bu、トリチル、メトキシトリチル、クミル、ベンジル、THP、1-エトキシエチル、メチル、エチル、アリル、置換されていてもよいアリール、置換されていてもよいアリールC1-C4アルキル、置換されていてもよいヘテロアリールC1-C4アルキル、および2-(トリメチルシリル)エチルからなる群より選択され、
PG3およびPG5は、独立して、水素、Fmoc、Boc、Alloc、Cbz、Teoc、メトキシカルボニル、t-Bu、トリチル、クミル、およびベンジルからなる群より選択され、
PG6は、t-Bu、トリチル、クミル、ベンジル、メチル、エチル、アリル、および2-(トリメチルシリル)エチルからルなる群より選択される]
で表される少なくとも2つのアミノ酸残基が連結された構造を少なくとも1つ含む、〔1〕または〔2〕に記載の方法。
〔4〕出発ペプチド化合物が、そのC末端に下記一般式(II):
[式中、
R1’は、式(III)で表される基であり、
*は結合点を意味し、
R1は、水素、PG1、天然アミノ酸残基、またはアミノ酸類縁体残基であり、
R2は、水素、およびC1-C6アルキルからなる群より選択されるか、あるいはR2とR10もしくはR2とR10’は、それらが結合する窒素原子および炭素原子と一緒になって、ヒドロキシまたはC1-C4アルコキシによって置換されていてもよい3~7員の複素環を形成し、ここで、R2とR10が一緒になって複素環を形成する場合、R10’は水素であり、R2とR10’が一緒になって複素環を形成する場合、R10は水素であり、
R10およびR10’は、R2とR10またはR2とR10’が一緒になって複素環を形成する場合を除き、
(a)R10’が水素であり、かつR10が、水素、置換されていてもよいC1-C6アルキル、C3-C6シクロアルキル、C3-C6シクロアルキルC1-C4アルキル、置換されていてもよいフェニル、置換されていてもよいフェニルメチル、置換されていてもよいフェニルエチル、2-(メチルチオ)エチル、-CH2SPG8、N-PG9-インドール-3-イルメチル、4-(PG8O)ベンジル、PG8-O-メチル、1-(PG8O)エチル、2-(PG8O)エチル、PG8-OCO(CH2)-、PG8-OCO(CH2)2-、PG9N-n-ブチル、-CON(R16A)(R16B)、-CH2-CON(R16A)(R16B)、および-(CH2)2CON(R16A)(R16B)からなる群より選択されるか、
(b)R10およびR10’は、独立して、置換されていてもよいC1-C6アルキル、C3-C6シクロアルキル、またはC3-C6シクロアルキルC1-C4アルキルであるか、もしくは
(c)R10およびR10’は、それらが結合する炭素原子と一緒になって3~7員の脂環式環を形成し、
R11は、単結合、または-C(R11A)(R11B)-であり、
R11AおよびR11Bは、独立して、水素、C1-C6アルキル、置換されていてもよいアリール、置換されていてもよいヘテロアリール、置換されていてもよいアリールC1-C4アルキル、および置換されていてもよいヘテロアリールC1-C4アルキルからなる群より選択され、
R12およびR12’は、独立して、水素、PG10-O-メチル、-(CH2)nCOO-PG10、-(CH2)nCOO-RES、および-(CH2)nCONH-RESからなる群より選択され、
RESは固相合成用樹脂であり、
nは、0、1、または2であり、
R6は、水素、およびC1-C6アルキルからなる群より選択され、
R13は、C1-C4アルキル、または-(CH2)mCON(R17A)(R17B)であり、
mは、0、1、または2であり、
R16AおよびR16Bは、独立して、水素、またはC1-C4アルキルであるか、あるいはR16AおよびR16Bはそれらが結合している窒素原子と一緒になって、1つまたは複数の追加のヘテロ原子を含んでいてもよい4~8員環を形成し、
R17AおよびR17Bは、独立して、水素、C1-C4アルキルであるか、あるいはR17AおよびR17Bはそれらが結合している窒素原子と一緒になって、1つまたは複数の追加のヘテロ原子を含んでいてもよい4~8員環を形成し、
PG1は、独立して、Fmoc、Boc、Alloc、Cbz、Teoc、およびトリフルオロアセチルからなる群より選択され、
PG8は、水素、t-Bu、トリチル、メトキシトリチル、クミル、ベンジル、THP、1-エトキシエチル、メチル、エチル、アリル、置換されていてもよいアリール、置換されていてもよいアリールC1-C4アルキル、置換されていてもよいヘテロアリールC1-C4アルキル、および2-(トリメチルシリル)エチルからなる群より選択され、
PG9は、水素、Fmoc、Boc、Alloc、Cbz、Teoc、メトキシカルボニル、t-Bu、トリチル、クミル、およびベンジルからなる群より選択され、
PG10は、t-Bu、トリチル、クミル、ベンジル、メチル、エチル、アリル、置換されていてもよいアリール、置換されていてもよいアリールC1-C4アルキル、置換されていてもよいヘテロアリールC1-C4アルキル、および(2-(トリメチルシリル)エチルからなる群より選択される]
で表される少なくとも2つのアミノ酸残基が連結された構造を含む、〔1〕~〔3〕のいずれかに記載の方法。
〔5〕出発アミド化合物と、シリル化剤とを溶媒中で接触させることにより、該シリル化剤によって脱保護可能な保護基を該出発アミド化合物から脱保護する段階を含む、該保護基が脱保護されたアミド化合物を製造する方法であって、
該シリル化剤は、シリル化合物または酸と、求電子種捕捉剤とを混合することによって生成され、
該出発アミド化合物は、下記一般式(II):
[式中、
R1’は、水素原子、またはPG7であり、
R12およびR12’は、独立して、水素、PG10-O-メチル、-(CH2)nCOO-PG10、-(CH2)nCOO-RES、および-(CH2)nCONH-RESからなる群より選択され、
RESは固相合成用樹脂であり、
nは、0、1、または2であり、
R6は、水素、およびC1-C6アルキルからなる群より選択され、
R13は、C1-C4アルキル、または-(CH2)mCON(R17A)(R17B)であり、
mは、0、1、または2であり、
R17AおよびR17Bは、独立して、水素、C1-C4アルキルであるか、あるいはR17AおよびR17Bはそれらが結合している窒素原子と一緒になって、1つまたは複数の追加のヘテロ原子を含んでいてもよい4~8員環を形成し、
PG7は、Fmoc、Boc、Alloc、Cbz、Teoc、およびトリフルオロアセチルからなる群より選択され、
PG10は、t-Bu、トリチル、クミル、ベンジル、メチル、エチル、アリル、置換されていてもよいアリール、置換されていてもよいアリールC1-C4アルキル、置換されていてもよいヘテロアリールC1-C4アルキル、および(2-(トリメチルシリル)エチルからなる群より選択される]
で表され、かつ
該出発アミド化合物は、該脱保護可能な保護基を少なくとも1つ含む、方法。
〔6〕出発アミド化合物と、シリル化剤とを溶媒中で接触させることにより、該出発アミド化合物を固相合成用樹脂から脱樹脂する段階を含む、該固相合成用樹脂が脱樹脂されたアミド化合物を製造する方法であって、
該シリル化剤は、シリル化合物または酸と、求電子種捕捉剤とを混合することによって生成され、
該出発アミド化合物は、下記一般式(II):
[式中、
R1’は、水素原子、またはPG7であり、
R12およびR12’は、独立して、水素、PG10-O-メチル、-(CH2)nCOO-PG10、-(CH2)nCOO-RES、および-(CH2)nCONH-RESからなる群より選択され、
RESは固相合成用樹脂であり、ここで、R12およびR12’の少なくとも一方は、-(CH2)nCOO-RES、または-(CH2)nCONH-RESであり、
RESは固相合成用樹脂であり、
nは、0、1、または2であり、
R6は、水素、およびC1-C6アルキルからなる群より選択され、
R13は、C1-C4アルキル、または-(CH2)mCON(R17A)(R17B)であり、
mは、0、1、または2であり、
R17AおよびR17Bは、独立して、水素、C1-C4アルキルであるか、あるいはR17AおよびR17Bはそれらが結合している窒素原子と一緒になって、1つまたは複数の追加のヘテロ原子を含んでいてもよい4~8員環を形成し、
PG7は、Fmoc、Boc、Alloc、Cbz、Teoc、およびトリフルオロアセチルからなる群より選択され、
PG10は、t-Bu、トリチル、クミル、ベンジル、メチル、エチル、アリル、置換されていてもよいアリール、置換されていてもよいアリールC1-C4アルキル、置換されていてもよいヘテロアリールC1-C4アルキル、および2-(トリメチルシリル)エチルからなる群より選択される]
で表される、方法。
〔7〕脱保護可能な保護基が、t-Bu、トリフェニルメチル、2-(トリメチルシリル)-エチル、Boc、Teoc、Cbz、メトキシカルボニル、テトラヒドロピラニル、1-エトキシエチル、メトキシトリチル、およびクミルからなる群より選択される、〔1〕、および〔3〕~〔5〕のいずれかに記載の方法。
〔8〕シリル化合物が下記式1:
[式中、RAX、RAY、およびRAZは、独立して、C1-C4アルキルまたはフェニルであり、Xは、-OTf、-OClO3、Cl、Br、およびIからなる群より選択される]
で表される、〔1〕~〔7〕のいずれかに記載の方法。
〔9〕シリル化合物が、TMSOTf、TESOTf、TBSOTf、TIPSOTf、TBDPSOTf、TTMSOTf、TMSCl、TMSBr、TMSOClO3、およびTMSIからなる群より選択される、〔8〕に記載の方法。
〔10〕酸が、HX(式中、Xは-OTf、-OClO3、Cl、Br、およびIからなる群より選択される)で表される、〔1〕~〔7〕のいずれかに記載の方法。
〔11〕求電子種捕捉剤が、下記式(2)~(10):
[式2中、
RBは置換シリル基であり、かつRCは置換シリル基であるか、あるいは
RBとRCはそれらが結合している窒素原子および炭素原子と一緒になって5~7員環を形成し、
RDは1つまたは複数のフッ素原子で置換されていてもよいC1-C4アルキルであるか、置換されていてもよいメチレンであり、ここでRDが置換されていてもよいメチレンである場合、式2は二量化して以下の式:
で表される化合物を形成し、
式3中、
RGは1つまたは複数のC1-C4アルキルで置換されたシリル基であり、
RHは水素、またはC1-C4アルキルであり、
RIは水素、または1つまたは複数のフッ素原子で置換されていてもよいC1-C4アルキルであり、
式4中、
(a-1)RJは置換シリル基であり、RKはC1-C4アルコキシであり、かつRMとRLは、独立して、水素、またはC1-C4アルキルであるか、
(a-2)RJは置換シリル基であり、RMは、水素、またはC1-C4アルキルであり、かつRKとRLはそれらが結合している炭素原子と一緒になって酸素原子を含む5~8員環を形成するか、
(b-1)RJは置換シリル基であり、RKはC1-C4アルキルであり、かつRMとRLは、独立して、水素、またはC1-C4アルキルであるか、
(b-2)RJは置換シリル基であり、RMは水素、またはC1-C4アルキルであり、かつRKとRLはそれらが結合している炭素原子と一緒になって5~8員環を形成するか、
(c-1)RJとRMがそれらが結合している炭素原子と一緒になって酸素原子を含む5~7員環を形成し、RKは水素、またはC1-C4アルキルであり、かつRLはC1-C4アルキルであるか、
(c-2)RJとRMがそれらが結合している炭素原子と一緒になって酸素原子を含む5~7員環を形成し、かつRKとRLはそれらが結合している炭素原子と一緒になって5~8員環を形成するか、
(d-1)RJはC1-C4アルキルであり、かつRM、RK、およびRLは、独立して、水素、またはC1-C4アルキルであるか、
(d-2)RJはC1-C4アルキルであり、RMは、水素、またはC1-C4アルキルであり、かつRKとRLはそれらが結合している炭素原子と一緒になって5~8環を形成するか、
(e-1)RJはC1-C3アルキルカルボニルであり、かつRM、RK、およびRLは、独立して水素、またはC1-C4アルキルであるか、
(e-2)RJはC1-C3アルキルカルボニルであり、RMは、水素、またはC1-C4アルキルであり、かつRKとRLはそれらが結合している炭素原子と一緒になって5~8員環を形成するか、
(f-1)RJは置換シリル基またはC1-C4アルキルであり、RKは置換されていてもよいジ-C1-C4アルキルアミノであり、かつRMとRLは、独立して、水素、またはC1-C4アルキルであるか、
(f-2)またはRJは置換シリル基またはC1-C4アルキルであり、RMは、水素、またはC1-C4アルキルであり、かつRKとRLはそれらが結合している炭素原子と一緒になって、窒素原子を含む5~8員環を形成し、該5~8員環は、C1-C4アルキルによって置換されていてもよく、
式5中、
RN、RN’、およびROは、独立して、水素またはC1-C4アルキルであり、
式6中、
RPは置換シリル基であり、
RQは置換シリル基、またはC1-C4アルキルであり、かつRRは水素、置換シリル基、またはC1-C4アルキルであるか、あるいは
RQとRRはそれらが結合している窒素原子と一緒になって1つまたは複数の追加のヘテロ原子を含んでいてもよい5~8員環複素環を形成し、
式7中、
Xは単結合または炭素原子であり、
ここでXが単結合である場合、RSは存在せず、RUAとRRは、それらが結合している炭素原子および窒素原子と一緒になって置換されていてもよい6員の芳香族複素環を形成し、かつRUBとRTは、それらが結合している炭素原子および窒素原子と一緒になって置換されていてもよい6員の芳香族複素環を形成し、
Xが炭素原子である場合、RUAおよびRUBは、独立して、C1-C4アルキルであり、かつRRとRSとRTはそれらが結合する炭素原子と一緒になって以下の構造:
を形成し、
式8中、
RVは、C1-C4アルキルまたはC3-C6シクロアルキルであり、
式9中、
RWおよびRXは、独立して、C1-C4アルキル、または置換シリル基であり、
式10中、
RYおよびRZは、独立して、C1-C4アルキル、または置換シリル基である。]
からなる群より選択される、〔1〕~〔10〕のいずれかに記載の方法。
〔12〕求電子種捕捉剤が、N,O-ビス(トリメチルシリル)アセトアミド、N,O-ビス(トリメチルシリル)トリフルオロアセトアミド、N-メチル-N-トリメチルシリルアセトアミド、N-メチル-N-トリメチルシリルトリフルオロアセトアミド、ジメチルケテンメチルトリメチルシリルアセタール、イソプロペニルオキシトリメチルシラン、2,2,4,4-テトラメチルペンタノンイミン、1,1,1,3,3,3-ヘキサメチルジシラザン(HMDS)、N-トリメチルシリルモルホリン、N-トリメチルシリルジエチルアミン、およびN-tert-ブチルトリメチルシリルアミンからなる群より選択される、〔11〕に記載の方法。
〔13〕除去対象の保護基1当量に対して、または除去対象の樹脂1当量に対して、1~5当量のシリル化合物、および1~10当量の求電子種捕捉剤を混合する、〔1〕~〔9〕および〔11〕~〔12〕のいずれかに記載の方法。
〔14〕除去対象の保護基1当量に対して、または除去対象の樹脂1当量に対して、0.1~0.5当量のシリル化合物または酸を混合する、〔1〕~〔12〕のいずれかに記載の方法であって、
求電子種捕捉剤が、N,O-ビス(トリメチルシリル)アセトアミド、N,O-ビス(トリメチルシリル)トリフルオロアセトアミド、N-メチル-N-トリメチルシリルアセトアミド、N-メチル-N-トリメチルシリルトリフルオロアセトアミド、ジメチルケテンメチルトリメチルシリルアセタール、およびイソプロペニルオキシトリメチルシランからなる群より選択され、
シリル化合物が、TMSOTf、TESOTf、TBSOTf、TIPSOTf、TBDPSOTf、TTMSOTf、TMSCl、TMSBr、およびTMSOClO3からなる群より選択され、
酸が、HX(式中、Xは-OTf、-OClO3、Cl、Br、およびIからなる群より選択される)で表される、方法。
〔15〕出発ペプチド化合物が、1~30個のアミノ酸残基を含み、直鎖または環状である、〔1〕~〔14〕のいずれかに記載の方法。
〔16〕固相合成用樹脂が、CTC樹脂、Wang樹脂、またはSASRIN樹脂である、〔1〕~〔4〕および〔6〕~〔15〕のいずれかに記載の方法。
〔17〕出発ペプチド化合物を溶媒と混合した後に、求電子種捕捉剤を混合し、次いでシリル化合物または酸を混合することを含む、〔1〕~〔16〕のいずれかに記載の方法。
〔18〕溶媒が酢酸エチル、酢酸イソプロピル、2-メチルテトラヒドロフラン、テトラヒドロフラン、ジエチルエーテル、メチルtert-ブチルエーテル、ジクロロメタン、1,2-ジクロロエタン、トルエン、およびアセトニトリルから選択される、〔1〕~〔17〕のいずれかに記載の方法。
〔19〕下記一般式(A)で表されるアミド化合物またはその塩:
式中、
R1’は、水素、Fmoc、Boc、Alloc、Cbz、Teoc、およびトリフルオロアセチルからなる群より選択され、
R17AおよびR17Bは、共にメチルであるか、あるいはR17AおよびR17Bはそれらが結合している窒素原子と一緒になって、ピペリジンまたはモルホリンを形成し、
R18は水素またはPG10であり、ここでPG10は、t-Bu、トリチル、クミル、ベンジル、メチル、エチル、アリル、置換されていてもよいアリール、置換されていてもよいアリールC1-C4アルキル、置換されていてもよいヘテロアリールC1-C4アルキル、および2-(トリメチルシリル)エチルからなる群より選択される。
〔20〕以下からなる群より選択される、〔19〕に記載のアミド化合物またはその塩:
(3-1) 3-((((9H-フルオレン-9-イル)メトキシ)カルボニル)(メチル)アミノ)-4-(ジメチルアミノ)-4-オキソブタン酸、
(3-2) 3-((((9H-フルオレン-9-イル)メトキシ)カルボニル)(メチル)アミノ)-4-(ジメチルアミノ)-4-オキソブタン酸アリル、
(3-3) 3-((((9H-フルオレン-9-イル)メトキシ)カルボニル)(メチル)アミノ)-4-(ジメチルアミノ)-4-オキソブタン酸 tert-ブチル、
(3-4) 3-((((9H-フルオレン-9-イル)メトキシ)カルボニル)(メチル)アミノ)-4-(ジメチルアミノ)-4-オキソブタン酸ベンジル、
(3-5) 3-((tert-ブトキシカルボニル)(メチル)アミノ)-4-(ジメチルアミノ)-4-オキソブタン酸、
(3-6) 3-((tert-ブトキシカルボニル)(メチル)アミノ)-4-(ジメチルアミノ)-4-オキソブタン酸アリル、
(3-7) 3-((tert-ブトキシカルボニル)(メチル)アミノ)-4-(ジメチルアミノ)-4-オキソブタン酸 tert-ブチル、
(3-8) 3-((tert-ブトキシカルボニル)(メチル)アミノ)-4-(ジメチルアミノ)-4-オキソブタン酸ベンジル、
(3-9) 3-(((ベンジルオキシ)カルボニル)(メチル)アミノ)-4-(ジメチルアミノ)-4-オキソブタン酸、
(3-10) 3-(((ベンジルオキシ)カルボニル)(メチル)アミノ)-4-(ジメチルアミノ)-4-オキソブタン酸アリル、
(3-11) 3-(((ベンジルオキシ)カルボニル)(メチル)アミノ)-4-(ジメチルアミノ)-4-オキソブタン酸 tert-ブチル、
(3-12) 3-(((ベンジルオキシ)カルボニル)(メチル)アミノ)-4-(ジメチルアミノ)-4-オキソブタン酸ベンジル、
(3-13) 3-(((アリルオキシ)カルボニル)(メチル)アミノ)-4-(ジメチルアミノ)-4-オキソブタン酸、
(3-14) 3-(((アリルオキシ)カルボニル)(メチル)アミノ)-4-(ジメチルアミノ)-4-オキソブタン酸アリル、
(3-15) 3-(((アリルオキシ)カルボニル)(メチル)アミノ)-4-(ジメチルアミノ)-4-オキソブタン酸 tert-ブチル、
(3-16) 3-(((アリルオキシ)カルボニル)(メチル)アミノ)-4-(ジメチルアミノ)-4-オキソブタン酸ベンジル、
(3-17) 4-(ジメチルアミノ)-3-(メチル((2-(トリメチルシリル)エトキシ)カルボニル)アミノ)-4-オキソブタン酸、
(3-18) 4-(ジメチルアミノ)-3-(メチル((2-(トリメチルシリル)エトキシ)カルボニル)アミノ)-4-オキソブタン酸アリル、
(3-19) 4-(ジメチルアミノ)-3-(メチル((2-(トリメチルシリル)エトキシ)カルボニル)アミノ)-4-オキソブタン酸 tert-ブチル、
(3-20) 4-(ジメチルアミノ)-3-(メチル((2-(トリメチルシリル)エトキシ)カルボニル)アミノ)-4-オキソブタン酸ベンジル、
(2-1) 3-((((9H-フルオレン-9-イル)メトキシ)カルボニル)(メチル)アミノ)-4-モルホリノ-4-オキソブタン酸、
(2-2) 3-((((9H-フルオレン-9-イル)メトキシ)カルボニル)(メチル)アミノ)-4-モルホリノ-4-オキソブタン酸アリル、
(2-3) 3-((((9H-フルオレン-9-イル)メトキシ)カルボニル)(メチル)アミノ)-4-モルホリノ-4-オキソブタン酸 tert-ブチル、
(2-4) 3-((((9H-フルオレン-9-イル)メトキシ)カルボニル)(メチル)アミノ)-4-モルホリノ-4-オキソブタン酸ベンジル、
(2-5) 3-((tert-ブトキシカルボニル)(メチル)アミノ)-4-モルホリノ-4-オキソブタン酸、
(2-6) 3-((tert-ブトキシカルボニル)(メチル)アミノ)-4-モルホリノ-4-オキソブタン酸アリル、
(2-7) 3-((tert-ブトキシカルボニル)(メチル)アミノ)-4-モルホリノ-4-オキソブタン酸 tert-ブチル、
(2-8) 3-((tert-ブトキシカルボニル)(メチル)アミノ)-4-モルホリノ-4-オキソブタン酸ベンジル、
(2-9) 3-(((ベンジルオキシ)カルボニル)(メチル)アミノ)-4-モルホリノ-4-オキソブタン酸、
(2-10) 3-(((ベンジルオキシ)カルボニル)(メチル)アミノ)-4-モルホリノ-4-オキソブタン酸アリル、
(2-11) 3-(((ベンジルオキシ)カルボニル)(メチル)アミノ)-4-モルホリノ-4-オキソブタン酸 tert-ブチル、
(2-12) 3-(((ベンジルオキシ)カルボニル)(メチル)アミノ)-4-モルホリノ-4-オキソブタン酸ベンジル、
(2-13) 3-(((アリルオキシ)カルボニル)(メチル)アミノ)-4-モルホリノ-4-オキソブタン酸、
(2-14) 3-(((アリルオキシ)カルボニル)(メチル)アミノ)-4-モルホリノ-4-オキソブタン酸アリル、
(2-15) 3-(((アリルオキシ)カルボニル)(メチル)アミノ)-4-モルホリノ-4-オキソブタン酸 tert-ブチル、
(2-16) 3-(((アリルオキシ)カルボニル)(メチル)アミノ)-4-モルホリノ-4-オキソブタン酸ベンジル、
(2-17) 3-(メチル((2-(トリメチルシリル)エトキシ)カルボニル)アミノ)-4-モルホリノ-4-オキソブタン酸、
(2-18) 3-(メチル((2-(トリメチルシリル)エトキシ)カルボニル)アミノ)-4-モルホリノ-4-オキソブタン酸アリル、
(2-19) 3-(メチル((2-(トリメチルシリル)エトキシ)カルボニル)アミノ)-4-モルホリノ-4-オキソブタン酸 tert-ブチル、
(2-20) 3-(メチル((2-(トリメチルシリル)エトキシ)カルボニル)アミノ)-4-モルホリノ-4-オキソブタン酸ベンジル、
(4-1) 3-(メチルアミノ)-4-オキソ-4-(ピペリジン-1-イル)ブタン酸、
(4-2) アリル 3-(メチルアミノ)-4-オキソ-4-(ピペリジン-1-イル)ブタノアート、
(4-3) tert-ブチル 3-(メチルアミノ)-4-オキソ-4-(ピペリジン-1-イル)ブタノアート、
(4-4) ベンジル 3-(メチルアミノ)-4-オキソ-4-(ピペリジン-1-イル)ブタノアート、
(4-5) 3-(メチルアミノ)-4-モルホリノ-4-オキソブタン酸、
(4-6) アリル 3-(メチルアミノ)-4-モルホリノ-4-オキソブタノアート、
(4-7) tert-ブチル 3-(メチルアミノ)-4-モルホリノ-4-オキソブタノアート、
(4-8) ベンジル 3-(メチルアミノ)-4-モルホリノ-4-オキソブタノアート、
(4-9) 4-(ジメチルアミノ)-3-(メチルアミノ)-4-オキソブタン酸、
(4-10) アリル 4-(ジメチルアミノ)-3-(メチルアミノ)-4-オキソブタノアート、
(4-11) tert-ブチル 4-(ジメチルアミノ)-3-(メチルアミノ)-4-オキソブタノアート、
(4-12) ベンジル 4-(ジメチルアミノ)-3-(メチルアミノ)-4-オキソブタノアート、
(1-1) 3-((((9H-フルオレン-9-イル)メトキシ)カルボニル)(メチル)アミノ)-4-オキソ-4-(ピペリジン-1-イル)ブタン酸、
(1-2) 3-((((9H-フルオレン-9-イル)メトキシ)カルボニル)(メチル)アミノ)-4-オキソ-4-(ピペリジン-1-イル)ブタン酸アリル、
(1-3) 3-((((9H-フルオレン-9-イル)メトキシ)カルボニル)(メチル)アミノ)-4-オキソ-4-(ピペリジン-1-イル)ブタン酸 tert-ブチル、
(1-4) 3-((((9H-フルオレン-9-イル)メトキシ)カルボニル)(メチル)アミノ)-4-オキソ-4-(ピペリジン-1-イル)ブタン酸ベンジル、
(1-5) 3-((tert-ブトキシカルボニル)(メチル)アミノ)-4-オキソ-4-(ピペリジン-1-イル)ブタン酸、
(1-6) 3-((tert-ブトキシカルボニル)(メチル)アミノ)-4-オキソ-4-(ピペリジン-1-イル)ブタン酸アリル、
(1-7) 3-((tert-ブトキシカルボニル)(メチル)アミノ)-4-オキソ-4-(ピペリジン-1-イル)ブタン酸 tert-ブチル、
(1-8) 3-((tert-ブトキシカルボニル)(メチル)アミノ)-4-オキソ-4-(ピペリジン-1-イル)ブタン酸ベンジル、
(1-9) 3-(((ベンジルオキシ)カルボニル)(メチル)アミノ)-4-オキソ-4-(ピペリジン-1-イル)ブタン酸、
(1-10) 3-(((ベンジルオキシ)カルボニル)(メチル)アミノ)-4-オキソ-4-(ピペリジン-1-イル)ブタン酸アリル、
(1-11) 3-(((ベンジルオキシ)カルボニル)(メチル)アミノ)-4-オキソ-4-(ピペリジン-1-イル)ブタン酸 tert-ブチル、
(1-12) 3-(((ベンジルオキシ)カルボニル)(メチル)アミノ)-4-オキソ-4-(ピペリジン-1-イル)ブタン酸ベンジル、
(1-13) 3-(((アリルオキシ)カルボニル)(メチル)アミノ)-4-オキソ-4-(ピペリジン-1-イル)ブタン酸、
(1-14) 3-(((アリルオキシ)カルボニル)(メチル)アミノ)-4-オキソ-4-(ピペリジン-1-イル)ブタン酸アリル、
(1-15) 3-(((アリルオキシ)カルボニル)(メチル)アミノ)-4-オキソ-4-(ピペリジン-1-イル)ブタン酸 tert-ブチル、
(1-16) 3-(((アリルオキシ)カルボニル)(メチル)アミノ)-4-オキソ-4-(ピペリジン-1-イル)ブタン酸ベンジル、
(1-17) 3-(メチル((2-(トリメチルシリル)エトキシ)カルボニル)アミノ)-4-オキソ-4-(ピペリジン-1-イル)ブタン酸、
(1-18) 3-(メチル((2-(トリメチルシリル)エトキシ)カルボニル)アミノ)-4-オキソ-4-(ピペリジン-1-イル)ブタン酸アリル、
(1-19) 3-(メチル((2-(トリメチルシリル)エトキシ)カルボニル)アミノ)-4-オキソ-4-(ピペリジン-1-イル)ブタン酸 tert-ブチル、および
(1-20) 3-(メチル((2-(トリメチルシリル)エトキシ)カルボニル)アミノ)-4-オキソ-4-(ピペリジン-1-イル)ブタン酸ベンジル。
〔21〕天然アミノ酸残基および/またはアミノ酸類縁体残基を含む出発ペプチド化合物と、シリル化剤とを溶媒中で接触させることにより、該シリル化剤によって脱保護可能な保護基を該出発ペプチド化合物から脱保護する段階を含む、該保護基が脱保護されたペプチド化合物を製造する方法であって、
該シリル化剤は、シリル化合物または酸と、求電子種捕捉剤とを混合することによって生成され、
該出発ペプチド化合物は、下記一般式(I):
[式中、
R1は、水素、PG1、天然アミノ酸残基、またはアミノ酸類縁体残基であり、
R2は、水素、およびC1-C6アルキルからなる群より選択されるか、あるいはR2とR4もしくはR2とR4’は、それらが結合する窒素原子および炭素原子と一緒になって、ヒドロキシまたはC1-C4アルコキシによって置換されていてもよい3~7員の複素環を形成し、
R4およびR4’は、R2と一緒になって複素環を形成する場合を除き、
(a)R4’が水素であり、かつR4が、水素、置換されていてもよいC1-C6アルキル、C3-C6シクロアルキル、C3-C6シクロアルキルC1-C4アルキル、置換されていてもよいフェニル、置換されていてもよいフェニルメチル、置換されていてもよいフェニルエチル、2-(メチルチオ)エチル、-CH2SPG2、N-PG3-インドール-3-イルメチル、4-(PG2O)ベンジル、PG2-O-メチル、1-(PG2O)エチル、2-(PG2O)エチル、PG2-OCO(CH2)-、PG2-OCO(CH2)2-、PG3N-n-ブチル、-CON(R14A)(R14B)、-CH2-CON(R14A)(R14B)、および-(CH2)2CON(R14A)(R14B)からなる群より選択されるか、
(b)R4およびR4’は、独立して、置換されていてもよいC1-C6アルキルであるか、もしくは
(c)R4およびR4’は、それらが結合する炭素原子と一緒になって3~7員の脂環式環を形成し、
R5は、単結合、または-C(R5A)(R5B)-であり、
R5AおよびR5Bは、独立して、水素、C1-C6アルキル、置換されていてもよいアリール、置換されていてもよいヘテロアリール、置換されていてもよいアリールC1-C4アルキル、および置換されていてもよいヘテロアリールC1-C4アルキルからなる群より選択され、
R6は、水素、およびC1-C6アルキルからなる群より選択されるか、あるいはR6とR7もしくはR6とR7’は、それらが結合する窒素原子および炭素原子と一緒になって、ヒドロキシまたはC1-C4アルコキシによって置換されていてもよい3~7員の複素環を形成し、
R7およびR7’は、R6と一緒になって複素環を形成する場合を除き、
(a)R7’が水素であり、かつR7が水素、置換されていてもよいC1-C6アルキル、C3-C6シクロアルキル、C3-C6シクロアルキルC1-C4アルキル、置換されていてもよいフェニル、置換されていてもよいフェニルメチル、置換されていてもよいフェニルエチル、2-(メチルチオ)エチル、-CH2SPG4、N-PG5-インドール-3-イルメチル、4-(PG4O)ベンジル、PG4-O-メチル、1-(PG4O)エチル、2-(PG4O)エチル、PG4-OCO(CH2)-、PG4-OCO(CH2)2-、PG5N-n-ブチル、-CON(R15A)(R15B)、-CH2-CON(R15A)(R15B)、および-(CH2)2CON(R15A)(R15B)からなる群より選択されるか、
(b)R7およびR7’は、独立して、置換されていてもよいC1-C6アルキルであるか、もしくは
(c)R7およびR7’は、それらが結合する炭素原子と一緒になって3~7員の脂環式環を形成し、
R8は、単結合、または-C(R8A)(R8B)-であり、
R8AおよびR8Bは、独立して、水素、C1-C6アルキル、置換されていてもよいアリール、置換されていてもよいヘテロアリール、置換されていてもよいアリールC1-C4アルキル、および置換されていてもよいヘテロアリールC1-C4アルキルからなる群より選択され、
R9は、ヒドロキシ、-O-PG6、天然アミノ酸残基、アミノ酸類縁体残基、-O-RES、または-NH-RESであり、
RESは固相合成用樹脂であり、
R14AおよびR14Bは、独立して、水素、C1-C4アルキルであるか、あるいはR14AおよびR14Bはそれらが結合している窒素原子と一緒になって、1つまたは複数の追加のヘテロ原子を含んでいてもよい4~8員環を形成し、
R15AおよびR15Bは、独立して、水素、C1-C4アルキルであるか、あるいはR15AおよびR15Bはそれらが結合している窒素原子と一緒になって、1つまたは複数の追加のヘテロ原子を含んでいてもよい4~8員環を形成し、
PG1は、Fmoc、Boc、Alloc、Cbz、Teoc、およびトリフルオロアセチルからなる群より選択され、
PG2およびPG4は、独立して、水素、t-Bu、トリチル、メトキシトリチル、クミル、ベンジル、THP、1-エトキシエチル、メチル、エチル、アリル、置換されていてもよいアリール、置換されていてもよいアリールC1-C4アルキル、置換されていてもよいヘテロアリールC1-C4アルキル、および2-(トリメチルシリル)エチルからなる群より選択され、
PG3およびPG5は、独立して、水素、Fmoc、Boc、Alloc、Cbz、Teoc、メトキシカルボニル、t-Bu、トリチル、クミル、およびベンジルからなる群より選択され、
PG6は、t-Bu、トリチル、クミル、ベンジル、メチル、エチル、アリル、および2-(トリメチルシリル)エチルからルなる群より選択される]
で表される2つのアミノ酸残基が連結された構造を含み、
該出発ペプチド化合物は、任意に追加の天然アミノ酸残基および/またはアミノ酸類縁体残基を含み、かつ
該出発ペプチド化合物は、該脱保護可能な保護基を少なくとも1つ含む、方法。
〔22〕天然アミノ酸残基および/またはアミノ酸類縁体残基を含む出発ペプチド化合物と、シリル化剤とを溶媒中で接触させることにより、該出発ペプチド化合物を固相合成用樹脂から脱樹脂する段階を含む、該固相合成用樹脂が脱樹脂されたペプチド化合物を製造する方法であって、
該シリル化剤は、シリル化合物または酸と、求電子種捕捉剤とを混合することによって生成され、
該出発ペプチド化合物は、下記一般式(I):
[式中、
R1は、水素、PG1、天然アミノ酸残基、またはアミノ酸類縁体残基であり、
R2は、水素、およびC1-C6アルキルからなる群より選択されるか、あるいはR2とR4もしくはR2とR4’は、それらが結合する窒素原子および炭素原子と一緒になって、ヒドロキシまたはC1-C4アルコキシによって置換されていてもよい3~7員の複素環を形成し、
R4およびR4’は、R2と一緒になって複素環を形成する場合を除き、
(a)R4’が水素であり、かつR4が、水素、置換されていてもよいC1-C6アルキル、C3-C6シクロアルキル、C3-C6シクロアルキルC1-C4アルキル、置換されていてもよいフェニル、置換されていてもよいフェニルメチル、置換されていてもよいフェニルエチル、2-(メチルチオ)エチル、-CH2SPG2、N-PG3-インドール-3-イルメチル、4-(PG2O)ベンジル、PG2-O-メチル、1-(PG2O)エチル、2-(PG2O)エチル、PG2-OCO(CH2)-、PG2-OCO(CH2)2-、PG3N-n-ブチル、-CON(R14A)(R14B)、-CH2-CON(R14A)(R14B)、および-(CH2)2CON(R14A)(R14B)からなる群より選択されるか、
(b)R4およびR4’は、独立して、置換されていてもよいC1-C6アルキルであるか、もしくは
(c)R4およびR4’は、それらが結合する炭素原子と一緒になって3~7員の脂環式環を形成し、
R5は、単結合、または-C(R5A)(R5B)-であり、
R5AおよびR5Bは、独立して、水素、C1-C6アルキル、置換されていてもよいアリール、置換されていてもよいヘテロアリール、置換されていてもよいアリールC1-C4アルキル、および置換されていてもよいヘテロアリールC1-C4アルキルからなる群より選択され、
R6は、水素、およびC1-C6アルキルからなる群より選択されるか、あるいはR6とR7もしくはR6とR7’は、それらが結合する窒素原子および炭素原子と一緒になって、ヒドロキシまたはC1-C4アルコキシによって置換されていてもよい3~7員の複素環を形成し、
R7およびR7’は、R6と一緒になって複素環を形成する場合を除き、
(a)R7’が水素であり、かつR7が水素、置換されていてもよいC1-C6アルキル、C3-C6シクロアルキル、C3-C6シクロアルキルC1-C4アルキル、置換されていてもよいフェニル、置換されていてもよいフェニルメチル、置換されていてもよいフェニルエチル、2-(メチルチオ)エチル、-CH2SPG4、N-PG5-インドール-3-イルメチル、4-(PG4O)ベンジル、PG4-O-メチル、1-(PG4O)エチル、2-(PG4O)エチル、PG4-OCO(CH2)-、PG4-OCO(CH2)2-、PG5N-n-ブチル、-CON(R15A)(R15B)、-CH2-CON(R15A)(R15B)、および-(CH2)2CON(R15A)(R15B)からなる群より選択されるか、
(b)R7およびR7’は、独立して、置換されていてもよいC1-C6アルキルであるか、もしくは
(c)R7およびR7’は、それらが結合する炭素原子と一緒になって3~7員の脂環式環を形成し、
R8は、単結合、または-C(R8A)(R8B)-であり、
R8AおよびR8Bは、独立して、水素、C1-C6アルキル、置換されていてもよいアリール、置換されていてもよいヘテロアリール、置換されていてもよいアリールC1-C4アルキル、および置換されていてもよいヘテロアリールC1-C4アルキルからなる群より選択され、
R9は、ヒドロキシ、-O-PG6、天然アミノ酸残基、アミノ酸類縁体残基、-O-RES、または-NH-RESであり、
RESは固相合成用樹脂であり、
R14AおよびR14Bは、独立して、水素、C1-C4アルキルであるか、あるいはR14AおよびR14Bはそれらが結合している窒素原子と一緒になって、1つまたは複数の追加のヘテロ原子を含んでいてもよい4~8員環を形成し、
R15AおよびR15Bは、独立して、水素、C1-C4アルキルであるか、あるいはR15AおよびR15Bはそれらが結合している窒素原子と一緒になって、1つまたは複数の追加のヘテロ原子を含んでいてもよい4~8員環を形成し、
PG1は、Fmoc、Boc、Alloc、Cbz、Teoc、およびトリフルオロアセチルからなる群より選択され、
PG2およびPG4は、独立して、水素、t-Bu、トリチル、メトキシトリチル、クミル、ベンジル、THP、1-エトキシエチル、メチル、エチル、アリル、置換されていてもよいアリール、置換されていてもよいアリールC1-C4アルキル、置換されていてもよいヘテロアリールC1-C4アルキル、および2-(トリメチルシリル)エチルからなる群より選択され、
PG3およびPG5は、独立して、水素、Fmoc、Boc、Alloc、Cbz、Teoc、メトキシカルボニル、t-Bu、トリチル、クミル、およびベンジルからなる群より選択され、
PG6は、t-Bu、トリチル、クミル、ベンジル、メチル、エチル、アリル、および2-(トリメチルシリル)エチルからなる群より選択される]
で表される2つのアミノ酸残基が連結された構造を含み、
該出発ペプチド化合物は、任意に追加の天然アミノ酸残基および/またはアミノ酸類縁体残基を含み、かつ
該出発ペプチド化合物は、固相合成用樹脂と結合したアミノ酸残基を少なくとも1つ含む、方法。
〔23〕天然アミノ酸残基および/またはアミノ酸類縁体残基を含む出発ペプチド化合物または出発アミド化合物と、シリル化剤とを溶媒中で接触させることにより、該シリル化剤によって脱保護可能な保護基を該出発ペプチド化合物または出発アミド化合物から脱保護する段階を含む、該保護基が脱保護されたペプチド化合物またはアミド化合物を製造する方法であって、
該シリル化剤は、シリル化合物または酸と、求電子種捕捉剤とを混合することによって生成され、
該出発ペプチド化合物または出発アミド化合物は、該出発ペプチド化合物または出発アミド化合物のC末端に下記一般式(II):
[式中、
R1’は、水素原子、PG7、または式(III)で表される基であり、
*は結合点を意味し、
R1は、水素、PG1、天然アミノ酸残基、またはアミノ酸類縁体残基であり、
R2は、水素、およびC1-C6アルキルからなる群より選択されるか、あるいはR2とR10もしくはR2とR10’は、それらが結合する窒素原子および炭素原子と一緒になって、ヒドロキシまたはC1-C4アルコキシによって置換されていてもよい3~7員の複素環を形成し、
R10およびR10’は、R2と一緒になって複素環を形成する場合を除き、
(a)R10’が水素であり、かつR10が、水素、置換されていてもよいC1-C6アルキル、C3-C6シクロアルキル、C3-C6シクロアルキルC1-C4アルキル、置換されていてもよいフェニル、置換されていてもよいフェニルメチル、置換されていてもよいフェニルエチル、2-(メチルチオ)エチル、-CH2SPG8、N-PG9-インドール-3-イルメチル、4-(PG8O)ベンジル、PG8-O-メチル、1-(PG8O)エチル、2-(PG8O)エチル、PG8-OCO(CH2)-、PG8-OCO(CH2)2-、PG9N-n-ブチル、-CON(R16A)(R16B)、-CH2-CON(R16A)(R16B)、および-(CH2)2CON(R16A)(R16B)からなる群より選択されるか、
(b)R10およびR10’は、独立して、置換されていてもよいC1-C6アルキル、C3-C6シクロアルキル、またはC3-C6シクロアルキルC1-C4アルキルであるか、もしくは
(c)R10およびR10’は、それらが結合する炭素原子と一緒になって3~7員の脂環式環を形成し、
R11は、単結合、または-C(R11A)(R11B)-であり、
R11AおよびR11Bは、独立して、水素、C1-C6アルキル、置換されていてもよいアリール、置換されていてもよいヘテロアリール、置換されていてもよいアリールC1-C4アルキル、および置換されていてもよいヘテロアリールC1-C4アルキルからなる群より選択され、
R12およびR12’は、独立して、水素、PG10-O-メチル、-(CH2)nCOO-PG10、-(CH2)nCOO-RES、および-(CH2)nCONH-RESからなる群より選択され、
RESは固相合成用樹脂であり、
nは、0、1、または2であり、
R6は、水素、およびC1-C6アルキルからなる群より選択され、
R13は、C1-C4アルキル、または-(CH2)mCON(R17A)(R17B)であり、
mは、0、1、または2であり、
R16AおよびR16Bは、独立して、水素、またはC1-C4アルキルであるか、あるいはR16AおよびR16Bはそれらが結合している窒素原子と一緒になって、1つまたは複数の追加のヘテロ原子を含んでいてもよい4~8員環を形成し、
R17AおよびR17Bは、独立して、水素、C1-C4アルキルであるか、あるいはR17AおよびR17Bはそれらが結合している窒素原子と一緒になって、1つまたは複数の追加のヘテロ原子を含んでいてもよい4~8員環を形成し、
PG1およびPG7は、独立して、Fmoc、Boc、Alloc、Cbz、Teoc、およびトリフルオロアセチルからなる群より選択され、
PG8は、水素、t-Bu、トリチル、メトキシトリチル、クミル、ベンジル、THP、1-エトキシエチル、メチル、エチル、アリル、置換されていてもよいアリール、置換されていてもよいアリールC1-C4アルキル、置換されていてもよいヘテロアリールC1-C4アルキル、および2-(トリメチルシリル)エチルからなる群より選択され、
PG9は、水素、Fmoc、Boc、Alloc、Cbz、Teoc、メトキシカルボニル、t-Bu、トリチル、クミル、およびベンジルからなる群より選択され、
PG10は、t-Bu、トリチル、クミル、ベンジル、メチル、エチル、アリル、置換されていてもよいアリール、置換されていてもよいアリールC1-C4アルキル、置換されていてもよいヘテロアリールC1-C4アルキル、および(2-(トリメチルシリル)エチルからなる群より選択される]
で表されるアミノ酸残基または2つのアミノ酸残基が連結された構造を含み、
該出発ペプチド化合物は、任意に追加の天然アミノ酸残基および/またはアミノ酸類縁体残基を含み、かつ
該出発ペプチド化合物または出発アミド化合物は、該脱保護可能な保護基を少なくとも1つ含む、方法。
〔24〕天然アミノ酸残基および/またはアミノ酸類縁体残基を含む出発ペプチド化合物または出発アミド化合物と、シリル化剤とを溶媒中で接触させることにより、該出発ペプチド化合物または出発アミド化合物を固相合成用樹脂から脱樹脂する段階を含む、該固相合成用樹脂が脱樹脂されたペプチド化合物またはアミド化合物を製造する方法であって、
該シリル化剤は、シリル化合物または酸と、求電子種捕捉剤とを混合することによって生成され、
該出発ペプチド化合物または出発アミド化合物は、該出発ペプチド化合物または出発アミド化合物のC末端に下記一般式(II):
[式中、
R1’は、水素原子、PG7、または式(III)で表される基であり、
*は結合点を意味し、
R1は、水素、PG1、天然アミノ酸残基、またはアミノ酸類縁体残基であり、
R2は、水素、およびC1-C6アルキルからなる群より選択されるか、あるいはR2とR10もしくはR2とR10’は、それらが結合する窒素原子および炭素原子と一緒になって、ヒドロキシまたはC1-C4アルコキシによって置換されていてもよい3~7員の複素環を形成し、
R10およびR10’は、R2と一緒になって複素環を形成する場合を除き、
(a)R10’が水素であり、かつR10が、水素、置換されていてもよいC1-C6アルキル、C3-C6シクロアルキル、C3-C6シクロアルキルC1-C4アルキル、置換されていてもよいフェニル、置換されていてもよいフェニルメチル、置換されていてもよいフェニルエチル、2-(メチルチオ)エチル、-CH2SPG8、N-PG9-インドール-3-イルメチル、4-(PG8O)ベンジル、PG8-O-メチル、1-(PG8O)エチル、2-(PG8O)エチル、PG8-OCO(CH2)-、PG8-OCO(CH2)2-、PG9N-n-ブチル、-CON(R16A)(R16B)、-CH2-CON(R16A)(R16B)、および-(CH2)2CON(R16A)(R16B)からなる群より選択されるか、
(b)R10およびR10’は、独立して、置換されていてもよいC1-C6アルキル、C3-C6シクロアルキル、またはC3-C6シクロアルキルC1-C4アルキルであるか、もしくは
(c)R10およびR10’は、それらが結合する炭素原子と一緒になって3~7員の脂環式環を形成し、
R11は、単結合、または-C(R11A)(R11B)-であり、
R11AおよびR11Bは、独立して、水素、置換されていてもよいC1-C6アルキル、置換されていてもよいアリール、置換されていてもよいヘテロアリール、置換されていてもよいアリールC1-C4アルキル、および置換されていてもよいヘテロアリールC1-C4アルキルからなる群より選択され、
R12およびR12’は、独立して、水素、PG10-O-メチル、-(CH2)nCOO-PG10、-(CH2)nCOO-RES、および-(CH2)nCONH-RESからなる群より選択され、
RESは固相合成用樹脂であり、ここで、R12およびR12’の少なくとも一方は、-(CH2)nCOO-RES、または-(CH2)nCONH-RESであり、
RESは固相合成用樹脂であり、
nは、0、1、または2であり、
R6は、水素、およびC1-C6アルキルからなる群より選択され、
R13は、C1-C4アルキル、または-(CH2)mCON(R17A)(R17B)であり、
mは、0、1、または2であり、
R16AおよびR16Bは、独立して、水素、またはC1-C4アルキルであるか、あるいはR16AおよびR16Bはそれらが結合している窒素原子と一緒になって、1つまたは複数の追加のヘテロ原子を含んでいてもよい4~8員環を形成し、
R17AおよびR17Bは、独立して、水素、C1-C4アルキルであるか、あるいはR17AおよびR17Bはそれらが結合している窒素原子と一緒になって、1つまたは複数の追加のヘテロ原子を含んでいてもよい4~8員環を形成し、
PG1およびPG7は、独立して、Fmoc、Boc、Alloc、Cbz、Teoc、およびトリフルオロアセチルからなる群より選択され、
PG8は、水素、t-Bu、トリチル、メトキシトリチル、クミル、ベンジル、THP、1-エトキシエチル、メチル、エチル、アリル、置換されていてもよいアリール、置換されていてもよいアリールC1-C4アルキル、置換されていてもよいヘテロアリールC1-C4アルキル、および2-(トリメチルシリル)エチルからなる群より選択され、
PG9は、水素、Fmoc、Boc、Alloc、Cbz、Teoc、メトキシカルボニル、t-Bu、トリチル、クミル、およびベンジルからなる群より選択され、
PG10は、t-Bu、トリチル、クミル、ベンジル、メチル、エチル、アリル、置換されていてもよいアリール、置換されていてもよいアリールC1-C4アルキル、置換されていてもよいヘテロアリールC1-C4アルキル、および2-(トリメチルシリル)エチルからなる群より選択される]
で表されるアミノ酸残基または2つのアミノ酸残基が連結された構造を含み、
該出発ペプチド化合物は、任意に追加の天然アミノ酸残基および/またはアミノ酸類縁体残基を含む、方法。
〔25〕シリル化合物または酸、および求電子種捕捉剤を含む、保護基を脱保護するために用いるための脱保護剤。
〔26〕シリル化合物または酸、および求電子種捕捉剤を含む、固相反応においてペプチド化合物を樹脂から切り出すために用いるための脱樹脂剤。
AcOEt:酢酸エチル
Alloc:アリルオキシカルボニル
Allyl:アリル
BEP:テトラフルオロホウ酸2-ブロモ-1-エチルピリジニウム
Bn:ベンジル
Boc:tert-ブトキシカルボニル
BSA:N,O-ビス(トリメチルシリル)アセトアミド
BSTFA:N,O-ビス(トリメチルシリル)トリフルオロアセトアミド
Bu:ブチル
Cbz:ベンジルオキシカルボニル
cHx:シクロへキシル
Cl-CTC樹脂:2-クロロトリチルクロリド ポリマー樹脂
CPME:シクロペンチルメチルエーテル
CTC:塩化2-クロロトリチル
DBU:2,3,4,6,7,8,9,10-オクタヒドロピリミド[1,2-a]アゼピン
DdZ:3,5-ジメトキシフェニルイソプロポキシカルボニル
DIC:N,N’-ジイソプロピルカルボジイミド
DIPEA:N,N-ジイソプロピルエチルアミン
DMA:N,N-ジメチルアセトアミド
DME:1,2-ジメトキシエタン
DMF:N,N-ジメチルホルムアミド
DMSO:ジメチルスルホキシド
DMT-MM:4-(4,6-ジメトキシ-1,3,5-トリアジン-2-イル)-4-メチルモルホリニウムクロリド
EDCI:1-(3-ジメチルアミノプロピル)-3-エチルカルボジイミド
eq.:当量
EtOH:エタノール
Et:エチル
Fmoc:9-フルオレニルメチルオキシカルボニル
HATU:1-[ビス(ジメチルアミノ)メチレン]-1H-1,2,3-トリアゾロ[4,5-b]ピリジニウム3-オキシドヘキサフルオロホスファート
HMDS:ヘキサメチルジシラザン
HOAt:3H-1,2,3-トリアゾロ[4,5-b]ピリジン-3-オール
HOBt:1,2,3-ベンゾトリアゾール-1-オール
HPLC:高速液体クロマトグラフィー
i-PrOAc:酢酸イソプロピル
i-Pr:イソプロピル
LCMS:液体クロマトグラフィー質量分析
MeCN:アセトニトリル
Me:メチル
MS:質量分析
MsOH:メタンスルホン酸
MSTFA:N-メチル-N-トリメチルシリルトリフルオロアセトアミド
MTBE:メチル tert-ブチルエーテル
ND:not determined
NMI:1-メチルイミダゾール
NMP:N-メチルピロリドン
oxyma:シアノ(ヒドロキシイミノ)酢酸エチル
Pd/C:パラジウム炭素
Ph:フェニル
pip:ピペリジニル
prep.:preparation
T3P:プロピルホスホン酸無水物
TBDPS:tert-ブチルジフェニルシリル
TBS:tert-ブチルジメチルシリル
t-Bu:tert-ブチル
TEA:トリエチルアミン
Teoc:2-(トリメチルシリル)エトキシカルボニル
TES:トリエチルシリル
TFA:トリフルオロ酢酸
TFE:2,2,2-トリフルオロエタノール
TfOH:トリフルオロメタンスルホン酸
Tf:トリフルオロメタンスルホニル
THF:テトラヒドロフラン
2-MeTHF:2-メチルテトラヒドロフラン
TIPS:トリイソプロピルシリル
TMSOTf:トリフルオロメタンスルホン酸トリメチルシリル
TMS:トリメチルシリル
Tr:トリチル
TTMS:トリス(トリメチルシリル)シリル
vol.:volume
Gly:グリシン
Ala:アラニン
Ser:セリン
Thr:スレオニン
Val:バリン
Leu:ロイシン
Ile:イソロイシン
Phe:フェニルアラニン
Tyr:チロシン
Trp:トリプトファン
His:ヒスチジン
Glu:グルタミン酸
Asp:アスパラギン酸
Gln:グルタミン
Asn:アスパラギン
Cys:システイン
Met:メチオニン
Lys:リジン
Arg:アルギニン
Pro:プロリン
MeGly:N-Meグリシン
MeAla:N-Meアラニン
MeSer:N-Meセリン
MeThr:N-Meスレオニン
MeVal:N-Meバリン
MeLeu:N-Meロイシン
MeIle:N-Meイソロイシン
MePhe:N-Meフェニルアラニン
MeTyr:N-Meチロシン
MeTrp:N-Meトリプトファン
MeHis:N-Meヒスチジン
MeGlu:N-Meグルタミン酸
MeAsp:N-Meアスパラギン酸
MeGln:N-Meグルタミン
MeAsn:N-Meアスパラギン
MeCys:N-Meシステイン
MeMet:N-Meメチオニン
MeLys:N-Meリジン
MeArg:N-Meアルギニン
本明細書において「アルキル」とは、脂肪族炭化水素から任意の水素原子を1個除いて誘導される1価の基であり、骨格中にヘテロ原子(炭素及び水素原子以外の原子をいう。)または不飽和の炭素-炭素結合を含有せず、水素及び炭素原子を含有するヒドロカルビルまたは炭化水素基構造の部分集合を有する。該アルキルは直鎖状、又は分枝鎖状のものを含む。アルキルとしては、炭素原子数1~20(C1-C20、以下「Cp-Cq」とは炭素原子数がp~q個であることを意味する。)のアルキルであり、C1-C6アルキル、C1-C4アルキルなどが例示される。アルキルとして、具体的には、メチル、エチル、プロピル、ブチル、ペンチル、ヘキシル、イソプロピル、tert-ブチル、sec-ブチルなどが挙げられる。
複素環として具体的には、たとえば、アゼチジン、ピペラジン、ピロリジン、ピペリジン、モルホリン、ホモモルホリン、(R)-ヘキサヒドロピロロ[1,2-a]ピラジン、(S)-ヘキサヒドロピロロ[1,2-a]ピラジン、3-オキソピペラジン、2-オキソピロリジン、アゼチジン、2-オキソイミダゾリジン、オキセタン、ジヒドロフラン、テトラヒドロフラン、ジヒドロピラン、テトラヒドロピラン、テトラヒドロピリジン、チオモルホリン、ピラゾリジン、イミダゾリン、オキサゾリジン、イソオキサゾリジン、チアゾリジン、イミダゾリジン、イソチアゾリジン、チアジアゾリジン、オキサゾリドン、ベンゾジオキサン、ベンゾオキサゾリン、ジオキソラン、ジオキサン、テトラヒドロチオピランなどが挙げられる。
芳香族複素環として具体的には、たとえば、フラン、チオフェン、ピロール、イミダゾール、ピラゾール、チアゾール、イソチアゾール、オキサゾール、イソオキサゾール、オキサジアゾール、チアジアゾール、トリアゾール、テトラゾール、ピリジン、ピリミジン、ピリダジン、ピラジン、トリアジン、ベンゾフラン、ベンゾチオフェン、ベンゾチアジアゾール、ベンゾチアゾール、ベンゾオキサゾール、ベンゾオキサジアゾール、ベンゾイミダゾール、インドール、イソインドール、インダゾール、キノリン、イソキノリン、シンノリン、キナゾリン、キノキサリン、インドリジン、イミダゾピリジンなどが挙げられる。
ある局面において、本発明は、天然アミノ酸残基および/またはアミノ酸類縁体残基を含む出発ペプチド化合物と、シリル化剤とを溶媒中で接触させることにより、該シリル化剤によって脱保護可能な保護基を該出発ペプチド化合物から脱保護する段階を含む、該保護基が脱保護されたペプチド化合物を製造する方法に関する。
式(I)で表される構造が、出発ペプチド化合物のN末端に存在する場合には、R1は水素、またはPG1であることが好ましい。一方、式(I)で表される構造が、出発ペプチド化合物のN末端以外に存在する場合には、R1は、天然アミノ酸残基、またはアミノ酸類縁体残基であることが好ましい。
ある局面において、R2が、C1-C6アルキルである場合、該C1-C6アルキルは、メチル、エチル、プロピル、ブチル、ペンチルであることが好ましい。
ある局面において、R2とR4もしくはR2とR4’は、それらが結合する窒素原子および炭素原子と一緒になって、ヒドロキシまたはC1-C4アルコキシによって置換されていてもよい3~7員の複素環を形成する場合、形成される3~7員の複素環は、アゼチジン環、ピロリジン環、ピペリジン環が好ましい。R2とR4が一緒になって複素環を形成する場合、R4’は水素であり、またR2とR4’が一緒になって複素環を形成する場合、R4は水素である。
(a)R4’が水素であり、かつR4が、水素、置換されていてもよいC1-C6アルキル、C3-C6シクロアルキル、C3-C6シクロアルキルC1-C4アルキル、置換されていてもよいフェニル、置換されていてもよいフェニルメチル、置換されていてもよいフェニルエチル、2-(メチルチオ)エチル、-CH2SPG2、N-PG3-インドール-3-イルメチル、4-(PG2O)ベンジル、PG2-O-メチル(即ち、-CH2-O-PG2)、1-(PG2O)エチル、2-(PG2O)エチル、PG2-OCO(CH2)-、PG2-OCO(CH2)2-、PG3N-n-ブチル、-CON(R14A)(R14B)、-CH2-CON(R14A)(R14B)、および-(CH2)2CON(R14A)(R14B)からなる群より選択されるか、
(b)R4およびR4’は、独立して、置換されていてもよいC1-C6アルキルであるか、もしくは
(c)R4およびR4’は、それらが結合する炭素原子と一緒になって3~7員の脂環式環を形成する。
R5AおよびR5Bは、独立して、水素、C1-C6アルキル、置換されていてもよいアリール、置換されていてもよいヘテロアリール、置換されていてもよいアリールC1-C4アルキル、および置換されていてもよいヘテロアリールC1-C4アルキルからなる群より選択される。
(a)R7’が水素であり、かつR7が水素、置換されていてもよいC1-C6アルキル、C3-C6シクロアルキル、C3-C6シクロアルキルC1-C4アルキル、置換されていてもよいフェニル、置換されていてもよいフェニルメチル、置換されていてもよいフェニルエチル、2-(メチルチオ)エチル、-CH2SPG4、N-PG5-インドール-3-イルメチル、4-(PG4O)ベンジル、PG4-O-メチル(即ち、-CH2-O-PG4)、1-(PG4O)エチル、2-(PG4O)エチル、PG4-OCO(CH2)-、PG4-OCO(CH2)2-、PG5N-n-ブチル、-CON(R15A)(R15B)、-CH2-CON(R15A)(R15B)、および-(CH2)2CON(R15A)(R15B)からなる群より選択されるか、
(b)R7およびR7’は、独立して、置換されていてもよいC1-C6アルキルであるか、もしくは
(c)R7およびR7’は、それらが結合する炭素原子と一緒になって3~7員の脂環式環を形成する。
R7およびR7’の組み合わせとしては、水素原子と水素原子、メチルと水素原子、エチルと水素原子、イソプロピルと水素原子、イソブチルと水素原子、シクロプロピルと水素原子、シクロプロピルメチルと水素原子、シクロペンチルと水素原子、シクロヘキシルと水素原子、置換されていてもよいフェニルと水素原子、置換されていてもよいフェニルメチルと水素原子、置換されていてもよいフェニルエチルと水素原子、2-(メチルチオ)エチルと水素原子、-CH2SPG4と水素原子、N-PG5-インドール-3-イルメチルと水素原子、4-(PG4O)ベンジルと水素原子、PG4-O-メチルと水素原子、1-(PG4O)エチルと水素原子、2-(PG4O)エチルと水素原子、PG4-OCO(CH2)-と水素原子、PG4-OCO(CH2)2-と水素原子、PG5N-n-ブチルと水素原子、-CON(R15A)(R15B)と水素原子、-CH2-CON(R15A)(R15B)と水素原子、-(CH2)2CON(R15A)(R15B)と水素原子、メチルとメチル、メチルとエチルが好ましい。また、R7およびR7’が、それらが結合する炭素原子と一緒になって3~7員の脂環式環を形成する場合、脂環式環としてシクロプロピル環、シクロブチル環、シクロペンチル環、シクロへキシル環が好ましい。
R8AおよびR8Bは、独立して、水素、C1-C6アルキル、置換されていてもよいアリール、置換されていてもよいヘテロアリール、置換されていてもよいアリールC1-C4アルキル、および置換されていてもよいヘテロアリールC1-C4アルキルからなる群より選択される。
式(I)で表される構造が、出発ペプチド化合物のC末端に存在する場合には、R9は、ヒドロキシ、-O-PG6、-O-RES、または-NH-RESであることが好ましい。一方、式(I)で表される構造が、出発ペプチド化合物のC末端以外に存在する場合には、R9は、天然アミノ酸残基、またはアミノ酸類縁体残基であることが好ましい。
PG1として、Fmoc、Boc、Cbzが好ましい。
PG2、PG4として、メチル、アリル、t-Bu、トリチル、メトキシトリチル、クミル、THP、置換されていてもよいアリール、置換されていてもよいアリールC1-C4アルキル、置換されていてもよいヘテロアリールC1-C4アルキルが好ましい。
PG3、PG5として、Fmoc、Boc、Cbz、t-Bu、トリチルが好ましい。
PG6として、t-Bu、トリチル、クミル、ベンジル、メチル、アリルが好ましい。
式(I’)中の各基は、上記式(I)の各基とそれぞれ同じであることができる。
R2、およびR6が、メチルまたはエチルであり、および/または
R2とR4もしくはR2とR4’、R6とR7もしくはR6とR7’が、それぞれ独立に、それらが結合する窒素原子および炭素原子と一緒になって、ヒドロキシまたはC1-C4アルコキシによって置換されていてもよい4~6員の複素環を形成する。R2とR4が一緒になって複素環を形成する場合、R4’は水素であり、R2とR4’が一緒になって複素環を形成する場合、R4は水素である。また、R6とR7が一緒になって複素環を形成する場合、R7’は水素であり、R6とR7’が一緒になって複素環を形成する場合、R7は水素である。
また、R9は、-O-PG6、天然アミノ酸残基、アミノ酸類縁体残基、または-O-RESであることができ、ここでRESは固相合成用CTC樹脂、Wang樹脂、もしくはSASRIN樹脂であることができる。
R4およびR4’、またはR7およびR7’は、それぞれ独立して、メチル、またはエチルであることができ、またR4およびR4’、またはR7およびR7’がそれらが結合する窒素原子および炭素原子と一緒になって、5員または6員の脂環式環を形成してもよい。
R4’およびR7’が水素である場合は、R4およびR7は、それぞれ独立して、水素、もしくはメチル、エチル、イソプロピル、イソブチル、およびsec-ブチルからなる群より選択されるアルキルであるか、または置換されていてもよいフェニルメチル、置換されていてもよいフェニルエチル、ベンジルオキシメチル、1-ベンジルオキシエチル、2-ベンジルオキシエチル、tert-ブトキシカルボニルメチル、メトキシカルボニルメチル、tert-ブトキシカルボニルエチル、メトキシカルボニルエチル、tert-ブトキシカルバモイルブチル、N,N-ジメチルアミノカルボニル、ピペリジルカルボニル、ピロリジルカルボニル、N,N-ジメチルアミノカルボニルメチル、ピペリジルカルボニルメチル、ピロリジルカルボニルメチル、N,N-ジメチルアミノカルボニルエチル、ピペリジルカルボニルエチル、もしくはピロリジルカルボニルエチルであることができる。
ある局面において、R2が、C1-C6アルキルである場合、該C1-C6アルキルは、メチル、エチル、プロピル、ブチル、ペンチルであることが好ましい。
ある局面において、R2とR10もしくはR2とR10’が、それらが結合する窒素原子および炭素原子と一緒になって、ヒドロキシまたはC1-C4アルコキシによって置換されていてもよい3~7員の複素環を形成する場合、形成される3~7員の複素環は、アゼチジン環、ピロリジン環、ピペリジン環が好ましい。
(a)R10’が水素であり、かつR10が、水素、置換されていてもよいC1-C6アルキル、C3-C6シクロアルキル、C3-C6シクロアルキルC1-C4アルキル、置換されていてもよいフェニル、置換されていてもよいフェニルメチル、置換されていてもよいフェニルエチル、2-(メチルチオ)エチル、-CH2SPG8、N-PG9-インドール-3-イルメチル、4-(PG8O)ベンジル、PG8-O-メチル(即ち、-CH2-O-PG8)、1-(PG8O)エチル、2-(PG8O)エチル、PG8-OCO(CH2)-、PG8-OCO(CH2)2-、PG9N-n-ブチル、-CON(R16A)(R16B)、-CH2-CON(R16A)(R16B)、および-(CH2)2CON(R16A)(R16B)からなる群より選択されるか、
(b)R10およびR10’は、独立して、置換されていてもよいC1-C6アルキル、C3-C6シクロアルキル、またはC3-C6シクロアルキルC1-C4アルキルであるか、もしくは
(c)R10およびR10’は、それらが結合する炭素原子と一緒になって3~7員の脂環式環を形成する。
R11AおよびR11Bは、独立して、水素、C1-C6アルキル、置換されていてもよいアリール、置換されていてもよいヘテロアリール、置換されていてもよいアリールC1-C4アルキル、および置換されていてもよいヘテロアリールC1-C4アルキルからなる群より選択される。
PG1として、Fmoc、Boc、Cbzが好ましい。
PG8として、メチル、アリル、t-Bu、トリチル、メトキシトリチル、クミル、THP、置換されていてもよいアリール、置換されていてもよいアリールC1-C4アルキル、置換されていてもよいヘテロアリールC1-C4アルキルが好ましい。
式(IV)および式(V)中の各基は、上記式(II)および式(III)の各基とそれぞれ同じであることができる。
R2が、メチル、エチルであり、および/または
R2とR10が、それらが結合する窒素原子および炭素原子と一緒になって、ヒドロキシまたはC1-C4アルコキシによって置換されていてもよい4~6員の複素環を形成する。
また、R10およびR10’はそれぞれ独立してメチル、またはエチルから選ばれるか、あるいはR10およびR10’が一緒になって5員または6員の脂環式環を形成してもよい。あるいは、R10’が水素であり、かつR10が、水素、もしくはメチル、エチル、イソプロピル、イソブチル、sec-ブチルから選ばれるアルキルであるか、または置換されていてもよいフェニルメチル、置換されていてもよいフェニルエチル、ベンジルオキシメチル、1-ベンジルオキシエチル、2-ベンジルオキシエチル、tert-ブトキシカルボニルメチル、メトキシカルボニルメチル、tert-ブトキシカルボニルエチル、メトキシカルボニルエチル、tert-ブトキシカルバモイルブチル、N,N-ジメチルアミノカルボニル、ピペリジルカルボニル、ピロリジルカルボニル、N,N-ジメチルアミノカルボニルメチル、ピペリジルカルボニルメチル、ピロリジルカルボニルメチル、N,N-ジメチルアミノカルボニルエチル、ピペリジルカルボニルエチル、もしくはピロリジルカルボニルエチルであることができる。
R6は、メチルまたはエチルであることができ、
R13は、メチルであるか、-(CH2)mCON(R17A)(R17B)であることができる。R13が-(CH2)mCON(R17A)(R17B)である場合、R17AおよびR17Bはそれらが結合している窒素原子と一緒になって、ピペリジン環を形成する。
R12、およびR12’は、独立して、水素、PG10-O-メチル、-(CH2)nCOO-PG10、-(CH2)nCOO-RES、および-(CH2)nCONH-RESからなる群より選択される。
[式中、RAX、RAY、およびRAZは、独立して、C1-C4アルキルまたはフェニルであり、Xは、-OTf、-OClO3、Cl、Br、およびIからなる群より選択される。]
RAX、RAY、およびRAZは、独立して、メチル、エチル、i-プロピル、t-ブチル、フェニルから好ましく選択することができる。
このようなシリル化合物として、より具体的には、TMSOTf、TESOTf、TBSOTf、TIPSOTf、TBDPSOTf、TTMSOTf、TMSCl、TMSBr、TMSOClO3、およびTMSIなどが挙げられる。
[式中、
RBは置換シリル基であり、かつ、RCは置換シリル基であるか、あるいは
RBとRCはそれらが結合している窒素原子および炭素原子と一緒になって5~7員環を形成し、
RDは1つまたは複数のフッ素原子で置換されていてもよいC1-C4アルキルであるか、置換されていてもよいメチレンであり、ここでRDが置換されていてもよいメチレンである場合、式2は二量化して以下の式:
で表される化合物を形成する]
[式中、
RBX、RBY、およびRBZは、独立して、C1-C4アルキルまたはフェニルであり、RCおよびRDは上記と同義であり、
REおよびRFは、独立して、C1-C4アルキルである]
また、RBX、RBY、およびRBZは、独立して、メチル、エチル、i-プロピル、t-ブチル、フェニルから好ましく選択することができる。
[式中、
RGは1つまたは複数のC1-C4アルキルで置換されたシリル基であり、
RHは水素、C1-C4アルキルであり、
RIは水素、1つまたは複数のフッ素原子で置換されていてもよいC1-C4アルキルである。]
[式中、
RGX、RGYおよびRGZは、独立して、C1-C4アルキルまたはフェニルであり、
RHおよびRIは上記と同義である]
また、RGX、RGYおよびRGZは、独立して、メチル、エチル、i-プロピル、t-ブチル、フェニルから好ましく選択することができる。
[式中、
(a-1)RJは置換シリル基であり、RKはC1-C4アルコキシであり、かつRMとRLは、独立して、水素、またはC1-C4アルキルであるか、
(a-2)RJは置換シリル基であり、RMは、水素、またはC1-C4アルキルであり、かつRKとRLはそれらが結合している炭素原子と一緒になって酸素原子を含む5~8員環を形成するか、
(b-1)RJは置換シリル基であり、RKはC1-C4アルキルであり、かつRMとRLは、独立して、水素、またはC1-C4アルキルであるか、
(b-2)RJは置換シリル基であり、RMは水素、またはC1-C4アルキルであり、かつRKとRLはそれらが結合している炭素原子と一緒になって5~8員環を形成するか、
(c-1)RJとRMがそれらが結合している炭素原子と一緒になって酸素原子を含む5~7員環を形成し、RKは水素、またはC1-C4アルキルであり、かつRLはC1-C4アルキルであるか、
(c-2)RJとRMがそれらが結合している炭素原子と一緒になって酸素原子を含む5~7員環を形成し、かつRKとRLはそれらが結合している炭素原子と一緒になって5~8員環を形成するか、
(d-1)RJはC1-C4アルキルであり、かつRM、RK、およびRLは、独立して、水素、またはC1-C4アルキルであるか、
(d-2)RJはC1-C4アルキルであり、RMは、水素、またはC1-C4アルキルであり、かつRKとRLはそれらが結合している炭素原子と一緒になって5~8環を形成するか、
(e-1)RJはC1-C3アルキルカルボニルであり、かつRM、RK、およびRLは、独立して水素、またはC1-C4アルキルであるか、
(e-2)RJはC1-C3アルキルカルボニルであり、RMは、水素、またはC1-C4アルキルであり、かつRKとRLはそれらが結合している炭素原子と一緒になって5~8員環を形成するか、
(f-1)RJは置換シリル基またはC1-C4アルキルであり、RKは置換されていてもよいジ-C1-C4アルキルアミノであり、かつRMとRLは、独立して、水素、またはC1-C4アルキルであるか、
(f-2)またはRJは置換シリル基またはC1-C4アルキルであり、RMは、水素、またはC1-C4アルキルであり、かつRKとRLはそれらが結合している炭素原子と一緒になって、窒素原子を含む5~8員環を形成し、該5~8員環は、C1-C4アルキルによって置換されていてもよい]
ここで、好ましいC1-C4アルキルとして、メチル、エチル、n-プロピル、イソプロピル、n-ブチル、i-ブチル、t-ブチルが挙げられる。また、好ましいC1-C3アルキルカルボニルとして、アセチル、プロピオニルが挙げられる。
[式中、
RJX1、RJY1およびRJZ1は、独立して、C1-C4アルキルまたはフェニルであり、
RKX1はC1-C4アルキルであり、
RL、およびRMは上記と同義である]
ここで、好ましいC1-C4アルキルとして、メチル、エチル、n-プロピル、イソプロピル、n-ブチル、i-ブチル、t-ブチルが挙げられる。
また、RJX1、RJY1およびRJZ1は、独立して、メチル、エチル、i-プロピル、t-ブチル、フェニルから好ましく選択することができる。
[式中、RKX1、RL、およびRMは上記と同義である]
また、好ましいRKX1、RL、およびRMとして、メチル、エチル、n-プロピル、イソプロピル、n-ブチル、i-ブチル、t-ブチルが挙げられる。
[式中、
RJX2、RJY2およびRJZ2は、独立して、C1-C4アルキルまたはフェニルであり、
RKX2は水素、またはC1-C4アルキルであり、
RL、およびRMは上記と同義である]
また、RKX1、RL、およびRMのC1-C4アルキルとして、好ましくは、メチル、エチル、n-プロピル、イソプロピル、n-ブチル、i-ブチル、t-ブチルが挙げられる。
また、RJX2、RJY2およびRJZ2は、独立して、メチル、エチル、i-プロピル、t-ブチル、およびフェニルからなる群より選択することが好ましい。
[式中、
RN、RN’、およびROは、独立して、水素またはC1-C4アルキルである。]
RN、RN’、およびROのC1-C4アルキルとして、好ましくはメチル、エチル、n-プロピル、イソプロピル、n-ブチル、i-ブチル、t-ブチルが挙げられる。
[式中、RNは上記と同義である]
好ましいRN、RN’として、メチル、エチル、n-プロピル、イソプロピル、n-ブチル、i-ブチル、t-ブチルが挙げられる。
[式中、
RPは置換シリル基であり、
RQは置換シリル基、またはC1-C4アルキルであり、かつRRは水素、置換シリル基、またはC1-C4アルキルであるか、あるいは
RQとRRはそれらが結合している窒素原子と一緒になって酸素原子を含む5~8員環複素環を形成する。]
[式中、
RPX1、RPY1、RPZ1、RQX1、RQY1およびRQZ1は、独立して、C1-C4アルキルまたはフェニルである]
また、RPX1、RPY1、RPZ1、RQX1、RQY1およびRQZ1は、独立して、メチル、エチル、i-プロピル、t-ブチル、およびフェニルからなる群より選択することが好ましい。
[式中、
RPX2、RPY2およびRPZ2は、独立して、C1-C4アルキルまたはフェニルであり、
RQおよびRRは、上記と同義である]
また、RPX2、RPY2およびRPZ2のC1-C4アルキルとして、好ましくはメチル、エチル、n-プロピル、イソプロピル、n-ブチル、i-ブチル、t-ブチルが挙げられる。
また、RPX2、RPY2およびRPZ2は、独立して、メチル、エチル、i-プロピル、t-ブチル、フェニルからなる群より選択することが好ましい。
[式中、
RQX3、RQY3、RQZ3、RRX1、RRY1およびRRZ1は、独立して、C1-C4アルキルまたはフェニルであり、
RRはC1-C4アルキルである]
具体的には、たとえば、RQX3、RQY3、RQZ3、RRX1、RRY1およびRRZ1は、独立してメチル、エチル、i-プロピル、t-ブチル、フェニルから選ばれることができる。
また、RRの好ましいC1-C4アルキルとして、メチル、エチル、n-プロピル、イソプロピル、n-ブチル、i-ブチル、t-ブチルが挙げられる。
[式中、
RRはC1-C4アルキルである]
RRの好ましいC1-C4アルキルとして、メチル、エチル、n-プロピル、イソプロピル、n-ブチル、i-ブチル、t-ブチルが挙げられる。
[式中、
RPX2、RPY2、およびRPZ2は、独立して、C1-C4アルキルまたはフェニルであり、
RQはC1-C4アルキルである]
RPX2、RPY2、およびRPZ2は、独立してメチル、エチル、i-プロピル、t-ブチル、およびフェニルからなる群より選択することが好ましい。
また、RQのC1-C4アルキルとして、好ましくはメチル、エチル、n-プロピル、イソプロピル、n-ブチル、i-ブチル、t-ブチルが挙げられる。
[式中、RQはC1-C4アルキルである]
RQのC1-C4アルキルとして、好ましくは、メチル、エチル、n-プロピル、イソプロピル、n-ブチル、i-ブチル、t-ブチルが挙げられる。
[式中、
Xは単結合または炭素原子であり、
ここでXが単結合である場合、RSは存在せず、RUAとRRは、それらが結合している炭素原子および窒素原子と一緒になって置換されていてもよい6員の芳香族複素環を形成し、かつRUBとRTは、それらが結合している炭素原子および窒素原子と一緒になって置換されていてもよい6員の芳香族複素環を形成し、
Xが炭素原子である場合、RUAおよびRUBは、独立して、C1-C4アルキルであり、かつRRとRSとRTはそれらが結合する炭素原子と一緒になって以下の構造:
を形成する。]
[式中、RVは、C1-C4アルキルまたはC3-C6シクロアルキルである。]
RVのC1-C4アルキルとして、好ましくは、メチル、エチル、n-プロピル、イソプロピル、n-ブチル、i-ブチル、t-ブチル、シクロへキシルが挙げられる。
(1-1) 3-((((9H-フルオレン-9-イル)メトキシ)カルボニル)(メチル)アミノ)-4-オキソ-4-(ピペリジン-1-イル)ブタン酸、
(1-2) 3-((((9H-フルオレン-9-イル)メトキシ)カルボニル)(メチル)アミノ)-4-オキソ-4-(ピペリジン-1-イル)ブタン酸アリル、
(1-3) 3-((((9H-フルオレン-9-イル)メトキシ)カルボニル)(メチル)アミノ)-4-オキソ-4-(ピペリジン-1-イル)ブタン酸 tert-ブチル、
(1-4) 3-((((9H-フルオレン-9-イル)メトキシ)カルボニル)(メチル)アミノ)-4-オキソ-4-(ピペリジン-1-イル)ブタン酸ベンジル、
(1-5) 3-((tert-ブトキシカルボニル)(メチル)アミノ)-4-オキソ-4-(ピペリジン-1-イル)ブタン酸、
(1-6) 3-((tert-ブトキシカルボニル)(メチル)アミノ)-4-オキソ-4-(ピペリジン-1-イル)ブタン酸アリル、
(1-7) 3-((tert-ブトキシカルボニル)(メチル)アミノ)-4-オキソ-4-(ピペリジン-1-イル)ブタン酸 tert-ブチル、
(1-8) 3-((tert-ブトキシカルボニル)(メチル)アミノ)-4-オキソ-4-(ピペリジン-1-イル)ブタン酸ベンジル、
(1-9) 3-(((ベンジルオキシ)カルボニル)(メチル)アミノ)-4-オキソ-4-(ピペリジン-1-イル)ブタン酸、
(1-10) 3-(((ベンジルオキシ)カルボニル)(メチル)アミノ)-4-オキソ-4-(ピペリジン-1-イル)ブタン酸アリル、
(1-11) 3-(((ベンジルオキシ)カルボニル)(メチル)アミノ)-4-オキソ-4-(ピペリジン-1-イル)ブタン酸 tert-ブチル、
(1-12) 3-(((ベンジルオキシ)カルボニル)(メチル)アミノ)-4-オキソ-4-(ピペリジン-1-イル)ブタン酸ベンジル、
(1-13) 3-(((アリルオキシ)カルボニル)(メチル)アミノ)-4-オキソ-4-(ピペリジン-1-イル)ブタン酸、
(1-14) 3-(((アリルオキシ)カルボニル)(メチル)アミノ)-4-オキソ-4-(ピペリジン-1-イル)ブタン酸アリル、
(1-15) 3-(((アリルオキシ)カルボニル)(メチル)アミノ)-4-オキソ-4-(ピペリジン-1-イル)ブタン酸 tert-ブチル、
(1-16) 3-(((アリルオキシ)カルボニル)(メチル)アミノ)-4-オキソ-4-(ピペリジン-1-イル)ブタン酸ベンジル、
(1-17) 3-(メチル((2-(トリメチルシリル)エトキシ)カルボニル)アミノ)-4-オキソ-4-(ピペリジン-1-イル)ブタン酸、
(1-18) 3-(メチル((2-(トリメチルシリル)エトキシ)カルボニル)アミノ)-4-オキソ-4-(ピペリジン-1-イル)ブタン酸アリル、
(1-19) 3-(メチル((2-(トリメチルシリル)エトキシ)カルボニル)アミノ)-4-オキソ-4-(ピペリジン-1-イル)ブタン酸 tert-ブチル、
(1-20) 3-(メチル((2-(トリメチルシリル)エトキシ)カルボニル)アミノ)-4-オキソ-4-(ピペリジン-1-イル)ブタン酸ベンジル、
(2-1) 3-((((9H-フルオレン-9-イル)メトキシ)カルボニル)(メチル)アミノ)-4-モルホリノ-4-オキソブタン酸、
(2-2) 3-((((9H-フルオレン-9-イル)メトキシ)カルボニル)(メチル)アミノ)-4-モルホリノ-4-オキソブタン酸アリル、
(2-3) 3-((((9H-フルオレン-9-イル)メトキシ)カルボニル)(メチル)アミノ)-4-モルホリノ-4-オキソブタン酸 tert-ブチル、
(2-4) 3-((((9H-フルオレン-9-イル)メトキシ)カルボニル)(メチル)アミノ)-4-モルホリノ-4-オキソブタン酸ベンジル、
(2-5) 3-((tert-ブトキシカルボニル)(メチル)アミノ)-4-モルホリノ-4-オキソブタン酸、
(2-6) 3-((tert-ブトキシカルボニル)(メチル)アミノ)-4-モルホリノ-4-オキソブタン酸アリル、
(2-7) 3-((tert-ブトキシカルボニル)(メチル)アミノ)-4-モルホリノ-4-オキソブタン酸 tert-ブチル、
(2-8) 3-((tert-ブトキシカルボニル)(メチル)アミノ)-4-モルホリノ-4-オキソブタン酸ベンジル、
(2-9) 3-(((ベンジルオキシ)カルボニル)(メチル)アミノ)-4-モルホリノ-4-オキソブタン酸、
(2-10) 3-(((ベンジルオキシ)カルボニル)(メチル)アミノ)-4-モルホリノ-4-オキソブタン酸アリル、
(2-11) 3-(((ベンジルオキシ)カルボニル)(メチル)アミノ)-4-モルホリノ-4-オキソブタン酸 tert-ブチル、
(2-12) 3-(((ベンジルオキシ)カルボニル)(メチル)アミノ)-4-モルホリノ-4-オキソブタン酸ベンジル、
(2-13) 3-(((アリルオキシ)カルボニル)(メチル)アミノ)-4-モルホリノ-4-オキソブタン酸、
(2-14) 3-(((アリルオキシ)カルボニル)(メチル)アミノ)-4-モルホリノ-4-オキソブタン酸アリル、
(2-15) 3-(((アリルオキシ)カルボニル)(メチル)アミノ)-4-モルホリノ-4-オキソブタン酸 tert-ブチル、
(2-16) 3-(((アリルオキシ)カルボニル)(メチル)アミノ)-4-モルホリノ-4-オキソブタン酸ベンジル、
(2-17) 3-(メチル((2-(トリメチルシリル)エトキシ)カルボニル)アミノ)-4-モルホリノ-4-オキソブタン酸、
(2-18) 3-(メチル((2-(トリメチルシリル)エトキシ)カルボニル)アミノ)-4-モルホリノ-4-オキソブタン酸アリル、
(2-19) 3-(メチル((2-(トリメチルシリル)エトキシ)カルボニル)アミノ)-4-モルホリノ-4-オキソブタン酸 tert-ブチル、
(2-20) 3-(メチル((2-(トリメチルシリル)エトキシ)カルボニル)アミノ)-4-モルホリノ-4-オキソブタン酸ベンジル、
(3-1) 3-((((9H-フルオレン-9-イル)メトキシ)カルボニル)(メチル)アミノ)-4-(ジメチルアミノ)-4-オキソブタン酸、
(3-2) 3-((((9H-フルオレン-9-イル)メトキシ)カルボニル)(メチル)アミノ)-4-(ジメチルアミノ)-4-オキソブタン酸アリル、
(3-3) 3-((((9H-フルオレン-9-イル)メトキシ)カルボニル)(メチル)アミノ)-4-(ジメチルアミノ)-4-オキソブタン酸 tert-ブチル、
(3-4) 3-((((9H-フルオレン-9-イル)メトキシ)カルボニル)(メチル)アミノ)-4-(ジメチルアミノ)-4-オキソブタン酸ベンジル、
(3-5) 3-((tert-ブトキシカルボニル)(メチル)アミノ)-4-(ジメチルアミノ)-4-オキソブタン酸、
(3-6) 3-((tert-ブトキシカルボニル)(メチル)アミノ)-4-(ジメチルアミノ)-4-オキソブタン酸アリル、
(3-7) 3-((tert-ブトキシカルボニル)(メチル)アミノ)-4-(ジメチルアミノ)-4-オキソブタン酸 tert-ブチル、
(3-8) 3-((tert-ブトキシカルボニル)(メチル)アミノ)-4-(ジメチルアミノ)-4-オキソブタン酸ベンジル、
(3-9) 3-(((ベンジルオキシ)カルボニル)(メチル)アミノ)-4-(ジメチルアミノ)-4-オキソブタン酸、
(3-10) 3-(((ベンジルオキシ)カルボニル)(メチル)アミノ)-4-(ジメチルアミノ)-4-オキソブタン酸アリル、
(3-11) 3-(((ベンジルオキシ)カルボニル)(メチル)アミノ)-4-(ジメチルアミノ)-4-オキソブタン酸 tert-ブチル、
(3-12) 3-(((ベンジルオキシ)カルボニル)(メチル)アミノ)-4-(ジメチルアミノ)-4-オキソブタン酸ベンジル、
(3-13) 3-(((アリルオキシ)カルボニル)(メチル)アミノ)-4-(ジメチルアミノ)-4-オキソブタン酸、
(3-14) 3-(((アリルオキシ)カルボニル)(メチル)アミノ)-4-(ジメチルアミノ)-4-オキソブタン酸アリル、
(3-15) 3-(((アリルオキシ)カルボニル)(メチル)アミノ)-4-(ジメチルアミノ)-4-オキソブタン酸 tert-ブチル、
(3-16) 3-(((アリルオキシ)カルボニル)(メチル)アミノ)-4-(ジメチルアミノ)-4-オキソブタン酸ベンジル、
(3-17) 4-(ジメチルアミノ)-3-(メチル((2-(トリメチルシリル)エトキシ)カルボニル)アミノ)-4-オキソブタン酸、
(3-18) 4-(ジメチルアミノ)-3-(メチル((2-(トリメチルシリル)エトキシ)カルボニル)アミノ)-4-オキソブタン酸アリル、
(3-19) 4-(ジメチルアミノ)-3-(メチル((2-(トリメチルシリル)エトキシ)カルボニル)アミノ)-4-オキソブタン酸 tert-ブチル、
(3-20) 4-(ジメチルアミノ)-3-(メチル((2-(トリメチルシリル)エトキシ)カルボニル)アミノ)-4-オキソブタン酸ベンジル、
(4-1) 3-(メチルアミノ)-4-オキソ-4-(ピペリジン-1-イル)ブタン酸、
(4-2) アリル 3-(メチルアミノ)-4-オキソ-4-(ピペリジン-1-イル)ブタノアート、
(4-3) tert-ブチル 3-(メチルアミノ)-4-オキソ-4-(ピペリジン-1-イル)ブタノアート、
(4-4) ベンジル 3-(メチルアミノ)-4-オキソ-4-(ピペリジン-1-イル)ブタノアート、
(4-5) 3-(メチルアミノ)-4-モルホリノ-4-オキソブタン酸、
(4-6) アリル 3-(メチルアミノ)-4-モルホリノ-4-オキソブタノアート、
(4-7) tert-ブチル 3-(メチルアミノ)-4-モルホリノ-4-オキソブタノアート、
(4-8) ベンジル 3-(メチルアミノ)-4-モルホリノ-4-オキソブタノアート、
(4-9) 4-(ジメチルアミノ)-3-(メチルアミノ)-4-オキソブタン酸、
(4-10) アリル 4-(ジメチルアミノ)-3-(メチルアミノ)-4-オキソブタノアート、
(4-11) tert-ブチル 4-(ジメチルアミノ)-3-(メチルアミノ)-4-オキソブタノアート、または
(4-12) ベンジル 4-(ジメチルアミノ)-3-(メチルアミノ)-4-オキソブタノアート。
HPLC method 1
Instrument: Waters ACQUITY UPLC H-Class
Column: Ascentis Express C18 (2.7 μm, 4.6 mm x 50 mm), Supelco
Eluent: A) 0.05% TFA/water, B) 0.05% TFA/CH3CN
Gradient (B): 5% (0 min.) ⇒ 100% (6 min.) ⇒ 5% (7 min.) ⇒ 5% (9 min.)
Flow rate: 1.0 mL/min.
Detection: 210nm
Injection vol.: 5 μL
Sample prep.: 5 μL/1.00 mL
Instrument: Waters LCT Premier
Column: Ascentis Express C18 (2.7 μm, 4.6 mm x 50 mm), Supelco
Column temp.: 35 deg.
Eluent: A) 0.05% TFA/water, B) 0.05% TFA/CH3CN
Gradient (B): 50% (0 min.) ⇒ 100% (6 to 11 min.) ⇒ 50% (11 min.) ⇒50% (13 min.)
Flow rate: 1.0 mL/min.
Detection: 210 nm
Injection vol.: 5 μL
Sample prep.: 5 μL/1.00 mL
Instrument: Waters ACQUITY UPLC H-Class
Column: Ascentis Express C18, (2.7 μm, 2.1 mm x 50 mm), Supelco
Column temp.: 35 deg.
Eluent: A) 0.05% TFA/water, B) 0.05% TFA/CH3CN
Gradient (A): 95%(0 min) → 0%(4.0 min) → 0%(4.5 min) → 95%(4.6 min) → 95%(6 min)
Flow rate: 0.25 mL/min
Detection: PDA 210 nm (200 - 400 nm PDA total)
Injection vol.: 0.3 μL
Sample prep.: 50 μL/10 mL
Instrument: Waters ACQUITY UPLC H-Class
Column: CAPCELL CORE ADME, (2.7 μm, 3.0 mm x 150 mm)
Column temp.: 30 deg.
Solvents: A) 0.05% TFA/water, B) 0.05% TFA/CH3CN
Gradient (A): 70%(0 min) → 30%(20.0 min) → 0%(20.1 min) → 0%(22.0 min) → 70%(22.1 min) → 70%(24 min)
Flow rate: 0.3 mL/min
Detection: PDA 254 nm (200 - 400 nm PDA total)
Injection vol.: 0.3 μL
Sample prep.: amorphous 10.0 mg in CH3CN 10 ml; this solution 0.3 mL/0.7 mL CH3CN
(実施例1)
Boc-MeAla-MePhe-Leu-MeLeu-Thr(OBn)-MeGly-OAllyl(化合物3a)の脱Boc化反応(6 mer:TfOH-BSTFA法)
反応容器に原料を77.7 mg量りとり、5 v/wの酢酸エチルに溶解させ、反応容器を氷冷した。窒素雰囲気下10分後にBSTFAを0.055 ml(2.4 eq)、TfOHを3.0μl(0.4 eq)順次添加し、反応液を撹拌した。試薬添加3時間後、LCMSで反応を分析し、原料の消失を確認した。
反応を飽和重層水で停止した。有機層を飽和重層水と5%食塩水で洗浄した。得られた有機層を減圧濃縮し、77.3 mgの脱保護体を定量的に得た。
アミド結合の切断は確認されなかった。
Boc-MeIle-Ala-MePhe-MeVal-Asp(pip)-MeAla-MePhe-Leu-MeLeu-Thr(OBn)-MeGly-OAllyl(化合物1a)の脱Boc化反応(11 mer:TMSOTf-HMDS法)
反応容器に原料を0.0810 g量りとり、10 v/wの酢酸エチルに溶解させ、反応容器を氷冷した。窒素雰囲気下10分後にHMDS(を0.079 ml(7.2 eq)、TMSOTfを34μl(3.6 eq)順次添加し、反応液を撹拌した。試薬添加4時間後、LCMSで反応を分析し、原料の消失を確認した。アミド結合の切断は確認されなかった。
原料終結確認後、更に1時間反応溶液を撹拌し、LCMSで反応を分析した。この際もアミド結合の切断は確認されなかった。
反応容器を1 mlの飽和食塩水に加え、反応を停止した。続いて酢酸エチルを5 ml加え、二層を分離した。有機層を飽和重層水1 mlと飽和食塩水1 mlの混合液で洗浄した。得られた有機層を濃縮し、68.0 mgの脱保護体を収率90%で透明なフィルムとして得た。
Boc-MeIle-Ala-MePhe-MeVal-Asp(pip)-MeAla-MePhe-Leu-MeLeu-Thr(OBn)-MeGly-OAllyl(化合物1a)の脱Boc化反応(11 mer:TMSOTf-HMDS法)
実施例2に準じて反応を実施した。反応開始19時間後にLCMSで分析した。しかし、生成物の分解は確認されなかった。
Boc-MeAla-MePhe-Leu-MeLeu-Thr(OBn)-MeGly-MeIle-Ala-MePhe-MeVal-Asp(OBn)-pip(化合物2a)の脱Boc化反応(11 mer:TfOH-BSTFA法)
実施例1に準じて反応を実施した。
Boc-MeLeu-Thr(OBn)-MeGly-OAllyl(化合物8a)の脱Boc化とBoc-Leu-MeLeu-Thr(OBn)-MeGly-OAllylへの伸長反応(3 mer:TfOH-BSTFA法)
反応容器に出発物質を73.3 mg量り取り、5 v/wの酢酸イソプロピルに溶解させた。反応容器を氷冷後BSTFAを0.085 ml、TfOHを0.0047 ml加え2時間撹拌した。主鎖の切断を起こさずに脱保護が完了したことをLCで確認後、5 v/wの水とリン酸水素二カリウム186.9 mgを加えた。続いてBoc-Leu-OH・1水和物を40.1 mgとDMT-MMを63.1 mg加え、氷冷下撹拌した。試薬添加17時間後にLCで反応の終結を確認した。1 N水酸化ナトリウム水溶液を5 v/w加えて反応を停止した。分液処理により有機層を分離後、1 N水酸化ナトリウム水溶液で1回、5%硫酸水素カリウム水溶液で2回、5%塩化ナトリウム水溶液で1回洗浄後、減圧濃縮した。粗生成物を油状液体として82.0 mg(93%収率)得た。
Teoc-MeLeu-Thr(OBn)-MeGly-OAllyl(化合物80b)の脱Teoc化とBoc-Leu-MeLeu-Thr(OBn)-MeGly-OAllyl(7a)への伸長反応(3 mer:TfOH-BSTFA法)
実施例6と同様の操作によりTeoc基を除去後、Boc-Leu-OHを作用させることで主鎖の切断を起こさずに化合物7aを得ることができる。
Boc-MeIle-Ala-MePhe-MeVal-Asp(OBn)-pip(化合物5a)の脱Boc化反応(5 mer: TfOH-BSTFA法)
実施例6記載の実験方法に従って脱保護反応と伸長反応をワンポットにて実施した。
Boc-Ala-MePhe-MeVal-Asp(OBn)-pip(化合物6a)の脱Boc化と伸長反応(4 mer:TfOH-BSTFA法)
実施例6記載の実験方法に従って脱保護反応と伸長反応をワンポットにて実施した。
Boc-Leu-MeLeu-Thr(OBn)-MeGly-OAllyl(化合物7a)の脱Boc化反応(4 mer:TfOH-BSTFA法)
実施例6記載の実験方法に従って脱保護反応と伸長反応をワンポットにて実施した。
Boc-Leu-MeLeu-Thr(OBn)-MeGly-OAllyl(化合物7a)の既知条件による脱Boc化反応(4 mer:HCl法) (Russ. J. Bioorg. Chem., 2016, 42, 143.)
反応容器に原料を18.7 mg量りとり、10 v/wのトリフルオロエタノールに溶解させた。続いて4N HCl(酢酸エチル溶液)を8.5 μl(1.2 eq)添加し、反応液を撹拌した。試薬添加2時間後、LCMS(HPLC method 1)で反応を分析し、変換率(=目的物/(目的物+出発物))が81%であることを確認した。この時点でアミド結合が切断された化合物としてH-Thr(OBn)-MeGly-OAllyl(化合物7c)を0.861%、H-Leu-MeLeu-Thr(OBn)-OH(化合物7d)を1.275%それぞれ検出した。
Boc-MePhe-MeVal-Asp(OBn)-pip(化合物9a)の脱保護とBoc-Ala-MePhe-MeVal-Asp(OBn)-pipへの伸長反応(3 mer:TMSOTf-BSTFA法)
実施例6記載の実験方法に従って脱保護反応と伸長反応をワンポットにて実施した。
Boc-MePhe-MeVal-Asp(OBn)-pip(化合物9a)の脱保護(3 mer:TMSOTf-MSTFA法)
実施例6に記載の実験方法に従って脱保護反応と伸長反応をワンポットにて実施した。
Boc-MePhe-MeVal-Asp(OBn)-pip(化合物9a)の脱保護(3 mer:TMSOTf-BSA法TMSOTf 2.4 eq, BSA 2.4 eq)
実施例6に記載の実験方法に従って脱保護反応と伸長反応をワンポットにて実施した。
Boc-MePhe-MeVal-Asp(OBn)-pip(化合物9a)の脱保護 (3 mer:TMSOTf-HMDS法)
反応容器に原料を107.4 mg量りとり、5 v/wの酢酸エチルに溶解させ、反応容器を氷冷した。窒素雰囲気下10分後にHMDS(1,1,1,3,3,3-ヘキサメチルジシラザン)を0.085 ml(2.4 eq)、TMSOTfを35μl(1.2 eq)順次添加し、反応液を撹拌した。試薬添加2時間後、LCMSで反応を分析し、変換率が55.8%だったためTMOSTfを20μl(0.69 eq)追加した。試薬追加1時間後、LCMSで原料の消失を確認した。アミド結合の切断は確認されなかった。
反応容器にリン酸水素二カリウムを373.4 mg(13.3 eq)添加した後、水を0.89 ml加えて20分撹拌した。
その後、反応容器に酢酸エチルを3 ml加え、二層を分離した。有機層を飽和重層水1 mlと飽和食塩水1 mlの混合液で洗浄した。得られた有機層を濃縮した。
続いて、得られた油状液体を酢酸エチル1 mlに溶解し、リン酸水素二カリウムを251.0 mg加えた。水を0.89 ml加えた後、反応容器を氷冷した。Boc-Ala-OHを36.8 mg、DMT-MMを79.5 mg加え、氷浴に付けたまま終夜撹拌した。15.5時間後にLCMSで原料の消失を確認した後、分液処理を行った。得られた有機層を5%炭酸カリウムで2回、水で1回、5%硫酸水素カリウムで2回、飽和食塩水で1回洗浄し、濃縮した。粗生成物を白色固体として0.1075g(収率90%)得た。
(実施例15)
Boc-MePhe-MeVal-Asp(OBn)-pip(化合物9a)の脱保護
(塩基:N-(トリメチルシリル)ジエチルアミン)
反応容器に原料を99.5 mg量りとり、5 v/wの酢酸エチルに溶解させ、反応容器を氷冷した。窒素雰囲気下にN-((トリメチルシリル)ジエチルアミンを0.070 ml(2.4 eq)、TMSOTfを0.032 ml(1.2 eq)順次添加し、反応液を撹拌した。試薬添加1.5時間後、LCMSで反応を分析したところ、変換率は30%だったためTMOSTfを0.029 ml(1.1 eq)追加した。反応開始から4時間後LCMSで反応を分析し、原料の消失を確認した。その際アミド結合の切断は確認されなかった。反応液を終夜撹拌し、反応開始から20時間後にLCMSで反応を再度分析した。この際もアミド結合の切断は確認されなかった。
反応開始21時間後に反応溶液にリン酸水素二カリウム0.2032 gおよび水0.50 mL を添加し、30分間撹拌した。反応液を酢酸エチル4 mlで希釈後、二層を分離し有機層を得た。得られた有機層を飽和食塩水0.5 mlと飽和重層水0.5 mlの混合溶媒で二度洗浄した。続いて飽和食塩水0.5 mlで洗浄し、有機層を濃縮した。この残渣を酢酸イソプロピル4 mlに溶解し、0.5 M水酸化ナトリウム水溶液1 mlと飽和食塩水0.5 mlの混合溶媒で二度洗浄した。続いて10%食塩水0.5 mlで洗浄し、有機層を減圧濃縮し、81.7 mgの脱保護体を収率97%で得た。
Boc-MePhe-MeVal-Asp(OBn)-pip(化合物9a)の脱保護
(塩基: ジメチルケテンメチルトリメチルシリルアセタール)
実施例15に記載の方法に従って実験を行った。
Boc-MePhe-MeVal-Asp(OBn)-pip(化合物9a)の脱保護
(塩基:N,N,N ',N '-テトラメチル-1,8-ナフタレンジアミン)
実施例15記載の方法に従って実験を行った。
Boc-MePhe-MeVal-Asp(OBn)-pip(化合物9a)の脱保護
(塩基:2,2'-イソプロピリデンビス[(4S)-4-tert-ブチル-2-オキサゾリン])
実施例15に記載の方法に従って実験を行った。
(実施例25)
Boc-MeIle-Ala-MePhe-MeVal-Asp(pip)-MeAla-MePhe-Leu-MeLeu-Thr(OBn)-MeGly-OAllyl(化合物1a)の脱Boc化反応(11 mer:TMSOTf-BSTFA法)
実施例2に準じて実験を行った。
Boc-MeIle-Ala-MePhe-MeVal-Asp(pip)-MeAla-MePhe-Leu-MeLeu-Thr(OBn)-MeGly-OAllyl(化合物1a)の脱Boc化反応(11 mer:TMSOTf-BSA法)
実施例2に準じて実験を行った。
Boc-MeIle-Ala-MePhe-MeVal-Asp(pip)-MeAla-MePhe-Leu-MeLeu-Thr(OBn)-MeGly-OAllyl(化合物1a)の脱Boc化反応(11 mer:TMSOTf-シリルアミン法)
実施例2に準じて実験を行った。
Boc-MeIle-Ala-MePhe-MeVal-Asp(pip)-MeAla-MePhe-Leu-MeLeu-Thr(OBn)-MeGly-OAllyl(化合物1a)の脱Boc化反応(11 mer:TMSOTf-シリルアミン法)
実施例2に準じて実験を行った。
Boc-MeIle-Ala-MePhe-MeVal-Asp(pip)-MeAla-MePhe-Leu-MeLeu-Thr(OBn)-MeGly-OAllyl(化合物1a)の脱Boc化反応(11 mer:TMSOTf-イミン法)
実施例2に準じて実験を行った。
Boc-MeIle-Ala-MePhe-MeVal-Asp(pip)-MeAla-MePhe-Leu-MeLeu-Thr(OBn)-MeGly-OAllyl(化合物1a)の脱Boc化反応(11 mer:TMSOTf-MSTFA法)
実施例2に準じて実験を行った。
Boc-MeIle-Ala-MePhe-MeVal-Asp(pip)-MeAla-MePhe-Leu-MeLeu-Thr(OBn)-MeGly-OAllyl(化合物1a)の脱Boc化反応(11 mer:TMSOTf-シリルアミン法)
実施例2に準じて実験を行った。
Boc-MeIle-Ala-MePhe-MeVal-Asp(pip)-MeAla-MePhe-Leu-MeLeu-Thr(OBn)-MeGly-OAllyl(化合物1a)の脱Boc化反応(11 mer:TMSOTf-ケテンシリルアセタール法)
実施例2に準じて実験を行った。
Boc-MeIle-Ala-MePhe-MeVal-Asp(pip)-MeAla-MePhe-Leu-MeLeu-Thr(OBn)-MeGly-OAllyl(化合物1a)の脱Boc化反応(11 mer:TMSOTf-プロトンスポンジ法)
実施例2に準じて実験を行った。
Boc-MeIle-Ala-MePhe-MeVal-Asp(pip)-MeAla-MePhe-Leu-MeLeu-Thr(OBn)-MeGly-OAllyl(化合物1a)の脱Boc化反応(11 mer:TMSOTf-ルチジン法)
反応容器に原料を18.8 mg量りとり、10 v/wの酢酸エチルに溶解させた。続いて2,6-ルチジンを0.005 ml(3.6 eq)、TMSOTf 0.0078 ml (3.6 eq)を添加し、反応液を撹拌した。試薬添加4時間後、LCMS(HPLC method 1)で反応を分析し、変換率(=目的物/(目的物+出発物))が14%であることを確認した。続いて試薬添加19時間後にLCMSで反応を分析したが、変換率は14%のままに留まった。アミド結合の切断は確認されなかった。
Boc-MeIle-Ala-MePhe-MeVal-Asp(pip)-MeAla-MePhe-Leu-MeLeu-Thr(OBn)-MeGly-OAllyl(化合物1a)の脱Boc化反応(11 mer:TMSOTf-ルチジン法)
反応容器に原料を89.3 mg量りとり、1 mlの酢酸エチルに溶解させた。続いて2,6-ルチジンを0.016 ml(2.4 eq)、TMSOTf 0.012 ml (1.2 eq)を添加し、反応液を撹拌した。試薬添加1.25時間後、LCMS(HPLC method 1)で反応を分析し、変換率(=目的物/(目的物+出発物))が0%であったため、2,6-ルチジンを0.032 ml(4.8 eq)、TMSOTf 0.024 ml (2.4 eq)を追加した。試薬追加1.25時間後および14時間後にそれぞれLCMSで反応を分析したが、変換率は0%のままに留まった。アミド結合の切断は確認されなかった。
Boc-MeIle-Ala-MePhe-MeVal-Asp(pip)-MeAla-MePhe-Leu-MeLeu-Thr(OBn)-MeGly-OAllyl(化合物1a)の脱Boc化反応(11 mer:TMSOTf-2,6-ジ-tert-ブチルピリジン法)
反応容器に原料を14.9 mg量りとり、0.2 mlの酢酸エチルに溶解させた。続いて2,6-ジt-ブチルピリジンを0.011 ml(5.4 eq)、TMSOTf 0.0062 ml (3.6 eq)を添加し、反応液を撹拌した。試薬添加4時間後、LCMS(HPLC method 1)で反応を分析し、変換率(=目的物/(目的物+出発物))が59%だった。反応開始から22時間後に再度LCMSで反応を分析したが、変換率は59%のままに留まった。アミド結合の切断は確認されなかった。
Boc-MeIle-Ala-MePhe-MeVal-Asp(pip)-MeAla-MePhe-Leu-MeLeu-Thr(OBn)-MeGly-OAllyl(化合物1a)の脱Boc化反応(11 mer:TMSOTf-tert-アミン法)
反応容器に原料を17.7 mg量りとり、0.20 mlの酢酸エチルに溶解させた。続いてトリエチルアミンを0.0057 ml(3.6 eq)、TMSOTf 0.0074 ml (3.6 eq)を添加し、反応液を撹拌した。試薬添加1時間後および4時間後にLCMS(HPLC method 1)で反応を分析したが、変換率(=目的物/(目的物+出発物))はいずれも0.7%に留まった。アミド結合の切断は確認されなかった。
Boc-MeIle-Ala-MePhe-MeVal-Asp(pip)-MeAla-MePhe-Leu-MeLeu-Thr(OBn)-MeGly-OAllyl(化合物1a)の脱Boc化反応(11 mer:TMSOTf-tert-アミン法)
反応容器に原料を19.1 mg量りとり、0.20 mlの酢酸エチルに溶解させた。続いてジイソプロピルエチルアミンを0.0074 ml(3.6 eq)、TMSOTf 0.0077 ml (3.6 eq)を添加し、反応液を撹拌した。試薬添加2時間後および4時間後にLCMS(HPLC method 1)で反応を分析したが、変換率(=目的物/(目的物+出発物))はいずれも0.8%以内に留まった。アミド結合の切断は確認されなかった。
Boc-MeIle-Ala-MePhe-MeVal-Asp(pip)-MeAla-MePhe-Leu-MeLeu-Thr(OBn)-MeGly-OAllyl(化合物1a)の脱Boc化反応(11 mer:TMSOTf-tert-アミン法)
反応容器に原料を92.9 mg量りとり、1 mlの酢酸エチルに溶解させた後反応容器を氷冷した。続いて窒素雰囲気下ジイソプロピルエチルアミンを0.015 ml(2.4 eq)、TMSOTf 0.013 ml (1.2 eq)を添加し、反応液を撹拌した。試薬添加2時間後に反応を分析したが、変換率(=目的物/(目的物+出発物))は0%だったため、試薬添加3時間後にジイソプロピルエチルアミンを0.030 ml(4.8 eq)、TMSOTf 0.026 ml (2.4 eq)を追加した。試薬追加後3時間が経過した際に再度反応を分析したが、変換率は0%だった。アミド結合の切断は確認されなかった。
Boc-MeIle-Ala-MePhe-MeVal-Asp(pip)-MeAla-MePhe-Leu-MeLeu-Thr(OBn)-MeGly-OAllyl(化合物1a)の脱Boc化反応(11 mer:有機塩基非存在下、TMSOTfのみで実施。)
反応容器に原料を18.3 mg量りとり、0.2 mlの酢酸エチルに溶解させた後反応容器を氷冷した。続いて窒素雰囲気下TMSOTf 0.0077 ml (3.6 eq)を添加し、反応液を撹拌した。試薬添加1.5時間後に反応を分析したが、変換率(=目的物/(目的物+出発物))68%の時点で複数個のアミド結合切断体の生成を確認した。
Boc-MeIle-Ala-MePhe-MeVal-Asp(pip)-MeAla-MePhe-Leu-MeLeu-Thr(OBn)-MeGly-OAllyl(化合物1a)の脱Boc化反応(11 mer:有機塩基非存在下、TMSOTfとトリイソプロピルシランで実施。)
反応容器に原料を20.5 mg量りとり、0.2 mlの酢酸エチルに溶解させた後反応容器を氷冷した。続いて窒素雰囲気下トリイソプロピルシラン0.0097 ml (3.6 eq)とTMSOTf 0.0085 ml (3.6 eq)を添加し、反応液を撹拌した。試薬添加1時間後に反応を分析したが、変換率(=目的物/(目的物+出発物))43%の時点で複数個のアミド結合切断体の生成を確認した。
Boc-MeIle-Ala-MePhe-MeVal-Asp(pip)-MeAla-MePhe-Leu-MeLeu-Thr(OBn)-MeGly-OAllyl(化合物1a)の脱Boc化反応(11 mer:TFA法)
反応容器に原料を35.3 mg量りとり、10 v/wの塩化メチレンに溶解させた後反応容器を氷冷した。続いて窒素雰囲気下トリフルオロ酢酸0.004 ml (2.3 eq)を添加し、反応液を撹拌した。試薬添加10分後に反応を分析したが、変換率(=目的物/(目的物+出発物))は0%だったのでトリフルオロ酢酸0.004 ml (2.3 eq)を追加した。試薬添加10分後に反応を再度分析したが、変換率は0%だったのでトリフルオロ酢酸0.0094 ml (5.4 eq)を追加した。試薬追加10分後に室温に昇温し、反応溶液の撹拌を継続した。室温昇温後、4時間経過時点で反応を分析したところ、変換率2%時点でアミド結合切断体1eの生成を確認した。
Boc-MeIle-Ala-MePhe-MeVal-Asp(pip)-MeAla-MePhe-Leu-MeLeu-Thr(OBn)-MeGly-OAllyl(化合物1a)の脱Boc化反応(11 mer:TFA-TIPS-H2O-PhOH法)
参照文献:J. Am. Chem. Soc., 2015, 137, 13488
反応容器に原料を15.9 mg量りとり、0.0125 mlの水と0.0125 mlのトリイソプロピルシランを添加し、-10 ℃に冷却した。続いてトリフルオロ酢酸0.48 mlを添加し、反応液を撹拌した。試薬添加2時間後に反応を分析したところ、変換率(=目的物/(目的物+出発物))が89%時点でアミド結合切断体1dおよび1eの生成を確認した。また、試薬添加14.5時間後に反応を再分析したところ原料の消費とアミド結合切断体1dおよび1eの生成の増大を確認した。
Boc-MeIle-Ala-MePhe-MeVal-Asp(pip)-MeAla-MePhe-Leu-MeLeu-Thr(OBn)-MeGly-OAllyl(化合物1a)の脱Boc化反応(11 mer:TFA-TIPS-H2O-PhOH法)
参照文献:J. Am. Chem. Soc., 2012, 134, 13244
反応容器にフェノールを10.3 mg量りとり、0.034 mlの水と0.025 mlのトリイソプロピルシランを添加し、-10 ℃に冷却した。続いてトリフルオロ酢酸0.50 mlを添加し、その6分後に原料13.4 mgを加え反応液を撹拌した。原料添加2時間後に反応を分析したところ、変換率(=目的物/(目的物+出発物))が82%時点でアミド結合切断体1dおよび1eの生成を確認した。また、原料添加7時間後に反応を再分析したところ原料の消費とアミド結合切断体1dおよび1eの生成の増大を確認した。
(実施例45)
化合物13aの脱t-Bu化反応(TFA法)
反応容器に基質13aを29.8 mg量りとり、10 v/wのジクロロメタンに溶解させた。この溶液に室温にてTFA (10 eq.) を添加した。試薬添加4時間後、TFA(10 eq.)を追加した。試薬追加からさらに1.5時間後、LCMSで反応を分析したところ、反応転換率は52%で、22%の純度低下とともにアミド結合切断による副生物が10% 観測された。
化合物13aの脱t-Bu化反応(TMSOTf-HMDS法)
反応容器に基質13aを30.0 mg 量りとり、10 v/wの酢酸エチルに溶解させた。この溶液に0 ℃にてHMDS (3.0 eq.)とTMSOTf (2.0 eq)を順次添加した。試薬添加2時間後、室温まで昇温させた。昇温から2.5時間後、HMDS (3 eq.)とTMSOTf (2 eq.)を追加した。試薬追加30分後、LCMSで反応を分析し、99%以上の変換率であることを確認した。この際、アミド結合切断は確認されなかった。
化合物14aの脱t-Bu化反応(TFA法)
反応容器に基質14aを29.7 mg量りとり、10 v/wのジクロロメタンに溶解させた。この溶液に室温にてTFA (20 eq.) を添加した。試薬添加7時間後、LCMSで反応を分析したところ、反応転換率は92%で、46%の純度低下とともにアミド結合切断による副生物が24% 観測された。
化合物14aの脱t-Bu化反応(TMSOTf-HMDS法)
反応容器に基質14aを30.0 mg 量りとり、10 v/wの酢酸エチルに溶解させた。この溶液に0 ℃にてHMDS (3.0 eq.)とTMSOTf (2.0 eq)を順次添加した。試薬添加6時間後、LCMSで反応を分析し、原料の消失を確認した。この際、アミド結合切断は確認されなかった。反応終了確認後、反応液にリン酸水素カリウム44.5 mg (8.0 eq)、水0.30 mL加え、氷冷下30分間撹拌した。この反応液に、酢酸エチル1 mLを添加し0.30 mLのBrineにて洗浄した。有機層をセライトにより濾過した後、濃縮さらに減圧乾燥し、26.8 mgの2bを99%の純度で得た。
化合物15aの脱t-Bu化反応(TFA法)
反応容器に基質15aを29.9 mg量りとり、10 v/wのジクロロメタンに溶解させた。この溶液に室温にてTFA (20 eq.) を添加した。試薬添加5.5時間後、LCMSで反応を分析したところ、反応転換率は50%で、アミド結合切断による副生物が28% 観測された。
化合物15aの脱t-Bu化反応(TMSOTf-HMDS法)
反応容器に基質15aを30.0 mg 量りとり、10 v/wの酢酸エチルに溶解させた。この溶液に室温にてHMDS (3.6 eq)とTMSOTf (2.4 eq)を順次添加した。試薬添加5時間後、HMDS (1.8 eq.)とTMSOTf (1.2 eq.)を追加した。試薬追加1時間後、LCMSで反応を分析し、原料の消失を確認した。この際、アミド結合切断は確認されなかった。
化合物16aの脱t-Bu化反応(TFA法)
反応容器に基質16aを30.2 mg量りとり、10 v/wのジクロロメタンに溶解させた。この溶液に室温にてTFA (20 eq.) を添加した。試薬添加4.5時間後、TFA(10 eq.)を追加した。試薬追加からさらに1時間後、LCMSで反応を分析したところ、反応転換率は65%で、アミド結合切断による副生物が7.0% 観測された。
化合物16aの脱t-Bu化反応(TMSOTf-HMDS法)
反応容器に基質16aを29.9 mg 量りとり、10 v/wの酢酸エチルに溶解させた。この溶液に室温にてHMDS (3.6 eq)とTMSOTf (2.4 eq)を順次添加した。試薬添加4時間後、LCMSで反応を分析し、原料の消失を確認した。この際、アミド結合切断は確認されなかった。
化合物17aの脱t-Bu化反応(TFA法)
反応容器に基質17aを50.0 mg量りとり、10 v/wのジクロロメタンに溶解させた。この溶液に0 ℃にてTFA (5 eq.) を添加した。試薬添加2時間後、TFA(5 eq.)を添加した。さらに15.5時間後、室温まで昇温させた。昇温から3時間後、TFA (10 eq.)を添加した。さらに1.5時間後、TFA (20 eq.)を添加した。試薬追加からさらに1.5時間後、LCMSで反応を分析したところ、反応転換率は54%で、アミド結合切断による副生物が26% 観測された。
化合物17aの脱t-Bu化反応(TMSOTf-HMDS法)
反応容器に基質17aを30.0 mg 量りとり、10 v/wの酢酸エチルに溶解させた。この溶液に0 ℃にてHMDS (5.4 eq.)とTMSOTf (3.6 eq)を順次添加した。試薬添加4時間後、室温まで昇温させた。昇温から3時間後、LCMSで反応を分析し、原料の消失を確認した。この際、アミド結合切断は確認されなかった。
化合物18aの脱t-Bu化反応(TFA法)
反応容器に基質18aを29.9 mg量りとり、10 v/wのジクロロメタンに溶解させた。この溶液に0 ℃にてTFA (20 eq.) を添加した。試薬添加4.5時間後、TFA(10 eq.)を追加し、室温まで昇温させた。試薬追加からさらに2時間後、LCMSで反応を分析したところ、反応転換率は82%で、アミド結合切断による副生物が34% 観測された。
化合物18aの脱t-Bu化反応(TMSOTf-HMDS法)
反応容器に基質18aを29.8 mg 量りとり、10 v/wの酢酸エチルに溶解させた。この溶液に0 ℃にてHMDS (7.2 eq.)とTMSOTf (4.8 eq)を順次添加した。試薬添加3時間後、室温まで昇温させた。昇温から3.5時間後、LCMSで反応を分析し、原料の消失を確認した。この際、アミド結合切断は確認されなかった。
化合物19aの脱t-Bu化反応(TFA法)
反応容器に基質19aを50.0 mg量りとり、10 v/wのジクロロメタンに溶解させた。この溶液に0 ℃にてTFA (5 eq.) を添加した。試薬添加2時間後、TFA(5 eq.)を添加した。さらに15.5時間後、室温まで昇温させた。昇温から3時間後、TFA (10 eq.)を添加した。さらに1.5時間後、TFA (20 eq.)を添加した。試薬追加からさらに1.5時間後、LCMSで反応を分析したところ、反応転換率は82%で、アミド結合切断による副生物が14% 観測された。
化合物19aの脱t-Bu化反応(TMSOTf-HMDS法)
反応容器に基質19aを30.0 mg 量りとり、10 v/wの酢酸エチルに溶解させた。この溶液に0 ℃にてHMDS (3.6 eq.)とTMSOTf (2.4 eq)を順次添加した。試薬添加3.5時間後、室温まで昇温させ、HMDS (3.6 eq.)とTMSOTf (2.4 eq.)を追加した。試薬追加1時間後、LCMSで反応を分析し、原料の消失を確認した。この際、アミド結合切断は確認されなかった。
実施例45~実施例58に示したように、従来のTFA法と比較し、シリル化剤と求電子種捕捉剤とを組み合わせたTMSOTf-HMDS法は、脱tBu化反応において、主鎖の損傷を起こさず、効率的に脱保護反応が進行することがわかった。
Fmoc-MeAsp(OtBu)-pip(化合物12a)の脱t-Bu化反応(1 mer:TFA法)
反応容器に原料を48.0 mg量りとり、9 v/wのジクロロメタンに溶解させた。続いて1 v/wのトリフルオロ酢酸を添加し、反応液を撹拌した。試薬添加19時間後、LCMS(HPLC method 4)で反応を分析し、変換率(=目的物/(目的物+出発物))が77%であることを確認した。この時点でアミド結合が損傷を受けた化合物として転移体12cと加水分解体12dが観測された。また、構造不明の不純物も生成した。
(実施例61)
化合物20aの脱t-Bu化反応(TFA法)
反応容器に基質20aを27.1 mg量りとり、10 v/wのジクロロメタンに溶解させた。この溶液に室温にてTFA (10 eq.) を添加した。試薬添加8時間後LCMSで反応を分析したところ、反応転換率は76%で、11%の純度低下とともにアミド結合切断による副生物8.1%の生成が確認された。基質21aに関しても同様に反応を実施した。(表122)
化合物20aの脱t-Bu化反応(TMSOTf-HMDS法)
反応容器に基質20aを27.6 mg 量りとり、10 v/wの酢酸エチルに溶解させた。この溶液に室温にてHMDS (2.4 eq)とTMSOTf (2.4 eq)を順次添加した。試薬添加2時間後、LCMSで反応を分析し、原料の消失を確認した。この際、アミド結合切断は確認されなかった。
基質21aに関しても同様の反応を実施した。(表122)
(実施例65)
樹脂22aの脱樹脂反応(TFA法)
反応容器に樹脂22aを30.2 mg量りとり、10 v/wのジクロロメタンを加え樹脂を膨潤させた。ジクロロメタンを反応溶液から除去した後、室温にて10 v/w%のTFA (5%ジクロロメタン溶液) を添加し、25 ℃にて振盪させた。振盪開始1時間後、LCMSで反応を分析したところ、アミド結合切断による副生物が7.8%生じた。樹脂23a~24aに関しても同様に反応を実施した。(表124)
樹脂22aの脱樹脂反応(TMSOTf-HMDS法)
反応容器に基質22aを23.0 mg 量りとり、10 v/wの1,2-ジクロロエタンを加え樹脂を膨潤させた。1,2-ジクロロエタンを反応溶液から除去した後、10 v/wの1,2-ジクロロエタンにHMDS (3.6 eq.)とTMSOTf (2.4 eq.)を溶解させた溶液を反応容器に添加した。25 ℃ にて4時間振盪後、LCMSで反応を分析したところ、アミド結合切断は確認されなかった。樹脂23a~24aに関しても同様に反応を実施した。(表124)
HPLC method A
Instrument: Waters ACQUITY UPLC H-Class
Column: Ascentis Express C18 (2.7 μm, 4.6 mm x 50 mm), Supelco
Eluent: A) 0.05% TFA/water, B) 0.05% TFA/CH3CN
Gradient (B): 5% (0 min.) ⇒ 100% (4 min.) ⇒ 100% (4.5 min.) ⇒ 5% (4.6 min.) ⇒ 5% (6 min.)
Flow rate: 1.0 mL/min.
Detection: 210 nm
Injection vol.: 5 μL
Sample prep.: 25 μL/0.975 mL MeCN
Instrument: Waters ACQUITY UPLC H-Class
Column: Ascentis Express C18 (2.7 μm, 4.6 mm x 50 mm), Supelco
Eluent: A) 0.05% TFA/water, B) 0.05% TFA/CH3CN
Gradient (B): 5% (0 min.) ⇒ 100% (4 min.) ⇒ 100% (4.5 min.) ⇒ 5% (4.6 min.) ⇒ 5% (6 min.)
Flow rate: 1.0 mL/min.
Detection: 210 nm
Injection vol.: 5 μL
Sample prep.: 5 μL/1.00 mL (MeCN 0.950 ml + 0.1 M phosphate buffer (pH 8.0) 0.050 ml)
Instrument: Waters ACQUITY UPLC H-Class
Column: Ascentis Express C18 (2.7 μm, 4.6 mm x 50 mm), Supelco
Eluent: A) 0.05% TFA/water, B) 0.05% TFA/CH3CN
Gradient (B): 5% (0 min.) ⇒ 100% (4 min.) ⇒ 100% (4.5 min.) ⇒ 5% (4.6 min.) ⇒ 5% (6 min.)
Flow rate: 1.0 mL/min.
Detection: 210 nm
Injection vol.: 5 μL
Sample prep.: 5 μL/1.00 mL MeCN
Instrument: Shimadzu LCMS-2020
Column: Ascentis Express C18 (2.7 μm, 2.1 mm x 50 mm), Supelco
Eluent: A) 0.1% FA/water, B) 0.1% FA/CH3CN
Gradient (B): 5% (0 min.) ⇒ 100% (4.5 min.) ⇒ 100% (5 min.)
Flow rate: 1.0 mL/min.
Detection: 210 nm - 400 nm
Injection vol.: 1 μL
Instrument: SHIMADZU LCMS-2020
Column: Ascentis Express C18 2.1 mm x 50mm, Supelco
Eluent: A) 0.1% FA/water, B) 0.1% FA/CH3CN
Gradient (B): 5% (0 min.) ⇒ 100% (1.5 min.) ⇒ 100% (2 min.)
Flow rate: 1.0 mL/min.
Detection: PDA 210 nm - 400 nm
Injection vol.: 1 μL
Instrument: Waters Acquity UPLC/SQD2
Column: Ascentis Express C18 (2.7 μm, 2.1 mm x 50 mm), Supelco
Eluent: A) 0.1% FA/water, B) 0.1% FA/CH3CN
Gradient (B): 5% (0 min.) ⇒ 100% (1 min.) ⇒ 100% (1.4 min.)
Flow rate: 1.0 mL/min.
Detection: 210nm - 400 nm
Injection vol.: 1 μL
Instrument: Waters Acquity UPLC/SQD2
Column: Ascentis Express C18 (2.7 μm, 2.1 mm x 50 mm), Supelco
Eluent: A) 0.1% FA/water, B) 0.1% FA/CH3CN
Gradient (B): 5% (0 min.) ⇒ 100% (1 min.) ⇒ 100% (1.4 min.)
Flow rate: 1.0 mL/min.
Detection: 210 nm - 400 nm
Injection vol.: 1 μL
Instrument: Waters Acquity UPLC/SQD
Column: Ascentis Express C18 (2.7 μm, 2.1 mm x 50 mm), Supelco
Eluent: A) 0.1% FA/water, B) 0.1% FA/CH3CN
Gradient (B): 5% (0 min.) ⇒ 100% (4.5 min.) ⇒ 100% (5.0 min.)
Flow rate: 1.0 mL/min.
Detection: 210 nm - 400 nm
Injection vol.: 2 μL
(実施例71)
樹脂25aの脱CTC樹脂と脱t-Bu化反応(TFA法)
反応容器に樹脂25aを20.0 mg量りとり、10 v/wのジクロロメタンを加え樹脂を膨潤させた。ジクロロメタンを反応溶液から除去した後、室温にて10 v/w%のTFA (10%ジクロロメタン溶液) を添加し、25 ℃にて振盪させた。振盪開始1時間後、LCMSで反応を分析したところ、反応転換率は17%で、アミド結合切断による副生物が3.8%生じた。樹脂26aに関しても同様に反応を実施した。(表126)
樹脂25aの脱CTC樹脂と脱tBu化反応(TMSOTf-HMDS法)
反応容器に基質25aを23.0 mg 量りとり、10 v/wの1,2-ジクロロエタンを加え樹脂を膨潤させた。1,2-ジクロロエタンを反応溶液から除去した後、10 v/wの1,2-ジクロロエタンにHMDS (10.7 eq.)とTMSOTf (7.1 eq.)を溶解させた溶液を反応容器に添加した。25℃ にて4時間振盪後、LCMSで反応を分析し、t-Buエステルの消失を確認した。樹脂26aに関しても同様に反応を実施した。(表126)
2 merの合成(Boc-MeVal-Asp(OBn)-pip)
反応容器に原料を5.714 g量り取り、MeCN 29 mlを加えた。メタンスルホン酸2.3 mlを添加後、油浴を45℃に設定して反応容器を加熱した。70分後反応容器を室温に戻した後、反応容器を氷浴に浸した。反応溶液にジイソプロピルエチルアミンを14 ml加えた後、続けてBoc-MeVal-OH 4.046 gとDMT-MMを5.284 g加えた。試薬添加1時間後、反応溶液を濃縮した。濃縮液に酢酸エチルと5%炭酸カリウム水溶液を加え、反応を停止した。分液処理により有機層を分離後、有機層を5%炭酸カリウム水溶液で2回、水で1回、5%硫酸水素カリウム水溶液で3回、10%塩化ナトリウム水溶液で1回、飽和食塩水で1回洗浄した。有機層を減圧濃縮し、淡黄色の固体を7.055 g(収率96%)得た。
3 merの合成(Boc-MePhe-MeVal-Asp(OBn)-pip)
反応容器に原料を7.055 g量り取り、MeCN 35 mlを加えた。メタンスルホン酸2.2 mlを添加後、油浴を45℃に設定して反応容器を加熱した。70分後反応容器を室温に戻した後、反応溶液を濃縮した。濃縮後に酢酸エチル35 mlを加え、反応容器を氷浴に浸した後、炭酸水素ナトリウムを9.466 g加えた。続いて水を35 ml加えた後、Boc-MePhe-OHを4.61 g、DMT-MMを7.73 g加えた。6時間後LCMSで反応を追跡し、原料消費率が99%であることを確認した。分析から1時間後、酢酸エチルと水を加えて分液処理を行い有機層を得た。有機層を5%炭酸カリウム水溶液で3回、水で1回、5%硫酸水素カリウム水溶液で3回、飽和食塩水で1回洗浄した。有機層を減圧濃縮し、得られた粗生成物をシリカゲルカラムクロマトグラフィーで精製し、目的物を白色固体として6.9757 g(収率75%)得た。
Boc-MeGly-OAllylの合成
反応容器に原料を9.286 g量り取り、DMF 46 mlを加えた。反応容器を氷冷後、炭酸カリウム10.20 gおよびアリルブロミド 4.15 mlを加えた。15分後反応容器を室温に戻した後、終夜撹拌した。反応容器にMTBEを加え、反応を水で停止した。分液後、有機層を飽和食塩水で1回洗浄した。有機層を硫酸マグネシウムで乾燥し、濾過、減圧濃縮した。得られた粗生成物をシリカゲルカラムクロマトグラフィーで精製し、目的物31を透明油状液体として10.083 g(収率90%)得た。
Teoc-MeLeu-OHのペンタフルオロフェノール(Pfp-OH)によるエステル化反応によるTeoc-MeLeu-OPfpの合成
反応容器に926 mgの原料、736 mgのペンタフルオロフェノール(Pfp-OH)をそれぞれ量り取り、7.8 mLの酢酸イソプロピルを加えた。767 mgのEDCI塩酸塩を加え、室温にて2時間撹拌した。8 mLの0.5 N 塩酸にて2回、8 mLの5% 炭酸カリウム水溶液にて2回有機層を洗浄し、2 gの硫酸ナトリウムを有機層に加えた。固体を濾過によって除去し、有機層を減圧濃縮することで、目的物を透明油状液体として得た。得られた化合物は精製せずに次の反応に用いる。
Teoc-MeLeu-Thr(OBn)-MeGly-OAllylの合成
化合物33の末端の保護基を脱保護後、ペンタフルオロフェニルエステル体(化合物80a)を作用させてアミド結合を形成する、Menesesらの方法(J. Org. Chem., 2010, 75, 564-569)を用いた縮合反応により、化合物80bを合成することができる。
Boc-MeAla-MePhe-Leu-MeLeu-Thr(OBn)-MeGly-OHの合成
反応容器に原料1.1180 gを秤量し、THF、メタノール、水を各々2.2 ml加えた。次に水酸化リチウム1水和物102.8 mgを加え、室温で5時間撹拌した。反応終結をLCで確認した後、反応溶液を減圧濃縮した。濃縮物に酢酸エチルを加えた後、0.5 Nの塩酸を加え、反応を停止した。分液処理により有機層を分離後、0.5 Nの塩酸で2回、5%塩化ナトリウム水溶液で2回洗浄した。減圧濃縮により溶媒を留去し、白色固体を918.8 mg(収率86%)得た。
FmocAsp(OH)pipの合成
反応容器に原料45.4 gを秤量し、トリフルオロエタノール454 mlを加えた。続いて塩化トリメチルシラン24 mlを加えて室温で撹拌した。反応開始2時間半後に水910 mlを2分割で加え、結晶を析出させた。結晶を濾過後、乾燥し、目的物36を25.8 g(収率61%)で得た。
固相合成(2 mer伸長)
固相合成用のカラムで反応を実施した。
1) 脱保護工程:樹脂Fmoc-MeAla-OCTC (37、理論上のアミノ酸担持量9.49 mmol)にDMF (104 mL)を加え、30℃にてピペリジンの20% DMF溶液(104 mL)を加え、30℃にて15分間振盪させた。溶液を排出後、再度ピペリジンの20% DMF溶液(104 mL)を加え、30℃にて15分間振盪させた。溶液を排出後、DMF (130 ml)による樹脂の洗浄を2分×7回行った。
2) 伸長工程:固相用カラムとは別の反応容器にFmoc-MeVal-OH 6.62 gとOxyma 2.93 gをDMF 52 ml中に溶解させた後、DIC 5.87 mlを加えて30分間30℃で振盪した。この溶液を固相合成用カラムに加え、30℃にて2時間振盪した。溶液を排出後、DMF (130 ml)による樹脂の洗浄を2分×6回行った。
固相合成(2 merから5 merへの逐次伸長と脱樹脂反応)
実施例86に記載の方法に従い、脱保護と伸長工程を繰り返し、Boc-MeIle-Ala-MePhe-MeVal-Asp(OCTC)-pipを得た。得られた樹脂に対し、ジイソプロピルエチルアミン、トリフルオロエタノール、塩化メチレンの混合溶媒147 ml(ジイソプロピルエチルアミン2%、溶媒体積比1:1)を加え30℃にて2時間半振盪した。排出した脱樹脂されたペプチド溶液を集めた。脱樹脂溶液排出後、レジンをトリフルオロエタノールと塩化メチレンの混合溶媒(体積比1:1)25 mlで2回洗浄し、これらの溶液を濃縮した。濃縮物を酢酸エチル130 mlに溶解し、炭酸カリウム水溶液で2回、硫酸水素カリウムで2回、塩化ナトリウム水溶液で1回洗浄した後、有機層を減圧濃縮した。乾燥後、白色固体を4.9821 g(69%収率)得た。
Fmoc-MeAsp(OtBu)-pipの合成
反応容器に49.6 gのEDCI塩酸塩を量り取り、DMF 400 mlを加えた。反応容器を0℃に冷却後、Fmoc-MeAsp(OtBu)-OHを100.050 g加えた。次に滴下漏斗を用いてOxyma 40.1 gのDMF 100 ml溶液を加えた後、ピペリジン34.9 mlを加えた。ピペリジンの滴下終了から4時間30分経過後にLCMSで反応を分析し、原料の消失を確認した。酢酸エチルで反応溶液を希釈後、0.5 N 塩酸を500 ml加え反応を停止した。有機層を分離後、有機層の水洗浄を2回、5%炭酸ナトリウム水溶液での洗浄を2回、5%塩化ナトリウム水溶液での洗浄を2回行った。得られた有機層を減圧濃縮した。得られた粗生成物を酢酸エチルとヘプタンから再結晶し、目的物を86.230 g(収率75%)得た。
11残基ペプチド(tBu体、Cbz-MeAla-MePhe-Leu-MeLeu-Val-MeGly-MeIle-Ser(OtBu)-MePhe-MeVal-Asp(OtBu)-pip (22))の合成中間体(Cbz-Asp(OtBu)-pip(41))の合成
反応容器にCbz-Asp(OtBu)-OHを17.5 g量り取り、175 mLの酢酸エチルを加えた。反応液を0 ℃まで冷却後、ピペリジン(3 eq.)、ジイソプロピルエチルアミン(6 eq.)およびT3Pの1.7 M酢酸エチル溶液(3 eq.)をそれぞれ添加した。反応液を室温まで昇温し、10分間室温にて攪拌した後、175 mLの5%炭酸カリウム水溶液を加えた。水層を除去した後、有機層を175 mLの5%硫酸水素カリウム水溶液で2回洗浄した。得られた有機層を濃縮、さらに減圧乾燥することで20 gのCbz-Asp(OtBu)-pip(41)を収率100%にて得た。
H-Asp(OtBu)-pip (42)の合成
2つの反応容器にCbz-Asp(OtBu)-pip (41)をそれぞれ9.5 gずつ量り取り、それぞれの容器に50 mLのCPMEを加えた。10% Pd/C (20 w/w%)を両容器に加えた後、30 ℃、3 barの水素雰囲気下で反応させた。反応開始3時間後、2つの反応溶液を混合し、濾過および100 mLのCPMEにより洗浄した。得られた混合液を濃縮、さらに減圧乾燥することで12.3 gのH-Asp(OtBu)-pip (42)を収率99%にて得た。
H-Asp(OtBu)-pip (42)から以下に記載した19工程により11mer (22)を合成した。合成した中間体は下に示した。
ペプチド鎖の伸長(伸長method A)
反応容器に42を8.6 g量り取り、108 mLのCPMEを加えた。Cbz-MeVal-OH (1.1 eq.)、ジイソプロピルエチルアミン(3 eq.)を加えた後、BEP(1.5 eq.)を21.5 mLのMeCNに溶解させた溶液を添加した。室温にて3分間攪拌後、15 mLの10%硫酸水素ナトリウム水溶液を加えた。水層を除去した後、有機層に15 mLの5%炭酸カリウム水溶液とトリメチルアミン塩酸塩(3 eq.)を室温にて加えた。混合液を40 ℃に昇温した後、90分間40 ℃で攪拌した。室温まで冷却後水層を除去した後、得られた有機層を15 mLの5%炭酸カリウム水溶液により洗浄した。得られた有機層を濃縮、さらに減圧乾燥することで17 gの43を定量的に得た。
N末端Cbzの除去(脱保護method A)
2つの反応容器に43をそれぞれ9.5 gずつ量り取り、それぞれの容器に50 mLのCPMEを加えた。10% Pd/C (20 w/w%)を両容器に加えた後、35 ℃、3 barの水素雰囲気下で反応させた。反応開始2時間後、2つの反応溶液を混合し、濾過および100 mLのCPMEにより洗浄した。得られた混合液を濃縮、さらに減圧乾燥することで14 gの44を収率100%にて得た。
ペプチド鎖の伸長(伸長method B)
反応容器に44を14 g量り取り、126 mLのCPMEと14 mLのアセトニトリルをそれぞれ加えた。Cbz-MePhe-OH (1.1 eq.)、ジイソプロピルエチルアミン(8 eq.)およびT3Pの1.7 M酢酸エチル溶液(3 eq.)を室温にて順次加えた。室温にて1時間攪拌した後、140 mLの5%硫酸水素カリウム水溶液を加えた。水層を除去した後、140 mLの5%炭酸カリウム水溶液とトリメチルアミン塩酸塩(3 eq.)を室温にて加えた。室温にて30分間攪拌した後、水層を除去した。得られた有機層を140 mLの5%炭酸カリウム水溶液により洗浄した。得られた有機層を濃縮、さらに減圧乾燥することで24.1 gの45を収率96%にて得た。
N末端Cbzの除去(脱保護method B)
2つの反応容器に15aをそれぞれ9.2 gずつ量り取り、それぞれの容器に46 mLのCPMEを加えた。10% Pd/C (20 w/w%)を両容器に加えた後、35 ℃、5 barの水素雰囲気下で反応させた。反応開始6時間後、室温まで冷却し、室温、空気雰囲気下にて終夜保管した。さらに45 ℃、5 barの水素雰囲気下で4時間反応させた。2つの反応溶液を混合し、濾過および92 mLのCPMEにより洗浄した。得られた混合液を濃縮、さらに減圧乾燥することで15.9 gの51を収率98%にて得た。
同様の手法により2 merから11 merのペプチドを合成した。反応時間と用いた原料の質量を除き、上記記載の反応条件と異なる点は「反応method」の列に併記した。
(実施例110)
Fmoc-MeAla-MeAla-OtBu(20a)の合成
反応容器にH-MeAla-OtBu塩酸塩を99.7 mgとリン酸水素二カリウムを710 mgそれぞれ量りとり、2-MeTHFと水をH-MeAla-OtBu塩酸塩に対し10 v/wずつ加えた。Fmoc-MeAla-OH(167 mg)とDMT-MM(211 mg)を0 ℃にて順次加えた後、室温まで昇温させた。室温にて16時間攪拌後、LCMSで反応を分析したところ、Fmoc-MeAla-OHの消失が確認された。4 mLの水と6 mLの2-MeTHFを用いて反応液を分液漏斗に移した後、水層を除去した。得られた有機層をそれぞれ飽和食塩水(3 mL)、15% 硫酸水素ナトリウム水溶液(3 mL)、5% 炭酸ナトリウム水溶液(3 mL)により洗浄後、減圧濃縮により溶媒を除去した。得られた粗生成物を下記条件を用いたシリカゲルカラムクロマトグラフィーにより精製した後、目的物を含む分画を濃縮さらに減圧乾燥し、227.6 mgの20aを収率96%、純度99.5%で得た。
Fmoc-MePhe-MeAla-OtBu(21a)の合成
反応容器にH-MeAla-OtBu塩酸塩(99.8 mg)、 Fmoc-MePhe-OH (205 mg)をそれぞれ量りとり、H-MeAla-OtBu塩酸塩に対し8 v/wの酢酸イソプロピルと同じく2 v/wのアセトニトリルおよびジイソプロピルエチルアミン(4 eq.)を順次加えた。T3Pの1.7 M酢酸エチル溶液(2.5 eq.)を室温にて加えた。室温にて4時間攪拌後、T3Pの1.7 M酢酸エチル溶液(0.5 eq.)とジイソプロピルエチルアミン(0.8 eq.)を添加した。試薬添加30分後、LCMSで反応を分析したところ、反応転換率は98.5%であった。NMI (2 eq.)を室温にて加えた後、50 ℃ にて5分間攪拌させた。6 mLの酢酸エチルを用いて反応液を分液漏斗に移した後、水層を除去した。得られた有機層をそれぞれ5% 炭酸ナトリウム水溶液(3 mL)、5% 硫酸水素カリウム水溶液(3 mL)、5% 炭酸ナトリウム水溶液(3 mL)により洗浄した。有機層を硫酸ナトリウムを用いて30分間脱水した後、濾過、減圧濃縮により溶媒を除去した。得られた粗生成物を下記条件を用いたシリカゲルカラムクロマトグラフィーにより精製した後、目的物を含む分画を濃縮さらに減圧乾燥し、227.6 mgの21aを収率96%、純度99.5%で得た。
(実施例112)
Fmoc-MeAla-OHのCTC樹脂への担持
反応用カラムに4.47 gのCl-CTC樹脂を量り取り、ジクロロメタン(36 mL)を加え60分間30 ℃にて振盪させた。ジクロロメタンを排出後、Fmoc-MeAla-OH (1.24 g)とジイソプロピルエチルアミン(1.4 mL)をジクロロメタン(36 mL)に溶解させた溶液を室温にて加えた。30 ℃にて3時間振盪させた後、LCMSにより反応を分析したところ、反応転換率は96.0%であった。反応溶液を排出後、メタノール(3.6 mL)とジイソプロピルエチルアミン(1.8 mL)をDMF(30 mL)に溶解させた溶液を室温にて加えた。30 ℃にて1.5時間振盪させた後、反応溶液を排出した。樹脂を36 mLのDMFで4回洗浄した後、さらに減圧乾燥することで4.80 gの55を得た。56も同様の手法により合成した。生成物の分析は次工程にて行った。
Fmoc-MeAla-MeAla-OCTC(22a)、Fmoc-MeVal-MeAla-OCTC(23a)、Fmoc-Pro-MeAla-OCTC(24a)の合成
ペプチド固相合成機prelude Xを用いてジペプチド22a~24aを同時合成した。反応容器3つに樹脂Fmoc-MeAla-OCTC (55)をそれぞれ676 mg,、687 mg、705 mgを量り取った。これにDMF (8 mL)を加え、室温にて1時間静置して樹脂を膨潤させた。DMFを排出後、ピペリジンの20% DMF溶液(8 mL)を加え、室温にて15分間振盪させた。溶液を排出後、再度ピペリジンの20% DMF溶液(8 mL)を加え、室温にて15分間振盪させた。下記カクテル1~3をRV1~3にそれぞれ加えた後、DICの12.5% DMF溶液(4 eq.)を加えた。室温にて3時間窒素を吹き込みながら振盪させた。溶液を排出後、DMF (8 v/w)による樹脂の洗浄を2分×5回、MTBE(8 v/w)による樹脂の洗浄を2分×4回、いずれも室温にて振盪させることで行った。得られた樹脂を減圧乾燥することで30a、31aおよび32aをそれぞれ得た。得られた化合物の同定は、実施例65、67、69の脱樹脂反応によって行った。
得られた3種の樹脂を3つの反応容器に約20 mgずつ量り取り、ピペリジンの20% DMF溶液(100 mL)をそれぞれに加え、2時間室温にて攪拌した。溶液の吸光度からジベンゾフルベンを定量することで、各ジペプチドの担持率を算出した。(表156)
Fmoc-MeAla-MeAsp(OtBu)-OCTC(25a)とFmoc-MeLeu-MeAsp(OtBu)-OCTC(26a)の合成
ペプチド固相合成機prelude Xを用いてジペプチド25a~26aを同時合成した。反応容器2つに樹脂Fmoc-MeAsp(OtBu)-OCTC(10)を340 mgずつ量り取った。これにDMF (8 mL)を加え、室温にて30分静置して樹脂を膨潤させた。DMFを排出後、ピペリジンの20% DMF溶液(8 v/w)を加え、室温にて5分間振盪させた。溶液を排出後、再度ピペリジンの20% DMF溶液(8 v/w)を加え、室温にて20分間振盪させた。溶液を排出後、下記カクテル1、2をそれぞれ対応する反応容器に添加後、DICの12.5% DMF溶液(4 eq.)を加え、室温にて3時間窒素を吹き込みながら振盪させた。溶液を排出後、DMF (8 v/w)による樹脂の洗浄を2分×4回、MTBE(8 v/w)による樹脂の洗浄を2分×4回、いずれも室温にて振盪させることで行った。得られた樹脂を減圧乾燥することで、994 mgの25aおよび1.00 gの26aをそれぞれ得た。得られた化合物の同定は、実施例71、73の脱樹脂反応によって行った。
得られた2種の樹脂を2つの反応容器に約20 mgずつ量り取り、ピペリジンの20% DMF溶液(100 mL)をそれぞれに加え、2時間室温にて攪拌した。溶液の吸光度からジベンゾフルベンを定量することで、各ジペプチドの担持率を算出した。(表156)
Fmoc-MeAsp(OAllyl)-morの合成
反応容器にFmoc-MeAsp(OAllyl)-OH(56、87.9 g)を加え、DMF(430 ml)で溶解させた。次いで、周辺温度にてHOBt(31.9 g)とEDCI塩酸塩(49.4 g)を加え、反応液を0℃に冷却した。反応液にモルホリン(20.4 ml)を徐々に加え、0℃で45分攪拌した。反応液に0℃で水(180 ml)を加えた後に周辺温度にて1時間攪拌し、さらに水(180 ml)を加えて周辺温度にて1.75時間攪拌した。生じた固体をキリヤマ漏斗で濾取し、得られた固体を水(450 ml)で2回洗浄した。水洗後の固体を減圧下で乾燥し、目的物を無色固体として86.8 g(収率 85%)得た。
Fmoc-MeAsp(OAllyl)-NMe2の合成
窒素気流下にて、反応容器にEDCI塩酸塩(27.4 g)とDMF(217 ml)を加え、次いでHOBt(17.7 g)とFmoc-MeAsp(OAllyl)-OH(56、48.8 g)のジクロロメタン-DMF溶液(90 ml-90 ml)を0℃で加えた。反応液を0℃で30分攪拌後、反応液にジメチルアミン-THF溶液(2N、65.6 ml)を2分間かけて滴下後、0℃にて30分攪拌した。反応液を酢酸エチル(488 ml)で希釈し、有機層を、1 N 塩酸(391 mlで2回)、水(488 ml)、5%炭酸水素ナトリウム水溶液(488 mlで2回)、18%塩化ナトリウム水溶液(488 ml)洗浄後、有機層を硫酸ナトリウムで乾燥した。乾燥剤を濾去後、濾液を減圧濃縮し、目的物を無色油状物質として51.2 g(収率 98%)得た。
Fmoc-MeAsp(OH)-morの合成
窒素気流下にて、反応容器にFmoc-MeAsp(OAllyl)-mor(57、22.8 g)とジクロロメタン(50 ml)を加え、次いでテトラキストリフェニルホスフィンパラジウム(0.55 g)を周辺温度で加えた。フェニルシラン(3.61 g)を滴下後、周辺温度で30分攪拌した。反応液をMTBE(228 ml)で希釈後、5%炭酸水素ナトリウム水溶液(228 ml)で抽出した。水層を85%リン酸水溶液(12 ml)でpH 3付近まで酸性とし、水層をMTBE(228 ml)で抽出した。この有機層を18%塩化ナトリウム水溶液(228 mlで2回)洗浄後、有機層を硫酸ナトリウムで乾燥した。乾燥剤を濾去後、濾液を減圧濃縮し、目的物を無色無定型晶として20.3 g(収率 97%)得た。
Fmoc-MeAsp(OH)-NMe2の合成
窒素気流下にて、反応容器にFmoc-MeAsp(OAllyl)-NMe2(58、32.0 g)とテトラキストリフェニルホスフィンパラジウム(0.847 g)を加え、次いでジクロロメタン(73.3 ml)を加えた。反応液に、フェニルシラン(5.55 g)を滴下後、周辺温度で30分攪拌した。反応液をMTBE(320 ml)で希釈後、5%炭酸水素ナトリウム水溶液(308 ml)で抽出した。水層を85%リン酸水溶液(30.1 ml)でpH 2付近まで酸性とし、水層をMTBE(320 ml)で抽出した。この有機層を18%塩化ナトリウム水溶液(320 mlで2回)洗浄後、有機層を硫酸ナトリウムで乾燥した。乾燥剤を濾去後、濾液を減圧濃縮し、目的物を淡褐色無定形晶として25.1 g(収率 86%)得た。
Fmoc-MeAsp(OtBu)-mor(61)の合成
窒素気流下にて、反応容器にFmoc-MeAsp(OtBu)-OH(39、3.0 g)とOxyma(1.1 g)を加え、次いでジメチルホルムアミド(15 mL)を加えた。反応液に1-(3-ジメチルアミノプロピル)-3-エチルカルボジイミド塩酸塩(1.5 g)、およびモルホリン(0.74 mL)を反応液の温度を10℃以下に保ちながら加え、3時間攪拌した。反応液にAcOEt(15 mL)、および0.5 N塩酸(15 mL)を加えた。有機層を水(15 mL)で洗浄し、さらに5 %炭酸ナトリウム水溶液(15 mL)で洗浄した。有機層を5 %塩化ナトリウム水溶液(15 mL)で洗浄後、有機層を減圧濃縮し、目的物を黄色無定形晶として3.50 g(100%)得た。得られた化合物は精製せずに次の反応に用いた。
Fmoc-MeAsp(OtBu)-NMe2(62)の合成
窒素気流下にて、反応容器にFmoc-MeAsp(OtBu)-OH(39、3.0 g)、およびOxyma(1.1 g)を加え、次いでジメチルホルムアミド(15 mL)を加えた。反応液に1-(3-ジメチルアミノプロピル)-3-エチルカルボジイミド塩酸塩(1.5 g)、ジメチルアミン塩酸塩(0.69 g)、N,N-ジイソプロピルエチルアミンを(1.5 ml)を反応液の温度を10℃以下に保ちながら加え3時間攪拌した。反応液に酢酸エチル(15 mL)、次いで0.5 N塩酸(15 mL)を加えた。有機層を水(15 mL)で洗浄し、さらに5 %炭酸ナトリウム水溶液(15 mL)で洗浄した。有機層を5 %塩化ナトリウム水溶液(15 mL)で洗浄後、有機層を減圧濃縮し、目的物を無色油状物質として3.17 g(95%)得た。得られた化合物は精製せずに次の反応に用いた。
Fmoc-MeAsp(OH)-mor(59)の合成
窒素気流下にて、反応容器にFmoc-MeAsp(OtBu)-mor(61、1.8 g)と2-メチルテトラヒドロフラン(9.2 mL)を加え、次いでHMDS(0.86 mL)を加えた。反応容器を0℃に冷却し、TMSOTf(0.81 mL)を加え、25℃にて1時間攪拌した。反応容器を0℃に冷却し、反応液に5%リン酸二水素カリウム水溶液(9.2 mL)を加えて有機層を分離した。5%炭酸ナトリウム水溶液(9.2 mL)を加えて、水層を分離した。水層にMTBE(9.2 mL)、2N塩酸(5.0 mL)を加えて有機層を分離した。5%リン酸二水素カリウム水溶液(9.2 mL)で有機層を洗浄したのち、10%塩化ナトリウム水溶液(9.2 mL)で洗浄した。有機層を減圧濃縮し、目的物を黄色無定形晶として1.31 g(97%)得た。
Fmoc-MeAsp(OH)-NMe2(60)の合成
窒素気流下にて、反応容器にFmoc-MeAsp(OtBu)-NMe2(62、1.6 g)と2-メチルテトラヒドロフラン(7.9 mL)を加え、次いでHMDS(0.80 mL)を加えた。反応容器を0℃に冷却し、TMSOTf(0.75 mL)を加え、25℃にて1時間攪拌した。反応液に5%リン酸二水素カリウム水溶液(7.9 mL)を加えて有機層を分離した。5%炭酸ナトリウム水溶液(7.9 mL)を加えて、水層を分離した。水層にMTBE(7.9 mL)、2N塩酸(5.0 mL)を加えて有機層を分離した。5%リン酸二水素カリウム水溶液(7.9 mL)で有機層を洗浄したのち、10%塩化ナトリウム水溶液(7.9 mL)で洗浄した。有機層を減圧濃縮し、目的物を無色油状物質として1.31 g(95%)得た。
Claims (19)
- 天然アミノ酸残基および/またはアミノ酸類縁体残基を含む出発ペプチド化合物と、シリル化剤とを溶媒中で接触させることにより、該シリル化剤によって脱保護可能な保護基を該出発ペプチド化合物から脱保護する段階を含む、該保護基が脱保護されたペプチド化合物を製造する方法であって、
該シリル化剤は、シリル化合物または酸と、求電子種捕捉剤とを混合することによって生成され、
該出発ペプチド化合物は、該脱保護可能な保護基を少なくとも1つ含み、かつ、
該出発ペプチド化合物は、少なくとも1つのN置換アミノ酸残基を含む、方法。 - 天然アミノ酸残基および/またはアミノ酸類縁体残基を含む出発ペプチド化合物と、シリル化剤とを溶媒中で接触させることにより、該シリル化剤によって脱樹脂可能な固相合成用樹脂を該出発ペプチド化合物から脱樹脂する段階を含む、該固相合成用樹脂が脱樹脂されたペプチド化合物を製造する方法であって、
該シリル化剤は、シリル化合物または酸と、求電子種捕捉剤とを混合することによって生成され、
該出発ペプチド化合物は、該脱樹脂可能な固相合成用樹脂に連結されており、かつ、
該出発ペプチド化合物は、少なくとも1つのN置換アミノ酸残基を含む、方法。 - 出発ペプチド化合物が、下記一般式(I):
[式中、
R1は、水素、PG1、天然アミノ酸残基、またはアミノ酸類縁体残基であり、
R2は、水素、およびC1-C6アルキルからなる群より選択されるか、あるいはR2とR4もしくはR2とR4’は、それらが結合する窒素原子および炭素原子と一緒になって、ヒドロキシまたはC1-C4アルコキシによって置換されていてもよい3~7員の複素環を形成し、ここで、R2とR4が一緒になって複素環を形成する場合、R4’は水素であり、R2とR4’が一緒になって複素環を形成する場合、R4は水素であり、
R4およびR4’は、R2とR4またはR2とR4’が一緒になって複素環を形成する場合を除き、
(a)R4’が水素であり、かつR4が、水素、置換されていてもよいC1-C6アルキル、C3-C6シクロアルキル、C3-C6シクロアルキルC1-C4アルキル、置換されていてもよいフェニル、置換されていてもよいフェニルメチル、置換されていてもよいフェニルエチル、2-(メチルチオ)エチル、-CH2SPG2、N-PG3-インドール-3-イルメチル、4-(PG2O)ベンジル、PG2-O-メチル、1-(PG2O)エチル、2-(PG2O)エチル、PG2-OCO(CH2)-、PG2-OCO(CH2)2-、PG3N-n-ブチル、-CON(R14A)(R14B)、-CH2-CON(R14A)(R14B)、および-(CH2)2CON(R14A)(R14B)からなる群より選択されるか、
(b)R4およびR4’は、独立して、置換されていてもよいC1-C6アルキルであるか、もしくは
(c)R4およびR4’は、それらが結合する炭素原子と一緒になって3~7員の脂環式環を形成し、
R5は、単結合、または-C(R5A)(R5B)-であり、
R5AおよびR5Bは、独立して、水素、C1-C6アルキル、置換されていてもよいアリール、置換されていてもよいヘテロアリール、置換されていてもよいアリールC1-C4アルキル、および置換されていてもよいヘテロアリールC1-C4アルキルからなる群より選択され、
R6は、水素、およびC1-C6アルキルからなる群より選択されるか、あるいはR6とR7もしくはR6とR7’は、それらが結合する窒素原子および炭素原子と一緒になって、ヒドロキシまたはC1-C4アルコキシによって置換されていてもよい3~7員の複素環を形成し、ここで、R6とR7が一緒になって複素環を形成する場合、R7’は水素であり、R6とR7’が一緒になって複素環を形成する場合、R7は水素であり、
R7およびR7’は、R6とR7またはR6とR7’が一緒になって複素環を形成する場合を除き、
(a)R7’が水素であり、かつR7が水素、置換されていてもよいC1-C6アルキル、C3-C6シクロアルキル、C3-C6シクロアルキルC1-C4アルキル、置換されていてもよいフェニル、置換されていてもよいフェニルメチル、置換されていてもよいフェニルエチル、2-(メチルチオ)エチル、-CH2SPG4、N-PG5-インドール-3-イルメチル、4-(PG4O)ベンジル、PG4-O-メチル、1-(PG4O)エチル、2-(PG4O)エチル、PG4-OCO(CH2)-、PG4-OCO(CH2)2-、PG5N-n-ブチル、-CON(R15A)(R15B)、-CH2-CON(R15A)(R15B)、および-(CH2)2CON(R15A)(R15B)からなる群より選択されるか、
(b)R7およびR7’は、独立して、置換されていてもよいC1-C6アルキルであるか、もしくは
(c)R7およびR7’は、それらが結合する炭素原子と一緒になって3~7員の脂環式環を形成し、
R8は、単結合、または-C(R8A)(R8B)-であり、
R8AおよびR8Bは、独立して、水素、C1-C6アルキル、置換されていてもよいアリール、置換されていてもよいヘテロアリール、置換されていてもよいアリールC1-C4アルキル、および置換されていてもよいヘテロアリールC1-C4アルキルからなる群より選択され、
R9は、ヒドロキシ、-O-PG6、天然アミノ酸残基、アミノ酸類縁体残基、-O-RES、または-NH-RESであり、
RESは固相合成用樹脂であり、
R14AおよびR14Bは、独立して、水素、C1-C4アルキルであるか、あるいはR14AおよびR14Bはそれらが結合している窒素原子と一緒になって、1つまたは複数の追加のヘテロ原子を含んでいてもよい4~8員環を形成し、
R15AおよびR15Bは、独立して、水素、C1-C4アルキルであるか、あるいはR15AおよびR15Bはそれらが結合している窒素原子と一緒になって、1つまたは複数の追加のヘテロ原子を含んでいてもよい4~8員環を形成し、
PG1は、Fmoc、Boc、Alloc、Cbz、Teoc、およびトリフルオロアセチルからなる群より選択され、
PG2およびPG4は、独立して、水素、t-Bu、トリチル、メトキシトリチル、クミル、ベンジル、THP、1-エトキシエチル、メチル、エチル、アリル、置換されていてもよいアリール、置換されていてもよいアリールC1-C4アルキル、置換されていてもよいヘテロアリールC1-C4アルキル、および2-(トリメチルシリル)エチルからなる群より選択され、
PG3およびPG5は、独立して、水素、Fmoc、Boc、Alloc、Cbz、Teoc、メトキシカルボニル、t-Bu、トリチル、クミル、およびベンジルからなる群より選択され、
PG6は、t-Bu、トリチル、クミル、ベンジル、メチル、エチル、アリル、および2-(トリメチルシリル)エチルからルなる群より選択される]
で表される少なくとも2つのアミノ酸残基が連結された構造を少なくとも1つ含む、請求項1または2に記載の方法。 - 出発ペプチド化合物が、そのC末端に下記一般式(II):
[式中、
R1’は、式(III)で表される基であり、
*は結合点を意味し、
R1は、水素、PG1、天然アミノ酸残基、またはアミノ酸類縁体残基であり、
R2は、水素、およびC1-C6アルキルからなる群より選択されるか、あるいはR2とR10もしくはR2とR10’は、それらが結合する窒素原子および炭素原子と一緒になって、ヒドロキシまたはC1-C4アルコキシによって置換されていてもよい3~7員の複素環を形成し、ここで、R2とR10が一緒になって複素環を形成する場合、R10’は水素であり、R2とR10’が一緒になって複素環を形成する場合、R10は水素であり、
R10およびR10’は、R2とR10またはR2とR10’が一緒になって複素環を形成する場合を除き、
(a)R10’が水素であり、かつR10が、水素、置換されていてもよいC1-C6アルキル、C3-C6シクロアルキル、C3-C6シクロアルキルC1-C4アルキル、置換されていてもよいフェニル、置換されていてもよいフェニルメチル、置換されていてもよいフェニルエチル、2-(メチルチオ)エチル、-CH2SPG8、N-PG9-インドール-3-イルメチル、4-(PG8O)ベンジル、PG8-O-メチル、1-(PG8O)エチル、2-(PG8O)エチル、PG8-OCO(CH2)-、PG8-OCO(CH2)2-、PG9N-n-ブチル、-CON(R16A)(R16B)、-CH2-CON(R16A)(R16B)、および-(CH2)2CON(R16A)(R16B)からなる群より選択されるか、
(b)R10およびR10’は、独立して、置換されていてもよいC1-C6アルキル、C3-C6シクロアルキル、またはC3-C6シクロアルキルC1-C4アルキルであるか、もしくは
(c)R10およびR10’は、それらが結合する炭素原子と一緒になって3~7員の脂環式環を形成し、
R11は、単結合、または-C(R11A)(R11B)-であり、
R11AおよびR11Bは、独立して、水素、C1-C6アルキル、置換されていてもよいアリール、置換されていてもよいヘテロアリール、置換されていてもよいアリールC1-C4アルキル、および置換されていてもよいヘテロアリールC1-C4アルキルからなる群より選択され、
R12およびR12’は、独立して、水素、PG10-O-メチル、-(CH2)nCOO-PG10、-(CH2)nCOO-RES、および-(CH2)nCONH-RESからなる群より選択され、
RESは固相合成用樹脂であり、
nは、0、1、または2であり、
R6は、水素、およびC1-C6アルキルからなる群より選択され、
R13は、C1-C4アルキル、または-(CH2)mCON(R17A)(R17B)であり、
mは、0、1、または2であり、
R16AおよびR16Bは、独立して、水素、またはC1-C4アルキルであるか、あるいはR16AおよびR16Bはそれらが結合している窒素原子と一緒になって、1つまたは複数の追加のヘテロ原子を含んでいてもよい4~8員環を形成し、
R17AおよびR17Bは、独立して、水素、C1-C4アルキルであるか、あるいはR17AおよびR17Bはそれらが結合している窒素原子と一緒になって、1つまたは複数の追加のヘテロ原子を含んでいてもよい4~8員環を形成し、
PG1は、独立して、Fmoc、Boc、Alloc、Cbz、Teoc、およびトリフルオロアセチルからなる群より選択され、
PG8は、水素、t-Bu、トリチル、メトキシトリチル、クミル、ベンジル、THP、1-エトキシエチル、メチル、エチル、アリル、置換されていてもよいアリール、置換されていてもよいアリールC1-C4アルキル、置換されていてもよいヘテロアリールC1-C4アルキル、および2-(トリメチルシリル)エチルからなる群より選択され、
PG9は、水素、Fmoc、Boc、Alloc、Cbz、Teoc、メトキシカルボニル、t-Bu、トリチル、クミル、およびベンジルからなる群より選択され、
PG10は、t-Bu、トリチル、クミル、ベンジル、メチル、エチル、アリル、置換されていてもよいアリール、置換されていてもよいアリールC1-C4アルキル、置換されていてもよいヘテロアリールC1-C4アルキル、および(2-(トリメチルシリル)エチルからなる群より選択される]
で表される少なくとも2つのアミノ酸残基が連結された構造を含む、請求項1~3のいずれか1項に記載の方法。 - 出発アミド化合物と、シリル化剤とを溶媒中で接触させることにより、該シリル化剤によって脱保護可能な保護基を該出発アミド化合物から脱保護する段階を含む、該保護基が脱保護されたアミド化合物を製造する方法であって、
該シリル化剤は、シリル化合物または酸と、求電子種捕捉剤とを混合することによって生成され、
該出発アミド化合物は、下記一般式(II):
[式中、
R1’は、水素原子、またはPG7であり、
R12およびR12’は、独立して、水素、PG10-O-メチル、-(CH2)nCOO-PG10、-(CH2)nCOO-RES、および-(CH2)nCONH-RESからなる群より選択され、
RESは固相合成用樹脂であり、
nは、0、1、または2であり、
R6は、水素、およびC1-C6アルキルからなる群より選択され、
R13は、C1-C4アルキル、または-(CH2)mCON(R17A)(R17B)であり、
mは、0、1、または2であり、
R17AおよびR17Bは、独立して、水素、C1-C4アルキルであるか、あるいはR17AおよびR17Bはそれらが結合している窒素原子と一緒になって、1つまたは複数の追加のヘテロ原子を含んでいてもよい4~8員環を形成し、
PG7は、Fmoc、Boc、Alloc、Cbz、Teoc、およびトリフルオロアセチルからなる群より選択され、
PG10は、t-Bu、トリチル、クミル、ベンジル、メチル、エチル、アリル、置換されていてもよいアリール、置換されていてもよいアリールC1-C4アルキル、置換されていてもよいヘテロアリールC1-C4アルキル、および(2-(トリメチルシリル)エチルからなる群より選択される]
で表され、かつ
該出発アミド化合物は、該脱保護可能な保護基を少なくとも1つ含む、方法。 - 出発アミド化合物と、シリル化剤とを溶媒中で接触させることにより、該出発アミド化合物を固相合成用樹脂から脱樹脂する段階を含む、該固相合成用樹脂が脱樹脂されたアミド化合物を製造する方法であって、
該シリル化剤は、シリル化合物または酸と、求電子種捕捉剤とを混合することによって生成され、
該出発アミド化合物は、下記一般式(II):
[式中、
R1’は、水素原子、またはPG7であり、
R12およびR12’は、独立して、水素、PG10-O-メチル、-(CH2)nCOO-PG10、-(CH2)nCOO-RES、および-(CH2)nCONH-RESからなる群より選択され、
RESは固相合成用樹脂であり、ここで、R12およびR12’の少なくとも一方は、-(CH2)nCOO-RES、または-(CH2)nCONH-RESであり、
RESは固相合成用樹脂であり、
nは、0、1、または2であり、
R6は、水素、およびC1-C6アルキルからなる群より選択され、
R13は、C1-C4アルキル、または-(CH2)mCON(R17A)(R17B)であり、
mは、0、1、または2であり、
R17AおよびR17Bは、独立して、水素、C1-C4アルキルであるか、あるいはR17AおよびR17Bはそれらが結合している窒素原子と一緒になって、1つまたは複数の追加のヘテロ原子を含んでいてもよい4~8員環を形成し、
PG7は、Fmoc、Boc、Alloc、Cbz、Teoc、およびトリフルオロアセチルからなる群より選択され、
PG10は、t-Bu、トリチル、クミル、ベンジル、メチル、エチル、アリル、置換されていてもよいアリール、置換されていてもよいアリールC1-C4アルキル、置換されていてもよいヘテロアリールC1-C4アルキル、および2-(トリメチルシリル)エチルからなる群より選択される]
で表される、方法。 - 脱保護可能な保護基が、t-Bu、トリフェニルメチル、2-(トリメチルシリル)-エチル、Boc、Teoc、Cbz、メトキシカルボニル、テトラヒドロピラニル、1-エトキシエチル、メトキシトリチル、およびクミルからなる群より選択される、請求項1、および3~5のいずれか1項に記載の方法。
- シリル化合物が、TMSOTf、TESOTf、TBSOTf、TIPSOTf、TBDPSOTf、TTMSOTf、TMSCl、TMSBr、TMSOClO3、およびTMSIからなる群より選択される、請求項8記載の方法。
- 酸が、HX(式中、Xは-OTf、-OClO3、Cl、Br、およびIからなる群より選択される)で表される、請求項1~7のいずれか1項に記載の方法。
- 求電子種捕捉剤が、下記式(2)~(10):
[式2中、
RBは置換シリル基であり、かつRCは置換シリル基であるか、あるいは
RBとRCはそれらが結合している窒素原子および炭素原子と一緒になって5~7員環を形成し、
RDは1つまたは複数のフッ素原子で置換されていてもよいC1-C4アルキルであるか、置換されていてもよいメチレンであり、ここでRDが置換されていてもよいメチレンである場合、式2は二量化して以下の式:
で表される化合物を形成し、
式3中、
RGは1つまたは複数のC1-C4アルキルで置換されたシリル基であり、
RHは水素、またはC1-C4アルキルであり、
RIは水素、または1つまたは複数のフッ素原子で置換されていてもよいC1-C4アルキルであり、
式4中、
(a-1)RJは置換シリル基であり、RKはC1-C4アルコキシであり、かつRMとRLは、独立して、水素、またはC1-C4アルキルであるか、
(a-2)RJは置換シリル基であり、RMは、水素、またはC1-C4アルキルであり、かつRKとRLはそれらが結合している炭素原子と一緒になって酸素原子を含む5~8員環を形成するか、
(b-1)RJは置換シリル基であり、RKはC1-C4アルキルであり、かつRMとRLは、独立して、水素、またはC1-C4アルキルであるか、
(b-2)RJは置換シリル基であり、RMは水素、またはC1-C4アルキルであり、かつRKとRLはそれらが結合している炭素原子と一緒になって5~8員環を形成するか、
(c-1)RJとRMがそれらが結合している炭素原子と一緒になって酸素原子を含む5~7員環を形成し、RKは水素、またはC1-C4アルキルであり、かつRLはC1-C4アルキルであるか、
(c-2)RJとRMがそれらが結合している炭素原子と一緒になって酸素原子を含む5~7員環を形成し、かつRKとRLはそれらが結合している炭素原子と一緒になって5~8員環を形成するか、
(d-1)RJはC1-C4アルキルであり、かつRM、RK、およびRLは、独立して、水素、またはC1-C4アルキルであるか、
(d-2)RJはC1-C4アルキルであり、RMは、水素、またはC1-C4アルキルであり、かつRKとRLはそれらが結合している炭素原子と一緒になって5~8環を形成するか、
(e-1)RJはC1-C3アルキルカルボニルであり、かつRM、RK、およびRLは、独立して水素、またはC1-C4アルキルであるか、
(e-2)RJはC1-C3アルキルカルボニルであり、RMは、水素、またはC1-C4アルキルであり、かつRKとRLはそれらが結合している炭素原子と一緒になって5~8員環を形成するか、
(f-1)RJは置換シリル基またはC1-C4アルキルであり、RKは置換されていてもよいジ-C1-C4アルキルアミノであり、かつRMとRLは、独立して、水素、またはC1-C4アルキルであるか、
(f-2)またはRJは置換シリル基またはC1-C4アルキルであり、RMは、水素、またはC1-C4アルキルであり、かつRKとRLはそれらが結合している炭素原子と一緒になって、窒素原子を含む5~8員環を形成し、該5~8員環は、C1-C4アルキルによって置換されていてもよく、
式5中、
RN、RN’、およびROは、独立して、水素またはC1-C4アルキルであり、
式6中、
RPは置換シリル基であり、
RQは置換シリル基、またはC1-C4アルキルであり、かつRRは水素、置換シリル基、またはC1-C4アルキルであるか、あるいは
RQとRRはそれらが結合している窒素原子と一緒になって1つまたは複数の追加のヘテロ原子を含んでいてもよい5~8員環複素環を形成し、
式7中、
Xは単結合または炭素原子であり、
ここでXが単結合である場合、RSは存在せず、RUAとRRは、それらが結合している炭素原子および窒素原子と一緒になって置換されていてもよい6員の芳香族複素環を形成し、かつRUBとRTは、それらが結合している炭素原子および窒素原子と一緒になって置換されていてもよい6員の芳香族複素環を形成し、
Xが炭素原子である場合、RUAおよびRUBは、独立して、C1-C4アルキルであり、かつRRとRSとRTはそれらが結合する炭素原子と一緒になって以下の構造:
を形成し、
式8中、
RVは、C1-C4アルキルまたはC3-C6シクロアルキルであり、
式9中、
RWおよびRXは、独立して、C1-C4アルキル、または置換シリル基であり、
式10中、
RYおよびRZは、独立して、C1-C4アルキル、または置換シリル基である。]
からなる群より選択される、請求項1~10のいずれか1項に記載の方法。 - 求電子種捕捉剤が、N,O-ビス(トリメチルシリル)アセトアミド、N,O-ビス(トリメチルシリル)トリフルオロアセトアミド、N-メチル-N-トリメチルシリルアセトアミド、N-メチル-N-トリメチルシリルトリフルオロアセトアミド、ジメチルケテンメチルトリメチルシリルアセタール、イソプロペニルオキシトリメチルシラン、2,2,4,4-テトラメチルペンタノンイミン、1,1,1,3,3,3-ヘキサメチルジシラザン(HMDS)、N-トリメチルシリルモルホリン、N-トリメチルシリルジエチルアミン、およびN-tert-ブチルトリメチルシリルアミンからなる群より選択される、請求項11に記載の方法。
- 除去対象の保護基1当量に対して、または除去対象の樹脂1当量に対して、1~5当量のシリル化合物、および1~10当量の求電子種捕捉剤を混合する、請求項1~9および11~12のいずれか1項に記載の方法。
- 除去対象の保護基1当量に対して、または除去対象の樹脂1当量に対して、0.1~0.5当量のシリル化合物または酸を混合する、請求項1~12のいずれか1項に記載の方法であって、
求電子種捕捉剤が、N,O-ビス(トリメチルシリル)アセトアミド、N,O-ビス(トリメチルシリル)トリフルオロアセトアミド、N-メチル-N-トリメチルシリルアセトアミド、N-メチル-N-トリメチルシリルトリフルオロアセトアミド、ジメチルケテンメチルトリメチルシリルアセタール、およびイソプロペニルオキシトリメチルシランからなる群より選択され、
シリル化合物が、TMSOTf、TESOTf、TBSOTf、TIPSOTf、TBDPSOTf、TTMSOTf、TMSCl、TMSBr、およびTMSOClO3からなる群より選択され、
酸が、HX(式中、Xは-OTf、-OClO3、Cl、Br、およびIからなる群より選択される)で表される、方法。 - 出発ペプチド化合物が、1~30個のアミノ酸残基を含み、直鎖または環状である、請求項1~14のいずれか1項に記載の方法。
- 固相合成用樹脂が、CTC樹脂、Wang樹脂、またはSASRIN樹脂である、請求項1~4および6~15のいずれか1項に記載の方法。
- 出発ペプチド化合物を溶媒と混合した後に、求電子種捕捉剤を混合し、次いでシリル化合物または酸を混合することを含む、請求項1~16のいずれか1項に記載の方法。
- 下記一般式(A)で表されるアミド化合物またはその塩:
式中、
R1’は、水素、Fmoc、Boc、Alloc、Cbz、Teoc、およびトリフルオロアセチルからなる群より選択され、
R17AおよびR17Bは、共にメチルであるか、あるいはR17AおよびR17Bはそれらが結合している窒素原子と一緒になって、ピペリジンまたはモルホリンを形成し、
R18は水素またはPG10であり、ここでPG10は、t-Bu、トリチル、クミル、ベンジル、メチル、エチル、アリル、置換されていてもよいアリール、置換されていてもよいアリールC1-C4アルキル、置換されていてもよいヘテロアリールC1-C4アルキル、および2-(トリメチルシリル)エチルからなる群より選択される。 - 以下からなる群より選択される、請求項18記載のアミド化合物またはその塩:
(3-1) 3-((((9H-フルオレン-9-イル)メトキシ)カルボニル)(メチル)アミノ)-4-(ジメチルアミノ)-4-オキソブタン酸、
(3-2) 3-((((9H-フルオレン-9-イル)メトキシ)カルボニル)(メチル)アミノ)-4-(ジメチルアミノ)-4-オキソブタン酸アリル、
(3-3) 3-((((9H-フルオレン-9-イル)メトキシ)カルボニル)(メチル)アミノ)-4-(ジメチルアミノ)-4-オキソブタン酸 tert-ブチル、
(3-4) 3-((((9H-フルオレン-9-イル)メトキシ)カルボニル)(メチル)アミノ)-4-(ジメチルアミノ)-4-オキソブタン酸ベンジル、
(3-5) 3-((tert-ブトキシカルボニル)(メチル)アミノ)-4-(ジメチルアミノ)-4-オキソブタン酸、
(3-6) 3-((tert-ブトキシカルボニル)(メチル)アミノ)-4-(ジメチルアミノ)-4-オキソブタン酸アリル、
(3-7) 3-((tert-ブトキシカルボニル)(メチル)アミノ)-4-(ジメチルアミノ)-4-オキソブタン酸 tert-ブチル、
(3-8) 3-((tert-ブトキシカルボニル)(メチル)アミノ)-4-(ジメチルアミノ)-4-オキソブタン酸ベンジル、
(3-9) 3-(((ベンジルオキシ)カルボニル)(メチル)アミノ)-4-(ジメチルアミノ)-4-オキソブタン酸、
(3-10) 3-(((ベンジルオキシ)カルボニル)(メチル)アミノ)-4-(ジメチルアミノ)-4-オキソブタン酸アリル、
(3-11) 3-(((ベンジルオキシ)カルボニル)(メチル)アミノ)-4-(ジメチルアミノ)-4-オキソブタン酸 tert-ブチル、
(3-12) 3-(((ベンジルオキシ)カルボニル)(メチル)アミノ)-4-(ジメチルアミノ)-4-オキソブタン酸ベンジル、
(3-13) 3-(((アリルオキシ)カルボニル)(メチル)アミノ)-4-(ジメチルアミノ)-4-オキソブタン酸、
(3-14) 3-(((アリルオキシ)カルボニル)(メチル)アミノ)-4-(ジメチルアミノ)-4-オキソブタン酸アリル、
(3-15) 3-(((アリルオキシ)カルボニル)(メチル)アミノ)-4-(ジメチルアミノ)-4-オキソブタン酸 tert-ブチル、
(3-16) 3-(((アリルオキシ)カルボニル)(メチル)アミノ)-4-(ジメチルアミノ)-4-オキソブタン酸ベンジル、
(3-17) 4-(ジメチルアミノ)-3-(メチル((2-(トリメチルシリル)エトキシ)カルボニル)アミノ)-4-オキソブタン酸、
(3-18) 4-(ジメチルアミノ)-3-(メチル((2-(トリメチルシリル)エトキシ)カルボニル)アミノ)-4-オキソブタン酸アリル、
(3-19) 4-(ジメチルアミノ)-3-(メチル((2-(トリメチルシリル)エトキシ)カルボニル)アミノ)-4-オキソブタン酸 tert-ブチル、
(3-20) 4-(ジメチルアミノ)-3-(メチル((2-(トリメチルシリル)エトキシ)カルボニル)アミノ)-4-オキソブタン酸ベンジル、
(2-1) 3-((((9H-フルオレン-9-イル)メトキシ)カルボニル)(メチル)アミノ)-4-モルホリノ-4-オキソブタン酸、
(2-2) 3-((((9H-フルオレン-9-イル)メトキシ)カルボニル)(メチル)アミノ)-4-モルホリノ-4-オキソブタン酸アリル、
(2-3) 3-((((9H-フルオレン-9-イル)メトキシ)カルボニル)(メチル)アミノ)-4-モルホリノ-4-オキソブタン酸 tert-ブチル、
(2-4) 3-((((9H-フルオレン-9-イル)メトキシ)カルボニル)(メチル)アミノ)-4-モルホリノ-4-オキソブタン酸ベンジル、
(2-5) 3-((tert-ブトキシカルボニル)(メチル)アミノ)-4-モルホリノ-4-オキソブタン酸、
(2-6) 3-((tert-ブトキシカルボニル)(メチル)アミノ)-4-モルホリノ-4-オキソブタン酸アリル、
(2-7) 3-((tert-ブトキシカルボニル)(メチル)アミノ)-4-モルホリノ-4-オキソブタン酸 tert-ブチル、
(2-8) 3-((tert-ブトキシカルボニル)(メチル)アミノ)-4-モルホリノ-4-オキソブタン酸ベンジル、
(2-9) 3-(((ベンジルオキシ)カルボニル)(メチル)アミノ)-4-モルホリノ-4-オキソブタン酸、
(2-10) 3-(((ベンジルオキシ)カルボニル)(メチル)アミノ)-4-モルホリノ-4-オキソブタン酸アリル、
(2-11) 3-(((ベンジルオキシ)カルボニル)(メチル)アミノ)-4-モルホリノ-4-オキソブタン酸 tert-ブチル、
(2-12) 3-(((ベンジルオキシ)カルボニル)(メチル)アミノ)-4-モルホリノ-4-オキソブタン酸ベンジル、
(2-13) 3-(((アリルオキシ)カルボニル)(メチル)アミノ)-4-モルホリノ-4-オキソブタン酸、
(2-14) 3-(((アリルオキシ)カルボニル)(メチル)アミノ)-4-モルホリノ-4-オキソブタン酸アリル、
(2-15) 3-(((アリルオキシ)カルボニル)(メチル)アミノ)-4-モルホリノ-4-オキソブタン酸 tert-ブチル、
(2-16) 3-(((アリルオキシ)カルボニル)(メチル)アミノ)-4-モルホリノ-4-オキソブタン酸ベンジル、
(2-17) 3-(メチル((2-(トリメチルシリル)エトキシ)カルボニル)アミノ)-4-モルホリノ-4-オキソブタン酸、
(2-18) 3-(メチル((2-(トリメチルシリル)エトキシ)カルボニル)アミノ)-4-モルホリノ-4-オキソブタン酸アリル、
(2-19) 3-(メチル((2-(トリメチルシリル)エトキシ)カルボニル)アミノ)-4-モルホリノ-4-オキソブタン酸 tert-ブチル、
(2-20) 3-(メチル((2-(トリメチルシリル)エトキシ)カルボニル)アミノ)-4-モルホリノ-4-オキソブタン酸ベンジル、
(4-1) 3-(メチルアミノ)-4-オキソ-4-(ピペリジン-1-イル)ブタン酸、
(4-2) アリル 3-(メチルアミノ)-4-オキソ-4-(ピペリジン-1-イル)ブタノアート、
(4-3) tert-ブチル 3-(メチルアミノ)-4-オキソ-4-(ピペリジン-1-イル)ブタノアート、
(4-4) ベンジル 3-(メチルアミノ)-4-オキソ-4-(ピペリジン-1-イル)ブタノアート、
(4-5) 3-(メチルアミノ)-4-モルホリノ-4-オキソブタン酸、
(4-6) アリル 3-(メチルアミノ)-4-モルホリノ-4-オキソブタノアート、
(4-7) tert-ブチル 3-(メチルアミノ)-4-モルホリノ-4-オキソブタノアート、
(4-8) ベンジル 3-(メチルアミノ)-4-モルホリノ-4-オキソブタノアート、
(4-9) 4-(ジメチルアミノ)-3-(メチルアミノ)-4-オキソブタン酸、
(4-10) アリル 4-(ジメチルアミノ)-3-(メチルアミノ)-4-オキソブタノアート、
(4-11) tert-ブチル 4-(ジメチルアミノ)-3-(メチルアミノ)-4-オキソブタノアート、
(4-12) ベンジル 4-(ジメチルアミノ)-3-(メチルアミノ)-4-オキソブタノアート、
(1-1) 3-((((9H-フルオレン-9-イル)メトキシ)カルボニル)(メチル)アミノ)-4-オキソ-4-(ピペリジン-1-イル)ブタン酸、
(1-2) 3-((((9H-フルオレン-9-イル)メトキシ)カルボニル)(メチル)アミノ)-4-オキソ-4-(ピペリジン-1-イル)ブタン酸アリル、
(1-3) 3-((((9H-フルオレン-9-イル)メトキシ)カルボニル)(メチル)アミノ)-4-オキソ-4-(ピペリジン-1-イル)ブタン酸 tert-ブチル、
(1-4) 3-((((9H-フルオレン-9-イル)メトキシ)カルボニル)(メチル)アミノ)-4-オキソ-4-(ピペリジン-1-イル)ブタン酸ベンジル、
(1-5) 3-((tert-ブトキシカルボニル)(メチル)アミノ)-4-オキソ-4-(ピペリジン-1-イル)ブタン酸、
(1-6) 3-((tert-ブトキシカルボニル)(メチル)アミノ)-4-オキソ-4-(ピペリジン-1-イル)ブタン酸アリル、
(1-7) 3-((tert-ブトキシカルボニル)(メチル)アミノ)-4-オキソ-4-(ピペリジン-1-イル)ブタン酸 tert-ブチル、
(1-8) 3-((tert-ブトキシカルボニル)(メチル)アミノ)-4-オキソ-4-(ピペリジン-1-イル)ブタン酸ベンジル、
(1-9) 3-(((ベンジルオキシ)カルボニル)(メチル)アミノ)-4-オキソ-4-(ピペリジン-1-イル)ブタン酸、
(1-10) 3-(((ベンジルオキシ)カルボニル)(メチル)アミノ)-4-オキソ-4-(ピペリジン-1-イル)ブタン酸アリル、
(1-11) 3-(((ベンジルオキシ)カルボニル)(メチル)アミノ)-4-オキソ-4-(ピペリジン-1-イル)ブタン酸 tert-ブチル、
(1-12) 3-(((ベンジルオキシ)カルボニル)(メチル)アミノ)-4-オキソ-4-(ピペリジン-1-イル)ブタン酸ベンジル、
(1-13) 3-(((アリルオキシ)カルボニル)(メチル)アミノ)-4-オキソ-4-(ピペリジン-1-イル)ブタン酸、
(1-14) 3-(((アリルオキシ)カルボニル)(メチル)アミノ)-4-オキソ-4-(ピペリジン-1-イル)ブタン酸アリル、
(1-15) 3-(((アリルオキシ)カルボニル)(メチル)アミノ)-4-オキソ-4-(ピペリジン-1-イル)ブタン酸 tert-ブチル、
(1-16) 3-(((アリルオキシ)カルボニル)(メチル)アミノ)-4-オキソ-4-(ピペリジン-1-イル)ブタン酸ベンジル、
(1-17) 3-(メチル((2-(トリメチルシリル)エトキシ)カルボニル)アミノ)-4-オキソ-4-(ピペリジン-1-イル)ブタン酸、
(1-18) 3-(メチル((2-(トリメチルシリル)エトキシ)カルボニル)アミノ)-4-オキソ-4-(ピペリジン-1-イル)ブタン酸アリル、
(1-19) 3-(メチル((2-(トリメチルシリル)エトキシ)カルボニル)アミノ)-4-オキソ-4-(ピペリジン-1-イル)ブタン酸 tert-ブチル、および
(1-20) 3-(メチル((2-(トリメチルシリル)エトキシ)カルボニル)アミノ)-4-オキソ-4-(ピペリジン-1-イル)ブタン酸ベンジル。
Priority Applications (6)
Application Number | Priority Date | Filing Date | Title |
---|---|---|---|
US17/297,231 US11732002B2 (en) | 2018-11-30 | 2019-11-29 | Deprotection method and resin removal method in solid-phase reaction for peptide compound or amide compound, and method for producing peptide compound |
CN201980075795.3A CN113056475B (zh) | 2018-11-30 | 2019-11-29 | 用于肽化合物或酰胺化合物的脱保护方法和在固相反应中的树脂脱除方法以及用于生产肽化合物的方法 |
KR1020217018843A KR20210098476A (ko) | 2018-11-30 | 2019-11-29 | 펩티드 화합물 또는 아마이드 화합물의 탈보호법 및 고상 반응에 있어서의 탈수지 방법, 및 펩티드 화합물의 제조 방법 |
EP19891018.4A EP3889164A4 (en) | 2018-11-30 | 2019-11-29 | DEPROTECTION METHODS AND RESIN REMOVAL METHODS IN THE SOLID PHASE REACTION FOR PEPTIDE COMPOUND OR AMIDE COMPOUND AND METHODS FOR PRODUCTION OF A PEPTIDE COMPOUND |
JP2020557856A JPWO2020111238A1 (ja) | 2018-11-30 | 2019-11-29 | ペプチド化合物、またはアミド化合物の脱保護法および固相反応における脱樹脂方法、並びにペプチド化合物の製造方法 |
US18/203,371 US20230303619A1 (en) | 2018-11-30 | 2023-05-30 | Deprotection method and resin removal method in solid-phase reaction for peptide compound or amide compound, and method for producing peptide compound |
Applications Claiming Priority (6)
Application Number | Priority Date | Filing Date | Title |
---|---|---|---|
JP2018-225518 | 2018-11-30 | ||
JP2018225518 | 2018-11-30 | ||
JP2019101971 | 2019-05-31 | ||
JP2019-101971 | 2019-05-31 | ||
JP2019158173 | 2019-08-30 | ||
JP2019-158173 | 2019-08-30 |
Related Child Applications (2)
Application Number | Title | Priority Date | Filing Date |
---|---|---|---|
US17/297,231 A-371-Of-International US11732002B2 (en) | 2018-11-30 | 2019-11-29 | Deprotection method and resin removal method in solid-phase reaction for peptide compound or amide compound, and method for producing peptide compound |
US18/203,371 Continuation US20230303619A1 (en) | 2018-11-30 | 2023-05-30 | Deprotection method and resin removal method in solid-phase reaction for peptide compound or amide compound, and method for producing peptide compound |
Publications (1)
Publication Number | Publication Date |
---|---|
WO2020111238A1 true WO2020111238A1 (ja) | 2020-06-04 |
Family
ID=70853025
Family Applications (1)
Application Number | Title | Priority Date | Filing Date |
---|---|---|---|
PCT/JP2019/046805 WO2020111238A1 (ja) | 2018-11-30 | 2019-11-29 | ペプチド化合物、またはアミド化合物の脱保護法および固相反応における脱樹脂方法、並びにペプチド化合物の製造方法 |
Country Status (5)
Country | Link |
---|---|
US (2) | US11732002B2 (ja) |
EP (1) | EP3889164A4 (ja) |
JP (1) | JPWO2020111238A1 (ja) |
KR (1) | KR20210098476A (ja) |
WO (1) | WO2020111238A1 (ja) |
Cited By (7)
Publication number | Priority date | Publication date | Assignee | Title |
---|---|---|---|---|
WO2022145444A1 (ja) | 2020-12-28 | 2022-07-07 | 中外製薬株式会社 | アミノ酸の固相合成用樹脂への担持方法 |
JP7165289B1 (ja) * | 2021-05-07 | 2022-11-02 | 中外製薬株式会社 | N-置換アミノ酸残基を含む環状化合物の製造方法 |
US11492369B2 (en) | 2017-12-15 | 2022-11-08 | Chugai Seiyaku Kabushiki Kaisha | Method for producing peptide, and method for processing bases |
WO2022234864A1 (ja) * | 2021-05-07 | 2022-11-10 | 中外製薬株式会社 | N-置換アミノ酸残基を含む環状化合物の製造方法 |
US11542299B2 (en) | 2017-06-09 | 2023-01-03 | Chugai Seiyaku Kabushiki Kaisha | Method for synthesizing peptide containing N-substituted amino acid |
US11891457B2 (en) | 2011-12-28 | 2024-02-06 | Chugai Seiyaku Kabushiki Kaisha | Peptide-compound cyclization method |
US12071396B2 (en) | 2019-03-15 | 2024-08-27 | Chugai Seiyaku Kabushiki Kaisha | Method for preparing aromatic amino acid derivative |
Families Citing this family (1)
Publication number | Priority date | Publication date | Assignee | Title |
---|---|---|---|---|
GB2626789A (en) * | 2023-02-03 | 2024-08-07 | Exactmer Ltd | Deprotection processes and cation scavengers for use in the same |
Citations (10)
Publication number | Priority date | Publication date | Assignee | Title |
---|---|---|---|---|
JPH01250396A (ja) * | 1988-03-31 | 1989-10-05 | Shin Etsu Chem Co Ltd | ポリペプチドの製造方法 |
WO2011058122A1 (en) * | 2009-11-16 | 2011-05-19 | F. Hoffmann-La Roche Ag | Piperidine analogs as glycogen synthase activators |
WO2012026566A1 (ja) | 2010-08-27 | 2012-03-01 | 国立大学法人 東京大学 | 新規人工翻訳合成系 |
WO2012033154A1 (ja) | 2010-09-09 | 2012-03-15 | 国立大学法人 東京大学 | N-メチルアミノ酸およびその他の特殊アミノ酸を含む特殊ペプチド化合物ライブラリーの翻訳構築と活性種探索法 |
WO2012074130A1 (ja) | 2010-12-03 | 2012-06-07 | 国立大学法人東京大学 | ペプチドライブラリーの製造方法、ペプチドライブラリー、及びスクリーニング方法 |
WO2013100132A1 (ja) | 2011-12-28 | 2013-07-04 | 中外製薬株式会社 | ペプチド化合物の環化方法 |
WO2014033466A1 (en) | 2012-08-31 | 2014-03-06 | Dmitry Stetsenko | Method and compositions for removing acid-labile protecting groups |
WO2015030014A1 (ja) | 2013-08-26 | 2015-03-05 | 国立大学法人東京大学 | 大環状ペプチド、その製造方法、及び大環状ペプチドライブラリを用いるスクリーニング方法 |
WO2018100561A1 (en) * | 2016-12-02 | 2018-06-07 | Nardon Chiara | Coordination compounds, syntheses, nanoformulation and use thereof in oncology |
WO2018225864A1 (ja) * | 2017-06-09 | 2018-12-13 | 中外製薬株式会社 | 膜透過性の高い環状ペプチド化合物、及びこれを含むライブラリ |
Family Cites Families (61)
Publication number | Priority date | Publication date | Assignee | Title |
---|---|---|---|---|
JPS57159747A (en) | 1981-03-27 | 1982-10-01 | Kenji Okawa | Synthesis of amino acid derivative |
JPS60169451A (ja) | 1984-02-13 | 1985-09-02 | Mitsui Toatsu Chem Inc | L−フエニルアラニンの分離精製法 |
FR2583432B1 (fr) | 1985-06-13 | 1988-11-04 | Inst Francais Du Petrole | Procede de production enzymatique de l-a-aminoacides a partir d'a-cetoacides |
ES8607214A1 (es) | 1985-10-16 | 1986-06-01 | Gema Sa | Procedimiento enzimatico de resolucion de n-fenilacetil-ami-nocompuestos y purificacion de sus isomeros opticamente ac- tivos |
US4670607A (en) * | 1985-10-29 | 1987-06-02 | Hamari Chemicals, Ltd. | Method for producing 2-(substituted aryl) propionaldehyde |
JPS6393796A (ja) * | 1986-10-09 | 1988-04-25 | Shin Etsu Chem Co Ltd | ペプチド合成の脱保護基用薬剤 |
US4859736A (en) | 1987-03-30 | 1989-08-22 | Ciba-Geigy Corporation | Synthetic polystyrene resin and its use in solid phase peptide synthesis |
DE3733198A1 (de) | 1987-10-01 | 1989-04-13 | Kernforschungsanlage Juelich | Enzymatisches verfahren zur herstellung von dipeptiden |
SK26999A3 (en) * | 1996-09-12 | 1999-10-08 | Rhone Poulenc Rorer Pharma | Stereospecific preparation of chiral 1-aryl- and 1-heteroaryl-2- -substituted ethyl-2-amines |
CN1238366C (zh) | 1997-01-21 | 2006-01-25 | 综合医院公司 | 利用rna-蛋白融合体筛选蛋白 |
IL125314A (en) | 1998-07-12 | 2004-07-25 | Peptor Ltd | Processes for attaching amino acids using a bite - (trichloromethyl) carbonate |
JP4502293B2 (ja) | 1999-06-04 | 2010-07-14 | 長瀬産業株式会社 | 軸不斉を有する光学活性な4級アンモニウム塩、その製法およびα−アミノ酸誘導体の不斉合成への応用 |
DE19942624A1 (de) | 1999-08-28 | 2001-03-08 | Chemotopix Gmbh | Verfahren zur Herstellung von zyklischen Peptidomimetika |
CA2381713A1 (en) * | 1999-09-02 | 2001-03-08 | Big Bear Bio, Inc. | Methods and compositions for reducing serum phosphate levels |
MXPA02010375A (es) | 2000-04-19 | 2003-04-25 | Schering Corp | Inhibidores macrociclicos de la ns3-serina proteasa del virus de la hepatitis c que comprenden porciones alquil y arilalanina p2. |
EP1277755A4 (en) | 2000-04-21 | 2006-01-11 | Nagase & Co Ltd | OPTICALLY ACTIVE QUATERNARY AMMONIUM SALT BY AXIAL ASYMMETRY, METHOD FOR THE PRODUCTION THEREOF, AND THEIR APPLICATION IN THE ASYMMETRIC SYNTHESIS OF ALPHA-AMINO-ACID DERIVATIVES |
MXPA03009566A (es) | 2001-04-19 | 2004-12-06 | Scripps Research Inst | Metodos y composicion para la produccion de pares trna-aminoaciltrna sintetasa ortogonales. |
WO2003014354A1 (en) | 2001-08-01 | 2003-02-20 | Japan Science And Technology Agency | Tyrosyl-trna synthase variants |
US7288372B2 (en) | 2002-01-17 | 2007-10-30 | Ambergen, Inc. | Methods for the preparation of chemically misaminoacylated tRNA via protective groups |
EP1504111A4 (en) | 2002-04-19 | 2005-11-23 | California Inst Of Techn | PEPTIDES NUCLEIC ACID PEPTIDE DISPLAY LIBRARS CONTAINING UNNATURELY AMINO-ACID-RESISTANT AND METHOD FOR THE PRODUCTION THEREOF |
JP4490663B2 (ja) | 2003-09-22 | 2010-06-30 | 株式会社東京大学Tlo | イソロイシンtRNA(tRNAIle)のライシジン合成酵素(TilS)としてのmesJ遺伝子産物及びその相同性遺伝子(COG0037) |
EP1701969B1 (en) | 2003-12-31 | 2007-10-24 | F.Hoffmann-La Roche Ag | Process for peptide synthesis using a reduced amount of deprotection agent |
US20080221303A1 (en) | 2004-02-18 | 2008-09-11 | Jehoshua Katzhendler | Method for the Preparation of Peptide-Oligonucleotide Conjugates |
EP1964916B1 (en) | 2005-12-06 | 2012-08-01 | The University of Tokyo | Multi-purpose acylation catalayst and use thereof |
JP5808882B2 (ja) | 2006-03-03 | 2015-11-10 | カリフォルニア インスティテュート オブ テクノロジー | 分子へのアミノ酸の部位特異的な組み込み |
CA2649303C (en) | 2006-04-11 | 2016-09-27 | Sloan-Kettering Institute For Cancer Research | Homogeneous erythropoietin and other peptides and proteins, methods and intermediates for their preparation |
JP2007319064A (ja) | 2006-05-31 | 2007-12-13 | Japan Science & Technology Agency | 修飾化アミノ酸を部位特異的に導入したタンパク質を発現させる方法 |
WO2008040536A1 (en) * | 2006-10-05 | 2008-04-10 | Lonza Ag | Method for peptide synthesis |
JP5200241B2 (ja) | 2006-11-17 | 2013-06-05 | 国立大学法人 東京大学 | N末端に非天然骨格をもつポリペプチドの翻訳合成とその応用 |
US9090668B2 (en) | 2007-03-26 | 2015-07-28 | The University Of Tokyo | Process for synthesizing cyclic peptide compound |
JP2009096791A (ja) | 2007-09-26 | 2009-05-07 | Kaneka Corp | アミノ酸の製造方法 |
EP2177533A1 (en) | 2008-10-09 | 2010-04-21 | TU München | Multiple N-methylated cyclic hexapeptides for treatment of neurogenic inflammation |
TWI468375B (zh) | 2008-10-27 | 2015-01-11 | Janssen Pharmaceutica Nv | 製備經保護之l-丙胺酸衍生物之方法 |
WO2010053050A1 (ja) | 2008-11-04 | 2010-05-14 | 株式会社カネカ | O-アルキルセリンおよびn-ベンジル-o-アルキルセリンの製造法 |
CN102239176A (zh) | 2008-12-03 | 2011-11-09 | 弗·哈夫曼-拉罗切有限公司 | 用于制备治疗性肽的方法 |
JP2012525348A (ja) | 2009-05-01 | 2012-10-22 | エフ.ホフマン−ラ ロシュ アーゲー | 固相及び溶液相の組み合わせ技術を用いたインスリン分泌促進ペプチド合成 |
EP2492344B1 (en) | 2009-10-22 | 2016-04-06 | PeptiDream Inc. | Rapid display method in translational synthesis of peptide |
GB0919194D0 (en) | 2009-11-02 | 2009-12-16 | Lytix Biopharma As | Compounds |
JP2011139667A (ja) | 2010-01-07 | 2011-07-21 | Tottori Univ | プロリンおよびβ−アラニンをN末端に有するジペプチド、及びその環化ジペプチドの酵素合成法 |
EP2380596A1 (en) | 2010-04-20 | 2011-10-26 | Technische Universität München | Cyclopentapeptide derivatives and uses thereof |
ES2586411T3 (es) | 2011-03-04 | 2016-10-14 | New York University | Macrociclos sustitutos de enlace de hidrógeno como moduladores de Ras |
US9133245B2 (en) | 2011-06-13 | 2015-09-15 | Trustees Of Boston College | Cyclic lactadherin peptide mimetics and their uses |
WO2012171984A1 (en) | 2011-06-16 | 2012-12-20 | Lonza Ltd | A process for extraction of peptides and its application in liquid phase peptide synthesis |
JP6440055B2 (ja) | 2013-05-10 | 2018-12-19 | 国立大学法人 東京大学 | ペプチドライブラリの製造方法、ペプチドライブラリ、及びスクリーニング方法 |
SG11201600473UA (en) | 2013-08-05 | 2016-02-26 | Medimmune Ltd | Amino acid derivatives |
JP6357154B2 (ja) | 2013-08-05 | 2018-07-11 | 国立大学法人 東京大学 | 荷電性非タンパク質性アミノ酸含有ペプチドの製造方法 |
US20170022254A1 (en) | 2014-04-08 | 2017-01-26 | Novartis Ag | Novel Aldehyde Acetal Based Processes for the Manufacture of Macrocyclic Depsipeptides and New Intermediates |
WO2015179434A1 (en) | 2014-05-20 | 2015-11-26 | Ohio State Innovation Foundation | Small molecule ras inhibitors |
EP3152226B1 (en) | 2014-06-06 | 2019-05-29 | Technische Universität München | Modified cyclopentapeptides and uses thereof |
US20170369871A1 (en) | 2015-01-12 | 2017-12-28 | Synthorx, Inc. | Incorporation of unnatural nucleotides and methods thereof |
HUE059925T2 (hu) | 2015-03-13 | 2023-01-28 | Chugai Pharmaceutical Co Ltd | Módosított aminoacil-tRNS-szintetáz és alkalmazása |
CN107614689A (zh) | 2015-03-27 | 2018-01-19 | 昆士兰大学 | 用于将非天然氨基酸并入蛋白质中的平台 |
WO2017150732A1 (ja) | 2016-03-03 | 2017-09-08 | 中外製薬株式会社 | チオール基をアミノ基近傍に有するアミノ酸をn末端に持つ非環状ペプチド-核酸複合体、そのライブラリー、およびそれから誘導される環状ペプチド-核酸複合体ライブラリーの製造方法 |
WO2017181061A1 (en) | 2016-04-15 | 2017-10-19 | Ra Pharmaceuticals, Inc. | Ras binding peptides and methods of use |
JP7187323B2 (ja) | 2017-01-31 | 2022-12-12 | 中外製薬株式会社 | 無細胞翻訳系におけるペプチドの合成方法 |
US11542299B2 (en) | 2017-06-09 | 2023-01-03 | Chugai Seiyaku Kabushiki Kaisha | Method for synthesizing peptide containing N-substituted amino acid |
EP3725796A4 (en) | 2017-12-15 | 2021-09-15 | Chugai Seiyaku Kabushiki Kaisha | METHOD FOR MANUFACTURING PEPTIDE AND METHOD FOR PROCESSING BASES |
KR20210088619A (ko) | 2018-11-07 | 2021-07-14 | 추가이 세이야쿠 가부시키가이샤 | O-치환 세린 유도체의 제조 방법 |
WO2020122182A1 (ja) | 2018-12-12 | 2020-06-18 | 中外製薬株式会社 | 分子内水素結合可能な官能基を有するアミノ酸とそれらのアミノ酸を含むペプチド化合物、およびそれらの製造方法 |
US20220205009A1 (en) | 2018-12-26 | 2022-06-30 | Chugai Seiyaku Kabushiki Kaisha | MUTATED tRNA FOR CODON EXPANSION |
US12071396B2 (en) | 2019-03-15 | 2024-08-27 | Chugai Seiyaku Kabushiki Kaisha | Method for preparing aromatic amino acid derivative |
-
2019
- 2019-11-29 JP JP2020557856A patent/JPWO2020111238A1/ja active Pending
- 2019-11-29 US US17/297,231 patent/US11732002B2/en active Active
- 2019-11-29 KR KR1020217018843A patent/KR20210098476A/ko active Search and Examination
- 2019-11-29 EP EP19891018.4A patent/EP3889164A4/en active Pending
- 2019-11-29 WO PCT/JP2019/046805 patent/WO2020111238A1/ja unknown
-
2023
- 2023-05-30 US US18/203,371 patent/US20230303619A1/en active Pending
Patent Citations (10)
Publication number | Priority date | Publication date | Assignee | Title |
---|---|---|---|---|
JPH01250396A (ja) * | 1988-03-31 | 1989-10-05 | Shin Etsu Chem Co Ltd | ポリペプチドの製造方法 |
WO2011058122A1 (en) * | 2009-11-16 | 2011-05-19 | F. Hoffmann-La Roche Ag | Piperidine analogs as glycogen synthase activators |
WO2012026566A1 (ja) | 2010-08-27 | 2012-03-01 | 国立大学法人 東京大学 | 新規人工翻訳合成系 |
WO2012033154A1 (ja) | 2010-09-09 | 2012-03-15 | 国立大学法人 東京大学 | N-メチルアミノ酸およびその他の特殊アミノ酸を含む特殊ペプチド化合物ライブラリーの翻訳構築と活性種探索法 |
WO2012074130A1 (ja) | 2010-12-03 | 2012-06-07 | 国立大学法人東京大学 | ペプチドライブラリーの製造方法、ペプチドライブラリー、及びスクリーニング方法 |
WO2013100132A1 (ja) | 2011-12-28 | 2013-07-04 | 中外製薬株式会社 | ペプチド化合物の環化方法 |
WO2014033466A1 (en) | 2012-08-31 | 2014-03-06 | Dmitry Stetsenko | Method and compositions for removing acid-labile protecting groups |
WO2015030014A1 (ja) | 2013-08-26 | 2015-03-05 | 国立大学法人東京大学 | 大環状ペプチド、その製造方法、及び大環状ペプチドライブラリを用いるスクリーニング方法 |
WO2018100561A1 (en) * | 2016-12-02 | 2018-06-07 | Nardon Chiara | Coordination compounds, syntheses, nanoformulation and use thereof in oncology |
WO2018225864A1 (ja) * | 2017-06-09 | 2018-12-13 | 中外製薬株式会社 | 膜透過性の高い環状ペプチド化合物、及びこれを含むライブラリ |
Non-Patent Citations (48)
Title |
---|
"Side reactions in Peptide Synthesis", 2015, ACADEMIC PRESS, pages: 1 - 31 |
"Solid-Phase Synthesis Handbook", 1 May 2002, MERCK K.K. |
ALBERT ET AL., SYNTHESIS, vol. 7, 1987, pages 635 - 637 |
AMINO ACIDS, PEPTIDES AND PROTEINS IN ORGANIC CHEMISTRY: BUILDING BLOCKS, CATALYSIS AND COUPLING CHEMISTRY, vol. 3, 2011 |
AMINO ACIDS, vol. 50, 2018, pages 39 - 68 |
BIOCHEM. BIOPHYS. RES. COMMUN., vol. 40, 1970, pages 1173 - 1178 |
BIOCONJUGATE CHEM., vol. 18, 2007, pages 469 - 476 |
BIOORG. MED. CHEM. LETT., vol. 18, 2008, pages 3902 - 3905 |
CHEM. PHARM. BULL., vol. 29, 1981, pages 2825 - 2831 |
CHEM. REV., vol. 109, 2009, pages 2455 - 2504 |
CHEMBIOCHEM, vol. 10, 2009, pages 787 - 798 |
CHEMICAL COMMUNICATIONS, vol. 47, no. 36, 2011, pages 9946 - 9958 |
COMB CHEM HIGH THROUGHPUT SCREEN, vol. 13, 2010, pages 75 - 87 |
EUR. J. MED. CHEM., vol. 35, 2000, pages 599 - 618 |
EUR. J. ORG. CHEM., 2012, pages 6204 - 6211 |
FUTURE MED. CHEM., vol. 1, 2009, pages 1289 - 1310 |
GREENE: "Protective Groups in Organic Synthesis", 2014, JOHN WILEY & SONS |
INT. J. PEPTIDE PROTEIN RES., vol. 31, 1988, pages 186 - 191 |
INT. J. PEPTIDE PROTEIN RES., vol. 47, 1996, pages 182 - 189 |
ISIDRO-LLOBET, A. ET AL.: "Amino Acid-Protecting Groups", CHEMICAL REVIEWS, vol. 109, no. 6, 2009, pages 2455 - 2504, XP055559012, DOI: 10.1021/cr800323s * |
J. AM. CHEM. SOC., vol. 116, 1994, pages 11512 - 11521 |
J. AM. CHEM. SOC., vol. 121, 1999, pages 6786 - 6791 |
J. AM. CHEM. SOC., vol. 134, 2012, pages 13244 - 13247 |
J. AM. CHEM. SOC., vol. 137, 2015, pages 13488 - 134918 |
J. AM. CHEM. SOC., vol. 138, 2016, pages 969 - 974 |
J. AM. SOC. MASS SPECTROM, vol. 6, 1995, pages 91 - 101 |
J. CHEM. SOC. CHEM. COMMUN., 1987, pages 274 - 275 |
J. CHEM. SOC. D, 1970, pages 406b - 407 |
J. COMB. CHEM., vol. 4, 2002, pages 1 - 16 |
J. MASS. SPECTROM., vol. 33, 1998, pages 505 - 524 |
J. MOL. MODEL, vol. 19, 2013, pages 3627 - 3636 |
J. ORG. CHEM., vol. 55, 1990, pages 2786 - 2797 |
J. ORG. CHEM., vol. 62, 1997, pages 3880 - 3889 |
J. ORG. CHEM., vol. 81, 2016, pages 532 - 544 |
J. PEPTIDE RES., vol. 65, 2005, pages 153 - 166 |
LEJEUNE, V. ET AL.: "Towards a selective Boc deprotection on acid cleavable Wang resin", TETRAHEDRON LETTERS, vol. 44, no. 5, 2003, pages 4757 - 4759, XP004426887, DOI: 10.1016/S0040-4039(03)00993-6 * |
LIU, Z. ET AL.: "N-Boc Deprotection and Isolation Method for Water-Soluble Zwitterionic Compounds", THE JOURNAL OF ORGANIC CHEMISTRY, vol. 79, no. 23, 2014, pages 11792 - 11796, XP055405870, DOI: 10.1021/jo502319z * |
MENESES ET AL., J. ORG. CHEM., vol. 75, 2010, pages 564 - 569 |
NAT CHEM BIOL., vol. 5, 2009, pages 888 - 90 |
NATURE CHEM. BIO., vol. 5, 2009, pages 502 |
ORG. LETT., vol. 14, 2012, pages 612 - 615 |
ORG. LETT., vol. 20, 2018, pages 4637 - 4640 |
RUSS. J. BIOORG. CHEM., vol. 42, 2016, pages 143 - 152 |
TETRAHEDRON LETT., vol. 20, 1979, pages 4033 - 4036 |
TETRAHEDRON LETT., vol. 29, 1988, pages 1181 - 1184 |
TETRAHEDRON LETT., vol. 39, 1998, pages 7439 - 7442 |
TETRAHEDRON, vol. 44, 1988, pages 805 - 819 |
TETRAHEDRON, vol. 60, 2004, pages 8509 - 8527 |
Cited By (10)
Publication number | Priority date | Publication date | Assignee | Title |
---|---|---|---|---|
US11891457B2 (en) | 2011-12-28 | 2024-02-06 | Chugai Seiyaku Kabushiki Kaisha | Peptide-compound cyclization method |
US11542299B2 (en) | 2017-06-09 | 2023-01-03 | Chugai Seiyaku Kabushiki Kaisha | Method for synthesizing peptide containing N-substituted amino acid |
US11787836B2 (en) | 2017-06-09 | 2023-10-17 | Chugai Seiyaku Kabushiki Kaisha | Method for synthesizing peptide containing N-substituted amino acid |
US11492369B2 (en) | 2017-12-15 | 2022-11-08 | Chugai Seiyaku Kabushiki Kaisha | Method for producing peptide, and method for processing bases |
US12071396B2 (en) | 2019-03-15 | 2024-08-27 | Chugai Seiyaku Kabushiki Kaisha | Method for preparing aromatic amino acid derivative |
WO2022145444A1 (ja) | 2020-12-28 | 2022-07-07 | 中外製薬株式会社 | アミノ酸の固相合成用樹脂への担持方法 |
JP7165289B1 (ja) * | 2021-05-07 | 2022-11-02 | 中外製薬株式会社 | N-置換アミノ酸残基を含む環状化合物の製造方法 |
WO2022234864A1 (ja) * | 2021-05-07 | 2022-11-10 | 中外製薬株式会社 | N-置換アミノ酸残基を含む環状化合物の製造方法 |
KR20230003614A (ko) * | 2021-05-07 | 2023-01-06 | 추가이 세이야쿠 가부시키가이샤 | N-치환 아미노산 잔기를 포함하는 환상 화합물의 제조 방법 |
KR102569348B1 (ko) | 2021-05-07 | 2023-08-21 | 추가이 세이야쿠 가부시키가이샤 | N-치환 아미노산 잔기를 포함하는 환상 화합물의 제조 방법 |
Also Published As
Publication number | Publication date |
---|---|
US20220024972A1 (en) | 2022-01-27 |
CN113056475A (zh) | 2021-06-29 |
US20230303619A1 (en) | 2023-09-28 |
JPWO2020111238A1 (ja) | 2021-10-21 |
KR20210098476A (ko) | 2021-08-10 |
EP3889164A4 (en) | 2022-11-02 |
US11732002B2 (en) | 2023-08-22 |
CN113056475A9 (zh) | 2021-11-23 |
EP3889164A1 (en) | 2021-10-06 |
Similar Documents
Publication | Publication Date | Title |
---|---|---|
WO2020111238A1 (ja) | ペプチド化合物、またはアミド化合物の脱保護法および固相反応における脱樹脂方法、並びにペプチド化合物の製造方法 | |
WO2018225851A1 (ja) | N-置換アミノ酸を含むペプチドの合成方法 | |
JP7411414B2 (ja) | ペプチドの製造方法、及び塩基の処理方法 | |
TW200800889A (en) | Processes and intermediates | |
JP2000256397A (ja) | 新規な環状テトラペプチド誘導体とその医薬用途 | |
WO2021090856A1 (ja) | 立体障害の大きなアミノ酸を含むペプチド化合物の製造方法 | |
WO2021132545A1 (ja) | ペプチド化合物の合成法 | |
EP4086272A1 (en) | Methods for producing cyclic compounds comprising n-substituted amino acid residues | |
EP4269422A1 (en) | Method for producing peptide compound containing n-substituted-amino acid residue | |
CN1137134C (zh) | 多氟烷基色氨酸三肽凝血酶抑制剂 | |
JP7165289B1 (ja) | N-置換アミノ酸残基を含む環状化合物の製造方法 | |
WO2022145444A1 (ja) | アミノ酸の固相合成用樹脂への担持方法 | |
WO2022097540A1 (ja) | ジケトピペラジン形成による欠損を抑制するペプチド合成方法 | |
CN113056475B (zh) | 用于肽化合物或酰胺化合物的脱保护方法和在固相反应中的树脂脱除方法以及用于生产肽化合物的方法 | |
TW202409059A (zh) | 抑制由二酮哌嗪形成之缺陷的胜肽合成方法 | |
WO2023127869A1 (ja) | N-アルキルアミノ酸、およびn-アルキルアミノ酸を含むペプチドの製造方法 | |
CN117279928A (zh) | 包含n-取代氨基酸残基的环状化合物的制备方法 | |
CN116615411A (zh) | 包含n-取代氨基酸残基的肽化合物的制造方法 | |
JPH07316193A (ja) | ペプチド誘導体およびその用途 |
Legal Events
Date | Code | Title | Description |
---|---|---|---|
121 | Ep: the epo has been informed by wipo that ep was designated in this application |
Ref document number: 19891018 Country of ref document: EP Kind code of ref document: A1 |
|
ENP | Entry into the national phase |
Ref document number: 2020557856 Country of ref document: JP Kind code of ref document: A |
|
NENP | Non-entry into the national phase |
Ref country code: DE |
|
ENP | Entry into the national phase |
Ref document number: 20217018843 Country of ref document: KR Kind code of ref document: A |
|
ENP | Entry into the national phase |
Ref document number: 2019891018 Country of ref document: EP Effective date: 20210630 |
