JP2004268564A - ブランケットユニットとブランケット固定装置を有するシリンダとを備えたアセンブリ、対応するシリンダ、ブランケットユニットおよびオフセット印刷機 - Google Patents
ブランケットユニットとブランケット固定装置を有するシリンダとを備えたアセンブリ、対応するシリンダ、ブランケットユニットおよびオフセット印刷機 Download PDFInfo
- Publication number
- JP2004268564A JP2004268564A JP2003326896A JP2003326896A JP2004268564A JP 2004268564 A JP2004268564 A JP 2004268564A JP 2003326896 A JP2003326896 A JP 2003326896A JP 2003326896 A JP2003326896 A JP 2003326896A JP 2004268564 A JP2004268564 A JP 2004268564A
- Authority
- JP
- Japan
- Prior art keywords
- blanket
- support plate
- opening
- cylinder
- front edge
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Granted
Links
Images
Classifications
-
- B—PERFORMING OPERATIONS; TRANSPORTING
- B41—PRINTING; LINING MACHINES; TYPEWRITERS; STAMPS
- B41F—PRINTING MACHINES OR PRESSES
- B41F27/00—Devices for attaching printing elements or formes to supports
- B41F27/12—Devices for attaching printing elements or formes to supports for attaching flexible printing formes
- B41F27/1218—Devices for attaching printing elements or formes to supports for attaching flexible printing formes comprising printing plate tensioning devices
- B41F27/1225—Devices for attaching printing elements or formes to supports for attaching flexible printing formes comprising printing plate tensioning devices moving in the printing plate end substantially rectilinearly
- B41F27/1243—Devices for attaching printing elements or formes to supports for attaching flexible printing formes comprising printing plate tensioning devices moving in the printing plate end substantially rectilinearly by pivotal or swivelling motion, e.g. by means of a rocking lever
-
- B—PERFORMING OPERATIONS; TRANSPORTING
- B41—PRINTING; LINING MACHINES; TYPEWRITERS; STAMPS
- B41F—PRINTING MACHINES OR PRESSES
- B41F27/00—Devices for attaching printing elements or formes to supports
- B41F27/12—Devices for attaching printing elements or formes to supports for attaching flexible printing formes
- B41F27/1218—Devices for attaching printing elements or formes to supports for attaching flexible printing formes comprising printing plate tensioning devices
- B41F27/125—Devices for attaching printing elements or formes to supports for attaching flexible printing formes comprising printing plate tensioning devices moving in the printing plate end on a curvilinear path, e.g. by winding on a roll
-
- B—PERFORMING OPERATIONS; TRANSPORTING
- B41—PRINTING; LINING MACHINES; TYPEWRITERS; STAMPS
- B41F—PRINTING MACHINES OR PRESSES
- B41F30/00—Devices for attaching coverings or make-ready devices; Guiding devices for coverings
- B41F30/04—Devices for attaching coverings or make-ready devices; Guiding devices for coverings attaching to transfer cylinders
Landscapes
- Engineering & Computer Science (AREA)
- Mechanical Engineering (AREA)
- Printing Plates And Materials Therefor (AREA)
- Rotary Presses (AREA)
- Supply, Installation And Extraction Of Printed Sheets Or Plates (AREA)
Abstract
【解決手段】 オフセット印刷機のためのアセンブリであって、該アセンブリは、
ブランケット(64)およびブランケットサポートプレート(62)を備えたブランケットユニット(3)であって、ブランケットサポートプレート(62)のフロントエッジ(66)およびリアエッジ(72)が、ブランケットのフロントエッジ(68)およびリアエッジ(74)部分で曲がり、かつ、そこから延びているブランケットユニット(3)と、
ブランケットサポートプレートのフロントエッジおよびリアエッジを受け入れるための開口(14)を有するシリンダ(2)であって、ブランケットユニットを引っ張るための少なくとも1つのフック(30)を備えた、ブランケットユニット(3)をシリンダに固定するための固定装置(28)を備えたシリンダ(2)と、を備えている。
【選択図】 図6
Description
ブランケットおよびブランケットサポートプレートを備えたブランケットユニットであって、ブランケットサポートプレートのフロントエッジおよびリアエッジが、それぞれフロントベンドの領域およびリアベンドの領域で曲がり、ブランケットサポートプレートのリアエッジが、ブランケットの、リアベンドに隣接して位置付けされたリアエッジを越えて突出したブランケットユニットと、
ブランケットサポートプレートのフロントエッジおよびリアエッジを受け入れるための開口を有するシリンダであって、ブランケットユニットを引っ張るための、ブランケットサポートプレートのリアエッジの開口中への受け入れるように構成された少なくとも1つのフックを備えた、ブランケットユニットをシリンダに固定するための固定装置を備え、ブランケットサポートプレートのリアエッジに実質的に平行な引張り荷重をブランケットサポートプレートに印加するべく、開口中にリアエッジが挿入されるシリンダと、を備えたタイプのオフセット印刷機用アセンブリに関する。
ブランケットサポートプレートのフロントエッジと共にゼロではない角度を形成しているブランケットサポートプレートのリアエッジの領域に開口が設けられている。
フックが弾発性ブレードからなっている。
アセンブリは、ブランケットサポートプレートのフロントエッジを開口のフロントウォールに当て付けるための、フックから分離された当付け手段を備えている。
当付け手段は、ブランケットサポートプレートのフロントエッジを押し付けるための、固定装置に付属し、かつ、ブランケットサポートプレートから分離された少なくとも1つの圧搾エレメントを備えている。
圧搾エレメントは、ブランケットサポートプレートのフロントエッジを押し付けるべく、フックを受け入れる開口を通って延びている。
圧搾エレメントは、弾発性ブレードからなっている。
ブランケットサポートプレートのリアエッジが、自身、中間ベンドの領域で曲がって端部領域を画定し、該端部領域に、フックを受け入れるための開口が設けられ、中間領域は、ブランケットサポートプレートのフロントエッジへ押し付けられるように構成され、それにより当付け手段を形成している。
開口は、シリンダの周囲表面の近傍に、1.5mm未満の幅を有している。
開口の幅は、1.1mm未満である。
開口のフロントウォールおよびリアウォールが、シリンダの周囲表面を起点とする20°未満の角度を形成している。
シリンダのフランクに固定されたサポート44と、
カラー48を備え、かつ、スプリング50に取り囲まれたロッド46と、
スピンドル28の対応する長手方向端部54に固定されたブロック52と、
図1に一点鎖線で示す移動可能動作レバー56と、を備えている。
2 シリンダ
3 ブランケットユニット
4 シリンダの周囲表面
5 シリンダの長手方向端部
8 長手方向凹所
10 インサート
12 長手方向空胴
14 開口(長手方向開口)
16 フロントウォール
18、22 面取り部分
20 リアウォール

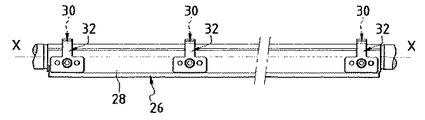

26 固定装置
28 スピンドル(固定装置)
30 フック
32 圧搾エレメント
34 フックの自由端
36 圧搾エレメントの自由端
38 共通のねじ
42 駆動機構(固定装置)
44 サポート
46 ロッド
48 カラー
50 スプリング
52 ブロック
54 スピンドルの長手方向端部
56 移動可能動作レバー
58 調整可能ストップ

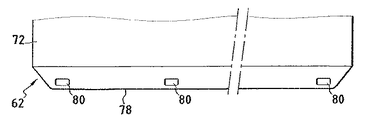

62 ブランケットサポートプレート
64 ブランケット
66 ブランケットサポートプレートのフロントエッジ
68 ブランケットのフロントエッジ
70 フロントベンド
72 ブランケットサポートプレートのリアエッジ
74 ブランケットのリアエッジ
76 リアベンド
78 リアエッジの自由端
80 リアエッジの開口
82 当付け手段
84 中間ベンド
86 リアエッジの端部領域
88 リアエッジの中間領域
Claims (16)
- オフセット印刷機のためのアセンブリ(1)であって、
ブランケット(64)およびブランケットサポートプレート(62)を備えたブランケットユニット(3)であって、ブランケットサポートプレート(62)のフロントエッジ(66)およびリアエッジ(72)が、それぞれフロントベンド(70)の領域およびリアベンド(76)の領域で曲がり、ブランケットサポートプレート(62)のリアエッジ(72)が、ブランケットの、リアベンド(76)に隣接して位置付けされたリアエッジ(74)を越えて突出したブランケットユニット(3)と、
ブランケットサポートプレート(62)のフロントエッジおよびリアエッジを受け入れるための開口(14)を有するシリンダ(2)であって、ブランケットユニットを引っ張るための、ブランケットサポートプレート(62)のリアエッジ(72)の開口(80)中への受入れるように構成された少なくとも1つのフック(30)を備えた、ブランケットユニット(3)をシリンダに固定するための装置(28)を備え、ブランケットサポートプレート(62)のリアエッジ(72)に実質的に平行な引張り荷重をブランケットサポートプレート(62)に印加するべく開口中にリアエッジ(72)が挿入されるシリンダ(2)と、を備えたタイプのオフセット印刷機のためのアセンブリ(1)において、
ブランケットサポートプレート(62)のフロントエッジ(66)が、ブランケットの、フロントベンド(70)に隣接して位置付けされたフロントエッジ(68)を越えて突出していることを特徴とするアセンブリ。 - 開口(80)が、ブランケットサポートプレート(62)のフロントエッジ(66)と共にゼロでは非零角度(α)を形成しているブランケットサポートプレート(62)のリアエッジ(72)の領域に設けられていることを特徴とする、請求項1に記載のアセンブリ。
- フック(30)が弾発性ブレードからなることを特徴とする、請求項1または請求項2に記載のアセンブリ。
- ブランケットサポートプレート(62)のフロントエッジ(66)を開口(14)のフロントウォール(16)に当て付けるための手段(82)を備え、これらの当付け手段(82)がフック(30)から分離されていることを特徴とする、請求項1から請求項3までのいずれか一項に記載のアセンブリ。
- 当付け手段(82)が、ブランケットサポートプレート(62)のフロントエッジ(66)を押し付けるための、固定装置(26)に付属し、かつ、ブランケットサポートプレート(62)から分離された少なくとも1つの圧搾エレメント(32)を備えたことを特徴とする、請求項4に記載のアセンブリ。
- 圧搾エレメント(32)が、ブランケットサポートプレート(62)のフロントエッジ(66)を押し付けるべく、フック(30)を受け入れる開口(80)を通って延びることを特徴とする、請求項5に記載のアセンブリ。
- 圧搾エレメント(32)が弾発性ブレードからなることを特徴とする、請求項5または請求項6に記載のアセンブリ。
- ブランケットサポートプレートのリアエッジ(72)が、自身、中間ベンド(84)の領域で曲がって端部領域(86)を画定し、該端部領域(86)に、フック(30)を受け入れるための開口(80)が設けられ、中間領域(86)は、ブランケットサポートプレートのフロントエッジ(66)へ押し付けるように構成され、それにより当付け手段(82)を形成していることを特徴とする、請求項4に記載のアセンブリ。
- 開口(14)が、シリンダの周囲表面の近傍に、1.5mm未満の幅(l)を有することを特徴とする、請求項1から請求項8までのいずれか一項に記載のアセンブリ。
- 開口の幅(l)が、1.1mm未満であることを特徴とする、請求項9に記載のアセンブリ。
- 開口(14)のフロントウォール(16)およびリアウォール(20)が、シリンダ(2)の周囲表面を起点とする20°未満の角度(α)を形成することを特徴とする、請求項1から請求項10までのいずれか一項に記載のアセンブリ。
- 請求項1から請求項11までのいずれか一項に記載のアセンブリのためのシリンダ。
- 固定装置(28)が、ブランケットサポートプレート(62)のフロントエッジ(66)を開口(14)のフロントウォール(16)に当て付けるべく、ブランケットサポートプレート(62)のフロントエッジ(66)を押し付けるための、フック(30)から分離された少なくとも1つの圧搾エレメント(32)を備えたことを特徴とする、請求項12に記載のシリンダ。
- 請求項1から請求項10までのいずれか一項に記載のアセンブリのためのブランケットユニット。
- ブランケットサポートプレート(62)のリアエッジ(72)が、自身、中間ベンド(84)の領域で曲がって端部領域(86)を画定し、該端部領域(86)に、フック(30)を受け入れるための開口(80)が設けられ、中間領域(86)は、ブランケットサポートプレートのフロントエッジ(66)を開口(14)のフロントウォール(16)に当て付けるべく、ブランケットサポートプレートのフロントエッジ(66)への押し付けるように構成されていることを特徴とする、請求項14に記載のブランケットユニット。
- 請求項1から請求項11までのいずれか一項に記載のアセンブリを備えたことを特徴とするオフセット印刷機。
