  • This invention relates to an elevator system.
  • Patent Document 1 describes a home elevator.
  • a communication cable is connected to a car.
  • a call signal is transmitted to the control device via the communication cable.
  • An object of the present invention is to provide an elevator system that does not require a communication cable to be connected to a car operation terminal.
  • An elevator system is provided in a control device that controls the operation of an elevator car, a communication device connected to the control device, and a car, and sends a call signal to the control device to the communication device via an access point.
  • FIG. 1 is a diagram showing a configuration example of an elevator system according to Embodiment 1 of the present invention.
  • FIG. 1 shows an example in which an elevator system is provided in a private house 1.
  • the building provided with the elevator system is not limited to the private house 1.
  • the elevator system may be provided in a relatively large building for commercial use.
  • the elevator system includes, for example, a car 2, a control device 3, a communication device 4, and an operation terminal 5.
  • the control device 3 controls the operation of the elevator.
  • the control device 3 controls the operation of the car 2. That is, the vertical movement of the car 2 is controlled by the control device 3.
  • the communication device 4 is connected to the control device 3.
  • the operation terminal 5 is a terminal for a person on the car 2 to operate.
  • the operation terminal 5 is provided in the car 2.
  • the operation terminal 5 includes a display 6 and an input device 7, for example.
  • FIG. 1 shows an example in which the operation terminal 5 includes a touch panel type input device 7.
  • the input device 7 may include a plurality of buttons.
  • the house 1 is provided with an access point 8 for performing wireless communication.
  • the access point 8 need not be dedicated to the elevator system.
  • a device provided in the house 1 is connected to an external network 9 via the access point 8.
  • the network 9 is, for example, an internet line.
  • Signal transmission / reception between the operation terminal 5 and the communication device 4 is performed via the access point 8.
  • a person on the car 2 inputs a destination call from the input device 7.
  • the operation terminal 5 transmits a call signal input from the input device 7 to the communication device 4 via the access point 8.
  • the communication device 4 transmits the received call signal to the control device 3.
  • the control device 3 controls the driving device (not shown) based on the call signal received from the communication device 4 to move the car 2.
  • the communication between the car 2 and the access point 8 is performed wirelessly. Since the relative position between the communication device 4 and the access point 8 does not change, the communication between the communication device 4 and the access point 8 may be performed by wire.
  • the communication device 4 receives a control signal from the control device 3.
  • the communication device 4 transmits the control signal received from the control device 3 to the car 2 and the operation terminal 5 via the access point 8.
  • the car 2 performs necessary operations based on the control signal received from the communication device 4.
  • the car 2 controls the lighting based on the control signal received from the communication device 4.
  • the operation terminal 5 performs a necessary operation based on the control signal received from the communication device 4.
  • the operation terminal 5 controls the display on the display 6 based on the control signal received from the communication device 4.
  • the communication device 4 has a function of monitoring an elevator, for example.
  • the communication device 4 detects that a person is trapped in the car 2.
  • the communication device 4 transmits a confinement signal to the operation terminal 5 via the access point 8.
  • the operation terminal 5 performs a necessary operation based on the received confinement signal.
  • the operation terminal 5 controls the display on the display 6 based on the confinement signal received from the communication device 4.
  • FIG. 2 is a flowchart showing an operation example of the elevator system according to Embodiment 1 of the present invention.
  • FIG. 2 shows an operation flow when confinement occurs.
  • the communication device 4 detects that a person is trapped in the car 2 when a certain condition is satisfied (Yes in S101). When detecting that a person is trapped in the car 2, the communication device 4 notifies the management center 10 that manages the elevator system (S102). The notification from the communication device 4 to the management center 10 may be performed via the access point 8 or via the dedicated communication line 11. Upon receiving the report, the management center 10 selects a rescuer to be dispatched to the house 1 and calls through a video phone or the like as necessary. Note that the call by the video phone or the like is performed when the operation terminal 5 is provided with the camera 12.
  • the operation terminal 5 when a rescuer dispatched to the house 1 is selected, information regarding the rescuer is transmitted to the operation terminal 5.
  • the information regarding the rescuer may be transmitted via the communication line 11 or via the network 9.
  • the operation terminal 5 receives the information from the access point 8.
  • the operation terminal 5 displays information related to the estimated arrival time of the rescuer on the display 6 (S104). For example, a content such as “The rescuer arrives in about 15 minutes” is displayed on the display 6.
  • the operation terminal 5 may display information on the current position of the rescuer on the display device 6.
  • you may transmit the information regarding a rescuer from the terminal which a rescuer himself owns.
  • the communication device 4 When the communication device 4 detects that a person is confined in the car 2 (Yes in S101), the communication device 4 transmits a confinement signal to the operation terminal 5 via the access point 8 (S105). When receiving the confinement signal, the operation terminal 5 activates the rescue program (S106).
  • the rescue program is a program for contacting the outside via the access point 8.
  • the rescue program is stored in the operation terminal 5 and preset to be activated by receiving a confinement signal from the communication device 4. In addition, it is desirable that the external communication by the rescue program is performed without using the communication device 4.
  • an e-mail address is registered in advance as a contact address when confinement occurs.
  • the mail address of the family mobile terminal 13 is registered in the operation terminal 5 as a contact address.
  • the mobile terminal 13 is a smartphone, for example.
  • the rescue program is activated, the operation terminal 5 transmits a mail for notifying that the confinement has occurred with respect to the mail address registered in advance (S107).
  • the operation terminal 5 may display on the display 6 that the mail is transmitted to the registered mail address and that the mail is transmitted.
  • the mobile terminal 13 that has received the mail from the operation terminal 5 is, for example, “An elevator has been trapped. Is it possible to go to the home? Select from the following options and reply. 1) Possible, 2 ) Impossible "is displayed.
  • the operation terminal 5 transmits a mail to the device such as the mobile terminal 13 in S107, the operation terminal 5 determines whether a reply is received from the device (S108). When receiving a reply from the device that is the destination of the mail, the operation terminal 5 displays information on the position of the device that has received the reply on the display 6 (S109).
  • the display of information related to the position can be easily realized by receiving position information by GPS from a device such as the mobile terminal 13.
  • the operation terminal 5 may cause the display 6 to display information related to the estimated arrival time of the owner of the device that has received the reply. For example, a content such as “Family A arrives in about 15 minutes” is displayed on the display 6.
  • FIG. 1 shows an example in which a door 15 having an electric lock 14 is installed in a house 1.
  • the door 15 is a door for a person to enter the house 1.
  • the electric lock 14 is normally locked so that the door 15 does not open.
  • the electric lock 14 is unlocked when the unlocking operation is performed on the operation panel 16 provided in front of the entrance of the house 1 or the like.
  • the operation panel 16 includes an interphone, for example. Locking and unlocking of the electric lock 14 is controlled by the control device 17.
  • the operation terminal 5 communicates with the control device 17 via the access point 8. For example, when a rescuer who has received a notification of confinement arrives at the house 1 and presses the intercom on the operation panel 16 (Yes in S110), an image captured by the intercom camera is displayed on the display 6 of the operation terminal 5. (S111). The person trapped in the car 2 can see that the person who operated the interphone is a rescuer by looking at the display 6 of the operation terminal 5. For example, the person trapped in the car 2 transmits an unlocking signal for unlocking the electric lock 14 from the operation terminal 5 (S112). An unlock signal from the operation terminal 5 is transmitted to the control device 17 via the access point 8. When receiving the unlock signal from the operation terminal 5, the control device 17 unlocks the electric lock 14. Thereby, a rescuer enters the house 1 and performs a rescue operation.
  • the operation terminal 5 communicates with the communication device 4 via the access point 8 provided in the house 1. For this reason, it is not necessary to connect the conventionally used communication cable to the operation terminal 5.
  • the configuration and labor for connecting the communication cable to the operation terminal 5 are eliminated, and the system can be provided at low cost.
  • a general-purpose device such as a tablet PC can be used as the operation terminal 5.
  • the user can purchase his / her favorite tablet PC and use the purchased PC as the operation terminal 5. It is also possible to remove the operation terminal 5 from the car 2 and use it.
  • a call registration program necessary for the operation terminal 5 to transmit a call signal to the communication device 4 must be installed in the operation terminal 5.
  • a call registration program or the like is stored in advance in the storage device 18 of the management center 10.
  • the user may connect the operation terminal 5 to the management center 10 via the access point 8 and download a call registration program or the like from the storage device 18.
  • the place where the call registration program is prepared in advance is not limited to the management center 10.

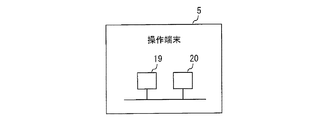

  • FIG. 3 is a diagram illustrating a hardware configuration of the operation terminal 5.
  • the operation terminal 5 includes a processing circuit including, for example, a processor 19 and a memory 20 as hardware resources.
  • the operation terminal 5 implements each function described above by executing a program stored in the memory 20 by the processor 19. Some or all of the functions of the operation terminal 5 may be realized by hardware.
  • the hardware configuration of the communication device 4 is the same as the example shown in FIG.
  • the communication device 4 includes a processing circuit including, for example, a processor and a memory as hardware resources.
  • the communication device 4 implements each function described above by executing a program stored in the memory by a processor. You may implement
  • the present invention can be applied to an elevator system including a control device that controls the operation of a car and an operation terminal provided in the car.
