WO2015152123A1 - マスクブランク、転写用マスクの製造方法及び半導体装置の製造方法 - Google Patents

マスクブランク、転写用マスクの製造方法及び半導体装置の製造方法 Download PDF

Info

Publication number
WO2015152123A1
WO2015152123A1 PCT/JP2015/059852 JP2015059852W WO2015152123A1 WO 2015152123 A1 WO2015152123 A1 WO 2015152123A1 JP 2015059852 W JP2015059852 W JP 2015059852W WO 2015152123 A1 WO2015152123 A1 WO 2015152123A1
Authority
WO
WIPO (PCT)
Prior art keywords
film
light
pattern
mask
shielding film
Prior art date
Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
Ceased
Application number
PCT/JP2015/059852
Other languages
English (en)
French (fr)
Japanese (ja)
Inventor
博明 宍戸
野澤　順
Current Assignee (The listed assignees may be inaccurate. Google has not performed a legal analysis and makes no representation or warranty as to the accuracy of the list.)
Hoya Corp
Original Assignee
Hoya Corp
Priority date (The priority date is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the date listed.)
Filing date
Publication date
Application filed by Hoya Corp filed Critical Hoya Corp
Priority to US15/129,904 priority Critical patent/US9864268B2/en
Priority to KR1020167030032A priority patent/KR102295453B1/ko
Publication of WO2015152123A1 publication Critical patent/WO2015152123A1/ja
Anticipated expiration legal-status Critical
Ceased legal-status Critical Current

Links

Images

Classifications

    • G—PHYSICS
    • G03—PHOTOGRAPHY; CINEMATOGRAPHY; ANALOGOUS TECHNIQUES USING WAVES OTHER THAN OPTICAL WAVES; ELECTROGRAPHY; HOLOGRAPHY
    • G03F—PHOTOMECHANICAL PRODUCTION OF TEXTURED OR PATTERNED SURFACES, e.g. FOR PRINTING, FOR PROCESSING OF SEMICONDUCTOR DEVICES; MATERIALS THEREFOR; ORIGINALS THEREFOR; APPARATUS SPECIALLY ADAPTED THEREFOR
    • G03F1/00—Originals for photomechanical production of textured or patterned surfaces, e.g., masks, photo-masks, reticles; Mask blanks or pellicles therefor; Containers specially adapted therefor; Preparation thereof
    • G03F1/26—Phase shift masks [PSM]; PSM blanks; Preparation thereof
    • G03F1/32—Attenuating PSM [att-PSM], e.g. halftone PSM or PSM having semi-transparent phase shift portion; Preparation thereof
    • G—PHYSICS
    • G03—PHOTOGRAPHY; CINEMATOGRAPHY; ANALOGOUS TECHNIQUES USING WAVES OTHER THAN OPTICAL WAVES; ELECTROGRAPHY; HOLOGRAPHY
    • G03F—PHOTOMECHANICAL PRODUCTION OF TEXTURED OR PATTERNED SURFACES, e.g. FOR PRINTING, FOR PROCESSING OF SEMICONDUCTOR DEVICES; MATERIALS THEREFOR; ORIGINALS THEREFOR; APPARATUS SPECIALLY ADAPTED THEREFOR
    • G03F1/00—Originals for photomechanical production of textured or patterned surfaces, e.g., masks, photo-masks, reticles; Mask blanks or pellicles therefor; Containers specially adapted therefor; Preparation thereof
    • G03F1/20—Masks or mask blanks for imaging by charged particle beam [CPB] radiation, e.g. by electron beam; Preparation thereof
    • G—PHYSICS
    • G03—PHOTOGRAPHY; CINEMATOGRAPHY; ANALOGOUS TECHNIQUES USING WAVES OTHER THAN OPTICAL WAVES; ELECTROGRAPHY; HOLOGRAPHY
    • G03F—PHOTOMECHANICAL PRODUCTION OF TEXTURED OR PATTERNED SURFACES, e.g. FOR PRINTING, FOR PROCESSING OF SEMICONDUCTOR DEVICES; MATERIALS THEREFOR; ORIGINALS THEREFOR; APPARATUS SPECIALLY ADAPTED THEREFOR
    • G03F1/00—Originals for photomechanical production of textured or patterned surfaces, e.g., masks, photo-masks, reticles; Mask blanks or pellicles therefor; Containers specially adapted therefor; Preparation thereof
    • G03F1/38—Masks having auxiliary features, e.g. special coatings or marks for alignment or testing; Preparation thereof
    • G03F1/48—Protective coatings
    • G—PHYSICS
    • G03—PHOTOGRAPHY; CINEMATOGRAPHY; ANALOGOUS TECHNIQUES USING WAVES OTHER THAN OPTICAL WAVES; ELECTROGRAPHY; HOLOGRAPHY
    • G03F—PHOTOMECHANICAL PRODUCTION OF TEXTURED OR PATTERNED SURFACES, e.g. FOR PRINTING, FOR PROCESSING OF SEMICONDUCTOR DEVICES; MATERIALS THEREFOR; ORIGINALS THEREFOR; APPARATUS SPECIALLY ADAPTED THEREFOR
    • G03F1/00—Originals for photomechanical production of textured or patterned surfaces, e.g., masks, photo-masks, reticles; Mask blanks or pellicles therefor; Containers specially adapted therefor; Preparation thereof
    • G03F1/68—Preparation processes not covered by groups G03F1/20 - G03F1/50
    • G03F1/80—Etching
    • H—ELECTRICITY
    • H01—ELECTRIC ELEMENTS
    • H01L—SEMICONDUCTOR DEVICES NOT COVERED BY CLASS H10
    • H01L21/00—Processes or apparatus adapted for the manufacture or treatment of semiconductor or solid state devices or of parts thereof
    • H01L21/02—Manufacture or treatment of semiconductor devices or of parts thereof
    • H01L21/04—Manufacture or treatment of semiconductor devices or of parts thereof the devices having potential barriers, e.g. a PN junction, depletion layer or carrier concentration layer
    • H01L21/18—Manufacture or treatment of semiconductor devices or of parts thereof the devices having potential barriers, e.g. a PN junction, depletion layer or carrier concentration layer the devices having semiconductor bodies comprising elements of Group IV of the Periodic Table or AIIIBV compounds with or without impurities, e.g. doping materials
    • H01L21/30—Treatment of semiconductor bodies using processes or apparatus not provided for in groups H01L21/20 - H01L21/26
    • H01L21/302—Treatment of semiconductor bodies using processes or apparatus not provided for in groups H01L21/20 - H01L21/26 to change their surface-physical characteristics or shape, e.g. etching, polishing, cutting
    • H01L21/306—Chemical or electrical treatment, e.g. electrolytic etching
    • H01L21/30604—Chemical etching
    • H—ELECTRICITY
    • H01—ELECTRIC ELEMENTS
    • H01L—SEMICONDUCTOR DEVICES NOT COVERED BY CLASS H10
    • H01L21/00—Processes or apparatus adapted for the manufacture or treatment of semiconductor or solid state devices or of parts thereof
    • H01L21/02—Manufacture or treatment of semiconductor devices or of parts thereof
    • H01L21/04—Manufacture or treatment of semiconductor devices or of parts thereof the devices having potential barriers, e.g. a PN junction, depletion layer or carrier concentration layer
    • H01L21/18—Manufacture or treatment of semiconductor devices or of parts thereof the devices having potential barriers, e.g. a PN junction, depletion layer or carrier concentration layer the devices having semiconductor bodies comprising elements of Group IV of the Periodic Table or AIIIBV compounds with or without impurities, e.g. doping materials
    • H01L21/30—Treatment of semiconductor bodies using processes or apparatus not provided for in groups H01L21/20 - H01L21/26
    • H01L21/302—Treatment of semiconductor bodies using processes or apparatus not provided for in groups H01L21/20 - H01L21/26 to change their surface-physical characteristics or shape, e.g. etching, polishing, cutting
    • H01L21/306—Chemical or electrical treatment, e.g. electrolytic etching
    • H01L21/308—Chemical or electrical treatment, e.g. electrolytic etching using masks
    • H01L21/3081—Chemical or electrical treatment, e.g. electrolytic etching using masks characterised by their composition, e.g. multilayer masks, materials
    • H—ELECTRICITY
    • H01—ELECTRIC ELEMENTS
    • H01L—SEMICONDUCTOR DEVICES NOT COVERED BY CLASS H10
    • H01L21/00—Processes or apparatus adapted for the manufacture or treatment of semiconductor or solid state devices or of parts thereof
    • H01L21/02—Manufacture or treatment of semiconductor devices or of parts thereof
    • H01L21/04—Manufacture or treatment of semiconductor devices or of parts thereof the devices having potential barriers, e.g. a PN junction, depletion layer or carrier concentration layer
    • H01L21/18—Manufacture or treatment of semiconductor devices or of parts thereof the devices having potential barriers, e.g. a PN junction, depletion layer or carrier concentration layer the devices having semiconductor bodies comprising elements of Group IV of the Periodic Table or AIIIBV compounds with or without impurities, e.g. doping materials
    • H01L21/30—Treatment of semiconductor bodies using processes or apparatus not provided for in groups H01L21/20 - H01L21/26
    • H01L21/302—Treatment of semiconductor bodies using processes or apparatus not provided for in groups H01L21/20 - H01L21/26 to change their surface-physical characteristics or shape, e.g. etching, polishing, cutting
    • H01L21/306—Chemical or electrical treatment, e.g. electrolytic etching
    • H01L21/308—Chemical or electrical treatment, e.g. electrolytic etching using masks
    • H01L21/3083—Chemical or electrical treatment, e.g. electrolytic etching using masks characterised by their size, orientation, disposition, behaviour, shape, in horizontal or vertical plane
    • H01L21/3086—Chemical or electrical treatment, e.g. electrolytic etching using masks characterised by their size, orientation, disposition, behaviour, shape, in horizontal or vertical plane characterised by the process involved to create the mask, e.g. lift-off masks, sidewalls, or to modify the mask, e.g. pre-treatment, post-treatment

Definitions

  • the present invention relates to a method for manufacturing a transfer mask used for manufacturing a semiconductor device and a mask blank used for manufacturing the transfer mask.
  • a fine pattern is formed using a photolithography method.
  • a number of transfer masks (usually called photomasks) are usually used for forming this fine pattern.
  • This transfer mask is generally provided with a light-shielding fine pattern made of a metal thin film or the like on a translucent glass substrate, and the photolithographic method is also used in the production of this transfer mask.
  • this transfer mask serves as an original for transferring a large amount of the same fine pattern, the dimensional accuracy of the pattern formed on the transfer mask directly affects the dimensional accuracy of the fine pattern to be produced. As the degree of integration of semiconductor circuits is improved, the size of the pattern is reduced, and a higher transfer mask accuracy is required.
  • a transfer mask a binary mask in which a transfer pattern made of a light shielding film is formed on a light-transmitting substrate such as a glass substrate, a phase shift film, or a phase shift film and a light shielding film are used.
  • a phase shift mask on which a transfer pattern is formed is well known.
  • a halftone phase shift mask in which a light shielding band is formed in the periphery of the transfer pattern forming region.
  • Patent Document 1 As a mask blank for manufacturing a halftone transfer mask, a metal silicide transfer mask film (light translucent film), chromium, and the like are used from the substrate side.
  • a mask blank having a thin film configuration of a light-shielding film made of a base compound and a hard mask film made of a silicon compound is disclosed.
  • a hard mask film made of a silicon compound is formed by dry etching with a fluorine-based gas using a predetermined resist pattern formed on the surface of the mask blank as a mask. Pattern.
  • the light shielding film made of a chromium-based compound is patterned by dry etching using a mixed gas of chlorine and oxygen.
  • a metal silicide-based transfer mask film is patterned by dry etching with a fluorine-based gas.
  • the chromium-based light-shielding film is advantageous in that a high optical density can be obtained even if the film thickness is reduced because the extinction coefficient increases if the ratio of the chromium element contained in the composition is large.
  • the higher the element ratio the slower the etching rate and the more time required for patterning. Therefore, the pattern of the upper hard mask film may disappear before the patterning of the light shielding film is completed.
  • the ratio of the chromium element contained in the composition is small, the etching rate becomes fast, but the extinction coefficient becomes low. Therefore, in order to obtain a predetermined optical density, it is necessary to increase the film thickness.
  • the mixed gas of chlorine and oxygen used for dry etching of the chromium-based light-shielding film has the property of isotropic etching. There is also a problem that it is eroded and the cross-section of the pattern becomes a hollow shape.
  • the pattern has a dimension of 80 nm or more, even if the cross section of the light shielding film pattern is removed due to etching of the light shielding film, the light shielding film pattern and the immediately below the light shielding film pattern are directly below the height of the formed light shielding film pattern.
  • the contact area with the transfer mask film can be increased, there is almost no risk of the light-shielding film pattern collapsing, but in the case of SRAF (Sub Resolution Assist Features) patterns with dimensions of 50 nm or less.
  • SRAF Sub Resolution Assist Features
  • the contact area between the light shielding film pattern and the transfer mask film becomes too narrow with respect to the height of the light shielding film pattern, and the light shielding film pattern falls down.
  • the light shielding film pattern falls, patterning of a transfer mask film (light semi-transmissive film) using the light shielding film pattern as a mask becomes difficult.
  • the degree of the cross-section of the light-shielding film pattern is large, the size of the light-shielding film pattern is narrower than that of the upper hard mask film pattern, and this light-shielding film pattern is masked even if the light-shielding film pattern does not collapse. As a result, the pattern accuracy of the transfer mask film formed by patterning deteriorates. As described above, when using a mask blank having a conventional configuration to form a fine pattern such as an SRAF pattern on a transfer mask film, it is difficult to obtain high pattern accuracy.
  • the present invention has been made in view of such a conventional problem, and the object of the present invention is firstly to form a fine transfer pattern such as an SRAF pattern with high accuracy. And second, to provide a method for manufacturing a transfer mask in which a fine pattern is formed with high accuracy using such a mask blank, and thirdly, An object of the present invention is to provide a method for manufacturing a high-quality semiconductor device with excellent pattern accuracy using such a transfer mask.
  • the present invention has the following configuration.
  • a mask blank having a structure in which a light semi-transmissive film, a light shielding film, and a hard mask film are sequentially laminated on a light transmissive substrate, wherein the light semi-transmissive film contains at least silicon, and the hard mask The film contains at least one or both of silicon and tantalum, and the light shielding film has a laminated structure of a lower layer, an intermediate layer, and an upper layer, contains chromium, and chlorine gas in the light shielding film An etching rate of dry etching using a mixed gas of oxygen and oxygen gas is that the upper layer is the slowest, and then the lower layer is slow.
  • the upper layer of the light shielding film containing chromium immediately below the hard mask film is etched because the etching rate of dry etching using a mixed gas of chlorine gas and oxygen gas is the slowest among the light shielding films. Side etching is not likely to occur (the side walls of the pattern are not easily eroded). Since the side etching of the upper layer of the light shielding film hardly occurs, the pattern shape of the hard mask film immediately above is transferred almost accurately to the upper layer of the light shielding film.
  • the pattern of the hard mask film is almost accurate even for the silicon-containing semi-transmissive film that is patterned using the light shielding film pattern as a mask. Can be formed.
  • the etching rate of the intermediate layer of the light shielding film is the fastest film design, so that the etching rate of the entire light shielding film can be increased.
  • the lower layer which has the slow etching rate next to the upper layer, has a slower etching rate than the intermediate layer, and therefore, side etching is less likely to occur than the intermediate layer (the side walls of the pattern are less likely to be eroded). For this reason, in the etching process of the lower layer, excessive erosion of the side wall due to side etching is suppressed, so that the contact area between the light shielding film pattern and the light semi-transmissive film can be ensured in the lower layer of the light shielding film.
  • the light shielding film pattern does not fall down.
  • Configuration 1 even a fine transfer pattern such as an SRAF pattern can be formed with high accuracy on a light semi-transmissive film that serves as a transfer mask film of the mask blank of the present invention. As a result, a transfer mask excellent in pattern accuracy can be manufactured.
  • (Configuration 2) The mask blank according to Configuration 1, wherein in the light shielding film, the content of chromium is the highest in the upper layer and second in the lower layer.
  • the upper layer portion of the light shielding film has a region with the highest chromium content, so that the upper layer has an etching rate of dry etching using a mixed gas of chlorine gas and oxygen gas in the light shielding film.
  • the lower layer has a chromium content next to that of the upper layer, the adhesion with the light semi-transmissive film having a film quality different from that of the light shielding film is improved, so that the collapse of the light shielding film pattern can be more effectively suppressed. it can.
  • the intermediate layer has the smallest chromium content, there is erosion of the side wall portion of the pattern during etching. However, by having such an intermediate layer, the etching rate of the entire light shielding film can be increased.
  • the dimension in the width direction of the pattern is maintained in the lower layer, and as a result, the contact area between the pattern of the light shielding film and the light semi-transmissive film can be maintained. Furthermore, since the oxygen content in the lower layer is relatively small, an effect of further improving the adhesion between the light shielding film pattern and the light semi-transmissive film can be obtained.
  • Configuration 4 The mask blank according to any one of configurations 1 to 3, wherein the upper layer has a chromium content of 60 atomic% or more.
  • the chromium content in the upper layer of the light shielding film is 60 atomic% or more, the optical density of the entire light shielding film can be increased by the upper layer, and the etching rate of dry etching in the upper layer is slowed down. Therefore, the pattern shape of the hard mask film directly above is transferred almost accurately, and finally a transfer mask having an excellent pattern shape can be manufactured.
  • the etching rate of dry etching using a mixed gas of chlorine gas and oxygen gas in the intermediate layer is more than three times the etching rate of dry etching using a mixed gas of chlorine gas and oxygen gas in the upper layer.
  • the etching rate of dry etching using a mixed gas of chlorine gas and oxygen gas in the intermediate layer is three times or more than the etching rate in the upper layer, the etching moves from the upper layer to the intermediate layer. Sometimes the etching rate in the depth direction is increased, and the etching in the depth direction of the intermediate layer can be completed while suppressing the progress of side etching in the upper layer.
  • the etching rate of dry etching using a mixed gas of chlorine gas and oxygen gas in the intermediate layer is not more than twice the etching rate of dry etching using a mixed gas of chlorine gas and oxygen gas in the lower layer.
  • (Configuration 8) 8 The mask blank according to any one of configurations 1 to 7, wherein the hard mask film contains oxygen.
  • the hard mask film needs to be a material having high etching selectivity with respect to the light shielding film directly below, but as in configuration 8, a material containing silicon or tantalum oxide or the like is selected for the hard mask film.
  • a material containing silicon or tantalum oxide or the like is selected for the hard mask film.
  • the transmittance for ArF excimer laser light (wavelength 193 nm) in the laminated structure of the light semi-transmissive film and the light-shielding film is 0.2% or less, and light at least in a wavelength region of 800 to 900 nm is transmitted.
  • Light in the near-infrared region with a wavelength of 800 to 900 nm is light used for positioning when a mask blank is placed on an exposure machine because the resist is not exposed.
  • the transmittance for ArF excimer laser light (wavelength 193 nm) in the laminated structure of the light semi-transmissive film and the light shielding film is 0.2% or less, and at least a part of the wavelength region of 800 to 900 nm
  • the light transmittance at a wavelength of 50% or less is preferable because it provides a good light-shielding property for exposure light to the ArF excimer laser and facilitates the placement of the mask blank in the exposure machine.
  • the mask blank of the present invention even a fine transfer pattern such as an SRAF pattern can be formed with high accuracy. That is, according to the mask blank of the present invention, since the etching rate of the upper layer of the light shielding film is the slowest and the side etching of the upper layer pattern is small, the transfer pattern shape formed on the resist film or the hard mask film was transferred almost accurately. Since the light shielding film pattern can be formed, the pattern accuracy to be formed on the light semi-transmissive film can be increased using the light shielding film pattern as a mask.
  • the etching rate of the lower layer of the light shielding film is the second slower than that of the upper layer, which is slower than the intermediate layer, and the side etching of the lower layer pattern can be reduced, so a sufficient contact area between the light shielding film pattern and the light semi-transmissive film is ensured. And good adhesion can be obtained. Therefore, even if a fine pattern such as an SRAF pattern is formed, the light shielding film pattern does not fall down, so that the pattern of the light semi-transmissive film can be formed with high accuracy. Further, by using such a mask blank of the present invention, a transfer mask on which a fine pattern is formed with high accuracy can be manufactured. Furthermore, a high-quality semiconductor device with excellent pattern accuracy can be manufactured using such a transfer mask.
  • FIG. 1 is a schematic cross-sectional view of an embodiment of a mask blank according to the present invention. It is a cross-sectional schematic diagram of the mask blank etc. which show the manufacturing process of the transfer mask using the mask blank which concerns on this invention. It is a cross-sectional schematic diagram of the mask blank etc. which show the manufacturing process of the transfer mask using the mask blank which concerns on this invention. It is a cross-sectional schematic diagram of the mask blank etc. which show the manufacturing process of the transfer mask using the mask blank which concerns on this invention. It is a cross-sectional schematic diagram of the mask blank etc. which show the manufacturing process of the transfer mask using the mask blank which concerns on this invention. It is a cross-sectional schematic diagram of the mask blank etc. which show the manufacturing process of the transfer mask using the mask blank which concerns on this invention. It is a cross-sectional schematic diagram of the mask blank etc.
  • the inventor of the present invention has a predetermined laminated structure in the mask blank having a structure in which a light semi-transmissive film, a light shielding film, and a hard mask film are sequentially laminated on a light transmissive substrate.
  • a predetermined laminated structure in the mask blank having a structure in which a light semi-transmissive film, a light shielding film, and a hard mask film are sequentially laminated on a light transmissive substrate.
  • the present invention is a mask blank having a structure in which a light semi-transmissive film, a light-shielding film, and a hard mask film are sequentially laminated on a light-transmitting substrate as in the above-described configuration 1, and the light semi-transmissive film Contains at least silicon, the hard mask film contains at least one or both of silicon and tantalum, and the light shielding film has a laminated structure of a lower layer, an intermediate layer, and an upper layer,
  • the mask blank is characterized in that it contains chromium, and the etching rate of dry etching using a mixed gas of chlorine gas and oxygen gas in the light-shielding film is the slowest in the upper layer and the slowest in the lower layer. .
  • FIG. 1 is a schematic sectional view showing an embodiment of a mask blank according to the present invention.
  • an embodiment 10 of a mask blank according to the present invention has a structure in which a light semi-transmissive film 2, a light shielding film 3, and a hard mask film 4 are sequentially laminated on a translucent substrate 1.
  • the light shielding film 3 has a laminated structure of a lower layer 31, an intermediate layer 32, and an upper layer 33.
  • the light translucent film 2 contains at least silicon
  • the hard mask film 4 contains at least one or both of silicon and tantalum
  • 3 contains chromium.
  • the translucent substrate 1 in the mask blank 10 is not particularly limited as long as it is a substrate used for a transfer mask for manufacturing a semiconductor device.
  • a synthetic quartz substrate or other various glass substrates for example, soda lime glass, alumino Silicate glass or the like.
  • a synthetic quartz substrate is particularly preferably used because it is highly transparent in an ArF excimer laser (wavelength 193 nm) effective for fine pattern formation or in a shorter wavelength region.
  • the hard mask film 4 can be made of a material containing silicon (Si) or a material containing tantalum (Ta).
  • a material containing silicon (Si) suitable for the hard mask film 4 is selected from silicon (Si), oxygen (O), nitrogen (N), carbon (C), boron (B), and hydrogen (H). And a material containing one or more elements.
  • silicon (Si) and transition metals include oxygen (O), nitrogen (N), carbon (C), boron (B And a material containing one or more elements selected from hydrogen (H).
  • transition metal examples include molybdenum (Mo), tungsten (W), titanium (Ti), tantalum (Ta), zirconium (Zr), hafnium (Hf), niobium (Nb), vanadium (V), Examples include cobalt (Co), chromium (Cr), nickel (Ni), ruthenium (Ru), and tin (Sn).
  • suitable materials containing tantalum (Ta) for the hard mask film 4 include tantalum (Ta), oxygen (O), nitrogen (N), carbon (C), boron (B), and hydrogen (H).
  • Specific examples of such materials include tantalum oxide (TaO), tantalum oxynitride (TaON), tantalum boride oxide (TaBO), and tantalum boride oxynitride (TaBON).
  • the hard mask film 4 is preferably formed of a material containing oxygen (O) in addition to silicon (Si) and tantalum (Ta). Such a hard mask film 4 has sufficient etching selectivity with respect to the light shielding film 3 formed of a material containing chromium (Cr), and the hard mask film 4 is hard without causing any damage to the light shielding film 3.
  • the mask film 4 can be removed by etching.
  • the material constituting the hard mask film 4 include silicon oxide (SiO 2 ), silicon oxynitride (SiON), tantalum oxide (TaO), tantalum oxynitride (TaON), and tantalum boride oxide (TaBO). And tantalum boride oxynitride (TaBON). Since the hard mask film 4 formed of a material containing silicon and oxygen tends to have low adhesion to a resist film made of an organic material, the surface of the hard mask film 4 is subjected to HMDS (Hexamethyldisilazane) treatment. It is preferable to improve surface adhesion.
  • HMDS Hexamethyldisilazane
  • the film thickness of the hard mask film 4 need not be particularly limited, but it needs to be a film thickness that does not disappear at least before the etching of the light shielding film 3 immediately below is completed. On the other hand, if the hard mask film 4 is thick, it is difficult to reduce the thickness of the resist pattern immediately above. From this point of view, in the present embodiment, the thickness of the hard mask film 4 is preferably in the range of 1.5 nm to 20 nm, particularly preferably 2.5 nm to 6 nm. is there.
  • the light semi-transmissive film 2 is formed of a material containing at least silicon, but the configuration of the light semi-transmissive film 2 applicable to the present invention is not particularly limited, and has been conventionally used, for example.
  • the configuration of the light semitransmissive film in the phase shift mask can be applied.
  • Examples of such a light semi-transmissive film 2 include a metal silicide made of, for example, a transition metal and silicon, or a metal made of a material containing at least one element selected from oxygen, nitrogen, and carbon in the transition metal and silicon.
  • Preferred examples include a silicide-based light semi-transmissive film and a silicon-based light semi-transmissive film made of a material containing silicon containing oxygen, nitrogen, carbon, boron, or the like.
  • transition metal contained in the metal silicide light semi-transmissive film examples include molybdenum, tantalum, tungsten, titanium, chromium, nickel, vanadium, zirconium, ruthenium, and rhodium. Of these, molybdenum is particularly preferred.
  • the material containing the transition metal and silicon specifically, a material containing transition metal silicide or transition metal silicide nitride, oxide, carbide, oxynitride, carbonate, or carbonitride is preferable. It is. Specific examples of the silicon-containing material include silicon nitride, oxide, carbide, oxynitride (oxynitride), carbonate (carbonized oxide), and carbonitride (carbonized and oxidized). A material containing (nitride) is preferable.
  • the light semi-transmissive film 2 can be applied to either a single layer structure or a laminated structure including a low transmittance layer and a high transmittance layer.
  • the preferable film thickness of the light semi-transmissive film 2 varies depending on the material, it is desirable to adjust appropriately from the viewpoint of the phase shift function and the light transmittance. Usually, it is suitable that the thickness is 100 nm or less, more preferably 80 nm or less.
  • the light-shielding film 3 having the laminated structure is formed of a material containing chromium.
  • the chromium-containing material include Cr compounds such as Cr alone or CrX (where X is at least one selected from N, C, O, etc.) (for example, CrN, CrC, CrO, CrON, CrCN, CrOC, CrOCN etc.).
  • the sputtering film forming method is preferred.
  • the sputtering film forming method is preferable because a uniform film having a constant film thickness can be formed.
  • the light shielding film 3 has a laminated structure of the lower layer 31, the intermediate layer 32, and the upper layer 33, and contains chromium.
  • the etching rate of dry etching using a mixed gas of chlorine gas and oxygen gas in the film 3 is characterized in that the upper layer 33 is the slowest and then the lower layer 31 is slow.
  • the upper layer 33 of the light-shielding film 3 containing chromium immediately below the hard mask film 4 has an etching rate of dry etching using a mixed gas of chlorine gas and oxygen gas (hereinafter simply “etching rate”, it means the etching rate of dry etching using a mixed gas of chlorine gas and oxygen gas.
  • Etch hardly occurs (in other words, the side wall of the pattern is not easily eroded). Since side etching is unlikely to occur in the upper layer 33 portion of the light shielding film 3, the pattern shape of the hard mask film 4 immediately above is transferred to the upper layer 33 of the light shielding film 3 almost accurately.
  • the resist pattern having the transfer pattern to be finally formed on the light semi-transmissive film 2 is accurately transferred to the hard mask film 4. Since the light shielding film 3 has the upper layer 33 to which the pattern shape of the hard mask film 4 is transferred almost accurately and has a very small difference from the pattern shape (for example, pattern dimensions) formed on the resist film, the light shielding film 3
  • the pattern of the hard mask film 4 can also be formed almost accurately on the silicon-containing semi-transmissive film 2 patterned by anisotropic etching using the pattern as a mask. In short, since the pattern of the light semi-transmissive film 2 can be formed without a difference in size from the resist pattern or the hard mask film pattern, the pattern accuracy formed on the light semi-transmissive film 2 can be increased.
  • the intermediate layer 32 preferably has a thickness of 30% to 70%, more preferably 50% to 60%, with respect to the total thickness of the light shielding film 3. If the film thickness of the intermediate layer 32 is too thin, the effect of accelerating the etching rate of the entire light shielding film 3 is reduced. If the film thickness is too thick, the side etch in the intermediate layer 32 becomes too deep and the pattern in the lower layer 31 is reduced. There is a risk that shape recovery will be insufficient.
  • the lower layer 31 having the slow etching rate after the upper layer 33 has a slower etching rate than the intermediate layer 32, side etching is less likely to occur than the intermediate layer 32 (the side walls of the pattern are less likely to be eroded). For this reason, in the etching process of the lower layer 31, excessive erosion of the side wall due to side etching is suppressed, so that the pattern shape of the upper layer 33 can be recovered, and the contact area between the pattern of the light shielding film 3 and the light semitransmissive film 2 is shielded. It can be secured in the lower layer 31 of the film 3. As a result, for example, when a pattern having a dimension of 50 nm or less is formed, the light shielding film pattern does not fall down.
  • the light shielding film 3 is provided for the purpose of transferring the pattern of the hard mask film 4 to the light semi-transmissive film 2 as faithfully as possible.
  • the final transfer pattern is a pattern formed on the light semi-transmissive film 2, and a pattern formed on the light shielding film 3. Since the pattern does not become a transfer pattern, the cross-sectional shape of the light shielding film pattern itself is not so important.
  • the light shielding film 3 of the laminated structure of the present invention has the pattern of the hard mask film 4 as described above. Can be transferred to the light semi-transmissive film 2 as faithfully as possible, and there is no problem of the cross-sectional shape of the light-shielding film 3.
  • the method for adjusting the etching rate of each layer of the light-shielding film 3 is not particularly limited, but it is preferable for the present invention to perform by changing the composition of each layer constituting the light-shielding film 3. Basically, it is possible by adjusting the chromium content of each layer, but for example, adjusting the degree of oxidation or nitridation of chromium in each layer, or making the composition other than chromium different in the composition of each layer You can adjust it. Further, the etching rate of each layer may be adjusted by adjusting the amount of an element (for example, indium or molybdenum) that can increase the etching rate.
  • an element for example, indium or molybdenum
  • the content of chromium is the highest in the upper layer 33 and the second highest in the lower layer 31 (Invention of Configuration 2). Since the upper layer 33 has a region with the highest chromium content in the light shielding film 3, the upper layer 33 has the slowest etching rate of dry etching using a mixed gas of chlorine gas and oxygen gas in the light shielding film 3. Become. Therefore, there is little side etching in the upper layer 33, and the pattern shape of the hard mask film 4 immediately above is almost accurately transferred to the upper layer 33 of the light shielding film 3, so that the transfer mask having an excellent pattern shape is finally obtained. Can be manufactured. Further, the upper layer 33 having the highest chromium content has an effect of increasing the optical density of the entire light shielding film 3 because of its high extinction coefficient.
  • the lower layer 31 has the second largest chromium content after the upper layer 33, the adhesion to the light semi-transmissive film 2 having a film quality different from that of the light shielding film 3 is improved, so that the light shielding film pattern is more effectively tilted. Can be suppressed. That is, since the lower layer 31 has a relatively high chromium content, the number of vacant (holes) in the chromium binding site is relatively large, and therefore the adhesion with the light semi-transmissive film 2 of different film quality is improved. In addition, the fall of the light shielding film pattern can be more effectively suppressed.
  • the surface of the light semi-transmissive film is in an oxygen-rich state. Since the vacant site of chromium and oxygen in the light-semitransmissive film are bonded with a chemical bond, the adhesion is improved. Since the intermediate layer 32 has a film configuration with the smallest chromium content in the light shielding film 3, the side wall portion of the pattern is eroded during etching, but the light shielding film 3 has such an intermediate layer 32. The etching rate as a whole can be increased.
  • the upper layer 33 preferably has a chromium content of 60 atomic% or more (invention of Configuration 4).
  • the chromium content of the upper layer 33 of the light shielding film 3 is 60 atomic% or more, the optical density of the entire light shielding film 3 can be increased by the upper layer 33, the etching rate in the upper layer 33 is slowed down, and side etching in the upper layer portion is performed. Therefore, the pattern shape of the hard mask film 4 directly above is transferred almost accurately, and finally a transfer mask having an excellent pattern shape can be manufactured.
  • the oxygen content is preferably lower in the lower layer 31 than in the intermediate layer 32 (Invention of Configuration 3). Since the oxygen content in the light-shielding film 3 is lower in the lower layer 31 than in the intermediate layer 32, the oxygen content in the intermediate layer 32 is the highest, so that the etching rate of the intermediate layer 32 is faster. For this reason, the etching rate of the whole light shielding film 3 can be kept fast. In addition, since the oxygen content contained in the lower layer 31 is lower than that in the intermediate layer 32, the etching rate in the depth direction is slowed when etching is transferred from the intermediate layer 32 to the lower layer 31.
  • the pattern shape of the upper layer 33 is restored in the lower layer 31 and the dimension in the width direction of the pattern is maintained.
  • the contact area between the pattern of the light shielding film 3 and the light semi-transmissive film 2 is maintained. Can do.
  • the oxygen content of the lower layer 31 is relatively small, the light translucent film 2 is exchanged with oxygen and bonded with a chemical bond, so that the pattern of the light shielding film 3 and the light semitransmissive film 2 The effect of further improving the adhesiveness is also obtained.
  • the upper layer 33 preferably has a thickness of 3 nm or more and 8 nm or less (Invention of Configuration 5). If the thickness of the upper layer 33 is less than 3 nm, the risk of erosion of the pattern side wall of the upper layer 33 during dry etching increases, and if the thickness of the upper layer 33 exceeds 8 nm, the etching time of the upper layer 33 may be increased. Occurs. Therefore, by setting the thickness of the upper layer 33 of the light shielding film 3 in the range of 3 nm or more and 8 nm or less, the etching time of the upper layer 33 is suitably suppressed, and the patterning accuracy in the upper layer 33 is favorably maintained. Can do.
  • the etching rate of dry etching using a mixed gas of chlorine gas and oxygen gas in the light shielding film 3 is characterized in that the upper layer 33 is the slowest and then the lower layer 31 is slow. Therefore, the intermediate layer 32 has the fastest etching rate.
  • the etching rate of the light shielding film 3 in the intermediate layer 32 is preferably at least three times the etching rate of the upper layer 33 (Invention of Configuration 6).
  • the etching rate in the intermediate layer 32 is three times or more than the etching rate in the upper layer 33, the etching rate in the depth direction is increased when etching is transferred from the upper layer 33 to the intermediate layer 32. It is preferable because etching in the depth direction of the intermediate layer 32 can be completed while suppressing the progress of side etching at 33.
  • the etching rate in the intermediate layer 32 is preferably not more than twice the etching rate in the lower layer 31 (Invention of Configuration 7).
  • the etching rate in the depth direction becomes slow.
  • the etching rate in the intermediate layer 32 is less than or equal to twice the etching rate in the lower layer 31.
  • the hard mask film 4 contains at least one or both of silicon and tantalum, but is preferably formed of a material containing oxygen in addition to silicon or tantalum ( Invention of Configuration 8).
  • the hard mask film 4 is required to be a material having high etching selectivity with respect to the light shielding film 3 directly below.
  • the hard mask film 4 is made of a material containing silicon and oxygen or a material containing tantalum and oxygen.
  • the light semi-transmissive film 2 contains at least silicon, but is preferably formed of a material containing silicon and nitrogen in particular (Invention of Configuration 9).
  • a material containing silicon and nitrogen By applying a material containing silicon and nitrogen to the light semi-transmissive film 2, etching selectivity with the chromium-based light-shielding film 3 can be ensured.
  • the material contains silicon and nitrogen, patterning using an anisotropic fluorine-based gas as an etching gas can be applied. Therefore, a transfer pattern having excellent pattern accuracy can be formed also in the light semi-transmissive film 2 by anisotropic etching using the pattern of the light shielding film 3 to which the pattern shape of the hard mask film 4 is transferred almost accurately. .
  • the transmittance for ArF excimer laser light (wavelength 193 nm) in the laminated structure of the light semi-transmissive film 2 and the light-shielding film 3 is 0.2% or less, and 800 to It is preferable that the light transmittance in at least a part of the wavelength region of 900 nm is 50% or less (Invention of Configuration 10).
  • Light in the near-infrared region with a wavelength of 800 to 900 nm is light used for positioning when a mask blank is placed on an exposure machine because the resist is not exposed.
  • the transmittance for ArF excimer laser light (wavelength 193 nm) in the laminated structure of the light semi-transmissive film 2 and the light shielding film 3 is 0.2% or less and at least one in the wavelength region of 800 to 900 nm. Since the light transmittance at the wavelength of the portion is 50% or less, for example, it has a good light shielding property against the ArF excimer laser of the exposure light required for the light shielding band, and the mask blank can be easily arranged on the exposure machine. Therefore, it is preferable.
  • the hard mask film 4 and the light semi-transmissive film 2 can be patterned by dry etching using a fluorine-based gas. Combined with the fact that the pattern shape of the hard mask film 4 just above is transferred almost accurately, the pattern shape accuracy is excellent in the light semi-transmissive film 2 by patterning by anisotropic etching using the light shielding film 3 as a mask. A transfer pattern can be formed.
  • the present invention also provides a method for manufacturing a transfer mask using the mask blank according to the present invention.
  • 2A to 2E are schematic cross-sectional views of a mask blank and the like showing a manufacturing process of a transfer mask using the mask blank 10 according to the embodiment of the present invention.
  • 2A to 2E are for facilitating understanding of the manufacturing process, and the cross-sectional shapes of the patterns shown in FIGS. 2A to 2E do not accurately represent the cross-sectional shapes actually formed.

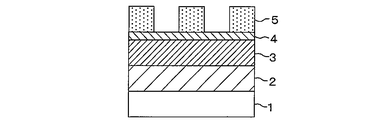

  • a predetermined resist pattern 5 is formed on the surface of the mask blank 10 (see FIG. 2A).
  • This resist pattern 5 has a desired pattern to be formed on the light semi-transmissive film 2 which becomes a final transfer pattern.
  • the resist pattern 5 having the light semi-transmissive film pattern formed on the hard mask film 4 of the mask blank 10 as a mask the light mask is formed on the hard mask film 4 by dry etching using a fluorine-based gas.
  • a hard mask film pattern 4a corresponding to the pattern of the permeable film is formed (see FIG. 2B).
  • the light shielding film 3 having a laminated structure corresponds to the pattern of the light semi-transmissive film by dry etching using a mixed gas of chlorine gas and oxygen gas.

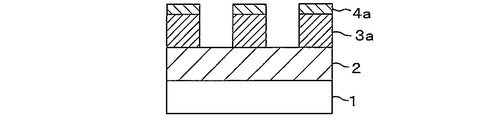

  • a light shielding film pattern 3a is formed (see FIG. 2C).

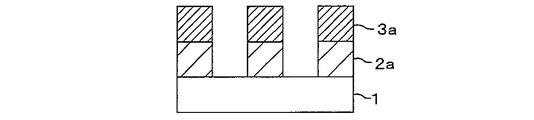

  • the light semi-transmissive film pattern 2a is formed on the light semi-transmissive film 2 by dry etching using a fluorine-based gas using the light shielding film pattern 3a formed as described above as a mask (see FIG. 2D). In the etching process of the light semitransmissive film 2, the hard mask film pattern 4a exposed on the surface is removed.
  • a resist film is applied to the entire surface of the light shielding film pattern 3a, and a resist pattern (not shown) corresponding to a light shielding pattern (for example, a light shielding band pattern) formed on the light shielding film is formed by predetermined exposure and development processes. .
  • a predetermined light shielding pattern 3b is formed on the light semi-transmissive film pattern 2a by dry etching using a mixed gas of chlorine gas and oxygen gas.
  • a transfer mask for example, a halftone phase shift mask
  • a transfer mask is manufactured according to the manufacturing process using the mask blank 10 according to the embodiment of the present invention, so that even a fine pattern such as an SRAF pattern is a high pattern.
  • a transfer mask formed with high accuracy can be obtained. That is, according to the mask blank 10 according to the embodiment of the present invention, since the etching rate of the upper layer 33 of the light shielding film 3 is the slowest and the side etching of the upper layer pattern is small, the transfer pattern formed on the resist film or the hard mask film 4 Since the pattern of the light shielding film 3 having the shape transferred almost accurately can be formed, the pattern accuracy to be formed on the light semi-transmissive film 2 can be increased using the light shielding film pattern as a mask.
  • the etching rate of the lower layer 31 of the light shielding film 3 is the second slower than that of the upper layer 33 and is slower than that of the intermediate layer 32, and the side etching of the lower layer pattern can be reduced. A sufficient contact area can be ensured and good adhesion can be obtained. Therefore, even if a fine pattern such as an SRAF pattern is formed, the light shielding film pattern does not fall down, so that the pattern of the light semi-transmissive film 2 can also be formed with high pattern accuracy.
  • the transfer pattern of the transfer mask is formed by a lithography method. According to the method for manufacturing a semiconductor device including the step of transferring the pattern onto the substrate, a high-quality semiconductor device with excellent pattern accuracy can be obtained.
  • Example 1 The present embodiment relates to a mask blank used for manufacturing a halftone phase shift mask using an ArF excimer laser having a wavelength of 193 nm as exposure light.
  • the mask blank used in this example is as shown in FIG. 1.
  • a translucent substrate (glass substrate) 1 On a translucent substrate (glass substrate) 1, a light semi-transmissive film 2, a light shielding film 3 having a three-layer structure, and a hard mask film 4 are sequentially formed. It has a laminated structure.
  • This mask blank was produced as follows.
  • a synthetic quartz substrate (size: about 152 mm ⁇ 152 mm ⁇ thickness 6.35 mm) was prepared as a glass substrate.
  • a MoSiN light semi-transmissive film made of molybdenum, silicon, and nitrogen was formed to a thickness of 69 nm on the synthetic quartz substrate.
  • the substrate was taken out from the sputtering apparatus, and the light semi-transmissive film on the synthetic quartz substrate was subjected to heat treatment in the atmosphere. This heat treatment was performed at 450 ° C. for 30 minutes.
  • the transmittance and the phase shift amount at the wavelength (193 nm) of the ArF excimer laser were measured for the light-semitransmissive film after the heat treatment using a phase shift amount measuring device, the transmittance was 6.44% and the phase The shift amount was 174.3 degrees.
  • the substrate on which the light semi-transmissive film is formed is again put into the sputtering apparatus, and on the light semi-transmissive film, a lower layer made of a CrOCN film, an intermediate layer made of a CrOCN film, and an upper layer made of a CrN film.
  • a light shielding film having a laminated structure was formed.
  • argon Ar
  • CO 2 carbon dioxide
  • N 2 nitrogen
  • He helium
  • a light shielding film lower layer made of a CrOCN film having a thickness of 15.4 nm was formed on the light semi-transmissive film.
  • a light-shielding film intermediate layer made of a CrOCN film having a thickness of 26.6 nm is formed on the lower layer by reactive sputtering.
  • a hard mask film made of a SiON film was formed on the light shielding film.
  • Ar argon
  • NO nitric oxide
  • He helium
  • a hard mask film made of a SiON film having a thickness of 15 nm was formed on the light shielding film by performing reactive sputtering.
  • the optical density of the laminated film of the light semi-transmissive film and the light shielding film was 3.0 or more (transmittance of 0.1% or less) at the wavelength (193 nm) of the ArF excimer laser. Further, the transmittance at a wavelength of 880 nm (a wavelength used for positioning a substrate mounted on the exposure apparatus) was 50% or less.
  • a mask blank of this example was produced as described above.
  • a halftone phase shift mask was manufactured according to the manufacturing process shown in FIGS. 2A to 2E.
  • the following reference numerals correspond to those in FIG. 1 and FIGS. 2A to 2E.
  • an HMDS process is performed on the upper surface of the mask blank 10
  • a chemical amplification resist for electron beam drawing PRL009 manufactured by Fuji Film Electronics Materials
  • PRL009 manufactured by Fuji Film Electronics Materials
  • the hard mask film 4 was dry-etched to form a hard mask film pattern 4a (see FIG. 2B).
  • a fluorine-based gas (SF 6 ) was used as the dry etching gas.
  • the light shielding film 3 composed of an upper layer, an intermediate layer, and a lower layer was continuously dry-etched using the hard mask film pattern 4 a as a mask to form a light shielding film pattern 3 a ( (See FIG. 2C).
  • the etching rate of the light shielding film 3 was 2.9 ⁇ / sec for the upper layer, 9.1 ⁇ / sec for the intermediate layer, and 5.1 ⁇ / sec for the lower layer.
  • the light semi-transmissive film 2 was dry-etched to form a light semi-transmissive film pattern 2a (phase shift film pattern) (see FIG. 2D).
  • a fluorine-based gas (SF 6 ) was used as the dry etching gas.
  • the hard mask film pattern 4a exposed on the surface was removed.
  • the resist film is formed again on the entire surface of the substrate in the state shown in FIG. 2D by spin coating, and a predetermined device pattern (for example, a pattern corresponding to a light-shielding band pattern) is formed using an electron beam drawing machine. After drawing, development was performed to form a predetermined resist pattern. Subsequently, by using this resist pattern as a mask, the exposed light shielding film pattern 3a is etched to remove, for example, the light shielding film pattern 3a in the transfer pattern formation region, and light shielding is applied to the periphery of the transfer pattern formation region. A band pattern 3b was formed.
  • a predetermined device pattern for example, a pattern corresponding to a light-shielding band pattern
  • the light semi-transmissive film and the hard mask film were the same as those in Example 1, and different mask blanks were produced. That is, the light-shielding film of this comparative example is a light-shielding film having a single-layer structure, and is a thin film having the same composition as the intermediate layer in the light-shielding film of Example 1, an optical density of 3.0 or more, and a film thickness of 100 nm. .
  • a halftone phase shift mask was produced in the same manner as in Example 1.
  • the pattern dimension was increased by 10 nm and the state of the light shielding film pattern was confirmed, it was 80 nm line and space that the pattern did not collapse. This is because the wall surface of the light-shielding film pattern is greatly eroded, the contact area between the light-shielding film and the light semi-transmissive film is narrow, and the bonding state (adhesion state) that can withstand cleaning at the interface between the light shielding film and the light semi-transmissive film This is thought to be due to the failure to secure this.

Landscapes

  • Physics & Mathematics (AREA)
  • General Physics & Mathematics (AREA)
  • Engineering & Computer Science (AREA)
  • Condensed Matter Physics & Semiconductors (AREA)
  • Manufacturing & Machinery (AREA)
  • Computer Hardware Design (AREA)
  • Microelectronics & Electronic Packaging (AREA)
  • Power Engineering (AREA)
  • Chemical & Material Sciences (AREA)
  • Chemical Kinetics & Catalysis (AREA)
  • General Chemical & Material Sciences (AREA)
  • Preparing Plates And Mask In Photomechanical Process (AREA)
PCT/JP2015/059852 2014-03-30 2015-03-30 マスクブランク、転写用マスクの製造方法及び半導体装置の製造方法 Ceased WO2015152123A1 (ja)

Priority Applications (2)

Application Number Priority Date Filing Date Title
US15/129,904 US9864268B2 (en) 2014-03-30 2015-03-30 Mask blank, method for manufacturing transfer mask, and method for manufacturing semiconductor device
KR1020167030032A KR102295453B1 (ko) 2014-03-30 2015-03-30 마스크 블랭크, 전사용 마스크의 제조 방법 및 반도체 장치의 제조 방법

Applications Claiming Priority (2)

Application Number Priority Date Filing Date Title
JP2014-070685 2014-03-30
JP2014070685A JP6150299B2 (ja) 2014-03-30 2014-03-30 マスクブランク、転写用マスクの製造方法及び半導体装置の製造方法

Publications (1)

Publication Number Publication Date
WO2015152123A1 true WO2015152123A1 (ja) 2015-10-08

Family

ID=54240446

Family Applications (1)

Application Number Title Priority Date Filing Date
PCT/JP2015/059852 Ceased WO2015152123A1 (ja) 2014-03-30 2015-03-30 マスクブランク、転写用マスクの製造方法及び半導体装置の製造方法

Country Status (5)

Country Link
US (1) US9864268B2 (enExample)
JP (1) JP6150299B2 (enExample)
KR (1) KR102295453B1 (enExample)
TW (1) TWI621906B (enExample)
WO (1) WO2015152123A1 (enExample)

Cited By (3)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
JP2016212322A (ja) * 2015-05-12 2016-12-15 Hoya株式会社 位相シフトマスクブランク、位相シフトマスクの製造方法及び半導体装置の製造方法
JP2019179106A (ja) * 2018-03-30 2019-10-17 凸版印刷株式会社 位相シフトマスクブランク、及び位相シフトマスクの製造方法
TWI705293B (zh) * 2016-07-26 2020-09-21 日商Ｈｏｙａ股份有限公司 光罩之製造方法、描繪裝置、顯示裝置之製造方法、光罩基板之檢查方法、及光罩基板之檢查裝置

Families Citing this family (16)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
JP6292581B2 (ja) * 2014-03-30 2018-03-14 Hoya株式会社 マスクブランク、転写用マスクの製造方法及び半導体装置の製造方法
WO2017077915A1 (ja) * 2015-11-06 2017-05-11 Hoya株式会社 マスクブランク、位相シフトマスクの製造方法、及び半導体デバイスの製造方法
JP6744100B2 (ja) * 2016-01-15 2020-08-19 Hoya株式会社 転写用マスクの製造方法
WO2017169587A1 (ja) 2016-03-29 2017-10-05 Hoya株式会社 マスクブランク、マスクブランクの製造方法、転写用マスクの製造方法および半導体デバイスの製造方法
US11112690B2 (en) * 2016-08-26 2021-09-07 Hoya Corporation Mask blank, transfer mask, and method for manufacturing semiconductor device
JP6780550B2 (ja) * 2017-03-10 2020-11-04 信越化学工業株式会社 フォトマスクブランク
KR102553992B1 (ko) * 2017-03-31 2023-07-10 가부시키가이샤 토판 포토마스크 위상 시프트 마스크 블랭크, 위상 시프트 마스크 및 위상 시프트 마스크의 제조 방법
JP6430585B2 (ja) * 2017-05-17 2018-11-28 Hoya株式会社 マスクブランク、転写用マスクの製造方法及び半導体装置の製造方法
CN110770652B (zh) * 2017-06-14 2023-03-21 Hoya株式会社 掩模坯料、相移掩模及半导体器件的制造方法
JP6819546B2 (ja) * 2017-11-13 2021-01-27 信越化学工業株式会社 フォトマスクブランク、及びフォトマスクの製造方法
CN109917616B (zh) * 2017-12-12 2022-07-05 中芯国际集成电路制造(北京)有限公司 用于双重图案化的掩模版的制作方法及双重图案化方法
JP7280171B2 (ja) * 2019-12-05 2023-05-23 信越化学工業株式会社 フォトマスクブランク、フォトマスクの製造方法及びフォトマスク
JP7350682B2 (ja) * 2020-03-23 2023-09-26 Hoya株式会社 マスクブランク及び転写用マスクの製造方法
KR102402742B1 (ko) * 2021-04-30 2022-05-26 에스케이씨솔믹스 주식회사 포토마스크 블랭크 및 이를 이용한 포토마스크
KR102475672B1 (ko) * 2021-11-03 2022-12-07 에스케이씨솔믹스 주식회사 블랭크 마스크 및 이를 이용한 포토마스크
KR102535171B1 (ko) * 2021-11-04 2023-05-26 에스케이엔펄스 주식회사 블랭크 마스크 및 이를 이용한 포토마스크

Citations (4)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
JPH0669185A (ja) * 1992-08-20 1994-03-11 Mitsubishi Electric Corp フォトマスク
WO2007074806A1 (ja) * 2005-12-26 2007-07-05 Hoya Corporation フォトマスクブランク及びフォトマスクの製造方法、並びに半導体装置の製造方法
WO2009157506A1 (ja) * 2008-06-25 2009-12-30 Hoya株式会社 位相シフトマスクブランクおよび位相シフトマスク
JP2013238776A (ja) * 2012-05-16 2013-11-28 Shin Etsu Chem Co Ltd ハーフトーン位相シフトマスクブランク及びハーフトーン位相シフトマスクの製造方法

Family Cites Families (9)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
JPWO2004090635A1 (ja) 2003-04-09 2006-07-06 Hoya株式会社 フォトマスクの製造方法及びフォトマスクブランク
JP4614877B2 (ja) 2005-12-27 2011-01-19 Ｈｏｙａ株式会社 フォトマスクブランクの製造方法及びフォトマスクの製造方法
JP4509050B2 (ja) * 2006-03-10 2010-07-21 信越化学工業株式会社 フォトマスクブランク及びフォトマスク
JP5702920B2 (ja) * 2008-06-25 2015-04-15 Hoya株式会社 位相シフトマスクブランク、位相シフトマスクおよび位相シフトマスクブランクの製造方法
JP5123349B2 (ja) * 2010-04-19 2013-01-23 Ｈｏｙａ株式会社 多階調マスクの製造方法
KR101883025B1 (ko) * 2010-12-24 2018-07-27 호야 가부시키가이샤 마스크 블랭크 및 그 제조 방법, 및 전사용 마스크 및 그 제조 방법
JP6062195B2 (ja) * 2011-11-30 2017-01-18 Hoya株式会社 転写用マスクの製造方法及び半導体デバイスの製造方法
WO2014127383A2 (en) 2013-02-17 2014-08-21 Zeliff Zachary Joseph Stylus for capacitive touchscreen
JP5779290B1 (ja) * 2014-03-28 2015-09-16 Hoya株式会社 マスクブランク、位相シフトマスクの製造方法、位相シフトマスク、および半導体デバイスの製造方法

Patent Citations (4)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
JPH0669185A (ja) * 1992-08-20 1994-03-11 Mitsubishi Electric Corp フォトマスク
WO2007074806A1 (ja) * 2005-12-26 2007-07-05 Hoya Corporation フォトマスクブランク及びフォトマスクの製造方法、並びに半導体装置の製造方法
WO2009157506A1 (ja) * 2008-06-25 2009-12-30 Hoya株式会社 位相シフトマスクブランクおよび位相シフトマスク
JP2013238776A (ja) * 2012-05-16 2013-11-28 Shin Etsu Chem Co Ltd ハーフトーン位相シフトマスクブランク及びハーフトーン位相シフトマスクの製造方法

Cited By (4)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
JP2016212322A (ja) * 2015-05-12 2016-12-15 Hoya株式会社 位相シフトマスクブランク、位相シフトマスクの製造方法及び半導体装置の製造方法
TWI705293B (zh) * 2016-07-26 2020-09-21 日商Ｈｏｙａ股份有限公司 光罩之製造方法、描繪裝置、顯示裝置之製造方法、光罩基板之檢查方法、及光罩基板之檢查裝置
JP2019179106A (ja) * 2018-03-30 2019-10-17 凸版印刷株式会社 位相シフトマスクブランク、及び位相シフトマスクの製造方法
JP7219010B2 (ja) 2018-03-30 2023-02-07 株式会社トッパンフォトマスク 位相シフトマスクブランク

Also Published As

Publication number Publication date
KR20160138247A (ko) 2016-12-02
JP2015191218A (ja) 2015-11-02
US9864268B2 (en) 2018-01-09
TWI621906B (zh) 2018-04-21
JP6150299B2 (ja) 2017-06-21
US20170168384A1 (en) 2017-06-15
TW201600922A (zh) 2016-01-01
KR102295453B1 (ko) 2021-08-27

Similar Documents

Publication Publication Date Title
JP6150299B2 (ja) マスクブランク、転写用マスクの製造方法及び半導体装置の製造方法
JP6571224B2 (ja) マスクブランク、転写用マスクの製造方法及び半導体装置の製造方法
JP6266842B2 (ja) マスクブランク、マスクブランクの製造方法、位相シフトマスク、位相シフトマスクの製造方法及び半導体デバイスの製造方法
JP6389375B2 (ja) マスクブランクおよび転写用マスク並びにそれらの製造方法
US10527931B2 (en) Mask blank, transfer mask, method for manufacturing transfer mask, and method for manufacturing semiconductor device
US20200150524A1 (en) Mask blank, transfer mask, method for manufacturing transfer mask, and method for manufacturing semiconductor device
JP6084391B2 (ja) マスクブランク、転写用マスク、転写用マスクの製造方法および半導体デバイスの製造方法
JP6165871B2 (ja) マスクブランク、転写用マスクおよび転写用マスクの製造方法
JP5917020B2 (ja) マスクブランクおよび多階調マスクの製造方法
WO2020066591A1 (ja) マスクブランク、転写用マスクおよび半導体デバイスの製造方法
WO2020066590A1 (ja) マスクブランク、転写用マスクおよび半導体デバイスの製造方法
JP6608613B2 (ja) 位相シフトマスクブランク、位相シフトマスクの製造方法及び半導体装置の製造方法
JP6430585B2 (ja) マスクブランク、転写用マスクの製造方法及び半導体装置の製造方法
JP6266919B2 (ja) 転写用マスクの製造方法
JP2014006469A (ja) マスクブランク、転写用マスク、転写用マスクの製造方法および半導体デバイスの製造方法

Legal Events

Date Code Title Description
121 Ep: the epo has been informed by wipo that ep was designated in this application

Ref document number: 15773070

Country of ref document: EP

Kind code of ref document: A1

WWE Wipo information: entry into national phase

Ref document number: 15129904

Country of ref document: US

NENP Non-entry into the national phase

Ref country code: DE

ENP Entry into the national phase

Ref document number: 20167030032

Country of ref document: KR

Kind code of ref document: A

122 Ep: pct application non-entry in european phase

Ref document number: 15773070

Country of ref document: EP

Kind code of ref document: A1
