Abstract

The utility model discloses a spray-type stereoscopic cultivation system for a cylindrical stereo-planting body, which comprises a nutrient fluid aeroponic feed system and the cylindrical stereo-planting body, wherein the nutrient fluid aeroponic feed system comprises a shower head bracket and a plurality of shower heads; connecting pipes for shower heads are attached to the shower head bracket; a nutrient fluid pool is used for storing nutrient fluid for nourishing plants; a high-pressure water pump performs the high-pressure adding processing to the nutrient fluid; planting holes formed at intervals are formed on the stereo-planting body; and attachments for seeds to attach are arranged on the planting holes. The spray-type stereoscopic cultivation system for a cylindrical stereo-planting body provided by the utility model has the characteristics of simple structure and high practicability, and can achieve aerial roots at low cost.

Description

The atomizing solid cultivation system of cylindrical solid planting body
Technical field
The utility model relates to a kind of solid cultivation system, especially a kind of atomizing solid cultivation system of cylindrical solid planting body.
Background technology
Traditional farming is based on solar irradiation and soil matrix and the agricultural of the natural production mode of carrying out, and the output of product and product quality are subjected to the restriction of cultivated area and natural environmental condition, are difficult to satisfy the requirement of people to the food quality and quantity.
The restriction of environment to agricultural production broken away from greenhouse culture to a certain extent, and people can have various vegetables or fruit at any time.The greenhouse soilless culture technology is a kind of up-to-date planting type that research is adopted along with the hothouse production development.Soilless culture is divided into substrate culture and no substrate culture two big classes substantially.Substrate culture, promptly crop root is fixed in the matrix, and plant is by the matrix absorption nutrient solution, and main planting type marsupial training, rock wool are trained and NFT.Be not commonly referred to as water planting and there is substrate culture, promptly root system directly contacts with nutrient solution, and in the hydroponic system, more advanced nutrient solution supply form is a shallow liquid stream supply mode, and promptly plant roots is arranged in the more shallow nutrient solution that flows with given pace.
Plant factor is a kind of highly-specialised, the modern industrialized agriculture of development after greenhouse culture.It and hothouse production difference be, is completely free of the restriction of natural conditions and weather under the working condition of land for growing field crops, uses the advanced technology resource in modern age, fully by manual control environment's condition, and annual stable market supply agricultural product.At present, the plant factor of high benefit has realized batch production production vegetables, edible mushroom and famous flower and tree etc. in some developed country's development rapidly.One of main characteristics of plant factor are nutriculture, method as Japanese nutrient fluid cultivation has many kinds, as NFT, the training of profound liquid, solid matrix training (comprising rock wool training, gravel training, sand culture etc.), wherein train and NFT, and the rock wool training accounts for nearly 50% of nutrient fluid cultivation area especially based on rock wool.Typical nutrient solution culturing device has following several form: 1. three ability of swimming NFT devices---the cultivation bed is made with foam, and certain gradient (1/80-1/100) is arranged, and the bottom nutrient solution is the film shape and slowly flows, and can also be provided with sterilizing unit automatically for fertile; 2. concord---use moulding plastics cultivation bed is divided into some unit, is applicable to the fruit and vegetable cultivation; 3. the M formula---the shaped article that cultivating groove is made of " U " type foam is formed by connecting, and the field planting plate is also made with foam, and shop, the inside polyethylene film is suitable for particularly Japanese cryptotaenia stem and leaf cultivation of leaf vegetables; 4. new and formula equivalent switch---its principal character is the cultivating groove separated into two parts, the equivalent of carrying out nutrient solution each other exchanges, with the oxygen (2., 3., 4. all belonging to profound liquid culturing device) of supply root system abundance; 5. really and formula---this is a kind of circulating rock wool culturing device, central authorities fix a drainpipe at cultivating groove, the granular rock wool pad of lay, mineral wool block and typing irrigation pipe successively adopt the drip irrigation mode from top to bottom, and unnecessary nutrient solution flows back to water leg for recycling through drainpipe.In the plant factor adopt mobile culturing device more, mainly contain three kinds of plane formula, three-dimensional and tiltings,, improved effective area under cultivation by rational close planting.Above-mentioned planting type, plant roots all is arranged in nutrient solution in the most of the time, can not provide better breathing environment for plant, has directly influenced the speed of plant metabolism.
The patent No. is ZL96105058.6, Granted publication day is the reactor for nutrient liquid atomizing culture of the Chinese utility model patent-plant on April 19th, 2000, adopted the atomizing supply mode of nutrient solution, but this reactor is used to cultivate plant tissue, be necessary for airtight glass tank body, and glass tank body domestic demand will guarantee certain temperature, be provided with the stainless (steel) wire that multilayer is used to place piece of tissue in the tank body from top to bottom, because this reactor adopts multilayer shape structure, the nutrient solution of ejection need circulate in whole reactor under the drive of screw, and then be full of whole reactor, make the piece of tissue that is positioned on the different layers all can absorb nutrient solution.In addition, because this reactor for nutrient liquid atomizing culture is a closed type, therefore need ventilate during stopping mist, not only complex structure also is unsuitable for cultivated plant.
The utility model content
The purpose of this utility model provides a kind of atomizing solid cultivation system that helps cylindrical solid planting body plant growing, simple in structure, can obtain aerial root by this cultivation system.
The technical scheme that the utility model adopted is: a kind of atomizing solid cultivation system of cylindrical solid planting body comprises nutrient solution aerosol feed system and columniform solid growth body; Described nutrient solution aerosol feed system comprises head cartridge and a plurality of shower nozzle, and the tube connector of described shower nozzle all is attached on the described head cartridge; The nutrition liquid pool is used to store the nutrient solution of cultivating plant; High-pressure hydraulic pump, the input port of described high-pressure hydraulic pump is communicated with the output channel of nutrition liquid pool, and the output port of described high-pressure hydraulic pump is communicated with described shower nozzle; Described solid growth body is provided with the implantation hole that is intervally installed, and described implantation hole is provided with the attachment that adheres to for seed.
Preferably, described nutrient solution aerosol feed system also comprises magnetizing assembly, and described magnetizing assembly is arranged between the paramount water pump of nutrition liquid pool, is used for nutrient solution is magnetized processing.
Preferably, described nutrient solution aerosol feed system also comprises the filter that filters impurity in the nutrient solution, and described filter is arranged between the output port and shower nozzle of described high-pressure hydraulic pump.
Preferably, described nutrient solution aerosol feed system also comprises backflash, and described backflash is arranged on the bottom surface of solid growth body obliquely, and described backflash is to being disposed with return filter and backflow sterilizing unit between the nutrition liquid pool.
Preferably, described nutrient solution aerosol feed system also comprises the buffering groove, and it is arranged on the position of closing on described nutrition liquid pool, and is communicated with described nutrition liquid pool; The inside of described buffering groove is provided with the buffer wall that slows down backflow nutrient solution flow velocity; Described backflow sterilizing unit is a quartz burner, and described quartz burner is installed on the top or inwall of described buffering groove.
Preferably, described columniform solid growth body, the implantation hole that its top is provided with is as the fruit vegetables growing area, and the implantation hole that is provided with on the sidewall is as leaf vegetables or tubers growing area.
The beneficial effects of the utility model are: nutrient solution liquid offers plant with the form of aerosol state, more helping plant absorbs, if making nutrient solution handles through magnetization, to be cut into the nutrient solution that exists with the individual molecule structure with the nutrient solution that the micel structure exists, the supply form that cooperates aerosol state, plant is directly absorbed, and the microorganism that need not to have by plant self earlier absorbs after decomposing again, can accelerate infiltration rate on the one hand, on the other hand can be under the situation of supplying with identical nutrient composition, the nutrient component of plant is also higher relatively.Under the situation that adopts solid growth body plantation plant, the nutrient solution of aerosol state will fill the air the inside of whole solid growth body, and the root that is positioned at solid growth body inside can directly absorb the nutrient component of nutrient solution, helps improving the content of the contained nutrient component of plant; In addition, plant roots can be exposed in air veritably fully, is beneficial to the root respiratory oxygen, can accelerate the metabolism of plant, and then promotes the growth of plant, and generally about 1 month, plant can be gathered in.The atomizing solid cultivation system of cylindrical solid planting body described in the utility model is except that basic requirement, no special rigid requirement, the solid growth body need not sealing as described, only need be unlikely to make the nutrient solution of ejection outwards to splash, the waste nutrient solution gets final product, and the material of three-dimensional planting body itself does not have specific (special) requirements yet, as using common cystosepiment etc., therefore, the atomizing solid cultivation system of cylindrical solid planting body described in the utility model has simple in structure, the characteristics that cost is low, help the popularization of industrialized production in agriculture technology, be easy to make the peasant to make the transition and be the blue-collar worker.
Description of drawings
Fig. 1 is the perspective view of plane planting body;
Fig. 2 be among Fig. 1 A-A to cutaway view;

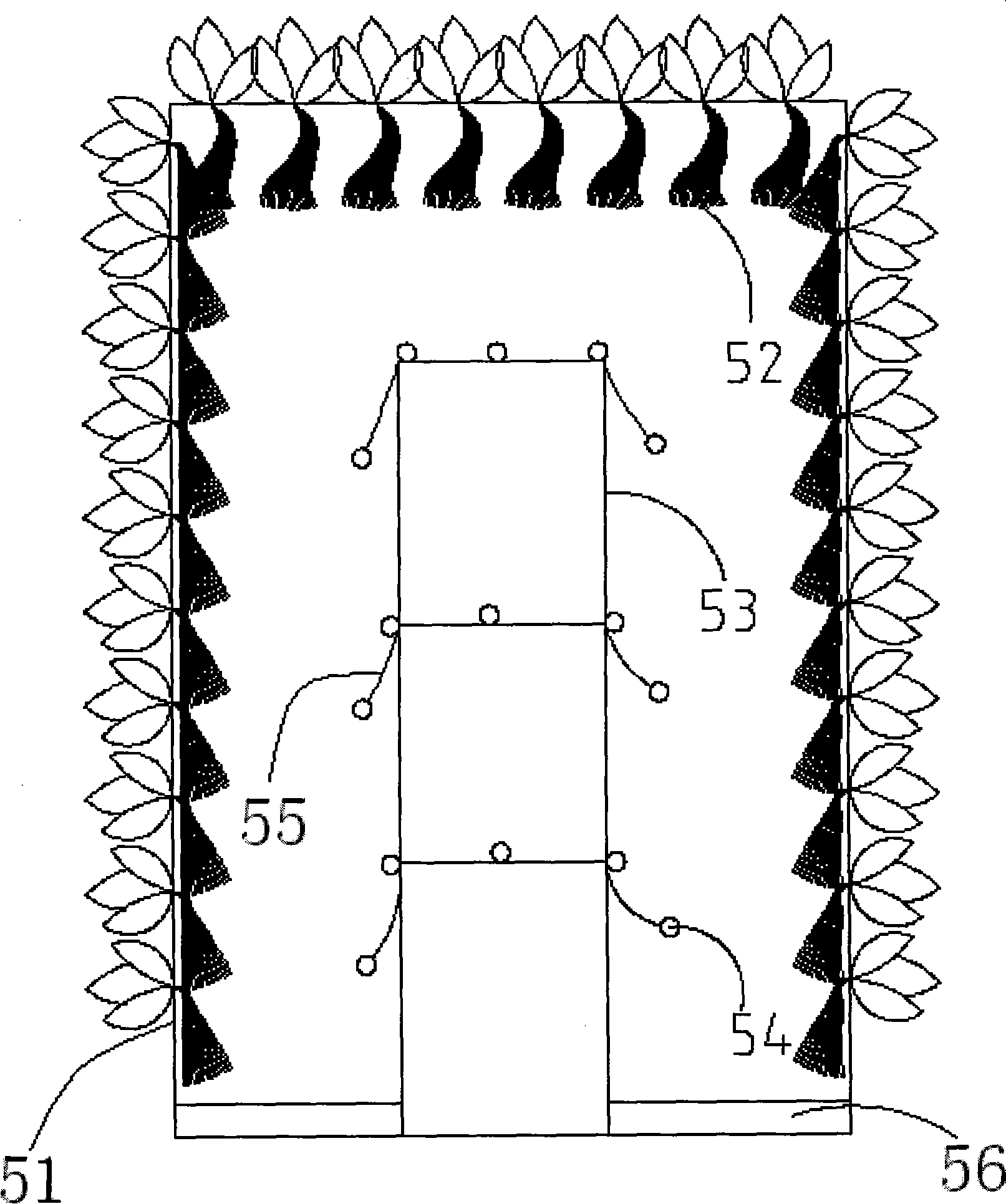

Fig. 3 is the structural representation of solid growth body;
Fig. 4 is the structural representation of nutrient solution aerosol feed system;
Fig. 5 is the structural representation of buffering groove described in the utility model.
Embodiment
Referring now to accompanying drawing, the atomizing stereo cultivation method and the system of cylindrical solid planting body described in the utility model is specifically described.
A kind of atomizing solid cultivation system of cylindrical solid planting body comprises nutrient solution aerosol feed system and above-mentioned solid growth body 51.
Described nutrient solution aerosol feed system comprises nutrition liquid pool 1 as shown in Figure 4, is used to store the nutrient solution of cultivating plant, and wherein said nutrient solution can be the organic manure of liquid.For nutrient solution can be sprayed by the form of shower nozzle with aerosol state, processing need add high pressure by the nutrient solutions that 3 pairs of high-pressure hydraulic pumps flow out from the output channel of nutrition liquid pool 1, the input port that is high-pressure hydraulic pump 3 is communicated with the output channel of nutrition liquid pool 1, the output port of high-pressure hydraulic pump 3 is communicated with shower nozzle in being arranged on plant growing district 5, can spray with aerosol state in the time of wherein need making the nutrient solution of handling through adding high pressure arrive shower nozzle the selection of high-pressure hydraulic pump 3, take into account cost and effect, the selection of high-pressure hydraulic pump 3 can make the pressure that arrives the nutrient solution that shower nozzle goes out reach 1 to 5 kilogram and get final product, transfer pipeline between high-pressure hydraulic pump 3 and the shower nozzle is long more, and is high more to the requirement of high-pressure hydraulic pump 3.
Described nutrient solution aerosol feed system comprises the shower nozzle as shown in Figure 3 54 that is arranged in the plant growing district 5, the shower nozzle corresponding with a solid growth body 51 only is shown among Fig. 3, in plant growing district 5, is provided with a plurality of solid growth bodies of controlling by same set of nutrient solution aerosol feed system jointly 51.Directly the tube connector 55 that is connected with shower nozzle 54 can be attached on the head cartridge 53, described shower nozzle can a part be directly installed on the head cartridge 53, but also can be as required constancy by its tube connector 55 be suspended in the air, can adjust the distance of shower nozzle 54 by tube connector 55 apart from solid growth body 51.In addition, the shape of described head cartridge 53 can be set according to the shape of solid growth body 51, and for columniform solid growth body 51, head cartridge 53 can be designed as the structure of two-layer at least circular support.
Described nutrient solution is generally the micel structure, plant roots 52 need be decomposed it by self microorganism again and absorbed, slow down the infiltration rate of root 52, so, can to the output channel of high-pressure hydraulic pump 3, magnetizing assembly 2 be set at nutrition liquid pool 1, described magnetizing assembly 2 can comprise two strong magnets that are pulled together, 20,000 Gausses to 4 are provided ten thousand Gausses' high-intensity magnetic field, magnetizing assembly 2 can be cut into the nutrient solution that exists with the individual molecule structure with the nutrient solution that exists with the micel structure of flowing through, the nutrient solution that the individual molecule structure exists can directly be absorbed by root 52, need not to decompose by the microorganism of self.
In addition, between the output port of described high-pressure hydraulic pump 3 and shower nozzle 54, can be provided for filtering the filter 4 of impurity in the nutrient solution, avoid in long-term use, the phenomenon of shower nozzle 54 taking place to stop up.
Because the nutrient solution of ejection in solid growth body 51, only some is absorbed by root 52, another part can or directly fall to the ground via root 52 drippages, in order to cut the waste, the backflash 56 of inclination can be set on the bottom surface of solid growth body 51, nutrient solution to be refluxed is filtered it through return filter 6 successively by described backflash 56, carry out being back to described nutrition liquid pool 1 after the sterilization, further recycle treating through backflow sterilizing unit 7.Wherein, described backflow sterilizing unit can be quartz burner, and return filter 6 and backflow sterilizing unit 7 are preferably and are arranged on the position of closing on nutrition liquid pool 1.Owing to the backflow nutrient solution is carried out the flow velocity that sterilization need limit the backflow nutrient solution by quartz burner, if flow velocity is too fast, then do not have sterilization effects, for this reason, can address this problem by a kind of simple mode, buffering groove 10 as shown in Figure 5 promptly is set on described nutrition liquid pool 1 next door, the inside of buffering groove 10 is provided with buffer wall 14, the height of buffer wall 14 is lower than the height of buffering groove 10, described buffer wall 14 will cushion groove 10 separated into two parts, be respectively buffering proparea 101 and buffering back zone 102, be provided with to be communicated with between buffering back zone 102 and the described nutrition liquid pool 1 and distinguish 15, as intercommunicating pore.After the backflow nutrient solution enters the buffering proparea 101 of buffering groove 10, need cross buffer wall 14 and enter buffering back zone 102, and then reduce the flow velocity of backflow nutrient solution in buffering groove 10.Described backflow sterilizing unit 7 as quartz burner, can be installed on the top or inwall of buffering groove 10, as is arranged on the top or inwall that are positioned at buffering proparea 101 of buffering groove.In addition, also can reduce the flow velocity of backflow nutrient solution, i.e. the cross-sectional area that is communicated with district 15 between restriction buffering groove and the nutrition liquid pool 1 etc. by simpler mode.In addition, buffering groove 10 also has the effect in precipitated impurities in buffer wall 14 moderating processes.
In addition, in the winter time can be to the nutrient solution processing of heating, as increasing heating wire at nutrition liquid pool 1, to the nutrient solution processing of heating, it is reached between 5 ℃ to 30 ℃ gets final product, as also can adjust the water content and the humidity of root, the more effective growth that promotes the crop potentiality with computer management according to the transpiration rule of plant.
The method that the atomizing solid cultivation system of employing cylindrical solid planting body is cultivated comprises the steps:
On the attachment of each implantation hole of as shown in Figure 3 columniform solid growth body 51, all implant a seed, and described solid growth body 51 is placed on the outside of the shower nozzle 54 of nutrient solution aerosol feed system;
The form that solid growth body 51 is provided with implantation hole and attachment is identical with the principle of plane planting body, in this structure by the structure explanation solid growth body 51 of illustrated planar planting body.As illustrated in fig. 1 and 2, plane planting body 511 is provided with the implantation hole 512 of each interval, as the matrix form that is rule is arranged, the bottom outside of every row's implantation hole 512 is fixed an attachment 513 that is used to adhere to seed, the width of attachment 513 is more than or equal to the diameter of implantation hole, and the implantation hole that is positioned on the same level height of corresponding solid growth body 51 can a shared circle attachment; Wherein, attachment 513 can be thin sponge, and attachment 513 need have certain water imbibition.
Automatically the described shower nozzle 54 of control will be directly injected on the described attachment through the nutrient solution of the HIGH PRESSURE TREATMENT form with aerosol state, the root that grows until seed passes the inside that described attachment stretches into the solid growth body, then described shower nozzle injects directly to plant roots with nutrient solution, till the plant maturation can be plucked.The injection frequency of described shower nozzle 54 and spray the concentration of nutrient solution all can be according to the situation that those skilled in that art grasped, demand according to the different plants of plantation is set, and adjust at the different vegetative stages of plant, concentration for the injection nutrient solution, the most basic requirement is that plant is when being in vegetative period, maturing stage and harvest time respectively, maturing stage, employed nutrient solution concentration was the highest, and harvest time takes second place, and vegetative period is minimum.
Originally, when the processing back that adds high pressure of nutrient solution or water process high-pressure hydraulic pump 3 sprays with aerosol state by shower nozzle 54, nutrient solution moistens seed with the infiltrate attachment, when seed sprouting after the inside of solid growth body 51 grows root 52, nutrient solution just can inject directly on the root 52, for plant provides nutrition, when plant grows up gradually, root 52 more and more can be burst attachment after the prosperity, and it is dropped on the ground, and this kind nutrient solution supply mode can really obtain aerial root.Nutrient solution is sprayed with aerosol state, to fill the air in the entire inner space of solid growth body 51, promptly can fill the air whole root system space in plant, allow plant can obtain mineral nutrition, can from air, absorb more oxygen again, so root growth is flourishing especially, plant strain growth speed is 3 to 5 times that accompany in water planting and land.As the melon and fruit class, can make its rattan grow 2 to 3 meters by plant nutrition liquid aerosol feed system described in the utility model 1 month time, root grows 2 to 3 meters.
When ambient temperature was higher than or equal 25 ℃, then described solid growth body directly was placed on cultural area, carried out the injection of nutrient solution or water by the described shower nozzle 54 that is provided with in the cultural area; When ambient temperature is lower than 25 ℃, then the solid growth body was placed on earlier in the room of growing seedlings 1 to 3 day, the temperature in room of growing seedlings need remain between 25 ℃ to 30 ℃, carry out the injection of water by the described shower nozzle 54 that is provided with in the room of growing seedlings, afterwards, be placed on experienced seedling zone again 2 to 3 days, the temperature of practicing the seedling zone between the temperature in the room of growing seedlings and ambient temperature by day successively decreasing, as ambient temperature is 0 ℃, and the temperature in the room of growing seedlings is 28 ℃, if practicing seedling zone placement 3 days, then first day temperature is 21 ℃, second day temperature is 14 ℃, and the 3rd day temperature is 7 ℃, plant roots is carried out the injection of nutrient solution or water by practicing the described shower nozzle that is provided with in the seedling zone; At last described solid growth body is placed on cultural area, carries out the injection of nutrient solution or water by the described shower nozzle 54 that is provided with in the described cultural area, till the plant maturation can be plucked.
In addition, on described solid growth body 51, can implant seed or the seedling of different plants, as the implantation hole that is arranged on its top is implanted the seed of fruit vegetables, can implant the seed of leaf vegetables or tubers being arranged in implantation hole on its sidewall, the seed that wherein, also can be divided into upper and lower plantation different vegetable class at sidewall.When the seed of fruit vegetables roots, grow after the rattan, rattan is hung on the rattan teapoy that is positioned at described solid growth body top, so, the leaf vegetables that is positioned at the below can rely on the rattan teapoy sunshade.By nutrient solution aerosol feed system described in the utility model, can make the rattan of melon and fruit class grow 2 to 3 meters 1 month time, root grows 2 to 3 meters.
Above-mentioned embodiment of the present utility model is non-limiting embodiment, and modification and modification that all those skilled in the art carry out on flesh and blood of the present utility model basis all belong in the scope of the utility model protection.

Claims (6)

1. the atomizing solid cultivation system of a cylindrical solid planting body is characterized in that: comprise nutrient solution aerosol feed system and columniform solid growth body; Described nutrient solution aerosol feed system comprises head cartridge and a plurality of shower nozzle, and the tube connector of described shower nozzle all is attached on the described head cartridge; The nutrition liquid pool; High-pressure hydraulic pump, the input port of described high-pressure hydraulic pump is communicated with the output channel of nutrition liquid pool, and the output port of described high-pressure hydraulic pump is communicated with described shower nozzle; Described solid growth body is provided with the implantation hole that is intervally installed, and described implantation hole is provided with the attachment that supplies seed or seedling to adhere to.
2. the atomizing solid cultivation system of cylindrical solid planting body according to claim 1 is characterized in that: described nutrient solution aerosol feed system also comprises magnetizing assembly, and described magnetizing assembly is arranged between the paramount water pump of nutrition liquid pool.
3. the atomizing solid cultivation system of cylindrical solid planting body according to claim 1, it is characterized in that: described nutrient solution aerosol feed system also comprises the filter that filters impurity in the nutrient solution, and described filter is arranged between the output port and shower nozzle of described high-pressure hydraulic pump.
4. the atomizing solid cultivation system of cylindrical solid planting body according to claim 1, it is characterized in that: described nutrient solution aerosol feed system also comprises backflash, described backflash is arranged on the bottom surface of solid growth body obliquely, and described backflash is to being disposed with return filter and backflow sterilizing unit between the nutrition liquid pool.
5. the atomizing solid cultivation system of cylindrical solid planting body according to claim 4, it is characterized in that: described nutrient solution aerosol feed system also comprises the buffering groove, it is arranged on the position of closing on described nutrition liquid pool, and is communicated with described nutrition liquid pool; The inside of described buffering groove is provided with buffer wall; Described backflow sterilizing unit is a quartz burner, and described quartz burner is installed on the top or inwall of described buffering groove.
6. according to the atomizing solid cultivation system of each described cylindrical solid planting body in the claim 1 to 5, it is characterized in that: described columniform solid growth body, the implantation hole that its top is provided with is as the fruit vegetables growing area, and the implantation hole that is provided with on the sidewall is as leaf vegetables or tubers growing area.
