EP0809169A3 - Ein-/Ausschaltbare Schaltungsanordnung zur Erzeugung eines Referenzpotentials - Google Patents

Ein-/Ausschaltbare Schaltungsanordnung zur Erzeugung eines Referenzpotentials Download PDF

Info

Publication number
EP0809169A3
EP0809169A3 EP97107599A EP97107599A EP0809169A3 EP 0809169 A3 EP0809169 A3 EP 0809169A3 EP 97107599 A EP97107599 A EP 97107599A EP 97107599 A EP97107599 A EP 97107599A EP 0809169 A3 EP0809169 A3 EP 0809169A3
Authority
EP
European Patent Office
Prior art keywords
transistor
transistors
emitter
collector
und
Prior art date
Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
Granted
Application number
EP97107599A
Other languages
English (en)
French (fr)
Other versions
EP0809169B1 (de
EP0809169A2 (de
Inventor
Stephan Weber
Current Assignee (The listed assignees may be inaccurate. Google has not performed a legal analysis and makes no representation or warranty as to the accuracy of the list.)
Siemens AG
Siemens Corp
Original Assignee
Siemens AG
Siemens Corp
Priority date (The priority date is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the date listed.)
Filing date
Publication date
Application filed by Siemens AG, Siemens Corp filed Critical Siemens AG
Publication of EP0809169A2 publication Critical patent/EP0809169A2/de
Publication of EP0809169A3 publication Critical patent/EP0809169A3/de
Application granted granted Critical
Publication of EP0809169B1 publication Critical patent/EP0809169B1/de
Anticipated expiration legal-status Critical
Expired - Lifetime legal-status Critical Current

Links

Classifications

    • G—PHYSICS
    • G05—CONTROLLING; REGULATING
    • G05F—SYSTEMS FOR REGULATING ELECTRIC OR MAGNETIC VARIABLES
    • G05F3/00—Non-retroactive systems for regulating electric variables by using an uncontrolled element, or an uncontrolled combination of elements, such element or such combination having self-regulating properties
    • G05F3/02—Regulating voltage or current
    • G05F3/08—Regulating voltage or current wherein the variable is DC
    • G05F3/10—Regulating voltage or current wherein the variable is DC using uncontrolled devices with non-linear characteristics
    • G05F3/16—Regulating voltage or current wherein the variable is DC using uncontrolled devices with non-linear characteristics being semiconductor devices
    • G05F3/20—Regulating voltage or current wherein the variable is DC using uncontrolled devices with non-linear characteristics being semiconductor devices using diode- transistor combinations
    • G05F3/30—Regulators using the difference between the base-emitter voltages of two bipolar transistors operating at different current densities

Landscapes

  • Engineering & Computer Science (AREA)
  • Microelectronics & Electronic Packaging (AREA)
  • Physics & Mathematics (AREA)
  • Power Engineering (AREA)
  • Nonlinear Science (AREA)
  • Electromagnetism (AREA)
  • General Physics & Mathematics (AREA)
  • Radar, Positioning & Navigation (AREA)
  • Automation & Control Theory (AREA)
  • Control Of Electrical Variables (AREA)
  • Amplifiers (AREA)

Abstract

Ein-/Ausschaltbare Schaltungsanordnung zur Erzeugung eines Referenzpotentials mit einem ersten Transistor (T1), dessen Emitter mit einem Bezugspotential (M) verbunden ist und dessen Basis und Kollektor miteinander verschaltet sind,
  • mit einem zweiten Transistor (T2), dessen Basis mit der Basis des ersten Transistors (T1) verbunden ist,
  • mit einem ersten Widerstand (R1), der zwischen den Kollektor des ersten Transistors (T1) und einen Ausgangsanschluß (U) zum Abgreifen des Referenzpotentials geschaltet ist,
  • mit einem zweiten Widerstand (R2), der zwischen den Kollektor des zweiten Transistors (T2) und den Ausgangsanschluß (U) geschaltet ist,
  • mit einem dritten Widerstand (R3), der zwischen Emitter des zweiten Transistors (T2) und das Bezugspotential (M) geschaltet ist,
  • mit einem dritten Transistor (T3), dessen Basis mit dem Kollektor des zweiten Transistors (T2) und dessen Emitter mit dem Bezugspotential (M) verbunden ist, und
  • mit einer gesteuerten Stromquelle (T4), die zwischen ein Versorgungspotential (V) und den Ausgangsanschluß (U) geschaltet ist und die eingangsseitig mit dem Kollektor des dritten Transistors (T3) gekoppelt ist, wobei der Kollektor-Emitter-Strecke des dritten Transistors (T3) die Kollektor-Emitter-Strecke eines fünften Transistors (T5) parallel geschaltet ist und daß die Basis des fünften Transistors (T5) durch ein Schaltsignal (S) angesteuert wird.

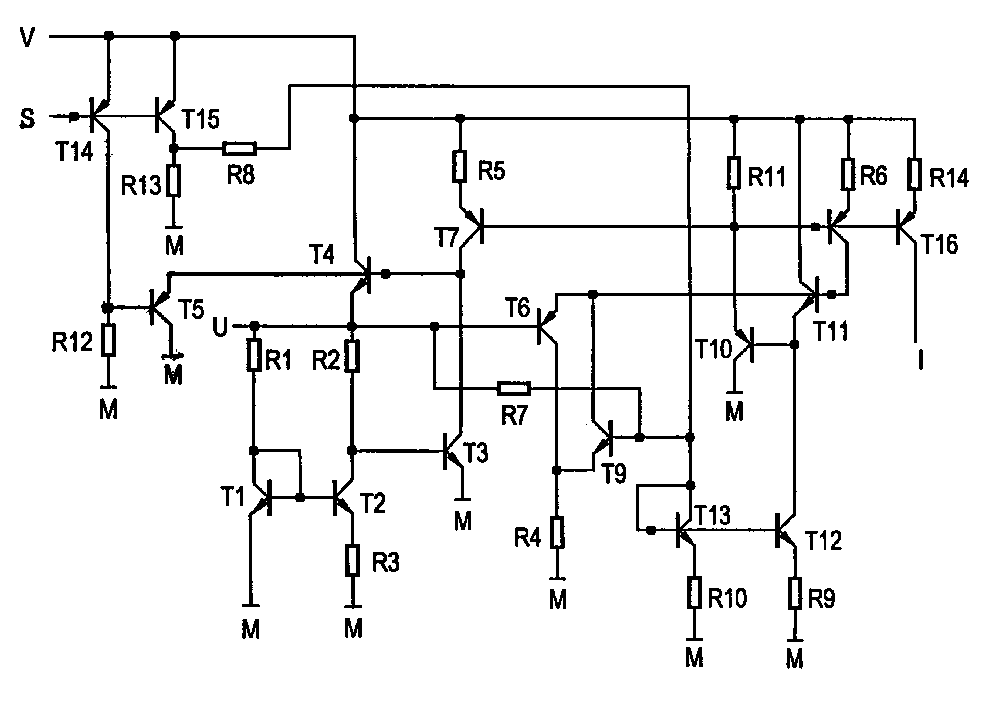

    • Figure 00000001
    EP97107599A 1996-05-24 1997-05-05 Ein-/Ausschaltbare Schaltungsanordnung zur Erzeugung eines Referenzpotentials Expired - Lifetime EP0809169B1 (de)
