Abstract

The utility model discloses an energy-saving sunlight greenhouse of a semi-underground, two-slope and double-suspending bracket. The greenhouse consists of a semi-underground front room and a semi-underground back room, wherein a double-suspending bracket at the front roof arranged above the semi-underground front room and a double-suspending bracket at the back roof arranged above the semi-underground front room are supported by central pillars. The energy-saving sunlight greenhouse designs the back wall heat preservation of the existing greenhouse to be the back room heat accumulating heat preservation, and stores the illumination quantity which is equivalently irradiated on the wall body in the day in the ground and the air of the back room through a PC sunshine heat shielding board. The design can reduce more than 1/3 soil waste caused by the floor area of the wall, and has better heat retaining property and stability than one-slope wall body.

Description

The two string frame energy saving sunlight greenhouses in slope, semi-underground two sides
Technical field
The utility model relates to a kind of energy saving sunlight greenhouse, particularly a kind of energy saving sunlight greenhouse that is applicable to that the northern country area is promoted the use of, and the optimal adaptation scope is at north latitude 35-40 degree.
Background technology
At present, the greenhouse by solar heat majority that promote in the northern China rural area is Yimianpu wall body structure, because of the winter solar elevation angle is low, and cold weather.Require the front roof angle bigger, body of wall is high and thickly could receive sunshine preferably and heat is preserved.It is many so just to cause wall construction to take up an area of, and utilizes area few, cost cost height, many disadvantages such as poor stability.After entering spring and summer, body of wall can produce certain effect of sheltering from heat or light to the greenhouse again, influences the raising of greenhouse overall yield.
Summary of the invention
The purpose of this utility model provides a kind of cheap, can effectively improve the two string frame energy saving sunlight greenhouses in slope, semi-underground two sides of land utilization rate and production efficiency, and low to overcome the prior art land utilization rate, heat-insulating property is poor, the deficiency that cost is high.
The utility model implementation procedure is as follows:
The two string frame energy saving sunlight greenhouses in slope, a kind of semi-underground two sides, constitute by semi-underground cup and chamber, semi-underground back, the two string framves of back roofing that are provided with above two string framves of the front roof that is provided with above the semi-underground cup and chamber, semi-underground back support by center pillar, and the two string framves of center pillar and front roof, the two string framves of back roofing are connected and fixed by the cover pipe connections; The height of energy saving sunlight greenhouse is 4.0~5.4 meters, and span is 10.0~15.0 meters.
Separate chamber gas exchange window before and after the PC sunlight board is provided with the PC sunlight board between semi-underground cup and the chamber, semi-underground back.
Semi-underground cup is in underground 0.3~0.5 meter, and chamber, semi-underground back is in underground 0.8~1.0 meter, and under ground portion is 37 cement brick wall structures.
Front roof elevation angle ∠ 1 is between 30~32 degree, and back roofing elevation angle ∠ 2 is greater than the sun altitude in local the Beginning of Winter.
The two string framves of front roof are provided with the pavement with the two string frame coupling parts of back roofing, and the pavement is wide to be 1.0-1.2 rice.
Advantage of the present utility model and good effect: the utility model with present greenhouse after the wall INSULATION DESIGN be back chamber heat storing and heat preserving, utilize the pyroconductivity of air to be far smaller than the characteristics of body of wall, will shine the quantity of illumination that is equivalent on the body of wall daytime and see through in the underground and air that PC sunlight thermal insulation board is stored in the chamber, back.Reduce back hot through-flow amount of roofing and underground amount of thermal conduction by the underground degree of depth of thickening outer covering and chamber, suitable intensification back again, realize many accumulation of heats, many heat preservation effect.So just formed the ground pure frame structure of two Room one decks, that is: cup is shallow semi-underground high light brooder chamber Ι, can plant multiple happiness light thermophily crop; Back chamber is dark semi-underground low light level Wen Peng chamber II, III, can plant low light level crop, is particularly suitable for breeding production; The centre is a PC sunlight board heat-insulating room, cup is carried out the secondary insulation, and gas exchange can be carried out by the gas exchange window in the chamber, front and back, has so just formed the ecological circulation chain of breeding combination, and overcome the problem of body of wall sunshade, improved the availability and the production efficiency in soil greatly.This design can reduce because of body of wall takes up an area of the land wastage cause more than 1/3rd, and its heat insulating ability, stability all are better than Yimianpu wall body structure, and cost is lower than the nearly 1/3rd of Yimianpu brick wall structure, near the cob wall structure.
Description of drawings

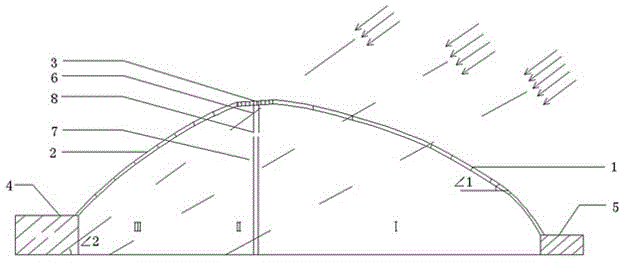

Fig. 1 is a structural representation of the present utility model.
The two string framves 2 of the 1-front roof-two string frame 3-pavements of back roofing
Chamber, 4-back under ground portion 5-cup under ground portion
6-cover pipe connections, 7-center pillar, 8-gas exchange window
I is best incidence zone, and II is suitable incidence zone, and III is for being fit to the incidence zone.
Embodiment
I of the present utility model is that best incidence zone is high light brooder chamber, and II constitutes low light level Wen Peng chamber for suitable incidence zone, III for suitable incidence zone, II, III.
∠ 1 is the front roof elevation angle, requires greater than 30 degree, and ∠ 2 is the roofing elevation angle, back, and sun altitude makes the chamber, back can not shine sunshine under the obducent situation outside not taking off whole winter when requiring greater than the Beginning of Winter.(1 year 11.5 months--1 year 2.5 months).
By accompanying drawing 1 as seen, this practical branch is underground, ground two parts, and under ground portion is 37 cement brick wall structures, is two string frame all steel frame structures on the ground, cover pipe connections 6 connections and fixing of front and back skeleton.Center pillar 7 is located at pavement 3 midpoint, and adheres to the PC sunlight board.Front and back roofing arched framework spacing is 1.0~1.2 meters.10.0~15.0 meters of front and back span.4.0~5.4 meters of ridge height (peak is apart from ground), 50.0~60.0 meters of length (greenhouse length).Front roof elevation angle ∠ 1 is between 30~32 degree, and back roofing elevation angle ∠ 2 is greater than the sun altitude of locality during the Beginning of Winter.The roof is 0.13 meter thick polyphenyl color steel pavement 3, and it is wide to be 1.0-1.2 rice.The both sides gable is built with double-deck 0.10 meter thick color steel, and spacing is 0.30 meter and forms three layers of heat-insulation layer.Whole framework can shorten the construction time limit greatly by the welding aggregate erection.

Claims (9)

1. two string frame energy saving sunlight greenhouses in slope, a semi-underground two sides, it is characterized in that: the greenhouse is made of semi-underground cup and chamber, semi-underground back, and the two string framves of back roofing that are provided with above two string framves of the front roof that is provided with above the semi-underground cup and chamber, semi-underground back support by center pillar.
2. the two string frame energy saving sunlight greenhouses in slope, semi-underground two sides according to claim 1 is characterized in that: separate with the PC sunlight board between semi-underground cup and the chamber, semi-underground back.
3. the two string frame energy saving sunlight greenhouses in slope, semi-underground two sides according to claim 2 is characterized in that: chamber gas exchange window before and after the PC sunlight board is provided with.
4. the two string frame energy saving sunlight greenhouses in slope, semi-underground two sides according to claim 1, it is characterized in that: semi-underground cup is in underground 0.3~0.5 meter, and chamber, semi-underground back is in underground 0.8~1.0 meter.
5. the two string frame energy saving sunlight greenhouses in slope, semi-underground two sides according to claim 4, it is characterized in that: under ground portion is 37 cement brick wall structures.
6. the two string frame energy saving sunlight greenhouses in slope, semi-underground two sides according to claim 1, it is characterized in that: front roof elevation angle ∠ 1 is between 30~32 degree, and back roofing elevation angle ∠ 2 is greater than the sun altitude in local the Beginning of Winter.
7. the two string frame energy saving sunlight greenhouses in slope, semi-underground two sides according to claim 1, it is characterized in that: the height of energy saving sunlight greenhouse is 4.0~5.4 meters, span is 10.0~15.0 meters.
8. the two string frame energy saving sunlight greenhouses in slope, semi-underground two sides according to claim 1 is characterized in that: the two string framves of center pillar and front roof, the two string framves of back roofing are connected and fixed by the cover pipe connections.
9. the two string frame energy saving sunlight greenhouses in slope, semi-underground two sides according to claim 8 is characterized in that: the two string framves of front roof are provided with the pavement with the two string frame coupling parts of back roofing, and the pavement is wide to be 1.0-1.2 rice.
