Abstract
The utility model discloses a design of an asymmetrical double-layer interior thermal insulation greenhouse, and belongs to the field of modern facility agricultural engineering. The design of the asymmetrical double-layer interior thermal insulation greenhouse aims at the fact that disaster weather is various in the northwest region in the country and water resources are deficient. The greenhouse comprises a yin shed and a yang shed. A back-to-back type is adopted. A span of the yang shed is larger than the yin shed. The two sheds are composed of an inner layer steel frame and an outer layer steel frame. The outer shed is composed of a double-string framework and a thin film. The inner shed is composed of a single framework structure, a heat preservation quilt, a shutter machine and a thin film. The shutter machine is installed on a supporting frame of the inner shed framework shutter machine. A roof of the surface of a backhouse is in a concave groove shape, thus rain water and snowmelt are stored. The rain water and the snowmelt are stored in a greenhouse impounding reservoir through a drainage pipeline. The design of the asymmetrical double-layer interior thermal insulation greenhouse has the advantages that ability of heat preservation of the greenhouse is improved, utilization efficiency of the ground is improved, ability of snow and rain and sand resistance is improved, and natural rainfall and snowfall resources are effectively used. The design of the asymmetrical double-layer interior thermal insulation greenhouse is an effective way of solving water shortage of agriculture in a dry and a semiarid area.
Description
1 technical field:
The present invention relates to the design of heat-insulating greenhouse in a kind of asymmetric bilayer, this greenhouse can increase indoor temperature, greatly improves the greenhouse heat-insulating heat storage capacity, improves land utilization efficiency, belongs to modern installations agricultural engineering technology field.
2 background technologies:
Greenhouse by solar heat is in recent years in China " three Norths " fast-developing a kind of high-efficiency and energy-saving type greenhouse form in area.National area has surpassed 700,000 hm at present
2, become that the northern area winter vegetable is produced and the important means of farmer richness, also be simultaneously the important technology selection of agriculture industry restructuring in the new countryside construction.Greenhouse by solar heat has the characteristics such as good heat insulating, cost be low, is extensively promoted in the vast rural area of northern area, but still have many problems in actual production process:
(1) the greenhouse by solar heat floor space is large, and the problem that the effective use of land rate is low is also restricting the fast development of this greenhouse form always.In the low light level time in the winter time, a greenhouse does not cause blocking of light to rear greenhouse before guaranteeing, must leave certain spacing between the two.Latitude is higher, and this spacing is just larger.For improving the greenhouse heat-insulating performance, must lengthen the length of adverse grade at the northwest high and cold area, cause the shading of inside greenhouse subregion serious, some areas are the shading of avoiding between the greenhouse, blindly strengthen the distance between the greenhouse, and land utilization rate reduces on the unit are as a result.
(2) be subjected to the impact of natural weather condition large, it further applied be restricted.Greenhouse by solar heat is a kind of passive type solar energy greenhouse, and the quality of its thermal property directly is subjected to the impact of outdoor weather condition.In the Northwest, the nature sunshine time in high and cold area winter is very short, and sunrise was to sunset less than 9 hours, and extraneous limiting temperature is very low.It is thick that soil freezes layer depth, causes that heat by conduction increases in the ground of soil in the greenhouse, and loss of heat is more, makes in the greenhouse soil temperature excessively low, thereby cause the plant growth speed of energy saving greenhouse winter planting slow, yield reducation, decline in benefits.
(3) in the NORTHWEST CHINA area, the critical shortage of water resource has become the biggest obstacle of restriction agricultural sustainable development, but industrialized agriculture mostly is broad irrigation in irrigating, and along with the propelling of agricultural water price reform, traditional irrigation method makes the peasant bear white elephant.
3 summary of the invention:
The object of the invention is to overcome the deficiencies in the prior art, (1) improves land utilization rate by the design in asymmetric male and female face greenhouse, improves the cultivated area of crop.(2) covered by duplicature by built-in heat insulation, improve the heat insulation effect of booth, the liner type air between the canopy film is conducive to improve the booth nocturnal temperature as cushion space.(3) utilize greenhouse by solar heat roofing collection rain technology, pipe drainage, the cistern retaining improves the natural water resource utilization ratio.Therefore emphasis of the present invention provides a kind of utility model plastic tunnel of high-efficiency and economic, and this plastic tunnel Winter protection performance is good, can plant different vegetable in sun-cloudiness shed according to season and vegetables physiological property, improves the benefit of earning foreign exchange.
Technical scheme: the design of heat-insulating greenhouse in a kind of asymmetric bilayer, it is characterized in that utilizing the back wall of traditional greenhouse by solar heat, adopt back-to-back formula, in the south Yang Peng is set, cloudy canopy is set in the north side, cloudy canopy span improves the illumination utilization ratio less than positive canopy span.The body of wall of sun-cloudiness shed adopts brick and concrete construction, and cloudy booth structure design is similar to positive canopy, all covers by duplicature and plays insulation effect.
Yang Peng and cloudy canopy form by Wai Peng and interior canopy.Outer canopy is comprised of outer skeleton and the superincumbent film of covering, and outer skeleton is two string skeletons.Interior canopy is comprised of inner frame, film and shutter and thermal insulation quilt, and inner frame adopts the monoskeleton structure, is mainly used in carrying thermal insulation quilt, and shutter is installed on the autocratic shutter support of interior canopy skeleton ceiling middle part, and shutter is left and right sides stay-supported structure.
Greenhouse roof is the groove shape, and osculum is respectively established in both sides, is connected in the greenhouse in the cistern by drainage pipeline, accumulates to store rainwater and accumulated snow melt water, can be applicable to industrialized agriculture and irrigates.
Compared with the prior art, the beneficial effects of the utility model are embodied in:
(1) by increasing cloudy canopy, the rear wall district of sheltering from heat or light behind is converted into the production area, takes full advantage of common rear wall of greenhouse body and divides, and has increased cultivated area; Winter, cloudy canopy temperature according to relatively poor, can be planted the less edible fungi vegetables of low temperature resistant light requirement than low light.Can plant summer and get over the summer vegetables, can plant for two seasons in 1 year, increase the booth vegetable kind.(2) adventitia covers the anti-blown sand ability that has improved whole booth, is adapted to NORTHWEST CHINA section area; Inner membrance is added a cover thermal insulation quilt so that winter temperature of shed than before double-deck booth improve 4-8 ℃, can substantially satisfy NORTHWEST CHINA section area warm season vegetable and pass the winter safely.(3) the buffering liner type thermal insulation layer between the canopy film can be alleviated the amplitude of extraneous climatic variation, improves the booth nocturnal temperature, can in time reduce again the area of high-temperature area on daytime.(4) utilize the accumulated snow melt water in accumulation natural precipitation and winter to be used for the industrialized agriculture irrigation, can effectively solve the deficient problem of the Northwest's agricultural water resources.
Description of drawings:

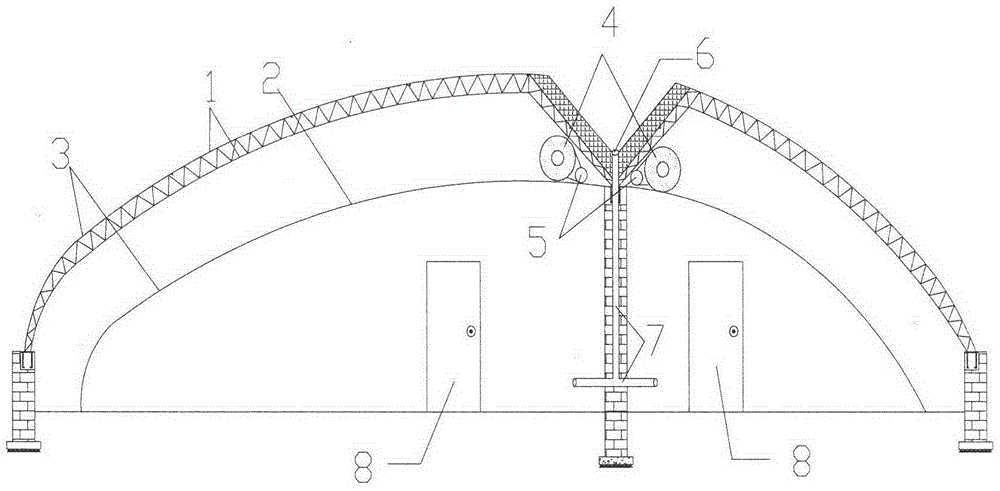

Accompanying drawing 1: main TV structure generalized section
Accompanying drawing 2: floor map
Number among the figure: 1. outer skeleton galvanized pipe, 2. inner frame galvanized pipe, 3. film, 4. thermal insulation quilt, 5. shutter, 6. osculum, 7. drainage pipeline is 8. produced door, 9. cistern
Embodiment:
The booth of this example is heat-insulating greenhouse in a kind of asymmetric bilayer, and shown in Figure 2 such as Fig. 1, it comprises north and south two surface green houses, and Wai Peng and Nei Peng.The south is Yang Peng, and north is cloudy canopy, positive canopy span 8~10m, and cloudy canopy span is 5~6m.Its China and foreign countries' canopy adopts two skeletons, and interior canopy adopts the monoskeleton structure.For the many climatic characteristics of NORTHWEST CHINA area hazard weather, outer canopy has played the effect of sand-proof, so that the thermal insulation quilt in the interior canopy has played sufficient insulation and moisture-proof role especially for it.Outer skeleton galvanized pipe 1 is two skeleton structures, steel skeleton outside cover film 3, wherein film 3 is pressed on the arched girder of outer skeleton galvanized pipe 1 by film-pressing line, interior canopy is made of inner frame galvanized pipe 2, film 3, thermal insulation quilt 4 and stay-supported shutter 5, the stay-supported shutter is placed on the autocratic support of inner frame galvanized pipe 2, select supporting with it stay cord, the thermal insulation quilt on minute Ge La both sides, the left and right sides.
As shown in Figure 2, the body of wall of the joining place of roofing forms the groove shape behind sun-cloudiness shed, build to accumulate rainwater with concrete and mortar envelope the thing both sides, osculum 6 built-in bottoms, and link to each other with drainage pipeline 7, drainage pipeline is to downward-extension, be delivered to respectively cistern 9 at bottom tapping to sun-cloudiness shed, drainage pipeline also can only connect 1 canopy, needs the water characteristic according to planting vegetable, produces the actual conditions such as arranging of door and arranges flexibly.
When building afflux groove,, local rainfall long according to canopy grasped flexibly, and lays antiseepage film, to prevent water minute seepage.Lining concrete and mortar can connect the drip irrigation water system according to actual conditions.
Claims (5)
1. the design of the interior heat-insulating greenhouse of asymmetric bilayer, it is characterized in that: utilize the rear wall of greenhouse body to build cloudy canopy in the north side, the south is Yang Peng, and cloudy canopy span is less than positive canopy span.
2. the design of heat-insulating greenhouse in a kind of asymmetric bilayer according to claim 1 is characterized in that: Yang Peng and cloudy canopy inside form by Nei Peng and outer canopy, and outer canopy skeleton is two string skeleton structures, and interior canopy skeleton is the monoskeleton structure.
3. the design of heat-insulating greenhouse in a kind of asymmetric bilayer according to claim 2, it is characterized in that: interior canopy is comprised of inner frame, film, shutter and thermal insulation quilt.
4. the design of heat-insulating greenhouse in a kind of asymmetric bilayer according to claim 3 is characterized in that: above-mentioned shutter adopts left and right sides stay-supported structure, and shutter is installed on the shutter support of interior canopy inner frame ceiling.
5. the design of heat-insulating greenhouse in a kind of asymmetric bilayer according to claim 1, it is characterized in that: greenhouse roof is the groove shape, and osculum is respectively established in both sides, is connected in the greenhouse in the cistern by drainage pipeline.
