- the present invention relates to a culture having a good aroma and use thereof.
- Patent Documents Conventionally, a method for obtaining a culture having a good aroma using a yeast that produces various aroma components such as Saccharomyces cerevisiae has been known, and the culture is used as a food and drink (Patent Documents). 1-3).
- Ethyl benzoate which is one of the aromatic components, can be chemically synthesized from benzoic acid and ethanol. This compound is known as one of the aroma components of star fruit and is industrially used as an artificial fragrance for fruit scent.
- a culture using Saccharomyces cerevisiae containing ethyl benzoate as an aroma component is also known, but its content was as low as 0.006 to 0.009 ppm (Non-patent Document 1).
- Wickerhamomyces pipiper (Wickerhamomyces pijperi) is a kind of yeast that has been reclassified from Pichia pijperi. Although it was described that it was cultured in a medium, the characteristics of the obtained culture were unknown, and it was not known at all that it could be cultured in a milk component-containing medium and the aroma of the culture.
- An object of the present invention is a novel composition that can be used in a composition for a fragrance, a cosmetic, a food and drink, a pharmaceutical product, and the like, and contains a large amount of ethyl benzoate, which is more than a chemically synthesized product of ethyl benzoate. It is to provide a composition having a complex and fresh fruity scent and use thereof.
- the present inventor made various studies to develop a composition having a good aroma, and surprisingly, when the microorganism of the genus Wickerhamomyces was cultured in a medium containing a milk component, the aroma component A culture containing a large amount of ethyl benzoate known as, and having a more complex and fresh fruit-like fragrance than a chemically synthesized product of ethyl benzoate, the culture is a composition for perfume, cosmetics, It discovered that it was useful as a culture which can be used for food-drinks, a pharmaceutical, etc., and completed this invention.
- the present invention provides the following [1] to [10].
- [1] A culture obtained by culturing a microorganism belonging to the genus Wicker Hamomyces in a milk component-containing medium.
- a pharmaceutical comprising the culture according to any one of [1] to [5].
- the culture of the present invention contains a large amount of ethyl benzoate and has a more complex and fresh fruit-like fragrance than a chemically synthesized product of ethyl benzoate, it is not only a composition for perfume and cosmetics, but also a food and drink. It is useful as a culture for pharmaceuticals and pharmaceuticals.
- the culture of the present invention is a culture obtained by culturing a microorganism belonging to the genus Wicker Hamomyces in a milk component-containing medium.
- the microorganisms belonging to the genus Wickerhamomyces include Wickerhamomyces pijperi, Wickerhamomyces anomalus, Wickerhamomyces bovis, Wickerhamomyces bovis, and Wickerhamomyces bovis.
- Wicker Hamomyces pipeperi is more preferable.
- NBRC1290 and NBRC1887 deposited with NBRC (NITE Biological Resource Center) among Wicker Hamomyces pipeperi are more preferable. Note that these microorganisms may be used alone or in combination.
- Wicker Hamomyces Pijuperi is included in the Wicker Hamomyces Pijuperi of the present application.
- milk component refers to a product containing components derived from milk such as raw milk of milk, goat milk, sheep milk or the like, heated milk, skim milk powder, whole milk powder or fresh cream, whey, etc. means.
- the milk component-containing medium may be a medium containing a milk component and may further contain other components.
- Sugar, benzoic acid, and / or its salt such as glucose, galactose, lactose, fructose, are preferable.
- glucose is preferable because it is assimilated by microorganisms.
- benzoic acid and / or a salt thereof is preferable in that the amount of ethyl benzoate produced by the microorganism is improved when added, and the salt of benzoic acid is more preferably an alkali metal benzoate such as sodium benzoate and potassium benzoate.
- sodium benzoate is more preferable. Therefore, it is preferable to add benzoic acid and / or sodium benzoate as benzoic acid and / or a salt thereof.

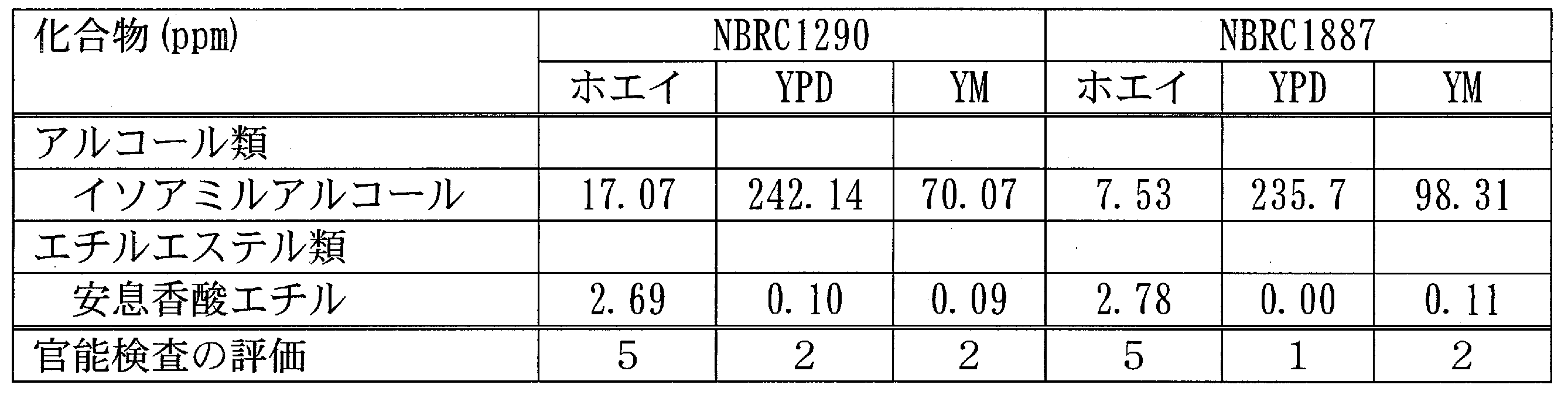

- whey is particularly preferable since the production amount of microbial ethyl benzoate is improved.
- “Whey” is obtained by removing milk fat and casein from milk.
- whey can be obtained as a culture supernatant when a milk component is fermented with a microorganism, and preferably contains sugars such as lactose and galactose, amino acids, lactic acid, proteins and the like.
- the whey is particularly preferably a culture supernatant obtained by culturing milk components with lactic acid bacteria and / or bifidobacteria.
- lactic acid bacteria and / or bifidobacteria include Lactobacillus casei, Lactobacillus mari, Lactobacillus acidophilus, Lactobacillus delbruxii subspecies. Lactobacillus bacteria such as Bulgaricus and Lactobacillus helveticus, Streptococcus bacteria such as Streptococcus thermophilus, Lactococcus lactis subspecies. Lactis, Lactococcus lactis subspecies.
- List Lactococcus bacteria such as Cremoris, Enterococcus bacteria such as Enterococcus faecalis, or Bifidobacterium bacteria such as Bifidobacterium breve, Bifidobacterium bifidum and Bifidobacterium longum Can do.
- the content of the milk component in the medium is not particularly limited, but is preferably 1 to 50% by mass (hereinafter simply referred to as “%”) in terms of solid content, and more preferably 2 to 10%.
- the content of benzoic acid and / or a salt thereof is preferably 0.001 to 0.1% in the milk component-containing medium from the viewpoint of the amount of ethyl benzoate produced by the microorganism and the growth ability of the microorganism. 01 to 0.05% is more preferable.
- the content of glucose is preferably 0.1 to 10%, more preferably 1 to 5% from the viewpoint of the ability of microorganisms to grow.
- the culture temperature of the microorganism belonging to the genus Wicker Hamomyces is not particularly limited, but is preferably 15 to 30 ° C., more preferably 20 to 30 ° C. from the viewpoint of the scent of the culture.
- the culture time is preferably 8 hours or more, more preferably 24 to 32 hours.

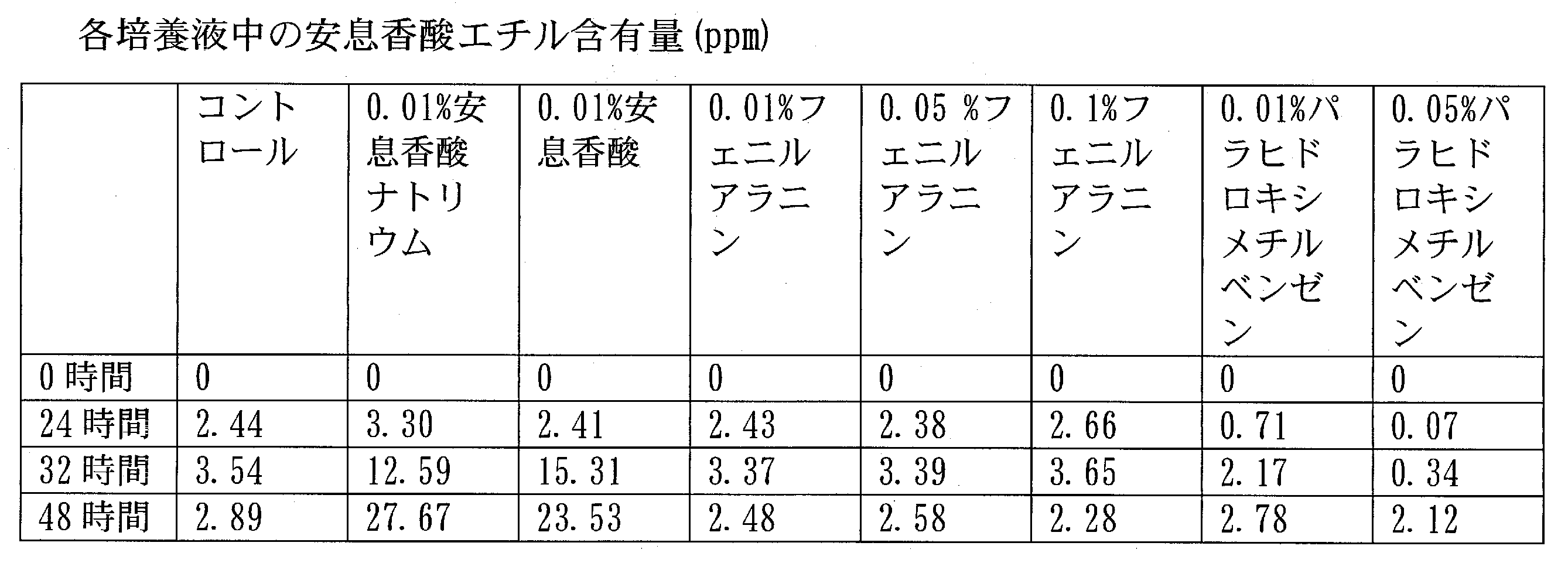

- benzoic acid and / or a salt thereof is added to the medium, it is preferably 24 to 48 hours, more preferably 32 to 48 hours.
- Examples of the culture method include stirring culture, stationary culture, shaking culture, and neutralization culture.
- the culture of the present invention contains 1.0 ppm or more of ethyl benzoate, and has a more complex and fresh fruit-like fragrance than a chemically synthesized product of ethyl benzoate.
- the content of ethyl benzoate is preferably 1.0 to 50 ppm, and more preferably 1.0 to 30 ppm.
- the culture of the present invention may contain other aroma components other than ethyl benzoate.
- Other fragrance components include fragrance components such as isoamyl alcohol.
- the culture of the present invention contains a large amount of ethyl benzoate and has a good fruit-like aroma that is more complex and fresh than a chemically synthesized product of ethyl benzoate
- the composition for fragrances, cosmetics, foods and drinks, and pharmaceuticals Etc. can be used.
- the cosmetics field there are few biologically derived fragrances that can be used industrially, and natural fragrances are more demanding than synthetic fragrances, so that they can be suitably used for cosmetics.

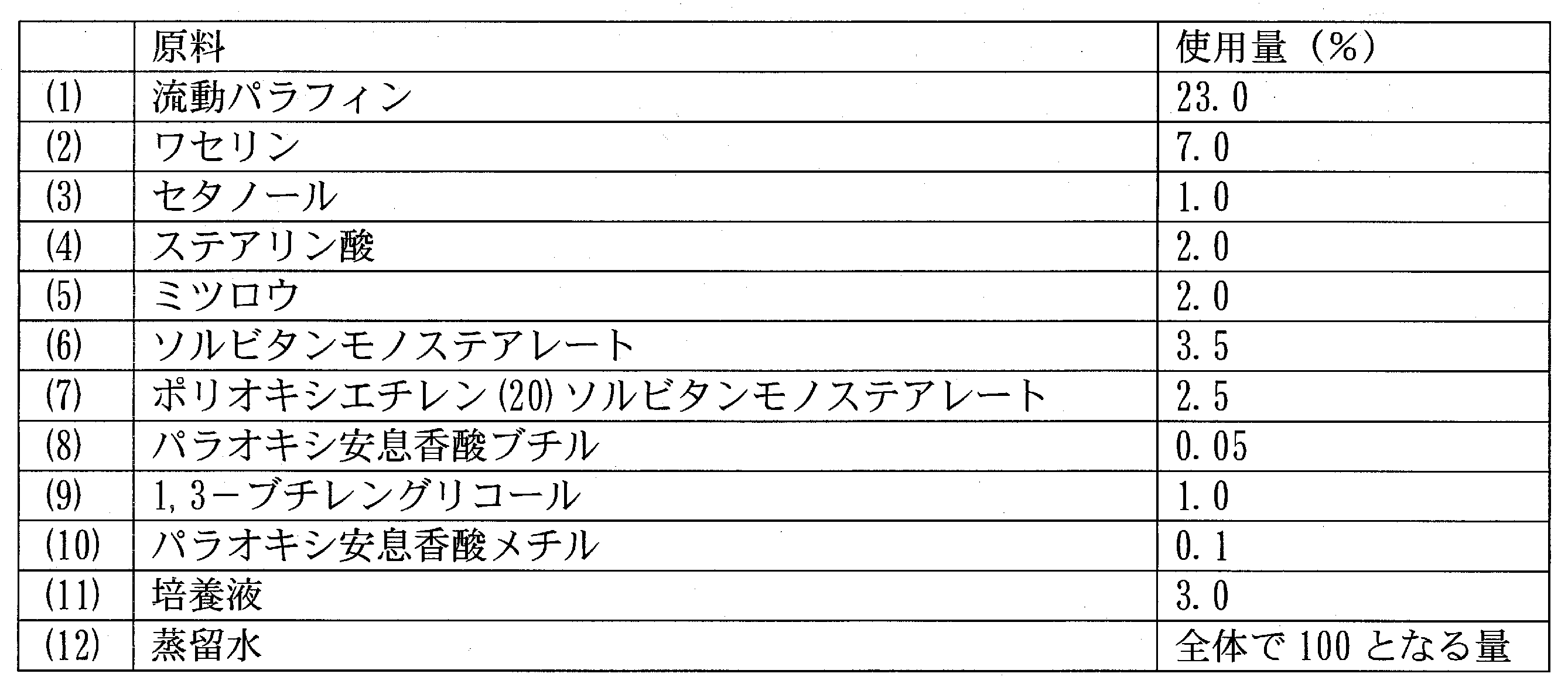

- the culture of the present invention may be blended as it is in a fragrance composition, cosmetics, food and drink, pharmaceuticals, etc., but it is preferable to blend a filtered product.
- the culture can be concentrated by freeze-drying or distillation, and the concentrate can be blended in a fragrance composition, cosmetics, foods and drinks, pharmaceuticals, and the like.
- Cosmetics include perfume, eau de cologne, eau de toilette and other fragrance cosmetics, lotion, emulsion, lotion, cream, pack, cosmetics and other basic cosmetics, shampoo and rinse hair cosmetics, bath cosmetics such as bath preparations, foundations, etc. Makeup cosmetics, and special cosmetics such as sunscreens.
- Examples of the food and drink include various soft drinks, sparkling sake, beer, sake, confectionery, ice confectionery, ice cream, and dairy products such as fermented milk.
- pharmaceuticals include external preparations such as creams, ointments and gels.
- the content of the culture of the present invention in these cosmetics, foods and drinks, and pharmaceuticals is preferably 0.01 to 10%, more preferably 0.1 to 1% in terms of solid content.
- Example 1 (1) Strain and pre-culture
- Pre-culture Pre-culture 20% glycerol frozen in 2 ml of Yeast and Mold (YM) medium (1% glucose, 0.5% peptone, 0.3% yeast extract, 0.3% malt extract) 20 ⁇ L of the strain was inoculated and cultured with shaking at 30 ° C. and 160 rpm for 24 hours.
- YM Yeast and Mold
- a complex and fresh fruit-like scent was strongly felt from the culture solution obtained by culturing NBRC1290 and NBRC1887 strains in a whey-containing medium, and the culture solution contained a large amount of ethyl benzoate.

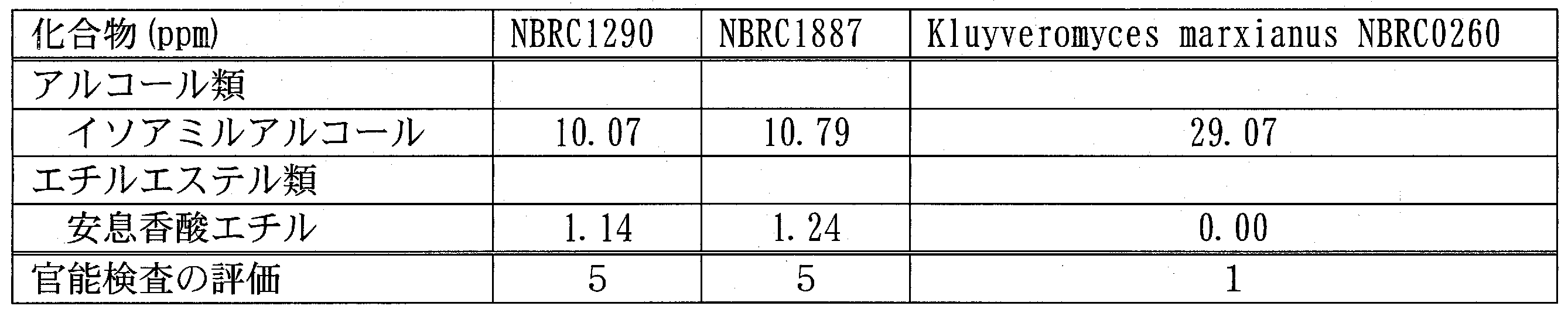

- the culture solution obtained by culturing the above strain in YM medium or YPD medium may contain ethyl benzoate in some cases, but the content thereof is small, and there is almost no complex and fresh fruit-like fragrance.
- a complex and fresh fruit-like scent is strengthened.
- ⁇ Complex and fresh fruit-like scent.
- ⁇ Complex and fresh fruit-like fragrance is slightly reduced, but complexity is weak.
- ⁇ The fragrance of other fragrance components is strong, the characteristics of the scent change, and it has a sake-like scent.
- ⁇ No complex and fresh fruity scent.
- the culture temperature was 15 ° C.
- ethyl benzoate was produced by fermentation of microorganisms, but the fragrance of other aroma components was weak and the complexity of the fragrance of the culture was weak.
- the culture cultured at 20-30 ° C. had a complex and fresh fruit-like scent and a good scent.
- the incubation time is 48 hours or more
- the production of fragrance components other than ethyl benzoate increases due to the fermentation of microorganisms, so the fragrance of other fragrance components becomes stronger and the characteristics of the fragrance change. It smelled like For this reason, the culture time was 24 to 32 hours.
- Production Example 1 With the composition shown in Table 9, (5) and (6) were mixed, and (1) to (4) were added thereto and stirred thoroughly to prepare a lotion.
- This lotion had a complex and fresh fruity scent.
- As a culture solution 100 ml of a whey-containing medium containing 1% glucose was inoculated with 1 ml of the preculture solution obtained in the preculture of Example 1 (4), and cultured with shaking at 20 ° C. for 24 hours at 160 rpm. What filtered the obtained culture solution was used.
- Production Example 2 With the composition of Table 10, (7) to (9) were added to (10) and heated, and (1) to (6) were added and emulsified at 80 ° C., and cooled to room temperature to prepare an emulsion.
- the emulsion had a complex and fresh fruity scent. Note that the same culture broth as in Production Example 1 was used.
- Production Example 3 With the composition shown in Table 11, (9) to (11) were added to (12) and heated, and (1) to (8) were added and emulsified at 80 ° C., and cooled to room temperature to prepare a cream.
- the cream had a complex and fresh fruity scent. Note that the same culture broth as in Production Example 1 was used.
Landscapes
- Life Sciences & Earth Sciences (AREA)
- Health & Medical Sciences (AREA)
- Chemical & Material Sciences (AREA)
- Engineering & Computer Science (AREA)
- Organic Chemistry (AREA)
- Mycology (AREA)
- General Health & Medical Sciences (AREA)
- Wood Science & Technology (AREA)
- Biotechnology (AREA)
- Microbiology (AREA)
- Zoology (AREA)
- Animal Behavior & Ethology (AREA)
- Public Health (AREA)
- Veterinary Medicine (AREA)
- Polymers & Plastics (AREA)
- Nutrition Science (AREA)
- Food Science & Technology (AREA)
- Chemical Kinetics & Catalysis (AREA)
- Genetics & Genomics (AREA)
- Bioinformatics & Cheminformatics (AREA)
- Epidemiology (AREA)
- Botany (AREA)
- Natural Medicines & Medicinal Plants (AREA)
- Biochemistry (AREA)
- General Engineering & Computer Science (AREA)
- Medicinal Chemistry (AREA)
- General Chemical & Material Sciences (AREA)
- Birds (AREA)
- Oil, Petroleum & Natural Gas (AREA)
- Pharmacology & Pharmacy (AREA)
- Medical Informatics (AREA)
- Alternative & Traditional Medicine (AREA)
- Tropical Medicine & Parasitology (AREA)
- Biomedical Technology (AREA)
- Virology (AREA)
- Dermatology (AREA)
- Oral & Maxillofacial Surgery (AREA)
- Dentistry (AREA)
- Cosmetics (AREA)
- Micro-Organisms Or Cultivation Processes Thereof (AREA)
Abstract
Description
〔2〕乳成分含有培地が、ホエイ含有培地である〔1〕記載の培養物。
〔3〕ウィッカーハモマイセス属に属する微生物が、ウィッカーハモマイセス・ピジュペリである〔1〕又は〔2〕記載の培養物。
〔4〕ウィッカーハモマイセス属に属する微生物が、ウィッカーハモマイセス・ピジュペリ NBRC1290及び/又はウィッカーハモマイセス・ピジュペリ NBRC1887である〔1〕~〔3〕のいずれかに記載の培養物。
〔5〕乳成分含有培地が、さらに安息香酸及び/又はその塩を含有するものである〔1〕~〔4〕のいずれかに記載の培養物。
〔6〕〔1〕~〔5〕のいずれかに記載の培養物を含有する香料用組成物。
〔7〕〔1〕~〔5〕のいずれかに記載の培養物を含有する化粧品。
〔8〕〔1〕~〔5〕のいずれかに記載の培養物を含有する飲食品。
〔9〕〔1〕~〔5〕のいずれかに記載の培養物を含有する医薬品。
〔10〕〔1〕~〔5〕のいずれかに記載の培養物を配合することを特徴とする化粧品、飲食品又は医薬品への香り付与方法。
(1)菌株及び前々培養
(i)使用菌株
Wickerhamomyces pijperi YIT8095(NBRC 1290)、Wickerhamomyces pijperi YIT12779(NBRC 1887)
比較例:Kluyveromyces marxianus YIT12612(NBRC 0260)
(ii)前々培養
前々培養:2mlのYeast and Mold(YM)培地(1%グルコース、0.5%ペプトン、0.3%酵母エキス、0.3%麦芽エキス)に20%グリセロール凍結保存株を20μL接種し、30℃、160rpmで24時間振盪培養した。
(i)前培養
前培養:1%グルコースを含む2mlのホエイ含有培地に前々培養で得られた培養液を20μL接種し、30℃、160rpmで24時間振盪培養した。
前記ホエイ含有培地としてはStreptococcus thermophilus YIT2084(FERM BP-10879)を3%脱脂粉乳培地で培養して得られた培養物の上清を使用した。この上清を分析した結果、1.1%のラクトース、0.4%のガラクトース、0.4%の乳酸を含み、pHは4.0であった。
培養:1%グルコースを含む5mlのホエイ含有培地に、前培養液を50μL接種し、30℃、160rpmで24時間振盪培養した。
(iii)香気成分の分析
培養終了後、試料は8000rpmで5分間遠心分離し、2mlの上清を20mlのバイアルにとり、培養物中の香気成分をHeadspace gas chromatography mass spectrometry(HS-GC-MS)によって同定した(表1、表2)。また、同定した香気成分の定量は、HS-GC-Flame Ionization Detector (FID)で行った(表3、表4)。結果を表5に示す。また、培養液の香りの官能検査を下記の基準で行った。その結果を表5に示す。
5:複雑でフレッシュなフルーツ様の香りが強くする。
4:複雑でフレッシュなフルーツ様の香りがする。
3:複雑でフレッシュなフルーツ様の香りがわずかにする。
2:複雑でフレッシュなフルーツ様の香りがほとんどしない。
1:複雑でフレッシュなフルーツ様の香りはしない。
NBRC1290株およびNBRC1887株を用いて実験を行った。
(i)前培養
前培養:1%グルコースを含む2mlのホエイ含有培地、2mlのYPD培地(1%酵母エキス、2%ペプトン、2%グルコース)、2mlのYM培地(1%グルコース、0.5%ペプトン、0.3%酵母エキス、0.3%麦芽エキス)に、前々培養で得られた培養液をそれぞれ20μL接種し、30℃、160rpmで24時間振盪培養した。
(ii)培養
培養:1%グルコースを含む2mlのホエイ含有培地、2mlのYPD培地、2mlのYM培地に、前培養で得られた培養液をそれぞれ5ml接種し、30℃、160rpmで24時間振盪培養した。
(iii)香気成分の含有量の分析

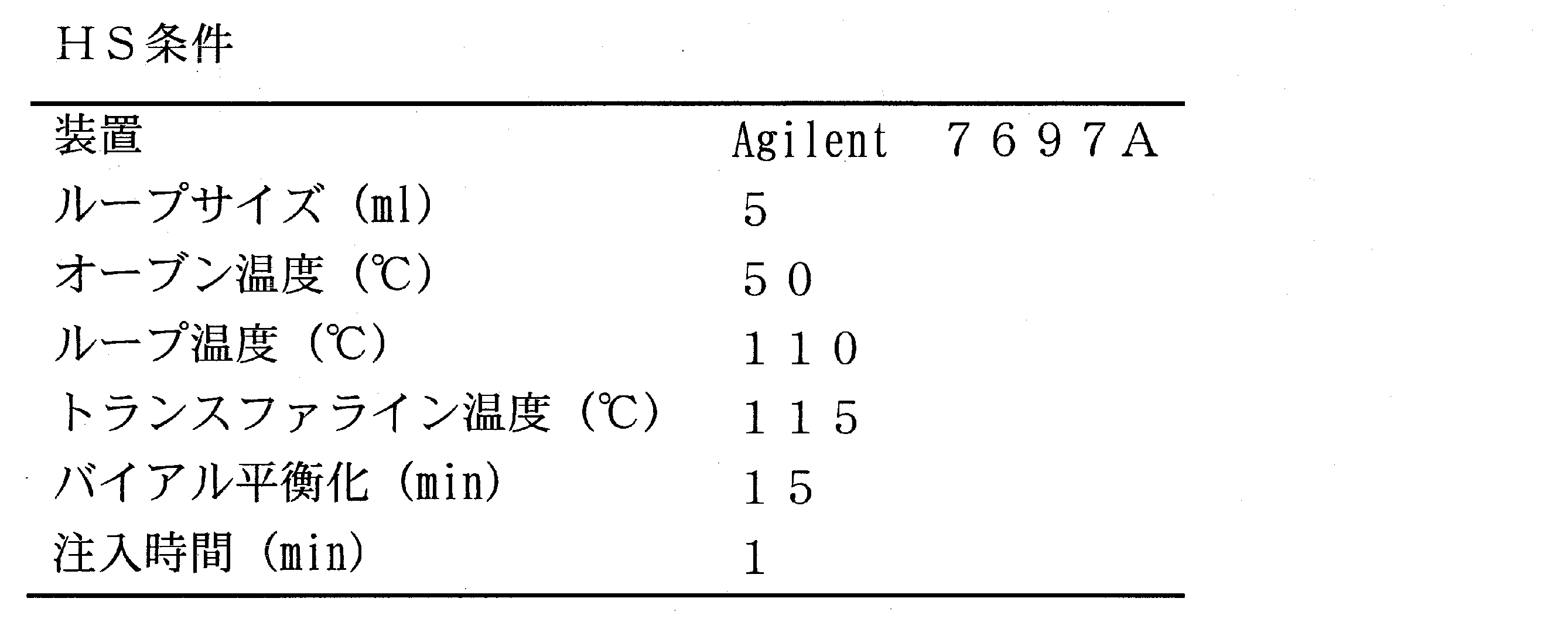

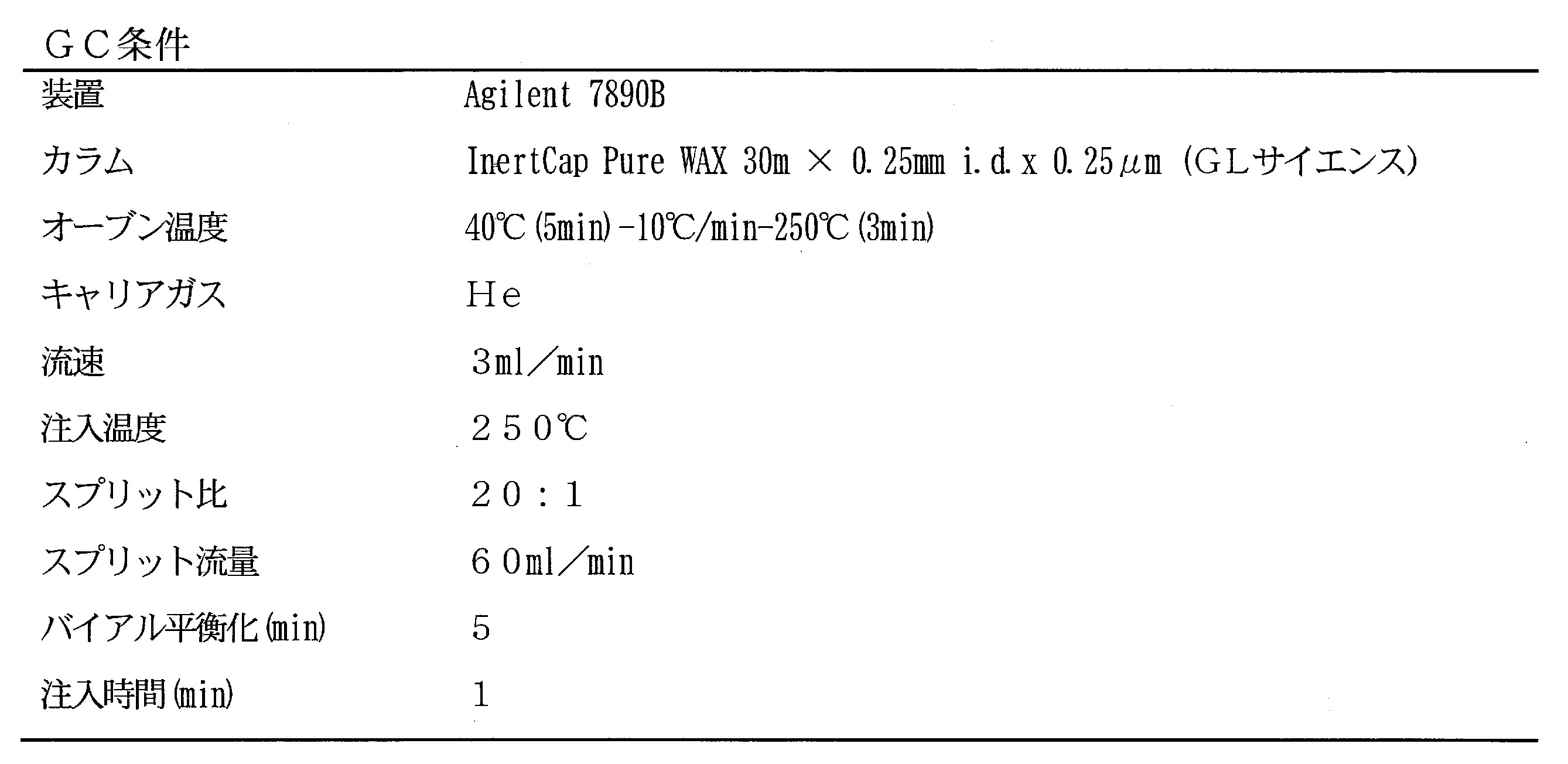

培養終了後、培養物中の香気成分の含有量をHS-GC-FIDによって分析した(表3、表4)。結果を表6に示す。また、培養物の香りの官能検査を実施例1(2)と同様の基準で行った。その結果を表6に示す。
NBRC1887株を用いて実験を行った。
(i)前培養
前培養:1%グルコースを含む2mlのホエイ含有培地に前々培養で得られた培養液を20μL接種し、30℃、160rpmで24時間振盪培養した。
(ii)培養
培養:1%グルコースを含む100mlのホエイ含有培地に前培養液を1ml接種し、15℃、20℃、25℃、30℃の培養条件で、160rpmで振盪培養した。また、0、24、32、48、56時間培養した時にサンプルを回収した。
(iii)安息香酸エチルの含有量の分析
各培養物中の安息香酸エチルの含有量をHS-GC-FIDによって分析した(表3、表4)。結果を表7に示す。また、培養物の香りの官能検査を下記の基準で行った。その結果を表7に示す。
◎:複雑でフレッシュなフルーツ様の香りが強くする。
○:複雑でフレッシュなフルーツ様の香りがする。
△:複雑でフレッシュなフルーツ様の香りがわずかにするが、複雑さが弱い。
▲:他の香気成分の香りが強く、香りの特徴が変化し、日本酒様の香りがする。
×:複雑でフレッシュなフルーツ様の香りがしない。
NBRC1887株を用いて実験を行った。
(i)前培養
前培養:1%グルコースを含む2mlのホエイ含有培地に前々培養で得られた培養液を20μl接種し、30℃、160rpmで24時間振盪培養した。
(ii)培養
培養:1%グルコースを含む100mlのホエイ含有培地に、安息香酸ナトリウムを0.01%となるように配合した。また同様にして、1%グルコースを含む100mlのホエイ含有培地に、安息香酸が0.01%、フェニルアラニンが0.01%、0.05%、0.1%、パラヒドロキシメチルベンゼンが0.01%、0.05%となるようにそれぞれ配合した。さらに、コントロールとして、添加物を配合しない1%グルコースを含む100mlのホエイ含有培地も用意した。各培地に、前培養液を1ml接種し、30℃、160rpmで振盪培養した。また、0、24、32、48時間培養した時にサンプルを回収した。
(iii)安息香酸エチルの含有量の分析
各培養物中の安息香酸エチルの含有量をHS-GC-FIDによって分析した(表3、表4)。結果を表8に示す。
表9の組成で、(5)と(6)を混合して、これに(1)~(4)を加えて十分に攪拌して化粧水を調製した。この化粧水は複雑でフレッシュなフルーツ様の香りがした。なお、培養液としては、1%グルコースを含むホエイ含有培地100mlに、実施例1(4)の前培養で得た前培養液を1ml接種し、20℃、24時間、160rpmで振盪培養して得られた培養液をろ過したものを使用した。
表10の組成で、(10)に(7)~(9)を加えて加温し、80℃で(1)~(6)を加えて乳化し、室温まで冷却して乳液を調製した。この乳液は複雑でフレッシュなフルーツ様の香りがした。なお、培養液は製造例1と同じものを使用した。
表11の組成で、(12)に(9)~(11)を加えて加温し、80℃で(1)~(8)を加えて乳化し、室温まで冷却してクリームを調製した。このクリームは複雑でフレッシュなフルーツ様の香りがした。なお、培養液は製造例1と同じものを使用した。
Claims (10)
- ウィッカーハモマイセス属に属する微生物を乳成分含有培地で培養して得られる培養物。
- 乳成分含有培地が、ホエイ含有培地である請求項1記載の培養物。
- ウィッカーハモマイセス属に属する微生物が、ウィッカーハモマイセス・ピジュペリである請求項1又は2記載の培養物。
- ウィッカーハモマイセス属に属する微生物が、ウィッカーハモマイセス・ピジュペリ NBRC1290及び/又はウィッカーハモマイセス・ピジュペリ NBRC1887である請求項1~3のいずれか1項記載の培養物。
- 乳成分含有培地が、さらに安息香酸及び/又はその塩を含有するものである請求項1~4のいずれか1項記載の培養物。
- 請求項1~5のいずれか1項記載の培養物を含有する香料用組成物。
- 請求項1~5のいずれか1項記載の培養物を含有する化粧品。
- 請求項1~5のいずれか1項記載の培養物を含有する飲食品。
- 請求項1~5のいずれか1項記載の培養物を含有する医薬品。
- 請求項1~5のいずれか1項記載の培養物を配合することを特徴とする化粧品、飲食品又は医薬品への香り付与方法。
Priority Applications (6)
| Application Number | Priority Date | Filing Date | Title |
|---|---|---|---|
| CN201680004685.4A CN107109345B (zh) | 2015-01-19 | 2016-01-18 | 威克汉姆酵母属微生物培养物 |
| MYPI2017702473A MY189051A (en) | 2015-01-19 | 2016-01-18 | Culture product of microorganism belonging to the genus wickerhamomyces |
| JP2016570621A JP6449334B2 (ja) | 2015-01-19 | 2016-01-18 | ウィッカーハモマイセス属微生物培養物 |
| SG11201705667UA SG11201705667UA (en) | 2015-01-19 | 2016-01-18 | Culture product of microorganism belonging to the genus wickerhamomyces |
| KR1020177018050A KR102479151B1 (ko) | 2015-01-19 | 2016-01-18 | 위커하모마이세스속 미생물 배양물 |
| US15/544,435 US10485255B2 (en) | 2015-01-19 | 2016-01-18 | Culture product of microorganism belonging to the genus Wickerhamomyces |
Applications Claiming Priority (2)
| Application Number | Priority Date | Filing Date | Title |
|---|---|---|---|
| JP2015008129 | 2015-01-19 | ||
| JP2015-008129 | 2015-01-19 |
Publications (1)
| Publication Number | Publication Date |
|---|---|
| WO2016117489A1 true WO2016117489A1 (ja) | 2016-07-28 |
Family
ID=56417035
Family Applications (1)
| Application Number | Title | Priority Date | Filing Date |
|---|---|---|---|
| PCT/JP2016/051232 Ceased WO2016117489A1 (ja) | 2015-01-19 | 2016-01-18 | ウィッカーハモマイセス属微生物培養物 |
Country Status (8)
| Country | Link |
|---|---|
| US (1) | US10485255B2 (ja) |
| JP (1) | JP6449334B2 (ja) |
| KR (1) | KR102479151B1 (ja) |
| CN (1) | CN107109345B (ja) |
| MY (1) | MY189051A (ja) |
| SG (1) | SG11201705667UA (ja) |
| TW (1) | TWI700364B (ja) |
| WO (1) | WO2016117489A1 (ja) |
Cited By (8)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| JP6429162B1 (ja) * | 2017-12-28 | 2018-11-28 | リファインホールディングス株式会社 | ラビリンチュラ類の培養方法 |
| WO2019003283A1 (ja) * | 2017-06-26 | 2019-01-03 | 株式会社ヤクルト本社 | 香気性微生物培養物 |
| JP2020152685A (ja) * | 2019-03-20 | 2020-09-24 | 株式会社ヤクルト本社 | ストレス緩和及び/又は集中力維持用組成物 |
| EP3657980A4 (en) * | 2017-07-28 | 2021-04-28 | Locus IP Company, LLC | YEAST MASKS TO IMPROVE SKIN, HAIR AND SCALP HEALTH |
| JP2021147356A (ja) * | 2020-03-19 | 2021-09-27 | 株式会社ヤクルト本社 | 皮膚細胞の活性化用組成物及び皮膚外用剤 |
| CN113943664A (zh) * | 2021-08-31 | 2022-01-18 | 福州大学 | 一株控制香蕉采后病害的酵母菌p4及其使用方法 |
| US11759544B2 (en) | 2018-05-25 | 2023-09-19 | Locus Solutions Ipco, Llc | Therapeutic compositions for enhanced healing of wounds and scars |
| WO2024166793A1 (ja) * | 2023-02-07 | 2024-08-15 | 株式会社ヤクルト本社 | 酵母発酵調製物の製造方法及び酵母発酵調製物 |
Families Citing this family (4)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| TWI735609B (zh) * | 2017-06-30 | 2021-08-11 | 日商養樂多本社股份有限公司 | 香氣性微生物培養物 |
| KR102229724B1 (ko) * | 2019-11-05 | 2021-03-18 | 한국식품연구원 | 위커하모마이세스 아노말러스 ey22 신균주 및 이를 이용한 향기성분이 증가된 주류 |
| KR102465603B1 (ko) * | 2020-10-26 | 2022-11-10 | 중앙대학교 산학협력단 | 위커하모마이세스(Wickerhamomyces) 속 균주 KG16 및 이의 용도 |
| CN113913311B (zh) * | 2021-09-27 | 2023-08-15 | 伽蓝(集团)股份有限公司 | 西藏姜果实来源的威克汉姆酵母菌株及其应用 |
Citations (1)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| JP2005015686A (ja) * | 2003-06-27 | 2005-01-20 | Kiyomitsu Kawasaki | フルーツ様香料組成物 |
Family Cites Families (4)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| JPH0549465A (ja) | 1991-08-21 | 1993-03-02 | Nagano Pref Gov | 変異酵母の培養法 |
| JP3858066B2 (ja) | 1999-10-08 | 2006-12-13 | 鹿児島県 | 麦焼酎の製造法 |
| WO2011073250A2 (en) * | 2009-12-15 | 2011-06-23 | Stratley Ag | Method for recovery of organic components from dilute aqueous solutions |
| JP4630389B1 (ja) | 2010-09-13 | 2011-02-09 | 財団法人十勝圏振興機構 | 新規酵母及びその酵母で発酵処理した食品の製造法 |
-
2016
- 2016-01-18 TW TW105101415A patent/TWI700364B/zh active
- 2016-01-18 KR KR1020177018050A patent/KR102479151B1/ko active Active
- 2016-01-18 MY MYPI2017702473A patent/MY189051A/en unknown
- 2016-01-18 SG SG11201705667UA patent/SG11201705667UA/en unknown
- 2016-01-18 WO PCT/JP2016/051232 patent/WO2016117489A1/ja not_active Ceased
- 2016-01-18 CN CN201680004685.4A patent/CN107109345B/zh active Active
- 2016-01-18 US US15/544,435 patent/US10485255B2/en active Active
- 2016-01-18 JP JP2016570621A patent/JP6449334B2/ja active Active
Patent Citations (1)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| JP2005015686A (ja) * | 2003-06-27 | 2005-01-20 | Kiyomitsu Kawasaki | フルーツ様香料組成物 |
Non-Patent Citations (7)
| Title |
|---|
| CHAVES-LOPEZ C. ET AL.: "Yeasts from Colombian Kumis as source of peptides with Angiotensin I converting enzyme (ACE) inhibitory activity in milk.", INT. J. FOOD MICROBIOL., vol. 159, 2012, pages 39 - 46, ISSN: 0168-1605 * |
| DMITRELLOU D. ET AL.: "Whey-cheese production using freeze-dried kefir culture.", J. APPL. MICRIOBIOL., vol. 103, 2007, pages 1170 - 1183, ISSN: 1364-5072 * |
| IZAWA N. ET AL.: "Production of aroma compounds from whey using Wickerhamomyces pijperi.", AMB EXPRESS, vol. 5, no. 23, April 2015 (2015-04-01), pages 1 - 9, Retrieved from the Internet <URL:http://www.ncbi.nlm.nih.gov/pmc/articles/PMC4397261> [retrieved on 20160314] * |
| KHATABIAH J. ET AL.: "Efficacy of Benzoate and Sorbate on the Growth Control of Total and Psychrophic Yeasts in Labneh", EGYPTIAN J. DAIRY SCI., vol. 40, 2012, pages 35 - 43, ISSN: 0378-2700 * |
| NAOKI IZAWA ET AL.: "Effects of fermentation conditions on aroma compounds production by Wickerhamomyces pijperi", DAI 67 KAI ABSTRACTS OF THE ANNUAL MEETING OF THE SOCIETY FOR BIOTECHNOLOGY, vol. 67, October 2015 (2015-10-01), Japan, pages 286 * |
| SIEBER R. ET AL.: "Benzoic Acid as a Natural Compound in Cultured Dairy Products and Cheese.", INT. DAIRY J., vol. 5, 1995, pages 227 - 246, ISSN: 0958-6946 * |
| SURIYARACHCHI V.R. ET AL.: "Occurrence and Growth of Yeasts in Yogurts", APPL. ENVIROL. MICROBIOL., vol. 42, no. 3, 1981, pages 574 - 579, ISSN: 0099-2240 * |
Cited By (16)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| CN110869489B (zh) * | 2017-06-26 | 2023-05-23 | 株式会社益力多本社 | 香气性微生物培养物 |
| WO2019003283A1 (ja) * | 2017-06-26 | 2019-01-03 | 株式会社ヤクルト本社 | 香気性微生物培養物 |
| CN110869489A (zh) * | 2017-06-26 | 2020-03-06 | 株式会社益力多本社 | 香气性微生物培养物 |
| US12233152B2 (en) | 2017-07-28 | 2025-02-25 | Locus Solutions Ipco, Llc | Yeast-based masks for improved skin, hair and scalp health |
| EP3657980A4 (en) * | 2017-07-28 | 2021-04-28 | Locus IP Company, LLC | YEAST MASKS TO IMPROVE SKIN, HAIR AND SCALP HEALTH |
| US11278490B2 (en) | 2017-07-28 | 2022-03-22 | Locus Ip Company, Llc | Yeast-based masks for improved skin, hair and scalp health |
| US11759414B2 (en) | 2017-07-28 | 2023-09-19 | Locus Solutions Ipco, Llc | Yeast-based masks for improved skin, hair and scalp health |
| JP6429162B1 (ja) * | 2017-12-28 | 2018-11-28 | リファインホールディングス株式会社 | ラビリンチュラ類の培養方法 |
| US11759544B2 (en) | 2018-05-25 | 2023-09-19 | Locus Solutions Ipco, Llc | Therapeutic compositions for enhanced healing of wounds and scars |
| JP7521882B2 (ja) | 2019-03-20 | 2024-07-24 | 株式会社ヤクルト本社 | ストレス緩和及び/又は集中力維持用組成物 |
| JP2020152685A (ja) * | 2019-03-20 | 2020-09-24 | 株式会社ヤクルト本社 | ストレス緩和及び/又は集中力維持用組成物 |
| JP2021147356A (ja) * | 2020-03-19 | 2021-09-27 | 株式会社ヤクルト本社 | 皮膚細胞の活性化用組成物及び皮膚外用剤 |
| JP7544498B2 (ja) | 2020-03-19 | 2024-09-03 | 株式会社ヤクルト本社 | 皮膚細胞の活性化用組成物及び皮膚外用剤 |
| CN113943664B (zh) * | 2021-08-31 | 2023-03-03 | 福州大学 | 一株控制香蕉采后病害的酵母菌p4及其使用方法 |
| CN113943664A (zh) * | 2021-08-31 | 2022-01-18 | 福州大学 | 一株控制香蕉采后病害的酵母菌p4及其使用方法 |
| WO2024166793A1 (ja) * | 2023-02-07 | 2024-08-15 | 株式会社ヤクルト本社 | 酵母発酵調製物の製造方法及び酵母発酵調製物 |
Also Published As
| Publication number | Publication date |
|---|---|
| TWI700364B (zh) | 2020-08-01 |
| CN107109345A (zh) | 2017-08-29 |
| KR102479151B1 (ko) | 2022-12-19 |
| TW201629208A (zh) | 2016-08-16 |
| CN107109345B (zh) | 2021-07-23 |
| SG11201705667UA (en) | 2017-08-30 |
| KR20170103789A (ko) | 2017-09-13 |
| MY189051A (en) | 2022-01-23 |
| JP6449334B2 (ja) | 2019-01-09 |
| US20180000139A1 (en) | 2018-01-04 |
| JPWO2016117489A1 (ja) | 2017-10-26 |
| US10485255B2 (en) | 2019-11-26 |
Similar Documents
| Publication | Publication Date | Title |
|---|---|---|
| JP6449334B2 (ja) | ウィッカーハモマイセス属微生物培養物 | |
| Huang et al. | Preparation of yogurt-flavored bases by mixed lactic acid bacteria with the addition of lipase | |
| RU2687346C1 (ru) | Получение сцеженных ферментированных молочных продуктов | |
| AU2011347349B2 (en) | Flavour modulation by bio-processing using cream-flavour forming bacteria strains | |
| AU2011347350C1 (en) | Flavour modulation by fermenting a milk source for multi-flavour formation with a cocktail of bacteria strains | |
| CN109996885A (zh) | 乳酸菌的胞外多糖及其用途 | |
| JP7260493B2 (ja) | 発酵食品の製造方法、発酵食品、乳酸菌、及び乳酸菌組成物 | |
| Zhao et al. | Comparative analysis of physicochemical, rheological, sensory and flavour properties of yoghurts using a new probiotic Bacillus coagulans 13002 with traditional yoghurt starter | |
| JP6836847B2 (ja) | 香気性微生物培養物 | |
| Panda et al. | Kefir and koumiss origin, health benefits and current status of knowledge | |
| US11248205B2 (en) | Aromatic culture product of microorganism | |
| JP6803689B2 (ja) | D−アスパラギン酸及びd−アラニンを含有する乳酸菌培養物の製造方法 | |
| TWI735609B (zh) | 香氣性微生物培養物 | |
| JP2022068040A (ja) | 発毛・育毛効果を有する乳酸菌 | |
| KR20200080771A (ko) | 메틸 케톤 생성능이 우수한 락토바실러스 플란타럼 균주 및 상기 균주를 포함하는 천연 향료 조성물 | |
| CN109007049A (zh) | 一种协同益生菌发酵且富含活性菌的酸奶油及其制备方法 | |
| HK1238671B (zh) | 威克汉姆酵母属微生物培养物 | |
| WO2024166793A1 (ja) | 酵母発酵調製物の製造方法及び酵母発酵調製物 | |
| HK1238671A1 (en) | Culture product of microorganism belonging to the genus wickerhamomyces | |
| JP5686336B2 (ja) | 新規発酵食品 | |
| JP2011030530A (ja) | 2−フェニルエタノールを生成する乳酸菌およびその利用 | |
| Heita | Antimicrobial activity profiles of traditional fermented milk starter culture from north-eastern Namibia | |
| Karenzi et al. | Manufacturing of Kivuguto milk and stability in storage under refrigeration | |
| HK40019058B (en) | Fragrant microorganism culture | |
| JP2022022980A (ja) | 発酵物の製造方法 |
Legal Events
| Date | Code | Title | Description |
|---|---|---|---|
| 121 | Ep: the epo has been informed by wipo that ep was designated in this application |
Ref document number: 16740096 Country of ref document: EP Kind code of ref document: A1 |
|
| ENP | Entry into the national phase |
Ref document number: 2016570621 Country of ref document: JP Kind code of ref document: A |
|
| ENP | Entry into the national phase |
Ref document number: 20177018050 Country of ref document: KR Kind code of ref document: A |
|
| WWE | Wipo information: entry into national phase |
Ref document number: 11201705667U Country of ref document: SG |
|
| WWE | Wipo information: entry into national phase |
Ref document number: 15544435 Country of ref document: US |
|
| NENP | Non-entry into the national phase |
Ref country code: DE |
|
| 122 | Ep: pct application non-entry in european phase |
Ref document number: 16740096 Country of ref document: EP Kind code of ref document: A1 |
