  • This disclosure relates to an information display system.
  • a center display that functions as a display unit of a navigation device or an audio device is representative, but in addition, for example, a meter system that displays a vehicle speed, an engine rotation speed, or the like.
  • a meter system that displays a vehicle speed, an engine rotation speed, or the like.
  • display units There are display units.
  • a vehicle equipped with a head-up display that displays information on a windshield has also been considered (see, for example, Patent Document 1).
  • Information displayed on the display unit includes important information related to passenger safety, information used to drive the vehicle, information for obtaining convenience and comfort, and to satisfy the passenger's hobbies and preferences Information. Therefore, in a configuration in which different information is displayed on each of the plurality of display units, it is necessary to make the driver recognize important information that is more strongly related to safety. However, in a configuration in which a plurality of display units are present, the driver does not always visually recognize the display unit displaying important information to be recognized. In particular, when information is simultaneously displayed on a plurality of display units, the driver may overlook the display unit displaying important information to be recognized.
  • an object of the present disclosure is to make a driver recognize a display unit displaying important information to be recognized preferentially in an information display system that displays different information on a plurality of display units.
  • the line-of-sight specifying unit specifies the line of sight of the driver.
  • the cognitive display unit specifying unit specifies a display unit on which the line of sight specified by the line of sight specifying unit overlaps as a cognitive display unit recognized by the driver.
  • the non-cognitive display unit specifying unit specifies a display unit that is not specified as the cognitive display unit as the non-cognitive display unit.
  • a priority provision part provides a priority to the said non-recognition display unit or display information based on the information currently displayed on the non-recognition display unit.
  • the guidance processing execution unit is configured to display the unrecognized display unit or the display information when the line of sight of the driver specified by the line-of-sight specifying unit does not face the non-recognized display unit with the higher priority or the display unit on which the display information is displayed.
  • Guidance processing for guiding the driver's line of sight to the display unit on which is displayed.
  • the guidance process is executed, and the driver's line of sight is given the highest priority by the guidance process.
  • the driver can preferentially recognize the display unit displaying important information to be recognized.
  • FIG. 1 is a block diagram schematically showing a configuration example of an information display system.
  • FIG. 2 is a diagram showing a center display
  • FIG. 3 is a diagram showing a head-up display
  • FIG. 4 is a diagram showing a blind spot screen.
  • FIG. 5 is a diagram showing a meter display.
  • FIG. 6 is a diagram illustrating an example of setting priority.
  • FIG. 7 is a diagram illustrating an example of setting the priority order.
  • FIG. 8 is a flowchart illustrating an example of control by the information display system.
  • An information display system 10 illustrated in FIG. 1 is mounted on a vehicle, and includes a main control device 11, a plurality of display units 12, 13, 14, and the like.
  • the main control device 11 includes a control unit 21.
  • an in-vehicle camera 22, a communication unit 23, and the like are connected to the main control device 11.
  • the control unit 21 includes a CPU, RAM, and ROM (not shown), and controls the overall operation of the main control device 11.
  • the in-vehicle camera 22 is provided, for example, in front of the driver's seat in the vehicle, images the driver in the vehicle, and outputs the image data to the control unit 21.
  • the communication unit 23 includes, for example, a wireless communication module, and establishes a wireless communication line with an external Internet access point (not shown) or an external information communication device to perform various communications.
  • the display unit 12 includes a center display that functions as a display unit of the vehicle device 100 such as a navigation device or an audio device mounted on the vehicle.
  • the display unit 12 displays an image captured by a rear camera (not shown). That is, the display unit 12 can function as a so-called back monitor.
  • the display unit 13 includes a head-up display that displays information on the windshield F of the vehicle.
  • the display unit 13 is a structure which projects information on the windshield F from the display unit 13a provided in the instrument panel of the vehicle.
  • the display unit 13 can display various information such as a blind spot screen Gb shown in FIG. 4 and an empty mark (not shown).
  • the blind spot screen Gb is a screen that shows the situation of the left rear and right rear of the vehicle based on image data captured by a camera (not shown) provided on the left and right portions of the vehicle.
  • the own vehicle mark Ma schematically showing the own vehicle
  • the other vehicle mark Mb schematically showing the other vehicle existing at the left rear or right rear of the own vehicle
  • the traveling direction of the other vehicle are displayed.
  • a traveling direction mark Mc or the like is displayed.
  • the empty mark is a mark indicating that the remaining amount of fuel is insufficient.
  • the display unit 14 includes a meter-type display that displays, for example, the speed of the vehicle and the rotational speed of the engine.
  • the display unit 14 includes a display block 14a that displays the speed of the vehicle and a display block 14b that displays the rotational speed of the engine.
  • the display unit 14 includes a display block 14c between the display blocks 14a and 14b.
  • the display block 14c is composed of, for example, a liquid crystal display.
  • the display block 14c can indicate a traveling direction at a branch point such as an intersection, for example, a right turn direction or a left turn direction. That is, the display block 14c can function as a display unit corresponding to a so-called turn-by-turn function.
  • the selected gear position can also be displayed on the display flock 14c.
  • the main control device 11 executes a control program in the control unit 21 to thereby obtain an information acquisition processing unit 31, a line-of-sight identification processing unit 32, a cognitive display unit identification processing unit 33, a non-recognition display unit identification processing unit 34, and priority assignment.
  • the processing unit 35 and the guidance processing execution processing unit 36 are virtually realized by software.
  • the processing units 31 to 36 may be realized by hardware as an integrated circuit integrated with the control unit 21, for example.
  • the information acquisition processing unit 31 is an example of an information acquisition unit, and acquires information displayed on the display units 12, 13, and 14, respectively. That is, the information acquisition processing unit 31 acquires data for specifying display contents displayed on the display units 12, 13, and 14.
  • the line-of-sight identification processing unit 32 is an example of a line-of-sight identification unit, and identifies the line of sight of the driver. That is, the line-of-sight identification processing unit 32 identifies the driver's line of sight by executing a known line-of-sight analysis process for identifying the driver's line of sight.
  • the line-of-sight specification processing unit 32 extracts the driver's eyeball from the image data captured by the in-vehicle camera 22, and specifies the driver's line of sight from the extracted movement and state of the eyeball. Furthermore, the line-of-sight identification processing unit 32 can identify the position of the driver's point of gazing, that is, the position where the driver is gazing, based on the identified line of sight.
  • the cognitive display unit identification processing unit 33 is an example of the cognitive display unit identification unit, and exists in the display unit in which the lines of sight identified by the line of sight identification processing unit 32 of the display units 12, 13, and 14 are overlapped, that is, in the line of sight of the driver. Identify the display unit as a cognitive display unit. That is, the cognitive display unit identification processing unit 33 determines whether or not the line of sight specified by the line of sight identification processing unit 32 is toward the display units 12, 13, and 14, in other words, the driver's gaze point is the display units 12, 13, and 14. 14 is monitored. When the driver's line of sight is directed to one of the display units 12, 13, and 14, in other words, the recognition display unit identification processing unit 33 displays the frame of the display unit 12, 13, and 14. If it is inside, it is determined that the driver's line of sight overlaps the display unit, and the display unit is identified as a cognitive display unit.
  • the recognition display unit identification processing unit 33 recognizes the display unit when the line of sight specified by the line of sight identification processing unit 32 overlaps the display units 12, 13, and 14 in the state of displaying information. It is configured to be specified as a display unit. That is, the recognition display unit identification processing unit 33 does not set the display unit as the recognition display unit in that case even if the driver's line of sight overlaps the display units 12, 13, and 14 that are not displaying information. .
  • the display unit specified as the recognition display unit is set as a display unit that is visually recognized and recognized by the driver.
  • display unit attribute data for specifying the installation position, size, shape, and the like of the display units 12, 13, and 14 in the passenger compartment is stored in advance in a storage medium (not shown) provided in the main control device 11.
  • the cognitive display unit specification processing unit 33 collates the display unit attribute data with vector data indicating the direction of the driver's line of sight specified by the line of sight specification processing unit 32 or position coordinate data indicating the position of the driver's gaze point. Thus, it is determined whether or not the driver's line of sight overlaps the display unit.
  • the non-recognition display unit specification processing unit 34 is an example of a non-recognition display unit specification unit, and specifies a display unit that is not specified as a recognition display unit among the display units 12, 13, and 14 as a non-recognition display unit.
  • the display unit specified as the non-recognition processing unit is set as a display unit that is not recognized by the driver.
  • the priority assignment processing unit 35 is an example of a priority assignment unit, and assigns a priority to the non-recognition display unit based on information displayed on the display unit set as the non-recognition display unit. .

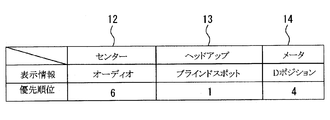

  • the priority setting example illustrated in FIG. 6 shows a setting example when the vehicle moves forward.
  • the priority level assigning processing unit 35 gives the priority order “6” to the display unit 12 displaying the audio screen, and gives the priority order “1” to the display unit 13 displaying the blind spot screen.
  • the priority “4” is assigned to the display unit 14 displaying the D position as the gear position.
  • the priority order assigning processing unit 35 displays the blind spot screen on the display unit 13 displaying the information because the blind spot screen is important information relating to the safe driving of the vehicle during normal driving in which the vehicle moves forward. Gives high priority.
  • the priority order assigning processing unit 35 assigns a low priority order to the display unit 12 displaying the information because the audio screen is information that is not so much related to the safe driving of the vehicle. The priority is higher as the number is smaller. In this case, priority “1” is the highest priority.

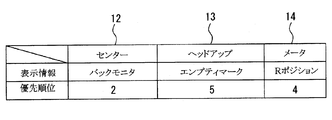

  • the priority setting example illustrated in FIG. 7 shows a setting example when the vehicle moves backward.
  • the priority level assigning processing unit 35 gives priority level “2” to the display unit 12 displaying the back monitor screen, and priority level “5” to the display unit 13 displaying the empty mark.
  • the priority “4” is assigned to the display unit 14 displaying the R position as the gear position. That is, since the back monitor screen is important information related to the safe driving of the vehicle in a situation where the vehicle moves backward, the priority level assigning processing unit 35 has a high priority on the display unit 12 displaying the information. Give a ranking. On the other hand, since the empty mark is information that is not so related to the safe driving of the vehicle, the priority level assigning processing unit 35 gives a low priority to the display unit 13 displaying the information.
  • the priority level assigning processing unit 35 may be configured to give a priority level to the display information (content) itself displayed on the non-recognition display unit.
  • the guidance processing execution processing unit 36 is an example of a guidance processing execution unit, and after the priority assignment processing by the priority assignment processing unit 35 is completed, a higher priority, in this case, the highest priority is given. It is monitored whether or not the line of sight specified by the line-of-sight specification processing unit 32 overlaps the non-recognition display unit. Then, when the driver's line of sight does not overlap the non-recognition display unit to which the highest priority is given, that is, when the driver's line of sight does not face, the guidance process execution processing unit 36 sets the driver's line of sight to the non-recognition display unit. A guidance process for guiding the line of sight is executed.
  • the guidance process execution processing unit 36 determines the highest priority, in this case, the highest. You may comprise so that a guidance process may be performed when the driver
  • the main control apparatus 11 acquires information displayed on all the display units 12, 13, and 14 mounted on the vehicle (S1). And the main control apparatus 11 specifies the display unit with which the eyes
  • the main control device 11 gives priority to the non-recognition display unit based on the information displayed on the non-recognition display unit (S4).
  • the timing for assigning the priority order is displayed on, for example, some non-recognition display units after a predetermined time has elapsed since the start of the control, after a predetermined time has elapsed since the completion of the processing of S1. It can be changed and set as appropriate, such as when the content is updated.
  • the main control device 11 checks whether or not there is a display unit assigned with a priority higher than a predetermined value set in advance (S5).
  • the predetermined value can be appropriately changed and set in consideration of the relationship with the safety of the vehicle occupant. In this case, “2” is set as the predetermined value.
  • the main control device 11 ends the process when there is no display unit assigned with a priority higher than the predetermined value (S5: NO). On the other hand, when there is a display unit with a priority higher than the predetermined value (S5: YES), the main control device 11 identifies the driver's line of sight with the in-vehicle camera 22 (S6). Then, the main control device 11 monitors whether or not the driver's line of sight overlaps any one of the non-recognition display units (S7). Note that the non-recognizing display unit to be determined in S7 may have a priority higher than or equal to a predetermined value, or may be lower than a predetermined value.
  • the main control device 11 When the driver's line of sight overlaps with any non-recognition display unit (S7: YES), the main control device 11 identifies the non-recognition display unit as a cognitive display unit (S8). Then, the main control device 11 determines whether or not the driver's line of sight overlaps the non-recognition display unit to which the highest priority is given (S9). When the driver's line of sight overlaps the non-recognition display unit to which the highest priority is given (S9: YES), the main control device 11 proceeds to S1. On the other hand, when the driver's line of sight does not overlap the non-recognition display unit to which the highest priority is given (S9: NO), the main control device 11 executes the guidance process A (S10).
  • the main control device 11 executes a process indicating the direction in which the non-cognitive display unit to which the highest priority is given exists in the display unit where the driver's line of sight is directed. That is, for example, in a situation where the driver's line of sight does not overlap the head-up display 13 displaying the blind spot screen and the driver's line of sight is facing the meter system display 14, the main controller 11 A direction mark indicating the direction in which the head-up display 13 exists is displayed on the display block 14 c of the system display 14.
  • the main control device 11 displays the simplified information of the information displayed on the non-recognition display unit to which the highest priority is given on the display unit on which the driver's line of sight overlaps. May be. That is, the main control device 11 specifies the display unit on which the driver's line of sight is facing at that time. And the main control apparatus 11 displays the simple information of the information currently displayed on the non-recognition display unit to which the highest priority was given to the specified display unit. For example, in a situation where the driver's line of sight does not overlap the head-up display 13 displaying the blind spot screen, and the driver's line of sight faces the center display 12, the main controller 11 displays the center display 12 on the center display 12. Then, information that simply indicates the contents of the blind spot screen, for example, character information such as “a vehicle is present at the right rear” is displayed.
  • the main control apparatus 11 will transfer to S6, if the guidance process A is completed. Moreover, the main control apparatus 11 performs the induction
  • the main control device 11 outputs the name of the non-cognitive display unit to which the highest priority is given from a speaker (not shown) by voice. That is, for example, when the driver's line of sight does not overlap the head-up display 13 displaying the blind spot screen and the driver's line of sight is not directed to any of the other display units 12 and 14, the main control is performed.
  • the device 11 outputs audio information “Please check the head-up display” including the name of the display unit 13.
  • the main control apparatus 11 will perform the guidance process C, if the guidance process B is completed (S12).
  • the main control device 11 outputs information displayed on the non-cognitive display unit to which the highest priority is given from a speaker (not shown) by voice. That is, for example, in a situation where the driver's line of sight does not overlap the head-up display 13 displaying the blind spot screen, if the driver's line of sight is not directed to any of the other display units 12, 14, the blind spot Information that simply shows the contents of the screen, for example, voice information such as “a vehicle is present at the right rear” is output.
  • the main control device 11 proceeds to S6.
  • the main control device 11 may be configured to execute either one of the guidance processes B and C.
  • the driver when the driver does not recognize the non-recognized display unit to which the highest priority is given, a guidance process is executed. You can be directed to the display unit with the highest priority. Accordingly, the driver can preferentially recognize the display unit displaying important information to be recognized.
  • the display unit when the driver's line of sight overlaps the display units 12, 13, and 14 in the state of displaying information, the display unit is specified as the cognitive display unit. That is, even if the display unit that does not display information is visually recognized, the driver cannot recognize the information. According to the present embodiment, even when a display unit in a state where information is not displayed is visually recognized by the driver, the display unit can be prevented from being set as a recognition display unit. The displayed information can be surely recognized by the driver.
  • the non-recognizing display unit is specified as the cognitive display unit. That is, by re-setting the non-recognition display unit that is visually recognized by the driver as the recognition processing unit, it is possible to reduce the number of display units to be subjected to the guidance process as needed. Accordingly, it is possible to guide the driver's line of sight one after another to display units that are not visually recognized. Moreover, although it is a display unit which the driver has recognized, it is possible to avoid the waste of guiding the line of sight again to the recognized display unit. In addition, since the display units that are the targets of the guidance process can be successively reduced, the processing load can be gradually reduced.
  • the guidance process is executed when the priority given to the non-recognizing display unit is equal to or higher than a predetermined value. Therefore, by setting a predetermined value in advance in association with the safety of the vehicle occupant, it is possible to preferentially guide the driver's line of sight to the display unit that displays information important for safety.
  • the direction in which the non-recognition display unit to which the highest priority order, in this case, the highest priority order is given exists in the display unit where the driver's line of sight overlaps by the guidance process. Indicated. Accordingly, the driver can smoothly move the line of sight to the non-recognition display unit on which information to be recognized is displayed.
  • the guidance unit displays the display unit on which the driver's line of sight overlaps with the higher priority, in this case, the non-recognition display unit with the highest priority. Simple information is displayed. Therefore, although it is simple, the driver can immediately recognize important information to be recognized.
  • the name of the non-recognition display unit to which the higher priority, in this case the highest priority is given is output by voice by the guidance process.
  • the driver can immediately and audibly recognize which display unit displays the information to be recognized.
  • the line of sight can be smoothly moved to the display unit.
  • the information displayed on the non-recognition display unit to which the highest priority, in this case, the highest priority is given is output by voice by the guidance process.
  • the driver can recognize the information which should be recognized also auditorily. For example, when the vehicle is traveling, it may be difficult for the driver to move the line of sight to the display unit. In such a case, the information that should be recognized can be audibly recognized, and there is no risk of impairing safe driving.
  • each step is expressed as, for example, S1. Further, each step can be divided into a plurality of sub-steps, while a plurality of steps can be combined into one step.
  • each unit focuses on the function of the main control device 11 and categorizes the inside for convenience.
  • the inside of the main control device is physically divided into portions corresponding to the respective units. It does not mean that it is divided.
  • the information acquisition processing unit 31 is the information acquisition unit of the present disclosure
  • the line-of-sight specifying processing unit 32 is the line-of-sight specifying unit
  • the cognitive display unit specifying processing unit 33 is the cognitive display unit specifying unit
  • the non-recognizing display unit specifying processing unit 34 is not.
  • the priority order assigning processing part 35 corresponds to the priority order giving part
  • the guidance process execution processing part 36 corresponds to the guidance process execution part.
  • a priority is given to the content itself displayed on the display unit, and a display unit that displays information with a higher priority is displayed. You may comprise so that a guidance process may be performed so that the eyes

Landscapes

  • Engineering & Computer Science (AREA)
  • Chemical & Material Sciences (AREA)
  • Combustion & Propulsion (AREA)
  • Transportation (AREA)
  • Mechanical Engineering (AREA)
  • Theoretical Computer Science (AREA)
  • General Physics & Mathematics (AREA)
  • Physics & Mathematics (AREA)
  • Computer Hardware Design (AREA)
  • Human Computer Interaction (AREA)
  • General Engineering & Computer Science (AREA)
  • Multimedia (AREA)
  • Instrument Panels (AREA)
  • Fittings On The Vehicle Exterior For Carrying Loads, And Devices For Holding Or Mounting Articles (AREA)
  • Controls And Circuits For Display Device (AREA)
  • User Interface Of Digital Computer (AREA)
  • Traffic Control Systems (AREA)
PCT/JP2015/001666 2014-03-31 2015-03-24 情報表示システム Ceased WO2015151457A1 (ja)

Priority Applications (2)

Application Number Priority Date Filing Date Title
US15/123,713 US10040353B2 (en) 2014-03-31 2015-03-24 Information display system
CN201580017222.7A CN106132753B (zh) 2014-03-31 2015-03-24 信息显示系统

Applications Claiming Priority (2)

Application Number Priority Date Filing Date Title
JP2014072296A JP6281376B2 (ja) 2014-03-31 2014-03-31 情報表示システム
JP2014-072296 2014-03-31

Publications (1)

Publication Number Publication Date
WO2015151457A1 true WO2015151457A1 (ja) 2015-10-08

Family

ID=54239804

Family Applications (1)

Application Number Title Priority Date Filing Date
PCT/JP2015/001666 Ceased WO2015151457A1 (ja) 2014-03-31 2015-03-24 情報表示システム

Country Status (4)

Country Link
US (1) US10040353B2 (enExample)
JP (1) JP6281376B2 (enExample)
CN (1) CN106132753B (enExample)
WO (1) WO2015151457A1 (enExample)

Cited By (1)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
CN107016747A (zh) * 2016-01-15 2017-08-04 丰田自动车株式会社 车辆用信息提供装置

Families Citing this family (8)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
JP6471707B2 (ja) * 2016-02-09 2019-02-20 株式会社デンソー 運転教示装置
DE102017204256A1 (de) * 2017-03-14 2018-09-20 Bayerische Motoren Werke Aktiengesellschaft Verfahren und Vorrichtung zur Erinnerung eines Fahrers an ein Anfahren an einer Lichtsignaleinrichtung mit variabler Ausgabefunktion
JP6986699B2 (ja) * 2017-07-04 2021-12-22 パナソニックＩｐマネジメント株式会社 表示制御システム、表示システム、移動体、表示制御方法及びプログラム
CN111936345B (zh) * 2018-04-11 2023-08-15 三菱电机株式会社 视线引导装置
WO2020184599A1 (ja) * 2019-03-11 2020-09-17 パナソニックＩｐマネジメント株式会社 表示制御装置、表示システム、表示制御方法、プログラム
US11450116B2 (en) * 2020-03-09 2022-09-20 Ford Global Technologies, Llc Systems and methods for sharing camera setting control among multiple image processing components in a vehicle
JP7602307B2 (ja) 2021-09-28 2024-12-18 パナソニックオートモーティブシステムズ株式会社 制御方法、情報表示システム、および、プログラム
JP7514589B2 (ja) 2021-09-29 2024-07-11 パナソニックオートモーティブシステムズ株式会社 表示制御装置、表示制御システム及び表示制御方法

Citations (11)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
JP2002019491A (ja) * 2000-07-11 2002-01-23 Mazda Motor Corp 車両の表示装置
JP2003291688A (ja) * 2002-04-03 2003-10-15 Denso Corp 表示方法、運転支援装置、プログラム
JP2003302470A (ja) * 2002-04-05 2003-10-24 Sogo Jidosha Anzen Kogai Gijutsu Kenkyu Kumiai 歩行者検出装置および歩行者検出方法
JP2005135037A (ja) * 2003-10-29 2005-05-26 Toyota Central Res & Dev Lab Inc 車両用情報提示装置
JP2006096286A (ja) * 2004-09-30 2006-04-13 Nissan Motor Co Ltd 運転支援装置
JP2008176459A (ja) * 2007-01-17 2008-07-31 Matsushita Electric Ind Co Ltd 警戒対象検出装置および警戒対象検出装置を用いた交通安全支援システム
JP2011221630A (ja) * 2010-04-06 2011-11-04 Honda Motor Co Ltd 車両の周辺監視装置
JP2011246048A (ja) * 2010-05-28 2011-12-08 Yazaki Corp 車両用表示装置
JP2012113672A (ja) * 2010-11-29 2012-06-14 Pioneer Electronic Corp 車両表示装置及び視線誘導装置
JP2013121804A (ja) * 2011-12-12 2013-06-20 Fujitsu Ten Ltd 車載表示システム
JP2015026185A (ja) * 2013-07-25 2015-02-05 三菱電機株式会社 運転支援装置

Family Cites Families (7)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
JP2005239042A (ja) * 2004-02-27 2005-09-08 Nippon Seiki Co Ltd 車両用情報表示装置及び車両用情報表示方法
JP4882587B2 (ja) * 2006-08-09 2012-02-22 株式会社デンソー 車両用情報提供装置
US8451108B2 (en) * 2007-10-12 2013-05-28 Mitsubishi Electric Corporation On-vehicle information providing device
SG192397A1 (en) * 2008-06-03 2013-08-30 Mitsubishi Electric Corp In-train information delivery service system, in-train information delivery method, and information display unit for passenger-carrying car
CN102596627B (zh) * 2009-11-04 2015-02-11 本田技研工业株式会社 车辆用显示装置
JP5613472B2 (ja) * 2010-06-17 2014-10-22 矢崎総業株式会社 車両用表示装置
WO2013111388A1 (ja) * 2012-01-23 2013-08-01 三菱電機株式会社 情報表示装置

Patent Citations (11)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
JP2002019491A (ja) * 2000-07-11 2002-01-23 Mazda Motor Corp 車両の表示装置
JP2003291688A (ja) * 2002-04-03 2003-10-15 Denso Corp 表示方法、運転支援装置、プログラム
JP2003302470A (ja) * 2002-04-05 2003-10-24 Sogo Jidosha Anzen Kogai Gijutsu Kenkyu Kumiai 歩行者検出装置および歩行者検出方法
JP2005135037A (ja) * 2003-10-29 2005-05-26 Toyota Central Res & Dev Lab Inc 車両用情報提示装置
JP2006096286A (ja) * 2004-09-30 2006-04-13 Nissan Motor Co Ltd 運転支援装置
JP2008176459A (ja) * 2007-01-17 2008-07-31 Matsushita Electric Ind Co Ltd 警戒対象検出装置および警戒対象検出装置を用いた交通安全支援システム
JP2011221630A (ja) * 2010-04-06 2011-11-04 Honda Motor Co Ltd 車両の周辺監視装置
JP2011246048A (ja) * 2010-05-28 2011-12-08 Yazaki Corp 車両用表示装置
JP2012113672A (ja) * 2010-11-29 2012-06-14 Pioneer Electronic Corp 車両表示装置及び視線誘導装置
JP2013121804A (ja) * 2011-12-12 2013-06-20 Fujitsu Ten Ltd 車載表示システム
JP2015026185A (ja) * 2013-07-25 2015-02-05 三菱電機株式会社 運転支援装置

Cited By (1)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
CN107016747A (zh) * 2016-01-15 2017-08-04 丰田自动车株式会社 车辆用信息提供装置

Also Published As

Publication number Publication date
CN106132753B (zh) 2018-09-04
CN106132753A (zh) 2016-11-16
US10040353B2 (en) 2018-08-07
JP2015193317A (ja) 2015-11-05
US20170015198A1 (en) 2017-01-19
JP6281376B2 (ja) 2018-02-21

Similar Documents

Publication Publication Date Title
JP6281376B2 (ja) 情報表示システム
CN105667421B (zh) 包括眼跟踪装置的供车辆使用的系统和方法
US9904362B2 (en) Systems and methods for use at a vehicle including an eye tracking device
JP6361318B2 (ja) 車両用画像表示装置、車両用画像表示方法
US20170286785A1 (en) Interactive display based on interpreting driver actions
US9418548B2 (en) Display control device, display control method, non-transitory computer-readable recording medium, and projecting device
JP2009269551A (ja) 車両用表示装置
CN108202601A (zh) 一种车内多屏交互方法及交互系统
JP2017097687A (ja) 車両用情報提示装置
US9495871B2 (en) Display control device, display control method, non-transitory recording medium, and projection device
JP2023181771A (ja) 車両用表示制御装置及び車両用表示方法
JP2019111948A (ja) 車両用情報表示装置
CN115771460B (zh) 车辆变道信息的展示方法、装置、电子设备及存储介质
JP2018171971A (ja) 自動車用表示装置
JP6555326B2 (ja) 運転支援装置
JP6384794B2 (ja) 表示制御装置、表示制御方法、表示制御プログラム、および投影装置
KR102354423B1 (ko) 차량 운전 정보 관리 방법 및 장치
CN116540969A (zh) 车载多显示屏显示控制方法、装置、设备及存储介质
JP2017114468A (ja) 画像表示装置、画像表示方法および制御プログラム
WO2015173982A1 (ja) 運転支援装置
WO2017110014A1 (ja) 画像表示装置、画像表示方法および制御プログラム
CN114495542A (zh) 一种辅助驾驶方法、装置及存储介质
CN117644825A (zh) 车载滑移屏控制方法及装置
KR20240052840A (ko) 차량의 상태 정보를 프롬프팅하기 위한 방법 및 장치

Legal Events

Date Code Title Description
121 Ep: the epo has been informed by wipo that ep was designated in this application

Ref document number: 15772188

Country of ref document: EP

Kind code of ref document: A1

WWE Wipo information: entry into national phase

Ref document number: 15123713

Country of ref document: US

NENP Non-entry into the national phase
122 Ep: pct application non-entry in european phase

Ref document number: 15772188

Country of ref document: EP

Kind code of ref document: A1
