Definitions

  • the present invention includes a sample stage for holding a substrate to be processed to be subjected to substrate processing, and the sample stage, generates plasma in a processing chamber by microwaves, and performs plasma processing on the substrate to be processed using the plasma. Relates to a microwave plasma processing apparatus configured as described above.
  • the semiconductor manufacturing apparatus includes a sample table that holds a substrate to be processed to be subjected to plasma processing, for example, a semiconductor wafer.
  • the sample stage includes a ceramic suction plate for electrostatically attracting a semiconductor wafer, and an electrode for electrostatic suction, a heater for heating, and the like are embedded in the suction plate.
  • the contact surface of the suction plate that contacts the semiconductor wafer is smoothed by lapping so that the thermal resistance between the contact surface and the semiconductor wafer is uniform.
  • Patent Document 1 discloses a sample stage configured such that a recess is formed in a substrate support surface that supports a semiconductor wafer, and a predetermined space is formed between the semiconductor wafer and the substrate support surface. ing.
  • the temperature of the semiconductor wafer is increased by forming the sample stage so that the temperature is likely to rise at the center of the semiconductor wafer, and the depth is greatest at the center of the recess and shallower from the center toward the end.
  • the purpose is to make the uniform.
  • a concave portion having a depth of 3 to 10 ⁇ m is formed on one main surface of the plate-like ceramic body, leaving the outer peripheral portion thereof, and the undulation at the top surface of the outer peripheral portion is set to 1 to 3 ⁇ m.
  • a sample stage in which a gas groove is provided in a peripheral portion of the bottom surface of the recess, and an electrostatic adsorption electrode is disposed in a plate-like ceramic body below the bottom surface of the recess.
  • FIG. 10 is an explanatory diagram showing the problems of the conventional sample stage.

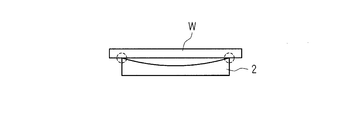

  • FIG. 10A schematically shows a conventional sample stage 102 on which a semiconductor wafer W is placed.
  • FIG. 10B shows the measurement result of the temperature distribution in the semiconductor wafer W placed on the conventional sample stage 102 in the plasma environment.
  • the contact surface has a shape in which a substantially central portion is convexly curved as shown in FIG. 10A.
  • the semiconductor wafer W placed horizontally with respect to the suction plate is unstable because it is supported at one point as shown in the left diagram of FIG. 10A, and can easily be moved to one side as shown in the right diagram of FIG. 10A.
  • a large gap is formed between the semiconductor wafer W and the suction plate on the other side.
  • the thermal resistance of the portion having a large gap is locally increased, the amount of heat removal is reduced, and a local high temperature portion is generated in the semiconductor wafer W.
  • a temperature difference ⁇ T of about 15 ° C. was detected in the semiconductor wafer W.
  • the above-mentioned problem is generally generated not only when lapping is performed on the contact surface of the suction plate but also when the substantially central portion is curved in a convex shape as a result of performing a predetermined surface treatment. Is.
  • Patent Document 1 since the sample stage described in Patent Document 1 has a configuration in which the semiconductor wafer and the sample stage are not in surface contact, it is difficult to control the temperature of the semiconductor wafer with high accuracy. Further, Patent Document 2 does not disclose means for solving the above-described problem.
  • the present invention has been made in view of such circumstances, and even when the contact surface of the suction plate is subjected to a predetermined surface treatment, for example, lapping, by making the contact surface substantially concave, A sample stage capable of stably holding a substrate to be processed and a microwave plasma processing apparatus including the sample stage are provided.
  • the sample stage according to the present invention has a contact surface that makes surface contact with the substrate to be processed in the sample stage that holds the substrate to be processed, and sucks the substrate to be processed that is in surface contact with the contact surface.
  • a support substrate having a concave surface to which a non-contact surface of the suction plate is bonded, and the difference between the depth of the substantially central portion of the concave surface and the depth of the separated portion separated from the central portion is: It is characterized by being larger than the difference between the thickness of the suction plate at the part contacting the central portion and the thickness of the suction plate at the part contacting the separation part.
  • the suction plate is bonded to the concave surface of the support substrate.
  • the difference between the depth of the substantially central portion of the concave surface and the depth of the separated portion separated from the central portion is the thickness of the suction plate at the portion contacting the central portion and the suction plate at the portion contacting the separated portion. Therefore, even if the contact surface of the suction plate is subjected to a predetermined surface treatment and curved in a convex shape, the contact surface of the suction plate bonded to the concave surface is concave.
  • the sample stage according to the present invention is characterized in that the concave surface of the support substrate has a flat bottom surface.
  • the suction plate is more stably bonded to the support substrate than the concave surface formed in a mortar shape.
  • the sample stage according to the present invention is characterized in that the concave surface of the support substrate has a trapezoidal cross section.
  • the concave side surface has a trapezoidal shape
  • the depth of the concave surface can be processed with higher accuracy than when the concave surface is processed into a spherical shape.
  • the concave shape of the suction plate can be formed with high accuracy.
  • the support substrate is made of an aluminum member, and includes a cooling water channel through which cooling water for cooling the substrate to be processed flows, and the suction plate is lapped on the contact surface.
  • the ceramic member is provided with a heater for heating the substrate to be processed and an electrode for electrostatically adsorbing the substrate to be processed.
  • the substrate to be processed can be cooled by passing a cooling liquid through the cooling water flow path. Further, the substrate to be processed can be heated by energizing the heater of the suction plate. Furthermore, the substrate to be processed can be electrostatically adsorbed by applying a direct current to the electrodes of the adsorption plate.
  • a microwave plasma processing apparatus includes the above-described sample stage, and is configured to generate plasma in a processing chamber by microwaves and perform plasma processing on a substrate to be processed using the plasma.
  • the substrate to be processed held on the sample stage can be uniformly plasma-processed.
  • the substrate to be processed is stably held by making the contact surface substantially concave. And the substrate to be processed can be uniformly plasma-processed.
  • FIG. 1 is a cross-sectional view schematically showing an example of a microwave plasma processing apparatus according to an embodiment of the present invention.
  • the overall configuration of the microwave plasma processing apparatus will be described, and then the details of the sample stage 2 will be described.
  • the microwave plasma processing apparatus is of, for example, an RLSA (Radial Line Slot Slot Antenna) type, and includes a substantially cylindrical processing chamber 1 that is airtight and grounded.
  • the processing chamber 1 is made of, for example, aluminum, and includes a flat plate-shaped annular bottom wall 1a in which a circular opening 10 is formed in a substantially central portion, and a side wall provided around the bottom wall 1a. It is open.
  • a cylindrical liner made of quartz may be provided on the inner periphery of the processing chamber 1.
  • An annular gas introducing member 15 is provided on the side wall of the processing chamber 1, and a processing gas supply system 16 is connected to the gas introducing member 15.
  • the gas introduction member 15 is arranged in a shower shape, for example.
  • a predetermined processing gas is introduced from the processing gas supply system 16 into the processing chamber 1 through the gas introduction member 15.
  • an appropriate gas is used according to the type of plasma processing.
  • the sample stage 2 is preferably used for polysilicon (Poly-Si) etching processing that requires precise temperature control in order to perform high-precision processing.
  • HBr gas, O2 gas, or the like is preferable. Used for.
  • a gate valve 26 is provided on the side wall of the processing chamber 1.
  • the bottom wall 1 a of the processing chamber 1 is provided with a bottomed cylindrical exhaust chamber 11 protruding downward so as to communicate with the opening 10.
  • An exhaust pipe 23 is provided on the side wall of the exhaust chamber 11, and an exhaust device 24 including a high-speed vacuum pump is connected to the exhaust pipe 23.
  • the gas in the processing chamber 1 is uniformly discharged into the space 11 a of the exhaust chamber 11 and is exhausted through the exhaust pipe 23. Therefore, the inside of the processing chamber 1 can be depressurized at a high speed to a predetermined degree of vacuum, for example, 0.133 Pa.
  • a columnar member 3 made of ceramic such as AlN is projected substantially vertically at the center of the bottom of the exhaust chamber 11, and a semiconductor wafer W, which is a substrate to be processed, to be subjected to plasma processing is supported at the tip of the columnar member
  • a sample stage 2 is provided.
  • the sample stage 2 has a disc shape, and a guide ring 4 for guiding the semiconductor wafer W is provided on the outer edge thereof.
  • the sample stage 2 is connected to a heater power source 6 for heating the semiconductor wafer W and a DC power source 8 for electrostatic adsorption.
  • the sample table 2 is provided with wafer support pins (not shown) for supporting the semiconductor wafer W and raising and lowering it so as to protrude and retract with respect to the surface of the sample table 2. The detailed configuration of the sample stage 2 will be described later. Further, a high-frequency power source (not shown) for applying a bias to the semiconductor wafer W that is the substrate to be processed may be provided on the sample stage 2.
  • the opening formed in the upper part of the processing chamber 1 is provided with a ring-shaped support 27 along the peripheral edge thereof.
  • the support portion 27 is made of a dielectric material, for example, ceramic such as quartz or Al 2 ⁇ O 3 ⁇ , and is provided with a disk-shaped dielectric window 28 that allows microwaves to pass therethrough through a seal member 29.
  • a disk-shaped slot plate 31 is provided above the dielectric window 28 so as to face the sample table 2.
  • the slot plate 31 is locked to the upper end of the side wall of the processing chamber 1 while being in surface contact with the dielectric window 28.
  • the slot plate 31 is made of a conductor, for example, a copper plate or an aluminum plate whose surface is gold-plated, and has a configuration in which a plurality of microwave radiation slots 32 are formed through a predetermined pattern. That is, the slot plate 31 constitutes an RLSA antenna.
  • the microwave radiation slots 32 have, for example, a long groove shape, and are disposed close to each other so that a pair of adjacent microwave radiation slots 32 form a substantially L shape.
  • the plurality of microwave radiation slots 32 forming a pair are arranged concentrically. Specifically, seven pairs of microwave radiation slots 32 are formed on the inner peripheral side and 26 pairs on the outer peripheral side. The length and arrangement interval of the microwave radiation slots 32 are determined according to the wavelength of the microwave and the like.
  • dielectric plates 33 having a dielectric constant larger than that of vacuum are provided so as to be in surface contact with each other.
  • the dielectric plate 33 has a flat dielectric disk portion.
  • a hole is formed in a substantially central portion of the dielectric disk portion.
  • a cylindrical microwave incident portion protrudes from the peripheral edge of the hole substantially perpendicular to the dielectric disk portion.
  • a disc-shaped shield lid 34 is provided on the upper surface of the processing chamber 1 so as to cover the slot plate 31 and the dielectric plate 33.
  • the shield lid 34 is made of a metal such as aluminum or stainless steel.
  • a space between the upper surface of the processing chamber 1 and the shield lid 34 is sealed with a seal member 35.
  • a lid-side cooling water channel 34a is formed inside the shield lid 34, and the slot plate 31, the dielectric window 28, and the dielectric plate 33 are made to flow through the lid-side cooling water channel 34a.
  • the shield lid 34 is configured to be cooled.
  • the shield lid 34 is grounded.
  • An opening 36 is formed in the center of the upper wall of the shield lid 34, and a waveguide 37 is connected to the opening.
  • the waveguide 37 has a circular cross-section coaxial waveguide 37a extending upward from the opening 36 of the shield lid 34, and a horizontal cross-section extending in the horizontal direction connected to the upper end of the coaxial waveguide 37a.
  • the microwave generator 39 is connected to the end of the rectangular waveguide 37b via a matching circuit 38.
  • a microwave generated by the microwave generator 39 for example, a microwave having a frequency of 2.45 GHz, is propagated to the slot plate 31 through the waveguide 37.
  • the microwave frequency may be 8.35 GHz, 1.98 GHz, 915 MHz, or the like.
  • a mode converter 40 is provided at the end of the rectangular waveguide 37b on the side where the coaxial waveguide 37a is connected.
  • the coaxial waveguide 37 a has a cylindrical coaxial outer conductor 42 and a coaxial inner conductor 41 arranged along the center line of the coaxial outer conductor 42, and the lower end portion of the coaxial inner conductor 41 is a slot plate 31. Fixed in the center of the connection. The microwave incident portion of the dielectric plate 33 is fitted in the coaxial waveguide 37a.
  • the microwave plasma processing apparatus includes a process controller 50 that controls each component of the microwave plasma processing apparatus.
  • the process controller 50 includes a user interface 51 including a keyboard that allows a process manager to input commands to manage the microwave plasma processing apparatus, a display that visualizes and displays the operating status of the microwave plasma processing apparatus, and the like. Is connected.
  • the process controller 50 also stores a control program for realizing various processes executed by the microwave plasma processing apparatus under the control of the process controller 50, a process control program in which process condition data and the like are recorded.
  • the part 52 is connected.
  • the process controller 50 calls and executes an arbitrary process control program according to an instruction from the user interface 51 from the storage unit 52, and performs desired processing in the microwave plasma processing apparatus under the control of the process controller 50. .
  • FIG. 2 is a side sectional view schematically showing an example of the sample stage 2 according to the present embodiment
  • FIGS. 3A and 3B are exploded side sectional views schematically showing an example of the sample stage 2.
  • the sample stage 2 includes a support substrate 21 and a suction plate 23 bonded to the support substrate 21 with an adhesive 22.
  • FIG. 4 is a side sectional view schematically showing an example of the support substrate 21.
  • the support substrate 21 is made of an aluminum member, a stainless steel member, silicon carbide containing aluminum, or the like formed in a substantially disk shape having a larger diameter than the semiconductor wafer W, and a cooling water passage 21a is formed inside.
  • the cooling water channel 21a cools the semiconductor wafer W by allowing cooling water to flow therethrough.
  • a concave surface 21b having a circular shape in front view is formed on one end surface side (upper surface side) of the support substrate 21, an annular groove portion is formed on the radially outer side of the concave surface 21b, and an annular outer peripheral portion is formed on the outer side. Is formed.
  • the concave surface 21b has a flat plate shape with a trapezoidal side cross section, and the depth of the concave surface 21b increases as the plan view formed in the substantially central portion is separated from the bottom surface portion 21c having a circular shape and radially outward from the bottom surface portion 21c. And a tapered portion 21d formed so as to be shallow. The difference between the depth of the central portion of the concave surface 21b and the depth of the tapered portion 21d spaced from the central portion is that the thickness of the suction plate 23 at the portion contacting the central portion and the tapered portion 21d are contacted as described later.
  • the concave surface 21b has such a depth that the suction plate 23 becomes concave when the suction plate 23 is bonded to the concave surface 21b.
  • FIG. 5 is an enlarged side cross-sectional view of a main part schematically showing an example of the suction plate 23.
  • the suction plate 23 is made of a ceramic member having a disk shape that is substantially the same as or larger in diameter than the concave surface 21 b of the support substrate 21.
  • the suction plate 23 includes a plate member 23a having a contact surface 23c that contacts and sucks the semiconductor wafer W and a non-contact surface 23b that is a surface opposite to the contact surface 23c.
  • the contact surface 23c is embossed and the top of the embossed head is smoothed by lapping.
  • the suction plate 23 subjected to the lapping process has a substantially central portion curved in a convex shape as compared with the outer peripheral portion.
  • the non-contact surface 23 b is bonded to the concave surface 21 b of the support substrate 21 with an adhesive 22.
  • the concave surface 21b of the support substrate 21 has a trapezoidal side cross section, but the adhesive 22 is infiltrated into the gap between the concave surface 21b and the suction plate 23, and the contact surface 23c of the suction plate 23 is a smoothly curved concave surface. It becomes a shape.
  • the suction plate 23 is embedded with a heater 23e for superheating the semiconductor wafer W and an electrode 23d for electrostatically attracting the semiconductor wafer W.
  • the heater 23e and the electrode 23d are each provided with a heater power source 6. And a DC power supply 8 are connected.
  • the concave surface 21b and the concave shape of the suction plate 23 shown in FIGS. 2 to 5 are exaggerated, and the contact surface 23c of the suction plate 23 bonded to the support substrate 21 is infinitely flat. It is a concave shape close to.
  • FIG. 6 is an explanatory diagram for explaining the dimensions of the support substrate 21.
  • the diameter ⁇ of the circular portion in which the concave surface 21b is formed on one end surface side of the support substrate 21 is, for example, 300 mm
  • the diameter ⁇ of the bottom surface portion 21c of the concave surface 21b is 150 mm
  • the depth D at the central portion of the concave surface 21b is about 20 to
  • the angle formed by the bottom surface portion 21c and the tapered portion 21d is 25 ⁇ m, and ⁇ is 179.981 ° to 179.985 °.
  • the values of the diameters ⁇ , ⁇ , the depth D, and the angle ⁇ are merely examples, and may be set as appropriate according to the dimensions and thickness of the semiconductor wafer W and the suction plate 23.
  • setting the diameter ⁇ of the bottom surface portion 21c to 150 mm is more accurate than, for example, setting the diameter ⁇ to 100 mm. It has been confirmed that it can be processed.
  • FIG. 7 is a graph for explaining the dimensional shape of the concave surface 21 b formed on the support substrate 21.
  • the horizontal axis is the diameter ⁇
  • the vertical axis is the angle ⁇ .
  • the reference value is the lower limit value of ⁇ when ⁇ is 150 mm.
  • FIG. 8 is a graph showing the depth of the concave surface 21 b formed on the support substrate 21.
  • the horizontal axis indicates the radial position of the concave surface 21b, and the vertical axis indicates the depth D.
  • the plots of the square mark and the rhombus mark indicate the depth of the concave surface 21b that was cut separately, and it was confirmed that the concave surface 21b was formed with good reproducibility.
  • FIG. 9 is an explanatory diagram for explaining the operation of the sample stage 2 according to the present embodiment.
  • FIG. 9A schematically shows the sample stage 2 on which the semiconductor wafer W is placed, as in FIG.
  • FIG. 9B shows the measurement result of the temperature distribution in the semiconductor wafer W placed on the sample stage 2 in the plasma environment.
  • the contact surface 23c has a shape in which a substantially central portion is curved flat or concave. The concave shape shown in FIG.
  • FIG. 9A is exaggerated and is actually a concave shape that is almost flat.
  • the semiconductor wafer W placed horizontally with respect to the suction plate 23 is stably supported by the line, and as a result, as shown in FIG. 9B, the thermal resistance of the semiconductor wafer W becomes uniform.
  • the temperature distribution of the semiconductor wafer W becomes uniform.
  • the local temperature difference ⁇ T in the semiconductor wafer W could be suppressed to about 5 ° C.
  • the semiconductor wafer W is stabilized by maintaining the smoothness of the contact surface 23c by lapping and making the contact surface 23c substantially concave. Can be retained.
  • the suction plate 23 can be stably bonded to the support substrate 21 compared to the concave surface 21b in which the concave surface 21b is formed in a mortar shape. Can do. If the concave surface 21b is formed in a mortar shape, the central portion of the suction plate 23 may float and the suction plate 23 may be peeled off. However, when the concave surface 21b is formed in a trapezoidal side cross section, the peeling of the suction plate 23 is effectively suppressed. Can do.
  • the concave surface 21b of the support substrate 21 has a trapezoidal side cross section, the depth of the concave surface 21b can be easily processed with high accuracy compared to the case of processing into an arc shape. As a result, the concave shape of the suction plate 23 can also be formed with high accuracy.
  • the semiconductor wafer W can be brought into surface contact with the contact surface 23 c of the suction plate 23 by passing a direct current through the electrode 23 d embedded in the suction plate 23. Then, by energizing the heater 23 e with the semiconductor wafer W uniformly in surface contact with the suction plate 23, the semiconductor wafer W is overheated, and the cooling water is passed through the cooling water passage 21 a of the support substrate 21. The semiconductor wafer W can be cooled. Therefore, the temperature of the semiconductor wafer W can be uniformly controlled, and the semiconductor wafer W can be uniformly plasma processed.
  • the shape of the concave surface shown in the embodiment is an example, and the shape is not limited.
  • the concave surface may be formed in an arc shape.
  • the concave surface may be formed in a mortar shape as long as the suction plate can be bonded to the support substrate.
  • the semiconductor manufacturing apparatus to which the sample stage according to this embodiment is applied is not particularly limited, and is applicable to various processing apparatuses such as PVD, CVD, plasma CVD and other film forming processing apparatuses, and etching apparatuses. Can do.

Landscapes

  • Engineering & Computer Science (AREA)
  • Physics & Mathematics (AREA)
  • Condensed Matter Physics & Semiconductors (AREA)
  • General Physics & Mathematics (AREA)
  • Manufacturing & Machinery (AREA)
  • Computer Hardware Design (AREA)
  • Microelectronics & Electronic Packaging (AREA)
  • Power Engineering (AREA)
  • Plasma & Fusion (AREA)
  • Container, Conveyance, Adherence, Positioning, Of Wafer (AREA)
  • Drying Of Semiconductors (AREA)
PCT/JP2010/066910 2009-10-20 2010-09-29 試料台及びマイクロ波プラズマ処理装置 Ceased WO2011048917A1 (ja)

Priority Applications (4)

Application Number Priority Date Filing Date Title
US13/502,829 US20120211165A1 (en) 2009-10-20 2010-09-29 Sample table and microwave plasma processing apparatus
CN201080047610.7A CN102576673B (zh) 2009-10-20 2010-09-29 试样台和微波等离子体处理装置
KR1020127010099A KR101324589B1 (ko) 2009-10-20 2010-09-29 시료대 및 마이크로파 플라즈마 처리 장치
US15/966,506 US10896842B2 (en) 2009-10-20 2018-04-30 Manufacturing method of sample table

Applications Claiming Priority (2)

Application Number Priority Date Filing Date Title
JP2009241538A JP5628507B2 (ja) 2009-10-20 2009-10-20 試料台及びマイクロ波プラズマ処理装置
JP2009-241538 2009-10-20

Related Child Applications (2)

Application Number Title Priority Date Filing Date
US13/502,829 A-371-Of-International US20120211165A1 (en) 2009-10-20 2010-09-29 Sample table and microwave plasma processing apparatus
US15/966,506 Continuation-In-Part US10896842B2 (en) 2009-10-20 2018-04-30 Manufacturing method of sample table

Publications (1)

Publication Number Publication Date
WO2011048917A1 true WO2011048917A1 (ja) 2011-04-28

Family

ID=43900155

Family Applications (1)

Application Number Title Priority Date Filing Date
PCT/JP2010/066910 Ceased WO2011048917A1 (ja) 2009-10-20 2010-09-29 試料台及びマイクロ波プラズマ処理装置

Country Status (6)

Country Link
US (1) US20120211165A1 (enExample)
JP (1) JP5628507B2 (enExample)
KR (1) KR101324589B1 (enExample)
CN (1) CN102576673B (enExample)
TW (1) TWI459502B (enExample)
WO (1) WO2011048917A1 (enExample)

Families Citing this family (6)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
JP6014143B2 (ja) * 2012-08-06 2016-10-25 パイオニア株式会社 ドライエッチング装置およびドライエッチング方法
JP6741548B2 (ja) * 2016-10-14 2020-08-19 日本碍子株式会社 半導体製造装置用部材及びその製法
US10510512B2 (en) * 2018-01-25 2019-12-17 Tokyo Electron Limited Methods and systems for controlling plasma performance
CN110983298A (zh) * 2019-12-24 2020-04-10 中国科学院半导体研究所 一种用于微波等离子体化学气相沉积装置的样品台结构
KR102841826B1 (ko) 2020-12-16 2025-08-04 삼성전자주식회사 플라즈마 프로세싱을 위한 정전 척을 포함하는 반도체 공정 설비
US20250210319A1 (en) * 2023-12-20 2025-06-26 Applied Materials, Inc. Electrode configurations and magnet configurations for processing chambers, and related methods and apparatus, for semiconductor manufacturing

Citations (4)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
JP2004273619A (ja) * 2003-03-06 2004-09-30 Hitachi High-Technologies Corp 真空処理装置用の試料載置装置
JP2006013302A (ja) * 2004-06-29 2006-01-12 Ngk Insulators Ltd 基板載置装置及び基板温度調整方法
JP2008042138A (ja) * 2006-08-10 2008-02-21 Tokyo Electron Ltd 静電チャック装置
JP2009510774A (ja) * 2005-09-30 2009-03-12 ラム リサーチ コーポレーション 変化する厚さ、プロファルおよび／または形状を有する誘電材料および／または空洞を備える静電チャックアセンブリ、その使用方法、ならびにそれを組み込む装置

Family Cites Families (11)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
US5886863A (en) * 1995-05-09 1999-03-23 Kyocera Corporation Wafer support member
US5761023A (en) * 1996-04-25 1998-06-02 Applied Materials, Inc. Substrate support with pressure zones having reduced contact area and temperature feedback
US6177023B1 (en) * 1997-07-11 2001-01-23 Applied Komatsu Technology, Inc. Method and apparatus for electrostatically maintaining substrate flatness
US6228438B1 (en) * 1999-08-10 2001-05-08 Unakis Balzers Aktiengesellschaft Plasma reactor for the treatment of large size substrates
JP3650025B2 (ja) * 2000-12-04 2005-05-18 シャープ株式会社 プラズマプロセス装置
GB0029570D0 (en) * 2000-12-05 2001-01-17 Trikon Holdings Ltd Electrostatic clamp
US7651571B2 (en) * 2005-12-22 2010-01-26 Kyocera Corporation Susceptor
US8284538B2 (en) * 2006-08-10 2012-10-09 Tokyo Electron Limited Electrostatic chuck device
US7619870B2 (en) * 2006-08-10 2009-11-17 Tokyo Electron Limited Electrostatic chuck
US20080041312A1 (en) * 2006-08-10 2008-02-21 Shoichiro Matsuyama Stage for plasma processing apparatus, and plasma processing apparatus
JP5029089B2 (ja) * 2007-03-26 2012-09-19 東京エレクトロン株式会社 プラズマ処理装置用の載置台及びプラズマ処理装置

Patent Citations (4)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
JP2004273619A (ja) * 2003-03-06 2004-09-30 Hitachi High-Technologies Corp 真空処理装置用の試料載置装置
JP2006013302A (ja) * 2004-06-29 2006-01-12 Ngk Insulators Ltd 基板載置装置及び基板温度調整方法
JP2009510774A (ja) * 2005-09-30 2009-03-12 ラム リサーチ コーポレーション 変化する厚さ、プロファルおよび／または形状を有する誘電材料および／または空洞を備える静電チャックアセンブリ、その使用方法、ならびにそれを組み込む装置
JP2008042138A (ja) * 2006-08-10 2008-02-21 Tokyo Electron Ltd 静電チャック装置

Also Published As

Publication number Publication date
CN102576673B (zh) 2015-08-19
US20120211165A1 (en) 2012-08-23
TW201133699A (en) 2011-10-01
JP5628507B2 (ja) 2014-11-19
KR101324589B1 (ko) 2013-11-01
CN102576673A (zh) 2012-07-11
TWI459502B (zh) 2014-11-01
JP2011091096A (ja) 2011-05-06
KR20120060889A (ko) 2012-06-12

Similar Documents

Publication Publication Date Title
JP6452449B2 (ja) 載置台及び基板処理装置
TWI763969B (zh) 用於電漿處理中之均勻性控制的漸縮上電極
KR102455673B1 (ko) 포커스 링 및 기판 처리 장치
US11967511B2 (en) Plasma processing apparatus
JP5893516B2 (ja) 被処理体の処理装置及び被処理体の載置台
JP5628507B2 (ja) 試料台及びマイクロ波プラズマ処理装置
TWI794428B (zh) 被處理體的載置裝置及處理裝置
TW201923953A (zh) 具有空間分離的單個晶圓處理環境
US20100006543A1 (en) Plasma processing apparatus, plasma processing method and storage medium
KR101898079B1 (ko) 플라즈마 처리 장치
JP2019041024A (ja) 冷媒用の流路を有する部材、冷媒用の流路を有する部材の制御方法及び基板処理装置
JP2010118549A (ja) プラズマエッチング方法及びプラズマエッチング装置
KR20210102075A (ko) 거치대, 플라즈마 처리 장치 및 클리닝 처리 방법
CN101002509A (zh) 等离子处理单元
TW202032715A (zh) 載置台及基板處理裝置
US10896842B2 (en) Manufacturing method of sample table
JP5479013B2 (ja) プラズマ処理装置及びこれに用いる遅波板
US11538669B2 (en) Plasma processing apparatus
JP5859792B2 (ja) プラズマエッチング方法
US11201039B2 (en) Mounting apparatus for object to be processed and processing apparatus
TWI809007B (zh) 半導體製造裝置用之對焦環及半導體製造裝置
JP5927260B2 (ja) 試料台及びマイクロ波プラズマ処理装置
JP7204564B2 (ja) プラズマ処理装置
KR102192597B1 (ko) 플라스마 처리 장치
JP5728565B2 (ja) プラズマ処理装置及びこれに用いる遅波板

Legal Events

Date Code Title Description
WWE Wipo information: entry into national phase

Ref document number: 201080047610.7

Country of ref document: CN

121 Ep: the epo has been informed by wipo that ep was designated in this application

Ref document number: 10824766

Country of ref document: EP

Kind code of ref document: A1

ENP Entry into the national phase

Ref document number: 20127010099

Country of ref document: KR

Kind code of ref document: A

WWE Wipo information: entry into national phase

Ref document number: 13502829

Country of ref document: US

122 Ep: pct application non-entry in european phase

Ref document number: 10824766

Country of ref document: EP

Kind code of ref document: A1
