JP7071022B2 - リチウム二次電池用電解質 - Google Patents
リチウム二次電池用電解質 Download PDFInfo
- Publication number
- JP7071022B2 JP7071022B2 JP2021509714A JP2021509714A JP7071022B2 JP 7071022 B2 JP7071022 B2 JP 7071022B2 JP 2021509714 A JP2021509714 A JP 2021509714A JP 2021509714 A JP2021509714 A JP 2021509714A JP 7071022 B2 JP7071022 B2 JP 7071022B2
- Authority
- JP
- Japan
- Prior art keywords
- electrolyte
- oligomer
- secondary battery
- lithium secondary
- integer
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Active
Links
- 229910052744 lithium Inorganic materials 0.000 title claims description 137
- WHXSMMKQMYFTQS-UHFFFAOYSA-N Lithium Chemical compound [Li] WHXSMMKQMYFTQS-UHFFFAOYSA-N 0.000 title claims description 136
- 239000003792 electrolyte Substances 0.000 title claims description 94
- 239000000126 substance Substances 0.000 claims description 88
- 125000004432 carbon atom Chemical group C* 0.000 claims description 70
- 239000005518 polymer electrolyte Substances 0.000 claims description 42
- 239000000203 mixture Substances 0.000 claims description 41
- -1 halogenated benzene compound Chemical class 0.000 claims description 30
- 125000000217 alkyl group Chemical group 0.000 claims description 26
- 229910003002 lithium salt Inorganic materials 0.000 claims description 26
- 159000000002 lithium salts Chemical class 0.000 claims description 26
- 239000011244 liquid electrolyte Substances 0.000 claims description 25
- UFHFLCQGNIYNRP-UHFFFAOYSA-N Hydrogen Chemical compound [H][H] UFHFLCQGNIYNRP-UHFFFAOYSA-N 0.000 claims description 20
- 239000001257 hydrogen Substances 0.000 claims description 20
- 229910052739 hydrogen Inorganic materials 0.000 claims description 20
- 125000002029 aromatic hydrocarbon group Chemical group 0.000 claims description 16
- 239000003960 organic solvent Substances 0.000 claims description 15
- 125000002947 alkylene group Chemical group 0.000 claims description 14
- 125000001931 aliphatic group Chemical group 0.000 claims description 12
- 239000003505 polymerization initiator Substances 0.000 claims description 10
- 229910052794 bromium Inorganic materials 0.000 claims description 3
- 229910052801 chlorine Inorganic materials 0.000 claims description 3
- 229910052731 fluorine Inorganic materials 0.000 claims description 3
- 229910052736 halogen Inorganic materials 0.000 claims description 3
- 150000002367 halogens Chemical class 0.000 claims description 3
- 230000000052 comparative effect Effects 0.000 description 24
- HBBGRARXTFLTSG-UHFFFAOYSA-N Lithium ion Chemical compound [Li+] HBBGRARXTFLTSG-UHFFFAOYSA-N 0.000 description 21
- 229910001416 lithium ion Inorganic materials 0.000 description 21
- PXHVJJICTQNCMI-UHFFFAOYSA-N Nickel Chemical compound [Ni] PXHVJJICTQNCMI-UHFFFAOYSA-N 0.000 description 18
- 238000000034 method Methods 0.000 description 18
- 239000002904 solvent Substances 0.000 description 18
- 239000007774 positive electrode material Substances 0.000 description 16
- OKTJSMMVPCPJKN-UHFFFAOYSA-N Carbon Chemical compound [C] OKTJSMMVPCPJKN-UHFFFAOYSA-N 0.000 description 14
- 239000004020 conductor Substances 0.000 description 13
- 239000010408 film Substances 0.000 description 13
- KMTRUDSVKNLOMY-UHFFFAOYSA-N Ethylene carbonate Chemical compound O=C1OCCO1 KMTRUDSVKNLOMY-UHFFFAOYSA-N 0.000 description 11
- 229910052799 carbon Inorganic materials 0.000 description 11
- 239000007773 negative electrode material Substances 0.000 description 10
- 239000002002 slurry Substances 0.000 description 10
- 238000004519 manufacturing process Methods 0.000 description 9
- 229910052751 metal Inorganic materials 0.000 description 9
- 239000002184 metal Substances 0.000 description 9
- SECXISVLQFMRJM-UHFFFAOYSA-N N-Methylpyrrolidone Chemical compound CN1CCCC1=O SECXISVLQFMRJM-UHFFFAOYSA-N 0.000 description 8
- 125000002723 alicyclic group Chemical group 0.000 description 8
- 125000002993 cycloalkylene group Chemical group 0.000 description 8
- 238000010494 dissociation reaction Methods 0.000 description 8
- 230000005593 dissociations Effects 0.000 description 8
- 150000002430 hydrocarbons Chemical group 0.000 description 8
- IQPQWNKOIGAROB-UHFFFAOYSA-N isocyanate group Chemical group [N-]=C=O IQPQWNKOIGAROB-UHFFFAOYSA-N 0.000 description 8
- 239000002131 composite material Substances 0.000 description 7
- 238000000926 separation method Methods 0.000 description 7
- 229910013870 LiPF 6 Inorganic materials 0.000 description 6
- 229910052782 aluminium Inorganic materials 0.000 description 6
- 150000001721 carbon Chemical group 0.000 description 6
- 238000006243 chemical reaction Methods 0.000 description 6
- 239000011883 electrode binding agent Substances 0.000 description 6
- 239000011572 manganese Substances 0.000 description 6
- 229910044991 metal oxide Inorganic materials 0.000 description 6
- 150000004706 metal oxides Chemical class 0.000 description 6
- 229910052759 nickel Inorganic materials 0.000 description 6
- 229910052719 titanium Inorganic materials 0.000 description 6
- 239000010936 titanium Substances 0.000 description 6
- 239000005977 Ethylene Substances 0.000 description 5
- 239000002033 PVDF binder Substances 0.000 description 5
- RTAQQCXQSZGOHL-UHFFFAOYSA-N Titanium Chemical compound [Ti] RTAQQCXQSZGOHL-UHFFFAOYSA-N 0.000 description 5
- RTZKZFJDLAIYFH-UHFFFAOYSA-N ether Substances CCOCC RTZKZFJDLAIYFH-UHFFFAOYSA-N 0.000 description 5
- 150000002500 ions Chemical class 0.000 description 5
- 150000002739 metals Chemical class 0.000 description 5
- 229920000642 polymer Polymers 0.000 description 5
- 229920002981 polyvinylidene fluoride Polymers 0.000 description 5
- 239000007787 solid Substances 0.000 description 5
- VGGSQFUCUMXWEO-UHFFFAOYSA-N Ethene Chemical compound C=C VGGSQFUCUMXWEO-UHFFFAOYSA-N 0.000 description 4
- 239000004698 Polyethylene Substances 0.000 description 4
- 241000156302 Porcine hemagglutinating encephalomyelitis virus Species 0.000 description 4
- 239000000654 additive Substances 0.000 description 4
- 150000001338 aliphatic hydrocarbons Chemical class 0.000 description 4
- 125000004450 alkenylene group Chemical group 0.000 description 4
- XAGFODPZIPBFFR-UHFFFAOYSA-N aluminium Chemical compound [Al] XAGFODPZIPBFFR-UHFFFAOYSA-N 0.000 description 4
- 230000015572 biosynthetic process Effects 0.000 description 4
- 150000001875 compounds Chemical class 0.000 description 4
- 229920001577 copolymer Polymers 0.000 description 4
- IEJIGPNLZYLLBP-UHFFFAOYSA-N dimethyl carbonate Chemical compound COC(=O)OC IEJIGPNLZYLLBP-UHFFFAOYSA-N 0.000 description 4
- JBTWLSYIZRCDFO-UHFFFAOYSA-N ethyl methyl carbonate Chemical compound CCOC(=O)OC JBTWLSYIZRCDFO-UHFFFAOYSA-N 0.000 description 4
- 125000005549 heteroarylene group Chemical group 0.000 description 4
- 125000006588 heterocycloalkylene group Chemical group 0.000 description 4
- 125000004435 hydrogen atom Chemical group [H]* 0.000 description 4
- 238000005259 measurement Methods 0.000 description 4
- 239000001301 oxygen Substances 0.000 description 4
- 229910052760 oxygen Inorganic materials 0.000 description 4
- 229920000573 polyethylene Polymers 0.000 description 4
- MWWATHDPGQKSAR-UHFFFAOYSA-N propyne Chemical group CC#C MWWATHDPGQKSAR-UHFFFAOYSA-N 0.000 description 4
- 229910001220 stainless steel Inorganic materials 0.000 description 4
- 239000010935 stainless steel Substances 0.000 description 4
- 125000005719 substituted cycloalkenylene group Chemical group 0.000 description 4
- 238000009736 wetting Methods 0.000 description 4
- VAYTZRYEBVHVLE-UHFFFAOYSA-N 1,3-dioxol-2-one Chemical compound O=C1OC=CO1 VAYTZRYEBVHVLE-UHFFFAOYSA-N 0.000 description 3
- OZAIFHULBGXAKX-UHFFFAOYSA-N 2-(2-cyanopropan-2-yldiazenyl)-2-methylpropanenitrile Chemical compound N#CC(C)(C)N=NC(C)(C)C#N OZAIFHULBGXAKX-UHFFFAOYSA-N 0.000 description 3
- BVKZGUZCCUSVTD-UHFFFAOYSA-L Carbonate Chemical compound [O-]C([O-])=O BVKZGUZCCUSVTD-UHFFFAOYSA-L 0.000 description 3
- OIFBSDVPJOWBCH-UHFFFAOYSA-N Diethyl carbonate Chemical compound CCOC(=O)OCC OIFBSDVPJOWBCH-UHFFFAOYSA-N 0.000 description 3
- XEKOWRVHYACXOJ-UHFFFAOYSA-N Ethyl acetate Chemical compound CCOC(C)=O XEKOWRVHYACXOJ-UHFFFAOYSA-N 0.000 description 3
- 229910015645 LiMn Inorganic materials 0.000 description 3
- 230000000996 additive effect Effects 0.000 description 3
- 239000011230 binding agent Substances 0.000 description 3
- 230000008859 change Effects 0.000 description 3
- 239000011248 coating agent Substances 0.000 description 3
- 238000000576 coating method Methods 0.000 description 3
- 239000010949 copper Substances 0.000 description 3
- 230000007423 decrease Effects 0.000 description 3
- 238000011156 evaluation Methods 0.000 description 3
- 239000000835 fiber Substances 0.000 description 3
- 238000005227 gel permeation chromatography Methods 0.000 description 3
- 230000014759 maintenance of location Effects 0.000 description 3
- 239000004745 nonwoven fabric Substances 0.000 description 3
- BASFCYQUMIYNBI-UHFFFAOYSA-N platinum Chemical compound [Pt] BASFCYQUMIYNBI-UHFFFAOYSA-N 0.000 description 3
- RUOJZAUFBMNUDX-UHFFFAOYSA-N propylene carbonate Chemical compound CC1COC(=O)O1 RUOJZAUFBMNUDX-UHFFFAOYSA-N 0.000 description 3
- 229910052710 silicon Inorganic materials 0.000 description 3
- FSSPGSAQUIYDCN-UHFFFAOYSA-N 1,3-Propane sultone Chemical compound O=S1(=O)CCCO1 FSSPGSAQUIYDCN-UHFFFAOYSA-N 0.000 description 2
- YEJRWHAVMIAJKC-UHFFFAOYSA-N 4-Butyrolactone Chemical compound O=C1CCCO1 YEJRWHAVMIAJKC-UHFFFAOYSA-N 0.000 description 2
- SBLRHMKNNHXPHG-UHFFFAOYSA-N 4-fluoro-1,3-dioxolan-2-one Chemical compound FC1COC(=O)O1 SBLRHMKNNHXPHG-UHFFFAOYSA-N 0.000 description 2
- OZJPLYNZGCXSJM-UHFFFAOYSA-N 5-valerolactone Chemical compound O=C1CCCCO1 OZJPLYNZGCXSJM-UHFFFAOYSA-N 0.000 description 2
- OZAIFHULBGXAKX-VAWYXSNFSA-N AIBN Substances N#CC(C)(C)\N=N\C(C)(C)C#N OZAIFHULBGXAKX-VAWYXSNFSA-N 0.000 description 2
- RYGMFSIKBFXOCR-UHFFFAOYSA-N Copper Chemical compound [Cu] RYGMFSIKBFXOCR-UHFFFAOYSA-N 0.000 description 2
- LCGLNKUTAGEVQW-UHFFFAOYSA-N Dimethyl ether Chemical compound COC LCGLNKUTAGEVQW-UHFFFAOYSA-N 0.000 description 2
- 229910003936 Li(Ni0.5Mn0.3Co0.2)O2 Inorganic materials 0.000 description 2
- 229910004437 Li(Ni0.8Mn0.1Co0.1)O2 Inorganic materials 0.000 description 2
- 229910012851 LiCoO 2 Inorganic materials 0.000 description 2
- 229910014689 LiMnO Inorganic materials 0.000 description 2
- 229910013716 LiNi Inorganic materials 0.000 description 2
- 229910013290 LiNiO 2 Inorganic materials 0.000 description 2
- 229920000265 Polyparaphenylene Polymers 0.000 description 2
- XUIMIQQOPSSXEZ-UHFFFAOYSA-N Silicon Chemical compound [Si] XUIMIQQOPSSXEZ-UHFFFAOYSA-N 0.000 description 2
- BQCADISMDOOEFD-UHFFFAOYSA-N Silver Chemical compound [Ag] BQCADISMDOOEFD-UHFFFAOYSA-N 0.000 description 2
- XLOMVQKBTHCTTD-UHFFFAOYSA-N Zinc monoxide Chemical compound [Zn]=O XLOMVQKBTHCTTD-UHFFFAOYSA-N 0.000 description 2
- 239000006230 acetylene black Substances 0.000 description 2
- 230000032683 aging Effects 0.000 description 2
- QARVLSVVCXYDNA-UHFFFAOYSA-N bromobenzene Chemical compound BrC1=CC=CC=C1 QARVLSVVCXYDNA-UHFFFAOYSA-N 0.000 description 2
- 239000003575 carbonaceous material Substances 0.000 description 2
- 125000005587 carbonate group Chemical group 0.000 description 2
- MVPPADPHJFYWMZ-UHFFFAOYSA-N chlorobenzene Chemical compound ClC1=CC=CC=C1 MVPPADPHJFYWMZ-UHFFFAOYSA-N 0.000 description 2
- 229910052802 copper Inorganic materials 0.000 description 2
- 150000005676 cyclic carbonates Chemical class 0.000 description 2
- 238000000354 decomposition reaction Methods 0.000 description 2
- LSXWFXONGKSEMY-UHFFFAOYSA-N di-tert-butyl peroxide Chemical compound CC(C)(C)OOC(C)(C)C LSXWFXONGKSEMY-UHFFFAOYSA-N 0.000 description 2
- ZQMIGQNCOMNODD-UHFFFAOYSA-N diacetyl peroxide Chemical compound CC(=O)OOC(C)=O ZQMIGQNCOMNODD-UHFFFAOYSA-N 0.000 description 2
- 238000009792 diffusion process Methods 0.000 description 2
- 238000010894 electron beam technology Methods 0.000 description 2
- FKRCODPIKNYEAC-UHFFFAOYSA-N ethyl propionate Chemical compound CCOC(=O)CC FKRCODPIKNYEAC-UHFFFAOYSA-N 0.000 description 2
- JBFHTYHTHYHCDJ-UHFFFAOYSA-N gamma-caprolactone Chemical compound CCC1CCC(=O)O1 JBFHTYHTHYHCDJ-UHFFFAOYSA-N 0.000 description 2
- 230000014509 gene expression Effects 0.000 description 2
- 229910002804 graphite Inorganic materials 0.000 description 2
- 239000010439 graphite Substances 0.000 description 2
- 150000002432 hydroperoxides Chemical class 0.000 description 2
- 230000037427 ion transport Effects 0.000 description 2
- 229910052742 iron Inorganic materials 0.000 description 2
- VGYDTVNNDKLMHX-UHFFFAOYSA-N lithium;manganese;nickel;oxocobalt Chemical compound [Li].[Mn].[Ni].[Co]=O VGYDTVNNDKLMHX-UHFFFAOYSA-N 0.000 description 2
- 229910052749 magnesium Inorganic materials 0.000 description 2
- QYZFTMMPKCOTAN-UHFFFAOYSA-N n-[2-(2-hydroxyethylamino)ethyl]-2-[[1-[2-(2-hydroxyethylamino)ethylamino]-2-methyl-1-oxopropan-2-yl]diazenyl]-2-methylpropanamide Chemical compound OCCNCCNC(=O)C(C)(C)N=NC(C)(C)C(=O)NCCNCCO QYZFTMMPKCOTAN-UHFFFAOYSA-N 0.000 description 2
- 230000010287 polarization Effects 0.000 description 2
- 229920006254 polymer film Polymers 0.000 description 2
- 239000000523 sample Substances 0.000 description 2
- 239000010703 silicon Substances 0.000 description 2
- 229910052709 silver Inorganic materials 0.000 description 2
- 239000004332 silver Substances 0.000 description 2
- 239000000758 substrate Substances 0.000 description 2
- IAHFWCOBPZCAEA-UHFFFAOYSA-N succinonitrile Chemical compound N#CCCC#N IAHFWCOBPZCAEA-UHFFFAOYSA-N 0.000 description 2
- 239000004094 surface-active agent Substances 0.000 description 2
- 238000012360 testing method Methods 0.000 description 2
- 229920001187 thermosetting polymer Polymers 0.000 description 2
- 239000010409 thin film Substances 0.000 description 2
- FVQMJJQUGGVLEP-UHFFFAOYSA-N (2-methylpropan-2-yl)oxy 2-ethylhexaneperoxoate Chemical compound CCCCC(CC)C(=O)OOOC(C)(C)C FVQMJJQUGGVLEP-UHFFFAOYSA-N 0.000 description 1
- RELMFMZEBKVZJC-UHFFFAOYSA-N 1,2,3-trichlorobenzene Chemical compound ClC1=CC=CC(Cl)=C1Cl RELMFMZEBKVZJC-UHFFFAOYSA-N 0.000 description 1
- AJKNNUJQFALRIK-UHFFFAOYSA-N 1,2,3-trifluorobenzene Chemical compound FC1=CC=CC(F)=C1F AJKNNUJQFALRIK-UHFFFAOYSA-N 0.000 description 1
- ZZXUZKXVROWEIF-UHFFFAOYSA-N 1,2-butylene carbonate Chemical compound CCC1COC(=O)O1 ZZXUZKXVROWEIF-UHFFFAOYSA-N 0.000 description 1
- WQONPSCCEXUXTQ-UHFFFAOYSA-N 1,2-dibromobenzene Chemical compound BrC1=CC=CC=C1Br WQONPSCCEXUXTQ-UHFFFAOYSA-N 0.000 description 1
- GOYDNIKZWGIXJT-UHFFFAOYSA-N 1,2-difluorobenzene Chemical compound FC1=CC=CC=C1F GOYDNIKZWGIXJT-UHFFFAOYSA-N 0.000 description 1
- OCJBOOLMMGQPQU-UHFFFAOYSA-N 1,4-dichlorobenzene Chemical compound ClC1=CC=C(Cl)C=C1 OCJBOOLMMGQPQU-UHFFFAOYSA-N 0.000 description 1
- IPWBFGUBXWMIPR-UHFFFAOYSA-N 1-bromo-2-fluorobenzene Chemical compound FC1=CC=CC=C1Br IPWBFGUBXWMIPR-UHFFFAOYSA-N 0.000 description 1
- ZCJAYDKWZAWMPR-UHFFFAOYSA-N 1-chloro-2-fluorobenzene Chemical compound FC1=CC=CC=C1Cl ZCJAYDKWZAWMPR-UHFFFAOYSA-N 0.000 description 1
- NVJUHMXYKCUMQA-UHFFFAOYSA-N 1-ethoxypropane Chemical compound CCCOCC NVJUHMXYKCUMQA-UHFFFAOYSA-N 0.000 description 1
- HFZLSTDPRQSZCQ-UHFFFAOYSA-N 1-pyrrolidin-3-ylpyrrolidine Chemical compound C1CCCN1C1CNCC1 HFZLSTDPRQSZCQ-UHFFFAOYSA-N 0.000 description 1
- AVTLBBWTUPQRAY-UHFFFAOYSA-N 2-(2-cyanobutan-2-yldiazenyl)-2-methylbutanenitrile Chemical compound CCC(C)(C#N)N=NC(C)(CC)C#N AVTLBBWTUPQRAY-UHFFFAOYSA-N 0.000 description 1
- UHOPWFKONJYLCF-UHFFFAOYSA-N 2-(2-sulfanylethyl)isoindole-1,3-dione Chemical compound C1=CC=C2C(=O)N(CCS)C(=O)C2=C1 UHOPWFKONJYLCF-UHFFFAOYSA-N 0.000 description 1
- WYGWHHGCAGTUCH-UHFFFAOYSA-N 2-[(2-cyano-4-methylpentan-2-yl)diazenyl]-2,4-dimethylpentanenitrile Chemical compound CC(C)CC(C)(C#N)N=NC(C)(C#N)CC(C)C WYGWHHGCAGTUCH-UHFFFAOYSA-N 0.000 description 1
- RCEJCSULJQNRQQ-UHFFFAOYSA-N 2-methylbutanenitrile Chemical compound CCC(C)C#N RCEJCSULJQNRQQ-UHFFFAOYSA-N 0.000 description 1
- LWLOKSXSAUHTJO-UHFFFAOYSA-N 4,5-dimethyl-1,3-dioxolan-2-one Chemical compound CC1OC(=O)OC1C LWLOKSXSAUHTJO-UHFFFAOYSA-N 0.000 description 1
- BJWMSGRKJIOCNR-UHFFFAOYSA-N 4-ethenyl-1,3-dioxolan-2-one Chemical compound C=CC1COC(=O)O1 BJWMSGRKJIOCNR-UHFFFAOYSA-N 0.000 description 1
- LSUWCXHZPFTZSF-UHFFFAOYSA-N 4-ethyl-5-methyl-1,3-dioxolan-2-one Chemical compound CCC1OC(=O)OC1C LSUWCXHZPFTZSF-UHFFFAOYSA-N 0.000 description 1
- KLLQVNFCMHPYGL-UHFFFAOYSA-N 5h-oxathiole 2,2-dioxide Chemical compound O=S1(=O)OCC=C1 KLLQVNFCMHPYGL-UHFFFAOYSA-N 0.000 description 1
- 102100030089 ATP-dependent RNA helicase DHX8 Human genes 0.000 description 1
- 239000004342 Benzoyl peroxide Substances 0.000 description 1
- OMPJBNCRMGITSC-UHFFFAOYSA-N Benzoylperoxide Chemical compound C=1C=CC=CC=1C(=O)OOC(=O)C1=CC=CC=C1 OMPJBNCRMGITSC-UHFFFAOYSA-N 0.000 description 1
- 101100317222 Borrelia hermsii vsp3 gene Proteins 0.000 description 1
- 229920000049 Carbon (fiber) Polymers 0.000 description 1
- 229920002134 Carboxymethyl cellulose Polymers 0.000 description 1
- 229910000925 Cd alloy Inorganic materials 0.000 description 1
- 229910052684 Cerium Inorganic materials 0.000 description 1
- 101000864666 Homo sapiens ATP-dependent RNA helicase DHX8 Proteins 0.000 description 1
- 229920002153 Hydroxypropyl cellulose Polymers 0.000 description 1
- 229910004406 Li(Ni0.6Mn0.2CO0.2)O2 Inorganic materials 0.000 description 1
- 229910004427 Li(Ni0.7Mn0.15Co0.15)O2 Inorganic materials 0.000 description 1
- 229910002999 Li(Ni0.8Co0.1Mn0.1)O2 Inorganic materials 0.000 description 1
- 229910013733 LiCo Inorganic materials 0.000 description 1
- 229910015643 LiMn 2 O 4 Inorganic materials 0.000 description 1
- 229910002995 LiNi0.8Co0.15Al0.05O2 Inorganic materials 0.000 description 1
- XOBKSJJDNFUZPF-UHFFFAOYSA-N Methoxyethane Chemical compound CCOC XOBKSJJDNFUZPF-UHFFFAOYSA-N 0.000 description 1
- RJUFJBKOKNCXHH-UHFFFAOYSA-N Methyl propionate Chemical compound CCC(=O)OC RJUFJBKOKNCXHH-UHFFFAOYSA-N 0.000 description 1
- 239000004743 Polypropylene Substances 0.000 description 1
- 239000004793 Polystyrene Substances 0.000 description 1
- 239000004372 Polyvinyl alcohol Substances 0.000 description 1
- XBDQKXXYIPTUBI-UHFFFAOYSA-M Propionate Chemical compound CCC([O-])=O XBDQKXXYIPTUBI-UHFFFAOYSA-M 0.000 description 1
- 229920002472 Starch Polymers 0.000 description 1
- GWEVSGVZZGPLCZ-UHFFFAOYSA-N Titan oxide Chemical compound O=[Ti]=O GWEVSGVZZGPLCZ-UHFFFAOYSA-N 0.000 description 1
- NXPZICSHDHGMGT-UHFFFAOYSA-N [Co].[Mn].[Li] Chemical compound [Co].[Mn].[Li] NXPZICSHDHGMGT-UHFFFAOYSA-N 0.000 description 1
- QTHKJEYUQSLYTH-UHFFFAOYSA-N [Co]=O.[Ni].[Li] Chemical compound [Co]=O.[Ni].[Li] QTHKJEYUQSLYTH-UHFFFAOYSA-N 0.000 description 1
- KXKVLQRXCPHEJC-UHFFFAOYSA-N acetic acid trimethyl ester Natural products COC(C)=O KXKVLQRXCPHEJC-UHFFFAOYSA-N 0.000 description 1
- BTGRAWJCKBQKAO-UHFFFAOYSA-N adiponitrile Chemical compound N#CCCCCC#N BTGRAWJCKBQKAO-UHFFFAOYSA-N 0.000 description 1
- 229910045601 alloy Inorganic materials 0.000 description 1
- 239000000956 alloy Substances 0.000 description 1
- AZDRQVAHHNSJOQ-UHFFFAOYSA-N alumane Chemical compound [AlH3] AZDRQVAHHNSJOQ-UHFFFAOYSA-N 0.000 description 1
- NDPGDHBNXZOBJS-UHFFFAOYSA-N aluminum lithium cobalt(2+) nickel(2+) oxygen(2-) Chemical compound [Li+].[O--].[O--].[O--].[O--].[Al+3].[Co++].[Ni++] NDPGDHBNXZOBJS-UHFFFAOYSA-N 0.000 description 1
- 150000001450 anions Chemical class 0.000 description 1
- 239000012300 argon atmosphere Substances 0.000 description 1
- 229910021383 artificial graphite Inorganic materials 0.000 description 1
- 230000008901 benefit Effects 0.000 description 1
- 235000019400 benzoyl peroxide Nutrition 0.000 description 1
- IAQRGUVFOMOMEM-UHFFFAOYSA-N butene Natural products CC=CC IAQRGUVFOMOMEM-UHFFFAOYSA-N 0.000 description 1
- 125000000484 butyl group Chemical group [H]C([*])([H])C([H])([H])C([H])([H])C([H])([H])[H] 0.000 description 1
- 229910052793 cadmium Inorganic materials 0.000 description 1
- 239000006229 carbon black Substances 0.000 description 1
- 239000004917 carbon fiber Substances 0.000 description 1
- 239000002041 carbon nanotube Substances 0.000 description 1
- 229910021393 carbon nanotube Inorganic materials 0.000 description 1
- 150000004649 carbonic acid derivatives Chemical class 0.000 description 1
- 150000001768 cations Chemical class 0.000 description 1
- 239000006231 channel black Substances 0.000 description 1
- 229910052804 chromium Inorganic materials 0.000 description 1
- 229910017052 cobalt Inorganic materials 0.000 description 1
- 239000010941 cobalt Substances 0.000 description 1
- GUTLYIVDDKVIGB-UHFFFAOYSA-N cobalt atom Chemical compound [Co] GUTLYIVDDKVIGB-UHFFFAOYSA-N 0.000 description 1
- 239000000470 constituent Substances 0.000 description 1
- 125000004122 cyclic group Chemical group 0.000 description 1
- 238000009831 deintercalation Methods 0.000 description 1
- 238000003795 desorption Methods 0.000 description 1
- 229940117389 dichlorobenzene Drugs 0.000 description 1
- NJLLQSBAHIKGKF-UHFFFAOYSA-N dipotassium dioxido(oxo)titanium Chemical compound [K+].[K+].[O-][Ti]([O-])=O NJLLQSBAHIKGKF-UHFFFAOYSA-N 0.000 description 1
- VUPKGFBOKBGHFZ-UHFFFAOYSA-N dipropyl carbonate Chemical compound CCCOC(=O)OCCC VUPKGFBOKBGHFZ-UHFFFAOYSA-N 0.000 description 1
- POLCUAVZOMRGSN-UHFFFAOYSA-N dipropyl ether Chemical compound CCCOCCC POLCUAVZOMRGSN-UHFFFAOYSA-N 0.000 description 1
- 238000007599 discharging Methods 0.000 description 1
- 239000012153 distilled water Substances 0.000 description 1
- 230000000694 effects Effects 0.000 description 1
- 230000005611 electricity Effects 0.000 description 1
- 238000010828 elution Methods 0.000 description 1
- 150000002148 esters Chemical class 0.000 description 1
- 229940093499 ethyl acetate Drugs 0.000 description 1
- 238000002474 experimental method Methods 0.000 description 1
- 229920001973 fluoroelastomer Polymers 0.000 description 1
- 239000006260 foam Substances 0.000 description 1
- 239000011888 foil Substances 0.000 description 1
- 239000006232 furnace black Substances 0.000 description 1
- 230000005251 gamma ray Effects 0.000 description 1
- 238000001879 gelation Methods 0.000 description 1
- 239000011521 glass Substances 0.000 description 1
- 239000003365 glass fiber Substances 0.000 description 1
- 230000020169 heat generation Effects 0.000 description 1
- 229920001519 homopolymer Polymers 0.000 description 1
- 150000004680 hydrogen peroxides Chemical class 0.000 description 1
- 239000001863 hydroxypropyl cellulose Substances 0.000 description 1
- 235000010977 hydroxypropyl cellulose Nutrition 0.000 description 1
- 238000002847 impedance measurement Methods 0.000 description 1
- 230000006872 improvement Effects 0.000 description 1
- 238000003780 insertion Methods 0.000 description 1
- 230000037431 insertion Effects 0.000 description 1
- 238000009830 intercalation Methods 0.000 description 1
- 230000002687 intercalation Effects 0.000 description 1
- 239000003273 ketjen black Substances 0.000 description 1
- 239000006233 lamp black Substances 0.000 description 1
- 229910000625 lithium cobalt oxide Inorganic materials 0.000 description 1
- DEUISMFZZMAAOJ-UHFFFAOYSA-N lithium dihydrogen borate oxalic acid Chemical compound B([O-])(O)O.C(C(=O)O)(=O)O.C(C(=O)O)(=O)O.[Li+] DEUISMFZZMAAOJ-UHFFFAOYSA-N 0.000 description 1
- 229910002102 lithium manganese oxide Inorganic materials 0.000 description 1
- FRMOHNDAXZZWQI-UHFFFAOYSA-N lithium manganese(2+) nickel(2+) oxygen(2-) Chemical class [O-2].[Mn+2].[Ni+2].[Li+] FRMOHNDAXZZWQI-UHFFFAOYSA-N 0.000 description 1
- RSNHXDVSISOZOB-UHFFFAOYSA-N lithium nickel Chemical compound [Li].[Ni] RSNHXDVSISOZOB-UHFFFAOYSA-N 0.000 description 1
- BFZPBUKRYWOWDV-UHFFFAOYSA-N lithium;oxido(oxo)cobalt Chemical compound [Li+].[O-][Co]=O BFZPBUKRYWOWDV-UHFFFAOYSA-N 0.000 description 1
- VLXXBCXTUVRROQ-UHFFFAOYSA-N lithium;oxido-oxo-(oxomanganiooxy)manganese Chemical compound [Li+].[O-][Mn](=O)O[Mn]=O VLXXBCXTUVRROQ-UHFFFAOYSA-N 0.000 description 1
- 238000012423 maintenance Methods 0.000 description 1
- WPBNNNQJVZRUHP-UHFFFAOYSA-L manganese(2+);methyl n-[[2-(methoxycarbonylcarbamothioylamino)phenyl]carbamothioyl]carbamate;n-[2-(sulfidocarbothioylamino)ethyl]carbamodithioate Chemical compound [Mn+2].[S-]C(=S)NCCNC([S-])=S.COC(=O)NC(=S)NC1=CC=CC=C1NC(=S)NC(=O)OC WPBNNNQJVZRUHP-UHFFFAOYSA-L 0.000 description 1
- 239000011159 matrix material Substances 0.000 description 1
- VNKYTQGIUYNRMY-UHFFFAOYSA-N methoxypropane Chemical compound CCCOC VNKYTQGIUYNRMY-UHFFFAOYSA-N 0.000 description 1
- ZQMHJBXHRFJKOT-UHFFFAOYSA-N methyl 2-[(1-methoxy-2-methyl-1-oxopropan-2-yl)diazenyl]-2-methylpropanoate Chemical compound COC(=O)C(C)(C)N=NC(C)(C)C(=O)OC ZQMHJBXHRFJKOT-UHFFFAOYSA-N 0.000 description 1
- 229940017219 methyl propionate Drugs 0.000 description 1
- KKQAVHGECIBFRQ-UHFFFAOYSA-N methyl propyl carbonate Chemical compound CCCOC(=O)OC KKQAVHGECIBFRQ-UHFFFAOYSA-N 0.000 description 1
- 238000002156 mixing Methods 0.000 description 1
- 238000012986 modification Methods 0.000 description 1
- 230000004048 modification Effects 0.000 description 1
- 229910052750 molybdenum Inorganic materials 0.000 description 1
- PYLWMHQQBFSUBP-UHFFFAOYSA-N monofluorobenzene Chemical compound FC1=CC=CC=C1 PYLWMHQQBFSUBP-UHFFFAOYSA-N 0.000 description 1
- YKYONYBAUNKHLG-UHFFFAOYSA-N n-Propyl acetate Natural products CCCOC(C)=O YKYONYBAUNKHLG-UHFFFAOYSA-N 0.000 description 1
- 229910021382 natural graphite Inorganic materials 0.000 description 1
- 239000003921 oil Substances 0.000 description 1
- 150000001451 organic peroxides Chemical class 0.000 description 1
- 150000002978 peroxides Chemical class 0.000 description 1
- 229910052697 platinum Inorganic materials 0.000 description 1
- 238000006116 polymerization reaction Methods 0.000 description 1
- 229920000098 polyolefin Polymers 0.000 description 1
- 229920001155 polypropylene Polymers 0.000 description 1
- 229920002223 polystyrene Polymers 0.000 description 1
- 229920002451 polyvinyl alcohol Polymers 0.000 description 1
- 229920000036 polyvinylpyrrolidone Polymers 0.000 description 1
- 239000001267 polyvinylpyrrolidone Substances 0.000 description 1
- 235000013855 polyvinylpyrrolidone Nutrition 0.000 description 1
- 239000000843 powder Substances 0.000 description 1
- 229940090181 propyl acetate Drugs 0.000 description 1
- 229920001384 propylene homopolymer Polymers 0.000 description 1
- 238000006479 redox reaction Methods 0.000 description 1
- 239000004627 regenerated cellulose Substances 0.000 description 1
- 230000002441 reversible effect Effects 0.000 description 1
- 150000003839 salts Chemical class 0.000 description 1
- 241000894007 species Species 0.000 description 1
- 239000008107 starch Substances 0.000 description 1
- 235000019698 starch Nutrition 0.000 description 1
- 229920003048 styrene butadiene rubber Polymers 0.000 description 1
- 150000008053 sultones Chemical class 0.000 description 1
- 229910052715 tantalum Inorganic materials 0.000 description 1
- KKEYFWRCBNTPAC-UHFFFAOYSA-L terephthalate(2-) Chemical compound [O-]C(=O)C1=CC=C(C([O-])=O)C=C1 KKEYFWRCBNTPAC-UHFFFAOYSA-L 0.000 description 1
- BFKJFAAPBSQJPD-UHFFFAOYSA-N tetrafluoroethene Chemical group FC(F)=C(F)F BFKJFAAPBSQJPD-UHFFFAOYSA-N 0.000 description 1
- TXEYQDLBPFQVAA-UHFFFAOYSA-N tetrafluoromethane Chemical compound FC(F)(F)F TXEYQDLBPFQVAA-UHFFFAOYSA-N 0.000 description 1
- 239000006234 thermal black Substances 0.000 description 1
- 238000012719 thermal polymerization Methods 0.000 description 1
- 229910052718 tin Inorganic materials 0.000 description 1
- OGIDPMRJRNCKJF-UHFFFAOYSA-N titanium oxide Inorganic materials [Ti]=O OGIDPMRJRNCKJF-UHFFFAOYSA-N 0.000 description 1
- 238000012546 transfer Methods 0.000 description 1
- 230000007704 transition Effects 0.000 description 1
- 229910052723 transition metal Inorganic materials 0.000 description 1
- NDZWKTKXYOWZML-UHFFFAOYSA-N trilithium;difluoro oxalate;borate Chemical compound [Li+].[Li+].[Li+].[O-]B([O-])[O-].FOC(=O)C(=O)OF NDZWKTKXYOWZML-UHFFFAOYSA-N 0.000 description 1
- NQPDZGIKBAWPEJ-UHFFFAOYSA-N valeric acid Chemical compound CCCCC(O)=O NQPDZGIKBAWPEJ-UHFFFAOYSA-N 0.000 description 1
- 229910052720 vanadium Inorganic materials 0.000 description 1
- XLYOFNOQVPJJNP-UHFFFAOYSA-N water Chemical compound O XLYOFNOQVPJJNP-UHFFFAOYSA-N 0.000 description 1
- 229910052725 zinc Inorganic materials 0.000 description 1
- 239000011701 zinc Substances 0.000 description 1
- 239000011787 zinc oxide Substances 0.000 description 1
- PAPBSGBWRJIAAV-UHFFFAOYSA-N ε-Caprolactone Chemical compound O=C1CCCCCO1 PAPBSGBWRJIAAV-UHFFFAOYSA-N 0.000 description 1
Classifications
-
- H—ELECTRICITY
- H01—ELECTRIC ELEMENTS
- H01M—PROCESSES OR MEANS, e.g. BATTERIES, FOR THE DIRECT CONVERSION OF CHEMICAL ENERGY INTO ELECTRICAL ENERGY
- H01M10/00—Secondary cells; Manufacture thereof
- H01M10/05—Accumulators with non-aqueous electrolyte
- H01M10/052—Li-accumulators
- H01M10/0525—Rocking-chair batteries, i.e. batteries with lithium insertion or intercalation in both electrodes; Lithium-ion batteries
-
- H—ELECTRICITY
- H01—ELECTRIC ELEMENTS
- H01M—PROCESSES OR MEANS, e.g. BATTERIES, FOR THE DIRECT CONVERSION OF CHEMICAL ENERGY INTO ELECTRICAL ENERGY
- H01M10/00—Secondary cells; Manufacture thereof
- H01M10/05—Accumulators with non-aqueous electrolyte
- H01M10/052—Li-accumulators
-
- H—ELECTRICITY
- H01—ELECTRIC ELEMENTS
- H01M—PROCESSES OR MEANS, e.g. BATTERIES, FOR THE DIRECT CONVERSION OF CHEMICAL ENERGY INTO ELECTRICAL ENERGY
- H01M10/00—Secondary cells; Manufacture thereof
- H01M10/05—Accumulators with non-aqueous electrolyte
- H01M10/056—Accumulators with non-aqueous electrolyte characterised by the materials used as electrolytes, e.g. mixed inorganic/organic electrolytes
- H01M10/0564—Accumulators with non-aqueous electrolyte characterised by the materials used as electrolytes, e.g. mixed inorganic/organic electrolytes the electrolyte being constituted of organic materials only
- H01M10/0565—Polymeric materials, e.g. gel-type or solid-type
-
- H—ELECTRICITY
- H01—ELECTRIC ELEMENTS
- H01M—PROCESSES OR MEANS, e.g. BATTERIES, FOR THE DIRECT CONVERSION OF CHEMICAL ENERGY INTO ELECTRICAL ENERGY
- H01M10/00—Secondary cells; Manufacture thereof
- H01M10/05—Accumulators with non-aqueous electrolyte
- H01M10/056—Accumulators with non-aqueous electrolyte characterised by the materials used as electrolytes, e.g. mixed inorganic/organic electrolytes
- H01M10/0564—Accumulators with non-aqueous electrolyte characterised by the materials used as electrolytes, e.g. mixed inorganic/organic electrolytes the electrolyte being constituted of organic materials only
- H01M10/0566—Liquid materials
- H01M10/0567—Liquid materials characterised by the additives
-
- H—ELECTRICITY
- H01—ELECTRIC ELEMENTS
- H01M—PROCESSES OR MEANS, e.g. BATTERIES, FOR THE DIRECT CONVERSION OF CHEMICAL ENERGY INTO ELECTRICAL ENERGY
- H01M10/00—Secondary cells; Manufacture thereof
- H01M10/05—Accumulators with non-aqueous electrolyte
- H01M10/056—Accumulators with non-aqueous electrolyte characterised by the materials used as electrolytes, e.g. mixed inorganic/organic electrolytes
- H01M10/0564—Accumulators with non-aqueous electrolyte characterised by the materials used as electrolytes, e.g. mixed inorganic/organic electrolytes the electrolyte being constituted of organic materials only
- H01M10/0566—Liquid materials
- H01M10/0568—Liquid materials characterised by the solutes
-
- H—ELECTRICITY
- H01—ELECTRIC ELEMENTS
- H01M—PROCESSES OR MEANS, e.g. BATTERIES, FOR THE DIRECT CONVERSION OF CHEMICAL ENERGY INTO ELECTRICAL ENERGY
- H01M10/00—Secondary cells; Manufacture thereof
- H01M10/05—Accumulators with non-aqueous electrolyte
- H01M10/056—Accumulators with non-aqueous electrolyte characterised by the materials used as electrolytes, e.g. mixed inorganic/organic electrolytes
- H01M10/0564—Accumulators with non-aqueous electrolyte characterised by the materials used as electrolytes, e.g. mixed inorganic/organic electrolytes the electrolyte being constituted of organic materials only
- H01M10/0566—Liquid materials
- H01M10/0569—Liquid materials characterised by the solvents
-
- H—ELECTRICITY
- H01—ELECTRIC ELEMENTS
- H01M—PROCESSES OR MEANS, e.g. BATTERIES, FOR THE DIRECT CONVERSION OF CHEMICAL ENERGY INTO ELECTRICAL ENERGY
- H01M10/00—Secondary cells; Manufacture thereof
- H01M10/42—Methods or arrangements for servicing or maintenance of secondary cells or secondary half-cells
- H01M10/4235—Safety or regulating additives or arrangements in electrodes, separators or electrolyte
-
- H—ELECTRICITY
- H01—ELECTRIC ELEMENTS
- H01M—PROCESSES OR MEANS, e.g. BATTERIES, FOR THE DIRECT CONVERSION OF CHEMICAL ENERGY INTO ELECTRICAL ENERGY
- H01M2300/00—Electrolytes
- H01M2300/0017—Non-aqueous electrolytes
- H01M2300/0025—Organic electrolyte
-
- H—ELECTRICITY
- H01—ELECTRIC ELEMENTS
- H01M—PROCESSES OR MEANS, e.g. BATTERIES, FOR THE DIRECT CONVERSION OF CHEMICAL ENERGY INTO ELECTRICAL ENERGY
- H01M2300/00—Electrolytes
- H01M2300/0017—Non-aqueous electrolytes
- H01M2300/0065—Solid electrolytes
- H01M2300/0082—Organic polymers
-
- H—ELECTRICITY
- H01—ELECTRIC ELEMENTS
- H01M—PROCESSES OR MEANS, e.g. BATTERIES, FOR THE DIRECT CONVERSION OF CHEMICAL ENERGY INTO ELECTRICAL ENERGY
- H01M2300/00—Electrolytes
- H01M2300/0085—Immobilising or gelification of electrolyte
-
- Y—GENERAL TAGGING OF NEW TECHNOLOGICAL DEVELOPMENTS; GENERAL TAGGING OF CROSS-SECTIONAL TECHNOLOGIES SPANNING OVER SEVERAL SECTIONS OF THE IPC; TECHNICAL SUBJECTS COVERED BY FORMER USPC CROSS-REFERENCE ART COLLECTIONS [XRACs] AND DIGESTS
- Y02—TECHNOLOGIES OR APPLICATIONS FOR MITIGATION OR ADAPTATION AGAINST CLIMATE CHANGE
- Y02E—REDUCTION OF GREENHOUSE GAS [GHG] EMISSIONS, RELATED TO ENERGY GENERATION, TRANSMISSION OR DISTRIBUTION
- Y02E60/00—Enabling technologies; Technologies with a potential or indirect contribution to GHG emissions mitigation
- Y02E60/10—Energy storage using batteries
Landscapes
- Chemical & Material Sciences (AREA)
- Engineering & Computer Science (AREA)
- Manufacturing & Machinery (AREA)
- Chemical Kinetics & Catalysis (AREA)
- Electrochemistry (AREA)
- General Chemical & Material Sciences (AREA)
- General Physics & Mathematics (AREA)
- Inorganic Chemistry (AREA)
- Condensed Matter Physics & Semiconductors (AREA)
- Physics & Mathematics (AREA)
- Dispersion Chemistry (AREA)
- Materials Engineering (AREA)
- Secondary Cells (AREA)
Description
本出願は、2018年8月16日付韓国特許出願第10-2018-0095688号に基づいた優先権の利益を主張し、当該韓国特許出願の文献に開示されている全ての内容は本明細書の一部として含まれる。

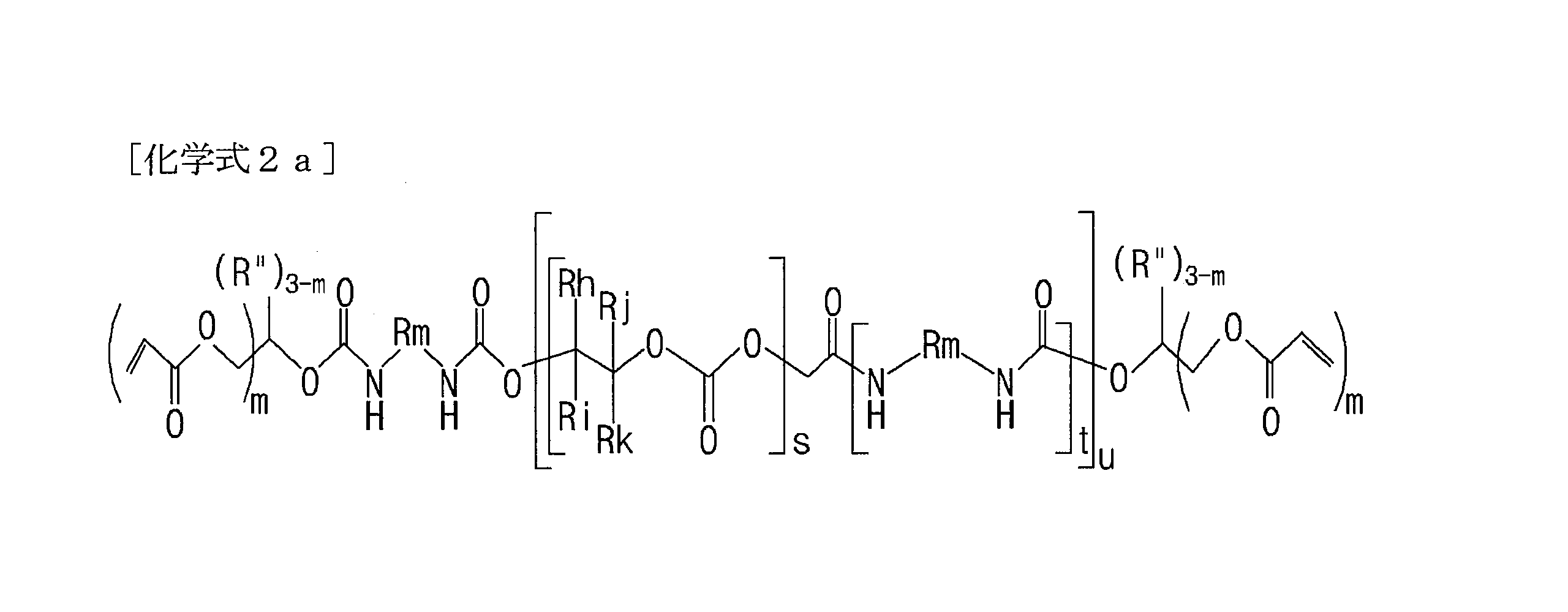

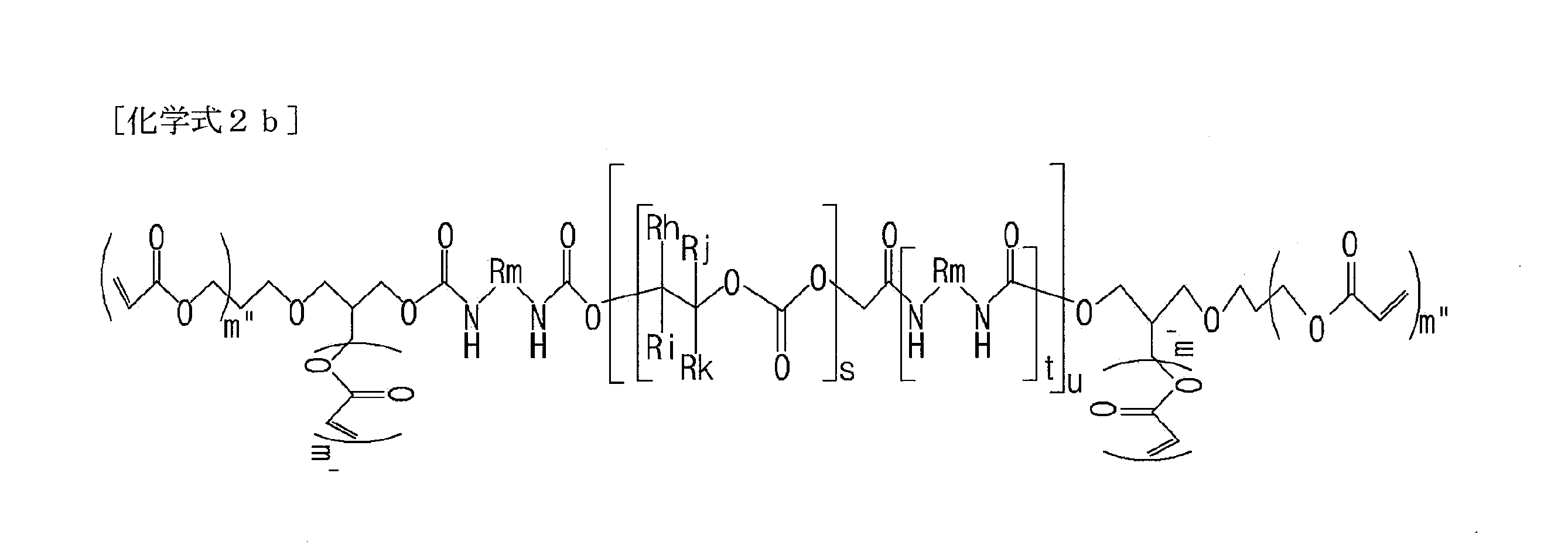

本発明によるリチウム二次電池用電解質は、1.6Mから5M濃度のリチウム塩;化学式1で表される単位を含む第1オリゴマー及び化学式2で表される単位を含む第2オリゴマーを含むオリゴマー混合物及び有機溶媒を含むリチウム二次電池用電解質であってよい。
この中でも、電池の容量特性及び安定性を高めることができるという点で、前記リチウム複合金属酸化物は、LiCoO2、LiMnO2、LiNiO2、リチウムニッケルマンガンコバルト酸化物(例えば、Li(Ni0.6Mn0.2Co0.2)O2、Li(Ni0.5Mn0.3Co0.2)O2、またはLi(Ni0.8Mn0.1Co0.1)O2など)、またはリチウムニッケルコバルトアルミニウム酸化物(例えば、LiNi0.8Co0.15Al0.05O2など)などであってよく、リチウム複合金属酸化物を形成する構成元素の種類及び含量比の制御による改善効果の顕著さを考慮すると、前記リチウム複合金属酸化物は、Li(Ni0.6Mn0.2Co0.2)O2、Li(Ni0.5Mn0.3Co0.2)O2、Li(Ni0.7Mn0.15Co0.15)O2またはLi(Ni0.8Mn0.1Co0.1)O2などであってよく、これらのうちいずれか1つまたは2つ以上の混合物が用いられてよい。
1.実施例1
(1)リチウム二次電池用液体電解質の製造

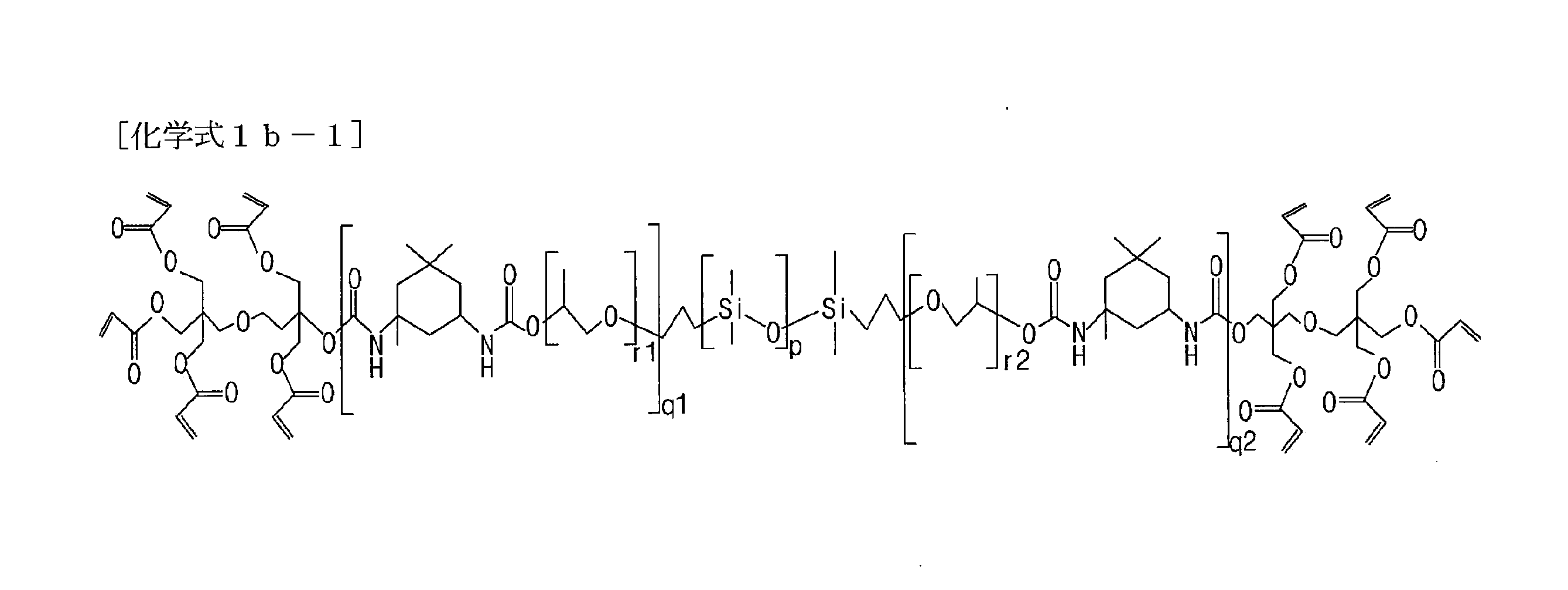

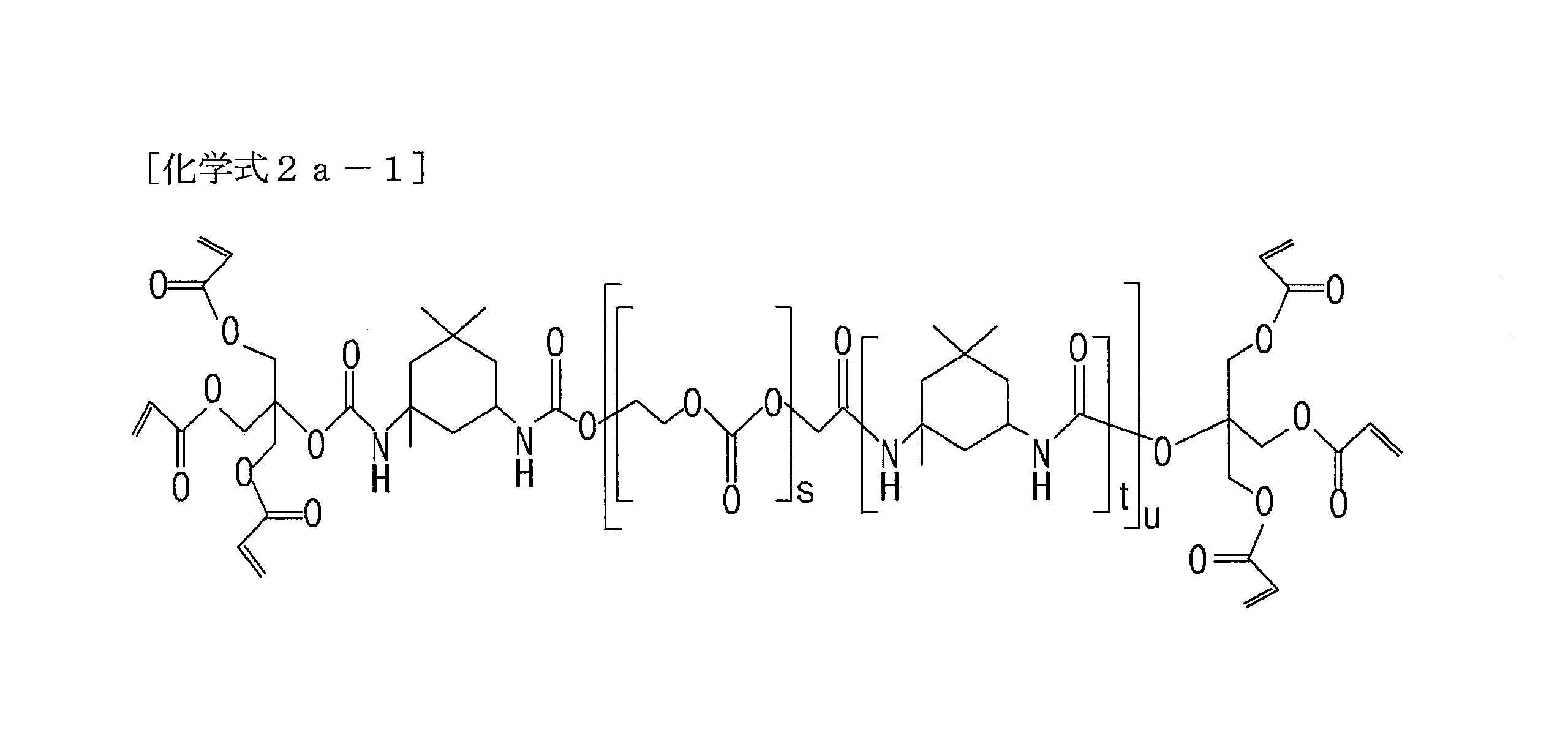

エチレンカーボネート(EC):ジメチルカーボネート(DMC)を1:9の体積比で含む有機溶媒に化学式1b-1で表される第1オリゴマー(重量平均分子量(Mw):3,000g/mol)を0.05重量%、化学式2b-1で表される第2オリゴマー(重量平均分子量(Mw):3,000g/mol)を0.45重量%添加した後、LiPF6の濃度が2Mとなるように添加してリチウム二次電池用液体電解質を製造した。
溶剤であるN-メチル-2-ピロリドン(NMP)に正極活物質(((Li(Ni0.8Co0.1Mn0.1)O2)、NCM811):導電材(バンドル型炭素ナノチューブ):バインダー(ポリビニリデンフルオライド(PVDF))を97.7:0.3:2の重量比で混合し、正極活物質スラリーを製造した。前記正極活物質スラリーを厚さが20μmである正極集電体(Al薄膜)に塗布し、乾燥及びロールプレス(roll press)を実施して正極を製造した。
溶剤である蒸留水に負極活物質(黒鉛(AGP8)):導電材(カーボンブラック):バインダー(ポリビニリデンフルオライド(PVDF))を97:0.5:2.5の重量比で混合し、負極活物質スラリーを製造した。前記負極活物質スラリーを厚さが10μmである負極集電体(Cu薄膜)に塗布し、乾燥及びロールプレス(roll press)を実施して負極を製造した。
前述の方法で製造した正極と負極を、ポリエチレン多孔性フィルムを分離膜とし、正極/分離膜/負極の順に順次積層して電極組立体を製造した後、これをパウチ型二次電池ケースに収納した後、前記パウチ型二次電池ケースの内部に前記リチウム二次電池用液体電解質を注入してリチウム二次電池を製造した。
リチウム二次電池用電解質を製造するとき、第1オリゴマーを0.2重量%、第2オリゴマーを0.3重量%添加したことを除いては、実施例1と同一の方法でリチウム二次電池用液体電解質及びリチウム二次電池を製造した。
(1)リチウム二次電池用ゲルポリマー電解質用組成物の製造

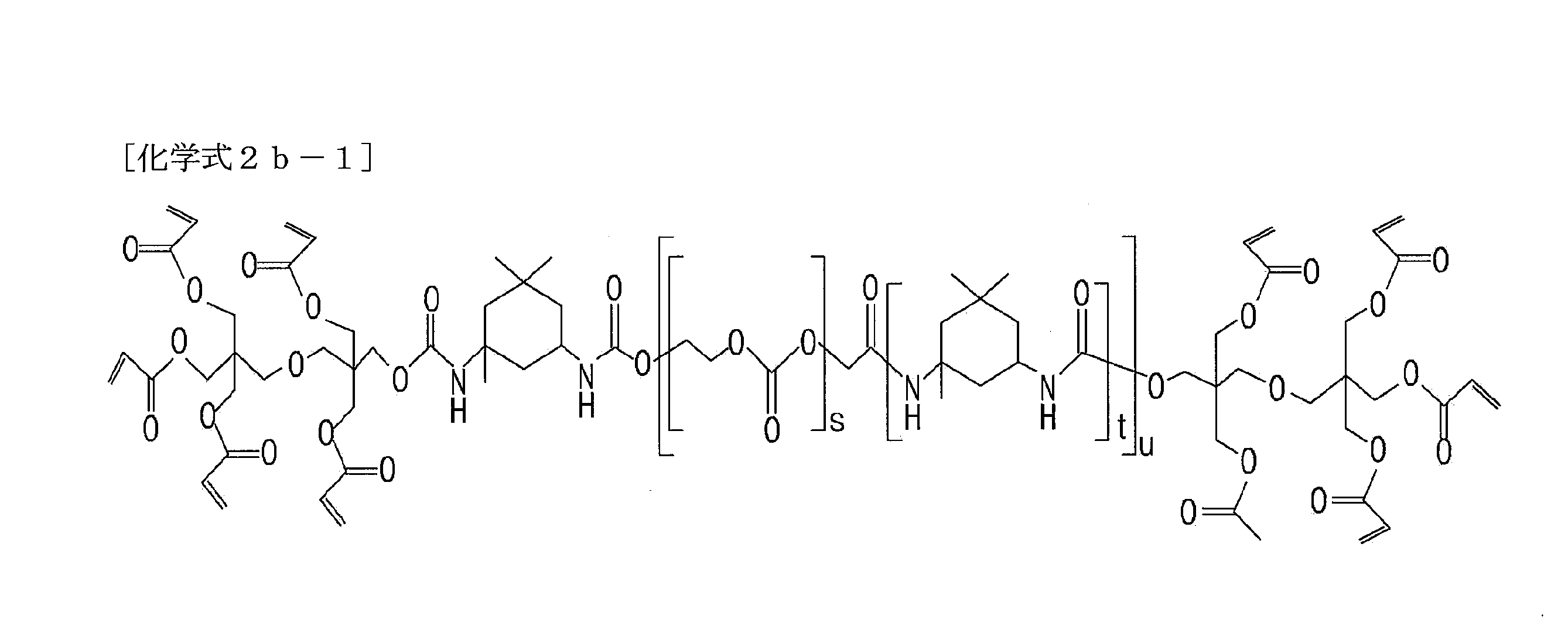

エチレンカーボネート(EC):ジメチルカーボネート(DMC)を1:9の体積比で含む有機溶媒に、化学式1b-1で表される第1オリゴマー(重量平均分子量(Mw):3,000g/mol)を0.5重量%、化学式2b-1で表される第2オリゴマー(重量平均分子量(Mw):3,000g/mol)を4.5重量%添加した後、LiPF6の濃度が2Mとなるように添加し、重合開始剤としてAIBNを前記第1、第2オリゴマー混合物の全重量に対して0.4重量%添加し、リチウム二次電池用ゲルポリマー電解質用組成物を製造した。
正極と負極は実施例1と同一の方法で製造した後、製造した正極と負極を分離膜とともに順次積層して電極組立体を製造した後、これをパウチ型二次電池ケースに収納した後、前記パウチ型二次電池ケースの内部に実施例3によるリチウム二次電池用ゲルポリマー電解質用組成物を注入し、25℃で3日間保管した(常温エイジング)。その後、60℃で24時間の間保管し(ゲルポリマー電解質用組成物の硬化)、リチウム二次電池用ゲルポリマー電解質が形成されたリチウム二次電池を製造した。
リチウム二次電池用ゲルポリマー電解質用組成物を製造するとき、第1オリゴマーを0.15重量%、第2オリゴマーを2.85重量%添加したことを除いては、実施例3と同一の方法でリチウム二次電池用ゲルポリマー電解質及びリチウム二次電池を製造した。
1.比較例1
リチウム二次電池用液体電解質を製造するとき、エチレンカーボネート(EC):エチルメチルカーボネート(EMC)を3:7の体積比で含む有機溶媒に第1オリゴマー及び第2オリゴマーをいずれも添加せず、LiPF6の濃度が1.2Mとなるように添加したことを除いては、実施例1と同一の方法でリチウム二次電池用液体電解質及びリチウム二次電池を製造した。
リチウム二次電池用液体電解質を製造するとき、LiPF6の濃度が5.5Mとなるように添加したことを除いては、実施例1と同一の方法でリチウム二次電池用液体電解質を製造しようとしたものの、電解質内にLiPF6が十分溶解されていないため、リチウム二次電池用液体電解質を製造することができなかった。
リチウム二次電池用液体電解質を製造するとき、LiPF6の濃度が1Mとなるように添加したことを除いては、実施例1と同一の方法でリチウム二次電池用液体電解質及びリチウム二次電池を製造した。
リチウム二次電池用液体電解質を製造するとき、第1オリゴマー及び第2オリゴマーをいずれも添加していないことを除いては、実施例1と同一の方法でリチウム二次電池用液体電解質及びリチウム二次電池を製造した。
リチウム二次電池用液体電解質を製造するとき、第1オリゴマーのみ単独で0.5重量%添加したことを除いては、実施例1と同一の方法でリチウム二次電池用液体電解質及びリチウム二次電池を製造した。
リチウム二次電池用液体電解質を製造するとき、第2オリゴマーのみ単独で0.5重量%添加したことを除いては、実施例1と同一の方法でリチウム二次電池用液体電解質及びリチウム二次電池を製造した。
リチウム二次電池用ゲルポリマー電解質用組成物を製造するとき、第1オリゴマーのみ単独で5重量%添加したことを除いては、実施例3と同一の方法でリチウム二次電池用ゲルポリマー電解質及びリチウム二次電池を製造した。
リチウム二次電池用ゲルポリマー電解質用組成物を製造するとき、第2オリゴマーのみ単独で5重量%添加したことを除いては、実施例3と同一の方法でリチウム二次電池用ゲルポリマー電解質及びリチウム二次電池を製造した。
1.実験例1:表面張力の評価

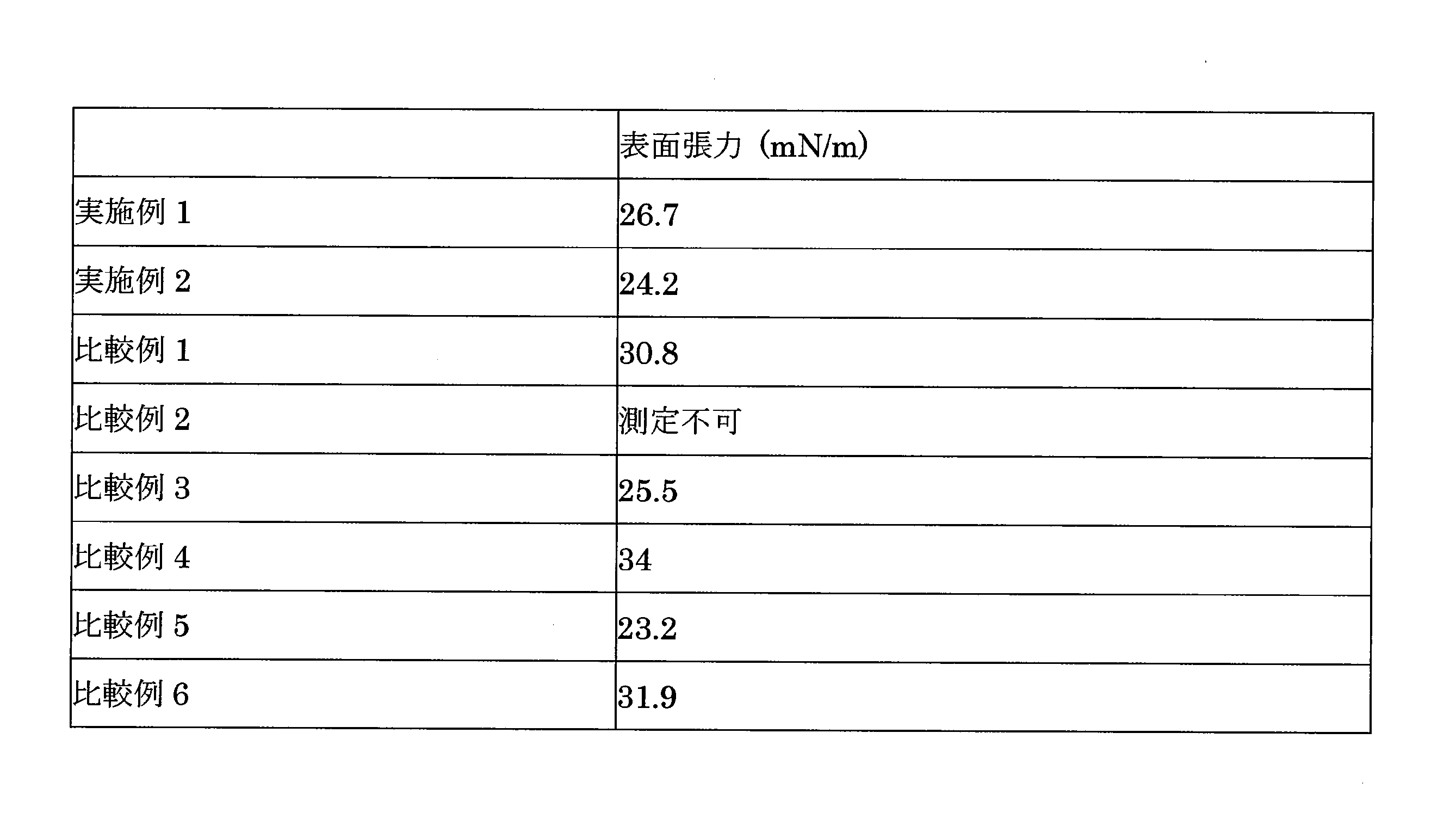

実施例1及び2、比較例1から6で製造されたリチウム二次電池用電解質の表面張力を測定した。表面張力は、テンシオメーター(TENSIOMETER)装置を用いて、デュノイリング法(Du Nouy ring method)を適用して3回以上繰り返し測定した。測定された表面張力は、下記表1に示した。
実施例1から4、比較例1から8で製造されたリチウム二次電池用電解質のイオン伝導度を測定した。
実施例1から4と比較例1から8で製造されたそれぞれのリチウム二次電池に対して、14mAの電流(0.1C レート(rate))でフォーメーション(formation)を進めた後に4.2V、47mA(0.33C、0.05C カットオフ(cut-off))のCC/CV充電と3V、47mA(0.33C)のCC放電を3回繰り返す。このとき、3回目の放電容量を初期容量として測定した。
実施例1から4及び比較例1から8で製造されたリチウム二次電池に対して、14mAの電流(0.1C レート(rate))でフォーメーション(formation)を進めた後、このときの放電容量を初期容量として設定した。その後、4.2V、47mA(0.33C、0.05C カットオフ(cut-off))のCC/CV充電と3V、47mA(0.33C)のCC放電を常温(25℃)でそれぞれ200回進めた。その後、200回目の放電容量と初期容量を比べて容量維持率を計算し、その結果を表4に示した。
実施例1から4及び比較例1から8で製造されたリチウム二次電池をSOC(State Of Charge)100%に完全に充電させた後、リチウム二次電池を150℃で4時間の間放置したときに発火されるか否か、及びその発火が開始される時間を確認する実験を実施した。その結果を下記表5に示した。
実施例3、4及び比較例7、8で製造されたリチウム二次電池用ゲルポリマー電解質用組成物を65℃で基板上に塗布し、5時間の間熱硬化させた後、十分乾燥させてゲルポリマー電解質を形成した。その後、回転式レオメータ(Roatainonal Rheometer)(DHR2)装置を用いて、それぞれのゲルポリマー電解質に対して0.1~10Hzの範囲内で弾性係数を測定した。測定された結果を下記表6に示した。
Claims (10)
- 1.6Mから5M濃度のリチウム塩;
下記化学式1で表される単位を含む第1オリゴマー及び下記化学式2で表される単位を含む第2オリゴマーを含むオリゴマー混合物;及び
有機溶媒を含むリチウム二次電池用電解質であって、
前記リチウム二次電池用電解質は、液体電解質であり、
前記オリゴマー混合物は、前記リチウム二次電池用電解質100重量部に対して0.01重量部から1重量部で含まれ、
前記オリゴマー混合物は、前記第1オリゴマー及び前記第2オリゴマーが(1~50):(50~99)の重量比で含まれる、リチウム二次電池用電解質:
Ra及びRbは、それぞれ独立して、水素または置換または非置換の炭素数1から5のアルキル基であり、
前記pは1から50の整数である。
Rh、Ri、Rj及びRkは、それぞれ独立して、水素または置換または非置換の炭素数1から5のアルキル基であり、
前記sは1から50の整数である。 - 1.6Mから5M濃度のリチウム塩;
下記化学式1で表される単位を含む第1オリゴマー及び下記化学式2で表される単位を含む第2オリゴマーを含むオリゴマー混合物;及び
有機溶媒を含むリチウム二次電池用電解質であって、
前記リチウム二次電池用電解質は、ゲルポリマー電解質であり、
前記オリゴマー混合物は、前記リチウム二次電池用電解質100重量部に対して2重量部から10重量部で含まれ、
前記オリゴマー混合物は、前記第1オリゴマー及び前記第2オリゴマーが(1~30):(70~99)の重量比で含まれる、リチウム二次電池用電解質:
R a 及びR b は、それぞれ独立して、水素または置換または非置換の炭素数1から5のアルキル基であり、
前記pは1から50の整数である。
R h 、R i 、R j 及びR k は、それぞれ独立して、水素または置換または非置換の炭素数1から5のアルキル基であり、
前記sは1から50の整数である。 - 前記リチウム塩の濃度は、1.6Mから4Mである、請求項1または2に記載のリチウム二次電池用電解質。
- 前記リチウム塩の濃度は、1.6Mから3Mである、請求項1から3の何れか一項に記載のリチウム二次電池用電解質。
- 前記第1オリゴマーは、下記化学式1aで表されるオリゴマーである、請求項1から4の何れか一項に記載のリチウム二次電池用電解質:
前記Ra、Rb、Rf及びRgは、それぞれ独立して、水素または置換または非置換の炭素数1から5のアルキル基であり、
前記Rcは、脂肪族炭化水素基または芳香族炭化水素基であり、
前記Rd及びReは、それぞれ独立して、置換または非置換の炭素数1から5のアルキレン基であり、
前記R’は、水素または炭素数1から3のアルキル基であり、
前記oは、1から3の整数であり、
前記pは、1から50の整数であり、
前記q1及びq2は、それぞれ独立して、1から15の整数であり、
前記r1及びr2は、それぞれ独立して、1から15の整数である。 - 前記第1オリゴマーは、下記化学式1bで表されるオリゴマーである、請求項1から4の何れか一項に記載のリチウム二次電池用電解質:
前記Ra、Rb、Rf及びRgは、それぞれ独立して、水素または置換または非置換の炭素数1から5のアルキル基であり、
前記Rcは、脂肪族炭化水素基または芳香族炭化水素基であり、
前記Rd及びReは、それぞれ独立して、置換または非置換の炭素数1から5のアルキレン基であり、
前記o’は、1から2の整数であり、
前記o’’は、1から3の整数であり、
前記pは、1から50の整数であり、
前記q1及びq2は、それぞれ独立して、1から15の整数であり、
前記r1及びr2は、それぞれ独立して、1から15の整数である。 - 重合開始剤をさらに含む、請求項2に記載のリチウム二次電池用電解質。
Applications Claiming Priority (3)
Application Number | Priority Date | Filing Date | Title |
---|---|---|---|
KR10-2018-0095688 | 2018-08-16 | ||
KR1020180095688A KR102434069B1 (ko) | 2018-08-16 | 2018-08-16 | 리튬 이차 전지용 전해질 |
PCT/KR2019/009357 WO2020036337A1 (ko) | 2018-08-16 | 2019-07-26 | 리튬 이차 전지용 전해질 |
Publications (2)
Publication Number | Publication Date |
---|---|
JP2021520054A JP2021520054A (ja) | 2021-08-12 |
JP7071022B2 true JP7071022B2 (ja) | 2022-05-18 |
Family
ID=69525576
Family Applications (1)
Application Number | Title | Priority Date | Filing Date |
---|---|---|---|
JP2021509714A Active JP7071022B2 (ja) | 2018-08-16 | 2019-07-26 | リチウム二次電池用電解質 |
Country Status (6)
Country | Link |
---|---|
US (1) | US11923509B2 (ja) |
EP (1) | EP3780235B1 (ja) |
JP (1) | JP7071022B2 (ja) |
KR (1) | KR102434069B1 (ja) |
CN (1) | CN112074984B (ja) |
WO (1) | WO2020036337A1 (ja) |
Families Citing this family (4)
Publication number | Priority date | Publication date | Assignee | Title |
---|---|---|---|---|
KR20230049242A (ko) * | 2021-10-06 | 2023-04-13 | 주식회사 엘지에너지솔루션 | 겔 폴리머 전해질을 포함하는 이차 전지, 및 이의 제조 방법 |
WO2023063727A1 (ko) * | 2021-10-12 | 2023-04-20 | 주식회사 엘지에너지솔루션 | 겔 폴리머 전해질 이차전지의 제조방법 및 이에 의해 제조된 겔 폴리머 전해질 이차전지 |
WO2023167486A1 (ko) * | 2022-03-02 | 2023-09-07 | 주식회사 엘지에너지솔루션 | 전지셀, 배터리 모듈, 및 전지셀을 제조하는 방법 |
KR20230141242A (ko) | 2022-03-31 | 2023-10-10 | 주식회사 엘지에너지솔루션 | 가교 시간이 단축된 겔 폴리머 전해질 조성물, 이를 포함하는 이차전지와 이차전지의 제조방법 |
Citations (3)
Publication number | Priority date | Publication date | Assignee | Title |
---|---|---|---|---|
JP2004095556A (ja) | 2002-08-31 | 2004-03-25 | Samsung Sdi Co Ltd | 有機電解液及びそれを採用したリチウム電池 |
JP2015513172A (ja) | 2012-02-03 | 2015-04-30 | シラトロニクス,インコーポレイテッド | ハロゲン化有機ケイ素電解質、その使用方法及びそれを含有する電気化学装置 |
JP2017535919A (ja) | 2014-10-02 | 2017-11-30 | エルジー・ケム・リミテッド | ゲルポリマー電解質及びこれを含むリチウム二次電池 |
Family Cites Families (16)
Publication number | Priority date | Publication date | Assignee | Title |
---|---|---|---|---|
JP3391600B2 (ja) * | 1995-04-25 | 2003-03-31 | 新日本石油株式会社 | 高分子固体電解質の製造方法 |
JP2005044704A (ja) | 2003-07-25 | 2005-02-17 | Hitachi Ltd | 固体電解質 |
KR100542198B1 (ko) | 2003-10-23 | 2006-01-11 | 삼성에스디아이 주식회사 | 리튬 폴리머 이차 전지 |
KR100759377B1 (ko) * | 2005-04-21 | 2007-09-19 | 삼성에스디아이 주식회사 | 리튬 이차 전지 |
KR101179397B1 (ko) * | 2006-11-15 | 2012-09-04 | 주식회사 엘지화학 | 비수 전해액 및 이를 포함하는 전기화학소자 |
CN101280104A (zh) | 2008-05-07 | 2008-10-08 | 北京理工大学 | 一种聚合物电解质材料 |
KR101181837B1 (ko) | 2010-06-25 | 2012-09-11 | 삼성에스디아이 주식회사 | 첨가제를 포함하는 리튬 이차 전지용 겔 전해질 및 이를 포함하는 리튬 이차 전지 |
CN112126054B (zh) * | 2013-09-09 | 2022-11-18 | Lg化学株式会社 | 聚碳酸亚烷基酯树脂的制备方法 |
KR101828127B1 (ko) | 2014-10-02 | 2018-02-09 | 주식회사 엘지화학 | 젤 폴리머 전해질 및 이를 포함하는 리튬 이차전지 |
WO2016053064A1 (ko) | 2014-10-02 | 2016-04-07 | 주식회사 엘지화학 | 젤 폴리머 전해질 및 이를 포함하는 리튬 이차전지 |
KR20180021797A (ko) | 2015-06-24 | 2018-03-05 | 콴텀스케이프 코포레이션 | 복합 전해질 |
CN105552430A (zh) | 2016-03-09 | 2016-05-04 | 中国科学院宁波材料技术与工程研究所 | 一种电解液以及锂离子电池 |
EP3361546B1 (en) | 2016-09-02 | 2023-06-07 | LG Energy Solution, Ltd. | Gel polymer electrolyte and lithium secondary battery including the same |
KR102101396B1 (ko) | 2016-12-09 | 2020-04-16 | 주식회사 엘지화학 | 비수성 전해질 및 이를 포함하는 리튬 이차 전지 |
CN107768717B (zh) * | 2017-09-14 | 2020-10-27 | 哈尔滨工业大学无锡新材料研究院 | 一种紫外固化的半互穿网络结构的聚碳酸酯基固态聚合物电解质及其制备方法 |
CN109232929B (zh) * | 2018-07-11 | 2021-04-27 | 珠海冠宇电池股份有限公司 | 一种凝胶聚合物电解质的制备方法及锂离子电池 |
-
2018
- 2018-08-16 KR KR1020180095688A patent/KR102434069B1/ko active IP Right Grant
-
2019
- 2019-07-26 EP EP19849608.5A patent/EP3780235B1/en active Active
- 2019-07-26 JP JP2021509714A patent/JP7071022B2/ja active Active
- 2019-07-26 WO PCT/KR2019/009357 patent/WO2020036337A1/ko unknown
- 2019-07-26 US US17/054,354 patent/US11923509B2/en active Active
- 2019-07-26 CN CN201980029766.3A patent/CN112074984B/zh active Active
Patent Citations (3)
Publication number | Priority date | Publication date | Assignee | Title |
---|---|---|---|---|
JP2004095556A (ja) | 2002-08-31 | 2004-03-25 | Samsung Sdi Co Ltd | 有機電解液及びそれを採用したリチウム電池 |
JP2015513172A (ja) | 2012-02-03 | 2015-04-30 | シラトロニクス,インコーポレイテッド | ハロゲン化有機ケイ素電解質、その使用方法及びそれを含有する電気化学装置 |
JP2017535919A (ja) | 2014-10-02 | 2017-11-30 | エルジー・ケム・リミテッド | ゲルポリマー電解質及びこれを含むリチウム二次電池 |
Also Published As
Publication number | Publication date |
---|---|
JP2021520054A (ja) | 2021-08-12 |
EP3780235A4 (en) | 2021-06-02 |
CN112074984B (zh) | 2024-03-26 |
US11923509B2 (en) | 2024-03-05 |
US20210210787A1 (en) | 2021-07-08 |
KR20200020234A (ko) | 2020-02-26 |
EP3780235A1 (en) | 2021-02-17 |
CN112074984A (zh) | 2020-12-11 |
EP3780235B1 (en) | 2024-02-21 |
KR102434069B1 (ko) | 2022-08-19 |
WO2020036337A1 (ko) | 2020-02-20 |
Similar Documents
Publication | Publication Date | Title |
---|---|---|
JP7071022B2 (ja) | リチウム二次電池用電解質 | |
JP7055481B2 (ja) | リチウム二次電池用電解質 | |
KR20180075406A (ko) | 전해액, 전기 화학 디바이스, 리튬 이온 이차 전지, 및 모듈 | |
JP7055524B2 (ja) | リチウム二次電池用電解質及びこれを含むリチウム二次電池 | |
JP2022518409A (ja) | 非水電解液添加剤、これを含むリチウム二次電池用非水電解液及びリチウム二次電池 | |
EP3879616B1 (en) | Electrolyte for lithium secondary battery and lithium secondary battery including the same | |
CN111542962B (zh) | 锂二次电池及其制造方法 | |
JP7118479B2 (ja) | リチウム二次電池用電解質及びこれを含むリチウム二次電池 | |
JP7049546B2 (ja) | リチウム二次電池用電極およびそれを含むリチウム二次電池 | |
JP7446666B2 (ja) | リチウム二次電池用非水電解液およびそれを含むリチウム二次電池 | |
KR20190029373A (ko) | 겔 폴리머 전해질 조성물, 이에 의해 제조된 겔 폴리머 전해질, 및 이를 포함하는 리튬 이차전지 | |
WO2024016897A1 (zh) | 一种非水电解液及二次电池 |
Legal Events
Date | Code | Title | Description |
---|---|---|---|
A521 | Request for written amendment filed |
Free format text: JAPANESE INTERMEDIATE CODE: A523 Effective date: 20201028 |
|
A621 | Written request for application examination |
Free format text: JAPANESE INTERMEDIATE CODE: A621 Effective date: 20201028 |
|
A131 | Notification of reasons for refusal |
Free format text: JAPANESE INTERMEDIATE CODE: A131 Effective date: 20210921 |
|
A521 | Request for written amendment filed |
Free format text: JAPANESE INTERMEDIATE CODE: A523 Effective date: 20211215 |
|
A711 | Notification of change in applicant |
Free format text: JAPANESE INTERMEDIATE CODE: A712 Effective date: 20211222 |
|
TRDD | Decision of grant or rejection written | ||
A01 | Written decision to grant a patent or to grant a registration (utility model) |
Free format text: JAPANESE INTERMEDIATE CODE: A01 Effective date: 20220404 |
|
A61 | First payment of annual fees (during grant procedure) |
Free format text: JAPANESE INTERMEDIATE CODE: A61 Effective date: 20220428 |
|
R150 | Certificate of patent or registration of utility model |
Ref document number: 7071022 Country of ref document: JP Free format text: JAPANESE INTERMEDIATE CODE: R150 |
