Abstract
【解決手段】光源からの光を測定する為のカラーセンサ(50、200)は、複数のフォトディテクタ(51〜53)と、各々が前記光源と前記フォトディテクタ(51〜53)のうちの対応する1つとの間に材料層を含み、各々が特性波長付近の対応する波長帯域にある光を選択的に透過する複数のプライマリカラーフィルタ(61〜63)と、前記光源と前記フォトディテクタ(51〜53)の間に位置し、2つの前記特性波長の間にある第1のトリム波長の光を選択的に減衰させる材料層を含む第1のトリムフィルタ(70、210)とを具備する。
【選択図】図4
Description

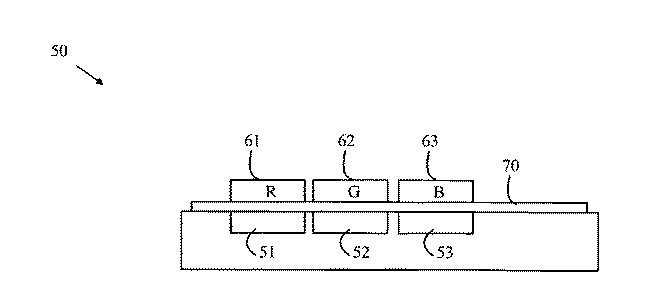

51〜53 フォトディテクタ
61〜63 プライマリカラーフィルタ
70、210 第1のトリムフィルタ

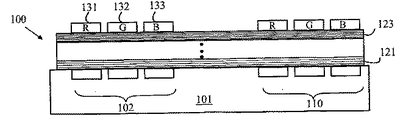

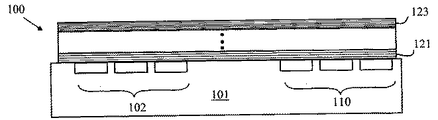

101 基板
102、110 フォトディテクタ
123 第1のトリムフィルタ層

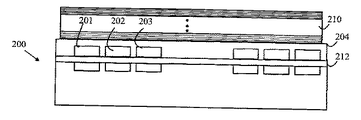

201〜203 プライマリカラーフィルタ
210 第1のトリムフィルタ
212 第2のトリムフィルタ
Claims (12)
- 光源からの光を測定する為のカラーセンサであって、
複数のフォトディテクタと、
各々が前記光源と前記フォトディテクタのうちの対応する1つとの間に材料層を含み、各々が特性波長付近の対応する波長帯域にある光を選択的に透過する複数のプライマリカラーフィルタと、
前記光源と前記フォトディテクタの間に位置し、2つの前記特性波長の間にある第1のトリム波長の光を選択的に減衰させる材料層を含む第1のトリムフィルタとを具備したことを特徴とするカラーセンサ。 - 前記第1のトリムフィルタが更に第2のトリム波長の光を選択的に減衰させるものであり、前記第1のトリム波長が前記特性波長の1つよりも小さく、前記第2のトリム波長がその前記特性波長よりも大きいものであることを特徴とする、請求項1に記載のカラーセンサ。
- 前記第1のトリムフィルタが干渉フィルタを含むものであることを特徴とする、請求項1に記載のカラーセンサ。
- 前記フォトディテクタを設けた基板を更に具備し、前記第1のトリムフィルタが前記基板上に第1のトリムフィルタ層を含むものであることを特徴とする、請求項1に記載のカラーセンサ。
- 前記カラーフィルタが、前記第1のトリムフィルタ層上に位置することを特徴とする、請求項4に記載のカラーセンサ。
- 前記カラーフィルタが、前記第1のトリムフィルタと前記フォトディテクタの間に位置することを特徴とする、請求項1に記載のカラーセンサ。
- 第2のトリムフィルタを更に具備し、前記第2のトリムフィルタが前記特性波長及び前記第1のトリム波長のそれぞれとは異なる第2の波長の光を選択的に減衰させる材料層を含むことを特徴とする、請求項1に記載のカラーセンサ。
- 前記カラーフィルタが、前記第1及び第2のトリムフィルタの間に位置することを特徴とする、請求項7に記載のカラーセンサ。
- カラーセンサを製造する為の方法であって、複数のフォトディテクタを持つ基板を設けるステップと、第1のトリムフィルタ層を前記基板へと被着するステップと、前記第1のトリムフィルタ層へと複数のプライマリカラーフィルタを含むカラーフィルタ層を被着するステップとを有し、前記プライマリカラーフィルタの各々が前記光源と前記フォトディテクタの対応する1つとの間に材料層を含み、前記プライマリカラーフィルタの各々が特性波長付近の対応する波長帯域にある光を選択的に透過するものであり、前記第1のトリムフィルタが2つの前記特性波長の間にある第1のトリム波長の光を減衰させるものであることを特徴とする方法。
- 前記第1のトリムフィルタが更に第2のトリム波長の光を減衰させるものであり、前記第1の波長が前記特性波長の1つよりも小さく、前記第2の波長がその前記特性波長よりも大きいことを特徴とする、請求項9に記載の方法。
- 前記第1のトリムフィルタが複数の透明層を含み、その中の隣接する層が異なる屈折率を持つことを特徴とする、請求項9に記載の方法。
- 第2のトリムフィルタ層を前記カラーフィルタ層へと被着することにより、前記カラーフィルタ層が前記第1及び第2のトリムフィルタ層の間に挟まれるようにするステップを更に含むことを特徴とする、請求項9に記載の方法。
