CN107200610B

CN107200610B - Kitchen waste treatment equipment

Info

Publication number: CN107200610B
Application number: CN201710509029.6A
Authority: CN
Inventors: 姜春林
Original assignee: Zhuhai Qiaoli Forestry Technology Co ltd
Current assignee: Zhuhai Qiaoli Forestry Technology Co ltd
Priority date: 2017-06-28
Filing date: 2017-06-28
Publication date: 2022-06-21
Anticipated expiration: 2037-06-28
Also published as: CN107200610A

Abstract

The invention discloses kitchen waste treatment equipment which comprises a rack, wherein a crushing device and a fermentation device are sequentially arranged in the rack according to a waste treatment sequence, the crushing device comprises a feed hopper arranged at the upper part of the crushing device and a crushing mechanism positioned below the feed hopper, the crushing mechanism comprises a rotating shaft and a first motor driving the rotating shaft to rotate, a plurality of saw blades are sleeved on the rotating shaft at intervals, the fermentation device comprises a reversible fermentation box body and a forward and reverse spiral stirring mechanism arranged in the fermentation box body, and kitchen waste is cut and crushed by the saw blades and then enters the fermentation box body to be stirred and fermented. This surplus refuse handling installation in kitchen smashes rubbish in kitchen and ferment through reducing mechanism and fermenting installation and finally generates fertilizer, and saw bit among the reducing mechanism is smashed the organic substance homoenergetic of doing, wet soft, hard difference is effectual simultaneously, and the device is small and exquisite, is fit for restaurant, family and uses, and efficiency is high-efficient, can obtain fertilizer at last, and is pollution-free to the environment, has obtained great economic value simultaneously.

Description

Kitchen waste treatment equipment

Technical Field

The invention relates to the technical field of garbage treatment, in particular to kitchen garbage treatment equipment.

Background

The kitchen waste refers to waste generated in daily life and food processing, food service, unit meal supply and other activities of residents, and comprises abandoned vegetable leaves, leftovers, fruit peels, eggshells, tea leaves, shells, bones and the like, and the main sources of the kitchen waste are household kitchens, restaurants, dining halls, markets and other industries related to food processing. The kitchen waste contains extremely high moisture and organic matters, is easy to decay and generates stink. However, kitchen waste can be converted into new resources after being properly treated and processed, the characteristic of high organic matter content enables the kitchen waste to be used as fertilizer and feed after being strictly treated, biogas can also be generated to be used as fuel or power generation, and the grease part can be used for preparing biofuel.

At present, the domestic production process of the kitchen regenerated feed mainly adopts a biological method and a physical method. The biological method utilizes kitchen waste fermentation, uses the growth, reproduction and metabolism of microorganisms to accumulate useful thalli, enzyme and intermediates, and prepares the protein feed after drying. The physical method is to directly dehydrate the kitchen waste, dry and sterilize the kitchen waste, and crush the kitchen waste to prepare the feed.

The kitchen waste treatment method in the prior art comprises a crushing direct discharge method, a landfill method and a fertilizer treatment method. The crushing direct discharging method is generally a method of disposing a kitchen waste treatment device in a kitchen or the like, discharging crushed kitchen waste into a municipal sewer pipe network, mixing the kitchen waste with water, and discharging the mixture to a municipal sewage treatment system for harmless treatment. The landfill method is to send the kitchen waste and the common waste into a landfill site together for landfill treatment. At present, the landfill rate of the landfill method is on the decline trend, and even most countries forbid the kitchen waste from entering the landfill site for treatment. The fertilizer treatment method mainly comprises two methods of aerobic composting and anaerobic digestion. The aerobic composting process is that the extracellular enzyme secreted by aerobic microorganisms is used to decompose organic solids into soluble organic substances under aerobic conditions, and then the soluble organic substances are permeated into cells, and the whole composting process is realized through the metabolism of the microorganisms. Anaerobic digestion treatment of kitchen waste refers to that microorganisms decompose organic waste under specific anaerobic conditions, wherein carbon, hydrogen and oxygen are converted into methane and carbon dioxide, and elements such as nitrogen, phosphorus and potassium are remained in residues and are converted into a form which is easily absorbed and utilized by animals and plants.

However, in the above kitchen waste treatment methods, the smashing and direct discharging method is generally suitable for units with small kitchen waste amount, and the smashing equipment can not simultaneously smash different organic substances with dryness, wetness, softness and hardness, so that the method often causes the breeding of germs, mosquitos and mosquitos in urban sewers, causes disease transmission, can cause drainage pipe blockage, reduces the drainage capacity of the urban sewers, increases the load of the urban sewage treatment system, and inevitably causes secondary pollution.

Disclosure of Invention

In order to overcome the defects of the prior art, the invention provides kitchen waste treatment equipment which can well solve the problems that a waste treatment method in the prior art occupies a large area, is low in efficiency and can cause environmental pollution.

The technical scheme adopted by the invention for solving the technical problems is as follows:

the utility model provides a surplus refuse treatment equipment in kitchen, includes the frame, set gradually reducing mechanism and fermenting installation according to the refuse treatment order in the frame, reducing mechanism is including setting up the feeder hopper on reducing mechanism upper portion and the rubbing crusher who is located the feeder hopper below, rubbing crusher constructs including the rotation axis and drives rotation axis pivoted first motor, the spacer sleeve is equipped with a plurality of saw bits on the rotation axis, fermenting installation is including the fermentation box that can overturn and set up the forward and reverse spiral rabbling mechanism in the fermentation box, and the rubbish in kitchen goes into in the fermentation box that gets into after the saw bit cutting is smashed.

As an improvement of the technical scheme, a buffer plate is obliquely arranged below the feed hopper, a crushing cavity is formed between the buffer plate and the plurality of saw blades, and kitchen garbage is cut and crushed by the saw blades at the crushing cavity.

As an improvement of the technical scheme, a screen is arranged at the bottom of the crushing device below the plurality of saw blades.

As the improvement of the technical scheme, a first belt pulley is installed at one end of the rotating shaft, and the first motor is connected with the first belt pulley through a first belt.

As an improvement of the technical scheme, the forward and reverse spiral stirring mechanism comprises a stirring main shaft and a driving mechanism for driving the stirring main shaft to rotate, and a plurality of forward spiral sheets and reverse spiral sheets are sleeved on the stirring main shaft at intervals.

As an improvement of the technical scheme, a second belt pulley is installed at one end of the stirring main shaft, the driving mechanism comprises a second motor installed at the bottom of the rack and a speed reducer driven by the second motor, the speed reducer is connected with the second belt pulley through a second belt, and two ends of the stirring main shaft extend out of the fermentation box body and are connected with the rack through bearings.

As an improvement of the technical scheme, a heating layer and a heat preservation layer are sequentially arranged on the outer surface of the fermentation box body from inside to outside.

As the improvement of the technical scheme, the fermentation box body is provided with the positioning handle, the rack is provided with the sliding groove and the clamping position communicated with the sliding groove, the positioning handle can move in the sliding groove to drive the fermentation box body to turn over, and the positioning handle can also be clamped into the clamping position to fix the fermentation box body.

As the improvement of above-mentioned technical scheme, the fermenting case sets up in the rubbing crusher mechanism below, the slope of frame bottom is provided with first flitch, the screens sets up two, when one of them screens is gone into to location hand (hold) card, rubbish from cooking directly falls into the fermenting case from the rubbing crusher mechanism and ferments, when another screens is gone into to location hand (hold) card, the fermenting case upset, and the fertilizer that rubbish from cooking formed after the fermentation falls out from first flitch.

As above-mentioned technical scheme's improvement, the fermenting case sets up in rubbing crusher structure one side, the slope of frame bottom is provided with the second flitch down, the screens sets up threely, when location hand (hold) card goes into first screens, the fermenting case upset, rubbish from cooking falls into the fermenting case from rubbing crusher structure and loads into, when location hand (hold) card goes into the second screens, the fermenting case upset, rubbish from cooking begins the fermentation, when location hand (hold) card goes into the third screens, the fermenting case upset, the fertilizer that rubbish from cooking formed after the fermentation falls out from the second flitch down.

As an improvement of the technical scheme, a deodorization exhaust device is further arranged in the frame, a deodorization exhaust port is arranged on the fermentation box body, and the deodorization exhaust device is connected with the deodorization exhaust port through a hose.

The invention has the following beneficial effects:

this surplus refuse handling installation in kitchen smashes the rubbish in kitchen and ferment through reducing mechanism and fermenting installation and finally generates fertilizer, and the saw bit among the reducing mechanism is to dry, wet, soft, hard different organic substance homoenergetic effectual smashing simultaneously, and the device is small and exquisite, is fit for hotel, family and uses, and is efficient, can obtain fertilizer at last, and is pollution-free to the environment, has obtained great economic value simultaneously.

Drawings

The invention is further described with reference to the following drawings and specific examples, in which:

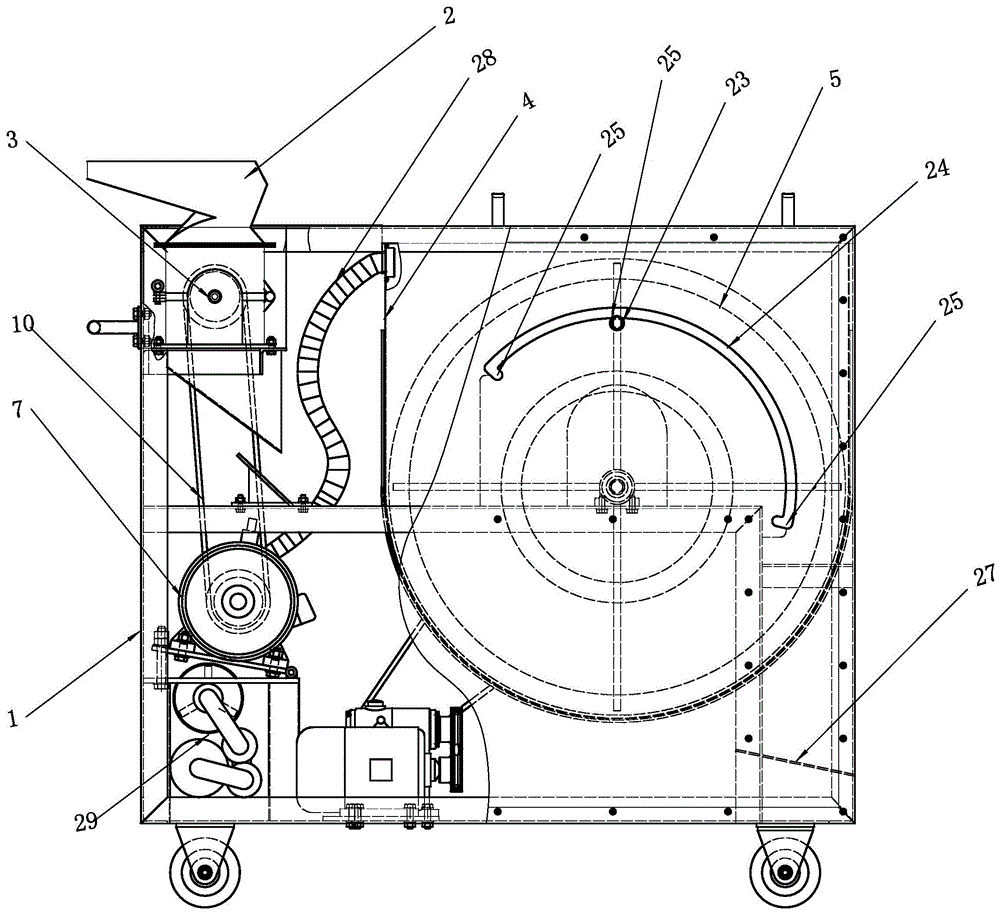

FIG. 1 is a schematic structural diagram of a first embodiment of the present invention;

FIG. 2 is a cross-sectional view of a first embodiment of the present invention;

FIG. 3 is a top view of a first embodiment of the present invention;

FIG. 4 is a schematic structural diagram of a crushing apparatus according to a first embodiment of the present invention;

FIG. 5 is a cross-sectional view of a reducing mechanism according to one embodiment of the present invention;

fig. 6 is a schematic structural diagram of a second embodiment of the present invention.

Detailed Description

The first embodiment is as follows: referring to fig. 1, 2 and 3, a kitchen garbage treatment device comprises a frame 1, wherein a crushing device and a fermentation device are sequentially arranged in the frame 1 according to a garbage treatment sequence, the crushing device comprises a feed hopper 2 arranged on the upper part of the crushing device and a crushing mechanism 3 positioned below the feed hopper 2, the fermentation device comprises a reversible fermentation box body 4 and a forward and reverse spiral stirring mechanism 5 arranged in the fermentation box body 4, the forward and reverse spiral stirring mechanism 5 comprises a stirring main shaft 14 and a driving mechanism for driving the stirring main shaft 14 to rotate, a plurality of forward spiral sheets 15 and reverse spiral sheets 16 are sleeved on the stirring main shaft 14 at intervals, so that stirring is more uniform and has no dead angle, a second belt pulley 17 is arranged at one end of the stirring main shaft 14, the driving mechanism comprises a second motor 18 arranged at the bottom of the frame 1 and a speed reducer 19 driven by the second motor 18, the reduction gear 19 is connected through second belt 20 with second belt pulley 17, stirring main shaft 14 both ends are stretched out fermenting case 4 and are connected with frame 1 through the bearing and make fermenting case 4 can overturn for the frame, fermenting case 4 surface is equipped with zone of heating 21 and heat preservation 22 in proper order and is convenient for kitchen waste heat preservation fermentation.

Be provided with location hand (hold) 23 on the fermenting case body 4, be equipped with the spout 24 on the frame 1 and with the communicating screens 25 of spout 24, spout 24 is arc, location hand (hold) 23 can remove in spout 24 in order to drive the upset of fermenting case body 4, location hand (hold) 23 also can block and make fermenting case body 4 fixed in the screens 25, fermenting case body 4 sets up in rubbing crusher constructs 3 one side, frame 1 bottom slope is provided with second flitch 27, screens 25 sets up threely, when representing the material loading respectively, three function in the fermentation and when blowing, when location hand (hold) 23 card goes into the screens 25 when first representing the material loading, the upset of fermenting case body 4, rubbish from rubbing crusher constructs 3 and falls into charging in fermenting case body 4, when location hand (hold) 23 card goes into the screens 25 in the second representing the fermentation, the upset of fermenting case body 4, rubbish from cooking begins the fermentation, when the screens 25 when the third representative blowing is gone into to location hand (hold) 23 card, the upset of fermenting case 4, the fertilizer that rubbish from cooking formed after the fermentation falls out from flitch 27 under the second, 1 still is provided with deodorization exhaust apparatus 29 in the frame, be equipped with the deodorization gas vent on fermenting case 4, deodorization exhaust apparatus 29 links to each other with the deodorization gas vent through a hose 28, hose 28 can be telescopic wire hose, deodorization exhaust apparatus 29 includes fan and deodorization bucket, and the deodorization bucket includes three photocatalyst barrel, heating barrel and the catalysis bucket that links to each other in proper order, and the fan is at first taken out the organic gas that the fermentation produced in the photocatalyst barrel, is equipped with the ultraviolet lamp in the photocatalyst barrel, and the purple light sends specific ultraviolet wave and becomes oxygen to ozone, and the strong oxidizing property of ozone is with most organic gas oxidation, remains unoxidized organic gas and gets into in the heating barrel, the heating barrel is internally provided with a heating pipe to react organic gas with oxygen, some generated carbon monoxide and ozone gas enter the catalysis barrel, the catalysis barrel is internally provided with a catalyst to respectively reduce ozone and carbon monoxide into oxygen and carbon dioxide, and the oxygen and the carbon dioxide can be directly discharged.

Further refer to fig. 4 and 5, rubbing crusher constructs 3 and includes rotation axis 6 and drives rotation axis 6 pivoted first motor 7, the spacer sleeve is equipped with a plurality of saw bits 8 on the rotation axis 6, the saw bit is made by alloy steel, and is sturdy and durable, and interval 1 ~ 5 millimeters between saw bit and the saw bit, and is adjustable according to actual need, first belt pulley 9 is installed to rotation axis 6 one end, first motor 7 is connected through first belt 10 with first belt pulley 9, feeder hopper 2 below slope is provided with buffer board 11, form crushing chamber 12 between buffer board 11 and a plurality of saw bit 8, the rubbish from cooking is in crushing chamber 12 department is smashed by the cutting of saw bit 8, the rubbing crusher bottom is located a plurality of saw bit 8 below and is provided with screen cloth 13, and screen cloth 13 can be changed according to crushing granule specification size and effect.

Example two: the difference with the first embodiment is that, referring further to fig. 6, the fermenting case 4 is disposed below the crushing mechanism 3, the bottom of the frame 1 is obliquely provided with a first blanking plate 26, two clamping positions 25 are provided to represent two functions during fermentation and during emptying, when the positioning handle 23 is clamped into one of the clamping positions 25 representing fermentation, kitchen waste directly falls into the fermenting case 4 from the crushing mechanism 3 for fermentation, when the positioning handle 23 is clamped into the other clamping position 25 representing emptying, the fermenting case 4 is turned over, and fertilizer formed by the kitchen waste after fermentation falls out of the first blanking plate 26.

The above description is only a preferred embodiment of the present invention, but the present invention is not limited to the above embodiments, and the present invention shall fall within the protection scope of the present invention as long as the technical effects of the present invention are achieved by any similar or identical means.

Claims

1. The utility model provides a kitchen garbage treatment equipment which characterized in that: including frame (1), set gradually reducing mechanism and fermenting installation according to refuse treatment order in frame (1), the reducing mechanism is including setting up feeder hopper (2) on reducing mechanism upper portion and being located feeder hopper (2) rubbing crusher mechanism (3) of below, rubbing crusher mechanism (3) are including rotation axis (6) and drive rotation axis (6) pivoted first motor (7), the spacer sleeve is equipped with a plurality of saw bits (8) on rotation axis (6), fermenting installation is including fermentation box (4) that can overturn and positive reverse spiral rabbling mechanism (5) of setting in fermentation box (4), and the surplus rubbish in kitchen stirs the fermentation in fermentation box (4) that get into after saw bit (8) cutting is smashed, be provided with location hand (23) on fermentation box (4), be equipped with spout (24) in frame (1) and with spout (24) communicating screens (25), the positioning handle (23) can move in the sliding groove (24) to drive the fermentation box body (4) to overturn, and the positioning handle (23) can also be clamped in the clamping position (25) to fix the fermentation box body (4).

2. The kitchen waste treatment apparatus according to claim 1, wherein: the kitchen garbage crusher is characterized in that a buffer plate (11) is obliquely arranged below the feeding hopper (2), a crushing cavity (12) is formed between the buffer plate (11) and the saw blades (8), and kitchen garbage is cut and crushed by the saw blades (8) at the crushing cavity (12).

3. The kitchen waste treatment apparatus according to claim 1, wherein: and a screen (13) is arranged at the bottom of the crushing device below the plurality of saw blades (8).

4. The kitchen waste treatment apparatus according to claim 1, wherein: first belt pulley (9) are installed to rotation axis (6) one end, first motor (7) are connected through first belt (10) with first belt pulley (9).

5. The kitchen waste treatment apparatus according to claim 1, wherein: the forward and reverse spiral stirring mechanism (5) comprises a stirring main shaft (14) and a driving mechanism for driving the stirring main shaft (14) to rotate, and a plurality of forward spiral sheets (15) and reverse spiral sheets (16) are sleeved on the stirring main shaft (14) at intervals.

6. The kitchen waste treatment apparatus according to claim 5, wherein: second belt pulley (17) are installed to stirring main shaft (14) one end, actuating mechanism is including installing second motor (18) in frame (1) bottom and reduction gear (19) by second motor (18) drive, reduction gear (19) are connected through second belt (20) with second belt pulley (17), stirring main shaft (14) both ends are stretched out fermentation box (4) and are connected with frame (1) through the bearing.

7. The kitchen waste treatment apparatus according to claim 5, wherein: the outer surface of the fermentation box body (4) is sequentially provided with a heating layer (21) and a heat preservation layer (22) from inside to outside.

8. The kitchen waste treatment apparatus according to claim 1, wherein: fermentation tank (4) set up in rubbing crusher structure (3) below, frame (1) bottom slope is provided with first flitch (26) down, screens (25) set up two, go into when one of them screens (25) are gone into to location hand (23) card, and rubbish is left in the kitchen directly falls into fermentation tank (4) from rubbing crusher structure (3) and ferment, when another screens (25) are gone into to location hand (23) card, and fermentation tank (4) upset, the fertilizer that rubbish was left in the kitchen formed after the fermentation falls out from first flitch (26).

9. The kitchen waste treatment apparatus according to claim 1, wherein: fermentation tank (4) set up in rubbing crusher structure (3) one side, frame (1) bottom slope is provided with flitch (27) under the second, screens (25) set up threely, when location hand (23) card goes into first screens (25), fermentation tank (4) upset, rubbish from cooking falls into fermentation tank (4) from rubbing crusher structure (3) and loads into, when location hand (23) card goes into second screens (25), fermentation tank (4) upset, rubbish from cooking begins the fermentation, when location hand (23) card goes into third screens (25), fermentation tank (4) upset, the rubbish from cooking falls out from flitch (27) under second through the fertilizer that forms after the fermentation.

10. The kitchen waste treatment apparatus according to claim 1, wherein: still be provided with deodorization exhaust apparatus (29) in frame (1), be equipped with the deodorization gas vent on fermenting case (4), deodorization exhaust apparatus (29) link to each other with the deodorization gas vent through a hose (28).
