WO2016157337A1 - スライドファスナー用エレメント - Google Patents
スライドファスナー用エレメント Download PDFInfo
- Publication number
- WO2016157337A1 WO2016157337A1 PCT/JP2015/059786 JP2015059786W WO2016157337A1 WO 2016157337 A1 WO2016157337 A1 WO 2016157337A1 JP 2015059786 W JP2015059786 W JP 2015059786W WO 2016157337 A1 WO2016157337 A1 WO 2016157337A1
- Authority
- WO
- WIPO (PCT)
- Prior art keywords
- slide fastener
- leg
- mass
- fastener
- strength
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Ceased
Links
Images
Classifications
-
- A—HUMAN NECESSITIES
- A44—HABERDASHERY; JEWELLERY
- A44B—BUTTONS, PINS, BUCKLES, SLIDE FASTENERS, OR THE LIKE
- A44B19/00—Slide fasteners
- A44B19/02—Slide fasteners with a series of separate interlocking members secured to each stringer tape
-
- A—HUMAN NECESSITIES
- A44—HABERDASHERY; JEWELLERY
- A44B—BUTTONS, PINS, BUCKLES, SLIDE FASTENERS, OR THE LIKE
- A44B19/00—Slide fasteners
- A44B19/24—Details
-
- A—HUMAN NECESSITIES
- A44—HABERDASHERY; JEWELLERY
- A44B—BUTTONS, PINS, BUCKLES, SLIDE FASTENERS, OR THE LIKE
- A44B19/00—Slide fasteners
- A44B19/24—Details
- A44B19/40—Connection of separate, or one-piece, interlocking members to stringer tapes; Reinforcing such connections, e.g. by stitching
- A44B19/403—Connection of separate interlocking members
-
- C—CHEMISTRY; METALLURGY
- C22—METALLURGY; FERROUS OR NON-FERROUS ALLOYS; TREATMENT OF ALLOYS OR NON-FERROUS METALS
- C22C—ALLOYS
- C22C21/00—Alloys based on aluminium
- C22C21/06—Alloys based on aluminium with magnesium as the next major constituent
- C22C21/08—Alloys based on aluminium with magnesium as the next major constituent with silicon
Definitions
- the present invention relates to a slide fastener element.
- copper-zinc alloys such as red brass and brass
- copper-zinc-nickel alloy copper alloys such as white and white
- these alloys have a color tone specified by the material used, such as copper color, golden color, and silver color.
- a slide fastener is required to have an external design from the intended use, and it has become necessary to provide components having various color tones.
- an electrochemical surface treatment is performed based on an existing aluminum alloy (for example, JIS 5183), it tends to be an element for slide fasteners of various colors with poor metallic luster, and the metallic luster is emphasized.
- an existing aluminum alloy for example, JIS 5052, 5056, 5154, etc.
- Patent Document 1 the general formula: Al a Mg b Mn c Cr d (a, b, c, d are mass%, a is the remainder, 3.0 ⁇ b ⁇ 5.6, 0.05 ⁇ c. .Ltoreq.1.0, 0.05.ltoreq.d.ltoreq.0.7, c + d> 0.2, which may contain unavoidable impurity elements), and the matrix is substantially made of a solid solution of aluminum, and has a .beta. Phase.
- An aluminum alloy excellent in decorativeness, which is a structure having no structure, is disclosed, and it is described that a slide fastener part obtained thereby has mechanical properties such as strength and hardness.
- Patent Document 2 discloses at least one selected from the group consisting of the following four components of a slide fastener made of an aluminum alloy, an element, a stopper, a handle, and a slider.
- an aluminum alloy characterized by having a composition represented by:
- Al d Mg e Cu f X g (X is Mn and / or Cr) (d, e, f , g in weight%, d is the remainder, 4.3 ⁇ e ⁇ 5.5, 0.5 ⁇ f ⁇ 1.0, 0.05 ⁇ g ⁇ 0.2, which may contain unavoidable impurities).
- the conventional slide fastener element using an aluminum alloy has a problem that the strength is not sufficient and it is difficult to use it in a place where strength such as pants is required. Further, black wear powder may be generated due to wear by the slider or wear between the tooth elements of the element, and the clothes and the like may become dirty. Further, when the amount of wear increases, there is a problem that the engagement between the working teeth becomes weak, and the lateral pulling strength of the element also decreases.
- Patent Documents 1 and 2 are solid solution strengthened, workability decreases when the strength is increased by increasing the amount of solid solution and cold rolling. There was a problem that the strain was removed by heat treatment in the middle and the strength was lowered.
- an object of the present invention is to provide a slide fastener element that has high strength and excellent wear resistance.
- strain is removed by heat treatment after cold working by using an age hardening type aluminum alloy instead of a conventional solid solution hardening type aluminum alloy.
- it has been found that it is possible to improve the workability while suppressing a decrease in strength and improving the strength compared to the conventional one, and controlling the structure of the structure and the aging precipitates with high hardness by cold rolling.
- the strength and wear resistance can be improved as compared with the prior art, and the present invention has been completed.
- the present invention is as follows.
- the leg portion when seen in a plan view from a direction in which both the leg portion and the meshing head are viewed, the leg portion is lowered from the base portion toward the tip of the leg portion.
- the leg portion When the leg portion is divided into a leg base portion which is a portion corresponding to a length of 70% from the base portion of the vertical line and a leg tip portion which is a portion corresponding to the remaining 30% length.
- a slide fastener comprising the slide fastener element according to any one of (1) to (4).
- FIG. 1 It is a schematic diagram of a slide fastener. It is a figure explaining how to attach a lower stopper, an upper stopper, and an element to a fastener tape.
- the slide fastener element according to the present invention has a predetermined composition and is intended to exhibit high strength and excellent wear resistance by constituting the base material with an age-hardening type copper alloy. Yes.
- the element for a slide fastener according to the present invention is represented by the general formula: Al a Si b Cu c Mg d (a, b, c, d are mass%, a is the remainder, 0.4 ⁇ b ⁇ 0 .9, 0.15 ⁇ c ⁇ 0.8, 0.8 ⁇ d ⁇ 2.0, which may contain inevitable impurity elements), and aluminum containing precipitates containing Mg and Si An alloy is used as a base material.
- ⁇ Si> Si is once dissolved in an Al matrix and then subjected to an aging heat treatment to form an extremely small intermetallic compound with Mg, thereby improving the mechanical properties (strength and hardness) of the alloy.
- the composition ratio (b) of Si is 0.4 (mass%) ⁇ b ⁇ 0.9 (mass%), that is, 0.4 mass% or more and 0.9 mass% or less, preferably 0.4 mass% or more. 0.8% by mass or less. If the composition ratio of Si is too small, the strength and hardness of the aluminum alloy are difficult to improve. On the other hand, if it is too large, coarse precipitation or crystallization of Si alone is promoted, and the elongation in plastic deformation becomes small, thereby reducing workability.
- Cu is once dissolved in an Al matrix and then subjected to an aging heat treatment to form ultrafine precipitates, thereby improving the mechanical properties (strength and hardness) of the alloy.
- the composition ratio (c) of Cu is 0.15 (mass%) ⁇ c ⁇ 0.8 (mass%), that is, 0.15 mass% or more and less than 0.8 mass%, preferably 0.15 mass% or more. 0.4% by mass or less.
- softening in a heated process such as water washing and drying
- the movement of dislocations introduced by cold rolling is hindered by atoms (Cu) precipitated in the Al matrix by aging heat treatment, so that strength reduction due to heat treatment can be suppressed. If the composition ratio of Cu is too small, the effect is small. On the other hand, if it is too large, cold workability and corrosion resistance are inferior.
- Mg has the effect of forming a very small intermetallic compound with Si by heat treatment and improving the mechanical properties (strength and hardness) of the alloy. Moreover, it has the effect of improving the mechanical properties (strength, hardness) of the alloy by dissolving in Al as a matrix.
- the composition ratio (d) of Mg is 0.8 (mass%) ⁇ d ⁇ 2.0 (mass%), that is, 0.8 mass% or more and 2.0 mass%, preferably 0.8 mass% or more and 1 .2% by mass or less.
- the movement of dislocations introduced by cold rolling is hindered by atoms (Mg) precipitated in the Al matrix by aging heat treatment, so that strength reduction due to heat treatment can be suppressed. If the composition ratio of Mg is too small, the effect is small. On the other hand, if it is too large, the cold workability is inferior, so that it is not particularly suitable as a fastener material.
- Mg atoms
- Inevitable impurities are present in the raw material or are inevitably mixed in the manufacturing process and are essentially unnecessary, but they are acceptable because they are very small and do not affect the characteristics. It is an impurity.
- the content of each impurity element allowed as an inevitable impurity is generally 0.1% by mass or less, preferably 0.05% by mass or less.
- Fe is 0.7% by mass or less
- Mn is 0.15% by mass or less
- Cr is 0.35% by mass or less
- Zn is 0.25%.
- the slide fastener element according to the present invention has an average Vickers hardness of the leg portion of Hv120 or higher and 145 or lower (based on JIS 2244: 2009, the same applies hereinafter). Vickers hardness within this range is preferable in that a sufficient strength to function as an element of a metal fastener can be obtained while ensuring the life of the molding die.
- the element for a slide fastener of the present invention is given its shape by cold working a round wire made of an aluminum alloy having the above composition.
- work strain is introduced into a round wire made of an aluminum alloy, the material strength is increased by work hardening, and the strength of the element can be obtained.
- the strength and workability of the element vary depending on the processing strain introduced into the round wire made of aluminum alloy. Therefore, it is important to obtain the strength and workability of the element.
- the work strain introduced into the round wire made of an aluminum alloy is too small, the work hardening rate becomes small and the element strength cannot be obtained.
- the processing strain is too much, the workability is inferior and the life of the molding die is reduced. In some cases, the element is cracked due to the processing limit and the function as the element for the slide fastener is impaired.
- the processing strain introduced into the aluminum alloy needs to be 70% or more in terms of rolling reduction, and preferably 80% or more is optimal.
- the rolling reduction is a rolling reduction at the time of final rolling of the slide fastener element, and is a rolling reduction when processing a Y-shaped continuous deformed line by cold rolling, for example, as in an example described later.
- the element for slide fastener of the present invention preferably has a hardness that is not less than a certain level and has a small variation in hardness in the legs that sandwich the slide fastener, and specifically, the Vickers hardness of the legs.
- the average of Hv is 120 to 145, preferably Hv is 125 to 145, and its standard deviation is 2.2 to 4.1.
- the leg portion is a portion corresponding to a length of 70% from the base portion of the vertical line that is lowered from the base portion toward the tip of the leg portion, and the remaining 30% length.
- the leg tip part also has a certain hardness. From this viewpoint, it is desirable that the average Vickers hardness at the leg tip portion is Hv 116 to 137, preferably Hv 120 to 137.
- the precipitate containing Mg and Si is preferably a needle-like material, specifically, the length of one piece. Is preferably 1 to 120 nm.
- the size of this deposit is calculated
- An aluminum alloy having the above-described composition for example, an A6061 aluminum alloy specified in JIS H4000, is subjected to T8 treatment (cold working after solution treatment and further artificial age hardening treatment, for example, at 170 ° C. for about 5 to 6 hours. Those subjected to heat treatment can be suitably used.
- T8 treatment cold working after solution treatment and further artificial age hardening treatment, for example, at 170 ° C. for about 5 to 6 hours.
- Those subjected to heat treatment can be suitably used.
- Using the aluminum alloy wire after the T8 treatment a continuous deformed wire having a substantially Y-shaped cross section is produced by applying a working strain of a predetermined reduction ratio by cold rolling. Further, various cold workings such as cutting, pressing, bending and caulking are performed to obtain an element shape having a predetermined size, thereby obtaining a slide fastener element.
- FIG. 1 is a schematic diagram of a slide fastener.
- a slide fastener has a pair of fastener tapes 1 having a core portion 2 formed on one side end side and a predetermined portion on the core portion 2 of the fastener tape 1.
- a pair of elements facing each other, with the element 3 being caulked and fixed (attached) at intervals, the upper stopper 4 and the lower stopper 5 being caulked and fixed to the core 2 of the fastener tape 1 at the upper and lower ends of the element 3 3 is provided with a slider 6 that is slidable in the vertical direction to engage and disengage the element 3.
- a state in which the element 3 is attached to the core portion 2 of one fastener tape 1 is called a slide fastener stringer, and the element 3 attached to the core portion 2 of the pair of fastener tapes 1 is engaged. What is present is called a slide fastener chain 7.
- the slider 6 shown in FIG. 1 is not shown in the figure, but a long body made of a plate-like body having a rectangular cross section is subjected to press processing in multiple stages, cut at predetermined intervals, and a slider body is produced. Furthermore, a spring and a handle are mounted as necessary. Further, the puller is also punched out from the plate-like body having a rectangular cross section for each predetermined shape, and is caulked and fixed to the slider body.
- the bottom stop 5 may be a break-and-fit insert composed of a butterfly stick, a box stick, and a box, and the pair of slide fastener chains can be separated by a slider opening operation. .
- FIG. 2 is a drawing showing a method of manufacturing the slide fastener element 3, the upper stopper 4 and the lower stopper 5 shown in FIG. 1 and how to attach the fastener tape 1 to the core 2.
- the element 3 is formed by cutting a deformed wire 8 having a substantially Y-shaped cross section for each predetermined dimension, and press-molding this to form an engaging head 9, and then the fastener tape 1. It is attached by caulking both leg portions 10 to the core portion 2.
- the upper stopper 4 is formed by cutting a rectangular wire 11 (rectangular wire) having a rectangular cross section into a predetermined dimension, forming it into a substantially U-shaped cross section by bending, and then caulking the core portion 2 of the fastener tape 1. Is attached.
- the lower stopper 5 is mounted by cutting a deformed wire 12 having a substantially X-shaped cross section for each predetermined size, and then caulking the core wire 2 of the fastener tape 1.
- the element 3 and the upper and lower stoppers 4 and 5 are attached to the fastener tape 1 at the same time.
- the element 3 is continuously attached to the fastener tape 1, and the fastener chain is first attached.
- the element 3 in the fastener attaching region of the fastener chain is removed, and a predetermined upper and lower stopper 4 or 5 is mounted in the vicinity of the element 3 in this region.
- manufacture and attachment are performed as described above, the elements and fasteners that are constituent members of the slide fastener need to be made of materials having excellent cold workability.
- the metal fastener member according to the present invention is excellent in cold workability, and, for example, can be processed with a rolling reduction of 70% or more, and thus is suitable as a material for elements and upper and lower stops.
- ⁇ Slide fasteners can be attached to various items, and function especially as an opening / closing tool.
- the article to which the slide fastener is attached is not particularly limited, and examples thereof include daily necessaries such as clothing, bags, shoes, and miscellaneous goods, and industrial articles such as water storage tanks, fishing nets, and space suits.
- the wire subjected to the drawing process with a surface reduction rate of 1% or more was subjected to a heat treatment for 1 h to 12 h in a temperature range of 100 ° C. to 200 ° C., thereby performing an artificial aging treatment (T8 treatment) to produce a continuous wire .
- the obtained continuous wire is subjected to cold rolling to give a processing strain of 70% or more in rolling reduction to produce a continuous deformed wire having a substantially Y-shaped cross section, and then subjected to various cold workings such as cutting, pressing, bending and caulking.
Landscapes
- Chemical & Material Sciences (AREA)
- Engineering & Computer Science (AREA)
- Materials Engineering (AREA)
- Mechanical Engineering (AREA)
- Metallurgy (AREA)
- Organic Chemistry (AREA)
- Slide Fasteners (AREA)
Abstract
Description
(1)一般式:AlaMgbCuc(a、b、cは質量%で、aは残部、4.3≦b≦5.5、0.5≦c≦1.0、不可避的不純物を含み得る)で示される組成を有することを特徴とするアルミニウム合金。
(2)一般式:AldMgeCufXg(XはMn及び/又はCr)(d,e,f,gは質量%で、dは残部、4.3≦e≦5.5、0.5≦f≦1.0、0.05<g≦0.2、不可避的不純物を含み得る)で示される組成を有することを特徴とするアルミニウム合金。
(3)一般式:AlhMgiCujZnk(h,i,j,kは質量%で、hは残部、4.3≦i≦5.5、0.5≦j≦1.0、0<k≦1.0、不可避的不純物を含み得る)で示される組成を有し、さらにj+k≦1.5の関係式が成り立つことを特徴とするアルミニウム合金。
(4)一般式:AllMgmCunZnpXq(XはMn及び/又はCr)(l,m,n,p,qは質量%で、lは残部、4.3≦m≦5.5、0.5≦n≦1.0、0<p≦1.0、0.05<q≦0.2、不可避的不純物を含み得る)で示される組成を有し、さらにn+p≦1.5の関係式が成り立つことを特徴とするアルミニウム合金。
(1)一般式:AlaSibCucMgd(a、b、c、dは、質量%で、aは残部、0.4≦b≦0.9、0.15≦c≦0.8、0.8≦d≦2.0、不可避的不純物元素を含み得る)で示される組成を有し、MgとSiとを含む析出物を含むアルミニウム合金を母材とするスライドファスナー用エレメント。
(2)(1)に記載のスライドファスナー用エレメントにおいて、スライドファスナーを挟持する脚部のビッカース硬さの平均がHv120~145であり、その標準偏差が2.2~4.1である、スライドファスナー用エレメント。
(3)(2)に記載のスライドファスナー用エレメントにおいて、前記脚部および噛合頭部の両方を眺める方向から平面視したときに、前記脚部を、付け根部分から脚部の先端へ向かって下ろした垂線の当該付け根部分から70%の長さに相当する部分である脚元部と、残りの30%の長さに相当する部分である脚先部とに分けたときに、当該脚先部のビッカース硬さの平均がHv116~137である、スライドファスナー用エレメント。
(4)(1)~(3)のいずれかに記載のスライドファスナー用エレメントにおいて、前記析出物の一片の長さが1~120nmである、スライドファスナー用エレメント。
(5)(1)~(4)のいずれかに記載のスライドファスナー用エレメントを備えたスライドファスナー。
(組成)
本発明に係るスライドファスナー用エレメントでは、所定の組成をもち、時効硬化型の銅合金で母材を構成することにより、高強度であり、かつ、優れた耐摩耗性を発揮することを狙いとしている。
Siは、Alマトリックス中に一度、固溶させた後、時効熱処理を行うことによりMgと極微小な金属間化合物を形成し、合金の機械的性質(強度、硬度)を向上させる効果がある。
Siの組成割合(b)は0.4(質量%)≦b≦0.9(質量%)、すなわち0.4質量%以上0.9質量%以下であり、好ましくは0.4質量%以上0.8質量%以下である。Siの組成割合が小さすぎると、アルミニウム合金の強度、硬度が向上しにくくなる。一方で、大きすぎると、Si単体の粗大な析出あるいは晶出を促進し、塑性変形における伸びが小さくなり加工性を低下させる。また、適量を添加した場合には、冷間加工後の加熱される工程(水洗・乾燥など)における軟化を防ぐことができる。特に、冷間圧延によって導入された転位の移動を時効熱処理によりAlマトリックス中に析出した原子(Si)が妨げてくれるので熱処理による強度低下を抑えることができる。Siの組成割合が小さすぎるとその効果が少なく、一方で大きすぎると冷間加工性が劣るため、特にファスナー用材料として適さない。
CuはAlマトリックス中に一度、固溶させた後、時効熱処理を行うことにより極微小な析出物を形成し、合金の機械的性質(強度、硬度)を向上させる効果がある。
Cuの組成割合(c)は0.15(質量%)≦c<0.8(質量%)、すなわち0.15質量%以上0.8質量%未満であり、好ましくは0.15質量%以上0.4質量%以下である。また、適量を添加した場合には、冷間加工後の加熱される工程(水洗・乾燥など)における軟化を防ぐことができる。特に、冷間圧延によって導入された転位の移動を時効熱処理によりAlマトリックス中に析出した原子(Cu)が妨げてくれるので熱処理による強度低下を抑えることができる。Cuの組成割合が小さすぎるとその効果が少なく、一方で大きすぎると冷間加工性や耐食性が劣るため、特にファスナー用材料として適さない。
Mgは、熱処理を行うことによりSiと極微小な金属間化合物を形成し、合金の機械的性質(強度、硬度)を向上させる効果がある。また、マトリックスであるAl中に固溶することにより合金の機械的性質(強度,硬度)を向上させる効果がある。
Mgの組成割合(d)は0.8(質量%)≦d≦2.0(質量%)、すなわち0.8質量%以上2.0質量%であり、好ましくは0.8質量%以上1.2質量%以下である。適量を添加した場合には、冷間加工後の加熱される工程(水洗・乾燥など)における軟化を防ぐことができる。特に、冷間圧延によって導入された転位の移動を時効熱処理によりAlマトリックス中に析出した原子(Mg)が妨げてくれるので熱処理による強度低下を抑えることができる。Mgの組成割合が小さすぎるとその効果が少なく、一方で大きすぎると冷間加工性が劣るため、特にファスナー用材料として適さない。
不可避的不純物というのは原料中に存在したり、製造工程において不可避的に混入したりするもので、本来は不要なものであるが、微量であり、特性に影響を及ぼさないため許容されている不純物のことである。本発明において、不可避的不純物として許容される各不純物元素の含有量は一般に0.1質量%以下であり、好ましくは0.05質量%以下である。なお、不可避的不純物よりも含有量の高い、その他の元素としては、Feが0.7質量%以下、Mnが0.15質量%以下、Crが0.35質量%以下、Znが0.25質量%以下となり、これらはスライドファスナー用エレメントの用途の観点から、許容されるものである。
本発明に係るスライドファスナー用エレメントは一実施形態において、脚部のビッカース硬さが平均でHv120以上145以下(JIS 2244:2009に準拠、以下同じ。)である。この範囲のビッカース硬度は、成形金型の寿命を確保しながら、金属製ファスナーのエレメントとして機能するのに十分な強度が得られるという点で好ましい。
上述した組成のアルミニウム合金、例えばJIS H4000にて規定されたA6061のアルミニウム合金に、T8処理(溶体化処理後冷間加工を行い、更に人工時効硬化処理、例えば170℃で5~6時間程度の加熱処理をする)を行ったものを好適に使用することができる。このT8処理後のアルミニウム合金の線材を用いて、冷間圧延により所定の圧下率の加工歪を付与して断面略Y字状の連続異形線を製造する。さらに切断、プレス、曲げ、かしめの各種冷間加工を施して、所定の大きさのエレメント形状とすることにより、スライドファスナー用エレメントが得られる。
本発明に係るスライドファスナー用エレメントには必要に応じて、各種の表面処理を行うことができる。例えば、平滑化処理、防錆処理、塗装処理、及び鍍金処理などを行うことができる。
本発明に係るスライドファスナー用エレメントを備えたスライドファスナーの例を図面に基づき具体的に説明する。図1は、スライドファスナーの模式図であり、図1に示すようにスライドファスナーは、一側端側に芯部2が形成された一対のファスナーテープ1とファスナーテープ1の芯部2に所定の間隔をおいてかしめ固定(装着)されたエレメント3と、エレメント3の上端及び下端でファスナーテープ1の芯部2にかしめ固定された上止具4及び下止具5と、対向する一対のエレメント3間に配され、エレメント3の噛合及び開離を行うための上下方向に摺動自在なスライダー6を備える。なお、一本のファスナーテープ1の芯部2にエレメント3が装着された状態のものをスライドファスナーストリンガーといい、一対のファスナーテープ1の芯部2に装着されたエレメント3が噛合状態となっているものをスライドファスナーチェーン7という。

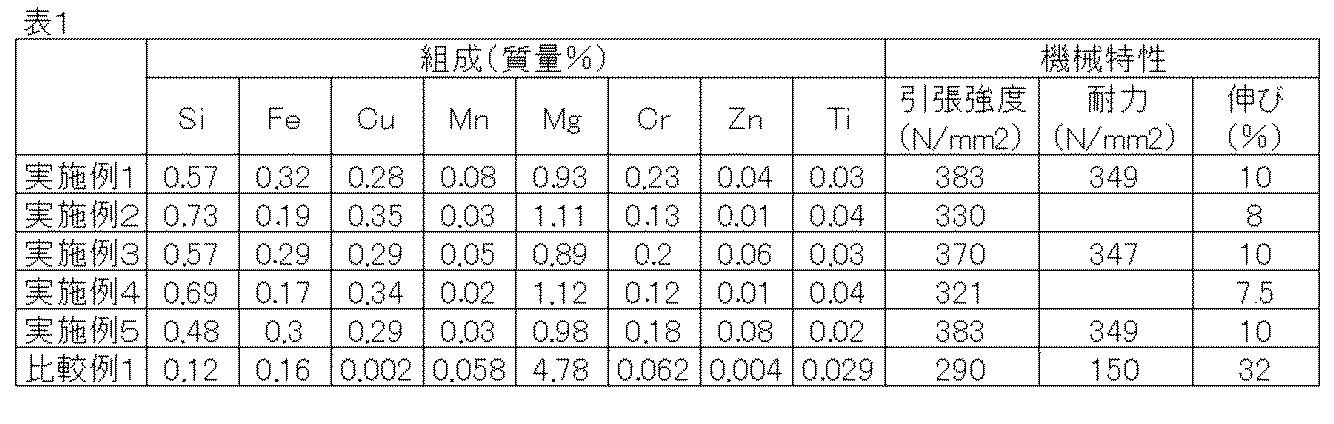

原材料として、Al(純度99.9質量%以上)、Cu(純度99.9質量%以上)、Mg(純度99.9質量%以上)、Si(純度99.9質量%以上)を使用して、表1に記載の試験番号に応じた各成分組成をもつようにこれら原材料を配合して鋳造装置内で溶解し、次いで押出装置により棒材を作製した。得られた棒材に減面率70%以上の伸線処理を施し、500℃~600℃の温度範囲で1h~6hの熱処理を施した直後に急冷し、溶体化処理を行った。その後、減面率1%以上の伸線処理を施したワイヤを100℃~200℃の温度範囲で1h~12hの熱処理を施すことにより人工時効処理(T8処理)を行い、連続ワイヤを作製した。得られた連続ワイヤを冷間圧延により圧下率70%以上の加工歪を付与して断面略Y字状の連続異形線を製造した後、切断、プレス、曲げ、かしめの各種冷間加工を施してYKK株式会社カタログ「FASTENING専科(2009年2月発行)」で規定する「5R」の大きさのエレメント形状とした後、これをポリエステル製ファスナーテープに装着してファスナーストリンガーを作成し、更に一対のファスナーストリガーの対向するエレメント同士を噛み合わせてファスナーチェーンを作製した。
T8処理直後の線材から圧延方向と平行に引張試験片(9A号試験片)を切り出し、引張強度(JIS Z2241:2011に準拠)を測定した。結果を表1に示す。
<硬度試験>

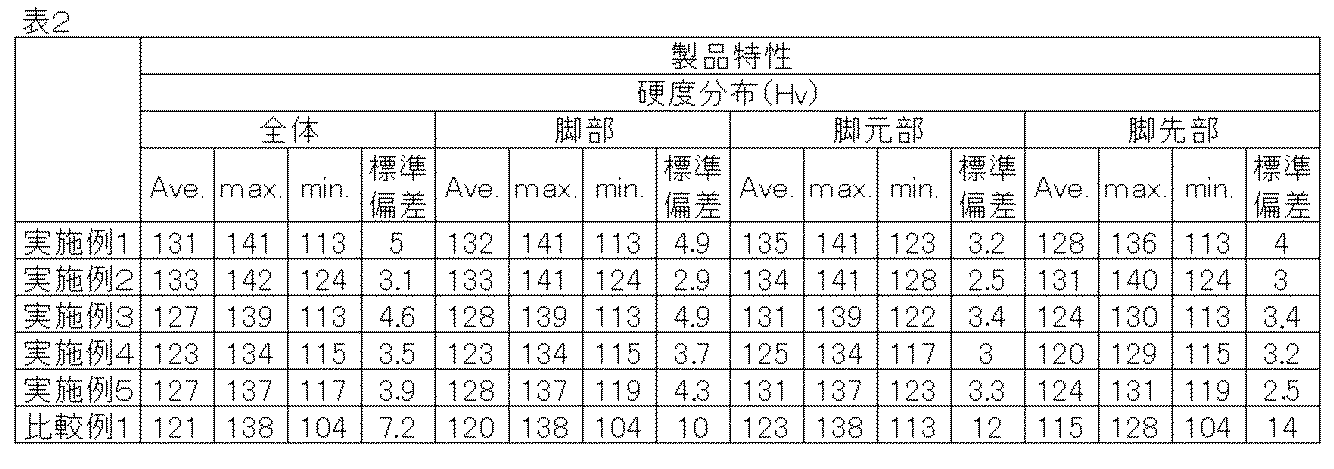

試験番号に応じた組成をもつアルミニウム合金で得られたエレメントについて、脚部(脚元部および脚先部)における、ビッカース硬さ(JIS Z2244:2009に準拠し、荷重を0.9807Nとした。)を複数個所で測定し、その平均値を得た。また、各部におけるビッカース硬さの標準偏差も求めた。結果を表2に示す。
JIS S3015:2007の「往復開閉耐久試験」の項に記載された方法に準拠し、往復開閉負荷をLランク(横方向9.8N;縦方向6.9N)として、2000回の開閉動作を実施した。途中で、エレメントのかみ合いができなくなったり、又は目視でテープ部の切れ、エレメントかみ合い部の割れ、及び/又は抜けが発生した場合には、試験を中止した。結果を表3に示す。
ファスナーの強度の指標としてのチェーンの横引強度の評価を、JIS S3015:2007の「往復開閉耐久試験」の項に記載された方法に準拠し、実施した。

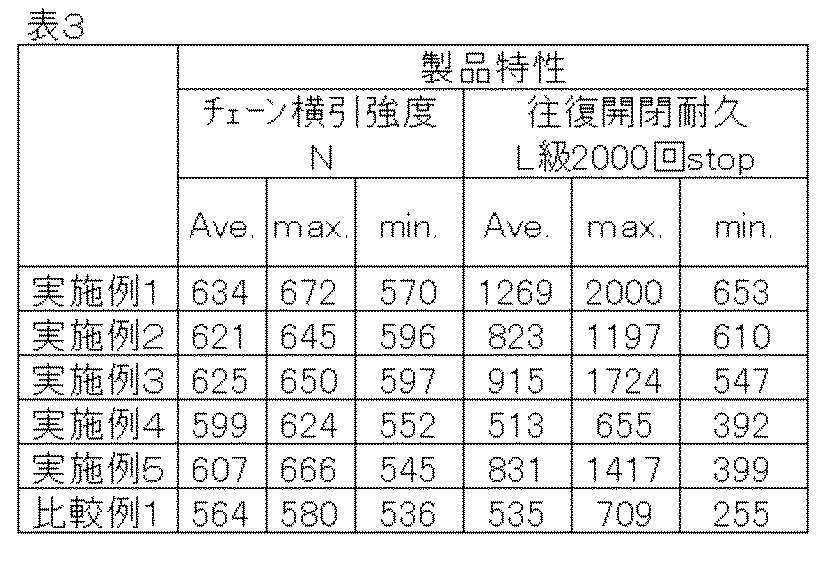

結果を表3に示す。
2 芯部
3 エレメント
4 上止具
5 下止具
6 スライダー
7 スライドファスナーチェーン
8 断面略Y字状の異形線
9 係合頭部
10 脚部
11 矩形線
12 断面略X字状の異形線
Claims (5)
- 一般式:AlaSibCucMgd(a、b、c、dは、質量%で、aは残部、0.4≦b≦0.9、0.15≦c≦0.8、0.8≦d≦2.0、不可避的不純物元素を含み得る)で示される組成を有し、MgとSiとを含む析出物を含むアルミニウム合金を母材とするスライドファスナー用エレメント。
- 請求項1に記載のスライドファスナー用エレメントにおいて、スライドファスナーを挟持する脚部のビッカース硬さの平均がHv120~145であり、その標準偏差が2.2~4.1である、スライドファスナー用エレメント。
- 請求項2に記載のスライドファスナー用エレメントにおいて、前記脚部および噛合頭部の両方を眺める方向から平面視したときに、前記脚部を、付け根部分から脚部の先端へ向かって下ろした垂線の当該付け根部分から70%の長さに相当する部分である脚元部と、残りの30%の長さに相当する部分である脚先部とに分けたときに、当該脚先部のビッカース硬さの平均がHv116~137である、スライドファスナー用エレメント。
- 請求項1~3のいずれか一項に記載のスライドファスナー用エレメントにおいて、前記析出物の一片の長さが1~120nmである、スライドファスナー用エレメント。
- 請求項1~4のいずれか一項に記載のスライドファスナー用エレメントを備えたスライドファスナー。
Priority Applications (7)
| Application Number | Priority Date | Filing Date | Title |
|---|---|---|---|
| PCT/JP2015/059786 WO2016157337A1 (ja) | 2015-03-27 | 2015-03-27 | スライドファスナー用エレメント |
| US15/553,796 US10786051B2 (en) | 2015-03-27 | 2015-03-27 | Element for slide fastener |
| JP2017508866A JP6441458B2 (ja) | 2015-03-27 | 2015-03-27 | スライドファスナー用エレメント |
| DE112015006386.2T DE112015006386B4 (de) | 2015-03-27 | 2015-03-27 | Kuppelglied für reissverschluss |
| BR112017020183-6A BR112017020183B1 (pt) | 2015-03-27 | 2015-03-27 | Cremalheira para zíper |
| CN201580078346.6A CN107427109B (zh) | 2015-03-27 | 2015-03-27 | 拉链用链牙 |
| TW105104839A TWI578931B (zh) | 2015-03-27 | 2016-02-19 | Zipper with zippers and the use of its zipper |
Applications Claiming Priority (1)
| Application Number | Priority Date | Filing Date | Title |
|---|---|---|---|
| PCT/JP2015/059786 WO2016157337A1 (ja) | 2015-03-27 | 2015-03-27 | スライドファスナー用エレメント |
Publications (1)
| Publication Number | Publication Date |
|---|---|
| WO2016157337A1 true WO2016157337A1 (ja) | 2016-10-06 |
Family
ID=57005878
Family Applications (1)
| Application Number | Title | Priority Date | Filing Date |
|---|---|---|---|
| PCT/JP2015/059786 Ceased WO2016157337A1 (ja) | 2015-03-27 | 2015-03-27 | スライドファスナー用エレメント |
Country Status (7)
| Country | Link |
|---|---|
| US (1) | US10786051B2 (ja) |
| JP (1) | JP6441458B2 (ja) |
| CN (1) | CN107427109B (ja) |
| BR (1) | BR112017020183B1 (ja) |
| DE (1) | DE112015006386B4 (ja) |
| TW (1) | TWI578931B (ja) |
| WO (1) | WO2016157337A1 (ja) |
Cited By (2)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| CN107460384A (zh) * | 2017-08-23 | 2017-12-12 | 广州市哈根德斯皮具有限公司 | 箱包专用金属连接件配方及其制备方法 |
| CN110101170A (zh) * | 2019-05-15 | 2019-08-09 | 浙江伟星实业发展股份有限公司 | 一种拉链加强胶带、其制备方法及拉链 |
Families Citing this family (4)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| JP6647559B2 (ja) * | 2015-10-08 | 2020-02-14 | Ykk株式会社 | スライドファスナー用エレメント |
| WO2018020583A1 (ja) * | 2016-07-26 | 2018-02-01 | Ykk株式会社 | 銅合金製ファスナーエレメント及びスライドファスナー |
| WO2018109848A1 (ja) * | 2016-12-13 | 2018-06-21 | Ykk株式会社 | 金属ファスナー用電気めっき方法及び金属ファスナー用電気めっき装置 |
| WO2024024060A1 (ja) * | 2022-07-28 | 2024-02-01 | Ykk株式会社 | スライドファスナー用エレメント部材及びスライドファスナー付き製品 |
Citations (6)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| JPS61246341A (ja) * | 1985-04-24 | 1986-11-01 | Sky Alum Co Ltd | 熱処理型アルミニウム合金圧延板軟質材 |
| JP2004183025A (ja) * | 2002-12-02 | 2004-07-02 | Mitsubishi Alum Co Ltd | 成形加工用アルミニウム合金板およびその製造方法 |
| JP2004250760A (ja) * | 2003-02-21 | 2004-09-09 | Ykk Corp | 装飾性に優れたアルミニウム合金 |
| JP2006291298A (ja) * | 2005-04-12 | 2006-10-26 | Ykk Corp | アルミニウム合金及びこの合金を使用したスライドファスナー |
| JP2013542320A (ja) * | 2010-09-08 | 2013-11-21 | アルコア インコーポレイテッド | 改良された6xxxアルミニウム合金及びその製造方法 |
| JP2014019953A (ja) * | 2012-07-12 | 2014-02-03 | Ykk Corp | 銅めっきされたアルミニウム又はアルミニウム合金製のボタン又はファスナーの部材及びその製造方法 |
Family Cites Families (19)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| JPS5822363A (ja) * | 1981-07-30 | 1983-02-09 | Mitsubishi Keikinzoku Kogyo Kk | 超塑性アルミニウム合金板の製造方法 |
| JP2587180Y2 (ja) * | 1993-03-16 | 1998-12-14 | ワイケイケイ株式会社 | スライドファスナー |
| KR100374104B1 (ko) * | 1994-09-06 | 2003-04-18 | 알칸 인터내셔널 리미티드 | 알루미늄합금시이트제조방법 |
| EP0911419A1 (en) * | 1997-10-21 | 1999-04-28 | Ykk Corporation | Nickel-free copper alloy |
| JP3750897B2 (ja) * | 1999-04-16 | 2006-03-01 | Ykk株式会社 | ニッケルフリー白色銅合金 |
| JP2003180410A (ja) * | 2001-12-14 | 2003-07-02 | Ykk Corp | スライドファスナー及び構成部材付き被着物の製造方法 |
| JP3713233B2 (ja) * | 2001-12-14 | 2005-11-09 | Ykk株式会社 | 連続鋳造性に優れたスライドファスナー用銅合金 |
| CN1609247A (zh) * | 2003-10-22 | 2005-04-27 | 湖南百富瑞材料有限责任公司 | 一种高强度铝合金及生产方法 |
| CN101280400A (zh) * | 2007-04-04 | 2008-10-08 | 杰出材料科技股份有限公司 | 用作电子产品外壳件的高强度铝合金的制法 |
| CN101939460B (zh) * | 2008-02-08 | 2012-09-05 | 三井住友金属矿山伸铜株式会社 | 沉淀硬化型铜合金条的制造方法 |
| ES2641016T3 (es) * | 2010-07-05 | 2017-11-07 | Ykk Corporation | Producto de aleación de cobre-cinc y procedimiento para producir el producto de aleación de cobre-cinc |
| US9090956B2 (en) * | 2011-08-30 | 2015-07-28 | Baker Hughes Incorporated | Aluminum alloy powder metal compact |
| KR101581607B1 (ko) * | 2011-12-02 | 2015-12-30 | 가부시키가이샤 유에이씨제이 | 알루미늄 합금재를 이용한 열교환기용 핀재와 이를 포함하는 알루미늄 합금 구조체 |
| CN104379016B (zh) * | 2012-06-27 | 2016-09-07 | Ykk株式会社 | 拉链牙链带和拉链 |
| WO2014024293A1 (ja) * | 2012-08-09 | 2014-02-13 | Ykk株式会社 | ファスニング用銅合金 |
| JP6190307B2 (ja) * | 2014-03-31 | 2017-08-30 | 株式会社神戸製鋼所 | 成形性と焼付け塗装硬化性とに優れたアルミニウム合金板 |
| WO2016103505A1 (ja) * | 2014-12-26 | 2016-06-30 | Ykk株式会社 | ライトゴールド色を有する金属製ファスナー部材及びそれを備えたファスナー |
| GB201508278D0 (en) * | 2015-05-14 | 2015-06-24 | Hybond As | Filler material |
| AU2017375790B2 (en) * | 2016-12-16 | 2020-03-12 | Novelis Inc. | Aluminum alloys and methods of making the same |
-
2015
- 2015-03-27 WO PCT/JP2015/059786 patent/WO2016157337A1/ja not_active Ceased
- 2015-03-27 DE DE112015006386.2T patent/DE112015006386B4/de active Active
- 2015-03-27 CN CN201580078346.6A patent/CN107427109B/zh active Active
- 2015-03-27 JP JP2017508866A patent/JP6441458B2/ja active Active
- 2015-03-27 BR BR112017020183-6A patent/BR112017020183B1/pt active IP Right Grant
- 2015-03-27 US US15/553,796 patent/US10786051B2/en active Active
-
2016
- 2016-02-19 TW TW105104839A patent/TWI578931B/zh active
Patent Citations (6)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| JPS61246341A (ja) * | 1985-04-24 | 1986-11-01 | Sky Alum Co Ltd | 熱処理型アルミニウム合金圧延板軟質材 |
| JP2004183025A (ja) * | 2002-12-02 | 2004-07-02 | Mitsubishi Alum Co Ltd | 成形加工用アルミニウム合金板およびその製造方法 |
| JP2004250760A (ja) * | 2003-02-21 | 2004-09-09 | Ykk Corp | 装飾性に優れたアルミニウム合金 |
| JP2006291298A (ja) * | 2005-04-12 | 2006-10-26 | Ykk Corp | アルミニウム合金及びこの合金を使用したスライドファスナー |
| JP2013542320A (ja) * | 2010-09-08 | 2013-11-21 | アルコア インコーポレイテッド | 改良された6xxxアルミニウム合金及びその製造方法 |
| JP2014019953A (ja) * | 2012-07-12 | 2014-02-03 | Ykk Corp | 銅めっきされたアルミニウム又はアルミニウム合金製のボタン又はファスナーの部材及びその製造方法 |
Cited By (3)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| CN107460384A (zh) * | 2017-08-23 | 2017-12-12 | 广州市哈根德斯皮具有限公司 | 箱包专用金属连接件配方及其制备方法 |
| CN110101170A (zh) * | 2019-05-15 | 2019-08-09 | 浙江伟星实业发展股份有限公司 | 一种拉链加强胶带、其制备方法及拉链 |
| CN110101170B (zh) * | 2019-05-15 | 2021-11-09 | 浙江伟星实业发展股份有限公司 | 一种拉链加强胶带、其制备方法及拉链 |
Also Published As
| Publication number | Publication date |
|---|---|
| DE112015006386T5 (de) | 2017-12-14 |
| TW201635942A (zh) | 2016-10-16 |
| US10786051B2 (en) | 2020-09-29 |
| DE112015006386B4 (de) | 2022-12-29 |
| JPWO2016157337A1 (ja) | 2017-10-05 |
| CN107427109A (zh) | 2017-12-01 |
| CN107427109B (zh) | 2020-11-13 |
| BR112017020183B1 (pt) | 2022-05-03 |
| TWI578931B (zh) | 2017-04-21 |
| US20180049520A1 (en) | 2018-02-22 |
| JP6441458B2 (ja) | 2018-12-19 |
| BR112017020183A2 (pt) | 2018-06-12 |
Similar Documents
| Publication | Publication Date | Title |
|---|---|---|
| JP6441458B2 (ja) | スライドファスナー用エレメント | |
| EP3486342B1 (en) | Aluminum alloy material, and electroconductive member, battery member, fastening component, spring component and structural component using same | |
| JP6647559B2 (ja) | スライドファスナー用エレメント | |
| US6866728B2 (en) | Aluminum alloy with excellent decorativeness | |
| CN107105833B (zh) | 具有淡金色的金属制紧固构件和具有其的紧固件 | |
| JP3713233B2 (ja) | 連続鋳造性に優れたスライドファスナー用銅合金 | |
| TWI620524B (zh) | 拉鏈用滑件 | |
| TWI653949B (zh) | 拉鏈用鏈齒 | |
| CN109475205B (zh) | 铜合金制拉链链牙和拉链 | |
| JP2006291298A (ja) | アルミニウム合金及びこの合金を使用したスライドファスナー | |
| JP3214550U (ja) | スライドファスナー | |
| US12188131B2 (en) | Fastener member | |
| DE69902731T2 (de) | Aluminiumlegierung mit hoher Zähigkeit, für Druckgussteile | |
| CN116855792B (zh) | 一种锌白铜合金及其制备方法 | |
| HK1064712A (en) | Aluminum alloy with excellent decorativeness |
Legal Events
| Date | Code | Title | Description |
|---|---|---|---|
| 121 | Ep: the epo has been informed by wipo that ep was designated in this application |
Ref document number: 15887490 Country of ref document: EP Kind code of ref document: A1 |
|
| ENP | Entry into the national phase |
Ref document number: 2017508866 Country of ref document: JP Kind code of ref document: A |
|
| WWE | Wipo information: entry into national phase |
Ref document number: 15553796 Country of ref document: US |
|
| WWE | Wipo information: entry into national phase |
Ref document number: 112015006386 Country of ref document: DE |
|
| REG | Reference to national code |
Ref country code: BR Ref legal event code: B01A Ref document number: 112017020183 Country of ref document: BR |
|
| 122 | Ep: pct application non-entry in european phase |
Ref document number: 15887490 Country of ref document: EP Kind code of ref document: A1 |
|
| ENP | Entry into the national phase |
Ref document number: 112017020183 Country of ref document: BR Kind code of ref document: A2 Effective date: 20170921 |
