WO2011129095A1 - インテグラーゼ阻害活性を有するピリドン誘導体 - Google Patents
インテグラーゼ阻害活性を有するピリドン誘導体 Download PDFInfo
- Publication number
- WO2011129095A1 WO2011129095A1 PCT/JP2011/002139 JP2011002139W WO2011129095A1 WO 2011129095 A1 WO2011129095 A1 WO 2011129095A1 JP 2011002139 W JP2011002139 W JP 2011002139W WO 2011129095 A1 WO2011129095 A1 WO 2011129095A1
- Authority
- WO
- WIPO (PCT)
- Prior art keywords
- optionally substituted
- substituted
- lower alkyl
- group
- heterocyclic group
- Prior art date
Links
Classifications
-
- C—CHEMISTRY; METALLURGY
- C07—ORGANIC CHEMISTRY
- C07D—HETEROCYCLIC COMPOUNDS
- C07D498/00—Heterocyclic compounds containing in the condensed system at least one hetero ring having nitrogen and oxygen atoms as the only ring hetero atoms
- C07D498/12—Heterocyclic compounds containing in the condensed system at least one hetero ring having nitrogen and oxygen atoms as the only ring hetero atoms in which the condensed system contains three hetero rings
- C07D498/14—Ortho-condensed systems
-
- A—HUMAN NECESSITIES
- A61—MEDICAL OR VETERINARY SCIENCE; HYGIENE
- A61P—SPECIFIC THERAPEUTIC ACTIVITY OF CHEMICAL COMPOUNDS OR MEDICINAL PREPARATIONS
- A61P31/00—Antiinfectives, i.e. antibiotics, antiseptics, chemotherapeutics
- A61P31/12—Antivirals
- A61P31/14—Antivirals for RNA viruses
- A61P31/18—Antivirals for RNA viruses for HIV
-
- A—HUMAN NECESSITIES
- A61—MEDICAL OR VETERINARY SCIENCE; HYGIENE
- A61P—SPECIFIC THERAPEUTIC ACTIVITY OF CHEMICAL COMPOUNDS OR MEDICINAL PREPARATIONS
- A61P43/00—Drugs for specific purposes, not provided for in groups A61P1/00-A61P41/00
-
- C—CHEMISTRY; METALLURGY
- C07—ORGANIC CHEMISTRY
- C07D—HETEROCYCLIC COMPOUNDS
- C07D471/00—Heterocyclic compounds containing nitrogen atoms as the only ring hetero atoms in the condensed system, at least one ring being a six-membered ring with one nitrogen atom, not provided for by groups C07D451/00 - C07D463/00
- C07D471/02—Heterocyclic compounds containing nitrogen atoms as the only ring hetero atoms in the condensed system, at least one ring being a six-membered ring with one nitrogen atom, not provided for by groups C07D451/00 - C07D463/00 in which the condensed system contains two hetero rings
- C07D471/04—Ortho-condensed systems
-
- C—CHEMISTRY; METALLURGY
- C07—ORGANIC CHEMISTRY
- C07D—HETEROCYCLIC COMPOUNDS
- C07D487/00—Heterocyclic compounds containing nitrogen atoms as the only ring hetero atoms in the condensed system, not provided for by groups C07D451/00 - C07D477/00
- C07D487/02—Heterocyclic compounds containing nitrogen atoms as the only ring hetero atoms in the condensed system, not provided for by groups C07D451/00 - C07D477/00 in which the condensed system contains two hetero rings
- C07D487/04—Ortho-condensed systems
-
- C—CHEMISTRY; METALLURGY
- C07—ORGANIC CHEMISTRY
- C07D—HETEROCYCLIC COMPOUNDS
- C07D498/00—Heterocyclic compounds containing in the condensed system at least one hetero ring having nitrogen and oxygen atoms as the only ring hetero atoms
- C07D498/02—Heterocyclic compounds containing in the condensed system at least one hetero ring having nitrogen and oxygen atoms as the only ring hetero atoms in which the condensed system contains two hetero rings
- C07D498/04—Ortho-condensed systems
-
- C—CHEMISTRY; METALLURGY
- C07—ORGANIC CHEMISTRY
- C07D—HETEROCYCLIC COMPOUNDS
- C07D519/00—Heterocyclic compounds containing more than one system of two or more relevant hetero rings condensed among themselves or condensed with a common carbocyclic ring system not provided for in groups C07D453/00 or C07D455/00
Definitions
- the present invention relates to a novel compound having an antiviral action, more specifically to a pyridone derivative having an HIV integrase inhibitory activity and a medicament containing the same, particularly an anti-HIV drug.
- HIV human immunodeficiency virus
- AIDS acquired immune deficiency syndrome
- the compounds of the present invention and pharmaceuticals containing them are antiviral drugs (eg, antiretroviral drugs, anti-HIV drugs, anti-HTLV-1 (Human T cell leukemia virus type 1: human T cell leukemia virus type 1) drugs It is useful as an anti-FIV (Feline immunodeficiency virus: feline AIDS virus) drug, anti-SIV (Simian immunodeficiency virus: Sal AIDS virus) drug, particularly as an anti-HIV drug, anti-AIDS drug, or a treatment for its related diseases.
- antiviral drugs eg, antiretroviral drugs, anti-HIV drugs, anti-HTLV-1 (Human T cell leukemia virus type 1: human T cell leukemia virus type 1) drugs
- anti-FIV Feine immunodeficiency virus: feline AIDS virus
- anti-SIV Seimian immunodeficiency virus: Sal AIDS virus
- R 4 is hydrogen, optionally substituted lower alkyl (wherein the substituent is not optionally substituted aryl), optionally substituted cycloalkyl, optionally substituted cycloalkyl lower alkyl, Optionally substituted lower alkenyl, optionally substituted lower alkoxy, optionally substituted aryl, optionally substituted aryl lower alkyl, optionally substituted aryloxy, optionally substituted Good heterocyclic group, optionally substituted heterocyclic group lower alkyl, optionally substituted heterocyclic group oxy, hydroxy, optionally substituted amino, optionally substituted phosphate residue Group, aryl substituted with an optionally substituted phosphate residue, aralkyl substituted with an optionally substituted phosphate residue, substituted Hydroxy substituted with an optional phosphate residue, amino substituted with an optionally substituted phosphate residue, or lower alkyl substituted with an optionally substituted phosphate residue (the lower alkyl Is intervened by a heteroatom group selected
- R 4 may form a ring together with the Z 2 moiety, in which case the compound (QI) is represented by the following formula (QI-1) or (QI-11):
- Ring A is an optionally substituted heterocycle
- R 14 and R X are each independently hydrogen, optionally substituted lower alkyl, optionally substituted cycloalkyl, optionally substituted cyclo.
- Ring D is an optionally substituted heterocycle; X A and Q are as defined above; R 3 is hydrogen, halogen, hydroxy, optionally substituted lower alkyl, optionally substituted cycloalkyl, optionally substituted lower alkenyl, optionally substituted lower alkoxy, optionally substituted. Good lower alkenyloxy, optionally substituted aryl, optionally substituted aryloxy, optionally substituted heterocyclic group, optionally substituted heterocyclic group oxy, or substituted Good amino); Z 2 may be a linking group consisting of B 1 and B 2 , and at this time, the compound (QI) is represented by the following formula (QI-B):
- B 1 and B 2 are either CR 20 R 21 , the other is NR 22 , in which case there is no dashed line;
- B 2 is NR 22 , R 4 and R 22 together may form an optionally substituted heterocycle;
- B 2 is CHR 21 , R 4 and R 21 together may form an optionally substituted heterocycle;
- B 1 and B 2 are each independently C, CR 23 , or N, in which case the B 1 and B 2 moieties may be taken together to form an optionally substituted heterocycle;
- R 20 , R 21 , R 22 and R 23 are each independently hydrogen, optionally substituted lower alkyl, optionally substituted cycloalkyl, optionally substituted cycloalkyl lower alkyl, substituted Optionally substituted lower alkenyl, optionally substituted lower alkoxy, optionally substituted lower alkenyloxy, optionally substituted aryl, optionally substituted aryl lower alkyl, optionally substituted Good
- X A is —CONR 1 ′ —, —CONR 1 ′ —X A6 —, or —CONR 1 ′ —X A7 — (each symbol is as defined above), (1) The compound described in the above, a pharmaceutically acceptable salt thereof, or a solvate thereof.
- X A is —CONR 1 ′ —, —CONR 1 ′ —X A6 —, or —CONR 1 ′ —X A7 — (each symbol is as defined above);
- Q 2 an optionally substituted and optionally condensed heterocyclic group, or an optionally substituted and optionally condensed cycloalkyl, of (1) to (6)
- a pharmaceutical composition comprising the compound according to any one of (1) to (10), a pharmaceutically acceptable salt thereof, or a solvate thereof.

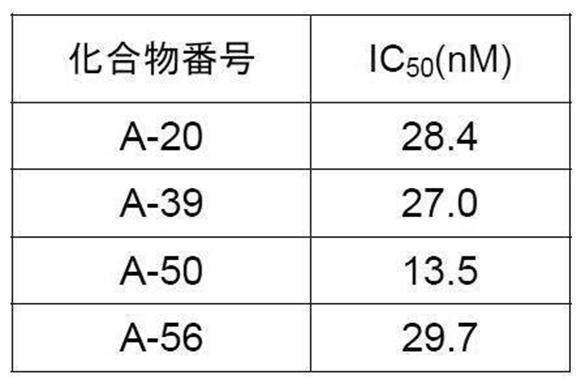

- the compound of the present invention has integrase inhibitory activity and / or cell growth inhibitory activity against viruses, particularly HIV and resistant viruses thereof. Therefore, it is useful for the prevention or treatment of various diseases involving integrase and viral infections (eg AIDS). More preferably, the compound of the present invention is less likely to generate a new HIV resistant virus. More preferably, the compound of the present invention is excellent in solubility, oral absorption, metabolic stability, bioavailability, etc., and there are concerns about cytotoxicity and side effects (eg, mutagenicity, extended ECG QT interval). It is useful as a small amount of medicine.
- “Lower alkylene” means a linear or branched lower alkylene having 1 to 6 carbon atoms, such as methylene, ethylene, trimethylene, propylene, tetramethylene, ethylethylene, pentamethylene or hexamethylene. Can be mentioned. Preferably, it is a linear lower alkylene having 1 to 4 carbon atoms, and examples thereof include methylene, ethylene, trimethylene and tetramethylene. More preferred is methylene or ethylene.
- “Lower alkenylene” means a linear or branched lower alkenylene group having 2 to 6 carbon atoms having one or more double bonds to the above “lower alkylene”, and examples thereof include vinylene, propenylene. Or butenylene is mentioned. Preferably, it is a linear lower alkenylene having 2 to 3 carbon atoms, and examples thereof include vinylene and propenylene.
- Alkyl means a linear or branched alkyl group having 1 to 10 carbon atoms, for example, methyl, ethyl, n-propyl, isopropyl, n-butyl, isobutyl, sec-butyl, tert- Examples include butyl, n-pentyl, isopentyl, neopentyl, tert-pentyl, n-hexyl, isohexyl, n-heptyl, n-octyl, n-nonyl, n-decyl and the like.
- it is lower alkyl having 1 to 6 carbon atoms, more preferably lower alkyl having 1 to 4 carbon atoms.
- a double bond may be present, for example, forming —CH 2 —N ⁇ CH 2 , —CH ⁇ N—CH 3, etc. Can do.
- Alkenyl means a linear or branched alkenyl having 2 to 8 carbon atoms having one or more double bonds to the above “alkyl”, and examples thereof include vinyl, 1-propenyl, 2 -Propenyl, 1-butenyl, 2-butenyl, 3-butenyl, 1,3-butadienyl, 3-methyl-2-butenyl and the like.
- it is a lower alkenyl having 2 to 6 carbon atoms, more preferably a lower alkenyl having 2 to 4 carbon atoms.
- “Lower alkenyloxy” means oxy to which the above “lower alkenyl” is bonded.
- vinyloxy, 1-propenyloxy, 2-propenyloxy, 1-butenyloxy, 2-butenyloxy, 3-butenyloxy, 1,3- Examples include butadienyloxy and 3-methyl-2-butenyloxy.
- Alkynyl means a linear or branched alkenyl having 2 to 8 carbon atoms having one or more triple bonds in the above “alkyl”, and examples thereof include ethynyl, propargyl and the like. Preferred is lower alkynyl having 2 to 6 carbon atoms, and more preferred is lower alkynyl having 2 to 4 carbon atoms.
- Carbocyclic group means a saturated or unsaturated carbocyclic group having 3 to 10 carbon atoms, and includes cycloalkyl, cycloalkenyl, and aryl.
- Cycloalkyl means a cyclic saturated hydrocarbon group having 3 to 10 carbon atoms, and examples thereof include cyclopropyl, cyclobutyl, cyclopentyl, cyclohexyl, cycloheptyl, cyclooctyl and the like. Preferred is cycloalkyl having 3 to 6 carbon atoms.
- Cycloalkyl lower alkyl means lower alkyl substituted with the above cycloalkyl, and examples include cyclopropylmethyl, cyclopropylethyl, cyclobutylmethyl, cyclopentylmethyl, cyclohexylmethyl, cyclohexylethyl and the like. Preferred is cycloalkyl lower alkyl having 3 to 6 carbon atoms.
- Aryl refers to monocyclic aromatic hydrocarbon groups (phenyl) and polycyclic aromatic hydrocarbon groups (eg, 1-naphthyl, 2-naphthyl, 1-anthryl, 2-anthryl, 9-anthryl, 1-phenanthryl, 2-phenanthryl, 3-phenanthryl, 4-phenanthryl, 9-phenanthryl and the like).
- phenyl or naphthyl (1-naphthyl, 2-naphthyl).
- Alkyl or “aryl lower alkyl” means the above “lower alkyl” substituted by 1 to 3 of the above “aryl”, for example, benzyl, diphenylmethyl, triphenylmethyl, phenethyl, 1-naphthylmethyl, 2-naphthylmethyl and the like can be mentioned. Preferably, it is benzyl.
- Aryloxy means oxy to which the above “aryl” is bonded, for example, 1-naphthyloxy, 2-naphthyloxy, 1-anthryloxy, 2-anthryloxy, 9-anthryloxy, 1-naphthyloxy, It means phenanthryloxy, 2-phenanthryloxy, 3-phenanthryloxy, 4-phenanthryloxy, 9-phenanthryloxy and the like.
- phenyloxy or naphthyloxy eg, 1-naphthyloxy, 2-naphthyloxy
- Heterocyclic group means “heteroring” or “heteroaryl”.
- Heteroring means a non-aromatic heterocyclic group having a bond at any substitutable position having at least one nitrogen atom, oxygen atom, phosphorus atom and / or sulfur atom in the ring (preferably For example, 1-pyrrolinyl, 2-pyrrolinyl, 3-pyrrolinyl, 1-pyrrolidinyl, 2-pyrrolidinyl, 3-pyrrolidinyl, 1-imidazolinyl, 2-imidazolinyl, 4-imidazolinyl, 1-pyrrolinyl, Imidazolidinyl, 2-imidazolidinyl, 4-imidazolidinyl, 1-pyrazolinyl, 3-pyrazolinyl, 4-pyrazolinyl, 1-pyrazolidinyl, 3-pyrazolidinyl, 4-pyrazolidinyl, piperidino, 2-piperidyl, 3-piperidyl, 4-piperidyl, 1- Examples include piperazinyl, 2-piperazinyl, 2-morpholin
- Heteroaryl means monocyclic aromatic heterocyclic group and condensed aromatic heterocyclic group.
- Monocyclic aromatic heterocyclic groups are substitutable, derived from 5- to 8-membered aromatic rings which may contain 1 to 4 oxygen, sulfur, phosphorus and / or nitrogen atoms in the ring It means a group which may have a bond at any position.
- the condensed aromatic heterocyclic group has 1 to 4 5 to 8 membered aromatic rings which may contain 1 to 4 oxygen atoms, sulfur atoms, phosphorus atoms and / or nitrogen atoms in the ring. It means a group which may have a bond at any substitutable position which is condensed with a ⁇ 8-membered aromatic carbocycle or other 5- to 8-membered aromatic heterocycle.
- Heteroaryl includes, for example, furyl (eg, 2-furyl, 3-furyl), thienyl (eg, 2-thienyl, 3-thienyl), pyrrolyl (eg, 1-pyrrolyl, 2-pyrrolyl, 3-pyrrolyl).
- Imidazolyl eg, 1-imidazolyl, 2-imidazolyl, 4-imidazolyl
- pyrazolyl eg, 1-pyrazolyl, 3-pyrazolyl, 4-pyrazolyl
- triazolyl eg, 1,2,4-triazole-1- Yl, 1,2,4-triazol-3-yl, 1,2,4-triazol-4-yl
- tetrazolyl eg 1-tetrazolyl, 2-tetrazolyl, 5-tetrazolyl
- oxazolyl eg 2- Oxazolyl, 4-oxazolyl, 5-oxazolyl
- isoxazolyl eg 3-isoxazolyl, 4-isoxazolyl, 5-isoxazolyl
- thiazolyl eg 2-thiazolyl, 4-thiazolyl
- 5-thiazolyl thiadiazolyl
- isothiazolyl eg 3-isothiazolyl
- Heterocycle and “heterocycle” mean a ring that can be derived from the above heterocyclic group.
- Heterocyclic group lower alkyl or “heterocycle lower alkyl” means lower alkyl substituted with the above “heterocyclic group”.
- Heterocyclic group oxy means oxy to which the above “heterocyclic group” is bonded.
- “Lower alkoxy” or “alkoxy” means oxy to which the above “lower alkyl” or “alkyl” is bonded, for example, methoxy, ethoxy, n-propoxy, isopropoxy, n-butoxy, isobutoxy, tert-butoxy and the like Is mentioned.
- “Lower alkylcarbonyl”, “cycloalkylcarbonyl”, “cycloalkyl lower alkylcarbonyl”, “lower alkoxycarbonyl”, “arylcarbonyl”, “arylloweralkylcarbonyl”, “aryloxycarbonyl”, “heterocyclic group carbonyl” , “Heterocyclic group lower alkylcarbonyl”, and “heterocyclic group oxycarbonyl” are the above-mentioned “lower alkyl”, “cycloalkyl”, “cycloalkyl lower alkyl”, “lower alkoxy”, “aryl”, respectively. ”,“ Aryl lower alkyl ”,“ aryloxy ”,“ heterocyclic group ”, and“ heterocyclic group lower alkyl ”.
- Optionally substituted lower alkyl “optionally substituted cycloalkyl”, “optionally substituted cycloalkyl lower alkyl”, “optionally substituted lower alkenyl”, “substituted Optionally substituted lower alkynyl “,” optionally substituted lower alkoxy ",” optionally substituted aryl “,” optionally substituted aryl lower alkyl “,” optionally substituted aryloxy " , “Optionally substituted heterocycle”, “optionally substituted heterocyclic group”, “optionally substituted heterocyclic group lower alkyl”, “optionally substituted heterocyclic Group oxy ”,“ optionally substituted lower alkenyloxy ”,“ optionally substituted lower alkylcarbonyl ”,“ optionally substituted cycloalkylcarbohydrate ” , “Optionally substituted cycloalkyl lower alkylcarbonyl”, “optionally substituted lower alkoxycarbonyl”, “optionally substituted arylcarbonyl”, “optionally substituted ary
- substituent group B examples include, for example, hydroxy, carboxy, halogen (F, Cl, Br, I), halo lower alkyl (eg, CF 3 , CH 2 CF 3 , CH 2 CCl 3 ), halo lower alkoxy ( Examples: OCF 3 , OCH 2 CF 3 , OCH 2 CCl 3 ), lower alkyl (eg, methyl, ethyl, isopropyl, tert-butyl), lower alkenyl (eg, vinyl), lower alkynyl (eg, ethynyl), cycloalkyl (Example: cyclopropyl), cycloalkenyl (eg: cyclopropenyl), lower alkoxy (eg: methoxy, ethoxy, propoxy, butoxy), lower alkenyloxy (eg: vinyloxy, allyloxy), lower alkoxycarbonyl (eg: methoxycarbonyl, Ethoxycarbonyl (
- substituent of “optionally substituted amino” or “optionally substituted carbamoyl” include mono- or di-lower alkyl, lower alkylcarbonyl or lower alkylsulfonyl, optionally substituted lower alkyl (eg, : Methyl, ethyl, isopropyl, benzyl, carbamoylalkyl (eg carbamoylmethyl), mono or di-lower alkylcarbamoyl lower alkyl (eg dimethylcarbamoylethyl), hydroxy lower alkyl, heterocycle lower alkyl (eg morpholinoethyl, tetrahydropyrani) Ethyl), alkoxycarbonyl lower alkyl (eg ethoxycarbonylmethyl, ethoxycarbonylethyl), mono- or di-lower alkylamino lower alkyl (eg dimethylaminoethyl)), lower alkoxy Lower alkyl (
- the amino group of “optionally substituted amino”, “optionally substituted aminocarbonyl” or “optionally substituted carbamoyl” is sulfur with two nitrogen atoms adjacent to the amino group adjacent to each other.
- a nitrogen-containing heterocycle preferably a 5- to 7-membered ring and preferably saturated
- the sulfur atom forming the ring may be substituted with oxo.
- 5- or 6-membered rings such as piperazinyl, piperidino, morpholino, pyrrolidino, 2-oxopiperidino, 2-oxopyrrolidino, 4-hydroxymorpholino and the like are preferable.
- Phosphate residue means a group represented by —PO (OH) 2
- optionally substituted phosphate residue means that the OH portion and / or the hydrogen portion of OH is substituted. It means a phosphoric acid residue which may be used, and is preferably represented by the following formula.

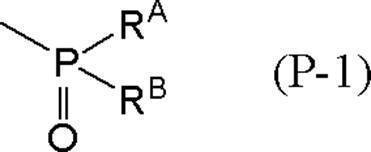

- R A and R B are each independently OR C , NR D R E (wherein R C , R D and R E are each independently hydrogen, optionally substituted lower alkyl)
- R C , R D and R E are each independently hydrogen, optionally substituted lower alkyl
- An optionally substituted heterocycle preferably a 5-6 membered ring
- R A and R B together with an adjacent P atom may be optionally substituted (preferably 5-6 membered rings) may be formed
- R A and R B are both OR C , or either one is OR C and the other is NR D R E.
- R C , R D and R E are preferably each independently lower alkyl (eg, methyl, ethyl).
- the optionally substituted heterocycle formed by R A and R B together with adjacent P atoms may have the following structure, for example.
- “Hydroxy substituted with an optionally substituted phosphate residue” is preferably hydroxy substituted with a di-lower alkyl-substituted phosphate residue, and more preferably the following groups.

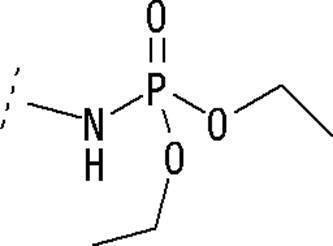

- amino substituted with an optionally substituted phosphate residue is preferably an amino substituted with a di-lower alkyl-substituted phosphate residue, and more preferably the following groups.
- Aryl substituted with an optionally substituted phosphate residue “aralkyl substituted with an optionally substituted phosphate residue”, and “substituted with an optionally substituted phosphate residue”
- the “lower alkyl group” means aryl, aralkyl, and lower alkyl group each substituted by the above “optionally substituted phosphate residue”.
- the “aryl substituted with an optionally substituted phosphate residue” is preferably phenyl substituted with a di-lower alkyl-substituted phosphate residue.
- aralkyl substituted with an optionally substituted phosphate residue is preferably benzyl substituted with a di-lower alkyl-substituted phosphate residue.
- lower alkyl substituted with an optionally substituted phosphate residue is preferably methyl substituted with a phosphate residue substituted with di-lower alkyl.
- “intervening” means that one or two or more groups selected from X A2 , X A3 , X A4 and X A5 are 1) between carbon atoms constituting lower alkylene or lower alkenylene. When present, it may be either 2) present at the terminal of lower alkylene or lower alkenylene, or a mixture of 1) and 2).
- X A is preferably a spacer formed by linking 1 to 5, more preferably 1 to 3 atoms.
- X A is preferably —CONR 1 ′ —, —CONR 1 ′ —X A6 —, or —CONR 1 ′ —X A7 — (each symbol is as defined above).
- X A is more preferably —CONHCH 2 —.
- R 1 ′ is hydrogen or lower alkyl, preferably hydrogen.

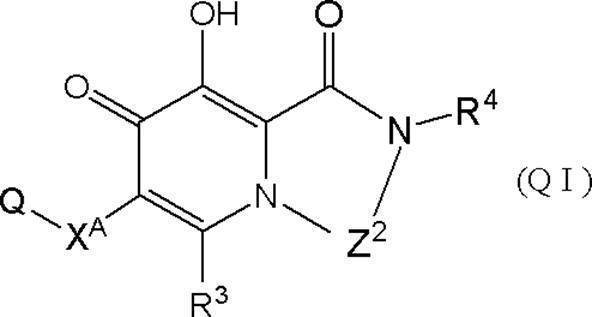

- Q is a group selected from the following group: Q 1 : an optionally substituted and optionally condensed carbocyclic group, and Q 2 : an optionally substituted and optionally condensed heterocyclic group, It is.
- Q is preferably Q 2 : an optionally substituted heterocyclic group which may be condensed.
- Q is more preferably 5-7 containing 1 to 4 one or more identical or different heteroatoms selected from O, S and N atoms, which may be substituted or fused.
- a membered heterocyclic group is more preferably 5-7 containing 1 to 4 one or more identical or different heteroatoms selected from O, S and N atoms, which may be substituted or fused.
- Q is preferably Q 1 : an optionally substituted carbocyclic group which may be condensed.
- Q is more preferably cycloalkyl which may be substituted or optionally condensed.
- the carbocyclic group of Q 1 is preferably cycloalkyl (preferably 5 to 7 members), and examples of the condensed ring include a benzene ring or a monocyclic heterocycle (preferably 5 to 7 members).
- the heterocyclic group of Q 2 is preferably a monocyclic heterocyclic group (preferably 5 to 7 members), more preferably a monocyclic aromatic heterocyclic group (eg thienyl, furyl, thiazolyl, imidazolyl, pyridyl, Oxazolyl, isoxazolyl, pyrazinyl, preferably thiophene, furan).
- the monocyclic heterocyclic group may be a non-aromatic heterocyclic group (eg, morpholinyl, thiomorpholinyl, pyrrolidyl, piperidyl, piperazyl, oxalyl). Examples of the condensed ring of these monocyclic heterocyclic groups include a benzene ring or other monocyclic heterocyclic rings (preferably 5 to 7 members).
- substituent of “optionally substituted” in Q preferably, halogen, hydroxy, amino, lower alkylamino, cyano, carboxy, formyl, oxo, lower alkyl, lower alkoxy, lower alkylthio, carbamoyl, and lower Alkylcarbamoyl, phenyloxy, aryl, aralkyl, aryloxy, lower alkylenedioxy, lower alkenyl, lower alkynyl, methylsulfonyl, 1 to 3 identical or different, preferably selected from the group consisting of substituent group S1 described later, preferably Is exemplified by 1 to 2 substituents.
- the substituent may be a spiro ring (preferably 5 to 7 member) which may be condensed with a benzene ring or the like.
- Substituent group S1 An optionally substituted phosphate residue, an aryl substituted with an optionally substituted phosphate residue, an aralkyl substituted with an optionally substituted phosphate residue, and substituted Hydroxy substituted with an optionally substituted phosphate residue, amino substituted with an optionally substituted phosphate residue, lower alkyl substituted with an optionally substituted phosphate residue (the lower alkyl Is intervened by a heteroatom group selected from the group consisting of CO, O, S, SO, SO 2 , NR a (R a is hydrogen or lower alkyl), —N ⁇ and ⁇ N—) Lower alkoxy lower alkyl, optionally substituted amino lower alkyl (substituent: mono- or di-lower alkyl, lower alkylcarbonyl, or lower alkylsulfonyl), halogenated lower alkyl, low Alkoxy, optionally substituted carbamoyl (substituent: mono- or di
- Q 2 is more preferably an optionally substituted and optionally condensed heterocyclic group (preferably 5 to 7 members), or an optionally substituted and optionally substituted cycloalkyl ( Preferably 5 to 7 members).
- R 3 may be any of various substituents as long as it does not adversely affect the pharmacological activity of the compound (QI).
- substituents for example, hydrogen, halogen, hydroxy, optionally substituted lower alkyl, substituted Cycloalkyl, which may be substituted, lower alkenyl which may be substituted, lower alkoxy which may be substituted, lower alkenyloxy which may be substituted, aryl which may be substituted, aryloxy which may be substituted,
- Illustrative examples are an optionally substituted heterocyclic group, an optionally substituted heterocyclic group oxy, or an optionally substituted amino.
- substituent of “optionally substituted” examples include halogen, hydroxy, amino, lower alkylamino, cyano, carboxy, formyl, oxo, lower alkyl, lower alkoxy, lower alkylthio, carbamoyl, lower alkylcarbamoyl, aryl, and hetero Examples include cyclic groups, lower alkylcarbonyl, lower alkylcarbonyloxy, lower alkoxycarbonyl, halogenated lower alkyl, halogenated lower alkoxy and the like, more preferably halogen, hydroxy, amino, lower alkylamino, lower alkyl, lower alkoxy Etc.
- R 3 is more preferably hydrogen, halogen, hydroxy, lower alkyl, lower alkenyl, lower alkoxy, lower alkenyloxy or optionally substituted amino, more preferably hydrogen or lower alkyl (eg, methyl). Particularly preferred is hydrogen.
- Z 2 is preferably C, CH, optionally substituted lower alkylene, lower alkenylene or the like, and Z 2 and R 4 may be combined to form a ring, and at this time, compound (QI ) Represents a tricyclic compound represented by the following compound (QI-1) or (QI-11), or a tetracyclic compound which is a derivative thereof.
- the A ring is an optionally substituted heterocyclic ring containing at least one N atom.
- the heterocycle is preferably a 5- to 7-membered ring containing 1-3, preferably 2-3, O, S and / or N atoms, more preferably selected from the aforementioned heterocycles.

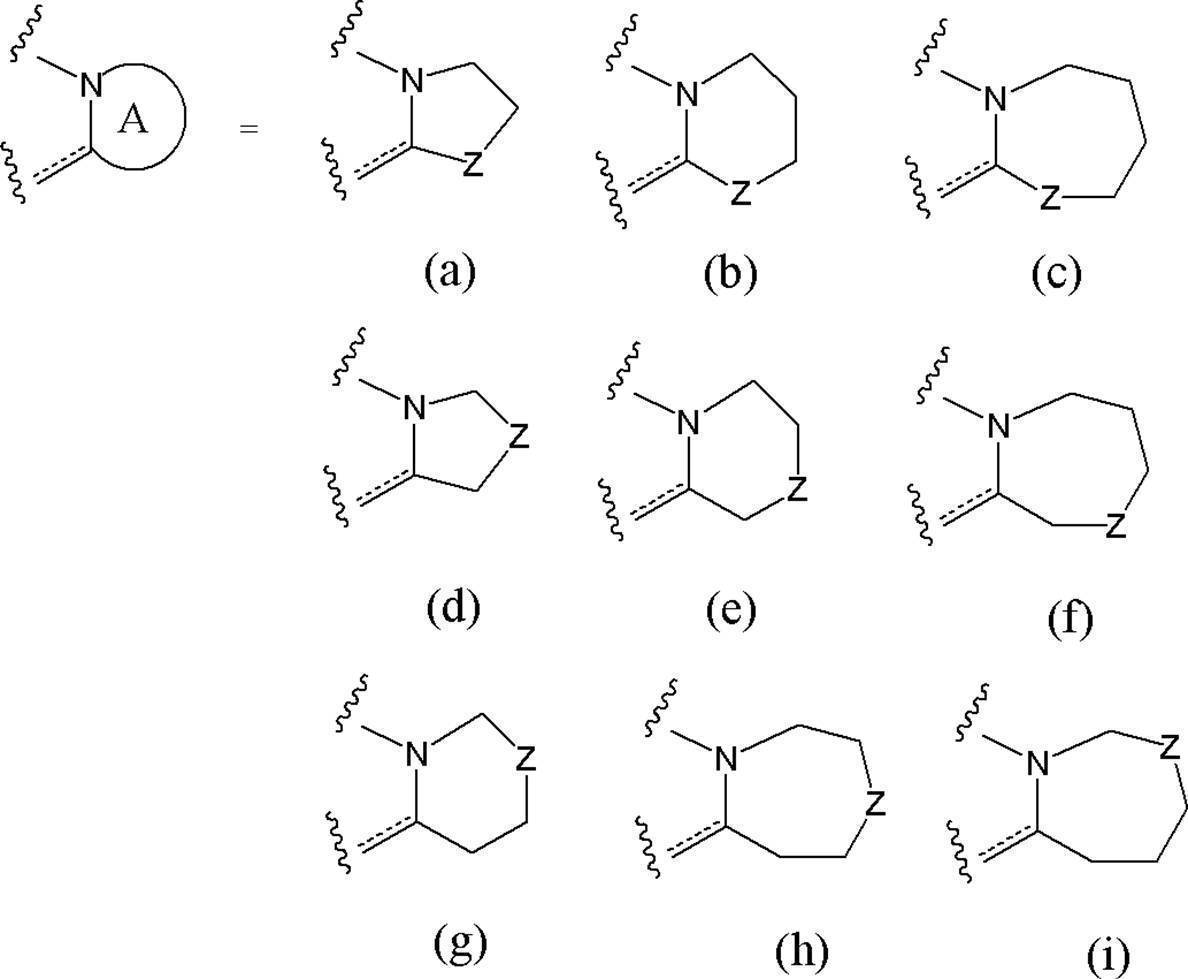

- One of the preferable embodiments of the A ring is the following ring which may be substituted.
- the A ring is preferably a ring of (a), (b) or (c).
- Z is O or NR 19 .
- R 19 is preferably 1) hydrogen, 2) optionally substituted lower alkyl (examples of substituents: amino, cycloalkyl optionally substituted with mono- or di-lower alkyl, Hydroxy, optionally substituted heterocyclic group (heterocycle is preferably a 5- to 7-membered ring, eg furyl, thienyl, thiazolyl, pyridyl, morpholino, imidazole; examples of substituents: lower alkyl, halogen), substituted Optionally substituted heterocyclic group carbonyl (heterocycle is preferably a 5- to 7-membered ring, eg morpholinocarbonyl), optionally substituted phenyl (substituent: lower alkyl, amino, lower alkylamino, hydroxy, Halogen, halogenated lower alkyl, lower alkoxy, halogenated lower alkoxy, lower alkylthio, lower alkylsul
- substituents on the A ring may be selected from R 15 to R 18 or the substituent group S2 described later, and are preferably lower alkyl. Further, as described later, the substituent moiety on the A ring may form a ring such as a condensed ring or a spiro ring, and in this case, the compound (QI) includes a tetracyclic compound.
- the A ring is more preferably one of the following rings.
- R 20 to R 40 each independently represents a group selected from the substituent group S2 described later, or any two groups of R 20 to R 40 bonded to the same atom together with the atom
- a spiro ring eg, an optionally substituted carbocycle or an optionally substituted heterocycle
- R 20 and R 22 may form a spiro ring (eg, an optionally substituted carbocycle or an optionally substituted heterocycle), or (R 20 and R 22 ), (R 23 and R 24 ), (R 25 and R 26 ), (R 27 and R 29 ), (R 30 and R 31 ), (R 32 and R 34 ), (R 35 and R 36 ), (R 37 and R 38 ) and (R Each combination of 39 and R 40 ), together with adjacent atoms, may form an optionally substituted carbocycle or an optionally substituted heterocycle.
- Substituent group S2 hydrogen, optionally substituted lower alkyl, optionally substituted cycloalkyl, optionally substituted cycloalkyl lower alkyl, optionally substituted lower alkenyl, optionally substituted Good lower alkoxy, optionally substituted lower alkenyloxy, optionally substituted aryl, optionally substituted aryl lower alkyl, optionally substituted aryloxy, optionally substituted heterocyclic Group, optionally substituted heterocyclic group lower alkyl, optionally substituted heterocyclic group oxy, hydroxy, optionally substituted amino, optionally substituted lower alkylcarbonyl, substituted Optionally substituted cycloalkylcarbonyl, optionally substituted cycloalkyl lower alkylcarbonyl, substituted Optionally substituted lower alkoxycarbonyl, optionally substituted arylcarbonyl, optionally substituted aryl lower alkylcarbonyl, optionally substituted aryloxycarbonyl, optionally substituted heterocyclic group carbon
- the stereochemistry of the asymmetric carbon indicated by * is R- or S-configuration, or a mixture thereof.
- R 20 to R 40 are each independently preferably hydrogen, optionally substituted lower alkyl (examples of substituents: OH, lower alkoxy, cycloalkyl, lower alkylthio, lower alkylsulfonyl, heterocyclic) Formula group, aryl, optionally substituted amino (example of substituent: lower alkyl, acyl)), cycloalkyl, optionally substituted aryl (example of substituent: OH, lower alkyl), or substituted It may be a heterocyclic group.
- R 20 to R 25 , R 27 to R 30 , and R 32 to R 39 are each preferably hydrogen, C1-C8 alkyl, C6-C14 aryl C1-C8 alkyl, C6-C14 aryl or alkoxy is there.
- R 26 , R 31 and R 40 are each independently preferably hydrogen, C 3-6 cycloalkyl, heterocycle, or hydroxy, C 3-6 cycloalkyl, alkoxy, heteroaryl, C 6-14 aryl or C1-8 alkyl optionally substituted with amino, wherein the amino may be substituted with —C (O) C1-8 alkyl or C1-8 alkyl.
- a ring is (A-1), preferably 1) Z is NR 26 , R 26 and R 24 together form a heterocycle and the others are hydrogen; 2) Z is O Or NR 26 , (R 20 and R 22 ) or (R 23 and R 24 ) together form a cycloalkyl substituted with phenyl, the others are hydrogen or optionally substituted lower alkyl .
- a ring is (A-2), preferably 1) Z is O, R 27 or R 28 is lower alkyl and the others are hydrogen; 2) Z is NR 31 , R 30 and R 31 together form a heterocycle and the others are hydrogen, or R 27 and R 29 together form a cycloalkyl and the others are hydrogen; 3) Z is O, R 27 And R 29 together form a cycloalkyl which may be fused with phenyl, the others are hydrogen.
- R 14 and R x each independently represent hydrogen, optionally substituted lower alkyl, optionally substituted cycloalkyl, optionally substituted cycloalkyl lower alkyl, or optionally substituted lower alkenyl.
- An optionally substituted heterocyclic group an optionally substituted heterocyclic group lower alkyl, an optionally substituted heterocyclic oxy, hydroxy, an optionally substituted amino, an optionally substituted lower alkylcarbonyl ,
- R 14 and R x are each independently preferably hydrogen, hydroxy, optionally substituted lower alkyl (the substituent is preferably amino, lower alkyl, lower alkylamino, hydroxy, lower alkoxy, for example). Yes). R 14 and R x are preferably hydrogen.

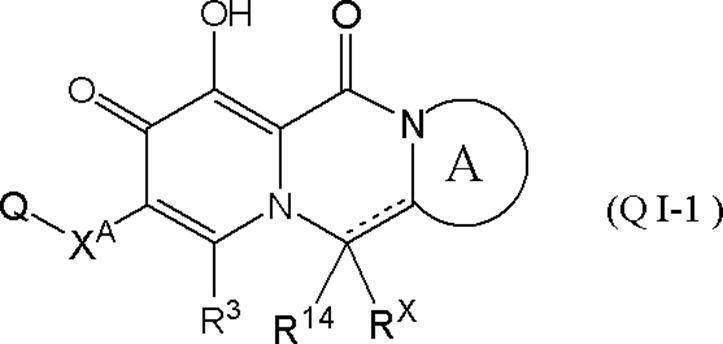

- the broken line in compound (QI-1) indicates the presence or absence of a bond. However, if the broken line indicates the presence of a coupling, R X is absent.
- Compound (QI-1) includes the following compounds.
- the F ring is the same heterocyclic ring as the A ring, but is preferably a 5- to 7-membered ring, and the substituent on the F ring is the same as the substituent on the A ring. Street.)
- each symbol is as defined above; Z is O or NR 19 ; R 15 to R 19 are each independently hydrogen or a group selected from the substituent group S2, or (R 15 and R 16 ), (R 17 and R 18 ), (R 16 and R 18 ), or (R 18 and R 19 ), each in combination with an adjacent atom, is optionally substituted carbocyclic ring ( Preferably 5 to 6 membered rings) or optionally substituted heterocycles (preferably 5 to 6 membered rings); and (R 15 and R 16 ) and (R 17 and R 18 ) Each combination may be taken together to form oxo.)

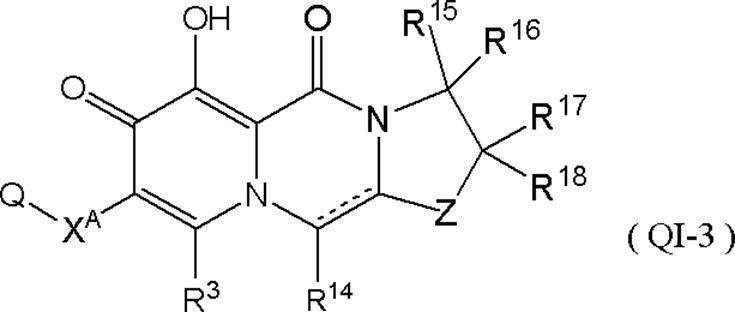

- Compound (QI-3) is preferably in the following form. (1) R 15 and R 16 are both hydrogen; R 17 and R 18 are both hydrogen or together with adjacent atoms to form a 3-7 membered carbocycle; and / or Z is O or NH.

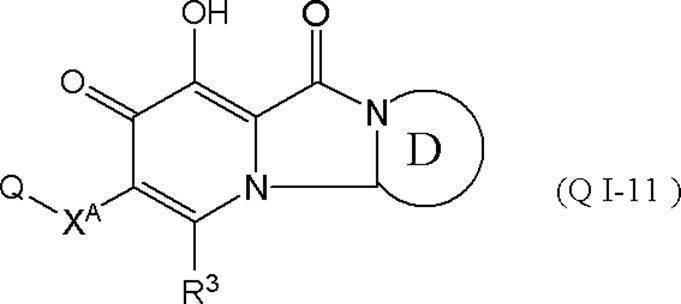

- Compound (QI) further includes compound (QI-11).
- the D ring means the same heterocyclic ring as the A ring, and is preferably a 5- to 7-membered ring.
- the substituent on the D ring is the same as the substituent on the A ring. Other symbols are as described above.

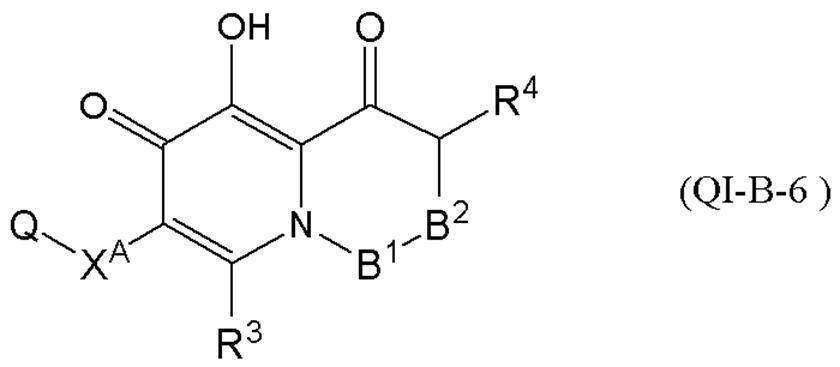

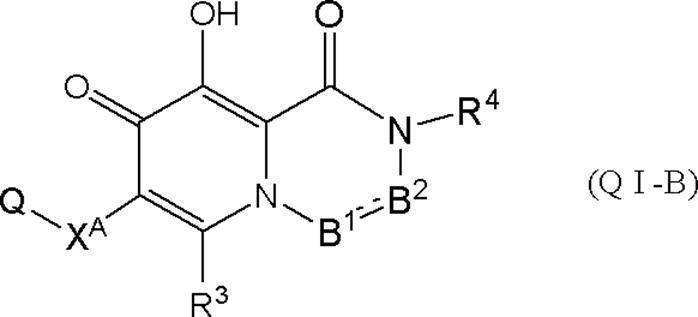

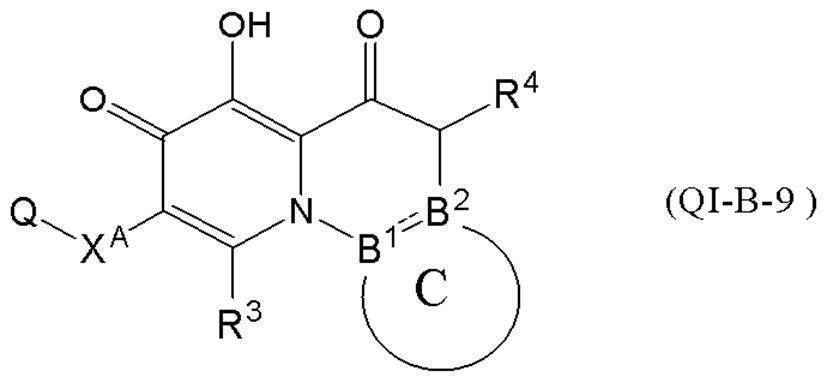

- Compound (QI) further includes compound (QI-B).
- R 3 is hydrogen, halogen, hydroxy, optionally substituted lower alkyl, optionally substituted cycloalkyl, optionally substituted lower alkenyl, optionally substituted lower alkoxy, optionally substituted.
- R 4 is hydrogen, optionally substituted lower alkyl, optionally substituted cycloalkyl, optionally substituted cycloalkyl lower alkyl, optionally substituted lower alkenyl, optionally substituted lower Alkoxy, aryl which may be substituted, aryl lower alkyl which may be substituted, aryloxy which may be substituted, heterocyclic group which may be substituted, heterocyclic group which may be substituted Substituted with lower alkyl, optionally substituted heterocyclic group oxy, hydroxy, optionally substituted amino, optionally substituted phosphate residue, optionally substituted phosphate residue Aryl, aralkyl substituted with an optionally substituted phosphate residue, hydroxy substituted with an optionally substituted phosphate residue, substituted Amino substituted with an optionally substituted phosphate residue, or a lower alkyl substituted with an optionally substituted phosphate residue (the lower alkyl is O, S, SO, SO 2 , NR a (R
- the broken line indicates the presence or absence of a bond.
- B 1 and B 2 are CR 20 R 21 and the other is NR 22. In this case, there is no broken line.
- R 4 and R 22 may together form a heterocyclic ring (eg, G ring) that may be substituted.
- R 4 and R 21 may together form a heterocyclic ring that may be substituted (eg, H ring).
- B 1 and B 2 are each independently C, CR 23 , or N.
- B 1 and B 2 moieties may be taken together to form an optionally substituted heterocycle (eg, C ring), in which case B 1 and B 2 are each independently CR 23 or N In the case of, the broken line indicates the absence of a bond.
- R 20 , R 21 , R 22 and R 23 are each independently hydrogen, optionally substituted lower alkyl, optionally substituted cycloalkyl, optionally substituted cycloalkyl lower alkyl, substituted Optionally substituted lower alkenyl, optionally substituted lower alkoxy, optionally substituted lower alkenyloxy, optionally substituted aryl, optionally substituted aryl lower alkyl, optionally substituted Good aryloxy, optionally substituted heterocyclic group, optionally substituted heterocyclic group lower alkyl, optionally substituted heterocyclic group oxy, optionally substituted phosphate residue , Aryl substituted with an optionally substituted phosphate residue, aralkyl substituted with an optionally substituted phosphate residue, substituted Hydroxy substituted with an optional phosphate residue, amino substituted with an optionally substituted phosphate residue, lower alkyl substituted with an optionally substituted phosphate residue (the lower alkyl is , O, S, SO, SO 2, NR
- R 20 , R 21 , R 22 and R 23 are more preferably hydrogen, optionally substituted lower alkyl, optionally substituted cycloalkyl, optionally substituted cycloalkyl lower alkyl, substituted An optionally substituted aryl, an optionally substituted aryl lower alkyl, an optionally substituted heterocyclic group, an optionally substituted heterocyclic group lower alkyl, an optionally substituted lower alkylcarbonyl, Cycloalkylcarbonyl which may be substituted, cycloalkyl lower alkylcarbonyl which may be substituted, lower alkoxycarbonyl which may be substituted, arylcarbonyl which may be substituted, aryl lower alkyl which may be substituted Carbonyl, optionally substituted aryloxycarbonyl, substituted Optionally substituted heterocyclic group carbonyl, optionally substituted heterocyclic group lower alkylcarbonyl, optionally substituted heterocyclic group oxycarbonyl, optionally substituted aminocarbonyl,
- the compound (QI-B) includes the following compounds (QI-B-10), (QI-B-6), (QI-B-9) and (QI-B-12).
- the G ring is a 5- to 7-membered ring containing 2 to 3 O, S and / or N atoms, and contains at least 2 N atoms. More preferably, it is selected from the above heterocycles, and the following rings are exemplified.
- substituent on the G ring examples include the same or different one or more substituents selected from the substituent group S2.
- the substituent moiety on the G ring, together with adjacent atoms, is further condensed or spiro ring, preferably an optionally substituted carbocyclic ring (preferably a 5-6 membered ring) or a substituted ring.
- a heterocycle preferably a 5-6 membered ring may be formed.
- One of the preferable embodiments of the substituent on the G ring is lower alkyl (eg, methyl, isopropyl), lower alkoxy lower alkyl (eg, 2-methoxyethyl), or optionally substituted amino (example of substituent).
- Lower alkyl eg, methyl
- lower alkylcarbonyl eg, acetyl
- R 3 is preferably hydrogen or optionally substituted lower alkyl, more preferably hydrogen.
- R 14 is exemplified by the same groups as those for R 20 , R 21 , R 22 and R 23 described above, but preferably hydrogen, optionally substituted lower alkyl (substituents: amino, lower alkylamino). , Lower alkoxy, aryloxy, cyano, halogen, (substituted) carbamoyl, acylamino, lower alkynyl, hydroxy), cycloalkyl, cycloalkyl lower alkyl, phenyl, benzyl, 5-6 membered aromatic heterocyclic group, 5-6 Membered heterocyclic group lower alkyl, optionally substituted lower alkylcarbonyl (substituent: lower alkoxy), optionally substituted benzoyl (substituent: lower alkoxy), substituted sulfonyl (substituent: lower alkyl, aryl) A heterocyclic group), more preferably hydrogen or optionally substituted lower alkyl.
- B 1 is CR 20 R 21
- B 2 is NR 22 (R 20 , R 21 and R 22 are as defined above).
- B 1 is NR 22 and B 2 is CR 20 R 21 (R 20 , R 21 and R 22 are as defined above).
- R 3 is preferably hydrogen or optionally substituted lower alkyl, more preferably hydrogen.
- R 20 , R 21 and R 22 are preferably each independently hydrogen, optionally substituted lower alkyl (examples of substituents: amino, lower alkylamino, lower carbonylamino, lower alkoxy, aryloxy, cyano , Halogen, acylamino (eg, lower carbonylamino), lower alkynyl, hydroxy, lower alkoxycarbonyl, optionally substituted heterocyclic group carbonyl (example of substituent: lower alkyl, lower alkoxy), lower alkenyl, substituted Optionally substituted carbamoyl (example of substituent: lower alkyl), lower alkylcarbonyloxy, lower alkyloxycarbonyl, lower alkylcarbonylamino, oxo, lower alkynyl), cycloalkyl, cycloalkyl lower alkyl, optionally substituted Aryl (substituted) Examples of groups: lower alkyl, halogen, lower alkyloxy, nitro),
- R 20 and R 21 are both hydrogen.
- R 4 is preferably an optionally substituted lower alkyl (eg, methyl, ethyl, n-propyl, i-propyl, n-butyl; examples of substituents: hydroxy, amino, lower alkylamino, lower alkoxy, aryl Oxy, oxo, lower alkoxycarbonyl, optionally substituted heterocyclic group carbonyl (example of substituent: lower alkyl, lower alkoxy), specifically lower alkylamino lower alkyl (eg, 2-dimethylaminoethyl) 2-diethylaminoethyl), lower alkoxy lower alkyl (eg 1-methoxyethyl, 2-methoxypropyl, 2-methoxyethyl, 3-methoxypropyl, 4-methoxybutyl, 2-ethoxyethyl, 3-ethoxypropyl, 4 -Ethoxybutyl, 2-propoxyethyl, 3-propoxypropyl, 4-
- An optionally substituted heterocyclic group (preferably a 5-6 membered ring) (eg, picolyl, pyridyl; examples of substituents: lower alkyl, halogen, lower alkyloxy, nitro); or Optionally substituted heterocyclic group (preferably 5-6 membered ring) lower alkyl (eg piperonylmethyl, 2-morpholinoethyl, thiophenemethyl, furanmethyl, tetrahydrofuranmethyl, dioxanemethyl, tetrahydropyranmethyl, thiazolemethyl, Oxazolemethyl, 1,2,4-oxadiazolemethyl, 1,3,4-oxadiazolemethyl; Examples of substituents: lower alkyl, halogen, lower alkyloxy, nitro; the heterocycle is condensed with a benzene ring May be.)
- R 22 is preferably an optionally substituted alkyl (eg, methyl, ethyl, n-propyl, i-propyl, n-butyl, neopentyl; examples of substituents: amino, lower alkylamino, lower alkoxy, aryloxy , Cyano, halogen, (substituted) carbamoyl, acylamino, oxo), specifically lower alkylamino lower alkyl (eg 2-dimethylaminoethyl, 2-diethylaminoethyl), lower alkoxy lower alkyl (eg 1-methoxyethyl) 2-methoxypropyl, 2-methoxyethyl, 3-methoxypropyl, 4-methoxybutyl, 2-ethoxyethyl, 3-ethoxypropyl, 4-ethoxybutyl, 2-propoxyethyl, 3-propoxypropyl, 4-propoxybutyl ), Aryl
- urea urea, lower alkyl urea (e.g. dimethylurea), dimethylthiourea); or substituted sulfonyl (e.g. alkylsulfonyl (e.g. methanesulfonyl), arylsulfonyl (e.g. : Benzenesulfonyl), a heterocyclic group sulfonyl (eg, thiophenesulfonyl)).
- alkylsulfonyl e.g. methanesulfonyl
- arylsulfonyl e.g. : Benzenesulfonyl
- a heterocyclic group sulfonyl eg, thiophenesulfonyl
- Ring C represents an optionally substituted carbocyclic ring or an optionally substituted heterocyclic ring.
- B 1 and B 2 are each independently C, CH, or N.
- B 1 and B 2 are each independently CR 23 or N, the broken line indicates the absence of a bond.
- the C ring is a heterocyclic ring, the same heterocyclic ring as the A ring and G ring is exemplified, and the substituents on the C ring are also exemplified. That is, the substituent on the C ring is exemplified by the same or different one or more substituents selected from the substituent group S2.
- the substituent moiety on the C ring, together with the adjacent atom, is further condensed or spiro ring, preferably an optionally substituted carbocyclic ring (preferably a 5-6 membered ring) or a substituted ring.
- a heterocycle preferably a 5-6 membered ring may be formed.
- B 1 and B 2 are each independently C or CH.
- Examples of the carbocycle include 5- to 7-membered rings.
- the broken line indicates the presence or absence of a bond, but preferably indicates the absence.
- C ring includes the following rings, preferably (i) and (l).
- One of the preferred embodiments as a substituent on the C ring is lower alkyl (eg, methyl, isopropyl), lower alkoxy lower alkyl (eg, 2-methoxyethyl), optionally substituted amino (example of substituent: Lower alkyl (eg, methyl), lower alkylcarbonyl (eg, acetyl)).
- R 19 is more preferably hydrogen, lower alkyl, or lower alkoxy lower alkyl.
- R 3 is preferably hydrogen or optionally substituted lower alkyl, more preferably hydrogen.
- R 4 is preferably exemplified by the same groups as R 4 of the compound (QI-B-6).
- Ring H means a heterocycle having the same meaning as ring A, preferably a 5- to 7-membered ring, and the substituents on each ring are exemplified by the same substituents as in ring A. That is, the substituent on the H ring is exemplified by the same or different one or more substituents selected from the substituent group S2.
- the substituent part on the H ring, together with adjacent atoms, is further condensed or spiro ring, preferably an optionally substituted carbocyclic ring (preferably a 5-6 membered ring) or a substituted ring.
- a heterocycle (preferably a 5-6 membered ring) may be formed.
- R 3 is preferably hydrogen or optionally substituted lower alkyl, more preferably hydrogen.
- R 24 is exemplified by the same groups as those for R 20 , R 21 , R 22 and R 23 described above, preferably hydrogen, optionally substituted lower alkyl (substituents: amino, lower alkylamino). , Lower alkoxy, aryloxy, cyano, halogen, (substituted) carbamoyl, acylamino, lower alkynyl, hydroxy), cycloalkyl, cycloalkyl lower alkyl, phenyl, benzyl, 5-6 membered aromatic heterocyclic group, 5-6 Membered heterocyclic group lower alkyl, optionally substituted lower alkylcarbonyl (substituent: lower alkoxy, halogen), optionally substituted benzoyl (substituent: lower alkoxy, halogen), substituted sulfonyl (substituent: Lower alkyl, aryl, heterocyclic group (preferably a 5- to 6-membered aromatic hetero
- the structure of the other part has a relatively large degree of freedom, may have various substituents, and may form a condensed ring. The fused ring may be further substituted.
- the present invention also provides a pharmaceutically acceptable salt of compound (QI) and a solvate thereof. All tautomers, geometric isomers, stereoisomers, optical isomers, racemates and the like that are theoretically possible for the compounds of the present invention are also within the scope of the present invention.
- Examples of the pharmaceutically acceptable salt of the compound of the present invention include basic salts such as alkali metal salts such as sodium salt and potassium salt; alkaline earth metal salts such as calcium salt and magnesium salt; ammonium salt; trimethylamine salt, Aliphatic amine salts such as triethylamine salt, dicyclohexylamine salt, ethanolamine salt, diethanolamine salt, triethanolamine salt, brocaine salt, meglumine salt, diethanolamine salt or ethylenediamine salt; aralkyl such as N, N-dibenzylethylenediamine or venetamine salt Heterocyclic aromatic amine salts such as pyridine salt, picoline salt, quinoline salt, isoquinoline salt; tetramethylammonium salt, tetraethylammonium salt, benzyltrimethylammonium salt, benzyltriethylammonium And quaternary ammonium salts such as arginine salts and lysine salts; and
- the acid salt examples include inorganic acid salts such as hydrochloride, sulfate, nitrate, phosphate, carbonate, bicarbonate, perchlorate; acetate, propionate, lactate, maleate, Organic acid salts such as fumarate, tartrate, malate, citrate, ascorbate; sulfonates such as methanesulfonate, isethionate, benzenesulfonate, p-toluenesulfonate; Examples include acidic amino acid salts such as aspartate and glutamate.
- solvate of the compound of the present invention examples include alcohol solvates and hydrates.
- the compound of the present invention can be synthesized according to the methods described in Patent Document 10 and Patent Document 11.
- the compound of the present invention can be synthesized using the amide compounds described in Patent Document 10 and Patent Document 11, preferably the hydroxy protector thereof as a raw material. Specifically, after the amide side chain portion of the amide compound is hydrolyzed and converted to a carboxylic acid by a method well known to those skilled in the art, for example, after various amine reagents are reacted to perform an amidation reaction, The compound of the present invention having various amide type side chains can be synthesized by performing deprotection as desired.
- the compound of the present invention obtained above may be further chemically modified to synthesize another compound.
- a reactive functional group eg, OH, COOH, NH 2
- it may be protected before the reaction and deprotected after the reaction, if desired.
- protecting groups include protecting groups in Organic Synthesis, T., such as ethoxycarbonyl, t-butoxycarbonyl, acetyl, benzyl and the like. W. By Greene, John Wiley & Sons Inc. (1991) and the like. Methods for introducing and removing protecting groups are those commonly used in organic synthetic chemistry [for example, Protective Groups in Organic Synthesis, T. et al. W. By Greene, John Wiley & Sons Inc. (See (1991))] or the like.
- the conversion of the functional group contained in each substituent can be performed by a known method other than the above production method [for example, Comprehensive Organic Transformations, R.C. C. Larock (1989), etc.], and some of the compounds of the present invention can be used as synthetic intermediates to lead to new derivatives.
- the intermediates and target compounds in each of the above production methods are isolated and purified by purification methods commonly used in synthetic organic chemistry such as neutralization, filtration, extraction, washing, drying, concentration, recrystallization, and various chromatography. can do.
- the intermediate can be subjected to the next reaction without any particular purification.
- the compound of the present invention is useful as a medicine such as an antiviral drug.
- the compound of the present invention has a remarkable inhibitory action on viral integrase. Therefore, the compound of the present invention can be expected to have a preventive or therapeutic effect on various diseases caused by viruses that proliferate by producing at least integrase in animal cells at the time of infection.
- retrovirus eg, HIV-1, It is useful as an integrase inhibitor for HIV-2, HTLV-1, SIV, FIV and the like, and is useful as an anti-HIV drug.
- More preferable compounds have characteristics such as high blood concentration, long duration of effect, and / or remarkable tissue transferability as pharmacokinetics. Preferred compounds are safe in terms of side effects.
- the compound of the present invention can also be used in combination therapy in combination with anti-HIV drugs having different action mechanisms such as reverse transcriptase inhibitors and / or protease inhibitors.
- the above uses include not only anti-HIV combinations, but also concomitant agents that increase the anti-HIV activity of other anti-HIV drugs such as cocktail therapy.
- the compound of the present invention should be used in the field of gene therapy to prevent the spread of infection with a retroviral vector other than the target tissue when using a retroviral vector based on HIV or MLV. Can do.
- the compound of the present invention is administered in advance in the case where the vector is infected with cells in a test tube and then returned to the body, unnecessary infection in the body can be prevented.
- the compound of the present invention can be administered orally or parenterally.
- the compound of the present invention is any of ordinary preparations, for example, solid preparations such as tablets, powders, granules and capsules; liquid preparations; oil suspensions; or liquid preparations such as syrups or elixirs. It can also be used as a dosage form.
- the compound of the present invention can be used as an aqueous or oily suspension injection or nasal solution.
- conventional excipients, binders, lubricants, aqueous solvents, oily solvents, emulsifiers, suspending agents, preservatives, stabilizers and the like can be arbitrarily used.
- an oral preparation is particularly preferable.
- the formulations of the present invention are prepared by combining (eg, mixing) a therapeutically effective amount of a compound of the present invention with a pharmaceutically acceptable carrier or diluent.
- the dose of the compound of the present invention varies depending on the administration method, the patient's age, weight, condition and type of disease, but in the case of oral administration, it is usually about 0.05 mg to 3000 mg per day for an adult, preferably about 0 .1 mg to 1000 mg may be administered divided if necessary. In the case of parenteral administration, about 0.01 mg to 1000 mg, preferably about 0.05 mg to 500 mg is administered per day for an adult.
- Boc 2 O (10.0 g, 45.8 mmol) and DMAP (7.07 g, 57.8 mmol) were added to an acetonitrile solution (80 mL) of amide 1 (8.00 g, 14.5 mmol) at room temperature, and then heated at 80 ° C. Stir and add Boc 2 O (10.0 g, 45.8 mmol) every 10 minutes. After the disappearance of the raw materials, 2N aqueous sodium hydroxide solution (578 mL, 1.15 mol) and ethanol (80 mL) were added, and the mixture was stirred at 60 ° C. for 5 hours.
- the reaction mixture was evaporated under reduced pressure, ethyl acetate was added to the resulting residue, and the mixture was extracted with saturated aqueous sodium hydrogen carbonate solution.
- the aqueous layer was acidified with 2N aqueous hydrochloric acid, extracted with chloroform, and the organic layer was dried over saturated sodium sulfate.
- the resulting residue was solidified from a mixed solution of methylene chloride-diethyl ether to obtain carboxylic acid 3 as a white solid (3.58 g, 64%).
- the organic layer was washed with a saturated aqueous ammonium chloride solution and water, and dried over sodium sulfate.
- the obtained white solid was dissolved in a THF-methanol solution (1: 1, 2 mL), palladium carbon (18.0 mg, 0.0170 mmol) was added, and the mixture was stirred at room temperature in a hydrogen atmosphere for 2 hours.
- Example 3 Specific compounds and physical property data (MS) are described below.
- Test Example 1 (Integrase Inhibitory Activity) (Test method) (1) Preparation of DNA solution A substrate DNA solution (2 pmol / ⁇ l) and a target DNA solution (5 pmol / ⁇ l) were prepared by the same method as that described in Test Example 1 of Patent Document 2. Each target DNA solution was used after boiling and then slowly lowering the temperature to anneal complementary strands. Each sequence of the substrate DNA and the target DNA is as described in the same test example.
- the buffer composition: 150 mM MOPS (pH 7.2), 75 mM MnCl 2 , 50 mM 2-mercaptoethanol, 25% glycerol, 500 ⁇ g / ml bovine serum albumin-fraction V )
- a reaction solution 51 ⁇ l prepared from 12 ⁇ l and distilled water (39 ⁇ l) was added.
- 9 ⁇ l of integrase solution (30 pmol) was added and mixed well.
- NC negative control
- the negative control (NC) well contains a diluted solution (composition: 20 mM MOPS (pH 7.2), 400 mM potassium glutamate, 1 mM EDTA, 0.1% NP-40, 20% glycerol, 1 mM DTT, 4 M 9 ⁇ l of urea) was added and mixed well using a plate mixer.
- washing buffer composition: 150 mM MOPS (pH 7.2), 50 mM 2-mercaptoethanol, 25% glycerol, 500 ⁇ g / ml bovine serum albumin
- alkaline phosphatase-labeled anti-digoxigenin antibody (sheep Fab fragment: manufactured by Boehringer) was diluted 2000 times with an antibody diluent, added 100 ⁇ l, bound at 30 ° C. for 1 hour, and then phosphoric acid containing 0.05% Tween20 Washing was sequentially performed twice with a buffer and twice with a phosphate buffer.
- alkaline phosphatase coloring buffer composition: 0.9 mM paranitrophenyl phosphate (PIERCE), 1 mM MgCl 2 , 1M diethanolamine (pH 9.8)
- PIERCE paranitrophenyl phosphate
- Test Example 2 (anti-HIV activity) (Test method) HeLa-CD4 cell suspension (2.5 ⁇ 10 4 cells / well) was dispensed into each well of the assay plate. After incubation for 1 hour at 37 ° C. and 5% CO 2 , compound dilution (50 ⁇ L) was added to each well (except for cell control). Culture medium (50 ⁇ L) was added to cell control wells. The plate was cultured at 37 ° C. and 5% CO 2 for 3 days.
- active ingredient means a compound of the present invention, a tautomer thereof, a pharmaceutically acceptable salt or a solvate thereof.
- Formulation Example 1 Hard gelatin capsules are manufactured using the following ingredients: Dose (mg / capsule) Active ingredient 250 Starch (dried) 200 Magnesium stearate 10 Total 460mg Formulation Example 2 Tablets are manufactured using the following ingredients: Dose (mg / capsule) Active ingredient 250 Cellulose (microcrystal) 400 Silicon dioxide (fume) 10 Stearic acid 5 665mg total The ingredients are mixed and compressed into tablets each weighing 665 mg.
- the compound of the present invention has integrase inhibitory activity and / or cell growth inhibitory activity against viruses, particularly HIV. Therefore, it is useful for the prevention or treatment of various diseases involving integrase and viral infections (eg AIDS).
Abstract
Description
R4は水素、置換されていてもよい低級アルキル(但し、置換基は置換されていてもよいアリールではない)、置換されていてもよいシクロアルキル、置換されていてもよいシクロアルキル低級アルキル、置換されていてもよい低級アルケニル、置換されていてもよい低級アルコキシ、置換されていてもよいアリール、置換されていてもよいアリール低級アルキル、置換されていてもよいアリールオキシ、置換されていてもよい複素環式基、置換されていてもよい複素環式基低級アルキル、置換されていてもよい複素環式基オキシ、ヒドロキシ、置換されていてもよいアミノ、置換されていてもよいリン酸残基、置換されていてもよいリン酸残基で置換されたアリール、置換されていてもよいリン酸残基で置換されたアラルキル、置換されていてもよいリン酸残基で置換されたヒドロキシ、置換されていてもよいリン酸残基で置換されたアミノ、または置換されていてもよいリン酸残基で置換された低級アルキル(該低級アルキルは、CO、O、S、SO、SO2、NRa(Raは水素または低級アルキル)、-N=および=N-からなる群から選択されるヘテロ原子基が介在していてもよい);
Z2は、O、S、SO、SO2、NR5(R5は水素、置換されていてもよい低級アルキル、置換されていてもよいシクロアルキル、置換されていてもよいシクロアルキル低級アルキル、置換されていてもよい低級アルケニル、置換されていてもよい低級アルコキシ、置換されていてもよいアリール、置換されていてもよいアリール低級アルキル、置換されていてもよいアリールオキシ、置換されていてもよい複素環式基、置換されていてもよい複素環式基低級アルキル、置換されていてもよい複素環式基オキシ、ヒドロキシ、置換されていてもよいアミノ、置換されていてもよいリン酸残基、置換されていてもよいリン酸残基で置換されたアリール、置換されていてもよいリン酸残基で置換されたアラルキル、置換されていてもよいリン酸残基で置換されたヒドロキシ、置換されていてもよいリン酸残基で置換されたアミノ、または置換されていてもよいリン酸残基で置換された低級アルキル(該低級アルキルは、CO、O、S、SO、SO2、NR5(R5はR4とは独立してR4と同一の置換基群から選択される)、-N=および=N-からなる群から選択されるヘテロ原子基が介在していてもよい))、-N=および=N-からなる群から選択されるヘテロ原子基が介在していてもよい、置換されていてもよい低級アルキレンまたは置換されていてもよい低級アルケニレン;
XAは、以下の群から選択される基:
XA1:単結合、
XA2:C=O、およびC=Sから選択される基、
XA3:O、S、SO、SO2およびNR1’(R1’は水素もしくは低級アルキル)から選択されるヘテロ原子基、
XA4:XA2およびXA3から選択される同一または異なる、2以上の基が連結して形成される基、
XA5:-N=N-、-C(R1’)=N-、または-N=C(R1’)-(R1’は水素もしくは低級アルキル)から選択される基、
XA6:置換されていてもよい低級アルキレンまたは置換されていてもよい低級アルケニレン、
XA7:XA2、XA3、XA4およびXA5から選択される1またはいずれかの2以上の基が介在しているXA6、ならびに
XA8:XA1~XA7の任意の組み合わせからなるスペーサー;
Qは、以下の群から選択される基:
Q1:置換されていてもよく、縮合していてもよい炭素環式基、および
Q2:置換されていてもよく、縮合していてもよい複素環式基、
但し、
-XA-Qが-CONR1-X-R2である場合:
(式中、R1は、水素または低級アルキル;
Xは、単結合、O、S、SO、SO2およびNHから選択されるヘテロ原子基、または該ヘテロ原子基が介在していてもよい低級アルキレンもしくは低級アルケニレン;
R2は、置換されていてもよいアリール)
を除く;
R3は水素、ハロゲン、ヒドロキシ、置換されていてもよい低級アルキル、置換されていてもよいシクロアルキル、置換されていてもよい低級アルケニル、置換されていてもよい低級アルコキシ、置換されていてもよい低級アルケニルオキシ、置換されていてもよいアリール、置換されていてもよいアリールオキシ、置換されていてもよい複素環式基、置換されていてもよい複素環式基オキシ、または置換されていてもよいアミノ;
R4はZ2部分と一緒になって環を形成してもよく、このとき、化合物(QI)は以下の式(QI-1)または(QI-11)で示される:
A環は置換されていてもよい複素環;R14およびRXは、それぞれ独立して水素、置換されていてもよい低級アルキル、置換されていてもよいシクロアルキル、置換されていてもよいシクロアルキル低級アルキル、置換されていてもよい低級アルケニル、置換されていてもよい低級アルコキシ、置換されていてもよい低級アルケニルオキシ、置換されていてもよいアリール、置換されていてもよいアリール低級アルキル、置換されていてもよいアリールオキシ、置換されていてもよい複素環式基、置換されていてもよい複素環式基低級アルキル、置換されていてもよい複素環式基オキシ、置換されていてもよいリン酸残基、置換されていてもよいリン酸残基で置換されたアリール、置換されていてもよいリン酸残基で置換されたアラルキル、置換されていてもよいリン酸残基で置換されたヒドロキシ、置換されていてもよいリン酸残基で置換されたアミノ、置換されていてもよいリン酸残基で置換された低級アルキル(該低級アルキルは、O、S、SO、SO2、NR5(R5はR4とは独立してR4と同一の置換基群から選択される)、-N=および=N-からなる群から選択されるヘテロ原子基が介在していてもよい)、ヒドロキシ、置換されていてもよいアミノ、置換されていてもよい低級アルキルカルボニル、置換されていてもよいシクロアルキルカルボニル、置換されていてもよいシクロアルキル低級アルキルカルボニル、置換されていてもよい低級アルコキシカルボニル、置換されていてもよいアリールカルボニル、置換されていてもよいアリール低級アルキルカルボニル、置換されていてもよいアリールオキシカルボニル、置換されていてもよい複素環式基カルボニル、置換されていてもよい複素環式基低級アルキルカルボニル、置換されていてもよい複素環式基オキシカルボニル、または置換されていてもよいアミノカルボニル;破線は結合の存在または非存在を示す;
但し、破線が結合の存在を示す場合、RXは存在しない;
XAおよびQは前記と同意義;
R3は水素、ハロゲン、ヒドロキシ、置換されていてもよい低級アルキル、置換されていてもよいシクロアルキル、置換されていてもよい低級アルケニル、置換されていてもよい低級アルコキシ、置換されていてもよい低級アルケニルオキシ、置換されていてもよいアリール、置換されていてもよいアリールオキシ、置換されていてもよい複素環式基、置換されていてもよい複素環式基オキシ、または置換されていてもよいアミノ);
D環は置換されていてもよい複素環;
XAおよびQは前記と同意義;
R3は水素、ハロゲン、ヒドロキシ、置換されていてもよい低級アルキル、置換されていてもよいシクロアルキル、置換されていてもよい低級アルケニル、置換されていてもよい低級アルコキシ、置換されていてもよい低級アルケニルオキシ、置換されていてもよいアリール、置換されていてもよいアリールオキシ、置換されていてもよい複素環式基、置換されていてもよい複素環式基オキシ、または置換されていてもよいアミノ);
またZ2は、B1およびB2からなる連結基であってもよく、この時、化合物(QI)は以下の式(QI-B)で示される:
破線は結合の存在または非存在を示す;
B1およびB2は、いずれか一方はCR20R21、他方はNR22、この場合は破線は存在しない;
B2がNR22の場合、R4とR22は一緒になって置換されていてもよい複素環を形成してもよく;
B2がCHR21の場合、R4とR21は一緒になって置換されていてもよい複素環を形成してもよく;
またはB1およびB2は、それぞれ独立してC、CR23、またはNであり、この場合B1およびB2部分は一緒になって置換されていてもよい複素環を形成してもよい;
R20、R21、R22およびR23は、それぞれ独立して、水素、置換されていてもよい低級アルキル、置換されていてもよいシクロアルキル、置換されていてもよいシクロアルキル低級アルキル、置換されていてもよい低級アルケニル、置換されていてもよい低級アルコキシ、置換されていてもよい低級アルケニルオキシ、置換されていてもよいアリール、置換されていてもよいアリール低級アルキル、置換されていてもよいアリールオキシ、置換されていてもよい複素環式基、置換されていてもよい複素環式基低級アルキル、置換されていてもよい複素環式基オキシ、置換されていてもよいリン酸残基、置換されていてもよいリン酸残基で置換されたアリール、置換されていてもよいリン酸残基で置換されたアラルキル、置換されていてもよいリン酸残基で置換されたヒドロキシ、置換されていてもよいリン酸残基で置換されたアミノ、置換されていてもよいリン酸残基で置換された低級アルキル(該低級アルキルは、O、S、SO、SO2、NR5(R5はR4とは独立してR4と同一の置換基群から選択される)、-N=および=N-からなる群から選択されるヘテロ原子基が介在していてもよい)、ヒドロキシ、置換されていてもよいアミノ、置換されていてもよい低級アルキルカルボニル、置換されていてもよいシクロアルキルカルボニル、置換されていてもよいシクロアルキル低級アルキルカルボニル、置換されていてもよい低級アルコキシカルボニル、置換されていてもよいアリールカルボニル、置換されていてもよいアリール低級アルキルカルボニル、置換されていてもよいアリールオキシカルボニル、置換されていてもよい複素環式基カルボニル、置換されていてもよい複素環式基低級アルキルカルボニル、置換されていてもよい複素環式基オキシカルボニル、置換されていてもよいアミノカルボニル、置換(チオ)ウレア、または置換スルホニル;
その他の記号は、前記と同意義))、
で示される化合物、その製薬上許容される塩、またはそれらの溶媒和物。
より好ましくは、RAおよびRBは共にORCであるか、またはいずれか一方がORCあり、他方がNRDREである。
「置換されていてもよいリン酸残基で置換されたヒドロキシ」として好ましくは、ジ低級アルキル置換されたリン酸残基で置換されたヒドロキシであり、より好ましくは以下の基である。
-XA-Qにおいて、XAは、以下の群から選択される基:
XA1:単結合、
XA2:C=O、
XA3:O、S、SO、SO2およびNR1’(R1’は水素もしくは低級アルキル)から選択されるヘテロ原子基、
XA4:XA2およびXA3から選択される同一または異なる、2以上の基が連結して形成される基(例:-CONH-、-CONHNH-、-CONHNHCO-、-CONHO-、-CONHNHSONH-、-CONHNMe-、-NHCONH―、-NHCOO-)、
XA5:-N=N-、-C(R1’)=N-、または-N=C(R1’)-(R1’は水素もしくは低級アルキル)から選択される基、
XA6:置換されていてもよい低級アルキレンまたは置換されていてもよい低級アルケニレン(置換基の例:Me、Ph)、
XA7:XA2、XA3、XA4およびXA5から選択される1またはいずれかの2以上の基が介在しているXA6(例:-CONHCH2-、-CONMeCH2-、-CONHCH2CH2O-、-CONHCH2CH2-SO2-、-CONHCH2CH2CH2-)、ならびに
XA8:XA1~XA7の任意の組み合わせからなるスペーサー;
である。
Q1:置換されていてもよく、縮合していてもよい炭素環式基、および
Q2:置換されていてもよく、縮合していてもよい複素環式基、
である。
A環は、好ましくは(a)、(b)または(c)の環である。
I) A環が(A-1)の場合、好ましくは、1)ZはNR26、R26およびR24は一緒になって複素環を形成し、その他は水素である; 2)ZはOまたはNR26、(R20およびR22)または(R23およびR24)は、一緒になってフェニルで置換されたシクロアルキルを形成し、その他は水素または置換されていてもよい低級アルキルである。
II) A環が(A-2)の場合、好ましくは、1)ZはO、R27またはR28は低級アルキルであり、その他は水素である; 2)ZはNR31、R30およびR31は一緒になって複素環を形成し、その他は水素であるか、またはR27およびR29は一緒になってシクロアルキルを形成し、その他は水素である; 3)ZはO、R27およびR29は一緒になって、フェニルと縮合していてもよいシクロアルキルを形成し、その他は水素である。
化合物(QI-3)は好ましくは以下の態様である。
(1)R15およびR16が共に水素;R17およびR18が共に水素または隣接原子と一緒になって3~7員の炭素環を形成;および/またはZはOまたはNHである。
G環上の置換基としては、前記置換基群S2から選択される同一又は異なる、1またはそれ以上の置換基が例示される。またG環上の置換基部分は、隣接する原子と一緒になって、さらに縮合環またはスピロ環、好ましくは置換されていてもよい炭素環(好ましくは5~6員環)または置換されていてもよい複素環(好ましくは5~6員環)を形成してもよい。
C環上の置換基として好ましい態様の一つは、低級アルキル(例:メチル、イソプロピル)、低級アルコキシ低級アルキル(例:2-メトキシエチル)、置換されていてもよいアミノ(置換基の例:低級アルキル(例:メチル)、低級アルキルカルボニル(例:アセチル))である。
(1)主骨格である縮合ヘテロ環上に、オキソ(=O)、ヒドロキシ(OH)およびオキソ(=O)が置換している。
(2)縮合ヘテロ環上のオキソの隣接部位に、-XA-Qで示される側鎖を有する。
なお上記で得られた本発明化合物をさらに化学修飾して、別の化合物を合成してもよい。また上記反応中で、側鎖部分などに反応性官能基(例:OH、COOH、NH2)が存在する場合には、所望により、反応前に保護し、反応後に脱保護してもよい。
〈略号〉
Boc:t-ブトキシカルボニル
DMAP:ジメチルアミノピリジン
THF:テトラヒドロフラン
HATU:2-(1H-7-アザベンゾトリアゾール-1-イル)-1,1,3,3-テトラメチルウロニウム ヘキサフルオロフォスフェート メタンアムニウム(英語名:2-(1H-7-Azabenzotriazol-1-yl)-1,1,3,3-tetramethyl uronium hexafluorophosphate Methanaminium)
TFA:トリフルオロ酢酸
Me:メチル
Et:エチル
Bu:ブチル
Ph:フェニル
Bn:ベンジル。
1H NMR (CDCl3, 300 MHz) δ 1.35 (d, J = 7.1 Hz, 3 H), 1.46-1.56 (m, 1 H), 2.08-2.24 (m, 1 H), 3.95 (d, J = 2.5 Hz, 1 H), 3.98 (dd, J = 3.3, 1.9 Hz, 1 H), 4.15 (dd, J = 13.5, 5.8 Hz, 1 H), 4.28 (dd, J = 13.5, 3.8 Hz, 1 H), 4.93-5.06 (m, 1 H), 5.19 (dd, J = 5.8, 3.8 Hz, 1 H), 5.37 (d, J = 10.2 Hz, 1 H), 5.42 (d, J = 10.2 Hz, 1 H), 7.28-7.40 (m, 3 H), 7.56-7.62 (m, 2 H), 8.32 (s, 1 H);ESI-MS [M+H+] 計算値 385, 実測値 385。
1H NMR (CDCl3, 300 MHz) δ 0.90-1.32 (m, 5 H), 1.45 (d, J = 6.9 Hz, 3 H), 1.49-1.85 (m, 7 H), 2.15-2.32 (m, 1 H), 3.26-3.32 (m, 2 H), 4.02 (d, J = 2.1 Hz, 1 H), 4.03-4.07 (m, 1 H), 4.12 (dd, J = 13.4, 5.9 Hz, 1 H), 4.27 (dd, J = 13.4, 3.8 Hz, 1 H), 4.94-5.06 (m, 1 H), 5.26 (dd, J = 5.9, 3.8 Hz, 1 H), 8.29 (s, 1 H), 10.00-10.11 (m, 1 H), 12.39 (s, 1 H); ESI-MS [M+H+] 計算値 390, 実測値 390。
ESI-MS [M+H+] 計算値 390, 実測値 390。

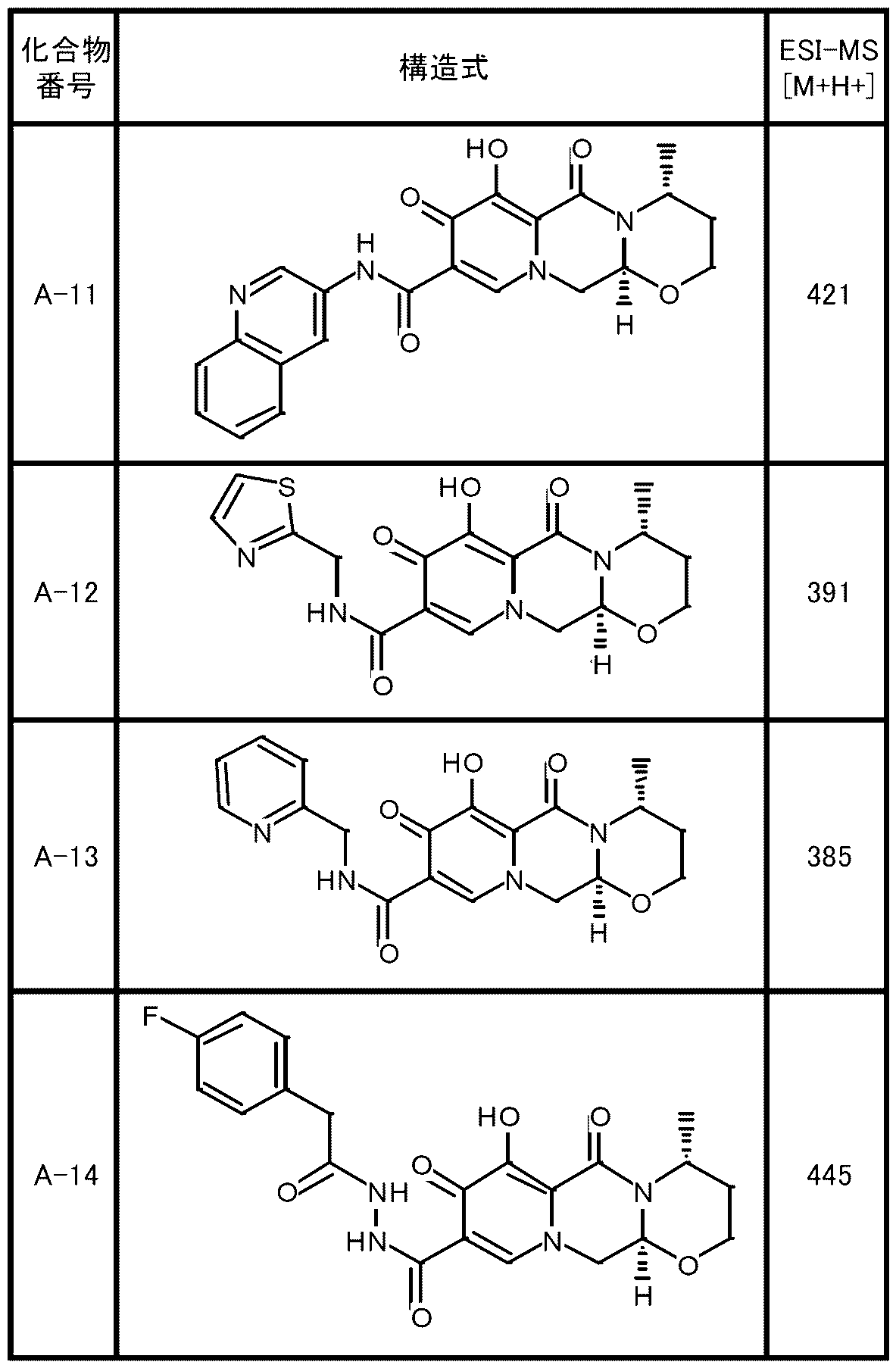

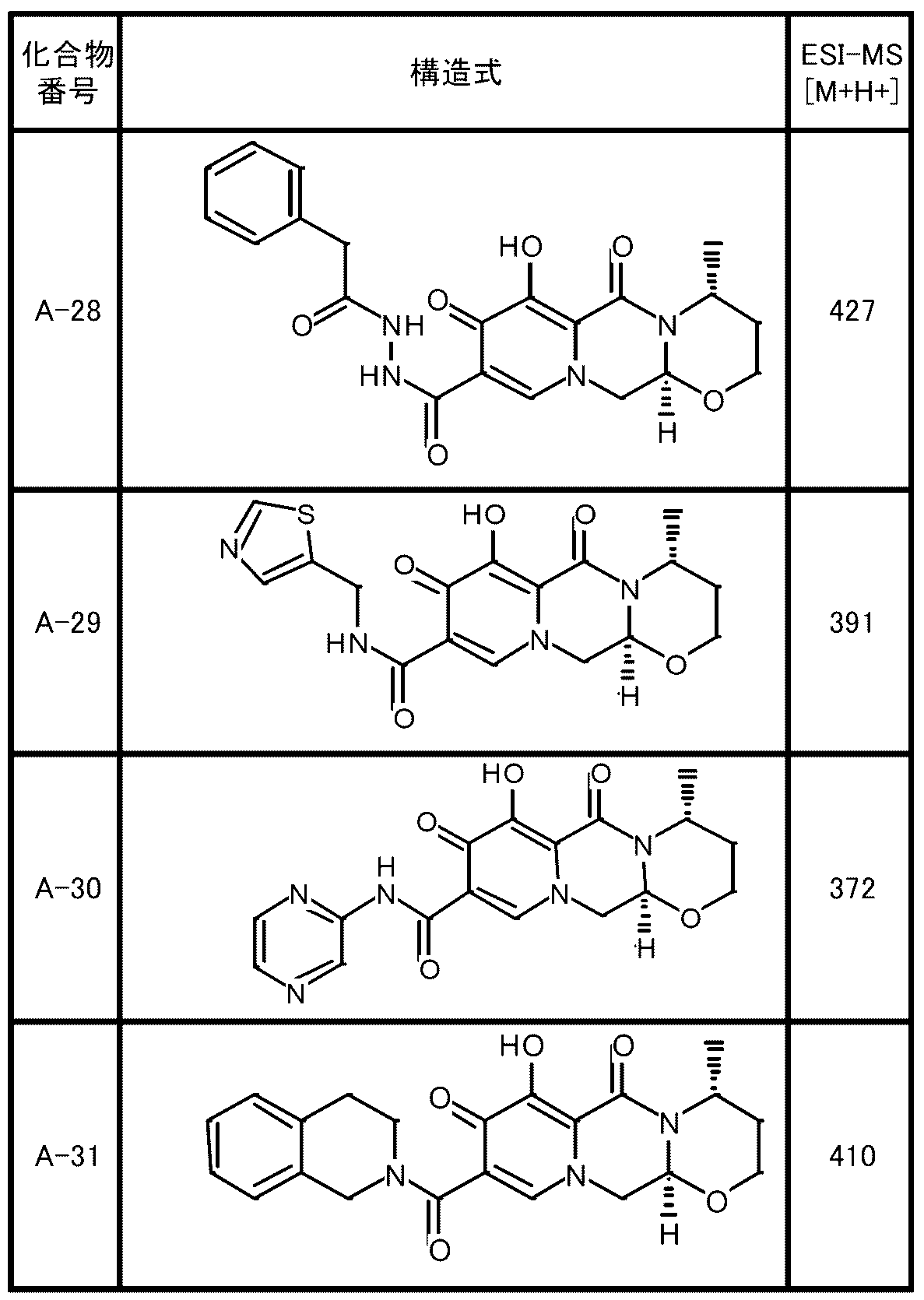

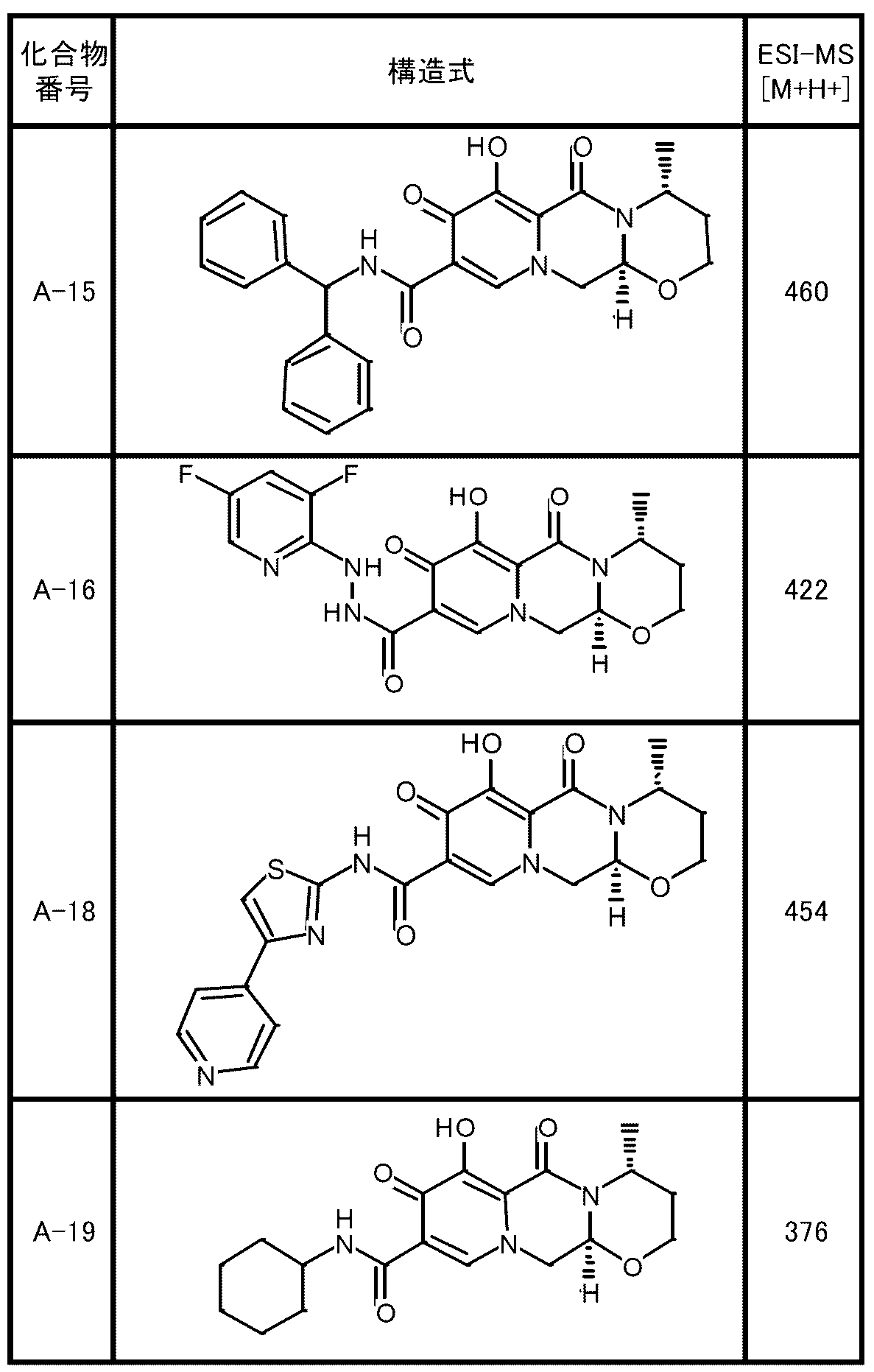

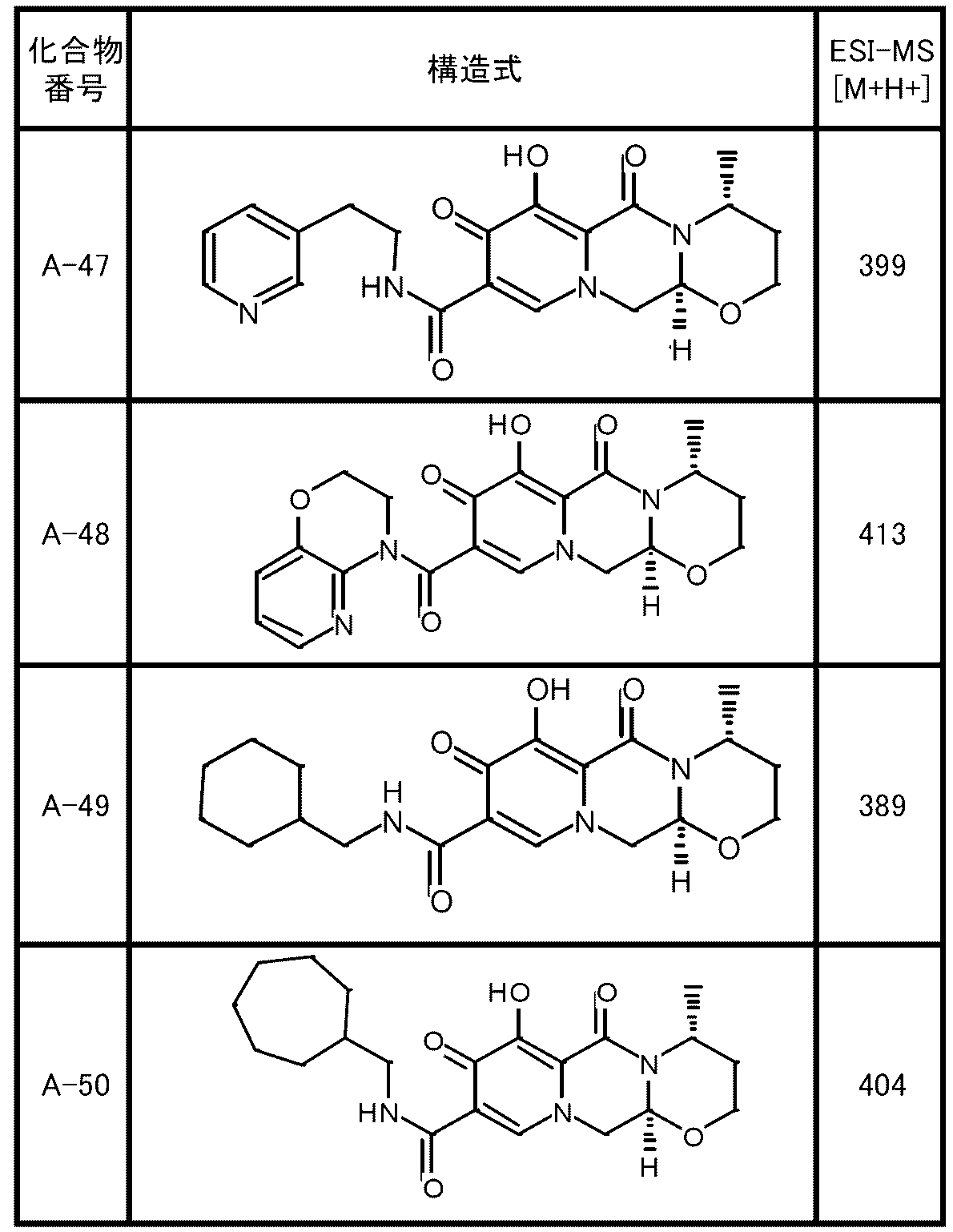

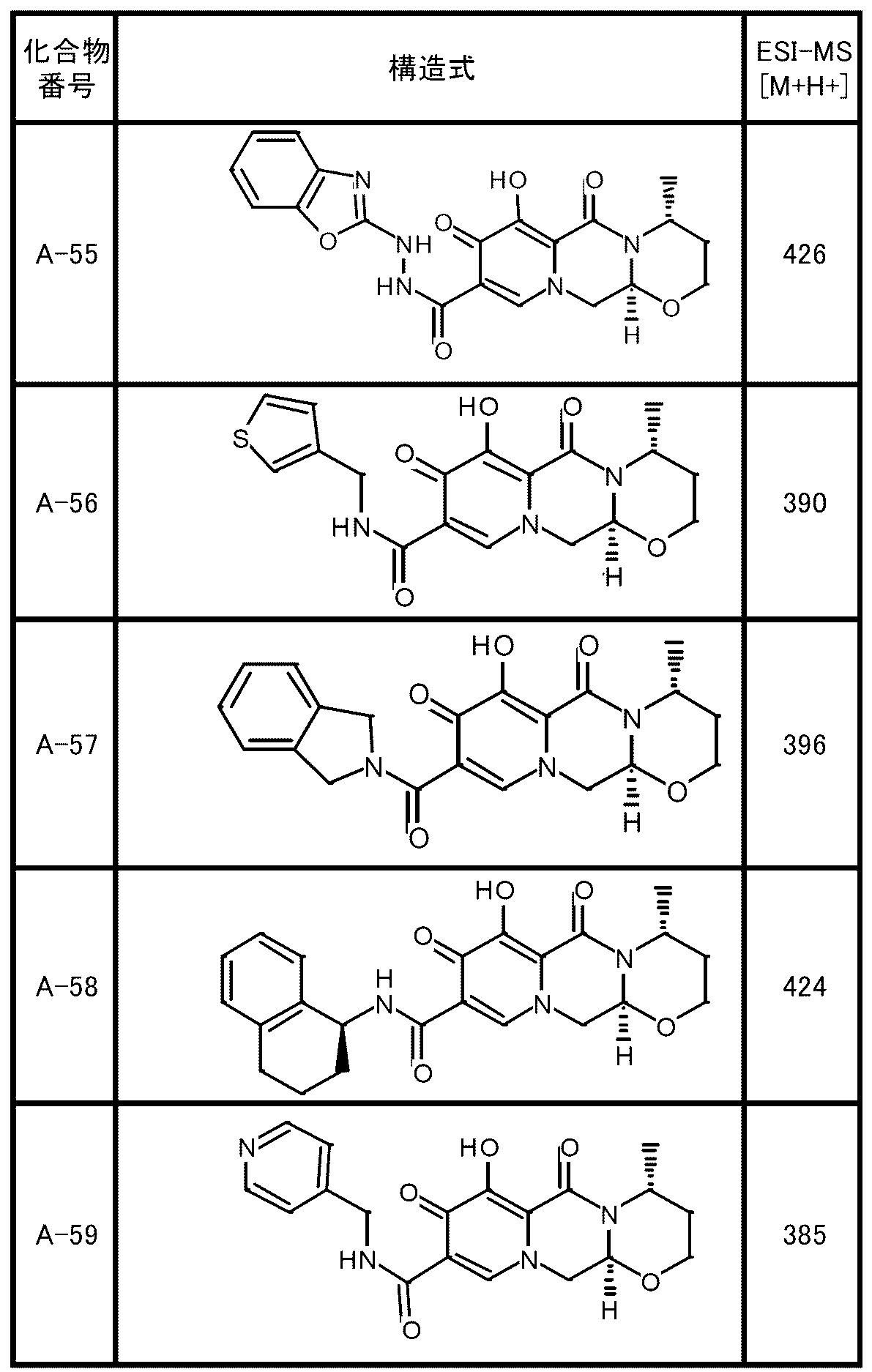

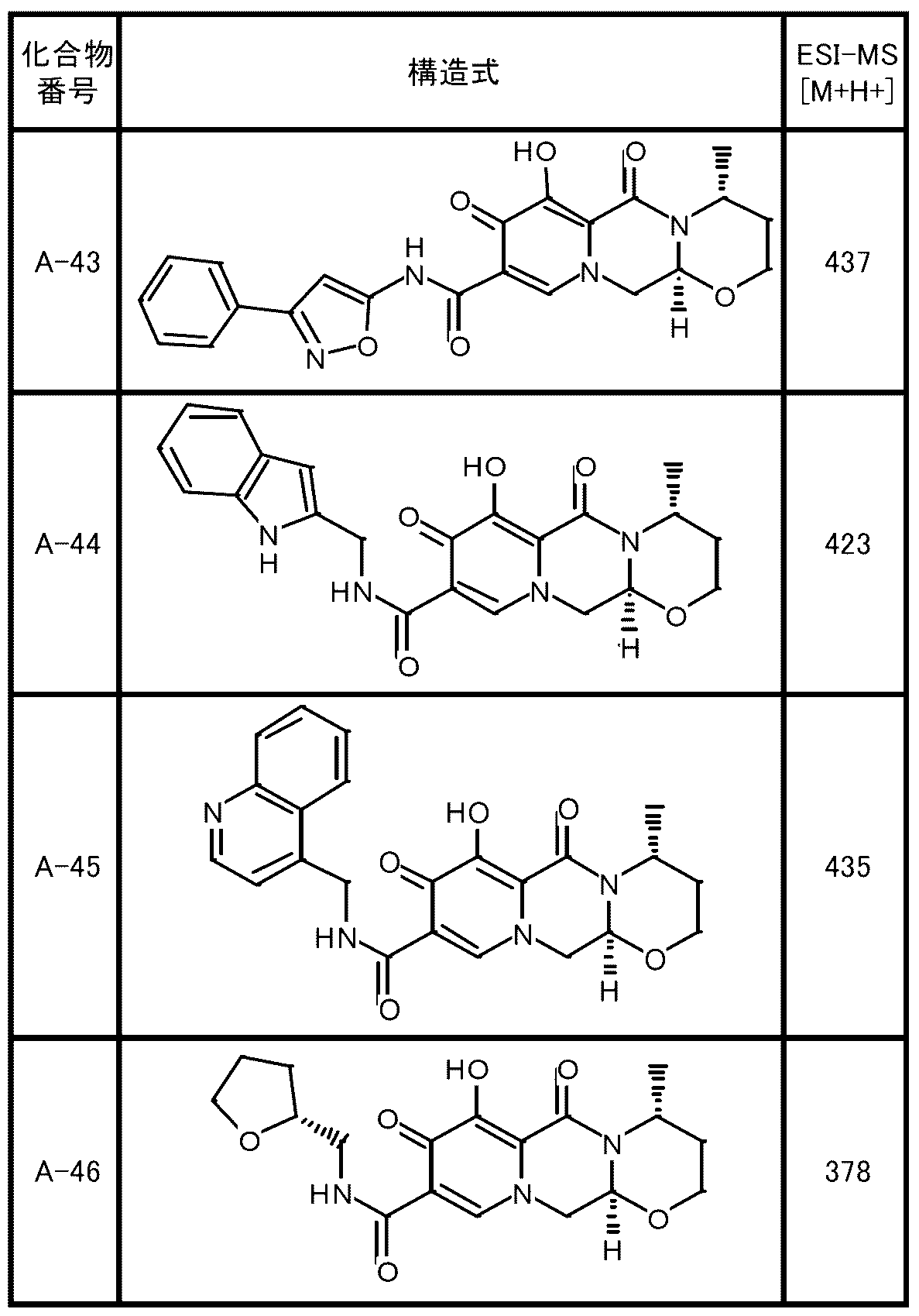

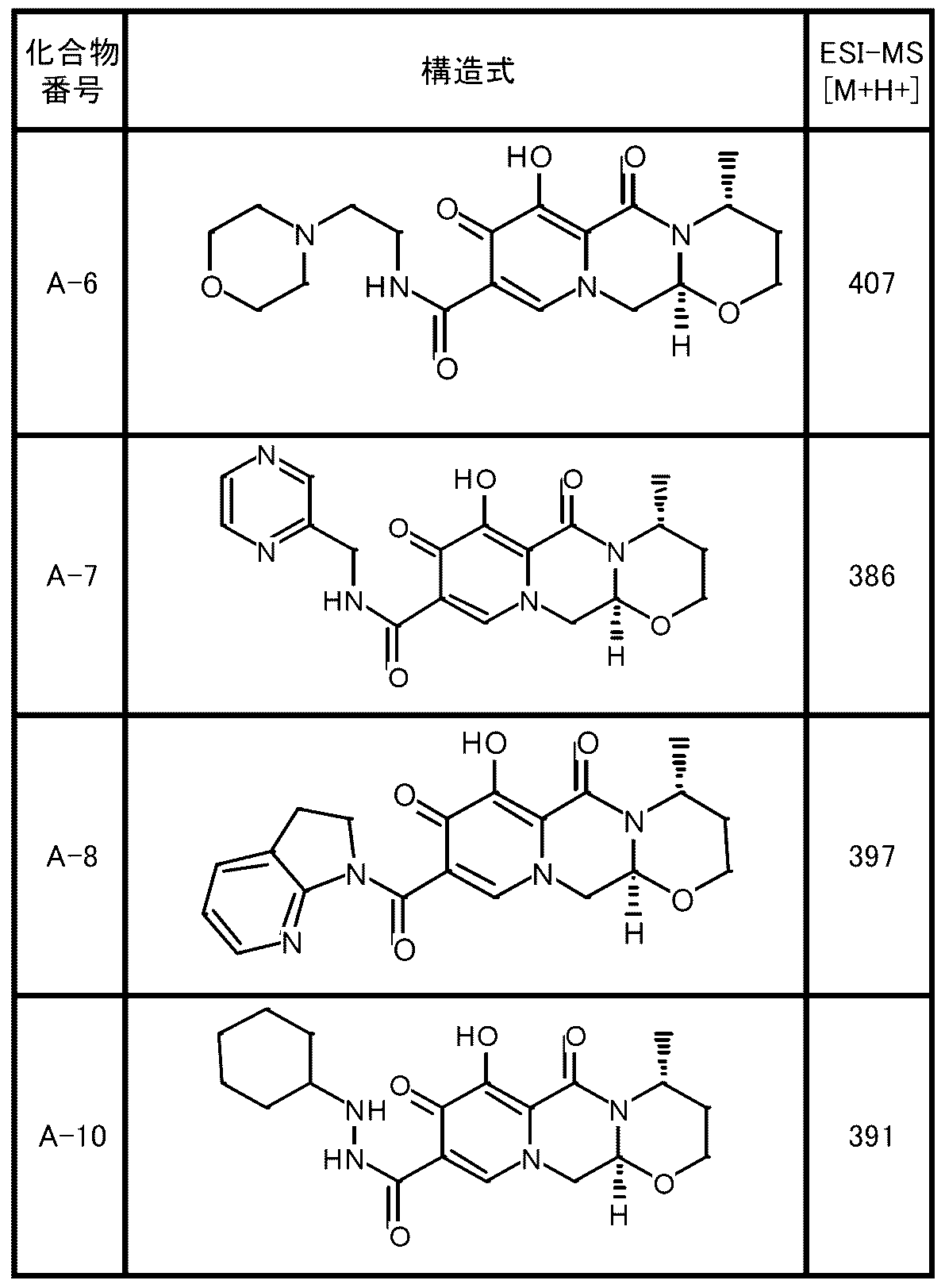

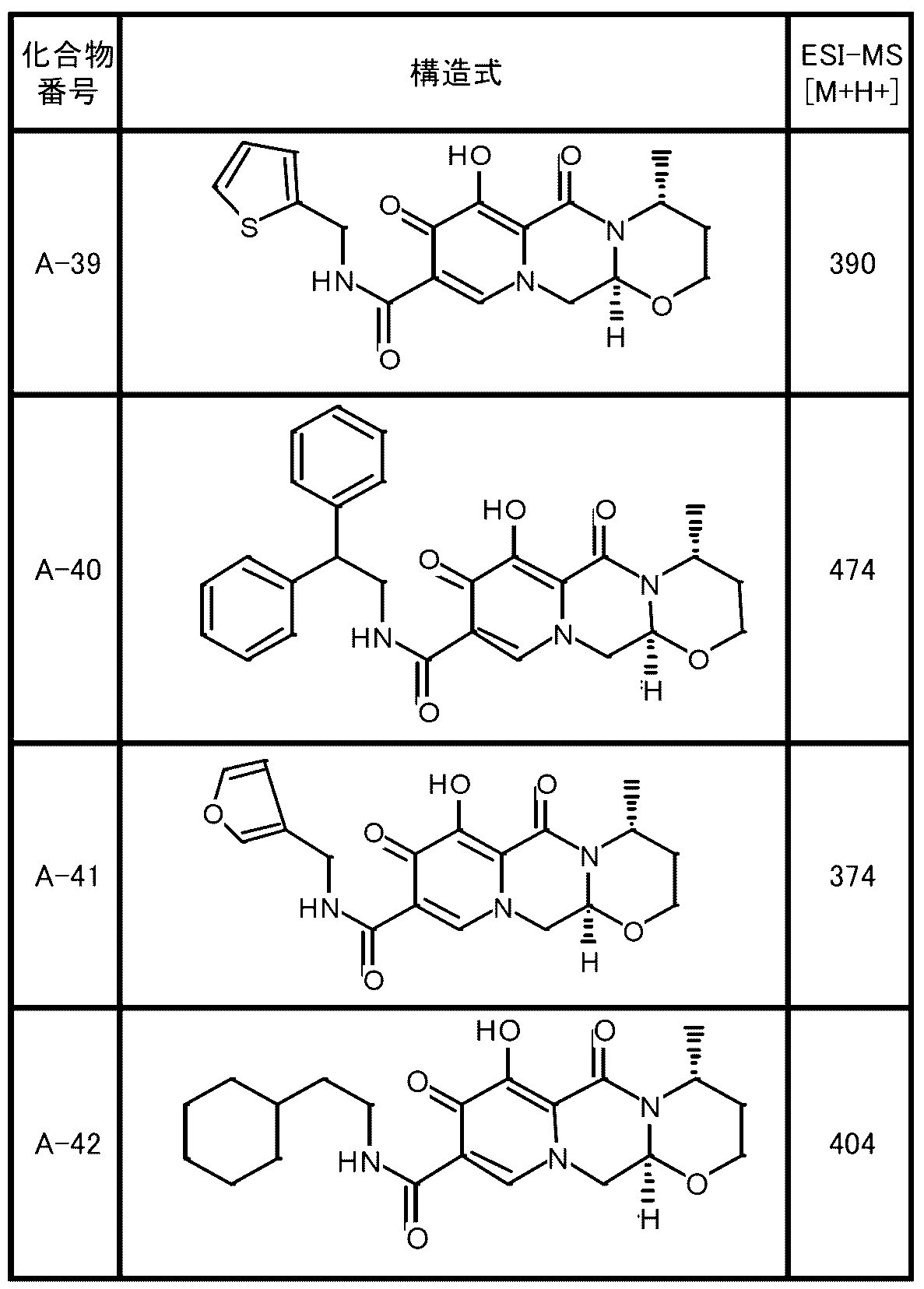

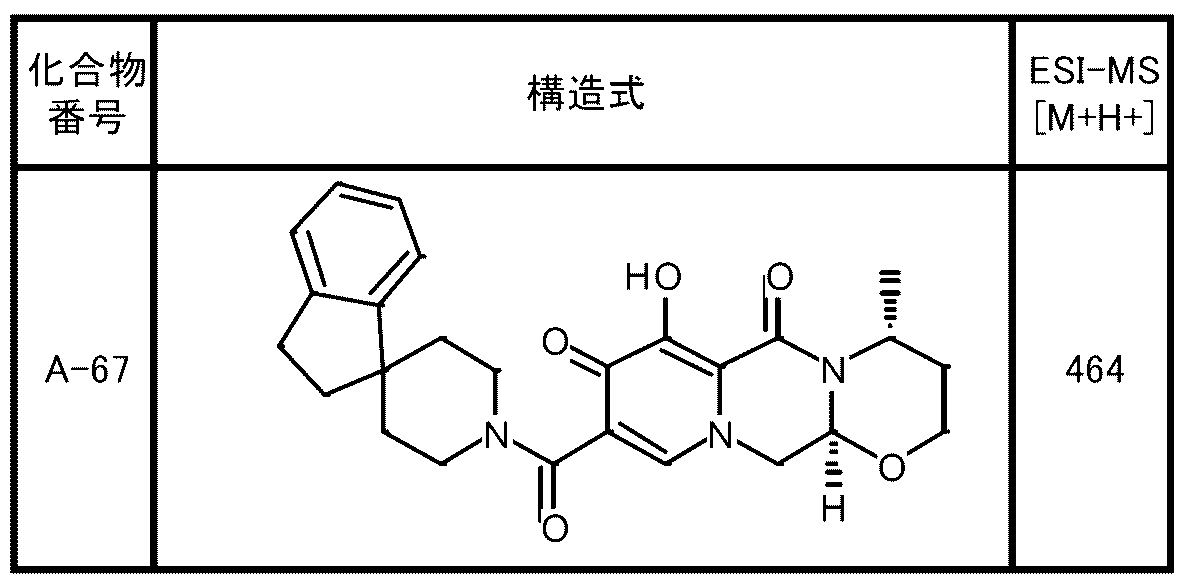

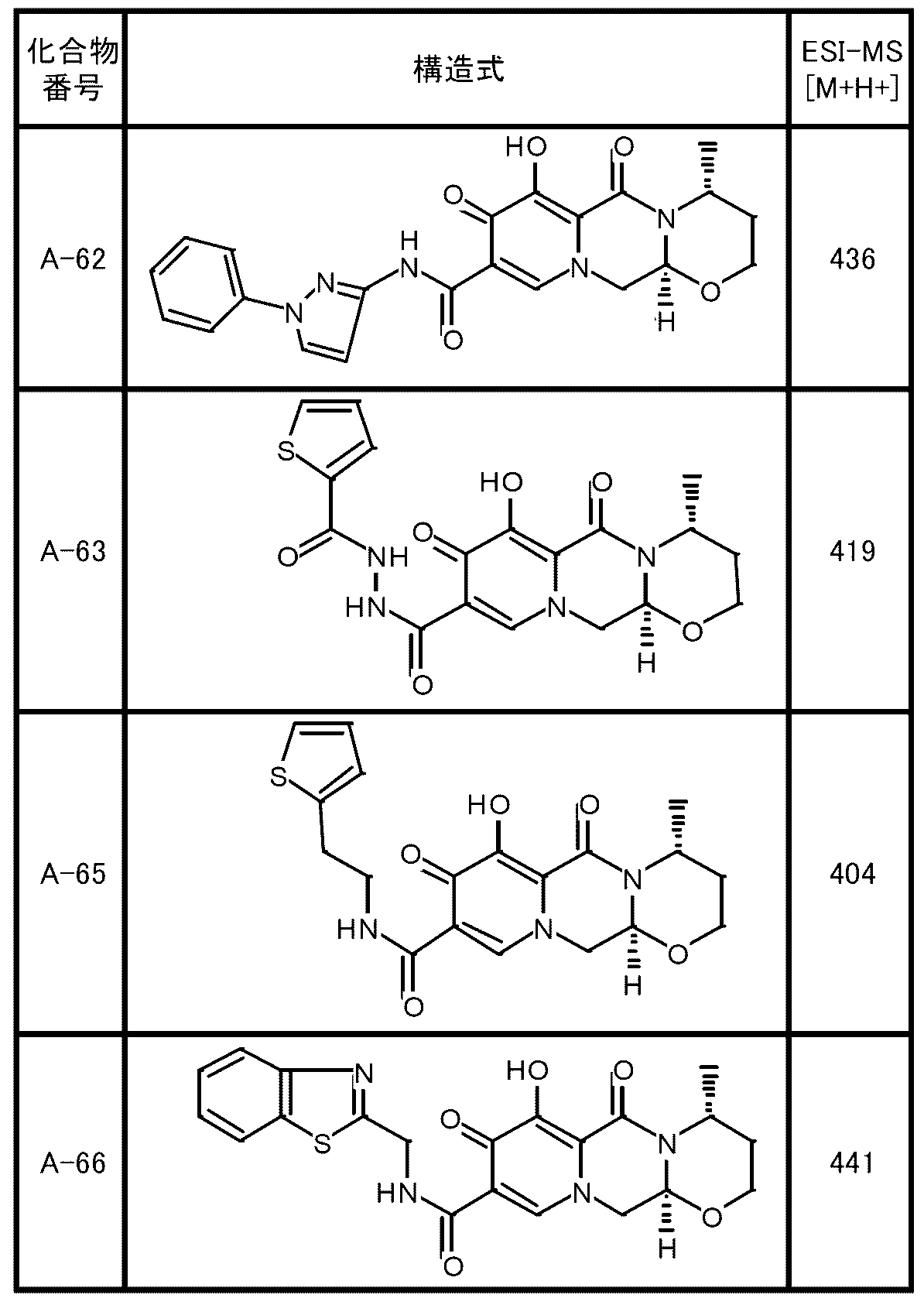

具体的化合物および物性データ(MS)を以下に記載した。

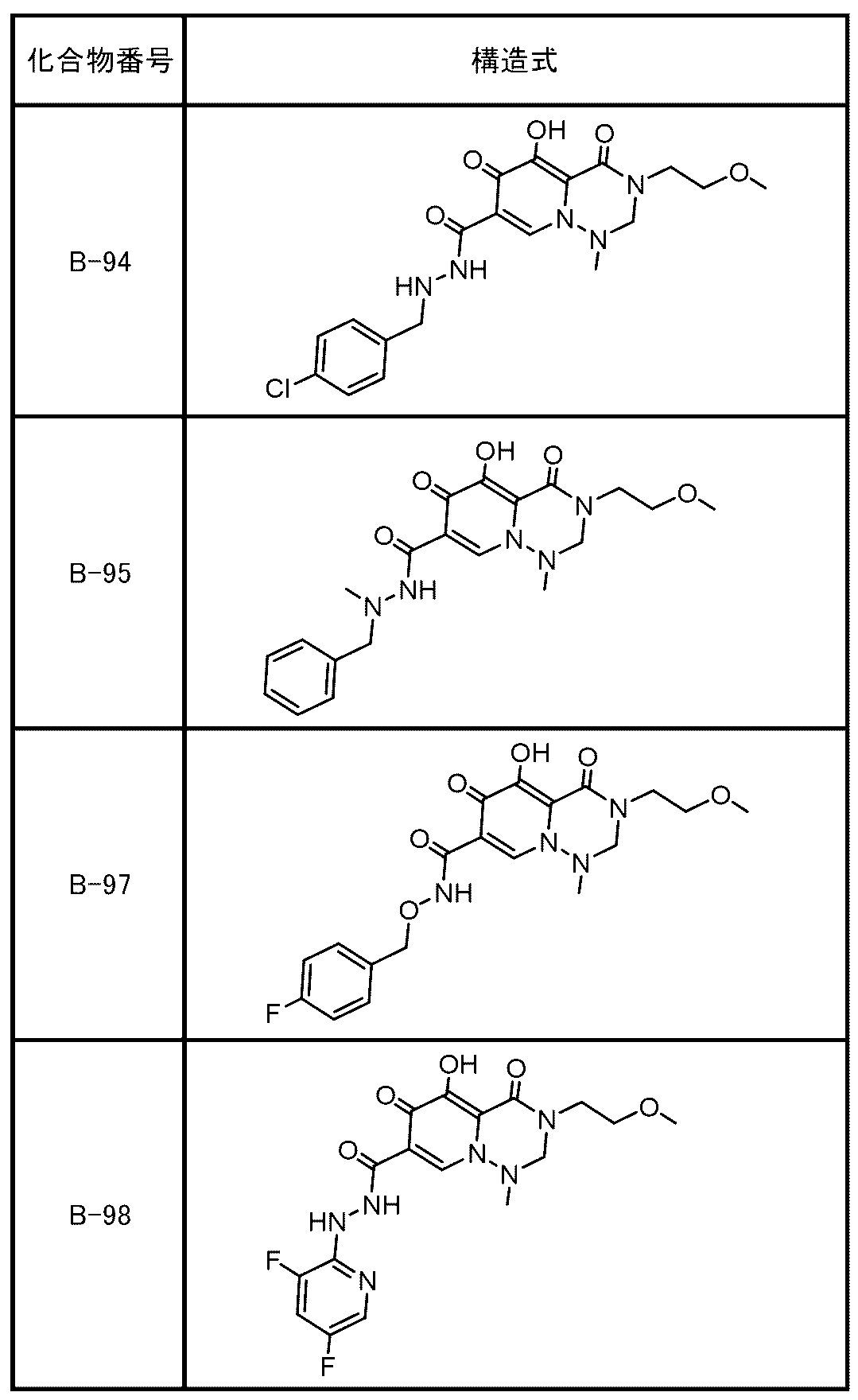

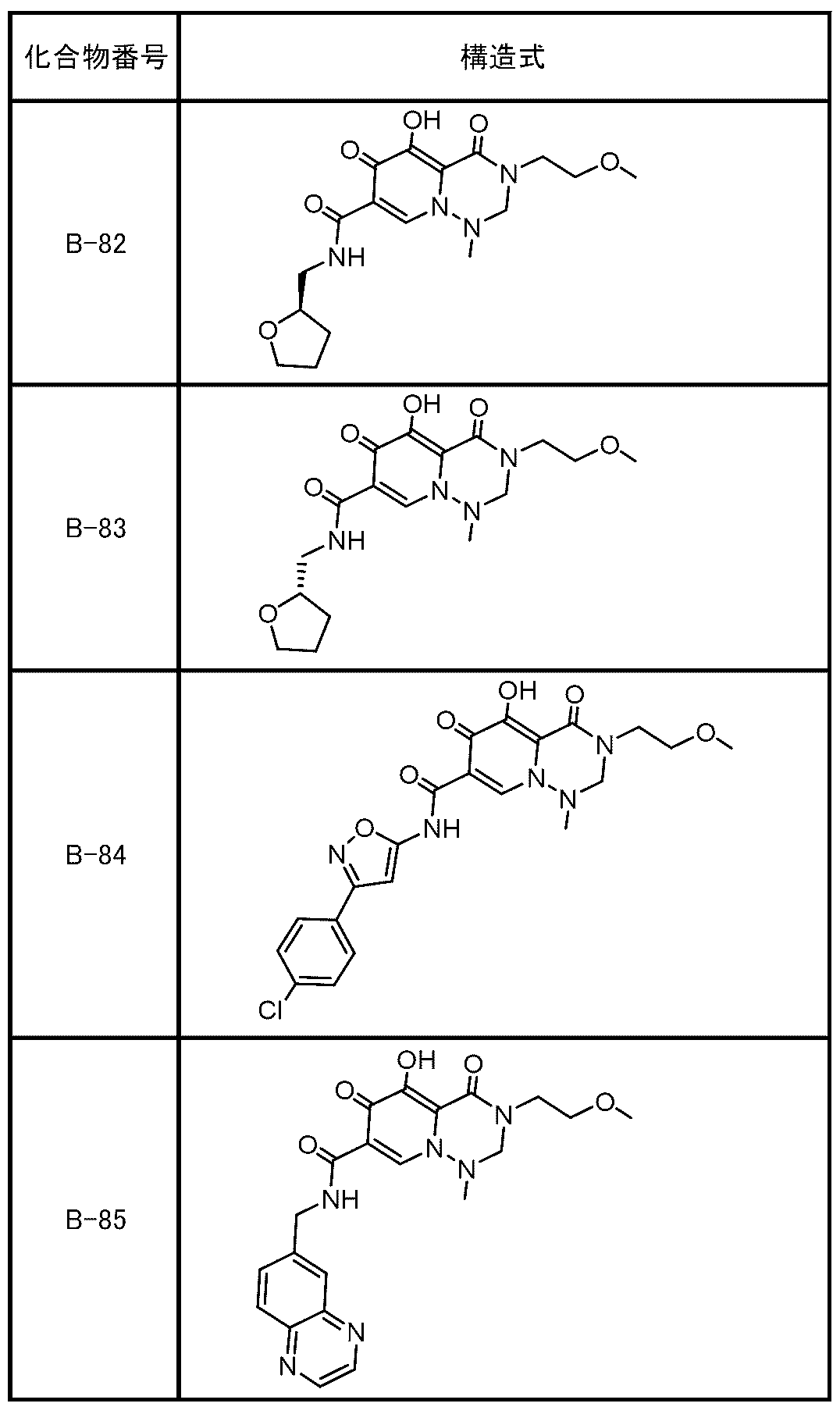

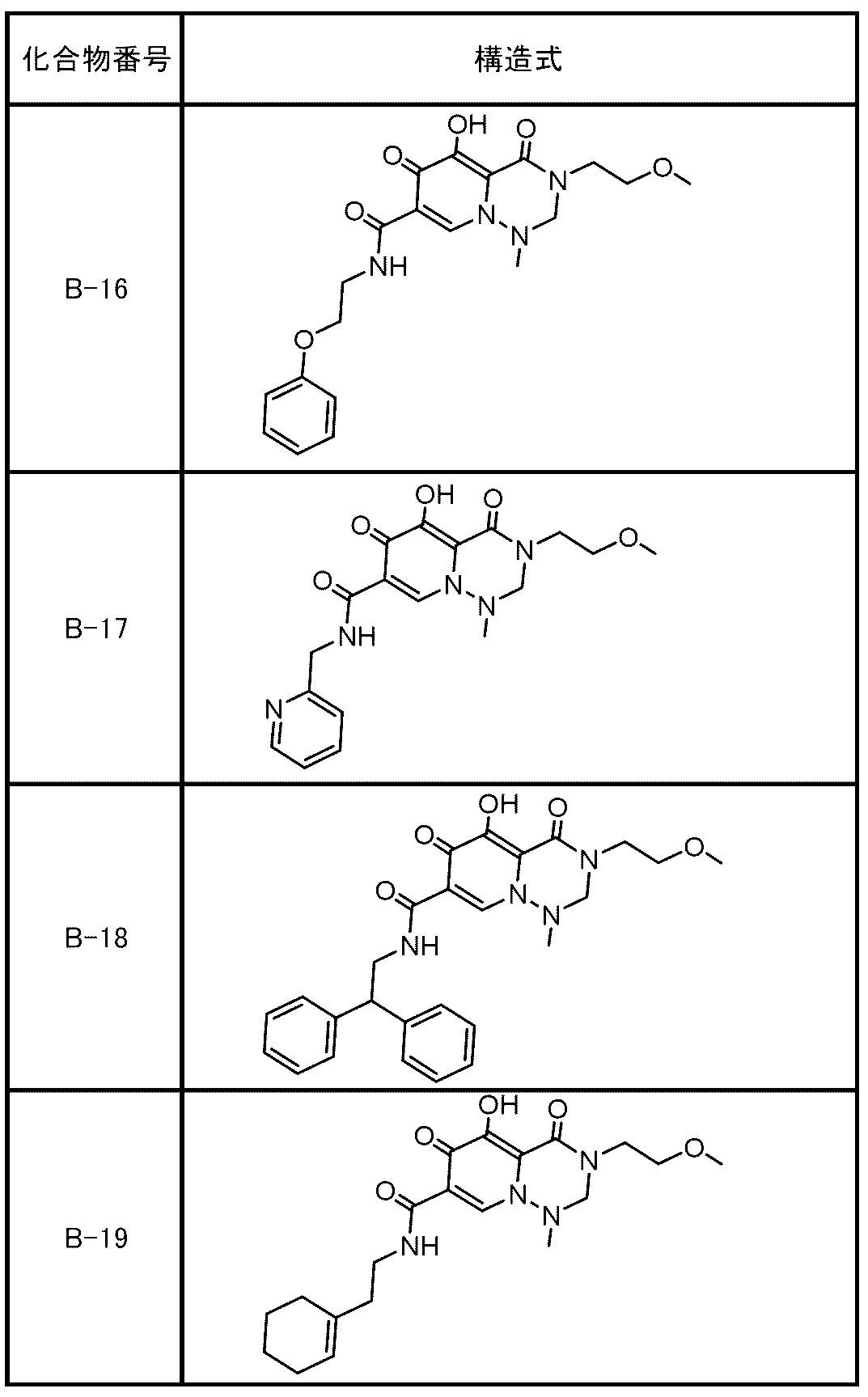

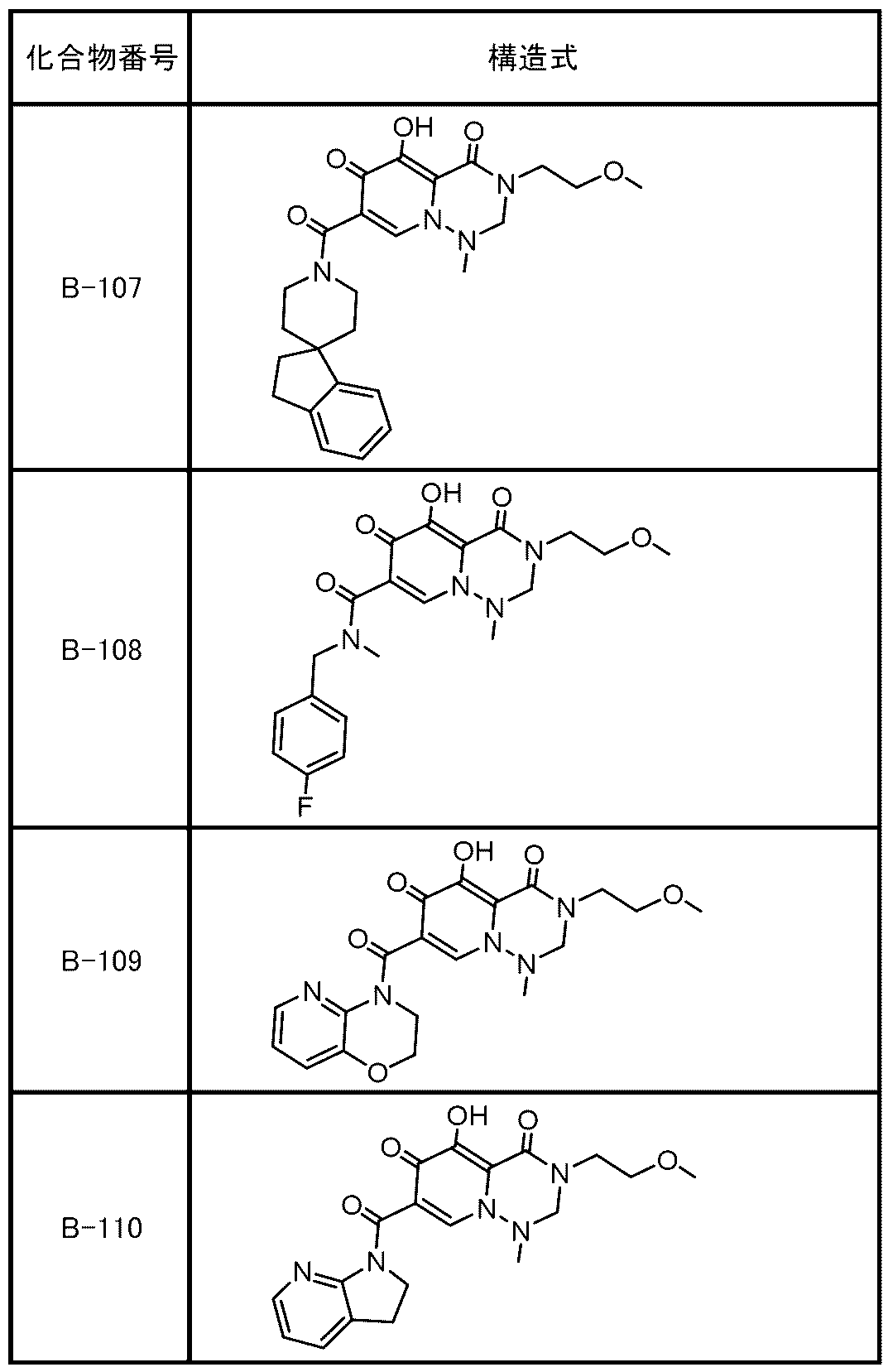

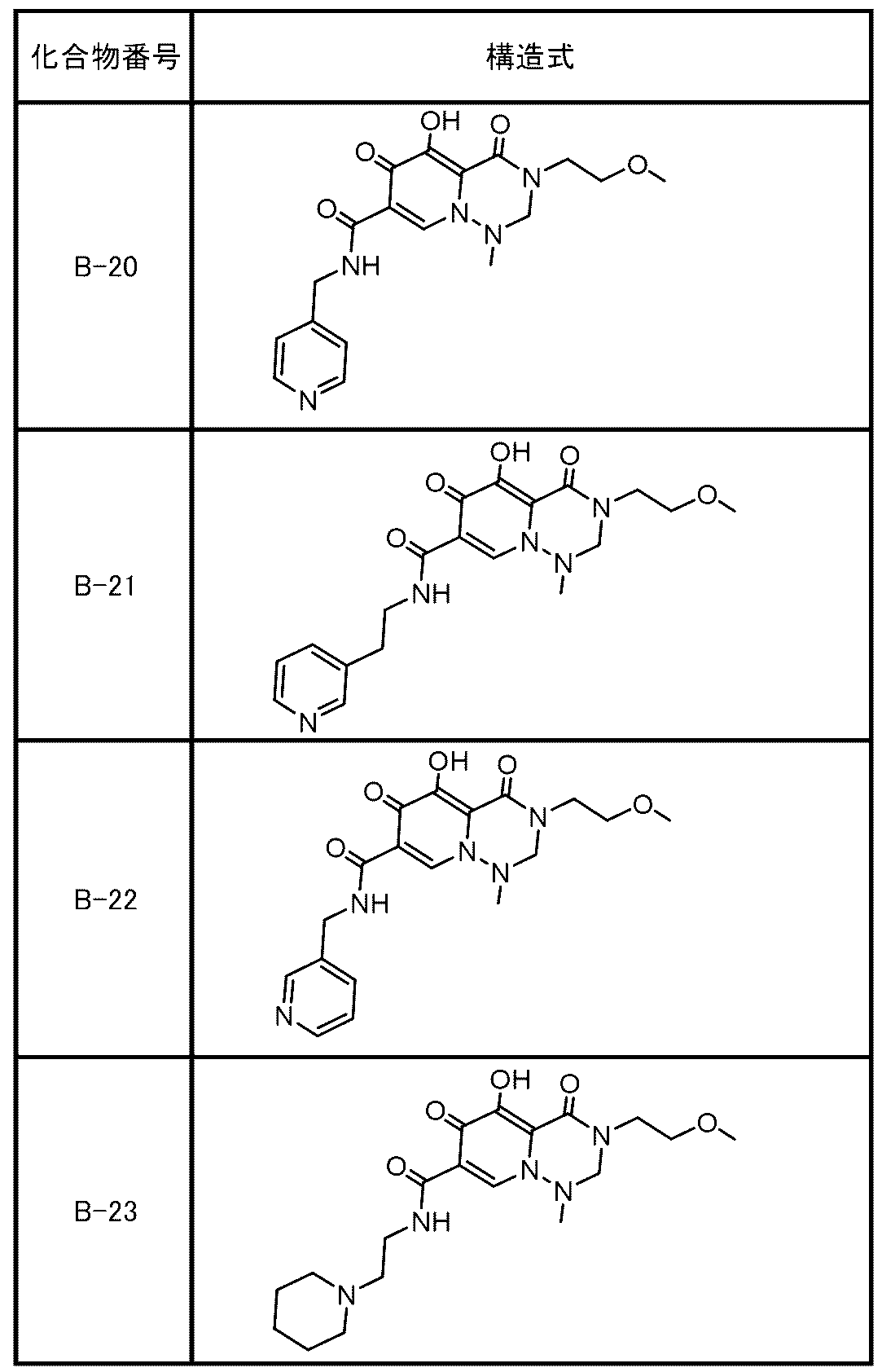

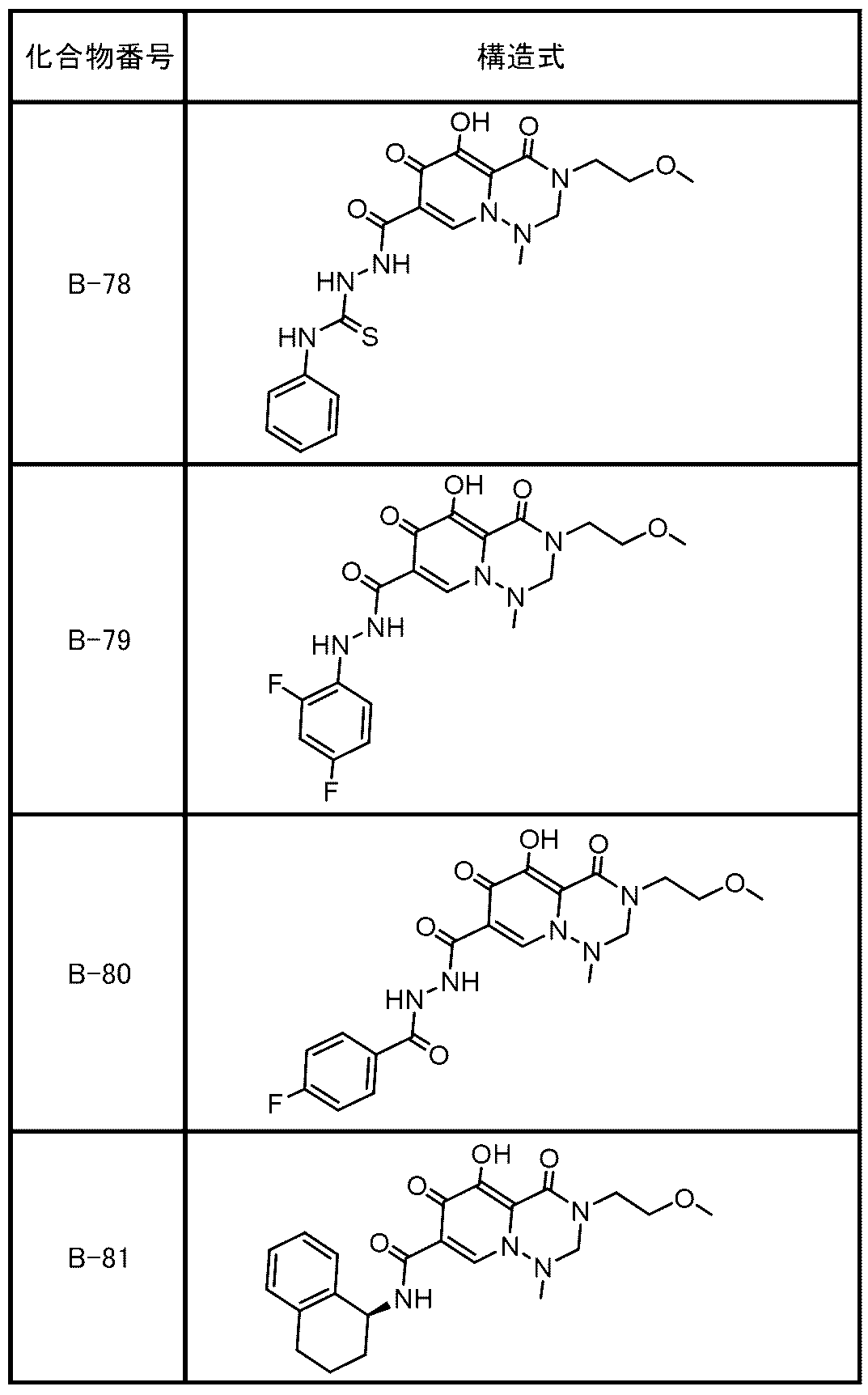

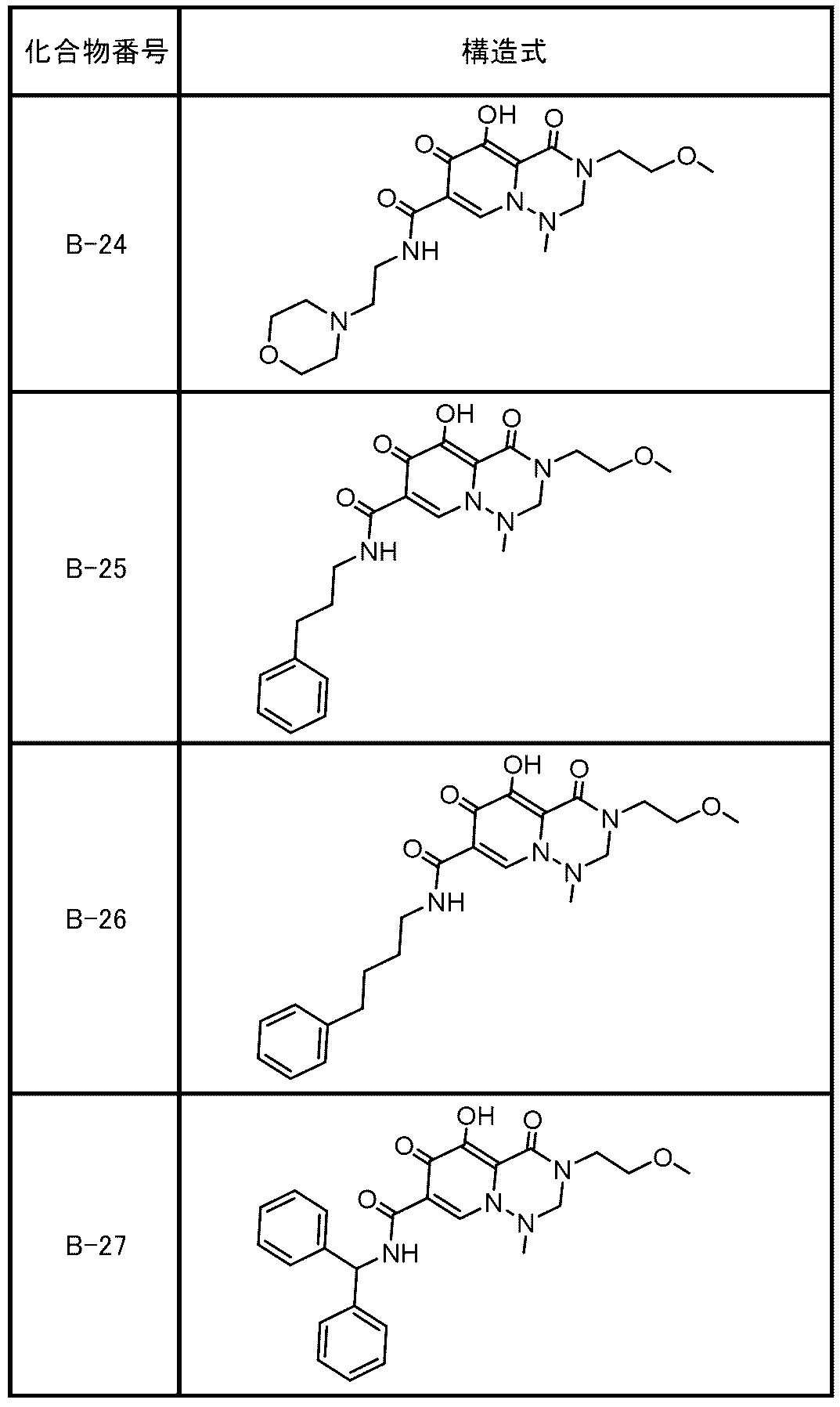

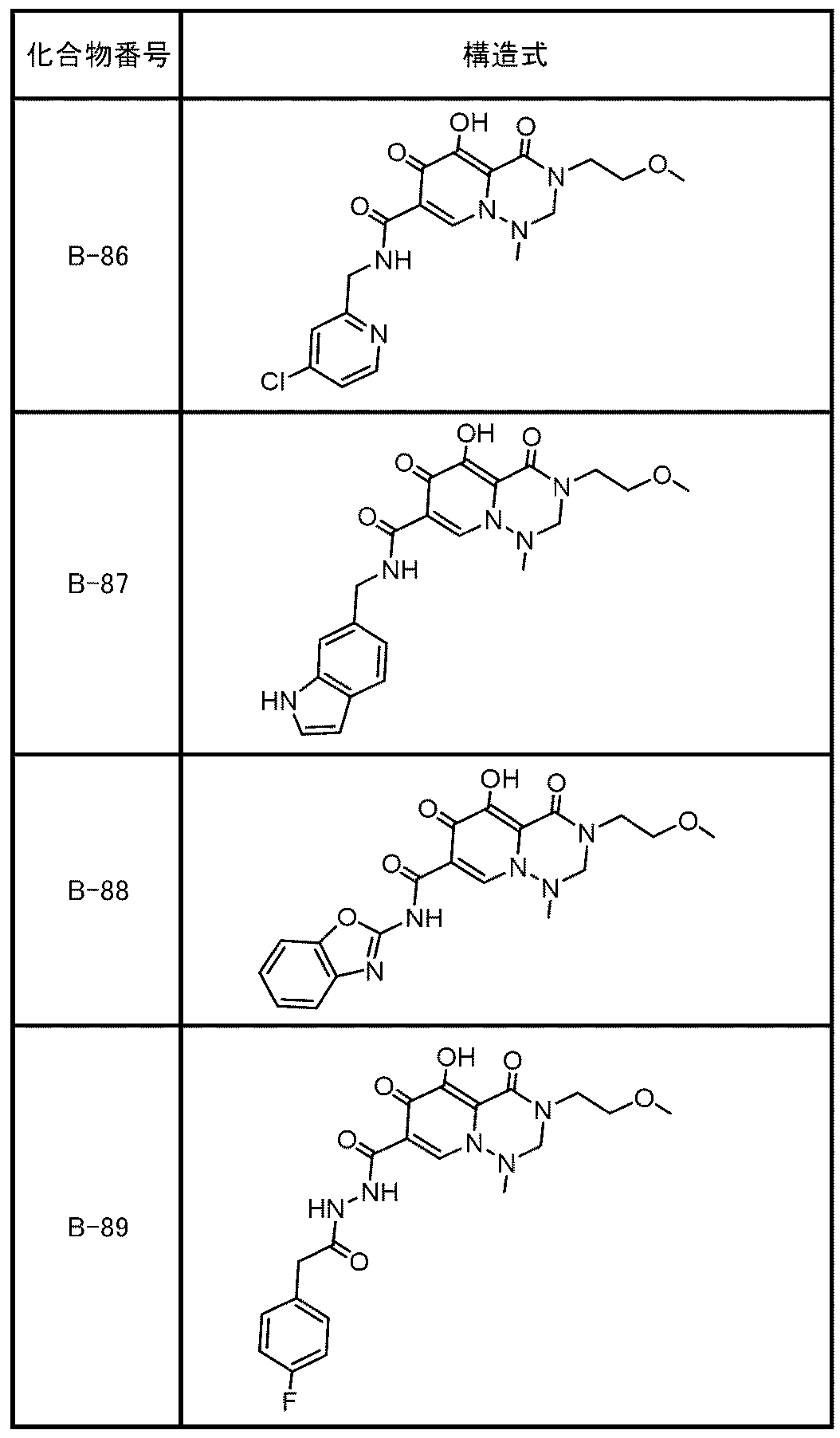

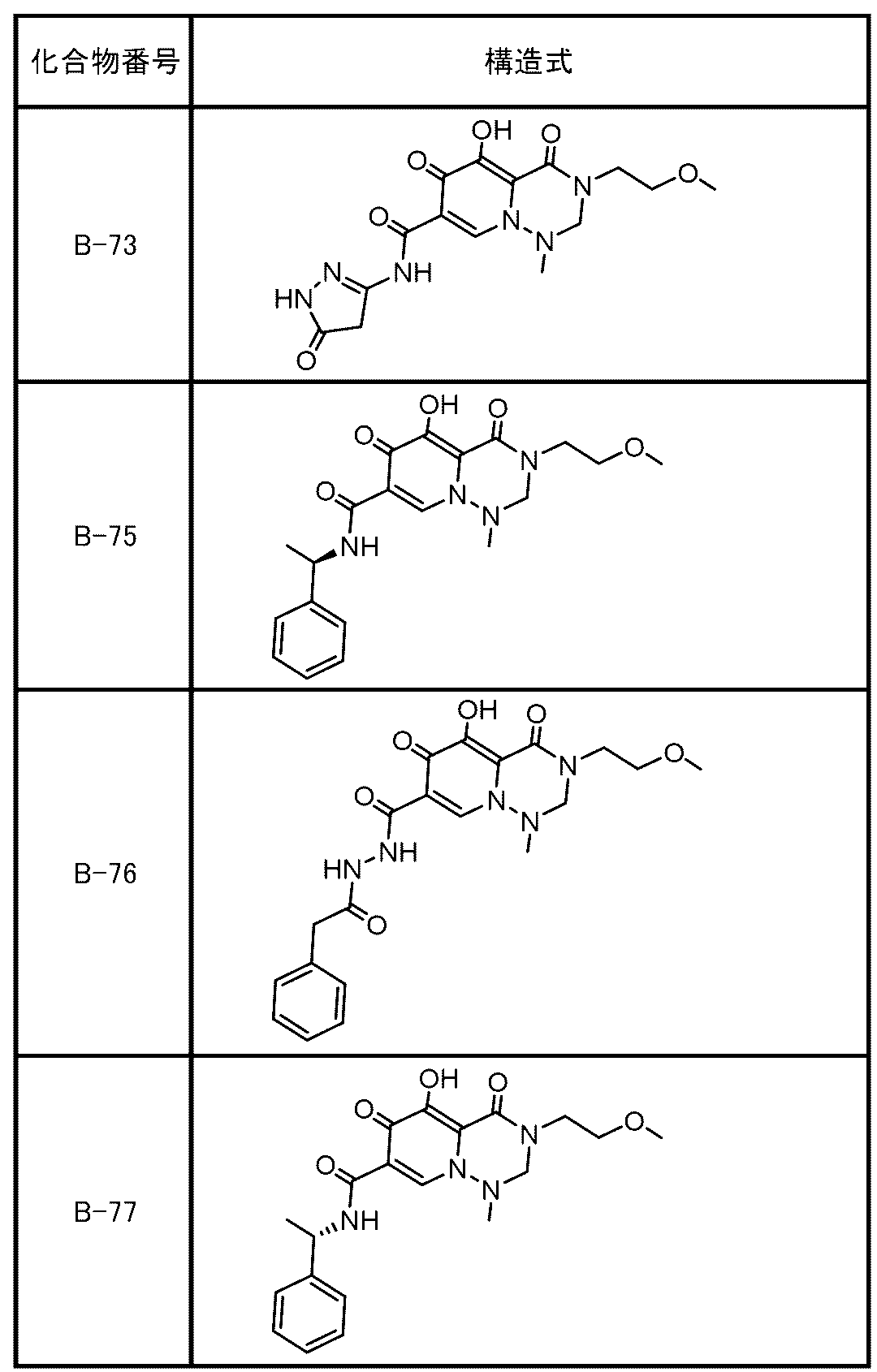

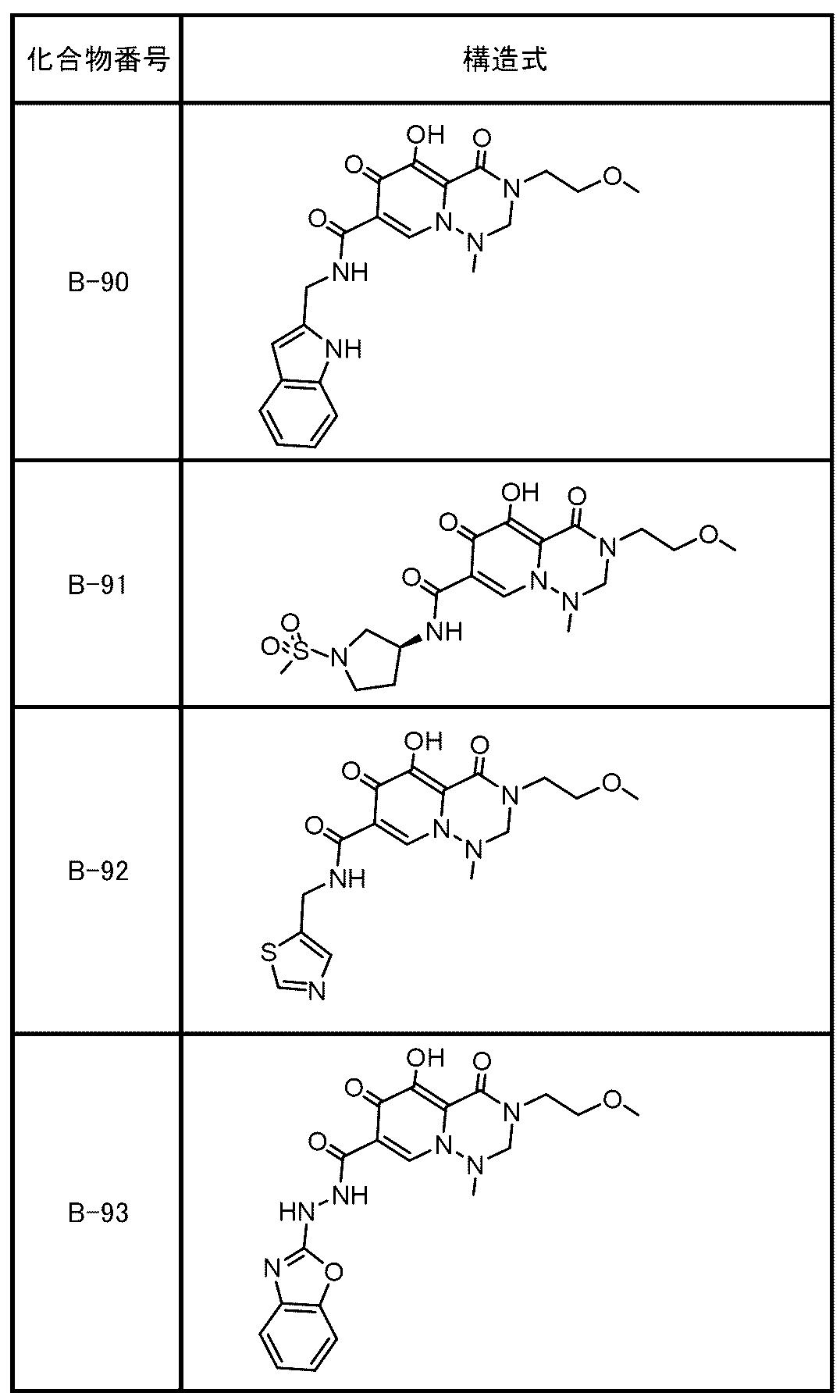

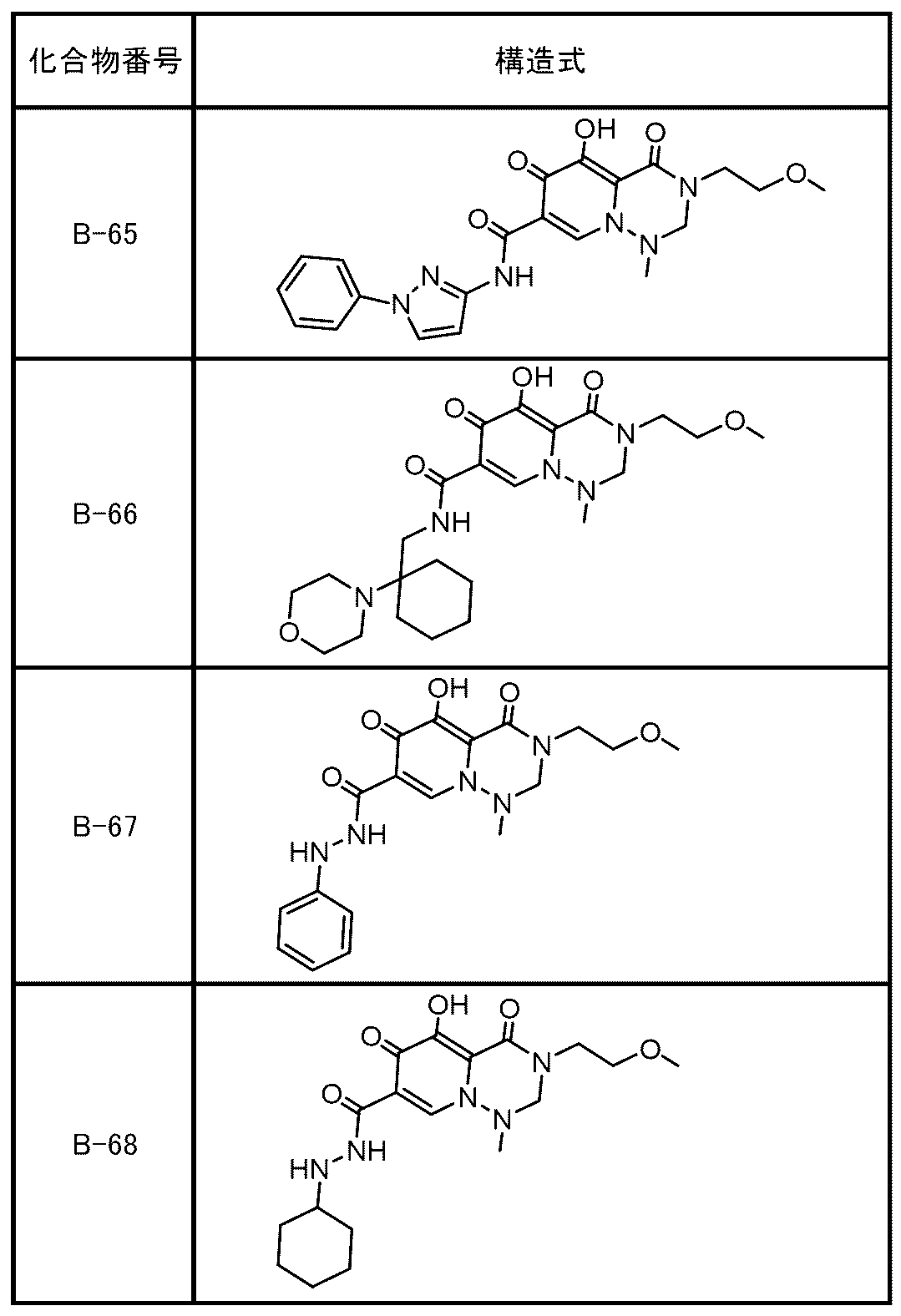

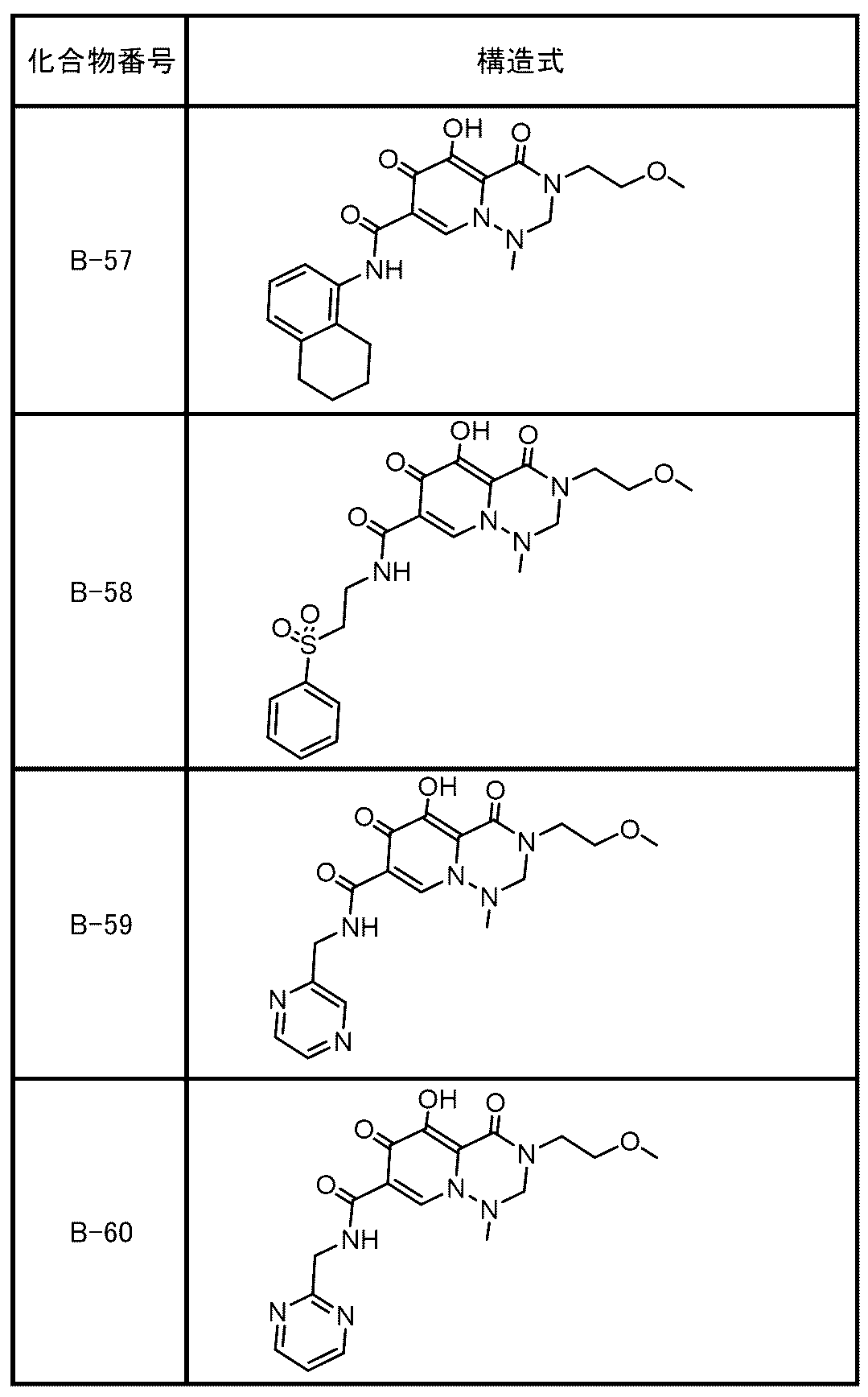

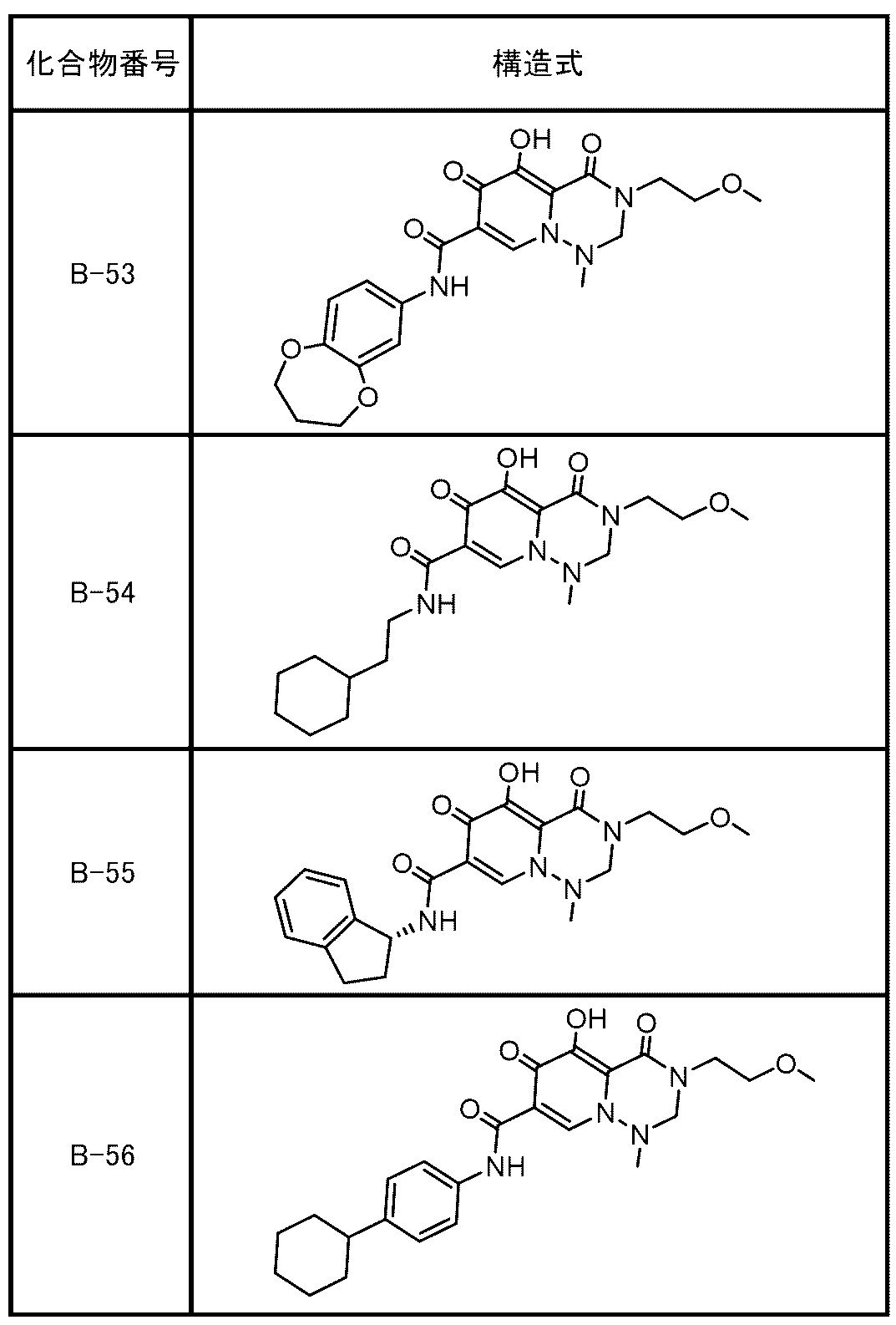

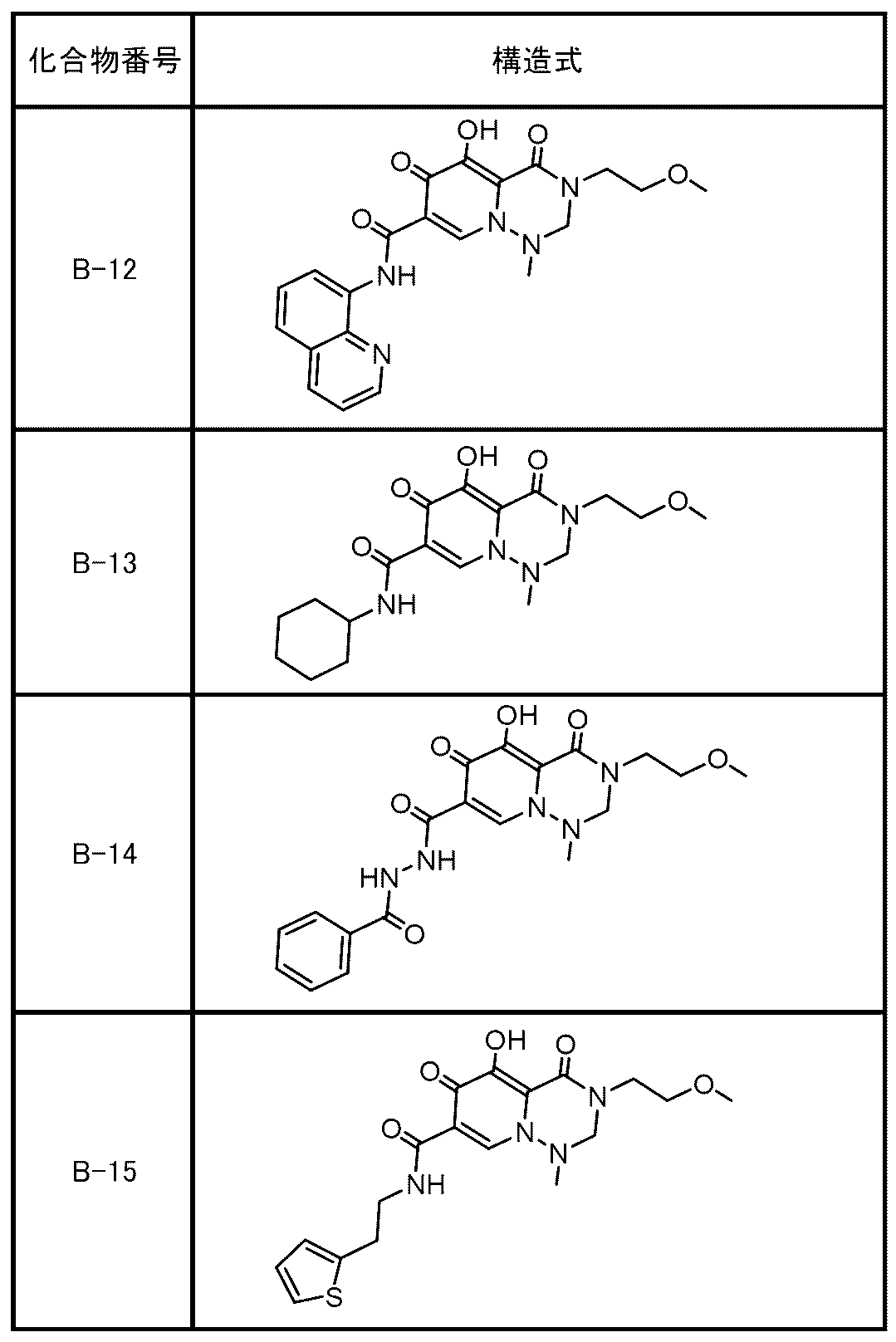

具体的化合物を以下に記載した。
(試験方法)
(1)DNA溶液の調製
特許文献2の試験例1に記載の方法と同一の方法で、基質DNA溶液(2 pmol/μl)およびターゲットDNA溶液(5 pmol/μl)を調製した。ターゲットDNA各溶液は、一旦煮沸後、ゆるやかに温度を下げて相補鎖同士をアニーリングさせてから用いた。基質DNAとターゲットDNAの各配列は、同試験例に記載の通りである。
Immobilizer - Streptavidin Plates (NUNC社製) に基質DNA溶液(2 pmol/μl) 50 μlを加え、振盪下、室温で60 分間吸着させた後、リン酸バッファーで2回洗浄した。
阻害率(%)=100[1-{(C abs.- NC abs.) / (PC abs.- NC abs.)}]
C abs. :化合物のウエルの吸光度
NC abs.:NCの吸光度
PC abs.:PCの吸光度
(結果)
(試験方法)
HeLa-CD4 細胞懸濁液 (2.5×104 細胞/ウエル) をアッセイプレートの各ウエルに分注した。37℃、5% CO2の条件下で1時間インキュベーション後、化合物希釈液 (50 μL) を各ウエルに加えた(但し、細胞コントロールを除く)。培養液 (50 μL) を細胞コントロールのウエルには加えた。プレートを37℃、5% CO2 の条件下で3日間培養した。

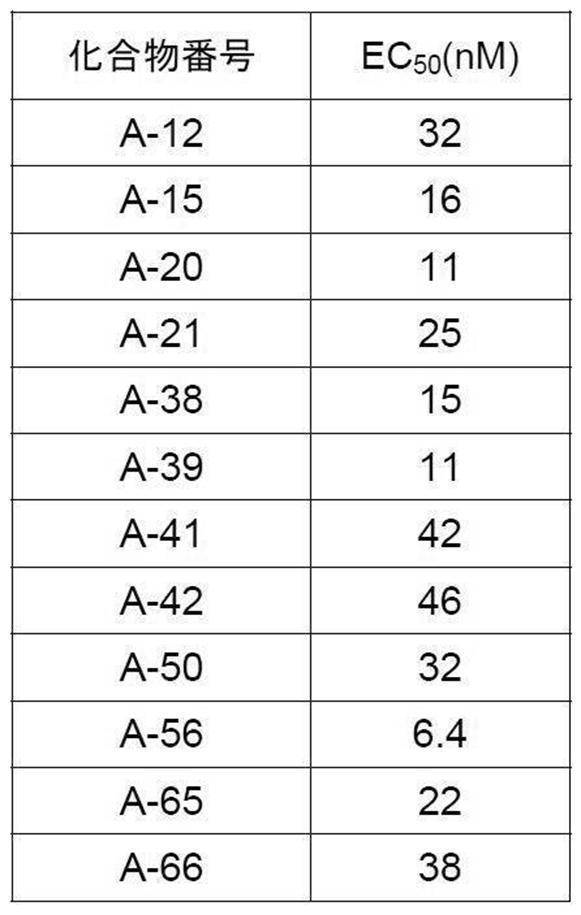

(結果)
「活性成分」なる用語は、本発明化合物、その互変異性体、それらの製薬的に許容される又はそれらの溶媒和物を意味する。
硬質ゼラチンカプセルは次の成分を用いて製造する:
用量
(mg/カプセル)
活性成分 250
デンプン(乾燥) 200
ステアリン酸マグネシウム 10
合計 460mg
製剤例2
錠剤は下記の成分を用いて製造する:
用量
(mg/カプセル)
活性成分 250
セルロース(微結晶) 400
二酸化ケイ素(ヒューム) 10
ステアリン酸 5
合計 665mg
成分を混合し、圧縮して各重量665mgの錠剤にする。
Claims (13)
- 式:
(式中、
R4は水素、置換されていてもよい低級アルキル(但し、置換基は置換されていてもよいアリールではない)、置換されていてもよいシクロアルキル、置換されていてもよいシクロアルキル低級アルキル、置換されていてもよい低級アルケニル、置換されていてもよい低級アルコキシ、置換されていてもよいアリール、置換されていてもよいアリール低級アルキル、置換されていてもよいアリールオキシ、置換されていてもよい複素環式基、置換されていてもよい複素環式基低級アルキル、置換されていてもよい複素環式基オキシ、ヒドロキシ、置換されていてもよいアミノ、置換されていてもよいリン酸残基、置換されていてもよいリン酸残基で置換されたアリール、置換されていてもよいリン酸残基で置換されたアラルキル、置換されていてもよいリン酸残基で置換されたヒドロキシ、置換されていてもよいリン酸残基で置換されたアミノ、または置換されていてもよいリン酸残基で置換された低級アルキル(該低級アルキルは、CO、O、S、SO、SO2、NRa(Raは水素または低級アルキル)、-N=および=N-からなる群から選択されるヘテロ原子基が介在していてもよい)、;
Z2は、O、S、SO、SO2、NR5(R5は水素、置換されていてもよい低級アルキル、置換されていてもよいシクロアルキル、置換されていてもよいシクロアルキル低級アルキル、置換されていてもよい低級アルケニル、置換されていてもよい低級アルコキシ、置換されていてもよいアリール、置換されていてもよいアリール低級アルキル、置換されていてもよいアリールオキシ、置換されていてもよい複素環式基、置換されていてもよい複素環式基低級アルキル、置換されていてもよい複素環式基オキシ、ヒドロキシ、置換されていてもよいアミノ、置換されていてもよいリン酸残基、置換されていてもよいリン酸残基で置換されたアリール、置換されていてもよいリン酸残基で置換されたアラルキル、置換されていてもよいリン酸残基で置換されたヒドロキシ、置換されていてもよいリン酸残基で置換されたアミノ、または置換されていてもよいリン酸残基で置換された低級アルキル(該低級アルキルは、CO、O、S、SO、SO2、NR5(R5はR4とは独立してR4と同一の置換基群から選択される)、-N=および=N-からなる群から選択されるヘテロ原子基が介在していてもよい))、-N=および=N-からなる群から選択されるヘテロ原子基が介在していてもよい、置換されていてもよい低級アルキレンまたは置換されていてもよい低級アルケニレン;
XAは、以下の群から選択される基:
XA1:単結合、
XA2:C=O、およびC=Sから選択される基、
XA3:O、S、SO、SO2およびNR1’(R1’は水素もしくは低級アルキル)から選択されるヘテロ原子基、
XA4:XA2およびXA3から選択される同一または異なる、2以上の基が連結して形成される基、
XA5:-N=N-、-C(R1’)=N-、または-N=C(R1’)-(R1’は水素もしくは低級アルキル)から選択される基、
XA6:置換されていてもよい低級アルキレンまたは置換されていてもよい低級アルケニレン、
XA7:XA2、XA3、XA4およびXA5から選択される1またはいずれかの2以上の基が介在しているXA6、ならびに
XA8:XA1~XA7の任意の組み合わせからなるスペーサー;
Qは、以下の群から選択される基:
Q1:置換されていてもよく、縮合していてもよい炭素環式基、および
Q2:置換されていてもよく、縮合していてもよい複素環式基、
但し、
-XA-Qが-CONR1-X-R2である場合:
(式中、R1は、水素または低級アルキル;
Xは、単結合、O、S、SO、SO2およびNHから選択されるヘテロ原子基、または該ヘテロ原子基が介在していてもよい低級アルキレンもしくは低級アルケニレン;
R2は、置換されていてもよいアリール)
を除く;
R3は水素、ハロゲン、ヒドロキシ、置換されていてもよい低級アルキル、置換されていてもよいシクロアルキル、置換されていてもよい低級アルケニル、置換されていてもよい低級アルコキシ、置換されていてもよい低級アルケニルオキシ、置換されていてもよいアリール、置換されていてもよいアリールオキシ、置換されていてもよい複素環式基、置換されていてもよい複素環式基オキシ、または置換されていてもよいアミノ;
R4はZ2部分と一緒になって環を形成してもよく、このとき、化合物(QI)は以下の式(QI-1)または(QI-11)で示される:
(式中、
A環は置換されていてもよい複素環;R14およびRXは、それぞれ独立して水素、置換されていてもよい低級アルキル、置換されていてもよいシクロアルキル、置換されていてもよいシクロアルキル低級アルキル、置換されていてもよい低級アルケニル、置換されていてもよい低級アルコキシ、置換されていてもよい低級アルケニルオキシ、置換されていてもよいアリール、置換されていてもよいアリール低級アルキル、置換されていてもよいアリールオキシ、置換されていてもよい複素環式基、置換されていてもよい複素環式基低級アルキル、置換されていてもよい複素環式基オキシ、置換されていてもよいリン酸残基、置換されていてもよいリン酸残基で置換されたアリール、置換されていてもよいリン酸残基で置換されたアラルキル、置換されていてもよいリン酸残基で置換されたヒドロキシ、置換されていてもよいリン酸残基で置換されたアミノ、置換されていてもよいリン酸残基で置換された低級アルキル(該低級アルキルは、O、S、SO、SO2、NR5(R5はR4とは独立してR4と同一の置換基群から選択される)、-N=および=N-からなる群から選択されるヘテロ原子基が介在していてもよい)、ヒドロキシ、置換されていてもよいアミノ、置換されていてもよい低級アルキルカルボニル、置換されていてもよいシクロアルキルカルボニル、置換されていてもよいシクロアルキル低級アルキルカルボニル、置換されていてもよい低級アルコキシカルボニル、置換されていてもよいアリールカルボニル、置換されていてもよいアリール低級アルキルカルボニル、置換されていてもよいアリールオキシカルボニル、置換されていてもよい複素環式基カルボニル、置換されていてもよい複素環式基低級アルキルカルボニル、置換されていてもよい複素環式基オキシカルボニル、または置換されていてもよいアミノカルボニル;破線は結合の存在または非存在を示す;
但し、破線が結合の存在を示す場合、RXは存在しない;
XAおよびQは前記と同意義;
R3は水素、ハロゲン、ヒドロキシ、置換されていてもよい低級アルキル、置換されていてもよいシクロアルキル、置換されていてもよい低級アルケニル、置換されていてもよい低級アルコキシ、置換されていてもよい低級アルケニルオキシ、置換されていてもよいアリール、置換されていてもよいアリールオキシ、置換されていてもよい複素環式基、置換されていてもよい複素環式基オキシ、または置換されていてもよいアミノ);
(式中、
D環は置換されていてもよい複素環;
XAおよびQは前記と同意義;
R3は水素、ハロゲン、ヒドロキシ、置換されていてもよい低級アルキル、置換されていてもよいシクロアルキル、置換されていてもよい低級アルケニル、置換されていてもよい低級アルコキシ、置換されていてもよい低級アルケニルオキシ、置換されていてもよいアリール、置換されていてもよいアリールオキシ、置換されていてもよい複素環式基、置換されていてもよい複素環式基オキシ、または置換されていてもよいアミノ);
またZ2は、B1およびB2からなる連結基であってもよく、この時、化合物(QI)は以下の式(QI-B)で示される:
破線は結合の存在または非存在を示す;
B1およびB2は、いずれか一方はCR20R21、他方はNR22、この場合は破線は存在しない;
B2がNR22の場合、R4とR22は一緒になって置換されていてもよい複素環を形成してもよく;
B2がCHR21の場合、R4とR21は一緒になって置換されていてもよい複素環を形成してもよく;
またはB1およびB2は、それぞれ独立してC、CR23、またはNであり、この場合B1およびB2部分は一緒になって置換されていてもよい複素環を形成してもよい;
R20、R21、R22およびR23は、それぞれ独立して、水素、置換されていてもよい低級アルキル、置換されていてもよいシクロアルキル、置換されていてもよいシクロアルキル低級アルキル、置換されていてもよい低級アルケニル、置換されていてもよい低級アルコキシ、置換されていてもよい低級アルケニルオキシ、置換されていてもよいアリール、置換されていてもよいアリール低級アルキル、置換されていてもよいアリールオキシ、置換されていてもよい複素環式基、置換されていてもよい複素環式基低級アルキル、置換されていてもよい複素環式基オキシ、置換されていてもよいリン酸残基、置換されていてもよいリン酸残基で置換されたアリール、置換されていてもよいリン酸残基で置換されたアラルキル、置換されていてもよいリン酸残基で置換されたヒドロキシ、置換されていてもよいリン酸残基で置換されたアミノ、置換されていてもよいリン酸残基で置換された低級アルキル(該低級アルキルは、O、S、SO、SO2、NR5(R5はR4とは独立してR4と同一の置換基群から選択される)、-N=および=N-からなる群から選択されるヘテロ原子基が介在していてもよい)、ヒドロキシ、置換されていてもよいアミノ、置換されていてもよい低級アルキルカルボニル、置換されていてもよいシクロアルキルカルボニル、置換されていてもよいシクロアルキル低級アルキルカルボニル、置換されていてもよい低級アルコキシカルボニル、置換されていてもよいアリールカルボニル、置換されていてもよいアリール低級アルキルカルボニル、置換されていてもよいアリールオキシカルボニル、置換されていてもよい複素環式基カルボニル、置換されていてもよい複素環式基低級アルキルカルボニル、置換されていてもよい複素環式基オキシカルボニル、置換されていてもよいアミノカルボニル、置換(チオ)ウレア、または置換スルホニル;
その他の記号は、前記と同意義))、
で示される化合物、その製薬上許容される塩、またはそれらの溶媒和物。 - -XA-Qにおいて、XAが、-CONR1’-、-CONR1’-XA6-、または-CONR1’-XA7-(各記号は前記と同意義)である、請求項1記載の化合物、その製薬上許容される塩、またはそれらの溶媒和物。
- Qが、Q2:置換されていてもよく、縮合していてもよい複素環式基である、請求項1または2記載の化合物、その製薬上許容される塩、またはそれらの溶媒和物。
- Qが、置換されていてもよく、縮合していてもよい、O、SおよびN原子から選択される1または2以上の同一または異なるヘテロ原子を1から4個含有する5~7員の複素環式基である、請求項3記載の化合物、その製薬上許容される塩、またはそれらの溶媒和物。
- Qが、Q1:置換されていてもよく、縮合していてもよい炭素環式基である、請求項1または2記載の化合物、その製薬上許容される塩、またはそれらの溶媒和物。
- Qが、置換されていてもよく、縮合していてもよいシクロアルキルである、請求項1または2記載の化合物、その製薬上許容される塩、またはそれらの溶媒和物。
- -XA-Qにおいて、XAが、-CONR1’-、-CONR1’-XA6-、または-CONR1’-XA7-(各記号は前記と同意義);Qが、Q2:置換されていてもよく、縮合していてもよい複素環式基、または置換されていてもよく、縮合していてもよいシクロアルキル、である、請求項1記載の化合物、その製薬上許容される塩、またはそれらの溶媒和物。
- R3は水素である、請求項1~7のいずれかに記載の化合物、その製薬上許容される塩、またはそれらの溶媒和物。
- 化合物(QI)が式:(QI-1)、(QI-11)、または(QI-B)である、請求項1~8のいずれかに記載の化合物、その製薬上許容される塩、またはそれらの溶媒和物。
- 化合物(QI)が式:(QI-1)、R3、R14およびRXは水素;破線は結合の非存在を示す、請求項1~7のいずれかに記載の化合物、その製薬上許容される塩、またはそれらの溶媒和物。
- 請求項1~10のいずれかに記載の化合物、その製薬上許容される塩、またはそれらの溶媒和物を含有する、医薬組成物。
- 抗HIV薬である、請求項11記載の医薬組成物。
- インテグラーゼ阻害剤である、請求項11記載の医薬組成物。
Priority Applications (2)
Application Number | Priority Date | Filing Date | Title |
---|---|---|---|
JP2012510566A JP5766690B2 (ja) | 2010-04-12 | 2011-04-11 | インテグラーゼ阻害活性を有するピリドン誘導体 |
US13/639,454 US9216995B2 (en) | 2010-04-12 | 2011-04-11 | Pyridone derivative having integrase inhibitory activity |
Applications Claiming Priority (2)
Application Number | Priority Date | Filing Date | Title |
---|---|---|---|
JP2010091387 | 2010-04-12 | ||
JP2010-091387 | 2010-04-12 |
Publications (1)
Publication Number | Publication Date |
---|---|
WO2011129095A1 true WO2011129095A1 (ja) | 2011-10-20 |
Family
ID=44798479
Family Applications (1)
Application Number | Title | Priority Date | Filing Date |
---|---|---|---|
PCT/JP2011/002139 WO2011129095A1 (ja) | 2010-04-12 | 2011-04-11 | インテグラーゼ阻害活性を有するピリドン誘導体 |
Country Status (3)
Country | Link |
---|---|
US (1) | US9216995B2 (ja) |
JP (2) | JP5766690B2 (ja) |
WO (1) | WO2011129095A1 (ja) |
Cited By (20)
Publication number | Priority date | Publication date | Assignee | Title |
---|---|---|---|---|
WO2013054862A1 (ja) * | 2011-10-12 | 2013-04-18 | 塩野義製薬株式会社 | インテグラーゼ阻害活性を有する多環性ピリドン誘導体 |
WO2014200880A1 (en) | 2013-06-13 | 2014-12-18 | Merck Sharp & Dohme Corp. | Fused tricyclic heterocyclic compounds as hiv integrase inhibitors |
EP2931730A4 (en) * | 2012-12-17 | 2016-06-01 | Merck Sharp & Dohme | 4-PYRIDINONETRIAZINE DERIVATIVES AS INHIBITORS OF HIV INTEGRASE |
WO2016175224A1 (ja) * | 2015-04-28 | 2016-11-03 | 塩野義製薬株式会社 | 置換された多環性ピリドン誘導体およびそのプロドラッグ |
US9663529B2 (en) | 2013-07-02 | 2017-05-30 | Bristol-Myers Squibb Company | Tricyclic pyrido-carboxamide derivatives as rock inhibitors |
JP2017137291A (ja) * | 2016-02-03 | 2017-08-10 | 塩野義製薬株式会社 | 多環性ピリドン誘導体およびそのプロドラッグ |
US9914740B2 (en) | 2013-07-02 | 2018-03-13 | Bristol-Myers Squibb Company | Tricyclic pyrido-carboxamide derivatives as rock inhibitors |
US10065950B2 (en) | 2010-02-26 | 2018-09-04 | Japan Tobacco Inc. | Substituted thiazoles as HIV integrase inhibitors |
KR20190049916A (ko) * | 2015-04-28 | 2019-05-09 | 시오노기세야쿠 가부시키가이샤 | 치환된 다환성 피리돈 유도체 및 그의 프로드러그 |
US10479801B2 (en) | 2016-12-02 | 2019-11-19 | Merck Sharp & Dohme Corp. | Tetracyclic heterocycle compounds useful as HIV integrase inhibitors |
WO2019230858A1 (ja) | 2018-05-31 | 2019-12-05 | 塩野義製薬株式会社 | 多環性カルバモイルピリドン誘導体 |
RU2717101C1 (ru) * | 2019-06-03 | 2020-03-18 | Андрей Александрович Иващенко | Анелированные 9-гидрокси-1,8-диоксо-1,3,4,8-тетрагидро-2Н-пиридо[1,2-a]пиразин-7-карбоксамиды - ингибиторы интегразы ВИЧ, способы их получения и применения |
EP3757105A2 (en) | 2014-08-22 | 2020-12-30 | Shionogi & Co., Ltd | Polycyclic pyridone derivative having integrase inhibitory activity |
WO2021107066A1 (ja) | 2019-11-28 | 2021-06-03 | 塩野義製薬株式会社 | インテグラーゼ阻害剤及び抗hiv薬を組み合わせることを特徴とするhiv感染症の予防及び治療用医薬 |
US11084832B2 (en) | 2019-03-22 | 2021-08-10 | Gilead Sciences, Inc. | Bridged tricyclic carbamoylpyridone compounds and their pharmaceutical use |
US11248005B2 (en) | 2019-07-08 | 2022-02-15 | Lupin Limited | Process for preparation of intermediates used for the synthesis of HIV integrase inhibitor |
US11358711B2 (en) | 2019-06-20 | 2022-06-14 | Merck Sharp & Dohme Corp. | Tetracyclic heterocycle compounds useful as HIV integrase inhibitors |
US11453669B2 (en) | 2018-05-31 | 2022-09-27 | Shionogi & Co., Ltd. | Polycyclic pyridone derivative |
US11613546B2 (en) | 2021-01-19 | 2023-03-28 | Gilead Sciences, Inc. | Substituted pyridotriazine compounds and uses thereof |
US11697652B2 (en) | 2020-02-24 | 2023-07-11 | Gilead Sciences, Inc. | Tetracyclic compounds and uses thereof |
Families Citing this family (3)
Publication number | Priority date | Publication date | Assignee | Title |
---|---|---|---|---|
CA2912064A1 (en) | 2013-05-16 | 2014-11-20 | The United States Of America, As Represented By The Secretary, Department Of Health And Human Services | Compounds for inhibiting drug-resistant strains of hiv-1 integrase |
AU2016374416A1 (en) | 2015-12-15 | 2018-06-14 | Shionogi & Co., Ltd. | Medicine for treating influenza characterized by comprising combination of cap-dependent endonuclease inhibitor with anti-influenza drug |
SG11201900869QA (en) | 2016-08-10 | 2019-02-27 | Shionogi & Co | Pharmaceutical compositions containing substituted polycyclic pyridone derivatives and prodrug thereof |
Citations (6)
Publication number | Priority date | Publication date | Assignee | Title |
---|---|---|---|---|
WO2005016927A1 (ja) * | 2003-08-13 | 2005-02-24 | Japan Tobacco Inc. | 含窒素縮合環化合物及びそのhivインテグラーゼ阻害剤としての利用 |
WO2006030807A1 (ja) * | 2004-09-15 | 2006-03-23 | Shionogi & Co., Ltd. | Hivインテグラーゼ阻害活性を有するカルバモイルピリドン誘導体 |
WO2007049675A1 (ja) * | 2005-10-27 | 2007-05-03 | Shionogi & Co., Ltd. | Hivインテグラーゼ阻害活性を有する多環性カルバモイルピリドン誘導体 |
JP2008540343A (ja) * | 2005-04-28 | 2008-11-20 | スミスクライン ビーチャム コーポレーション | Hivインテグラーゼ阻害活性を有する多環性カルバモイルピリドン誘導体 |
WO2010011819A1 (en) * | 2008-07-25 | 2010-01-28 | Smithkline Beecham Corporation | Chemical compounds |
WO2010011812A1 (en) * | 2008-07-25 | 2010-01-28 | Smithkline Beecham Corporation | Chemical compounds |
Family Cites Families (10)
Publication number | Priority date | Publication date | Assignee | Title |
---|---|---|---|---|
JPH0296506A (ja) | 1988-09-30 | 1990-04-09 | Daicel Chem Ind Ltd | 除草剤組成物 |
JP2533796B2 (ja) | 1988-10-18 | 1996-09-11 | ダイセル化学工業株式会社 | 5−アルコキシピリジン−3−カルボキサミド誘導体とその製造方法及び植物成長抑制剤 |
JP2551472B2 (ja) | 1988-10-18 | 1996-11-06 | ダイセル化学工業株式会社 | 5−アルコキシ−γ−ピロン−3−カルボキサミド誘導体とその製造方法及び植物成長抑制剤 |
EP3042894A1 (en) | 2001-08-10 | 2016-07-13 | Shionogi & Co., Ltd. | Antiviral agent |
DE60218511T2 (de) | 2001-10-26 | 2007-10-25 | Istituto Di Richerche Di Biologia Molecolare P. Angeletti S.P.A. | Dihydroxypyrimidin-carbonsäueramid-hemmer der hiv-integrase |
US7109186B2 (en) | 2002-07-09 | 2006-09-19 | Bristol-Myers Squibb Company | HIV integrase inhibitors |
JP3908248B2 (ja) | 2002-08-13 | 2007-04-25 | 塩野義製薬株式会社 | Hivインテグラーゼ阻害活性を有するヘテロ環化合物 |
JP2004244320A (ja) | 2003-02-10 | 2004-09-02 | Shionogi & Co Ltd | 含窒素複素環抗ウイルス剤 |
JP2006232849A (ja) | 2003-08-13 | 2006-09-07 | Japan Tobacco Inc | 含窒素縮合環化合物及びそのhivインテグラーゼ阻害剤としての利用 |
JP5317257B2 (ja) | 2005-02-21 | 2013-10-16 | 塩野義製薬株式会社 | Hivインテグラーゼ阻害活性を有する2環性カルバモイルピリドン誘導体 |
-
2011
- 2011-04-11 US US13/639,454 patent/US9216995B2/en active Active
- 2011-04-11 JP JP2012510566A patent/JP5766690B2/ja active Active
- 2011-04-11 WO PCT/JP2011/002139 patent/WO2011129095A1/ja active Application Filing
-
2015
- 2015-06-17 JP JP2015121934A patent/JP5993985B2/ja active Active
Patent Citations (6)
Publication number | Priority date | Publication date | Assignee | Title |
---|---|---|---|---|
WO2005016927A1 (ja) * | 2003-08-13 | 2005-02-24 | Japan Tobacco Inc. | 含窒素縮合環化合物及びそのhivインテグラーゼ阻害剤としての利用 |
WO2006030807A1 (ja) * | 2004-09-15 | 2006-03-23 | Shionogi & Co., Ltd. | Hivインテグラーゼ阻害活性を有するカルバモイルピリドン誘導体 |
JP2008540343A (ja) * | 2005-04-28 | 2008-11-20 | スミスクライン ビーチャム コーポレーション | Hivインテグラーゼ阻害活性を有する多環性カルバモイルピリドン誘導体 |
WO2007049675A1 (ja) * | 2005-10-27 | 2007-05-03 | Shionogi & Co., Ltd. | Hivインテグラーゼ阻害活性を有する多環性カルバモイルピリドン誘導体 |
WO2010011819A1 (en) * | 2008-07-25 | 2010-01-28 | Smithkline Beecham Corporation | Chemical compounds |
WO2010011812A1 (en) * | 2008-07-25 | 2010-01-28 | Smithkline Beecham Corporation | Chemical compounds |
Cited By (42)
Publication number | Priority date | Publication date | Assignee | Title |
---|---|---|---|---|
US10065950B2 (en) | 2010-02-26 | 2018-09-04 | Japan Tobacco Inc. | Substituted thiazoles as HIV integrase inhibitors |
CN103974957A (zh) * | 2011-10-12 | 2014-08-06 | 盐野义制药株式会社 | 具有整合酶抑制活性的多环吡啶酮衍生物 |
US9200009B2 (en) | 2011-10-12 | 2015-12-01 | Shionogi & Co., Ltd. | Polycyclic pyridone derivative having integrase inhibitory activity |
WO2013054862A1 (ja) * | 2011-10-12 | 2013-04-18 | 塩野義製薬株式会社 | インテグラーゼ阻害活性を有する多環性ピリドン誘導体 |
US9714243B2 (en) | 2012-12-17 | 2017-07-25 | Merck Sharp & Dohme Corp. | 4-pyridinonetriazine derivatives as HIV integrase inhibitors |
EP2931730A4 (en) * | 2012-12-17 | 2016-06-01 | Merck Sharp & Dohme | 4-PYRIDINONETRIAZINE DERIVATIVES AS INHIBITORS OF HIV INTEGRASE |
WO2014200880A1 (en) | 2013-06-13 | 2014-12-18 | Merck Sharp & Dohme Corp. | Fused tricyclic heterocyclic compounds as hiv integrase inhibitors |
US9663529B2 (en) | 2013-07-02 | 2017-05-30 | Bristol-Myers Squibb Company | Tricyclic pyrido-carboxamide derivatives as rock inhibitors |
US9914740B2 (en) | 2013-07-02 | 2018-03-13 | Bristol-Myers Squibb Company | Tricyclic pyrido-carboxamide derivatives as rock inhibitors |
EP3757105A2 (en) | 2014-08-22 | 2020-12-30 | Shionogi & Co., Ltd | Polycyclic pyridone derivative having integrase inhibitory activity |
KR101981880B1 (ko) | 2015-04-28 | 2019-05-23 | 시오노기세야쿠 가부시키가이샤 | 치환된 다환성 피리돈 유도체 및 그의 프로드러그 |
WO2016175224A1 (ja) * | 2015-04-28 | 2016-11-03 | 塩野義製薬株式会社 | 置換された多環性ピリドン誘導体およびそのプロドラッグ |
CN112940010A (zh) * | 2015-04-28 | 2021-06-11 | 盐野义制药株式会社 | 经取代的多环性吡啶酮衍生物及其前药 |
KR20190002742A (ko) * | 2015-04-28 | 2019-01-08 | 시오노기세야쿠 가부시키가이샤 | 치환된 다환성 피리돈 유도체 및 그의 프로드러그 |
KR20190049916A (ko) * | 2015-04-28 | 2019-05-09 | 시오노기세야쿠 가부시키가이샤 | 치환된 다환성 피리돈 유도체 및 그의 프로드러그 |
KR101981912B1 (ko) | 2015-04-28 | 2019-05-23 | 시오노기세야쿠 가부시키가이샤 | 치환된 다환성 피리돈 유도체 및 그의 프로드러그 |
CN113004304A (zh) * | 2015-04-28 | 2021-06-22 | 盐野义制药株式会社 | 经取代的多环性吡啶酮衍生物及其前药 |
CN112876473A (zh) * | 2015-04-28 | 2021-06-01 | 盐野义制药株式会社 | 经取代的多环性吡啶酮衍生物及其前药 |
KR102409779B1 (ko) | 2015-04-28 | 2022-06-16 | 시오노기세야쿠 가부시키가이샤 | 치환된 다환성 피리돈 유도체 및 그의 프로드러그 |
CN113004304B (zh) * | 2015-04-28 | 2022-03-18 | 盐野义制药株式会社 | 经取代的多环性吡啶酮衍生物及其前药 |
CN107709321A (zh) * | 2015-04-28 | 2018-02-16 | 盐野义制药株式会社 | 经取代的多环性吡啶酮衍生物及其前药 |
KR20170131651A (ko) * | 2015-04-28 | 2017-11-29 | 시오노기세야쿠 가부시키가이샤 | 치환된 다환성 피리돈 유도체 및 그의 프로드러그 |
CN112940010B (zh) * | 2015-04-28 | 2021-11-02 | 盐野义制药株式会社 | 经取代的多环性吡啶酮衍生物及其前药 |
JP2021046425A (ja) * | 2016-02-03 | 2021-03-25 | 塩野義製薬株式会社 | 多環性ピリドン誘導体およびそのプロドラッグ |
JP7095945B2 (ja) | 2016-02-03 | 2022-07-05 | 塩野義製薬株式会社 | 多環性ピリドン誘導体およびそのプロドラッグ |
JP2017137291A (ja) * | 2016-02-03 | 2017-08-10 | 塩野義製薬株式会社 | 多環性ピリドン誘導体およびそのプロドラッグ |
US10829499B2 (en) | 2016-12-02 | 2020-11-10 | Merck Sharp & Dohme Corp. | Tetracyclic heterocycle compounds useful as HIV integrase inhibitors |
US10479801B2 (en) | 2016-12-02 | 2019-11-19 | Merck Sharp & Dohme Corp. | Tetracyclic heterocycle compounds useful as HIV integrase inhibitors |
WO2019230858A1 (ja) | 2018-05-31 | 2019-12-05 | 塩野義製薬株式会社 | 多環性カルバモイルピリドン誘導体 |
EP4257137A2 (en) | 2018-05-31 | 2023-10-11 | Shionogi & Co., Ltd | Polycyclic carbamoylpyridone derivatives for the treatment of hiv |
KR20210015922A (ko) | 2018-05-31 | 2021-02-10 | 시오노기 앤드 컴파니, 리미티드 | 다환성 카바모일피리돈 유도체 |
US11649236B2 (en) | 2018-05-31 | 2023-05-16 | Shionogi & Co., Ltd. | Polycyclic carbamoylpyridone derivative |
US11453669B2 (en) | 2018-05-31 | 2022-09-27 | Shionogi & Co., Ltd. | Polycyclic pyridone derivative |
US11548902B1 (en) | 2019-03-22 | 2023-01-10 | Gilead Sciences, Inc. | Bridged tricyclic carbamoylpyridone compounds and their pharmaceutical use |
US11084832B2 (en) | 2019-03-22 | 2021-08-10 | Gilead Sciences, Inc. | Bridged tricyclic carbamoylpyridone compounds and their pharmaceutical use |
RU2717101C1 (ru) * | 2019-06-03 | 2020-03-18 | Андрей Александрович Иващенко | Анелированные 9-гидрокси-1,8-диоксо-1,3,4,8-тетрагидро-2Н-пиридо[1,2-a]пиразин-7-карбоксамиды - ингибиторы интегразы ВИЧ, способы их получения и применения |
US11358711B2 (en) | 2019-06-20 | 2022-06-14 | Merck Sharp & Dohme Corp. | Tetracyclic heterocycle compounds useful as HIV integrase inhibitors |
US11248005B2 (en) | 2019-07-08 | 2022-02-15 | Lupin Limited | Process for preparation of intermediates used for the synthesis of HIV integrase inhibitor |
WO2021107066A1 (ja) | 2019-11-28 | 2021-06-03 | 塩野義製薬株式会社 | インテグラーゼ阻害剤及び抗hiv薬を組み合わせることを特徴とするhiv感染症の予防及び治療用医薬 |
US11697652B2 (en) | 2020-02-24 | 2023-07-11 | Gilead Sciences, Inc. | Tetracyclic compounds and uses thereof |
US11613546B2 (en) | 2021-01-19 | 2023-03-28 | Gilead Sciences, Inc. | Substituted pyridotriazine compounds and uses thereof |
US11897892B2 (en) | 2021-01-19 | 2024-02-13 | Gilead Sciences, Inc. | Substituted pyridotriazine compounds and uses thereof |
Also Published As
Publication number | Publication date |
---|---|
US20130096109A1 (en) | 2013-04-18 |
JP2015187154A (ja) | 2015-10-29 |
JP5766690B2 (ja) | 2015-08-19 |
JPWO2011129095A1 (ja) | 2013-07-11 |
US9216995B2 (en) | 2015-12-22 |
JP5993985B2 (ja) | 2016-09-21 |
Similar Documents
Publication | Publication Date | Title |
---|---|---|
JP5993985B2 (ja) | インテグラーゼ阻害活性を有するピリドン誘導体 | |
JP6163428B2 (ja) | インテグラーゼ阻害活性を有する多環性ピリドン誘導体 | |
EP1790638B1 (en) | Carbamoylpyridone derivative having hiv integrase inhibitory activity | |
JP2021042237A (ja) | インテグラーゼ阻害活性を有する多環性ピリドン誘導体 | |
JP4798608B2 (ja) | Hivインテグラーゼ阻害活性を有するヒドロキシピリミジノン誘導体 | |
JP2006342115A (ja) | Hivインテグラーゼ阻害活性を有する多環性化合物 | |
JP5131689B2 (ja) | Hivインテグラーゼ阻害活性を有する多環性カルバモイルピリドン誘導体 | |
US7998992B2 (en) | Oxazolidinone derivative having inhibitory activity on 11β-hydroxysteroid dehydrogenase type 1 | |
AU2008252185A1 (en) | Nitrogen-containing heterocyclic derivative having 11 beta-hydroxysteroid dehydrogenase type I inhibitory activity | |
JP4176477B2 (ja) | Hivインテグラーゼ阻害活性を有する含窒素芳香族複素環誘導体 | |
US20090227621A1 (en) | Naphthyridine derivatives having inhibitory activity against hiv integrase |
Legal Events
Date | Code | Title | Description |
---|---|---|---|
121 | Ep: the epo has been informed by wipo that ep was designated in this application |
Ref document number: 11768619 Country of ref document: EP Kind code of ref document: A1 |
|
WWE | Wipo information: entry into national phase |
Ref document number: 2012510566 Country of ref document: JP |
|
NENP | Non-entry into the national phase |
Ref country code: DE |
|
WWE | Wipo information: entry into national phase |
Ref document number: 13639454 Country of ref document: US |
|
122 | Ep: pct application non-entry in european phase |
Ref document number: 11768619 Country of ref document: EP Kind code of ref document: A1 |
