Abstract
The utility model provides a semiautomatic laminating machine which comprises a bottom box, wherein the upper part of the bottom box is provided with a laminating device, an electrical apparatus element is arranged in the bottom box and below the laminating device, and an operation panel is arranged on the bottom box for controlling the laminating machine. The semiautomatic laminating machine is characterized in that the laminating device further comprises a vacuum base material loading plate, a left-right positioning adjustment device, a back-forth positioning adjustment device and a vacuum rotating membrane loading plate; the vacuum base material loading plate is arranged above the left-right positioning adjustment device and the back-forth positioning adjustment device and can be adjusted all around under the actions of the left-right positioning adjustment device and the back-forth positioning adjustment device; the top end of the vacuum rotating membrane loading plate is provided with a rubber roll which is fixed by a rubber roll fixing block; and power of rotating air cylinder drives the vacuum rotating membrane loading plate to rotate and enables the vacuum rotating membrane loading plate to attach to the vacuum base material loading plate. The utility model solves the phenomena that the positioning is not accurate, the yield is low, and rumples, bubbles and deformity occur, and the like during the laminating of a membrane and a base material, moves in a superposition way, shortens the movement time, enhances the production efficiency and can be suitable for the production of low-end product and high-end product.
Description
[technical field]
The utility model relates to a kind of liquid crystal panel production equipment, relates in particular to the semi-automatic make-up machine of the upper and lower polaroid of a kind of liquid crystal panel.
[background technology]
The artificial laminating type of the many employings of existing liquid crystal polaroid fit body by manually coming to determine position and technological requirement, by operator's experience control laminate pressure size, on the liquid crystal panel substrate of during applying the polaroid level of being affixed on being put, flattens with erasing rubber.Problems such as it is inaccurate that the location appears in this mode easily, produces bubble and dust, and diaphragm is wrinkling, thus the manufacture craft of product influence, being difficult to guarantee the product yield, when production high-end product and large scale product, can't finish at all.And very big to the dependence of operating personnel's skill level, production efficiency is also low.Therefore, this mode undersized liquid crystal panel (as mobile phone, slim calculator articles for use etc.) that is often used for fitting only is suitable for the production of low side and be pilot and is unsuitable for the production of high-end product, is unsuitable for the high-end development of whole industry.
[summary of the invention]
The semi-automatic make-up machine and the applying method thereof of problems such as the purpose of this utility model is to provide a kind of can solve that the location that base material and diaphragm occur is inaccurate, yield is low in the applying process, bubble, gauffer and incompleteness.
To achieve these goals, a kind of semi-automatic make-up machine of the utility model, has end box, place laminating apparatus on box top, the end, be placed in the end box and be positioned at the electric elements that have of laminating apparatus below, being installed in what be used on the end box to control make-up machine is guidance panel, it is characterized in that: described laminating apparatus further comprises a vacuum base material loading plate, one left and right sides location adjusting device, one front and back location adjusting device and vacuum rotation diaphragm loading plate, described vacuum base material loading plate is as for left and right sides location adjusting device, on the location adjusting device of front and back, by described left and right sides location adjusting device, the front and back location adjusting device can all around be regulated; The top of described vacuum rotation diaphragm loading plate is provided with rubber roll, and rubber roll is to be fixed by the rubber roll fixed block, and the power of rotary cylinder drives the rotation of vacuum rotation diaphragm loading plate, and vacuum rotation diaphragm loading plate is invested on the vacuum base material loading plate.
Wherein, as a kind of preferred version, described left and right sides location adjusting device comprises that described left and right sides location adjusting device comprises the propulsion system that are installed on the board and two line slide rails, the bottom X-axis that is installed in the line slip of going forward side by side on two line slide rails moves back up pad, described X-axis moves back up pad and drives move left and right by propulsion system, be installed in the bottom X-axis move back up pad about the end be the milscale fixed block and the fine setting milscale, the position that can adjust left and right directions makes things convenient for contraposition.
Wherein, as a kind of preferred version, described front and back location adjusting device comprises two Y direction line slide rails and the moving back up pad of y-axis shift that is placed on the location adjusting device of the left and right sides, and vacuum base material loading plate places on the moving back up pad of y-axis shift.
Wherein, as a kind of preferred version, described vacuum rotation diaphragm loading plate supports by two turning axle supporting seats, and rotary cylinder is supported by two rotary cylinder bracing frames, and rotary cylinder connects by shaft coupling gives turning axle with transmission of power.
Wherein, as a kind of preferred version, described rubber roll is the adjustment of direction up and down, and adjustable in pressure is applicable to the pressure of different material thickness and different materials.
Wherein, a kind of preferred version of doing also has several vacuum suction holes on described vacuum base material loading plate and the vacuum diaphragm loading plate, adopt fixedly material of vacuum suction, vacuum is controlled along separate routes, is applicable to the applying requirement of different material size, plays good positioning action.
Wherein, a kind of preferred version of doing, the vacuum diaphragm loading plate that described turning axle drives can carry out the vertical rotation of 0～180 degree with respect to board, promptly vacuum diaphragm loading plate can be rotated into parallel with board or vertical with board.
Wherein, a kind of preferred version of doing, described propulsion system are rotary cylinders.
Its principle of work is: after opening the make-up machine power supply, also comprise the steps:
(I) place material: fine setting slide calliper rule and vacuum suction hole by 4 directions are placed on base material on the substrate bears plate by initial point, by running fix slide block and vacuum suction hole diaphragm are placed on the vacuum diaphragm loading plate by initial point;
(II) contraposition: the substrate bears plate is moved to diaphragm loading plate below along the X positive dirction, vacuum diaphragm loading plate is turn to substrate bears plate top, and make the substrate bears plate corresponding with the initial point of diaphragm loading plate;
(III) pressure roller is fitted: regulate downwards on the Y directional reference line that rubber roll is pressed in substrate bears plate and diaphragm loading plate, the substrate bears plate moves along the X negative direction, and diaphragm is pressed together on the base material through flattening the rubber roll rotation equably;
(IV) the return standby is finished in applying.
Advantage of the present utility model:
1. 4 by two material loading plates (base material and diaphragm loading plate) finely tune slide calliper rule and running fix slide block, employing is kept to the side to locate initial point and is overlapped, the fine setting milscale of 4 directions is conveniently located and contraposition by adjusting, to satisfy the requirement of different material size, during operation, only need keep to the side material to put and get final product, and are simple to operation.
2. because the semi-automatic make-up machine of the utility model adopts modes such as vacuum suction, mechanical positioning and air pressure motion, be equipped with precise parts such as precision micrometer adjustable device, stop, linear slide rail, guarantee the precision of fitting, reduced dependence to operating personnel, solved that the location that occurs in diaphragm and the base material applying process is inaccurate, yield is low, phenomenons such as bubble, gauffer and incompleteness, run duration has been shortened in the eclipsed form motion, improve production efficiency, can be suitable for the production of low side and high-end product.Be not only applicable to the liquid crystal panel applying of polaroid up and down of 7 cun following sizes, also be applicable to the applying of storerooms such as all flexible diaphragms and rigid flat board (as glass, organic material), flexible diaphragm and flexible diaphragm.
[description of drawings]

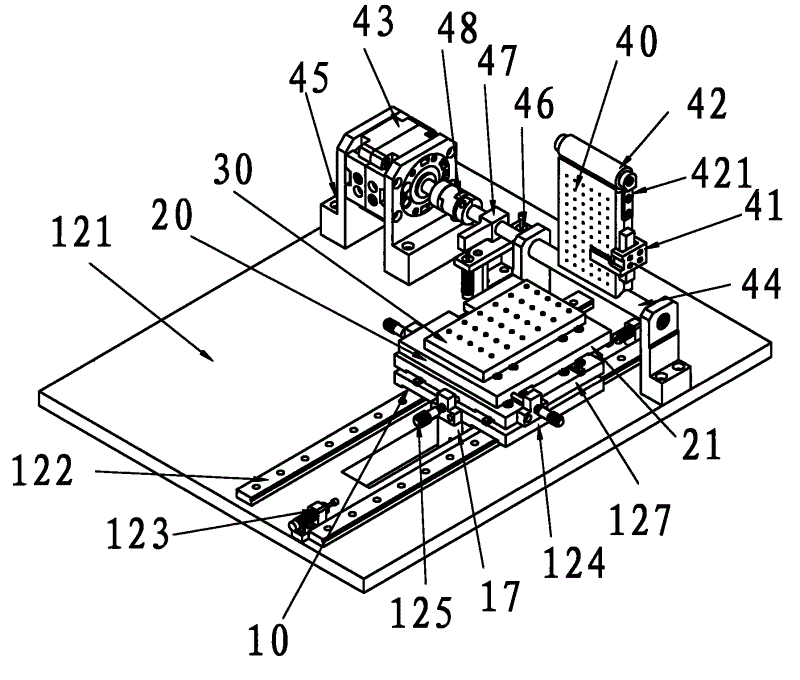

Fig. 1 is the one-piece construction figure of the semi-automatic make-up machine of the present invention.
Fig. 2 is the structural drawing of laminating apparatus of the present invention.
[embodiment]
Consult Fig. 1 and Fig. 2, Fig. 1 is the one-piece construction figure of semi-automatic make-up machine, and Fig. 2 is the structural drawing of laminating apparatus.As Fig. 1, shown in 2, semi-automatic make-up machine 1 has end box 11, place laminating apparatus 12 on end box 11 tops, be placed in the end box 11 and be positioned at the electric elements that have of laminating apparatus 12 belows, being installed in what be used on the end box to control make-up machine is guidance panel 13, wherein, described laminating apparatus 12 further includes board 121, be installed in two line slide rails 122 of the left and right sides location adjusting device 10 on the board 121, the wherein straight line slide rail two ends of described two line slide rails 122 be provided with stop 123, be installed in board 121 times and place the power that transmits by straight line cylinder output by cylinder contiguous block 17 in the end box.The bottom X-axis that is installed in the line slip of going forward side by side on two line slide rails 122 moves back up pad 124, be installed in the bottom X-axis move back up pad about end be fine setting milscale 125, the position that is used to adjust left and right directions makes things convenient for contraposition.What settle on it is the line slide rail 126 of two X-directions, being installed in what go forward side by side line slip on the line slide rail of two X-directions is that the top X-axis moves back up pad 127, be installed in the top X-axis move back up pad 127 the front and back end be the fine setting milscale, the position that is used to adjust fore-and-aft direction makes things convenient for contraposition.What settle on it is two Y direction line slide rails (invisible among the figure).Be installed in go forward side by side line slip on the line slide rail of two Y directions be before and after location adjusting devices 20, described front and back location adjusting device 20 comprises that y-axis shift moves back up pad 21, being installed on the moving back up pad 21 of y-axis shift is vacuum base material loading plate 30, and above vacuum base material loading plate 30 is vacuum rotation diaphragm loading plate 40.Positioning sliding block 41 is equipped with in the side of vacuum rotation diaphragm loading plate 40, is convenient to the location and the contraposition of different size diaphragm, and rubber roll 42 has been settled on the top, and rubber roll 42 is fixing by rubber roll fixed block 421.Rotary cylinder 43 drives 40 rotations of vacuum rotation diaphragm loading plate, and turning axle 44 is supported by two turning axle supporting seats 45.Being installed in turning axle supporting seat 45 sides is impact damper 46, is installed in to also have rotary stopper piece 47 and shaft coupling 48 on the turning axle 44, and the side is placed with rotary cylinder 43, and rotary cylinder 43 is to be supported by two rotary cylinder bracing frames 45.The power of rotary cylinder 43 is to connect by shaft coupling 48 to give turning axle 44 with transmission of power.
Principle of work of the present utility model: carry out following steps behind the unlatching make-up machine power supply:
(I) place material: the fine setting slide calliper rule by 4 directions and and the vacuum suction hole base material is placed on the substrate bears plate 30 by initial point, by running fix slide block 41 and vacuum suction hole diaphragm is placed on the vacuum diaphragm loading plate 40 by initial point;
(II) contraposition: substrate bears plate 30 is moved to diaphragm loading plate 40 belows along the X positive dirction, vacuum diaphragm loading plate 40 is turn to substrate bears plate 30 tops, and make substrate bears plate 30 corresponding with the initial point of diaphragm loading plate 40;
(III) rolling roller fits: regulate downwards on the Y directional reference line that rubber roll 42 is pressed in substrate bears plate 30 and diaphragm loading plate 40, substrate bears plate 30 moves along the X negative direction, and diaphragm rotates and is pressed together on the base material equably through flattening rubber roll 42;
(IV) the return standby is finished in applying.
In the above-mentioned applying method process, the moving of the directions X by straight line cylinder control substrate bears plate; Locate the position of substrate bears plate in two line slide rails by stop.
1. 4 by two material loading plates (base material and diaphragm loading plate) finely tune slide calliper rule and running fix slide block, employing is kept to the side to locate initial point and is overlapped, the fine setting milscale of 4 directions is conveniently located and contraposition by adjusting, to satisfy the requirement of different material size, during operation, only need keep to the side material to put and get final product, and are simple to operation.
2. because the semi-automatic make-up machine of the utility model adopts modes such as vacuum suction, mechanical positioning and air pressure motion, be equipped with precise parts such as precision micrometer adjustable device, stop, linear slide rail, guarantee the precision of fitting, reduced dependence to operating personnel, solved that the location that occurs in diaphragm and the base material applying process is inaccurate, yield is low, phenomenons such as bubble, gauffer and incompleteness, run duration has been shortened in the eclipsed form motion, improve production efficiency, can be suitable for the production of low side and high-end product.Be not only applicable to the liquid crystal panel applying of polaroid up and down of 7 cun following sizes, also be applicable to the applying of storerooms such as all flexible diaphragms and rigid flat board (as glass, organic material), flexible diaphragm and flexible diaphragm.
The above person only is the utility model product most preferred embodiment, is not to be used to limit scope of the present utility model, and all equivalences of being done according to the utility model claim change or modify, and are all the utility model and contain.
Claims (7)
1, a kind of semi-automatic make-up machine, has end box, place laminating apparatus on box top, the end, be placed in the end box and be positioned at the electric elements that have of laminating apparatus below, being installed in what be used on the end box to control make-up machine is guidance panel, it is characterized in that: described laminating apparatus further comprises a vacuum base material loading plate, one left and right sides location adjusting device, one front and back location adjusting device and vacuum rotation diaphragm loading plate, described vacuum base material loading plate is as for left and right sides location adjusting device, on the location adjusting device of front and back, by described left and right sides location adjusting device, the front and back location adjusting device can all around be regulated; The top of described vacuum rotation diaphragm loading plate is provided with rubber roll, and rubber roll is fixed by the rubber roll fixed block, and the power of rotary cylinder drives the rotation of vacuum rotation diaphragm loading plate, and vacuum rotation diaphragm loading plate is invested on the vacuum base material loading plate.
2, semi-automatic make-up machine according to claim 1, it is characterized in that: the bottom X-axis that described left and right sides location adjusting device comprises the propulsion system that are installed on the board and two line slide rails, be installed in the line slip of going forward side by side on two line slide rails moves back up pad, described X-axis moves back up pad and drives move left and right by propulsion system, be installed in the bottom X-axis move back up pad about the end be the milscale fixed block and the fine setting milscale.
3, semi-automatic make-up machine according to claim 1, it is characterized in that: described front and back location adjusting device comprises two Y direction line slide rails and the moving back up pad of y-axis shift that is placed on the location adjusting device of the left and right sides, and vacuum base material loading plate places on the moving back up pad of y-axis shift.
4, semi-automatic make-up machine according to claim 1, it is characterized in that: described vacuum rotation diaphragm loading plate supports by two turning axle supporting seats, rotary cylinder is supported by two rotary cylinder bracing frames, and rotary cylinder connects by shaft coupling gives turning axle with transmission of power.
5, semi-automatic make-up machine according to claim 1, it is characterized in that: described rubber roll is the adjustment of direction up and down, adjustable in pressure.
6, semi-automatic make-up machine according to claim 1 is characterized in that: also have several vacuum suction holes on described vacuum base material loading plate and the vacuum diaphragm loading plate, adopt fixedly material of vacuum suction.
7, semi-automatic make-up machine according to claim 1, it is characterized in that: the vacuum diaphragm loading plate that described turning axle drives can carry out the vertical rotation of 0～180 degree with respect to board, promptly vacuum diaphragm loading plate can be rotated into parallel with board or vertical with board.
