Abstract
The invention discloses a telescopic soil covering device with a material shifting compression roller, and belongs to the technical field of agricultural equipment. A telescopic soil covering device with a material poking compression roller at least comprises a telescopic rack, a telescopic material poking compression roller, a soil throwing mechanism, a lifting mechanism and a depth wheel. The telescopic frame is driven by a hydraulic cylinder to extend and retract to two sides; the telescopic material shifting compression roller is connected with the telescopic rack through a lifting mechanism and is positioned between the blanking area and the soil throwing mechanism; the soil throwing mechanism comprises two soil throwing wheels which are arranged at two sides behind the telescopic rack and are staggered in tandem; the depth wheels are arranged on two sides of the telescopic frame to adjust the depth of the soil throwing wheel. The soil covering device can transversely widen and pave the spreading materials according to the required width, and uniformly cover the soil above the spreading material layer, so that the soil covering device is suitable for the condition that the ground surface needs to be covered in agricultural production, and is particularly suitable for the material spreading and soil covering operation of layered covering of orchard straw matrix and soil.
Description
Technical Field
The invention discloses a telescopic soil covering device with a material pushing and pressing roller, belongs to the field of agricultural mechanical equipment, and particularly relates to a material spreading and soil covering operation device for orchard straw matrix covering.
Background
Fertile soil is the key for healthy growth of fruit trees and improvement of fruit quality. In agricultural production, reasonable soil management is usually required for orchards in order to improve the soil moisture storage and preservation capacity of soil and the content of organic matters in soil. The orchard straw covering technology is used as an effective soil management technology, reasonable straw covering is carried out on the earth surface between rows of the orchard, evaporation of water on the earth surface of the orchard can be reduced, and the utilization rate of water of fruit trees is improved; meanwhile, the surface temperature of the orchard garden can be effectively adjusted, the content of organic matters in soil is increased, and the quality and the yield of orchard fruits in a dry area are greatly improved.
Meanwhile, in order to prevent the straws in the rows of the orchard from being blown up by wind and avoid fire, a layer of thin soil needs to be covered above the straw layer, so that a corresponding soil covering device needs to be matched behind the orchard straw covering machine, and the layered covering of the straws and the soil in the orchard is realized. At present, soil covering devices capable of realizing layered covering of straws and soil in an orchard exist in China, for example, a throwing type soil covering device disclosed in patent CN191719746243.3 solves the problems of uneven soil covering and poor continuity in straw covering operation; however, the earthing device still has disadvantages. For example, when the existing orchard straw covering machine works, the fallen straws are loose due to the fact that the weight of the straws is light, and the uniformity of spreading and earthing operations is affected; in addition, the covering machine can only cover the straws with a specific width, the straw covering width is consistent with the width of the discharge hole, and the covering machine cannot be suitable for the soil covering operation of the orchard straw substrate layered covering with different row widths.
In order to solve the defects, the invention discloses a telescopic soil covering device with a material shifting compression roller, which is matched with a corresponding covering machine or a tractor for use, spreads the paving materials spread on the ground surface according to the required width through the telescopic material shifting compression roller, plays a role of leveling, and uniformly covers soil above the paving layer, so that the paving and soil covering operation is more uniform, the coverage area is smoother, the telescopic soil covering device can be suitable for orchards with different line widths to carry out paving and soil covering operation of layering and covering straw matrixes among lines, and the adaptability of the soil covering device is improved.
Disclosure of Invention
The purpose of the invention is as follows: the utility model discloses a telescopic earthing device with dial material compression roller, the device will spread the stone that spills on the earth's surface through telescopic dial material compression roller and widen according to required width to play the effect of paving, reuse soil covers uniformly above the stone layer, makes stone earthing operation more even, and the coverage area is more level and more smooth.
The technical problems to be solved by the invention are as follows: the method is used for improving the spreading width adaptability of orchard ground spreading and covering machinery and the uniformity of spreading and covering operation.
In order to solve the technical problem to be solved by the invention, the invention provides the following technical scheme:
the utility model provides a telescopic earthing device with dial material compression roller which characterized in that includes flexible frame 3 at least, telescopic dial material compression roller 5, throwing native mechanism 7, hoist mechanism 2 and depth wheel 1.
The telescopic rack 3 is positioned in front of the soil covering device and comprises a fixed rack 9 and a telescopic rack 8; the fixed frame 9 and the telescopic frame 8 are both frame structures fixedly connected by square steel; the front cross beam 19 of the fixing frame is articulated with a covering machine or a tractor; the telescopic frames 8 are positioned at two sides of the fixed frame 9, are in nested fit with the fixed frame front cross beam 19 and the fixed frame rear cross beam 20, and have relative sliding; a hydraulic cylinder 6 is arranged in the middle of the rear cross beam 20 of the fixing frame, and the extending end of the hydraulic cylinder 6 is connected with an expansion bracket 8; the fixed frame front beam 19, the fixed frame rear beam 20 and the telescopic frame 8 enclose a blanking area 4.
The soil throwing mechanism 7 is positioned behind the soil covering device and at least comprises a soil throwing rack 11, a soil throwing wheel 10 and a hydraulic motor 12; the soil throwing machine frame 11 is fixedly connected to the telescopic frame rear cross beams 22 on the two sides of the telescopic frame 3, and the two soil throwing wheels 10 and the hydraulic motor 12 are respectively arranged on the soil throwing machine frames 11 on the two sides; in order to ensure the uniformity of the soil covering operation, the two soil throwing wheels 10 are staggered in tandem and driven by a hydraulic motor 12 to throw soil to the inner side; the thickness and the uniformity of the soil covering operation are adjusted by controlling the soil penetration depth of the soil throwing wheel 10 and the rotating speed of the hydraulic motor 12; the distance between the two soil throwing wheels 10 is adjusted by controlling the expansion and contraction of the expansion bracket 8 through the hydraulic cylinder 6.
The telescopic material poking press roller 5 is positioned below a fixed frame rear cross beam 21 of the telescopic rack 3, between the blanking area 4 and the soil throwing mechanism 7, and comprises a roller 13, a helical blade 14, an elastic element 15 and a shaft head 16.
The roller 13 is composed of a plurality of sections, the inner wall of each section of roller 13 is fixedly connected with a certain number of sliding strips 17 along the axial direction, the sliding strips 17 are uniformly arranged along the circumferential direction of the inner wall of the roller 13 and extend out of the outer end of the roller 13, sliding grooves 18 along the axial direction are formed between adjacent sliding strips 17, and the sections of the roller 13 are nested and matched with the sliding grooves 18 through the sliding strips 17 and form a sliding pair; in order to ensure the stability of the operation, the relative sliding length of the sliding strip 17 and the sliding groove 18 between the sections of the roller 13 does not exceed half of the length of the single section of the roller 13; every two sections of rollers 13 are connected through an elastic element 15, and the elastic element 15 is tightly attached to the inner wall of each roller 13 and is arranged between the rollers 13; the telescopic frame 8 is driven by the hydraulic cylinder 6 to stretch and retract towards two sides to drive the rollers 13 at two ends to slide along the axial direction, and each roller 13 in the middle slides along the axial direction by being pulled by the elastic element 15, so that synchronous stretching among the rollers 13 is realized; the shaft heads 16 are fixedly connected to the outer sides of the rollers 13 on the two sides of the telescopic material poking and pressing roller 5 respectively and meet the concentric requirement with the rollers 13; the helical blades 14 are fixedly connected on the cylindrical surface of the outer wall of the roller 13, and the helical blades 14 are symmetrically arranged relative to the axial middle plane of the telescopic material stirring press roller 5; along the operation advancing direction, the rotating direction of the helical blade 14 on the right roller 13 of the telescopic material stirring press roller 5 is left-handed, and the rotating direction of the helical blade 14 on the left roller 13 is right-handed, so that the paving material is widened towards two sides along the transverse direction.
The lifting mechanism 2 comprises a lifting rod 23 and a straight chute 24; one end of the lifting rod 23 is connected with the front cross beams 21 of the telescopic frames on two sides of the telescopic frame 3 in a hinged mode, the other end of the lifting rod is connected with the shaft heads 16 on two ends of the telescopic material poking press roller 5 in a hole-shaft matching mode, and the lifting rod and the telescopic frame rotate relatively; the straight sliding groove 24 is of a U-shaped structure and is fixedly connected to the inner sides of the two sides of the telescopic frame 8; the lifting rod 23 rotates around the hinge point to adjust the ground clearance of the telescopic material poking press roller 5, and the lifting rod 23 moves in the straight chute 24 when rotating.
The left end and the right end of the telescopic material shifting compression roller 5 are hung on the front cross beams 21 of the telescopic frames on the two sides of the telescopic frame 3 through the lifting mechanisms 2; when the operation is needed, the telescopic material stirring press roller 5 is dropped to the ground through the lifting mechanism 2, so that the telescopic material stirring press roller 5 is in contact with the paving material to complete the widening operation, and the paving material can be paved; when not needing the operation, promote telescopic stirring material compression roller 5 through hoist mechanism 2 to articulate lifting rod 23 through the bolt or articulate the spindle nose 16 at telescopic stirring material compression roller 5 both ends through the couple, make telescopic stirring material compression roller 5 not contact with the stone.
The telescopic material poking press roller 5 is dragged by a covering machine or a tractor and rolls forwards; in order to increase the rolling friction coefficient between the telescopic stirring roller 5 and the ground, it is not excluded to attach some tooth-like structures to the outer wall of the drum 13 or to the side edges of the helical blades 14.
The depth wheels 1 are fixedly connected to two sides of the telescopic rack 3 and extend to two sides along with the telescopic rack 8; the soil covering device can adapt to the fluctuation of the ground in the operation process, and the height of the depth wheel 1 can be adjusted.
In the operation process, the telescopic material shifting press roller 5 is not required to be wrapped by a layer of telescopic elastic material to form sealing in the telescopic positions among the sections of the roller 13 in order to prevent the material blocking phenomenon from occurring at the telescopic positions among the sections of the roller 13, and is required to have certain strength and good wear resistance.
The utility model provides a telescopic earthing device with dial material compression roller which theory of operation as follows:
the telescopic soil covering device with the material shifting compression roller is matched with a corresponding covering machine or a tractor for use, can adjust the covering width of spread materials, widens the spread materials spread on the ground surface according to the required width through the telescopic material shifting compression roller, and plays a role in leveling; the specific process and the working principle are expressed as follows:
before the earthing device carries out earthing operation, the earthing device is connected with a covering machine or a tractor in a hanging mode, the earthing device is lifted to achieve reasonable ground clearance, the telescopic rack is contracted to an initial position, the width of the earthing device is small, and operation machines can conveniently run on a road or turn around. When the earthing device carries out earthing operation, firstly, the spreading and covering width is determined according to the row width of an orchard; when the width of the orchard row is too large, spreading needs to be widened for covering operation, at the moment, the distance between two soil throwing wheels is adjusted by controlling the hydraulic cylinder to stretch the telescopic rack to two sides, and meanwhile, the telescopic rack drives the telescopic material shifting compression roller to stretch to the corresponding width; then the soil covering device falls to the ground, and simultaneously the telescopic material poking compression roller falls to the lowest position and is limited by a U-shaped straight sliding chute; adjusting the height of the depth limiting wheel according to the thickness requirement of the soil covering operation to control the soil penetration depth of the soil throwing wheel; an external hydraulic system drives a hydraulic motor to rotate, the hydraulic motor transmits power to the soil throwing wheel to enable the soil throwing wheel to rotate, and the soil covering thickness and uniformity are controlled by adjusting the rotating speed of the hydraulic motor. The covering machine drops the paving materials to a blanking area along with the advance of the operation machine; the telescopic material shifting compression roller rolls forwards under the traction of the covering machine, widens the paving materials to two sides along the transverse direction, and meanwhile paves the paving materials; the soil throwing wheel takes soil from two sides to uniformly spread the soil above the spreading material with required thickness. After the earthing operation is finished, the hydraulic motor is stopped firstly, the earth throwing wheel stops operating, then the earthing device is lifted to a proper height, the telescopic rack is contracted to an initial position, the telescopic material poking press roller is lifted to the initial position, and the earthing operation is finished.
Compared with the prior art, the telescopic soil covering device with the material poking compression roller has the beneficial technical effects that: the spreading covering width can be adjusted; the uniformity of the spreading and soil covering operation can be improved. The device will spread the stone that spills at the earth's surface through telescopic stirring material compression roller and widen according to the width of requirement to play the effect of paving, cover soil again uniformly in the stone layer top, make stone earthing operation more even, the coverage area is more level and more smooth, can adapt to the orchard of different line widths and carry out the stone earthing operation that straw matrix layering covered between the rows, improved earthing device's adaptability.
Drawings
FIG. 1 is a general block diagram of a telescopic casing assembly having a kick-out roller;
FIG. 2 is a top plan view of a telescopic casing assembly with a kick-out roller;
FIG. 3 is a side view of a telescopic casing assembly with a kick-out roller in a non-operational state;
FIG. 4 is a top view of a telescopic casing assembly with a kick-out roller;
FIG. 5 is a side view of a telescopic casing assembly with a kick-out roller;
FIG. 6 is a view showing a non-operating state of a retractable feed pushing roller of the retractable covering device having the feed pushing roller;
FIG. 7 is a view showing an operational state of a telescopic stirring roller of the telescopic soil covering device having the stirring roller;

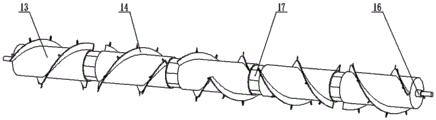

FIG. 8 is a view showing the construction of a single telescopic kick-out roller of a telescopic casing assembly having a kick-out roller;
FIG. 9 is a cross-sectional view of the inside of a telescopic kick-off roller drum of a telescopic casing assembly having a kick-off roller;
fig. 10 is a structural view of a lifting mechanism of a telescopic soil covering device having a material-poking press roller.
Reference numerals:
1. depth limiting wheels 2, lifting mechanisms 3, telescopic frames 4, blanking areas 5, telescopic material shifting compression rollers 6, hydraulic cylinders 7, soil throwing mechanisms 8, telescopic frames 9, fixed frames 10, soil throwing wheels 11, soil throwing frames 12, hydraulic motors 13, rotary drums 14, helical blades 15, elastic elements 16, shaft heads 17, sliding strips 18, sliding chutes 19, fixed frame front beams 20, fixed frame rear beams 21, telescopic frame front beams 22, telescopic frame rear beams 23 and lifting rods 24.
Detailed Description
The telescopic casing device with the material poking and pressing roller of the invention is further described in the following by combining the attached drawings and the detailed description of the given specification. The prior art is adopted for all the components or the connection relations among the components which are not described in detail in the invention.
As shown in fig. 1, the telescopic soil covering device with the material stirring press roller is characterized by at least comprising a telescopic frame 3, a telescopic material stirring press roller 5, a soil throwing mechanism 7, a lifting mechanism 2 and a depth wheel 1.
As shown in fig. 2 and 4, the telescopic frame 3 is located in front of the soil covering device and comprises a fixed frame 9 and a telescopic frame 8; the fixed frame 9 and the telescopic frame 8 are both frame structures fixedly connected by square steel; the front cross beam 19 of the fixing frame is articulated with a covering machine or a tractor; the telescopic frames 8 are positioned at two sides of the fixed frame 9, are in nested fit with the fixed frame front cross beam 19 and the fixed frame rear cross beam 20, and have relative sliding; a hydraulic cylinder 6 is arranged in the middle of the rear cross beam 20 of the fixing frame, and the extending end of the hydraulic cylinder 6 is connected with an expansion bracket 8; the fixed frame front beam 19, the fixed frame rear beam 20 and the telescopic frame 8 enclose a blanking area 4.
As shown in fig. 2, 3 and 4, the soil throwing mechanism 7 is located behind the soil covering device and at least comprises a soil throwing rack 11, a soil throwing wheel 10 and a hydraulic motor 12; the soil throwing machine frame 11 is fixedly connected to the telescopic frame rear cross beams 22 on the two sides of the telescopic frame 3, and the two soil throwing wheels 10 and the hydraulic motor 12 are respectively arranged on the soil throwing machine frames 11 on the two sides; in order to ensure the uniformity of the soil covering operation, the two soil throwing wheels 10 are staggered in tandem and driven by a hydraulic motor 12 to throw soil to the inner side; the thickness and the uniformity of the soil covering operation are adjusted by controlling the soil penetration depth of the soil throwing wheel 10 and the rotating speed of the hydraulic motor 12; the distance between the two soil throwing wheels 10 is adjusted by controlling the expansion and contraction of the expansion bracket 8 through the hydraulic cylinder 6.
As shown in fig. 2 and 4, the telescopic material-poking press roller 5 is located below the rear cross beam 21 of the fixed frame of the telescopic frame 3 and between the blanking area 4 and the soil-throwing mechanism 7; as shown in fig. 6 and 9, the telescopic kickoff roller 5 comprises a roller 13, a helical blade 14, an elastic element 15 and a shaft head 16.
As shown in fig. 6, 7 and 8, the roller 13 is composed of a plurality of sections, a certain number of sliding strips 17 are fixedly connected to the inner wall of each section of the roller 13 along the axial direction, the sliding strips 17 are uniformly arranged along the circumferential direction of the inner wall of the roller 13 and extend out of the outer end of the roller 13, an axial sliding groove 18 is formed between the adjacent sliding strips 17, and the sections of the roller 13 are nested and matched with the sliding groove 18 through the sliding strips 17 to form a moving pair; in order to ensure the stability of the operation, the relative sliding length of the sliding strip 17 and the sliding groove 18 between the sections of the roller 13 does not exceed half of the length of the single section of the roller 13; as shown in fig. 9, every two sections of rollers 13 are connected through an elastic element 15, and the elastic element 15 is arranged between the sections of rollers 13 in a manner of clinging to the inner wall of the rollers 13; as shown in fig. 1 and 6, the hydraulic cylinder 6 drives the telescopic frame 8 to extend and retract towards two sides to drive the rollers 13 at two ends to slide along the axial direction, and each roller 13 in the middle slides along the axial direction under the pulling of the elastic element 15, so that the synchronous extension and retraction among the rollers 13 are realized; the shaft heads 16 are fixedly connected to the outer sides of the rollers 13 on the two sides of the telescopic material poking and pressing roller 5 respectively and meet the concentric requirement with the rollers 13; as shown in fig. 6 and 7, the helical blade 14 adopts a double-helical surface and is fixedly connected to the cylindrical surface of the outer wall of the roller 13, and the helical blade 14 is symmetrically arranged about the axial middle plane of the telescopic material-poking press roller 5; along the operation advancing direction, the rotating direction of the helical blade 14 on the right roller 13 of the telescopic material stirring press roller 5 is left-handed, and the rotating direction of the helical blade 14 on the left roller 13 is right-handed, so that the paving material is widened towards two sides along the transverse direction.
As shown in fig. 1, 5 and 10, the lifting mechanism 2 includes a lifting rod 23 and a straight chute 24; one end of the lifting rod 23 is connected with the front cross beams 21 of the telescopic frames on two sides of the telescopic frame 3 in a hinged mode, the other end of the lifting rod is connected with the shaft heads 16 on two ends of the telescopic material poking press roller 5 in a hole-shaft matching mode, and the lifting rod and the telescopic frame rotate relatively; the straight sliding groove 24 is of a U-shaped structure and is fixedly connected to the inner sides of the two sides of the telescopic frame 8; the lifting rod 23 rotates around the hinge point to adjust the ground clearance of the telescopic material poking press roller 5, and the lifting rod 23 moves in the straight chute 24 when rotating.
As shown in fig. 1, 4 and 10, the left and right ends of the telescopic material-shifting press roll 5 are hung on the front cross beam 21 of the telescopic frame on both sides of the telescopic frame 3 through the lifting mechanism 2; when the operation is needed, the telescopic material stirring press roller 5 is dropped to the ground through the lifting mechanism 2, so that the telescopic material stirring press roller 5 is in contact with the paving material to complete the widening operation, and the paving material can be paved; when not needing the operation, promote telescopic stirring material compression roller 5 through hoist mechanism 2 to articulate lifting rod 23 through the bolt or articulate the spindle nose 16 at telescopic stirring material compression roller 5 both ends through the couple, make telescopic stirring material compression roller 5 not contact with the stone.
As shown in fig. 1 and 6, the telescopic kickoff roller 5 is pulled by a covering machine or tractor and rolls forward; in order to increase the rolling friction coefficient between the telescopic stirring roller 5 and the ground, it is not excluded to attach some tooth-like structures to the outer wall of the drum 13 or to the side edges of the helical blades 14.
As shown in fig. 1, the depth wheels 1 are fixedly connected to two sides of the telescopic frame 3 and extend and retract to two sides along with the telescopic frame 8; the soil covering device can adapt to the fluctuation of the ground in the operation process, and the height of the depth wheel 1 can be adjusted.
As shown in fig. 4 and 7, in order to prevent the material blocking phenomenon from occurring at the stretching position between the sections of the roller 13 during the operation of the telescopic material-shifting compression roller 5, it is not excluded that the stretching position between the sections of the roller 13 is wrapped with a layer of telescopic elastic material to form a seal, and the seal is required to have certain strength and good wear resistance.
Further explaining the working principle of the telescopic soil covering device with the material poking compression roller, disclosed by the invention, comprises the following steps:
the telescopic soil covering device with the material shifting compression roller is matched with a corresponding covering machine or a tractor for use, and the spreading materials spread on the ground surface are widened according to the required width through the telescopic material shifting compression roller, so that the spreading effect is achieved; the specific process and the working principle are expressed as follows:
before the earthing device carries out earthing operation, the earthing device is connected with a covering machine or a tractor in a hanging mode, the earthing device is lifted to achieve reasonable ground clearance, the telescopic rack is contracted to an initial position, the width of the earthing device is small, and operation machines can conveniently run on a road or turn around. When the earthing device carries out earthing operation, firstly, the spreading and covering width is determined according to the row width of an orchard; when the width of the orchard row is too large, spreading needs to be widened for covering operation, at the moment, the distance between two soil throwing wheels is adjusted by controlling the hydraulic cylinder to stretch the telescopic rack to two sides, and meanwhile, the telescopic rack drives the telescopic material shifting compression roller to stretch to the corresponding width; then the soil covering device falls to the ground, and simultaneously the telescopic material poking compression roller falls to the lowest position and is limited by a U-shaped straight sliding chute; adjusting the height of the depth limiting wheel according to the thickness requirement of the soil covering operation to control the soil penetration depth of the soil throwing wheel; an external hydraulic system drives a hydraulic motor to rotate, the hydraulic motor transmits power to the soil throwing wheel to enable the soil throwing wheel to rotate, and the soil covering thickness and uniformity are controlled by adjusting the rotating speed of the hydraulic motor. The covering machine drops the paving materials to a blanking area along with the advance of the operation machine; the telescopic material shifting compression roller rolls forwards under the traction of the covering machine, widens the paving materials to two sides along the transverse direction, and meanwhile paves the paving materials; the soil throwing wheel takes soil from two sides to uniformly spread the soil above the spreading material with required thickness. After the earthing operation is finished, the hydraulic motor is stopped firstly, the earth throwing wheel stops operating, then the earthing device is lifted to a proper height, the telescopic rack is contracted to an initial position, the telescopic material poking press roller is lifted to the initial position, and the earthing operation is finished.
Claims (5)
1. A telescopic soil covering device with a material shifting compression roller is characterized by at least comprising a telescopic rack (3), a telescopic material shifting compression roller (5), a soil throwing mechanism (7), a lifting mechanism (2) and a depth wheel (1);
the telescopic rack (3) is positioned in front of the soil covering device and comprises a fixed rack (9) and a telescopic rack (8); the fixed frame (9) and the telescopic frame (8) are both frame structures fixedly connected by square steel; the front cross beam (19) of the fixed frame is articulated with a covering machine or a tractor; the telescopic frames (8) are positioned at two sides of the fixed frame (9), are in nested fit with the front cross beam (19) and the rear cross beam (20) of the fixed frame, and slide relatively; a hydraulic cylinder (6) is arranged in the middle of the rear cross beam (20) of the fixing frame, and the extending end of the hydraulic cylinder (6) is connected with the telescopic frame (8); a blanking area (4) is enclosed by the fixed frame front beam (19), the fixed frame rear beam (20) and the telescopic frame (8);
the soil throwing mechanism (7) is positioned behind the soil covering device and at least comprises a soil throwing rack (11), a soil throwing wheel (10) and a hydraulic motor (12); the soil throwing machine frame (11) is fixedly connected to the rear cross beams (22) of the telescopic frames on the two sides of the telescopic frame (3), and the two soil throwing wheels (10) and the hydraulic motor (12) are respectively arranged on the soil throwing machine frames (11) on the two sides; the two soil throwing wheels (10) are arranged in a staggered way in tandem and driven by a hydraulic motor (12) to throw soil to the inner side; the distance between the two soil throwing wheels (10) is adjusted by controlling the expansion of the expansion bracket (8) through the hydraulic cylinder (6);
the telescopic material poking press roller (5) is positioned below a fixed frame rear cross beam (21) of the telescopic rack (3), and comprises a roller (13), a helical blade (14), an elastic element (15) and a shaft head (16) between the blanking area (4) and the soil throwing mechanism (7);
the roller (13) is composed of a plurality of sections, the inner wall of each section of roller (13) is fixedly connected with a certain number of sliding strips (17) along the axial direction, the sliding strips (17) are uniformly arranged along the circumferential direction of the inner wall of the roller (13) and extend out of the outer end of the roller (13), and sliding grooves (18) along the axial direction are formed between adjacent sliding strips (17); the sections of the roller (13) are nested and matched with the sliding groove (18) through a sliding strip (17) to form a moving pair; the length of relative sliding between the sliding strip (17) and the sliding groove (18) between the sections of the roller (13) is not more than half of the length of the single section of the roller (13); every two sections of rollers (13) are connected through an elastic element (15), and the elastic element (15) is tightly attached to the inner wall of each roller (13) and is arranged between the rollers (13); the telescopic frame (8) is driven by the hydraulic cylinder (6) to stretch and retract towards two sides to drive the rollers (13) at two ends to slide along the axial direction, and each roller (13) in the middle is pulled by the elastic element (15) to slide along the axial direction; the shaft heads (16) are respectively fixedly connected to the outer sides of the rollers (13) on two sides of the telescopic material poking press roller (5) and meet the concentric requirement with the rollers (13); the helical blades (14) are fixedly connected to the cylindrical surface of the outer wall of the roller (13), and the helical blades (14) are symmetrically arranged relative to the axial middle plane of the telescopic material stirring press roller (5); along the operation advancing direction, the rotating direction of a helical blade (14) on a right roller (13) of the telescopic material poking press roller (5) is left-handed, and the rotating direction of the helical blade (14) on a left roller (13) is right-handed;
the lifting mechanism (2) comprises a lifting rod (23) and a straight chute (24); one end of a lifting rod (23) is connected with front cross beams (21) of telescopic frames on two sides of the telescopic frame (3) in a hinged mode, the other end of the lifting rod is connected with shaft heads (16) on two ends of the telescopic material poking press roller (5) in a hole-shaft matching mode, and relative rotation exists between the two ends; the straight sliding groove (24) is of a U-shaped structure and is fixedly connected with the inner sides of the two sides of the telescopic frame (8); the lifting rod (23) rotates around a hinged point to adjust the ground clearance of the telescopic material poking press roller (5), and the lifting rod (23) moves in the straight sliding groove (24) when rotating.
2. The telescopic soil covering device with the material shifting compression roller is characterized in that the left end and the right end of the telescopic material shifting compression roller (5) are hung on the front cross beam (21) of the telescopic frame on two sides of the telescopic frame (3) through a lifting mechanism (2); when the operation is needed, the telescopic material poking compression roller (5) falls to the ground through the lifting mechanism (2), so that the telescopic material poking compression roller (5) is in contact with the paving material to complete the widening operation, and the paving material can be paved; when not needing the operation, promote telescopic stirring material compression roller (5) through hoist mechanism (2) to articulate lifting bar (23) or articulate spindle nose (16) at telescopic stirring material compression roller (5) both ends through the couple, make telescopic stirring material compression roller (5) not contact with the stone.
3. A telescopic casing assembly with a kick-off roller according to claim 1, characterised in that the telescopic kick-off roller (5) is towed and rolled forward by a covering machine or tractor; in order to increase the rolling friction coefficient between the telescopic material poking press roller (5) and the ground, the fact that tooth-shaped structures are fixedly connected on the outer wall of the roller (13) or the side edges of the spiral blades (14) is not excluded.
4. The telescopic soil covering device with the material poking and pressing roller is characterized in that the depth limiting wheels (1) are fixedly connected to two sides of the telescopic rack (3) and extend and retract to two sides along with the telescopic rack (8); the soil covering device can adapt to the fluctuation of the ground in the operation process, and the height of the depth wheel (1) can be adjusted.
5. The telescopic soil covering device with the material shifting compression roller is characterized in that in the operation process of the telescopic material shifting compression roller (5), in order to prevent the material blocking phenomenon from occurring at the telescopic positions among the sections of the roller (13), the telescopic position among the sections of the roller (13) is not covered with a layer of telescopic elastic material to form sealing, and the telescopic material shifting compression roller is required to have certain strength and good wear resistance.
