CN101844323A - Horizontal glass straight-line four-side grinding wheel type edge grinding machine - Google Patents
Horizontal glass straight-line four-side grinding wheel type edge grinding machine Download PDFInfo
- Publication number
- CN101844323A CN101844323A CN 201010138503 CN201010138503A CN101844323A CN 101844323 A CN101844323 A CN 101844323A CN 201010138503 CN201010138503 CN 201010138503 CN 201010138503 A CN201010138503 A CN 201010138503A CN 101844323 A CN101844323 A CN 101844323A
- Authority
- CN
- China
- Prior art keywords
- assembly
- sucker
- glass
- bistrique
- system assembly
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Granted
Links
Images
Landscapes
- Grinding And Polishing Of Tertiary Curved Surfaces And Surfaces With Complex Shapes (AREA)
Abstract
The invention aims at providing a horizontal glass straight-line four-side grinding wheel type edge grinding machine. The edge grinding machine reduces the waste of grinding wheels and extends the service life of the grinding wheels by the structural design of changing the grinding points of the grinding wheels on glass, and prevents the glass from being crushed and scratched and improves the transmission precision in the grinding process by the structural design of utilizing a sucker for transmission. When the sizes of the glass are different, the glass edge-grinding task can be completed by shaping eight edges in one step without adjustment.
Description
Technical field
The invention belongs to mechanical field, relate to a kind of glass edge-grinding machine, relate in particular to a kind of horizontal straight-line four-side grinding wheel type glass edge-grinding machine.
Background technology
Cut back reprocessing, particularly tempering, doubling in order to satisfy former sheet glass, the needs of secondary operations such as hollow, nearly all glass all needs to carry out edging before formally becoming product or secondary operations handles, and just according to the application difference, the method for edging is different with requirement.Edging is in order to satisfy: safety, anti-ly break, multiple requirement such as attractive in appearance, size.Edging come to divide from method of work to be had manual and two kinds of machineries, manual edging refer to manually hand-held edger unit or instrument to glass through row grinding operation, also comprise the grinding operation that artificial hand-held glass is undertaken by edger unit.The machinery edging refers to that glass enters the grinding operation that edger unit is realized by transmitting device.Profile according to processed glass is divided into straight line edging and special-shaped edging again, the glass edging of straight line edging limit rectangle, and the glass edging beyond the rectangle is special-shaped edging.Also be divided into two kinds of abrasive belt edging and grinding wheel type edgings according to the material of edging.The abrasive belt edging is based on manual edging.
Existing grinding wheel type straight line edge polisher has two kinds of vertical glass linear edge polisher and the bilateral edge polishers of horizontal glass straight-line, these two kinds of methods all can't realize four limits of rectangle glass are processed at one time, the former can only carry out the grinding operation to glass monolateral,, it is 200620085825.9 utility model patent that artificial then transposition is processed as the patent No. successively to other each limits.When batch machining, often need four machines to use continuously and could arrive production efficiency, but need several a dead lift glass, and the high occupation of land of cost of equipment is big.Though the glass edge-grinding machine that the patent No. is 2008201475703 utility model patent to be announced adopts numerical control equipment, but still glass four limits can not be processed at one time.
Bilateral mill improves a lot than vertical straight line mill can finish bilateral edging operation simultaneously, but still can't finish the operation simultaneously of four limits, but still needs two just implementation efficiency productions in parallel during batch machining.And this machine is changed the processing work specification at every turn and is needed the artificial machine of adjusting, and wastes time and energy.In addition because the glass conveying is to lean on last synchronous band and synchronous down band to push conveying, the particle that grinding is got off can scratch the glass face together with synchronous band, (a kind of is the novel energy-conserving product of rete with silver when particularly processing the LOW-E coated glass, its surface is responsive especially), in case rete destruction full wafer glass all can oxidation.
Summary of the invention
In order to overcome the above problems, the invention provides a kind of horizontal glass straight-line four-side grinding wheel type edge grinding machine, this edge polisher is by the structural design of the grinding points of change emery wheel and glass, reduce the waste of emery wheel and the service life of improving emery wheel, by the structural design of sucker transmission, glass weighs and scratches phenomenon wounded when avoiding grinding, it is accurate to improve transmission, when the glass size specification is inconsistent, do not need to adjust the glass edging task of eight seamed edges of one-shot forming.
To achieve these goals, the present invention adopts following scheme: described horizontal glass straight-line four-side grinding wheel type edge grinding machine comprises chip system assembly, edging system assembly and following chip system assembly, wherein go up chip system assembly, edging system assembly and following chip system assembly and link to each other in proper order, its spacing in one line is 30-50mm.The working depth of the sucker in the working depth of the live-roller in the last chip system assembly and the edging system assembly and the working depth of the live-roller in the chip system assembly is consistent down, gear wheel and the gear wheel in the edging system assembly in the last chip system assembly are straight line.
The described chip system assembly of going up is made up of last horse assembly, last slice induction system assembly and safety guard.Last slice induction system assembly is assembled on the horse assembly, and safety guard is assembled in horse assembly both sides.
Wherein, last slice induction system assembly comprises live-roller and motor reducer, and motor reducer drives the live-roller rotation by chain drive, live-roller is provided with gear wheel, when the glass level is advanced or retreated, because live-roller is the worm drive roller, so glass can be close to gear wheel.
Wherein, safety guard is assembled in horse assembly both sides, prevents that live-roller from weighing hand wounded when rotating.
Described edging system assembly is made up of body frame assembly, sucker delivery assembly and bistrique assembly, wherein the sucker delivery assembly is assembled in above the body frame assembly, front and back symmetry assembling, the bistrique assembly is assembled in middle part above the body frame assembly, repair the angle assembly and be assembled in body frame assembly upper back, water receiving tank is assembled in body frame assembly middle part.
Further, the sucker delivery assembly comprises sucker conveying motor, sucker conveyer belt, conveyer belt, rotation bistrique, bistrique conveying motor, emery wheel, rotating seat and base bistrique.
Described chip system assembly down is made up of last horse assembly, following sheet induction system assembly and safety guard.Following sheet induction system assembly is assembled in down on the horse assembly, and water receiving tank 2 is assembled in down horse assembly front end, and safety guard is assembled in down horse assembly both sides.
Compared with prior art, the invention has the advantages that:
1. can once finish the glass grinding of totally eight faceted pebbles of glass four edges, increase work efficiency greatly;
2. the control system of automation makes glass size need not manually to adjust equipment when changing, and bistrique carries out adjustment work automatically according to the glass profile;
3. what possess glass repaiies the angle function;
4. the structural design by the sucker transmission, when avoiding grinding to LOW-E glass weigh and scratch phenomenon wounded, improved the yield rate of product.
Description of drawings

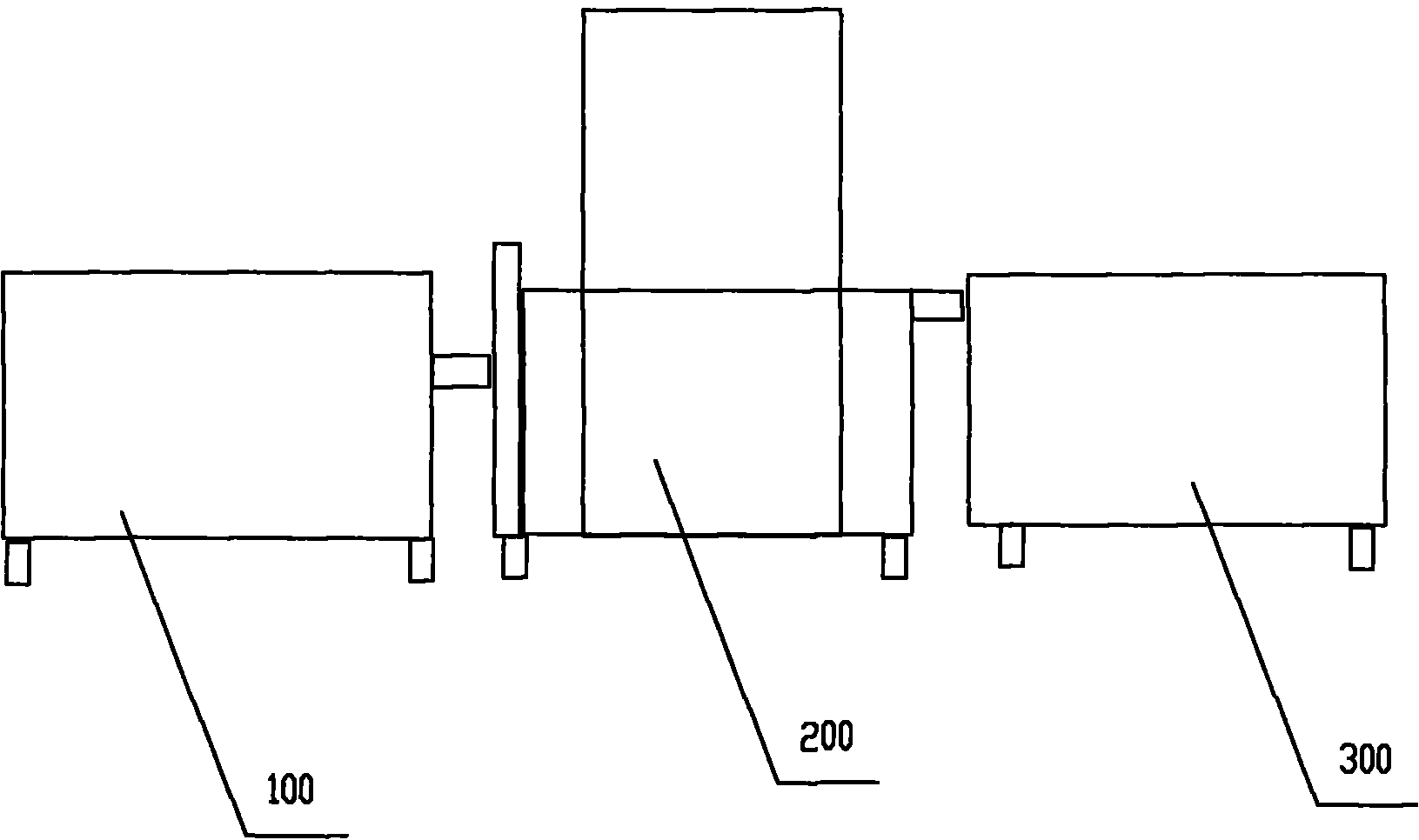

Fig. 1 is that the integral body of a kind of horizontal glass straight-line four-side grinding wheel type edge grinding machine of the present invention is formed structure chart;
Fig. 2 is the last chip system assembly structure schematic diagram of edge polisher of the present invention;
Fig. 3 is the edging system assembly structure schematic diagram of edge polisher of the present invention;
Fig. 4 is the following chip system assembly structure schematic diagram of edge polisher of the present invention.
Wherein, 100-slice system synthesis, 200-edging system assembly, the last chip system assembly of 300-, the 301-motor reducer, the last horse assembly of 302-, last induction system assembly of 303-, the 304-chain drive, the 306-live-roller, 307-, the 308-safety guard, the 309-gear wheel, 201-body frame assembly, 202-bistrique assembly, 203-repaiies the angle assembly, the 204-water receiving tank, 206-sucker delivery assembly, the 2061-sucker is carried motor reducer, 2062-sucker conveyer belt, 2063-rotates bistrique, the 2064-bistrique is carried motor, the 2065-emery wheel, the 2066-rotating seat, 2067-base bistrique, horse assembly under the 101-, sheet induction system assembly under the 102-, sheet safety guard under the 103-, sheet motor reducer under the 104-, sheet chain drive under the 105-, sheet live-roller under the 106-, the 107-air knife.
The specific embodiment
Below in conjunction with the drawings and specific embodiments the present invention is described in further detail, but not as a limitation of the invention.
Embodiment 1: a kind of horizontal glass straight-line four-side grinding wheel type edge grinding machine comprises slice system synthesis 100, edging system assembly 200 and last chip system assembly 300, referring to as shown in Figure 1, last chip system assembly 300, edging system assembly 200 and the following chip system assembly 100 1 words row that links to each other in proper order, opening its spacing is 30-50mm, wherein go up the live-roller 306 in the chip system assembly 300, the working depth of live-roller 106 threes in sucker system synthesis 206 in the edging system assembly 200 and the following chip system assembly is consistent, and the gear wheel 309 in the last chip system assembly is a straight line with the gear wheel 209 in the edging system assembly.
Further, last chip system assembly 300 is made up of last horse assembly 302, last slice induction system assembly 303 and safety guard 308.Last slice induction system assembly 303 is assembled on the horse assembly 302, and safety guard 308 is assembled in horse assembly 302 both sides.
Wherein, last slice induction system assembly 303 comprises live-roller 306 and motor reducer 301, and motor reducer 301 drives live-roller 306 rotations by chain drive 304, live-roller 306 is provided with gear wheel 309, when the glass level is advanced or retreated, because live-roller 306 is for the worm drive roller, so glass can be close to gear wheel 309.
Wherein, safety guard 308 is assembled in horse assembly 302 both sides, prevents that live-roller 306 from weighing hand wounded when rotating.
When glass lies on the live-roller 306, motor reducer 301 rotates, and drives live-rollers 306 rotations by chain drive 304, thereby makes the glass level advance or retreat, and glass can be close to gear wheel 306 and advance.Glass is sent on the edging system assembly 200 by last chip system assembly 300.
Described edging system assembly 200 comprises body frame assembly 201, sucker delivery assembly 206 and bistrique assembly 202 compositions, wherein sucker delivery assembly 206 is assembled in above the body frame assembly 201, front and back symmetry assembling, bistrique assembly 202 is assembled in middle part above the body frame assembly 201, and, described edging system assembly 200 also comprises repaiies angle assembly and water receiving tank 204, repaiies angle assembly 203 and is assembled in body frame assembly 201 upper backs, and water receiving tank 204 is assembled in body frame assembly 201 middle parts.
Wherein, sucker delivery assembly 206 comprises sucker conveying motor reducer 2061, sucker conveyer belt 2062, rotation bistrique 2063, bistrique conveying motor 2064, emery wheel 2065, rotating seat 2066 and base bistrique 2067.Sucker carries motor reducer 2061 to rotate, sucker conveyer belt 2062 rotates, sucker conveyer belt 2062 inner chamber vavuum pumps are opened simultaneously, glass and sucker conveyer belt 2062 are attached together, prevent glass when transmission and grinding, take place about and the front and back offset phenomena, glass is transported to apart from rotation bistrique 2,063 six, locate more than seven millimeters, bistrique carries motor reducer 2064 to rotate, advance by synchronous driven rotary bistrique 2063, in the process of advancing under the promotion of cylinder, emery wheel 2065 contacts with last group of seamed edge of glass matrix, thereby emery wheel 2065 high speed rotating realize the process of grinding seamed edge.After last group of seamed edge grinding is intact, bistrique carries motor 2064 reductors to stop, rotating seat 2066 turns clockwise 90 °, rotation bistrique 2063 is along with also turning clockwise 90 °, simultaneously under the pulling of cylinder, base bistrique 2067 advances apart from six, seven millimeters places of glass, sucker carries motor reducer 2062 to rotate, glass moves forward thereupon, meanwhile rotate bistrique 2063 and base bistrique 2067, the group seamed edge contact with end group seamed edge on emery wheel 2065 under the promotion of cylinder and glass matrix, thus the process of emery wheel 2065 high speed rotating realization grinding seamed edge.After two groups of seamed edge grindings simultaneously are intact, sucker carries motor reducer 2061 to stop, rotating seat 2066 turns clockwise 90 ° again, rotate bistrique 2066 along with turning clockwise 90 ° again, simultaneously, under the promotion of cylinder, base bistrique 2067 is away from the glass base, bistrique is carried the counter-rotating of motor 2064 reductors, in the process of advancing under the promotion of cylinder emery wheel 2065 contact with back one group of seamed edge of glass matrix, thereby the process of emery wheel 2065 high speed rotating realization grinding seamed edge.After the one group of seamed edge grinding in back was intact, sucker was carried motor reducer 2061 rotations, and sucker conveyer belt 2062 is transported to out glass on the chip system 100, and rotating seat 2066 is rotated counterclockwise 180 °, and rotation bistrique 2063 returns to the home position and waits for next sheet glass.
Further, when grinding method runs to emery wheel 2065 width middle part when one jiao in glass matrix face, contact with seamed edge on the glass matrix at emery wheel 2065 under the promotion of cylinder, bistrique carries motor 2064 to start simultaneously, drive emery wheel 2065 clockwise high speed rotating by belt, the glass conveying of advancing, emery wheel 2065 partly grind away glass edge; When the glass matrix face runs to emery wheel 2065 width middle part, emery wheel 2065 contacts with the following seamed edge of glass matrix under the promotion of cylinder, bistrique carries motor 2064 to start simultaneously, drive emery wheel 2065 counterclockwise high speed rotating by belt, the glass conveying of advancing, emery wheel 2065 partly grind away glass edge.
Further, following chip system assembly 100 is by horse assembly 101, following sheet induction system assembly 102 and following sheet safety guard 103 are formed down.Referring to Fig. 4, following sheet motor reducer 104 rotates, and drives sheet live-roller 106 rotations down by sheet chain drive 105 down, thereby makes the glass level advance or retreat.Glass is by air knife 107 places, and the wind of air knife 107 blows to water on glass in the water receiving tank 204, and when avoiding transmission, water on glass flows everywhere.Following sheet safety guard 103 is assembled in down horse assembly both sides, prevents that live-roller from weighing hand wounded when rotating.
The above; only be the specific embodiment among the present invention, but protection scope of the present invention is not limited thereto, anyly is familiar with the people of this technology in the disclosed technical scope of the present invention; conversion or the replacement expected can be understood, all of the present invention comprising within the scope should be encompassed in.Therefore, protection scope of the present invention should be as the criterion with the protection domain of claims.
Claims (7)
1. horizontal straight-line four-side grinding wheel type glass edge-grinding machine, comprise chip system assembly (300), edging system assembly (200) and following chip system assembly (100), last chip system assembly (300), edging system assembly (200) links to each other in proper order with following chip system (100) assembly, it is characterized in that: described edging system assembly (200) is by body frame assembly (201), sucker delivery assembly (206) and bistrique assembly (202) are formed, wherein sucker delivery assembly (206) is assembled in above the body frame assembly (201), the front and back symmetry, bistrique assembly (202) is assembled in body frame assembly upper surface middle part.
2. a kind of horizontal straight-line four-side grinding wheel type glass edge-grinding machine according to claim 1, it is characterized in that: the described chip system assembly (300) of going up comprises horse assembly (302), last slice induction system assembly (303) and safety guard (308), wherein go up an induction system assembly (303) and be assembled on the horse assembly (302), safety guard (308) is assembled in horse assembly (302) both sides.
3. according to the described a kind of horizontal straight-line four-side grinding wheel type glass edge-grinding machine of claim 2, it is characterized in that: last slice induction system assembly (303) comprises live-roller (306) and motor reducer (301), and motor reducer (301) drives live-roller (306) rotation by chain drive (304), and live-roller (306) is provided with gear wheel (309).
4. a kind of horizontal straight-line four-side grinding wheel type glass edge-grinding machine according to claim 3 is characterized in that: safety guard (308) is assembled in horse assembly (302) both sides.
5. a kind of horizontal straight-line four-side grinding wheel type glass edge-grinding machine according to claim 4, it is characterized in that: sucker delivery assembly (206) comprises sucker conveying motor reducer (2061), sucker conveyer belt (2062), rotation bistrique (2063), bistrique is carried motor (2064), emery wheel (2065), rotating seat (2066) and base bistrique (2067), wherein sucker carries motor reducer (2061) to drive sucker conveyer belt (2062), wherein sucker carries motor reducer (2061) to connect sucker conveyer belt (2062), bistrique carries motor (2064) to connect rotation bistrique (2063), and emery wheel (2065) is installed on the rotation bistrique (2063).
6. a kind of horizontal straight-line four-side grinding wheel type glass edge-grinding machine according to claim 5, it is characterized in that: following chip system (100) comprises that horse assembly (101), following sheet induction system assembly (102) and following sheet safety guard (103) are formed down, wherein descend sheet induction system assembly (102) to be assembled in down on the horse assembly (101), following sheet safety guard (103) is assembled in down horse assembly (101) both sides.
7. according to described any the horizontal straight-line four-side grinding wheel type glass edge-grinding machine of claim 2 to 6, it is characterized in that: it is in one line to go up chip system assembly (300), edging system assembly (200) and following chip system (100), and its spacing is 30-50mm.
