Изобретение относится к сельскохозяйственному машиностроению, в частности к системам комбинированных агрегатов для совмещения агротехнических операций, выполняемых за один проход.The invention relates to agricultural machinery, in particular to systems of combined units for combining agrotechnical operations performed in a single pass.
Известен агрегат для совмещения агрохимических операций - комбинированная почвообрабатывающая машина (SU а.с. №1523060, МКИ A01B 49/02), содержащая раму, на которой смонтированы плоскорежущие рабочие органы, опорные колеса, навеску.A known unit for combining agrochemical operations is a combined tillage machine (SU a.s. No. 1523060, MKI A01B 49/02) containing a frame on which are mounted plane-cutting working bodies, support wheels, a hitch.
К недостаткам известного агрегата относится то, что во время работы происходит залипание дисков катка из-за попадания пожнивных остатков влажной почвы в междисковое пространство, недостаточное уплотнение, выполняется только раздельный посев зерновых культур.The disadvantages of the known unit include the fact that during operation, the roller disks stick together due to the ingress of crop residues of moist soil into the interdisc space, insufficient compaction, only separate sowing of grain crops is performed.
Известна комбинированная почвообрабатывающая посевная машина /2/, выполняющая совмещение агротехнических операций, содержащая раму, рабочие органы, опорные колеса, навеску, бункеры, высевающие аппараты и устройства для внутрипочвенного внесения удобрений.Known combined tillage sowing machine / 2 /, performing a combination of agricultural operations, containing a frame, working bodies, support wheels, a linkage, bins, sowing machines and devices for intra-soil fertilizing.
К недостаткам известного агрегата следует отнести неудовлетворительное создание верхнего слоя почвы, неравномерную плотность почвы по вертикали.The disadvantages of the known aggregate include unsatisfactory creation of the upper soil layer, uneven vertical density of the soil.
Для устранения недостатков известных агрегатов, для совмещения агротехнических операций и достижения положительного технического результата, заключающегося в повышении качества рыхления почвы и внесения удобрений под почву, агрегат снабжен дискаторами, смонтированными впереди лап, а оси дисков дискаторов установлены под углом к линии движения лап, причем перед дискаторами смонтированы тукопроводы для поверхностного внесения удобрений, а лапы имеют рассеиватели, на которые поступает смесь воздуха с удобрениями для рассева их под почвой, при этом за лапами расположены последовательно два ряда катков уплотнителей, кроме того, за лапами с рассеивателями установлен ярусно ряд лап с удлиненной стойкой, к тому же лапы второго яруса с удлиненной стойкой снабжены флюгерными рыхлителями вертикально-бокового действия.To eliminate the disadvantages of the known units, to combine agricultural operations and achieve a positive technical result, which consists in improving the quality of loosening the soil and fertilizing under the soil, the unit is equipped with disks mounted in front of the legs, and the axis of the disks disks are installed at an angle to the line of movement of the legs, and in front of fertilizer ducts for surface fertilizer application are mounted by discs, and the legs have diffusers, which receive a mixture of air with fertilizers for sieving them under the soil howling, while behind the paws two rows of compactor rollers are arranged sequentially, in addition, behind the paws with diffusers, a row of paws with an elongated rack is installed in tiers, in addition, the legs of the second tier with an elongated rack are equipped with vertical-sided feathering cultivators.
Расположение впереди лап тукопроводов оси дискаторов, во-первых, дает возможность совместить операции мелкой обработки почвы с послойным рыхлением, во-вторых, внести удобрения под почву с большей частью пожнивных остатков на поверхности в верхнем слое почвы.The location of the drive axles in front of the legs of the pipelines, firstly, makes it possible to combine small tillage operations with layer-by-layer loosening, and secondly, to fertilize the soil with most of the crop residues on the surface in the upper soil layer.
Выполнение стоек лап полыми позволяет направить поступающие удобрения из бункера под почву и распределить их под почвой на глубине хода лап.The implementation of the racks of the legs hollow allows you to direct incoming fertilizer from the hopper under the soil and distribute them under the soil at a depth of travel of the legs.
Постановка оси дисков дискаторов под углом к линии движения лап с рассеивателями дает возможность увеличить распределение удобрений над лапами и повысить степень крошения почвы верхнего слоя.Setting the axis of the disc disks at an angle to the line of movement of the paws with diffusers makes it possible to increase the distribution of fertilizers over the paws and increase the degree of crumbling of the soil of the upper layer.
Расстановка лап по схеме в два ряда ярусно повышает разуплотнение почвы при обработке и позволяет постепенно ввести питательные вещества для распространения корневой системы возделываемых культур в нижнем горизонте корнеобитаемого слоя почвы.The arrangement of the paws according to the scheme in two rows tier increases the softening of the soil during cultivation and allows you to gradually introduce nutrients for the distribution of the root system of cultivated crops in the lower horizon of the root layer of the soil.
Установка флюгерного рыхлителя на лапы с удлиненной стойкой позволяет повысить влагоемкость обрабатываемого слоя почвы.Installation of the vane cultivator on the legs with an extended stand allows you to increase the moisture capacity of the cultivated soil layer.
Расположение позади второго яруса лап двух рядов уплотнителей с вращающимися секциями от почвы позволяет формировать слой почвы с оптимальной плотностью по вертикали, что дает возможность длительное время накапливать и сохранять влагу в почве и рационально ее расходовать при развитии и возделывании культур в определенные фазы роста.The location behind the second tier of the paws of two rows of compactors with rotating sections from the soil allows you to form a soil layer with optimal vertical density, which makes it possible to accumulate and retain moisture in the soil for a long time and spend it rationally during the development and cultivation of crops in certain growth phases.
На фиг.1 показана технологическая схема агрегата для совмещения операций (вид сбоку).Figure 1 shows the technological scheme of the unit for combining operations (side view).

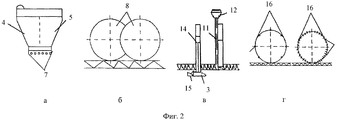

На фиг.2 изображен технологический процесс:Figure 2 shows the process:
а - поверхностное внесение удобрений; б - заделка удобрений в верхний слой, рыхление мелкое; в - заделка удобрения, глубокое рыхление более 25 см; г - уплотнение почвы - повышение контакта удобрения с почвой.a - surface fertilization; b - incorporation of fertilizers into the upper layer, small loosening; c - fertilizer incorporation, deep loosening of more than 25 cm; g - soil compaction - increased contact of fertilizer with soil.
На фиг.3 начерчена лапа с флюгерным рыхлителем.Figure 3 drawn paw with vane cultivator.
На фиг.4a - конструктивная схема агрегата (вид сбоку).On figa - structural diagram of the unit (side view).
Агрегат для совмещения операций включает несущую систему 1, навеску 2, лапы 3, бункеры 4, 5, опорное колесо 6, туковысевающий аппарат 7, дискатор 8, устройство 9 для внутрипочвенного внесения удобрений, ось 10, тукопроводы 11, смеситель 12, рассеиватель 13, удлиненную стойку 14, флюгерный рыхлитель 15, каток-уплотнитель 16.The unit for combining operations includes a carrier system 1, a
Сверху на несущей стойке 1 закреплены бункеры 4, 5 с туковысевающими аппаратами 7, под которыми расположены тукопроводы 11. Технической особенностью предлагаемого агрегата является то, что он снабжен дискаторами 8, смонтированными впереди лап 3, у которых стойка выполнена полой и снабжена смесителями воздуха с удобрениями 12, рассеивателем 13 и устройством 9 для внутрипочвенного внесения удобрений. Кроме того, к стойке 14 крепится лапа с флюгерным рыхлителем 15. К заднему брусу несущей стойки 1 крепятся два ряда катков-уплотнителей 16.
Агрегат работает следующим образом. При движении по полю лапы 3 подрезают пласт без отворота, из бункеров 4, 5 туковысевающим аппаратом 7 через смеситель 12 подают смесь туков с воздухом по тукопроводам 11 в рассеиватель 15 лап для заделки туков под почву. Удлиненные стойки 14, флюгерные рыхлители 15 разделывают пласт на мелкие фракции. Создание оптимального сложения верхнего слоя почвы обеспечивается работой двух рядов уплотнителей 16.The unit operates as follows. When moving along the field, the
Для определения эффективности заделки удобрений в почву разработан агрегат (см. фиг.4). Были использованы агрегат экспериментальный, который представлен, средство для получения смеси удобрения с воздухом /3/, плуг ПЛН-5-35.To determine the effectiveness of planting fertilizers in the soil, an aggregate was developed (see figure 4). An experimental unit was used, which is presented, a means for obtaining a mixture of fertilizer with air / 3 /, a plow PLN-5-35.
На участке, где работал плуг ПЛН-5-35, - контроль, а где работал экспериментальный образец агрегата, вносили суперкомпост из расчета 1,5 т/га. Он вносился одновременно с рыхлением почвы на двух уровнях на глубину от 16 до 18 см и поверхностно макетным орудием, разработанным на базе двухъярусного плоскорезного рыхлителя, который имел устройство для внесения суперкомпоста под почву и второе устройство для внесения его поверхностно при помощи дополнительной системы, установленной спереди рамы известного технического решения.On the site where the PLN-5-35 plow worked, there was control, and where the experimental model of the unit worked, supercompost was introduced at a rate of 1.5 t / ha. It was introduced simultaneously with loosening the soil at two levels to a depth of 16 to 18 cm and a superficially mock gun, developed on the basis of a two-tier flat-cutting cultivator, which had a device for applying supercompost under the soil and a second device for applying it superficially using an additional system installed in front frames of a known technical solution.
Агрегаты изучались при работе на одной передаче и на одной скорости и глубине рыхления. При этом агротехнические показатели: крошение почвы, глыбистость обработанной поверхности, сохранность стерни, глубина обработки по длине гона и ширине захвата, разваливание борозды и валики оставались неизменными на протяжении выполнения операций рыхления и внесения удобрений выбранным составом агрегатов.Units were studied when working in the same gear and at the same speed and depth of cultivation. At the same time, agrotechnical indicators: soil crumbling, clumpiness of the treated surface, stubble preservation, processing depth along the head length and working width, furrow collapse and rollers remained unchanged during the course of loosening and fertilizing operations with the selected aggregate composition.
Перед проведением опытов определяли характеристику участка по влажности, твердости, порозности почвы и засоренности по ГОСТ 2911-34.Before the experiments, the characteristics of the site were determined by moisture, hardness, soil porosity and contamination according to GOST 2911-34.
Движение орудий осуществлялось в одном направлении для каждой делянки проводимого опыта.The movement of the guns was carried out in one direction for each plot of the experiment.
Дальнейшие агротехнические мероприятия выполнялись в соответствии с технологией возделывания кукурузы. Высевали среднеспелый гибрид кукурузы сеялкой СУПН-8. Из уходных мероприятий проводили довсходовое боронование, обработку посевов гербицидом 2,4Д в период от 3 до 5 листьев и междурядные обработки культиватором КРН-5,6. Густота стояния растений к моменту уборки составила 35 тыс./га. Уборку урожая проводили с обмолотом початков селекционным комбайном.Further agricultural activities were carried out in accordance with the technology of cultivating corn. A mid-season hybrid of corn was sown with the SUPN-8 seeder. Pre-emergence harrowing, treatment of crops with 2,4D herbicide in the period from 3 to 5 leaves, and inter-row cultivations with the KRN-5.6 cultivator were carried out from the nursing measures. The plant standing density at the time of harvesting was 35 thousand / ha. Harvesting was carried out with threshing the cobs by a selection combine.
По результатам опытов установлено, что при выполнении основной обработки отвальным плугом ПЛН-5-35 урожайность зерна составила 40,7 ц/га без внесения удобрений, а агрегатом экспериментальным с внесением удобрений - 48,7 ц/га.According to the results of the experiments, it was found that when performing the main processing with the PLN-5-35 dump plow, the grain yield was 40.7 kg / ha without fertilizing, and the experimental unit with fertilizer - 48.7 kg / ha.
