JP2022040191A - Water-containing composition, and patch, cosmetic, or external skin pharmaceutical, which comprises water-containing composition, as well as production methods thereof - Google Patents

Abstract

PROBLEM TO BE SOLVED: To provide compositions that do not contain parabens or compositions that contain a very small amount of parabens, in water-containing compositions containing a functional component dissolved in water, specifically water-containing compositions that can be expected to exert sufficient antiseptic properties and to reduce skin sensitization, and cosmetics, external skin formulations and the like with the water-containing composition.

SOLUTION: Provided is a water-containing composition containing water and a functional component soluble in the water, which contains a polyhydric alcohol that is soluble or compatible with water and has an antiseptic promoting effect, and a preservative other than parabens that is soluble in water and/or polyhydric alcohols, the water-containing composition containing at least one preservative other than parabens, which is selected from the group consisting of phenoxyethanol, glyceryl caprylate, and polylysine.

SELECTED DRAWING: None

COPYRIGHT: (C)2022,JPO&INPIT

Description

Detailed description of the invention

The present invention relates to a water-containing composition, in particular, a water-containing composition containing water and a functional component, which has antiseptic properties that can be expected to have reduced skin sensitization, and the water-containing composition thereof. The present invention relates to the constituent patches, cosmetics, or skin medicines, and methods for producing them.

Various proposals have been made for compositions containing preservatives in order to impart preservative properties to compositions such as cosmetics, pharmaceuticals, and foodstuffs.
Antiseptic properties include the type of functional component contained in the water-containing composition (for example, protein-containing component, natural material such as agar, functional-imparting component, water-soluble polymer component, etc.), form (for example, transparent liquid, emulsified). State, gel form, gel form), state in which the preservative is contained in the composition in a dissolved state or in a dispersed state without being dissolved, content, composition such as water-based / oil-based, patch, cosmetics , Depends on the type of product such as skin preparation, etc., and varies significantly.
It is also said that the corrosiveness of the composition differs greatly depending on the difference in "water activity" between water and the composition containing a functional component. The water content of the water-containing composition is the bound water that is chemically bound to the components contained in the composition, the dissolved water that dissolves the contained components, and the free water that permeates the surface and voids of the contained components. It is said that this water activity is closely related to the antiseptic property of the composition.

In general, a water-containing composition containing a functional component dissolved in water tends to be prone to rot due to bacteria over time such as during storage, and paraoxy is used as a preservative in order to prevent quality deterioration due to rot. Hydrous compositions containing parabens such as methyl benzoate (methylparaben) and provir paraoxybenzoate (propylparaben) have been proposed.

For example, as a cooling patch, Japanese Patent Application Laid-Open No. 2000-10721 (Patent Document 1) describes water retention containing 40% by weight or more of water-soluble polymers such as polyacrylic acid, polyvinyl alcohol, and carboxymethyl cellulose. It is composed of a sex base material and fibers having at least a hydrophilic surface dispersed and retained in the water retention base material, and at least a part of the fibers is exposed on the surface of the water retention base material for cold insulation and moisturization. A gel has been proposed, which can retain a large amount of water in the water-retaining base material and has excellent moisturizing ability, and the fibers make it easy for water to move in the base material, and these fibers allow water to be removed from the water-retaining base material. The volatilization of water to the mother easily occurs, and the effect of excellent cold insulation is disclosed. In particular, Example 1 of paragraph 0048 discloses a water-retaining base material containing 0.1 g (0.1% by weight) of paraben.

Japanese Unexamined Patent Publication No. 2010-13470 (Patent Document 2) proposes a thin aqueous patch containing water, polyacrylic acid or sodium polyacrylate, carboxymethyl cellulose, and a sparingly soluble metal salt on a support, and a human body. Disclosed are patches that maintain a water-protecting effect on the skin and have an excellent effect on usability. In particular, Example 4 of Table 2 discloses a pressure-sensitive adhesive containing both 0.1% by weight of propylparaben and 0.05% by weight of methylparaben.

International Publication WO2005 / 105150 (Patent Document 3) includes a support and a pressure-sensitive adhesive layer arranged on one surface of the support, and the pressure-sensitive adhesive layer contains water and easily soluble agar, and further contains polyacrylic acid. Alternatively, a patch composed of a pressure-sensitive adhesive base containing polyvinyl alcohol and polyvinylpyrrolidone, and further containing an analgesic and anti-inflammatory component such as diclofenac, indomethacin, and loxoprofen has been proposed. In particular, paragraphs 0076, Tables 1 and 3 disclose a pressure-sensitive adhesive layer containing 0.2% by weight of methylparaben as a preservative.

Japanese Unexamined Patent Publication No. 2007-145479 (Patent Document 4) Cosmetics containing an antiseptic / fungicide containing 1,2-alkanediol and lysozyme as an antiseptic / fungicide other than parabens in place of the parabens / preservatives. , Pharmaceuticals or groceries are disclosed.

Japanese Unexamined Patent Publication No. 2000-10721 Japanese Unexamined Patent Publication No. 2010-13470 International release WO2005 / 105150 JP-A-2007-145479

In the above-mentioned conventional water-containing composition, a composition containing parabens such as methyl paraoxybenzoate (methylparaben) and provir paraoxybenzoate (propylparaben) is generally proposed as a preservative. In water-containing compositions used in cosmetics or patches, parabens such as methyl paraoxybenzoate and provir paraoxybenzoate contained as preservatives have particularly low (or weak) skin resistance to infants and the elderly. It has recently been reported that when used by humans, there is skin sensitization of the skin in contact, such as the occurrence of skin irritation.

A water-containing composition containing a functional component dissolved in water, a composition not containing parabens, or a composition containing a very small amount of parabens can exhibit sufficient antiseptic properties. , A water-containing composition that can be expected to reduce skin sensitization, a cosmetic product provided with the water-containing composition, an external skin preparation, and the like are desired.

The water-containing composition of the present invention is a water-containing composition containing (A) water and (B) a functional component soluble in the water, and is at least (C) soluble or phase in the water. The preservatives other than the parabens, which contain (E) a preservative other than the parabens soluble in the water and / or the polyvalent alcohol, are contained in a polyhydric alcohol having a soluble antiseptic promoting action. It contains phenoxyethanol, glyceryl caprylate, polylysine, and an antiseptic other than at least one paraben selected from the group consisting of polylysine, and is characterized by having antiseptic properties.

As the polyhydric alcohol having an antiseptic promoting action, a configuration containing at least one polyhydric alcohol selected from the group consisting of propylene glycol, butylene glycol and glycerin can be preferably carried out.

It is preferably feasible to construct a preservative other than parabens containing both phenoxyethanol and glyceryl caprylate and / or polylysine.

In the water-containing composition of the present invention, a structure containing no preservatives of parabens or a structure containing a small amount of parabens to the extent that skin sensitization is not exhibited is preferably feasible.

The patch provided with the water-containing composition of the present invention comprises the water-containing composition and the sheet-shaped holding member, and the water-containing composition adheres to and / or is impregnated with the sheet-shaped holding member and is held. The functional component contained in the water-containing composition contains a water-soluble polymer that is soluble in water, is formed so as to be attachable to human skin, and is characterized by having antiseptic properties.

In the method for producing a water-containing composition having antiseptic properties of the present invention, the water-containing composition may be soluble in (A) water, (B) a functional component soluble in the water, and (C) soluble in the water. A preservative other than the parabens, which contains (E) a preservative other than the parabens soluble in the water and / or the polyhydric alcohol, and a preservative having a compatible antiseptic action. , Phenoxyethanol, glyceryl caprylate, polylysine, and a preservative other than at least one paraben selected from the group consisting of, is a method for producing a preservative-containing water-containing composition (a). ) At least, a step of mixing and dissolving a functional component that is soluble in water in water to prepare a preservative solution containing the functional component, (c) a preservative other than parabens, and the preservative. A step of mixing soluble water and / or polyhydric alcohol to prepare a preservative-containing preservative-containing preservative solution in which the preservative is dissolved, (e) the polyvalent alcohol and the above (a). The functional ingredient-containing preservative prepared in accordance with (c) and the preservative-containing preservative prepared according to (c) are mixed, whereby the functional ingredient and the preservative are dissolved. It is characterized by comprising a step of preparing a water-containing composition.

The method for producing a patch containing the water-containing composition of the present invention comprises a sheet-shaped holding member and a water-containing composition that adheres to and / or is impregnated and held by the sheet-shaped holding member, and is attached to human skin. A possible method for producing a patch, the water-containing composition comprises (A) water and (B) a water-soluble polymer as a functional component soluble in the water, and at least. , (C) A polyvalent alcohol having an antiseptic promoting action that is soluble or compatible with the water, and (E) an antiseptic other than parabens that is soluble in the water and / or the polyhydric alcohol. However, the preservative other than the parabens contains phenoxyethanol, glyceryl caprylate, polylysine, and at least one preservative other than the parabens selected from the group consisting of polylysine, and the temperature is about 45 ° C. or lower. In the above, it has a gel-like state in which it has flexibility and adhesiveness and is in a non-fluid state, has antiseptic properties, and is configured to be stickable to human skin, and (a) is at least soluble in water. A step of preparing a water-soluble polymer-containing preconditioning solution having a viscous and fluidity by mixing and dissolving the water-soluble polymer in water, (c) a preservative other than parabens, and the above. A step of mixing an antiseptic with soluble water and / or a polyhydric alcohol to prepare a preservative-containing preconditioning solution containing the preservative in which the preservative is dissolved, (e) the polyhydric alcohol and the above. The water-soluble polymer-containing preconditioning solution prepared in (a) and the preservative-containing preconditioning solution prepared in (c) are mixed, whereby the preservative is dissolved and the preservative is dissolved. The step of preparing a fluid water-containing polymer composition having viscosity and fluidity, wherein the fluid water-containing polymer composition is adjusted to a predetermined temperature, (f) the above-mentioned (e). ) After the step, when the fluidity of the fluid-containing polymer composition is maintained until gelation, the fluid-containing polymer composition is attached to the sheet-like holding member to a predetermined thickness. / Or a step of preparing a fluid water-containing polymer composition with a sheet-shaped holding member held by the sheet-shaped holding member by impregnation, (g) the sheet-shaped holding prepared by the step (f). A patch having a fluid-containing polymer composition with a member adjusted to a predetermined temperature, whereby the fluid-containing polymer composition is gelled into a gel state having no fluidity. It is characterized by having a step of preparing.

According to the water-containing composition of the present invention (effect a: a water-containing composition exhibiting reduced skin sensitization and excellent antiseptic properties), it contains functional components such as water and a water-soluble polymer, and also contains parabens. In a water-containing composition that does not contain parabens or a water-containing composition that contains a trace amount of parabens, a water-containing composition that can exhibit sufficient antiseptic properties and has reduced skin sensitivities can be obtained. In particular, when used by a person with low (or weak) skin resistance such as an infant or an elderly person, a water-containing composition which is expected to have reduced skin sensitization and has excellent antiseptic properties can be obtained.

By the patch constituting the water-containing composition of the present invention (effectiveness-patch: a patch having reduced skin sensitization and excellent antiseptic property), a person with low skin resistance (or a weak person) can be applied to the skin. When used by sticking, it is expected to reduce skin sensitivities such as skin irritation that comes in contact with it, and a sticking agent that exhibits excellent antiseptic properties can be obtained. A patch having basic performance such as shape, flexibility, easy peeling adhesiveness, and residual peeling inhibitory property can be obtained. In particular, when used by people with low skin resistance such as infants and the elderly, a patch that is expected to have reduced skin sensitization and has excellent antiseptic properties can be obtained.

According to the method for producing a water-containing composition of the present invention, a preservative other than paraben can be dissolved in water and / or a polyhydric alcohol in which a functional component is dissolved, so that sufficient antiseptic properties can be exhibited and skin can be exhibited. A water-containing composition with reduced sensitivities can be obtained.

According to the method for producing a patch provided with the water-containing composition of the present invention, (Effect e: A method for producing a patch having basic performance required for a patch, reduced skin sensitization and excellent antiseptic properties). ) Preservatives other than parabens can be contained in the hydrous composition in a dissolved state, which makes contact when used by a person with low (or weak) skin resistance by applying it to the skin. It is expected to reduce skin sensitivities such as skin irritation, and has excellent antiseptic properties. In particular, the adhesiveness, shape retention, flexibility, easy peeling adhesiveness, and residual peeling required for patches are required. It is possible to manufacture a patch having basic performance such as inhibitory properties.

It is a schematic process explanatory drawing explaining the manufacturing process of the manufacturing process of the patch containing the water-containing composition of one Example of this invention. It is a figure explaining an example which determines the action effect of the antiseptic property which occurs when two kinds of preservatives are blended.

The water-containing composition of the present invention is a water-containing composition containing (A) water and (B) a functional component soluble in the water, and is at least (C) soluble or phase in the water. The preservatives other than the parabens, which contain (E) a preservative other than the parabens soluble in the water and / or the polyvalent alcohol, are contained in a polyhydric alcohol having a soluble antiseptic promoting action. It contains phenoxyethanol, glyceryl caprylate, polylysine, and an antiseptic other than at least one paraben selected from the group consisting of polylysine, and is characterized by having antiseptic properties.

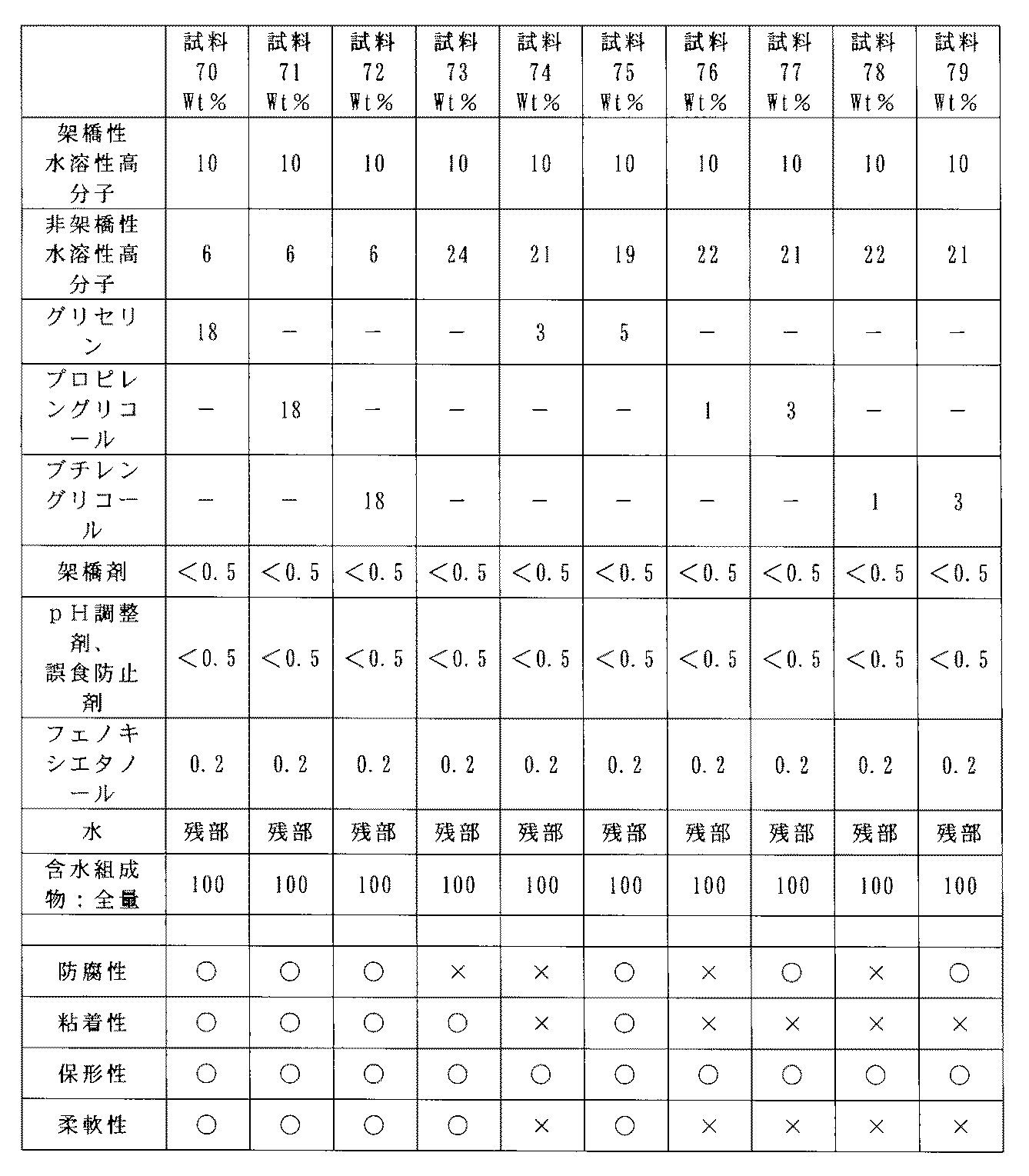

<On the preservative-promoting effect of polyhydric alcohols in water-containing compositions containing preservatives other than parabens>
In the hydrous composition of the present invention, the polyhydric alcohol contains at least one polyhydric alcohol among propylene glycol, butylene glycol and glycerin, and the preservatives include at least phenoxyethanol, glyceryl caprylate, and. It contains at least one preservative selected from the group consisting of polylysine, and by containing the polyhydric alcohol and the preservative, the polyhydric alcohol exerts an antiseptic promoting action to promote the preservative property of the preservative. Is.
With this configuration, it has the above-mentioned (effect a) and (effect w: effect of promoting antiseptic property by containing polyhydric alcohol and other preservatives) propylene glycol, butylene glycol and / or glycerin as polyhydric alcohols. By containing the above, it exerts an antiseptic promoting action that promotes the antiseptic action of preservatives other than these parabens. In other words, the combined use of these polyhydric alcohols with non-paraben preservatives such as phenoxyethanol, glyceryl caprylate, and polylysine has the effect of reducing the minimum preservative concentration of non-paraben preservatives. can get.
This effect was found during this experiment, and it is speculated that these polyhydric alcohols have some preservative-promoting effect in the addition of preservatives such as phenoxyethanol, caprylic acid glyceryl, or polylysine. To.

From the viewpoint of antiseptic properties, propylene glycol contains 3% by weight or more based on the total content, or butylene glycol contains 3% by weight or more based on the total content, or glycerin contains 3% by weight or more based on the total content. On the other hand, a composition containing 5% by weight or more is desirable and feasible, and has an antiseptic promoting action. When the content of propylene glycol alone or butylene glycol alone is less than 3% by weight, or the content of glycerin alone is less than 5% by weight, the polyhydric alcohol tends not to exert a sufficient antiseptic promoting effect. be.
When the content of the polyhydric alcohol exceeds 50% by weight, and particularly when it is used as a patch, it tends to be inferior in shape retention and post-peeling residue inhibitory property.
It is also possible to carry out a configuration in which both propylene glycol and butylene glycol are contained and the total amount of these is 3% by weight or more, and an antiseptic promoting action is exhibited. It is also possible to implement a configuration in which two or more of propylene glycol, butylene glycol and glycerin are contained, and the total amount of these polyhydric alcohols is 3% by weight or more, which exerts an antiseptic promoting action.

The water-containing composition does not contain parabens, but contains propylene glycol, butylene glycol and / or glycerin, and a water-containing composition containing a preservative other than the above parabens also exhibits excellent antiseptic properties.
Further, even when the water-containing composition contains the parabens in an amount of 0.05% by weight or less based on the total amount, and also contains the above-mentioned polyhydric alcohol and a preservative other than the parabens, the preservatives are also contained. It can be expected to play a role and reduce skin sensitization.

According to the publicly known literature, the above-mentioned polyhydric alcohol has the following properties.
Propylene glycol has a melting point of −59 ° C. and a boiling point of 188.2 ° C., has a slightly viscous liquid at room temperature, is easily miscible and compatible with water, and is easily miscible and compatible with ethanol. Dipropylene glycol has a melting point. It has a temperature of −39 ° C. and a boiling point of 232.2 ° C., has a viscous liquid at room temperature, is easily miscible and compatible with water, and is easily miscible and compatible with ethanol. Butylene glycol is also known as 1,3-butylene glycol, 1,3-butanediol, or 1,3-dihydroxybutane, which has a viscous liquid at room temperature and is easily miscible and compatible with water. Yes, it is easily miscible and compatible with ethanol. Glycerin is also known as glycerol and has a melting point of about 18 ° C., but it is prone to supercooling and difficult to crystallize, has a highly viscous liquid at room temperature, is easily miscible and compatible with water, and is ethanol. Is easily miscible and compatible.

<About water-containing compositions containing preservatives other than parabens>
In the hydrous composition of the present invention, the preservatives other than the parabens are a group consisting of phenoxyethanol soluble in polyhydric alcohol, glyceryl caprylate soluble in polyhydric alcohol, and polylysine soluble in water. It is possible to carry out a configuration containing at least one preservative other than parabens selected from.

This configuration contains at least one preservative selected from the group consisting of phenoxyethanol, glyceryl caprylate, and polylysine (effect i-abd: reduced skin sensitization and excellent antiseptic properties). Therefore, when used by people with low skin resistance, it is expected to reduce skin sensitization such as skin irritation that comes in contact with it, and it contains a functional component dissolved in water that exhibits excellent antiseptic properties. A water-containing composition and a cosmetic product or a patch containing the water-containing composition can be obtained.

Further, the preservatives other than the parabens are phenoxyethanol soluble in the water and / or the polyhydric alcohol, and are sparingly soluble in the water, but can be used in the polyhydric alcohol without containing the paraben preservatives. It is also possible to carry out a configuration containing at least one preservative selected from the group consisting of dissolved glyceryl caprylate and the water-soluble polylysine preservative. As a result, a water-containing composition that further remarkably exerts the above-mentioned effect of reducing skin sensitization (effect i-abd: reduced skin sensitization / excellent antiseptic property) can be obtained.

Table 1 shows known physical properties of the preservative contained in the water-containing composition of the present invention. In known literature, the solubility of these preservatives in water, ethanol, propylene glycol and the like is disclosed, but no data on the solubility in other polyhydric alcohols could be found.

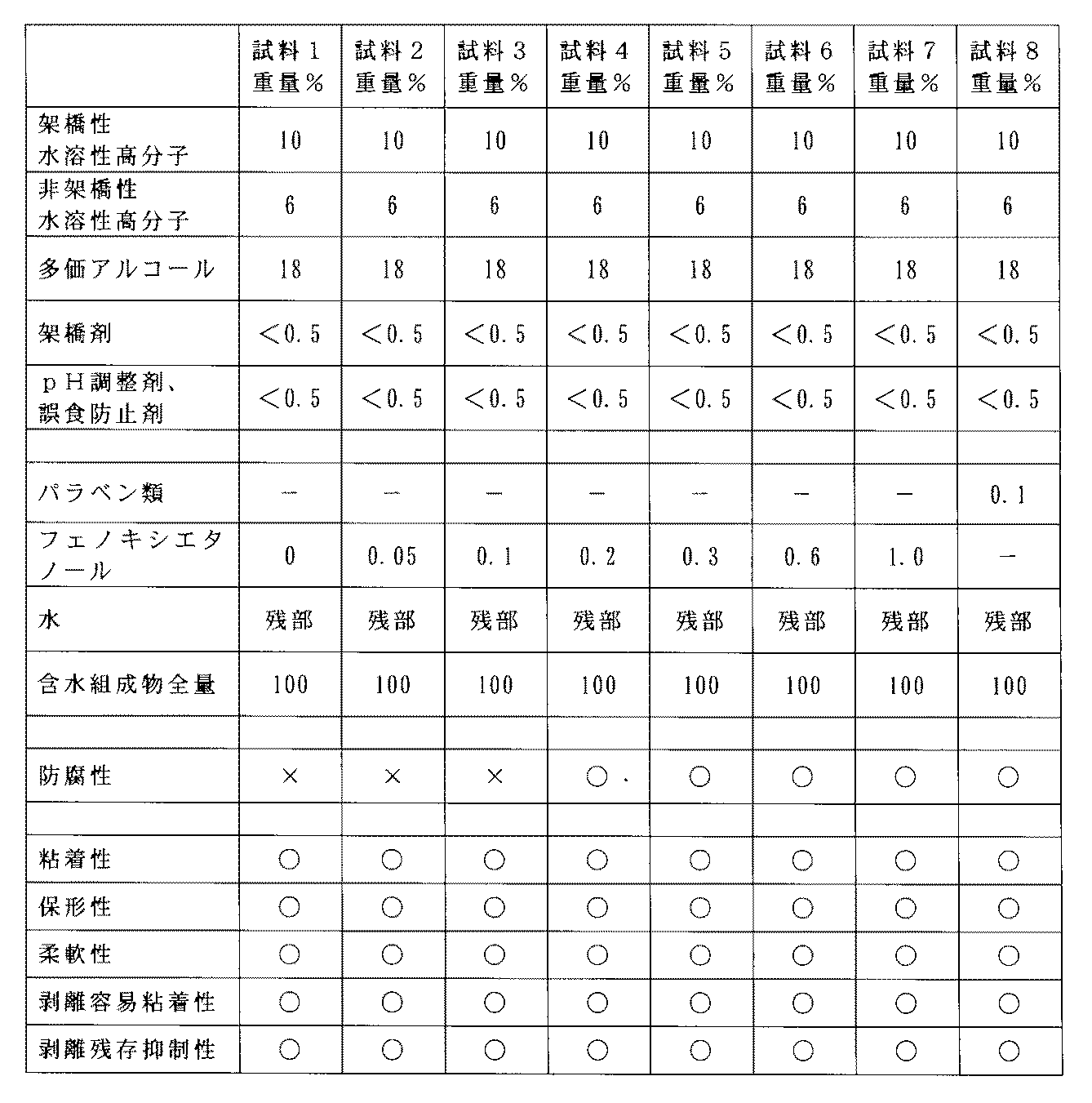

<About a water-containing composition containing phenoxyethanol>
In the water-containing composition of the present invention, it is desirable that the preservative other than parabens contains phenoxyethanol in an amount of 0.2 to 1.0% by weight based on the total content. It is more desirable that phenoxyethanol is dissolved or mixed in a water-containing composition.
With this configuration, (effect a: phenoxyethanol content, reduced skin sensitization, excellent antiseptic properties) phenoxyethanol is dissolved or mixed and contained, so that it is used by people with low skin resistance. A water-containing composition containing a functional component dissolved in water, which is expected to reduce skin sensitivities such as skin irritation in contact with the skin and has excellent antiseptic properties, can be obtained.

Further, it is also possible to implement a configuration in which a preservative other than the parabens contains a preservative of phenoxyethanol without containing a paraben preservative. As a result, a water-containing composition that further remarkably exerts the above-mentioned effect of reducing skin sensitization (effect a: reduced skin sensitization / excellent antiseptic property) can be obtained.

Phenoxyethanol is a colorless, transparent, slightly viscous liquid having a boiling point of about 245 ° C. and a freezing point of about 13 degrees Celsius, and is widely used as an excellent solvent for various organic substances. It is also used as a preservative in the cosmetics field to prevent oxidation of the contained components. Solubility in water is about 2.8% by weight at 20 ° C.
On the other hand, according to publicly known literature, parabens are difficult to dissolve in water, and in terms of solubility in water, methylparaben is about 0.25% by weight, ethylparaben is 0.17% by weight, and propylparaben is 0.04% by weight. %, Butylparaben is 0.02% by weight. That is, phenoxyethanol has a property of being more soluble in water than parabens.
Generally, according to publicly known literature, phenoxyethanol is said to be safer for human health than parabens, however, the content should be as low as possible. Further, when a preservative such as phenoxyethanol is contained as a preservative in cosmetics, the preservative effect thereof is significantly different depending on the type of other components contained in the cosmetic. In addition, it has been confirmed by the experiments of the inventors that phenoxyethanol is dissolved in propylene glycol at room temperature and dissolved in butylene glycol or glycerin by raising the temperature. It was confirmed that even when this dissolved phenoxyethanol solution was mixed with a large amount of water, separation or precipitation of phenoxyethanol was not observed, and the state of being dissolved in the mixed solvent of water and polyhydric alcohol was maintained. .. That is, it was confirmed that phenoxyethanol was soluble in water and / or polyhydric alcohol in a predetermined ratio.

As a result of various experiments by the inventor of the water-containing composition of the present invention, the content of phenoxyethanol is preferably in the range of 0.2% by weight to 1.0% by weight based on the total amount of the composition, and this range. It was found that phenoxyethanol exhibits an excellent antiseptic property while maintaining a dissolved state without separation in a hydrous composition. More preferably, it has been found that the phenoxyethanol content is in the range of 0.3% by weight to 0.8% by weight, and sufficient antiseptic properties are exhibited even in the content in this range. When the phenoxyethanol content is less than 0.2% by weight, sufficient antiseptic properties cannot be obtained. When the phenoxyethanol content exceeds 1.0% by weight, it is presumed that the health of the human body tends to be inconvenient.

Further, at room temperature, phenoxyethanol dissolves in water at a concentration of about 2% by weight and is compatible, and for example, it dissolves and is compatible even at a concentration of about 3% by weight by raising the temperature to about 50 ° C. It was confirmed. Further, phenoxyethanol is easily dissolved in polyhydric alcohols such as propylene glycol, dipropylene glycol and butylene glycol and has compatibility, and the temperature of glycerin having high viscosity is increased to reduce the viscosity of glycerin. It was confirmed that it was easily dissolved in the state of being compatible with each other. In particular, it was confirmed that phenoxyethanol was easily dissolved and compatible even at room temperature in the presence of both water and polyhydric alcohol solvents.
Further, it is dissolved in a water-containing composition containing a crosslinkable water-soluble polymer and / or a non-crosslinkable water-soluble polymer and a polyhydric alcohol dissolved in water and containing about 1.0% by weight of phenoxyethanol. It was confirmed that the phenoxyethanol contained therein was maintained in a dissolved state without separation and without precipitation even at a low temperature of about 10 ° C.

<About a water-containing composition containing glyceryl caprylate>
In the water-containing composition of the present invention, it is desirable that the preservative other than parabens contains glyceryl caprylate in an amount of 0.01 to 0.8% by weight based on the total content. It is more desirable that the glyceryl caprylate is dissolved or mixed in a hydrous composition containing a polyhydric alcohol.
With this composition, (effect ib: glyceryl caprylate, reduced skin sensitization, excellent antiseptic property) glyceryl caprylate is mixed with polyvalent alcohol without being dissolved or separated, and is contained in the skin. A water-containing composition containing a functional component dissolved in water, which is expected to reduce skin sensitization such as skin irritation when used by a person with low resistance and has excellent antiseptic properties. Is obtained.

Further, in particular, a configuration containing glyceryl caprylate as a preservative other than parabens can be implemented without containing a paraben preservative. As a result, a water-containing composition that further remarkably exerts the above-mentioned effect of reducing skin sensitization (effect ib: reduced skin sensitization / excellent antiseptic property) can be obtained.

According to the known literature, glyceryl caprylate is a waxy semi-solid at room temperature, becomes liquid at a high temperature, is insoluble in water, and is easily dissolved in ethanol. It has both a bactericidal action and an emulsifying action, and is widely used in cosmetics.
No known data on the solubility of glyceryl caprylate in polyhydric alcohols was found, but as a result of various experiments by the inventor, glyceryl caprylate was insoluble in water but easily dissolved in propylene glycol. It was confirmed that high-viscosity polyhydric alcohols such as dipropylene glycol, butylene glycol, and glycerin were soluble in each other by raising the temperature of these polyhydric alcohols or glyceryl caprylate, and had compatibility and miscibility. That is, it was confirmed that glyceryl caprylate is soluble in polyhydric alcohols. Further, even in a state where glyceryl caprylate dissolved in these polyhydric alcohols is mixed with a composition containing water and a water-soluble polymer dissolved in water, the phase of glyceryl caprylate such as cloudiness and separation is also observed. No miscibility phenomenon such as poor solubility was observed, and it was confirmed that the water-containing composition produced maintained a well-dissolved or miscible state. Separately, it was confirmed that glyceryl caprylate is soluble or miscible in ethanol.

As a result of various experiments by the inventor, the content of glyceryl caprylate is preferably in the range of 0.01 to 0.8% by weight based on the total amount of the composition, and in this range, glyceryl caprylate has a water-containing composition. It has been found that it does not separate in an object, maintains a dissolved state, and exhibits excellent antiseptic properties. More preferably, the content of glyceryl caprylate is in the range of 0.02% by weight to 0.5% by weight, and it has been found that sufficient antiseptic properties are exhibited even in the content in this range. When the content of glyceryl caprylate is less than 0.01% by weight, sufficient antiseptic properties cannot be obtained. When the content of glyceryl caprylate exceeds 0.8% by weight, it is presumed that the health of the human body tends to be inconvenient.

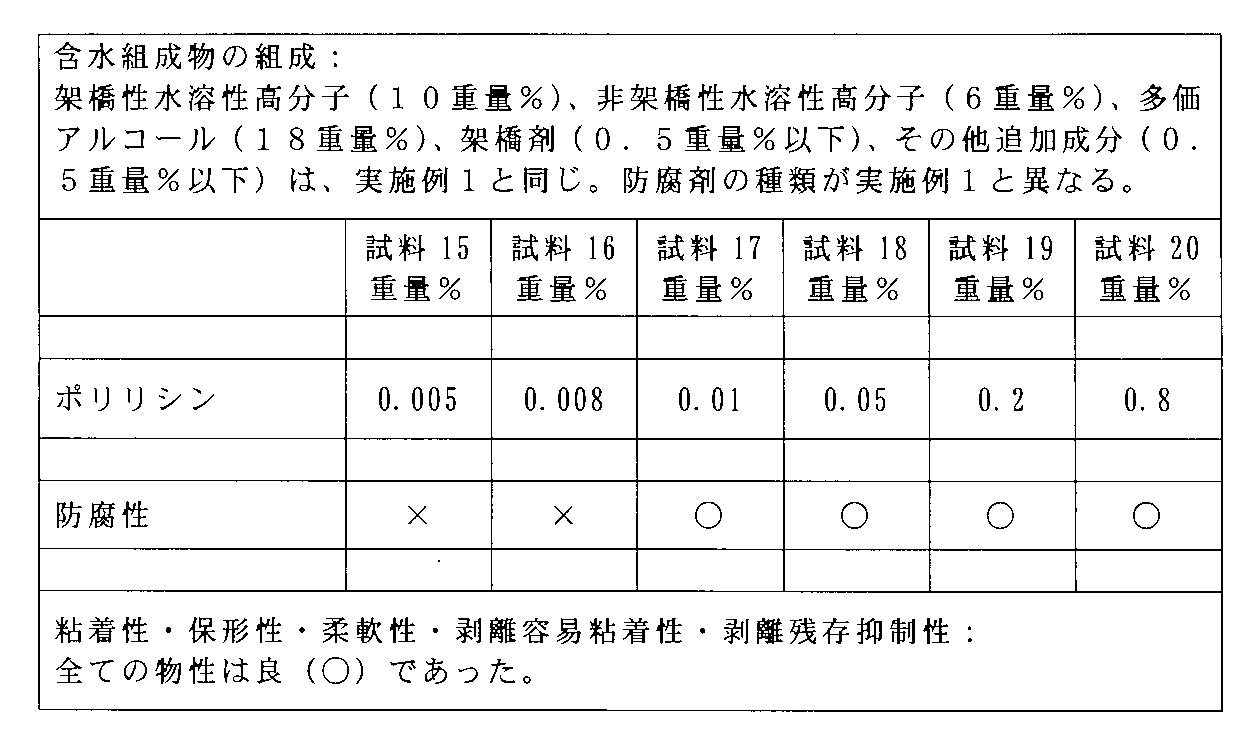

<About a water-containing composition containing polylysine>
In the water-containing composition of the present invention, as a preservative other than parabens, a configuration containing 0.01 to 0.8% by weight of polylysine with respect to the total content is desirable and feasible. It is more desirable that polylysine is dissolved or mixed in a water-containing composition.
With this configuration, polylysine (effect id: paraben-free, polylysine, reduced skin sensitization, excellent antiseptic property) is contained by being mixed with water and / or polyhydric alcohol without dissolution or separation. Depending on the composition, when used by a person with low skin resistance, it is expected to reduce skin sensitization such as skin irritation in contact with the skin, and a water-containing composition containing water and functional components, which exhibits excellent antiseptic properties. You get things.

It is also possible to implement a configuration in which a preservative other than parabens contains a polylysine preservative without containing a paraben preservative. As a result, a water-containing composition that further remarkably exerts the effect of suppressing skin sensitization in the above-mentioned (effect id: reduced skin sensitization / excellent antiseptic property) can be obtained.

Polylysine has a melting point of about 173 ° C., is a polyamino acid in which L-lysine, which is an essential amino acid, is linearly linked, and is soluble in water. It is widely used as a preservative and preservative for foods with stability and health and safety.
As a result of various experiments by the inventor, the content of polylysine is preferably in the range of 0.01 to 0.8% by weight based on the total amount of the composition, and in this range, polylysine is separated in the hydrous composition. It was found that it maintains a dissolved state and exhibits excellent antiseptic properties. More preferably, the polylysine antibacterial content is in the range of 0.02% by weight to 0.5% by weight, and it has been found that sufficient antiseptic properties are exhibited even in the content in this range. When the polylysine antibacterial content is less than 0.01% by weight, sufficient antiseptic properties cannot be obtained. When the polylysine antibacterial content exceeds 0.8% by weight, it is presumed that the health of the human body tends to be inconvenient.

Further, even when a polylysine solution dissolved in water and a polyhydric alcohol such as propylene glycol, dipropylene glycol, propanediol, butylene glycol, glycerin, and sorbit solution were mixed, no precipitation of polylysine was observed. No phenomena such as precipitation or separation of polylysine were observed.
Furthermore, even when a polylysine solution dissolved in water is mixed with water and a composition containing a functional component dissolved in water and a polyhydric alcohol, phenomena such as precipitation and separation of polylysine such as cloudiness are observed. It was confirmed that the water-containing composition was maintained in a well-dissolved state.

<Water-containing composition containing both preservatives of phenoxyethanol and other preservatives>
In the water-containing composition of the present invention, it is desirable that the preservatives other than parabens contain both phenoxyethanol and preservatives of glyceryl caprylate and / or polylysine.
With this configuration, (effect b: preservative synergistic effect by phenoxyethanol and other preservatives, reduced skin sensitization, excellent preservative property) preservatives of both phenoxyethanol and preservatives of glyceryl caprylate and / or polylysine. Due to the composition containing the agent, the content of phenoxyethanol can be further reduced, and the content of the preservatives containing glyceryl caprylate and / or polylysine can be significantly reduced. Even in a composition having a small total content of, a water-containing composition containing water and a functional component, which exhibits sufficient antiseptic properties, can be obtained. In other words, the composition of containing both preservatives of glyceryl caprylate and / or polylysine in addition to phenoxyethanol is better than the single use of these preservatives at the same preservative concentration. It has an antiseptic effect.

FIG. 2 shows a diagram illustrating an example of determining an antiseptic action effect caused by blending two kinds of preservatives.
When two kinds of preservatives having antiseptic properties are contained, the antiseptic action caused by the preservatives is roughly classified into a synergistic action, an additive action and an antagonistic action. The synergistic action is an action in which two kinds of preservatives act synergistically to further enhance the inherent preservative power. The additive action is a combination of the preservative powers of each preservative. The antagonistic action is an action in which one preservative cancels the antiseptic power of another preservative. For example, as shown in FIG. 2, it is determined from a graph in which the minimum preservative concentration is measured by changing the respective content ratios of phenoxyethanol and glyceryl caprylate or polylysine. According to this, the minimum preservative concentration in phenoxyethanol alone was 0.2% by weight (point X) according to Example 1 described later, and the minimum preservative concentration in glyceryl caprylate only or polylysine alone was described in Example 2 and later. According to Example 3, each is 0.01% by weight (Y point), and the minimum preservative concentration when a straight line XY connecting the X point and the Y point is drawn and both preservatives are used in combination is determined. When it is on the inside (lower side) of this straight line XY (for example, points S, T, and U), it is determined that the preservative power is enhanced by the combined use of both preservatives, and it is determined that the preservative power is enhanced, and it is on the straight line XY. When it is (for example, point P), it is determined that there is an additive effect, and when it is outside (upper side) of the straight line XY (for example, point R), it is determined that it is an antagonistic effect that reduces both preservatives. be able to.

<Water content containing both preservatives of phenoxyethanol and glyceryl caprylate>
In the hydrous composition of the present invention, the minimum content of preservatives other than parabens contains phenoxyethanol in XY coordinates with the phenoxyethanol content as the X-axis and the caprylate glyceryl content as the Y-axis with respect to the total amount. In XY coordinates with the amount on the X-axis and the glyceryl caprylate content on the Y-axis, the point M where the phenoxyethanol content on the X-axis is 0.17% by weight and the glyceryl caprylate content on the Y-axis is 0.007% by weight. A configuration comprising both preservatives of phenoxyethanol and glyceryl caprylate is desirable and feasible so as to be in the region above the straight line MN connecting the percentage point N.
As the content of phenoxyethanol and glyceryl caprylate increases, it is presumed that there is a tendency for adverse effects on human health to occur, and it is desirable that the maximum content of phenoxyethanol is 0.9% by weight or less and the maximum content of glyceryl caprylate. It is desirable that the amount is 0.8% by weight or less, and the content is as small as possible in this range.

With this configuration, (effect lo-ab: preservative synergistic effect of phenoxyethanol and glyceryl caprylate, reduced skin sensitization, excellent antiseptic property) contains both preservatives of phenoxyethanol and glyceryl caprylate. Depending on the composition, the content of phenoxyethanol can be reduced, and the content of glyceryl caprylate to be used in combination can also be significantly reduced. A water-containing composition comprising a water-containing composition containing water and a functional component can be obtained. In other words, the composition containing both preservatives with glyceryl caprylate in addition to phenoxyethanol has the effect of achieving better preservative properties than the single use of these preservatives at the same preservative concentration. can get.

Further, in particular, a configuration comprising both preservatives of phenoxyethanol and glyceryl caprylate without containing parabens can be implemented. As a result, a water-containing composition that further remarkably exerts the above-mentioned effect of reducing skin sensitization (effect low ab: antiseptic synergistic effect, reduced skin sensitization, and excellent antiseptic property) can be obtained.

<Water-containing composition containing both phenoxyethanol and polylysine preservatives>
In the water-containing composition of the present invention, the minimum content of preservatives other than parabens is the phenoxyethanol content in XY coordinates with the phenoxyethanol content on the X-axis and the polylysine content on the Y-axis with respect to the total amount. At the XY coordinates with the X-axis and the polylysine content as the Y-axis, the point M where the phenoxyethanol content on the X-axis is 0.17% by weight and the point N where the polylysine content on the Y-axis is 0.007% by weight. It is desirable and feasible to construct a structure containing both phenoxyethanol and polylysine preservatives so as to be in the region above the straight line MN connecting the two.
As the content of phenoxyethanol or polylysine increases, it is presumed that the health of the human body tends to be inconvenient. Desirably, the maximum content of phenoxyethanol is 0.9% by weight or less, and the maximum content of polylysine is 0. A configuration of 8% by weight or less is desirable, and a content as low as possible in this range is desirable.

With this configuration (effect load: combined use of phenoxyethanol and polylysine, preservative synergies, reduced skin sensitization, and excellent antiseptic properties), phenoxyethanol contains both preservatives of phenoxyethanol and polylysine. It is possible to reduce the content of polylysine to be used in combination, and the content of polylysine to be used in combination can be significantly reduced. A water-containing composition comprising a water-containing composition containing the components can be obtained. In other words, the composition containing both preservatives with polylysine in addition to phenoxyethanol provides an effect of exhibiting better preservative properties as compared with the single use of these preservatives at the same preservative concentration. ..
Further, it is also possible to carry out a configuration in which both phenoxyethanol and a polylysine preservative are contained without containing parabens. As a result, a water-containing composition that further remarkably exerts the above-mentioned effect of reducing skin sensitization (effect road: synergistic antiseptic effect, reduced skin sensitization, and excellent antiseptic property) can be obtained.

<About a water-containing composition containing multiple preservatives of phenoxyethanol, glyceryl caprylate, and polylysine>
In the hydrous composition of the present invention, the minimum content of preservatives other than parabens is XY coordinates with the phenoxyethanol content on the X-axis and the total content of glyceryl caprylate and polylysine on the Y-axis with respect to the total content. In XY coordinates where the phenoxyethanol content is on the X-axis and the total content of glyceryl caprylate and polylysine is on the Y-axis, the phenoxyethanol content on the X-axis is 0.17% by weight. It is desirable that the preservatives of both phenoxyethanol, glyceryl caprylate and polylysine are contained so as to be in the region above the straight line MN connecting the point N having the total content of polylysine of 0.007% by weight. It is feasible.
With this configuration, (effect ro-abd: combined use of phenoxyethanol, glyceryl caprylate and polylysine antiseptic synergies, reduced skin sensitization, and excellent antiseptic properties) multiple preservatives of phenoxyethanol, glyceryl caprylate and polylysine. Depending on the composition, the content of phenoxyethanol can be reduced, and the content of polylysine and glyceryl caprylate to be used in combination can be significantly reduced, even in a composition in which the total content of the preservative contained is small. , A water-containing composition comprising a water-containing composition containing water and a functional component, which exhibits sufficient antiseptic properties, can be obtained. In other words, due to the composition containing both preservatives of polylysine and glyceryl caprylate in addition to phenoxyethanol, the effect of exhibiting better preservative properties as compared with the single use of these preservatives at the same preservative concentration. Is obtained.

Further, preferably, it is possible to carry out a configuration in which a plurality of preservatives such as phenoxyethanol, glyceryl caprylate and polylysine are contained without containing parabens. As a result, a water-containing composition that further remarkably exerts the above-mentioned effect of reducing skin sensitization (effect low-abd: antiseptic synergistic effect, reduced skin sensitization, and excellent antiseptic property) can be obtained.

<Water-containing composition containing preservatives other than parabens and parabens of 0.05% by weight or less>
In the water-containing composition of the present invention, the water-containing composition can be configured to further contain (F) 0.05% by weight or less of parabens with respect to the total amount, in addition to preservatives other than parabens. ..
Parabens have the property of being sparingly soluble in water and soluble in polyhydric alcohols, but in this configuration, parabens are contained in a water-containing composition containing water and polyhydric alcohol. To.
With this configuration, (effect c: reduced / reduced skin sensitivities / excellent antiseptic properties), parabens reported to have skin sensitivities are contained in a significantly smaller amount than in the past, and phenoxyethanol. When used in combination with other preservatives such as glyceryl caprylate and polylysine, the amount of parabens is significantly reduced to reduce skin sensitization, and the content of other preservatives is also significantly reduced. Even when used by a person with low resistance, it is expected to reduce skin sensitization such as skin irritation in contact with the skin, and a water-containing composition having excellent antiseptic properties can be obtained.

Since parabens have skin sensitization properties, compositions containing no parabens are most desirable, however, in addition to compositions containing non-paraben preservatives such as phenoxyethanol, glyceryl caprylate, polylysine, etc. It is also possible to carry out a composition containing parabens having as little content as possible, whereby a water-containing composition having reduced skin sensitivities can be obtained.
Since the skin sensitization varies depending on the user, it is not possible to specify a clear permissible content of paraben preservatives, but paraben preservatives with a content of 0.05% by weight or less and as low as possible. Is desirable, and when the content of the paraben preservative exceeds 0.05% by weight based on the total amount, skin sensitization tends to occur.
The content of parabens is 0.05% by weight or less with respect to the total amount to reduce skin sensitization, and in the composition containing preservatives other than the above parabens, preservatives other than the above parabens. Excellent antiseptic properties can be obtained even in a composition in which the minimum content of preservatives other than the above parabens is reduced as compared with the composition containing the agent alone. When the preservative other than parabens is phenoxyethanol, the minimum content of 0.2% by weight can be reduced to the minimum content of 0.1% by weight, and when it is glyceryl caprylate, 0.01. The minimum content of% by weight can be reduced to a minimum content of 0.005% by weight, and in the case of polylysine, the minimum content of 0.01% by weight can be reduced to a minimum content of 0.005% by weight. And excellent antiseptic properties can be obtained.

<Dissolution state of contained preservatives in water>
In the water-containing composition of the present invention, a configuration in which the preservative is contained in the water-containing composition in a dissolved state is desirable and feasible.
With this configuration, the effects of each of the above-mentioned "effect a", "effect b", and "effect c" are further exerted more remarkably (effect iroha: reduction and reduction of the preservative content due to the inclusion of the dissolved preservative). (Skin sensitization and excellent antiseptic properties) In a water-containing composition containing preservatives other than parabens, the content of the preservatives is significantly reduced by containing the contained preservatives in a dissolved state. Even with this composition, it is expected to reduce skin sensitization such as skin irritation when used by people with low skin resistance, and contains water and water-soluble polymers that exhibit excellent antiseptic properties. A water-containing composition is obtained. In particular, when used by people with low skin resistance such as infants and the elderly, it can be expected to significantly improve skin sensitization such as skin irritation.

<Regarding the configuration in which the functional component is a water-soluble polymer>
In the water-containing composition of the present invention, the functional component is a water-soluble polymer that is soluble in water, and the high water-soluble component is dissolved in the water, and water, a water-soluble polymer, a polyhydric alcohol, and Preservatives other than parabens and parabens are preferably configured to be dissolved or compatible with each other.

As the water-soluble polymer as a functional component, the following crosslinkable water-soluble polymer and / or non-crosslinkable water-soluble polymer can be implemented.
(A) The crosslinkable water-soluble polymer contains a crosslinkable water-soluble polymer that can be crosslinked into a network structure in terms of molecular structure, and the crosslinkable water-soluble polymer is in a state where a crosslinking agent is present at about 18 to about 30 ° C. at room temperature. , It has a non-fluid gel state that is crosslinked in the state of being dissolved in the water.
(B) The crosslinkable water-soluble polymer contains a crosslinkable water-soluble polymer that can be crosslinked into a network structure in terms of molecular structure, and the crosslinkable water-soluble polymer is in a state where a crosslinking agent is not present at a room temperature of about 18 to about 30 ° C. , Has a fluid viscosity that is not crosslinked when dissolved in water.
(C) The non-crosslinkable water-soluble polymer containing a non-crosslinkable water-soluble polymer that is not cross-linked in terms of molecular structure is not cross-linked in a state of being dissolved in water at around room temperature of about 18 to about 30 ° C. It has a fluid and viscous substance.
(D) It has both water-soluble polymers, a crosslinkable water-soluble polymer that can be crosslinked into a network structure in terms of molecular structure and a non-crosslinkable water-soluble polymer that is not crosslinkable in terms of molecular structure, and has about 18 to about 30. At around room temperature at ° C., the crosslinkable water-soluble polymer has a non-fluid gel state that is crosslinked in a state of being dissolved in water in the presence of a crosslinking agent, and is the non-crosslinkable water-soluble polymer. The polymer has a fluid viscous state that is not crosslinked when dissolved in water.

<About crosslinkable water-soluble polymers>
The crosslinkable water-soluble polymer is soluble in water before cross-linking and has fluidity dissolved in water, and after cross-linking, it is in a state of being dissolved in water and / or a state containing water. It has the property of forming a gel, which is in a non-fluid state. Crosslinkable water-soluble polymer has the property of being able to crosslink into a network structure in terms of molecular structure by a chemical reaction with a crosslinking agent.
The crosslinkable water-soluble polymer is not particularly limited, but for example, (i) acrylic acid, methacrylic acid, and at least one acrylic acid-based monomer among these monovalent metal salts are polymerized. The obtained crosslinked acrylic acid-based polymer, (ii) (a) acrylic acid, methacrylic acid, and at least one acrylic acid-based monomer among these monovalent metal salts, and (b) alkyl acrylate. And a crosslinked acrylic acid-based copolymer obtained by copolymerizing with at least one alkyl acrylate-based monomer among alkyl methacrylates, (iii) in a partially neutralized portion of polyacrylic acid. Japanese-type polyacrylic acid, (iv) cross-linked carboxyvinyl polymer, and (v) carboxyalkyl cellulose sodium, and / or cross-linked cellulose compound of hydroxyalkyl cellulose sodium (as an alkyl group, for example, a methyl group, At least one crosslinkable water-soluble polymer selected from the group consisting of (ethyl group, provir group, etc.) can be carried out.
As the partially neutralized polyacrylic acid, partially neutralized sodium polyacrylate in which a part of the carboxylic acid group of the polyacrylic acid is neutralized with a monovalent ion such as sodium is used.

With this configuration, the above-mentioned (effect a: reduced skin sensitization and excellent antiseptic property) can be obtained, and (effect d: comfortable water retention, flexible shape retention and reduction due to the inclusion of the crosslinkable water-soluble polymer). (Skin sensitization and excellent antiseptic properties) Due to the inclusion of the crosslinkable water-soluble polymer, the crosslinkable water-soluble polymer dissolved in water is crosslinked into a network structure in the molecular structure by a chemical reaction with a crosslinking agent. It has a structure that changes from a fluid state to a non-fluid gel state, has no fluidity, has shape retention that can maintain its shape against external pressure, and retains a large amount of sufficient water. It has the effect of changing the state of a gel-like water-containing composition having a property and having a comfortable water-retaining and flexible shape-retaining property when it adheres to human skin, and which suppresses run-off.

The crosslinkable water-soluble polymer is easily dissolved in water, and the crosslinkable water-soluble polymer dissolved in water becomes a water-containing crosslinkable water-soluble polymer that sufficiently retains a large amount of water, and has a viscous viscosity. It has the property of becoming a viscous liquid. When this water-containing crosslinkable water-soluble polymer is dissolved in water and mixed with a cross-linking agent, it chemically reacts and is cross-linked to a network structure in the chemical structure, and has no fluidity and is maintained. It transforms into a gel-like hydrous composition having shape, water retention and flexibility. The water-containing composition has a predetermined amount of bound water, dissolved water, and free water.
The molecular weight of the crosslinkable water-soluble polymer is not particularly limited, but a crosslinkable water-soluble polymer having a molecular weight of about 10,000 to about 10 million is used, but as the molecular weight increases, it becomes more viscous when dissolved in water. The properties tend to be higher, and the water-containing composition after crosslinking tends to become harder in terms of water retention and flexibility, and the crosslinking density of the crosslinkable water-soluble polymer is not particularly limited, but as the crosslinking density increases, after crosslinking. The water-retaining flexible shape-retaining property of the water-containing composition tends to be hard, and the type of crosslinkable water-soluble polymer having a desired molecular weight and cross-linking density and cross-linking correspond to the desired comfortable water-retaining flexible shape-retaining property. The type of agent is selected and used.

As the content of the crosslinkable water-soluble polymer increases, the effect of maintaining the shape-retaining property of the gel-like water-containing composition formed by the crosslinking chemical reaction increases and the water retention property also improves, but the crosslinkable water-soluble polymer increases. When the content of the polymer is too large, the water-retaining flexibility and shape-retaining property tend to be hard, and when the polymer is applied to the human skin, the application tends to feel uncomfortable. As the content of the crosslinkable water-soluble polymer decreases, the shape retention of the gel that maintains its shape even with external pressure decreases and the water retention also decreases, and the content of the crosslinkable water-soluble polymer is too small. In some cases, the effect of changing the state of the gel-like water-containing composition capable of maintaining the shape-retaining property of the gel tends to be reduced.

<About cross-linking agent>
The cross-linking agent is not particularly limited, and for example, polyvalent metal ionic compounds such as magnesium, calcium, zinc, and aluminum, aluminum hydroxide, aluminum chloride, aluminum sulfate, aluminum magnesium hydroxide, and potassium aluminum hydroxide. Aluminum potassium sulfate (also known as Myouban), magnesium aluminometasilicate, aluminum glycinate (also known as dihydroxyaluminum aminoacetate, glycinate aluminum), magnesium aluminometasilicate, aluminum nitrate, aluminum sulfate, aluminum acetate, etc. Any combination of two or more cross-linking agents can be used.
Such polyvalent metal ionic compounds chemically react with the carboxylic acid or carboxylic acid ion of the crosslinkable water-soluble polymer dissolved in the medium, and are chemically structurally network-like and have no fluidity. , Has the effect of producing a gel-like water-containing composition having shape retention, water retention and flexibility.

The content of the cross-linking agent is not particularly limited, but is, for example, 0.001 to 1% by weight, preferably 0.005 to 0.5% by weight. If the content of the cross-linking agent is less than 0.001, the cross-linking reaction of the cross-linking water-soluble polymer becomes incomplete, and the desired gel strength and comfortable water-retaining and flexible shape-retaining property of the water-containing composition cannot be obtained. Tend. If the content of the cross-linking agent exceeds 1% by weight, the unreacted cross-linking agent remains in the water-containing composition, and an unexpected adverse effect may occur without any benefit.

<About non-crosslinkable water-soluble polymers>
The non-crosslinkable water-soluble polymer has a function of imparting or controlling the flexibility, adhesiveness, and / or easy-to-peel adhesiveness of the water-containing composition when it is composed of a patch.
As the non-crosslinkable water-soluble polymer, a polymer material that is easily soluble in water is applied and is not particularly limited, but for example, polyvinyl alcohol, polyethylene glycol, polypropylene glycol, starch acrylate, alkyl polyacrylic acid, and polyvinyl. Pyrrolidone, copolymer polymer of alkyl acrylate and by-monoma, non-crosslinked cellulose, gelatin, agar, etc. can be applied.
As the alkyl polyacrylic acid, for example, ethyl polyacrylate, butyl polyacrylate, ethylhexyl polyacrylate, octyl polyacrylate, decyl polyacrylate and the like can be used. As the by-monoma copolymerized with alkyl acrylate, for example, vinyl acetate, methyl methacrylate, maleic anhydride, hydroxyethyl acrylate and the like can be used. As the non-crosslinked cellulose, carboxyalkyl cellulose, hydroxyalkyl cellulose and the like can be used.

Other water-soluble polymers include hyaluronic acid, alginic acid, sodium alginate, carrageenan, glucomannan, xanthan gum, guar gum, duran gum, Ernest gum, locust bean gum, pectin, agarose, dextrin, glucomannan, polyglutamic acid, and polyglutamic acid. Salts, partially neutralized polyglutamic acid, alginic acid, salts of alginic acid, etc. are also feasible.

These non-crosslinkable water-soluble polymers are soluble in water or have good compatibility with water, and have the viscosity, flexibility, adhesiveness, and non-adhesiveness peculiar to each non-crosslinkable water-soluble polymer. A water-containing composition having properties, corresponding to the properties of the non-crosslinkable water-soluble polymer, such as desired viscosity, flexibility, adhesiveness, easy peeling adhesiveness, residual adhesiveness control after peeling, and the like. You can get things. For example, gelatin, collagen, agar, etc. have the property of suppressing adhesiveness, and when configured as a patch, as a post-peeling residual adhesive inhibitor that controls easy peeling adhesiveness and post-peeling residual adhesiveness. It works.

As the content of the non-crosslinkable water-soluble polymer increases, a large amount of sufficient water can be retained, and the soft viscosity, which increases the flexibility and viscosity, also improves, but the non-crosslinkable water-soluble polymer If the content of is too high, it tends to be hard in flexibility.

With this configuration, the above-mentioned (effect a: reduced skin sensitization and excellent antiseptic property) can be obtained, and (effect e: comfortable water retention, soft adhesiveness due to the inclusion of non-crosslinkable water-soluble polymer) water. Due to the inclusion of the non-crosslinkable water-soluble polymer dissolved in, it has water retention that can retain a large amount of sufficient water, and also has comfortable flexibility and adhesiveness when attached or affixed to human skin. A water-retaining, soft-adhesive action and effect can be obtained.

Further, in particular, in the patch provided with the water-containing composition of the present invention (effect: easy peeling adhesiveness due to inclusion of non-crosslinkable water-soluble polymer, resistance to residue after peeling), non-crosslinkable water-soluble high. By selecting and containing gelatin, agar, etc. that can suppress stickiness as the molecule, an appropriate pressing force is applied in a composition containing at least a crosslinkable water-soluble polymer, water and a non-crosslinkable water-soluble polymer. As a result, it sticks to the human skin and sticks to the skin. One of the water-containing compositions, which is easy to peel off and can be peeled off without giving a significant discomfort or irritation to the skin, and when a patch having a water-containing organism attached to the skin is peeled off from the skin. A patch having a post-peeling residue-suppressing property to the extent that the portion does not adhere to the skin, an easy-to-peeling adhesive property, and a post-peeling residue suppressing property can be obtained.

These non-crosslinkable water-soluble polymers are soluble in water and have the property of increasing the viscosity of the water-containing composition, while the water-containing composition containing these non-crosslinkable water-soluble polymers. An action capable of suppressing the residual water-containing composition that adheres to the skin when the patch having the above is applied to the human skin and the water-containing composition attached to the skin is peeled off from the skin after a certain elapsed time. Has.

<A water-containing composition containing a crosslinkable water-soluble polymer that does not contain a crosslinker and is not crosslinked>
In the composition composition containing the above-mentioned crosslinkable water-soluble polymer, a composition not containing a crosslinking agent is also feasible. In this case, the crosslinkable water-soluble polymer is not crosslinked and has fluidity at a temperature higher than normal temperature, and becomes a non-fluid gel state due to a decrease in temperature. It has an action similar to that of non-crosslinkable water-soluble polymers.
That is, in the water-containing composition, the water-soluble polymer contains a crosslinkable water-soluble polymer that can be crosslinked molecularly and structurally, and does not contain a crosslinking agent that can crosslink the crosslinkable water-soluble polymer molecularly. The crosslinkable water-soluble polymer includes (i) a crosslinked acrylic acid-based polymer, (ii) a crosslinked acrylic acid-based copolymer polymer, (iii) a crosslinked carboxyvinyl polymer, and (iv) a crosslinked cellulose. It is at least one crosslinkable water-soluble polymer selected from the group consisting of compounds, which is contained in a non-crosslinked state and flows in a temperature region higher than about 50 ° C. and fluidizes at a temperature of about 45 ° C. or lower. It is also possible to carry out a configuration having a gel-like structure without cross-linking.

With this configuration, the above-mentioned (effect a: reduced skin sensitization and excellent antiseptic property) can be obtained, and similar to the above-mentioned (effect e), (effect e-1: contained in a non-crosslinked state). Comfortable water retention and soft adhesiveness due to the inclusion of the crosslinkable water-soluble polymer) The inclusion of the non-crosslinkable water-soluble polymer dissolved in water has water retention that can retain a large amount of sufficient water and human skin. A water-containing composition having a comfortable water-retaining soft adhesiveness having comfortable flexibility and adhesiveness when adhered to or attached to the skin can be obtained.

The crosslinkable water-soluble polymer dissolved in water is in a state of having fluidity at a high temperature, but tends to become a gel without fluidity as the temperature becomes lower, and the boundary temperature thereof is contained. It depends on the type and content of the crosslinkable water-soluble polymer, and is not clear. A configuration containing a crosslinkable water-soluble polymer is desirable.

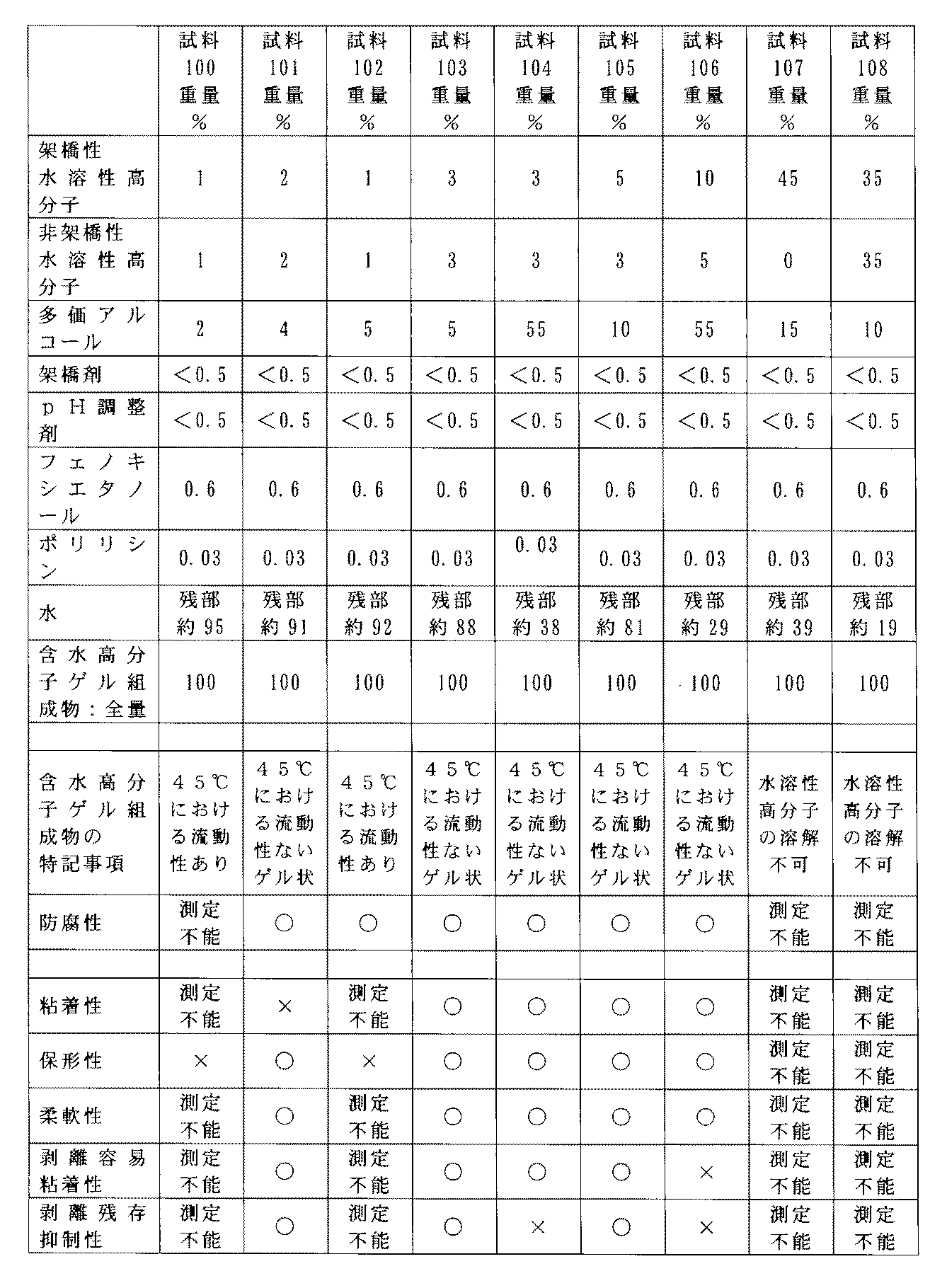

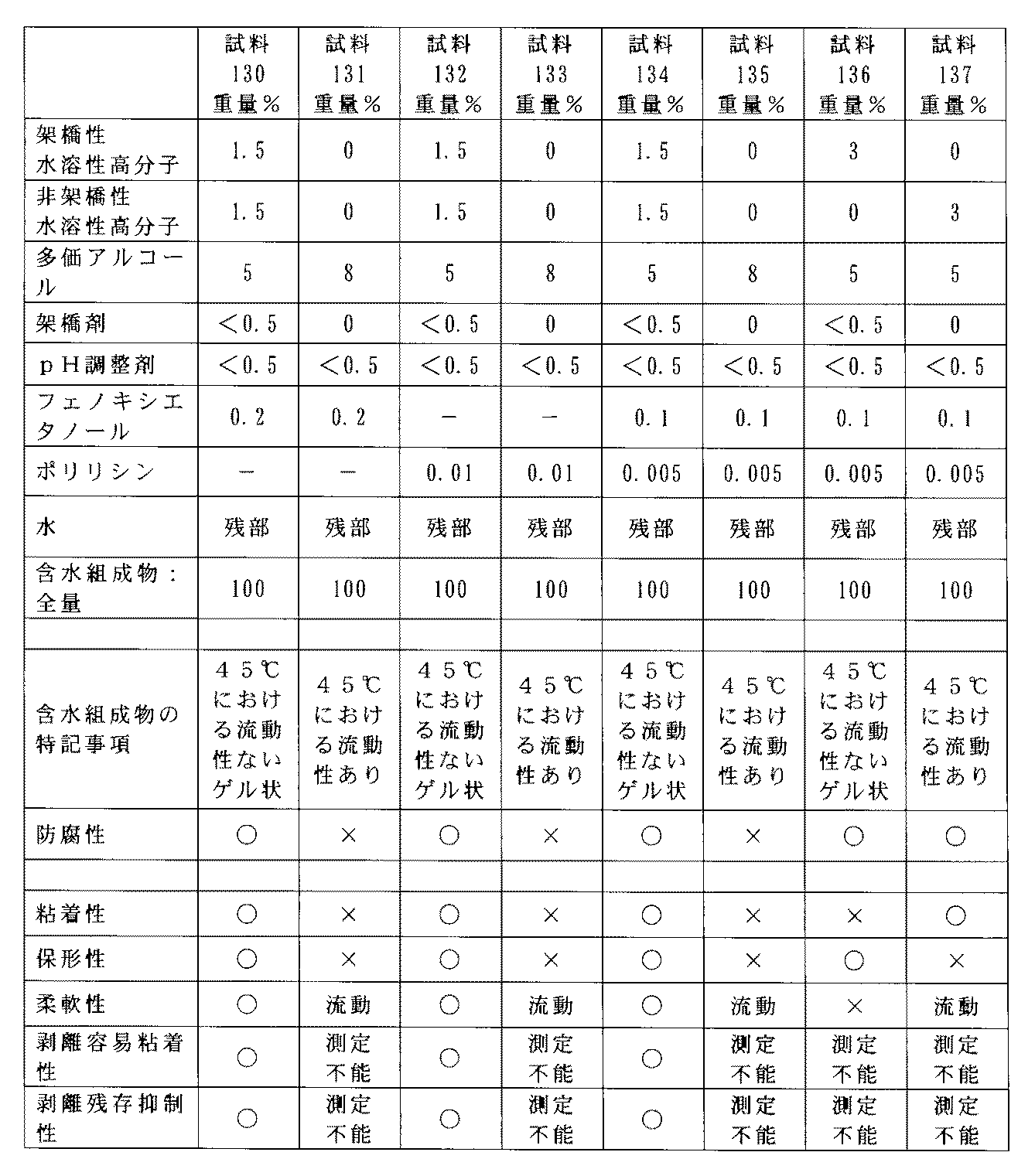

<Changes in fluidity of a water-containing composition containing a water-soluble polymer depending on the temperature>
In a water-containing composition containing water and a water-soluble polymer, the water-containing composition has fluidity at a high temperature regardless of whether the water-soluble polymer is a crosslinkable water-soluble polymer or a non-crosslinkable water-soluble polymer. It has the property of becoming a gel with no fluidity as the temperature decreases.
In particular, when the water-soluble polymer is a cross-linking water-soluble polymer and contains a cross-linking agent, the cross-linking water-soluble polymer is gradually cross-linked into a network structure in the molecular structure by a chemical reaction with the cross-linking agent. It becomes a gel with no fluidity. The water-containing composition containing the crosslinkable water-soluble polymer having a crosslinked network structure has a gel state without fluidity even at a high temperature, and maintains the gel state without fluidity even at a low temperature. ..
On the other hand, in the case of a composition containing a non-crosslinkable water-soluble high molecular weight and / or a cross-linkable water-soluble polymer containing no cross-linking agent, the composition is in a fluid state at a high temperature but at a low temperature. As it grows, it becomes a non-fluid gel.

<Regarding the functional ingredient for imparting efficacy as a functional ingredient contained in the water-containing composition>
The functional ingredients contained in the water-containing composition are the above-mentioned various water-soluble polymers and / or the functional ingredients for imparting efficacy, and the functional ingredients for imparting efficacy include pharmacologically active ingredients, skin-improving ingredients, and aromas. A configuration that is at least one selected from the group consisting of components is desirable and feasible.
In the water-containing composition of the present invention, the above-mentioned functional component contains a water-soluble polymer, or the water-soluble polymer contained as a functional component further contains an efficacy-imparting functional component. A water-containing composition having such a structure as that of a water-soluble polymer or a structure that contains an efficacy-imparting functional component without containing a water-soluble polymer can be implemented.
The efficacy-imparting functional component is contained in a state of being dissolved in a water-containing composition, a state of being contained in the water-containing composition in an emulsified state, or a state in which fine particles thereof are dispersed and contained.

The pharmacologically active ingredient is not particularly limited, and is, for example, indomethacin, loxoprofen, ketoprofen, diclophenac, diclofenac sodium, felbinac, piroxicam, suprofen, ibuprofen, ketorolac, lidocaine, flurbiprofen, mefenamic acid, dipotassium glycyrrhizinate, and salicylic acid. Anti-inflammatory agents such as esters, antipruritic agents, skin softeners, hair agents, bath agents, and other outer skin agents can be used.

The skin improving component is not particularly limited, but for example, tocopherols such as tocopherol acetate, placenta extracts, hyaluronic acids, econzyme, albutin, collagens, polyphenols, allantin, squalane, panthenol, chamomile extract, hamamelis extract, etc. Lavender extract, honeybee extract, pearl oyster extract, rice extract, salmon ovary extract, saccharomyces, rice fermented liquid, vitamin Cs, vitamin E, and other vitamins can be used. When a water-containing composition containing such a skin-improving ingredient is applied, adhered or affixed to the skin such as the human face, it corresponds to the skin-improving ingredient and causes whitening / facial treatment and skin stain freckles. It can exert effects such as removal / reduction of freckles, improvement of wrinkles on the skin, and moisturizing of the skin.

The aroma component that generates aroma is not particularly limited, but for example, an essential oil component (essential oils) generally used for aromatherapy can be used. Examples of this aromatic component include those described in "84 Essential Oil Components for Aromatherapy" by Wanda Sellar, Inc., Fragrance Journal. For example, anise, angelica, scent, immortelle, chamomile, garlic, cardamon, galvanum, caraway, carrot seed, guayakwood, grapefruit, cybreth, cedarwood, star anise, sage, geranium, celery, thyme, tarragon, telepin, milky incense, Violet, Pine, Parsley, Fennel, Black Pepper, Bodaiju Flower, Lemon, Lemongrass, Rosemary, Laurel, Shimotsukegiku, Shimotsukesou, Yagurumagiku, Almond, Arnica, Fennel, Enishida, Creson, Gentiana, Drosophila, Sumomo, Seiyounashi , Dandelion, Chimo, Chorei, Star anise, Neubara, Hakka, Toneriko, Bukuryo, Melissa, Peach, Yadrigi, Eucalyptus, Yokuinin, Ravenda, Renkyo, etc.

(Effects) Efficacy-imparting functionality contained by applying, adhering to, or affixing a water-containing composition containing an efficacy-imparting functional ingredient to the skin of the human body such as the forehead, axils, neck, limbs, etc. of the human body. Corresponding to, anti-inflammatory / anti-inflammatory effect, antipruritic, etc., and whitening / facial, skin stain freckle removal / reduction, skin wrinkle improvement, skin moisturizing, skin improvement effect, etc. Can be played.

<Additional components contained in the water-containing composition>
In the water-containing composition of the present invention, an accidental ingestion preventing ingredient, which further contains an additional component and has a function of suppressing accidental ingestion by feeling bitter when the additional ingredient is contained in the (K-1) mouth, ((K-1). It is selected from the group consisting of K-2) a refreshing sensation-imparting component that produces a refreshing sensation, (K-3) a warm sensation-imparting component that produces a warm sensation, and (K-4) a pH adjusting component that adjusts the pH. Configurations containing at least one additional component are also feasible.

Desodium benzoate as an accidental ingestion prevention component, menthol and / or peppermint oil as a refreshing sensation-imparting component, capsaicin and / or peppermint component as a warmth-sensitizing component, and citric acid as a pH adjusting component. , A general-purpose acidic substance such as acetic acid, tartaric acid, sodium hydroxide, or an alkaline substance.
Desodium benzoate is effective as an accidental ingestion preventive agent, and by containing a small amount of denodium benzoate, it has a function of suppressing accidental ingestion by feeling bitterness when it is contained in the mouth.
Desodium benzoate is a solid powder having a melting point of about 166 to 170 ° C., has a property of being soluble in water or ethanol, and is contained in a state of being dissolved in a water-containing composition. If a composition containing a small amount of denodium benzoate is contained in the mouth, it has the property of causing a strong bitterness. When this water-containing composition containing denodium benzoate is mistakenly put in the mouth, a strong bitterness is felt. In this configuration, the water-containing composition containing (effect) denodium benzoate has the effect of suppressing accidental ingestion by feeling bitterness when it is contained in the mouth, and in particular, infants, elderly people, etc. When used by people with weak health resistance, it has the effect of suppressing accidental ingestion.

As the refreshing sensation-imparting component, for example, menthol, peppermint oil, and brains can be used.
As the warming component, for example, capsaicin, capsicum extract, capsicum powder and the like can be used.

<About other additives contained in the water-containing composition>
In the water-containing composition of the present invention, in order to obtain desired performance in the tackiness, flexibility, water retention, shape retention, easy peeling adhesiveness, post-peeling residue inhibitory property, etc. of the water-containing composition, the above-mentioned In addition to functional ingredients such as water and water-soluble polymers, polyhydric alcohols and prescribed preservatives, further, pressure regulators, softeners, moisturizers, plasticizers, colorants, skin absorption promoters, antioxidants. , UV absorber, inorganic filler, surfactant, stabilizer, viscosity modifier, inorganic filler, fine powder, silicone oil, pH adjuster, other additive aids, etc. Is also feasible.

For example, as the tackifier, rosin, hydrocarbon rosin, rosin ester, hydrocarbon rosin ester, polyterpene, terpene phenol, phenol resin, xylene resin, kumaron inden resin, other aliphatic resin (C5 resin), petroleum. A system resin, an alicyclic hydrocarbon resin (hydrogenated aromatic resin), or the like can be used.
Softeners and plasticizers include polybutene, polyisobutylene, dioctylphthalate, dibutylphthalate, diethylphthalate, liquid rosin ester, chlorinated paraffin, process oil, lanolin, silicone, vaseline, solid paraffin, liquid paraffin, plastic pace, and Mitsurou. , Mentor, limonen, pinen, piperiton, terpinol, carveol, almond oil, olive oil, camellia oil, persic oil, peppermint oil, sesame oil, soybean oil, minced oil, cottonseed oil, corn oil, saflower oil, grape oil, macadamia nut oil, Egg yolk oil, red flower oil, etc. can be used.

As the colorant, dyes and pigments commonly used in the cosmetics field can be used.
The inorganic filler, fine powder, and the like are not particularly limited, and for example, silica, kaolin, talc, titanium oxide, mica, silicone powder, charcoal powder, and other powders and fine powder can be used.

The pH adjuster is not particularly limited, and for example, organic acids such as citric acid, succinic acid, tartaric acid, lactic acid, malic acid, acetic acid, gluconic acid, maleic acid, and sodium or potassium salts of these organic acids. Acidic acid, sulfuric acid, sodium hydroxide, potassium carbonate, sodium hydrogencarbonate, calcium chloride, diisopropanolamine, etc. are used.
In order to contain such a pH adjuster so as not to adversely affect the skin, the pH of the hydrous composition is adjusted to the range of 4 to 10, preferably in the range of pH 5 to 9, and more preferably. , The pH is adjusted to the range of 6-8.

As the stabilizer, sodium pyrosulfite, magnesium aluminometasilicate, vanillylamide nonanoic acid, sodium edetate and the like can be used.
As the surfactant, various polysorbates, polyoxyethylene sorbit tetraoleate, polyoxyethylene lauryl ether, polyethylene glycol laurate, and the like can be used.

Other additive aids include lanolin, liquid paraffin, beeswax, limonen, pinen, piperiton, terpinol, carveol, jojoba oil, almond oil, olive oil, camellia oil, persic oil, peppermint oil, sesame oil, soybean oil, mink oil, cottonseed oil. , Corn oil, safflower oil, grape oil, macadamia nut oil, egg yolk oil, red flower oil, etc. can be used. As the silicone oil, methylsiloxane, methylphenylpolysiloxane, dodecamethylpolysiloxane and the like can be used.

In the present invention, the hydrous composition can also be configured to further contain a lower alcohol such as ethanol and / or propyl alcohol and / or a surfactant. Such lower alcohols and surfactants are used as dissolution aids such as functional ingredients, additional ingredients, preservatives, or other additives to facilitate dissolution or uniform dispersion. For example, in step (d) of FIG. 1, the additional component is dissolved in water, a polyhydric alcohol, a lower alcohol and / or a surfactant and used.
When the pharmacologically active ingredient, skin-improving ingredient, fragrance-imparting functional ingredient, refreshing sensation-imparting ingredient, accidental-eating prevention ingredient and other additional ingredients, preservatives, and other additives cannot be dissolved in water or polyhydric alcohol. Contains the minimum necessary lower alcohol or surfactant, and dissolves or emulsifies these efficacy-imparting functional ingredients, additional ingredients, other additives, etc. in the hydrous composition and uniformly contains them. It is possible to prepare a squeezed water-containing composition. Using lower alcohols or surfactants containing efficacy-imparting functional ingredients, additional ingredients, preservatives, and other additives, a solution of efficacy-imparting functional ingredients / additional ingredients, etc., dissolved or uniformly dispersed is prepared, and then a solution is prepared. The solution of the efficacy-imparting functional ingredient / additional component is mixed with the composition containing polyhydric alcohol-water, thereby preparing a water-containing composition in which the efficacy-imparting functional ingredient and the additional component are uniformly contained. Can be done. The content of lower alcohols such as ethanol and propyl alcohol is preferably about 10% by weight or less based on the total weight of the hydrous composition. When the content of lower alcohol exceeds about 10% by weight, these lower alcohols are easily vaporized and vaporized when they adhere to human skin, causing an unpleasant alcohol odor or vaporized lower alcohol. Tends to have an adverse effect on the human body.

The surfactant used is not particularly limited, but for example, a liquid surfactant that is liquid at room temperature or at a slight temperature rise and has a function as a solvent can be used. For example, glycerin fatty acid ester, alkylpolyoxyethylene glycol, ponooxyethylene alkylphenyl ether (alkyl group is octyl group, etc.), alkyl glycoside (alkyl group is octyl group, decyl group or dodecyl group, etc.), sorbitan fatty acid ester (, etc.) Nonionic surfactants having a fatty acid group such as monolauric acid, monostearic acid, tristearic acid, oleic acid, tetraoleic acid, etc. can be used.

<About cosmetics and external medicines with hydrous composition>
A patch, cosmetics, or an external medicine containing a water-containing composition can be used.
As the patch, a cooling sheet for cooling the forehead of the human body having a structure in which the water-containing composition of the present invention is held by the sheet-shaped holding member, a patch for pain-relieving anti-inflammatory, and a skin improving agent for improving the skin condition of the face and the like. A pack sheet or face mask can be used.
As a cosmetic or an external pharmaceutical product, for example, it is provided with a water-containing composition having the constitution of the present invention, and has a liquid, spray-like, cream-like, emulsified-like, gel-like form, and is applied, adhered or affixed to the skin. It is possible to apply cosmetics and skin medicines.

<Regarding the patch with the water-containing composition>
A water-containing composition containing a water-soluble polymer as a functional component contained in the water-containing composition is adhered to and / or impregnated with a sheet-like holding member and held, and is contained in the water-containing composition. The component contains a water-soluble polymer that is soluble in water, is formed so that it can be attached to human skin, and an antiseptic patch can be applied.

The patch in which the water-containing composition is held on the sheet-shaped holding member is used by being attached to the human skin, exerts a desired effect during use, and is peeled off from the human skin after use.
Affixed to human skin for the purpose of cooling effect, warming effect, refreshing effect, analgesic effect, anti-inflammatory effect, skin whitening effect, skin wrinkle improving effect, or other pharmacological effect. It is required that the agent exhibits the following excellent antiseptic properties (a) and has the desired performance as the following (b) to (f) as a patch in an optimum balance.
(A) Antiseptic property that prevents spoilage due to bacteria and the like during storage.
(B) Soft and supple flexibility that suppresses discomfort such as a hard sensation and easily adheres to human skin.
(C) Shape retention that maintains the shape of the water-containing composition attached or affixed to the skin without flowing or being damaged.
(D-1) Adhesive or tack adhesive when applied, which sticks to the human skin by appropriate pressing pressure, (d-2) Adhesive to the extent that it does not easily come off in daily operations during use. It has long-lasting adhesiveness and (d-3) easy-to-peel adhesiveness that can be peeled off without damaging the skin and giving no significant discomfort or irritation to the skin when peeled off from the skin.
(E) Post-peeling residue inhibitory property to the extent that a part of the hydrous composition does not adhere to the skin when the hydrous composition adhered to or attached to the skin is peeled off from the skin.
(F) A water-containing composition having a water-retaining flexible shape-retaining property having water retention that does not easily evaporate water in addition to flexibility and shape-retaining property, and a patch comprising the water-containing composition.

In such a patch, in order to obtain the basic performance as a desired patch, as a functional component contained in the water-containing composition, a crosslinkable water-soluble polymer and a molecule that can be crosslinked into a network structure in terms of molecular structure. A patch having both a water-soluble polymer and a non-crosslinkable water-soluble polymer that does not crosslink structurally, and has flexibility and adhesiveness at a temperature of about 45 ° C. or lower and is in a non-fluid state. A patch that has a gel-like shape-retaining property, has antiseptic properties, and is used by being applied to human skin can be implemented.
The crosslinkable water-soluble polymer has fluidity until it is crosslinked by a chemical reaction in the presence of a crosslinking agent, and is in a non-fluid state after being crosslinked by a chemical reaction with a crosslinking agent. The gel-like, non-crosslinkable water-soluble polymer has a fluid viscous state that is soluble in water and not cross-linked.

The water-containing composition provided in the patch has fluidity before being adhered and / or impregnated to the sheet-shaped holding member and held, and after being adhered and held to the sheet-shaped holding member, the temperature is about 45 ° C. or lower. A gel-like composition that is flexible and sticky at the temperature of the above can be used, and in order to exhibit this property, a crosslinkable water-soluble polymer that can be crosslinked with a desired molecular structure can be used. In addition, a non-crosslinkable water-soluble polymer or the like that cannot be crosslinked is used.

As a method for producing a patch having a structure in which the water-containing composition is held in a sheet-shaped holding member, in the case of a composition containing a crosslinkable water-soluble polymer and a crosslinking agent, a crosslinkable water-soluble polymer is used. When the fluid-containing polymer composition is in a state of having non-crosslinking fluidity, the sheet-like holding member is allowed to adhere and hold and / or impregnate and hold in a predetermined shape, and then, over time, the cross-linking water-soluble property is high. The molecules are crosslinked and the fluidized hydrous polymer composition is in a non-fluid gel state. In this way, a patch is produced in which the gel-like water-containing composition is adhered and held on the tongue-shaped holding member and / or impregnated and held. In this case, the temperature of the fluid-containing polymer composition is not particularly limited, and any temperature such as low temperature, normal temperature, and high temperature can be used.
For example, a water-containing polymer composition that is fluid at a low temperature and has fluidity is adhered to and / or impregnated in a sheet-like holding member in a predetermined form, and then a crosslinkable water-soluble polymer is formed over time until it reaches room temperature. Can be implemented as a method of changing to a non-fluid gel state.
Further, the water-containing polymer composition having fluidity at a low temperature or normal temperature is adhered and held and / or impregnated in a predetermined form on the sheet-shaped holding member, and then the temperature is raised to a predetermined temperature to obtain a crosslinkable water-soluble polymer. Can be implemented as a method of changing to a non-fluid gel state.

In the case of a composition containing a crosslinkable water-soluble polymer or a non-crosslinkable water-soluble polymer that does not contain a cross-linking agent, the composition flows in a temperature range higher than about 50 ° C. and at a temperature of about 45 ° C. or lower. The types, contents, and the like of these waters, water-soluble polymers, and polyhydric alcohols are appropriately prepared so as to have a non-fluid gel form.

The crosslinkable water-soluble polymer and the non-crosslinkable water-soluble polymer contained in the water-containing composition composed of the patch are the same crosslinkable water-soluble polymer as the water-soluble polymer described in the above-mentioned section of the water-containing composition. Contains polymers and non-crosslinkable water-soluble polymers.
That is, the crosslinkable water-soluble polymer includes (i) a crosslinked acrylic acid-based polymer, (ii) (a) an acrylic acid-based monomer, (b) a crosslinked acrylic acid-based copolymer polymer, and a (iii) moiety. It contains at least one crosslinkable water-soluble polymer selected from the group consisting of neutralized polyacrylic acid, (iv) crosslinked carboxyvinyl polymer, and / or (v) crosslinked cellulose compound. Non-crosslinkable water-soluble polymers include polyvinyl alcohol, polyethylene glycol, polypropylene glycol, starch acrylate, alkyl polyacrylic acid, polyvinylpyrrolidone, carboxyalkyl cellulose, hydroxyalkyl cellulose, and copolymer polymers of alkyl acrylate and by-monomas. It contains at least one non-crosslinkable water-soluble polymer selected from the group consisting of gelatin and agar.
Such a water-containing composition has flexibility and adhesiveness at a temperature of about 45 ° C. or lower, and has a gel-like shape-retaining property in a non-fluid state, and has antiseptic properties.

As the water-containing composition composed of the patch of the present invention, (A) water contains 20 to 95% by weight based on the total content of the water-containing composition, and (B) the water-soluble polymer is the water-containing composition. It is feasible to construct the polyhydric alcohol containing 3 to 40% by weight based on the total content of the water-containing composition and 5 to 50% by weight based on the total content of the hydrous composition.

In the water-containing composition provided for the patch, the water content is preferably in the range of about 20 to about 95% by weight, more preferably the water content is in the range of about 25 to about 90% by weight. .. A water-containing composition containing water in this range has a form having optimum flexibility and gel form at a temperature of about 45 ° C. or lower.
In a water-containing composition having a water content of less than about 20% by weight, it becomes impossible to completely dissolve all the water-soluble polymers contained in the water-containing composition, and undissolved powder remains or is dissolved. Even if it does, it becomes in a state of no fluidity even at a high temperature, or a state in which the flexibility decreases at a normal temperature. Further, when the patch containing the water-containing composition is attached to or attached to the human skin, the feeling of use such as the attachment to the human skin tends to be deteriorated, such as a feeling of strangeness with a slightly hard sensation.
A water-containing composition having a water content of more than about 95% by weight becomes fluid even at a temperature of about 45 ° C. or lower, making it difficult to obtain a gel-like state without fluidity and the human body. Adhesion to the skin also tends to decrease, which tends to cause inconvenience from the viewpoint of sticking to human skin.

In the water-containing composition provided for the patch, the content of the water-soluble polymer is preferably in the range of about 3 to about 40% by weight, and more preferably, the content of the water-soluble polymer is about 3 to about 30. It is in the range of% by weight. A water-containing composition containing water in this range has a form having optimum flexibility and gel form at a temperature of about 45 ° C. or lower.
A water-containing composition having a water-soluble polymer content of less than about 3% by weight is in a state of having fluidity at a temperature of about 20 to 45 ° C. and tends to be inferior in shape retention.
In a water-containing composition having a water-soluble polymer content of more than about 40% by weight, it becomes impossible to completely dissolve all the water-soluble polymers contained, and undissolved powder remains. It becomes a state, or even if the water-soluble polymer is dissolved, it becomes a state without fluidity even at a high temperature. Further, the water-containing composition becomes less flexible at room temperature, and when the patch containing the water-containing composition is attached to or attached to the human skin, it feels a little hard and uncomfortable. There is a tendency for the usability to decrease.

With the patch constituting the water-containing composition of the present invention (effectiveness-patch: a patch having reduced skin sensitization and excellent antiseptic properties), it is used by a person with low skin resistance by sticking it to the skin. In some cases, it is expected to reduce skin sensitivities such as skin irritation that comes in contact with the skin, and a patch that exhibits excellent antiseptic properties can be obtained, as well as the adhesiveness, shape retention, and flexibility required for the patch. , A patch having basic performance such as easy peeling adhesiveness and peeling residual inhibitory property can be obtained. In particular, when used by people with low skin resistance such as infants and the elderly, a patch that is expected to have reduced skin sensitization and has excellent antiseptic properties can be obtained.
In particular, it contains a gel-like crosslinkable water-soluble polymer that is crosslinked and crosslinked into a network structure in a non-fluid state, and contains a predetermined amount of bound water, dissolved water, and free water in a water-active form. Even in the patch provided with the composition, a patch having the basic performance as the above-mentioned patches (a) to (f), and exhibiting reduced skin sensitization and excellent antiseptic properties can be obtained.
Furthermore, depending on the type of water-soluble polymer contained, the above-mentioned (effect d: comfortable water retention, flexible shape retention due to the inclusion of the crosslinkable water-soluble polymer, reduced skin sensitization, and excellent antiseptic properties) (Effect), (Effect e: Comfortable water-retaining soft adhesiveness due to the inclusion of non-crosslinkable water-soluble polymer), (Effect e: Comfortable water-retaining soft adhesiveness due to the inclusion of non-crosslinkable water-soluble polymer) A patch that works is obtained.

<About the polyhydric alcohol contained in the water-containing composition composed of the patch>
As the polyhydric alcohol contained in the water-containing composition of the patch of the present invention, a polyhydric alcohol having a property of being soluble in water or a property of being compatible with water is desirable.
As the polyhydric alcohols, glycerin, propylene glycol, dipropylene glycol, propanediol, butylene glycol, octanediol, polyethylene glycol, polypropylene glycol, sorbit solution, crotamitone and the like can be used. The sorbitol liquid is a viscous liquid in which sorbitol is dissolved in a solvent such as water.
Of these polyhydric alcohols, propylene glycol, butylene glycol, and glycerin can be used in combination with preservatives other than parabens, such as phenoxyethanol, glyceryl caprylate, and polylysine. It has an effect of promoting antiseptic properties.

Polyhydric alcohols have greater viscosity than water, are soluble in water or have good compatibility with water, and are mixed with water in any proportion to form a uniform liquid without separation. It is possible to obtain a water-containing composition having desired flexibility, tackiness, water retention and moisture retention, corresponding to the characteristics of the polyhydric alcohol. Further, in the case of a water-containing composition containing a water-insoluble preservative that is difficult to dissolve in water or another pharmacologically active ingredient that is difficult to dissolve in water, these preservatives and / or the pharmacologically active ingredient are dissolved to dissolve the water-containing composition. It is possible to efficiently exert the efficacy of those preservatives or pharmacologically active ingredients.

That is, the above-mentioned (effect e-patch: a patch having reduced skin sensitization and excellent antiseptic properties) can be obtained, and (effect) a polyhydric alcohol is contained to provide a water-containing composition. When the patch is applied to human skin, it is adjusted to have the optimum balance performance in all performances such as adhesiveness, flexibility, water retention, shape retention, easy peeling adhesiveness, and post-peeling residue suppression. It has the effect of being able to obtain the applied patch, and also has the effect of acting as a solvent for dissolving a sparingly soluble preservative in water (effect toa), and has the functionality of imparting efficacy such as pharmacologically active ingredients. When the component or the preservative is sparingly soluble in water, the effect of dissolving and containing these components to efficiently exert the effect of the preservative or the effect-imparting functional component can be obtained.

The optimum content of the polyhydric alcohol contained in the water-containing composition composed of the patch varies depending on the type of the polyhydric alcohol and the content of the non-crosslinkable water-soluble polymer, and is, for example, 5 to 50% by weight. Desirably, particularly preferably 5-40% by weight. In this range, the above-mentioned effect is optimally obtained. When the content of the polyhydric alcohol is less than 5% by weight, the adhesiveness, flexibility and water retention are inferior, and the optimum physical properties tend not to be obtained. When the content exceeds 50% by weight, it remains after peeling. It tends to be inferior in physical restraint.

The polyhydric alcohol contained in the water-containing composition composed of the patch has adhesiveness, flexibility, water retention, shape retention, and easy-to-peel adhesiveness, as described in the above-mentioned "Effect". Glycerin, dipropylene glycol, sorbitol, etc. have the function of adjusting the state to have the optimum balance performance in all the performances such as the ability to suppress the residue after peeling, and in particular, the function of enhancing the moisturizing property of the water-containing composition. In addition, propylene glycol, butylene glycol and the like also have an action of imparting softness and adhesiveness to the water-containing composition and an action as a solvent of a poorly soluble preservative in water.
These polyhydric alcohols are used as a solvent for dissolving additional components such as a sparingly soluble analgesic and anti-inflammatory component, a skin improving component, a refreshing sensation-imparting component, and a preservative in water and uniformly containing them in a water-containing composition. Can also play the function of. In the case of polyhydric alcohols such as glycerin, which have high viscosity at room temperature, the viscosity is lowered by raising the temperature to make it easier to dissolve additional components, or in combination with lower alcohols such as ethanol and propyl alcohol, the above It can be used by dissolving additional ingredients.

<About sheet-shaped holding member>
The sheet-shaped holding member configured as the patch of the present invention is not particularly limited, but may be any one as long as the water-containing composition can be sufficiently held without being peeled off from the sheet-shaped holding member, for example, various types. Uses sheet-like holding members such as fiber aggregates such as non-woven fabrics or woven fabrics using synthetic fibers and natural fibers, fiber aggregates such as paper, elastic materials containing stretchable rubber materials, and plastic film materials. be able to.
As the sheet-shaped holding member, it is particularly desirable to have a structure composed of a porous material having a fine uneven surface capable of passing at least one of air, moisture and moisture, and the water-containing composition is a fine particle of the sheet-shaped holding member. The water-containing composition is retained by being adhered or impregnated in a state of being penetrated into the unevenness of the uneven surface, and the effect of fixing the water-containing composition without peeling from the sheet-shaped holding member can be obtained.
Further, the sheet-shaped holding member is configured to be stretchable in the plane direction, and the water-containing composition adhered to and held by the sheet-shaped holding member is also configured to be stretchable in response to the expansion and contraction of the sheet-shaped holding member. The configuration is desirable. In the case of a stretchable sheet-shaped holding member, when a patch obtained by laminating a water-containing composition on the sheet-shaped holding member is used by pasting it on the human body, the patch can be stretchably attached to the human body, and after the attachment, the patch can be attached to the human body. The patch can be freely expanded and contracted according to the movement of the human body, the boundary separation between the sheet-like holding member and the water-containing polymer gel composition does not occur, and the patch can be used stably without peeling from the human body. It becomes.

With this configuration, the (effect n) water-containing composition adheres to and / or is impregnated with the surface of the sheet-shaped holding member and is held, and thus the above-mentioned (effect-adhesive agent: reduced skin sensitization / excellent). The action and effect of the antiseptic adhesive) can be obtained, and in particular, it can be applied well to the desired skin of the human body, and the back surface of the sheet-like holding member to which the water-containing composition is not attached has adhesiveness. A non-adhesive patch that does not adhere to human hands or clothing without having to hold it can be obtained.

<About the release sheet>
In the patch of the present invention, it is also possible to carry out a configuration in which the water-containing composition adhered to and held on the sheet-shaped holding member is covered and a release sheet laminated on the surface of the water-containing composition is provided. At the time of use, this release sheet is peeled off from the patch, and the side of the water-containing composition adhered to and held on the surface of the sheet-shaped holding member is attached to the human skin for use. The release sheet is not particularly limited, and a sheet made of a plastic film having a releasable property that can release the water-containing composition without damage can be formed from the water-containing composition. For example, a film-like sheet such as polyethylene, polypropylene, polyamide, or polyethylene terephthalate can be used.

<Manufacturing method of a patch containing a water-containing composition>
The method for producing a patch containing the water-containing composition of the present invention comprises a sheet-shaped holding member and a water-containing composition that adheres to and / or is impregnated and held by the sheet-shaped holding member, and is attached to human skin. A possible method for producing a patch, the water-containing composition contains (A) water and (B) a water-soluble polymer as a functional component soluble in the water, and further, at least, It contains (C) a polyhydric alcohol that is soluble or compatible with the water and has an antiseptic promoting action, and (E) a preservative other than parabens that is soluble in the water and / or the polyhydric alcohol. The preservatives other than the parabens contain at least one preservative other than the parabens selected from the group consisting of phenoxyethanol, glyceryl caprylate, and polylysine, and at a temperature of about 45 ° C. or lower. It has a gel-like state with flexibility and adhesiveness and is in a non-fluid state, and has antiseptic properties, and is configured to be applicable to human skin.
The method for producing such a patch includes the following steps.
(A) At least, a step of mixing and dissolving a water-soluble polymer that is soluble in water in water to prepare a water-soluble polymer-containing preconditioning solution having viscosity and fluidity.
(C) A preservative other than parabens is mixed with water and / or a polyhydric alcohol in which the preservative can be dissolved to prepare a preservative-containing preservative containing the preservative in which the preservative is dissolved. Process to do.
(E) The polyhydric alcohol, the water-soluble polymer-containing preconditioning solution prepared according to (a), and the preservative-containing preservative prepared according to (c) are mixed, whereby the preservative-containing preservative solution is mixed. A step of preparing a fluid water-containing polymer composition in which the preservative is dissolved and has viscosity and fluidity, wherein the fluid water-containing polymer composition is adjusted to a predetermined temperature. Is done.
(F) After the step (e), when the fluidity of the fluid-containing polymer composition is maintained until gelation, the fluid-containing polymer has a predetermined thickness on the sheet-like holding member. A step of adhering and / or impregnating the composition, thereby preparing a fluid water-containing polymer composition with a sheet-shaped holding member held by the sheet-shaped holding member.
(G) The fluid-containing polymer composition with a sheet-like holding member prepared in the step (f) is adjusted to a predetermined temperature, whereby the fluid-containing polymer composition has no fluidity. A step of preparing a hydrous composition gelled into a gel state.

In the above-mentioned method for producing a patch, preferably, a production method having the following configuration can be carried out. FIG. 1 shows a schematic process explanatory diagram of a manufacturing process showing a method for manufacturing a patch containing this water-containing composition. However, FIG. 1 shows a step in which the hydrous composition further contains an additional component described later.
In the above (B), the water-soluble polymer is (B-1) a crosslinkable water-soluble polymer that can be crosslinked molecularly and (B-2) a non-crosslinkable water-soluble polymer that cannot be crosslinked molecularly. The water-containing composition further contains (D) a cross-linking agent capable of cross-linking the cross-linking water-soluble polymer in a molecular structure, and comprises the following steps.
(A-1) At least, a step of mixing and dissolving a crosslinkable water-soluble polymer in water to prepare a crosslinkable water-soluble polymer-containing preconditioning solution having viscosity and fluidity.
(A-2) At least, a step of mixing and dissolving a non-crosslinkable water-soluble polymer in water to prepare a pre-preparation solution containing a non-crosslinkable water-soluble polymer having viscosity and fluidity.
(B) At least, a step of mixing and dissolving a cross-linking agent capable of cross-linking a cross-linking water-soluble polymer in a molecular structure in water, thereby preparing a cross-linking agent-containing preconditioning liquid.
(C) A preservative other than parabens is mixed with water and / or a polyhydric alcohol in which the preservative can be dissolved to prepare a preservative-containing preservative containing the preservative in which the preservative is dissolved. Process to do.
(E) Polyhydric alcohol, the crosslinkable water-soluble polymer-containing preconditioning solution prepared by the above (a-1), and the non-crosslinkable water-soluble polymer-containing preconditioning solution prepared by the above (a-2). The preconditioning solution, the cross-linking agent-containing preconditioning solution prepared according to (b), and the preservative-containing preconditioning solution prepared according to (c) are mixed, whereby the preservative is dissolved. A step of preparing a fluid water-containing polymer composition having viscosity and fluidity.
(F) After the step (e), when the fluidity of the fluid-containing polymer composition is maintained until gelation, the fluid-containing polymer has a predetermined thickness on the sheet-like holding member. A step of adhering and / or impregnating the composition, thereby preparing a fluid water-containing polymer composition with a sheet-shaped holding member held by the sheet-shaped holding member.
(G) After the step (f), the crosslinkable water-soluble polymer contained in the fluid-containing polymer composition with a sheet-like holding member is crosslinked into a network structure by a chemical reaction with the crosslinker. A step of preparing a water-containing composition gelled into a gel state having no fluidity.
In the step (d) of FIG. 1, when the additional component or the like is insoluble in water and / or the polyhydric alcohol, the additional component or the like is added to a lower alcohol such as ethanol or propyl alcohol and / or the surface activity. The step of dissolving and mixing in the agent can be carried out.

In any of the above steps (a-1), (a-2), (b), and (c), a temperature state in which the temperature is lowered to a predetermined temperature, a temperature state in which the temperature is raised to a predetermined temperature, or a normal temperature state. It is possible to mix in this state. Further, in the step (e), the mixture can be mixed in any of a temperature state where the temperature is lowered to a predetermined temperature, a temperature state where the temperature is raised to a predetermined temperature, and a normal temperature state. As a result, a fluid water-containing polymer composition having a desired fluidity containing the mixed crosslinkable water-soluble polymer and the non-crosslinkable water-soluble polymer is prepared. Then, in the step (g), it is possible to mix in either a temperature state adjusted by lowering or raising the temperature to a predetermined temperature or a normal temperature state. As a result, the crosslinkable water-soluble polymer contained in the fluid-containing polymer composition with a sheet-like holding member is crosslinked into a network structure by a chemical reaction with a cross-linking agent, and the gel is in a gel state without fluidity. A patch with the modified hydrous composition is prepared. The room temperature means a temperature range in which the temperature does not rise or fall, and is, for example, room temperature, which is a normal working environment, or about 18 ° C to about 30 ° C.

In the present manufacturing method, the following steps are desirablely feasible in the steps (e), (f), and (g).
In the step (e), a method of mixing in a temperature state where the temperature has risen to a predetermined temperature, and in the step (g), a crosslinkable water-soluble polymer is crosslinked in a temperature range from the temperature rise to the normal temperature. Is feasible. In this case, in the step (f), the cross-linking reaction of the cross-linking water-soluble polymer is promoted by raising the temperature, and the gel state tends to be in a non-fluid state in a short time. It is desirable to use a cross-linking agent having the property that the cross-linking reaction does not proceed while the molecular composition is attached and / or impregnated.

In the present production method, in the step (e), the mixture is mixed in a temperature state where the temperature is lowered to a predetermined temperature, and in the step (g), the crosslinkable water-soluble polymer is crosslinked in a temperature range from the temperature drop to the normal temperature. Manufacturing methods are also feasible. That is, in the step (e) above, the polyhydric alcohol, the crosslinkable water-soluble polymer-containing preconditioning liquid, the non-crosslinkable water-soluble polymer-containing preconditioning liquid, the crosslinking agent-containing preconditioning liquid, and the preservative-containing The pre-prepared liquid is adjusted to a temperature below room temperature, mixed, and controlled at this low temperature to delay the progress of the crosslinking reaction, and the fluid-containing polymer composition in the step (f). The fluidic water-containing polymer composition is adhered to and / or impregnated with a predetermined thickness on the sheet-like holding member by ensuring a long period of time for maintaining the fluidity until the gel gels. In the above step (g), the crosslinkable water-soluble polymer contained in the fluid-containing polymer composition with a sheet-like holding member is used as a crosslinker at room temperature or an atmosphere temperature of room temperature or higher. A method of preparing a hydrous composition that is crosslinked into a network structure by a chemical reaction and gelled into a gel state having no fluidity is also feasible. In this case, it is desirable to use a cross-linking agent having a property that a cross-linking reaction occurs in a temperature range of normal temperature.

In the above-mentioned production method, as the preservative, a structure containing no paraben preservative or a structure in which the paraben content is reduced to 0.05% by weight or less can be implemented.

With this configuration, in a patch containing a water-containing composition containing (effect e) other preservatives other than parabens, adhesiveness, flexibility, water retention, shape retention, easy peeling adhesiveness, and residual after peeling. It is possible to produce a patch adjusted to have the optimum balance performance in all performances such as physical restraint, and in particular, it is possible to manufacture a patch in which a preservative is dissolved in a water-containing composition. As a result, it is possible to produce a patch that can efficiently exhibit antiseptic performance even if it contains a smaller amount of preservative.
That is, it has no fluidity, has a shape-retaining property that can maintain its shape even under external pressure, has a water-retaining property that can retain a large amount of sufficient water, and is hard when applied to human skin. A method for producing a patch having a water-containing composition having a comfortable water-retaining and flexible shape-retaining property with a comfortable flexibility without discomfort can be obtained. When this patch is used by people with weak skin resistance, it is expected to reduce skin sensitization such as skin irritation that comes in contact with it, and it also has excellent antiseptic properties. A method for producing a patch having a water-containing composition containing a molecule can be obtained. In particular, when used by people with low skin resistance such as infants and the elderly, it can be expected to significantly improve skin sensitization such as skin irritation.
Further, by the composition containing at least one preservative selected from the group consisting of phenoxyethanol (effect i-abd: reduced skin sensitization and excellent antiseptic property) and glyceryl caprylate and polylysine. When used by a person with low skin resistance, it is expected to reduce skin sensitization such as skin irritation in contact with the skin, and a method for producing a patch having excellent antiseptic properties can be obtained.

In the method for producing a patch containing the water-containing composition of the present invention, the above-mentioned (B-1) crosslinkable water-soluble polymer, (B-2) non-crosslinkable water-soluble polymer, and the above-mentioned (C) Polyhydric alcohol can be used.
Examples of the (B-1) crosslinkable water-soluble polymer include (i) a crosslinked acrylic acid-based polymer, (ii) a crosslinked acrylic acid-based copolymer polymer, (iii) a crosslinked acrylic acid-based polymer, and (iv) a crosslinked. It is at least one crosslinkable water-soluble polymer selected from the type carboxyvinyl polymer and (v) the crosslinkable water-soluble polymer of the crosslinkable cellulose compound, and the crosslinkable water-soluble polymer reacts chemically with the crosslinker. A crosslinkable water-soluble polymer having the property of being crosslinked into a network structure can be used.
(B-2) Examples of the non-crosslinkable water-soluble polymer include polyvinyl alcohol, polyethylene glycol, starch acrylate, alkyl polyacrylic acid, polyvinylpyrrolidone, a copolymer polymer of alkyl acrylate and a by-monoma, and non-crosslinkable cellulose. At least one non-crosslinkable water-soluble polymer selected from the group consisting of gelatin and agar can be used.
As the polyhydric alcohol, at least one polyhydric alcohol selected from the group consisting of propylene glycol, dipropylene glycol, butylene glycol, propanediol, glycerin, and sorbitol solution can be used.

With this configuration, the above-mentioned (effect e-paste: a patch having reduced skin sensitization and excellent antiseptic properties) can be obtained, and the above-mentioned (effect) can be obtained.
Further, the polyhydric alcohol has the above-mentioned "effect" action, and in particular, glycerin, dipropylene glycol, sorbitol, etc. have a function of enhancing the moisturizing property of the water-containing composition, and propylene glycol, butylene, etc. Glycol and the like also have an action of imparting softness and an action of a solvent of a poorly soluble preservative in water.

In the method for producing a water-containing composition of the present invention and the method for producing a patch provided with the water-containing composition of the present invention, the water-containing composition further comprises an efficacy-imparting functional ingredient as a functional ingredient and / or. , The efficacy-imparting functional ingredient is at least one efficacy-imparting functional ingredient selected from the group consisting of a pharmacologically active ingredient, a skin improving ingredient, and an aroma component. (K-1) A component that prevents accidental ingestion that feels bitter when it is contained in the mouth and suppresses accidental ingestion, (K-2) A component that imparts a refreshing sensation that produces a refreshing sensation, and (K-3) A warm sensation. It is at least one additional component selected from the group consisting of the warmth-imparting component that plays and (K-4) the pH-adjusting component that adjusts the pH, and further, (d) the efficacy-imparting functional component, erroneous. At least one component selected from the group consisting of a food-preserving component, a refreshing sensation-imparting component, a warm-sensing warming-imparting component, and a pH-adjusting component is dissolved or mixed in water and / or a polyhydric alcohol to exert an effect. A step of preparing a preservative liquid containing an imparting functional ingredient / additional ingredient is provided, and in the above (e), in addition to the respective preservative liquids, the efficacy-imparting functionality prepared by the step (d) is further provided. A step of preparing a fluid water-containing polymer composition, which comprises mixing a preservative containing an ingredient / an additional ingredient and thereby dissolving the preservative and having a viscous and fluidity. A method for producing a patch can be implemented.

As a result, the preservative is dissolved, and the above-mentioned efficacy-imparting functional component and additional component are dissolved in the water-containing composition, or contained in the water-containing composition in an emulsified state, or. These fine particles are contained in a dispersed state.
With this configuration, the water-containing composition or patch containing the (effect-re) efficacy-imparting functional ingredient or additional ingredient can obtain the effect of exerting the efficacy corresponding to the contained efficacy-imparting functional ingredient or additional ingredient. Be done.

<Manufacturing method of a patch containing a water-containing composition containing a preservative>
In the method for producing a patch of the present invention, a water-containing composition containing the following various preservatives can be configured as a preservative.
In the method for producing a patch of the present invention, the preservatives are 0.2 to 1.0% by weight of phenoxyethanol based on the total amount, 0.01 to 0.8% by weight of glyceryl caprylate based on the total amount, and It contains 0.01 to 0.8% by weight of polylysine, a preservative other than at least one paraben selected from the group consisting of polylysine, and in the above step (c), (ca) water and / Or selected from the group consisting of a step of dissolving phenoxyethanol in polyvalent alcohol, a step of dissolving glyceryl caprylate in polyhydric alcohol, and a step of dissolving polylysine in water (cd). At least one preservative-containing preservative is prepared, and in the step (e), the preservative has a state of being dissolved in the fluid water-containing polymer composition.

Further, as the preservative, a water-containing composition containing the following various preservatives can be configured.
In the above (E), the minimum content of preservatives other than the parabens is XY coordinates with the content of phenoxyethanol as the X-axis and the content of glyceryl caprylate and / or polylysine as the Y-axis with respect to the total amount. Above the straight line MN connecting the point M with a phenoxyethanol content of 0.17% by weight on the X-axis and the point N with a content of glyceryl caprylate and / or polylysine of 0.007% by weight on the Y-axis. As in the region, preservatives of both phenoxyethanol and glyceryl caprylate and / or polylysine are included, and in step (c) above, phenoxyethanol is added to (ca) water and / or polyhydric alcohol. A preservative-containing preservative-containing preservative solution was prepared for the step of dissolving, the step of dissolving glyceryl caprylate in (cb) polyhydric alcohol, and / or the step of dissolving polylysine in (cd) water. ) In the step, the preservative has a state of being dissolved in the fluid water-containing polymer composition.
In this configuration, a configuration containing phenoxyethanol and glyceryl caprylate, phenoxyethanol and polylysine, or phenoxyethanol and glyceryl caprylate and polylysine can be implemented as preservatives.

That is, phenoxyethanol has the property of being slightly soluble in water and easily soluble in polyhydric alcohols, and glyceryl caprylate has the property of being sparingly soluble in water but easily soluble in polyhydric alcohols. Polylysine is easily dissolved in water but sparingly soluble in polyhydric alcohols.
When these preservatives having different solubilities are contained, water, a polyhydric alcohol, or water and a large amount can be used as a solvent for dissolving the preservatives in the step (c), depending on the type of the preservatives used. A preservative-containing preservative-containing preservative solution in which the preservative is dissolved is prepared by selectively using one of the solvents mixed with the valent alcohol.
Then, in the step (e), when the non-crosslinkable water-soluble polymer-containing pre-preparation liquid, the cross-linking agent-containing pre-conditioning liquid, and the preservative-containing pre-conditioning liquid are mixed, water and / or a polyvalent value is obtained. A cross-linking agent containing a cross-linking agent in which the preservative is dissolved in a fluid water-containing polymer composition without the preservative dissolved in alcohol becoming fine particles or suspended in a state of precipitation dispersion or phase separation. Prepare a preconditioning solution.

With this configuration, (effect low patch: phenoxyethanol and other preservatives contained / reduced skin sensitization / excellent antiseptic properties), in particular, preservatives of both phenoxyethanol and glyceryl caprylate and / or polylysine. The composition containing the agent makes it possible to significantly reduce the content of phenoxyethanol and also the content of other preservatives used in combination, so that the total content of the preservative contained is small. A method for producing a water-containing polymer gel patch, which exhibits sufficient antiseptic properties, can be obtained even with a patch provided with. In addition, due to the composition containing both preservatives of glyceryl caprylate and / or polylysine in addition to phenoxyethanol, the effect of exhibiting better preservative properties as compared with the single use of these preservatives at the same preservative concentration. Is obtained.

In the method for producing a patch of the present invention, the hydrous composition contains at least one polyvalent alcohol selected from the group consisting of propylene glycol, butylene glycol and glycerin as a polyvalent alcohol having an antiseptic promoting action. At the same time, as the preservative, at least one preservative selected from the group consisting of phenoxyethanol, glyceryl caprylate, and polylysine is contained, and the polyvalent alcohol is contained by the inclusion of the polyvalent alcohol and the preservative. Has an effect of promoting the preservative property of the preservative, and in the step (c), a preservative other than parabens and a polyhydric alcohol capable of dissolving the preservative are mixed, whereby the preservative is produced. The configuration is preferably practicable, comprising the step of preparing a preservative-containing preservative solution that has been dissolved and contained.
With this configuration, it is possible to efficiently produce a patch having (effect work patch: preservative promoting effect by containing a polyhydric alcohol and another preservative).

In the method for producing a hydrous composition and the method for producing a patch of the present invention, the composition does not contain parabens, or the parabens of 0.05% by weight or less that do not affect the skin sensitization. A configuration containing the above is desirable and feasible.

Regarding the components contained in the method for producing a water-containing composition and the method for producing a patch of the present invention, such as functional components, preservatives, polyhydric alcohols, etc., the types, contents, and properties of these components are described. , The same as the matters described above for the water-containing composition and the patch.

Hereinafter, examples of the present invention will be described.
In the examples, the antiseptic properties and the like were compared and examined for each of the prepared water-containing compositions or the patch provided with the water-containing composition.
[Preservative test measurement method]:
(A) One test sample was prepared for each of the prepared hydrous compositions or patches.
(B) Prepare two types of test bacteria, a standard bacterial mixture (Escherichia coli, Pseudomonas aeruginosa, Staphylococcus aureus) and a standard fungal mixture (Aspergillus niger and Candida).
(C) Using a sterilized phosphate buffered saline solution, prepare a test bacterial solution for each of the above test bacteria so as to have a concentration of 1 × 1,000,000 / mL to 30 × 1,000,000 / mL, respectively.
(D) A test sample of each hydrous composition or a patch containing the hydrous composition is placed in a sterilized vial and inoculated with 0.1 ml of the test bacterial solution. In this case, if the test sample is a water-containing composition, the test sample is a petri dish containing the water-containing composition. When the test sample is a patch, the patch in which the water-containing composition is attached to a sheet-shaped holding member having a shape of 20 mm × 20 mm is used as the test sample.
(E) A sterilized vial containing a water-containing composition or a patch containing the water-containing composition inoculated with the above-mentioned bacterial mixed bacteria and fungal mixed bacteria is stored at 25 to 37 ° C. and a humidity of 95%.
(F) The test pieces of each water-containing composition or patch inoculated with the test bacterial solution were taken out on the 7th, 14th, 21st, and 28th days, and the viable cell count was measured.
(G) Antiseptic property in the case where the measurement result on the 28th day shows that the number of inoculated bacteria is 0.01% or less for the mixed bacteria and 0.1% or less of the number of inoculated bacteria for the mixed fungi. It was judged as good (◯), and when the number of these bacteria was exceeded, it was judged as poor antiseptic (×).

[Test and measurement method for adhesiveness of adhesive bandage]:
It was measured by the inclined ball tack test method described in the pharmaceutical manufacturing and sales guidelines.
Various adhesive samples are attached to the skin of the human forehead, maintained in a vertical state for 30 minutes, and the presence or absence of the adhesive falling off is observed. It was selected as the optimum adhesive patch to have. Then, the optimum adhesive patch was used as a test sample and measured by the inclined ball tack test method, and the basic measured value by the inclined ball tack test method was specified.
That is, using the patch provided with the prepared water-containing composition as a test sample, the test sample is placed on a 30-degree inclined plate so that the water-containing composition of the patch is on the surface side, and the test sample is placed on the surface of the water-containing composition. The adhesive strength was measured by rolling iron balls of different sizes and stopping for a certain period of time. Then, in comparison with the basic measured value by the inclined ball tack test method using the optimum adhesive patch as a test sample, the case where the adhesive strength is felt to be good is judged as good (○), and the adhesive strength is felt to be poor. The case was determined as (x).
[Test and measurement method for shape retention of patch]:
With the sheet-like holding member side of the patch attached to the plate, tilt it at about 45 degrees, and after 3 minutes, observe whether the water-containing composition adhering to the surface side can flow, and shape it without flow or deformation. The good case where the above was maintained was judged as good (◯), and the case where the shape changed due to flow was judged as impossible (×).
[Test and measurement method for patch flexibility]:
The prepared patch was applied to the forehead of the human body, and the case where a comfortable feeling of softness was felt was judged as good (◯), and the case where a feeling of unpleasant hardness was felt was judged as impossible (×).
[Easy to peel off adhesive test / measurement method]:
The prepared patch can be applied to the human forehead, and after 3 minutes, it can be gradually peeled off from the end of the patch attached to the forehead, and the skin on the forehead can be easily peeled off without discomfort. The case where it was possible was judged as good (◯), and the case where the adhesive force at the time of peeling was too strong and the skin on the forehead felt uncomfortable and could not be easily peeled off was judged as impossible (x).
[Test and measurement method of residue inhibitory property after exfoliation (exfoliation residual inhibitory property)]:
The prepared patch is applied to the human forehead, and after 3 minutes, it is gradually peeled off from the end of the patch attached to the forehead, and it is good if it can be peeled off without any abnormality (○). ), And the case where a part of the water-containing composition of the patch was damaged and remained on the forehead of the human body was judged as impossible (x).

A water-containing composition containing water, a water-soluble polymer as a functional component, 1,3-butylene glycol, propylene glycol, and glycerin as polyhydric alcohols, and phenoxyethanol as a preservative is prepared, and the water-containing composition thereof is prepared. A patch with an object was prepared, and the antiseptic properties and the like of each prepared patch were compared and examined.
FIG. 1 shows a schematic process explanatory diagram illustrating a method for producing a patch according to an embodiment of the present invention. Consistent with the schematic process explanatory diagram of FIG. 1, a water-containing composition and a patch containing the water-containing composition were prepared by the following steps.

(A-1) 10 g of a crosslinkable water-soluble polymer such as sodium polyacrylate as a functional component, partially neutralized polyacrylic acid, and a crosslinked carboxyvinyl polymer is mixed and dissolved in water to have viscosity. Prepare a preconditioning solution containing a crosslinkable water-soluble polymer having fluidity.
(A-2) 6 g of a non-crosslinkable water-soluble polymer such as polyvinyl alcohol as a functional component, non-crosslink type carboxymethyl cellulose, and alkyl polyacrylic acid is mixed and dissolved in water to have viscosity and fluidity. Prepare a pre-preparation solution containing a non-crosslinkable water-soluble polymer.
(B) Crosslinkable A crosslinkable water-soluble polymer is mixed and dissolved in water in an amount of 0.5 g or less of a crosslinkable agent to prepare a preconditioning solution containing a crosslinker.
(C) A predetermined amount of phenoxyethanol as a preservative is mixed and dissolved in propylene glycol to prepare a preservative-containing preservative containing the preservative.
(D-1) An acid (0.1 g or less) as a pH adjusting component is mixed and dissolved in water to prepare a preconditioning solution d1 containing an additional component.
(D-3) A pre-prepared solution d3 containing an additional component is prepared by mixing and dissolving a Vitrex precursor (0.01 g or less, also known as denatonium benzoate) as an accidental ingestion inhibitor in water.
(E) A mixed polyhydric alcohol containing 5 g of 1,3-butylene glycol, 5 g of propylene glycol and 8 g of glycerin as a polyhydric alcohol, a preconditioning liquid containing a crosslinkable water-soluble polymer prepared by the above (a-1), and the above. Non-crosslinkable water-soluble polymer-containing pre-preparation liquid prepared by (a-2), cross-linking agent-containing pre-conditioning liquid prepared by the above (b), preservative-containing pre-preparation liquid prepared by the above (c). , The additional component-containing preconditioning liquid d1 prepared by the above (d-1) and the additional component-containing preconditioning liquid d3 prepared by the above (d-3) are mixed. In this case, the mixture is mixed at a predetermined temperature. Thereby, the preservative is dissolved, and a fluid water-containing polymer composition having viscosity and fluidity is prepared.
This prepares a fluid water-containing polymer composition as a water-containing composition, in which the preservative is dissolved, and which has viscosity and fluidity.

(F) After the step (e), when the fluidity of the water-containing polymer composition is maintained until gelation, the sheet-like holding member has a thickness of about 0.5 mm and the step (e). Adherently spreads and / or impregnates the fluid water-containing polymer composition prepared by. This prepares a fluid water-containing polymer composition with a sheet-shaped holding member held by the sheet-shaped holding member. The sheet-shaped holding member is a rectangular sheet having a vertical width of 50 mm and a horizontal width of about 130 mm, a thickness of about 1 mm, and a non-woven fabric sheet using synthetic fibers having flexibility in bending in the plane direction and air humidity permeability. Use a shape-retaining member.
(G) The fluid-containing polymer composition with a sheet-shaped holding member prepared in the step (f) is adjusted to a predetermined temperature, whereby the fluid-containing water-containing with a sheet-shaped holding member is adjusted over time. The crosslinkable water-soluble polymer contained in the polymer composition is crosslinked into a network structure by a chemical reaction with the crosslinking agent, and the fluidic water-containing polymer composition is gelled into a gel state having no fluidity. Prepare the resulting hydrous composition.
In addition, in the said (e), the content of water contained in a water-containing composition is added and mixed so that the total amount of the water-containing composition becomes 100 g.

In this way, water, a water-soluble polymer having a crosslinkable water-soluble polymer (10 g) and a non-crosslinkable water-soluble polymer (6 g), a polyhydric alcohol (18 g), and a cross-linking agent (0.5 g). Preparation of patches 1 to 7 containing a water-containing composition containing the following) and a pH-adjusting component / accidental ingestion inhibitor (0.2 g or less in total) and containing phenoxyethanol preservatives having various content ratios. did. It should be noted that the samples 1 to 7 of this example do not contain parabens as preservatives.
Further, as a comparative example of the preservative, in the step (c) above, a preservative containing parabens of methylparaben and propylparaben was dissolved in ethanol without containing phenoxyethanol to prepare a preservative-containing preservative solution p. , A patch containing the preservative-containing preservative solution p was prepared (Sample 8).

It was confirmed that the water-containing composition composed of each of the prepared patches had flexibility and adhesiveness at a temperature of about 45 ° C. or lower, and had a gel-like state in a non-fluid state. In addition, it was confirmed that the water-containing composition had a transparent state, and that the contained preservatives and other additional components were uniformly contained in the water-containing composition. Table 2 shows the measurement results of the physical characteristics of the patch for each of the prepared patches. In Table 2, the content of each component is shown in% by weight (wt%).

In Table 2, the patch (Samples 4 to 7) having a phenoxyethanol content of 0.2% by weight or more exhibits good antiseptic properties, and the phenoxyethanol content is less than 0.2% by weight (Samples 1 to 3). In some cases, it turns out to be inferior in antiseptic properties.

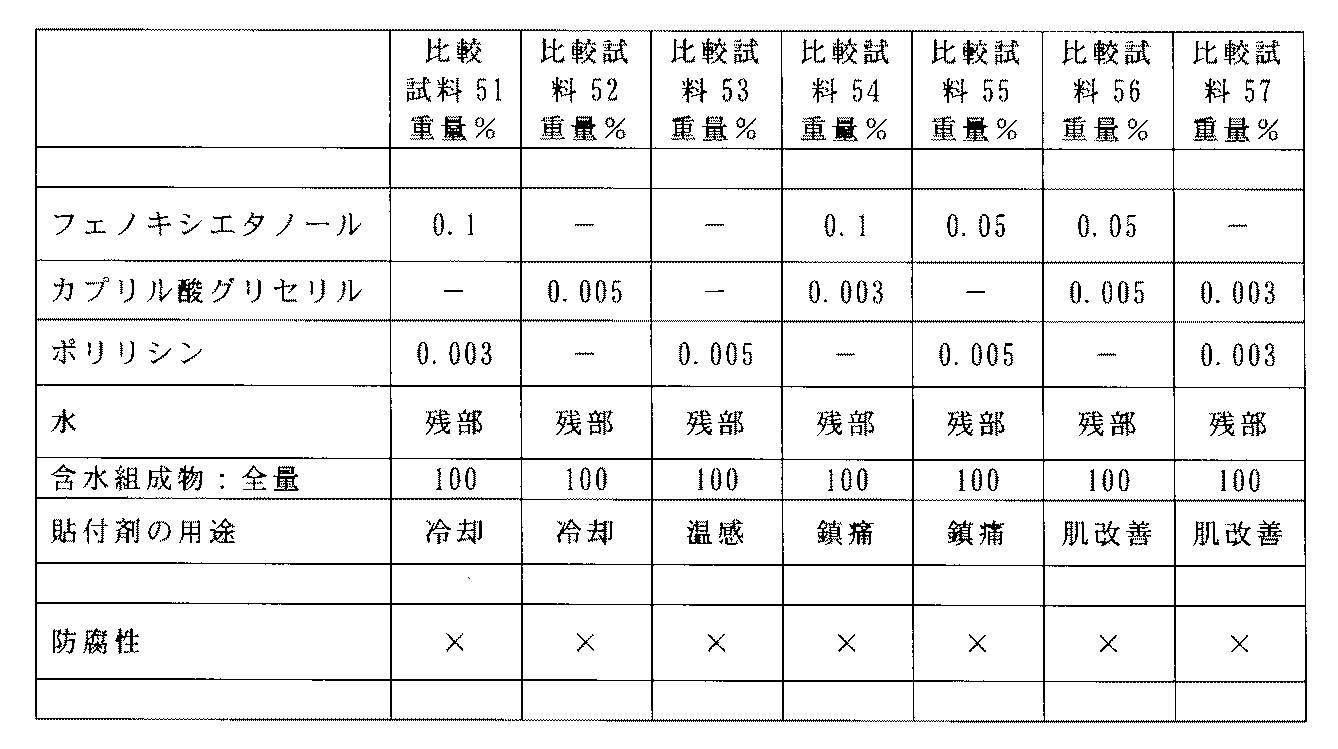

On the other hand, as a comparative example (conventional technique), it was confirmed that when the content of parabens was 0.1% by weight (sample 8), good antiseptic properties were exhibited.

A patch having a water-containing composition containing glyceryl caprylate as a preservative was prepared, and the preservative properties of each prepared patch were compared and examined.
Instead of phenoxyethanol in Example 1, a patch containing a water-containing composition containing glyceryl caprylate was prepared. In this example, in the step (c), a predetermined amount of glyceryl caprylate as a preservative (c) is mixed and dissolved in propylene glycol to prepare a preservative-containing preservative containing the preservative. do. In this case, the temperature of the waxy glyceryl caprylate is raised at room temperature to mix and dissolve the liquefied glyceryl caprylate and propylene glycol. Other steps are the same as in Example 1 described above. Table 3 shows the measurement results of the physical characteristics of the patch for each of the prepared patches. The samples 9 to 14 of this example do not contain parabens as preservatives.

In Table 3, patches having a caprylate glyceryl content of 0.01% by weight or more (Samples 11 to 14) exhibited good antiseptic properties, and a caprylate glyceryl content of less than 0.01% by weight (Sample 9). In the case of 10), it can be seen that the antiseptic property is inferior.

A patch having a water-containing composition containing polylysine as a preservative was prepared, and the antiseptic properties of each of the prepared patches were compared and examined.
Instead of phenoxyethanol in Example 1, a patch having a water-containing composition containing polylysine was prepared.
In this example, in the step (c), a predetermined amount of polylysine as the preservative (c) is mixed and dissolved in water to prepare a preservative-containing preservative containing the preservative. Other steps are the same as in Example 1 described above.
Table 4 shows the measurement results of the physical characteristics of the patch for each of the prepared patches. The samples 15 to 20 of this example do not contain parabens as preservatives.

In Table 4, the patch (Samples 17 to 20) having a polylysine content of 0.01% by weight or more exhibits good antiseptic properties, and the polylysine content is less than 0.01% by weight (Samples 15 and 16). In some cases, it turns out to be inferior in antiseptic properties.

A patch having a water-containing composition containing a water-containing composition containing both phenoxyethanol and other preservatives as a preservative was prepared, and the antiseptic properties of each of the prepared patches were compared and examined. ..
In this example, it was prepared by a method similar to that of Example 1. However, instead of the step (c) of Example 1, the step (c) has the following steps, depending on the type of preservative.
(C) A predetermined amount of phenoxyethanol as a preservative is mixed and dissolved in propylene glycol to prepare a phenoxyethanol-containing preconditioning solution in which the preservative is dissolved and contained.
(C) A predetermined amount of glyceryl caprylate as a preservative is mixed and dissolved in propylene glycol to prepare a preservative containing glyceryl caprylate.
(C) A predetermined amount of polylysine as a preservative is mixed and dissolved in water to prepare a polylysine-containing preconditioning solution containing the preservative.
(C) A predetermined amount of a chloride preservative as a preservative is mixed and dissolved in water to prepare a preservative-containing preservative containing the preservative.
Then, the phenoxyethanol-containing preconditioning liquid and another desired preservative-containing preservative-containing liquid are mixed to prepare a preservative-containing preservative preparation liquid.
Other steps are the same as in Example 1 described above.
Tables 5 and 6 show the measurement results of the physical characteristics of the patches for each of the prepared patches. In this example, parabens as preservatives are not contained.

In Table 5, the sample 30 containing only 0.2% by weight of phenoxyethanol exhibits antiseptic properties, but the sample 31 containing only 0.17% by weight of reduced phenoxyethanol does not have antiseptic properties.
Further, the sample 37 containing only 0.01% by weight of glyceryl caprylate exhibits antiseptic properties, while the sample 34 containing only 0.007% by weight of glyceryl caprylic acid having no antiseptic property has 0.1% by weight of phenoxyethanol and caprylic acid. Sample 32 containing both 0.003% by weight of glyceryl (point Q in FIG. 2) does not have antiseptic properties, but sample 33 containing both 0.1% by weight of phenoxyethanol and 0.005% by weight of glyceryl caprylate 33. (Point S in FIG. 2) has antiseptic properties.
Sample 35 (point T in FIG. 2) containing both 0.05% by weight of phenoxyethanol and 0.007% by weight of glyceryl caprylate became antiseptic, and 0.15% by weight of phenoxyethanol and glyceryl caprylate. Sample 36 (point U in FIG. 2) containing both 0.003% by weight becomes antiseptic.
That is, in FIG. 2, both of the patch containing the composition containing the preservative in the region surrounded by the line XY connecting the X point and the Y point and the line MN connecting the M point and the N point. It can be seen that the synergistic action of the preservatives in the above makes it possible to reduce the minimum preservative content of each preservative.
In other words, the composition containing both preservatives of glyceryl caprylate in addition to phenoxyethanol provides better preservative properties compared to the single use of these preservatives at the same preservative concentration. The effect to play is obtained.

In Table 6, the sample 40 containing only 0.2% by weight of phenoxyethanol exhibits antiseptic properties, but the sample 41 containing only 0.17% by weight of reduced phenoxyethanol does not have antiseptic properties.
Further, the sample 47 containing only 0.01% by weight of polylysine exhibits antiseptic properties, but the sample 44 containing only 0.007% by weight of reduced polylysine has no preservative properties, 0.1% by weight of phenoxyethanol and 0.003% by weight of polylysine. The sample 42 (point Q in FIG. 2) containing both of the above and the sample 42 (point Q in FIG. 2) does not have antiseptic properties, but the sample 43 (point S in FIG. 2) containing both 0.1% by weight of phenoxyethanol and 0.005% by weight of polylysine is used. It becomes antiseptic.
Sample 45 (point T in FIG. 2) containing both 0.05% by weight of phenoxyethanol and 0.007% by weight of polylysine became antiseptic, and 0.15% by weight of phenoxyethanol and 0.003% by weight of polylysine. The sample 46 (point U in FIG. 2) containing both of the percent becomes antiseptic.
That is, in FIG. 2, both of the patch containing the composition containing the preservative in the region surrounded by the line XY connecting the X point and the Y point and the line MN connecting the M point and the N point. It can be seen that the synergistic action of the preservatives in the above makes it possible to reduce the minimum preservative content of each preservative.
In other words, the composition containing both preservatives as well as polylysine preservatives in addition to phenoxyethanol has an effect of exerting superior antiseptic properties as compared with the single use of these preservatives at the same preservative concentration. Is obtained.

This example is a composition containing phenoxyethanol, glyceryl caprylate, and polylysine as a preservative, and contains glycerin, propylene glycol, or 1,3-butylene glycol as a polyhydric alcohol, and is a functional component. This is an example of a patch constituting a water-containing composition containing a water-soluble polymer, and a comparative example in which the content of the water-soluble polymer is increased instead of the polyhydric alcohol without containing the polyhydric alcohol. ..

By the same method as in Example 1, a composition containing a cross-linking agent and having different contents of glycerin, propylene glycol, and butylene glycol as a polyhydric alcohol is provided, and a water-containing composition containing various preservatives is provided. Prepare a patch.
In this embodiment, in the step (c), a predetermined amount of the preservative as the (c) preservative is mixed and dissolved in heated glycerin, propylene glycol and / or butylene glycol, and the preservative is dissolved and contained. Prepare a preservative-containing preservative solution.
The step (e) contains (e) a polyhydric alcohol such as glycerin, 1,3-butylene glycol, or propylene glycol as the polyhydric alcohol, and a crosslinkable water-soluble polymer prepared by the above (a-1). The pre-prepared liquid, the non-crosslinkable water-soluble polymer-containing pre-prepared liquid prepared in (a-2) above, the cross-linking agent-containing pre-prepared liquid prepared in (b) above, and the pre-prepared liquid containing a cross-linking agent prepared in (c) above. Preservative-containing preconditioning liquid d1, additional component-containing preconditioning liquid d1 prepared by the above (d-1), additional component-containing preconditioning liquid d2 prepared by the above (d-2), the above-mentioned (d-3). ) Is mixed with the additional component-containing preconditioning liquid d3. In this case, the mixture is mixed at a predetermined temperature. Thereby, the preservative is dissolved, and a fluid water-containing polymer composition having viscosity and fluidity is prepared.
Other steps are similar to those of Example 1. Tables 7, 8 and 9 show the measurement results of the physical characteristics of the patch for the patch having each of the prepared water-containing compositions. In this example, parabens as preservatives are not contained.

As is clear from Table 7, in the samples (samples 70 to 79) containing 0.2% by weight of phenoxyethanol, the samples containing 18% by weight of polyhydric alcohols such as glycerin, propylene glycol and butylene glycol (samples 70 and 71, 72) has excellent antiseptic properties, and the sample containing no polyhydric alcohol (sample 73) is inferior in antiseptic properties.
The sample containing 5% by weight of glycerin (Sample 75) has antiseptic properties, but the sample containing 3% by weight of glycerin (Sample 74) is inferior in antiseptic properties.
The sample containing 3% by weight of propylene glycol (Sample 77) has antiseptic properties, but the sample containing 1% by weight of propylene glycol (Sample 76) is inferior in antiseptic properties.
The sample containing 3% by weight of butylene glycol (Sample 79) has antiseptic properties, but the sample containing 1% by weight of butylene glycol (Sample 78) is inferior in antiseptic properties.
That is, in the composition containing 0.2% by weight of phenoxyethanol, the patch containing the composition containing about 5% by weight of glycerin and the composition containing about 3% by weight or more of propylene glycol or butylene glycol is antiseptic. It can be seen that it has a sexual promotion effect.

As is clear from Table 8, in the samples containing 0.01% by weight of glyceryl caprylate (Samples 80 to 89), the samples containing 18% by weight of polyhydric alcohols such as glycerin, propylene glycol and butylene glycol (Sample 80, 81 and 82) have excellent antiseptic properties, and the sample containing no polyhydric alcohol (sample 83) is inferior in antiseptic properties.
The sample containing 5% by weight of glycerin (Sample 85) has antiseptic properties, but the sample containing 3% by weight of glycerin (Sample 84) is inferior in antiseptic properties.
The sample containing 3% by weight of propylene glycol (Sample 87) has antiseptic properties, but the sample containing 1% by weight of propylene glycol (Sample 86) is inferior in antiseptic properties.
The sample containing 3% by weight of butylene glycol (Sample 89) has antiseptic properties, but the sample containing 1% by weight of butylene glycol (Sample 88) is inferior in antiseptic properties.
That is, a patch comprising a composition containing 0.01% by weight of glyceryl caprylate, a composition containing 5% by weight of glycerin, and a composition containing about 3% by weight or more of propylene glycol or butylene glycol. Is found to have an antiseptic promoting effect.

In the step (c) of mixing the preservative, in the preparation of the sample (Sample 83) containing no polyhydric alcohol, a preservative having a concentration of 10% preservative in which glyceryl caprylate was dissolved in about 10 times the amount of ethanol was contained. Prepare and use a preservative. Further, in the samples having a low polyhydric alcohol content (samples 84 to 87), the preservative was dissolved or compatible with the polyhydric alcohol in a state where the temperature of the polyhydric alcohol was raised to 50 ° C. or higher, and the polyhydric alcohol became transparent. Prepare a preservative-containing preconditioning solution.

As Comparative Example 85, in relation to a sample containing 5% by weight of glycerin and 0.01% by weight of glyceryl caprylate in sample 85, glyceryl caprylate is not previously dissolved in glycerin (c), and (e). In the step (a), the water-soluble polymer-containing preconditioning solution prepared in the step (a) is mixed with glyceryl caprylate and forcibly mixed to disperse the glyceryl caprylate, so that the glyceryl caprylate is completely water. A fluid water-containing polymer composition in a state of being dispersed in a fine particle state without being dissolved in a water-containing polymer preconditioning liquid containing the above is prepared. As a result of measuring the antiseptic property of the patch prepared in this way, the antiseptic property was (x).
That is, when the preservative is contained in the water-containing composition in a completely dissolved state, the preservative exhibits slightly better antiseptic properties than in the state where the preservative is not completely dissolved in the water-containing composition.

As is clear from Table 9, in the samples containing 0.01% by weight of polylysine (samples 90 to 99), the samples containing 18% by weight of polyhydric alcohols such as glycerin, propylene glycol and butylene glycol (samples 90, 91, 92) has excellent antiseptic properties, and the sample containing no polyhydric alcohol (Sample 93) is inferior in antiseptic properties.
The sample containing 5% by weight of glycerin (Sample 95) has antiseptic properties, but the sample containing 3% by weight of glycerin (Sample 94) is inferior in antiseptic properties.
The sample containing 3% by weight of propylene glycol (Sample 97) has antiseptic properties, but the sample containing 1% by weight of propylene glycol (Sample 96) is inferior in antiseptic properties.
The sample containing 3% by weight of butylene glycol (Sample 99) has antiseptic properties, but the sample containing 1% by weight of butylene glycol (Sample 98) is inferior in antiseptic properties.
That is, in the composition containing 0.01% by weight of polylysine, the patch containing the composition containing 5% by weight of glycerin and the composition containing about 3% by weight or more of propylene glycol or butylene glycol promotes antiseptic properties. It turns out that it works.

This example compares and examines the influence of the content of polyhydric alcohol on the antiseptic property, and contains a composition containing 0.2% by weight or more of phenoxyethanol, and 0.01% by weight of caprylsanglyceryl or polylysine. In the composition, it is demonstrated that a composition containing 5% by weight of glycerin and about 3% by weight or more of propylene glycol or butylene glycol exerts an antiseptic promoting action of a preservative, and is used as another patch. The characteristics were examined as a reference.
Therefore, in this example, all the samples having a polyhydric alcohol content of less than 5% by weight tend to be inferior in the adhesiveness and flexibility of the patch, and have an inappropriate configuration as a patch. As the patch, a patch having a water-containing composition containing 5% by weight of the polyhydric alcohol is desirable and feasible.

Water, water-soluble polymers as functional ingredients, functional ingredients that impart efficacy (pharmacological active ingredients, skin improving ingredients, aromatic ingredients, antiseptic properties, etc.), polyhydric alcohols that have a promoting effect, preservatives, and additional ingredients ( Various water-containing compositions containing an accidental ingestion prevention component, a refreshing feeling-imparting component, a warm-feeling warmth-imparting component, a pH adjusting component, etc. Was prepared.
A water-containing polymer gel patch was prepared by the following steps in accordance with the schematic process explanatory diagram shown in FIG.
(A-1) Crosslinkable water-soluble polymers such as sodium polyacrylate, partially neutralized polyacrylic acid, and crosslinked carboxyvinyl polymer are mixed and dissolved in water to have viscosity and fluidity. Prepare a preconditioning solution containing a water-soluble polymer.
(A-2) Non-crosslinking property having viscosity and fluidity by mixing and dissolving a predetermined amount of non-cross-linking water-soluble polymer such as polyvinyl alcohol, non-crosslinking carboxymethyl cellulose, alkyl polyacrylate, etc. in water. Prepare a preconditioning solution containing a water-soluble polymer.
(B) Crosslinkable A crosslinkable water-soluble polymer is mixed and dissolved in water in an amount of 0.5 g or less of a crosslinkable agent to prepare a preconditioning solution containing a crosslinker.
(C) A predetermined amount of preservative is mixed and dissolved in propylene glycol to prepare a preservative-containing preservative-containing preservative solution in which the preservative is dissolved.
(D-1) An acid (0.1 g or less) as a pH adjusting component is mixed and dissolved in water to prepare a preconditioning solution d1 containing an additional component.
(D-2) The predetermined additional component is dissolved in ethanol to prepare a preconditioning solution d2 containing the additional component.
(D-3) A pre-prepared solution d3 containing an additional component is prepared by mixing and dissolving a Vitrex precursor (0.01 g or less, also known as denatonium benzoate) as an accidental ingestion inhibitor in water.
(E) A mixed polyhydric alcohol of glycerin and propylene glycol as a polyhydric alcohol, a crosslinkable water-soluble polymer-containing preconditioning liquid prepared by the above (a-1), and the above-mentioned (a-2). The non-crosslinkable water-soluble polymer-containing pre-preparation liquid, the cross-linking agent-containing pre-conditioning liquid prepared in (b) above, the preservative-containing pre-conditioning liquid prepared in (c) above, and the above-mentioned (d). The additional component-containing preconditioning liquid d1 prepared by -1), the additional component-containing preconditioning liquid d2 prepared by the above (d-2), and the additional component-containing preconditioning liquid prepared by the above (d-3). Mix with liquid d3. In this case, the mixture is mixed at a predetermined temperature. Thereby, the preservative is dissolved, and a fluid water-containing polymer composition having viscosity and fluidity is prepared.
(F) After the step (e), while maintaining the fluidity until the fluidity-containing polymer composition gels, the sheet-like holding member has the fluidity-moisture-containing height of about 0.5 mm. The molecular composition is impregnated into the adherent spread and / or the sheet-like holding member. This prepares a fluid water-containing polymer composition with a sheet-shaped holding member held by the sheet-shaped holding member. The sheet-shaped holding member is made of a non-woven fabric using synthetic fibers having a vertical width of 50 mm, a width of about 130 mm, a thickness of about 1.5 mm, bending flexibility that can be expanded and contracted in the plane direction, and air humidity permeability. Use the sheet-shaped holding member of.
(G) The fluid-containing polymer composition with a sheet-shaped holding member prepared in the step (f) is adjusted to a predetermined temperature, whereby the fluidity with the sheet-shaped holding member is increased over time. The crosslinkable water-soluble polymer contained in the water-containing polymer composition is crosslinked into a network structure by a chemical reaction with the crosslinker, so that the fluidized water-containing polymer composition is in a gel state having no fluidity. Prepare a patch with a gelled water-containing composition.
In addition, in the said (e), the content of water contained in a water-containing composition is added and mixed so that the total amount of the water-containing composition becomes 100 g.

In this way, water, a crosslinkable water-soluble polymer, a non-crosslinkable water-soluble polymer, a polyhydric alcohol, ethanol, a crosslinking agent, a pH adjusting component, a refreshing sensation-imparting component, an accidental ingestion inhibitor, etc. A patch was prepared with a water-containing composition containing an additional component of the above and containing a preservative. The water content was adjusted and contained so that the total amount of the water-containing composition was 100 g.
It was confirmed that the water-containing composition composed of each of the prepared patches had flexibility and adhesiveness at a temperature of about 45 ° C. or lower, and had a gel-like state in a non-fluid state. In addition, it was confirmed that the water-containing composition had a transparent state, and that the contained preservatives and other additional components were uniformly contained in the water-containing composition. Table 10 shows the measurement results of the physical characteristics of the patch for each of the prepared patches. In this example, parabens as preservatives are not contained.

As is clear from Table 10, any of the patches of Samples 51 to 57 exhibits excellent antiseptic properties.
The samples 51 and 52 are a patch having the water-containing composition adhered to one side of the sheet-shaped holding member, and are a cooling sheet used by sticking the water-containing composition to the forehead or the like to be cooled by the human body.
The sample 53 is a patch having the water-containing composition adhered to one side of the sheet-shaped holding member, and is a cold-warm feeling imparting sheet used by sticking the water-containing composition to the skin of a portion of the human body to be warmed.
Samples 54 and 55 are patches to which the water-containing composition is attached to one side of the sheet-shaped holding member, and are analgesic and anti-inflammatory sheets used by sticking to the inflamed or aching skin of the human body.
Samples 56 and 57 are patches in which the water-containing composition is adhered to one or both sides of the sheet-shaped holding member or impregnated into a non-woven sheet having fine voids and held, and is attached to the skin such as the face. , Moisturizing, or improving rough skin, age spots, freckles, and is a skin improving sheet used for the purpose of beautiful skin, for example, used as a skin improving pack sheet or a skin improving face mask. ..
As a face mask for skin improvement, for example, a sheet shape having a hole for an ear hook, a hole corresponding to a human body mouth, a part corresponding to an eye, and a part corresponding to a nose hole, and having elasticity. The holding member is impregnated with the water-containing composition, and the skin-improving pack sheet formed by impregnating the water-containing composition is applied to the human face covering the mouth, eyes, forehead excluding the nose, cheeks, and jaw. The skin-improving ingredient contained in the water-containing composition comes into contact with the skin of the human body and / or penetrates into the skin through the skin. As a result, the effect of improving the human body skin corresponding to the contained skin improving component can be obtained.

(Comparative Example of Example 6)
In Example 5, Table 11 shows the results of preparing each patch having a small content of preservative in each water-containing composition and having the same other components, and measuring the preservative property thereof. The comparative samples 51 to 57 of this comparative example do not contain parabens as preservatives.

As is clear from Table 11, in the comparative samples of the patches of the comparative samples 51 to 57, the samples having a low preservative content tend to be inferior in antiseptic properties.

In this example, the physical characteristics of a patch having a water-containing composition in which the content ratios of the water-soluble polymer and the polyhydric alcohol were changed were compared and examined.
A patch having a water-containing composition was prepared by the following steps.
(A-1) A predetermined amount of crosslinkable water-soluble polymer such as sodium polyacrylate, partially neutralized polyacrylic acid, and crosslinked carboxyvinyl polymer is mixed and dissolved in water to have viscosity and fluidity. Prepare a pre-preparation solution containing a crosslinkable water-soluble polymer.
(A-2) Non-crosslinking property having viscosity and fluidity by mixing and dissolving a predetermined amount of non-cross-linking water-soluble polymer such as polyvinyl alcohol, non-crosslinking carboxymethyl cellulose, alkyl polyacrylate, etc. in water. Prepare a preconditioning solution containing a water-soluble polymer.
(B) Crosslinkable A crosslinkable water-soluble polymer is mixed and dissolved in water in an amount of 0.5 g or less of a crosslinkable agent to prepare a preconditioning solution containing a crosslinker.
(C) As a preservative, a predetermined amount of phenoxyethanol and polylysine are mixed and dissolved in propylene glycol to prepare a preservative-containing preservative containing the preservative.
(D-1) An acid (0.1 g or less) as a pH adjusting component is mixed and dissolved in water to prepare a preconditioning solution d1 containing an additional component.
(E) A mixed polyvalent alcohol of 1,3-butylene glycol, propylene glycol, and glycerin as a polyvalent alcohol, and a preconditioning liquid containing a crosslinkable water-soluble polymer prepared by the above (a-1). , The non-crosslinkable water-soluble polymer-containing preconditioning liquid prepared by the above (a-2), the cross-linking agent-containing preconditioning liquid prepared by the above (b), and the preservative prepared by the above (c). The contained pre-prepared liquid and the additional component-containing pre-prepared liquid d1 prepared according to (d-1) above are mixed. In this case, the mixture is mixed at a predetermined temperature. Thereby, the preservative is dissolved, and a fluid water-containing polymer composition having viscosity and fluidity is prepared.
(F) After the step (e), while maintaining the fluidity until the fluidity-containing polymer composition gels, the sheet-like holding member has the fluidity-moisture-containing height of about 0.5 mm. Adhere and / or impregnate the molecular composition. This prepares a fluid water-containing polymer composition with a sheet-shaped holding member held by the sheet-shaped holding member. The sheet-shaped holding member is a rectangular sheet having a vertical width of 50 mm and a horizontal width of about 130 mm, a thickness of about 1 mm, and a non-woven fabric sheet using synthetic fibers having flexibility in bending in the plane direction and air humidity permeability. Use a shape-retaining member.
(G) The fluid-containing polymer composition with a sheet-shaped holding member prepared in the step (f) is adjusted to a predetermined temperature, whereby the fluidity with the sheet-shaped holding member is increased over time. The crosslinkable water-soluble polymer contained in the water-containing polymer composition is crosslinked into a network structure by a chemical reaction with the crosslinker, so that the fluidized water-containing polymer composition is in a gel state having no fluidity. Prepare a preparation with a gelled water-containing composition.
In addition, in the said (e), the content of water contained in a water-containing composition is added and mixed so that the total amount of the water-containing composition becomes 100 g.

In this way, water, a crosslinkable water-soluble polymer, a non-crosslinkable water-soluble polymer, a polyhydric alcohol, a crosslinker, a pH adjusting component, and phenoxyethanol and polylysine as preservatives are contained. A patch with the water-containing composition contained was prepared. The water content was adjusted and contained so that the total amount of the water-containing composition was 100 g.
Table 12 shows the results of the prepared patches.
In this example, parabens as preservatives are not contained.

The following can be seen from Table 12.
When the water content is less than 20% by weight (Sample 108), all the water-soluble polymers are not dissolved in the water-containing composition, and a transparent water-containing composition cannot be obtained. When the composition (sample 100) has a water content of more than 95% by weight, a gel-like water-containing composition having fluidity at 45 ° C. and no fluidity cannot be obtained, and the shape retention tends to be inferior. ..
In the case of a composition (samples 103 and 105) having a water-soluble polymer content of 3 to 40% by weight and a polyhydric alcohol content of 5 to 50% by weight, adhesiveness, shape retention and easy peeling adhesiveness , All physical properties such as peeling residual inhibitory property and transparency are good. When the content of the water-soluble polymer exceeds 40% by weight (samples 107 and 108), a transparent water-containing composition is obtained without all the water-soluble polymers being dissolved in the water-containing composition. I can't. When the content of the water-soluble polymer is less than 3% by weight (samples 100 and 102), the composition has fluidity at 45 ° C. and tends to be inferior in shape retention.
In the case of a composition having a polyhydric alcohol content of more than 50% by weight (samples 104 and 106), a residue of the water-containing composition remains on the skin when the patch is applied to the skin and then the patch is peeled off. The state is observed, and the peeling residual inhibitory property tends to be inferior. When the content of the polyhydric alcohol is less than 5% by weight (Sample 101), the adhesiveness when the patch is applied to the skin tends to be inferior.

In this example, as a preservative, in addition to the preservatives other than (E) the parabens, (F) a patch containing a water-containing composition containing the parabens was compared and examined for its antiseptic properties. ..
In the step (c) of the method for producing a patch in Example 1, there is a step of dissolving parabens in (cp) water and / or polyhydric alcohol, and (ca) water or polyhydric alcohol. Contains a preservative in the steps of dissolving phenoxyethanol, (cb) dissolving glyceryl caprylate in polyhydric alcohol, or (cd) dissolving polylysine in water. It has a step of preparing a preservative, and prepares a preservative-containing preservative containing a preservative in which it is dissolved. Other steps are the same as in Example 1 described above. As the parabens, an equal amount mixture of both methylparaben and propylparaben parabens was used. Table 13 shows the measurement results of the physical characteristics of the patch for each of the prepared patches.

The following can be seen from Table 13.
A sample containing 0.05% by weight of parabens and containing no preservatives other than parabens (Sample 117), a sample containing 0.05% by weight of phenoxyethanol (Sample 111), 0.003% by weight of glyceryl caprylate. The sample containing (Sample 113) and the sample containing 0.003% by weight of polylysine (Sample 115) are inferior in antiseptic properties.
On the other hand, when it contains 0.05% by weight of parabens and 0.1% by weight of phenoxyethanol (Sample 112), when it contains 0.05% by weight of parabens and 0.005% by weight of glyceryl caprylate. (Sample 114), when it contains 0.05% by weight of parabens and 0.005% by weight of polylysine (Sample 116), it has excellent antiseptic properties in any case.
That is, when the minimum content of the preservatives other than the above parabens is reduced by using in combination with the preservatives other than the above parabens in addition to the parabens of 0.05% by weight or less with respect to the total amount. It also has excellent antiseptic properties.

Multivalent alcohol that promotes antiseptic properties, preservatives other than parabens, ibuprofen piconol as an efficacy-imparting functional ingredient, other additional ingredients, and water-containing cream that is uniformly mixed. The composition was prepared. That is, (a) a functional component is mixed with water to prepare a preservative solution containing the functional component, and (c) a preservative other than parabens, water in which the preservative can be dissolved, and / Or mixed with polyvalent alcohol to prepare a preservative-containing preservative-containing preservative solution in which the preservative was dissolved, and (e) the polyvalent alcohol and the above-mentioned function prepared by the above (a). The preservative-containing preservative-containing liquid prepared according to (c) above was mixed with the preservative-containing preservative liquid, thereby preparing a water-containing composition in which the functional component and the preservative were dissolved. .. Table 14 shows the measurement results of antiseptic properties and the like for each of the prepared water-containing compositions.
In this example, parabens as preservatives are not contained. Further, the content ratio of propylene glycol and petitrene glycol as the polyhydric alcohol is 1: 1 in weight, and the mixed polyhydric alcohol is used.
The water-containing composition of this example has a creamy state and is used by being applied to the human face to improve the skin condition of the face.

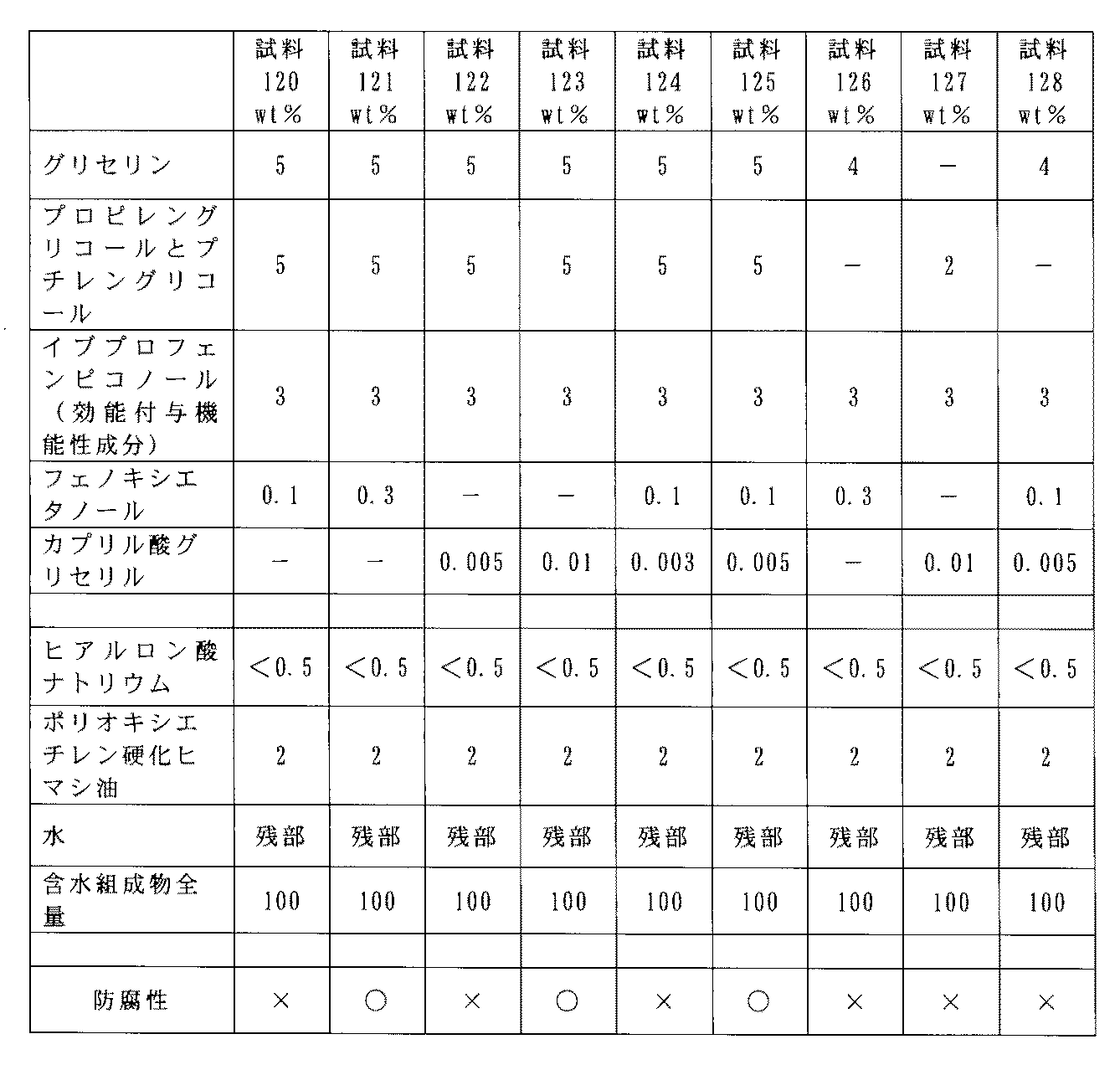

The following can be seen from Table 14.
The sample containing 0.1% by weight of phenoxyethanol (Sample 120) and the sample containing 0.005% by weight of glyceryl caprylate (Sample 122) are inferior in antiseptic properties. On the other hand, the sample containing 0.3% by weight of phenoxyethanol (Sample 121) and the sample containing 0.01% by weight of glyceryl caprylate (Sample 123) are excellent in antiseptic properties. That is, the water-containing composition containing less than 0.3% by weight of phenoxyethanol is inferior in antiseptic property, and the water-containing composition containing 0.3% by weight or more of phenoxyethanol is excellent in antiseptic property.
Sample 124 (point Q in FIG. 2) containing both 0.1% by weight of phenoxyethanol and 0.003% by weight of glyceryl caprylate has no antiseptic properties, but 0.1% by weight of phenoxyethanol and 0.005% by weight of glyceryl caprylate. Sample 125 (point S in FIG. 2) containing both% by weight becomes antiseptic. That is, in FIG. 2, a patch comprising a composition containing a preservative in a region surrounded by a line XY connecting points X and Y and a line MN connecting points M and N is It can be seen that the synergistic action of both preservatives makes it possible to reduce the minimum preservative content of each preservative and the total content of both preservatives. In other words, the composition containing both preservatives of glyceryl caprylate in addition to phenoxyethanol provides better preservative properties compared to the single use of these preservatives at the same preservative concentration. The effect to play is obtained.

Further, the sample (Sample 121) containing 0.3% by weight of phenoxyethanol and 10% by weight of polyhydric alcohol exhibits excellent antiseptic properties, whereas it contains 0.3% by weight of phenoxyethanol and also contains 0.3% by weight of phenoxyethanol. The sample (Sample 126) containing 4% by weight of glycerin as a polyhydric alcohol is inferior in antiseptic properties.
The sample (Sample 123) containing 0.01% by weight of glyceryl caprylate and 10% by weight of polyhydric alcohol exhibits excellent antiseptic properties, whereas 0.005% by weight of glyceryl caprylate is used. The sample (Sample 127) containing propylene glycol as a polyhydric alcohol and 2% by weight of petitene glycol is inferior in antiseptic property.
A sample (Sample 125) containing both preservatives of phenoxyethanol and glyceryl caprylate and containing 10% by weight of polyhydric alcohol exhibits excellent preservative properties, whereas phenoxyethanol and glyceryl caprylate are used. A sample (Sample 128) containing both preservatives and 4% by weight of glycerin as a polyhydric alcohol is inferior in preservative properties.

That is, in a hydrous composition containing phenoxyethanol and / or glyceryl caprylate, a composition containing 5% by weight or more of glycerin as a polyhydric alcohol, or a content of 3% by weight or more of propylene glycol and / or ptylene glycol. It can be seen that the composition containing a valent alcohol exhibits excellent antiseptic properties, and that these polyhydric alcohols exert an antiseptic promoting action on phenoxyethanol and / or glyceryl caprylate.

(Comparative Example with Example 10)
In this example and the comparative example, a water-containing composition containing a water-soluble polymer such as a crosslinked water-soluble polymer or a non-crosslinked water-soluble polymer as a functional component, and a water-containing composition not containing the water-soluble polymer are used. The antiseptic properties of the obtained patches were compared and examined for the patches equipped with objects.
A water-containing composition and a patch containing the water-containing composition were prepared by the following steps.
(A-1) A predetermined amount of crosslinkable water-soluble polymer such as sodium polyacrylate, partially neutralized polyacrylic acid, and crosslinked carboxyvinyl polymer is mixed and dissolved in water to have viscosity and fluidity. Prepare a pre-preparation solution containing a crosslinkable water-soluble polymer.
(A-2) Contains a non-crosslinkable water-soluble polymer having viscosity and fluidity by mixing and dissolving a predetermined amount of a non-crosslinkable water-soluble polymer such as polyvinyl alcohol and non-crosslinkable carboxymethyl cellulose in water. Prepare a pre-prepared solution.
(B) Crosslinkable A crosslinkable water-soluble polymer is mixed and dissolved in water in an amount of 0.5 g or less of a crosslinkable agent to prepare a preconditioning solution containing a crosslinker.
(C) As a preservative, a predetermined amount of phenoxyethanol and polylysine are mixed and dissolved in propylene glycol to prepare a preservative-containing preservative containing the preservative.
(D-1) An acid (0.1 g or less) as a pH adjusting component is mixed and dissolved in water to prepare a preconditioning solution d1 containing an additional component.
(E) A mixed polyvalent alcohol of 1,3-butylene glycol, propylene glycol, and glycerin as a polyvalent alcohol, and a preconditioning liquid containing a crosslinkable water-soluble polymer prepared by the above (a-1). , The non-crosslinkable water-soluble polymer-containing preconditioning liquid prepared by the above (a-2), the cross-linking agent-containing preconditioning liquid prepared by the above (b), and the preservative prepared by the above (c). The contained pre-prepared liquid and the additional component-containing pre-prepared liquid d1 prepared according to (d-1) above are mixed. In this case, the mixture is mixed at a predetermined temperature. Thereby, the preservative is dissolved, and a fluid water-containing polymer composition having viscosity and fluidity is prepared.
(F) After the step (e), while maintaining the fluidity until the fluidity-containing polymer composition gels, the sheet-like holding member has the fluidity-moisture-containing height of about 0.5 mm. Adhere and / or impregnate the molecular composition. This prepares a fluid water-containing polymer composition with a sheet-shaped holding member held by the sheet-shaped holding member. The sheet-shaped holding member is a rectangular sheet having a vertical width of 50 mm and a horizontal width of about 130 mm, a thickness of about 1 mm, and a non-woven fabric sheet using synthetic fibers having flexibility in bending in the plane direction and air humidity permeability. Use a shape-retaining member.
(G) The fluid-containing polymer composition with a sheet-shaped holding member prepared in the step (f) is adjusted to a predetermined temperature, whereby the fluidity with the sheet-shaped holding member is increased over time. The crosslinkable water-soluble polymer contained in the water-containing polymer composition is crosslinked into a network structure by a chemical reaction with the crosslinker, so that the fluidized water-containing polymer composition is in a gel state having no fluidity. Prepare a patch with a gelled water-containing composition.
In the above (e), the content of water contained in the water-containing composition is added and mixed so that the total amount of the water-containing composition is 100 g.

In this way, water, a crosslinkable water-soluble polymer, a non-crosslinkable water-soluble polymer, a polyhydric alcohol, a crosslinker, a pH adjusting component, and phenoxyethanol and polylysine as preservatives are contained. A patch with the water-containing composition contained was prepared. The water content was adjusted and contained so that the total amount of the water-containing composition was 100 g.
For samples that do not contain the crosslinkable water-soluble polymer in the above step (a-1) and / or the non-crosslinkable water-soluble polymer in the step (a-2), these (a-1) are used. It does not have a step or (a-2) step.
Table 15 shows the results of each patch prepared. In this example and comparative example, parabens as preservatives are not contained.
In the case of a sample (Sample 131, 133, 135, 137) that does not contain a crosslinkable water-soluble polymer, the water-containing composition having fluidity without gelation in the step (g) is a sheet-like holding member. A patch was prepared by impregnating and holding the patch.

The following can be seen from Table 15.
A patch (Sample 130) having a water-containing composition containing 0.2% by weight of phenoxyethanol and 3% by weight of a water-soluble polymer, and 3% by weight of a water-soluble polymer containing 0.01% by weight of polylysine. A patch (Sample 132) containing a water-containing composition containing the above, and a water-containing composition containing 0.1% by weight of phenoxyethanol and 0.005% by weight of polylysine and 3% by weight of a water-soluble polymer. The patch (Sample 134) has excellent antiseptic properties, whereas the patch (Sample 131) is provided with a water-containing composition containing 0.2% by weight of phenoxyethanol and no water-soluble polymer. ), A patch containing a water-containing composition containing 0.01% by weight of polylysine and no water-soluble polymer (Sample 133), 0.1% by weight of phenoxyethanol and 0.005% by weight of polylysine, and water-soluble. A patch (Sample 135) containing a water-containing composition that does not contain 3% by weight of a sex polymer is inferior in antiseptic properties. That is, in the composition containing the preservatives of phenoxyethanol and polylysine having the same content ratio, the patch (samples 130, 132, 134, 136, 137) containing the water-containing composition containing 3% by weight of the water-soluble polymer is used. Although it has excellent antiseptic properties, the patch (Samples 131, 133, 135) having a water-containing composition containing no water-soluble polymer tends to be inferior in antiseptic properties.

In this example, the antiseptic property depending on the presence or absence of the water-soluble polymer is compared and examined, and a sample unsuitable for use as a patch is also included.

According to the present invention, in a water-containing composition containing water and a functional component such as a water-soluble polymer, a water-containing composition capable of exhibiting sufficient antiseptic properties and having reduced skin sensitization, and a water-containing composition thereof. You can obtain patches, cosmetics, and skin medicines with objects.

Claims (28)

(A) With water
(B) A water-containing composition containing the functional component soluble in water.
at least,
(C) A polyhydric alcohol having an antiseptic promoting action that is soluble or compatible with the water and
(E) Preservatives other than parabens that can be dissolved in the water and / or the polyhydric alcohol that promotes the antiseptic property.
Containing
(C) The polyhydric alcohol having an antiseptic promoting action is at least
Propylene glycol,
Butylene glycol and
Glycerin,
Contains at least one polyhydric alcohol selected from the group consisting of
(E) Preservatives other than the parabens are at least
Phenoxyethanol,
Glyceryl caprylate and
Polylysine,
Contains at least one non-paraben preservative selected from the group consisting of
A water-containing composition characterized by that. (C) The polyhydric alcohol having an antiseptic promoting action is at least in total amount.
3% by weight or more of propylene glycol,
Butylene glycol of 3% by weight or more, and
5% by weight or more of glycerin,
Contains at least one polyhydric alcohol selected from the group consisting of
(E) Preservatives other than the parabens should be added to at least the total amount.
With 0.2% by weight or more of phenoxyethanol,
0.01% by weight or more of glyceryl caprylate, or 0.01% by weight or more of polylysine,
Contains preservatives other than parabens on both sides,
(B) The functional component contains at least a water-soluble polymer and contains.
The water-soluble polymer is
(B-1) A crosslinkable water-soluble polymer that can be crosslinked in terms of molecular structure, and
(B-2) Non-crosslinkable water-soluble polymer that does not crosslink structurally,
Contains at least one of the water-soluble polymers,
(B-1) The crosslinkable water-soluble polymer is
(I) A crosslinked acrylic acid-based polymer obtained by polymerizing acrylic acid, methacrylic acid, and at least one acrylic acid-based monomer among these monovalent metal salts.
(Ii) (a) Acrylic acid, methacrylic acid, and at least one acrylic acid-based monomer among these monovalent metal salts, and (b) at least one of alkyl acrylate and alkyl methacrylate. Cross-linked acrylic acid-based copolymer polymer obtained by copolymerizing two alkyl acrylic acid-based monomers.
(Iii) A cross-linked acrylic acid-based polymer of partially neutralized polyacrylic acid in which polyacrylic acid is partially neutralized.
(Iv) Cross-linked carboxyvinyl polymer and
(V) Sodium Carboxyalkyl Cellulose and / or Crosslinked Cellulose Compounds of Sodium Hydroxyalkyl Cellulose,
Contains at least one crosslinkable water-soluble polymer selected from the group consisting of
(B-2) The non-crosslinkable water-soluble polymer is
(Vi) Polyvinyl alcohol, polyethylene glycol, polypropylene glycol, starch acrylate, alkyl polyacrylic acid, carboxyalkyl cellulose, hydroxyalkyl cellulose, polyvinylpyrrolidone, copolymer polymer of alkyl acrylate and secondary monoma, gelatin, and agar,
Containing at least one non-crosslinkable water-soluble polymer selected from the group consisting of
The water-containing composition according to claim 1. (E) Preservatives other than the parabens are added to the total amount.
Contains 0.2% by weight or more of phenoxyethanol,
(C) The polyhydric alcohol having an antiseptic promoting action is at least
With propylene glycol
Butylene glycol and
With glycerin,
Contains,
The water-containing composition according to claim 1. (E) Preservatives other than the parabens are added to the total amount.
Contains 0.2% by weight or more of phenoxyethanol,
(C) The polyhydric alcohol having an antiseptic promoting action is added to the total amount.
Contains 3% by weight or more of propylene glycol,
The water-containing composition according to claim 1. (E) Preservatives other than the parabens are added to the total amount.
Contains 0.6% by weight or more of phenoxyethanol,
(C) The polyhydric alcohol having an antiseptic promoting action is
3% by weight or more of propylene glycol,
Butylene glycol of 3% by weight or more, and
5% by weight or more of glycerin,
Containing at least one polyhydric alcohol selected from the group consisting of
The water-containing composition according to claim 1. (E) Preservatives other than the parabens are added to the total amount.
Contains 0.6% by weight or more of phenoxyethanol,
(C) The polyhydric alcohol having an antiseptic promoting action is
Propylene glycol,
Butylene glycol and
Glycerin,
At least one polyhydric alcohol selected from the group consisting of
Contains 18% by weight or more with respect to the total amount,
(B) The functional component is at least in total amount.
Contains 16% by weight or more of water-soluble polymer,
The water-soluble polymer is
(B-1) A crosslinkable water-soluble polymer that can be crosslinked in terms of molecular structure, and
(B-2) Non-crosslinkable water-soluble polymer that does not crosslink structurally,
Contains at least one of the water-soluble polymers,
(B-1) The crosslinkable water-soluble polymer is
(I) A crosslinked acrylic acid-based polymer obtained by polymerizing acrylic acid, methacrylic acid, and at least one acrylic acid-based monomer among these monovalent metal salts.
(Ii) (a) Acrylic acid, methacrylic acid, and at least one acrylic acid-based monomer among these monovalent metal salts, and (b) at least one of alkyl acrylate and alkyl methacrylate. Cross-linked acrylic acid-based copolymer polymer obtained by copolymerizing two alkyl acrylic acid-based monomers.
(Iii) A cross-linked acrylic acid-based polymer of partially neutralized polyacrylic acid in which polyacrylic acid is partially neutralized.
(Iv) Cross-linked carboxyvinyl polymer and
(V) Sodium Carboxyalkyl Cellulose and / or Crosslinked Cellulose Compounds of Sodium Hydroxyalkyl Cellulose,
Contains at least one crosslinkable water-soluble polymer selected from the group consisting of
(B-2) The non-crosslinkable water-soluble polymer is
(Vi) Polyvinyl alcohol, polyethylene glycol, polypropylene glycol, starch acrylate, alkyl polyacrylic acid, carboxyalkyl cellulose, hydroxyalkyl cellulose, polyvinylpyrrolidone, copolymer polymer of alkyl acrylate and secondary monoma, gelatin, and agar,
Containing at least one non-crosslinkable water-soluble polymer selected from the group consisting of
The water-containing composition according to claim 1. (E) Preservatives other than the parabens are added to the total amount.
Contains 0.01% by weight or more of glyceryl caprylate,
(C) The polyhydric alcohol having an antiseptic promoting action is at least
With propylene glycol
Butylene glycol and
With glycerin,
Contains,
The water-containing composition according to claim 1. (E) Preservatives other than the parabens are added to the total amount.
Contains 0.01% by weight or more of glyceryl caprylate,
(C) The polyhydric alcohol having an antiseptic promoting action is added to the total amount.
Contains 3% by weight or more of propylene glycol,
The water-containing composition according to claim 1. (E) Preservatives other than the parabens are added to the total amount.
Contains 0.01% by weight or more of glyceryl caprylate,
(C) The polyhydric alcohol having an antiseptic promoting action is added to the total amount.
5% by weight or more of propylene glycol and butylene glycol,
With 5% by weight or more of glycerin,
Contains,
The water-containing composition according to claim 1. (E) Preservatives other than the parabens are added to the total amount.
Contains 0.01% by weight or more of glyceryl caprylate,
(C) The polyhydric alcohol having an antiseptic promoting action is
3% by weight or more of propylene glycol,
Butylene glycol of 3% by weight or more, and
5% by weight or more of glycerin,
Contains at least one polyhydric alcohol selected from the group consisting of
(B) The functional component contains at least a water-soluble polymer and contains.
The water-soluble polymer is
(B-1) A crosslinkable water-soluble polymer that can be crosslinked in terms of molecular structure,
(B-2) Contains at least one water-soluble polymer among non-crosslinkable water-soluble polymers that do not crosslink structurally.
(B-1) The crosslinkable water-soluble polymer is
(I) A crosslinked acrylic acid-based polymer obtained by polymerizing acrylic acid, methacrylic acid, and at least one acrylic acid-based monomer among these monovalent metal salts.
(Iii) A cross-linked acrylic acid-based polymer of partially neutralized polyacrylic acid in which polyacrylic acid is partially neutralized.
(Iv) Cross-linked carboxyvinyl polymer and
(V) Sodium Carboxyalkyl Cellulose and / or Crosslinked Cellulose Compounds of Sodium Hydroxyalkyl Cellulose,
Contains at least one crosslinkable water-soluble polymer selected from the group consisting of
(B-2) The non-crosslinkable water-soluble polymer is
(Vi) Polyvinyl alcohol, polyethylene glycol, polypropylene glycol, starch acrylate, alkyl polyacrylate, hydroxyalkyl cellulose, polyvinylpyrrolidone, copolymer polymer of alkyl acrylate and by-monoma, gelatin, and agar,
Containing at least one non-crosslinkable water-soluble polymer selected from the group consisting of
The water-containing composition according to claim 1. (E) Preservatives other than the parabens are added to the total amount.
Contains 0.01% by weight or more of polylysine,
(C) The polyhydric alcohol having an antiseptic promoting action is at least
With propylene glycol
Butylene glycol and
With glycerin,
Contains,
The water-containing composition according to claim 1. (E) Preservatives other than the parabens are added to the total amount.
Contains 0.01% by weight or more of polylysine,
(C) The polyhydric alcohol is added to the total amount.
Contains 3% by weight or more of propylene glycol,
The water-containing composition according to claim 1. (E) Preservatives other than the parabens are added to the total amount.
Contains 0.01% by weight or more of polylysine,
(C) The polyhydric alcohol having an antiseptic promoting action is
3% by weight or more of propylene glycol,
Butylene glycol of 3% by weight or more, and
5% by weight or more of glycerin,
Contains at least one polyhydric alcohol selected from the group consisting of
(B) The functional component contains at least a water-soluble polymer and contains.
The water-soluble polymer is
(B-1) A crosslinkable water-soluble polymer that can be crosslinked in terms of molecular structure, and
(B-2) Non-crosslinkable water-soluble polymer that does not crosslink structurally,
Contains at least one of the water-soluble polymers,
(B-1) The crosslinkable water-soluble polymer is
(I) A crosslinked acrylic acid-based polymer obtained by polymerizing acrylic acid, methacrylic acid, and at least one acrylic acid-based monomer among these monovalent metal salts.
(Ii) (a) Acrylic acid, methacrylic acid, and at least one acrylic acid-based monomer among these monovalent metal salts, and (b) at least one of alkyl acrylate and alkyl methacrylate. Cross-linked acrylic acid-based copolymer polymer obtained by copolymerizing two alkyl acrylic acid-based monomers.
(Iii) A cross-linked acrylic acid-based polymer of partially neutralized polyacrylic acid in which polyacrylic acid is partially neutralized, and
(V) Sodium Carboxyalkyl Cellulose and / or Crosslinked Cellulose Compounds of Sodium Hydroxyalkyl Cellulose,
Contains at least one crosslinkable water-soluble polymer selected from the group consisting of
(B-2) The non-crosslinkable water-soluble polymer is
(Vi) Polyvinyl alcohol, polyethylene glycol, polypropylene glycol, starch acrylate, alkyl polyacrylic acid, carboxyalkyl cellulose, hydroxyalkyl cellulose, polyvinylpyrrolidone, copolymer polymer of alkyl acrylate and secondary monoma, gelatin, and agar,
Containing at least one non-crosslinkable water-soluble polymer selected from the group consisting of
The water-containing composition according to claim 1. (E) Preservatives other than the parabens are added to the total amount.
Contains 0.01% by weight or more of polylysine,
(C) The polyhydric alcohol having an antiseptic promoting action is
Propylene glycol,
Butylene glycol and
Glycerin,
At least one polyhydric alcohol selected from the group consisting of
Contains 5% by weight or more with respect to the total amount,
(B) The functional component contains at least a water-soluble polymer and contains.
The water-soluble polymer is
(B-1) A crosslinkable water-soluble polymer that can be crosslinked in terms of molecular structure, and
(B-2) Non-crosslinkable water-soluble polymer that does not crosslink structurally,
Contains at least one of the water-soluble polymers,
(B-1) The crosslinkable water-soluble polymer is
(I) A crosslinked acrylic acid-based polymer obtained by polymerizing acrylic acid, methacrylic acid, and at least one acrylic acid-based monomer among these monovalent metal salts.
(Ii) (a) Acrylic acid, methacrylic acid, and at least one acrylic acid-based monomer among these monovalent metal salts, and (b) at least one of alkyl acrylate and alkyl methacrylate. Cross-linked acrylic acid-based copolymer polymer obtained by copolymerizing two alkyl acrylic acid-based monomers.
(Iii) A cross-linked acrylic acid-based polymer of partially neutralized polyacrylic acid in which polyacrylic acid is partially neutralized, and
(V) Sodium Carboxyalkyl Cellulose and / or Crosslinked Cellulose Compounds of Sodium Hydroxyalkyl Cellulose,
Contains at least one crosslinkable water-soluble polymer selected from the group consisting of
(B-2) The non-crosslinkable water-soluble polymer is
(Vi) Polyvinyl alcohol, polyethylene glycol, polypropylene glycol, starch acrylate, alkyl polyacrylic acid, carboxyalkyl cellulose, hydroxyalkyl cellulose, polyvinylpyrrolidone, copolymer polymer of alkyl acrylate and secondary monoma, gelatin, and agar,
Containing at least one non-crosslinkable water-soluble polymer selected from the group consisting of
The water-containing composition according to claim 1. (E) Preservatives other than the parabens are added to the total amount.
With 0.2% by weight or more of phenoxyethanol,
With 0.005% by weight or more of glyceryl caprylate,
Contains both preservatives,
(C) The polyhydric alcohol having an antiseptic promoting action is added to the total amount.
3% by weight or more of propylene glycol and / or
Containing 5% by weight or more of glycerin,
The water-containing composition according to claim 1. (E) Preservatives other than the parabens are added to the total amount.
With 0.1% by weight or more of phenoxyethanol,
With 0.005% by weight or more of glyceryl caprylate,
Contains both preservatives,
(C) The polyhydric alcohol having an antiseptic promoting action is added to the total amount.
5% by weight or more of propylene glycol and butylene glycol,
With 5% by weight or more of glycerin,
Contains,
The water-containing composition according to claim 1. (E) Preservatives other than the parabens are added to the total amount.
(B) With phenoxyethanol of 0.1% by weight or more,
0.005% by weight or more of glyceryl caprylate,
Or,
(B) With phenoxyethanol of 0.05% by weight or more,
Glyceryl caprylate in an amount of 0.007% by weight or more,
Or,
(C) With phenoxyethanol of 0.15% by weight or more,
0.003% by weight or more of glyceryl caprylate,
Or (d) the point that the phenoxyethanol content on the X-axis is 0.17% by weight and the content of glyceryl caprylate on the Y-axis at the XY coordinates where the phenoxyethanol content is on the X-axis and the caprylic acid glyceryl content is on the Y-axis. Preservatives for both phenoxyethanol and glyceryl caprylate, located in the region above the straight line connecting the points where the amount is 0.007% by weight.
Contains,
(C) The polyhydric alcohol having an antiseptic promoting action is
3% by weight or more of propylene glycol,
Butylene glycol of 3% by weight or more, and
5% by weight or more of glycerin,
Contains at least one polyhydric alcohol selected from the group consisting of
(B) The functional component contains at least a water-soluble polymer and contains.
The water-soluble polymer is
(B-1) A crosslinkable water-soluble polymer that can be crosslinked in terms of molecular structure, and
(B-2) Non-crosslinkable water-soluble polymer that does not crosslink structurally,
Contains at least one of the water-soluble polymers,
(B-1) The crosslinkable water-soluble polymer is
(I) A crosslinked acrylic acid-based polymer obtained by polymerizing acrylic acid, methacrylic acid, and at least one acrylic acid-based monomer among these monovalent metal salts.
(Ii) (a) Acrylic acid, methacrylic acid, and at least one acrylic acid-based monomer among these monovalent metal salts, and (b) at least one of alkyl acrylate and alkyl methacrylate. A cross-linked acrylic acid-based copolymer obtained by copolymerizing two alkyl acrylic acid-based monomers,
(Iii) A cross-linked acrylic acid-based polymer of partially neutralized polyacrylic acid in which polyacrylic acid is partially neutralized.
(Iv) Cross-linked carboxyvinyl polymer and
(V) Sodium Carboxyalkyl Cellulose and / or Crosslinked Cellulose Compounds of Sodium Hydroxyalkyl Cellulose,
Contains at least one crosslinkable water-soluble polymer selected from the group consisting of
(B-2) The non-crosslinkable water-soluble polymer is
(Vi) Polyvinyl alcohol, polyethylene glycol, polypropylene glycol, starch acrylate, alkyl polyacrylic acid, carboxyalkyl cellulose, hydroxyalkyl cellulose, polyvinylpyrrolidone, copolymer polymer of alkyl acrylate and by-monoma, gelatin, and agar,
Containing at least one non-crosslinkable water-soluble polymer selected from the group consisting of
The water-containing composition according to claim 1. (E) Preservatives other than the parabens are added to the total amount.
With 0.1% by weight or more of phenoxyethanol,
With more than 0.01% by weight of polylysine,
Contains both preservatives,
(C) The polyhydric alcohol having an antiseptic promoting action is added to the total amount.
3% by weight or more of propylene glycol,
Butylene glycol of 3% by weight or more, and
5% by weight or more of glycerin,
Containing at least one polyhydric alcohol selected from the group consisting of,
The water-containing composition according to claim 1. (E) Preservatives other than the parabens are added to the total amount.
With 0.1% by weight or more of phenoxyethanol,
With more than 0.01% by weight of polylysine,
Contains both preservatives,
(C) The polyhydric alcohol having an antiseptic promoting action is
Propylene glycol,
Butylene glycol and
Glycerin,
At least one polyhydric alcohol selected from the group consisting of
Containing 5% by weight or more with respect to the total amount,
The water-containing composition according to claim 1. (E) Preservatives other than the parabens are added to the total amount.
(B) With phenoxyethanol of 0.1% by weight or more,
More than 0.005% by weight polylysine,
Or,
(B) With phenoxyethanol of 0.05% by weight or more,
More than 0.007% by weight polylysine,
Or,
(C) With phenoxyethanol of 0.15% by weight or more,
More than 0.003% by weight polylysine,
Or,
(D) In XY coordinates with the phenoxyethanol content on the X-axis and the polylysine content on the Y-axis, the phenoxyethanol content on the X-axis is 0.17% by weight and the polylysine content on the Y-axis is 0.007. Preservatives for both phenoxyethanol and polylysine, located in the area above the straight line connecting the points that are% by weight.
Contains,
(C) The polyhydric alcohol having an antiseptic promoting action is added to the total amount.
3% by weight or more of propylene glycol,
Butylene glycol of 3% by weight or more, and
5% by weight or more of glycerin,
Contains at least one polyhydric alcohol selected from the group consisting of
(B) The functional component contains at least a water-soluble polymer and contains.
The water-soluble polymer is
(B-1) A crosslinkable water-soluble polymer that can be crosslinked in terms of molecular structure, and
(B-2) Non-crosslinkable water-soluble polymer that does not crosslink structurally,
Contains at least one of the water-soluble polymers,
(B-1) The crosslinkable water-soluble polymer is
(I) A crosslinked acrylic acid-based polymer obtained by polymerizing acrylic acid, methacrylic acid, and at least one acrylic acid-based monomer among these monovalent metal salts.
(Ii) (a) Acrylic acid, methacrylic acid, and at least one acrylic acid-based monomer among these monovalent metal salts, and (b) at least one of alkyl acrylate and alkyl methacrylate. Cross-linked acrylic acid-based copolymer polymer obtained by copolymerizing two alkyl acrylic acid-based monomers.
(Iii) A cross-linked acrylic acid-based polymer of partially neutralized polyacrylic acid in which polyacrylic acid is partially neutralized.
(Iv) Cross-linked carboxyvinyl polymer and
(V) Sodium Carboxyalkyl Cellulose and / or Crosslinked Cellulose Compounds of Sodium Hydroxyalkyl Cellulose,
Contains at least one crosslinkable water-soluble polymer selected from the group consisting of
(B-2) The non-crosslinkable water-soluble polymer is
(Vi) Polyvinyl alcohol, polyethylene glycol, polypropylene glycol, starch acrylate, alkyl polyacrylic acid, carboxyalkyl cellulose, hydroxyalkyl cellulose, polyvinylpyrrolidone, copolymer polymer of alkyl acrylate and secondary monoma, gelatin, and agar,
Containing at least one non-crosslinkable water-soluble polymer selected from the group consisting of
The water-containing composition according to claim 1. (E) Preservatives other than the parabens are added to the total amount.
With 0.05% by weight or more of glyceryl caprylate,
With polylysine of 0.05% by weight or more,
Contains both preservatives,
(C) The polyhydric alcohol having an antiseptic promoting action is added to the total amount.
3% by weight or more of propylene glycol,
Butylene glycol of 3% by weight or more, and
Contains at least one polyhydric alcohol selected from the group consisting of 5% by weight or more of glycerin.
The water-containing composition according to claim 1. (E) Preservatives other than the parabens are added to the total amount.
With 0.05% by weight or more of glyceryl caprylate,
With polylysine of 0.05% by weight or more,
Contains both preservatives,
(C) The polyhydric alcohol having an antiseptic promoting action is added to the total amount.
3% by weight or more of propylene glycol,
Butylene glycol of 3% by weight or more, and
Contains at least one polyhydric alcohol selected from the group consisting of 5% by weight or more of glycerin,
(B) The functional component contains at least a water-soluble polymer and contains.
The water-soluble polymer is
(B-1) A crosslinkable water-soluble polymer that can be crosslinked in terms of molecular structure, and
(B-2) Non-crosslinkable water-soluble polymer that does not crosslink structurally,
Contains at least one of the water-soluble polymers,
(B-1) The crosslinkable water-soluble polymer is
(I) A crosslinked acrylic acid-based polymer obtained by polymerizing acrylic acid, methacrylic acid, and at least one acrylic acid-based monomer among these monovalent metal salts.
(Ii) (a) Acrylic acid, methacrylic acid, and at least one acrylic acid-based monomer among these monovalent metal salts, and (b) at least one of alkyl acrylate and alkyl methacrylate. A cross-linked acrylic acid-based copolymer obtained by copolymerizing two alkyl acrylic acid-based monomers,
(Iii) A cross-linked acrylic acid-based polymer of partially neutralized polyacrylic acid in which polyacrylic acid is partially neutralized.
(Iv) Cross-linked carboxyvinyl polymer and
(V) Sodium Carboxyalkyl Cellulose and / or Crosslinked Cellulose Compounds of Sodium Hydroxyalkyl Cellulose,
Contains at least one crosslinkable water-soluble polymer selected from the group consisting of
(B-2) The non-crosslinkable water-soluble polymer is
(Vi) Polyvinyl alcohol, polyethylene glycol, polypropylene glycol, starch acrylate, alkyl polyacrylic acid, carboxyalkyl cellulose, hydroxyalkyl cellulose, polyvinylpyrrolidone, copolymer polymer of alkyl acrylate and by-monoma, gelatin, and agar,
Containing at least one non-crosslinkable water-soluble polymer selected from the group consisting of
The water-containing composition according to claim 1. (C) The polyhydric alcohol is added to the total amount.
With 3% by weight or more of propylene glycol,
With 3% by weight or more of butylene glycol,
It contains at least one polyhydric alcohol selected from the group consisting of 5% by weight or more of glycerin.
(E) Preservatives other than the parabens are added to the total amount.
Phenoxyethanol of 0.1% by weight or more, or
0.005% by weight or more of glyceryl caprylate, or
Contains 0.005% by weight or more of polylysine,
In addition to the preservatives other than the parabens, it further contains 05% by weight or less of parabens and has antiseptic properties.
The water-containing composition according to claim 1. (B) The functional ingredient contains an efficacy-imparting functional ingredient and has an effect-imparting functional ingredient.
The efficacy-imparting functional ingredient is at least one selected from the group consisting of a pharmacologically active ingredient, a skin improving ingredient, and an aromatic ingredient.
The water-containing composition according to any one of claims 1 to 23. (B) The pharmacologically active ingredients include indomethacin, loxoprofen, ketoprofen, diclofenac, diclofenac sodium, fervinac, pyroxycam, sprofen, ibuprofen, ibuprofen piconol, ketrolac, lidocaine, flurubiprofen, mephenamic acid, dipotassium glycyrrhizinate, and. It contains at least one pharmacologically active ingredient selected from the group consisting of sulcylic acid esters, and the skin-improving ingredients include tocopherols, placenta extracts, hyaluronic acids, econzymes, arbutins, collagens, polyphenols, allantin, squalane. , Pantenol, chamomile extract, hamamelis extract, lavender extract, honeybee extract, oyster extract, rice extract, salmon ovary extract, saccharomyces, rice fermented liquid, vitamin C, vitamin E, and vitamins. Contains at least one skin-improving ingredient of choice,
The fragrance component contains an essential oil component that generates fragrance.
The water-containing composition according to claim 24. In addition, it contains additional ingredients,
The additional component is
(K-1) An accidental ingestion prevention ingredient having a function of suppressing accidental ingestion by feeling bitterness when it is contained in the mouth.
(K-2) A refreshing ingredient that gives a refreshing feeling,
(K-3) A warm feeling warming component that gives a warm feeling, and
(K-4) pH adjusting component for adjusting pH,
Contains at least one additional ingredient selected from the group consisting of
The water-containing composition according to any one of claims 1 to 25. It has a liquid, spray-like, cream-like, emulsified, or gel-like morphology.
It is characterized in that it can be applied, adhered to, or affixed to human skin.
The hydrous composition according to any one of claims 1 to 26. A patch, a cosmetic product, or a skin pharmaceutical product comprising at least the water-containing composition according to any one of claims 1 to 27.

Images
