Abstract
ワークの自重を利用したリンク機構の回転動作でワークを挟込んで吊持するトング式吊具について、装置構成が小型,簡素であるという利点が損なわれず、ワークの吊持作業の安全性が確保されるようにする。
【解決手段】
ワークWの自重を利用したリンク機構の回転動作でワークWを挟込んで吊持するものである。相対してワークWを挟込む挟込支持部13がリンク機構を構成するトングアーム2の下部にそれぞれ回転可能に取付けられている。一方のトングアーム2には、一方の挟込支持部13を回転駆動する回転駆動部16が取付けられている。回転駆動部16は、手動の操作ハンドル16aで回転操作されるウオームギア16b,ウオームホイール16cのギア噛合構造からなる。
【選択図】図1
Description
2 トングアーム(下部リンクアーム)
3,4,5 連結軸
13 挟込支持部
13c 球面体(球面軸受)
14 可動取付部
14e 球面座(球面軸受)
15 間隔調整機構
16 回転駆動部
16a 操作ハンドル
16b ウオームギア
16c ウオームホイール

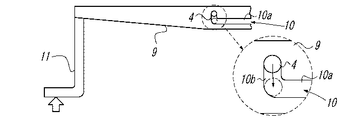

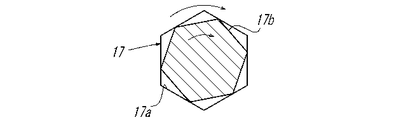

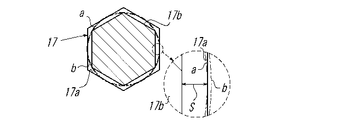

17 自在継手
18 バランサ
Claims (5)
- ワークの自重を利用したリンク機構の回転動作でワークを挟込んで吊持するものであって、相対してワークを挟込む挟込支持部がリンク機構を構成するトングアームの下部にそれぞれ回転可能に取付けられ、一方のトングアームに一方の挟込支持部を回転駆動する回転駆動部が取付けられたトング式吊具において、回転駆動部は手動の操作ハンドルで回転操作されるウオームギア,ウオームホイールのギア噛合構造からなることを特徴とするトング式吊具。
- 請求項1のトング式吊具において、挟込支持部は球面軸受を介してトングアームに変位可能に支持されていることを特徴とするトング式吊具。
- 請求項2のトング式吊具において、一方の挟込支持部と回転駆動部とは自在継手を介して非固定的に連結されていることを特徴とするトング式吊具。
- 請求項1〜3のいずれかのトング式吊具において、他方のトングアームは下部にバランサが取付けられていることを特徴とするトング式吊具。
- 請求項1〜4のいずれかのトング式吊具において、両方のトングアームは相対する挟込支持部の間隔を調整可能な間隔調整機構が設けられていることを特徴とするトング式吊具。
