Fixing device for processing plane of elevator brake shoe
Technical Field
The utility model relates to a fixed equipment technical field especially relates to a fixing device that processing lifting machine floodgate seat plane was used.
Background
The hoist is large mechanical equipment for transportation by changing potential energy, such as a mine hoist, a dam-crossing hoist and the like. Broadly, elevators, overhead cranes, winches, stabilizers, cranes, hoist machines, etc. may be referred to as hoists. The hoister generally refers to large mechanical equipment with high power and high hoisting capacity.
The existing elevator brake shoe mostly lacks the function of collecting redundant waste materials when being processed, so that the defect of poor working environment of workers is caused, and therefore a fixing device for processing the elevator brake shoe plane is provided for solving the problem.
SUMMERY OF THE UTILITY MODEL
The utility model aims at solving current lifting machine floodgate seat and mostly lacking the function of collecting unnecessary waste material when processing to cause the relatively poor shortcoming of staff's operational environment, and the fixing device who processing lifting machine floodgate seat plane usefulness that proposes.
In order to achieve the above purpose, the utility model adopts the following technical scheme:
a fixing device for processing a plane of a lift brake shoe comprises a fixed table, wherein a rack is fixedly arranged at the top of the fixed table, a bidirectional threaded rod is rotatably arranged inside the fixed table, two clamping rods are in threaded connection with the outer sides of the bidirectional threaded rod, the bottoms of the two clamping rods are slidably arranged on the inner wall of the bottom of the fixed table, a rotating shaft is rotatably arranged at the top of the inner side of the rack, a cam is fixedly arranged at the bottom of the rotating shaft, a moving plate is movably abutted against the outer side of the cam, one end of a moving rod is fixedly arranged at the outer side of the moving plate, a roller is rotatably arranged at the other end of the moving rod, the top of the rotating rod is rotatably arranged at the top of the inner side of the rack, a dust suction head is fixedly arranged at the bottom of the rotating rod, the outer side of the roller is rotatably arranged at the outer side of the rotating rod, one end of a spring is fixedly arranged at the outer side of the moving plate, and the other end of the spring is fixedly arranged at the top of the inner side of the rack, the outer side of the dust collection head is communicated with one end of a conveying pipe, and the other end of the conveying pipe extends to the outer side of the rack.
Preferably, a dust collection fan is fixedly mounted on one side of the top of the rack, the other end of the conveying pipe is communicated with the outer side of the dust collection fan, a dust collection bag is communicated with the outer side of the dust collection fan, and the dust collection fan is arranged so that redundant waste materials in the machining process can be sucked into the dust collection bag, and a good working environment is guaranteed.
Preferably, the top opposite side fixed mounting of frame has the motor, the output shaft of motor and the top fixed connection of pivot, motor through setting up, thereby driving motor drives the pivot and rotates, thereby make the cam rotate in step, thereby make the movable plate obtain the reciprocating motion of horizontal direction, thereby it obtains same motion to drive the carriage release lever, thereby it obtains reciprocal arc swing to drive the dwang, thereby make the dust absorption head obtain with the same motion of dwang, thereby make processing lifting machine brake seat when processing, can inhale the inside of dust bag with unnecessary waste material, thereby guarantee good operational environment.
Preferably, the one end of two-way threaded rod extends to the outside of fixed station and fixed mounting has one side of carousel, and the opposite side fixed mounting of carousel has the handle, through the handle that sets up to laborsaving more that can make when artifical rotate two-way threaded rod.
Preferably, a through hole is formed in the top of the fixing table, the outer side of the clamping rod movably abuts against the inner side of the through hole, and a certain guiding effect is achieved for the movement of the clamping rod through the arranged through hole.
Preferably, the top inner wall of frame is last fixed mounting to have a spacing ring, and the outside activity butt of carriage release lever is in the inboard of spacing ring, through the spacing ring that sets up to motion for the carriage release lever provides certain guide effect.
In the utility model, the fixing device for processing the plane of the elevator brake shoe drives the rotating shaft to rotate by the arranged rotating shaft through the driving motor, so that the cam rotates synchronously, the moving plate obtains the reciprocating motion in the horizontal direction, the moving rod obtains the same motion, and the rotating rod is driven to obtain the reciprocating arc swing, so that the dust collection head obtains the same motion as the rotating rod, and the redundant waste materials can be sucked into the dust collection bag when the elevator brake shoe is processed, thereby ensuring a good working environment;
the utility model discloses a two-way threaded rod that sets up, the manual work rotates the handle to drive two-way threaded rod and rotate in step, thereby make two supporting rods obtain the motion that is close to each other or keeps away from each other of horizontal direction, thereby can carry out the centre gripping to not unidimensional lifting machine floodgate seat, thereby guarantee stable function.
Drawings

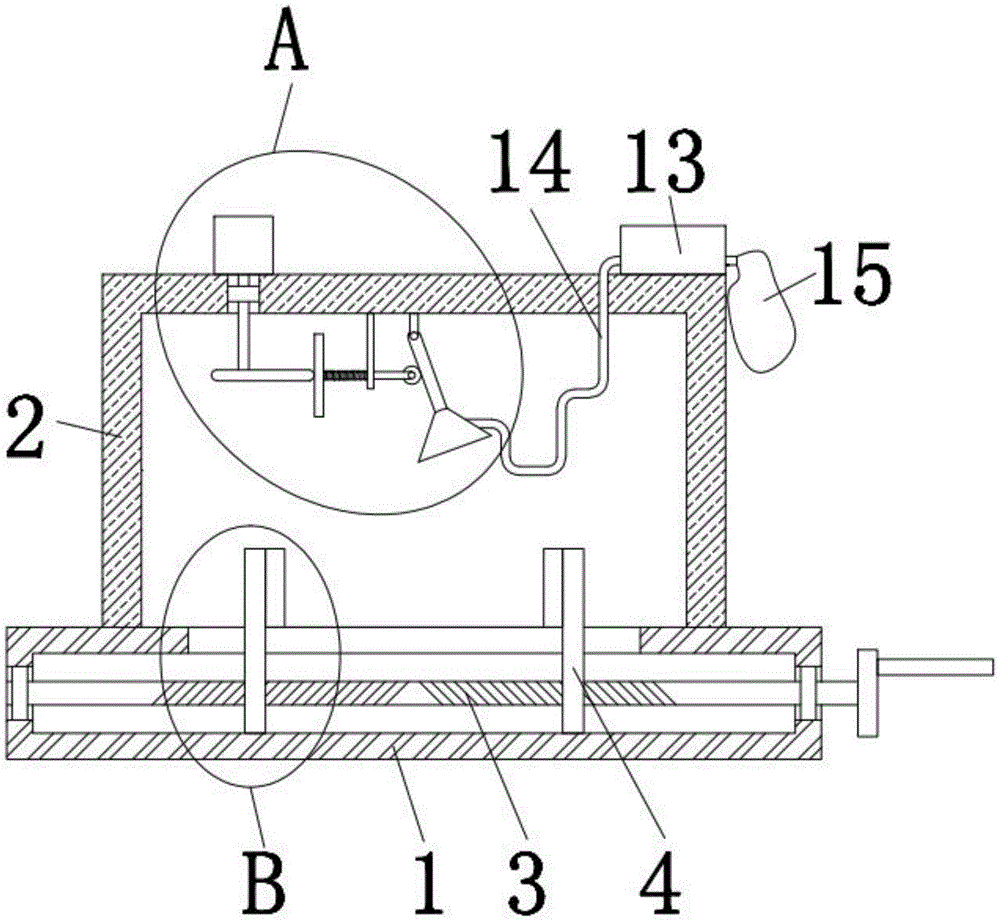

Fig. 1 is a schematic structural view of a fixing device for processing a plane of a lift shoe of the present invention;
fig. 2 is a schematic structural view of a portion a of the fixing device for processing a plane of a lift shoe of the elevator according to the present invention;
fig. 3 is a schematic structural diagram of a portion B of the fixing device for processing the plane of the elevator shoe according to the present invention.
In the figure: 1. a fixed table; 2. a frame; 3. a bidirectional threaded rod; 4. a clamping rod; 5. a rotating shaft; 6. a cam; 7. moving the plate; 8. a travel bar; 9. a spring; 10. rotating the rod; 11. a dust collection head; 12. a motor; 13. a dust collection fan; 14. a delivery pipe; 15. a dust collecting bag.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments.
Referring to fig. 1-3, a fixing device for processing a plane of a lift gate seat comprises a fixed table 1, a frame 2 is fixedly installed on the top of the fixed table 1, a bidirectional threaded rod 3 is rotatably installed inside the fixed table 1, two clamping rods 4 are in threaded connection with the outer side of the bidirectional threaded rod 3, the bottoms of the two clamping rods 4 are both slidably installed on the inner wall of the bottom of the fixed table 1, a rotating shaft 5 is rotatably installed on the top of the inner side of the frame 2, a cam 6 is fixedly installed on the bottom of the rotating shaft 5, a movable plate 7 is movably abutted against the outer side of the cam 6, one end of a movable rod 8 is fixedly installed on the outer side of the movable plate 7, a roller is rotatably installed on the other end of the movable rod 8, the top of a rotating rod 10 is rotatably installed on the top of the inner side of the frame 2, a dust collection head 11 is fixedly installed on the bottom of the rotating rod 10, the outer side of the roller is rotatably installed on the outer side of the rotating rod 10, one end of a spring 9 is fixedly installed on the outer side of the movable plate 7, the other end of the spring 9 is fixedly arranged at the top of the inner side of the frame 2, the outer side of the dust collection head 11 is communicated with one end of a conveying pipe 14, and the other end of the conveying pipe 14 extends to the outer side of the frame 2.
The utility model discloses in, top one side fixed mounting of frame 2 has dust absorption fan 13, and the other end of conveyer pipe 14 communicates with dust absorption fan 13's the outside each other, and dust absorption fan 13's outside intercommunication has dust bag 15, through the dust absorption fan 13 that sets up to make unnecessary waste material in the course of working inhale the inside of dust bag 15, thereby guarantee good operational environment.
The utility model discloses in, frame 2's top opposite side fixed mounting has motor 12, motor 12's output shaft and pivot 5's top fixed connection, motor 12 through setting up, thereby driving pivot 5 rotates of driving motor 12, thereby make cam 6 rotate in step, thereby make movable plate 7 obtain the reciprocating motion of horizontal direction, thereby it obtains same motion to drive carriage release lever 8, thereby it obtains reciprocal arc swing to drive dwang 10, thereby make dust absorption head 11 obtain with dwang 10 same motion, thereby make processing lifting machine brake shoe when processing, can inhale the inside of dust bag 15 with unnecessary waste material, thereby guarantee good operational environment.
The utility model discloses in, the one end of two-way threaded rod 3 extends to the outside of fixed station 1 and one side that fixed mounting has the carousel, and the opposite side fixed mounting of carousel has the handle, through the handle that sets up to laborsaving when making artifical rotation two-way threaded rod 3 can be more.
The utility model discloses in, the through-hole has been seted up at the top of fixed station 1, and the outside activity butt of supporting rod 4 is in the inboard of through-hole, through the through-hole that sets up to play the effect of certain direction for the motion of supporting rod 4.
The utility model discloses in, fixed mounting has the spacing ring on the top inner wall of frame 2, and the outside activity butt of carriage release lever 8 is in the inboard of spacing ring, through the spacing ring that sets up to motion for carriage release lever 8 provides certain guide effect.
The working principle of the fixing device is as follows: the handle is manually rotated through the arranged bidirectional threaded rod 3, so that the bidirectional threaded rod 3 is driven to synchronously rotate, so that the two gripping shanks 4 are moved horizontally closer to or further away from each other, thereby clamping the brake bases of the hoists with different sizes, ensuring the stable function, secondly, through the arranged rotating shaft 5, the motor 12 is driven to drive the rotating shaft 5 to rotate, so that the cam 6 rotates synchronously, so that the moving plate 7 is reciprocated horizontally, thereby driving the moving rod 8 to move similarly, thereby driving the rotating rod 10 to reciprocate and swing in an arc shape, so that the dust suction head 11 can move as same as the rotating rod 10, therefore, when the processing hoister brake block is processed, redundant waste materials can be sucked into the dust collecting bag 15, and a good working environment is ensured.

Claims (6)

1. The fixing device for machining the plane of the elevator brake shoe comprises a fixed table (1) and is characterized in that a rack (2) is fixedly installed at the top of the fixed table (1), a bidirectional threaded rod (3) is rotatably installed inside the fixed table (1), two clamping rods (4) are in threaded connection with the outer side of the bidirectional threaded rod (3), the bottoms of the two clamping rods (4) are slidably installed on the inner wall of the bottom of the fixed table (1), a rotating shaft (5) is rotatably installed at the top of the inner side of the rack (2), a cam (6) is fixedly installed at the bottom end of the rotating shaft (5), a movable plate (7) is movably abutted to the outer side of the cam (6), one end of a moving rod (8) is fixedly installed at the outer side of the movable plate (7), a roller is rotatably installed at the other end of the moving rod (8), the top of a rotating rod (10) is rotatably installed at the top of the inner side of the rack (2), the bottom fixed mounting of dwang (10) has dust absorption head (11), and the outside roll of gyro wheel is installed in the outside of dwang (10), and the outside fixed mounting of movable plate (7) has the one end of spring (9), and the other end fixed mounting of spring (9) is at the inboard top of frame (2), and the outside intercommunication of dust absorption head (11) has the one end of conveyer pipe (14), and the other end of conveyer pipe (14) extends to the outside of frame (2).
2. The fixing device for processing the plane of the elevator brake block as claimed in claim 1, wherein a dust suction fan (13) is fixedly installed on one side of the top of the frame (2), the other end of the delivery pipe (14) is communicated with the outer side of the dust suction fan (13), and a dust collection bag (15) is communicated with the outer side of the dust suction fan (13).
3. The fixing device for machining the plane of the brake block of the hoisting machine as claimed in claim 1, wherein a motor (12) is fixedly mounted on the other side of the top of the frame (2), and an output shaft of the motor (12) is fixedly connected with the top end of the rotating shaft (5).
4. The fixing device for machining the plane of the brake shoe of the elevator as claimed in claim 1, wherein one end of the bidirectional threaded rod (3) extends to the outside of the fixing table (1) and is fixedly mounted with one side of a turntable, and the other side of the turntable is fixedly mounted with a handle.
5. The fixing device for machining the plane of the elevator brake block as claimed in claim 1, wherein a through hole is formed at the top of the fixing table (1), and the outer side of the clamping rod (4) is movably abutted against the inner side of the through hole.
6. The fixing device for machining the plane of the brake shoe of the elevator as claimed in claim 1, wherein a stop ring is fixedly mounted on the inner wall of the top of the frame (2), and the outer side of the moving rod (8) is movably abutted against the inner side of the stop ring.
