Agricultural is experimental with crop device of growing seedlings

Technical Field

The utility model relates to a technical field of grow seedlings specifically is an agricultural test is as thing device of growing seedlings.

Background

Agriculture is a traditional subject in the field of agricultural science, mainly aims at solving the problem of people eating clothes, is vigorous with the continuous acceleration of the innovation speed of agricultural science and technology, the rapid development of biotechnology and information technology and the wide application thereof in agriculture, and is a science in the fields related to the research of crop production, including the fields of crop growth and development rules and the relationship between the crop growth and development rules and external environmental conditions, pest control, soil and nutrition, planting systems, genetic breeding and the like on the basis of keeping the traditional characteristics.

The agronomic test also is wherein more important a ring, and some experimental apparatus now also can help the user of service to a certain extent during the use, but the washing of being not convenient for, it is also inconvenient when watering to the plant, can not the round trip movement, inconvenient a bit to the staff, when the secondary is used, thoroughly inadequately to the filtration of waste water, also do not have the instrument that the local needs of placing temporarily, it is not very convenient to staff's use.

SUMMERY OF THE UTILITY MODEL

Technical problem to be solved

Not enough to prior art, the utility model provides an agricultural is experimental with crop device of growing seedlings has solved the problem that proposes in the above-mentioned background art.

(II) technical scheme

In order to achieve the above purpose, the utility model discloses a following technical scheme realizes: a crop seedling raising device for agricultural tests comprises a collecting bin, wherein the front surface of the collecting bin is fixedly connected with a tool box and a fertilizer box, the inner side wall of the collecting bin is inserted with a rubber plug, the upper surface of the collecting bin is inserted with a supporting rod, the top end of the supporting rod is connected with a placing rack in a threaded manner, the inner wall of the placing rack is movably connected with a seedling box, a test bin and a common bin are arranged inside the seedling raising box, a sliding block is connected to the back of the placing frame in a sliding manner, the inner wall of the sliding block is movably connected with a connecting pipe, one end of the connecting pipe is connected with a rotating block in a threaded manner, the other end of the connecting pipe is in threaded connection with a connector, the inner wall of the rotating block is provided with a shower head, the bottom swing joint of rack has the filtration storehouse, the inside in filtration storehouse is provided with filter layer and active carbon layer, the bottom in filtration storehouse is provided with the wire netting.

Optionally, one side of the sliding block is in threaded connection with a clamping bolt, and one end of the clamping bolt penetrates through the inner wall of the sliding block and is movably connected with the connecting pipe.

Optionally, the two sides of the filtering bin are both in threaded connection with fixing bolts, and one ends of the fixing bolts penetrate through the inner wall of the filtering bin and are in threaded connection with the bottom of the placing frame.

Optionally, the equal fixed mounting in both sides of seedling raising box has the handle, the quantity of handle is two, and two the handle with seedling raising box's perpendicular central line is the symmetry setting for the symmetry axis.

Optionally, the number of the supporting rods is four, and the four supporting rods are inserted into the upper surface of the collecting bin in a rectangular array.

(III) advantageous effects

The utility model provides an agricultural is experimental with crop device of growing seedlings possesses following beneficial effect:

1. this agricultural test is as thing device of growing seedlings, cooperation setting through collecting storehouse and rubber stopper, can make when collecting the water that the storehouse flowed out in to seedling raising box, guarantee that water can not run off, avoid making dirty experimental environment, cooperation setting through tool holder and fertilizer box, can make the staff place some instruments and grow seedlings the nutrition fertilizer that needs, make things convenient for the staff to use, through collecting the storehouse, the cooperation setting of bracing piece and rack, can make the bracing piece dismantle, when not using, can dismantle the save, do not occupy the laboratory space, cooperation setting through rack and seedling raising box, can make seedling raising box dismantle, the staff washs when conveniently leaving unused.

2. This agricultural test is as thing device of growing seedlings, cooperation setting through experimental storehouse and ordinary storehouse, can be when the staff uses, can compare, the more convenient appearance difference of the crop of seeing experimental usefulness and ordinary crop, cooperation setting through slider and rack, can make the gondola water faucet remove, can guarantee not missed when watering, through the connecting pipe, the cooperation setting of turning block and gondola water faucet, can make the gondola water faucet rotate, when idle, can make the gondola water faucet rotate the one side of growing seedlings the case, do not occupy test space, there is certain facility to the staff, through filtering the storehouse, the filter layer, the cooperation setting of activated carbon layer and wire netting, can filter the water that flows in growing seedlings the case, make things convenient for the secondary use, the water source is not wasted, and make things convenient for the secondary use.

Drawings

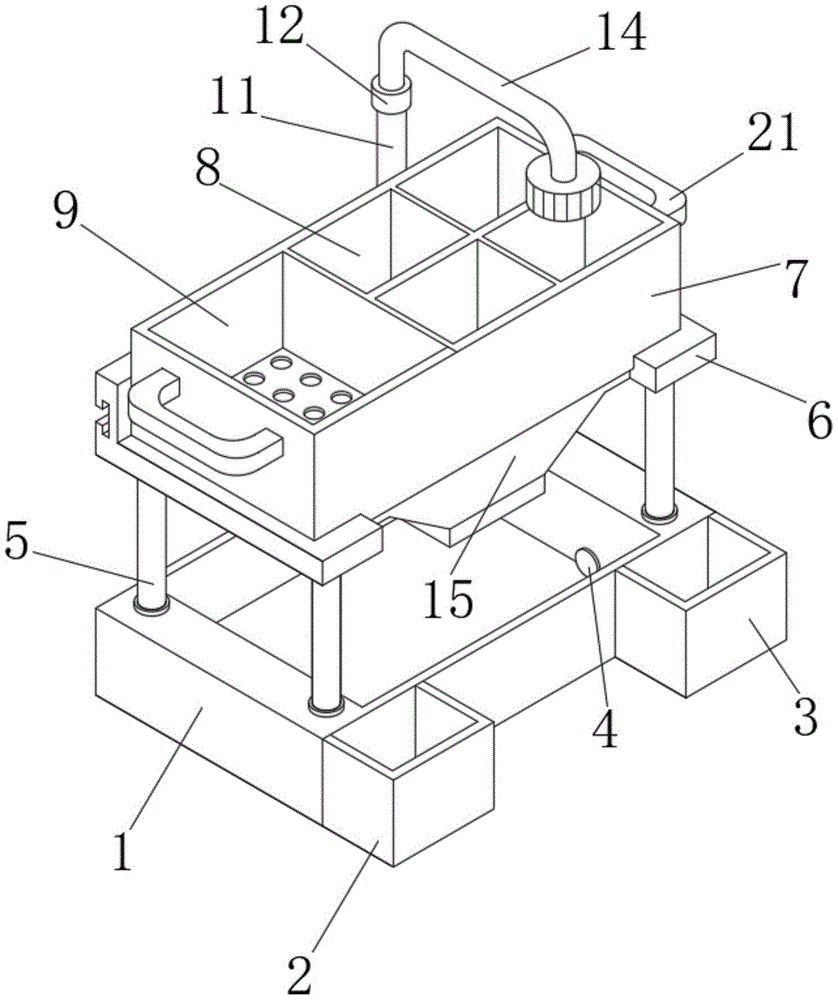

FIG. 1 is a schematic structural view of the present invention;

FIG. 2 is a schematic structural view of a cross-sectional view of the filtering chamber of the present invention;

fig. 3 is a schematic structural diagram of a cross-sectional view of the slider according to the present invention.

In the figure: 1. a collection bin; 2. a tool box; 3. a fertilizer box; 4. a rubber stopper; 5. a support bar; 6. placing a rack; 7. a seedling raising box; 8. a test bin; 9. a common bin; 10. a slider; 11. a connecting pipe; 12. rotating the block; 13. a connector; 14. a shower head; 15. a filtering bin; 16. a filter layer; 17. an activated carbon layer; 18. a wire mesh; 19. clamping the bolt; 20. fixing the bolt; 21. a handle.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments.

Referring to fig. 1 to 3, the present invention provides a technical solution: a crop seedling raising device for agricultural tests comprises a collecting bin 1, wherein the front surface of the collecting bin 1 is fixedly connected with a tool box 2 and a fertilizer box 3;

in order to make the utility model discloses can conveniently dismantle when abluent, consequently, it has rubber stopper 4 to peg graft at the inside wall of collecting storehouse 1, it has bracing piece 5 to peg graft at the upper surface of collecting storehouse 1, the top threaded connection of bracing piece 5 has rack 6, the inner wall swing joint of rack 6 has seedling box 7, seedling box 7's inside is provided with experimental storehouse 8 and ordinary storehouse 9, the quantity of bracing piece 5 is four, and four bracing pieces 5 peg graft at the upper surface of collecting storehouse 1 with rectangular array's form, through the cooperation setting of collecting storehouse 1 and rubber stopper 4, when can making collection storehouse 1 collect the water that flows in seedling box 7, guarantee water can not run off, avoid making dirty experimental environment, through the cooperation setting of instrument box 2 and fertilizer box 3, can make the staff place some instruments and the nutrition fertilizer that the seedling needs, make things convenient for the staff to use, through collecting storehouse 1, The supporting rod 5 and the placing rack 6 are arranged in a matched mode, so that the supporting rod 5 can be detached and stored when not used, and the laboratory space is not occupied;

in order to ensure that the utility model can not be missed when watering, a slide block 10 is connected on the back of the placing rack 6 in a sliding way, the inner wall of the slide block 10 is movably connected with a connecting pipe 11, one end of the connecting pipe 11 is connected with a rotating block 12 in a threaded way, the other end of the connecting pipe 11 is connected with a connecting head 13 in a threaded way, a shower 14 is arranged on the inner wall of the rotating block 12, one side of the slide block 10 is connected with a clamping bolt 19 in a threaded way, one end of the clamping bolt 19 penetrates through the inner wall of the slide block 10 and is movably connected with the connecting pipe 11, two sides of the seedling box 7 are both fixedly provided with handles 21, the number of the handles 21 is two, the two handles 21 are symmetrically arranged by taking the vertical central line of the seedling box 7 as a symmetrical axis, the shower can be moved by matching the slide block 10 and the placing rack 6, the omission can be ensured when watering, and the shower 14 can be matched, can make gondola water faucet 14 rotate, when idle, can make gondola water faucet 14 rotate the one side of seedling raising box 7, do not occupy test space, there is certain facility to the staff, the bottom swing joint of rack 6 has filter storehouse 15, the inside of filtering storehouse 15 is provided with filter layer 16 and activated carbon layer 17, the bottom of filtering storehouse 15 is provided with wire netting 18, the equal threaded connection in both sides of filtering storehouse 15 has fixing bolt 20, fixing bolt 20's one end runs through the inner wall of filtering storehouse 15 and rack 6's bottom threaded connection, through filtering storehouse 15, filter layer 16, activated carbon layer 17 and wire netting 18's cooperation sets up, can filter the water that flows out in the seedling raising box 7, make things convenient for the secondary use, the water source is not wasted, and make things convenient for the secondary use.

In summary, the agricultural test is used as a seedling raising device, and the using steps are as follows:

1. when the device is used, some seedling culture articles are placed in the test bin 8 and the common bin 9, through the matching arrangement of the test bin 8 and the common bin 9, comparison can be carried out when workers use the device, the appearance difference between crops for testing and common crops can be conveniently seen, through the matching arrangement of the collection bin 1 and the rubber plug 4, when the collection bin 1 collects water flowing out of the seedling culture box 7, water can be prevented from running off, the test environment is prevented from being dirtied, through the matching arrangement of the tool box 2 and the fertilizer box 3, the workers can place some tools and nutrient fertilizers required by seedling culture, and the device is convenient for the workers to use;

2. when watering crops in the seedling box 7, can set up through the cooperation of slider 10 and rack 6, can make the gondola water faucet remove, can guarantee not to be omitted when watering, through connecting pipe 11, turning block 12 and gondola water faucet 14's cooperation sets up, can make gondola water faucet 14 rotate, when idle, can make gondola water faucet 14 rotate the one side of seedling box 7, do not occupy test space, there is certain facility to the staff, when idle, can also dismantle, through collecting storehouse 1, bracing piece 5 and rack 6's cooperation sets up, can make bracing piece 5 dismantle, when not using, can dismantle the save, do not occupy the laboratory space.

The above, only be the concrete implementation of the preferred embodiment of the present invention, but the protection scope of the present invention is not limited thereto, and any person skilled in the art is in the technical scope of the present invention, according to the technical solution of the present invention and the utility model, the concept of which is equivalent to replace or change, should be covered within the protection scope of the present invention.

Claims

1. The utility model provides an agricultural is experimental with crop device of growing seedlings, includes and collects storehouse (1), its characterized in that: the front of the collection bin (1) is fixedly connected with a tool box (2) and a fertilizer box (3), the inner side wall of the collection bin (1) is spliced with a rubber plug (4), the upper surface of the collection bin (1) is spliced with a support rod (5), the top end of the support rod (5) is in threaded connection with a placement frame (6), the inner wall of the placement frame (6) is movably connected with a seedling box (7), a test bin (8) and a common bin (9) are arranged inside the seedling box (7), the back of the placement frame (6) is slidably connected with a sliding block (10), the inner wall of the sliding block (10) is movably connected with a connecting pipe (11), one end of the connecting pipe (11) is in threaded connection with a rotating block (12), the other end of the connecting pipe (11) is in threaded connection with a connector (13), and the inner wall of the rotating block (12) is provided with a shower head (14), the bottom swing joint of rack (6) has filter storehouse (15), the inside of filtering storehouse (15) is provided with filter layer (16) and active carbon layer (17), the bottom of filtering storehouse (15) is provided with wire netting (18).

2. A crop seedling raising apparatus for agricultural tests according to claim 1, characterized in that: one side threaded connection of slider (10) has chucking bolt (19), the one end of chucking bolt (19) run through the inner wall of slider (10) with connecting pipe (11) swing joint.

3. A crop seedling raising apparatus for agricultural tests according to claim 1, characterized in that: the two sides of the filter bin (15) are in threaded connection with fixing bolts (20), and one ends of the fixing bolts (20) penetrate through the inner wall of the filter bin (15) and are in threaded connection with the bottom of the placing frame (6).

4. A crop seedling raising apparatus for agricultural tests according to claim 1, characterized in that: the equal fixed mounting in both sides of seedling raising box (7) has handle (21), the quantity of handle (21) is two, and two handle (21) with the perpendicular central line of seedling raising box (7) is the symmetry setting for the symmetry axis.

5. A crop seedling raising apparatus for agricultural tests according to claim 1, characterized in that: the number of the supporting rods (5) is four, and the four supporting rods (5) are inserted into the upper surface of the collecting bin (1) in a rectangular array mode.
