Abstract
The utility model discloses a kitchen garbage uses high-efficient reducing mechanism belongs to kitchen garbage processing technology field, including backup pad and crushing case, the backup pad sets up in the both sides of crushing case, the top fixed mounting of backup pad has the diaphragm that the level set up, install the feeder hopper on the diaphragm, the bottom of feeder hopper is located crushing incasement, crushing incasement rotation installs two crushing rollers, the feeder hopper is located the top between two crushing rollers, crushing incasement's bottom is installed the discharging pipe, the bottom of discharging pipe is installed the compression case, sliding installation has two compression pieces in the compression case, a plurality of filtration pores have been seted up on the compression piece; the utility model discloses realize smashing of rubbish, it is effectual to smash, smashes efficiently, simultaneously through the dry and wet separation of the garrulous rubbish of compression piece, conveniently collects the processing to rubbish, convenient operation easily promotes.
Description
Technical Field
The utility model belongs to the technical field of kitchen garbage handles, concretely relates to kitchen garbage is with high-efficient reducing mechanism.
Background
The kitchen waste refers to perishable organic waste such as discarded fruit and vegetable and food leftovers, melon and fruit peels in daily life of a family, has the characteristics of high water content, high salt content, high oil content and the like, and is not suitable for landfill or incineration disposal. The main sources of it are family kitchens, restaurants, canteens, markets and other industries related to food processing.
When current kitchen garbage is smashing, it is in the same place to smash back piece and sewage mixture, and the inconvenience is collected the processing to rubbish, consequently, needs a high-efficient reducing mechanism for kitchen garbage to solve above problem.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a kitchen garbage uses high-efficient reducing mechanism to solve the problem that proposes in the above-mentioned background art.
In order to achieve the above object, the utility model provides a following technical scheme: a high-efficiency smashing device for kitchen waste comprises a supporting plate and a smashing box, wherein the supporting plate is arranged on two sides of the smashing box, a horizontally arranged transverse plate is fixedly installed at the top of the supporting plate, a feeding hopper is installed on the transverse plate, the bottom of the feeding hopper is positioned in the smashing box, two smashing rollers are rotatably installed in the smashing box, the feeding hopper is positioned at the top between the two smashing rollers, a discharging pipe is installed at the bottom of the smashing box, a compression box is installed at the bottom of the discharging pipe, two compression blocks are slidably installed in the compression box, a plurality of filtering holes are formed in the compression blocks, a horizontally arranged driving rod is rotatably installed between the two supporting plates and is in threaded connection with the filtering holes, the driving rod penetrates through the compression box, an outlet is formed in the bottom of the compression box, two door plates are hinged to the bottom of the outlet, and a horizontally arranged track plate is, the track plate is provided with an air cylinder, a piston rod of the air cylinder is hinged with an inclined rod, the inclined rod is hinged with a door plate, and the bottoms of the two ends of the compression box are provided with liquid discharge pipes.
As a preferred embodiment, the top of the track plate is provided with a track groove, a guide rod horizontally arranged is fixedly installed in the track groove, a movable block is sleeved on the guide rod in a sliding manner, the movable block is hinged to one end, away from the door plate, of the inclined rod, and a piston rod of the air cylinder is hinged to the movable block.
As a preferred embodiment, two driving motors are fixedly mounted on the outer wall of the crushing box, two transverse shafts are rotatably mounted in the crushing box, the crushing rollers are fixedly sleeved on the transverse shafts, and the vertical shafts of the driving motors are in transmission connection with the transverse shafts.
As a preferred embodiment, a horizontal plate is mounted on one of the support plates, a bearing rod is mounted at the bottom of the horizontal plate, the support plate at the bottom of the bearing rod is fixedly connected, a bidirectional gear motor is mounted on the horizontal plate, and an output shaft of the bidirectional gear motor drives the rod to be in transmission connection.
As a preferred embodiment, the bottom of the compression box is provided with a vertically arranged connecting rod, the bottom of the connecting rod is fixedly connected with the track plate, and two ends of the compression box are arranged in an open manner.
As a preferred embodiment, the driving rod is composed of a left threaded rod and a right threaded rod, the thread directions of the left threaded rod and the right threaded rod are opposite, and the two compression blocks are respectively in threaded connection with the left threaded rod and the right threaded rod.
Compared with the prior art, the beneficial effects of the utility model are that:
through in sending rubbish into the feeder hopper, then get into crushing incasement, grind crushing through two rubbish rollers rotation in opposite directions to the rubbish that falls down, realize smashing to rubbish, it is effectual to smash, smash efficiently.
Carry kibbling rubbish to get into the compression case through the discharging pipe in, garrulous rubbish contains waste water, is close to each other through two compression pieces and extrudees rubbish, and sewage is extruded water from garrulous rubbish, flows through the filtration pore, then discharges from the fluid-discharge tube, realizes the separation of doing wet, and the convenience is collected rubbish and is handled.
The utility model discloses realize smashing of rubbish, it is effectual to smash, smashes efficiently, simultaneously through the dry and wet separation of the garrulous rubbish of compression piece, conveniently collects the processing to rubbish, convenient operation easily promotes.
Drawings

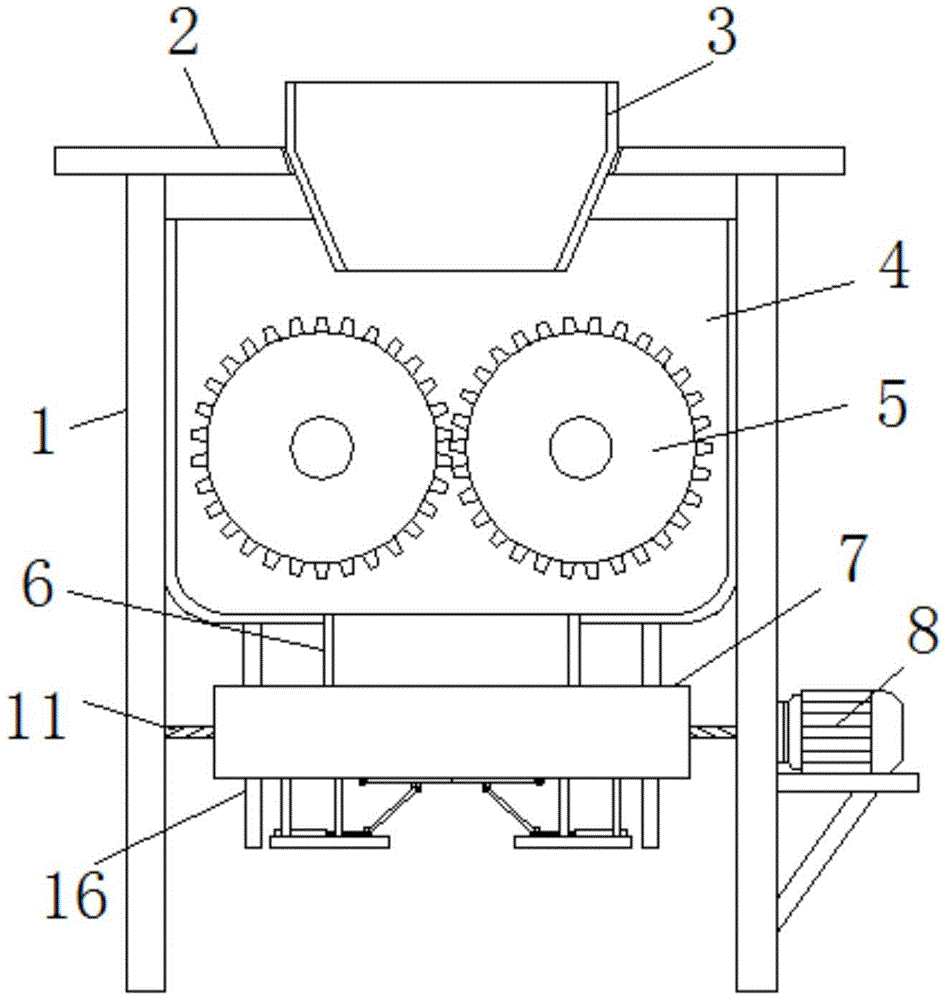

Fig. 1 is a schematic structural view of the present invention;
FIG. 2 is a schematic sectional view of the compression box;
fig. 3 is a schematic structural view of the door panel of the present invention in an open state;
fig. 4 is a schematic view of the mounting structure of the driving motor of the present invention.
In the figure: 1. a support plate; 2. a transverse plate; 3. a feed hopper; 4. a crushing box; 5. a crushing roller; 6. a discharge pipe; 7. a compression box; 8. a bidirectional reduction motor; 9. compressing the block; 10. filtering holes; 11. a drive rod; 12. an outlet; 13. a door panel; 14. a track plate; 15. a diagonal bar; 16. a liquid discharge pipe; 17. a cylinder; 18. the motor is driven.
Detailed Description
The present invention will be further described with reference to the following examples.
The following examples are intended to illustrate the invention, but are not intended to limit the scope of the invention. The condition in the embodiment can be further adjusted according to concrete condition the utility model discloses a it is right under the design prerequisite the utility model discloses a simple improvement of method all belongs to the utility model discloses the scope of claiming.
Referring to fig. 1-4, the utility model provides a high-efficiency smashing device for kitchen waste, which comprises a supporting plate 1 and a smashing box 4, wherein the supporting plate 1 is arranged at two sides of the smashing box 4, a horizontal plate 2 is fixedly arranged at the top of the supporting plate 1, a feeding hopper 3 is arranged on the horizontal plate 2, the bottom of the feeding hopper 3 is positioned in the smashing box 4, two smashing rollers 5 are rotatably arranged in the smashing box 4, and the feeding hopper 3 is positioned at the top between the two smashing rollers 5 (see fig. 1 and 4); through in feeding hopper 3 to rubbish, then get into crushing case 4, grind crushing through 5 rotations in opposite directions of two crushing rollers to the rubbish that falls, realize the crushing to rubbish, it is effectual to smash, smashes efficiently.
A discharge pipe 6 is installed at the bottom of the crushing box 4, a compression box 7 is installed at the bottom of the discharge pipe 6, two compression blocks 9 are installed in the compression box 7 in a sliding mode, a plurality of filtering holes 10 are formed in the compression blocks 9, a horizontally arranged driving rod 11 is rotatably installed between the two support plates 1, the driving rod 11 is in threaded connection with the filtering holes 10, the driving rod 11 penetrates through the compression box 7, an outlet 12 is formed in the bottom of the compression box 7, two door plates 13 are hinged to the bottom of the outlet 12, a horizontally arranged track plate 14 is installed at the bottom of the compression box 7, an air cylinder 17 is installed on the track plate 14, an inclined rod 15 is hinged to a piston rod of the air cylinder 17, the inclined rod 15 is hinged to the door plates 13, and liquid discharge pipes 16 are installed at the bottoms; carry kibbling rubbish to get into compression case 7 through discharging pipe 6 in, garrulous rubbish contains waste water, is close to each other through two compression pieces 9 and extrudees rubbish, and sewage is extruded water from garrulous rubbish, flows out through filtration pore 10, then discharges from fluid-discharge tube 16, realizes the separation of doing wet, conveniently carries out collection treatment to rubbish.
A track groove is formed in the top of the track plate 14, a guide rod which is horizontally arranged is fixedly installed in the track groove, a movable block is slidably sleeved on the guide rod, the movable block is hinged with one end, away from the door plate 13, of the inclined rod 15, and a piston rod of the air cylinder 17 is hinged with the movable block (see fig. 2 and 3); the cylinder 17 drives the movable block to move towards one side close to the cylinder 17 to drive the inclined rod 15 to move, so that one end of the door plate 13 swings downwards, and the door plate 13 is opened.
Two driving motors 18 are fixedly arranged on the outer wall of the crushing box 4, two transverse shafts are rotatably arranged in the crushing box 4, the crushing rollers 5 are fixedly sleeved on the transverse shafts, and the vertical shafts of the driving motors 18 are in transmission connection with the transverse shafts (see fig. 4); the driving motor 18 drives the transverse shaft to rotate, the transverse shaft drives the crushing rollers 5 to rotate, and the two crushing rollers 5 rotate oppositely to crush and crush the fallen garbage, so that the garbage is crushed.
A horizontal plate which is horizontally arranged is arranged on one supporting plate 1, a bearing rod which is obliquely arranged is arranged at the bottom of the horizontal plate, the supporting plates 1 at the bottom of the bearing rod are fixedly connected, a bidirectional speed reducing motor 8 is arranged on the horizontal plate, and an output shaft of the bidirectional speed reducing motor 8 is in transmission connection with a driving rod 11 (see fig. 1); the driving rod 11 is driven to rotate by the driving of the bidirectional gear motor 8, and the driving rod 11 is used for power support of rotation.
The bottom of the compression box 7 is provided with a vertically arranged connecting rod, the bottom of the connecting rod is fixedly connected with the track plate 14, and two ends of the compression box 7 are arranged in an open manner (see fig. 2); the connecting rods are used to connect the compression box 7 and the track plate 14 such that the track plate 14 is installed below the compression box 7.
The driving rod 11 consists of a left threaded rod and a right threaded rod, the thread directions of the left threaded rod and the right threaded rod are opposite, and the two compression blocks 9 are respectively in threaded connection with the left threaded rod and the right threaded rod (see figure 2); the driving rod 11 rotates to enable the left threaded rod and the right threaded rod to rotate to enable the two compression blocks 9 to approach each other to extrude garbage, sewage is squeezed out of water from the crushed garbage, the water flows out through the filtering holes 10, and then the sewage is discharged from the drain pipe 16.
When the garbage crushing device is used, garbage is fed into the feeding hopper 3 and then enters the crushing box 4, the driving motor 18 drives the transverse shaft to rotate, the transverse shaft drives the crushing rollers 5 to rotate, the two crushing rollers 5 rotate oppositely to crush the falling garbage, and accordingly the garbage is crushed, the crushing effect is good, and the crushing efficiency is high. Carry kibbling rubbish to get into in the compression case 7 through discharging pipe 6, garrulous rubbish contains waste water, it rotates to make two compression piece 9 be close to each other and extrude rubbish to drive actuating lever 11 through two-way gear motor 8, sewage is extruded water from garrulous rubbish, flow through filtration pore 10, then discharge from fluid-discharge tube 16, after the extrusion is accomplished, cylinder 17 drives the movable block and drives down tube 15 motion to a side motion that is close to cylinder 17, make the one end of door plant 13 swing downwards, realize opening of door plant 13, can follow export 12 discharge rubbish disintegrating slag, realize dry and wet separation, the convenience is collected the processing to rubbish.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
Claims (6)
1. The utility model provides a kitchen garbage is with high-efficient reducing mechanism, includes backup pad (1) and crushing case (4), its characterized in that: the utility model discloses a grinding device for the coal mine underground coal mine, including backup pad (1), diaphragm (2) that the top fixed mounting of backup pad (1) has the level to set up, install feeder hopper (3) on diaphragm (2), the bottom of feeder hopper (3) is located smashes case (4), smash case (4) internal rotation and install two crushing rollers (5), feeder hopper (3) is located the top between two crushing rollers (5), smash the bottom of case (4) and install discharging pipe (6), compression case (7) is installed to the bottom of discharging pipe (6), slidable mounting has two compression pieces (9) in compression case (7), a plurality of filtration pores (10) have been seted up on compression piece (9), rotate between two backup pads (1) and install actuating lever (11) that the level set up, actuating lever (11) and filtration pore (10) threaded connection, compression case (7) are run through in actuating lever (11), export (12) have been seted up to the bottom of compression case (7), the bottom of export (12) articulates there are two door plants (13), track board (14) that the level set up are installed to the bottom of compression case (7), install cylinder (17) on track board (14), and the piston rod of cylinder (17) articulates there is down tube (15), and down tube (16) are installed to down tube (15) and door plant (13) are articulated, the both ends bottom of compression case (7).
2. The efficient smashing device for the kitchen waste, according to claim 1, is characterized in that: the track groove has been seted up at the top of track board (14), and track inslot fixed mounting has the guide arm that the level set up, sliding sleeve is equipped with the movable block on the guide arm, and the movable block is articulated with the one end that door plant (13) was kept away from in down tube (15), the piston rod of cylinder (17) is articulated with the movable block.
3. The efficient smashing device for the kitchen waste, according to claim 1, is characterized in that: fixed mounting has two driving motor (18) on the outer wall of crushing case (4), two crossbeams are installed to crushing case (4) internal rotation, crushing roller (5) fixed cover is located on the cross axle, the vertical axle and the cross axle transmission of driving motor (18) are connected.
4. The efficient smashing device for the kitchen waste, according to claim 1, is characterized in that: one of them install the horizontal plate that the level set up on backup pad (1), the bearing bar that the slope set up is installed to the bottom of horizontal plate, bottom sprag board (1) fixed connection of bearing bar, installs two-way gear motor (8) on the horizontal plate, output shaft drive lever (11) transmission of two-way gear motor (8) are connected.
5. The efficient smashing device for the kitchen waste, according to claim 1, is characterized in that: the connecting rod of vertical setting is installed to the bottom of compression case (7), the bottom and track board (14) fixed connection of connecting rod, and the both ends of compression case (7) are uncovered setting.
6. The efficient smashing device for the kitchen waste, according to claim 1, is characterized in that: the driving rod (11) is composed of a left threaded rod and a right threaded rod, the thread directions of the left threaded rod and the right threaded rod are opposite, and the two compression blocks (9) are respectively in threaded connection with the left threaded rod and the right threaded rod.
