Abstract
本实用新型涉及一种蔬菜家用栽培架，包括支架、培育箱、营养液箱、水泵、控制器、导液管、回液管和单喷头，所述的营养液箱固定在支架的底端，培育箱安装在支架上，控制器和水泵安装在营养液箱上；所述的培育箱有若干个，均匀分布在支架上，每个培育的侧面设置有单喷头，培育箱的底部设置有回液孔，培育箱的顶部设置有若干种植孔；所述导液管的底端与水泵连接，导液管与每个培育箱的单喷头连接；所述回液管与每个培育箱的回液孔连接，回液管的底端与营养液箱连接。本实用新型结构设计合理，减小了蔬菜种植的占地面积，蔬菜种植往高处空间发展；采用专用的营养液，种植效率高，无污染，成熟周期短；能够广泛使用，居民可以家家配置，种植蔬菜。
The utility model relates to a vegetable cultivation frame for household use, which comprises a bracket, a cultivation box, a nutrient solution tank, a water pump, a controller, a liquid guide tube, a liquid return tube and a single nozzle. The nutrient solution tank is fixed at the bottom of the bracket, The incubator is installed on the support, and the controller and the water pump are installed on the nutrient solution tank; there are several incubators evenly distributed on the support, each side of the incubator is provided with a single nozzle, and the bottom of the incubator is provided with a return nozzle. The top of the incubator is provided with several planting holes; the bottom end of the guide tube is connected with the water pump, and the guide tube is connected with the single nozzle of each incubator; the liquid return pipe is connected with the return of each incubator The liquid hole is connected, and the bottom end of the liquid return pipe is connected with the nutrient solution tank. The utility model has a reasonable structural design, reduces the occupied area of vegetable planting, and the vegetable planting develops to a high space; the special nutrient solution is adopted, the planting efficiency is high, pollution-free, and the maturity period is short; it can be widely used, and residents can Configure, grow vegetables.
Description
技术领域 technical field
本实用新型涉及一种蔬菜家用栽培架。 The utility model relates to a household cultivation frame for vegetables.
背景技术 Background technique
目前，随着环境污染的加剧，各种蔬菜都或多或少的带有一定的污染，如化肥、土壤中的重金属元素等等，影响人们的健康；而且土地使用量的增大，蔬菜的种植面积也在缩小，蔬菜生长周期较长，蔬菜的产量也在下降。因此，如何提高蔬菜产量以及蔬菜的质量已成为急需解决的问题。 At present, with the intensification of environmental pollution, all kinds of vegetables are more or less polluted, such as chemical fertilizers, heavy metal elements in the soil, etc., which affect people's health; The planting area is also shrinking, the vegetable growth cycle is longer, and the output of vegetables is also declining. Therefore, how to improve the yield of vegetables and the quality of vegetables has become an urgent problem to be solved.
实用新型内容 Utility model content
本实用新型所要解决的技术问题是克服现有技术中所存在的上述不足，而提供一种结构设计合理，能够有效提高蔬菜产量和质量的蔬菜家用栽培架。 The technical problem to be solved by the utility model is to overcome the above-mentioned deficiencies in the prior art, and provide a household vegetable cultivation rack with a reasonable structure design, which can effectively improve the yield and quality of vegetables.
本实用新型解决上述技术问题所采用的技术方案是：一种蔬菜家用栽培架，包括支架，其特征在于：它还包括培育箱、营养液箱、水泵、控制器、导液管、回液管和单喷头，所述的营养液箱固定在支架的底端，培育箱安装在支架上，控制器和水泵安装在营养液箱上；所述的培育箱有若干个，均匀分布在支架上，每个培育的侧面设置有单喷头，培育箱的底部设置有回液孔，培育箱的顶部设置有若干种植孔；所述导液管的底端与水泵连接，导液管与每个培育箱的单喷头连接；所述回液管与每个培育箱的回液孔连接，回液管的底端与营养液箱连接。蔬菜的幼苗插入种植孔内，水泵抽取营养液，营养液通过导液管和单喷头对蔬菜进行浇灌，使蔬菜生长；回落的营养液通过回液管回流到营养液箱中，循环利用。 The technical scheme adopted by the utility model to solve the above-mentioned technical problems is: a household cultivation rack for vegetables, which includes a support, and is characterized in that it also includes a cultivation box, a nutrient solution tank, a water pump, a controller, a catheter, and a liquid return pipe and a single nozzle, the nutrient solution tank is fixed on the bottom of the support, the cultivation box is installed on the support, the controller and the water pump are installed on the nutrient solution tank; there are several cultivation boxes, which are evenly distributed on the support, The side of each cultivation is provided with a single nozzle, the bottom of the incubator is provided with a return hole, and the top of the incubator is provided with several planting holes; The single nozzle connection; the liquid return pipe is connected with the liquid return hole of each incubator, and the bottom end of the liquid return pipe is connected with the nutrient solution tank. The seedlings of vegetables are inserted into the planting hole, the water pump draws the nutrient solution, and the nutrient solution waters the vegetables through the catheter and the single nozzle to make the vegetables grow; the falling nutrient solution returns to the nutrient solution tank through the return pipe for recycling.
本实用新型所述的培育箱至少有2个，多个培育箱可以充分利用支架的空间，种植更多的蔬菜。 There are at least two incubators in the utility model, and a plurality of incubators can make full use of the space of the support to plant more vegetables.
本实用新型所述的单喷头至少有2个，保证培育箱各个部位的蔬菜都有充足的营养液。 There are at least two single nozzles described in the utility model to ensure that the vegetables at each position of the incubator have sufficient nutrient solution.
本实用新型所述的营养液箱上开有抽液孔、回液孔和补液孔，水泵通过抽液管与抽液孔连接，回液管与回液孔连接，补液孔用于补充营养液。 The nutrient solution tank described in the utility model is provided with a liquid pumping hole, a liquid return hole and a liquid replenishment hole. The water pump is connected to the liquid pumping hole through a liquid suction pipe, the liquid return pipe is connected to the liquid return hole, and the liquid replenishment hole is used to supplement the nutrient solution. .
本实用新型所述的支架通过地钉固定在地面上，保证整个装置的稳固。 The bracket described in the utility model is fixed on the ground by ground nails, so as to ensure the stability of the whole device.
本实用新型与现有技术相比，具有以下明显效果：结构设计合理，减小了蔬菜种植的占地面积，蔬菜种植往高处空间发展；采用专用的营养液，种植效率高，无污染，成熟周期短；能够广泛使用，居民可以家家配置，自己种植蔬菜。 Compared with the prior art, the utility model has the following obvious effects: the structural design is reasonable, the occupied area of vegetable planting is reduced, and the vegetable planting develops to a higher space; the special nutrient solution is adopted, the planting efficiency is high, no pollution, The maturity cycle is short; it can be widely used, and residents can configure it in every household and grow vegetables by themselves.
附图说明 Description of drawings

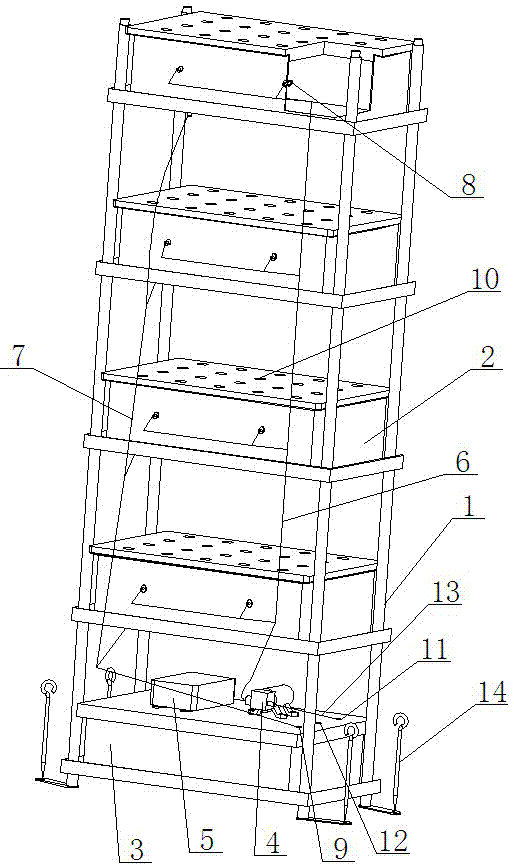

图1为本实用新型的结构示意图。 Fig. 1 is the structural representation of the utility model.
具体实施方式 Detailed ways
下面结合附图并通过实施例对本实用新型作进一步说明。 Below in conjunction with accompanying drawing and through embodiment the utility model is further described.
实施例： Example:
参见图1，本实施例包括支架、培育箱、营养液箱、水泵、控制器、导液管、回液管和单喷头，所述的营养液箱固定在支架的底端，培育箱安装在支架上，控制器和水泵安装在营养液箱上；所述的培育箱有4个，均匀分布在支架上，每个培育的侧面设置有单喷头，培育箱的底部设置有回液孔，培育箱的顶部设置有若干种植孔；所述导液管的底端与水泵连接，导液管与每个培育箱的单喷头连接；所述回液管与每个培育箱的回液孔连接，回液管的底端与营养液箱连接。蔬菜的幼苗插入种植孔内，水泵抽取营养液，营养液通过导液管和单喷头对蔬菜进行浇灌，使蔬菜生长；回落的营养液通过回液管回流到营养液箱中，循环利用。 Referring to Fig. 1, the present embodiment comprises support, incubating box, nutrient solution tank, water pump, controller, catheter, liquid return pipe and single nozzle, and described nutrient solution box is fixed on the bottom of support, and incubating box is installed on On the bracket, the controller and the water pump are installed on the nutrient solution tank; there are 4 cultivation boxes, which are evenly distributed on the bracket, and each side of the cultivation box is provided with a single nozzle, and the bottom of the cultivation box is provided with a liquid return hole. The top of the box is provided with several planting holes; the bottom end of the catheter is connected with the water pump, and the catheter is connected with the single nozzle of each incubator; the return pipe is connected with the return hole of each incubator, The bottom end of the liquid return pipe is connected with the nutrient solution tank. The seedlings of vegetables are inserted into the planting hole, the water pump draws the nutrient solution, and the nutrient solution waters the vegetables through the catheter and the single nozzle to make the vegetables grow; the falling nutrient solution returns to the nutrient solution tank through the return pipe for recycling.
本实施例中，培育箱有4个，多个培育箱可以充分利用支架的空间，种植更多的蔬菜。 In this embodiment, there are 4 incubators, and multiple incubators can make full use of the space of the support to grow more vegetables.
本实施例中，单喷头有2个，保证培育箱各个部位的蔬菜都有充足的营养液。 In the present embodiment, there are 2 single nozzles to ensure that the vegetables in all parts of the incubator have sufficient nutrient solution.
本实施例中，营养液箱上开有抽液孔、回液孔和补液孔，水泵通过抽液管与抽液孔连接，回液管与回液孔连接，补液孔用于补充营养液。 In this embodiment, the nutrient solution tank is provided with a liquid suction hole, a liquid return hole and a liquid replenishment hole. The water pump is connected to the liquid suction hole through a liquid suction pipe, the liquid return pipe is connected to the liquid return hole, and the liquid replenishment hole is used to replenish the nutrient solution.
本实施例中，支架通过地钉固定在地面上，保证整个装置的稳固。 In this embodiment, the bracket is fixed on the ground by ground nails to ensure the stability of the entire device.
本实施例的工作原理：先将蔬菜的幼苗种植在种植孔中，水泵通过抽液管抽取营养液箱中的营养液，将营养液通过导液管和单喷头喷洒到培育箱中，喷出的营养液成雾状，均匀的喷洒到每粒幼苗上，回落的营养液通过回液管回流到营养液箱中，循环利用。通过控制器可以设置营养液喷洒时间，对各种不同的蔬菜，设置的喷洒时间不同。 The working principle of this embodiment: first plant the seedlings of vegetables in the planting hole, the water pump extracts the nutrient solution in the nutrient solution tank through the liquid suction pipe, sprays the nutrient solution into the incubator through the catheter tube and a single nozzle, and sprays out The nutrient solution is sprayed evenly on each seedling in the form of mist, and the falling nutrient solution is returned to the nutrient solution tank through the liquid return pipe for recycling. The nutrient solution spraying time can be set through the controller, and the set spraying time is different for various vegetables.
本实用新型也可用于种植花卉等植物，平时可在培育箱外侧套一层阳光房，可防止虫害，使得植物在生长过程中无需添加农药即可健康成长。阳光房内也可增加一些设备，控制植物的生长温度，使植物生长环境不过热或过冷。 The utility model can also be used for planting flowers and other plants. Usually, a sun room can be placed outside the cultivation box to prevent insect damage, so that the plants can grow healthily without adding pesticides during the growth process. Some equipment can also be added in the sun room to control the growth temperature of the plants so that the plant growth environment is not too hot or too cold.
此外，需要说明的是，本说明书中所描述的具体实施例，只要其零件未说明具体形状和尺寸的，则该零件可以为与其结构相适应的任何形状和尺寸；同时，零件所取的名称也可以不同。凡依本实用新型专利构思所述的构造、特征及原理所做的等效或简单变化，均包括于本实用新型专利的保护范围内。 In addition, it should be noted that, in the specific embodiments described in this specification, as long as the specific shape and size of the parts are not specified, the parts can be in any shape and size that is suitable for the structure; at the same time, the names of the parts are It can also be different. All equivalent or simple changes made according to the structure, features and principles described in the utility model patent concept are included in the protection scope of the utility model patent.
