WO2016132723A1 - 重合体およびポジ型レジスト組成物 - Google Patents

重合体およびポジ型レジスト組成物 Download PDF

Info

Publication number
WO2016132723A1
WO2016132723A1 PCT/JP2016/000768 JP2016000768W WO2016132723A1 WO 2016132723 A1 WO2016132723 A1 WO 2016132723A1 JP 2016000768 W JP2016000768 W JP 2016000768W WO 2016132723 A1 WO2016132723 A1 WO 2016132723A1
Authority
WO
WIPO (PCT)
Prior art keywords
polymer
molecular weight
positive resist
less
present
Prior art date
Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
Ceased
Application number
PCT/JP2016/000768
Other languages
English (en)
French (fr)
Inventor
学 星野
Current Assignee (The listed assignees may be inaccurate. Google has not performed a legal analysis and makes no representation or warranty as to the accuracy of the list.)
Zeon Corp
Original Assignee
Zeon Corp
Priority date (The priority date is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the date listed.)
Filing date
Publication date
Application filed by Zeon Corp filed Critical Zeon Corp
Priority to KR1020177022044A priority Critical patent/KR102641736B1/ko
Priority to CN201680009228.4A priority patent/CN107207664B/zh
Priority to US15/549,230 priority patent/US10386720B2/en
Priority to JP2017500510A priority patent/JP6680289B2/ja
Publication of WO2016132723A1 publication Critical patent/WO2016132723A1/ja
Anticipated expiration legal-status Critical
Ceased legal-status Critical Current

Links

Classifications

    • GPHYSICS
    • G03PHOTOGRAPHY; CINEMATOGRAPHY; ANALOGOUS TECHNIQUES USING WAVES OTHER THAN OPTICAL WAVES; ELECTROGRAPHY; HOLOGRAPHY
    • G03FPHOTOMECHANICAL PRODUCTION OF TEXTURED OR PATTERNED SURFACES, e.g. FOR PRINTING, FOR PROCESSING OF SEMICONDUCTOR DEVICES; MATERIALS THEREFOR; ORIGINALS THEREFOR; APPARATUS SPECIALLY ADAPTED THEREFOR
    • G03F7/00Photomechanical, e.g. photolithographic, production of textured or patterned surfaces, e.g. printing surfaces; Materials therefor, e.g. comprising photoresists; Apparatus specially adapted therefor
    • G03F7/004Photosensitive materials
    • G03F7/039Macromolecular compounds which are photodegradable, e.g. positive electron resists
    • CCHEMISTRY; METALLURGY
    • C08ORGANIC MACROMOLECULAR COMPOUNDS; THEIR PREPARATION OR CHEMICAL WORKING-UP; COMPOSITIONS BASED THEREON
    • C08FMACROMOLECULAR COMPOUNDS OBTAINED BY REACTIONS ONLY INVOLVING CARBON-TO-CARBON UNSATURATED BONDS
    • C08F212/00Copolymers of compounds having one or more unsaturated aliphatic radicals, each having only one carbon-to-carbon double bond, and at least one being terminated by an aromatic carbocyclic ring
    • C08F212/02Monomers containing only one unsaturated aliphatic radical
    • C08F212/04Monomers containing only one unsaturated aliphatic radical containing one ring
    • C08F212/06Hydrocarbons
    • C08F212/08Styrene
    • CCHEMISTRY; METALLURGY
    • C08ORGANIC MACROMOLECULAR COMPOUNDS; THEIR PREPARATION OR CHEMICAL WORKING-UP; COMPOSITIONS BASED THEREON
    • C08FMACROMOLECULAR COMPOUNDS OBTAINED BY REACTIONS ONLY INVOLVING CARBON-TO-CARBON UNSATURATED BONDS
    • C08F212/00Copolymers of compounds having one or more unsaturated aliphatic radicals, each having only one carbon-to-carbon double bond, and at least one being terminated by an aromatic carbocyclic ring
    • C08F212/02Monomers containing only one unsaturated aliphatic radical
    • C08F212/04Monomers containing only one unsaturated aliphatic radical containing one ring
    • C08F212/06Hydrocarbons
    • C08F212/12Monomers containing a branched unsaturated aliphatic radical or a ring substituted by an alkyl radical
    • CCHEMISTRY; METALLURGY
    • C08ORGANIC MACROMOLECULAR COMPOUNDS; THEIR PREPARATION OR CHEMICAL WORKING-UP; COMPOSITIONS BASED THEREON
    • C08FMACROMOLECULAR COMPOUNDS OBTAINED BY REACTIONS ONLY INVOLVING CARBON-TO-CARBON UNSATURATED BONDS
    • C08F220/00Copolymers of compounds having one or more unsaturated aliphatic radicals, each having only one carbon-to-carbon double bond, and only one being terminated by only one carboxyl radical or a salt, anhydride ester, amide, imide or nitrile thereof
    • C08F220/02Monocarboxylic acids having less than ten carbon atoms; Derivatives thereof
    • C08F220/10Esters
    • C08F220/22Esters containing halogen

Definitions

  • the present invention relates to a polymer and a positive resist composition, and particularly to a polymer that can be suitably used as a positive resist and a positive resist composition containing the polymer.
  • ionizing radiation such as an electron beam and short wavelength light such as ultraviolet rays (hereinafter, ionizing radiation and short wavelength light may be collectively referred to as “ionizing radiation or the like”).
  • ionizing radiation and short wavelength light may be collectively referred to as “ionizing radiation or the like”.
  • a polymer whose main chain is cleaved by irradiation and has increased solubility in a developing solution is used as a main chain-cutting positive resist.
  • Patent Document 1 discloses ⁇ -methylstyrene / ⁇ -methyl chloroacrylate containing ⁇ -methylstyrene units and ⁇ -methyl chloroacrylate units as high-sensitivity main-chain-breaking positive resists.
  • a positive resist made of a copolymer is disclosed.
  • a resist that can be separated as clearly as possible from the remaining portion.
  • the irradiation amount of ionizing radiation or the like does not reach a specific amount, it does not dissolve in the developer, and when the specific amount is reached, the main chain is quickly cut and dissolved in the developer.
  • a resist having for resists having such characteristics it is possible to increase the ⁇ value representing the magnitude of the slope of the sensitivity curve indicating the relationship between the common logarithm of the dose of ionizing radiation and the like and the residual film thickness of the resist after development. It has been demanded.
  • the positive resist made of the ⁇ -methylstyrene / ⁇ -methyl chloroacrylate copolymer described in Patent Document 1 has a high ⁇ value. For this reason, the positive resist made of ⁇ -methylstyrene / ⁇ -methyl chloroacrylate copolymer described in Patent Document 1 has room for improvement in terms of further increasing the ⁇ value.
  • an object of the present invention is to provide a polymer that can be used favorably as a positive resist having a high ⁇ value.
  • Another object of the present invention is to provide a positive resist composition capable of satisfactorily forming a high resolution pattern.
  • the present inventor has intensively studied to achieve the above object.
  • the present inventors have found that ⁇ -methylstyrene / ⁇ -methyl chloroacrylate copolymer having a predetermined molecular weight distribution can be used well as a positive resist having a high ⁇ value, and completed the present invention. I let you.
  • the present invention aims to advantageously solve the above-mentioned problems, and the polymer of the present invention contains ⁇ -methylstyrene units and ⁇ -methyl chloroacrylate units, and has a molecular weight distribution.
  • Mw / Mn is less than 1.48.
  • An ⁇ -methylstyrene / ⁇ -methyl chloroacrylate copolymer having a molecular weight distribution (Mw / Mn) of less than 1.48 has a high ⁇ value when used as a positive resist, and is used well as a positive resist. be able to.
  • molecular weight distribution refers to the ratio of the weight average molecular weight (Mw) to the number average molecular weight (Mn).
  • number average molecular weight (Mn) and “weight average molecular weight (Mw)” can be measured using gel permeation chromatography.
  • the proportion of components having a molecular weight of less than 10,000 is preferably 0.8% or less. This is because if the proportion of the component having a molecular weight of less than 10,000 is 0.8% or less, the ⁇ value when used as a positive resist can be further increased.
  • the proportion of components having a molecular weight of less than 6000 is preferably 0.2% or less. This is because if the proportion of the component having a molecular weight of less than 6000 is 0.2% or less, the ⁇ value when used as a positive resist can be further increased.
  • the present invention aims to advantageously solve the above-mentioned problems, and the positive resist composition of the present invention is characterized by containing any of the above-mentioned polymers and a solvent. If the polymer described above is contained as a positive resist, a high resolution pattern can be formed satisfactorily.
  • a positive resist having a high ⁇ value can be provided.
  • a high resolution pattern can be formed satisfactorily.
  • the polymer of the present invention can be used favorably as a main chain-cutting positive resist in which the main chain is cut by irradiation with ionizing radiation such as an electron beam or light having a short wavelength such as ultraviolet light to reduce the molecular weight. can do.
  • the positive resist composition of the present invention contains the polymer of the present invention as a positive resist.
  • the polymer of the present invention is an ⁇ -methylstyrene / ⁇ -chloromethyl acrylate copolymer containing ⁇ -methylstyrene units and methyl ⁇ -chloroacrylate units, and has a molecular weight distribution (Mw / Mn). It is characterized by being less than 1.48.
  • the polymer of the present invention contains structural units (methyl ⁇ -chloroacrylate units) derived from methyl ⁇ -chloroacrylate having a chloro group (—Cl) at the ⁇ -position, so that ionizing radiation or the like (for example, when irradiated with an electron beam, a KrF laser, an ArF laser, an EUV laser, or the like, the main chain is easily cleaved to reduce the molecular weight.
  • Mw / Mn molecular weight distribution
  • it has a high ⁇ value when used as a positive resist, and can be used favorably as a main chain cutting positive resist. can do.
  • the ⁇ -methylstyrene unit is a structural unit derived from ⁇ -methylstyrene. Since the polymer of the present invention has ⁇ -methylstyrene units, it exhibits excellent dry etching resistance due to the protective stability of the benzene ring when used as a positive resist.
  • the polymer of the present invention preferably contains ⁇ -methylstyrene units in a proportion of 30 mol% to 70 mol%.
  • the ⁇ -methyl chloroacrylate unit is a structural unit derived from methyl ⁇ -chloroacrylate. Since the polymer of the present invention has methyl ⁇ -chloroacrylate units, when irradiated with ionizing radiation or the like, chlorine atoms are eliminated and the main chain is easily cleaved by ⁇ -cleavage reaction. . Therefore, the positive resist made of the polymer of the present invention exhibits high sensitivity.
  • the polymer of the present invention preferably contains methyl ⁇ -chloroacrylate at a ratio of 30 mol% to 70 mol%.
  • the molecular weight distribution (Mw / Mn) of the polymer of this invention needs to be less than 1.48, and it is preferable that it is 1.47 or less.
  • the molecular weight distribution (Mw / Mn) of the polymer is 1.48 or more, the ⁇ value when used as a positive resist cannot be sufficiently increased.
  • the molecular weight distribution (Mw / Mn) of the polymer of the present invention is preferably 1.20 or more, more preferably 1.24 or more, More preferably, it is 1.27 or more.
  • the weight average molecular weight (Mw) of the polymer of the present invention is preferably 30000 or more, more preferably 33000 or more, further preferably 35000 or more, and particularly preferably 36000 or more. Preferably, it is 100,000 or less, and more preferably 70000 or less.
  • the weight average molecular weight (Mw) of the polymer is within the above range, it can be used favorably as a positive resist having excellent characteristics such as sensitivity and ⁇ value.
  • the number average molecular weight (Mn) of the polymer of the present invention is preferably 25000 or more, more preferably 28000 or more, preferably 100,000 or less, and more preferably 50000 or less. If the number average molecular weight (Mn) of the polymer is within the above range, it can be used favorably as a positive resist having excellent characteristics such as sensitivity and ⁇ value.
  • the proportion of components having a molecular weight of less than 10,000 is preferably 0.8% or less, and more preferably 0.6% or less.
  • the proportion of the component having a molecular weight of less than 10,000 is 0.8% or less, the ⁇ value when used as a positive resist can be further increased.
  • the proportion of components having a molecular weight of less than 6000 is preferably 0.2% or less, more preferably 0.15% or less, and 0.10% or less. Is more preferable.
  • the proportion of the component having a molecular weight of less than 6000 is 0.2% or less, the ⁇ value when used as a positive resist can be further increased.
  • the proportion of the component having a molecular weight of more than 80000 is preferably 1.5% or more, more preferably 3.0% or more, and preferably 40% or less. . If the proportion of the component having a molecular weight exceeding 80000 is within the above range, it can be used favorably as a positive resist having excellent characteristics such as sensitivity and ⁇ value.
  • the proportion of the component having a molecular weight of more than 100,000 is preferably 0.5% or more, more preferably 1.0% or more, and preferably 30% or less. 25% or less is more preferable. If the proportion of the component having a molecular weight exceeding 100,000 is in the above range, it can be used favorably as a positive resist having excellent characteristics such as sensitivity and ⁇ value.
  • the polymer having the properties described above is prepared, for example, by polymerizing a monomer composition containing ⁇ -methylstyrene and ⁇ -methyl chloroacrylate, and then purifying the obtained polymer. be able to.
  • the composition, molecular weight distribution, weight average molecular weight and number average molecular weight of the polymer, and the proportion of each molecular weight component in the polymer can be adjusted by changing the polymerization conditions and purification conditions. Specifically, for example, the weight average molecular weight and the number average molecular weight can be reduced by increasing the polymerization temperature. Further, the weight average molecular weight and the number average molecular weight can be reduced by shortening the polymerization time.
  • a monomer composition used for preparing the polymer of the present invention a monomer containing ⁇ -methylstyrene and ⁇ -methyl chloroacrylate, a solvent, and a polymerization initiator are optionally added. Mixtures with additives can be used.
  • the polymerization of the monomer composition can be performed using a known method. Among them, it is preferable to use cyclopentanone or the like as the solvent, and it is preferable to use a radical polymerization initiator such as azobisisobutyronitrile as the polymerization initiator.
  • the composition of the polymer can be adjusted by changing the content ratio of each monomer in the monomer composition used for the polymerization. Further, the proportion of the component having a high molecular weight contained in the polymer can be adjusted by changing the amount of the polymerization initiator. For example, if the amount of the polymerization initiator is decreased, The percentage can be increased.
  • the polymer obtained by polymerizing the monomer composition is not particularly limited, and after adding a good solvent such as tetrahydrofuran to the solution containing the polymer, the solution to which the good solvent is added is methanol or the like.
  • the polymer can be recovered by dripping it into a poor solvent and purified as follows.
  • the purification method used when the obtained polymer is purified to obtain the polymer having the above-described properties is not particularly limited, and a known purification method such as a reprecipitation method or a column chromatography method is used. Can do. Among them, it is preferable to use a reprecipitation method as a purification method.
  • the purification of the polymer may be repeated a plurality of times.
  • the purification of the polymer by the reprecipitation method is performed, for example, by dissolving the obtained polymer in a good solvent such as tetrahydrofuran, and then mixing the obtained solution with a good solvent such as tetrahydrofuran and a poor solvent such as methanol. It is preferable to carry out by dropping into a solvent and precipitating a part of the polymer. Thus, if the polymer solution is purified by dropping a polymer solution into a mixed solvent of a good solvent and a poor solvent, the weight obtained by changing the type and mixing ratio of the good solvent and the poor solvent can be obtained.
  • the molecular weight distribution, the weight average molecular weight, the number average molecular weight, and the proportion of components having a low molecular weight can be easily adjusted. Specifically, for example, the molecular weight of the polymer precipitated in the mixed solvent can be increased as the proportion of the good solvent in the mixed solvent is increased.
  • a polymer precipitated in a mixed solvent of a good solvent and a poor solvent may be used as long as the desired properties are satisfied
  • a polymer that has not precipitated in the mixed solvent that is, a polymer dissolved in the mixed solvent
  • the polymer which did not precipitate in the mixed solvent can be recovered from the mixed solvent by using a known method such as concentration to dryness.
  • the positive resist composition of the present invention contains the above-described polymer and a solvent, and optionally further contains known additives that can be blended into the resist composition. And since the positive resist composition of the present invention contains the above-mentioned polymer as a positive resist, if a resist film obtained by applying and drying the positive resist composition of the present invention is used, A high resolution pattern can be formed satisfactorily.
  • solvent if it is a solvent which can dissolve the polymer mentioned above, a known solvent can be used. Among these, from the viewpoint of obtaining a positive resist composition having an appropriate viscosity and improving the coating property of the positive resist composition, it is preferable to use anisole as the solvent.
  • the obtained polymer was measured for weight average molecular weight (Mw) and number average molecular weight (Mn) using gel permeation chromatography, and molecular weight distribution (Mw / Mn) was calculated. Specifically, a gel permeation chromatograph (manufactured by Tosoh Corporation, HLC-8220) is used, tetrahydrofuran is used as a developing solvent, and the weight average molecular weight (Mw) and number average molecular weight (Mn) of the polymer are converted into standard polystyrene values. As sought. And molecular weight distribution (Mw / Mn) was computed.
  • Mw weight average molecular weight
  • Mn number average molecular weight
  • a spin coater manufactured by Mikasa, MS-A150
  • the positive resist composition was applied on a silicon wafer having a diameter of 4 inches to a thickness of 500 nm.
  • the applied positive resist composition was heated on a hot plate at a temperature of 180 ° C. for 3 minutes to form a resist film on the silicon wafer. Then, using an electron beam drawing apparatus (ELS-5700, manufactured by Elionix Co., Ltd.), a plurality of patterns (dimensions 500 ⁇ m ⁇ 500 ⁇ m) having different electron beam doses are drawn on the resist film, and amyl acetate is used as a resist developer. (Developed by Nippon Zeon, ZED-N50) was developed at a temperature of 23 ° C. for 1 minute, and then rinsed with isopropyl alcohol for 10 seconds. The dose of electron beam was varied by 4 ⁇ C within a range of 4 ⁇ C to 152 ⁇ C.
  • the thickness of the resist film in the drawn portion is measured with an optical film thickness meter (Dainippon Screen, Lambda Ace), the common logarithm of the total irradiation amount of the electron beam, and the remaining film ratio of the resist film after development
  • E 0 is a quadratic function obtained by fitting the sensitivity curve to a quadratic function in the range of the residual film ratio of 0.20 to 0.80. This is the logarithm of the total irradiation amount obtained when the remaining film rate 0 is substituted for the logarithm function.
  • E 1 creates a straight line (approximate line of the slope of the sensitivity curve) connecting the point of the remaining film rate 0 and the point of the remaining film rate 0.50 on the obtained quadratic function, It is a logarithm of the total irradiation amount obtained when substituting 1.00 for the remaining film rate with respect to (a function of the remaining film rate and the common logarithm of the total irradiation amount).

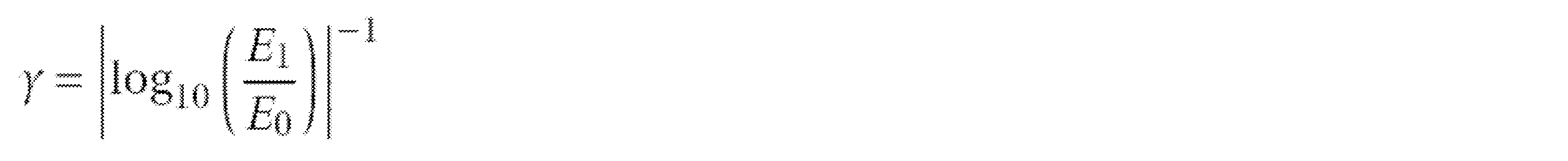

  • the following formula represents the slope of the straight line between the remaining film ratios of 0 and 1.00. And it evaluated according to the following references
  • Example 1 ⁇ Preparation of polymer> [Polymerization of monomer composition] 3.0 g of methyl ⁇ -chloroacrylate and 6.88 g of ⁇ -methylstyrene as monomers, 2.47 g of cyclopentanone as a solvent, 0.02182 g of azobisisobutyronitrile as a polymerization initiator, The monomer composition containing was put in a glass container, the glass container was sealed and purged with nitrogen, and stirred in a constant temperature bath at 78 ° C. for 6.5 hours under a nitrogen atmosphere.
  • Example 2 A polymer, a polymer and a positive resist composition were prepared in the same manner as in Example 1 except that a mixed solvent of 550 g of THF and 450 g of MeOH was used as a mixed solvent at the time of purification of the polymer. Measurements and evaluations were performed in the same manner as in Example 1. The results are shown in Table 1.
  • Example 3 The amount of azobisisobutyronitrile as a polymerization initiator used in the polymerization of the monomer composition was changed to 0.03273 g, and a mixed solvent of 550 g of THF and 450 g of MeOH was used as a mixed solvent when purifying the polymer.
  • a mixed solvent of 550 g of THF and 450 g of MeOH was used as a mixed solvent when purifying the polymer.
  • the weight average molecular weight (Mw) of the polymer before purification was 29000, and the molecular weight distribution (Mw / Mn) was 1.56.
  • Example 4 The amount of azobisisobutyronitrile as a polymerization initiator used in the polymerization of the monomer composition was changed to 0.04364 g, and a mixed solvent of 550 g of THF and 450 g of MeOH was used as a mixed solvent when purifying the polymer.
  • a mixed solvent of 550 g of THF and 450 g of MeOH was used as a mixed solvent when purifying the polymer.
  • the weight average molecular weight (Mw) of the polymer before purification was 24000, and the molecular weight distribution (Mw / Mn) was 1.53.
  • Example 5 Polymer, polymer and positive resist composition in the same manner as in Example 1 except that the amount of azobisisobutyronitrile as a polymerization initiator used in the polymerization of the monomer composition was changed to 0.01091 g. A product was prepared. Measurements and evaluations were performed in the same manner as in Example 1. The results are shown in Table 1. The weight average molecular weight (Mw) of the polymer before purification was 55000, and the molecular weight distribution (Mw / Mn) was 1.85.
  • Mw weight average molecular weight
  • Example 6 Preparation of polymer> [Polymerization of monomer composition] A monomer composition was polymerized in the same manner as in Example 1 except that the amount of azobisisobutyronitrile as a polymerization initiator was changed to 0.01091 g to obtain a polymer. The polymer had a weight average molecular weight (Mw) of 55000 and a molecular weight distribution (Mw / Mn) of 1.85. [Purification of polymer] The obtained polymer was dissolved in 100 g of THF, and the resulting solution was added dropwise to a mixed solvent of 600 g of THF and 400 g of MeOH to precipitate a white solidified product.
  • Mw weight average molecular weight
  • Mn molecular weight distribution
  • the solution containing the coagulum was filtered through a Kiriyama funnel to obtain a precipitated white coagulum.
  • the obtained coagulated product had a weight average molecular weight (Mw) of 65000 and a molecular weight distribution (Mw / Mn) of 1.47.
  • Mw weight average molecular weight
  • Mw / Mn molecular weight distribution
  • the obtained coagulated product was dissolved again in 100 g of THF, and the obtained solution was added again dropwise to a mixed solvent of 650 g of THF and 350 g of MeOH to precipitate a white coagulated product again.
  • the solution containing the reprecipitated coagulum was filtered through a Kiriyama funnel, and the filtrate was recovered.
  • Table 1 shows the results obtained by measuring the weight-average molecular weight, number-average molecular weight and molecular weight distribution, and the proportion of each molecular weight component in the polymer in the same manner as in Example 1.
  • a positive resist composition was prepared in the same manner as in Example 1 except that the polymer prepared as described above was used. Then, evaluation was performed in the same manner as in Example 1. The results are shown in Table 1.
  • Table 1 shows the results obtained by measuring the weight-average molecular weight, number-average molecular weight and molecular weight distribution, and the proportion of each molecular weight component in the polymer in the same manner as in Example 1.
  • ⁇ Preparation of positive resist composition> A positive resist composition was prepared in the same manner as in Example 1 except that the polymer prepared as described above was used. Then, evaluation was performed in the same manner as in Example 1. The results are shown in Table 1.
  • positive resists made of the polymers of Examples 1 to 6 having a molecular weight distribution (Mw / Mn) of less than 1.48 have Comparative Examples 1 to 6 having a molecular weight distribution (Mw / Mn) of 1.48 or more. It can be seen that the ⁇ value is higher than that of the positive resist made of polymer No. 2.
  • a positive resist having a high ⁇ value can be provided.
  • a high resolution pattern can be formed satisfactorily.

Landscapes

  • Chemical & Material Sciences (AREA)
  • Physics & Mathematics (AREA)
  • Health & Medical Sciences (AREA)
  • Chemical Kinetics & Catalysis (AREA)
  • Medicinal Chemistry (AREA)
  • Polymers & Plastics (AREA)
  • Organic Chemistry (AREA)
  • Spectroscopy & Molecular Physics (AREA)
  • General Physics & Mathematics (AREA)
  • Materials For Photolithography (AREA)
  • Addition Polymer Or Copolymer, Post-Treatments, Or Chemical Modifications (AREA)
  • Exposure And Positioning Against Photoresist Photosensitive Materials (AREA)

Abstract

 本発明は、γ値の高いポジ型レジストとして良好に使用し得る重合体、および、高解像度のパターンを良好に形成し得るポジ型レジスト組成物を提供することを目的とする。本発明の重合体は、α-メチルスチレン単位と、α-クロロアクリル酸メチル単位とを含有し、分子量分布(Mw/Mn)が1.48未満である。また、本発明のポジ型レジスト組成物は、当該重合体と、溶剤とを含む。

Description

重合体およびポジ型レジスト組成物
 本発明は、重合体およびポジ型レジスト組成物に関し、特には、ポジ型レジストとして好適に使用し得る重合体および当該重合体を含むポジ型レジスト組成物に関するものである。
 従来、半導体製造等の分野において、電子線などの電離放射線や紫外線などの短波長の光(以下、電離放射線と短波長の光とを合わせて「電離放射線等」と称することがある。)の照射により主鎖が切断されて現像液に対する溶解性が増大する重合体が、主鎖切断型のポジ型レジストとして使用されている。
 そして、例えば特許文献1には、高感度な主鎖切断型のポジ型レジストとして、α-メチルスチレン単位とα-クロロアクリル酸メチル単位とを含有するα-メチルスチレン・α-クロロアクリル酸メチル共重合体よりなるポジ型レジストが開示されている。
特公平8-3636号公報
 ここで、主鎖切断型のポジ型レジストを用いて得られるパターンをより微細化しつつ解像度を高めるためには、電離放射線等の照射により主鎖を切断して現像液に溶解させる部分と、溶解させずに残す部分とをできるだけ鮮明に区分けできるレジストが求められる。特に、解像度を高める観点からは、電離放射線等の照射量が特定量に至らなければ現像液に溶解せず、特定量に至った時点で速やかに主鎖が切断され現像液に溶解される特性を有するレジストが好ましい。このような特性を有するレジストには、電離放射線等の照射量の常用対数と、現像後のレジストの残膜厚との関係を示す感度曲線の傾きの大きさを表すγ値を高くすることが求められている。
 しかし、特許文献1に記載のα-メチルスチレン・α-クロロアクリル酸メチル共重合体よりなるポジ型レジストは、γ値の高さが十分ではなかった。そのため、特許文献1に記載のα-メチルスチレン・α-クロロアクリル酸メチル共重合体よりなるポジ型レジストには、γ値を更に高めるという点において改善の余地があった。
 そこで、本発明は、γ値の高いポジ型レジストとして良好に使用し得る重合体を提供することを目的とする。
 また、本発明は、高解像度のパターンを良好に形成し得るポジ型レジスト組成物を提供することを目的とする。
 本発明者は、上記目的を達成するために鋭意検討を行った。そして、本発明者は、所定の分子量分布を有するα-メチルスチレン・α-クロロアクリル酸メチル共重合体が、γ値の高いポジ型レジストとして良好に使用し得ることを見出し、本発明を完成させた。
 即ち、この発明は、上記課題を有利に解決することを目的とするものであり、本発明の重合体は、α-メチルスチレン単位と、α-クロロアクリル酸メチル単位とを含有し、分子量分布(Mw/Mn)が1.48未満であることを特徴とする。分子量分布(Mw/Mn)が1.48未満のα-メチルスチレン・α-クロロアクリル酸メチル共重合体は、ポジ型レジストとして使用した際のγ値が高く、ポジ型レジストとして良好に使用することができる。
 ここで、本発明において、「分子量分布(Mw/Mn)」とは、数平均分子量(Mn)に対する重量平均分子量(Mw)の比を指す。そして、本発明において、「数平均分子量(Mn)」および「重量平均分子量(Mw)」は、ゲル浸透クロマトグラフィーを用いて測定することができる。
 ここで、本発明の重合体は、分子量が10000未満の成分の割合が0.8%以下であることが好ましい。分子量が10000未満の成分の割合が0.8%以下であれば、ポジ型レジストとして使用した際のγ値を更に高めることができるからである。
 なお、本発明において、「分子量が10000未満の成分の割合」は、ゲル浸透クロマトグラフィーによって得られるクロマトグラムを使用し、クロマトグラム中のピークの総面積(A)に対するクロマトグラム中の分子量が10000未満の成分のピークの面積の合計(B)の割合(=(B/A)×100%)を算出することにより求めることができる。
 そして、本発明の重合体は、分子量が6000未満の成分の割合が0.2%以下であることが好ましい。分子量が6000未満の成分の割合が0.2%以下であれば、ポジ型レジストとして使用した際のγ値を更に高めることができるからである。
 なお、本発明において、「分子量が6000未満の成分の割合」は、ゲル浸透クロマトグラフィーによって得られるクロマトグラムを使用し、クロマトグラム中のピークの総面積(A)に対するクロマトグラム中の分子量が6000未満の成分のピークの面積の合計(C)の割合(=(C/A)×100%)を算出することにより求めることができる。
 また、この発明は、上記課題を有利に解決することを目的とするものであり、本発明のポジ型レジスト組成物は、上述した重合体の何れかと、溶剤とを含むことを特徴とする。上述した重合体をポジ型レジストとして含有すれば、高解像度のパターンを良好に形成することができる。
 本発明の重合体によれば、γ値の高いポジ型レジストを提供することができる。
 また、本発明のポジ型レジスト組成物によれば、高解像度のパターンを良好に形成することができる。
 以下、本発明の実施形態について詳細に説明する。
 ここで、本発明の重合体は、電子線などの電離放射線や紫外線などの短波長の光の照射により主鎖が切断されて低分子量化する、主鎖切断型のポジ型レジストとして良好に使用することができる。そして、本発明のポジ型レジスト組成物は、ポジ型レジストとして本発明の重合体を含むものである。
(重合体)
 本発明の重合体は、α-メチルスチレン単位と、α-クロロアクリル酸メチル単位とを含有するα-メチルスチレン・α-クロロアクリル酸メチル共重合体であり、分子量分布(Mw/Mn)が1.48未満であることを特徴とする。そして、本発明の重合体は、α位にクロロ基(-Cl)を有するα-クロロアクリル酸メチルに由来する構造単位(α-クロロアクリル酸メチル単位)を含んでいるので、電離放射線等(例えば、電子線、KrFレーザー、ArFレーザー、EUVレーザーなど)が照射されると、主鎖が容易に切断されて低分子量化する。また、本発明の重合体は、分子量分布(Mw/Mn)が1.48未満であるので、ポジ型レジストとして使用した際のγ値が高く、主鎖切断型のポジ型レジストとして良好に使用することができる。
<α-メチルスチレン単位>
 ここで、α-メチルスチレン単位は、α-メチルスチレンに由来する構造単位である。そして、本発明の重合体は、α-メチルスチレン単位を有しているので、ポジ型レジストとして使用した際に、ベンゼン環の保護安定性により優れた耐ドライエッチング性を発揮する。
 なお、本発明の重合体は、α-メチルスチレン単位を30mol%以上70mol%以下の割合で含有することが好ましい。
<α-クロロアクリル酸メチル単位>
 また、α-クロロアクリル酸メチル単位は、α-クロロアクリル酸メチルに由来する構造単位である。そして、本発明の重合体は、α-クロロアクリル酸メチル単位を有しているので、電離放射線等が照射されると、塩素原子が脱離し、β開裂反応によって主鎖が容易に切断される。従って、本発明の重合体よりなるポジ型レジストは、高い感度を示す。
 なお、本発明の重合体は、α-クロロアクリル酸メチル単位を30mol%以上70mol%以下の割合で含有することが好ましい。
<分子量分布>
 そして、本発明の重合体の分子量分布(Mw/Mn)は、1.48未満であることが必要であり、1.47以下であることが好ましい。重合体の分子量分布(Mw/Mn)が1.48以上の場合、ポジ型レジストとして使用した際のγ値を十分に高めることができない。なお、重合体の調製の容易性の観点からは、本発明の重合体の分子量分布(Mw/Mn)は、1.20以上であることが好ましく、1.24以上であることがより好ましく、1.27以上であることが更に好ましい。
[重量平均分子量]
 ここで、本発明の重合体の重量平均分子量(Mw)は、30000以上であることが好ましく、33000以上であることがより好ましく、35000以上であることが更に好ましく、36000以上であることが特に好ましく、100000以下であることが好ましく、70000以下であることがより好ましい。重合体の重量平均分子量(Mw)が上記範囲内であれば、感度およびγ値などの特性に優れるポジ型レジストとして良好に使用し得る。
[数平均分子量]
 また、本発明の重合体の数平均分子量(Mn)は、25000以上であることが好ましく、28000以上であることがより好ましく、100000以下であることが好ましく、50000以下であることがより好ましい。重合体の数平均分子量(Mn)が上記範囲内であれば、感度およびγ値などの特性に優れるポジ型レジストとして良好に使用し得る。
<分子量が10000未満の成分の割合>
 更に、本発明の重合体は、分子量が10000未満の成分の割合が0.8%以下であることが好ましく、0.6%以下であることがより好ましい。分子量が10000未満の成分の割合が0.8%以下であれば、ポジ型レジストとして使用した際のγ値を更に高めることができる。
<分子量が6000未満の成分の割合>
 また、本発明の重合体は、分子量が6000未満の成分の割合が、0.2%以下であることが好ましく、0.15%以下であることがより好ましく、0.10%以下であることが更に好ましい。分子量が6000未満の成分の割合が0.2%以下であれば、ポジ型レジストとして使用した際のγ値を更に高めることができる。
<分子量が80000超の成分の割合>
 更に、本発明の重合体は、分子量が80000超の成分の割合が、1.5%以上であることが好ましく、3.0%以上であることがより好ましく、40%以下であることが好ましい。分子量が80000超の成分の割合が上記範囲内であれば、感度およびγ値などの特性に優れるポジ型レジストとして良好に使用し得る。
 なお、本発明において、「分子量が80000超の成分の割合」は、ゲル浸透クロマトグラフィーによって得られるクロマトグラムを使用し、クロマトグラム中のピークの総面積(A)に対するクロマトグラム中の分子量が80000超の成分のピークの面積の合計(D)の割合(=(D/A)×100%)を算出することにより求めることができる。
<分子量が100000超の成分の割合>
 また、本発明の重合体は、分子量が100000超の成分の割合が、0.5%以上であることが好ましく、1.0%以上であることがより好ましく、30%以下であることが好ましく、25%以下であることがより好ましい。分子量が100000超の成分の割合が上記範囲内であれば、感度およびγ値などの特性に優れるポジ型レジストとして良好に使用し得る。
 なお、本発明において、「分子量が100000超の成分の割合」は、ゲル浸透クロマトグラフィーによって得られるクロマトグラムを使用し、クロマトグラム中のピークの総面積(A)に対するクロマトグラム中の分子量が100000超の成分のピークの面積の合計(E)の割合(=(E/A)×100%)を算出することにより求めることができる。
(重合体の調製方法)
 そして、上述した性状を有する重合体は、例えば、α-メチルスチレンとα-クロロアクリル酸メチルとを含む単量体組成物を重合させた後、得られた重合物を精製することにより調製することができる。
 なお、重合体の組成、分子量分布、重量平均分子量および数平均分子量、並びに、重合体中の各分子量の成分の割合は、重合条件および精製条件を変更することにより調整することができる。具体的には、例えば、重量平均分子量および数平均分子量は、重合温度を高くすれば、小さくすることができる。また、重量平均分子量および数平均分子量は、重合時間を短くすれば、小さくすることができる。
<単量体組成物の重合>
 ここで、本発明の重合体の調製に用いる単量体組成物としては、α-メチルスチレンおよびα-クロロアクリル酸メチルを含む単量体と、溶媒と、重合開始剤と、任意に添加される添加剤との混合物を用いることができる。そして、単量体組成物の重合は、既知の方法を用いて行うことができる。中でも、溶媒としては、シクロペンタノンなどを用いることが好ましく、重合開始剤としては、アゾビスイソブチロニトリルなどのラジカル重合開始剤を用いることが好ましい。
 なお、重合体の組成は、重合に使用した単量体組成物中の各単量体の含有割合を変更することにより調整することができる。また、重合体中に含まれている分子量が高い成分の割合は、重合開始剤の量を変更することにより調整することができ、例えば重合開始剤の量を少なくすれば、分子量が高い成分の割合を増加させることができる。
 そして、単量体組成物を重合して得られた重合物は、特に限定されることなく、重合物を含む溶液にテトラヒドロフラン等の良溶媒を添加した後、良溶媒を添加した溶液をメタノール等の貧溶媒中に滴下して重合物を凝固させることにより回収し、以下のようにして精製することができる。
<重合物の精製>
 得られた重合物を精製して上述した性状を有する重合体を得る際に用いる精製方法としては、特に限定されることなく、再沈殿法やカラムクロマトグラフィー法などの既知の精製方法を用いることができる。中でも、精製方法としては、再沈殿法を用いることが好ましい。
 なお、重合物の精製は、複数回繰り返して実施してもよい。
 そして、再沈殿法による重合物の精製は、例えば、得られた重合物をテトラヒドロフラン等の良溶媒に溶解した後、得られた溶液を、テトラヒドロフラン等の良溶媒とメタノール等の貧溶媒との混合溶媒に滴下し、重合物の一部を析出させることにより行うことが好ましい。このように、良溶媒と貧溶媒との混合溶媒中に重合物の溶液を滴下して重合物の精製を行えば、良溶媒および貧溶媒の種類や混合比率を変更することにより、得られる重合体の分子量分布、重量平均分子量、数平均分子量および分子量が低い成分の割合を容易に調整することができる。具体的には、例えば、混合溶媒中の良溶媒の割合を高めるほど、混合溶媒中で析出する重合体の分子量を大きくすることができる。
 なお、再沈殿法により重合物を精製する場合、本発明の重合体としては、所望の性状を満たせば、良溶媒と貧溶媒との混合溶媒中で析出した重合体を用いてもよいし、混合溶媒中で析出しなかった重合体(即ち、混合溶媒中に溶解している重合体)を用いてもよい。ここで、混合溶媒中で析出しなかった重合体は、濃縮乾固などの既知の手法を用いて混合溶媒中から回収することができる。
(ポジ型レジスト組成物)
 本発明のポジ型レジスト組成物は、上述した重合体と、溶剤とを含み、任意に、レジスト組成物に配合され得る既知の添加剤を更に含有する。そして、本発明のポジ型レジスト組成物は、上述した重合体をポジ型レジストとして含有しているので、本発明のポジ型レジスト組成物を塗布および乾燥させて得られるレジスト膜を使用すれば、高解像度のパターンを良好に形成することができる。
<溶剤>
 なお、溶剤としては、上述した重合体を溶解可能な溶剤であれば既知の溶剤を用いることができる。中でも、適度な粘度のポジ型レジスト組成物を得てポジ型レジスト組成物の塗工性を向上させる観点からは、溶剤としてはアニソールを用いることが好ましい。
 以下、本発明について実施例に基づき具体的に説明するが、本発明はこれら実施例に限定されるものではない。なお、以下の説明において、量を表す「%」および「部」は、特に断らない限り、質量基準である。
 そして、実施例および比較例において、重合体の重量平均分子量、数平均分子量および分子量分布、重合体中の各分子量の成分の割合、並びに、重合体よりなるポジ型レジストのγ値は、下記の方法で測定および評価した。
<重量平均分子量、数平均分子量および分子量分布>
 得られた重合体についてゲル浸透クロマトグラフィーを用いて重量平均分子量(Mw)および数平均分子量(Mn)を測定し、分子量分布(Mw/Mn)を算出した。
 具体的には、ゲル浸透クロマトグラフ(東ソー製、HLC-8220)を使用し、展開溶媒としてテトラヒドロフランを用いて、重合体の重量平均分子量(Mw)および数平均分子量(Mn)を標準ポリスチレン換算値として求めた。そして、分子量分布(Mw/Mn)を算出した。
<重合体中の各分子量の成分の割合>
 ゲル浸透クロマトグラフ(東ソー製、HLC-8220)を使用し、展開溶媒としてテトラヒドロフランを用いて、重合体のクロマトグラムを得た。そして、得られたクロマトグラムから、ピークの総面積(A)、分子量が10000未満の成分のピークの面積の合計(B)、分子量が6000未満の成分のピークの面積の合計(C)、分子量が80000超の成分のピークの面積の合計(D)および分子量が100000超の成分のピークの面積の合計(E)を求めた。そして、下記式を用いて各分子量の成分の割合を算出した。
 分子量が10000未満の成分の割合(%)=(B/A)×100
 分子量が6000未満の成分の割合(%)=(C/A)×100
 分子量が80000超の成分の割合(%)=(D/A)×100
 分子量が100000超の成分の割合(%)=(E/A)×100
<γ値>
 スピンコーター(ミカサ製、MS-A150)を使用し、ポジ型レジスト組成物を直径4インチのシリコンウェハ上に厚さ500nmになるように塗布した。そして、塗布したポジ型レジスト組成物を温度180℃のホットプレートで3分間加熱して、シリコンウェハ上にレジスト膜を形成した。そして、電子線描画装置(エリオニクス社製、ELS-5700)を用いて、電子線の照射量が互いに異なるパターン(寸法500μm×500μm)をレジスト膜上に複数描画し、レジスト用現像液として酢酸アミル(日本ゼオン社製、ZED-N50)を用いて温度23℃で1分間の現像処理を行った後、イソプロピルアルコールで10秒間リンスした。なお、電子線の照射量は、4μCから152μCの範囲内で4μCずつ異ならせた。次に、描画した部分のレジスト膜の厚みを光学式膜厚計(大日本スクリーン製、ラムダエース)で測定し、電子線の総照射量の常用対数と、現像後のレジスト膜の残膜率(=現像後のレジスト膜の膜厚/シリコンウェハ上に形成したレジスト膜の膜厚)との関係を示す感度曲線を作成した。そして、得られた感度曲線(横軸:電子線の総照射量の常用対数、縦軸:レジスト膜の残膜率(0≦残膜率≦1.00))について、下記の式を用いてγ値を求めた。なお、下記の式中、Eは、残膜率0.20~0.80の範囲において感度曲線を二次関数にフィッティングし、得られた二次関数(残膜率と総照射量の常用対数との関数)に対して残膜率0を代入した際に得られる総照射量の対数である。また、Eは、得られた二次関数上の残膜率0の点と残膜率0.50の点とを結ぶ直線(感度曲線の傾きの近似線)を作成し、得られた直線(残膜率と総照射量の常用対数との関数)に対して残膜率1.00を代入した際に得られる総照射量の対数である。そして、下記式は、残膜率0と1.00との間での上記直線の傾きを表している。
Figure JPOXMLDOC01-appb-M000001

 そして、以下の基準に従って評価した。γ値の値が大きいほど、感度曲線の傾きが大きく、高解像度のパターンを良好に形成し得ることを示す。
 A:γ値が9.5以上
 B:γ値が8.5以上9.5未満
 C:γ値が7.5以上8.5未満
 D:γ値が7.5未満
(実施例1)
<重合体の調製>
[単量体組成物の重合]
 単量体としてのα-クロロアクリル酸メチル3.0gおよびα-メチルスチレン6.88gと、溶媒としてのシクロペンタノン2.47gと、重合開始剤としてのアゾビスイソブチロニトリル0.02182gとを含む単量体組成物をガラス容器に入れ、ガラス容器を密閉および窒素置換して、窒素雰囲気下、78℃の恒温槽内で6.5時間撹拌した。その後、室温に戻し、ガラス容器内を大気解放した後、得られた溶液にテトラヒドロフラン(THF)30gを加えた。そして、THFを加えた溶液をメタノール300g中に滴下し、重合物を析出させた。その後、析出した重合物を含む溶液をキリヤマ漏斗によりろ過し、白色の凝固物(重合物)を得た。得られた重合物の重量平均分子量(Mw)は35000であり、分子量分布(Mw/Mn)は1.60であった。また、得られた重合物は、α-メチルスチレン単位とα-クロロアクリル酸メチル単位とを50mol%ずつ含んでいた。
[重合物の精製]
 次いで、得られた重合物を100gのTHFに溶解させ、得られた溶液をTHF600gとメタノール(MeOH)400gとの混合溶媒に滴下し、白色の凝固物(α-メチルスチレン単位およびα-クロロアクリル酸メチル単位を含有する重合体)を析出させた。その後、析出した重合体を含む溶液をキリヤマ漏斗によりろ過し、白色の重合体を得た。そして、得られた重合体について、重量平均分子量、数平均分子量および分子量分布、重合体中の各分子量の成分の割合を測定した。結果を表1に示す。
<ポジ型レジスト組成物の調製>
 得られた重合体を溶剤としてのアニソールに溶解させ、重合体の濃度が11質量%であるレジスト溶液(ポジ型レジスト組成物)を調製した。そして、重合体よりなるポジ型レジストのγ値を評価した。結果を表1に示す。
(実施例2)
 重合物の精製時に混合溶媒としてTHF550gとMeOH450gとの混合溶媒を用いた以外は実施例1と同様にして、重合物、重合体およびポジ型レジスト組成物を調製した。そして、実施例1と同様にして測定および評価を行った。結果を表1に示す。
(実施例3)
 単量体組成物の重合時に使用する重合開始剤としてのアゾビスイソブチロニトリルの量を0.03273gに変更し、重合物の精製時に混合溶媒としてTHF550gとMeOH450gとの混合溶媒を用いた以外は実施例1と同様にして、重合物、重合体およびポジ型レジスト組成物を調製した。そして、実施例1と同様にして測定および評価を行った。結果を表1に示す。
 なお、精製前の重合物の重量平均分子量(Mw)は29000であり、分子量分布(Mw/Mn)は1.56であった。
(実施例4)
 単量体組成物の重合時に使用する重合開始剤としてのアゾビスイソブチロニトリルの量を0.04364gに変更し、重合物の精製時に混合溶媒としてTHF550gとMeOH450gとの混合溶媒を用いた以外は実施例1と同様にして、重合物、重合体およびポジ型レジスト組成物を調製した。そして、実施例1と同様にして測定および評価を行った。結果を表1に示す。
 なお、精製前の重合物の重量平均分子量(Mw)は24000であり、分子量分布(Mw/Mn)は1.53であった。
(実施例5)
 単量体組成物の重合時に使用する重合開始剤としてのアゾビスイソブチロニトリルの量を0.01091gに変更した以外は実施例1と同様にして、重合物、重合体およびポジ型レジスト組成物を調製した。そして、実施例1と同様にして測定および評価を行った。結果を表1に示す。
 なお、精製前の重合物の重量平均分子量(Mw)は55000であり、分子量分布(Mw/Mn)は1.85であった。
(実施例6)
<重合体の調製>
[単量体組成物の重合]
 重合開始剤としてのアゾビスイソブチロニトリルの量を0.01091gに変更した以外は実施例1と同様にして単量体組成物を重合し、重合物を得た。なお、重合物の重量平均分子量(Mw)は55000であり、分子量分布(Mw/Mn)は1.85であった。
[重合物の精製]
 得られた重合物を100gのTHFに溶解させ、得られた溶液をTHF600gとMeOH400gとの混合溶媒に滴下し、白色の凝固物を析出させた。その後、凝固物を含む溶液をキリヤマ漏斗によりろ過し、析出した白色の凝固物を得た。得られた凝固物の重量平均分子量(Mw)は65000であり、分子量分布(Mw/Mn)は1.47であった。
 次いで、得られた凝固物を100gのTHFに再び溶解させ、得られた溶液をTHF650gとMeOH350gとの混合溶媒に再び滴下し、白色の凝固物を再び析出させた。その後、再析出した凝固物を含む溶液をキリヤマ漏斗によりろ過し、ろ液を回収した。そして、ろ液を濃縮乾固し、白色の凝固物(α-メチルスチレン単位およびα-クロロアクリル酸メチル単位を含有する重合体)を得た。得られた重合体について、重量平均分子量、数平均分子量および分子量分布、重合体中の各分子量の成分の割合を実施例1と同様にして測定した結果を表1に示す。
<ポジ型レジスト組成物の調製>
 上述のようにして調製した重合体を用いた以外は実施例1と同様にして、ポジ型レジスト組成物を調製した。そして、実施例1と同様にして評価を行った。結果を表1に示す。
(比較例1)
 単量体組成物の重合時に使用する重合開始剤としてのアゾビスイソブチロニトリルの量を0.01091gに変更し、重合物の精製を実施することなく、単量体組成物を重合した際にろ過により回収した重合物をそのまま重合体として用いてポジ型レジスト組成物を調製した以外は実施例1と同様にして、重合物(α-メチルスチレン単位およびα-クロロアクリル酸メチル単位を含有する重合体)およびポジ型レジスト組成物を調製した。そして、実施例1と同様にして測定および評価を行った。結果を表1に示す。
(比較例2)
<重合体の調製>
[単量体組成物の重合]
 重合開始剤としてのアゾビスイソブチロニトリルの量を0.01091gに変更した以外は実施例1と同様にして単量体組成物を重合し、重合物を得た。なお、重合物の重量平均分子量(Mw)は55000であり、分子量分布(Mw/Mn)は1.85であった。
[重合物の精製]
 得られた重合物を100gのTHFに溶解させ、得られた溶液をTHF600gとMeOH400gとの混合溶媒に滴下し、白色の凝固物を析出させた。その後、凝固物を含む溶液をキリヤマ漏斗によりろ過し、ろ液を回収した。そして、ろ液を濃縮乾固し、白色の凝固物(α-メチルスチレン単位およびα-クロロアクリル酸メチル単位を含有する重合体)を得た。得られた重合体について、重量平均分子量、数平均分子量および分子量分布、重合体中の各分子量の成分の割合を実施例1と同様にして測定した結果を表1に示す。
<ポジ型レジスト組成物の調製>
 上述のようにして調製した重合体を用いた以外は実施例1と同様にして、ポジ型レジスト組成物を調製した。そして、実施例1と同様にして評価を行った。結果を表1に示す。
Figure JPOXMLDOC01-appb-T000001
 表1より、分子量分布(Mw/Mn)が1.48未満である実施例1~6の重合体よりなるポジ型レジストは、分子量分布(Mw/Mn)が1.48以上の比較例1~2の重合体よりなるポジ型レジストよりもγ値が高いことが分かる。
 本発明の重合体によれば、γ値の高いポジ型レジストを提供することができる。
 また、本発明のポジ型レジスト組成物によれば、高解像度のパターンを良好に形成することができる。

Claims (4)

  1.  α-メチルスチレン単位と、α-クロロアクリル酸メチル単位とを含有し、
     分子量分布(Mw/Mn)が1.48未満である、重合体。
  2.  分子量が10000未満の成分の割合が0.8%以下である、請求項1に記載の重合体。
  3.  分子量が6000未満の成分の割合が0.2%以下である、請求項1または2に記載の重合体。
  4.  請求項1~3の何れかに記載の重合体と、溶剤とを含む、ポジ型レジスト組成物。
PCT/JP2016/000768 2015-02-20 2016-02-15 重合体およびポジ型レジスト組成物 Ceased WO2016132723A1 (ja)

Priority Applications (4)

Application Number Priority Date Filing Date Title
KR1020177022044A KR102641736B1 (ko) 2015-02-20 2016-02-15 중합체 및 포지티브형 레지스트 조성물
CN201680009228.4A CN107207664B (zh) 2015-02-20 2016-02-15 聚合物及正性抗蚀剂组合物
US15/549,230 US10386720B2 (en) 2015-02-20 2016-02-15 Polymer and positive resist composition
JP2017500510A JP6680289B2 (ja) 2015-02-20 2016-02-15 重合体およびポジ型レジスト組成物

Applications Claiming Priority (2)

Application Number Priority Date Filing Date Title
JP2015-031724 2015-02-20
JP2015031724 2015-02-20

Publications (1)

Publication Number Publication Date
WO2016132723A1 true WO2016132723A1 (ja) 2016-08-25

Family

ID=56688780

Family Applications (1)

Application Number Title Priority Date Filing Date
PCT/JP2016/000768 Ceased WO2016132723A1 (ja) 2015-02-20 2016-02-15 重合体およびポジ型レジスト組成物

Country Status (6)

Country Link
US (1) US10386720B2 (ja)
JP (1) JP6680289B2 (ja)
KR (1) KR102641736B1 (ja)
CN (1) CN107207664B (ja)
TW (1) TWI699378B (ja)
WO (1) WO2016132723A1 (ja)

Cited By (2)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
WO2017115622A1 (ja) * 2015-12-28 2017-07-06 日本ゼオン株式会社 レジストパターン形成方法および現像条件の決定方法
JP2019015860A (ja) * 2017-07-06 2019-01-31 日本ゼオン株式会社 積層体

Families Citing this family (3)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
CN107207666A (zh) * 2015-02-20 2017-09-26 日本瑞翁株式会社 聚合物及正型抗蚀剂组合物
US10248021B2 (en) * 2015-02-20 2019-04-02 Zeon Corporation Polymer and positive resist composition
WO2016132725A1 (ja) * 2015-02-20 2016-08-25 日本ゼオン株式会社 重合体およびポジ型レジスト組成物

Citations (1)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
JP2016012104A (ja) * 2014-06-30 2016-01-21 大日本印刷株式会社 ポジ型レジスト組成物及びその製造方法、並びに、当該ポジ型レジスト組成物を用いたレジストパターンの製造方法

Family Cites Families (7)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
JPH083636B2 (ja) 1986-11-29 1996-01-17 富士通株式会社 電子線ポジレジスト
JPH10186639A (ja) * 1996-11-11 1998-07-14 Konica Corp 感光性樹脂組成物
JP2002124448A (ja) * 2000-10-13 2002-04-26 Nippon Zeon Co Ltd 多層レジスト基板、その製法およびその利用
JP5783687B2 (ja) * 2009-06-23 2015-09-24 住友化学株式会社 樹脂及びレジスト組成物
KR101726444B1 (ko) * 2009-08-31 2017-04-12 스미또모 가가꾸 가부시키가이샤 수지, 레지스트 조성물 및 레지스트 패턴의 제조 방법
CN107207666A (zh) * 2015-02-20 2017-09-26 日本瑞翁株式会社 聚合物及正型抗蚀剂组合物
WO2016132725A1 (ja) * 2015-02-20 2016-08-25 日本ゼオン株式会社 重合体およびポジ型レジスト組成物

Patent Citations (1)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
JP2016012104A (ja) * 2014-06-30 2016-01-21 大日本印刷株式会社 ポジ型レジスト組成物及びその製造方法、並びに、当該ポジ型レジスト組成物を用いたレジストパターンの製造方法

Non-Patent Citations (4)

* Cited by examiner, † Cited by third party
Title
KATSUYA OKUBO ET AL.: "Cho Bisai Kako-yo Denshisen Polymer Resist no Kaihatsu to Hyoka", POLYMER MATERIAL FORUM KOEN YOKOSHU, vol. 21, 2012, pages 38 *
M. OTANI ET AL.: "Improvement of polymer type EB resist sensitivity and line edge roughness", PROCEEDINGS OF SPIE, vol. 8081, 2011, pages 808107/1 - 808107/8 *
T. YAMAGUCHI ET AL.: "Influence of molecular weight of resist polymers on surface roughness and line-edge roughness", J. VAC. SCI. TECHNOL. B, vol. 22, no. 6, 2004, pages 2604 - 2610, XP012074677, DOI: doi:10.1116/1.1805546 *
T. YAMAGUCHI ET AL.: "Molecular weight effect on line -edge roughness", PROCEEDINGS OF SPIE, vol. 5039, 2003, pages 1212 - 1219 *

Cited By (3)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
WO2017115622A1 (ja) * 2015-12-28 2017-07-06 日本ゼオン株式会社 レジストパターン形成方法および現像条件の決定方法
JPWO2017115622A1 (ja) * 2015-12-28 2018-10-18 日本ゼオン株式会社 レジストパターン形成方法および現像条件の決定方法
JP2019015860A (ja) * 2017-07-06 2019-01-31 日本ゼオン株式会社 積層体

Also Published As

Publication number Publication date
US20180011403A1 (en) 2018-01-11
JP6680289B2 (ja) 2020-04-15
TWI699378B (zh) 2020-07-21
CN107207664A (zh) 2017-09-26
KR20170120587A (ko) 2017-10-31
JPWO2016132723A1 (ja) 2017-11-30
KR102641736B1 (ko) 2024-02-27
TW201638126A (zh) 2016-11-01
US10386720B2 (en) 2019-08-20
CN107207664B (zh) 2021-09-28

Similar Documents

Publication Publication Date Title
JP6680289B2 (ja) 重合体およびポジ型レジスト組成物
JP6680290B2 (ja) 重合体およびポジ型レジスト組成物
WO2016132722A1 (ja) 重合体およびポジ型レジスト組成物
WO2017115622A1 (ja) レジストパターン形成方法および現像条件の決定方法
JP2017119744A (ja) 重合体およびポジ型レジスト組成物
WO2016132724A1 (ja) 重合体およびポジ型レジスト組成物
JP6680291B2 (ja) 重合体およびポジ型レジスト組成物
WO2016132726A1 (ja) 重合体およびポジ型レジスト組成物
JP6680292B2 (ja) 重合体およびポジ型レジスト組成物、並びに、レジストパターン形成方法
JP2017120287A (ja) レジストパターン形成方法および現像条件の決定方法
JP2017120286A (ja) レジストパターン形成方法および現像条件の決定方法
JP6750317B2 (ja) 共重合体およびポジ型レジスト組成物
WO2018155214A1 (ja) 重合体およびポジ型レジスト溶液

Legal Events

Date Code Title Description
121 Ep: the epo has been informed by wipo that ep was designated in this application

Ref document number: 16752112

Country of ref document: EP

Kind code of ref document: A1

ENP Entry into the national phase

Ref document number: 2017500510

Country of ref document: JP

Kind code of ref document: A

ENP Entry into the national phase

Ref document number: 20177022044

Country of ref document: KR

Kind code of ref document: A

WWE Wipo information: entry into national phase

Ref document number: 15549230

Country of ref document: US

NENP Non-entry into the national phase

Ref country code: DE

122 Ep: pct application non-entry in european phase

Ref document number: 16752112

Country of ref document: EP

Kind code of ref document: A1
