CN211464004U

CN211464004U - Scope belt cleaning device for gastroenterology

Info

Publication number: CN211464004U
Application number: CN201921720293.5U
Authority: CN
Inventors: 张克萍; 移康玉
Original assignee: Lanzhou University Second Hospital
Current assignee: Lanzhou University Second Hospital
Priority date: 2019-10-15
Filing date: 2019-10-15
Publication date: 2020-09-11
Anticipated expiration: 2029-10-15

Abstract

The utility model relates to the technical field of medical equipment, and discloses an endoscope cleaning device for the department of gastroenterology, which comprises a box body, wherein the upper surface of the box body is provided with a driving motor, the output end of the driving motor is fixedly connected with a rotating shaft, the outer surface of the rotating shaft is provided with a brush, the interior of the box body is respectively provided with a first rotating rod and a second rotating rod, the first rotating rod is connected with the rotating shaft through a first conveying chain, the second rotating rod is connected with a second conveying chain, the outer surface of the box body is provided with a fan, the inner wall of the box body is provided with a chute, the outer surfaces of the first rotating rod and the second rotating rod are in threaded connection with a nut, the outer surface of the nut is fixedly connected with a hook, the upper surface of the box body is provided with an alcohol bottle, and the endoscope cleaning device for the department of gastroenterology can not, but also is convenient to operate, simple to clean and greatly convenient for users to use.

Description

Scope belt cleaning device for gastroenterology

Technical Field

The utility model relates to the technical field of medical equipment, specifically be a scope belt cleaning device for gastroenterology.

Background

Endoscopes are common medical equipment in hospitals, can enter the stomach through oral cavities or enter the body through other natural pore canals, and can see pathological changes which cannot be displayed by X rays by utilizing the endoscopes, for example, an endoscopist can observe ulcers or tumors in the stomach, so that an optimal treatment scheme is made; common endoscope has intestines mirror and gastroscope etc. because inside the scope need enter into different patient health, so the washing and the disinfection problem of scope are very important, and in present equipment, most all are one-to-one and wash, and the inefficiency is than low, extravagant a large amount of manpower and materials. And because the endoscope is a longer tubular apparatus, in order to wash the endoscope thoroughly, the endoscope must be completely unfolded to wash, and the existing endoscope washing machines are all washing platforms, namely the endoscope is placed on the platform to be washed, only the exposed part can be washed in the washing process, and the part of the endoscope contacting with the platform is difficult to wash.

SUMMERY OF THE UTILITY MODEL

Technical problem to be solved

The utility model is not enough to prior art, the utility model provides a scope belt cleaning device for gastroenterology possesses the operation of being convenient for and can be to advantages such as a plurality of washings of endoscope equipment, has solved present scope cleaning machine and has been the cleaning platform, is about to the scope and places and wash on the platform, can only wash the part that exposes outside in the cleaning process, and the scope part that contacts with the platform is difficult to wash and most all is a pair of washing, and the efficiency ratio is lower, the problem of extravagant a large amount of manpower and materials.

(II) technical scheme

For realizing the above-mentioned operation of being convenient for and can be to a plurality of abluent purposes of endoscope equipment, the utility model provides a following technical scheme: an endoscope cleaning device for the digestive system department comprises a box body, wherein a driving motor is fixedly connected to the upper surface of the box body, a rotating shaft is fixedly connected to the output end of the driving motor, a brush is fixedly connected to the outer surface of the rotating shaft, an alcohol bottle is fixedly arranged on the upper surface of the box body, a hose is communicated with the outer surface of the alcohol bottle, a water pump is arranged inside the hose, two water spray heads are communicated with one end, away from the alcohol bottle, of the hose, one water spray head is positioned inside the box body, a first rotating rod is movably arranged on the top wall and the bottom wall of the box body through bearings, a second rotating rod is movably arranged on the top wall and the bottom wall of the box body through bearings, a fan is fixedly connected to the outer surface of the box body, a first conveying chain is connected between the first rotating rod and the rotating shaft in a transmission manner, a second conveying chain is connected between, the left side wall and the right side wall of box have all seted up the spout, spout sliding connection has the slider, first bull stick with the equal threaded connection of surface of second bull stick has the nut, the surface of nut with the fixed surface of slider is connected, the fixed surface of nut is connected with the couple, the right-hand water tank that is provided with of box, the surface intercommunication of water tank has the water pipe, the fixed surface of water tank is connected with the pressure valve, the water pipe is kept away from one side intercommunication of water tank has another sprinkler bead, another the sprinkler bead is located the inside of box, the hose with the water pipe all alternates the setting in the inside of box.

Preferably, the outer surface of the driving motor is sleeved with a case, and the inner wall of the case is fixedly connected with radiating fins.

Preferably, the number of the brushes is not less than six, and the brushes are uniformly distributed on the outer surface of the rotating shaft.

Preferably, the number of the hooks is six, and the hooks are uniformly distributed on the outer surface of the nut.

Preferably, the outer surfaces of the first conveying chain and the second conveying chain are provided with waterproof shells.

Preferably, the outer surface of the rotating shaft is provided with a blocking ring.

Preferably, the outer surface of the fan is provided with a dust screen

(III) advantageous effects

Compared with the prior art, the utility model provides a scope belt cleaning device for gastroenterology possesses following beneficial effect:

(1) this scope belt cleaning device for gastroenterology, through setting up the driving motor at the box upper surface, driving motor drives the pivot and rotates, and then can drive a plurality of brushes and rotate, thereby can carry out more thorough washing to scope equipment, make the cleaning performance better, be provided with first bull stick and second bull stick through the inside at the box, through being provided with two nuts, the nut surface is provided with a plurality of couples, the couple can hang a plurality of scope equipment, and then can clear up a plurality of scopes, and not only convenient operation, but also manpower and materials have been practiced thrift, make the cleaning performance better.

(2) This scope belt cleaning device for gastroenterology through setting up two fans at the box surface, can keep dry to box inside when wasing the end, through be provided with the dust screen at the fan surface, can effectually prevent that external dust and other magazines from getting into the box to influence the cleaning performance, be provided with the alcohol bottle through the upper surface at the box, effect through the hose makes alcohol liquid get into the sprinkler bead, and then can disinfect to the endoscope equipment.

Drawings

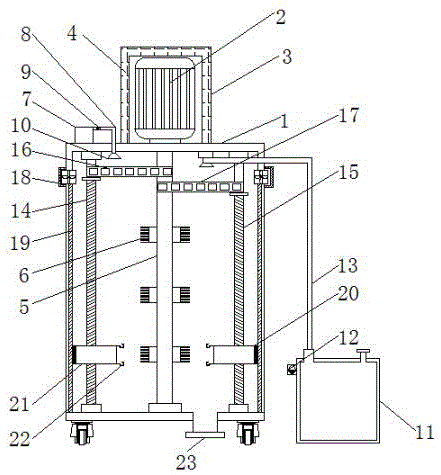

Fig. 1 is a schematic structural view of the present invention;

fig. 2 is a schematic perspective view of the present invention;

fig. 3 is a schematic side view of the nut of the present invention.

In the figure: the device comprises a box body 1, a driving motor 2, a case 3, radiating fins 4, a rotating shaft 5, a hairbrush 6, an alcohol bottle 7, a hose 8, a water pump 9, a water spray head 10, a water tank 11, a pressure valve 12, a water pipe 13, a first rotating rod 14, a second rotating rod 15, a first conveying chain 16, a second conveying chain 17, a fan 18, a sliding chute 19, a sliding block 20, a nut 21 and a hook 22.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

Referring to fig. 1-3, an endoscope cleaning device for digestive system department comprises a box body 1, a driving motor 2 is fixedly connected to the upper surface of the box body 1, a rotating shaft 5 is fixedly connected to the output end of the driving motor 2, a brush 6 is fixedly connected to the outer surface of the rotating shaft 5, an alcohol bottle 7 is fixedly connected to the upper surface of the box body 1, a hose 8 is communicated with the outer surface of the alcohol bottle 7, a water pump 9 is arranged inside the hose 8, two water spraying heads 10 are communicated with one end of the hose 8 far away from the alcohol bottle 7, one water spraying head 10 is positioned inside the box body 1, a first rotating rod 14 is movably installed on the top wall and the bottom wall of the box body 1 through a bearing, a second rotating rod 15 is movably installed on the top wall and the bottom wall of the box body 1 through a bearing, a fan 18 is fixedly connected to the outer surface of the box body 1, a first conveying chain 16 is in transmission connection between the first rotating rod 14 and, spout 19 has all been seted up with the right side wall to the left side wall of box 1, 19 sliding connection of spout has slider 20, the equal threaded connection of surface of first bull stick 14 and second bull stick 15 has nut 21, the surface of nut 21 and slider 20's fixed surface are connected, the fixed surface of nut 21 is connected with couple 22, box 1's the right-hand water tank 11 that is provided with, the surface intercommunication of water tank 11 has water pipe 13, the fixed surface of water tank 11 is connected with pressure valve 12, one side intercommunication that water tank 11 was kept away from to water pipe 13 has another sprinkler bead 10, another sprinkler bead 10 is located box 1's inside, hose 8 and water pipe 13 all alternate the inside that sets up at box 1.

Further, the outer surface cover of driving motor 2 is equipped with quick-witted case 3, and the inner wall fixedly connected with fin 4 of quick-witted case 3, and quick-witted case 3 can protect driving motor 2, has prolonged driving motor 2's life, because driving motor 2 during operation can produce heat, and fin 4 can make the inside temperature reduction of quick-witted case 3.

Further, six are no less than to the quantity of brush 6, and evenly distributed can effectual washing scope at the surface brush of pivot 5, can be bigger wash the endoscope through setting up a plurality of endoscopes, make the cleaning performance better.

Furthermore, the number of the hooks 22 is six, and the hooks are uniformly distributed on the outer surface of the nut 21, so that the purpose of simultaneously cleaning a plurality of endoscopes can be achieved.

Further, the outer surface of first conveying chain 16 and second conveying chain 17 is provided with the buckler, through the effect of buckler, prevents that first conveying chain 16 and second conveying chain 17 from rustting, and then influences cleaning efficiency.

Further, the outer surface of pivot 5 is provided with blocks the ring, through being provided with and blockking the ring, can rise to the highest point when the nut, and the first conveying chain 16 of effectual protection and second conveying chain 17 prevent that first conveying chain 16 and second conveying chain 17 from translocation to influence transmission effect.

Furthermore, the outer surface of the fan 18 is provided with a dust screen, which can effectively prevent external dust and other magazines from entering the box body, thereby affecting the cleaning effect.

The working principle is as follows: this scope belt cleaning device for gastroenterology, send scope equipment to the top of couple 22, the part of scope equipment two overlength is the outside of putting at couple 22 perpendicularly of nature vertical state, open driving motor 2, it rotates to have driven pivot 5, and then the rotation of brush 6 has been driven, through first transfer chain 16 and second transfer chain 17, and then driven first bull stick 14 and the 15 rotations of second bull stick, and then make two nut 21 upward movements, effect through pressure valve 12, make water lead to pipe 13 and get into sprinkler bead 10, and then can wash scope equipment, the washing is finished, open water pump 9, make alcohol liquid get into sprinkler bead 10, and then can disinfect to 1 inside of box, reopen fan 18, carry out drying process with 1 inside of box.

In conclusion, the endoscope cleaning device for the digestive system department can drive the rotating shaft 5 to rotate by the driving motor 2 arranged on the upper surface of the box body 1, and further can drive the plurality of brushes 6 to rotate, so that endoscope equipment can be cleaned more thoroughly, and the cleaning effect is better, by arranging the first rotating rod 14 and the second rotating rod 15 in the box body 1, by arranging the two nuts 21, the outer surface of the nut 21 is provided with the plurality of hooks 22, the hooks 22 can hang the plurality of endoscope equipment, and further can clean the plurality of endoscopes, the operation is convenient, manpower and material resources are saved, the cleaning effect is better, by arranging the two fans 18 on the outer surface of the box body 1, the inside of the box body 1 can be dried after the cleaning is finished, by arranging the dustproof net on the outer surface of the fan 18, external dust and other magazines can be effectively prevented from entering the box body 1, thereby influence cleaning performance, through be provided with alcohol bottle 7 at the upper surface of box 1, make alcohol liquid get into sprinkler bead 10 through the effect of hose, sprinkler bead 10 adopts atomizer, and then can disinfect to scope equipment.

It is to be noted that the terms "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus. Without further limitation, an element defined by the phrase "comprising an … …" does not exclude the presence of other identical elements in a process, method, article, or apparatus that comprises the element.

Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.

Claims

1. The utility model provides an scope belt cleaning device for gastroenterology, includes box (1), its characterized in that: the upper surface of the box body (1) is fixedly connected with a driving motor (2), the output end of the driving motor (2) is fixedly connected with a rotating shaft (5), the outer surface of the rotating shaft (5) is fixedly connected with a brush (6), the upper surface of the box body (1) is fixedly connected with an alcohol bottle (7), the outer surface of the alcohol bottle (7) is communicated with a hose (8), a water pump (9) is arranged inside the hose (8), one end, far away from the alcohol bottle (7), of the hose (8) is communicated with two water spraying heads (10), one water spraying head (10) is positioned inside the box body (1), the top wall and the bottom wall of the box body (1) are both movably provided with a first rotating rod (14) through bearings, the top wall and the bottom wall of the box body (1) are both movably provided with a second rotating rod (15) through bearings, the outer surface of the box body (1) is fixedly connected with, the water spraying device is characterized in that a first conveying chain (16) is connected between the first rotating rod (14) and the rotating shaft (5) in a transmission manner, a second conveying chain (17) is connected between the second rotating rod (15) and the rotating shaft (5) in a transmission manner, sliding grooves (19) are formed in the left side wall and the right side wall of the box body (1), sliding blocks (20) are connected to the sliding grooves (19) in a sliding manner, nuts (21) are connected to the outer surfaces of the first rotating rod (14) and the second rotating rod (15) in a threaded manner, the outer surface of each nut (21) is fixedly connected with the outer surface of each sliding block (20), hooks (22) are fixedly connected to the outer surface of each nut (21), a water tank (11) is arranged on the right side of the box body (1), a water pipe (13) is communicated with the outer surface of the water tank (11), a pressure valve (12) is fixedly connected to the outer surface of the water tank (11), and another water spraying head (10), the other water spraying head (10) is positioned in the box body (1), and the hose (8) and the water pipe (13) are inserted in the box body (1).

2. The endoscope cleaning device for the department of gastroenterology according to claim 1, wherein: the outer surface cover of driving motor (2) is equipped with quick-witted case (3), the inner wall fixedly connected with fin (4) of quick-witted case (3).

3. The endoscope cleaning device for the department of gastroenterology according to claim 1, wherein: the number of the brushes (6) is not less than six, and the brushes are uniformly distributed on the outer surface of the rotating shaft (5).

4. The endoscope cleaning device for the department of gastroenterology according to claim 1, wherein: the number of the hooks (22) is six, and the hooks are uniformly distributed on the outer surface of the nut (21).

5. The endoscope cleaning device for the department of gastroenterology according to claim 1, wherein: the outer surfaces of the first conveying chain (16) and the second conveying chain (17) are provided with waterproof shells.

6. The endoscope cleaning device for the department of gastroenterology according to claim 1, wherein: and a blocking ring is arranged on the outer surface of the rotating shaft (5).

7. The endoscope cleaning device for the department of gastroenterology according to claim 1, wherein:

the outer surface of the fan (18) is provided with a dust screen.
