本实用新型公开了儿科护理技术领域的一种新型儿科护理清洗装置，包括支撑板，所述支撑板的底部四角处均设置有支撑腿，所述支撑腿的底端设置有万向轮，所述支撑板的底部设置有水箱，所述水箱的前侧顶部从左到右依次设置有加水口和加液口，所述水箱的内部横向设置有搅拌轴，所述搅拌轴的左端通过轴承与水箱转动连接，所述搅拌轴的右端贯穿水箱与第一电机的动力端连接，所述搅拌轴的外壁上设置有四组结构相同的条形叶片，通过喷头对护理用具进行喷洒清洗，节约了水资源，通过第二电机带动转轴转动，使得固定板上的刷筒转动，从而可以刷去护理用具上的杂质，通过电动推杆带动放置箱移动，使得放置箱内护理用具都可以与刷筒接触，提高了清洗效率。
The utility model discloses a novel pediatric nursing cleaning device in the technical field of pediatric nursing, which comprises a support plate, the bottom four corners of the support plate are provided with support legs, The bottom of the support plate is provided with a water tank, the top of the front side of the water tank is sequentially provided with a water filling port and a liquid filling port from left to right, the interior of the water tank is laterally provided with a stirring shaft, and the left end of the stirring shaft is connected with the bearing through the bearing. The water tank is connected in rotation, the right end of the stirring shaft is connected to the power end of the first motor through the water tank, and four groups of strip-shaped blades with the same structure are arranged on the outer wall of the stirring shaft. The water resource is driven by the second motor to rotate the rotating shaft, so that the brush cylinder on the fixed plate rotates, so that impurities on the nursing appliance can be brushed off, and the placing box is driven by the electric push rod to move, so that the nursing appliances in the placing box can be connected with the brush cylinder. contact, improving the cleaning efficiency.
Description
Technical Field
The utility model relates to a paediatrics nursing technical field specifically is a novel paediatrics nursing is washd device.
Background
Pediatrics is a comprehensive medical science for comprehensively researching physical and mental development, health care and disease prevention and treatment in the period of children and teenagers, all health and sanitary problems related to the period of children and teenagers belong to the scope of pediatrics, a treatment object of the pediatrics is in a growth and development period, the pediatrics is a task of continuously exploring the medical theory of pediatrics, morbidity and mortality are reduced on the basis of practice, the constitution of children is enhanced, the health care and disease prevention and treatment level of children is improved, the age of the pediatrics in all countries is different, the pediatrics range is from navel breaking to 14 weeks in China, a plurality of nursing tools are usually used in pediatric nursing, the nursing tools need to be cleaned after the use is finished, most of the traditional cleaning devices are used for soaking the nursing tools in a water tank with disinfectant, the cleaning mode wastes water resources, the cleaning effect is not good, and the requirements of users cannot be met, therefore, a novel pediatric nursing cleaning device is provided.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a novel paediatrics nursing is washd device to solve the problem that proposes in the above-mentioned background art.
In order to achieve the above object, the utility model provides a following technical scheme: a novel pediatric nursing cleaning device comprises a supporting plate, wherein supporting legs are arranged at four corners of the bottom of the supporting plate, universal wheels are arranged at the bottom ends of the supporting legs, a water tank is arranged at the bottom of the supporting plate, a water filling port and a liquid filling port are sequentially arranged at the top of the front side of the water tank from left to right, a stirring shaft is transversely arranged inside the water tank, the left end of the stirring shaft is rotatably connected with the water tank through a bearing, the right end of the stirring shaft penetrates through the water tank and is connected with a power end of a first motor, four groups of strip-shaped blades with the same structure are arranged on the outer wall of the stirring shaft, helical blades are arranged on the outer wall of the stirring shaft on the right sides of the strip-shaped blades, a water inlet pipe is connected to the bottom end of the left, the top of the supporting plate is provided with a cleaning box, the right end of the water outlet pipe penetrates through the cleaning box, the bottom of the right end of the water outlet pipe is uniformly provided with a spray head, the bottom of the inner wall of the cleaning box is provided with an equipment box, a second motor is arranged inside the equipment box, the power end of the top of the second motor is connected with a rotating shaft, the top end of the rotating shaft penetrates through the equipment box and is connected with the outer wall of a fixed plate, the top of the fixed plate is vertically provided with three groups of brush cylinders with the same structure, the outer wall of each brush cylinder is uniformly provided with a brush, the inner wall of the cleaning box is connected with a placing box, the placing box is positioned below the spray head, the fixed plate is positioned inside the placing box, the bottom of the placing box is provided with a movable through groove matched with the rotating shaft, the middle end of the right side of, the left side of placing the case is provided with the telescopic sleeve that two sets of structures are the same, supporting spring has all been cup jointed on telescopic sleeve's the outer wall, supporting spring's right-hand member is connected on the outer wall of placing the case, supporting spring's left end is connected on the inner wall of wasing the case, the top both ends of wasing the case all articulate there is the chamber door, and the top of chamber door all is provided with the handle, the left side bottom of wasing the case is provided with the filter tube, the bottom of filter tube is run through the backup pad and is communicated with each other with the water tank and be connected, the top right-hand member of backup pad is provided with the heating cabinet, the top of heating cabinet is provided with the blast pipe, the left end of blast pipe runs through the washing case and stretches into.
Preferably, the filter tube includes the body, the top of body is provided with the drain pipe of being connected with the washing bottom of the case portion, the inner wall from the top down of body has set gradually filter, activated carbon plate and transmission section of thick bamboo, and the filter is located the below of drain pipe, filter and activated carbon plate all incline to set up, and the incline direction all from the right side left, the left side of body is provided with the drain, the incline direction of filter and activated carbon plate is relative with the drain, the bottom and the water tank of transmission section of thick bamboo communicate with each other and are connected.
Preferably, the heating cabinet includes the box, the inner wall bottom of box is provided with the fan, the air outlet at fan top is connected with the blast pipe, the vertical electric heating board that is provided with three group's structures the same on the inner wall of box, and the electric heating board is located the top of blast pipe.
Preferably, the telescopic sleeve comprises a fixed rod and a telescopic rod movably inserted into the right end of the fixed rod, a sliding block is arranged on the outer wall of the telescopic rod, and a sliding groove matched with the sliding block is formed in the inner wall of the fixed rod.
Preferably, both sides all are provided with the draw runner around placing the case, be provided with on the inner wall of washing case with draw runner assorted sliding tray.
Preferably, the two ends of the bottom of the inner wall of the cleaning box are provided with water blocking blocks, and one end, far away from the inner wall of the cleaning box, of each water blocking block is connected to the outer wall of the equipment box.
Compared with the prior art, the beneficial effects of the utility model are that:
1. the nursing tools are sprayed and cleaned through the spray head, water resources are saved, the rotating shaft is driven to rotate through the second motor, the brush drum on the fixing plate is driven to rotate, so that impurities on the nursing tools can be brushed away, the placing box is driven to move through the electric push rod, the nursing tools in the placing box can be in contact with the brush drum, and cleaning efficiency is improved;
2. the first motor, the stirring shaft, the strip-shaped blades and the helical blades are arranged, so that disinfectant can be uniformly dissolved into water, the cleaning effect is good when the disinfectant is sprayed out through the spray head, impurities in the cleaned waste liquid can be conveniently filtered and adsorbed by arranging the filter plate and the activated carbon plate, the filtered and adsorbed waste liquid enters the water tank, and the cyclic utilization of water resources is realized;
3. through being provided with fan, blast pipe, electric heating board and air feed pipe, be convenient for dry the nursing apparatus after the washing, be convenient for use next time.
Drawings

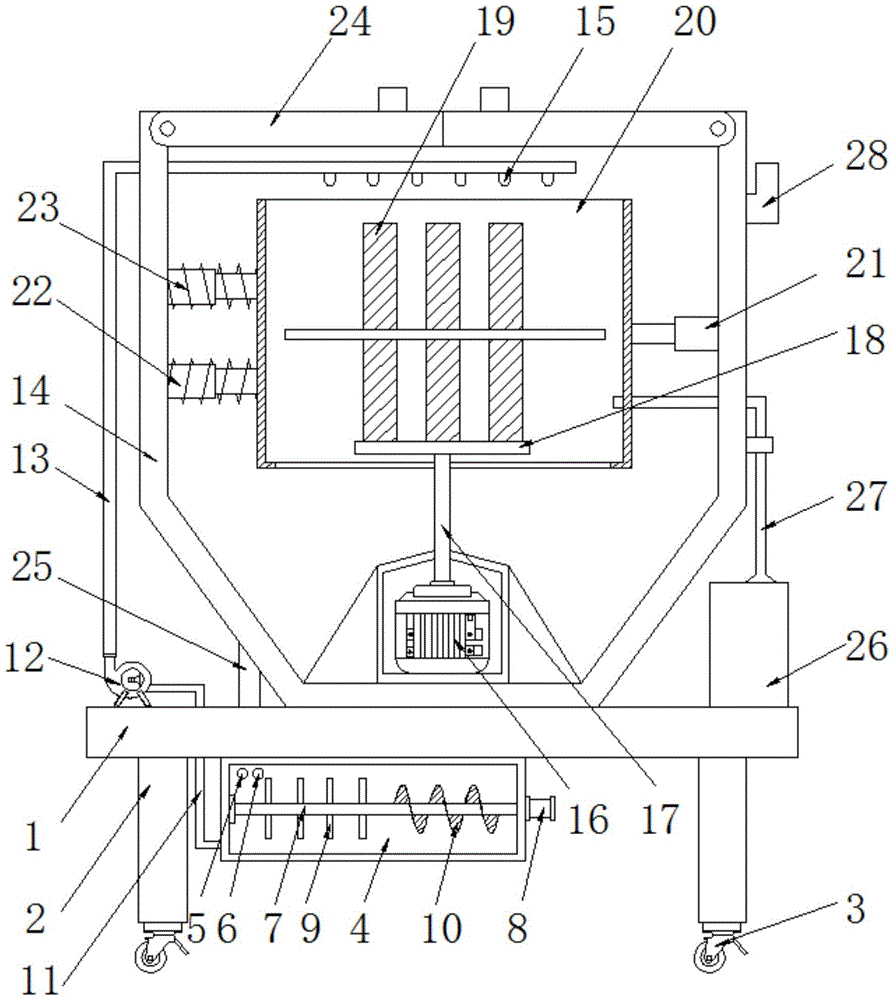

FIG. 1 is a schematic structural view of the present invention;
FIG. 2 is a schematic view of the structure of the filter tube of the present invention;
fig. 3 is a schematic structural view of the heating box of the present invention.
In the figure: 1. a support plate; 2. supporting legs; 3. a universal wheel; 4. a water tank; 5. a water filling port; 6. a liquid filling port; 7. a stirring shaft; 8. a first motor; 9. a strip-shaped blade; 10. a helical blade; 11. a water inlet pipe; 12. a water pump; 13. a water outlet pipe; 14. a cleaning tank; 15. a spray head; 16. a second motor; 17. a rotating shaft; 18. a fixing plate; 19. a brush cylinder; 20. placing a box; 21. an electric push rod; 22. a telescopic sleeve; 23. a support spring; 24. a box door; 25. a filter tube; 251. a pipe body; 252. a drain pipe; 253. a filter plate; 254. an activated carbon plate; 255. a sewage draining outlet; 256. a transfer drum; 26. a heating box; 261. a box body; 262. a fan; 263. an air supply pipe; 264. an electrical heating plate; 27. an air supply pipe; 28. and (4) a moisture removal pipe.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1-3, the present invention provides a technical solution: a novel pediatric nursing cleaning device comprises a supporting plate 1, supporting legs 2 are arranged at four corners of the bottom of the supporting plate 1, universal wheels 3 are arranged at the bottom ends of the supporting legs 2, a water tank 4 is arranged at the bottom of the supporting plate 1, a water filling port 5 and a liquid filling port 6 are sequentially arranged at the top of the front side of the water tank 4 from left to right, the liquid filling port 6 is used for adding disinfectant, a stirring shaft 7 is transversely arranged in the water tank 4, the left end of the stirring shaft 7 is rotatably connected with the water tank 4 through a bearing, the right end of the stirring shaft 7 penetrates through the water tank 4 to be connected with a power end of a first motor 8, four groups of strip-shaped blades 9 with the same structure are arranged on the outer wall of the stirring shaft 7, a helical blade 10 is arranged on the outer wall of the stirring shaft 7 on the right side of the strip, a water outlet pipe 13 is connected to a water outlet at the top of the water pump 12, a cleaning box 14 is arranged at the top of the support plate 1, the right end of the water outlet pipe 13 penetrates through the cleaning box 14, spray heads 15 are uniformly arranged at the bottom of the right end of the water outlet pipe 13, an equipment box is arranged at the bottom of the inner wall of the cleaning box 14, a second motor 16 is arranged inside the equipment box, a rotating shaft 17 is connected to the power end at the top of the second motor 16, the top end of the rotating shaft 17 penetrates through the equipment box and is connected with the outer wall of a fixed plate 18, three groups of brush drums 19 with the same structure are vertically arranged at the top of the fixed plate 18, brushes are uniformly arranged on the outer wall of the brush drums 19, a placing box 20 is connected to the inner wall of the cleaning box 14, the placing box 20 is positioned below the spray heads 15, the fixed plate 18 is positioned inside the placing, the right end of an electric push rod 21 is connected to the inner wall of the cleaning box 14, two groups of telescopic sleeves 22 with the same structure are arranged on the left side of the placing box 20, supporting springs 23 are sleeved on the outer walls of the telescopic sleeves 22, the right end of each supporting spring 23 is connected to the outer wall of the placing box 20, the left end of each supporting spring 23 is connected to the inner wall of the cleaning box 14, box doors 24 are hinged to the two ends of the top of the cleaning box 14, handles are arranged on the tops of the box doors 24, a filter pipe 25 is arranged at the bottom end of the left side of the cleaning box 14, the bottom end of each filter pipe 25 penetrates through the supporting plate 1 to be communicated with the water tank 4, a heating box 26 is arranged at the right end of the top of the supporting plate 1, an air supply pipe 27 is arranged at the top of the heating box 26, the left end of the air supply pipe 27 penetrates through the cleaning box 14 and extends into the placing, The second motor 16, the water pump 12 and the electric push rod 21 are all controlled by an external power switch.
The filter pipe 25 comprises a pipe body 251, a drain pipe 252 connected with the bottom of the cleaning box 14 is arranged at the top of the pipe body 251, a filter plate 253, an activated carbon plate 254 and a transmission cylinder 256 are sequentially arranged on the inner wall of the pipe body 251 from top to bottom, the filter plate 253 is positioned below the drain pipe 252, the filter plate 253 and the activated carbon plate 254 are obliquely arranged so as to filter and adsorb impurities in the cleaned waste liquid, the oblique directions of the filter plate 253 and the activated carbon plate 254 are from right to left, a drain outlet 255 is formed in the left side of the pipe body 251, the oblique directions of the filter plate 253 and the activated carbon plate 254 are opposite to the drain outlet 255, a baffle is arranged on the drain outlet 255, when sewage needs to be drained, the impurities can be drained by opening the baffle, the bottom end of the transmission cylinder 256 is communicated with the water tank 4, the filtered and adsorbed waste liquid enters;
the heating box 26 comprises a box body 261, a fan 262 is arranged at the bottom of the inner wall of the box body 261, an air outlet at the top of the fan 262 is connected with an air supply pipe 263, three groups of electric heating plates 264 with the same structure are vertically arranged on the inner wall of the box body 261, the electric heating plates 264 are positioned above the air supply pipe 263, the cleaned nursing appliances are conveniently dried, the next use is convenient, and the fan 262 and the electric heating plates 264 are controlled by an external power switch;
the telescopic sleeve 22 comprises a fixed rod and a telescopic rod movably inserted into the right end of the fixed rod, a sliding block is arranged on the outer wall of the telescopic rod, and a sliding groove matched with the sliding block is arranged on the inner wall of the fixed rod, so that the telescopic sleeve 22 is stable during telescopic movement;
sliding strips are arranged on the front side and the rear side of the placing box 20, and a sliding groove matched with the sliding strips is arranged on the inner wall of the cleaning box 14, so that the placing box 20 is relatively stable when moving left and right;
the inner wall bottom both ends of wasing case 14 all are provided with the manger plate piece, and the manger plate piece is kept away from the one end of wasing 14 inner walls and is connected on the outer wall of equipment box, avoids the waste liquid accumulation after the washing on the inner wall bottom of wasing case 14.
The working principle is as follows: when in use, the box door 24 is opened, the nursing tools are placed in the placing box 20, clear water and disinfectant are added into the water tank 4 through the water adding port 5 and the liquid adding port 6, the stirring shaft 7 is driven to rotate through the first motor 8, the strip-shaped blades 9 and the helical blades 10 are driven to rotate, the disinfectant can be uniformly dissolved into water, the cleaning liquid in the water tank 4 is pumped out through the water inlet pipe 11 by the water pump 12 and is sprayed out through the spray head 15 on the water outlet pipe 13, the nursing tools are convenient to clean, the rotating shaft 17 is driven to rotate by the second motor 16, the brush drum 19 on the fixing plate 18 is driven to rotate, so that impurities on the nursing tools are brushed off by the brush drum 19, the placing box 20 is driven to move left and right by the electric push rod 21, the nursing tools in the placing box 20 can be in contact with the brush drum 19, the cleaning efficiency is improved, the fan 262 blows air through the air supply pipe 263, so that heat emitted from, be convenient for dry the nursing apparatus after the washing, waste liquid after the washing passes through drain pipe 252 and gets into in the filter tube 25, filters through filter 253 and adsorbs with active carbon plate 254 for impurity in the waste liquid is filtered and adsorbs, and waste liquid after the processing gets into water tank 4 through a transmission section of thick bamboo 256, has realized the reuse of water resource, has had good practicality.
