Abstract
本发明公开了一种医用检验试管清洗消毒装置，包括底座、罩壳、丝杠、驱动电机、罩壳、排水口、滑动座、固定座、试管座、气压杠、滑动座、旋转电机、轴承、中空管、毛刷、皮带轮、皮带、液压缸、防护罩、挡板、紫外线灯、水管、消毒水室和喷嘴。本发明具有结构合理简单、生产成本低、安装方便，试管放置在试管座上，消毒水室通过喷嘴首先对试管进行清洗，污水从排水口排出，气压杠将滑动座下降，中空管伸入试管，旋转电机带动中空管转动，利用中空管上的毛刷进行洗刷，最后升起滑动座，驱动电机转动将固定座带动到外线灯下方，利用外线灯进行烘干消毒，通过上述技术方案方便医护人员对试管进行清洗，使得该试管清洗装置使用起来非常地方便。
The invention discloses a device for cleaning and disinfecting medical test tubes, comprising a base, a cover, a lead screw, a driving motor, a cover, a water outlet, a sliding seat, a fixed seat, a test tube seat, an air pressure rod, a sliding seat, a rotating motor, and a bearing. , hollow tubes, brushes, pulleys, belts, hydraulic cylinders, protective covers, baffles, UV lamps, water pipes, disinfection water chambers and nozzles. The invention has the advantages of reasonable and simple structure, low production cost and convenient installation, the test tube is placed on the test tube seat, the disinfection water chamber first cleans the test tube through the nozzle, the sewage is discharged from the water outlet, the air pressure bar lowers the sliding seat, and the hollow tube extends into the test tube. For the test tube, the rotating motor drives the hollow tube to rotate, and the brush on the hollow tube is used to wash it. Finally, the sliding seat is raised, and the driving motor rotates to drive the fixed seat to the outside line lamp, and the outside line lamp is used for drying and disinfection. Through the above technology The scheme is convenient for medical staff to clean the test tube, so that the test tube cleaning device is very convenient to use.
Description
Technical Field
The invention relates to the field of medical treatment, in particular to a cleaning and disinfecting device for a medical test tube.
Background
Test tubes are frequently used in daily tests of hospital clinical laboratories, and are flat glass tubes with round bottoms, and the tube openings are melted and polished, so that bacteria at the tube openings can be conveniently disinfected and killed, and therefore the test tubes are mainly used in various test experiments, and after the test experiments are completed, a lot of inconvenience is brought to medical staff due to the fact that a lot of used test tubes are cleaned; at present, the test tube is mainly cleaned manually, so that the workload of medical staff is large, and time and labor are wasted; an electric device is also adopted for cleaning, but the electric device has a complex structure, still needs manual adjustment in the using process, and is not very convenient to use, so that a new technology is needed to make up for the defect.
Disclosure of Invention
The invention aims to solve the problems and provides a medical test tube cleaning and disinfecting device which is convenient to clean, time-saving, labor-saving and high in cleaning efficiency.
In order to solve the above problems, the present invention provides a technical solution:
the utility model provides a medical inspection test tube cleaning degassing unit, the on-line screen storage device comprises a base, first housing, the lead screw, driving motor, the second housing, the outlet, first sliding seat, fixing base and test tube seat, first housing of last fixed surface of base is connected with, swing joint has a lead screw in the cavity of first housing, driving motor of fixedly connected with on the lateral surface of first housing, driving motor links together with the lead screw axle, first housing upper surface is equipped with a second housing, the fixed intercommunication of lower extreme of second housing surface has an outlet, there is a first sliding seat through screw thread swing joint on the lead screw, fixing base of fixedly connected with on the first sliding seat, the last fixed surface of fixing base is connected with two spaced test tube seats each other.
Preferably, the device also comprises two air pressure bars, two second sliding seats, a rotating motor, a bearing, a hollow tube, a brush, a belt pulley, a belt, a hydraulic cylinder, a protective cover, a baffle and an ultraviolet lamp, wherein the fixed ends of the two air pressure bars are fixedly connected to the left side of the upper end of the second housing; the protection casing of fixedly connected with is served in the activity of pneumatic cylinder, the equal fixedly connected with baffle in both ends of protection casing, ultraviolet lamp of lower extreme fixedly connected with of protection casing.
Preferably, the water sterilizing chamber is fixedly connected to the top end inside the cavity of the second housing, the bottom end of the hollow pipe is fixedly connected with a nozzle, and the nozzle is communicated with the water sterilizing chamber through a water pipe.
Preferably, the specific structure of the nozzle is as follows: including nozzle body, slope apopore and porous shower nozzle, the bottom mounting intercommunication of nozzle body has porous shower nozzle, and nozzle body lower extreme is equipped with several slope apopores.
Preferably, the screw is a ball screw.
Preferably, the drive motor and the rotating motor are variable frequency motors.
Preferably, the bearings are ball bearings.
Preferably, the drain opening is flared.
The invention has the beneficial effects that:
the test tube cleaning device is reasonable and simple in structure, low in production cost and convenient to install, a test tube is placed on a test tube seat, a disinfection water chamber firstly cleans the test tube through a nozzle, sewage is discharged from a water outlet, a second sliding seat is descended by a pneumatic rod, a hollow tube extends into the test tube, the hollow tube is driven by a rotary motor to rotate, a brush on the hollow tube is used for washing, finally the second sliding seat is lifted, a driving motor rotates to drive a fixing seat to be below an external lamp, and the external lamp is used for drying and disinfection.
Drawings
For ease of illustration, the invention is described in detail by the following detailed description and the accompanying drawings.

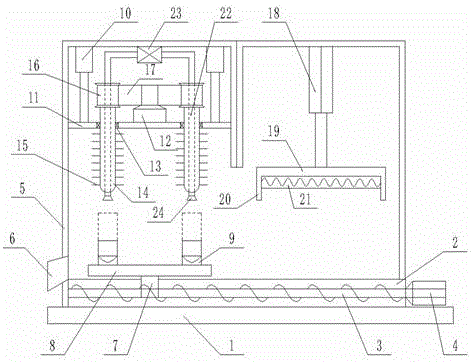

FIG. 1 is a schematic structural view of the present invention;
FIG. 2 is a schematic structural view of a nozzle according to the present invention;
fig. 3 is a schematic structural diagram of another working mode of the present invention.
Detailed Description
As shown in fig. 1 and fig. 3, the following technical solutions are adopted in the present embodiment: a medical test tube cleaning and disinfecting device comprises a base 1, a first housing 2, a lead screw 3, a driving motor 4, a second housing 5, a water outlet 6, a first sliding seat 7, a fixed seat 8, a test tube seat 9, an air pressure bar 10, a second sliding seat 11, a rotating motor 12, a bearing 13, a hollow tube 14, a hairbrush 15, a belt pulley 16, a belt 17, a hydraulic cylinder 18, a protective cover 19, a baffle 20 and an ultraviolet lamp 21; the upper surface of the base 1 is fixedly connected with a first cover shell 2; a screw rod 3 is movably connected in the cavity of the first housing 2; a driving motor 4 is fixedly connected to the outer side surface of the first housing 2; the driving motor 4 is connected with the screw rod 3 through a shaft; the screw rod 3 is movably connected with a first sliding seat 7 through threads; a fixed seat 8 is fixedly connected to the first sliding seat 7; the upper surface of the fixed seat 8 is fixedly connected with two mutually-spaced test tube seats 9; the upper surface of the first cover shell 2 is provided with a second cover shell 5; the lower end of the outer surface of the second housing 5 is fixedly communicated with a water outlet 6; the number of the air pressure bars 10 is two, and the fixed ends of the air pressure bars 10 are fixedly connected to the left side of the upper end of the second housing 5; the movable end of the air pressure bar 10 is fixedly connected with a second sliding seat 11; two hollow pipes 14 which are mutually spaced are movably connected on the second sliding seat 11 through a bearing 13; the outer surface of the hollow pipe 14 is fixedly connected with a plurality of brushes 15; the top ends of the hollow pipes 14 are fixedly connected with a belt pulley 16; the upper surface of the second sliding seat 11 is fixedly connected with a rotating motor 12; two output shafts of the rotating motor 12 are connected with two belt pulleys 16 through a belt 17; the fixed end of the hydraulic cylinder 18 is fixedly connected with the upper end of the right side in the cavity of the second housing 5; a protective cover 19 is fixedly connected to the movable end of the hydraulic cylinder 18; both ends of the protective cover 19 are fixedly connected with baffle plates 20; an ultraviolet lamp 21 is fixedly connected to the lower end of the protective cover 19.
As shown in fig. 1 and 3, the disinfection device further comprises a water pipe 22, a disinfection water chamber 23 and a nozzle 24, the disinfection water chamber 23 is fixedly connected to the top end inside the cavity of the second housing 5, the bottom ends of the hollow pipes 14 are fixedly connected with the nozzle 24, and the nozzle 24 is communicated with the disinfection water chamber 23 through the water pipe 22.
As shown in fig. 2, the specific structure of the nozzle 24 is: including nozzle body 241, slope outlet hole 242 and porous shower nozzle 243, the bottom mounting intercommunication of nozzle body 241 has porous shower nozzle 243, and nozzle body 241 lower extreme is equipped with several slope outlet hole 242.
Wherein the screw 3 is a ball screw; the driving motor 4 and the rotating motor 12 are variable frequency motors; the bearing 13 is a ball bearing; the water outlet 6 is in a bell mouth shape.
The using state of the invention is as follows: the test tube cleaning device is reasonable and simple in structure, low in production cost and convenient to install, a test tube is placed on the test tube seat 9, the disinfection water chamber 23 firstly cleans the test tube through the nozzle 24, sewage is discharged from the water outlet 6, the air pressure lever 10 descends the second sliding seat 11, the hollow tube 14 extends into the test tube, the rotating motor 12 drives the hollow tube 14 to rotate, the brush 14 on the hollow tube 14 is used for washing, finally the second sliding seat 11 is lifted, the driving motor 4 rotates to drive the fixing seat 8 to be below the external light 21, the external light 21 is used for drying and disinfection, through the technical scheme, medical staff can conveniently add cleaning agents into the test tube for cleaning, and the test tube cleaning device is very convenient to use.
While there have been shown and described what are at present considered to be the fundamental principles of the invention and its essential features and advantages, it will be understood by those skilled in the art that the invention is not limited by the embodiments described above, which are merely illustrative of the principles of the invention, but that various changes and modifications may be made therein without departing from the spirit and scope of the invention as defined by the appended claims and their equivalents.
Claims (5)
1. The utility model provides a medical inspection test tube cleaning degassing unit which characterized in that: comprises a base (1), a first housing (2), a screw rod (3), a driving motor (4), a second housing (5), a water outlet (6), a first sliding seat (7), a fixed seat (8) and a test tube seat (9), wherein the upper surface of the base (1) is fixedly connected with the first housing (2), the screw rod (3) is movably connected in a cavity of the first housing (2), the driving motor (4) is fixedly connected on the outer side surface of the first housing (2), the driving motor (4) is connected with the screw rod (3) in a shaft connection mode, the upper surface of the first housing (2) is provided with the second housing (5), the lower end of the outer surface of the second housing (5) is fixedly communicated with the water outlet (6), the screw rod (3) is movably connected with the first sliding seat (7) through threads, the fixed seat (8) is fixedly connected on the first sliding seat (7), the upper surface of the fixed seat (8) is fixedly connected with two mutually-spaced test tube seats (9);
the device also comprises two air pressure bars (10), a second sliding seat (11), a rotating motor (12), bearings (13), hollow pipes (14), brushes (15), belt pulleys (16), a belt (17), a hydraulic cylinder (18), a protective cover (19), a baffle plate (20) and ultraviolet lamps (21), wherein the fixed ends of the air pressure bars (10) are fixedly connected to the left side of the upper end of the second housing (5), the movable end of the air pressure bar (10) is fixedly connected with the second sliding seat (11), the second sliding seat (11) is movably connected with two hollow pipes (14) which are spaced from each other through the bearings (13), the outer surface of each hollow pipe (14) is fixedly connected with a plurality of brushes (15), the top end of each hollow pipe (14) is fixedly connected with one belt pulley (16), the upper surface of the second sliding seat (11) is fixedly connected with one rotating motor (12), two output shafts of the rotating motor (12) are connected with two belt pulleys (16) through a belt (17), and the fixed end of a hydraulic cylinder (18) is fixedly connected to the upper end of the right side in the cavity of the second housing (5); a protective cover (19) is fixedly connected to the movable end of the hydraulic cylinder (18), two ends of the protective cover (19) are fixedly connected with baffle plates (20), and the lower end of the protective cover (19) is fixedly connected with an ultraviolet lamp (21);
the water sterilizing device is characterized by further comprising a water pipe (22), a sterilizing water chamber (23) and nozzles (24), wherein the sterilizing water chamber (23) is fixedly connected to the top end inside the cavity of the second housing (5), the nozzles (24) are fixedly connected to the bottom ends of the hollow pipes (14), and the nozzles (24) are communicated with the sterilizing water chamber (23) through the water pipe (22);
the specific structure of the nozzle (24) is as follows: the nozzle comprises a nozzle body (241), inclined water outlet holes (242) and a porous spray head (243), wherein the bottom end of the nozzle body (241) is fixedly communicated with the porous spray head (243), and a plurality of inclined water outlet holes (242) are formed in the lower end of the nozzle body (241).
2. The medical test tube washing and sterilizing apparatus according to claim 1, wherein: the screw (3) is a ball screw.
3. The medical test tube washing and sterilizing apparatus according to claim 1, wherein: the driving motor (4) and the rotating motor (12) are variable frequency motors.
4. The medical test tube washing and sterilizing apparatus according to claim 1, wherein: the bearing (13) is a ball bearing.
5. The medical test tube washing and sterilizing apparatus according to claim 1, wherein: the water outlet (6) is in a bell mouth shape.
