Disclosed in the utility model is a replacing tool for a supporting insulator of a tubular busbar. A hoop with a universal coupling is used as a holding pole support point and one end of the holding pole is fixed at a reinforced concrete pole of the framework; and a clamp and a crossbeam of the framework are used to carry out rigid fixation. Therefore, problems that a tubular busbar has no support point and the insulator hoisting can not be carried out easily and the like when a supporting insulator of the tubular busbar of a substation is replaced can be solved; the replacing of supporting insulators of tubular busbars for peripheral equipment without power interruption can be realized; the power failure range can be minimized; and the technical blank for supporting insulator replacing of the tubular busbar can be filled.
Description
Technical field
The utility model relates to more exchange device of a kind of tubular bus post insulator, and particularly a kind of tube type bus post insulator is changed instrument.
Background technology
Exist tube type bus in a lot of electric substations, the post insulator insulation creep distance of this tube type bus can not satisfy antifouling requirement, and because running time is longer, nearly several post insulator of often finding has the defective such as break, therefore need to change the tubular bus post insulator, but owing to do not have the required power tool in tube type bus replacing aspect and Job Operations method at present, the tubular bus post insulator more changes jobs and can not implement always.
The utility model content
The purpose of this utility model is to overcome the deficiencies in the prior art part, and a kind of replacing instrument of realizing that the tube type bus post insulator is changed is provided.
A kind of tube type bus post insulator is changed instrument, its structural feature is: it includes pole, bottom at pole is connected with anchor ear, be detachable being connected between anchor ear and the pole, hinged between anchor ear and the pole during connection, angle between pole and the anchor ear cross section changes between 0～360, also be provided with the anchor clamps that pole are fixed on the tube type bus truck transom in the middle and upper part of pole, be provided with the assembly pulley more than two groups on the top of pole, being connected for movable detachable between assembly pulley and the pole, described assembly pulley can rotate around pole as rotating shaft take the axle of pole, and described tube type bus post insulator is changed instrument and also included insulating cord and an insulating cord that is used for the device for hoisting insulator that is used for supporting tube type bus.
In use, the tube type bus post insulator is changed the anchor ear of instrument and the two ends that assembly pulley is installed on respectively pole, then anchor ear is connected to the framework concrete bar top of tubular bus, anchor clamps are connected on the crossbeam of tube type bus framework, then the one by one end with two insulating cords is connected on the tube type bus, the other end is walked around one of assembly pulley wire grip or cucurbit rear and on ground or the truck transom and is linked to each other, another rope then is connected on the insulator, thus its equally behind another in the assembly pulley of the bar pole top group pulley with ground or crossbeam on wire grip or cucurbit link to each other and realize the replacing of insulator.
Described assembly pulley is the assembly pulley of claw type, is set side by side with respectively the pulley more than two groups on two goat's horns.
Adopt the assembly pulley of claw type, can improve the support degree of assembly pulley, the knotting wrapping phenomena occurs in the rope that also can avoid walking around simultaneously on the assembly pulley.
Described anchor clamps comprise the support of two U-shapeds and connect two braces of two U-shaped support corresponding sides, be provided with the slotted hole along the extension of brace length direction that passes for the limit of U-shaped support in the top and the bottom of brace, end at the U-shaped support is provided with screw thread, and two braces can be realized the location of U-shaped support on tubular bus structure crossbeam with nut check after passing respectively the corresponding sides of two U-shaped supports.
In use, U-shaped support is being stuck on the pole of upper-lower position, after then upper lower carriage being passed by the upper and lower surface of truck transom respectively, lock after two braces being connected respectively the corresponding sides of U-shaped support up and down, can realize pole is fixed on the crossbeam of framework by support.
Certain described anchor clamps also can adopt anchor ear or U-shaped lockset etc.
The pin nail that two rows are arranged at the interval, both sides of pole epimere Heterogeneous Permutation.
Climbed to the top of pole along this pin nail by tubular bus structure crossbeam place the interval, both sides of pole epimere Heterogeneous Permutation pin nail convenient working personnel.
Described pole is the pole of adjustable in length.
Being adjusted to of pole length is made of pole the rod member more than two sections, between each section or adopt flange to add connector to connect, or mutually be screwed in together.
The insulating cord that is used for the support tube type bus is the Di Nima high strength cord.
In sum, the utility model following advantage compared to existing technology:
Tube type bus post insulator of the present utility model is changed instrument, utilize the design feature of transformer station's tubular bus framework itself, employing is fixed on the concrete bar of framework as the end of the pole strong point with pole with the anchor ear of joint coupling, and the crossbeam that uses anchor clamps and framework carries out rigidity and fixes, tubular bus is without the strong point when having overcome electric substation's tubular bus post insulator replacing, the difficult problems such as insulator lifting difficulty, can realize that surrounding devices does not have a power failure and change the tubular bus post insulator, reduce substantially power failure range, filled up the tubular bus post insulator and changed technological gap.
Description of drawings
Fig. 1 is hooping structure schematic diagram of the present utility model.
Fig. 2 is clamp structure schematic diagram of the present utility model
Fig. 3 is the structural representation of claw type assembly pulley of the present utility model.
Fig. 4 is the schematic diagram of pole of the present utility model upper end.

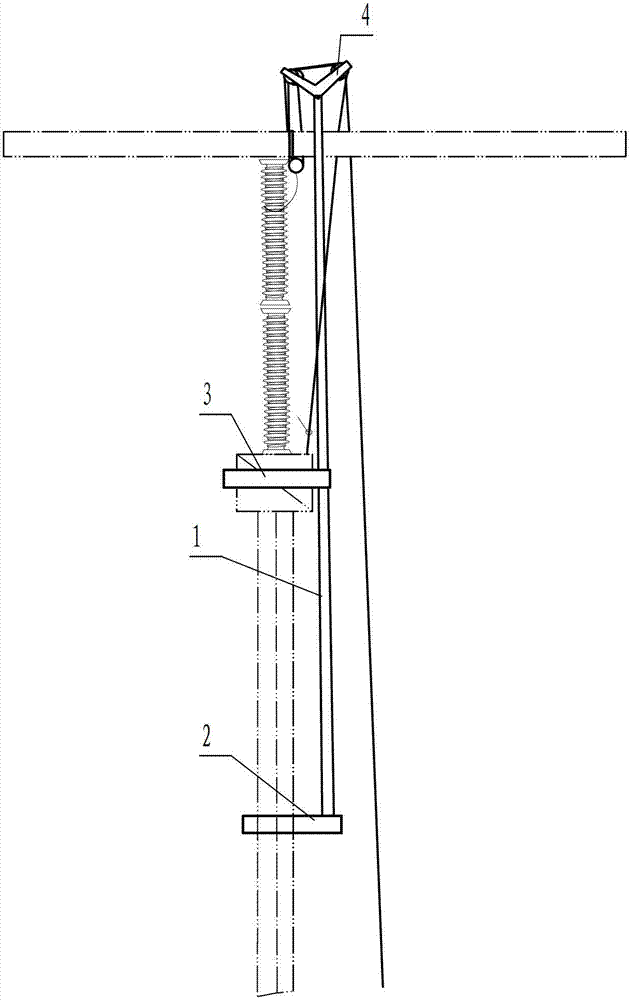

Fig. 5 is the use state diagram that the tubular bus post insulator is changed instrument.
Embodiment
Below in conjunction with embodiment the utility model is described in more detail.
A kind of tube type bus post insulator is changed instrument, it includes pole 1, be connected with anchor ear 2 in the bottom of pole, be detachable being connected between anchor ear and the pole, hinged between anchor ear and the pole during connection, angle between pole and the anchor ear cross section changes between 0～360, also be provided with the anchor clamps 3 that pole are fixed on the tube type bus truck transom in the middle and upper part of pole, on the top of pole the claw type assembly pulley is set, on two goat's horns, be set side by side with respectively the pulley 41 more than two groups, being connected for movable detachable between claw type assembly pulley and the pole, described claw type assembly pulley can rotate around pole as rotating shaft take the axle of pole, and described tube type bus post insulator is changed instrument and also included insulating cord and an insulating cord that is used for the device for hoisting insulator that is used for supporting tube type bus.Described anchor clamps are two braces 32 that comprise the support of two U-shapeds and connect two U-shaped supports, 31 corresponding sides, be provided with the slotted hole along the extension of brace length direction that passes for the limit of U-shaped support in the top and the bottom of brace, end at the U-shaped support is provided with screw thread, and two braces can be realized the location of U-shaped support on tubular bus structure crossbeam with nut check after passing respectively the corresponding sides of two U-shaped supports.The pin nail 11 that two rows are arranged at the interval, both sides of pole epimere Heterogeneous Permutation.Described pole is to consist of by two sections, adopts flange to connect between two sections.The insulating cord that is used for the support tube type bus is the Di Nima high strength cord.
Adopt tube type bus post insulator replacing tool changing concrete steps of the present utility model to be:
(1) the claw type assembly pulley is installed on the top of pole and assemble pole, pole is hung be raised to suitable position;
(2) anchor ear is installed in tube type bus framework concrete masthead section below 2～3 meters install anchor ear, and and pole connect;
(3) adjust the pole angle, anchor clamps are installed at truck transom;
(4) then an insulating cord one end is connected on the tube type bus, the other end walked around behind in the claw type assembly pulley one group with wire grip or cucurbit on ground or the tube type bus truck transom link to each other, another insulating cord one end is connected on the insulator, and the other end linked to each other with wire grip or cucurbit on ground or the tube type bus framework cross rail after the other end walked around another group of claw type assembly pulley;
(5) tighten up cucurbit or wire grip after and tighten up the insulating cord that supports tubular bus, the post insulator support force is shifted to rope, thereby realize the replacing of insulator.
It is same as the prior art that present embodiment is not stated part.
Claims (6)
1. a tube type bus post insulator is changed instrument, it is characterized in that: it includes pole, include pole at it, bottom at pole is connected with anchor ear, be detachable being connected between anchor ear and the pole, hinged between anchor ear and the pole during connection, angle between pole and the anchor ear cross section changes between 0～360, also be provided with the anchor clamps that pole are fixed on the tube type bus truck transom in the middle and upper part of pole, be provided with the assembly pulley more than two groups on the top of pole, being connected for movable detachable between assembly pulley and the pole, described assembly pulley can rotate around pole as rotating shaft take the axle of pole, and described tube type bus post insulator is changed instrument and also included insulating cord and an insulating cord that is used for the device for hoisting insulator that is used for supporting tube type bus.
2. tube type bus post insulator according to claim 1 is changed instrument, and it is characterized in that: described assembly pulley is the assembly pulley of claw type, is set side by side with respectively the pulley more than two groups on two goat's horns.
3. tube type bus post insulator according to claim 2 is changed instrument, it is characterized in that: described anchor clamps comprise the support of two U-shapeds and connect two braces of two U-shaped support corresponding sides, be provided with the slotted hole along the extension of brace length direction that passes for the limit of U-shaped support in the top and the bottom of brace, end at the U-shaped support is provided with screw thread, and two braces can be realized the location of U-shaped support on tubular bus structure crossbeam with nut check after passing respectively the corresponding sides of two U-shaped supports.
4. tube type bus post insulator according to claim 1 is changed instrument, it is characterized in that: the pin nail that two rows are arranged at the interval, both sides of pole epimere Heterogeneous Permutation.
5. change instrument to 4 any one described tube type bus post insulator according to claim 1, it is characterized in that: described pole is the pole of adjustable in length.
6. tube type bus post insulator according to claim 5 is changed instrument, it is characterized in that: the insulating cord that is used for the support tube type bus is the Di Nima high strength cord.
