The utility model relates to a reducing kitchen garbage transport vehicle. The garbage vehicle comprises a vehicle body and a carriage which is placed on the vehicle body, wherein a dehydration crushing device and an oil-water separation device are arranged in the carriage; the dehydration crushing device comprises a dehydrator and a crusher; the dehydrator is connected with the crusher into a whole and is connected with the oil-water separation device; the side face of the carriage body is provided with a garbage conveying and feeding device; and the garbage conveying and feeding device is connected with the dehydrator. According to the utility model, the dehydration crushing device and the oil-water separation device are arranged in the carriage to directly perform crushing, dehydration and oil-water separation in the carriage, so that the garbage density is increased and the volume is reduced; the garbage loading volume is increased, the efficiency of collecting and transporting the garbage is greatly increased, and the operation cost is saved; sewage separated by the oil-water separation device reaches national emission standard, so that the working environment is improved; and a fermentation device is also arranged in the carriage to ferment the crushed garbage to be used as a fertilizer, so that recycling of the garbage is realized.
Description
Technical field
The utility model relates to a kind of changing food waste car, specifically, relates to a kind of minimizing changing food waste transport trolley, and it is main house refuse with the changing food waste that this waste-skip is mainly used in collection.
Background technology
Waste-skip is mainly used in municipal environmental sanitation and large-scale factories and miness transport various rubbish; Existing municipal environmental sanitation rubbish is most of for the changing food waste being master's house refuse; The house refuse that people's daily life produces; Usually concentrate and place in the nigh sewage disposer, and then through waste-skip these rubbish are concentrated and to be transported to Biohazard Waste Disposal.Existing waste-skip is owing to the restriction of space, compartment and rubbish composition, and rubbish transportation volume once is little, and collection and conveying efficiency are low, and operation cost is high; And since many in the rubbish be main with changing food waste, aqueous ingredients in transportation, spills on the ground contaminated environment than higher easily.
The utility model content
The purpose of the utility model is refuse collection and the problems referred to above such as conveying efficiency is low, transportation volume is few, traffic cost height to existing changing food waste car existence; Provide that a kind of collection and conveying efficiency are high, transportation volume big and the low minimizing changing food waste transport trolley of over-the-road expense; This waste-skip is mainly used in municipal environmental sanitation and large-scale factories and miness transport various changing food wastes, is particularly useful for collecting the changing food waste in places such as transportation urban cells, restaurant, dining room.
The technical scheme of the utility model is: a kind of minimizing changing food waste transport trolley; This waste-skip comprises car body and is placed on the compartment on the car body, is provided with dehydration reducing mechanism and oily water separating installation in the railway carriage, and the dehydration reducing mechanism comprises hydroextractor and comminutor; Hydroextractor and comminutor connect as one; And be connected with oily water separating installation, the side of casing is provided with rubbish and is delivered into materials device, and this rubbish is delivered into materials device and is connected with hydroextractor.
Preferably; Hydroextractor and rubbish are delivered into and are provided with the refuse breaking preselector between the materials device, and this device comprises bag-crusher and separatory vessel, and bag-crusher is delivered into materials device with rubbish and is connected; Separatory vessel is connected with the inlet point of hydroextractor; Be provided with the charging mixing device in the separatory vessel and roughly select dragveyer, a side of roughly selecting dragveyer is provided with roughly selects storage box, the discharging opening of roughly selecting dragveyer with roughly select storage box and be connected.
Preferably; Rubbish is delivered into materials device and comprises ingredient conveyor, bont and last lid opening/closing device; Bont and last lid opening/closing device are set to link gear; Ingredient conveyor is provided with the safety lock locking mechanism of the sewage disposer that is used to lock, and last lid opening/closing device is connected with the charging flap that is arranged on bag-crusher inlet point place.
Preferably, roughly select and be provided with the hydraulic pressure push pedal that is used to unload rubbish in the storage box.
Preferably, also be provided with installation for fermenting in the compartment, this installation for fermenting comprises bacterial classification auxiliary material case, auxiliary material mixing device and fermenting case, and the inlet point of auxiliary material mixing device is connected with comminutor with bacterial classification auxiliary material case respectively, and discharging opening is connected with fermenting case.
Preferably, be provided with the hydraulic pressure push pedal that is used to unload fermentation back material in the described fermenting case.
Preferably, described hydroextractor adopts the vertical helical press dewatering, and the top and the comminutor of hydroextractor connect as one, and the bottom is connected with oily water separating installation.
Preferably, described oily water separating installation is an oil water separator, and the coolant inlet pipe of oil water separator is connected with the water outlet of hydroextractor.
The beneficial effect of the utility model is: be provided with dehydration reducing mechanism and oily water separating installation in the utility model compartment; Directly pulverize at interior, dehydration, oil separation; Waste density is increased, and volume reduces, and the rubbish stowage increases; Improve the efficient of refuse collection and transportation greatly, practiced thrift operation cost; And the sewage through after the oily water separating installation separation reaches discharging standards, has improved working environment; Also be provided with installation for fermenting in the compartment, the rubbish after pulverizing is fermented, can be used as fertilizer and use, realized that the recovery huge profit of rubbish is used.The utility model also is provided with sewage disposer safety lock locking apparatus, and handling safety is reliable, and bont and last lid opening/closing device be set to link gear, and the rubbish in the handling process in the sewage disposer is difficult for spilling, not leaving over.
Description of drawings

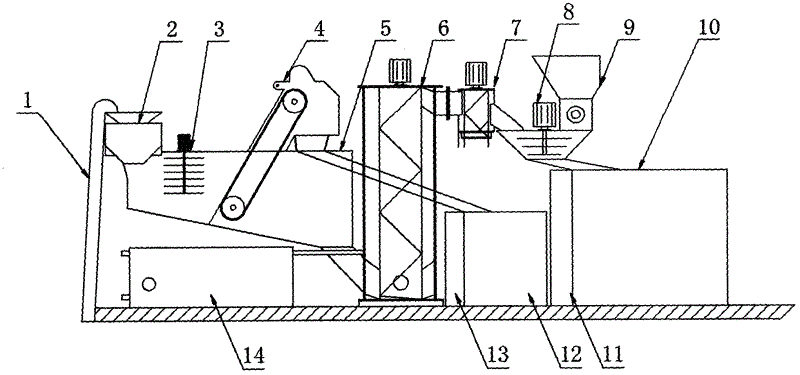

Accompanying drawing 1 is the structural representation of the utility model specific embodiment;
The specific embodiment
The specific embodiment below in conjunction with description of drawings the utility model.
As shown in Figure 1, a kind of minimizing changing food waste transport trolley, this waste-skip comprise car body and are placed on the compartment on the car body; Be provided with dehydration reducing mechanism and oily water separating installation in the railway carriage; The dehydration reducing mechanism comprises hydroextractor 6 and comminutor 7, and hydroextractor 6 adopts the vertical helical press dewatering, and the top of hydroextractor 6 and comminutor 7 connect as one; Oily water separating installation is an oil water separator 14, and the coolant inlet pipe of oil water separator 14 is connected with the water outlet of hydroextractor 6; The side of casing is provided with rubbish and is delivered into materials device, and hydroextractor 6 and rubbish are delivered into and are provided with the refuse breaking preselector between the materials device.
The refuse breaking preselector comprises bag-crusher 2 and separatory vessel 5; Bag-crusher 2 is delivered into materials device with rubbish and is connected; Separatory vessel 5 is connected with the inlet point of hydroextractor 6, is provided with charging mixing device 3 in the separatory vessel 5 and roughly selects dragveyer 4, and a side of roughly selecting dragveyer 4 is provided with roughly selects storage box 12; The discharging opening of roughly selecting dragveyer 4 with roughly select storage box 12 and be connected, roughly select and be provided with the hydraulic pressure push pedal 13 that is used to unload rubbish in the storage box 12; Rubbish is delivered into materials device and comprises ingredient conveyor 1, bont and last lid opening/closing device; Bont and last lid opening/closing device are set to link gear; Ingredient conveyor 1 is provided with the safety lock locking mechanism of the sewage disposer that is used to lock, and last lid opening/closing device is connected with the charging flap that is arranged on bag-crusher inlet point place.
Also be provided with installation for fermenting in the compartment; This installation for fermenting comprises bacterial classification auxiliary material case 9, auxiliary material mixing device 8 and fermenting case 10; The inlet point of auxiliary material mixing device 8 is connected with comminutor 7 with bacterial classification auxiliary material case 9 respectively; Discharging opening is connected with fermenting case 10, is provided with the hydraulic pressure push pedal 11 that is used to unload fermentation back material in the fermenting case 10.
Principle of work: slowly go up defeated through the load-transfer device of ingredient conveyor sewage disposer; Pour bag-crusher at car body top and get into separatory vessel; Through the charging mixing device with roughly select dragveyer rubbish roughly selected; The insoluble material of part (like plastic bag, plastic paper, bottle etc.) is roughly selected dragveyer and is pulled out to send into and roughly select storage box, and most of diffluent material stirs into short grained material through the charging mixing device and is admitted to hydroextractor, sends into comminutor after dewatering and pulverizes; Material after the pulverizing is sent into fermenting case with bacterial classification and is fermented after the auxiliary material mixing device mixes, the material after the fermentation can be used as fertilizer and uses.Whole process realizes automation decrement and fermentation.
