The utility model relates to an agricultural machine especially relates to a no-tillage stubble-cleaning corn drill, and it includes seeder, in this scheme corn drill include one set of seeder at least seeder's front end is connected with the stubble-cleaning device, seeder include seed box and the fertilizer case on the support the lower extreme of seed box and fertilizer case is connected with seed metering pipe and fertilizer pipe respectively, and the lower extreme of seed metering pipe and fertilizer pipe is connected with the furrow opener, is connected with the walking wheel through transmission at the back of furrow opener the walking wheel have covering device and support fixed connection at the back, the stubble-cleaning device include the gearbox, the power of gearbox passes through the transmission shaft and transmits for the stubble-cleaning cutter. The machine can complete stubble cleaning and seeding at one time, greatly reduces energy consumption, saves time and labor and saves cultivation cost.
Description
Technical field:
The utility model relates to a kind of agricultural machinery, relate in particular to a kind of no-tillage stubble-cleaning corn drill.
Background technology:
China is a large agricultural country, and agricultural production is accounting for critical role in social production, and along with a series of appearances to agricultural policy favourable in recent years, peasant's kind grain enthusiasm is also in continuous improve, and the requirement to agricultural machinery is also improving constantly thereupon.And existing corn drill at seeding time, and with pulverizing such as wheat stubbles, stubble-cleaning and sowing can not once be finished by stubble cleaner in necessary elder generation, and so not only energy resource consumption is big, and wastes time and energy, and has reduced and has cultivated efficient, existing in prior technology weak point that Here it is.
Summary of the invention:
The purpose of this utility model is exactly at the existing in prior technology deficiency, and a kind of technical scheme of no-tillage stubble-cleaning corn drill is provided, and this machine can once be finished stubble-cleaning and sowing work, greatly reduces energy resource consumption, and is time saving and energy saving.
This programme is realized by following technical measures: this is no-tillage, and the stubble-cleaning corn drill comprises seeding apparatus, is characterized in that this corn drill comprises a cover seeding apparatus at least, can once finish the sowing of multirow corn; Front end at described seeding apparatus is connected with stubble-clearing device, can realize that one-stop operation finishes the work of stubble-cleaning and sowing simultaneously, and this structure has improved greatly cultivates efficient.
Above-mentioned seeding apparatus comprises seed-box and the fertilizer can on the support, lower end at described seed-box and fertilizer can is connected with discharging tube and defertilizing tube respectively, the lower end of discharging tube and defertilizing tube is connected with plough, the back of plough is connected with road wheel by transmission device, road wheel is passed to seed-box and fertilizer can respectively with power, and seed and fertilizer drain in the soil through plough along discharging tube and defertilizing tube respectively; There is the earthenware of carrying out to fixedly connected in described road wheel back, carries out earthenware and the soil of having sowed can be evened up also compacting with support.
Above-mentioned stubble-clearing device comprises gearbox, and the power of gearbox passes to the stubble-cleaning cutter by power transmission shaft, thereby realizes the crushed work of wheat stubble etc., and the rotary speed of stubble-cleaning cutter can be according to the needs of different work by the gearbox adjustment, and is simple and convenient.
The beneficial effect of this programme can be learnt according to the narration to such scheme, this is no-tillage, and the one-stop operation of stubble-cleaning corn drill can be finished stubble-cleaning and sowing work simultaneously, improved greatly and cultivated efficient, reduced energy resource consumption, time saving and energy saving, save and cultivate cost, this shows, the utility model compared with prior art has substantive distinguishing features and progress, and the beneficial effect of its enforcement also is conspicuous.
Description of drawings:

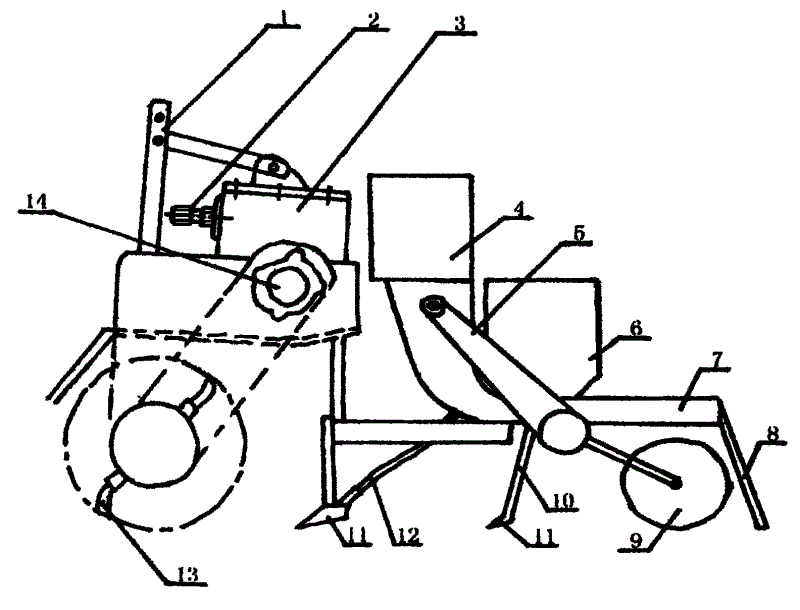

Fig. 1 is the structural representation of the utility model embodiment.
Among the figure, 1 is link, and 2 is the output shaft of gearbox, and 3 is gearbox, and 4 is fertilizer can, 5 is transmission device, and 6 is seed-box, and 7 is support, and 8 for carrying out earthenware, and 9 is road wheel, 10 is discharging tube, and 11 is plough, and 12 is defertilizing tube, and 13 is the stubble-cleaning cutter, and 14 is power transmission shaft.
Embodiment:
For clearly demonstrating the technical characterstic of this programme,, and, this programme is set forth in conjunction with its accompanying drawing below by an embodiment.
A kind of no-tillage stubble-cleaning corn drill, comprise seeding apparatus, corn drill described in this programme comprises a cover seeding apparatus at least, front end at described seeding apparatus is connected with stubble-clearing device, described seeding apparatus comprises seed-box 6 and the fertilizer can 4 on the support 7, be connected with discharging tube 10 and defertilizing tube 12 respectively in the lower end of described seed-box 6 and fertilizer can 4, the lower end of discharging tube 10 and defertilizing tube 12 is connected with plough 11, the back of plough 11 is connected with road wheel 9 by transmission device 5, there is the earthenware 8 of carrying out to fixedly connected in described road wheel 9 back with support 7, described stubble-clearing device comprises gearbox 3, and the power of gearbox 3 passes to stubble-cleaning cutter 13 by power transmission shaft 14.
Claims (4)
1. a no-tillage stubble-cleaning corn drill comprises seeding apparatus, it is characterized in that: this corn drill comprises a cover seeding apparatus at least, is connected with stubble-clearing device at the front end of described seeding apparatus.
2. no-tillage stubble-cleaning corn drill according to claim 1, it is characterized in that: described seeding apparatus comprises seed-box and the fertilizer can on the support, lower end at described seed-box and fertilizer can is connected with discharging tube and defertilizing tube respectively, the lower end of discharging tube and defertilizing tube is connected with plough, and the back of plough is connected with road wheel by transmission device.
3. no-tillage stubble-cleaning corn drill according to claim 2 is characterized in that: have the earthenware of carrying out to fixedly connected with support in described road wheel back.
4. no-tillage stubble-cleaning corn drill according to claim 3, it is characterized in that: described stubble-clearing device comprises gearbox, the power of gearbox passes to the stubble-cleaning cutter by power transmission shaft.
