Abstract
The invention discloses a solar panel mounting and supporting mechanism beneficial to mounting of a power transmission tower, which relates to the technical field of solar panels and comprises a base and a solar panel, wherein the top of the base is fixedly provided with the solar panel, one side of the top of the base is fixedly provided with a supporting plate, one side of the supporting plate is provided with a groove, the inner wall of the groove is fixedly provided with a main pipe, one side of the main pipe is fixedly provided with a spray head, the other side of the main pipe is fixedly provided with a first water pipe, one end of the first water pipe penetrates through the top of the base and extends into the base, the water pump pumps water in the water tank into the second water pipe, the first water pipe and the main pipe by arranging the spray head, the main pipe, the first water pipe, a water pump, a second water pipe and a water tank, then the water in the main pipe is sprayed out through a plurality of spray heads to flush the solar panel, and clean dust accumulated on the solar panel, the dust accumulation is avoided to influence the power generation efficiency.
Description
Technical Field
The invention relates to the technical field of solar panels, in particular to a solar panel mounting and supporting mechanism beneficial to mounting of a power transmission iron tower.
Background
The solar cell is also called as a solar chip or a photocell, and is a photoelectric semiconductor slice which directly generates electricity by utilizing sunlight, a single solar cell can not be directly used as a power supply, and a plurality of single solar cells are required to be connected in series and in parallel and tightly packaged into a component as the power supply.
Among the prior art, solar panel generally installs outdoors, lead to the easy a large amount of dusts of adhesion in solar panel's surface, the dust influences solar panel and to the utilization of solar energy, reduce the efficiency of electricity generation, the mode that current solar panel clearance generally can adopt the clear water to wash, but the water after washing can waste water resource if direct discharge, during the used water resource of circulation, generally utilize the filter screen to filter the water after washing, but the filter screen is after a period of filtration operation, the surface can be piled up there is the dust, need in time to clear up.
Disclosure of Invention
The invention provides a solar panel mounting and supporting mechanism beneficial to mounting of a power transmission iron tower, and aims to solve the problems in the background art.
In order to achieve the purpose, the invention provides the following technical scheme: a solar panel mounting and supporting mechanism beneficial to mounting of a power transmission tower comprises a base and a solar panel, wherein the top of the base is fixedly provided with the solar panel, one side of the top of the base is fixedly provided with a supporting plate, one side of the supporting plate is provided with a groove, the inner wall of the groove is fixedly provided with a main pipe, one side of the main pipe is fixedly provided with a spray head, the other side of the main pipe is fixedly provided with a first water pipe, one end of the first water pipe penetrates through the top of the base and extends into the base, one end of the first water pipe is fixedly provided with a water pump, one side of the water pump is fixedly provided with a second water pipe, one end of the second water pipe penetrates through one side of a water tank and extends into the water tank, a filter screen is fixedly arranged in the water tank, the filter screen is arc-shaped, and the top of the filter screen is movably provided with a brush, a pressing rod is movably arranged at the top of the brush;
the inner side of the brush is provided with a clamping groove, the inner wall of the clamping groove is clamped with a clamping block, the clamping block is triangular, a fixed block is fixedly arranged on one side of the fixture block, a traction rope is fixedly arranged on one side of the fixed block, one end of the hauling rope is provided with a receiving and releasing roller, the inner wall of the receiving and releasing roller is fixedly provided with a rotating rod, one end of the pressing rod penetrates through the bottom of the sleeve and extends into the sleeve, a transmission rod is fixedly arranged at the top of the sleeve, a movable rod is fixedly arranged on the inner wall of one end of the transmission rod, a gear is fixedly arranged on the surface of the movable rod, the top of the gear is movably provided with a rack, the connection relationship between the rack and the gear is meshed connection, the top of the rack is fixedly provided with a movable block, the inner side of the movable block is provided with a threaded hole, and the inner wall of the threaded hole is in threaded connection with a screw rod, and one end of the screw rod is fixedly connected with an output shaft of the motor.
Further, a water inlet has been seted up to one side at base top, the inside fixed water collecting bucket that is provided with of water inlet, the water collecting bucket is big end down and leaks hopper-shaped.
Further, the fixed surface of dwang is provided with main conical gear, one side meshing of main conical gear is connected with from conical gear, from one side fixed the being provided with rocking handle pole of conical gear, the fixed rotation handle that is provided with in one end of rocking handle pole.
Furthermore, a second spring is fixedly arranged at one end of the pressing rod and is located inside the sleeve.
Furthermore, the slag discharging port is formed in the inner side of the water tank, slag discharging pipes are fixedly arranged on two sides of the water tank, and the slag discharging pipes are communicated with the slag discharging port.
Furthermore, a sliding hole is formed in the inner side of the movable block, and a sliding rod is connected to the inner wall of the sliding hole in a sliding mode.
Furthermore, the two sides of the water tank are fixedly provided with a placing table, and a collecting box is movably arranged in the placing table.
Furthermore, the two sides of the bottom of the collecting box are provided with idler wheels, and the idler wheels are located in sliding grooves in the placing table.
Furthermore, the front side of the base is movably provided with an access door, and the access door is connected with the base through a hinge.
Further, the top of fixed block is fixed and is provided with the sliding sleeve, the inner wall sliding connection of sliding sleeve has the slide bar, first spring has been cup jointed on the surface of slide bar.
Compared with the prior art, the invention provides a solar panel mounting and supporting mechanism beneficial to mounting of a power transmission iron tower, which has the following beneficial effects:
1. this do benefit to solar panel installation supporting mechanism of steel pylons installation, through setting up the shower nozzle, be responsible for, first water pipe, water pump, second water pipe and water tank, in the water pump was with the water suction in the water tank to second water pipe, first water pipe and main, then the water in the main was through a plurality of shower nozzles blowout, washed solar panel, got off the accumulational dust clearance on the solar panel, avoided the dust to pile up the influence generating efficiency.
2. This solar panel installation supporting mechanism who does benefit to steel pylons installation through setting up the filter screen, can filter the water after the washing, separates the impurity of aquatic, improves quality of water, and the water after the filtration can continue to be used for washing the operation, and the water resource can cyclic utilization, and the water economy resource does benefit to the environmental protection.
3. This do benefit to solar panel installation supporting mechanism of steel pylons installation, through setting up the brush, the transfer line, the gear, the rack, movable block and lead screw, pivoted lead screw does benefit to and drives the rack on the movable block with the threaded connection of movable block and carries out horizontal migration, the rack under the moving state does benefit to and is connected the swing that drives the brush and carry out relapseing with the meshing of gear, the brush under the swing state can be cleared up the filter screen, with the dust clearance on the filter screen to the collection incasement, keep the good filter effect of filter screen.
4. This do benefit to solar panel installation supporting mechanism of steel pylons installation through setting up the draw-in groove on fixture block and the brush, can utilize the joint of brush and fixture block to realize the brush and compress tightly quick installation and dismantlement between the pole, and the time that the brush dismouting consumeed is shorter, and the efficiency of dismouting is higher, and convenient to use person changes the brush.
5. This solar panel installation supporting mechanism who does benefit to steel pylons installation through setting up the haulage rope, receive and release roller and dwang, when receiving and releasing the roller and being in the receipts rope state, the haulage rope can stimulate the fixture block and carry out horizontal migration, in the fixture block can break away from the draw-in groove on the brush gradually, breaks away from the back completely, can dismantle the brush get off.
6. This do benefit to solar panel installation supporting mechanism of steel pylons installation, through setting up first spring, receive and release the roller and be in when putting the rope state, the elasticity of second spring can promote the fixture block and carry out horizontal migration, and the fixture block can enter into the draw-in groove on the brush gradually, gets into the back completely, can install the brush on compressing tightly the pole.
7. This do benefit to solar panel installation supporting mechanism of steel pylons installation, through setting up the second spring, the elasticity of second spring can promote the brush and hug closely with the filter screen and be in the same place tightly, and the brush can be more powerful clears up the filter screen when clearing up the operation to further improve the effect of clearance.
Drawings
FIG. 1 is a schematic structural view of the present invention;
FIG. 2 is a structural elevation view of the present invention;
FIG. 3 is a schematic structural view of the main tube of the present invention;
FIG. 4 is a schematic view of the structure of the water tank of the present invention;

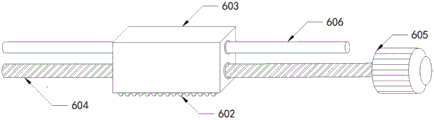

FIG. 5 is a schematic view of a lead screw structure according to the present invention;
FIG. 6 is a schematic view of the motor structure of the present invention;
FIG. 7 is a schematic view of the transmission rod structure of the present invention;
FIG. 8 is a schematic view of a second spring structure according to the present invention;
fig. 9 is a schematic diagram of a cartridge structure according to the present invention.
In the figure: 1. a base; 101. a solar panel; 102. a water inlet; 103. a water collecting hopper; 2. a support plate; 201. a main pipe; 202. a spray head; 203. a first water pipe; 204. a water pump; 205. a second water pipe; 3. a water tank; 301. a filter screen; 302. a slag discharge port; 303. a slag discharge pipe; 4. a brush; 401. a clamping block; 402. a fixed block; 403. a hauling rope; 404. a take-up and pay-off roller; 405. rotating the rod; 406. a main bevel gear; 407. from the bevel gear; 408. a rocking handle rod; 409. rotating the handle; 410. a sliding sleeve; 411. a slide bar; 412. a first spring; 5. a hold down bar; 501. a sleeve; 502. a second spring; 503. a transmission rod; 6. a movable rod; 601. a gear; 602. a rack; 603. a movable block; 604. a screw rod; 605. a motor; 606. a slide bar; 7. a placing table; 701. a collection box; 702. a roller; 8. an access door.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.
Referring to fig. 1-9, the invention discloses a solar panel mounting and supporting mechanism beneficial to mounting of a power transmission tower, which comprises a base 1 and a solar panel 101, wherein the solar panel 101 is fixedly arranged at the top of the base 1, a supporting plate 2 is fixedly arranged at one side including the top of the base 1, a groove is formed in one side of the supporting plate 2, a main pipe 201 is fixedly arranged on the inner wall of the groove, a spray head 202 is fixedly arranged at one side of the main pipe 201, a first water pipe 203 is fixedly arranged at the other side of the main pipe 201, one end of the first water pipe 203 penetrates through the top of the base 1 and extends into the base 1, a water pump 204 is fixedly arranged at one end of the first water pipe 203, a second water pipe 205 is fixedly arranged at one side of the water pump 204, one end of the second water pipe 205 penetrates through one side of a water tank 3 and extends into the water tank 3, a filter screen 301 is fixedly arranged in the water tank 3, the filter screen 301 is arc-shaped, a brush 4 is movably arranged at the top of the filter screen 301, and a pressing rod 5 is movably arranged at the top of the brush 4;
the inner side of the brush 4 is provided with a clamping groove, the inner wall of the clamping groove is clamped with a clamping block 401, the clamping block 401 is triangular, one side of the clamping block 401 is fixedly provided with a fixed block 402, one side of the fixed block 402 is fixedly provided with a traction rope 403, one end of the traction rope 403 is provided with a retraction roller 404, the inner wall of the retraction roller 404 is fixedly provided with a rotating rod 405, one end of a pressing rod 5 penetrates through the bottom of the sleeve 501 and extends into the sleeve 501, the top of the sleeve 501 is fixedly provided with a transmission rod 503, the inner wall of one end of the transmission rod 503 is fixedly provided with a movable rod 6, the surface of the movable rod 6 is fixedly provided with a gear 601, the top of the gear 601 is movably provided with a rack 602, the connection relationship between the rack 602 and the gear 601 is in a meshing connection, the top of the rack 602 is fixedly provided with a movable block 603, and the inner side of the movable block 603 is provided with a threaded hole, and the inner wall of the threaded hole is in threaded connection with a screw rod 604, one end of the screw rod 604 is fixedly connected with an output shaft of a motor 605, and the model of the motor 605 is Y90L-2.
Specifically, a water inlet 102 is formed in one side of the top of the base 1, a water collecting hopper 103 is fixedly arranged inside the water inlet 102, and the water collecting hopper 103 is in a funnel shape with a wide upper part and a small lower part.
In this embodiment, by providing the water inlet 102 and the water collecting bucket 103, the water collecting bucket 103 can collect the washed water, or collect the rainwater, and the collected rainwater is collected in the water tank 3.
Specifically, a main bevel gear 406 is fixedly arranged on the surface of the rotating rod 405, a slave bevel gear 407 is connected to one side of the main bevel gear 406 in a meshing manner, a rocking rod 408 is fixedly arranged on one side of the slave bevel gear 407, and a rotating handle 409 is fixedly arranged at one end of the rocking rod 408.
In this embodiment, through setting up main bevel gear 406, from bevel gear 407 and rotation handle 409, drive through rotating handle 409 and rotate from bevel gear 407, pivoted from bevel gear 407 do benefit to and are connected with the meshing of main bevel gear 406 and drive the receipts on the dwang 405 and put roller 404 and rotate, thereby realize receiving and putting the motion of roller 404, the user only needs to rotate handle 409 through the rotation and can realize the installation and the dismantlement of brush 4, the step of dismouting is simpler and easier, convenient to use person's use.
Specifically, one end of the compressing rod 5 is fixedly provided with a second spring 502, and the second spring 502 is located inside the sleeve 501.
In this embodiment, through setting up second spring 502, the elasticity of second spring 502 can promote brush 4 and filter screen 301 hug closely together, and brush 4 can be more powerful when clearing up the operation and clear up filter screen 301 to further improve the effect of clearance.
Specifically, slag discharging openings 302 are formed in the inner side of the water tank 3, slag discharging pipes 303 are fixedly arranged on the two sides of the water tank 3, and the slag discharging pipes 303 are communicated with the slag discharging openings 302.
In this embodiment, through setting up slag notch 302 and slag pipe 303, can provide discharge channel for the dust, the dust of coming down from the clearance on filter screen 301 will enter into slag notch 302 and slag pipe 303 in proper order, then discharge into in collecting box 701.
Specifically, a sliding hole is formed in the inner side of the movable block 603, and a sliding rod 606 is slidably connected to the inner wall of the sliding hole.
In this embodiment, by providing the movable block 603 and the sliding rod 606, the movable block 603 can horizontally slide along the sliding rod 606 during the horizontal movement, and the stability can be effectively enhanced.
Specifically, both sides of the water tank 3 are fixedly provided with a placing table 7, and a collecting box 701 is movably arranged in the placing table 7.
In this embodiment, by providing the collection box 701, the dust cleaned up can be collected, and after the collection is completed, the collection box 701 is pulled out from the placing table 7.
Specifically, the two sides of the bottom of the collecting box 701 are provided with rollers 702, and the rollers 702 are located in sliding grooves on the placing table 7.
In this embodiment, by providing the roller 702, the roller 702 can reduce the friction between the collection box 701 and the placement table 7, and the user can easily pull out the collection box 701 after collection is completed.
Specifically, the front of base 1 activity is provided with access door 8, access door 8 and base 1's relation of connection is hinge connection.
In this embodiment, through setting up access door 8, the user can open access door 8 on the base 1, carries out regular maintenance to inside part.
Specifically, the top of the fixed block 402 is fixedly provided with a sliding sleeve 410, the inner wall of the sliding sleeve 410 is slidably connected with a sliding rod 411, and the surface of the sliding rod 411 is sleeved with a first spring 412.
In this embodiment, through setting up first spring 412, when receiving and releasing roller 404 and being in the state of releasing the rope, the elasticity of second spring 502 can promote fixture block 401 and carry out horizontal migration, and fixture block 401 can enter into the draw-in groove on brush 4 gradually, gets into the back completely, can install brush 4 on compressing tightly pole 5.
When the solar water heater is used, the water pump 204 pumps water in the water tank 3 into the second water pipe 205, the first water pipe 203 and the main pipe 201, then the water in the main pipe 201 is sprayed out through the plurality of spray heads 202 to wash the solar panel 101, the washed water flows into the water tank 3, the filter screen 301 can filter the washed water to separate impurities in the water, when dust on the filter screen 301 is cleaned, the motor 605 drives the screw rod 604 to rotate, the rotating screw rod 604 is favorable for being connected with the thread of the movable block 603 to drive the rack 602 on the movable block 603 to horizontally move, the rack 602 in the moving state is favorable for being meshed with the gear 601 to drive the brush 4 to repeatedly swing, the brush 4 in the swinging state can clean the filter screen 301 to clean the dust on the filter screen 301 into the collection box 701, when the brush 4 is dismounted, the conical gear 407 is driven to rotate through the rotating handle 409, pivoted from conical gear 407 do benefit to and are connected the roller 404 of putting of receiving on the drive dwang 405 with main conical gear 406 and rotate, receive and put roller 404 when being in receipts rope state, haulage rope 403 can stimulate fixture block 401 and carry out horizontal migration, fixture block 401 can break away from the draw-in groove on the brush 4 gradually, break away from the back completely, can dismantle brush 4, receive and put roller 404 when being in and put the rope state, the elasticity of second spring 502 can promote fixture block 401 and carry out horizontal migration, fixture block 401 can enter into the draw-in groove on the brush 4 gradually, get into the back completely, can install brush 4 on compressing tightly pole 5.
In summary, this solar panel installation supporting mechanism that does benefit to steel pylons installation, through setting up brush 4, transfer line 503, gear 601, rack 602, movable block 603 and lead screw 604, pivoted lead screw 604 does benefit to and drives rack 602 on the movable block 603 and carry out horizontal migration with the threaded connection of movable block 603, rack 602 under the removal state does benefit to and is connected with the meshing of gear 601 and drives brush 4 and carry out the swing repeatedly, brush 4 under the swing state can clear up filter screen 301, with the dust on the filter screen 301 in collecting tank 701, keep the good filter effect of filter screen 301.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
Claims (10)
1. The utility model provides a do benefit to solar panel installation supporting mechanism of steel pylons installation, includes base (1) and solar panel (101), its characterized in that: the solar panel (101) is fixedly arranged at the top of the base (1), the support plate (2) is fixedly arranged on one side of the top of the base (1), a groove is formed in one side of the support plate (2), a main pipe (201) is fixedly arranged on the inner wall of the groove, a spray head (202) is fixedly arranged on one side of the main pipe (201), a first water pipe (203) is fixedly arranged on the other side of the main pipe (201), one end of the first water pipe (203) penetrates through the top of the base (1) and extends into the base (1), a water pump (204) is fixedly arranged at one end of the first water pipe (203), a second water pipe (205) is fixedly arranged on one side of the water pump (204), one end of the second water pipe (205) penetrates through one side of the water tank (3) and extends into the water tank (3), a filter screen (301) is fixedly arranged in the water tank (3), the filter screen (301) is arc-shaped, a brush (4) is movably arranged at the top of the filter screen (301), and a pressing rod (5) is movably arranged at the top of the brush (4);
the inner side of the brush (4) is provided with a clamping groove, a clamping block (401) is clamped on the inner wall of the clamping groove, the clamping block (401) is triangular, a fixed block (402) is fixedly arranged on one side of the clamping block (401), a traction rope (403) is fixedly arranged on one side of the fixed block (402), a take-up and pay-off roller (404) is arranged at one end of the traction rope (403), a rotating rod (405) is fixedly arranged on the inner wall of the take-up and pay-off roller (404), one end of a pressing rod (5) penetrates through the bottom of the sleeve (501) and extends into the sleeve (501), a transmission rod (503) is fixedly arranged at the top of the sleeve (501), a movable rod (6) is fixedly arranged on the inner wall of one end of the transmission rod (503), a gear (601) is fixedly arranged on the surface of the movable rod (6), and a rack (602) is movably arranged at the top of the gear (601), the connecting relationship between the rack (602) and the gear (601) is meshed, a movable block (603) is fixedly arranged at the top of the rack (602), a threaded hole is formed in the inner side of the movable block (603), a lead screw (604) is in threaded connection with the inner wall of the threaded hole, and one end of the lead screw (604) is fixedly connected with an output shaft of a motor (605).
2. The solar panel mounting and supporting mechanism beneficial to mounting of the power transmission tower according to claim 1, wherein: a water inlet (102) is formed in one side of the top of the base (1), a water collecting hopper (103) is fixedly arranged inside the water inlet (102), and the water collecting hopper (103) is funnel-shaped and wide at the top and small at the bottom.
3. The solar panel mounting and supporting mechanism beneficial to mounting of the power transmission tower according to claim 1, wherein: the fixed surface of dwang (405) is provided with main conical gear (406), one side meshing of main conical gear (406) is connected with from conical gear (407), from one side fixed rocking handle pole (408) that is provided with of conical gear (407), the fixed rotation handle (409) that is provided with in one end of rocking handle pole (408).
4. The solar panel mounting and supporting mechanism beneficial to mounting of the power transmission tower according to claim 1, wherein: one end of the pressing rod (5) is fixedly provided with a second spring (502), and the second spring (502) is located inside the sleeve (501).
5. The solar panel mounting and supporting mechanism beneficial to mounting of the power transmission tower according to claim 1, wherein: slag discharging openings (302) are formed in the inner side of the water tank (3), slag discharging pipes (303) are fixedly arranged on the two sides of the water tank (3), and the slag discharging pipes (303) are communicated with the slag discharging openings (302).
6. The solar panel mounting and supporting mechanism beneficial to mounting of the power transmission tower according to claim 1, wherein: the inner side of the movable block (603) is provided with a sliding hole, and the inner wall of the sliding hole is connected with a sliding rod (606) in a sliding manner.
7. The solar panel mounting and supporting mechanism beneficial to mounting of the power transmission tower according to claim 1, wherein: the water tank is characterized in that placing tables (7) are fixedly arranged on two sides of the water tank (3), and collecting boxes (701) are movably arranged in the placing tables (7).
8. The solar panel installation support mechanism for the power transmission tower as claimed in claim 7, wherein: the two sides of the bottom of the collecting box (701) are provided with idler wheels (702), and the idler wheels (702) are located in sliding grooves in the placing table (7).
9. The solar panel mounting and supporting mechanism facilitating power transmission tower mounting according to claim 1, wherein; the front face of the base (1) is movably provided with an access door (8), and the access door (8) is connected with the base (1) through a hinge.
10. The solar panel mounting and supporting mechanism facilitating power transmission tower mounting according to claim 1, wherein; the top of fixed block (402) is fixed and is provided with sliding sleeve (410), the inner wall sliding connection of sliding sleeve (410) has slide bar (411), the surface of slide bar (411) has cup jointed first spring (412).
Priority Applications (1)
| Application Number | Priority Date | Filing Date | Title |
|---|---|---|---|
| CN202111437987.XA CN114192470A (en) | 2021-11-30 | 2021-11-30 | Solar panel mounting and supporting mechanism beneficial to mounting of power transmission tower |
Applications Claiming Priority (1)
| Application Number | Priority Date | Filing Date | Title |
|---|---|---|---|
| CN202111437987.XA CN114192470A (en) | 2021-11-30 | 2021-11-30 | Solar panel mounting and supporting mechanism beneficial to mounting of power transmission tower |
Publications (1)
| Publication Number | Publication Date |
|---|---|
| CN114192470A true CN114192470A (en) | 2022-03-18 |
Family
ID=80649532
Family Applications (1)
| Application Number | Title | Priority Date | Filing Date |
|---|---|---|---|
| CN202111437987.XA Pending CN114192470A (en) | 2021-11-30 | 2021-11-30 | Solar panel mounting and supporting mechanism beneficial to mounting of power transmission tower |
Country Status (1)
| Country | Link |
|---|---|
| CN (1) | CN114192470A (en) |
Cited By (2)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| CN115518934A (en) * | 2022-10-10 | 2022-12-27 | 曲靖阳光新能源股份有限公司 | Cleaning machine of reducible trouble is with returning basket line roll-over table |
| CN116827254A (en) * | 2023-08-21 | 2023-09-29 | 国家电投集团沧州新能源发电有限公司 | Solar cell panel cleaning device |
Citations (6)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| US20190056149A1 (en) * | 2016-02-03 | 2019-02-21 | Intuitive Designs (Jersey) Ltd | Modular solar-energy and rainwater collection apparatus |
| CN208712307U (en) * | 2018-07-25 | 2019-04-09 | 云南索乐环境科技有限公司 | A kind of reflective photovoltaic unit clean system |
| CN109851076A (en) * | 2018-12-28 | 2019-06-07 | 安徽世绿环保科技有限公司 | A kind of sewage treatment effective filter |
| CN211217638U (en) * | 2019-11-22 | 2020-08-11 | 张晓梅 | Waste cleaning mechanism for numerical control milling machine |
| CN213243912U (en) * | 2020-06-15 | 2021-05-18 | 云南省能源研究院有限公司 | Cleaning device for solar photovoltaic panel |
| CN213973058U (en) * | 2020-11-09 | 2021-08-17 | 江苏轩扬印务包装有限公司 | Environment-friendly printing roller convenient to clean |
-
2021
- 2021-11-30 CN CN202111437987.XA patent/CN114192470A/en active Pending
Patent Citations (6)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| US20190056149A1 (en) * | 2016-02-03 | 2019-02-21 | Intuitive Designs (Jersey) Ltd | Modular solar-energy and rainwater collection apparatus |
| CN208712307U (en) * | 2018-07-25 | 2019-04-09 | 云南索乐环境科技有限公司 | A kind of reflective photovoltaic unit clean system |
| CN109851076A (en) * | 2018-12-28 | 2019-06-07 | 安徽世绿环保科技有限公司 | A kind of sewage treatment effective filter |
| CN211217638U (en) * | 2019-11-22 | 2020-08-11 | 张晓梅 | Waste cleaning mechanism for numerical control milling machine |
| CN213243912U (en) * | 2020-06-15 | 2021-05-18 | 云南省能源研究院有限公司 | Cleaning device for solar photovoltaic panel |
| CN213973058U (en) * | 2020-11-09 | 2021-08-17 | 江苏轩扬印务包装有限公司 | Environment-friendly printing roller convenient to clean |
Cited By (3)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| CN115518934A (en) * | 2022-10-10 | 2022-12-27 | 曲靖阳光新能源股份有限公司 | Cleaning machine of reducible trouble is with returning basket line roll-over table |
| CN116827254A (en) * | 2023-08-21 | 2023-09-29 | 国家电投集团沧州新能源发电有限公司 | Solar cell panel cleaning device |
| CN116827254B (en) * | 2023-08-21 | 2024-04-05 | 国家电投集团沧州新能源发电有限公司 | Solar cell panel cleaning device |
Similar Documents
| Publication | Publication Date | Title |
|---|---|---|
| CN206296221U (en) | A kind of deduster for solar energy photovoltaic panel | |
| CN114192470A (en) | Solar panel mounting and supporting mechanism beneficial to mounting of power transmission tower | |
| CN210536586U (en) | Solar cell panel with self-cleaning device | |
| CN211630119U (en) | Can prevent wind husky solar photovoltaic fixed bolster | |
| CN110142238A (en) | A kind of cleaner of photovoltaic battery panel | |
| CN215072297U (en) | Automatic cleaning equipment for solar panel | |
| CN110935661A (en) | Dust collector is used in processing of solar PV modules | |
| CN213693607U (en) | Photovoltaic module panel convenient to it is clean | |
| CN210899079U (en) | Photovoltaic inversion power generation component cooling equipment | |
| CN217963986U (en) | Solar photovoltaic panel surface cleaning device | |
| CN218079222U (en) | Semi-automatic cleaning device for solar photovoltaic panel | |
| CN214101291U (en) | A clean mechanism of solar energy integrated plate for photovoltaic power generation | |
| CN212367216U (en) | Solar panel convenient to clearance | |
| CN212381155U (en) | Photovoltaic support that mountain region was used | |
| CN210474733U (en) | Solar photovoltaic power generation and electric precipitation device | |
| CN208849731U (en) | A kind of solar panel system for washing intelligently | |
| CN113289942A (en) | Photovoltaic power generation equipment with clean function | |
| CN112448672A (en) | Solar cell panel with self-cleaning device | |
| CN219477927U (en) | Photovoltaic power generation cleaning device | |
| CN210405207U (en) | Water-saving photovoltaic board dust removal belt cleaning device | |
| CN220693090U (en) | Cleaning device for solar photovoltaic power generation panel | |
| CN220203121U (en) | Assembled photovoltaic curtain wall | |
| CN219322351U (en) | Maintenance-free high-power-generation photovoltaic panel | |
| CN219514028U (en) | Automatic cleaning device for solar cover plate glass | |
| CN215773031U (en) | Solar photovoltaic power generation assembly |
Legal Events
| Date | Code | Title | Description |
|---|---|---|---|
| PB01 | Publication | ||
| PB01 | Publication | ||
| SE01 | Entry into force of request for substantive examination | ||
| SE01 | Entry into force of request for substantive examination |
