Abstract
The utility model discloses a solar photovoltaic panel surface cleaning device, which relates to the field of solar photovoltaic panels and comprises a solar photovoltaic panel and a stress mounting panel, wherein the left end of the top of the solar photovoltaic panel is provided with an adjusting and cleaning mechanism; the right-hand member at solar photovoltaic board top is provided with air-dries dust collector, and the top swing joint of hose and water source delivery pump is drawn through the top of suction pump, filter the front of delivery board and seted up a plurality of clean mouths, the cleaner storage box is through the cleaner extraction pump at top and the top swing joint who filters the delivery board, two dust absorption live-rollers are installed to the equal screw thread in two sides around the spacing dust absorption board. A solar photovoltaic board surface cleaning device, through water inlet, suction pump, the filtration delivery board that sets up, water source delivery pump, clean mouth, sanitizer spraying mouth, dust absorption live-rollers, reach the effect of air-drying and removing dust to solar photovoltaic board surface cleaning.
Description
Technical Field
The utility model relates to a solar photovoltaic board technical field, in particular to solar photovoltaic board surface cleaning device.
Background
Solar power generation is widely popularized all over the country, but the surface of a solar photovoltaic panel can reduce the energy conversion efficiency of the photovoltaic panel under the condition of dust and accumulated water, so that the surface of the photovoltaic panel needs to be cleaned frequently. The existing device for cleaning the surface of the photovoltaic panel of the large-scale solar power station has the problems of high automation degree, large size and high price, and is not suitable for the photovoltaic panel for common household solar power generation.
A solar photovoltaic panel surface cleaning device is proposed in patent publication No. CN209631675U, in which a cleaning shaft, a brush cylinder, a cleaning bristle cluster, a water absorbing mechanism, a water absorbing roller, a water supply pipe, an arc-shaped water receiving tank, and a slot are included, but there are two problems:
1. whole cleaning device is supported by both hands entirely in clear time, wastes time and energy, and the use of being not convenient for is simultaneously when clean to the photovoltaic board, and the water source utilization is great, is not convenient for practice thrift the water source, extravagant manpower and materials in the time of the extravagant water resource.
2. Can not wash the automatic extraction cleaner extraction water source of solar photovoltaic board, use the manpower to make a round trip clean on the solar photovoltaic board surface, fail in time dry water stain after the cleanness, air-dry dust removal that can not be timely makes the clean dynamics of solar photovoltaic board not enough.
In order to solve the above problems, a solar photovoltaic panel surface cleaning device needs to be designed so as to overcome the above problems.
SUMMERY OF THE UTILITY MODEL
A primary object of the utility model is to provide a solar photovoltaic panel surface cleaning device can effectively solve the problem in the background art.
In order to achieve the above purpose, the utility model adopts the following technical scheme:
the utility model provides a solar photovoltaic panel surface cleaning device, includes solar photovoltaic board, atress mounting panel, its characterized in that: the right end of the bottom of the solar photovoltaic panel is provided with a stressed mounting plate through support column threads, and the left end of the top of the solar photovoltaic panel is provided with an adjusting and cleaning mechanism; an air-drying and dust-removing device is arranged at the right end of the top of the solar photovoltaic panel;
the adjusting and cleaning mechanism comprises a water storage tank arranged at the left end of the bottom of the solar photovoltaic panel, a water inlet is formed in the left side face of the water storage tank, a water pump is fixedly installed on the front face of the water storage tank, a speed adjusting valve is connected to the right side face of the water pump in a transmission mode, a water pump is fixedly installed at the top of the water pump, the top of the water pump is movably connected with the top of a water source conveying pump through a water pumping hose, sliding grooves are formed in the front end and the rear end of the top of the solar photovoltaic panel, cleaning agent storage tanks are slidably installed inside the two sliding grooves, the cleaning agent storage tanks are movably connected with the top of the filtering conveying plate through cleaning agent extraction pumps at the top, and a plurality of cleaning ports are formed in the front face of the filtering conveying plate;
air-dry dust collector is including setting up the guide rail on two sides around the solar photovoltaic board, the positive slidable mounting of guide rail has the slide, two even the equal slidable mounting of fluorescent tube has spacing dust absorption board, two about the slide is positive the equal threaded mounting in two sides has the dust absorption live-rollers around the spacing dust absorption board, and the middle part fixed mounting at atress mounting panel top has the battery board.
Preferably, the top movable mounting of suction pump has the hose that draws water, the hose that draws water keeps away from the other end of suction pump and the top swing joint of water source delivery pump, the equal slidable mounting in the left and right sides face of cleaner storage box has the filtration delivery board, the back fixed mounting who filters the delivery board has the buffer pump, and its buffer pump passes through the hose that draws water and water source delivery pump swing joint, and through the hose that draws water and suction pump swing joint.
Preferably, the middle part fixed mounting who filters the delivery board front and back two sides has the delivery board, the top fixed mounting of delivery board has three water source delivery pump, the delivery board passes through water source delivery pump and the hose swing joint that draws water, a plurality of clean mouths have been seted up to the bottom of delivery board, and its clean mouth passes through water source delivery pump and the suction pump swing joint of the hose bottom that draws water.
Preferably, the cleaning plate has been cup jointed to the bottom of filtering conveying plate, a plurality of sanitizer spraying mouths have been seted up to the bottom of cleaning plate, conveying hose has been cup jointed at the top of conveying plate, conveying hose keeps away from the top swing joint of the other end of two filtering conveying plates and cleaner extraction pump, cleaner extraction pump fixed mounting is at the top of cleaner storage box, and its a plurality of sanitizer spraying mouths lead to the cleaner storage box swing joint of conveying hose and cleaner extraction pump bottom.
Preferably, the front and back surfaces of the limiting dust suction plate are fixedly provided with dust collection boxes, the dust collection boxes are movably connected with the dust collection slats through dust collection rotating rollers, the outer wall of each dust collection rotating roller is provided with a dust collection slat, and the limiting dust suction plate is connected with the guide rail in a sliding manner through the limiting dust suction plate and a sliding plate in a sliding manner.
Preferably, guide rail and slide sliding connection and spout, cleaner storage box sliding connection do not disturb each other, and spacing dust absorption board is gliding movement from top to bottom with the slide, and the spout is the horizontal slip with the cleaner storage box, the cleaner storage box passes through the spout and slides at the top of solar photovoltaic board with the movable groove, the movable groove has been seted up at both ends about the solar photovoltaic board top.
Advantageous effects
Compared with the prior art, the utility model discloses following beneficial effect has:
1. this solar photovoltaic panel surface cleaning device, water inlet through setting up, the speed governing valve, clean mouthful, sanitizer spraying mouth, aim at collects the inside at the storage water tank with the rainwater through the water inlet, the reutilization of being convenient for saves the water resource, the spout slides with the sanitizer storage box, make the suction pump at water pumper top clean solar photovoltaic panel's top with a plurality of clean mouths in two sides around the water source extraction filters the delivery board greatly, the top of sanitizer storage box through a plurality of sanitizer spraying mouths with the cleaner through the sanitizer extraction pump to solar photovoltaic panel, a plurality of clean mouths wash and erode it.
2. This solar photovoltaic board surface cleaning device, through spacing dust absorption board, dust absorption live-rollers, the dust absorption slat that sets up, aim at air-dries the effect of dust removal to the solar photovoltaic board after wasing, is convenient for save clean time, convenient to use to the protection messenger of solar photovoltaic board.
Drawings

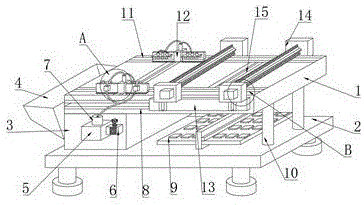

Fig. 1 is a schematic view of the overall structure of the present invention;
FIG. 2 is a schematic view of the structure A of the present invention;
FIG. 3 is a schematic view of the structure of the cleaning opening of the present invention;
fig. 4 is a schematic structural diagram B of the present invention.
In the figure: 1. a solar photovoltaic panel; 2. a stressed mounting plate; 3. a water storage tank; 4. a water inlet; 5. a water pump; 6. a speed regulating valve; 7. a water pump; 8. a guide rail; 9. a battery plate; 10. a support pillar; 11. A chute; 12. a cleaning agent storage box; 13. a slide plate; 14. a limiting dust absorption plate; 15. a movable groove; 16. A water pumping hose; 17. a buffer pump; 18. a filtration conveyance board; 19. a cleaning agent extraction pump; 20. a delivery hose; 21. a water source delivery pump; 22. a conveying plate; 23. cleaning the mouth; 24. cleaning the plate; 25. a cleaning agent spraying port; 26. a dust collection box; 27. a dust-collecting rotating roller; 28. a dust-absorbing slat.
Detailed Description
In order to make the utility model realize, the technical means, the creation characteristics, the achievement purpose and the efficacy are easy to understand and understand, the utility model is further explained by combining the specific implementation mode.
As shown in fig. 1-4, a solar photovoltaic panel surface cleaning device comprises a solar photovoltaic panel 1 and a stressed mounting plate 2, wherein the stressed mounting plate 2 is installed at the right end of the bottom of the solar photovoltaic panel 1 through a support column 10 in a threaded manner, and an adjusting cleaning mechanism is arranged at the left end of the top of the solar photovoltaic panel 1; an air-drying and dust-removing device is arranged at the right end of the top of the solar photovoltaic panel 1;
the adjusting and cleaning mechanism comprises a water storage tank 3 arranged at the left end of the bottom of the solar photovoltaic panel 1, a water inlet 4 is formed in the left side face of the water storage tank 3, a water pump 5 is fixedly installed on the front face of the water storage tank 3, a speed regulating valve 6 is connected to the right side face of the water pump 5 in a transmission mode, a water pump 7 is fixedly installed at the top of the water pump 5, the top of the water pump 7 is movably connected with the top of a water source conveying pump 21 through a water pumping hose 16, sliding grooves 11 are formed in the front end and the rear end of the top of the solar photovoltaic panel 1, cleaning agent storage tanks 12 are slidably installed inside the two sliding grooves 11, the cleaning agent storage tanks 12 are movably connected with the top of a filtering conveying plate 18 through cleaning agent extraction pumps 19 at the tops, and a plurality of cleaning ports 23 are formed in the front face of the filtering conveying plate 18;
air-dry dust collector including setting up the guide rail 8 at solar photovoltaic board 1 front and back two sides, the positive slidable mounting of guide rail 8 has slide 13, two slides 13 openly about even the equal slidable mounting of fluorescent tube have spacing dust absorption board 14, the equal threaded mounting in two sides has dust absorption live-rollers 27 around two spacing dust absorption boards 14, the middle part fixed mounting at atress mounting panel 2 top has battery board 9.
A water pumping hose 16 is movably mounted at the top of the water pump 7, the other end of the water pumping hose 16, which is far away from the water pump 7, is movably connected with the top of a water source delivery pump 21, filtering delivery plates 18 are slidably mounted on the left side and the right side of the cleaning agent storage box 12, a buffer pump 17 is fixedly mounted behind the filtering delivery plates 18, the buffer pump 17 is movably connected with the water source delivery pump 21 through the water pumping hose 16 and is movably connected with the water pump 7 through the water pumping hose 16, delivery plates 22 are fixedly mounted in the middle parts of the front and back sides of the filtering delivery plates 18, three water source delivery pumps 21 are fixedly mounted at the top of the delivery plates 22, the delivery plates 22 are movably connected with the water pumping hose 16 through the water pumping hose 16, a plurality of cleaning ports 23 are formed in the bottom of the delivery plates 22, the cleaning ports 23 are movably connected with the water pump 7 at the bottom of the water pumping hose 16 through the water source delivery pumps 21, cleaning plates 24 are sleeved at the bottom of the filtering delivery plates 18, a plurality of cleaning agent spraying ports 25 are formed in the bottom of the cleaning agent spraying plates 24, the delivery plates 20 are arranged at the top of the delivery plates 22, the other end of the hose 20, the hose 20 is movably connected with the top of the pumping delivery pumps 19, and is movably connected with the cleaning agent storage box 19.
It is required to explain, the utility model relates to a solar photovoltaic panel surface cleaning device, during the use, the water inlet 4 of 3 left surfaces of storage water tank collects the rainwater and carries out the reutilization, the water economy resource, storage water tank 3 utilizes the suction pump 7 with the water source through water pumper 5 to carry water source delivery pump 21 internal transmission to the work that carries out the washing to a plurality of cleaning mouth 23 of delivery board 22 bottom, cleaner storage box 12 is through sliding 11 insidely at spout, make the inside cleaner of cleaner storage box 12 utilize delivery hose 20 to extract the cleaner to 24 bottom cleaning agent spraying mouths 25 of cleaning board and clean the surface of solar photovoltaic panel 1 through the cleaner extraction pump 19 at the top, be convenient for automatic use, solar photovoltaic panel 1 after the washing slides through guide rail 8 and slide 13, make slide about the positive spacing dust absorption board 14 of slide and make the dust absorption live-roll 27 of spacing dust absorption board 14 medial surface utilize dust absorption slat 28 to carry out the air-dried effect of removing dust of dust absorption slat 28 to solar photovoltaic panel 1's 1 surface, cleaner storage box 12 can not disturb each other with spacing dust absorption board 14, make comprehensive solar photovoltaic panel 1 carry out the effect of air-drying to the surface of solar photovoltaic panel 1.
Claims (6)
1. The utility model provides a solar photovoltaic board surface cleaning device, includes solar photovoltaic board (1), atress mounting panel (2), its characterized in that: the right end of the bottom of the solar photovoltaic panel (1) is provided with a stressed mounting panel (2) through a support column (10) in a threaded manner, and the left end of the top of the solar photovoltaic panel (1) is provided with an adjusting and cleaning mechanism; an air-drying dust removal device is arranged at the right end of the top of the solar photovoltaic panel (1);
the adjusting and cleaning mechanism comprises a water storage tank (3) arranged at the left end of the bottom of the solar photovoltaic panel (1), a water inlet (4) is formed in the left side face of the water storage tank (3), a water pump (5) is fixedly installed in the front face of the water storage tank (3), a speed regulating valve (6) is connected to the right side face of the water pump (5) in a transmission mode, a water suction pump (7) is fixedly installed at the top of the water pump (5), the top of the water suction pump (7) is movably connected with the top of a water source conveying pump (21) through a water suction hose (16), sliding grooves (11) are formed in the front end and the rear end of the top of the solar photovoltaic panel (1), cleaning agent storage tanks (12) are slidably installed inside the two sliding grooves (11), the cleaning agent storage tanks (12) are movably connected with the top of a filtering and conveying panel (18) through cleaning agent extraction pumps (19) at the top, and a plurality of cleaning ports (23) are formed in the front face of the filtering and conveying panel (18);
air-dry dust collector is including setting up guide rail (8) on two sides around solar photovoltaic board (1), the positive slidable mounting of guide rail (8) has slide (13), two slide (13) are positive about even the equal slidable mounting of fluorescent tube has spacing dust absorption board (14), two dust absorption live-rollers (27) are installed to the equal screw thread in two sides around spacing dust absorption board (14), and the middle part fixed mounting at atress mounting panel (2) top has battery board (9).
2. The solar photovoltaic panel surface cleaning device of claim 1, wherein: the top movable mounting of suction pump (7) has suction hose (16), the other end of suction pump (7) and the top swing joint of water source delivery pump (21) are kept away from in suction hose (16), the equal slidable mounting of the left and right sides face of cleaner storage box (12) has filtration delivery board (18), the back fixed mounting who filters delivery board (18) has buffer pump (17), and its buffer pump (17) are through suction hose (16) and water source delivery pump (21) swing joint, and through suction hose (16) and suction pump (7) swing joint.
3. The solar photovoltaic panel surface cleaning device of claim 2, wherein: filter the middle part fixed mounting on both sides around delivery board (18) and have delivery board (22), the top fixed mounting of delivery board (22) has three water source delivery pump (21), delivery board (22) are through water source delivery pump (21) and water pumping hose (16) swing joint, a plurality of clean mouths (23) have been seted up to the bottom of delivery board (22), and water pumping pump (7) swing joint bottom water source delivery pump (21) and water pumping hose (16) are passed through in its clean mouth (23).
4. The solar photovoltaic panel surface cleaning device according to claim 3, wherein: the bottom of filtration delivery board (18) has cup jointed wash plate (24), a plurality of sanitizer spraying mouth (25) have been seted up to the bottom of wash plate (24), delivery hose (20) have been cup jointed at the top of delivery board (22), delivery hose (20) are kept away from the other end of two filtration delivery boards (18) and the top swing joint of cleaner extraction pump (19), cleaner extraction pump (19) fixed mounting is at the top of cleaner storage box (12), and its a plurality of sanitizer spraying mouth (25) lead to delivery hose (20) and cleaner storage box (12) swing joint of cleaner extraction pump (19) bottom.
5. The solar photovoltaic panel surface cleaning device of claim 1, wherein: the dust collection box is characterized in that a dust collection box (26) is fixedly mounted on the front face and the rear face of the limiting dust collection plate (14), the dust collection box (26) is movably connected with a dust collection batten (28) through a dust collection rotating roller (27), the outer wall of the dust collection rotating roller (27) is provided with a dust collection batten (28), and the limiting dust collection plate (14) is connected with the sliding plate (13) through the limiting dust collection plate (14) in a sliding mode and is connected with the guide rail (8) in a sliding mode.
6. The solar photovoltaic panel surface cleaning device of claim 5, wherein: guide rail (8) and slide (13) sliding connection and spout (11), cleaner storage box (12) sliding connection do not disturb each other, and slide down sliding motion is gone up with slide (13) in spacing dust absorption board (14), and spout (11) are the horizontal slip with cleaner storage box (12), cleaner storage box (12) are slided at the top of solar photovoltaic board (1) through spout (11) and activity groove (15), activity groove (15) have been seted up at both ends about solar photovoltaic board (1) top.
