The utility model belongs to photovoltaic module panel field specifically is a photovoltaic module panel convenient to it is clean, including the photovoltaic module panel, the below of photovoltaic module panel is equipped with the base, the base is connected with the photovoltaic module transmission through the telescopic link, fixed mounting has the connecting rod between the telescopic link, the both sides of photovoltaic module panel are cup jointed in the both ends activity of connecting rod respectively, fixed mounting has the cask on the base, one side fixed mounting of cask has the water pump, the both sides fixedly connected with shifting chute of photovoltaic module panel, the top of photovoltaic module panel is equipped with cleaning equipment. The motor drives the lead screw to rotate, drives the brush to move on the lead screw, and the water pump takes water out, discharges through the nozzle and washes the photovoltaic module panel, cooperates the scraper blade of movable plate front end simultaneously, further clears up the dirt on the photovoltaic module panel. The water inlet hopper can contain rainwater, and the photovoltaic module panel at the bottom of the rainwater is used for cleaning, so that water resources are saved.

Description

Photovoltaic module panel convenient to it is clean
Technical Field
The utility model relates to a photovoltaic module panel field especially relates to a photovoltaic module panel convenient to it is clean.
Background
The photovoltaic module, namely the solar cell module, is composed of a high-efficiency crystalline silicon solar cell, ultra-white cloth grain toughened glass, EVA (ethylene vinyl acetate), a transparent TPT (thermoplastic vulcanizate) back plate and an aluminum alloy frame. Has the characteristics of long service life, strong mechanical pressure resistance and external force, and the like.
The photovoltaic module panel is in the use, and generally direct setting is outdoor, and it is serious to lead to the laying dust problem of photovoltaic module panel, has greatly influenced the absorption and the conversion efficiency of photovoltaic module panel to the sunlight, and the cleaning process of photovoltaic module panel not only work inconveniently, and intensity of labour is big, and the cleaning performance is poor, and the water consumption is big, and is with high costs, can't realize regular washing.
In order to solve the problem, the photovoltaic module panel convenient to clean is provided in the application.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a photovoltaic module panel convenient to it is clean to solve the problem that proposes in the above-mentioned background art.
In order to achieve the above object, the utility model provides a following technical scheme: the utility model provides a photovoltaic module panel convenient to it is clean, including the photovoltaic module panel, the below of photovoltaic module panel is equipped with the base, the base is connected with the transmission of photovoltaic module panel through the telescopic link, fixed mounting has the connecting rod between the telescopic link, the both sides of photovoltaic module panel cup joint in the both ends activity of connecting rod respectively, fixed mounting has the water tank on the base, one side fixed mounting of water tank has the water pump, the both sides fixedly connected with shifting chute of photovoltaic module panel, the top of photovoltaic module panel is equipped with cleaning equipment.
Preferably, the cleaning device is including outlet pipe, removal case and brush, it is connected with the lead screw to rotate on the inner wall of removal case both sides, the stopper has been cup jointed in the intermediate position activity of lead screw, the top of stopper and the inner wall fixed connection of removal case upper end, the upper end of brush and the outer wall threaded connection of lead screw, one side fixed mounting of removal case has the lead screw motor, the top fixed mounting of removal case has the outlet pipe, fixedly connected with nozzle on the outlet pipe, be connected through rotating equipment transmission between the lower extreme of removal case and the shifting chute, the front end fixed mounting of removal case has the scraper blade.
Preferably, the rotating equipment comprises a motor and a gear, a sliding groove is formed in the moving groove, a rotating shaft is fixedly mounted at the bottom end of the moving box, one end of the rotating shaft is fixedly connected with the gear, the other end of the rotating shaft is fixedly connected with the motor, and the gear is located inside the sliding groove and meshed with the sliding groove.
Preferably, the number of the brushes is two, and the brushes are located on two sides of the limiting block.
Preferably, the outer wall of the water tank is fixedly connected with a water inlet hopper, and a filter screen is arranged at the joint of the water inlet hopper and the water tank.
Preferably, the bottom end of the water tank is communicated with one end of a connecting pipe, and the other end of the connecting pipe penetrates through the water pump to be communicated with the water outlet pipe.
Compared with the prior art, the beneficial effects of the utility model are that:
1. the utility model discloses, through the cooperation of lead screw motor, lead screw and brush, make the brush remove about on the lead screw, take out outlet pipe department through the water pump with the water in the water tank, discharge through the nozzle and wash the photovoltaic module panel, cooperate the scraper blade of movable plate front end simultaneously, further clear up the dirt on the photovoltaic module panel.
2. The utility model discloses, the fill of intaking can connect the rainwater greatly, enters into the water tank after filtering the rainwater through the filter screen, utilizes the bottom of the rainwater photovoltaic module panel to wash, has practiced thrift the water resource.
Drawings

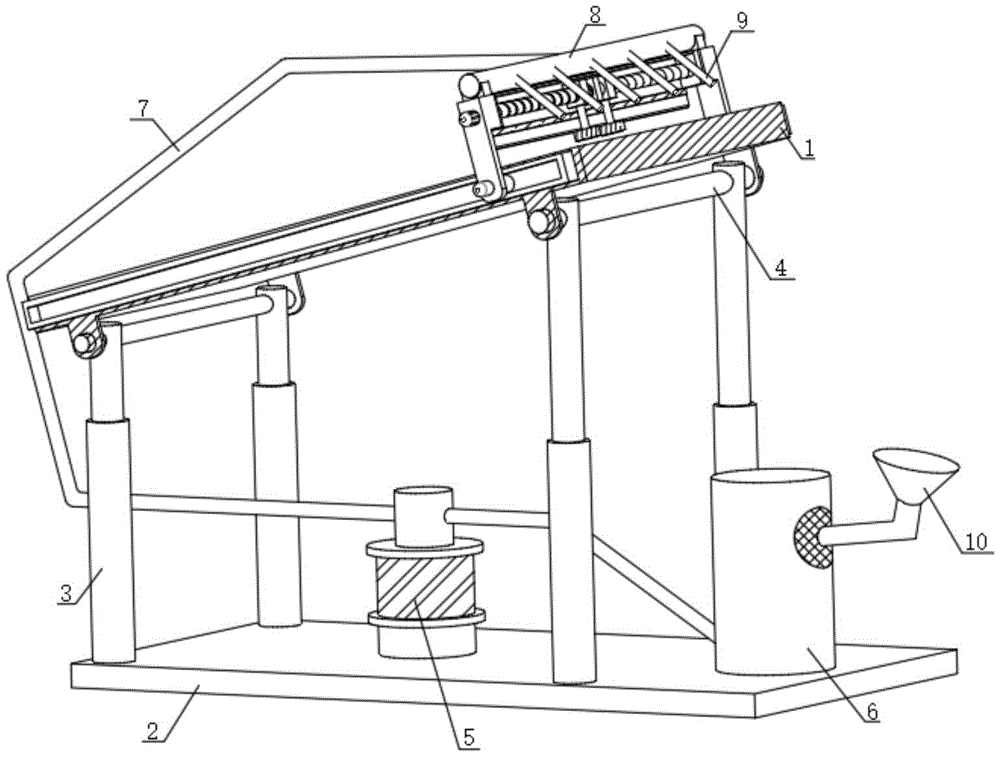

FIG. 1 is a schematic view of the overall structure of the present invention;
FIG. 2 is a schematic view of the cleaning device and the rotating device of the present invention;
fig. 3 is an enlarged view of the area a in fig. 2.
In the figure: 1. a photovoltaic module panel; 2. a base; 3. a telescopic rod; 4. a connecting rod; 5. a water pump; 6. a water tank; 7. a connecting pipe; 8. a water outlet pipe; 9. a nozzle; 10. a water inlet hopper; 11. a moving groove; 12. a mobile box; 13. a screw rod; 14. a brush; 15. a limiting block; 16. a squeegee; 17. a motor; 18. a screw motor; 19. a gear.
Detailed Description
In order to make the objects, technical solutions and advantages of the present invention more apparent, the present invention will be described in detail with reference to the accompanying drawings. It should be understood that the description is intended to be illustrative only and is not intended to limit the scope of the present invention. Moreover, in the following description, descriptions of well-known structures and techniques are omitted so as to not unnecessarily obscure the concepts of the present invention.
Referring to fig. 1-3, the present invention provides a technical solution: a photovoltaic component panel convenient to clean comprises a photovoltaic component panel 1, a base 2 is arranged below the photovoltaic component panel 1, the base 2 is in transmission connection with the photovoltaic component panel 1 through telescopic rods 3, connecting rods 4 are fixedly arranged between the telescopic rods 3, two sides of the photovoltaic component panel 1 are respectively movably sleeved at two ends of the connecting rods 4, a water tank 6 is fixedly arranged on the base 2, a water pump 5 is fixedly arranged at one side of the water tank 6, moving grooves 11 are fixedly connected at two sides of the photovoltaic component panel 1, cleaning equipment is arranged above the photovoltaic component panel 1, two groups of telescopic rods 3 are welded at the top of the base 2, the connecting rods 4 are fixedly arranged between the two telescopic rods 3, the angle of the photovoltaic component panel 1 can be adjusted by adjusting the telescopic heights of the two groups of telescopic rods 3, the photovoltaic component panel 1 is suitable for different areas or different time periods, and the photovoltaic component panel 1 reaches, the cleaning equipment moves above the photovoltaic module panel 1 through the moving groove 11, and the water pump 5 pumps water from the water tank 6 and then cleans the photovoltaic module panel 1 through the cleaning equipment.
In this embodiment, the cleaning device includes a water outlet pipe 8, a movable box 12 and a brush 14, a screw 13 is rotatably connected to inner walls of two sides of the movable box 12, a limit block 15 is movably sleeved at a middle position of the screw 13, a top end of the limit block 15 is fixedly connected to an inner wall of an upper end of the movable box 12, an upper end of the brush 14 is in threaded connection with an outer wall of the screw 13, a screw motor 18 is fixedly installed at one side of the movable box 12, a water outlet pipe 8 is fixedly installed at a top end of the movable box 12, a nozzle 9 is fixedly connected to the water outlet pipe 8, a lower end of the movable box 12 is in transmission connection with the movable groove 11 through a rotating device, a scraper 16 is fixedly installed at a front end of the movable box 12, water is pumped from the water tank 6 through the water pump 5, water flows into the water outlet pipe 8 from the connecting pipe 7, and is, lead screw 13 rotates and drives brush 14 and remove about on lead screw 13, and brush 14 self is rotatory when removing, can clean the dirt on the photovoltaic module panel 1, and harder dirt on the photovoltaic module panel 1 can be scraped in advance to scraper blade 16, and cooperation brush 14 carries out further cleanness to photovoltaic module panel 1.
In this embodiment, rotating equipment is including motor 17 and gear 19, the spout has been seted up on the shifting chute 11, the bottom fixed mounting of movable box 12 has the pivot, the one end and the gear 19 fixed connection of pivot, the other end fixedly connected with motor 17 of pivot, gear 19 is located inside and the spout meshing of spout, starter motor 17, motor 17 drives the pivot and rotates, thereby make the pivot drive the gear 19 pivot, gear 19 removes in the notch of shifting chute 11, drive whole cleaning device and remove on whole photovoltaic module panel 1, thereby make cleaning device clean whole photovoltaic module panel 1.
In this embodiment, the number of the brushes 14 is two, and the brushes are located on two sides of the limiting block 15, and the screw 13 rotates to drive the brushes 14 to move, so that the photovoltaic module panel 1 is cleaned.
In this embodiment, fixedly connected with is intake on the outer wall of water tank 6 and is fought 10, and the junction of intaking fill 10 and water tank 6 is equipped with the filter screen, and the filter screen filters the rainwater after the rethread water pump 5 draws water from water tank 6 and cleans photovoltaic module panel 1.
In this embodiment, the bottom of water tank 6 communicates with the one end of connecting pipe 7, and the other end of connecting pipe 7 passes water pump 5 and outlet pipe 8 intercommunication, and water pump 5 draws water from water tank 6, and water flows into outlet pipe 8 from connecting pipe 7 in, discharges from nozzle 9 through outlet pipe 8 to wash photovoltaic module panel 1.
The utility model discloses a theory of operation and use flow: this cleaning device for photovoltaic module panel 1 is when using, at first, the welding of base 2's top has four telescopic links 3, fixed mounting has connecting rod 4 between two liang of telescopic links 3, cup joint photovoltaic module panel 1's both sides respectively in the both ends activity of connecting rod 4, through the flexible height of adjusting two sets of telescopic links 3, adjustable photovoltaic module panel 1's angle, be used for adapting to in different areas or different time quantums, make photovoltaic module panel 1 reach the best angle of receiving light. When dirt exists on the surface of the photovoltaic module panel 1, water is pumped from the water tank 6 through the water pump 5, water flows into the water outlet pipe 8 from the connecting pipe 7 and is discharged from the nozzle 9 through the water outlet pipe 8, so that the photovoltaic module panel 1 is washed, the screw rod motor 18 is started, the screw rod 13 rotates to drive the hairbrush 14 to move left and right on the screw rod 13, the hairbrush 14 rotates while moving, dirt on the photovoltaic module panel 1 can be cleaned, the motor 17 is started, the motor 17 drives the rotating shaft to rotate, so that the rotating shaft drives the rotating shaft of the gear 19, the gear 19 moves in the notch of the moving groove 11 to drive the whole cleaning equipment to move on the whole photovoltaic module panel 1, so that the cleaning equipment cleans the whole photovoltaic module panel 1, when the gear 19 rotates to drive the moving box 12 to move, the scraper 16 which moves to the front end is contacted with the surface of the photovoltaic module panel 1, harder dirt on the photovoltaic module panel 1 can be scraped in advance, and the hairbrush 14 is matched to further clean the photovoltaic module panel 1. The fill 10 of intaking of fixed mounting can be used for connecing the rainwater greatly on the water tank 6, and the junction of simultaneously intaking fill 10 and water tank 6 is equipped with the filter screen, and the filter screen filters the rainwater after it cleans photovoltaic module panel 1 with it.
It is to be understood that the above-described embodiments of the present invention are merely illustrative of or explaining the principles of the invention and are not to be construed as limiting the invention. Therefore, any modification, equivalent replacement, improvement and the like made without departing from the spirit and scope of the present invention should be included in the protection scope of the present invention. Further, it is intended that the appended claims cover all such variations and modifications as fall within the scope and boundaries of the appended claims or the equivalents of such scope and boundaries.

Claims (6)

1. The utility model provides a photovoltaic module panel convenient to it is clean, including photovoltaic module panel (1), its characterized in that, the below of photovoltaic module panel (1) is equipped with base (2), base (2) and be connected with photovoltaic module panel (1) transmission through telescopic link (3), fixed mounting has connecting rod (4) between telescopic link (3), the both sides of photovoltaic module panel (1) are cup jointed in the both ends activity of connecting rod (4) respectively, fixed mounting has water tank (6) on base (2), one side fixed mounting of water tank (6) has water pump (5), the both sides fixedly connected with shifting chute (11) of photovoltaic module panel (1), the top of photovoltaic module panel (1) is equipped with cleaning device.
2. The photovoltaic module panel convenient to clean as claimed in claim 1, wherein the cleaning device comprises a water outlet pipe (8), a movable box (12) and a brush (14), the inner walls of two sides of the movable box (12) are rotatably connected with a screw rod (13), a limit block (15) is movably sleeved at the middle position of the screw rod (13), the top end of the limit block (15) is fixedly connected with the inner wall of the upper end of the movable box (12), the upper end of the brush (14) is in threaded connection with the outer wall of the screw rod (13), a screw rod motor (18) is fixedly installed at one side of the movable box (12), the top end of the movable box (12) is fixedly installed with the water outlet pipe (8), the water outlet pipe (8) is fixedly connected with a nozzle (9), and the lower end of the movable box (12) is in transmission connection with the movable groove (11) through a rotating device, the front end of the movable box (12) is fixedly provided with a scraper (16).
3. The photovoltaic module panel for facilitating cleaning of claim 2, wherein: rotating equipment is including motor (17) and gear (19), the spout has been seted up on shifting chute (11), the bottom fixed mounting of movable box (12) has the pivot, the one end and gear (19) fixed connection of pivot, the other end fixedly connected with motor (17) of pivot, gear (19) are located inside and the spout meshing of spout.
4. The photovoltaic module panel convenient to clean as claimed in claim 2, wherein the number of the brushes (14) is two, and the brushes are located at two sides of the limiting block (15).
5. The photovoltaic module panel convenient to clean as claimed in claim 1, wherein a water inlet hopper (10) is fixedly connected to the outer wall of the water tank (6), and a filter screen is arranged at the joint of the water inlet hopper (10) and the water tank (6).
6. The photovoltaic module panel convenient to clean as claimed in claim 1, wherein the bottom end of the water tank (6) is communicated with one end of a connecting pipe (7), and the other end of the connecting pipe (7) is communicated with the water outlet pipe (8) through a water pump (5).
