  • This disclosure relates to an optical transmitter used in optical communications. More specifically, it relates to an implementation form of an optical transmitter that includes a semiconductor optical modulator and its driver IC.
  • an optical transceiver in which an optical receiver and an optical transmitter are integrated is used.
  • broadband analog components such as radio frequency (RF) electrical circuits are required.
  • RF radio frequency
  • an optical modulator requires a modulation bandwidth of 40 GHz or more.
  • HB-CDM High-Bandwidth Coherent Driver Modulator
  • ICR Integrated Coherent Receiver
  • semiconductor-based optical modulators are attracting attention as an alternative to conventional lithium niobate (LN) optical modulators due to their compact size and low cost.
  • Compound semiconductors such as InP are mainly used for faster modulation operations.
  • Si-based optical devices Furthermore, in systems where compact size and low cost are important, research and development is focused on Si-based optical devices.
  • the semiconductor optical modulators mentioned above have their own advantages and disadvantages specific to each material.
  • temperature control of the optical modulator chip is essential during operation in order to control the band-edge absorption effect.
  • a Si optical modulator has the advantage of not needing temperature control, but has a smaller electro-optic effect than other material systems. This makes it necessary to lengthen the electro-optic interaction length, which can result in increased high-frequency loss as a result of the device length increasing.
  • the operating temperature (case temperature) of an optical transmitter using HB-CDM must be in the range of at least -5°C to 75°C. In order to ensure this operating temperature, it has been common to only mount the optical modulator chip on a Peltier element, taking into account power consumption (Patent Document 1).
  • the present invention provides a new configuration and implementation form of an optical transmitter that suppresses the temperature dependency of an optical transmitter including a driver IC, has excellent high-speed performance, and is capable of stable operation regardless of the environmental temperature.
  • the present disclosure provides an optical transmitter that includes an optical modulator chip, a driver IC for operating the optical modulator chip, a wiring layer that guides a modulated electrical signal supplied from an external digital signal processor (DSP) to the driver IC, gold wires that connect the driver IC and the optical modulator chip, and the wiring layer and the driver IC via PADs, and a Peltier element placed under the optical modulator chip and the driver IC, and the optical modulator chip and the driver IC are temperature controlled by the same Peltier element.
  • DSP digital signal processor
  • FIG. 1 is a cross-sectional side view showing an implementation of an optical transmitter 100 using HB-CDM according to the prior art.
  • FIG. 2 is a side cross-sectional view showing an implementation of an optical transmitter 200 according to the present disclosure.
  • FIG. 2 is a cross-sectional side view showing an implementation of an optical transmitter 300 according to the present disclosure.
  • 2 is a top view showing the arrangement of PADs of a driver IC 202 and PADs of an optical modulation chip 203 in an optical transmitter 200 according to the present disclosure.
  • FIG. 5 is a cross-sectional side view showing an implementation of an optical transmitter 500 according to the present disclosure.
  • FIG. 6 is a cross-sectional side view showing an implementation of an optical transmitter 600 according to the present disclosure.
  • 2 is a diagram illustrating an example of the configuration of a Peltier element 205 used in an optical transmitter 200-600 according to the present disclosure.
  • This disclosure presents new configurations for improving the temperature dependency of the high-frequency characteristics of an optical transmitter in an optical transmitter in which an optical modulator and its driver IC are integrally packaged, and implementation forms compatible with each configuration.
  • the configuration for improving the temperature dependency includes a new usage form of a temperature regulator (TEC: ThermoElectric Cooler) in the optical transmitter.
  • TEC ThermoElectric Cooler
  • various implementation forms of the driver IC, optical modulator chip, and spatial optical components compatible with the new usage form of the TEC are also proposed.
  • TECs are also known as thermoelectric coolers, and are known as small cooling devices that use Peltier junctions. TECs are made up of n-type semiconductors, p-type semiconductors, and metals, and when a direct current is passed through both sides of the plate-shaped element, heat absorption occurs on one side and heat dissipation occurs on the other. Reversing the direction of the current switches between heat absorption and dissipation, allowing for localized and precise temperature control of ICs and electronic components.
  • the temperature regulator will be referred to as a TEC and will be described as a Peltier element. It is not limited to Peltier elements, as long as it is capable of controlling the temperature of driver ICs and optical modulator chips.
  • Figure 1 is a side cross-sectional view showing the mounting form of an optical transmitter using HB-CDM, a conventional technology.
  • the optical transmitter 100 contains a driver IC 102, an optical modulator chip 103, and lenses 112 and 113, which are spatial optical components, inside a package housing 101 made of ceramic or the like. More specifically, the optical modulator chip 103 is mounted on the inside bottom surface of the housing 101 via a subcarrier 104 on a Peltier element 105. The right end of the optical modulator chip 103 in the drawing has an output end surface for modulated light, and lenses 112 and 113 for optically coupling the modulated light to an optical fiber 114 are also mounted on the subcarrier.
  • a driver IC 102 is mounted on a metal block or ceramic material 106 adjacent to the optical modulator chip 103.
  • the package housing 101 has a wiring board base 107 and a package wall 108 as the left wall in the drawing, which, together with the package housing 101, separate the outside from the internal space of the optical transmitter.
  • the optical transmitter 100 can also be constructed so that the entire package is airtight.
  • the modulated electrical signal supplied from an external digital signal processor (DSP) is supplied to the optical modulator chip 103 via the wiring layer 109 and driver IC 102 of the wiring board base 107.
  • the wiring layer 109 and the driver IC 102, and the driver IC 102 and the optical modulator chip 103 are connected by gold wires 110, 111, etc., respectively.
  • the modulated electrical signal includes an I channel and a Q channel for each of the X polarization and the Y polarization.
  • one channel is supplied as an electrical signal in a differential signal format, at least eight signal wirings and a GND wiring are required for one optical modulator, but the modulated signal format is not limited to this.
  • the optical modulator 100 shown in FIG. 1 can be mounted on a common device substrate together with an ICR package in which the receiving side TIA and optical receiver are integrated, and a DSP, to configure an optical transmitting and receiving device.
  • the Peltier element 105 in the optical transmitter. Temperature control is essential for the optical modulator chip 103 fabricated on an InP substrate, and the Peltier element 105 controls the temperature to a predetermined operating temperature. As shown in FIG. 1, the Peltier element 105 has a size that covers at least the entire area of the optical modulator chip 103, and its position may overlap the area of spatial optical components such as lenses.
  • the optical transmitter 100 of the conventional technology it was considered that temperature control of the driver IC 102 was not necessary, and it was fixed in the package by a member 106 such as a metal block or ceramic. If the external temperature (ambient temperature) of the optical transmitter 100 rises, the increased temperature becomes the operating temperature of the driver IC 102.
  • the temperature of the driver IC 102 itself is at least 85°C or higher.
  • the driver IC also consumes a lot of power, and the driver IC itself generates heat. This means that the heat generated by the driver IC will cause the backside temperature of the driver IC to exceed the maximum ambient temperature of 85°C.
  • the driver IC has temperature-dependent amplification characteristics (high frequency characteristics) of high frequency electrical signals, and at high temperatures the high frequency band tends to decrease compared to room temperature. Conversely, at low temperatures the high frequency band tends to increase compared to room temperature. Thus, the high frequency characteristics of the driver IC differ between low and high temperatures.
  • the modulation signal supplied to the driver IC is optimized and compensated in various ways by the DSP at room temperature. However, dynamically updating such compensation in line with temperature fluctuations is a complex process and is not generally implemented. Because operation continues at a constant compensation state at room temperature, the compensation state of the modulation signal deviates from the optimal point when the state changes to a low or high temperature. This causes fluctuations and deterioration in the optical transmission characteristics and waveform quality of the optical transmitter.
  • the IQ modulator of the optical modulator chip 103 is a linear modulator that preserves the amplitude and phase of the electrical signal, and fluctuations in the level and waveform quality of the modulated electrical signal directly affect the quality of the modulated output light. If the external temperature changes while the optical transmitter is in operation, the optical modulator chip itself is maintained at a constant temperature because its temperature is controlled by a Peltier element, but the operating temperature of the driver IC changes. As a result, fluctuations in the level and quality of the modulated light of HB-CDM occur, and the transmission characteristics deteriorate and become unstable due to changes in the environmental temperature over time.
  • the deterioration of characteristics due to the environmental temperature on the high frequency side of the electrical signal causes waveform distortion of the modulated signal, degrading the modulation accuracy of the modulated output light from the optical modulator.
  • a floor appears in the BER characteristics, leading to a deterioration in the transmission characteristics of the system.
  • the present invention presents a new configuration and implementation form that improves the temperature dependency of high frequency characteristics and optical transmission characteristics in an optical transmitter in which an optical modulator and its driver IC are packaged together.
  • optical transmitter according to the present disclosure will be described in detail with reference to the drawings.
  • the optical transmitter according to the present disclosure will be described as being in the form of an HB-CDM with a flexible printed circuit board (FPC) interface.
  • FPC flexible printed circuit board
  • optical transmitter 200 is a side cross-sectional view showing a mounting form of an optical transmitter 200 according to the present disclosure.
  • a driver IC 202 In the optical transmitter 200, a driver IC 202, an optical modulator chip 203, and optical members (illustrated as lenses 212 and 213, which are spatial optical components, as an example in FIG. 2) are housed inside a package housing 201. More specifically, the optical modulator chip 203 is mounted on the bottom surface inside the housing 201 via a subcarrier 204 on a Peltier element 205. At the right end of the drawing of the optical modulator chip 203, there is an emission end surface of modulated light, and lenses 212 and 213 for optically coupling the modulated light with an optical fiber 214 are also mounted on the subcarrier.
  • the optical transmitter 200 includes a wiring board base 207 and a package wall 208 as the wall surface on the left side of the package housing 201 in the drawing, which, together with the package housing 201, separate the internal space of the optical transmitter from the outside.
  • the wiring board base 207 also has a package terrace, and a wiring layer 209 formed on the upper surface of the package terrace is connected to a flexible printed circuit board (FPC) as a high-frequency interface.
  • FPC flexible printed circuit board
  • the optical transmitter 200 can also be constructed so that the entire package is airtight.
  • the modulated electrical signal supplied from an external digital signal processor (DSP) is supplied to the optical modulator chip 203 via the wiring layer 209 of the wiring board base 207 and the driver IC 202.
  • the wiring layer 209 and the driver IC 202, and the driver IC 202 and the optical modulator chip 203 are connected by gold wires 210 and 211.
  • the driver IC 202 is mounted on the subcarrier 204, similar to the optical modulator chip 203 and lenses 212, 213.
  • the subcarrier 204 is installed on the Peltier element 205, in the optical transmitter 200, the temperature control by the Peltier element 205 also extends to the driver IC 202. Therefore, in the optical transmitter 200, the temperature of the driver IC 202 can be managed in the same way as the optical modulator chip 203.
  • the optical modulator chip 203 is an InP modulator
  • the optical modulator chip 203 is often used at around 45 ⁇ 10°C because an excessively low temperature reduces the modulation efficiency (however, depending on the semiconductor device design, there are also modulator chips that are used at temperatures lower than this).
  • the driver IC 202 has better high-frequency band characteristics at lower temperatures. Therefore, the Peltier element 205 needs to be constantly controlled at a temperature within the range of 25-50°C so that the characteristics of the driver IC 202 can be fully brought out without significant deterioration of the characteristics of the optical modulator chip 203.
  • a subcarrier 204 is mounted between the Peltier element 205 and the driver IC 202, the optical modulator chip 203, and the optical members (e.g., lenses 212, 213, etc.).
  • This subcarrier 204 adjusts the height of the driver IC 202 and the optical modulator chip 203, which will be described later, and functions as a substrate for extracting the DC wiring of the driver IC 202 and the optical modulator chip 203.
  • AlN has a linear expansion coefficient close to that of InP applied to the optical modulator chip 203, and can suppress thermal stress generated near the interface with the InP modulator, so it is suitable as a material applied to the subcarrier 204.
  • wiring (not shown) for extracting the DC wiring of the optical modulator chip 203 and positioning markers (not shown) for mounting optical members (e.g., lenses 212, 213, etc.) are formed on the subcarrier 204 by metal patterns.
  • subcarrier 204 is depicted in FIG. 2 as being one layer, it may be multi-layered. In particular, when there are a large number of DC wirings or when it is necessary to change the order of terminals, making it multi-layered allows for a layout that makes full use of multi-layer wiring.
  • the subcarrier 204 and driver IC 202, as well as the subcarrier 204 and optical modulator chip 203, must be mounted with a conductive paste or solder with a thermal conductivity of 30 W/mK or more in order to efficiently dissipate heat in the Peltier element 205. From the perspective of managing the process temperature during mounting, it is desirable to use the same conductive paste or solder for all of them, but these joint fillers do not necessarily need to be the same, and it is also possible to combine those with different fixed temperatures, etc.
  • optical components such as lenses 212 and 213 are mounted on subcarrier 204, similar to driver IC 202 and optical modulator chip 203, in order to prevent variations in adhesive thickness due to temperature changes. With this configuration, it is possible to minimize variations in optical insertion loss due to temperature changes.
  • the wiring layer 209 and the driver IC 202, and the driver IC 202 and the optical modulator chip 203 are connected by gold wires 210 and 211.
  • the length of the gold wires 210 and 211 is increased, the inductance increases, and the roll-off in the high frequency characteristics shifts to the low frequency side due to LC resonance. Therefore, it is desirable that the inductance of the gold wires 210 and 211 is low from the viewpoint of high frequency characteristics.
  • the height and distance between the PAD of the driver IC 202 and the PAD of the optical modulator chip 203, and between the PAD of the wiring layer 209 and the PAD of the driver IC 202 are regulated.
  • the height difference between the PAD of the driver IC 202 and the PAD of the optical modulator chip 203, and between the PAD of the driver IC 202 and the PAD of the wiring layer 209 are each specified to be 100 ⁇ m or less. This is the realistic minimum range taking into consideration variations in implementation and variations in the thickness of the driver IC 202 and the optical modulator chip 203.
  • the thickness of the driver IC 202 is 300 ⁇ m
  • the height between the PAD of the wiring layer 209 and the PAD of the driver IC 202 it is preferable to set the height of the PAD of the wiring layer 209 slightly higher, so that the height difference between the PAD of the driver IC 202 is within a range of 100 ⁇ m.
  • Block 301 can be, for example, AlN or a metal.
  • FIG. 4 is a top view showing the arrangement of the PADs of the driver IC 202 and the PADs of the optical modulation chip 203 in the optical transmitter 200 according to the present disclosure.
  • the distance between the PADs of the driver IC 202 and the PADs of the optical modulator chip 203 is directly related to the length of the gold wire 211, so it is desirable to keep the gap to a minimum. Specifically, it is desirable to control the gap to 50 ⁇ m or less, taking into consideration the mounting process and the risk of short circuits.
  • the PADs are formed away from the chip end, the length of the gold wire 211 will inevitably be long, so the positions at which each PAD is formed must be within 50 ⁇ m of the respective chip ends. If the positions at which the PADs are formed are within 50 ⁇ m, this can be achieved by dicing or cleavage.
  • the output pad on the driver IC 202 side is depicted as GSGSG, while the pad on the optical modulator chip is depicted as GSSG, but the shape of each pad is not limited to this and may be any layout.
  • the gold wire line 211 may not only be a ball wire, but also a configuration with low inductance such as a wide ribbon wire.
  • the heights of the pads of the driver IC 202, the pads of the optical modulator chip 203, and the pads of the wiring layer 209 are the same.
  • FIG. 4 shows an example of the connection between the driver IC 202 and the optical modulator chip 203
  • the distance between each PAD may be set to be greater than the distance between the driver 202 and the modulator chip 203, for example, 100 ⁇ m or less.
  • FIG. 2 depicts the driver IC 202 and the optical modulator chip 203 as being mounted on the same subcarrier 204, they may be mounted on a Peltier element 205 as shown in FIG. 5.
  • the DC wiring of the driver IC 202 and the optical modulator chip 203 must be taken out, and alignment marks for positioning the optical components must be formed on the AlN substrate on the top surface of the Peltier element 205 (the surface on which the driver IC 202 and the optical modulator chip 203 are mounted).
  • An optical transmitter 500 having such a configuration is preferable from the standpoint of temperature control, since it is possible to reduce the number of parts and the thermal resistance.
  • optical components are assumed to be lens mounted, but this is not limited to this and other mounting methods may be used.
  • optical components include not only lenses 212 and 213 but also components for fixing fibers, etc.
  • a thermal isolation groove 401 may be further included between the driver IC 202 and the optical modulator chip 203, and formed on at least one of the upper and lower surfaces of the subcarrier 204 ( Figure 6 shows a configuration formed on the upper surface as an example). With this configuration, it is possible to thermally isolate the driver IC 203 and the modulator chip 204.

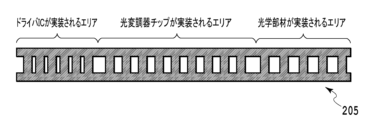

  • (Configuration of Peltier element) 7 is a diagram illustrating the configuration of the Peltier element 205 used in the optical transmitter (optical transmitter 200-600) according to the present disclosure.
  • a difference in the amount of heat generated occurs between the driver IC 202 and the optical modulator chip 203.
  • the driver IC 202 has the highest temperature, followed by the optical modulator chip 203, and then the optical members (for example, lenses 212, 213, etc.).
  • an example of the Peltier element 205 used in the optical transmitter according to the present disclosure is configured so that the element density of the n-type and p-type semiconductors is as follows: area where the driver IC 202 is mounted>area where the optical modulator chip 203 is mounted>area where the optical members are mounted. By configuring in this way, it becomes possible to perform appropriate temperature control (suppression of excessive or insufficient cooling) according to the temperature distribution.
  • the optical transmitter disclosed herein can realize a new configuration and implementation form of an optical transmitter that suppresses the temperature dependency of the optical transmitter including the driver IC, has excellent speed, and can operate stably regardless of the environmental temperature. For this reason, it is expected to be applied to high-speed digital coherent optical transmission systems, etc.
