Abstract

The present invention relates to an electric street sweeper with improved dust collection performance, which is to more effectively collect garbage on a road surface by improving dust collection performance. In the electric street sweeper of the present invention, cleaning equipment includes: a suction device for sucking the garbage on the road surface; a cyclone dust collector for collecting the garbage sucked by the suction device; a blower connected to the cyclone dust collector to generate a suction force; an electric dust collector collecting dust discharged from the blower; a power generation system which produces and stores electricity; and an air inlet for guiding external air to the electric dust collector. The cyclone dust collector includes: a first cyclone dust collector connected to the suction device; a third cyclone dust collector connected to the blower; and a second cyclone dust collector positioned between the first cyclone dust collector and the third cyclone dust collector to connect the first and third cyclone dust collectors. Therefore, the air introduced through the suction device sequentially passes through the first, second, and third cyclone dust collectors. An inclined discharge passage is further included. The inclined discharge passage connects the lower ends of the first, second, and third cyclone dust collectors to each other, and is installed to have a posture inclined downward from the third cyclone dust collector in a direction of the first cyclone dust collector, so as to induce the garbage collected by the first, second, and third cyclone dust collectors to be collected in one place through one passage.

Description

Electric street sweeper with improved collection performance

The present invention relates to an electric sweeper that cleans the road while inhaling various kinds of trash from the road surface, and more specifically, three cyclone dust collectors are connected in a series structure so that the trash sucked by the suction device is sequentially installed by three cyclone dust collectors. The present invention relates to an electric cleaning vehicle with improved dust collection performance.

Each local government or agency that manages roads regularly carries out cleaning work to keep the road surface clean by collecting garbage that has fallen on roads that are already being built and used.

Road cleaning requires a large amount of manpower and time due to its large cleaning area, as well as a high risk of accidents due to the high risk of accidents due to the fact that the work is performed in a situation where vehicles are running around the vehicle (hereinafter referred to as ``cleaning car'' ') is used to perform cleaning work.

On the other hand, conventionally, a sprinkling type cleaning car and a vacuum suction type cleaning car have been used.

The sprinkling-type cleaning vehicle has the advantage of preventing dust from scattering by spraying water onto the road surface during cleaning, and effectively removing fine dust from the road surface, but it cannot be used in winter, and a large amount during cleaning work. It uses water, and has the disadvantage of having to replenish water frequently.

The vacuum suction-type cleaning car is a cleaning vehicle that performs cleaning while inhaling garbage or dust from the road by using the suction power generated by the operation of the blower. Although the removal efficiency of fine dust is lower than that of the sprinkling-type cleaning vehicle, it is used in all seasons. Since this is possible, it has the advantage of enabling effective operation of the cleaning vehicle.

The vacuum suction type cleaning vehicle is configured to operate the blower with the power generated from the auxiliary engine by mounting a separate auxiliary engine for the operation of the blower, or a part of the power generated from the vehicle engine through the engine power take-off device to the blower. It is configured to operate the blower by delivering it.

However, the method of operating the blower by the auxiliary engine has a problem in that soot and noise are generated due to the operation of the auxiliary engine, and the maintenance cost (oil cost, oil exchange cost, etc.) increases due to the auxiliary engine.

In addition, the method of operating the blower by the engine power take-off device not only requires cumbersome operation by the driver, but also has a very complex structure, and when power is withdrawn during the driving process of the vehicle, the transmission system of the vehicle is stressed. There is a problem that causes a malfunction.

In addition, the auxiliary engine or the engine power take-off device is a method suitable for a cleaning vehicle based on a large truck, and has a disadvantage that is not suitable for a small cleaning vehicle that is easy to clean in an urban area or narrow road where vehicle traffic is busy.

On the other hand, in consideration of the air pollution problems caused by noise or smoke generated when the auxiliary engine is operated, there is an increasing demand for electric road cleaners that operate blowers using electric motors, but based on small trucks of 1 ton or less. In the case of a cleaning vehicle, it is not easy to secure a space for installing a large-capacity electric motor, and thus there is a problem in that the dust collection performance is relatively deteriorated because the size of the electric motor that can be installed is limited.

Registered Patent Publication No. 10-0669807 (announced on January 16, 2007)

The present invention has been made in consideration of the above problems, and an object of the present invention relates to an electric cleaning vehicle with improved dust collection performance so as to more effectively collect road waste through improvement of dust collection performance.

Another object of the present invention is to provide an electric cleaning vehicle with improved dust collection performance made to improve dust collection performance through a change in the inner diameter of a cyclone dust collector.

The present invention, which achieves the above object and performs the task of removing the conventional defects, is an electric cleaning vehicle comprising cleaning equipment mounted on a vehicle running by using electricity as power, wherein the cleaning equipment includes the vehicle A suction device installed so as to be located at the lower end of the road surface to suck the garbage; A cyclone dust collector connected to the suction device to collect suctioned waste; A blower installed to be connected to the cyclone dust collector and generating a suction force while being operated by a motor; An electric dust collector that collects dust in the air discharged from the blower; A power generation system for producing and storing electricity for the operation of the motor; And an atmospheric inlet for guiding external air to the electric precipitator so that fine dust in the atmosphere is collected by the electric precipitator, wherein the cyclone dust collector comprises: a first cyclone dust collector connected to the suction device; A third cyclone dust collector connected to the blower; And a second cyclone dust collector positioned between the first cyclone dust collector and the third cyclone dust collector to connect the first and third cyclone dust collectors; and the air introduced through the inhalation device is configured as the first, second, and third cyclone dust collectors. The first, second, and third cyclone dust collectors are installed so as to pass through sequentially and connect the lower ends of the first, second, and third cyclone dust collectors to each other, and have a downward inclined posture from the third cyclone dust collector to the first cyclone dust collector. It provides an electric cleaning vehicle with improved dust collection performance, characterized in that it comprises a; inclined discharge passage for guiding the garbage to be collected in one place through one passage.

delete

Meanwhile, in the electric cleaning vehicle with improved dust collecting performance, the height h1 of the first cyclone dust collector, the height h2 of the second cyclone dust collector, and the height h3 of the third cyclone dust collector 223 are h1> h2> h3 It can be formed to satisfy the conditions of.

On the other hand, in the electric cleaning vehicle with improved dust collection performance, the air injection nozzle is installed in the inclined discharge passage to inject air into the interior of the inclined discharge passage to induce trash to flow smoothly through the inclined discharge passage; This may include more.

Meanwhile, in the electric cleaning vehicle with improved dust collection performance, the air injection nozzle may be configured to receive and spray part of the air discharged from the blower.

Meanwhile, in the electric cleaning vehicle having improved dust collection performance, a control mechanism installed in at least one of the first, second, and third cyclone dust collectors to change the dust collection performance through a change in the inner diameter of the cyclone dust collector may be further included. .

On the other hand, in the electric cleaning vehicle with improved dust collection performance, the control mechanism is made of a semi-cylindrical structure, and is disposed so that the inner circumferential surfaces face each other in a vertical position inside the cyclone dust collector in which the control mechanism is configured, First and second moving plates for changing the inner diameter size of the cyclone dust collector while moving in the direction; First and second actuators connected to the first and second moving plates and installed in the corresponding cyclone dust collector to move the first and second moving plates; And an airtight member closing a gap formed between the first moving plate member and the second moving plate member.

Meanwhile, in the electric cleaning vehicle with improved dust collection performance, the center of the first moving plate member and the center of the second moving plate member are formed to be shifted in the left and right direction of the cyclone dust collector, and the airtight member is a second of both ends of the first moving plate member. A first hermetic plate made of a rubber plate installed to protrude from an end positioned inside the moving plate to be in close contact with the inner circumferential surface of the second moving plate; And a second airtight plate made of a rubber plate protruding so as to be in close contact with the inner circumferential surface of the first moving plate at an end located inside the first moving plate of both ends of the second moving plate.

According to the present invention having the above characteristics, since the garbage sucked by the suction device passes through the first, second, and third cyclone dust collectors in sequence, it is possible to effectively collect dust having a small particle size.

In addition, since the garbage collected by the 1st, 2nd and 3rd cyclone dust collectors is collected in one place through the inclined discharge passage, it is possible to easily dispose of the garbage collected after cleaning the road surface.

In addition, by adjusting the inner diameter of the cyclone dust collector according to the condition of the road surface, it is possible to implement a dust collection performance optimized for the road surface while varying the dust collection performance, thereby improving the dust collection efficiency.

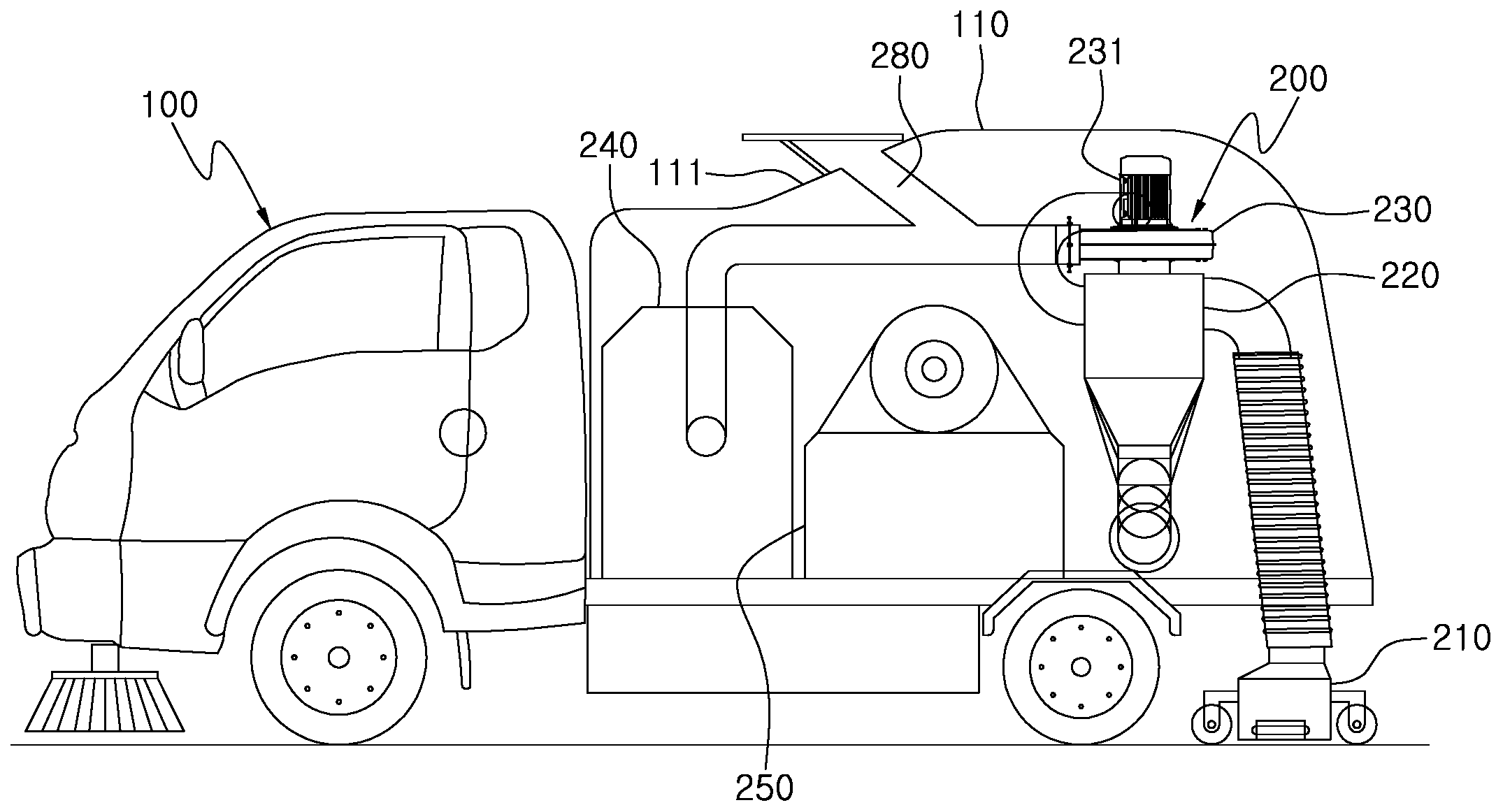

1 is a side structural view of an electric cleaning vehicle according to a preferred embodiment of the present invention,
2 is a schematic structural diagram of an electric cleaning vehicle according to a preferred embodiment of the present invention;
3 is a structural view of the rear of the electric cleaning vehicle showing a state in which the first, second, and third cyclone dust collectors according to the present invention are connected to each other;
4 is an internal structure diagram of a first cyclone dust collector according to a preferred embodiment P of the present invention,
5 is a perspective view showing a state in which a first moving plate member and a second moving plate member according to the present invention are arranged to face each other;
6 is a plan view showing a state in which first and second moving plates according to the present invention are disposed inside a first cyclone dust collector;
7 is a plan view showing a state in which the inner diameter of the first cyclone dust collector is reduced by moving the first and second moving plates according to the present invention to be close to each other.

Hereinafter, preferred embodiments of the present invention will be described in detail in conjunction with the accompanying drawings. In describing the present invention, when it is determined that a detailed description of a related known function or configuration may unnecessarily obscure the subject matter of the present invention, a detailed description thereof will be omitted.

1 is a side structural diagram of an electric sweeper according to a preferred embodiment of the present invention, FIG. 2 is a plan view of an electric sweeper according to a preferred embodiment of the present invention, and FIG. 3 is a first, second, and third cyclone according to the present invention. The rear structure diagram of the electric sweeper showing a state in which the dust collectors are connected to each other, FIG. 4 is an internal structure diagram of a first cyclone dust collector according to a preferred embodiment P of the present invention, and FIG. 5 is a first moving plate member and a second moving plate member according to the present invention. Figure 6 is a perspective view showing a state arranged to face each other, Figure 6 is a plan view showing a state in which the first and second moving plates according to the present invention are arranged inside the first cyclone dust collector, Figure 7 is a first according to the present invention. Fig. 1 shows a plan view showing a state in which the 1st and 2nd moving plates move closer to each other and the inner diameter of the first cyclone dust collector is reduced.

The electric cleaning vehicle with improved dust collection performance according to the present invention includes a vehicle 100 configured to run using electricity as a power source, and a cleaning equipment mounted on the vehicle 100 to perform a cleaning operation in a manner that vacuum suctions waste on the road surface ( 200).

The vehicle 100 is a vehicle 100 equipped with various facilities for driving and steering, and includes a box-shaped container 110 in which the cleaning equipment 200 is installed at the rear.

The cleaning equipment 200 is composed of a suction device 210, a cyclone dust collector 220, a blower 230, an electric dust collector 240, a power generation system 250, an air inlet 280, and the blower 230 A suction force is formed in the cyclone dust collector 220 by the operation, and the suction device 210 sucks the garbage on the road surface by this suction force, and the cyclone dust collector 220 collects the garbage sucked by the suction device 210 Is made to do.

On the other hand, the suction device 210 is installed to be located at the lower end of the rear end of the vehicle 100 via an elevating mechanism not shown, such a suction device 210 is a state close to the road surface in the process of driving the electric sweeper It is configured to collect by vacuum suction while maintaining the garbage on the road surface.

The cyclone dust collector 220 collects and collects garbage flowing through the suction device 210, and is composed of first, second, and third cyclone dust collectors 221, 222, and 223.

On the other hand, the first, second, and third cyclone dust collectors 221, 222, and 223 are made of a conical portion 220b formed at the lower end of the cylindrical portion 220a, similar to the cyclone dust collector that is generally used, and flows into the cylindrical portion 220a. While forming a spiral flow of air and waste, it descends to the conical part 220b, and the air separated from the waste is discharged through the discharge port 220c provided in the upper central portion.

The first, second, and third cyclone dust collectors 221, 222, and 223 are connected to each other so as to have a series structure, so that the garbage flowing through the suction device 210 passes through the first, second, and third cyclone dust collectors 221, 222, and 223 sequentially. It is configured to be collected in the cyclone dust collector 220.

That is, the first cyclone dust collector 221 is connected to the suction device 210, the third cyclone dust collector 223 is connected to the blower 230, and the second cyclone dust collector 222 is the first cyclone dust collector 221 It is installed to connect the first and third cyclone dust collectors 220 between the and the third cyclone dust collector 223.

Therefore, the air sucked by the suction device 210 is sequentially passed through the first cyclone dust collector 221, the second cyclone dust collector 222, and the third cyclone dust collector 223, and the garbage flowing with the air is It is collected by any one of the first, second, and third cyclone dust collectors 221, 222, and 223.

As described above, since the cyclone dust collector 220 according to the present invention collects garbage in multiple stages using the first, second, and third cyclone dust collectors 221, 222, and 223, it is possible to reduce the escape of fine dust with air.

Meanwhile, an inclined discharge passage 260 that connects the lower ends of the first, second, and third cyclone dust collectors (221, 222, 223) to each other so that the garbage collected from the first, second, and third cyclone dust collectors (221, 222, 223) is collected in one place, and , A control mechanism 270 for varying the dust collection performance while changing the size of the inner diameter of the cyclone dust collector 220 may be further included.

The inclined discharge passage 260 connects the lower ends of the first, second, and third cyclone dust collectors (221, 222, 223), and is installed to have a downwardly inclined posture from the third cyclone dust collector 223 to the first cyclone dust collector 221 Thus, the garbage collected by the third cyclone dust collector 223 and the second cyclone dust collector 222 is configured to be collected in one place while flowing down by the slope of the inclined discharge passage 260.

On the other hand, an air injection nozzle 261 for injecting air into the inclined discharge passage 260 so that the trash can smoothly slide down the inclined discharge passage 260 is further added to the inclined discharge passage 260. Can be installed.

The air injection nozzle 261 is installed to inject air into the interior of the inclined discharge passage 260 at the highest point of the inclined discharge passage 260, and receives part of the air discharged from the blower 230 It can be configured to spray.

On the other hand, it is easy to secure space for the installation of the inclined discharge passage 260 having an inclined posture as described above, and a large amount of garbage can be collected in the first cyclone dust collector 221 into which garbage is introduced first. To ensure that the first, second, and third cyclone dust collectors 221, 222, and 223 are formed at different heights.

More specifically, the height h1 of the first cyclone dust collector 221 and the height h2 of the second cyclone dust collector 222 and the height h3 of the third cyclone dust collector 223 are h1> h2> h3. When the height of the upper ends of the first, second, and third cyclone dust collectors 221, 222, and 223 are formed to satisfy the same, it is preferable that the lower ends of the first, second, and third cyclone dust collectors 221, 222, and 223 have a height difference.

The adjustment mechanism 270 is installed in at least one of the first, second, and third cyclone dust collectors 221, 222, and 223 and is configured to adjust the size of the inner diameter of the corresponding cyclone dust collector 220, and a preferred implementation of the present invention The adjusting mechanism 270 according to the example is installed in the first cyclone dust collector 221.

Meanwhile, the adjustment mechanism 270 is composed of first and second moving plate members 271 and 272, first and second actuators 273 and 274, and an airtight member 275.

The first moving plate 271 and the second moving plate 272 are made of a plate that is bent in a semi-cylindrical structure while having a vertical posture, so that the inner peripheral surfaces of the first cyclone dust collector 221 face each other. Is placed.

The radius of the semi-cylinder formed by the first moving plate 271 and the second moving plate 272 has a size smaller than that of the third cyclone dust collector 223, and the cylindrical portion of the third cyclone dust collector 223 ( 220a) is configured to move in a radial direction from the inside of the unit to be close to or away from each other.

On the other hand, the center C11 of the first moving plate 271 and the center C2 of the second moving plate 272 are formed to be shifted from each other in the left and right directions of the cyclone dust collector 220. According to this structure, the first, 2 It is possible to prevent collision between both ends of the first moving plate 271 and both ends of the second moving plate 272 in the process of moving the moving plates 271 and 272 in a direction close to each other, and the first and second movements The airtight structure between the plate members 271 and 272 can be more easily configured, and in particular, the direction of the step generated between the first and second moving plate members 271 and 272 due to the displacement of the first and second moving plate members 271 and 272 When the direction of rotation of the air is matched, the airtight structure between the first and second moving plates 271 and 272 can be more easily implemented.

When the first moving plate 271 and the second moving plate 272 installed as described above move in a direction close to each other, the inner diameter of the first cyclone dust collector 221 is reduced, and conversely, the first and second moving plates 271 and 272 When moving in a direction away from each other, the inner diameter of the first cyclone dust collector 221 increases, and in general, the smaller the inner diameter of the cyclone dust collector, the higher the particle separation rate, so that the collection efficiency of dust having a small particle diameter can be increased.

Therefore, when cleaning the road surface with a lot of dust, the inner diameter of the third cyclone dust collector 223 is reduced through the movement of the first and second moving plates 271 and 272, thereby improving the collection efficiency of dust having a small particle diameter.

The first actuator 273 is connected to the first moving plate 271 and installed in the first cyclone dust collector 221 to move the first moving plate 271, and the second actuator 274 is a second moving plate. It is connected to the plate material 272 and is installed in the first cyclone dust collector 221 to move the second moving plate material 272.

The first actuator 273 and the second actuator 274 may be composed of a cylinder or may be composed of a transfer mechanism composed of motors 273a and 274a and screw shafts 273b and 274b.

Meanwhile, in FIGS. 6 and 7, the inner ends of the screw shafts 273b and 274b that penetrate the wall of the first cyclone dust collector 221 from the outside of the first cyclone dust collector 221 and are screwed to the first cyclone dust collector 221. The moving plate is coupled to the moving plate, and motors 273a and 274a are installed at the outer ends of the screw shafts 273b and 274b to rotate the screw shafts 273b and 274b by the operation of the motors 273a and 274b. The structure of the first actuator 273 and the second actuator 274 configured to move is shown.

The airtight member 275 closes a gap formed between the first movable plate 271 and the second movable plate 272, and is composed of a first airtight plate 2751 and a second airtight plate 2722. .

The first airtight plate 271 is made of a rubber plate fixedly installed at the end 271a located inside the second moving plate 272 among both ends 271a and 271b of the first moving plate 271, and The rubber plate constituting the first airtight plate material 2751 is elongated in the vertical direction and protrudes in the direction of the second moving plate material 272, and the protruding free end is formed in close contact with the inner circumferential surface of the second moving plate material 272.

The first airtight plate 2751 maintains a state in which the outer free end is in close contact with the inner circumferential surface of the second moving plate 272 regardless of the change in the distance between the first moving plate 271 and the second moving plate 272. Is preferably formed to have a structure or shape.

The second airtight plate 2252 is made of a rubber plate fixedly installed at an end 272b located inside the first moving plate 271 among both ends 272a and 272b of the second moving plate 272, and 2 The rubber plate constituting the airtight plate 2272 extends in a vertical direction and protrudes in the direction of the first moving plate 271, and the protruding free end is formed in close contact with the inner circumferential surface of the first moving plate 271.

This second airtight plate 2275 maintains a state in which the outer free end is in close contact with the inner circumferential surface of the first moving plate 271 regardless of a change in the distance between the first moving plate 271 and the second moving plate 272. It is preferably formed to have a structure or shape.

The blower 230 is installed to be located at the air outlet 220c of the third cyclone dust collector 223 and is operated by the motor 231 to forcibly discharge the air inside the third cyclone dust collector 223 to the outside. It is configured to form a suction force in the interior of the third cyclone dust collector 223.

The electric precipitator 240 collects dust contained in the air discharged from the blower 230, is connected to the blower 230, and is configured to discharge air from which the dust has been removed into the atmosphere.

Meanwhile, since electric precipitators of various structures have been commercialized and used, and the electric precipitator 240 according to the present invention can be configured by using the commercialized electric precipitator as it is, a detailed description of the electric precipitator 240 will be omitted.

The power generation system 250 produces and stores electricity for the operation of the motor 231, and consists of a generator and a battery, and generates and stores electricity by receiving power from the drive shaft of the vehicle 100, or a separate engine It can be configured to generate and store electricity by the operation of Of course, both of the above cases can be configured to be charged using commercial power when the electric sweeper is parked.

The air inlet 280 is formed at the upper end of the container 110 and is formed at the upper end of the container 110 by collecting fine dust in the air using an electric dust collector 240. ) Is configured to be connected to a duct connected to the electric dust collector 240.

On the other hand, in order to facilitate the inflow of air through the air inlet 280, an inclined surface 111 having a structure inclined downward toward the front is formed on the upper surface of the container 110, and waiting on the inclined surface 111 The inlet 280 may be formed so that the air in front of the electric cleaning vehicle is smoothly introduced into the atmospheric inlet 280 during the driving process.

A process of cleaning the road surface while driving the electric sweeper according to the present invention configured as described above will be described.

When the blower 230 is operated by the motor 231 while the electric cleaning vehicle according to the present invention travels on a road requiring cleaning work, suction force is formed in the first, second, and third cyclone dust collectors 221, 222, 223, and this The suction device 210 performs the cleaning operation of the road surface while sucking in the garbage on the road surface by the suction force.

Meanwhile, the garbage sucked through the suction device 210 first flows into the first cyclone dust collector 221 and is collected first, and the garbage discharged together with the air from the first cyclone dust collector 221 is a second cyclone dust collector ( Garbage introduced into the second cyclone dust collector 222 and discharged together with air from the second cyclone dust collector 222 flows into the third cyclone dust collector 223 and is collected for the third time.

As described above, since the electric sweeper according to the present invention collects garbage in three stages, it is possible to improve dust collection performance such as effectively collecting not only bulky garbage but also small volume dust.

Moreover, when the inner diameter of the first cyclone dust collector 221 is reduced by using the adjustment mechanism 270 configured in the first cyclone dust collector 221, it is possible to more smoothly collect dust having a small particle size. It is possible to improve work efficiency by appropriately adjusting the inner diameter size of the first cyclone dust collector 221 according to the state of.

Meanwhile, since the air discharged from the third cyclone dust collector 223 passes through the blower 230 and enters the electric dust collector 240, dust contained in the air is finally collected by the electric dust collector 240, and dust is removed. Only the cleansed air is released into the atmosphere.

The present invention is not limited to the specific preferred embodiments described above, and any person having ordinary knowledge in the technical field to which the present invention pertains without departing from the gist of the present invention claimed in the claims can implement various modifications Of course, such changes are within the scope of the claims.

<Explanation of symbols for major parts of drawings>
100: vehicle 200: cleaning equipment
210: suction device 220: cyclone dust collector
221: first cyclone dust collector 222: second cyclone dust collector
223: third cyclone dust collector 230: blower
231: motor 240: electric dust collector
250: power generation system 260: inclined discharge passage
261: air injection nozzle 270: control mechanism
271: first moving plate 272: second moving plate
273: first actuator 274: second actuator
275: hermetic member 2751: first hermetic plate
2752: second hermetic plate 280: air inlet

Claims (8)

In the electric cleaning vehicle consisting of the cleaning equipment 200 is mounted on the vehicle 100 running with electricity as power,
The cleaning equipment 200,
A suction device 210 that is installed to be located at the lower end of the vehicle 100 and sucks garbage on the road surface;
A cyclone dust collector 220 connected to the suction device 210 to collect suctioned waste;
A blower 230 installed to be connected to the cyclone dust collector 220 and operating by a motor 231 to generate a suction force;
An electric dust collector 240 for collecting dust in the air discharged from the blower 230;
A power generation system 250 for generating and storing electricity for the operation of the motor 231; And
An air inlet 280 that guides outside air to the electric precipitator 240 so that fine dust in the atmosphere is collected by the electric precipitator 240;
The cyclone dust collector 220,
A first cyclone dust collector 221 connected to the suction device 210; A third cyclone dust collector 223 connected to the blower 230; And a second cyclone dust collector 222 positioned between the first cyclone dust collector 221 and the third cyclone dust collector 223 to connect the first and third cyclone dust collectors 221 and 223; and a suction device 210 Air introduced through the first, second, and third cyclone dust collectors (221, 222, 223) are made to pass sequentially,
The lower ends of the first, second, and third cyclone dust collectors 221, 222, and 223 are connected to each other, but are installed to have a downward inclined posture from the third cyclone dust collector 223 to the first cyclone dust collector 221 An electric cleaning vehicle having improved dust collection performance, comprising: an inclined discharge passage 260 for guiding the garbage collected by the cyclone dust collectors 221, 222, 223 to be collected in one place through one passage.
delete The method according to claim 1,
The height h1 of the first cyclone dust collector 221, the height h2 of the second cyclone dust collector 222, and the height h3 of the third cyclone dust collector 223 satisfy the conditions of h1>h2> h3. Electric cleaning vehicle with improved dust collection performance, characterized in that formed.
The method according to claim 1,
An air injection nozzle 261 installed in the inclined discharge passage 260 to inject air into the inclined discharge passage 260 so that the trash can smoothly flow down through the inclined discharge passage 260 Electric cleaning vehicle with improved dust collection performance, characterized in that it further comprises.
The method of claim 4,
The air injection nozzle 261 is an electric cleaning vehicle with improved dust collection performance, characterized in that configured to receive and spray part of the air discharged from the blower 230.
The method according to claim 1,
The first, second, third cyclone dust collector (221, 222, 223) is installed in at least one of the cyclone dust collector 220 to change the dust collection performance by changing the inner diameter of the cyclone dust collector 220; further comprising: Electric cleaning vehicle with improved dust collection performance, characterized in that.
The method of claim 6,
The adjustment mechanism 270,
Consisting of a semi-cylindrical structure, the inner circumferential surfaces of the cyclone dust collector 220 are arranged to face each other in a vertical posture inside the cyclone dust collector 220 in which the adjustment mechanism 270 is configured, First and second movable plates 271 and 272 for changing the size of the inner diameter;
First and second actuators (273,274) connected to the first and second moving plates (271,272) and installed in the cyclone dust collector 220 to move the first and second moving plates (271,272); And
An electric cleaning vehicle having improved dust collection performance, comprising: an airtight member (275) for closing a gap formed between the first moving plate member (271) and the second moving plate member (272).
The method of claim 7,
The center C1 of the first moving plate 271 and the center C2 of the second moving plate 272 are formed to be shifted in the left and right direction of the cyclone dust collector 220,
The airtight member 275,
Consisting of a rubber plate installed to protrude from the end 271a located inside the second moving plate 272 of the both ends 271a and 271b of the first moving plate 271 so as to be in close contact with the inner circumferential surface of the second moving plate material 272 A first hermetic plate (2751); And a rubber plate installed to protrude from the end portion 272b located inside the first moving plate 271 among both ends 272a and 272b of the second moving plate material 272 so as to be in close contact with the inner circumferential surface of the first moving plate material 271. An electric cleaning vehicle with improved dust collection performance, characterized in that consisting of a second hermetic plate material (2752) made of.
