JP2017524924A - 異常増殖などのサンプル若しくは組織のタイプ若しくは性質を分析し、特徴付け、及び/又は診断するためのラマン分光法システム、装置及び方法 - Google Patents
異常増殖などのサンプル若しくは組織のタイプ若しくは性質を分析し、特徴付け、及び/又は診断するためのラマン分光法システム、装置及び方法 Download PDFInfo
- Publication number
- JP2017524924A JP2017524924A JP2016575728A JP2016575728A JP2017524924A JP 2017524924 A JP2017524924 A JP 2017524924A JP 2016575728 A JP2016575728 A JP 2016575728A JP 2016575728 A JP2016575728 A JP 2016575728A JP 2017524924 A JP2017524924 A JP 2017524924A
- Authority
- JP
- Japan
- Prior art keywords
- raman
- tissue
- illumination
- spectrum
- probe
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Granted
Links
- 230000002159 abnormal effect Effects 0.000 title claims abstract description 32
- 230000012010 growth Effects 0.000 title claims abstract description 26
- 238000001069 Raman spectroscopy Methods 0.000 title claims description 193
- 238000000034 method Methods 0.000 title claims description 88
- 230000003595 spectral effect Effects 0.000 claims abstract description 103
- 238000001237 Raman spectrum Methods 0.000 claims abstract description 100
- 239000000523 sample Substances 0.000 claims description 77
- 238000005286 illumination Methods 0.000 claims description 74
- 239000000835 fiber Substances 0.000 claims description 64
- 238000004458 analytical method Methods 0.000 claims description 29
- 230000005284 excitation Effects 0.000 claims description 29
- 238000012545 processing Methods 0.000 claims description 13
- 238000003745 diagnosis Methods 0.000 abstract description 41
- 238000012512 characterization method Methods 0.000 abstract description 16
- 210000001519 tissue Anatomy 0.000 description 158
- 238000001228 spectrum Methods 0.000 description 78
- 238000001727 in vivo Methods 0.000 description 73
- 108090000623 proteins and genes Proteins 0.000 description 48
- 102000004169 proteins and genes Human genes 0.000 description 48
- 235000018102 proteins Nutrition 0.000 description 47
- 150000002632 lipids Chemical class 0.000 description 36
- 230000002496 gastric effect Effects 0.000 description 30
- 230000003902 lesion Effects 0.000 description 30
- 206010028980 Neoplasm Diseases 0.000 description 27
- 238000005516 engineering process Methods 0.000 description 25
- 208000007276 esophageal squamous cell carcinoma Diseases 0.000 description 25
- 208000036765 Squamous cell carcinoma of the esophagus Diseases 0.000 description 24
- 206010061534 Oesophageal squamous cell carcinoma Diseases 0.000 description 23
- 230000000295 complement effect Effects 0.000 description 22
- 208000003200 Adenoma Diseases 0.000 description 21
- 201000011510 cancer Diseases 0.000 description 20
- 238000000794 confocal Raman spectroscopy Methods 0.000 description 20
- 238000001839 endoscopy Methods 0.000 description 19
- XLYOFNOQVPJJNP-UHFFFAOYSA-N water Substances O XLYOFNOQVPJJNP-UHFFFAOYSA-N 0.000 description 19
- 208000037062 Polyps Diseases 0.000 description 18
- 230000035945 sensitivity Effects 0.000 description 18
- 150000001408 amides Chemical class 0.000 description 17
- 238000005259 measurement Methods 0.000 description 17
- 238000012360 testing method Methods 0.000 description 15
- 229910052724 xenon Inorganic materials 0.000 description 15
- FHNFHKCVQCLJFQ-UHFFFAOYSA-N xenon atom Chemical compound [Xe] FHNFHKCVQCLJFQ-UHFFFAOYSA-N 0.000 description 15
- 238000000513 principal component analysis Methods 0.000 description 14
- 208000009956 adenocarcinoma Diseases 0.000 description 13
- 239000013307 optical fiber Substances 0.000 description 13
- WZUVPPKBWHMQCE-UHFFFAOYSA-N Haematoxylin Chemical compound C12=CC(O)=C(O)C=C2CC2(O)C1C1=CC=C(O)C(O)=C1OC2 WZUVPPKBWHMQCE-UHFFFAOYSA-N 0.000 description 12
- 238000001514 detection method Methods 0.000 description 12
- 210000000981 epithelium Anatomy 0.000 description 12
- 238000003384 imaging method Methods 0.000 description 12
- 210000002784 stomach Anatomy 0.000 description 12
- 238000004422 calculation algorithm Methods 0.000 description 10
- 230000000875 corresponding effect Effects 0.000 description 10
- 238000010586 diagram Methods 0.000 description 10
- 230000006870 function Effects 0.000 description 10
- 210000000056 organ Anatomy 0.000 description 10
- 238000002052 colonoscopy Methods 0.000 description 9
- 238000002790 cross-validation Methods 0.000 description 9
- 210000003238 esophagus Anatomy 0.000 description 9
- 238000003841 Raman measurement Methods 0.000 description 8
- VYPSYNLAJGMNEJ-UHFFFAOYSA-N Silicium dioxide Chemical compound O=[Si]=O VYPSYNLAJGMNEJ-UHFFFAOYSA-N 0.000 description 8
- 238000000338 in vitro Methods 0.000 description 8
- 230000003287 optical effect Effects 0.000 description 8
- COLNVLDHVKWLRT-UHFFFAOYSA-N phenylalanine Natural products OC(=O)C(N)CC1=CC=CC=C1 COLNVLDHVKWLRT-UHFFFAOYSA-N 0.000 description 8
- 235000008729 phenylalanine Nutrition 0.000 description 8
- 229960005190 phenylalanine Drugs 0.000 description 8
- 238000012549 training Methods 0.000 description 8
- 102000053602 DNA Human genes 0.000 description 7
- 108020004414 DNA Proteins 0.000 description 7
- COLNVLDHVKWLRT-QMMMGPOBSA-N L-phenylalanine Chemical compound OC(=O)[C@@H](N)CC1=CC=CC=C1 COLNVLDHVKWLRT-QMMMGPOBSA-N 0.000 description 7
- 238000012774 diagnostic algorithm Methods 0.000 description 7
- 208000037265 diseases, disorders, signs and symptoms Diseases 0.000 description 7
- 238000004599 local-density approximation Methods 0.000 description 7
- 230000004044 response Effects 0.000 description 7
- 208000001333 Colorectal Neoplasms Diseases 0.000 description 6
- 230000035508 accumulation Effects 0.000 description 6
- 238000009825 accumulation Methods 0.000 description 6
- 230000008901 benefit Effects 0.000 description 6
- 210000004027 cell Anatomy 0.000 description 6
- 238000011161 development Methods 0.000 description 6
- 201000010099 disease Diseases 0.000 description 6
- YQGOJNYOYNNSMM-UHFFFAOYSA-N eosin Chemical compound [Na+].OC(=O)C1=CC=CC=C1C1=C2C=C(Br)C(=O)C(Br)=C2OC2=C(Br)C(O)=C(Br)C=C21 YQGOJNYOYNNSMM-UHFFFAOYSA-N 0.000 description 6
- 208000017819 hyperplastic polyp Diseases 0.000 description 6
- 239000000463 material Substances 0.000 description 6
- 210000000214 mouth Anatomy 0.000 description 6
- 210000001989 nasopharynx Anatomy 0.000 description 6
- 230000008569 process Effects 0.000 description 6
- 229920006395 saturated elastomer Polymers 0.000 description 6
- 238000012216 screening Methods 0.000 description 6
- 238000004611 spectroscopical analysis Methods 0.000 description 6
- 238000000540 analysis of variance Methods 0.000 description 5
- 238000013459 approach Methods 0.000 description 5
- 210000003679 cervix uteri Anatomy 0.000 description 5
- 239000011521 glass Substances 0.000 description 5
- 210000000867 larynx Anatomy 0.000 description 5
- 230000001613 neoplastic effect Effects 0.000 description 5
- 230000001575 pathological effect Effects 0.000 description 5
- 238000007781 pre-processing Methods 0.000 description 5
- 238000012706 support-vector machine Methods 0.000 description 5
- 206010001233 Adenoma benign Diseases 0.000 description 4
- 206010009944 Colon cancer Diseases 0.000 description 4
- 206010058314 Dysplasia Diseases 0.000 description 4
- 238000012327 Endoscopic diagnosis Methods 0.000 description 4
- 208000012868 Overgrowth Diseases 0.000 description 4
- 239000004793 Polystyrene Substances 0.000 description 4
- 238000000692 Student's t-test Methods 0.000 description 4
- 230000005856 abnormality Effects 0.000 description 4
- 239000000090 biomarker Substances 0.000 description 4
- 230000001413 cellular effect Effects 0.000 description 4
- 210000001072 colon Anatomy 0.000 description 4
- 230000003247 decreasing effect Effects 0.000 description 4
- 238000011846 endoscopic investigation Methods 0.000 description 4
- 239000005350 fused silica glass Substances 0.000 description 4
- PCHJSUWPFVWCPO-UHFFFAOYSA-N gold Chemical compound [Au] PCHJSUWPFVWCPO-UHFFFAOYSA-N 0.000 description 4
- 229910052737 gold Inorganic materials 0.000 description 4
- 239000010931 gold Substances 0.000 description 4
- 210000004072 lung Anatomy 0.000 description 4
- 210000004877 mucosa Anatomy 0.000 description 4
- 238000013450 outlier detection Methods 0.000 description 4
- 229920002223 polystyrene Polymers 0.000 description 4
- WFKWXMTUELFFGS-UHFFFAOYSA-N tungsten Chemical compound [W] WFKWXMTUELFFGS-UHFFFAOYSA-N 0.000 description 4
- 229910052721 tungsten Inorganic materials 0.000 description 4
- 239000010937 tungsten Substances 0.000 description 4
- QTBSBXVTEAMEQO-UHFFFAOYSA-N Acetic acid Chemical compound CC(O)=O QTBSBXVTEAMEQO-UHFFFAOYSA-N 0.000 description 3
- 108091006146 Channels Proteins 0.000 description 3
- 206010048832 Colon adenoma Diseases 0.000 description 3
- 208000032843 Hemorrhage Diseases 0.000 description 3
- 208000034158 bleeding Diseases 0.000 description 3
- 230000000740 bleeding effect Effects 0.000 description 3
- 238000013461 design Methods 0.000 description 3
- 238000002405 diagnostic procedure Methods 0.000 description 3
- 238000012631 diagnostic technique Methods 0.000 description 3
- 230000004069 differentiation Effects 0.000 description 3
- 239000003814 drug Substances 0.000 description 3
- 238000013399 early diagnosis Methods 0.000 description 3
- 238000012326 endoscopic mucosal resection Methods 0.000 description 3
- 238000011156 evaluation Methods 0.000 description 3
- 210000001723 extracellular space Anatomy 0.000 description 3
- 238000001914 filtration Methods 0.000 description 3
- 230000010354 integration Effects 0.000 description 3
- 230000003993 interaction Effects 0.000 description 3
- 210000004185 liver Anatomy 0.000 description 3
- 238000007477 logistic regression Methods 0.000 description 3
- 238000013507 mapping Methods 0.000 description 3
- 208000012108 neoplastic polyp Diseases 0.000 description 3
- 102000039446 nucleic acids Human genes 0.000 description 3
- 108020004707 nucleic acids Proteins 0.000 description 3
- 150000007523 nucleic acids Chemical class 0.000 description 3
- 230000036961 partial effect Effects 0.000 description 3
- 208000022131 polyp of large intestine Diseases 0.000 description 3
- 150000004032 porphyrins Chemical class 0.000 description 3
- 230000002829 reductive effect Effects 0.000 description 3
- 238000007619 statistical method Methods 0.000 description 3
- 208000022271 tubular adenoma Diseases 0.000 description 3
- 210000003932 urinary bladder Anatomy 0.000 description 3
- XKRFYHLGVUSROY-UHFFFAOYSA-N Argon Chemical compound [Ar] XKRFYHLGVUSROY-UHFFFAOYSA-N 0.000 description 2
- 102000008186 Collagen Human genes 0.000 description 2
- 108010035532 Collagen Proteins 0.000 description 2
- 206010052360 Colorectal adenocarcinoma Diseases 0.000 description 2
- 206010066054 Dysmorphism Diseases 0.000 description 2
- 208000000461 Esophageal Neoplasms Diseases 0.000 description 2
- WSFSSNUMVMOOMR-UHFFFAOYSA-N Formaldehyde Chemical compound O=C WSFSSNUMVMOOMR-UHFFFAOYSA-N 0.000 description 2
- 229920002527 Glycogen Polymers 0.000 description 2
- 206010054949 Metaplasia Diseases 0.000 description 2
- 206010030155 Oesophageal carcinoma Diseases 0.000 description 2
- 239000004698 Polyethylene Substances 0.000 description 2
- 239000002202 Polyethylene glycol Substances 0.000 description 2
- BKZJXSDQOIUIIG-UHFFFAOYSA-N argon mercury Chemical compound [Ar].[Hg] BKZJXSDQOIUIIG-UHFFFAOYSA-N 0.000 description 2
- 230000004888 barrier function Effects 0.000 description 2
- 238000001574 biopsy Methods 0.000 description 2
- 238000001444 catalytic combustion detection Methods 0.000 description 2
- 230000010261 cell growth Effects 0.000 description 2
- 238000003759 clinical diagnosis Methods 0.000 description 2
- 229920001436 collagen Polymers 0.000 description 2
- 230000004732 colorectal carcinogenesis Effects 0.000 description 2
- 230000002596 correlated effect Effects 0.000 description 2
- 230000000694 effects Effects 0.000 description 2
- 230000007613 environmental effect Effects 0.000 description 2
- 201000004101 esophageal cancer Diseases 0.000 description 2
- 238000002474 experimental method Methods 0.000 description 2
- 238000001506 fluorescence spectroscopy Methods 0.000 description 2
- 235000013305 food Nutrition 0.000 description 2
- 206010017758 gastric cancer Diseases 0.000 description 2
- 210000001156 gastric mucosa Anatomy 0.000 description 2
- 230000002068 genetic effect Effects 0.000 description 2
- 229940096919 glycogen Drugs 0.000 description 2
- 210000002175 goblet cell Anatomy 0.000 description 2
- 238000009499 grossing Methods 0.000 description 2
- 229910052588 hydroxylapatite Inorganic materials 0.000 description 2
- 206010020718 hyperplasia Diseases 0.000 description 2
- 230000002390 hyperplastic effect Effects 0.000 description 2
- 238000011065 in-situ storage Methods 0.000 description 2
- 230000000968 intestinal effect Effects 0.000 description 2
- 210000004347 intestinal mucosa Anatomy 0.000 description 2
- 230000003834 intracellular effect Effects 0.000 description 2
- 230000000670 limiting effect Effects 0.000 description 2
- 239000003550 marker Substances 0.000 description 2
- 238000012544 monitoring process Methods 0.000 description 2
- 230000000877 morphologic effect Effects 0.000 description 2
- 230000009826 neoplastic cell growth Effects 0.000 description 2
- XYJRXVWERLGGKC-UHFFFAOYSA-D pentacalcium;hydroxide;triphosphate Chemical compound [OH-].[Ca+2].[Ca+2].[Ca+2].[Ca+2].[Ca+2].[O-]P([O-])([O-])=O.[O-]P([O-])([O-])=O.[O-]P([O-])([O-])=O XYJRXVWERLGGKC-UHFFFAOYSA-D 0.000 description 2
- 150000003904 phospholipids Chemical class 0.000 description 2
- -1 polyethylene Polymers 0.000 description 2
- 229920000573 polyethylene Polymers 0.000 description 2
- 229920001223 polyethylene glycol Polymers 0.000 description 2
- 238000003825 pressing Methods 0.000 description 2
- 210000000664 rectum Anatomy 0.000 description 2
- 230000009467 reduction Effects 0.000 description 2
- 239000013074 reference sample Substances 0.000 description 2
- 238000002271 resection Methods 0.000 description 2
- 229910052594 sapphire Inorganic materials 0.000 description 2
- 239000010980 sapphire Substances 0.000 description 2
- 239000000377 silicon dioxide Substances 0.000 description 2
- 210000003491 skin Anatomy 0.000 description 2
- 239000000243 solution Substances 0.000 description 2
- 238000012306 spectroscopic technique Methods 0.000 description 2
- 238000010183 spectrum analysis Methods 0.000 description 2
- 238000004416 surface enhanced Raman spectroscopy Methods 0.000 description 2
- 208000024891 symptom Diseases 0.000 description 2
- 230000001360 synchronised effect Effects 0.000 description 2
- 238000012795 verification Methods 0.000 description 2
- 230000000007 visual effect Effects 0.000 description 2
- RNAMYOYQYRYFQY-UHFFFAOYSA-N 2-(4,4-difluoropiperidin-1-yl)-6-methoxy-n-(1-propan-2-ylpiperidin-4-yl)-7-(3-pyrrolidin-1-ylpropoxy)quinazolin-4-amine Chemical compound N1=C(N2CCC(F)(F)CC2)N=C2C=C(OCCCN3CCCC3)C(OC)=CC2=C1NC1CCN(C(C)C)CC1 RNAMYOYQYRYFQY-UHFFFAOYSA-N 0.000 description 1
- 102000010637 Aquaporins Human genes 0.000 description 1
- 108010063290 Aquaporins Proteins 0.000 description 1
- 208000005623 Carcinogenesis Diseases 0.000 description 1
- 206010008342 Cervix carcinoma Diseases 0.000 description 1
- 208000035984 Colonic Polyps Diseases 0.000 description 1
- 206010011224 Cough Diseases 0.000 description 1
- 208000007882 Gastritis Diseases 0.000 description 1
- 102000001554 Hemoglobins Human genes 0.000 description 1
- 108010054147 Hemoglobins Proteins 0.000 description 1
- ONIBWKKTOPOVIA-BYPYZUCNSA-N L-Proline Chemical compound OC(=O)[C@@H]1CCCN1 ONIBWKKTOPOVIA-BYPYZUCNSA-N 0.000 description 1
- KZSNJWFQEVHDMF-BYPYZUCNSA-N L-valine Chemical compound CC(C)[C@H](N)C(O)=O KZSNJWFQEVHDMF-BYPYZUCNSA-N 0.000 description 1
- 206010064912 Malignant transformation Diseases 0.000 description 1
- 208000035346 Margins of Excision Diseases 0.000 description 1
- 208000006994 Precancerous Conditions Diseases 0.000 description 1
- ONIBWKKTOPOVIA-UHFFFAOYSA-N Proline Natural products OC(=O)C1CCCN1 ONIBWKKTOPOVIA-UHFFFAOYSA-N 0.000 description 1
- 206010039897 Sedation Diseases 0.000 description 1
- FAPWRFPIFSIZLT-UHFFFAOYSA-M Sodium chloride Chemical compound [Na+].[Cl-] FAPWRFPIFSIZLT-UHFFFAOYSA-M 0.000 description 1
- 208000005718 Stomach Neoplasms Diseases 0.000 description 1
- 101710172711 Structural protein Proteins 0.000 description 1
- 208000006105 Uterine Cervical Neoplasms Diseases 0.000 description 1
- KZSNJWFQEVHDMF-UHFFFAOYSA-N Valine Natural products CC(C)C(N)C(O)=O KZSNJWFQEVHDMF-UHFFFAOYSA-N 0.000 description 1
- 230000004913 activation Effects 0.000 description 1
- 230000003044 adaptive effect Effects 0.000 description 1
- 230000002411 adverse Effects 0.000 description 1
- 208000007502 anemia Diseases 0.000 description 1
- 230000033115 angiogenesis Effects 0.000 description 1
- 229910052786 argon Inorganic materials 0.000 description 1
- 238000000149 argon plasma sintering Methods 0.000 description 1
- 230000001174 ascending effect Effects 0.000 description 1
- 238000005452 bending Methods 0.000 description 1
- 230000005540 biological transmission Effects 0.000 description 1
- 210000004369 blood Anatomy 0.000 description 1
- 239000008280 blood Substances 0.000 description 1
- 210000004204 blood vessel Anatomy 0.000 description 1
- 210000000988 bone and bone Anatomy 0.000 description 1
- 239000005388 borosilicate glass Substances 0.000 description 1
- 210000000621 bronchi Anatomy 0.000 description 1
- 230000036952 cancer formation Effects 0.000 description 1
- 231100000504 carcinogenesis Toxicity 0.000 description 1
- 230000004663 cell proliferation Effects 0.000 description 1
- 201000010881 cervical cancer Diseases 0.000 description 1
- 230000008859 change Effects 0.000 description 1
- 238000006243 chemical reaction Methods 0.000 description 1
- 230000001055 chewing effect Effects 0.000 description 1
- 210000004953 colonic tissue Anatomy 0.000 description 1
- 238000002573 colposcopy Methods 0.000 description 1
- 239000012141 concentrate Substances 0.000 description 1
- 230000008602 contraction Effects 0.000 description 1
- 239000002872 contrast media Substances 0.000 description 1
- 230000001276 controlling effect Effects 0.000 description 1
- 238000007796 conventional method Methods 0.000 description 1
- 238000001816 cooling Methods 0.000 description 1
- IDLFZVILOHSSID-OVLDLUHVSA-N corticotropin Chemical compound C([C@@H](C(=O)N[C@@H](CO)C(=O)N[C@@H](CCSC)C(=O)N[C@@H](CCC(O)=O)C(=O)N[C@@H](CC=1NC=NC=1)C(=O)N[C@@H](CC=1C=CC=CC=1)C(=O)N[C@@H](CCCNC(N)=N)C(=O)N[C@@H](CC=1C2=CC=CC=C2NC=1)C(=O)NCC(=O)N[C@@H](CCCCN)C(=O)N1[C@@H](CCC1)C(=O)N[C@@H](C(C)C)C(=O)NCC(=O)N[C@@H](CCCCN)C(=O)N[C@@H](CCCCN)C(=O)N[C@@H](CCCNC(N)=N)C(=O)N[C@@H](CCCNC(N)=N)C(=O)N1[C@@H](CCC1)C(=O)N[C@@H](C(C)C)C(=O)N[C@@H](CCCCN)C(=O)N[C@@H](C(C)C)C(=O)N[C@@H](CC=1C=CC(O)=CC=1)C(=O)N1[C@@H](CCC1)C(=O)N[C@@H](CC(N)=O)C(=O)NCC(=O)N[C@@H](C)C(=O)N[C@@H](CCC(O)=O)C(=O)N[C@@H](CC(O)=O)C(=O)N[C@@H](CCC(O)=O)C(=O)N[C@@H](CO)C(=O)N[C@@H](C)C(=O)N[C@@H](CCC(O)=O)C(=O)N[C@@H](C)C(=O)N[C@@H](CC=1C=CC=CC=1)C(=O)N1[C@@H](CCC1)C(=O)N[C@@H](CC(C)C)C(=O)N[C@@H](CCC(O)=O)C(=O)N[C@@H](CC=1C=CC=CC=1)C(O)=O)NC(=O)[C@@H](N)CO)C1=CC=C(O)C=C1 IDLFZVILOHSSID-OVLDLUHVSA-N 0.000 description 1
- 230000002380 cytological effect Effects 0.000 description 1
- 230000034994 death Effects 0.000 description 1
- 231100000517 death Toxicity 0.000 description 1
- 230000001419 dependent effect Effects 0.000 description 1
- 238000009792 diffusion process Methods 0.000 description 1
- 238000010790 dilution Methods 0.000 description 1
- 239000012895 dilution Substances 0.000 description 1
- 238000002845 discoloration Methods 0.000 description 1
- 208000035475 disorder Diseases 0.000 description 1
- 239000006185 dispersion Substances 0.000 description 1
- 210000004921 distal colon Anatomy 0.000 description 1
- 238000009826 distribution Methods 0.000 description 1
- 230000035622 drinking Effects 0.000 description 1
- 229940079593 drug Drugs 0.000 description 1
- 238000012377 drug delivery Methods 0.000 description 1
- 239000003792 electrolyte Substances 0.000 description 1
- 238000002674 endoscopic surgery Methods 0.000 description 1
- 210000005081 epithelial layer Anatomy 0.000 description 1
- 230000008029 eradication Effects 0.000 description 1
- 201000006608 esophagus squamous cell carcinoma Diseases 0.000 description 1
- 239000013305 flexible fiber Substances 0.000 description 1
- 239000012530 fluid Substances 0.000 description 1
- 238000002189 fluorescence spectrum Methods 0.000 description 1
- 208000021302 gastroesophageal reflux disease Diseases 0.000 description 1
- 210000004907 gland Anatomy 0.000 description 1
- 210000003128 head Anatomy 0.000 description 1
- 230000035876 healing Effects 0.000 description 1
- 230000003118 histopathologic effect Effects 0.000 description 1
- 230000036571 hydration Effects 0.000 description 1
- 238000006703 hydration reaction Methods 0.000 description 1
- 230000002209 hydrophobic effect Effects 0.000 description 1
- 230000006872 improvement Effects 0.000 description 1
- 238000012623 in vivo measurement Methods 0.000 description 1
- 230000008595 infiltration Effects 0.000 description 1
- 238000001764 infiltration Methods 0.000 description 1
- 238000007689 inspection Methods 0.000 description 1
- 230000002452 interceptive effect Effects 0.000 description 1
- 210000003093 intracellular space Anatomy 0.000 description 1
- 238000011835 investigation Methods 0.000 description 1
- 238000012729 kappa analysis Methods 0.000 description 1
- 238000002357 laparoscopic surgery Methods 0.000 description 1
- 238000010150 least significant difference test Methods 0.000 description 1
- 230000036212 malign transformation Effects 0.000 description 1
- 230000003211 malignant effect Effects 0.000 description 1
- 239000011159 matrix material Substances 0.000 description 1
- 238000002844 melting Methods 0.000 description 1
- 230000008018 melting Effects 0.000 description 1
- QSHDDOUJBYECFT-UHFFFAOYSA-N mercury Chemical compound [Hg] QSHDDOUJBYECFT-UHFFFAOYSA-N 0.000 description 1
- 229910052753 mercury Inorganic materials 0.000 description 1
- 230000015689 metaplastic ossification Effects 0.000 description 1
- 230000008450 motivation Effects 0.000 description 1
- 238000012627 multivariate algorithm Methods 0.000 description 1
- 210000003739 neck Anatomy 0.000 description 1
- 238000010606 normalization Methods 0.000 description 1
- 238000005457 optimization Methods 0.000 description 1
- 230000008520 organization Effects 0.000 description 1
- 238000009595 pap smear Methods 0.000 description 1
- 238000012335 pathological evaluation Methods 0.000 description 1
- 230000007170 pathology Effects 0.000 description 1
- 230000010412 perfusion Effects 0.000 description 1
- 235000013446 pixi Nutrition 0.000 description 1
- 210000004180 plasmocyte Anatomy 0.000 description 1
- 230000010287 polarization Effects 0.000 description 1
- 208000014081 polyp of colon Diseases 0.000 description 1
- 238000002360 preparation method Methods 0.000 description 1
- 230000000750 progressive effect Effects 0.000 description 1
- 230000002062 proliferating effect Effects 0.000 description 1
- 230000000069 prophylactic effect Effects 0.000 description 1
- OLBCVFGFOZPWHH-UHFFFAOYSA-N propofol Chemical compound CC(C)C1=CC=CC(C(C)C)=C1O OLBCVFGFOZPWHH-UHFFFAOYSA-N 0.000 description 1
- 229960004134 propofol Drugs 0.000 description 1
- 238000003908 quality control method Methods 0.000 description 1
- 238000001055 reflectance spectroscopy Methods 0.000 description 1
- 238000002310 reflectometry Methods 0.000 description 1
- 230000011514 reflex Effects 0.000 description 1
- 238000011160 research Methods 0.000 description 1
- 230000000717 retained effect Effects 0.000 description 1
- 238000012552 review Methods 0.000 description 1
- 238000013341 scale-up Methods 0.000 description 1
- 238000013515 script Methods 0.000 description 1
- 230000036280 sedation Effects 0.000 description 1
- 238000010187 selection method Methods 0.000 description 1
- 210000001599 sigmoid colon Anatomy 0.000 description 1
- 239000011780 sodium chloride Substances 0.000 description 1
- 238000013179 statistical model Methods 0.000 description 1
- 230000000638 stimulation Effects 0.000 description 1
- 201000011549 stomach cancer Diseases 0.000 description 1
- 239000000126 substance Substances 0.000 description 1
- 239000000758 substrate Substances 0.000 description 1
- 230000000153 supplemental effect Effects 0.000 description 1
- 230000001225 therapeutic effect Effects 0.000 description 1
- 230000009466 transformation Effects 0.000 description 1
- 230000007704 transition Effects 0.000 description 1
- 238000002834 transmittance Methods 0.000 description 1
- 210000004881 tumor cell Anatomy 0.000 description 1
- 239000004474 valine Substances 0.000 description 1
- 238000002460 vibrational spectroscopy Methods 0.000 description 1
- 238000012800 visualization Methods 0.000 description 1
- 230000002087 whitening effect Effects 0.000 description 1
Images
Classifications
-
- G—PHYSICS
- G01—MEASURING; TESTING
- G01N—INVESTIGATING OR ANALYSING MATERIALS BY DETERMINING THEIR CHEMICAL OR PHYSICAL PROPERTIES
- G01N21/00—Investigating or analysing materials by the use of optical means, i.e. using sub-millimetre waves, infrared, visible or ultraviolet light
- G01N21/62—Systems in which the material investigated is excited whereby it emits light or causes a change in wavelength of the incident light
- G01N21/63—Systems in which the material investigated is excited whereby it emits light or causes a change in wavelength of the incident light optically excited
- G01N21/65—Raman scattering
-
- A—HUMAN NECESSITIES
- A61—MEDICAL OR VETERINARY SCIENCE; HYGIENE
- A61B—DIAGNOSIS; SURGERY; IDENTIFICATION
- A61B1/00—Instruments for performing medical examinations of the interior of cavities or tubes of the body by visual or photographical inspection, e.g. endoscopes; Illuminating arrangements therefor
- A61B1/012—Instruments for performing medical examinations of the interior of cavities or tubes of the body by visual or photographical inspection, e.g. endoscopes; Illuminating arrangements therefor characterised by internal passages or accessories therefor
- A61B1/018—Instruments for performing medical examinations of the interior of cavities or tubes of the body by visual or photographical inspection, e.g. endoscopes; Illuminating arrangements therefor characterised by internal passages or accessories therefor for receiving instruments
-
- A—HUMAN NECESSITIES
- A61—MEDICAL OR VETERINARY SCIENCE; HYGIENE
- A61B—DIAGNOSIS; SURGERY; IDENTIFICATION
- A61B5/00—Measuring for diagnostic purposes; Identification of persons
- A61B5/0059—Measuring for diagnostic purposes; Identification of persons using light, e.g. diagnosis by transillumination, diascopy, fluorescence
- A61B5/0075—Measuring for diagnostic purposes; Identification of persons using light, e.g. diagnosis by transillumination, diascopy, fluorescence by spectroscopy, i.e. measuring spectra, e.g. Raman spectroscopy, infrared absorption spectroscopy
-
- A—HUMAN NECESSITIES
- A61—MEDICAL OR VETERINARY SCIENCE; HYGIENE
- A61B—DIAGNOSIS; SURGERY; IDENTIFICATION
- A61B5/00—Measuring for diagnostic purposes; Identification of persons
- A61B5/0059—Measuring for diagnostic purposes; Identification of persons using light, e.g. diagnosis by transillumination, diascopy, fluorescence
- A61B5/0082—Measuring for diagnostic purposes; Identification of persons using light, e.g. diagnosis by transillumination, diascopy, fluorescence adapted for particular medical purposes
- A61B5/0084—Measuring for diagnostic purposes; Identification of persons using light, e.g. diagnosis by transillumination, diascopy, fluorescence adapted for particular medical purposes for introduction into the body, e.g. by catheters
-
- G—PHYSICS
- G01—MEASURING; TESTING
- G01J—MEASUREMENT OF INTENSITY, VELOCITY, SPECTRAL CONTENT, POLARISATION, PHASE OR PULSE CHARACTERISTICS OF INFRARED, VISIBLE OR ULTRAVIOLET LIGHT; COLORIMETRY; RADIATION PYROMETRY
- G01J3/00—Spectrometry; Spectrophotometry; Monochromators; Measuring colours
- G01J3/02—Details
- G01J3/0205—Optical elements not provided otherwise, e.g. optical manifolds, diffusers, windows
- G01J3/0218—Optical elements not provided otherwise, e.g. optical manifolds, diffusers, windows using optical fibers
-
- G—PHYSICS
- G01—MEASURING; TESTING
- G01J—MEASUREMENT OF INTENSITY, VELOCITY, SPECTRAL CONTENT, POLARISATION, PHASE OR PULSE CHARACTERISTICS OF INFRARED, VISIBLE OR ULTRAVIOLET LIGHT; COLORIMETRY; RADIATION PYROMETRY
- G01J3/00—Spectrometry; Spectrophotometry; Monochromators; Measuring colours
- G01J3/28—Investigating the spectrum
- G01J3/44—Raman spectrometry; Scattering spectrometry ; Fluorescence spectrometry
-
- G—PHYSICS
- G01—MEASURING; TESTING
- G01N—INVESTIGATING OR ANALYSING MATERIALS BY DETERMINING THEIR CHEMICAL OR PHYSICAL PROPERTIES
- G01N21/00—Investigating or analysing materials by the use of optical means, i.e. using sub-millimetre waves, infrared, visible or ultraviolet light
- G01N21/17—Systems in which incident light is modified in accordance with the properties of the material investigated
- G01N21/25—Colour; Spectral properties, i.e. comparison of effect of material on the light at two or more different wavelengths or wavelength bands
- G01N21/27—Colour; Spectral properties, i.e. comparison of effect of material on the light at two or more different wavelengths or wavelength bands using photo-electric detection ; circuits for computing concentration
- G01N21/274—Calibration, base line adjustment, drift correction
-
- A—HUMAN NECESSITIES
- A61—MEDICAL OR VETERINARY SCIENCE; HYGIENE
- A61B—DIAGNOSIS; SURGERY; IDENTIFICATION
- A61B2560/00—Constructional details of operational features of apparatus; Accessories for medical measuring apparatus
- A61B2560/02—Operational features
- A61B2560/0223—Operational features of calibration, e.g. protocols for calibrating sensors
-
- G—PHYSICS
- G01—MEASURING; TESTING
- G01J—MEASUREMENT OF INTENSITY, VELOCITY, SPECTRAL CONTENT, POLARISATION, PHASE OR PULSE CHARACTERISTICS OF INFRARED, VISIBLE OR ULTRAVIOLET LIGHT; COLORIMETRY; RADIATION PYROMETRY
- G01J3/00—Spectrometry; Spectrophotometry; Monochromators; Measuring colours
- G01J3/12—Generating the spectrum; Monochromators
- G01J2003/1226—Interference filters
- G01J2003/123—Indexed discrete filters
-
- G—PHYSICS
- G01—MEASURING; TESTING
- G01N—INVESTIGATING OR ANALYSING MATERIALS BY DETERMINING THEIR CHEMICAL OR PHYSICAL PROPERTIES
- G01N2201/00—Features of devices classified in G01N21/00
- G01N2201/06—Illumination; Optics
- G01N2201/061—Sources
- G01N2201/06113—Coherent sources; lasers
- G01N2201/0612—Laser diodes
-
- G—PHYSICS
- G01—MEASURING; TESTING
- G01N—INVESTIGATING OR ANALYSING MATERIALS BY DETERMINING THEIR CHEMICAL OR PHYSICAL PROPERTIES
- G01N2201/00—Features of devices classified in G01N21/00
- G01N2201/08—Optical fibres; light guides
-
- G—PHYSICS
- G01—MEASURING; TESTING
- G01N—INVESTIGATING OR ANALYSING MATERIALS BY DETERMINING THEIR CHEMICAL OR PHYSICAL PROPERTIES
- G01N2201/00—Features of devices classified in G01N21/00
- G01N2201/12—Circuits of general importance; Signal processing
-
- G—PHYSICS
- G01—MEASURING; TESTING
- G01N—INVESTIGATING OR ANALYSING MATERIALS BY DETERMINING THEIR CHEMICAL OR PHYSICAL PROPERTIES
- G01N2201/00—Features of devices classified in G01N21/00
- G01N2201/12—Circuits of general importance; Signal processing
- G01N2201/129—Using chemometrical methods
Abstract
Description
本発明の態様は、異常な又は明らかに異常な増殖(例えば癌として)といった、励起エネルギー(例えば、コリメートイルミネーション)が向けられるサンプル又は組織のタイプ又は性質の高精度同定のためのラマン分光システム及び方法に関する。特に、ただし排他的ではないが、本発明の態様により、胃腸成長などの異常組織の生体内及び生体外でのリアルタイム高精度診断が可能になる。
内視鏡などの低侵襲技術を用いて、新生物胃腸成長などの組織の性質を正確かつ迅速に特徴づけ、同定することが非常に望ましい。例えば、結腸直腸癌(CRC)は、後期に発見されたときには死亡率の高い一般的な疾患である。結腸ポリープの同定及び根絶は、結腸直腸死亡率及び罹患率を低下させるために最も重要な手段の1つである。悪性形質転換のリスクがほとんど又はまったくない過形成性ポリープと顕著な悪性潜伏期を伴う腺腫との区別は、従来の大腸内視鏡検査技術を用いた臨床的課題として残っている。
本発明に係る実施形態の目的は、例えば本質的に身体の任意の部分における癌などとしての異常成長といった組織のタイプ及び/又は性質を特徴付け、同定し及び/又は診断するための従来技術及び現在の内視鏡技術に関連する問題の少なくともいくつかを克服することである。さらに別の目的は、内視鏡検査(例えば大腸内視鏡検査などの胃腸内視鏡検査)中に生体内でポリープ及び前癌などの異常組織のタイプ又は性質を迅速に特徴付け、同定し及び/又は診断するためのラマン分光法に基づく高精度システム及び方法を提供することである。
(i)FP範囲内の組織ラマン信号を圧倒する強力な自己蛍光を呈する場合のある組織(例えば、胃、肺、結腸、肝臓)について、HW範囲は依然として診断情報を伴う強力な組織ラマンピークを含むことができる。
(ii)FP及びHW範囲は、補完生体分子情報(例えば、タンパク質、脂質、DNA及び水)を含むため、組織の特徴付け及び診断を改善することができる。
(iii)結合が異なれば異なるスペクトル範囲で振動するので、2つの異なるスペクトル範囲(FP及びHW)を使用すると、単一スキャンで得られる生体分子情報が増加する。
ラマン分光法は、非弾性光散乱の基本原理に基づくユニークな光学的振動技術を表す。入射レーザ光が分子の偏光変化を誘発すると、入射光子のわずかな割合(108の〜1)が、サンプル中の分子の特定のラマン活性振動モードに対応する周波数シフトにより非弾性的に散乱される。異なる分子及び異なる結合が異なる周波数で振動する。したがって、ラマン分光法は、組織中のタンパク質、脂質及びデオキシリボ核酸(DNA)、水などの多数の細胞間及び/又は細胞内成分から多数の特定の生体分子情報を得ることができる。
・v(C−C)タンパク質に関連する853cm-1、
・フェニルアラニンのvs(C−C)環揺らぎに関連する1004cm-1、
・脂質のv(C−C)に関連する1078cm-1、
・タンパク質のアミドIIIv(C−N)及びδ(N−H)に関連する1265cm-1、
・タンパク質のCH3CH2ねじれ及び揺れに関連する1302cm-1、
・タンパク質及び脂質のδ(CH2)変形に関連する1445cm-1、
・タンパク質のアミドIv(C=O)に関連する1655cm-1、及び
・脂質のv(C=O)に関連する1745cm-1。
HW領域には、次のような強いラマンピークも見られる:
・脂質の対称及び非対称CH2伸縮に関連する2850及び2885cm-1、
・タンパク質のCH3伸縮に関連する2940cm-1、
・水OH伸縮振動の広いラマンバンドに関連する3100〜3600cm-1の領域における3400cm-1。
・新規外れ値検出スキームを、オンラインフレームワークの高レベルのモデル固有フィードバックツールとして機能するようにHotellingのT2及びQ−残存統計と結合された主成分(PCA)に基づいて導入する。HotellingのT2及びQ−残差は、モデルフィット内外の情報を提供する2つの独立したパラメータである。
・取得されたスペクトル品質(すなわち、プローブ−組織接触モード、プローブ処理変動、白色光干渉、青色光干渉、交絡因子など)を制御するための指標としてHotellingのT2及びQ−残差パラメータを使用して、聴覚フィードバックをオンラインラマン診断システムに統合し、臨床医のためにリアルタイム分光スクリーニング及びプローブ取扱のアドバイスを容易にする。
・スペクトルがさらなる分析のために確認された場合には、これらを生体内癌診断の確率モデルに送る。このソフトウェアは、多数の患者のスペクトルデータベースに基づいて、部分最小二乗弁別解析(PLS−DA)、PCA線形判別分析(LDA)、アリコロニー最適化(ACO)−LDA、分類及び回帰ツリー(CART)、サポートベクターマシン(SVM)、アダプティブブースティング(AdaBoost)などを含めた、予めレンダリングされた多変量統計モデル間で即座に切り替えることができる。
(i)良性(正常及び過形成性ポリープ)
(ii)低悪性度及び高悪性度の腺腫(管状、尿細管性、絨毛状)
(iii)腺癌。
・v(C−C)タンパク質に関連する853cm-1、
・フェニルアラニンのvs(C−C)環揺らぎに関連する1004cm-1、
・脂質のv(C−C)に関連する1078cm-1、
・タンパク質のアミドIIIv(C−N)及びδ(N−H)に関連する1265cm-1、
・脂質のCH2ねじれ及び揺れに関連する1302cm-1、
・タンパク質及び脂質のδ(CH2)変形に関連する1445cm-1、
・ポルフィリンのv(C=C)に関連する1618cm-1、
・タンパク質のアミドIv(C=O)に関連する1655cm-1、
・脂質のv(C=O)に関連する1745cm-1。
HW領域には、次のような強いラマンピークも見られる:
・それぞれ脂質の対称及び非対称CH2伸縮に関連する2850及び2885cm-1、
・タンパク質のCH3伸縮に関連する2940cm-1、

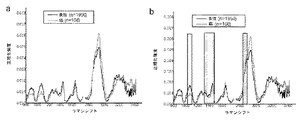

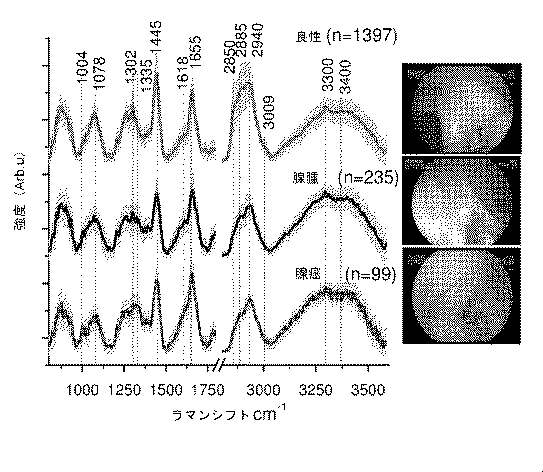

・タンパク質の非対称=CH伸縮に関連する3009cm-1、
・アミドA(タンパク質のNH伸縮)に関連する〜約3300cm-1、並びに
・組織の細胞外及び細胞外空間におけるOH−結合の局所構造及び相互作用に直接関係するOH伸縮振動に関連するOHの広いラマンバンド〜3200及び〜3400cm-1。
(i)直腸ポリープ切除術又はEMRのための小さな高リスク腺腫の同定を含む予防的介入アプローチ。本質的にリスクが明らかに低い過形成性ポリープ又は扁平な疑わしい病変をその場に残し、それにより医療費を効率的に削減することができる可能性がある。
(ii)光ファイバー共焦点ラマン分光法を使用して、結腸直腸腺癌の存在を高精度で効率的に確認又は拒絶することもできる。
・v(C−C)タンパク質に関連する853cm-1、
・フェニルアラニンの環揺らぎに関連する1004cm-1、
・脂質のv(C−C)に関連する1078cm-1、
・タンパク質のアミドIIIv(C−N)及びδ(N−H)に関連する1265cm-1、
・脂質のCH2ねじれ及び揺れに関連する1302cm-1、
・タンパク質及び核酸のCH3CH2ねじれに関連する1335cm-1、
・タンパク質及び脂質のδ(CH2)変形に関連する1445cm-1、
・ポルフィリンのv(C=C)に関連する1618cm-1、
・タンパク質のアミドIv(C=O)に関連する1655cm-1、及び
・リン脂質のv(C=O)に関連する1745cm-1。
HW領域18〜24においても、次のように強いラマンピークが観察される:
・脂質の対称及び非対称CH2伸縮に関連する2580及び2885cm-1、
・タンパク質のCH3伸縮に関連する2940cm-1、
・アミドA(タンパク質のNH伸縮)に関連する約3300cm-1、及び
・食道組織の細胞内及び細胞外空間におけるOH−結合の局所コンホメーション及び相互作用に関連する水の広範なラマンバンド(〜3250及び〜3400cm-1でピークに達するOH伸縮振動)。
1.予測性能を改善する;
2.モデルの複雑さを軽減する;及び
3.変数/特徴の重要性などの基礎的な分光プロセスへの洞察を得る。
・構造タンパク質及びコラーゲンのグリコーゲン(CCH)変形芳香族及び(C−C)伸縮に関連する〜854cm-1、
・プロリン、バリン及びグリコーゲンのv(C−C)伸縮に関連する〜937cm-1、
・フェニルアラニンの(C−C)環揺らぎに関連する〜1001cm-1、
・リン脂質及び核酸に関連する〜約1095cm-1、
・アミドIIIに関連する〜1253cm-1、
・脂質/タンパク質(コラーゲン)のCH3CH2ねじれ態様に関連する〜約1313cm-1、
・タンパク質及び脂質のCH2屈曲態様に関連する〜約1445cm-1、
・タンパク質のアミドIバンド−(C=O)伸縮態様に関連する〜1654cm-1、
・タンパク質−CH3伸縮に関連する〜2946cm-1、及び
・水−(OH)伸縮に関連する〜約3400cm-1。
・v(C−C)タンパク質に関連する936cm-1、
・フェニルアラニンのvs(C−C)環揺らぎに関連する1004cm-1、
・脂質のv(C−C)に関連する1078cm-1、
・タンパク質のアミドIIIv(C−N)及びδ(N−H)に関連する1265cm-1、
・タンパク質のCH2のねじれ及び揺れに関連する1302cm-1、
・タンパク質及び脂質のδ(CH2)変形に関連する1445cm-1、
・ポルフィリンのv(C=C)に関連する1618cm-1、
・タンパク質のアミドIv(C=O)に関連する1655cm-1、
・脂質のv(C=O)に関連する1745cm-1、
・タンパク質−CH3伸縮に関連する〜2946cm-1、及び
・水−(OH)伸縮に関連する〜3400cm-1。
・v(C−C)タンパク質に関連する875cm-1、
・フェニルアラニンのνs(C−C)環揺らぎに関連する1004cm-1、
・脂質のv(C−C)に関連する1078cm-1、
・脂質のCH2のねじれ及び揺れに関連する1302cm-1、
・タンパク質及び脂質のδ(CH2)変形に関連する1445cm-1、
・タンパク質のアミドIv(C=O)に関連する1655cm-1。
さらに、HW領域の強いラマンピークも観察される:
・脂質の対称及び非対称CH2伸縮に関連する2885cm-1、
・タンパク質のCH3伸縮に関連する2940cm-1、
・アミドA(タンパク質のNH伸縮)に関連する3300cm-1、
・組織の細胞外及び細胞外空間におけるOH結合の局所コンホメーション及び相互作用に関連する水の広範なラマンバンド(〜約3400cm-1にピークを有するOH伸縮振動)。
・従来のWLR/NBI/AFI内視鏡撮像は、前癌(すなわち異形成)が疑われる大きなバレットセグメントの確定していない外観を示す遠位食道で実施される。
・その後、広帯域共焦点ラマン内視鏡技術を疑わしい組織セグメント内の客観的に標的となる生検に適用する。
・共焦点ラマン分類は、「正常」(病理又は胃炎の欠如)、「低リスク」(腸−異形性)及び「高リスク」(異形成/癌)に定義される。
・共焦点ラマンプローブは遠位食道の組織に対して配置され、診断はFP及びHW領域から抽出された補完情報に基づいてリアルタイムで与えられる。
・共焦点ラマン内視鏡技術は、後に生検される高リスク組織部位を標的とする。
・v(C−C)タンパク質に関連する853cm-1、
・フェニルアラニンのvs(C−C)環揺らぎに関連する1004cm-1、
・脂質のv(C−C)に関連する1078cm-1、
・タンパク質のアミドIIIv(C−N)及びδ(N−H)に関連する1265cm-1、
・タンパク質のCH3CH2ねじれ及び揺れに関連する1302cm-1、
・タンパク質及び脂質のδ(CH2)変形に関連する1445cm-1、
・タンパク質のアミドIv(C=O)に関連する1655cm-1、及び
・脂質のv(C=O)に関連する1745cm-1。
102 近赤外(NIR)ダイオードレーザ
104 ハイスループット反射イメージング分光器
105 細長シャフト
106 NIR最適化電荷結合素子(CCD)カメラ
108 プローブ
110 光ファイバー
112 バンドパスフィルタ
114 ロングパスフィルタ
124 マイクロコントローラシステム
2100 システム
2102 プローブ
2104 組織
2106 NIRレーザ
2108 スペクトログラフ
2110 CCD
2112 エッジロングパスフィルタ
2114 バンドパスフィルタ
2116 PC
2118 イルミネーション源
2120 ホットミラーローパスフィルタ
2304 サンプル
Claims (19)
- ラマン分光装置であって、
イルミネーションを組織に向けるように構成された第1のイルミネーション源と、
該組織によって散乱されたイルミネーションからフィンガープリント(FP)及び高波数(HW)ラマンスペクトルを同時に検出するように構成されたラマン分光器と、
FP及びHW波長範囲における検出ラマンスペクトルの離散スペクトルサブインターバルを分析して一方又は両方の波長範囲において1以上の基準マーカーとの一致を同定するための、少なくとも1個の処理ユニット及び該少なくとも1個の処理ユニットによって実行可能なプログラム命令を保存するメモリを含むコンピュータ化制御及び分析モジュールと
を備えるラマン分光装置。 - 前記ラマン分光器が単一の広帯域回折格子を有する、請求項1に記載の装置。
- 前記第1イルミネーション源が励起エネルギーを生成して前記組織に適用するためのコリメートイルミネーション源を備え、前記装置がコリメートイルミネーションを該組織に送り、かつ、検出されたラマンスペクトルを該組織から前記ラマン分光器に戻すためのプローブをさらに備える、請求項2に記載の装置。
- 1以上の基準マーカーが、検出されたラマンスペクトルにおいて特定のピークを含む、請求項3に記載の装置。
- 前記コンピュータ化制御及び分析モジュールが、一致に基づいて異常成長を診断するための少なくとも1個の処理ユニットによって実行可能なプログラム命令を含む、請求項3に記載の装置。
- 前記プローブが共焦点光ファイバープローブを備える、請求項3に記載の装置。
- 前記プローブが保持される器具チャネルを有する細長いシャフトを有する内視鏡をさらに備える、請求項6に記載の装置。
- 前記コンピュータ化制御及び分析モジュールが、コリメートイルミネーションの出力を動的に調節するための少なくとも1個の処理ユニットによって実行可能なプログラム命令を含む、請求項3に記載の装置。
- 前記コンピュータ化制御及び分析モジュールが、コリメートイルミネーションに組織がさらされる時間を動的に調節するための少なくとも1個の処理ユニットによって実行可能なプログラム命令を含む、請求項3に記載の装置。
- 少なくとも1の較正基準に対してプローブ又はラマン装置全体を標準化するように構成された較正装置をさらに備える、請求項3に記載の装置。
- 追加のイルミネーションを組織に出力するように構成された追加のイルミネーション源と、
前記第1イルミネーション源によるイルミネーション出力と追加のイルミネーション源による追加のイルミネーション出力との間のイルミネーション干渉を補うように構成されたホットミラーフィルタと
をさらに備える、請求項3に記載の装置。 - ラマン分光法装置によって実行される方法であって、
第1イルミネーション源によるイルミネーション出力を組織に向け;
該組織によって散乱されたイルミネーションからのプローブフィンガープリント(FP)及び高波数(HW)ラマンスペクトルを同時に検出し;及び
該検出されたラマンスペクトルにおける離散スペクトルサブインターバルをFP波長範囲及びHW波長範囲の両方において分析して、一方又は両方の波長範囲内において1以上の基準マーカーとの一致を同定すること
を含む方法。 - 前記FP及びHWラマンスペクトルを同時に検出することが、単一広帯域回折格子を使用してFP及びHW波長範囲の両方においてイルミネーションを回折させることを含む、請求項12に記載の方法。
- 前記一致に基づいて異常成長の性質を診断することをさらに含む、請求項12に記載の方法。
- 前記1以上の基準マーカーが検出されたラマンスペクトルにおける特定のピークである、請求項12に記載の方法。
- イルミネーションの出力を動的に調節することをさらに含む、請求項12に記載の方法。
- 前記組織が前記イルミネーションにさらされる時間を動的に調節することをさらに含む、請求項12に記載の方法。
- 前記組織をイルミネーションにさらす前に、少なくとも1つの較正基準に対してプローブ又はラマン装置全体を標準化するように較正又は標準化手順を実行することをさらに含む、請求項12に記載の方法。
- 前記第1イルミネーション源によるイルミネーション出力を組織に向けつつ追加のイルミネーション源を使用して該組織に追加のイルミネーションを向け;
ホットミラーフィルタを使用して該第1イルミネーション源によるイルミネーション出力と該追加のイルミネーション源による該追加のイルミネーション出力との間のイルミネーション干渉を補うこと
をさらに含む、請求項12に記載の方法。
Applications Claiming Priority (7)
Application Number | Priority Date | Filing Date | Title |
---|---|---|---|
GB1411800.4 | 2014-07-02 | ||
GB201411820A GB201411820D0 (en) | 2014-07-02 | 2014-07-02 | The method and system for the use of raman spectroscopy in the diagnosis of the nature of an abnormal growth |
GB1411803.8 | 2014-07-02 | ||
GB201411803A GB201411803D0 (en) | 2014-07-02 | 2014-07-02 | The method and system for the use of Raman spectroscopy in the diagnosis of the nature of an abnormal growth |
GB1411820.2 | 2014-07-02 | ||
GB201411800A GB201411800D0 (en) | 2014-07-02 | 2014-07-02 | The method and system for the use of Raman spectroscopy in the diagnosis of an abnormal growth |
PCT/SG2015/050195 WO2016003371A1 (en) | 2014-07-02 | 2015-07-02 | Raman spectroscopy system, apparatus, and method for analyzing, characterizing, and/or diagnosing a type or nature of a sample or a tissue such as an abnormal growth |
Publications (2)
Publication Number | Publication Date |
---|---|
JP2017524924A true JP2017524924A (ja) | 2017-08-31 |
JP6768529B2 JP6768529B2 (ja) | 2020-10-14 |
Family
ID=55019739
Family Applications (1)
Application Number | Title | Priority Date | Filing Date |
---|---|---|---|
JP2016575728A Active JP6768529B2 (ja) | 2014-07-02 | 2015-07-02 | 異常増殖などのサンプル若しくは組織のタイプ若しくは性質を分析し、特徴付け、及び/又は診断するためのラマン分光法システム、装置及び方法 |
Country Status (9)
Country | Link |
---|---|
US (1) | US20170138860A1 (ja) |
EP (1) | EP3164046B1 (ja) |
JP (1) | JP6768529B2 (ja) |
KR (1) | KR102409070B1 (ja) |
CN (1) | CN106793917B (ja) |
AU (1) | AU2015284810B2 (ja) |
ES (1) | ES2847230T3 (ja) |
SG (1) | SG11201702715UA (ja) |
WO (1) | WO2016003371A1 (ja) |
Cited By (3)
Publication number | Priority date | Publication date | Assignee | Title |
---|---|---|---|---|
WO2019073733A1 (ja) * | 2017-10-12 | 2019-04-18 | 富士フイルム株式会社 | 画像作成装置、画像作成方法、画像作成プログラム |
KR20200134405A (ko) * | 2019-05-22 | 2020-12-02 | 주식회사 나노바이오라이프 | 신속진단키트의 다중 바이오마커 검출 방법 및 이를 이용하는 멀티모달 스캐너 |
JP2021511108A (ja) * | 2018-01-17 | 2021-05-06 | オーディーエス メディカル インコーポレイテッドODS Medical Inc. | がん検出を目的としたリアルタイムラマン分光法のためのシステムおよび方法 |
Families Citing this family (27)
Publication number | Priority date | Publication date | Assignee | Title |
---|---|---|---|---|
CA2882388C (en) | 2012-08-31 | 2020-10-20 | Sloan-Kettering Institute For Cancer Research | Particles, methods and uses thereof |
EP2958481A4 (en) * | 2013-02-20 | 2017-03-08 | Sloan-Kettering Institute for Cancer Research | Wide field raman imaging apparatus and associated methods |
US10912947B2 (en) | 2014-03-04 | 2021-02-09 | Memorial Sloan Kettering Cancer Center | Systems and methods for treatment of disease via application of mechanical force by controlled rotation of nanoparticles inside cells |
CA2956210A1 (en) | 2014-07-28 | 2016-02-04 | Memorial Sloan Kettering Cancer Center | Metal(loid) chalcogen nanoparticles as universal binders for medical isotopes |
CA2990223A1 (en) | 2015-07-01 | 2017-01-05 | Memorial Sloan Kettering Cancer Center | Anisotropic particles, methods and uses thereof |
CN105997000B (zh) * | 2016-05-30 | 2023-04-14 | 福建师范大学 | 一种基于纤维内窥镜的拉曼光谱检测装置及其实现方法 |
WO2018072807A1 (de) * | 2016-09-27 | 2018-04-26 | Siemens Aktiengesellschaft | Vorrichtung und verfahren zur feststellung pathologischer implikationen |
GB201621912D0 (en) * | 2016-12-21 | 2017-02-01 | Dublin Inst Of Tech And Trinity College Dublin | A method of using raman spectroscopy for identification of low grade cervical cytology cases likely to progress to high grade / cancer |
CN107132208B (zh) * | 2017-04-10 | 2018-11-30 | 苏州贝康医疗器械有限公司 | 一种基于拉曼光谱测量的细胞培养液质量检测方法 |
FR3065285B1 (fr) * | 2017-04-14 | 2019-07-05 | Commissariat A L'energie Atomique Et Aux Energies Alternatives | Procede d’acquisition d’un spectre |
CN109507166A (zh) * | 2017-09-15 | 2019-03-22 | Ravr有限公司 | 一种双通道微型拉曼光谱仪 |
WO2019094341A1 (en) * | 2017-11-10 | 2019-05-16 | Clinicai, Inc. | System, composition and method for the detection of spectral biomarkers of a condition and patterns from stool samples |
FR3078620A1 (fr) * | 2018-03-09 | 2019-09-13 | Institut Georges Lopez | Dispositif de quantification du taux de lipides et/ou de proteines dans le tissu hepatique |
CN108398418B (zh) * | 2018-03-16 | 2020-12-04 | 华东理工大学 | 一种内参比表面增强拉曼测试试纸、制备方法与应用 |
JP7053946B2 (ja) * | 2018-04-06 | 2022-04-12 | ブラスケム アメリカ インコーポレイテッド | ラマン分光法、および品質管理のための機械学習 |
CN110208244B (zh) * | 2019-06-18 | 2020-07-28 | 华南理工大学 | 一种基于拉曼光谱测试果蔬组织中细胞水平水分含量和分布的方法 |
WO2020255034A1 (en) * | 2019-06-20 | 2020-12-24 | National Research Council Of Canada | Broadband raman excitation spectroscopy with structured excitation profiles |
JP6788298B1 (ja) * | 2019-12-17 | 2020-11-25 | 日本分光株式会社 | 蛍光観察機能を備えるラマン顕微装置 |
CN111189817B (zh) * | 2020-01-09 | 2021-09-03 | 中国原子能科学研究院 | 激光诱导击穿光谱真假信号分辨数据分析方法 |
CN111256819B (zh) * | 2020-02-20 | 2022-09-09 | 苏州沓来软件科技有限公司 | 一种光谱仪器的降噪方法 |
GB202004010D0 (en) * | 2020-03-19 | 2020-05-06 | Res & Innovation Uk | Detection of water content in tissue |
WO2022139465A1 (ko) * | 2020-12-22 | 2022-06-30 | 두에이아이(주) | 인공지능 라만 분석 기법을 이용한 췌장암 조기진단 방법 |
KR102298680B1 (ko) * | 2021-02-26 | 2021-09-07 | (주)메디띵스 | 협대역 확산 반사 분광법을 이용한 혼탁매질에서의 수분 및 지질 함량 정량화 방법 |
WO2023274881A1 (en) * | 2021-07-01 | 2023-01-05 | Boehringer Ingelheim Vetmedica Gmbh | Method for calibrating an optical system |
WO2023044576A1 (en) * | 2021-09-25 | 2023-03-30 | Tornado Spectral Systems Inc. | Raman spectroscopy of chemical processes with spectral blocking filters |
WO2023141623A2 (en) * | 2022-01-21 | 2023-07-27 | Arizona Board Of Regents On Behalf Of The University Of Arizona | Cancer diagnosis method and systems using second harmonic generation measurements |
WO2023249962A1 (en) * | 2022-06-20 | 2023-12-28 | Vanderbilt University | Non-contact clinical raman spectroscopy guided probe and applications of same |
Citations (3)
Publication number | Priority date | Publication date | Assignee | Title |
---|---|---|---|---|
JP2007090044A (ja) * | 2005-08-31 | 2007-04-12 | Olympus Corp | 光イメージング装置 |
US20110295062A1 (en) * | 2008-12-11 | 2011-12-01 | Fundacio Clinic Per A La Recerca Biomedica Fcrb | Equipment for infrared vision of anatomical structures and signal processing methods thereof |
WO2014007759A1 (en) * | 2012-07-02 | 2014-01-09 | National University Of Singapore | Methods related to real-time cancer diagnostics at endoscopy utilizing fiber-optic raman spectroscopy |
Family Cites Families (5)
Publication number | Priority date | Publication date | Assignee | Title |
---|---|---|---|---|
US7697576B2 (en) * | 2004-05-05 | 2010-04-13 | Chem Image Corporation | Cytological analysis by raman spectroscopic imaging |
US20120057145A1 (en) * | 2008-08-18 | 2012-03-08 | Tunnell James W | Systems and methods for diagnosis of epithelial lesions |
US8300220B2 (en) * | 2009-02-25 | 2012-10-30 | Vanderbilt University | Device and method for non-invasively evaluating a target of interest of a living subject |
JP2013517485A (ja) * | 2010-01-22 | 2013-05-16 | ブリティッシュ コロンビア キャンサー エージェンシー ブランチ | ラマン分光法による肺組織を特徴付けるための装置および方法 |
GB201302886D0 (en) * | 2013-02-19 | 2013-04-03 | Univ Singapore | Diagnostic instrument and method |
-
2015
- 2015-07-02 US US15/322,874 patent/US20170138860A1/en not_active Abandoned
- 2015-07-02 EP EP15814823.9A patent/EP3164046B1/en active Active
- 2015-07-02 ES ES15814823T patent/ES2847230T3/es active Active
- 2015-07-02 KR KR1020177002888A patent/KR102409070B1/ko active IP Right Grant
- 2015-07-02 JP JP2016575728A patent/JP6768529B2/ja active Active
- 2015-07-02 AU AU2015284810A patent/AU2015284810B2/en active Active
- 2015-07-02 CN CN201580046151.3A patent/CN106793917B/zh active Active
- 2015-07-02 SG SG11201702715UA patent/SG11201702715UA/en unknown
- 2015-07-02 WO PCT/SG2015/050195 patent/WO2016003371A1/en active Application Filing
Patent Citations (3)
Publication number | Priority date | Publication date | Assignee | Title |
---|---|---|---|---|
JP2007090044A (ja) * | 2005-08-31 | 2007-04-12 | Olympus Corp | 光イメージング装置 |
US20110295062A1 (en) * | 2008-12-11 | 2011-12-01 | Fundacio Clinic Per A La Recerca Biomedica Fcrb | Equipment for infrared vision of anatomical structures and signal processing methods thereof |
WO2014007759A1 (en) * | 2012-07-02 | 2014-01-09 | National University Of Singapore | Methods related to real-time cancer diagnostics at endoscopy utilizing fiber-optic raman spectroscopy |
Non-Patent Citations (2)
Title |
---|
BERGHOLT, MS ET AL: ""DEVELOPMENT OF A MULTIPLEXING FINGERPRINT AND HIGH WAVENUMBER RAMAN SPECTROSCOPY TECHNIQUE FOR REAL", JOURNAL OF BIOMEDICAL OPTICS, vol. 18, no. 3, JPN6019021537, 28 February 2013 (2013-02-28), pages 030502, ISSN: 0004251953 * |
DURAIPANDIAN, S ET AL: ""SIMULTANEOUS FINGERPRINT AND HIGH-WAVENUMBER CONFOCAL RAMAN SPECTROSCOPY ENHANCES EARLY DETECTION O", ANALYTICAL CHEMISTRY, vol. 84, no. 14, JPN6019021536, 20 July 2012 (2012-07-20), pages 5913 - 5919, XP055250867, ISSN: 0004251952, DOI: 10.1021/ac300394f * |
Cited By (6)
Publication number | Priority date | Publication date | Assignee | Title |
---|---|---|---|---|
WO2019073733A1 (ja) * | 2017-10-12 | 2019-04-18 | 富士フイルム株式会社 | 画像作成装置、画像作成方法、画像作成プログラム |
JPWO2019073733A1 (ja) * | 2017-10-12 | 2020-10-22 | 富士フイルム株式会社 | 画像作成装置、画像作成方法、画像作成プログラム |
JP2021511108A (ja) * | 2018-01-17 | 2021-05-06 | オーディーエス メディカル インコーポレイテッドODS Medical Inc. | がん検出を目的としたリアルタイムラマン分光法のためのシステムおよび方法 |
JP7257009B2 (ja) | 2018-01-17 | 2023-04-13 | オーディーエス メディカル インコーポレイテッド | がん検出を目的としたリアルタイムラマン分光法のためのシステムおよび方法 |
KR20200134405A (ko) * | 2019-05-22 | 2020-12-02 | 주식회사 나노바이오라이프 | 신속진단키트의 다중 바이오마커 검출 방법 및 이를 이용하는 멀티모달 스캐너 |
KR102251968B1 (ko) * | 2019-05-22 | 2021-05-17 | 주식회사 나노바이오라이프 | 신속진단키트의 다중 바이오마커 검출 방법 및 이를 이용하는 멀티모달 스캐너 |
Also Published As
Publication number | Publication date |
---|---|
AU2015284810A1 (en) | 2017-02-16 |
WO2016003371A1 (en) | 2016-01-07 |
CN106793917B (zh) | 2019-04-30 |
SG11201702715UA (en) | 2017-04-27 |
ES2847230T3 (es) | 2021-08-02 |
AU2015284810B2 (en) | 2020-03-12 |
KR20170039168A (ko) | 2017-04-10 |
JP6768529B2 (ja) | 2020-10-14 |
US20170138860A1 (en) | 2017-05-18 |
EP3164046A4 (en) | 2018-04-25 |
EP3164046B1 (en) | 2020-10-28 |
EP3164046A1 (en) | 2017-05-10 |
KR102409070B1 (ko) | 2022-06-16 |
CN106793917A (zh) | 2017-05-31 |
Similar Documents
Publication | Publication Date | Title |
---|---|---|
JP6768529B2 (ja) | 異常増殖などのサンプル若しくは組織のタイプ若しくは性質を分析し、特徴付け、及び/又は診断するためのラマン分光法システム、装置及び方法 | |
Ralbovsky et al. | Raman spectroscopy and chemometrics: A potential universal method for diagnosing cancer | |
Duraipandian et al. | Real-time Raman spectroscopy for in vivo, online gastric cancer diagnosis during clinical endoscopic examination | |
Yoon et al. | A clinically translatable hyperspectral endoscopy (HySE) system for imaging the gastrointestinal tract | |
Nogueira et al. | Evaluation of wavelength ranges and tissue depth probed by diffuse reflectance spectroscopy for colorectal cancer detection | |
Lu et al. | Detection of head and neck cancer in surgical specimens using quantitative hyperspectral imaging | |
JP6230077B2 (ja) | 光ファイバーラマン分光法を利用する内視鏡検査でのリアルタイム癌診断に関連する方法 | |
Bergholt et al. | Combining near-infrared-excited autofluorescence and Raman spectroscopy improves in vivo diagnosis of gastric cancer | |
Kiyotoki et al. | New method for detection of gastric cancer by hyperspectral imaging: a pilot study | |
US8326404B2 (en) | Multimodal detection of tissue abnormalities based on raman and background fluorescence spectroscopy | |
Wang et al. | Simultaneous fingerprint and high-wavenumber fiber-optic Raman spectroscopy improves in vivo diagnosis of esophageal squamous cell carcinoma at endoscopy | |
Bergholt et al. | Raman endoscopy for in vivo differentiation between benign and malignant ulcers in the stomach | |
US8532750B2 (en) | Process and device for detection of precancer tissues with infrared spectroscopy | |
US20060184040A1 (en) | Apparatus, system and method for optically analyzing a substrate | |
WO1999037204A1 (en) | Fluorescence imaging endoscope | |
WO2012039679A2 (en) | System for near-infrared autofluorescence measurement of a subject, and method thereof | |
Kim | Endoscopic Raman spectroscopy for molecular fingerprinting of gastric cancer: principle to implementation | |
Lin et al. | Shifted-excitation Raman difference spectroscopy for improving in vivo detection of nasopharyngeal carcinoma | |
Ralbovsky et al. | Raman Spectroscopy and Advanced Statistics for Cancer Diagnostics | |
Vališ et al. | Automated classification pipeline for real-time in vivo examination of colorectal tissue using Raman spectroscopy | |
BERGHOLT | REAL-TIME FIBER OPTIC RAMAN SPECTROSCOPY FOR EARLY DIAGNOSIS OF PRECANCER AND CANCER IN VIVO IN THE UPPER GASTROINTESTINAL TRACT | |
JIANHUA | Near-infrared raman spectroscopy for early detection of cervical precancer | |
Almond et al. | The Prospects for Real‐Time Raman Spectroscopy for Oesophageal Neoplasia | |
DURAIPANDIAN | Near-Infrared Confocal Raman Spectroscopy for Real-Time Diagnosis of Cervical Precancer | |
Hutchings | Advancing the clinical application of Raman spectroscopic diagnosis of oesophageal pre-malignancies |
Legal Events
Date | Code | Title | Description |
---|---|---|---|
A521 | Request for written amendment filed |
Free format text: JAPANESE INTERMEDIATE CODE: A523 Effective date: 20170123 |
|
A621 | Written request for application examination |
Free format text: JAPANESE INTERMEDIATE CODE: A621 Effective date: 20180606 |
|
A131 | Notification of reasons for refusal |
Free format text: JAPANESE INTERMEDIATE CODE: A131 Effective date: 20190611 |
|
A601 | Written request for extension of time |
Free format text: JAPANESE INTERMEDIATE CODE: A601 Effective date: 20190911 |
|
A521 | Request for written amendment filed |
Free format text: JAPANESE INTERMEDIATE CODE: A523 Effective date: 20191111 |
|
A131 | Notification of reasons for refusal |
Free format text: JAPANESE INTERMEDIATE CODE: A131 Effective date: 20200414 |
|
A521 | Request for written amendment filed |
Free format text: JAPANESE INTERMEDIATE CODE: A523 Effective date: 20200709 |
|
TRDD | Decision of grant or rejection written | ||
A01 | Written decision to grant a patent or to grant a registration (utility model) |
Free format text: JAPANESE INTERMEDIATE CODE: A01 Effective date: 20200825 |
|
A61 | First payment of annual fees (during grant procedure) |
Free format text: JAPANESE INTERMEDIATE CODE: A61 Effective date: 20200923 |
|
R150 | Certificate of patent or registration of utility model |
Ref document number: 6768529 Country of ref document: JP Free format text: JAPANESE INTERMEDIATE CODE: R150 |
|
R250 | Receipt of annual fees |
Free format text: JAPANESE INTERMEDIATE CODE: R250 |
