Abstract
Description
Claims (15)
- 液晶セルと、
前記液晶セルに隣接する切り替え可能な偏光回折格子(SPG)セルと
を備え、
該SPGは、
第1のガラス基板と、
前記第1のガラス基板を覆う第1の電極層と、
前記第1の電極層を覆う光配向層と、
前記光配向層を覆う液晶材料と、
前記液晶材料を覆う第2の光配向層と、
前記第2の光配向層を覆う第2の電極層と、
前記第2の電極層を覆う第2のガラス基板と
を含む、

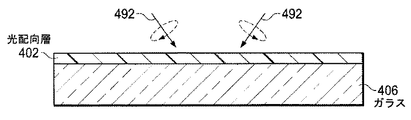

前記第1の光配向層および前記第2の光配向層は、円偏光の回転方向が互いに反対である2つの干渉光ビームを使用して露光されることにより物理的に変化した感光性ポリマーを含む、
光スイッチ。 - 第2の液晶セルおよび偏光板を含む可変光減衰器(VOA)と、
前記VOAと前記液晶セルとの間に配置される1/4波長板と、
前記SPGセルの後段側に配置され、かつ前記液晶セルの反対側にあるプリズムまたはミラーと、
前記SPGセルと前記プリズムまたはミラーとの間に配置される1ペア以上の更に別の液晶セルおよび更に別の対応するSPGセルと
を更に備え、
前記光スイッチは、1つの共通ポートを3N個の個別ポートに光接続するように構成される1×3N型光スイッチで、
ここでNは前記光スイッチの液晶セルおよび対応するSPGセルからなる対の数である、
請求項1に記載の光スイッチ。 - 第2の液晶セルおよび偏光板を含む可変光減衰器(VOA)と、
前記SPGセルの後段側に配置され、かつ前記液晶セルの反対側にあるプリズムまたはミラーと、
前記SPGセルと前記プリズムまたはミラーとの間に配置される1つ以上の更に別のSPGセルと
を更に備え、
前記光スイッチは、1つの共通ポートを2N+1−1個の個別ポートに光接続するように構成される1×(2N+1−1)型光スイッチで、
ここでNは前記光スイッチのSPGセルの数である、
請求項1に記載の光スイッチ。 - 前記液晶セルは、入射光偏光を直線偏光から右円偏光または左円偏光に変換する切り替え可能な1/4波長板として構成される、請求項3に記載の光スイッチ。
- 前記液晶セルおよび偏光板を含む可変光減衰器(VOA)と、
前記VOAと前記SPGセルとの間に配置される1/4波長板と、
前記SPGセルの後段側に配置され、かつ前記VOAの反対側にあるプリズムまたはミラーと、
前記SPGセルと前記プリズムまたはミラーとの間に配置される1つ以上の更に別のSPGセルと
を更に備え、
前記光スイッチは、1つの共通ポートを2N個の個別ポートに光接続するように構成される1×2N型光スイッチで、
ここでNは前記光スイッチのSPGセルの数である、
請求項1に記載の光スイッチ。 - 前記液晶セルおよび前記SPGセルは共に、波長チャネル数に対応する複数の画素を含み、
該複数の画素は、かつ光スイッチポートに対応する光スイッチを通過する複数の平行ビーム光路の方向に対して垂直に配列され、
前記光スイッチは、等しい距離を、前記光スイッチからの平行出力光ビームの間に有するように設計される、
請求項1に記載の光スイッチ。 - 1つ以上の入射光ビームを前記液晶セルおよび前記SPGセルに送信するとともに前記液晶セルおよび前記SPGセルから受信するファイバアレイと、
前記光路上にあって、前記ファイバアレイの後段側に配置されるマイクロレンズアレイと、
前記光路上であって前記マイクロレンズアレイの後段側に配置されるビーム偏向器と、
前記光路上であって前記ビーム偏向器の後段側に配置される1/2波長板アレイと、
前記光路上であって前記1/2波長板アレイと前記SPGセルを有する前記液晶セルとの間に配置されるシリンドリカルレンズと、
前記光路上で前記シリンドリカルレンズの後方に位置する前記液晶セルおよび前記SPGセルに対向し、かつ前記シリンドリカルレンズを通過する光ビームを反対方向に反射して前記シリンドリカルレンズを通過させるように配置されるシリンドリカル反射ミラーと、
前記光路上で前記シリンドリカルレンズの後方に位置する前記シリンドリカル反射ミラーに対向し、かつ前記シリンドリカルレンズを通過する光ビームを前記シリンドリカルレンズへ戻るように回折させるように配置される回折格子と
を更に備える、請求項1に記載の光スイッチ。 - 前記SPGセルは、電圧が印加されていない状態または第1の電圧が前記第1の電極層と前記第2の第1の電極層との間に印加されている状態で、円偏光を所定方向に有する入射光ビームを回折させ、かつ前記回折入射光ビームの円偏光の回転方向を反転させるように構成される、請求項1に記載の光スイッチ。
- 前記SPGセルは、第2の電圧が前記第1の電極層と前記第2の第1の電極層との間に印加されている状態で、回折も偏光の変化も起こすことなく入射光ビームに前記SPGセルを通過させるように構成される、請求項8に記載の光スイッチ。
- 前記液晶セルは、電圧が印加されていない状態または第1の電圧が前記液晶セルの両端に印加されている状態で、円偏光の回転方向を反転させた後に、前記円偏光を有する入射光ビームを通過させて前記SPGセルに到達させるか、あるいはそのかわりに、第2の電圧が前記液晶セルの両端に印加されている状態で、前記円偏光の回転方向を変化させることなく前記入射光ビームを通過させるように構成される、請求項1に記載の光スイッチ。
- 液晶セルと、
前記液晶セルに隣接するポリマー液晶偏光回折格子(PPG)セルと
を備え、該PPGは、

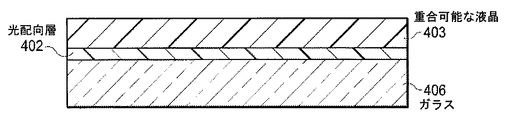

ガラス基板と、
前記ガラス基板を覆い、かつ円偏光の回転方向が互いに反対である2つの干渉光ビームを使用して露光されることにより物理的に変化している感光性ポリマーを含む光配向層と、

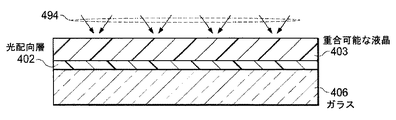

前記光配向層を前記ガラス基板の反対側で覆い、かつ均一光ビームを用いる照射により物理的に変化した重合液晶層と
を含む、光スイッチ。 - 第2の液晶セルおよび偏光板を含む可変光減衰器(VOA)と、
前記SPGセルの後段側に配置され、かつ前記液晶セルの反対側にあるプリズムまたはミラーと、
前記PPGセルと前記プリズムまたはミラーとの間に配置される1対以上の更に別の液晶セルおよび更に別の対応するPPGセルからなる対と
を更に備え、
前記光スイッチは、1つの共通ポートを2N個の個別ポートに光接続するように構成される1×2N型光スイッチで、
ここでNは前記光スイッチの液晶セル群および対応するPPGセルからなる対の数である、
請求項11に記載の光スイッチ。 - 前記液晶セルおよび前記PPGセルは共に、波長チャネル数に対応する複数の画素を含み、
該複数の画素は、光スイッチポートに対応する前記光スイッチを通過する複数の平行ビーム光路の方向に対して垂直に配列され、
前記光スイッチは、等しい距離を、前記光スイッチからの平行出力光ビーム群間に有するように設計される、請求項11に記載の光スイッチ。 - 1つ以上の入射光ビームを前記液晶セルおよび前記PPGセルに送信するとともに、前記液晶セルおよび前記PPGセルから受信するファイバアレイと、
前記光路上であって前記ファイバアレイの後段に配置されるマイクロレンズアレイと、
前記光路上であって前記マイクロレンズアレイの後段側に配置されるビーム偏向器と、
前記光路上であって前記ビーム偏向器の後段側に配置される1/2波長板アレイと、
前記光路上であって前記1/2波長板アレイと前記PPGセルを有する前記液晶セルとの間に配置されるシリンドリカルレンズと、
前記光路上で前記シリンドリカルレンズの後方に位置する前記液晶セルおよび前記SPGセルに対向し、かつ前記シリンドリカルレンズを通過する光ビームを反対方向に反射して前記シリンドリカルレンズを通過させるように配置されるシリンドリカル反射ミラーと、
前記光路上で前記シリンドリカルレンズの後方に位置する前記シリンドリカル反射ミラーに対向し、かつ前記シリンドリカルレンズを通過する光ビームを前記シリンドリカルレンズへ戻るように回折させるように配置される回折格子と
を更に備える、請求項11に記載の光スイッチ。 - 前記液晶セルは、電圧が印加されていない状態、または第1の電圧が前記液晶セルの両端に印加されている状態で、前記円偏光の回転方向を反転させた後に、円偏光を有する入射光ビームを通過させて前記PPGセルに到達させるか、あるいはその代わりに、第2の電圧が前記液晶セルの両端に印加されている状態で、前記円偏光の回転方向を反転させることなく前記入射光ビームを通過させるように構成される、請求項11に記載の光スイッチ。
Applications Claiming Priority (2)
Application Number | Priority Date | Filing Date | Title |
---|---|---|---|
US201261592573P | 2012-01-30 | 2012-01-30 | |
PCT/CN2013/071130 WO2013113278A1 (en) | 2012-01-30 | 2013-01-30 | Method and apparatus for wavelength selective switch |
Publications (2)
Publication Number | Publication Date |
---|---|
JP2015505995A true JP2015505995A (ja) | 2015-02-26 |
JP6027628B2 JP6027628B2 (ja) | 2016-11-16 |
Family
ID=48869931
Family Applications (1)
Application Number | Title | Priority Date | Filing Date |
---|---|---|---|
JP2014547708A Active JP6027628B2 (ja) | 2012-01-30 | 2013-01-30 | 波長を選択的に切り替える方法および装置 |
Country Status (5)
Country | Link |
---|---|
US (2) | US9008470B2 (ja) |
EP (1) | EP2766766A4 (ja) |
JP (1) | JP6027628B2 (ja) |
CN (1) | CN103703405B (ja) |
WO (1) | WO2013113278A1 (ja) |
Cited By (5)
Publication number | Priority date | Publication date | Assignee | Title |
---|---|---|---|---|
WO2016175071A1 (ja) * | 2015-04-27 | 2016-11-03 | 国立研究開発法人産業技術総合研究所 | 光ビーム偏向素子およびそれを用いた波長選択クロスコネクト装置、光クロスコネクト装置 |
JP2017516159A (ja) * | 2014-05-09 | 2017-06-15 | 華為技術有限公司Huawei Technologies Co.,Ltd. | 液晶格子に基づく光スイッチ |
WO2017119362A1 (ja) * | 2016-01-07 | 2017-07-13 | 国立研究開発法人産業技術総合研究所 | 円偏光入出力装置 |
JP2019082518A (ja) * | 2017-10-30 | 2019-05-30 | 有限会社オートクローニング・テクノロジー | 光マトリクススイッチ |
WO2021161994A1 (ja) * | 2020-02-14 | 2021-08-19 | 富士フイルム株式会社 | 光結合システムおよび光通信デバイス |
Families Citing this family (46)
Publication number | Priority date | Publication date | Assignee | Title |
---|---|---|---|---|
SG11201403398RA (en) | 2011-12-23 | 2014-09-26 | Johnson & Johnson Vision Care | Variable optic ophthalmic device including liquid crystal elements |
US9369783B2 (en) * | 2012-02-17 | 2016-06-14 | Alcatel Lucent | Wavelength-selective cross-connect device having astigmatic optics |
US9188831B2 (en) | 2012-02-17 | 2015-11-17 | Alcatel Lucent | Compact wavelength-selective cross-connect device having multiple input ports and multiple output ports |
US10386653B2 (en) | 2012-12-21 | 2019-08-20 | Johnson & Johnson Vision Care, Inc. | Variable optic ophthalmic device including liquid crystal elements |
US9442309B2 (en) | 2013-09-17 | 2016-09-13 | Johnson & Johnson Vision Care, Inc. | Method and apparatus for ophthalmic devices comprising dielectrics and nano-scaled droplets of liquid crystal |
US9869885B2 (en) | 2013-09-17 | 2018-01-16 | Johnson & Johnson Vision Care, Inc. | Method and apparatus for ophthalmic devices including gradient-indexed liquid crystal layers and shaped dielectric layers |
US9500882B2 (en) | 2013-09-17 | 2016-11-22 | Johnson & Johnson Vision Care, Inc. | Variable optic ophthalmic device including shaped liquid crystal elements with nano-scaled droplets of liquid crystal |
US9880398B2 (en) | 2013-09-17 | 2018-01-30 | Johnson & Johnson Vision Care, Inc. | Method and apparatus for ophthalmic devices including gradient-indexed and shaped liquid crystal layers |
US9366881B2 (en) | 2013-09-17 | 2016-06-14 | Johnson & Johnson Vision Care, Inc. | Method and apparatus for ophthalmic devices including shaped liquid crystal polymer networked regions of liquid crystal |
US9541772B2 (en) | 2013-09-17 | 2017-01-10 | Johnson & Johnson Vision Care, Inc. | Methods and apparatus for ophthalmic devices including cycloidally oriented liquid crystal layers |
US9268154B2 (en) * | 2013-09-17 | 2016-02-23 | Johnson & Johnson Vision Care, Inc. | Method and apparatus for ophthalmic devices including hybrid alignment layers and shaped liquid crystal layers |
US9592116B2 (en) | 2013-09-17 | 2017-03-14 | Johnson & Johnson Vision Care, Inc. | Methods and apparatus for ophthalmic devices including cycloidally oriented liquid crystal layers |
CN105446048B (zh) * | 2014-05-27 | 2017-06-20 | 华为技术有限公司 | 可调光衰减器 |
WO2016071777A2 (en) * | 2014-11-03 | 2016-05-12 | INLC Technology, Inc. | Wavelength selection switch including a switching module having a liquid crystal phase array, a polarizer and a liquid crystal on silicon |
CN104460020B (zh) * | 2014-11-29 | 2018-04-10 | 华为技术有限公司 | 光束处理器件、光束衰减切换器件及光波长选择开关系统 |
WO2016106521A1 (zh) * | 2014-12-29 | 2016-07-07 | 华为技术有限公司 | 一种波长选择开关 |
CN104993870B (zh) * | 2015-07-22 | 2018-10-26 | 北京邮电大学 | 一种射频交换装置 |
CN105182474B (zh) | 2015-10-29 | 2018-02-09 | 武汉光迅科技股份有限公司 | 一种波长选择开关 |
US9632253B1 (en) * | 2015-11-12 | 2017-04-25 | Alliance Fiber Optic Products, Inc. | Variable optical attenuator with a transmitting non-attenuating diffracting prism |
US10324355B2 (en) | 2016-04-21 | 2019-06-18 | Ohio State Innovation Foundation | Devices and methods for implementing an optical switching engine |
CN105739213A (zh) * | 2016-05-10 | 2016-07-06 | 中国工程物理研究院流体物理研究所 | 一种液晶光学相控阵角度放大器 |
CN106199841B (zh) * | 2016-08-30 | 2019-02-01 | 武汉光迅科技股份有限公司 | 一种液晶型波长选择开关 |
EP3291000B1 (en) * | 2016-08-30 | 2020-12-16 | Accelink Technologies Co., Ltd. | Wavelength selective switch |
US10367596B1 (en) | 2017-05-23 | 2019-07-30 | Ii-Vi Delaware, Inc. | Multiple wavelength selective switch with shared switch |
US20180341139A1 (en) | 2017-05-23 | 2018-11-29 | Government Of The United States, As Represented By The Secretary Of The Air Force | Projection using liquid crystal polarization gratings to modulate light |
WO2019059891A1 (en) * | 2017-09-19 | 2019-03-28 | Ohio State Innovation Foundation | DEVICES AND METHODS FOR OPERATING AN OPTICAL SWITCHING MOTOR |
CN110709762B (zh) * | 2017-09-26 | 2021-04-09 | 华为技术有限公司 | 波长选择开关、配向方向获取方法、硅基液晶及制作方法 |
WO2019109214A1 (zh) | 2017-12-04 | 2019-06-13 | 华为技术有限公司 | 光波导装置、光波导装置的控制方法和存储介质 |
SG11202006952XA (en) * | 2018-01-24 | 2020-08-28 | Harvard College | Polarization state generation with a metasurface |
WO2019165641A1 (en) * | 2018-03-02 | 2019-09-06 | Hong Kong Applied Science and Technology Research Institute Company Limited | Beam-steering apparatus with fast response and enhanced steering resolution |
US11184967B2 (en) | 2018-05-07 | 2021-11-23 | Zane Coleman | Angularly varying light emitting device with an imager |
US10816939B1 (en) | 2018-05-07 | 2020-10-27 | Zane Coleman | Method of illuminating an environment using an angularly varying light emitting device and an imager |
CN112673299B (zh) * | 2018-09-14 | 2023-06-02 | 奇跃公司 | 用于外部光管理的系统和方法 |
CN109375426B (zh) * | 2018-12-14 | 2021-06-25 | 中国科学院长春光学精密机械与物理研究所 | 一种单侧取向有源液晶偏振光栅结构及其制备方法 |
CN109633953B (zh) * | 2019-02-15 | 2021-11-12 | 天马微电子股份有限公司 | 一种液晶光栅驱动电路、光阀及显示装置 |
CN110208999B (zh) * | 2019-05-18 | 2023-03-24 | 深圳市麓邦技术有限公司 | 图像采集方法及系统 |
CN110596944B (zh) * | 2019-09-19 | 2022-11-04 | 京东方科技集团股份有限公司 | 显示装置及其制作方法 |
CN110646992B (zh) * | 2019-09-26 | 2020-12-29 | 中国科学院长春光学精密机械与物理研究所 | 一种双周期复合液晶偏振光栅 |
CN110928081B (zh) * | 2019-12-03 | 2022-10-11 | 东南大学 | 一种基于液晶偏转体光栅的可控角度偏转方法 |
CN113156728B (zh) * | 2020-01-22 | 2023-03-03 | 华为技术有限公司 | 一种可调液晶组件以及波长选择开关 |
US11798816B2 (en) * | 2020-06-25 | 2023-10-24 | University Of Central Florida Research Foundation, Inc. | Method for isolating a conductive via from a glass substrate |
WO2022035652A1 (en) | 2020-08-11 | 2022-02-17 | Chongchang Mao | Polarization insensitive liquid crystal on silicon |
CN112327415A (zh) * | 2020-10-12 | 2021-02-05 | 易锐光电科技(安徽)有限公司 | 波分复用结构 |
CN115480403B (zh) * | 2022-03-18 | 2024-03-15 | 华为技术有限公司 | 投影装置和交通工具 |
US11927769B2 (en) | 2022-03-31 | 2024-03-12 | Metalenz, Inc. | Polarization sorting metasurface microlens array device |
US11722236B1 (en) * | 2022-04-05 | 2023-08-08 | Ii-Vi Delaware, Inc. | Polarization-maintaining wavelength selective switch for free-space optical communication |
Citations (7)
Publication number | Priority date | Publication date | Assignee | Title |
---|---|---|---|---|
JP2007510957A (ja) * | 2003-11-12 | 2007-04-26 | エンガナ ピーティーワイ リミテッド | 波長操作システムおよび方法 |
WO2008130559A2 (en) * | 2007-04-16 | 2008-10-30 | North Carolina State University | Methods of fabricating switchable liquid crystal polarization gratings on reflective substrates and related devices |
JP2009042557A (ja) * | 2007-08-09 | 2009-02-26 | Nippon Telegr & Teleph Corp <Ntt> | 波長選択スイッチ |
JP2009258438A (ja) * | 2008-04-17 | 2009-11-05 | Nippon Telegr & Teleph Corp <Ntt> | 波長選択スイッチ |
JP2010026273A (ja) * | 2008-07-22 | 2010-02-04 | Dainippon Printing Co Ltd | ヘッドマウントディスプレイ |
WO2011014743A2 (en) * | 2009-07-31 | 2011-02-03 | North Carolina State University | Beam steering devices including stacked liquid crystal polarization gratings and related methods of operation |
JP2011248196A (ja) * | 2010-05-28 | 2011-12-08 | Sanyo Engineer & Construction Inc | 光可変フィルタアレイ装置 |
Family Cites Families (14)
Publication number | Priority date | Publication date | Assignee | Title |
---|---|---|---|---|
US6249364B1 (en) | 1997-02-14 | 2001-06-19 | Photonetics | Optical wave-guide wavelength multiplexer and demultiplexer |
US6625346B2 (en) | 2001-03-19 | 2003-09-23 | Capella Photonics, Inc. | Reconfigurable optical add-drop multiplexers with servo control and dynamic spectral power management capabilities |
US6707959B2 (en) | 2001-07-12 | 2004-03-16 | Jds Uniphase Inc. | Wavelength switch |
EP1436667B1 (en) | 2001-10-09 | 2015-08-12 | Finisar Corporation | Wavelength selective optical switch |
US7196758B2 (en) | 2003-12-30 | 2007-03-27 | 3M Innovative Properties Company | Method of alignment of liquid crystals comprising exposing an alignment material to an interference pattern |
JP2005331757A (ja) * | 2004-05-20 | 2005-12-02 | Ricoh Co Ltd | 偏光選択性ホログラム素子・光ピックアップ装置 |
US7787720B2 (en) | 2004-09-27 | 2010-08-31 | Optium Australia Pty Limited | Wavelength selective reconfigurable optical cross-connect |
US7499608B1 (en) | 2004-12-23 | 2009-03-03 | Coadna Photonics, Inc. | Apparatus and method for optical switching with liquid crystals and birefringent wedges |
US7492986B1 (en) | 2004-12-23 | 2009-02-17 | Coadna Photonics, Inc. | Apparatus and method for optical switching with liquid crystals and birefringent wedges |
US8537310B2 (en) | 2005-03-01 | 2013-09-17 | North Carolina State University | Polarization-independent liquid crystal display devices including multiple polarization grating arrangements and related devices |
US7692759B2 (en) | 2005-03-01 | 2010-04-06 | Stichting Dutch Polymer Institute | Polarization gratings in mesogenic films |
US8081875B2 (en) | 2007-02-08 | 2011-12-20 | Jds Uniphase Corporation | Wavelength switch |
JP5299209B2 (ja) | 2009-10-14 | 2013-09-25 | 富士通株式会社 | 波長選択スイッチおよび光伝送装置 |
JP6248296B2 (ja) * | 2012-06-21 | 2017-12-20 | マクセル株式会社 | 光学素子、光学素子の製造方法および光学装置 |
-
2013
- 2013-01-29 US US13/753,202 patent/US9008470B2/en active Active
- 2013-01-30 WO PCT/CN2013/071130 patent/WO2013113278A1/en active Application Filing
- 2013-01-30 JP JP2014547708A patent/JP6027628B2/ja active Active
- 2013-01-30 CN CN201380002381.0A patent/CN103703405B/zh active Active
- 2013-01-30 EP EP20130743881 patent/EP2766766A4/en not_active Ceased
-
2015
- 2015-03-06 US US14/641,176 patent/US9201286B2/en active Active
Patent Citations (7)
Publication number | Priority date | Publication date | Assignee | Title |
---|---|---|---|---|
JP2007510957A (ja) * | 2003-11-12 | 2007-04-26 | エンガナ ピーティーワイ リミテッド | 波長操作システムおよび方法 |
WO2008130559A2 (en) * | 2007-04-16 | 2008-10-30 | North Carolina State University | Methods of fabricating switchable liquid crystal polarization gratings on reflective substrates and related devices |
JP2009042557A (ja) * | 2007-08-09 | 2009-02-26 | Nippon Telegr & Teleph Corp <Ntt> | 波長選択スイッチ |
JP2009258438A (ja) * | 2008-04-17 | 2009-11-05 | Nippon Telegr & Teleph Corp <Ntt> | 波長選択スイッチ |
JP2010026273A (ja) * | 2008-07-22 | 2010-02-04 | Dainippon Printing Co Ltd | ヘッドマウントディスプレイ |
WO2011014743A2 (en) * | 2009-07-31 | 2011-02-03 | North Carolina State University | Beam steering devices including stacked liquid crystal polarization gratings and related methods of operation |
JP2011248196A (ja) * | 2010-05-28 | 2011-12-08 | Sanyo Engineer & Construction Inc | 光可変フィルタアレイ装置 |
Cited By (11)
Publication number | Priority date | Publication date | Assignee | Title |
---|---|---|---|---|
JP2017516159A (ja) * | 2014-05-09 | 2017-06-15 | 華為技術有限公司Huawei Technologies Co.,Ltd. | 液晶格子に基づく光スイッチ |
US10284931B2 (en) | 2014-05-09 | 2019-05-07 | Huawei Technologies Co., Ltd. | Liquid crystal grating-based optical switch |
WO2016175071A1 (ja) * | 2015-04-27 | 2016-11-03 | 国立研究開発法人産業技術総合研究所 | 光ビーム偏向素子およびそれを用いた波長選択クロスコネクト装置、光クロスコネクト装置 |
JPWO2016175071A1 (ja) * | 2015-04-27 | 2017-12-07 | 国立研究開発法人産業技術総合研究所 | 光ビーム偏向素子およびそれを用いた波長選択クロスコネクト装置、光クロスコネクト装置 |
US10613412B2 (en) | 2015-04-27 | 2020-04-07 | National Institute Of Advanced Industrial Science | Light beam deflecting element, wavelength-selective cross-connect device using same, and optical cross-connect device |
WO2017119362A1 (ja) * | 2016-01-07 | 2017-07-13 | 国立研究開発法人産業技術総合研究所 | 円偏光入出力装置 |
JP2019082518A (ja) * | 2017-10-30 | 2019-05-30 | 有限会社オートクローニング・テクノロジー | 光マトリクススイッチ |
JP7101954B2 (ja) | 2017-10-30 | 2022-07-19 | 株式会社フォトニックラティス | 光マトリクススイッチ |
WO2021161994A1 (ja) * | 2020-02-14 | 2021-08-19 | 富士フイルム株式会社 | 光結合システムおよび光通信デバイス |
JPWO2021161994A1 (ja) * | 2020-02-14 | 2021-08-19 | ||
JP7470775B2 (ja) | 2020-02-14 | 2024-04-18 | 富士フイルム株式会社 | 光結合システムおよび光通信デバイス |
Also Published As
Publication number | Publication date |
---|---|
US9008470B2 (en) | 2015-04-14 |
JP6027628B2 (ja) | 2016-11-16 |
CN103703405B (zh) | 2016-10-05 |
EP2766766A4 (en) | 2015-02-11 |
CN103703405A (zh) | 2014-04-02 |
US20130194537A1 (en) | 2013-08-01 |
US20150185583A1 (en) | 2015-07-02 |
WO2013113278A1 (en) | 2013-08-08 |
US9201286B2 (en) | 2015-12-01 |
EP2766766A1 (en) | 2014-08-20 |
Similar Documents
Publication | Publication Date | Title |
---|---|---|
JP6027628B2 (ja) | 波長を選択的に切り替える方法および装置 | |
JP6150146B2 (ja) | ビーム処理装置、ビーム減衰および切り替え装置、ならびに光波長選択スイッチシステム | |
US7231110B2 (en) | Wavelength selector switch | |
US7014326B2 (en) | Wavelength blocker | |
JP6598389B2 (ja) | 光ビーム偏向素子およびそれを用いた波長選択クロスコネクト装置、光クロスコネクト装置 | |
US10901294B2 (en) | Wavelength selective switch, alignment direction obtaining method, and liquid crystal on silicon and method for manufacturing same | |
JPH08510564A (ja) | 偏光回転を用いた周波数選択光スイッチ | |
WO2012125722A1 (en) | Wavelength selective switch | |
WO2006034533A1 (en) | Wavelength selective reconfigurable optical cross-connect | |
JP5718016B2 (ja) | 光操作装置 | |
JP4949355B2 (ja) | 波長選択スイッチ | |
EP1202091B1 (en) | A polarization-independent, configurable optical multiplexer | |
JP5861130B2 (ja) | 波長選択光クロスコネクト装置 | |
US9521474B2 (en) | Wavelength selective switch having multi-layer reflector | |
JP2009042557A (ja) | 波長選択スイッチ | |
JP2005115377A (ja) | 波長に基づいて光信号を選択的に伝送させるための波長選択スイッチングデバイスおよび方法 | |
JP4544828B2 (ja) | 波長選択スイッチ | |
JP2012530930A (ja) | 液晶波長選択ルータ | |
CN116560111A (zh) | 偏振无关器件及装置、光网络系统 |
Legal Events
Date | Code | Title | Description |
---|---|---|---|
A131 | Notification of reasons for refusal |
Free format text: JAPANESE INTERMEDIATE CODE: A131 Effective date: 20150609 |
|
A601 | Written request for extension of time |
Free format text: JAPANESE INTERMEDIATE CODE: A601 Effective date: 20150909 |
|
A521 | Request for written amendment filed |
Free format text: JAPANESE INTERMEDIATE CODE: A523 Effective date: 20151009 |
|
A02 | Decision of refusal |
Free format text: JAPANESE INTERMEDIATE CODE: A02 Effective date: 20160308 |
|
A521 | Request for written amendment filed |
Free format text: JAPANESE INTERMEDIATE CODE: A523 Effective date: 20160708 |
|
A911 | Transfer to examiner for re-examination before appeal (zenchi) |
Free format text: JAPANESE INTERMEDIATE CODE: A911 Effective date: 20160715 |
|
TRDD | Decision of grant or rejection written | ||
A01 | Written decision to grant a patent or to grant a registration (utility model) |
Free format text: JAPANESE INTERMEDIATE CODE: A01 Effective date: 20160927 |
|
A61 | First payment of annual fees (during grant procedure) |
Free format text: JAPANESE INTERMEDIATE CODE: A61 Effective date: 20161014 |
|
R150 | Certificate of patent or registration of utility model |
Ref document number: 6027628 Country of ref document: JP Free format text: JAPANESE INTERMEDIATE CODE: R150 |
|
R250 | Receipt of annual fees |
Free format text: JAPANESE INTERMEDIATE CODE: R250 |
|
R250 | Receipt of annual fees |
Free format text: JAPANESE INTERMEDIATE CODE: R250 |
|
R250 | Receipt of annual fees |
Free format text: JAPANESE INTERMEDIATE CODE: R250 |
|
R250 | Receipt of annual fees |
Free format text: JAPANESE INTERMEDIATE CODE: R250 |
|
R250 | Receipt of annual fees |
Free format text: JAPANESE INTERMEDIATE CODE: R250 |
