Abstract

An architectural solar glare window protection system has a screen of slats, folds or plaited panels and an upper rail (12) incorporating an electric motor (14). The motor and its associated components are suspended by an overhead fixture (34) to a ceiling or wall. The drive unit and associated components are enclosed within a noise-insulated (20, 26) capsule (26, 28).

Description

Die vorliegende Erfindung befaßt sich mit einer Sonnenschutzanlage mit einem raffbaren Lamellen- oder Faltbehang und einer Oberschiene, in welcher eine Antriebseinheit mit z. B. einem elektrischen Antriebsmotor, Aufzugslagern und/oder Wendelagern als Komponenten angeordnet ist und welche mit Hilfe einer Halterung wand- oder deckenseitig festlegbar ist.The present invention is concerned with a sunshade system with a gatherable lamella or Faltbehang and a Upper rail, in which a drive unit with z. B. an electric drive motor, lift bearings and / or turn bearings is arranged as components and which with the help a bracket wall or ceiling side can be fixed.

Derartige Sonnenschutzanlagen sind seit langer Zeit bekannt, wobei auch die Verwendung elektrischer Antriebe seit einer Vielzahl von Jahren bekannt ist. Die in der Oberschiene angeordneten bewegten Teile erzeugen jedoch Vibrationen und Luftschall, der sich auf die übrigen Anlagenteile oder Verblendungen übertragen und diese zum Schwingen anregen kann, wobei über die Halter auch eine Schalleinleitung in das Bauwerk geschieht, wodurch sich die Schallwahrnehmung noch erhöhen kann.Such sun protection systems have been known for a long time, although the use of electric drives since a Variety of years is known. The arranged in the upper rail moving parts generate vibrations and airborne sound, which refers to the other parts of the system or veneers transmitted and these can stimulate the swing, where via the holders also a sound input into the building happens, whereby the sound perception still increase can.

Es sind bereits vereinzelte Maßnahmen getroffen worden, um die Geräuschemissionen einer solchen Sonnenschutzanlage zu vermindern. Beispielsweise ist es bekannt, dämmende Materialien an den Flächen der Oberschiene anzubringen, um diese als besonders resonanzgefährdete Bauteile derart zu verstimmen, daß die Eigenfrequenz in einem tieferen Frequenzbereich liegt, der vom menschlichen Ohr als weniger störend wahrgenommen wird. Auch der Einsatz von dämmenden Zwischenlagen, beispielsweise zwischen dem Motor und der Oberschiene zur Verminderung der Körperschallübertragung ist z. B. aus der DE 201 09 758 U1 bekannt, kann jedoch die Geräuschemissionen ebenfalls nicht auf ein zufriedenstellend niedriges Maß senken.There are already isolated measures have been taken to the noise emissions of such a sunshade system Reduce. For example, it is known insulating materials to attach to the surfaces of the top rail to this as especially components susceptible to resonance so out of tune that the natural frequency in a lower frequency range which is perceived by the human ear as less disturbing becomes. Also, the use of insulating liners, for example, between the engine and the top rail to Reduction of structure-borne sound transmission is z. B. from DE 201 09 758 U1, however, may be the noise emissions also not to a satisfactorily low level.

Aus der DE 201 09 758 U1 und der AT 006423 U1 sind bereits Anlagen bekannt, die in einem auf drei Seiten geschlossenen Schacht angeordnet sind. Die Verminderung der Schallübertragung wird in diesen Schriften nicht angesprochen.DE 201 09 758 U1 and AT 006423 U1 are already Attachments known in a closed on three sides Shaft are arranged. The reduction of sound transmission is not addressed in these writings.

Die Aufgabe der vorliegenden Erfindung besteht darin, eine Sonnenschutzanlage mit einem in einer Schiene angeordneten Antrieb zu schaffen, deren Geräuschemissionen im Vergleich zu bekannten Anlagen erheblich niedriger liegen.The object of the present invention is to provide a Sunscreen with one arranged in a rail To create a drive whose noise emissions compared to known plants are considerably lower.

Erfindungsgemäß wird die Aufgabe durch eine Sonnenschutzanlage der eingangs beschriebenen Art gelöst, bei welcher die Antriebseinheit oder wenigstens einer Komponente in einer im wesentlichen allseitig geschlossenen Kapsel angeordnet und diese Kapsel wenigstens teilweise mit Dämmaterial versehen ist, wobei die Halterung vorzugsweise flächig an dem Dämmaterial oder einem das Dämmaterial vorzugsweise flächig wenigstens teilweise umgebenden Material angreift und das Halten der Oberschiene ausschließlich über das Dämmaterial erfolgt.According to the invention, the object is achieved by a sun protection system solved the type described above, in which the drive unit or at least one component in an im arranged on all sides closed capsule and at least partially provide this capsule with insulating material is, wherein the holder is preferably flat on the insulating material or preferably the insulating material at least two-dimensionally partially surrounding material attacks and holding The upper rail is done exclusively on the insulating material.

Die erfindungsgemäße Sonnenschutzanlage sorgt dank der geschlossenen Kapsel für die gesamte Antriebseinheit oder jeweils ihre Komponenten zum einen für eine besonders gute Abschirmung des durch die bewegten Teile unmittelbar entstehenden Luftschalls und durch das Vorsehen des Dämmaterials zum anderen für eine wesentliche Verminderung der Körperschallübertragung in die Halterung, wobei das ortsfeste Halten der Oberschiene ausschließlich über das Dämmaterial erfolgt. Bei weicheren, weniger belastbaren Dämmaterialien wird eine flächige Anlage bevorzugt, um die auftretenden Kräfte vom Halter auf das Dämmaterial abstützen zu können. Mit "im wesentlichen allseitig" ist gemeint, daß kleinere Durchtrittsöffnungen für z. B. die Aufzugs- oder Wendeeinrichtung eines Behangs vorgesehen sind, deren Querschnitt aber auf das technisch Notwendige beschränkt ist, so daß keine akustische Beeinträchtigung erfolgt.The sunshade invention provides thanks to the closed Capsule for the entire drive unit or each their components on the one hand for a particularly good shielding of the directly generated by the moving parts Airborne sound and by providing the insulating material for others for a substantial reduction in structure-borne sound transmission in the holder, wherein the stationary hold the Upper rail exclusively on the insulating material. at softer, less resilient insulating materials is a flat Plant preferred to the forces occurring from the holder to be supported on the insulating material. With "essentially Allseitig "means that smaller openings for z. B. the elevator or turning device of a curtain provided are, whose cross section but on the technically necessary is limited, so that no acoustic interference he follows.

In einer bevorzugten Ausführungsform der Erfindung ist vorgesehen, daß die Oberschiene einen C- oder U-förmigen Querschnitt besitzt, wobei die Oberschiene oder das das Dämmaterial umgebende Material mit einem sich über die gesamte Länge erstreckenden Deckel an der Oberseite und ggf. Stirnkappen an den Stirnseiten die Kapsel bildet. Denkbar wäre auch die Ausbildung der Oberschiene als geschlossenes Profil, wobei allerdings die Montage der Anlage dann erheblich schwieriger ist als bei einer Gestaltung mit einem abnehmbaren Deckel. Der Deckel und ggf. auch die Stirnkappen können jeweils aus Dämmaterial bestehen und/oder mit Dämmaterial verkleidet sein, wobei dies allerdings zum Erreichen einer gewünschten Geräuschminderung nicht unbedingt erforderlich ist. Auf die Stirnkappen kann u. U. ganz verzichtet werden, da die kleinen Stirnseitenquerschnitte auch im offenen Zustand kaum zu einer wesentlichen Beeinträchtigung des Geräuschverhaltens führen.In a preferred embodiment of the invention is provided that the upper rail has a C- or U-shaped cross-section possesses, with the top rail or the insulating material surrounding material with one extending over the entire length extending lid on the top and possibly front caps on the front sides forms the capsule. The training would also be conceivable the top rail as a closed profile, although the installation of the system then considerably more difficult is as in a design with a removable lid. The lid and possibly also the end caps can each off Insulating material and / or covered with insulating material but this is to achieve a desired Noise reduction is not essential. On the End caps can u. U. be waived altogether, since the small Face cross sections hardly open even in the open state Significant impairment of the noise behavior lead.

Alternativ ist auch eine Ausführungsform denkbar, bei welcher das Dämmaterial die einen C- oder U-förmigen Querschnitt besitzende Oberschiene allseitig umschließt und die die stirnseitigen Öffnungen der Oberschiene verschließenden Stirnkappen mit oder ohne Dämmaterial ausgebildet sind. Alternatively, an embodiment is conceivable in which the insulating material possessing a C- or U-shaped cross-section Upper rail encloses all sides and the front side Openings of the upper rail occluding end caps are formed with or without Dämmaterial.

Alle zuvor beschriebenen Ausführungsformen besitzen das gemeinsame Merkmal, daß die Flächen der Oberschiene mit dem Dämmaterial bedeckt sind, wodurch das Resonanzverhalten vorzugsweise in Richtung einer tieferen Eigenfrequenz verändert wird und das Dämmaterial zudem einen erheblichen Schallanteil absorbieren kann. 'All embodiments described above have the common Characteristic that the surfaces of the upper rail with the Damping material are covered, whereby the resonance behavior preferably changed in the direction of a lower natural frequency and the Dämmaterial also a significant amount of sound can absorb. '

Als besonders vorteilhaft hat sich eine Ausführungsform erwiesen, bei welcher das Dämmaterial mittig zwischen der Oberschiene und einer Ummantelung angeordnet ist. Dadurch entsteht quasi eine doppelwandige Oberschiene mit einem durch das Dämmaterial vollständig ausgefüllten Hohlraum. Die Ummantelung kann ebenso wie die Oberschiene aus einem Metallprofil bestehen, was insbesondere für ein sicheres und stabiles Angreifen der Halterung an der Ummantelung von Vorteil ist. Die besten Schalldämmwerte lassen sich erreichen, wenn auch die Ummantelung über die gesamte Länge der Oberschiene an allen Außenflächen durchgängig ausgebildet ist, wobei eine feste Anlage zwischen dem Dämmaterial und der Oberschiene und/ oder der Ummantelung besonders gute Schalldämmwerte ermöglicht und vorzugsweise das Dämmaterial mit der Oberschiene und/oder der Ummantelung verklebt ist.A particularly advantageous embodiment has proven in which the insulating material in the middle between the top rail and a sheath is arranged. This creates a double-walled upper rail with a through the insulating material completely filled cavity. The jacket Like the top rail, it can be made from a metal profile especially for a safe and stable attack the holder on the casing is advantageous. The best soundproofing values can be achieved, although the Sheathing over the entire length of the upper rail at all Exterior surfaces is formed throughout, with a solid Plant between the insulating material and the upper rail and / or the sheathing allows particularly good sound insulation values and preferably the insulating material with the upper rail and / or the Encapsulation is glued.

Es hat sich gezeigt, daß als Dämmaterial Werkstoffe besonders geeignet sind, die eine höhere Dichte besitzen, da sich einerseits durch die hohe Masse pro Volumen das Resonanzverhalten schwingungsgefährdeter Bauteile in der bereits erwähnten Weise positiv beeinflussen läßt und andererseits im Bereich der Angriffsflächen der Halterung auch eine ausreichende Stabilität gewahrt ist. Als besonders geeignet haben sich hier vorzugsweise Materialien erwiesen, die aus Produktionsabfällen geschäumter Kunststoffe hergestellt werden und ein Flächengewicht von ca. 1,8 kg/m2 bei 10 mm Dicke aufweisen, wobei die Oberfläche vorzugsweise luftdurchlässig ist. Auch andere Werkstoffe, wie z. B. EPDM oder Steinwolle, können Verwendung finden.It has been shown that materials are particularly suitable as Dämmaterial, which have a higher density, since on the one hand by the high mass per volume, the resonance behavior of vibration-prone components in the aforementioned manner can positively influence and on the other hand in the attack surfaces of the holder also sufficient stability is maintained. Materials which have proven particularly suitable here are preferably those which are produced from production waste of foamed plastics and have a basis weight of about 1.8 kg / m 2 at a thickness of 10 mm, the surface preferably being permeable to air. Other materials, such. As EPDM or rock wool, can be used.

In einer weiteren bevorzugten Ausführungsform ist vorgesehen, daß die Halterung wenigstens zwei bügelartige Träger aufweist, die die Ummantelung umgreifen. Beispielsweise kann die tragende Verbindung dadurch erreicht werden, daß an der Ummantelung Profilvorsprünge vorgesehen sind und die Bügel die Ummantelung von oben übergreifen und unter die Profilvorsprünge eingerastet sind. In Verbindung mit elastisch aufbiegbaren Bügeln ergibt sich eine besonders einfache Montage, da zunächst der Träger decken- oder wandseitig festgelegt und anschließend die Sonnenschutzanlage mit den Profilvorsprüngen der Ummantelung von unten in den Träger eingerastet werden kann. Zwischen dem Träger und den Profilvorsprüngen können Lagen aus Dämmaterial, beispielsweise EPDM, vorgesehen sein, um einer Körperschallübertragung eventuell vorhandener Restschwingungen von der Ummantelung auf den Träger entgegenzuwirken.In a further preferred embodiment, it is provided the holder has at least two bow-shaped carriers, which surround the casing. For example, the carrying connection can be achieved in that on the casing Profile projections are provided and the stirrups are the Cover the casing from above and under the profile projections are engaged. In conjunction with elastically bendable Ironing results in a particularly simple assembly, since first the carrier ceiling or wall side set and then the sun protection system with the profile projections the sheath are snapped from below into the carrier can. Between the carrier and the profile projections can Layers of insulating material, such as EPDM, be provided to a structure-borne noise transmission of any remaining vibrations counteract the sheathing on the carrier.

Nachfolgend wird anhand der beigefügten Zeichnungen näher auf Ausführungsbeispiele der Erfindung eingegangen. Es zeigen:

Fig. 1
eine Stirnansicht des Oberschienenbereiches einer Jalousie;
Fig. 2
eine skizzierte weitere Ausführungsform mit allseitig ummantelter Oberschiene.
Hereinafter, reference will be made to embodiments of the invention with reference to the accompanying drawings. Show it:
Fig. 1
an end view of the upper rail area of a blind;
Fig. 2
a sketched further embodiment with all sides sheathed upper rail.

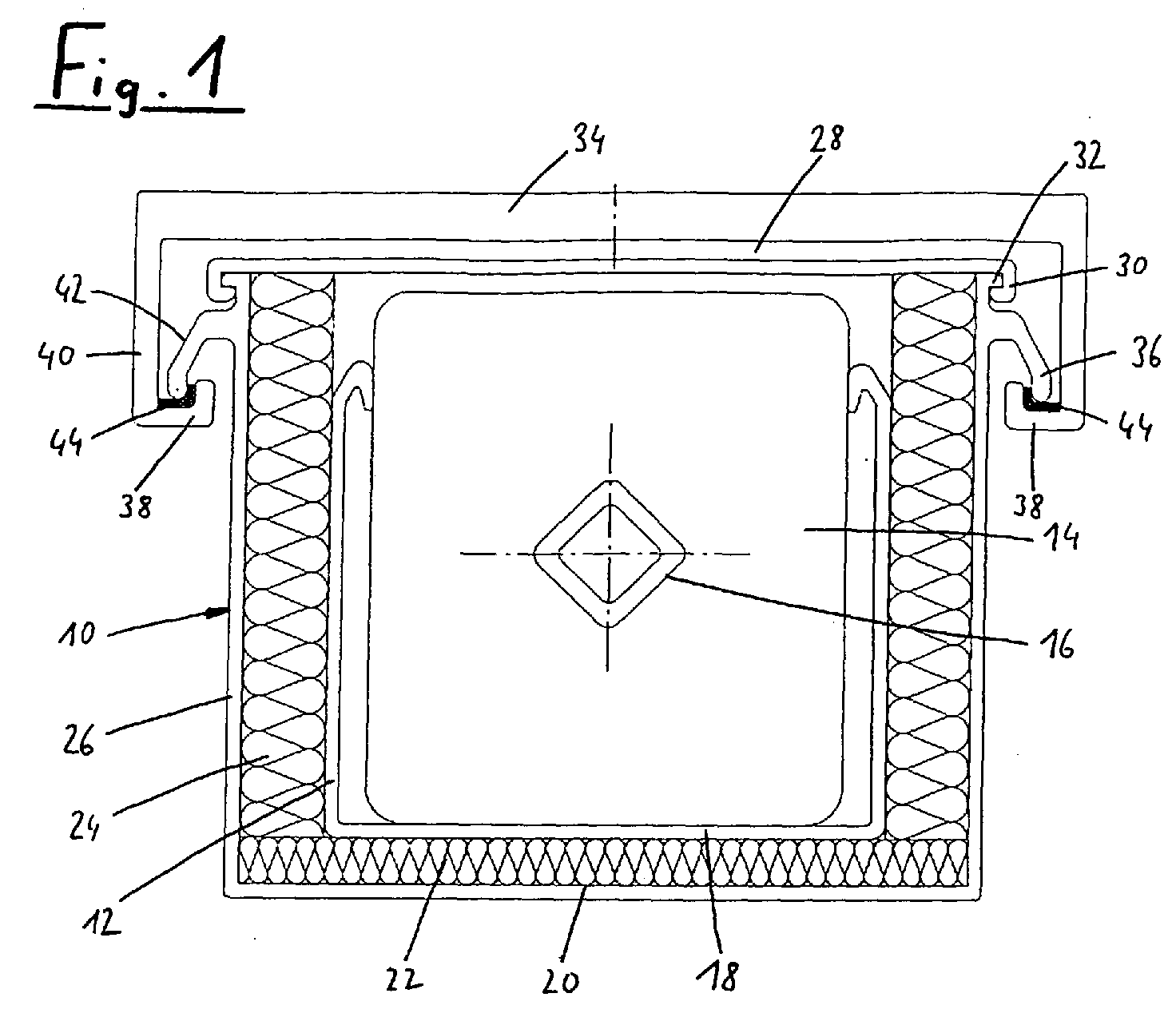

In Fig. 1 ist eine Stirnansicht einer Sonnenschutzanlage 10 im Bereich einer Oberschiene 12 gezeigt. In dieser Oberschiene, die aus einem im wesentlichen U-förmigen Metall- oder Kunststoffprofil besteht, ist eine Antriebseinheit bestehend aus einem elektrischen Antriebsmotor 14 mit einer Abtriebswelle 16 sowie von dieser Abtriebswelle angetriebene Aufzugs- und Wendelager (nicht gezeigt) aufgenommen, die über Aufzugs- bzw. Wendebänder (ebenfalls nicht gezeigt), die durch Bohrungen im Boden 18 der Oberschiene 12 nach unten geführt sind, auf den Behang wirken. Der Behang kann aus einem raffbaren Lamellenpaket bestehen, das mit Hilfe der Aufzugsorgane aufgeholt und mit Hilfe der Wendelager gewendet werden kann, oder auch aus einem faltbaren Behang, beispielsweise einem sogenannten Plisseebehang. In einem solchen Anwendungsfall können die Wendelager und Wendeschnüre entfallen.In Fig. 1 is an end view of a sunshade system 10th shown in the region of an upper rail 12. In this top rail, from a substantially U-shaped metal or Plastic profile consists, is a drive unit consisting from an electric drive motor 14 with an output shaft 16 and elevators driven by this output shaft. and reversible bearings (not shown) accessible via elevator or turning tapes (also not shown) by drilling in the bottom 18 of the upper rail 12 are guided downwards, to affect the curtain. The curtain can be made from a gatherable Lamella package consist, which caught up with the help of the elevator organs and can be turned with the help of the spiral bearings, or also from a foldable curtain, for example a so-called Plisseebehang. In such an application The spiral bearings and turning cords can be omitted.

Die Oberschiene 12 der Sonnenschutzanlage 10 ist an ihren Außenflächen mit einem Dämmaterial 20 beklebt, wobei vorzugsweise Dämmaterialien mit hoher Dichte und guter Formstabilität zum Einsatz kommen. Bei dem gezeigten Ausführungsbeispiel ist eine Dämmlage 22 unterhalb des Bodens 18 der Oberschiene 12 vorgesehen sowie zwei seitliche Dämmlagen 24 an den Außenflanken der Oberschiene 12. Bei dem gezeigten Ausführungsbeispiel ist die Bodenlage 22 ungefähr halb so dick wie die Seitenlagen 24, um eine möglichst geringe Bauhöhe der Sonnenschutzanlage im Bereich der Oberschiene zu erreichen.The upper rail 12 of the sunshade system 10 is on its outer surfaces glued with an insulating material 20, preferably Insulating materials with high density and good dimensional stability be used. In the embodiment shown is an insulating layer 22 below the bottom 18 of the upper rail 12 provided and two lateral Dämmlagen 24 on the outer edges the upper rail 12. In the embodiment shown the bottom layer 22 is about half as thick as the side layers 24, to the lowest possible height of the sun protection system to reach in the area of the upper rail.

Die Außenseite der Dämmlagen 22, 24 ist wiederum mit einer verklebten Ummantelung 26 aus Metall oder Kunststoff versehen, die bei dem gezeigten Ausführungsbeispiel aus einer im Querschnitt im wesentlichen U-förmigen Profilschiene, beispielsweise einem Strangpreßprofil besteht. Die Ummantelung 26 ist an ihrer Oberseite mit einem Deckel 28 verschlossen, der sich über die gesamte Länge der Oberschiene 12 und der Ummantelung 26 erstreckt und mit seinen profilierten Flanken nach außen weisende Stege 32 der Ummantelung 26 umgreift. Der Deckel 28 liegt auf den oberen Flanken der seitlichen Dämmwandungen 24 auf, ist jedoch selbst bei dem gezeigten Ausführungsbeispiel nicht mit Dämmaterial verkleidet. Es hat sich gezeigt, daß eine Verkleidung des Deckels 28 innenseitig mit Dämmaterial keine wesentliche Geräuschverbesserung bringt, das Weglassen einer Dämmung in diesem Bereich jedoch die Wärmeabfuhr bei einem stark beanspruchten Motor verbessert und die Bauhöhe im Oberschienenbereich verringert. Löcher (nicht gezeigt) in der Ummantelung 26 und der Dämmlage 22 im Bodenbereich dienen der Durchführung des Aufzugs und/oder Wendebänder.The outside of the insulating layers 22, 24 is in turn with a glued sheath 26 made of metal or plastic, in the embodiment shown in a Cross section substantially U-shaped rail, for example an extrusion consists. The jacket 26 is closed at its upper side with a cover 28, extending over the entire length of the upper rail 12 and the Sheath 26 extends and with its profiled flanks outwardly facing webs 32 of the casing 26 surrounds. Of the Cover 28 is located on the upper flanks of the lateral Dämmwandungen 24, but even in the illustrated embodiment not covered with insulating material. It has shown that a panel of the lid 28 inside with Insulating material does not bring any significant improvement in noise, the omission of an insulation in this area, however, the heat dissipation improved in a heavily used engine and reduced the height in the upper rail area. Holes (not shown) in the casing 26 and the insulation layer 22 in the bottom area serve to carry out the elevator and / or turning tapes.

Um den Motor und die weiteren bewegten Teile des Antriebes, die die Ursache für die Geräuschentwicklung im Betrieb sind, vollständig zu kapseln und dadurch eine Luftschallübertragung wesentlich zu vermindern, sind stirnseitig Stirnkappen (nicht gezeigt) vorgesehen, die die Oberschiene 12 verschließen und sich in der Regel bis zur Ummantelung 26 hin erstrecken, wobei die letztere Maßnahme in erster Linie optische Gründe hat.To the engine and the other moving parts of the drive, which are the cause of the noise during operation, completely encapsulate and thereby an airborne sound transmission To substantially reduce frontal end caps (not shown), which close the upper rail 12 and As a rule, extend to the sheath 26, wherein the latter measure primarily optical reasons Has.

Die Verbindung der Einheit aus Oberschiene 12, Dämmung 20 und Ummantelung 26 mit einem Träger 34, der eine Halterung bildet oder Bestandteil einer Halterung ist, die decken- oder wandseitig festlegbar ist, erfolgt mit Hilfe von an den Flanken der Ummantelung 26 angeformten Profilvorsprüngen 36. Diese weisen schräg nach unten, so daß der bügelartig ausgebildete Träger 34 mit einem C-profilähnlichen Querschnitt mit seinen abgewinkelten Enden 38 die Profilvorsprünge 36 untergreifen kann. Zwischen den Stegenden 38 und den Profilvorsprüngen 36 ist eine Dämmlage zur weiteren Verminderung der Körperschallübertragung vorgesehen, die beispielsweise aus EPDM bestehen kann.The connection of the unit from upper rail 12, insulation 20 and Sheath 26 with a carrier 34 which forms a holder or part of a holder, the ceiling or wall side is determined by means of on the flanks the sheath 26 molded profile projections 36th This have obliquely down, so that the bow-like design Carrier 34 with a C-profile-like cross-section with his Angled ends 38 engage under the profile projections 36 can. Between the web ends 38 and the profile projections 36 is an insulating layer to further reduce the transmission of structure-borne sound provided, which consist for example of EPDM can.

Stege 40 zwischen dem eigentlichen Träger 34 und den Schenkelenden 38 sind vorzugsweise elastisch nachgiebig ausgebildet, so daß zunächst die Träger 34 montiert werden können und anschließend die Einheit aus Oberschiene 12, Dämmaterial 20 und Ummantelung 26 vormontiert von unten in dem Träger 34 eingerastet werden kann, wobei über die Länge der Anlage 10 in der Regel wenigstens zwei Träger 34 vorgesehen sind. Schrägflächen 42 an den Oberseiten der Profilvorsprünge 36 können beim Eindrücken der Anlage von unten in den Träger 34 die Stege nach außen verformen, bis diese schließlich hinter den Profilvorsprung 36 einschnappen können. Dabei hängt man zunächst die Anlage einseitig mit einem Profilvorsprung 36 einseitig am Träger 34 ein und drückt die Anlage dann auf der anderen Seite nach oben, bis der entsprechende Steg des Trägers 34 am Profilvorsprung 36 einrastet.Webs 40 between the actual carrier 34 and the Leg ends 38 are preferably elastically yielding, so that first the carrier 34 can be mounted and then the unit of upper rail 12, insulating material 20 and sheath 26 pre-assembled from below in the carrier 34 can be engaged, taking over the length of the plant 10 usually at least two carriers 34 are provided are. Inclined surfaces 42 on the upper sides of the profile projections 36 can press the system from below into the carrier 34 deform the webs outwards until this finally behind can snap the profile projection 36. It hangs you first the plant on one side with a profile projection 36 on one side of the carrier 34 and then presses the system the other side up until the corresponding bridge of the Carrier 34 engages the profile projection 36.

Während das in Fig. 1 gezeigte Ausführungsbeispiel hinsichtlich der Bauhöhe im Bereich der Oberschiene minimiert ist und entsprechend über kein Dämmaterial oberhalb der Oberschiene und nur wenig Dämmaterial unterhalb der Unterschiene verfügt, ist in Fig. 2 eine Ausführungsform gezeigt, bei welcher die Oberschiene 112 mit der enthaltenen Antriebseinheit (nicht gezeigt) in einem als Kapsel 121 dienenden Hohlprofil 120 aus Dämmaterial aufgenommen ist, das die Oberschiene und damit die Antriebseinheit vollständig umschließt. Das Dämmaterial 120 erstreckt sich bei einer entsprechend ausgebildeten Sonnenschutzanlage bis zu den Stirnseiten der Oberschiene 112, wobei in der Abbildung die Oberschiene 12 zur Verdeutlichung überstehend dargestellt worden ist. Stirnseitig ist die Führungsschiene wiederum mit einer gedämmten oder ungedämmten Abdeckkappe versehen.While the embodiment shown in FIG the height in the area of the upper rail is minimized and accordingly no insulating material above the upper rail and only a little insulating material below the lower rail, in Fig. 2 shows an embodiment in which the Upper rail 112 with the included drive unit (not shown) in serving as a capsule 121 hollow profile 120 Insulating material is added to the top rail and thus completely encloses the drive unit. The insulating material 120 extends at a correspondingly trained sun protection system up to the end faces of the upper rail 112, in the figure, the upper rail 12 for clarity has been shown protruding. The front side is the guide rail again with a insulated or uninsulated Cover provided.

Bei dem in Fig. 2 gezeigten Ausführungsbeispiel kann wiederum eine Ummantelung vorgesehen sein, wobei entweder ein die Dämmkapsel 121 vollständig umgebendes Hohlprofil oder eine U-förmige Ummantelung ähnlich Fig. 1 vorgesehen sein kann. Träger können dann entsprechend wiederum an dieser Ummantelung angreifen.In the embodiment shown in Fig. 2, in turn be provided a sheath, either one the Dämmkapsel 121 completely surrounding hollow section or a U-shaped Sheath similar to Fig. 1 may be provided. carrier can then turn accordingly on this sheathing attack.

Beide Ausführungsformen sorgen zum einen durch die gekapselte Antriebseinheit für eine erhebliche Reduzierung der Luftschallübertragung, während zum anderen das Vermeiden starrer Teile zwischen Träger und Oberschiene 12 für eine wesentliche Reduzierung der Körperschallübertragung sorgt. Durch die Kombination dieser beiden Maßnahmen lassen sich Sonnenschutzanlagen herstellen, deren Geräuschemissionen beträchtlich unter denen bekannter Anlagen liegen.Both embodiments provide on the one hand by the encapsulated Drive unit for a considerable reduction of airborne sound transmission, while avoiding being rigid Parts between the carrier and upper rail 12 for a substantial Reduction of structure-borne sound transmission ensures. By the combination These two measures can be sun protection systems whose noise emissions are considerably lower those known plants lie.

Claims (10)

Sonnenschutzanlage mit einem raffbaren Lamellen-, Falt- oder Plisseebehang und einer Oberschiene (12), in welcher eine Antriebseinheit (14, 16) mit einem elektrischen Antriebsmotor (14), Aufzugslagern und/oder Wendelagern als Komponenten angeordnet ist und welche mit Hilfe einer Halterung (34) wand- oder deckenseitig festlegbar ist, dadurch gekennzeichnet, daß die Antriebseinheit (14, 16) oder einzelne Komponenten jeweils in einer im wesentlichen allseitig geschlossenen Kapsel (26, 28; 120) angeordnet ist bzw. sind und die Kapsel wenigstens teilweise mit Dämmaterial versehen ist, wobei die Halterung (34) an dem Dämmaterial oder an einem das Dämmaterial (20) wenigstens teilweise umgebenden Material (26) angreift und das Halten der Oberschiene (12) ausschließlich über das Dämmmaterial erfolgt.Sun protection system with a gatherable lamellar, folding or Plisseebehang and an upper rail (12), in which a drive unit (14, 16) with an electric drive motor (14), elevator bearings and / or coil bearings is arranged as components and which by means of a holder (34) wall or ceiling side can be fixed, characterized in that the drive unit (14, 16) or individual components in each case in a substantially closed on all sides capsule (26, 28, 120) is or are and the capsule at least partially with Insulating material is provided, wherein the holder (34) on the insulating material or on a Dämmaterial (20) at least partially surrounding material (26) engages and holding the upper rail (12) takes place exclusively on the insulating material. Sonnenschutzanlage nach Anspruch 1, dadurch gekennzeichnet, daß die Oberschiene (12) einen C- oder U-förmigen Querschnitt besitzt, wobei die Oberschiene oder das das Dämmaterial umgebende Material (26) mit einem sich über die gesamte Länge erstreckenden Deckel (28) an der Oberseite die Kapsel bildet, wobei vorzugsweise an den Stirnseiten der Oberschiene Stirnkappen zur Verbesserung der Kapselwirkung vorgesehen sind.Sun protection system according to claim 1, characterized in that the upper rail (12) has a C- or U-shaped cross-section, wherein the upper rail or the material surrounding the insulating material (26) with a cover (28) extending over the entire length of the Top side forms the capsule, wherein preferably on the front sides of the upper rail end caps are provided to improve the capsule effect. Sonnenschutzanlage nach Anspruch 2, dadurch gekennzeichnet, daß der Deckel und/oder die Stirnkappen aus Dämmaterial bestehen und/oder mit Dämmaterial verkleidet sind. Sun protection system according to claim 2, characterized in that the cover and / or the end caps consist of insulating material and / or are covered with insulating material. Sonnenschutzanlage nach Anspruch 1, dadurch gekennzeichnet, daß die Oberschiene (112) einen C- oder U-förmigen Querschnitt besitzt, das Dämmaterial (20) die Oberschiene allseitig umschließt und die stirnseitigen Öffnungen der Oberschiene (112) mit Stirnkappen mit oder ohne Dämmaterial verschlossen sind.Sun protection system according to claim 1, characterized in that the upper rail (112) has a C- or U-shaped cross section, the insulating material (20) surrounds the upper rail on all sides and the frontal openings of the upper rail (112) are closed with end caps with or without insulating material , Sonnenschutzanlage nach einem der vorhergehenden Ansprüche, dadurch gekennzeichnet, daß das Dämmaterial (20) mittig zwischen der Oberschiene (12) und einer Ummantelung (26) angeordnet ist, wobei das Dämmaterial (20) vorzugsweise mit der Oberschiene (12) und/oder der Ummantelung (26) verklebt ist.Sun protection system according to one of the preceding claims, characterized in that the insulating material (20) is arranged centrally between the upper rail (12) and a casing (26), wherein the insulating material (20) preferably with the upper rail (12) and / or the casing (26) is glued. Sonnenschutzanlage nach Anspruch 5, dadurch gekennzeichnet, daß die Halterung (34, 38) an der Ummantelung (26, 36) angreift, wobei die Halterung vorzugsweise wenigstens zwei bügelartige Träger (34) aufweist, die die Ummantelung (26) wenigstens teilweise umgreifen.Sun protection system according to claim 5, characterized in that the holder (34, 38) acts on the casing (26, 36), wherein the holder preferably has at least two bow-shaped supports (34) which at least partially surround the casing (26). Sonnenschutzanlage nach Anspruch 6, dadurch gekennzeichnet, daß die Ummantelung (26) Profilvorsprünge (36) aufweist und die bügelartigen Träger (34, 38) die Ummantelung (26) von oben übergreifen und hinter die Profilvorsprünge (36) eingerastet sind.Sun protection system according to claim 6, characterized in that the sheath (26) profile projections (36) and the bow-shaped support (34, 38) engage over the sheath (26) from above and are engaged behind the profile projections (36). Sonnenschutzanlage nach Anspruch 7, dadurch gekennzeichnet, daß die bügelartigen Träger (34, 40) elastisch aufbiegbar sind. Sun protection system according to claim 7, characterized in that the bow-shaped support (34, 40) are elastically aufgebiegbar. Sonnenschutzanlage nach Anspruch 7 oder 8, dadurch gekennzeichnet, daß zwischen den Profilvorsprüngen (36) und den bügelartigen Trägern (34, 38) Lagen (44) aus Dämmaterial vorgesehen sind.Sun protection system according to claim 7 or 8, characterized in that layers (44) of insulating material are provided between the profile projections (36) and the bow-shaped supports (34, 38). Sonnenschutzanläge nach einem der vorhergehenden Ansprüche, dadurch gekennzeichnet, daß das die Oberschiene (12) umgebende Dämmaterial eine hohe Dichte und hohe Dämpfungseigenschaften aufweist.Sun protection system according to one of the preceding claims, characterized in that the insulating material surrounding the upper rail (12) has a high density and high damping properties.
