EP1523971A3 - Wheelchair - Google Patents

Wheelchair Download PDF

Info

Publication number
EP1523971A3
EP1523971A3 EP04015726A EP04015726A EP1523971A3 EP 1523971 A3 EP1523971 A3 EP 1523971A3 EP 04015726 A EP04015726 A EP 04015726A EP 04015726 A EP04015726 A EP 04015726A EP 1523971 A3 EP1523971 A3 EP 1523971A3
Authority
EP
European Patent Office
Prior art keywords
lifting device
upper stop
seat
base body
pivot arm
Prior art date
Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
Withdrawn
Application number
EP04015726A
Other languages
German (de)
French (fr)
Other versions
EP1523971A2 (en
Inventor
Horst Lindenkamp
Current Assignee (The listed assignees may be inaccurate. Google has not performed a legal analysis and makes no representation or warranty as to the accuracy of the list.)
Invacare Deutschland GmbH
Original Assignee
Invacare Deutschland GmbH
Priority date (The priority date is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the date listed.)
Filing date
Publication date
Application filed by Invacare Deutschland GmbH filed Critical Invacare Deutschland GmbH
Publication of EP1523971A2 publication Critical patent/EP1523971A2/en
Publication of EP1523971A3 publication Critical patent/EP1523971A3/en
Withdrawn legal-status Critical Current

Links

Classifications

    • A—HUMAN NECESSITIES
    • A61—MEDICAL OR VETERINARY SCIENCE; HYGIENE
    • A61G—TRANSPORT, PERSONAL CONVEYANCES OR ACCOMMODATION SPECIALLY ADAPTED FOR PATIENTS OR DISABLED PERSONS; OPERATING TABLES OR CHAIRS; CHAIRS FOR DENTISTRY; FUNERAL DEVICES
    • A61G5/00—Chairs or personal conveyances specially adapted for patients or disabled persons, e.g. wheelchairs
    • A61G5/06—Chairs or personal conveyances specially adapted for patients or disabled persons, e.g. wheelchairs with obstacle mounting facilities, e.g. for climbing stairs, kerbs or steps
    • A61G5/063—Chairs or personal conveyances specially adapted for patients or disabled persons, e.g. wheelchairs with obstacle mounting facilities, e.g. for climbing stairs, kerbs or steps with eccentrically mounted wheels
    • A—HUMAN NECESSITIES
    • A61—MEDICAL OR VETERINARY SCIENCE; HYGIENE
    • A61G—TRANSPORT, PERSONAL CONVEYANCES OR ACCOMMODATION SPECIALLY ADAPTED FOR PATIENTS OR DISABLED PERSONS; OPERATING TABLES OR CHAIRS; CHAIRS FOR DENTISTRY; FUNERAL DEVICES
    • A61G5/00—Chairs or personal conveyances specially adapted for patients or disabled persons, e.g. wheelchairs
    • A61G5/04—Chairs or personal conveyances specially adapted for patients or disabled persons, e.g. wheelchairs motor-driven
    • A61G5/041—Chairs or personal conveyances specially adapted for patients or disabled persons, e.g. wheelchairs motor-driven having a specific drive-type
    • A61G5/043—Mid wheel drive
    • A—HUMAN NECESSITIES
    • A61—MEDICAL OR VETERINARY SCIENCE; HYGIENE
    • A61G—TRANSPORT, PERSONAL CONVEYANCES OR ACCOMMODATION SPECIALLY ADAPTED FOR PATIENTS OR DISABLED PERSONS; OPERATING TABLES OR CHAIRS; CHAIRS FOR DENTISTRY; FUNERAL DEVICES
    • A61G5/00—Chairs or personal conveyances specially adapted for patients or disabled persons, e.g. wheelchairs
    • A61G5/06—Chairs or personal conveyances specially adapted for patients or disabled persons, e.g. wheelchairs with obstacle mounting facilities, e.g. for climbing stairs, kerbs or steps
    • A—HUMAN NECESSITIES
    • A61—MEDICAL OR VETERINARY SCIENCE; HYGIENE
    • A61G—TRANSPORT, PERSONAL CONVEYANCES OR ACCOMMODATION SPECIALLY ADAPTED FOR PATIENTS OR DISABLED PERSONS; OPERATING TABLES OR CHAIRS; CHAIRS FOR DENTISTRY; FUNERAL DEVICES
    • A61G5/00—Chairs or personal conveyances specially adapted for patients or disabled persons, e.g. wheelchairs
    • A61G5/10—Parts, details or accessories
    • A61G5/1056—Arrangements for adjusting the seat
    • A61G5/1059—Arrangements for adjusting the seat adjusting the height of the seat

Landscapes

  • Health & Medical Sciences (AREA)
  • Life Sciences & Earth Sciences (AREA)
  • Animal Behavior & Ethology (AREA)
  • General Health & Medical Sciences (AREA)
  • Public Health (AREA)
  • Veterinary Medicine (AREA)
  • Handcart (AREA)

Abstract

Es wird ein Rollstuhl (1) beschrieben, auf dem ein Sitz (1) und an dem zwei Antriebsräder (4) sowie mindestens ein Hinterrad (6) und zwei Vorderräder (10) angeordnet sind, die jeweils über mindestens einen um eine horizontale Achse drehbaren, ein (12) Widerlager aufweisenden Schwenkarm (11a,11b) am Grundkörper angelenkt sind und die aus einer Grundposition in eine angehobene oder aber eine abgesenkte Position bewegbar sind, wobei ein oberer Anschlag (30) zur Begrenzung der Schwenkbewegung des Schwenkarms (11a,11b) vorgesehen ist. Zwischen dem Grundkörper (3) und dem Sitz (2) ist eine Hubeinrichtung (20) vorgesehen, wobei der obere Anschlag (30) mit einem bewegten Bauteil (22,23) der Hubeinrichtung (20) verbunden ist. Dadurch wird der obere Anschlag (30) beim Ausfahren der Hubeinrichtung (20) in seiner Position verändert, so dass der Schwenkbereich für die Vorderräder (10) eingeschränkt wird.

Figure 00000001

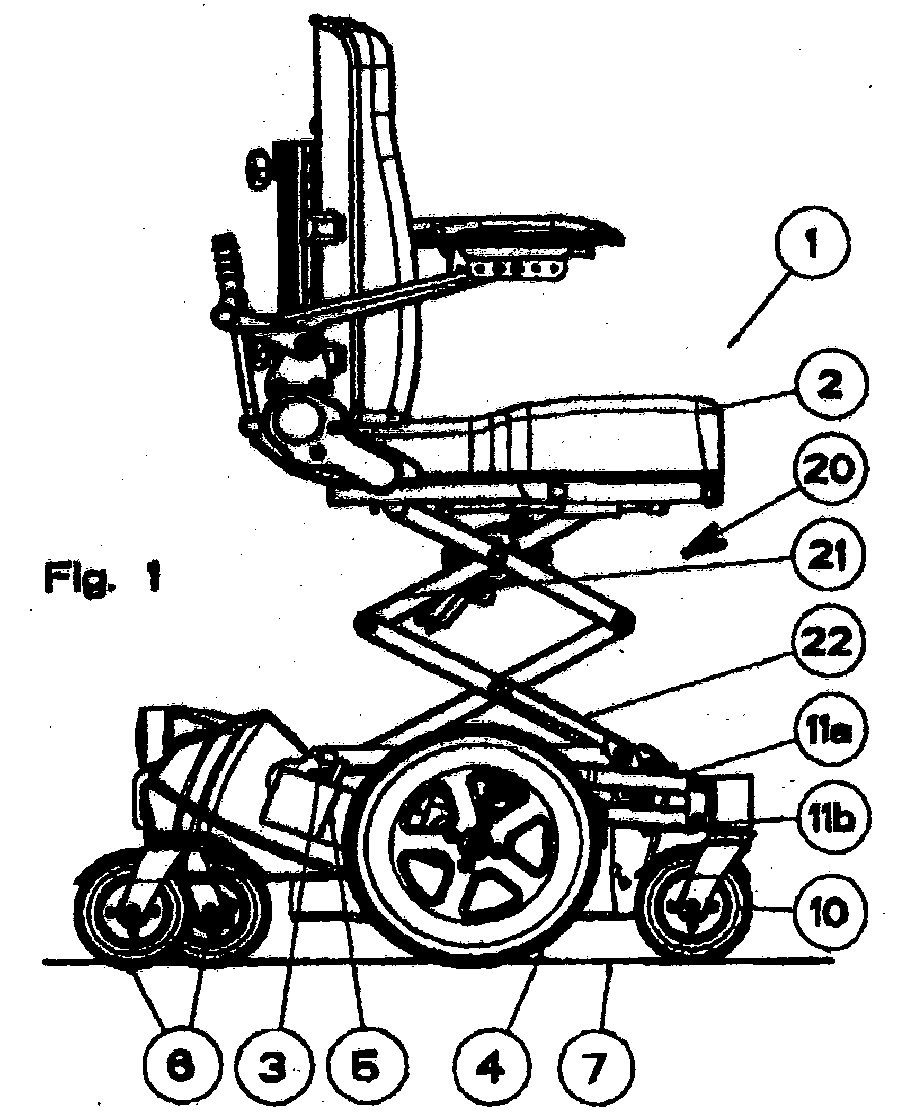

A wheelchair (1) is described, on which a seat (1) and on which two drive wheels (4) and at least one rear wheel (6) and two front wheels (10) are arranged, each of which is rotatable about at least one about a horizontal axis , a (12) abutment having pivot arm (11 a, 11 b) are hinged to the base body and which are movable from a basic position to a raised or a lowered position, wherein an upper stop (30) for limiting the pivotal movement of the pivot arm (11 a, 11 b ) is provided. Between the base body (3) and the seat (2), a lifting device (20) is provided, wherein the upper stop (30) with a moving component (22,23) of the lifting device (20) is connected. As a result, the upper stop (30) is changed in its position during extension of the lifting device (20), so that the pivoting range for the front wheels (10) is limited.
Figure 00000001
