EP0851172A3 - Brenner zum Betrieb einer Brennkammer mit einem flüssigen und/oder gasförmigen Brennstoff - Google Patents

Brenner zum Betrieb einer Brennkammer mit einem flüssigen und/oder gasförmigen Brennstoff Download PDF

Info

Publication number
EP0851172A3
EP0851172A3 EP97810838A EP97810838A EP0851172A3 EP 0851172 A3 EP0851172 A3 EP 0851172A3 EP 97810838 A EP97810838 A EP 97810838A EP 97810838 A EP97810838 A EP 97810838A EP 0851172 A3 EP0851172 A3 EP 0851172A3
Authority
EP
European Patent Office
Prior art keywords
burner
operating
liquid
interior
combustion chamber
Prior art date
Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
Granted
Application number
EP97810838A
Other languages
English (en)
French (fr)
Other versions
EP0851172A2 (de
EP0851172B1 (de
Inventor
Thomas Dr. Sattelmayer
Current Assignee (The listed assignees may be inaccurate. Google has not performed a legal analysis and makes no representation or warranty as to the accuracy of the list.)
General Electric Switzerland GmbH
Original Assignee
ABB Research Ltd Switzerland
Priority date (The priority date is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the date listed.)
Filing date
Publication date
Application filed by ABB Research Ltd Switzerland filed Critical ABB Research Ltd Switzerland
Publication of EP0851172A2 publication Critical patent/EP0851172A2/de
Publication of EP0851172A3 publication Critical patent/EP0851172A3/de
Application granted granted Critical
Publication of EP0851172B1 publication Critical patent/EP0851172B1/de
Anticipated expiration legal-status Critical
Expired - Lifetime legal-status Critical Current

Links

Classifications

    • F—MECHANICAL ENGINEERING; LIGHTING; HEATING; WEAPONS; BLASTING
    • F23—COMBUSTION APPARATUS; COMBUSTION PROCESSES
    • F23D—BURNERS
    • F23D17/00—Burners for combustion simultaneously or alternately of gaseous or liquid or pulverulent fuel
    • F23D17/002—Burners for combustion simultaneously or alternately of gaseous or liquid or pulverulent fuel gaseous or liquid fuel
    • F—MECHANICAL ENGINEERING; LIGHTING; HEATING; WEAPONS; BLASTING
    • F23—COMBUSTION APPARATUS; COMBUSTION PROCESSES
    • F23C—METHODS OR APPARATUS FOR COMBUSTION USING FLUID FUEL OR SOLID FUEL SUSPENDED IN  A CARRIER GAS OR AIR
    • F23C7/00—Combustion apparatus characterised by arrangements for air supply
    • F23C7/002—Combustion apparatus characterised by arrangements for air supply the air being submitted to a rotary or spinning motion
    • F—MECHANICAL ENGINEERING; LIGHTING; HEATING; WEAPONS; BLASTING
    • F23—COMBUSTION APPARATUS; COMBUSTION PROCESSES
    • F23C—METHODS OR APPARATUS FOR COMBUSTION USING FLUID FUEL OR SOLID FUEL SUSPENDED IN  A CARRIER GAS OR AIR
    • F23C2900/00—Special features of, or arrangements for combustion apparatus using fluid fuels or solid fuels suspended in air; Combustion processes therefor
    • F23C2900/07002—Premix burners with air inlet slots obtained between offset curved wall surfaces, e.g. double cone burners
    • F—MECHANICAL ENGINEERING; LIGHTING; HEATING; WEAPONS; BLASTING
    • F23—COMBUSTION APPARATUS; COMBUSTION PROCESSES
    • F23D—BURNERS
    • F23D2209/00—Safety arrangements
    • F23D2209/10—Flame flashback

Landscapes

  • Engineering & Computer Science (AREA)
  • Chemical & Material Sciences (AREA)
  • Combustion & Propulsion (AREA)
  • Mechanical Engineering (AREA)
  • General Engineering & Computer Science (AREA)
  • Gas Burners (AREA)
  • Pre-Mixing And Non-Premixing Gas Burner (AREA)

Abstract

Bei einem Brenner zum Betrieb einer Brennkammmer mit einem flüssigen und/oder gasförmigen Brennstoff (12, 16) wird die dazu benötigte Verbrennungsluft (7) durch tangentiale Lufteintrittskanäle (5, 6) in einen Innenraum des Brenners geführt. Durch diese Strömungsführung entsteht im Innenraum eine Drallströmung, welche am Ausgang des Brenners eine Rückströmzone induziert. Um die sich dort bildende Flammenfront zu stabilisieren, wird bei jedem den Brenner bildenden Teilkörper (1, 2) mindestens eine Zone (27) vorgesehen, innerhalb welcher Eintrittsöffnungen (29) für die Eindüsung einer Zusatzluft (32) in die Drallströmung (7a) vorgesehen sind. Durch diese Eindüsung bildet sich an der Innenwand der Teilkörper (1, 2) einen Film, welcher verhindert, dass die Flamme entlang der Innenwand der Teilkörper (1, 2) in den Innenraum des Brenners zurückschlagen kann.

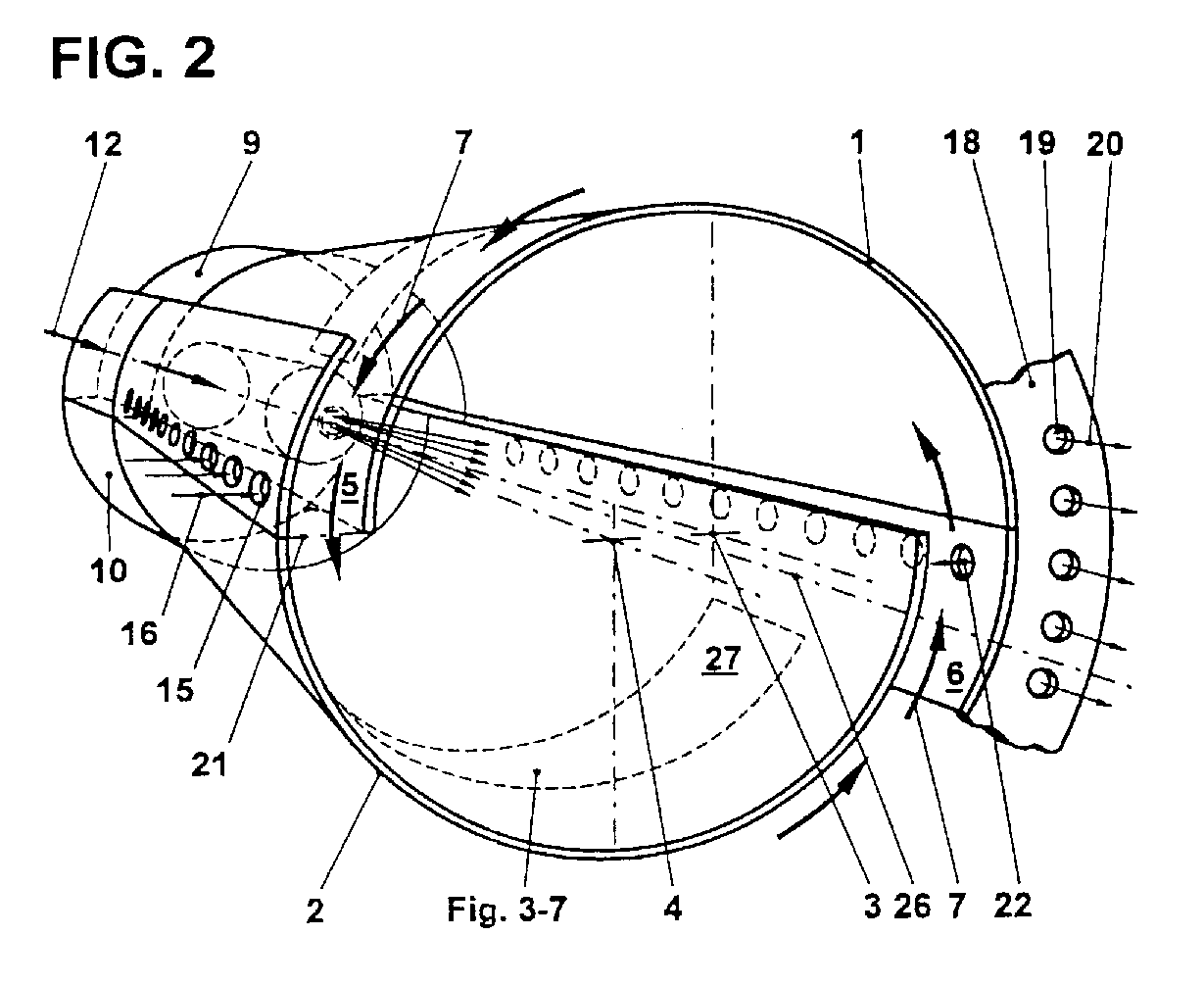

Figure 00000001
EP97810838A 1996-12-23 1997-11-07 Brenner und Verfahren zum Betrieb einer Brennkammer mit einem flüssigen und/oder gasförmigen Brennstoff Expired - Lifetime EP0851172B1 (de)
