EP0808959A3 - Verbundsystem für Bauzwecke mit selbsttragenden Tafelelementen - Google Patents

Verbundsystem für Bauzwecke mit selbsttragenden Tafelelementen Download PDF

Info

Publication number
EP0808959A3
EP0808959A3 EP97108084A EP97108084A EP0808959A3 EP 0808959 A3 EP0808959 A3 EP 0808959A3 EP 97108084 A EP97108084 A EP 97108084A EP 97108084 A EP97108084 A EP 97108084A EP 0808959 A3 EP0808959 A3 EP 0808959A3
Authority
EP
European Patent Office
Prior art keywords
members
panels
sides
profiled
roof
Prior art date
Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
Granted
Application number
EP97108084A
Other languages
English (en)
French (fr)
Other versions
EP0808959A2 (de
EP0808959B1 (de
Inventor
Adolf Imhoff
Current Assignee (The listed assignees may be inaccurate. Google has not performed a legal analysis and makes no representation or warranty as to the accuracy of the list.)
ThyssenKrupp Stahl Bauelemente Gmbh
Original Assignee
Individual
Priority date (The priority date is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the date listed.)
Filing date
Publication date
Application filed by Individual filed Critical Individual
Publication of EP0808959A2 publication Critical patent/EP0808959A2/de
Publication of EP0808959A3 publication Critical patent/EP0808959A3/de
Application granted granted Critical
Publication of EP0808959B1 publication Critical patent/EP0808959B1/de
Anticipated expiration legal-status Critical
Expired - Lifetime legal-status Critical Current

Links

Classifications

    • E—FIXED CONSTRUCTIONS
    • E04—BUILDING
    • E04C—STRUCTURAL ELEMENTS; BUILDING MATERIALS
    • E04C2/00—Building elements of relatively thin form for the construction of parts of buildings, e.g. sheet materials, slabs, or panels
    • E04C2/30—Building elements of relatively thin form for the construction of parts of buildings, e.g. sheet materials, slabs, or panels characterised by the shape or structure
    • E04C2/38—Building elements of relatively thin form for the construction of parts of buildings, e.g. sheet materials, slabs, or panels characterised by the shape or structure with attached ribs, flanges, or the like, e.g. framed panels
    • E04C2/384—Building elements of relatively thin form for the construction of parts of buildings, e.g. sheet materials, slabs, or panels characterised by the shape or structure with attached ribs, flanges, or the like, e.g. framed panels with a metal frame
    • E—FIXED CONSTRUCTIONS
    • E04—BUILDING
    • E04C—STRUCTURAL ELEMENTS; BUILDING MATERIALS
    • E04C2/00—Building elements of relatively thin form for the construction of parts of buildings, e.g. sheet materials, slabs, or panels
    • E04C2/02—Building elements of relatively thin form for the construction of parts of buildings, e.g. sheet materials, slabs, or panels characterised by specified materials
    • E04C2/04—Building elements of relatively thin form for the construction of parts of buildings, e.g. sheet materials, slabs, or panels characterised by specified materials of concrete or other stone-like material; of asbestos cement; of cement and other mineral fibres
    • E04C2/049—Building elements of relatively thin form for the construction of parts of buildings, e.g. sheet materials, slabs, or panels characterised by specified materials of concrete or other stone-like material; of asbestos cement; of cement and other mineral fibres completely or partially of insulating material, e.g. cellular concrete or foamed plaster

Landscapes

  • Engineering & Computer Science (AREA)
  • Architecture (AREA)
  • Civil Engineering (AREA)
  • Structural Engineering (AREA)
  • Building Environments (AREA)
  • Panels For Use In Building Construction (AREA)
  • Load-Bearing And Curtain Walls (AREA)

Abstract

Die Erfindung betrifft ein Verbundsystem für Bauzwecke mit selbsttragenden Tafelelementen, wobei die Tafelelemente (1) durchgehende U-förmige Rahmenprofile (3) aufweisen, die Tafelelemente (1) durch winklig zu den Rahmenprofilen (3) angeordnete, dreiseitig geschlossene Tragwerkprofile (4) in einzelne Segmente (2) unterteilt sind und jedes Segment (2) durch eine Kernschicht (7) gebildet ist und jedes Tafelelement (1) zumindest einseitig mit einer Deckschicht (9) versehen ist. Um ein Verbundsystem für Bauzwecke zu schaffen, das einfach, kostengünstig und in bautechnischer Hinsicht optimal an die jeweiligen Anforderungen und Verwendungszwecke anpaßbar ist, wird vorgeschlagen, ein solches Verbundsystem durch folgende Merkmale zu kennzeichnen:
  • a) Die Kernschicht (7) und die mindestens eine Deckschicht (9) bestehen aus einem oder mehreren dem Verwendungszweck des jeweiligen Tafelelementes (1) als Gebäudeaußenwand-, Wohnungstrennwand- oder Deckenelement bezüglich Dichte und/oder Zusammensetzung angepaßten Materialien;
  • b) die Tragwerkprofile (4) zwischen jeweils zwei aneinandergrenzenden Segmenten (2) sind mit einander zugewandten Stegen (6) einen Stützraum bildend mit Abstand zueinander angeordnet;
  • c) der Stützraum (8) zwischen zwei Tragwerkprofilen (4) ist mit einem Füllmaterial ausgefüllt;
  • d) die Tragwerkprofile (4) weisen allseitig in den von den drei geschlossenen Seiten gebildeten Raum weisende, zweiseitig hinterschnittene Einformungen (11) auf und
  • e) zwischen miteinander zu verbindenden Tafelelementen (1) sind dem jeweiligen Verwendungszweck der Tafelelemente (1) als Wand- oder Deckenelemente angepaßte Verbindungsprofile (13,14) angeordnet.

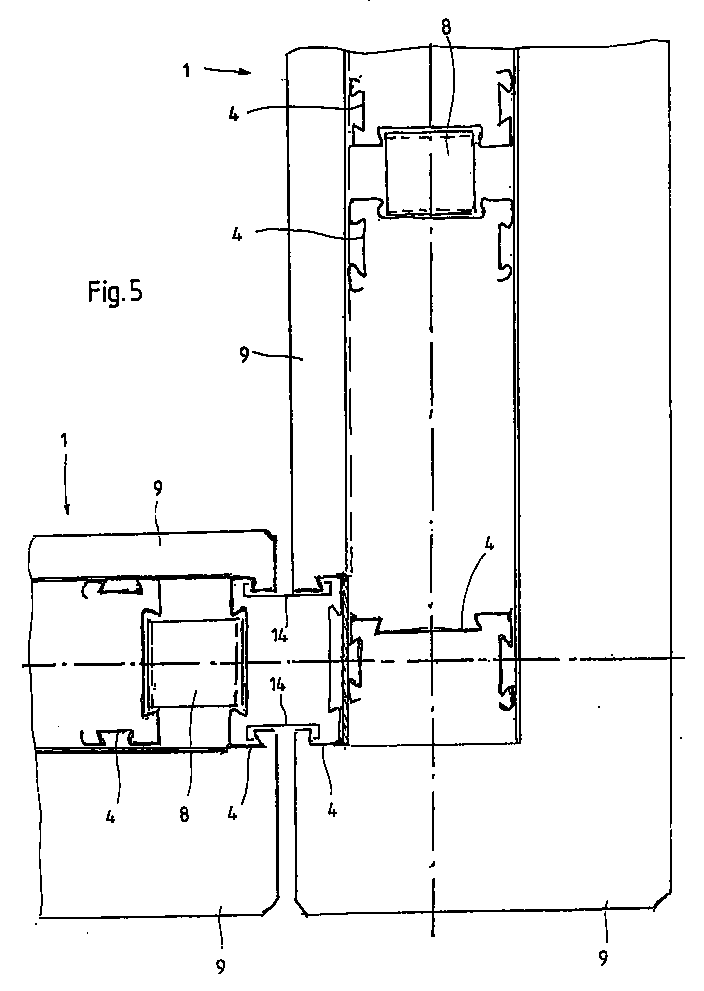

    • Figure 00000001
    EP97108084A 1996-05-21 1997-05-17 Verbundsystem für Bauzwecke mit selbsttragenden Tafelelementen Expired - Lifetime EP0808959B1 (de)
