The utility model provides a clean nursing device of long-term bed patient, including clean nursing bedstead and the adjustable wheelchair car of gesture, one side of clean nursing bedstead is provided with and is used for inlaying the import of establishing the adjustable wheelchair car of gesture, and the clean nursing bedstead is provided with supporting legs, braced frame and accepts the frame, and portable bathing device is installed to clean nursing bedstead head of a bed position, and the adjustable wheelchair car of gesture includes back of the body subassembly, buttock subassembly, shank subassembly, controller, handrail, wheelchair frame and drive arrangement. The utility model discloses simple structure, high durability and convenient use, can solve the inconvenient removal problem of bed patient action through setting up the adjustable wheelchair car of detachable gesture, reduce the transfer process from the berth to the wheelchair before the trip, carry or independently leave the tumble risk that the bed produced by the manual work, avoid moving the in-process human body simultaneously and produce with the utensil friction and lead to the skin damage, can realize the function that the bed patient bathed on the bed through setting up portable bath device, the inconvenience of producing on the way of going to the bathroom bathing has been avoided.

Description

Clean nursing device of long-term bed patient
Technical Field
The utility model belongs to the technical field of medical equipment, concretely relates to clean nursing device of long-term bed patient.
Background
With the gradual aging of population, many diseases of the old are increased, and many people with mobility inconvenience, stroke, brain lesion, central nervous damage and paralysis or long-term bedridden patients lack mobility ability and need to be taken care of by others in a bed for a long time. When caring for a patient lying in bed, a nurse or a family member is very headache when facing problems such as toileting, bathing and the like.
For example, when using a toilet, a bedpan is usually used to receive the excrement of a patient, so that the problems of bad smell and poor treatment are caused; and bathing is a difficult task for bedridden patients suffering from paralysis or injury. In order to enjoy a bath like a normal person, a patient lying in bed must be transferred to a bathroom, two persons are generally needed in the transfer process, the patient directly holds the patient for transfer or a special lifting transfer machine is used, and the patient not only wastes labor, but also has a plurality of potential safety hazards.
Based on the problems appearing above, the cleaning and nursing device for the long-term bedridden patient is provided and designed, can realize the closed collection of excrement, solve the problems of bad smell and difficulty in treatment, and also can realize the function of enabling the bedridden patient to take a bath on the bed.
SUMMERY OF THE UTILITY MODEL
The utility model aims to solve the technical problem that not enough to above-mentioned prior art provides a clean nursing device of long-term bed patient, and this clean nursing device reasonable in design is convenient, can realize solving the bad smell and the problem that is difficult to handle to faecal closed collection, can also realize letting the function that bed patient can bathe in bed. The cleaning and nursing device can solve the problem of inconvenient movement of a bedridden patient by arranging the detachable posture-adjustable wheelchair, reduces the risk of falling down caused by manual carrying or autonomous getting off from the bed in the process of transferring from the bed to the wheelchair before going out, and simultaneously avoids skin damage caused by friction between a human body and an appliance in the moving process; the movable bathing device can realize the function of bathing the bedridden patient on the bed, and avoid the inconvenience generated in the process of going to a bathroom for bathing; the cleaning and nursing device also can realize the closed collection of excrement by arranging the closed collector below the detachable posture-adjustable wheelchair, and solves the problems of peculiar smell and difficulty in treatment.
In order to solve the technical problem, the utility model discloses a technical scheme is: a cleaning and nursing device for long-term bedridden patients comprises a cleaning and nursing bed frame and an attitude-adjustable wheelchair which is matched with the cleaning and nursing bed frame and has a defecation collecting function;
an inlet for embedding the posture-adjustable wheelchair is formed in one side of the cleaning and nursing bed frame, the cleaning and nursing bed frame is provided with supporting legs, a supporting frame and a bearing frame, the bearing frame comprises two pairs of butt-joint mechanisms arranged on two sides of the supporting frame, and each butt-joint mechanism comprises a waist butt-joint mechanism and a leg butt-joint mechanism; a space for accommodating the posture-adjustable wheelchair is formed between the two pairs of butting mechanisms, and two sides of the supporting frame are respectively detachably connected with two baffles;
the bed head of the cleaning and nursing bed frame is provided with a movable bathing device, the movable bathing device comprises a thermostatic control electric water heater, a water suction pump, a shower hose, a shower head and a waste water collector, the thermostatic control water heater comprises a water storage tank, a thermostatic heating device and a pressurizing water outlet pump, a water outlet of the thermostatic heating device is connected with one end of the shower hose, and the other end of the shower hose is connected with the shower head; the water outlet of the boosting water outlet pump is connected with the water inlet of the constant-temperature water heating device;
the posture-adjustable wheelchair is detachably mounted on the cleaning and nursing bed frame and comprises a back component, a hip component, a leg component, a controller, an armrest, a wheelchair frame and a driving device; the driving device comprises an electric push rod and a rotating motor, a fixed base is arranged on one side of the hip component close to the back component, one end of the electric push rod is fixed on the fixed base, the other end of the electric push rod is fixed on a fixing piece at the rear part of the back component, and one end of the electric push rod fixed on the fixing piece can rotate around the fixing piece; the rotary motor is used for driving wheels of the wheelchair with the adjustable posture to rotate and move forwards, and the back component, the hip component and the leg component are connected in a rotating mode;
the excrement collecting port is formed in the center of the hip assembly, the drawable pulling plate is arranged at the excrement collecting port, and the lower portion of the excrement collecting port is connected with the closed collecting box through the connecting pipeline.
Preferably, the supporting legs comprise supporting rods and universal wheels, and the supporting legs are respectively arranged on the periphery of the cleaning and nursing bed frame and below the waist butt joint machine; the universal wheel is also provided with a brake sheet for fixing and limiting.
Preferably, the leg docking mechanisms are rotatable around the body of the support frame.
Preferably, the armrests are connected with the hip assembly through a link mechanism, and the link mechanism is arranged to be a telescopic structure.
Preferably, after the wheelchair with adjustable posture and the clean nursing bed frame are assembled, a soft breathable mattress is laid above the wheelchair with adjustable posture and the clean nursing bed frame.
Preferably, the bath air cushion also comprises an air inflation cushion for bath arranged above the soft breathable mattress, and the air inflation cushion comprises an air inflation opening and a drainage opening.
Preferably, the drain port is connected to the waste collector.
Preferably, a space for accommodating the waist docking mechanism is formed between the wheelchair frame part below the hip assembly and the closed collection box.
Compared with the prior art, the utility model has the following advantage:
1. the wheelchair with the detachable and adjustable posture can solve the problem of inconvenient movement of a bedridden patient, reduces the risk of falling and pounding caused by manual carrying or autonomous getting out of bed in the transfer process from a bed to the wheelchair before going out, and avoids skin damage caused by friction between a human body and an appliance in the moving process.
2. The movable bathing device can realize the function of bathing the bedridden patient on the bed, and avoid the inconvenience generated in the process of going to a bathroom for bathing.
3. The closed collector is arranged below the detachable posture-adjustable wheelchair, so that the closed collection of excrement can be realized, and the problems of bad smell and difficulty in treatment are solved.
The present invention will be described in further detail with reference to the accompanying drawings and examples.
Drawings

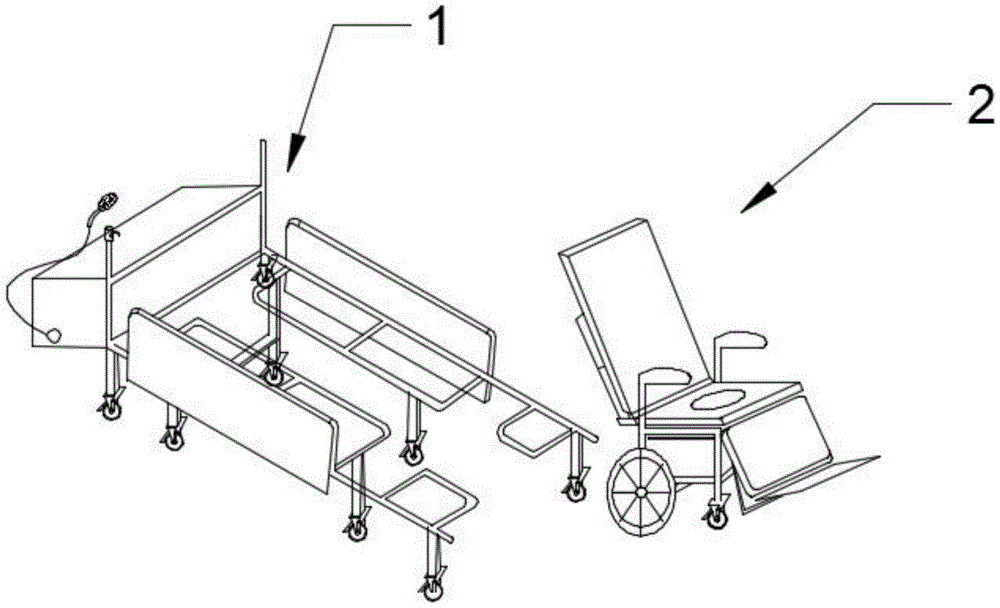

Fig. 1 is a schematic diagram of the rear structure of the present invention.
Fig. 2 is a main schematic view of the structure of the bed frame for cleaning and nursing of the present invention.
Fig. 3 is a main schematic view of the structure of the wheelchair with adjustable posture according to the present invention.
FIG. 4 is a schematic view of the structure of the inflatable cushion of the present invention
Description of reference numerals:
1-clean nursing bed frame; 2-a wheelchair with adjustable posture; 3-supporting the feet;
4-a support frame; 5-carrying the frame; 6-waist docking mechanism;
7-leg docking mechanism; 8, a baffle plate; 9-movable bathing device;
10-shower hose; 11-shower head; 12-a back assembly;
13-a hip assembly; 14-a leg assembly; 15-excrement collecting port;
16, drawing a plate; 17-sealing the collection box; 18-a handrail;
19-a support bar; 20-universal wheel; 21-inflatable cushion;
22-an inflation inlet; 23-water outlet.
Detailed Description
The device for cleaning and nursing a long-term bedridden patient as shown in fig. 1-4 comprises a cleaning and nursing bed frame 1 and a wheelchair 2 which is matched with the cleaning and nursing bed frame 1 and has an adjustable posture and a function of collecting excrement; one side of the cleaning and nursing bed frame 1 is provided with an inlet for embedding the posture-adjustable wheelchair 2, and the inlet is used for separating the posture-adjustable wheelchair 2 from the cleaning and nursing bed frame 1 after the posture of the wheelchair is changed into a wheelchair shape from a bed shape.
The bed frame 1 is provided with supporting legs 3, a supporting frame 4 and a receiving frame 5, the supporting frame 4 comprises a circle of fixed frame and a combing frame at the position of a bed head, the receiving frame 5 comprises two pairs of butt joint mechanisms arranged at two sides of the supporting frame 4, and the butt joint mechanisms comprise a waist butt joint mechanism 6 and a leg butt joint mechanism 7; the waist docking mechanisms 6 are used for receiving the posture-adjustable wheelchair 2 which is changed into a bed shape, a space for accommodating the posture-adjustable wheelchair 2 is formed between the two pairs of docking mechanisms 6, and two sides of the support frame 4 are respectively detachably connected with two baffles 8; the baffle 8 is used for preventing the patient from turning over and falling off in the turning-over process of the patient, and a table plate capable of being buckled can be placed on the baffle 8 for the patient to eat and place things.
The movable bathing device 9 is installed at the bed head of the cleaning nursing bed frame 1, and the device is used for a patient to directly bath on a nursing bed, and has the effects of convenience and humanization. The movable bathing device 9 comprises a constant-temperature control electric water heater, a water suction pump, a shower hose 10, a shower nozzle 11 and a waste water collector, the constant-temperature control water heater comprises a water storage tank, a constant-temperature heating device and a pressurizing water outlet pump, a water outlet of the constant-temperature heating device is connected with one end of the shower hose 10, and the other end of the shower hose 10 is connected with the shower nozzle 11; the water outlet of the boosting water outlet pump is connected with the water inlet of the constant-temperature water heating device.
The posture-adjustable wheelchair 2 is detachably mounted on the cleaning and nursing bed frame 1, the posture-adjustable wheelchair 2 can form a complete nursing bed under the condition of being assembled with the cleaning and nursing bed frame 1, and the posture-adjustable wheelchair 2 comprises a back component 12, a hip component 13, a leg component 14, a controller, an armrest 18, a wheelchair frame and a driving device; the driving device comprises an electric push rod and a rotating motor, a fixed base is arranged on one side of the hip component 13 close to the back component 12, one end of the electric push rod is fixed on the fixed base, the other end of the electric push rod is fixed on a fixing piece at the rear part of the back component 12, one end of the electric push rod fixed on the fixing piece can rotate around the fixing piece, the wheelchair 2 with the adjustable posture can be changed into a wheelchair shape through the lifting effect of the electric push rod after being separated from the bed frame 1 for cleaning and nursing, and the electric push rod is arranged behind the back component 12 and used for driving the back component 12 to ascend and descend stably; the rotating motor is used for driving wheels of the wheelchair 2 with the adjustable posture to rotate and move forwards, and the back component 12, the hip component 13 and the leg component 14 are connected in a rotating mode.
In this embodiment, the back component 12, the hip component 13 and the leg component 14 are supporting plates, the width of the wheelchair frame is smaller than two, the width of the waist docking mechanism 6 is smaller than two, the height of the hip component 13 from the ground is slightly higher than the height of the waist docking mechanism 6 from the ground, and the wheelchair 2 with the adjustable posture in the wheelchair state can be conveniently pushed into a channel between the two waist docking mechanisms 6 to perform posture deformation operation.
The waist docking mechanism 6 is two bilaterally symmetrical support frames for supporting a back component 12 and a hip component 13 of the wheelchair 2 with adjustable posture in bed shape, and the leg docking mechanism 7 is two bilaterally symmetrical support frames for supporting a leg component 14 of the wheelchair 2 with adjustable posture in bed shape.
The center of the buttock component 13 is provided with an excrement collecting port 15, the excrement collecting port 15 is provided with a drawable drawing plate 16, the lower part of the excrement collecting port 15 is connected with a closed collecting box 17 through a connecting pipeline, a patient can go to the toilet conveniently without being moved away from a wheelchair, the closed collecting box 17 can be taken and cleaned at any time, and indoor air is prevented from being polluted.
In this embodiment, the supporting legs 3 comprise supporting rods 19 and universal wheels 20, and the supporting legs 3 are respectively disposed around the bed frame 1 and below the waist docking mechanism 6; the universal wheel 20 is further provided with a brake sheet for fixing and limiting, and the function of flexibly moving the nursing device can be realized through the arrangement.
In this embodiment, shank docking mechanism 7 all can wind braced frame 4's support body rotates, can realize enlarging the space when adjustable wheelchair 2 of gesture passes in and out, prevents to collide with the patient, strengthens the security.
In this embodiment, the armrests 18 are connected to the hip assembly 13 through a link mechanism, and the link mechanism is configured to be a telescopic structure, so that the nursing bed can be flat when the bed frame 1 and the wheelchair 2 with adjustable posture are assembled.
In this embodiment, after the wheelchair 2 with adjustable posture and the bed frame 1 are assembled, a soft breathable mattress is laid over the wheelchair, so as to enhance comfort.
In this embodiment, the bathing air cushion 21 is arranged above the soft breathable mattress during bathing, the air cushion comprises an air inflation port 22 and a water drainage port 23, and the air cushion 21 is used for receiving bathing water during bathing for a patient, so as to prevent the mattress from being wetted and the surrounding environment from being splashed.
In this embodiment, the drain port 23 is connected to the waste water collector.
In this embodiment, a space for accommodating the waist docking mechanism 6 is formed between the wheelchair frame portion below the hip assembly 13 and the airtight collection tank 17.
In this embodiment, since the leg assembly 14 may be provided with a limiting buckle, the leg assembly 14 may be fixed on the leg docking mechanism 7.
The utility model discloses theory of operation when using does:
the operation of separating the cleaning nursing bed frame from the posture-adjustable wheelchair is as follows:
firstly, the leg components 14 are lifted upwards, the leg components 14 are placed on the leg butt joint mechanisms 7, then the back components 12 of the wheelchair are put down through electric push rods, so that the back components 12 are gentle, at the moment, the wheelchair 2 with the adjustable posture can be changed into the posture for lying of a patient lying in bed, as a space for accommodating the waist butt joint mechanism 6 is formed between the wheelchair frame part below the hip components 13 and the closed collecting box 17, the wheelchair 2 with the adjustable posture is pushed to enter from the space for accommodating the wheelchair 2 with the adjustable posture formed between the two pairs of butt joint mechanisms and is locked with the clean nursing bed frame 1 in a buckling or binding mode, and finally, the soft breathable mattress is laid on the bed frame, and at the moment, the installation of the clean nursing bed for lying of the patient lying in bed is completed.
Under the condition that a bedridden patient uses the cleaning and nursing device for bathing:
firstly, laying an uninflated inflatable cushion on the posture-adjustable wheelchair 2, then placing the patient on the posture-adjustable wheelchair 2, then installing and locking the posture-adjustable wheelchair 2 and the cleaning and nursing bed frame 1, and then inflating the inflatable cushion 21 to start bathing the patient; after bathing is finished, the water outlet 23 of the inflatable cushion 21 is opened, so that water after bathing can be drained, the inflation port 22 of the inflatable cushion 21 is opened to drain air, and the inflated cushion 21 after air exhaust is pumped out, so that one-time cleaning and nursing of the bedridden patient can be finished.
The above description is only for the preferred embodiment of the present invention, and is not intended to limit the present invention in any way. Any simple modifications, changes and equivalent changes made to the above embodiments according to the technical spirit of the present invention all fall within the protection scope of the technical solution of the present invention.

Claims (8)

1. A cleaning and nursing device for long-term bedridden patients is characterized by comprising a cleaning and nursing bed frame (1) and a posture-adjustable wheelchair (2) which is matched with the cleaning and nursing bed frame (1) and has a feces collecting function;
an inlet used for embedding the posture-adjustable wheelchair (2) is formed in one side of the cleaning and nursing bed frame (1), the cleaning and nursing bed frame (1) is provided with supporting legs (3), a supporting frame (4) and a bearing frame (5), the bearing frame (5) comprises two pairs of butt-joint mechanisms arranged on two sides of the supporting frame (4), and each butt-joint mechanism comprises a waist butt-joint mechanism (6) and a leg butt-joint mechanism (7); a space for accommodating the posture-adjustable wheelchair (2) is formed between the two pairs of butt-joint mechanisms, and two baffles (8) are detachably connected to two sides of the supporting frame (4) respectively;
a movable bathing device (9) is installed at the bed head position of the cleaning nursing bed frame (1), the movable bathing device (9) comprises a thermostatic control electric water heater, a water suction pump, a shower hose (10), a shower head (11) and a waste water collector, the thermostatic control water heater comprises a water storage tank, a thermostatic heating device and a pressurizing water outlet pump, a water outlet of the thermostatic heating device is connected with one end of the shower hose (10), and the other end of the shower hose (10) is connected with the shower head (11); the water outlet of the boosting water outlet pump is connected with the water inlet of the constant-temperature water heating device;
the wheelchair (2) with adjustable posture is detachably arranged on the cleaning and nursing bed frame (1), and the wheelchair (2) with adjustable posture comprises a back component (12), a hip component (13), a leg component (14), a controller, an armrest (18), a wheelchair frame and a driving device; the driving device comprises an electric push rod and a rotating motor, a fixed base is arranged on one side, close to the back component (12), of the hip component (13), one end of the electric push rod is fixed on the fixed base, the other end of the electric push rod is fixed on a fixing piece at the rear part of the back component (12), and one end of the electric push rod fixed on the fixing piece can rotate around the fixing piece; the rotary motor is used for driving wheels of the posture-adjustable wheelchair (2) to rotate and move forwards, and the back component (12), the hip component (13) and the leg component (14) are connected in a rotating mode;
an excrement collecting port (15) is formed in the center of the hip component (13), a drawable drawing plate (16) is arranged at the excrement collecting port (15), and a closed collecting box (17) is connected to the lower portion of the excrement collecting port (15) through a connecting pipeline.
2. The device for cleaning and nursing long-term bedridden patients according to claim 1, characterized in that the supporting legs (3) comprise supporting rods (19) and universal wheels (20), the supporting legs (3) are respectively arranged around the cleaning and nursing bed frame (1) and below the waist docking mechanism (6);
the universal wheel (20) is also provided with a brake sheet for fixing and limiting.
3. The device for the cleaning and nursing of the long-term bedridden patient according to the claim 1, characterized in that the leg docking mechanisms (7) are all rotatable around the body of the supporting frame (4).
4. A device for the cleaning and nursing of patients lying in long-term bed according to claim 1, characterized in that the armrests (18) are connected with the hip assembly (13) by a linkage mechanism, which is provided in a telescopic structure.
5. The device for cleaning and nursing long-term bedridden patients according to claim 1, characterized in that after the wheelchair (2) with adjustable posture and the bed frame (1) for cleaning and nursing are assembled, a soft and breathable mattress is laid on the wheelchair.
6. The device for cleaning and nursing long-term bedridden patients according to claim 5, characterized in that the device also comprises a bath inflatable cushion (21) arranged above the soft breathable mattress during bathing, and the inflatable cushion comprises an inflation port (22) and a drainage port (23).
7. The device for the cleaning and nursing of the long-term bedridden patients according to the claim 6, characterized in that the drainage port (23) is connected with the waste water collector.
8. The device for the clean nursing of the long-term bedridden patient according to the claim 1, characterized in that a space for accommodating the waist docking mechanism (6) is formed between the wheelchair frame part under the buttocks assembly (13) and the closed collection box (17).
