Abstract
本实用新型公开了一种小儿骨科移动悬吊牵引床，包括两个床骨架、两个悬吊架以及固定设置在床骨架底部的两个支撑杆，两个所述床骨架通过床板连接，所述床骨架顶部开设有滑槽，所述滑槽内侧壁在转动连接有第一螺纹杆，两个所述第一螺纹杆外侧壁螺纹套接有同一个凹型支撑架，所述凹型支撑架外侧壁与滑槽内侧壁滑动连接。本实用新型，在滑槽、第一螺纹杆、凹型支撑架、皮带、T型槽、升降调节机构和移动装置的相互配合下，通过转动第一螺纹杆可以将悬吊架移动至病患下肢需要支起位置，再通过转动第三螺纹杆来让悬吊架正上方，最后转动第二螺纹杆可以调节病患下肢需要抬起高度，该装置可以满足不同年龄段的儿童身体，且操作简单，使用方便。
The utility model discloses a mobile suspension traction bed for pediatric orthopaedics, which comprises two bed frames, two suspension frames and two support rods fixedly arranged at the bottom of the bed frame. The top of the bed frame is provided with a chute, the inner side wall of the chute is rotatably connected with a first threaded rod, the outer side walls of the two first threaded rods are threadedly sleeved with the same concave support frame, and the outer side of the concave support frame The wall is slidably connected with the inner side wall of the chute. According to the utility model, under the mutual cooperation of the chute, the first threaded rod, the concave support frame, the belt, the T-shaped groove, the lifting adjustment mechanism and the moving device, the suspension frame can be moved to the lower limb of the patient by rotating the first threaded rod Need to support the position, then turn the third threaded rod to make the suspension frame directly above, and finally turn the second threaded rod to adjust the height of the patient's lower limbs to be lifted, the device can meet the needs of children of different ages, and the operation is simple , easy to use.
Description
Technical Field
The utility model relates to the technical field of medical care apparatus, in particular to a movable suspension traction bed for pediatric orthopedics.
Background
The orthopedic traction frame is one of orthopedic treatment methods for reduction and fixation of fracture and other orthopedic diseases, particularly for patients who are not suitable for operation, the orthopedic traction frame can achieve the treatment purpose through traction, and for patients with lower leg fracture or other lower limb diseases, because lower limbs are difficult to move, a posture is kept for a long time, the orthopedic traction frame is not beneficial to lower limb rehabilitation, joint stiffness, muscle spasm and even skin necrosis are easily caused, and the orthopedic traction frame is clinically used for assisting the lower limb rehabilitation of the patients.
At present, a traction frame is generally combined with a sickbed to form a traction bed, the setting position of the traction frame must accord with the height of a patient, and in the pediatric orthopedics department, the height difference of all ages of children is large, the height of the existing general traction bed which can not be lifted according to the rising, the weight and the lower limbs of the patient can not be adjusted, so that the existing traction bed is difficult to adapt to children of all ages, and therefore the child orthopedics moving suspension traction bed is designed.
SUMMERY OF THE UTILITY MODEL
The utility model aims at solving the problem that the traction bed in the prior art can not meet the requirements of all patients, and provides a movable suspension traction bed for pediatric orthopedics.
In order to achieve the above purpose, the utility model adopts the following technical scheme:
a movable suspension traction bed for pediatric orthopedics comprises two bed frameworks, two suspension frames and two support rods fixedly arranged at the bottoms of the bed frameworks, wherein the two bed frameworks are connected through a bed board, the top of the bed frame is provided with a chute, the inner side wall of the chute is rotatably connected with a first threaded rod, the outer side walls of the two first threaded rods are in threaded sleeve joint with the same concave support frame, the outer side wall of the concave support frame is connected with the inner side wall of the chute in a sliding way, the two first threaded rods are connected through a belt in a transmission way, the top of the concave support frame is provided with two T-shaped grooves which are symmetrically arranged, the inner side walls of the T-shaped grooves are connected in a sliding way, the sliding block and the suspension frame are connected through a lifting adjusting mechanism, a moving device for moving the sliding block is arranged in the T-shaped groove, and a first adjusting hole is formed in the end portion of one first threaded rod.
Preferably, the lifting adjusting mechanism comprises a second threaded hole formed in the top of the sliding block, a second threaded rod is connected to the inner side wall of the second threaded hole in a threaded manner, a rotating cover is rotatably connected to the bottom of the second threaded rod, the bottom of the rotating cover is fixedly connected with the suspension frame, and a second adjusting hole is formed in the top of the second threaded rod.
Preferably, the moving device comprises a third threaded rod rotatably connected to the inner side wall of the T-shaped groove, a third threaded hole is formed in the outer side wall of the sliding block, the third threaded rod is in threaded connection with the inner side wall of the third threaded hole, and a third adjusting hole is formed in the end portion of the third threaded rod.
Preferably, two the first threaded rod lateral wall all fixes the cover and is equipped with the belt pulley with belt looks adaptation.
Preferably, two first threaded holes which are symmetrically arranged are formed in the outer side wall of the concave support frame, and the outer side wall of the first threaded rod is in threaded connection with the inner side wall of the first threaded hole.
Preferably, a through hole is formed in the inner side wall of the sliding groove, and the belt penetrates through the through hole.
The utility model has the advantages that:
under the mutually supporting of spout, first threaded rod, concave type support frame, belt, T type groove, lift adjustment mechanism and mobile device, can remove the frame that suspends in midair to disease low limbs needs to prop up the position through rotating first threaded rod, directly over the rethread rotates the third threaded rod and lets the frame that suspends in midair, rotate the second threaded rod at last and can adjust disease low limbs needs to lift up the height, the device can satisfy the children health of different age brackets, and easy operation, convenient to use.
Drawings
Fig. 1 is a schematic structural view of a movable suspension traction bed for pediatric orthopedics department of the present invention;

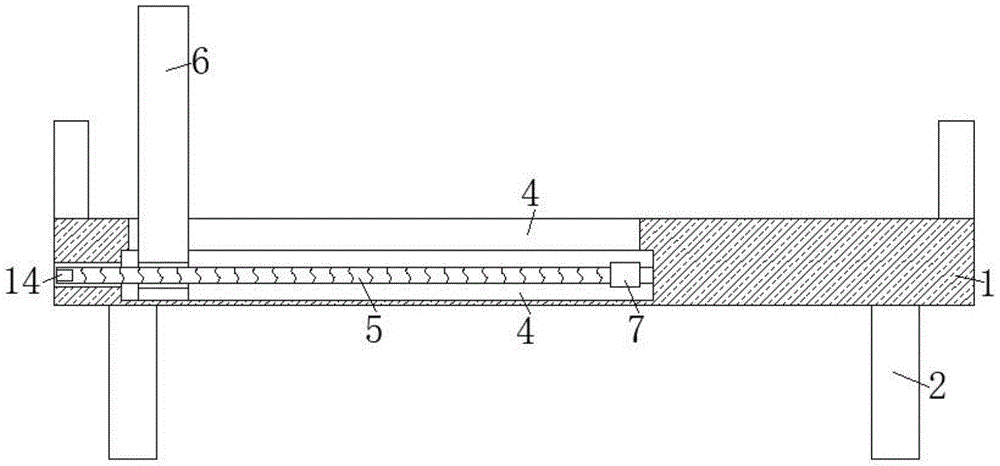

fig. 2 is a cross-sectional view of the movable suspension traction bed for pediatric orthopedics department of the present invention.
In the figure: 1. a bed framework; 2. a support bar; 3. a bed board; 4. a chute; 5. a first threaded rod; 6. a concave support frame; 7. a belt; 8. a T-shaped groove; 9. a slider; 10. a suspension frame; 11. a second threaded rod; 12. rotating the cover; 13. a second adjustment aperture; 14. a first adjustment aperture; 15. a third threaded rod; 16. and a third adjustment hole.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments.
In the description of the present invention, it is to be understood that the terms "upper", "lower", "front", "rear", "left", "right", "top", "bottom", "inner", "outer", and the like indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, and are only for convenience of description and simplicity of description, and do not indicate or imply that the device or element being referred to must have a particular orientation, be constructed and operated in a particular orientation, and therefore, should not be construed as limiting the present invention.
Referring to fig. 1-2, a movable suspension traction bed for pediatric orthopedics comprises two bed frames 1, two suspension frames 10 and two support rods 2 fixedly arranged at the bottoms of the bed frames 1, wherein the two bed frames 1 are connected through a bed plate 3, a chute 4 is formed in the top of the bed frame 1, the shape and the position of the chute 4 are shown in fig. 1, the inner side wall of the chute 4 is rotatably connected with a first threaded rod 5, and the outer side wall of the two first threaded rods 5 is in threaded sleeve connection with a concave support frame 6.
First screw hole that two symmetries set up is seted up to 6 lateral walls of concave type support frame, 5 lateral walls of first threaded rod and first screw hole inside wall threaded connection, 6 lateral walls of concave type support frame and 4 inside wall sliding connection of spout, two first threaded rods 5 are connected through the transmission of belt 7, run-through mouth has been seted up to 4 inside walls of spout, belt 7 runs through run-through mouth, the equal fixed cover of 5 lateral walls of two first threaded rods is equipped with the belt pulley with 7 looks adaptations of belt, T type groove 8 that two symmetries set up is seted up at 6 tops of concave type support frame, 8 inside wall sliding connection in T type groove has slider 9, the shape and the position of T type groove 8 are as shown in fig. 2.
A moving device for moving the sliding block 9 is arranged in the T-shaped groove 8, the moving device comprises a third threaded rod 15 which is rotatably connected to the inner side wall of the T-shaped groove 8, a third threaded hole is formed in the outer side wall of the sliding block 9, the third threaded rod 15 is in threaded connection with the inner side wall of the third threaded hole, a third adjusting hole 16 is formed in the end portion of the third threaded rod 15, and a first adjusting hole 14 is formed in the end portion of one first threaded rod 5.
The first adjusting hole 14, the second adjusting hole 13 and the third adjusting hole 16 are the same in size and are all of a hexagon socket type, so that the adjusting can be screwed by using a matched hexagon wrench.
At spout 4, first threaded rod 5, concave type support frame 6, belt 7, T type groove 8, lift adjustment mechanism and mobile device mutually support down, can remove suspension frame 10 to disease low limbs needs to prop up the position through rotating first threaded rod 5, rethread rotates third threaded rod 15 and lets directly over suspension frame 10, rotate second threaded rod 11 at last and can adjust disease low limbs needs to lift up the height, the device can satisfy the children health of different age brackets, and easy operation, high durability and convenient use.
The working principle is as follows: when a child patient whose lower limbs can not move lies on the bed plate 3, doctors order to ask nurses to pull and support the lower limbs;
firstly, adjusting the position of a child lower limb to be supported by a concave support frame 6, firstly adjusting a first adjusting hole 14 by a nurse by a hexagonal wrench, rotating the hexagonal wrench to drive a first threaded rod 5 to rotate, and rotating the first threaded rod 5 to drive the concave support frame 6 to move until the concave support frame 6 is moved to the position of the child lower limb to be supported;
secondly, adjusting the suspension frame 10 to be right above the lower limbs of the child, inserting a hexagonal wrench into the third adjusting hole 16 by a nurse and rotating the hexagonal wrench, rotating the hexagonal wrench to drive the third threaded rod 15 to rotate, and rotating the third threaded rod 15 to drive the sliding block 9 to move until the suspension frame 10 at the bottom of the sliding block 9 is driven to move to be right above the lower limbs of the child;
thirdly, a nurse inserts the hexagonal wrench into the second adjusting hole 13 and rotates the hexagonal wrench, the hexagonal wrench rotates to drive the second threaded rod 11 to rotate, so that the suspension frame 10 descends to the lower limb of the patient, the lower limb of the patient is placed into the suspension frame 10, the hexagonal wrench is inserted into the second adjusting hole 13 again and rotates reversely, and the suspension frame 10 drives the lower limb of the patient to ascend to a required fixing position, so that the hexagonal wrench can stop rotating;
can remove the frame 10 of suspending in the midair to disease low limbs needs to prop up the position through rotating first threaded rod 5, the rethread rotates third threaded rod 15 and lets directly over the frame 10 of suspending in the midair, rotates second threaded rod 11 at last and can adjust disease low limbs and need lift up the height, and the device can satisfy the children's health of different age groups, and easy operation, convenient to use.
The above, only be the concrete implementation of the preferred embodiment of the present invention, but the protection scope of the present invention is not limited thereto, and any person skilled in the art is in the technical scope of the present invention, according to the technical solution of the present invention and the utility model, the concept of which is equivalent to replace or change, should be covered within the protection scope of the present invention.
Claims (6)
1. A movable suspension traction bed for pediatric orthopedics comprises two bed frameworks, two suspension frames and two support rods fixedly arranged at the bottoms of the bed frameworks, wherein the two bed frameworks are connected through a bed board, it is characterized in that the top of the bed frame is provided with a chute, the inner side wall of the chute is rotatably connected with a first threaded rod, the outer side wall of the two first threaded rods is in threaded sleeve joint with the same concave support frame, the outer side wall of the concave support frame is connected with the inner side wall of the chute in a sliding way, the two first threaded rods are connected through a belt in a transmission way, the top of the concave support frame is provided with two T-shaped grooves which are symmetrically arranged, the inner side walls of the T-shaped grooves are connected with sliding blocks in a sliding way, the sliding block and the suspension frame are connected through a lifting adjusting mechanism, a moving device for moving the sliding block is arranged in the T-shaped groove, and a first adjusting hole is formed in the end portion of one first threaded rod.
2. The pediatric orthopedics removal suspension traction bed according to claim 1, wherein the lifting adjustment mechanism comprises a second threaded hole formed at the top of the sliding block, a second threaded rod is connected to the inner side wall of the second threaded hole in a threaded manner, a rotating cover is rotatably connected to the bottom of the second threaded rod, the bottom of the rotating cover is fixedly connected with the suspension frame, and a second adjustment hole is formed at the top of the second threaded rod.
3. The pediatric orthopedics removal suspension traction bed according to claim 1, wherein the moving device comprises a third threaded rod rotatably connected to the inner side wall of the T-shaped groove, a third threaded hole is formed in the outer side wall of the sliding block, the third threaded rod is in threaded connection with the inner side wall of the third threaded hole, and a third adjusting hole is formed in the end portion of the third threaded rod.
4. The pediatric orthopedics movement suspension traction bed according to claim 1, wherein a belt pulley matched with a belt is fixedly sleeved on the outer side wall of each of the two first threaded rods.
5. The pediatric orthopedics removal suspension traction bed according to claim 1, wherein the concave support frame is provided with two first threaded holes on the outer side wall, the first threaded rod is connected with the first threaded holes through threads on the outer side wall.
6. The pediatric orthopedics removal suspension traction bed according to claim 1, wherein a through hole is formed in an inner side wall of the sliding groove, and the belt penetrates through the through hole.
