Abstract
The utility model provides an outdoor kitchen garbage processing apparatus belongs to refuse treatment technical field. The kitchen waste treatment device solves the problems that an existing waste treatment device cannot effectively treat kitchen waste, waste occupies a large space, and air pollution is easily caused. The utility model discloses a box and set up the rabbling mechanism in the box, heating mechanism, exhaust mechanism and deodorization mechanism, still be provided with feeding sliding opening and gas vent on the box, the rabbling mechanism sets up in feeding sliding opening below, the feeding sliding opening is provided with the slope, still be provided with the closing cap on the feeding sliding opening, the rabbling mechanism is used for stirring kitchen garbage, heating mechanism is used for heating kitchen garbage, exhaust mechanism is used for discharging waste gas to deodorization mechanism, deodorization mechanism is used for disinfecting waste gas purification and discharges from the gas vent. The utility model discloses can effectively solve kitchen garbage's processing problem, reduce air pollution, have convenient to use, take up an area of the space little, to environment friendly's advantage.
Description
Technical Field
The utility model belongs to the technical field of refuse treatment, in particular to outdoor kitchen garbage processing apparatus.
Background
Modern society economy develops rapidly, the rhythm of life is accelerated constantly, along with the improvement of people's living standard and the acceleration of urbanization process, the production volume of the domestic waste of our country also continuously increases. Kitchen waste accounts for about 37% -62% of the domestic waste and becomes a main pollutant of the city environment. Kitchen garbage mainly has vegetable leaves, vegetable root of leftovers, the eggshell, animal bone etc, the composition of these organic waste is mainly with starch, protein, fat is leading, various microelement such as nitrogen, phosphorus, potassium, calcium in addition, and these kitchen garbage are the discarded object that can utilize, adopt suitable processing method to it, can turn into considerable organic fertilizer of quantity effectively, but the refuse treatment device among the prior art, can not effectual realization is to kitchen garbage's effective processing, the space that simultaneously rubbish occupy is great, be unfavorable for realizing concentrated stacking, secondly rubbish produces serious air pollution easily, cause the district environment to worsen, fly mosquito breeds, therefore need urgently to develop an outdoor kitchen garbage processing apparatus.
SUMMERY OF THE UTILITY MODEL
The utility model aims at providing an outdoor kitchen garbage processing apparatus that treatment effect is good, reduce air pollution to the above-mentioned problem that exists among the prior art.
The purpose of the utility model can be realized by the following technical proposal: the utility model provides an outdoor kitchen garbage processing apparatus, a serial communication port, including the box and set up rabbling mechanism, heating mechanism, exhaust mechanism and deodorization mechanism in the box, the box on still be provided with feeding sliding opening and gas vent, the rabbling mechanism set up in feeding sliding opening below, the feeding sliding opening is provided with the slope, the feeding sliding opening on still be provided with the closing cap, the rabbling mechanism be used for stirring kitchen garbage, heating mechanism be used for heating kitchen garbage, exhaust mechanism be used for with waste gas emission to deodorization mechanism, deodorization mechanism be used for disinfecting waste gas purification and discharge from the gas vent.
The utility model discloses a theory of operation: during the use, open the closing cover board and pour kitchen garbage into from the smooth mouth of feeding, cover the closing cover board, kitchen garbage slides in the rabbling mechanism position, the rabbling mechanism begins to operate and stirs kitchen garbage, heating mechanism heats continuously, heat to the temperature that is fit for the microbial decomposition and stops heating promptly, the heating temperature preferred is between 75 ℃ to 85 ℃, exhaust mechanism continues the operation and discharges the waste gas that microbial decomposition produced and supply fresh air, waste gas discharges to deodorization mechanism, deodorization mechanism purifies the disinfection with waste gas and discharges from the gas vent again, the kitchen garbage after the processing can be as the base fertilizer of organic fertilizer. By adopting the structure, the kitchen waste treatment device can effectively solve the problem of kitchen waste treatment, reduces air pollution, and has the advantages of convenience in use, small occupied space and environmental friendliness.
In foretell outdoor kitchen garbage processing apparatus, rabbling mechanism include the stirring roller and evenly set up the stirring rod on the stirring roller, the stirring roller be connected with driving motor, driving motor and stirring roller between be provided with confined baffle, baffle and box inner wall constitute confined teeter chamber.
In an above-mentioned outdoor kitchen garbage processing apparatus, heating mechanism constitute by a plurality of heater strips or heating pipe, the box in still be provided with the heat preservation membrane.
In an foretell outdoor kitchen garbage processing apparatus, exhaust mechanism include the fan, the fan set up in driving motor one side, the box on still be provided with the blow vent, the blow vent be used for admitting air of fan, the fan pass through the teeter chamber at pipeline intercommunication rabbling mechanism place.
In an foretell outdoor kitchen garbage processing apparatus, deodorization mechanism including the dehydration pipeline, heat exchange mechanism and the air purification mechanism that connect gradually, the dehydration pipeline be used for absorbing the moisture of waste gas, heat exchange mechanism be used for cooling off gas, air purification mechanism be used for air-purifying and carry out the virus killing to the air, air purification mechanism intercommunication gas vent.
In the outdoor kitchen waste treatment device, the dewatering pipeline is internally provided with a multilayer net structure and a liquid drying agent arranged on the multilayer net structure.
In an above-mentioned outdoor kitchen garbage processing apparatus, heat exchange mechanism including the heat exchange copper pipe and two sets of radiator fan of crooked setting, waste gas get into from the heat exchange copper pipe, one of them group of radiator fan be used for blowing to the heat exchange copper pipe, another group of radiator fan be used for the hot-air discharge that produces heat exchange copper pipe heat radiation.
In an above-mentioned outdoor kitchen garbage processing apparatus, air purification mechanism be UV photodissociation air purifier.
In an outdoor kitchen waste treatment device, the box in still be provided with bacterial storage mechanism and bacterial throwing mechanism, bacterial storage mechanism in the storage have the decomposition fungus preparation, bacterial throwing mechanism include a plurality of jet openings of setting in rabbling mechanism top, the jet opening be used for throwing in the decomposition fungus preparation.
In the outdoor kitchen waste treatment device, the bottom of the box body is also provided with the caster.
In the outdoor kitchen waste treatment device, the decomposing bacteria preparation is prepared from high-temperature composite anaerobic microorganism strains.
Compared with the prior art, the beneficial effects of the utility model are that: the kitchen waste treatment device can effectively solve the problem of kitchen waste treatment, reduces air pollution of a community and breeding of mosquitoes and flies, and has the advantages of convenience in use, small occupied space and environmental friendliness.
Drawings

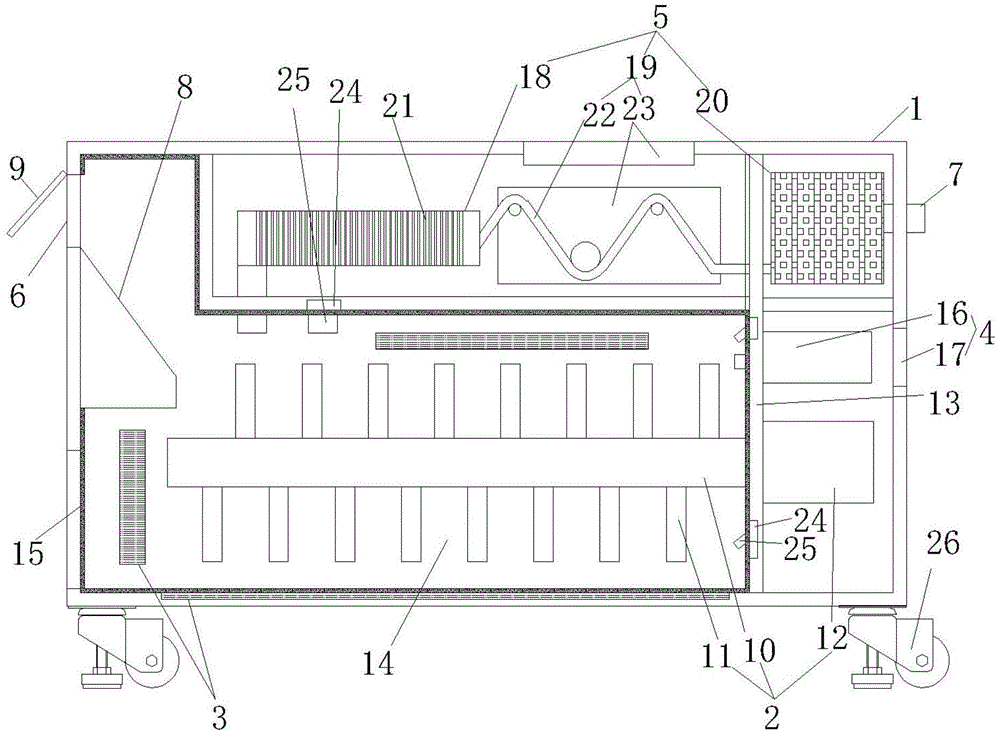

Fig. 1 is a schematic view of the internal structure of the present invention;
in the figure, 1, a box body; 2. a stirring mechanism; 3. a heating mechanism; 4. an exhaust mechanism; 5. a deodorizing mechanism; 6. a feeding sliding port; 7. an exhaust port; 8. an inclined slope; 9. closing the cover plate; 10. a stirring roller; 11. a stirring rod; 12. a drive motor; 13. a baffle plate; 14. a stirring chamber; 15. a heat preservation film; 16. a fan; 17. a vent; 18. a dewatering pipeline; 19. a heat exchange mechanism; 20. an air purification mechanism; 21. a multi-layer mesh structure; 22. a heat exchange copper tube; 23. a heat radiation fan; 24. a strain storage mechanism; 25. a strain feeding mechanism; 26. and a caster.
Detailed Description
The following are specific embodiments of the present invention and the accompanying drawings are used to further describe the technical solution of the present invention, but the present invention is not limited to these embodiments.
The purpose of the utility model can be realized by the following technical proposal:
as shown in fig. 1, this outdoor kitchen garbage processing apparatus includes box 1 and sets up rabbling mechanism 2, heating mechanism 3, exhaust mechanism 4 and deodorization mechanism 5 in box 1, still is provided with feeding spout 6 and gas vent 7 on the box 1, and rabbling mechanism 2 sets up in feeding spout 6 below, feeding spout 6 is provided with slope 8, and slope 8 slopes downwards towards rabbling mechanism 2 position, still is provided with closing cover 9 on the feeding spout 6, and rabbling mechanism 2 is used for stirring kitchen garbage, and heating mechanism 3 is used for heating kitchen garbage, and exhaust mechanism 4 is used for discharging the waste gas to deodorization mechanism 5, and deodorization mechanism 5 is used for disinfecting waste gas purification and discharges from gas vent 7.
In further detail, the stirring mechanism 2 comprises a stirring roller 10 and stirring rods 11 uniformly arranged on the stirring roller 10, the stirring roller 10 is connected with a driving motor 12, a closed baffle 13 is arranged between the driving motor 12 and the stirring roller 10, and the baffle 13 and the inner wall of the box body 1 form a closed stirring chamber 14. By adopting the arrangement, the kitchen waste can be fully stirred, and the decomposition speed is accelerated. The drive motor 12 may be a conventional three-phase asynchronous motor.
In further detail, the heating mechanism 3 is composed of a plurality of heating wires or heating pipes, and a heat preservation film 15 is further arranged in the box body 1. By adopting the structure, a suitable environment can be provided for microbial decomposition, and the arrangement of the heat-insulating film 15 can reduce energy consumption.
In further detail, the exhaust mechanism 4 includes a fan 16, the fan 16 is disposed on one side of the driving motor 12, the box 1 is further provided with a vent 17, the vent 17 is used for air intake of the fan 16, and the fan 16 is communicated with the stirring chamber 14 where the stirring mechanism 2 is located through a pipeline. The blower 16 is preferably a commercially available blower 16 capable of exhausting the waste gas produced by the decomposition and providing fresh air to facilitate the decomposition of aerobic microorganisms. The vent 17 may be a mesh structure or a pipe structure.
To be more specific, the deodorization mechanism 5 comprises a dehydration pipeline 18, a heat exchange mechanism 19 and an air purification mechanism 20 which are connected in sequence, wherein the dehydration pipeline 18 is used for absorbing moisture in the exhaust gas, the heat exchange mechanism 19 is used for cooling the exhaust gas, the air purification mechanism 20 is used for purifying the air and sterilizing the air, and the air purification mechanism 20 is communicated with the exhaust port 7. By adopting the structure, the dewatering pipeline 18 absorbs moisture firstly, and the heat exchange mechanism 19 cools the waste gas, thereby being beneficial to the work of the air purification mechanism 20 and prolonging the service life of the air purification mechanism 20.
To be more specific, in order to quickly and efficiently absorb the water vapor in the exhaust gas, the dehydration duct 18 is provided with a multi-layer mesh structure 21 and a liquid desiccant provided on the multi-layer mesh structure 21. The liquid desiccant is preferably, for example, ethylene glycol, triethylene glycol, or the like.
In more detail, the heat exchanging mechanism 19 includes a heat exchanging copper pipe 22 disposed in a bent manner and two sets of heat dissipating fans 23, wherein the exhaust gas enters from the heat exchanging copper pipe 22, one set of heat dissipating fans 23 is used for blowing air to the heat exchanging copper pipe 22, and the other set of heat dissipating fans 23 is used for discharging hot air generated by heat radiation of the heat exchanging copper pipe 22. Adopt the setting of above-mentioned structure, can dispel the heat fast to waste gas. The two sets of cooling fans 23 are fans of the same type, and are only different in mounting direction.
In further detail, the air purification mechanism 20 is a UV photolysis air purifier. The UV photolysis air purifier is a device for cracking malodorous gas by irradiating the malodorous gas with a special high-energy high-ozone UV light beam, and the device is used for cracking molecular bonds of bacteria in the malodorous gas by using the high-energy UV light beam, Destroying Nucleic Acid (DNA) of the bacteria, and then performing oxidation reaction by using ozone to thoroughly achieve the purposes of deodorizing and killing the bacteria.
Further, a strain storage mechanism 24 and a strain feeding mechanism 25 are arranged in the box body 1, a decomposed bacteria preparation is stored in the strain storage mechanism 24, the strain feeding mechanism 25 comprises a plurality of jet ports arranged above the stirring mechanism 2, and the jet ports are used for feeding the decomposed bacteria preparation. The decomposition speed of the kitchen waste is accelerated.
In more detail, the bottom of the box body 1 is also provided with a caster 26. The caster 26 is preferably a conventional horsewheel. The rocking wheel is also called a horizontal adjustment support type caster 26.
In further detail, the decomposing bacteria preparation is prepared from high-temperature composite anaerobic microorganism strains. The high-temperature composite anaerobic microbial strain is contacted with the kitchen waste through a composite enzyme system which secretes high activity by itself to generate enzymolysis, macromolecular substances such as main components of protein, fat, saccharides and the like in the kitchen waste are gradually enzymolyzed into low molecular substances, and the low molecular substances are further and thoroughly degraded into substances such as carbon dioxide, water and the like through various biochemical reactions in the strain.
The specific embodiments described herein are merely illustrative of the spirit of the invention. Various modifications, additions and substitutions for the specific embodiments described herein may be made by those skilled in the art without departing from the spirit of the invention or exceeding the scope of the invention as defined in the accompanying claims.
Although the terms of the case 1, the stirring mechanism 2, the heating mechanism 3, the exhaust mechanism 4, the deodorization mechanism 5, the feeding chute 6, the exhaust port 7, the inclined slope 8, the closing cover 9, the stirring roller 10, the stirring rod 11, the driving motor 12, the baffle 13, the stirring chamber 14, the heat-insulating film 15, the blower 16, the vent 17, the dewatering pipe 18, the heat exchange mechanism 19, the air purification mechanism 20, the multi-layer net structure 21, the heat exchange copper pipe 22, the heat radiation fan 23, the seed storage mechanism 24, the seed feeding mechanism 25, the caster 26, etc. are used more frequently herein, the possibility of using other terms is not excluded. These terms are used merely to more conveniently describe and explain the nature of the present invention; they are to be construed in a manner that is inconsistent with the spirit of the invention.
Claims (10)
1. An outdoor kitchen waste treatment device is characterized by comprising a box body (1), and a stirring mechanism (2), a heating mechanism (3), an exhaust mechanism (4) and a deodorization mechanism (5) which are arranged in the box body (1), the box body (1) is also provided with a feeding sliding port (6) and an exhaust port (7), the stirring mechanism (2) is arranged below the feeding sliding opening (6), the feeding sliding opening (6) is provided with an inclined slope (8), the feeding sliding port (6) is also provided with a closed cover plate (9), the stirring mechanism (2) is used for stirring the kitchen waste, the heating mechanism (3) is used for heating the kitchen waste, the exhaust mechanism (4) is used for exhausting the waste gas to the deodorization mechanism (5), the deodorization mechanism (5) is used for purifying and sterilizing the waste gas and discharging the waste gas from the exhaust port (7).
2. The outdoor kitchen waste treatment device according to claim 1, characterized in that the stirring mechanism (2) comprises a stirring roller (10) and a stirring rod (11) uniformly arranged on the stirring roller (10), the stirring roller (10) is connected with a driving motor (12), a closed baffle (13) is arranged between the driving motor (12) and the stirring roller (10), and the baffle (13) and the inner wall of the box body (1) form a closed stirring chamber (14).
3. An outdoor kitchen waste treatment device according to claim 1, characterized in that said heating mechanism (3) is composed of a plurality of heating wires or tubes, and a heat-insulating film (15) is further arranged in said box body (1).
4. The outdoor kitchen waste treatment device according to claim 1, characterized in that said exhaust mechanism (4) comprises a fan (16), said fan (16) is disposed on one side of said driving motor (12), said box body (1) is further provided with a vent (17), said vent (17) is used for air intake of said fan (16), said fan (16) is communicated with said mixing chamber (14) where said mixing mechanism (2) is disposed through a pipeline.
5. The outdoor kitchen waste treatment device according to claim 1, characterized in that said deodorizing means (5) comprises a dewatering pipe (18), a heat exchange means (19) and an air purification means (20) connected in sequence, said dewatering pipe (18) is used for absorbing moisture in the exhaust gas, said heat exchange means (19) is used for cooling the exhaust gas, said air purification means (20) is used for purifying and sterilizing the air, and said air purification means (20) is connected to the exhaust port (7).
6. The outdoor kitchen waste treatment device according to claim 5, characterized in that the dewatering pipeline (18) is internally provided with a multi-layer net-shaped structure (21) and a liquid desiccant arranged on the multi-layer net-shaped structure (21).
7. The outdoor kitchen waste treatment device according to claim 5, characterized in that said heat exchange mechanism (19) comprises a heat exchange copper pipe (22) and two sets of heat dissipation fans (23), said waste gas enters from said heat exchange copper pipe (22), said one set of heat dissipation fans (23) is used for blowing air to said heat exchange copper pipe (22), and said another set of heat dissipation fans (23) is used for exhausting hot air generated by heat radiation of said heat exchange copper pipe (22).
8. The outdoor kitchen waste treatment device according to claim 5, characterized in that said air purification mechanism (20) is a UV photolysis air purifier.
9. The outdoor kitchen waste treatment device according to claim 1, characterized in that a strain storage mechanism (24) and a strain throwing mechanism (25) are further arranged in the box body (1), a decomposed strain preparation is stored in the strain storage mechanism (24), the strain throwing mechanism (25) comprises a plurality of jet ports arranged above the stirring mechanism (2), and the jet ports are used for throwing the decomposed strain preparation.
10. An outdoor kitchen waste treatment device according to claim 1, characterized in that the bottom of the box body (1) is further provided with casters (26).
