Abstract

The utility model discloses an integrated grape wine making machine which comprises a machine body (1), a machine cover (2), a fermentation tank (3) and a circulating pump (4), wherein the fermentation tank (3) is arranged in the machine body (1); an extrusion device (5) is arranged on the machine cover (2); a circulating pipe (7) is arranged on one side of the machine body (1); the two ends of the circulating pipe (7) are respectively communicated with the top and bottom of the fermentation tank (3); the circulating pump (4) is arranged on the circulating pipe (7); a punching steel plate (8) and a filtering screen (6) are arranged at the lower middle part in the fermentation tank (3); the punching steel plate (8) is positioned above the filtering screen (6); and a grape wine outlet (9) communicated with the bottom of the fermentation tank (3) is formed in the bottom of the machine body (1). The grape wine making integrated machine disclosed by the utility model has the advantages of simple structure and convenience in assembly and disassembly, can simplify the grape wine making process, and is suitable for home making of grape wine.

Description

The grape wine machine that is made into one
Technical field
The utility model relates to a kind of grape wine machine that is made into one, and belongs to the living electric apparatus field.
Background technology
China's vintage 1~August in 2010 is 63.59 ten thousand kilolitres according to investigations, increases by 15% than 09 year-on-year; 1~September in 2010, the grape wine import volume was 20.18 ten thousand kilolitres, had increased by 67% than 09 year-on-year.This strong and huge market potential, for global Grape Wine Industry has brought manic, joyful and hope, also the Grape Wine Industry for China has brought good development prospect.
The Grape Wine Culture popularization activity will be more like a raging fire, and all kinds of grape wine judgment meetings, grape wine are judged training, grape wine theme travel etc., allow Chinese Consumer's be familiar with more, understand, have deep love for grape wine.Will cause at home thus the tide that grape wine is appreciated and made, along with the raising of the level of consumption and the raising of fitness-for-all consciousness, oneself makes the pursuit that grape wine also becomes contemporary people.
But Traditional Man is made the grape wine complex steps, and wastes time and energy, but is not specifically designed to again in the market family manufacture machine vinous, and therefore at present active demand development is a for family manufacture machine vinous.
The utility model content
The purpose of this utility model is, a kind of grape wine machine that is made into one is provided, and it has simple in structure, and the advantage of being convenient to mount and dismount can be simplified making step vinous, is applicable to family manufacture grape wine.
The technical solution of the utility model: a kind of grape wine machine that is made into one, comprise body, cover, fermentor tank and recycle pump, fermentor tank is located in the body, cover is provided with squeezing device, one side of body is provided with circulation tube, the two ends of circulation tube are communicated with top and the bottom of fermentor tank respectively, and circulation tube is provided with recycle pump; Middle and lower part in the fermentor tank is provided with punching steel plate and filtering net, and the punching steel plate is positioned at the top of filtering net; The bottom of body is provided with the grape wine outlet that is communicated with the fermentor tank bottom.
Aforesaid this grape wine is made into one in the machine, described squeezing device comprises handle, leading screw, the first extruding plectane, the second extruding plectane, thrust block and air bag, handle is fixed on the top of leading screw, the bottom of leading screw be fixedly connected on first the extruding plectane in the heart, the central position of cover is provided with tapped through hole, outside screw on the leading screw matches with internal thread on the through hole, the first extruding plectane is connected with the second extruding plectane by thrust block, and air bag is fixed on the bottom of the second extruding plectane.
Aforesaid this grape wine is made into one in the machine, is provided with rubber ring between described the first extruding plectane and the cover.It is the environment that a sealing is arranged in order to make in the fermentor tank that rubber ring is set, and prevents that air from entering fermentor tank from the through hole of cover.
Aforesaid this grape wine is made into one in the machine, and cover is provided with sealing-ring A.It is the environment that a sealing is arranged in order to make in the fermentor tank that sealing-ring A is set, and prevents that air from entering fermentor tank from the junction of cover and body.
Aforesaid this grape wine is made into one in the machine, is provided with bearing in the fermentor tank.The effect of bearing is to support punching steel plate and filtering net, adopts this mode to be convenient to take, put punching steel plate and filtering net.
Aforesaid this grape wine is made into one in the machine, and body is provided with water level gauge, and the two ends of water level gauge all are communicated with fermentor tank, and the lower end of water level gauge is concordant with the bottom of fermentor tank.The water level gauge effect is the height of watching below turbid solution in the fermentor tank.
Aforesaid this grape wine is made into one in the machine, and the bottom of fermentor tank is provided with outage, and the below of outage is provided with baffle plate, and the bottom of baffle plate is provided with steel pipe, and steel pipe is provided with return spring, and return spring is between the base plate of steel pipe and body.This structure is used for discharging turbid solution.
Aforesaid this grape wine is made into one in the machine, and the top of baffle plate is provided with sealing-ring B.
Aforesaid this grape wine is made into one in the machine, and the outer wall of body is provided with handle.
Aforesaid this grape wine is made into one in the machine, and the bottom of base plate is provided with liquid discharge pipe.
Compared with prior art, the utility model small volume and less weight, floor space is little, has characteristics energy-conservation, cheap, practical, that be easy to generally promote.In time, has squeezing, filters and the function of fermentation, is that family makes first-selection vinous.
Because the utility model only has recycle pump to need electricity consumption, so current consumption is very low.
Because the utility model belongs to bladder-type and squeezes the juice, whole process does not have solid matter to be rubbed by mechanical type so does not produce solid debris, and this pressing method has kept the original mouthfeel of grape, makes the grape wine mouthfeel better.
The utility model does not have the mechanical facilities such as gear, so safety coefficient is higher; Because the strong institute of detachability is so that clean and preserve, in addition, component are convenient to change if any damage, and with low cost, and simplicity of design is reasonable, and vast potential for future development is arranged.
Description of drawings

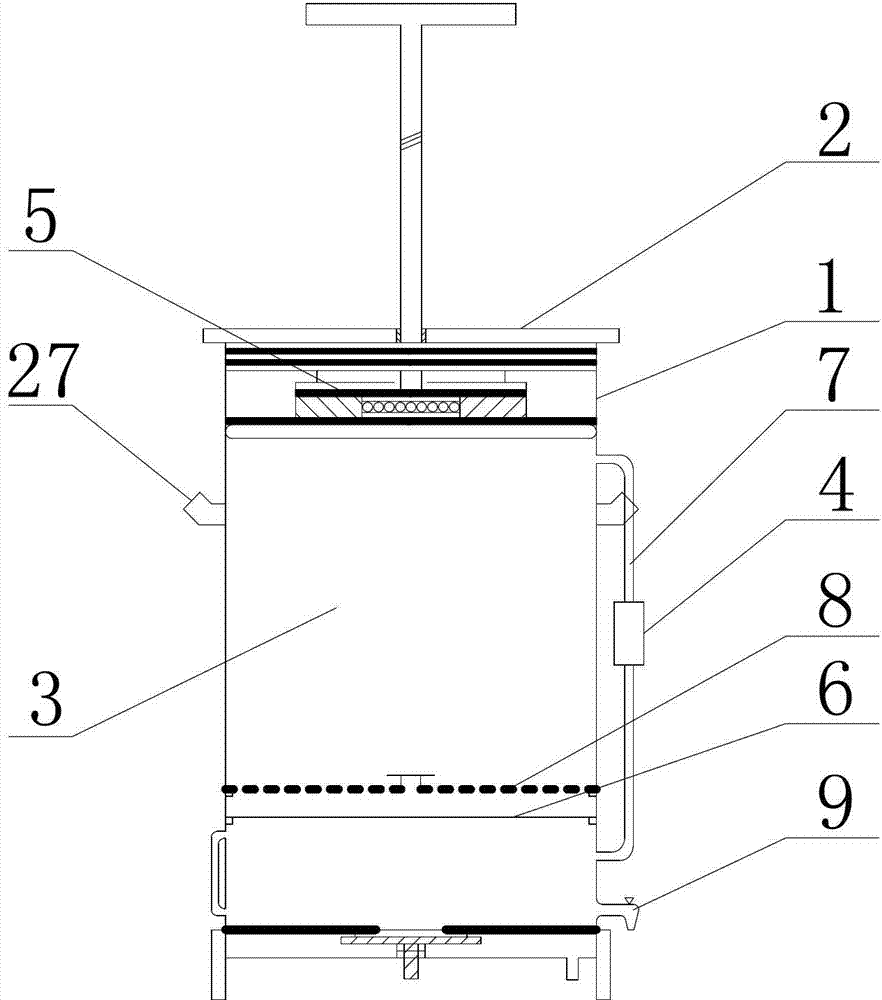

Fig. 1 is one-piece construction synoptic diagram of the present utility model;
Fig. 2 is the structural representation of cover and squeezing device;
Fig. 3 is the structural representation of fermentor tank bottom.
Being labeled as in the accompanying drawing: 1-body, 2-cover, 3-fermentor tank, 4-recycle pump, 5-squeezing device, the 6-filtering net, 7-circulation tube, 8-punching steel plate, the outlet of 9-grape wine, 10-handle, the 11-leading screw, 12-the first extruding plectane, 13-the second extruding plectane, 14-thrust block, 15-air bag, the 16-through hole, 17-sealing-ring A, 18-rubber ring, 19-bearing, 20-water level gauge, the 21-outage, 22-baffle plate, 23-steel pipe, 24-return spring, the 25-base plate, 26-sealing-ring B, 27-handle, 28-liquid discharge pipe.
Embodiment
Below in conjunction with drawings and Examples the utility model is described further.
Embodiment of the present utility model: as shown in Figure 1, a kind of grape wine machine that is made into one, comprise body 1, cover 2, fermentor tank 3 and recycle pump 4, fermentor tank 3 is located in the body 1, cover 2 is provided with squeezing device 5, one side of body 1 is provided with circulation tube 7, and the two ends of circulation tube 7 are communicated with top and the bottom of fermentor tank 3 respectively, and circulation tube 7 is provided with recycle pump 4; Middle and lower part in the fermentor tank 3 is provided with punching steel plate 8 and filtering net 6, and punching steel plate 8 is positioned at the top of filtering net 6; The bottom of body 1 is provided with the grape wine outlet 9 that is communicated with fermentor tank 3 bottoms.
As shown in Figure 2, squeezing device 5 comprises handle 10, leading screw 11, the first extruding plectane 12, the second extruding plectane 13, thrust block 14 and air bag 15, handle 10 is fixed on the top of leading screw 11, the bottom of leading screw 11 be fixedly connected on first the extruding plectane 12 in the heart, the central position of cover 2 is provided with tapped through hole 16, outside screw on the leading screw 11 matches with internal thread on the through hole 16, the first extruding plectane 12 is connected with the second extruding plectane 13 by thrust block 14, and air bag 15 is fixed on the bottom of the second extruding plectane 13.Be provided with rubber ring 18 between described the first extruding plectane 12 and the cover 2.Cover 2 is provided with sealing-ring A17.Be provided with bearing 19 in the fermentor tank 3.Body 1 is provided with water level gauge 20, and the two ends of water level gauge 20 all are communicated with fermentor tank 3, and the lower end of water level gauge 20 is concordant with the bottom of fermentor tank 3.
As shown in Figure 3, the bottom of fermentor tank 3 is provided with outage 21, and the below of outage 21 is provided with baffle plate 22, and the bottom of baffle plate 22 is provided with steel pipe 23, and steel pipe 23 is provided with return spring 24, and return spring 24 is between the base plate 25 of steel pipe 23 and body 1.The top of baffle plate 22 is provided with sealing-ring B26.The outer wall of body 1 is provided with handle 27, and the bottom of base plate 25 is provided with liquid discharge pipe 28.
Principle of work of the present utility model: grape cut off behind the stalk be placed on one side after rough the cleaning, above filtering net 6, put into white sugar (mass ratio of white sugar and grape is 1:3) after taking out punching steel plate 8 after with hand cover 2 being opened, again punching steel plate 8 is put back to.Grape is placed on the punching steel plate 8, covers cover 2 rear compactings.Both hands are held handle 10 rotations, driving leading screw 11 rotates together, the internal thread of the through hole 16 of the outside screw of leading screw 11 and cover 2 cooperatively interacts and moves downward, leading screw 11 moves downward drive the first extruding plectane 12 and moves downward, the first extruding plectane 12 promotes thrust block 14 and moves downward, thrust block 14 promotes the second extruding plectane 13 and air bag 15 moves downward and push grape, Sucus Vitis viniferae flows down by punching steel plate 8, take away the white sugar above the stainless steel filtering net 6, enter together fermentation in the fermentor tank 3.So designed recycle pump 4 because need to stir Sucus Vitis viniferae during the fermentation, to emit from the top again from fermentor tank 3 belows absorption Sucus Vitis viniferae and flow 8 times via the punching steel plate, the Pericarpium Vitis viniferae and the Semen Vitis viniferae that again flow through the top are simultaneously taken away the required element of some fermentations.The effect of water level gauge 20 is height of watching the below turbid solution of fermentor tank 3, if there is turbid solution, just drops steel pipe 23 downwards and drives baffle plate 22 with hand and move downward, and turbid solution flows out from outage 21, and finally the liquid discharge pipe 28 from the base plate 25 is discharged.Unclamp steel pipe 23 after turbid solution stream is complete, baffle plate 22 moves upward under the effect of return spring 24, and crush seal circle B26, reaches sealing function.Sucus Vitis viniferae ferments in fermentor tank 3 about 40 days (can what suitably increase or reduce fermentation time according to wanting in the finished wine ethanol content), every other day emits first turbid solution and opens recycle pump 4 again and stir.Ferment and completely can export 9 from grape wine and emit grape wine.

Claims (10)

1. grape wine machine that is made into one, it is characterized in that: comprise body (1), cover (2), fermentor tank (3) and recycle pump (4), fermentor tank (3) is located in the body (1), cover (2) is provided with squeezing device (5), one side of body (1) is provided with circulation tube (7), the two ends of circulation tube (7) are communicated with top and the bottom of fermentor tank (3) respectively, and circulation tube (7) is provided with recycle pump (4); Middle and lower part in the fermentor tank (3) is provided with punching steel plate (8) and filtering net (6), and punching steel plate (8) is positioned at the top of filtering net (6); The bottom of body (1) is provided with the grape wine outlet (9) that is communicated with fermentor tank (3) bottom.
2. the grape wine according to claim 1 machine that is made into one, it is characterized in that: described squeezing device (5) comprises handle (10), leading screw (11), the first extruding plectane (12), the second extruding plectane (13), thrust block (14) and air bag (15), handle (10) is fixed on the top of leading screw (11), the bottom of leading screw (11) be fixedly connected on first the extruding plectane (12) in the heart, the central position of cover (2) is provided with tapped through hole (16), outside screw on the leading screw (11) matches with internal thread on the through hole (16), the first extruding plectane (12) is connected with the second extruding plectane (13) by thrust block (14), and air bag (15) is fixed on the bottom of the second extruding plectane (13).
3. the grape wine according to claim 2 machine that is made into one is characterized in that: be provided with rubber ring (18) between described the first extruding plectane (12) and the cover (2).
4. the grape wine according to claim 3 machine that is made into one, it is characterized in that: cover (2) is provided with sealing-ring A(17).
5. the grape wine according to claim 2 machine that is made into one is characterized in that: be provided with bearing (19) in the fermentor tank (3).
6. according to claim 2 or 3 or the 4 or 5 described grape wine machine that is made into one, it is characterized in that: body (1) is provided with water level gauge (20), the two ends of water level gauge (20) all are communicated with fermentor tank (3), and the lower end of water level gauge (20) is concordant with the bottom of fermentor tank (3).
7. the grape wine according to claim 6 machine that is made into one, it is characterized in that: the bottom of fermentor tank (3) is provided with outage (21), the below of outage (21) is provided with baffle plate (22), the bottom of baffle plate (22) is provided with steel pipe (23), steel pipe (23) is provided with return spring (24), and return spring (24) is positioned between the base plate (25) of steel pipe (23) and body (1).
8. the grape wine according to claim 7 machine that is made into one, it is characterized in that: the top of baffle plate (22) is provided with sealing-ring B(26).
9. the grape wine according to claim 1 machine that is made into one, it is characterized in that: the outer wall of body (1) is provided with handle (27).
10. the grape wine according to claim 8 machine that is made into one, it is characterized in that: the bottom of base plate (25) is provided with liquid discharge pipe (28).
